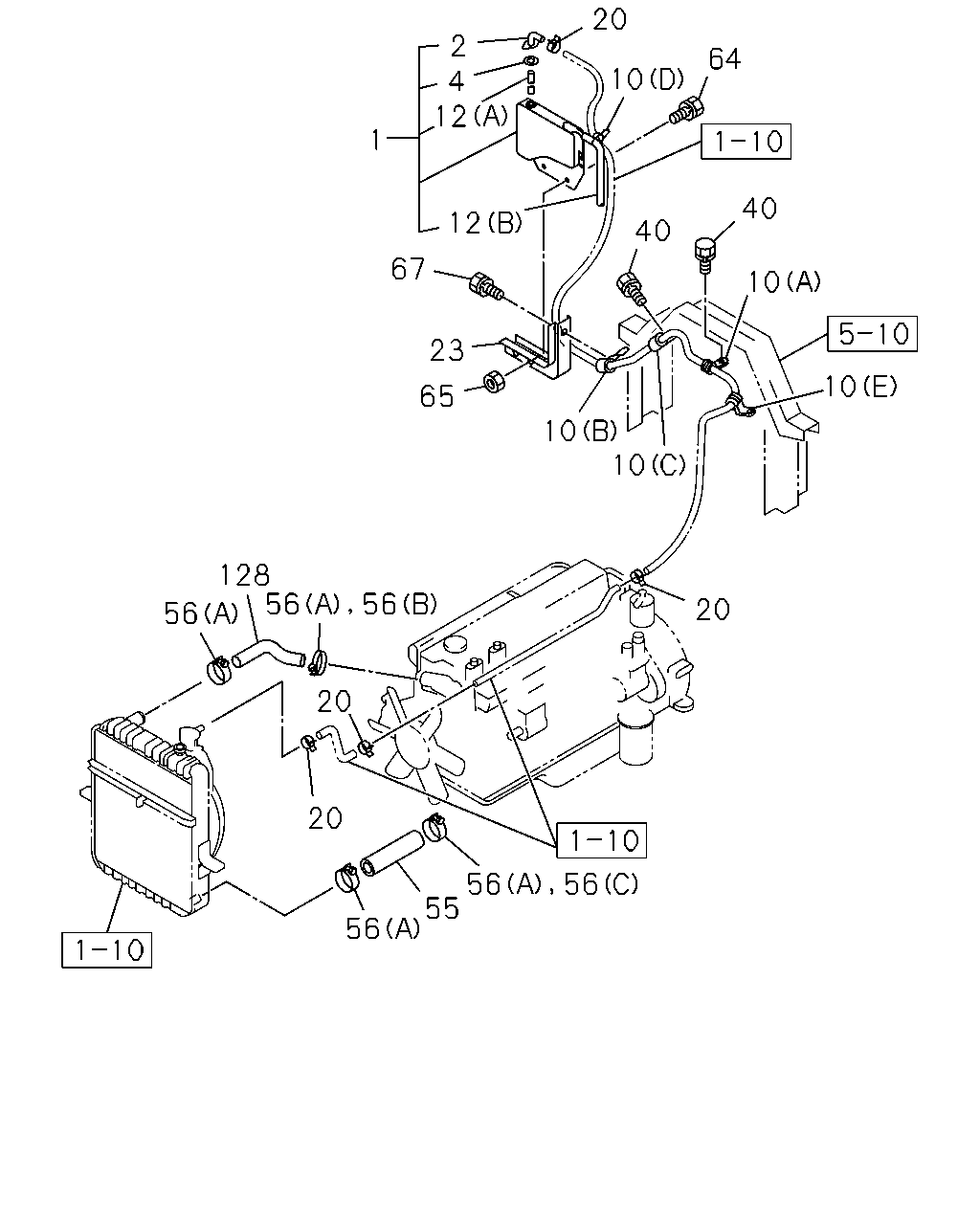

1-11 — RADIATOR HOSE AND SUB TANK (#63965) — 72 parça

20 2 4 12 64 10 1 40 12 40 67 10 23 10 65 10 10 128 56 56 20 56 20 20 56 55 56 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK; SURGE,RAD	1-21480-077-2	01	1	9601-9804	●	●
1	TANK; SURGE,RAD	1-21480-077-2	01	1	9805-9812	●	●	●
1	TANK; SURGE,RAD	1-21480-104-0	01	1	9901-0004	●	●	●
1	TANK; SURGE,RAD	1-21480-104-1	01	1	0005-		●	●
2	CAP; SURGE TANK	5-21483-001-1	01	1	9601-9804	●	●
2	CAP; SURGE TANK	5-21483-001-1	01	1	9805-9812	●	●	●
2	CAP; SURGE TANK	1-21483-008-0	01	1	9901-0004	●	●	●
2	CAP; SURGE TANK	1-21483-008-0	01	1	0005-		●	●
4	GASKET; SURGE TANK	5-21489-006-0	01	1	9601-9804	●	●
4	GASKET; SURGE TANK	5-21489-006-0	01	1	9805-0004	●	●	●
4	GASKET; SURGE TANK	5-21489-006-0	01	1	0005-		●	●
10	CLIP; RUBBER HOSE (E) ID=14 L=44	9-09917-427-0	01	1	0201-		●	●
10	CLIP; RUBBER HOSE (C) ID=14.5 L=40	1-09701-014-0	02	1	9601-9804	●	●
10	CLIP; RUBBER HOSE (C) ID=14.5 L=40	1-09701-014-0	02	1	9805-0004	●	●	●
10	CLIP; RUBBER HOSE (C) ID=14.5 L=40	1-09701-014-0	02	1	0005-		●	●
10	CLIP; RUBBER HOSE (D) L=140	5-09707-031-0	01	1	9601-9804	●	●
10	CLIP; RUBBER HOSE (D) L=140	5-09707-031-1	01	1	9805-0004	●	●	●
10	CLIP; RUBBER HOSE (D) L=140	5-09707-031-1	01	1	0005-		●	●
10	CLIP; RUBBER HOSE (A) ID=13 L=50	9-09525-286-0	01	1	9601-9804	●	●
10	CLIP; RUBBER HOSE (A) ID=13 L=50	9-09525-286-0	01	1	9805-0004	●	●	●
10	CLIP; RUBBER HOSE (A) ID=13	9-09525-255-0	01	1	0005-0010		●	●
10	CLIP; RUBBER HOSE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0011-		●	●
10	CLIP; RUBBER HOSE (B) ID=14 L=44	9-09917-427-0	01	1	9601-9804	●	●
10	CLIP; RUBBER HOSE (B) ID=14 L=44	9-09917-427-0	01	1	9805-0004	●	●	●
10	CLIP; RUBBER HOSE (B) ID=13 L=20	9-09525-235-0	01	1	0005-0606		●	●
10	CLIP; RUBBER HOSE (B) ID=13 L=20	0-95235-235-0	01	1	0607-		●	●
12	HOSE; SURGE TANK (A)	1-21489-203-0	01	1	9901-0004	●	●	●
12	HOSE; SURGE TANK (A)	1-21489-203-0	01	1	0005-		●	●
12	HOSE; SURGE TANK (B) L=300	1-09366-199-0	01	1	9601-9804	●	●
12	HOSE; SURGE TANK (B) L=300	1-09366-199-0	01	1	9805-0004	●	●	●
12	HOSE; SURGE TANK (B) L=300	1-09366-199-0	01	1	0005-		●	●
20	CLIP; HOSE,RAD ID=12	8-94238-610-0	04	1	9601-9804	●	●
20	CLIP; HOSE,RAD ID=12	8-94238-610-0	04	1	9805-0004	●	●	●
20	CLIP; HOSE,RAD ID=12	8-94238-610-0	04	1	0005-		●	●
23	BRACKET; RESERVE TANK	1-21489-128-0	01	1	9601-9804	●	●
23	BRACKET; RESERVE TANK	1-21489-128-0	01	1	9805-0004	●	●	●
23	BRACKET; RESERVE TANK	1-21489-128-0	01	1	0005-		●	●
40	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	03	1	9601-9606	●	●
40	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	03	1	9607-9804	●	●
40	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	03	1	9805-0004	●	●	●
40	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	04	1	0005-0512		●	●
40	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	04	1	0601-		●	●
55	HOSE; WATER,RAD OUTLET	1-21437-554-0	01	1	9601-		●
55	HOSE; WATER,RAD OUTLET	1-21437-543-0	01	1	9601-0004	●
55	HOSE; WATER,RAD OUTLET	1-21437-560-2	01	1	9805-			●
56	CLIP; WATER HOSE,RAD (B) ID=76	1-09704-069-0	01	1	9601-0004	●	●
56	CLIP; WATER HOSE,RAD (B) ID=76	1-09704-069-0	01	1	0005-		●
56	CLIP; WATER HOSE,RAD (C) ID=70	1-09704-078-0	01	1	9601-0004	●	●
56	CLIP; WATER HOSE,RAD (C) ID=70	1-09704-078-0	01	1	0005-		●
56	CLIP; WATER HOSE,RAD (A) ID=63	1-09704-067-0	02	1	9601-	●	●
56	CLIP; WATER HOSE,RAD (A) ID=63	1-09704-067-0	04	1	0009-			●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	9601-9804	●	●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	9805-0004	●	●	●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	0005-0707		●	●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-093-0	04	1	0708-		●	●
65	NUT; BRKT,SUB TANK M8	9-09110-408-0	04	1	9601-9606	●	●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91150-108-0	04	1	9607-9804	●	●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91150-108-0	04	1	9805-0004	●	●	●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91150-108-0	04	1	0005-0602		●	●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91180-108-0	04	1	0603-		●	●
67	BOLT; BRKT M10X20 FLANGE	0-28081-020-0	02	1	9601-9606	●	●
67	BOLT; BRKT M10X20 FLANGE	0-28681-020-0	02	1	9607-9804	●	●
67	BOLT; BRKT M10X20 FLANGE	0-28681-020-0	02	1	9805-0004	●	●	●
67	BOLT; BRKT M10X20 FLANGE	0-28681-020-0	02	1	0005-0512		●	●
67	BOLT; BRKT M10X20 FLANGE	0-28651-020-0	02	1	0601-		●	●
128	HOSE; WATER,RAD INL	1-21437-544-0	01	1	9601-9708	●	●
128	HOSE; WATER,RAD INL	1-21437-544-0	01	1	9709-0004		●
128	HOSE; WATER,RAD INL EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-21437-544-0	01	1	9709-0004	●
128	HOSE; WATER,RAD INL	1-21437-544-0	01	1	0005-		●
128	HOSE; WATER,RAD INL SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-21437-700-0	01	1	9709-0004	●
128	HOSE; WATER,RAD INL	1-21437-675-0	01	1	9805-0707			●
128	HOSE; WATER,RAD INL	1-21437-450-0	01	1	0708-			●
