Sayfa 1-10 - Isuzu EPC

1-10 — RADIATOR (#63964) — 396 parça

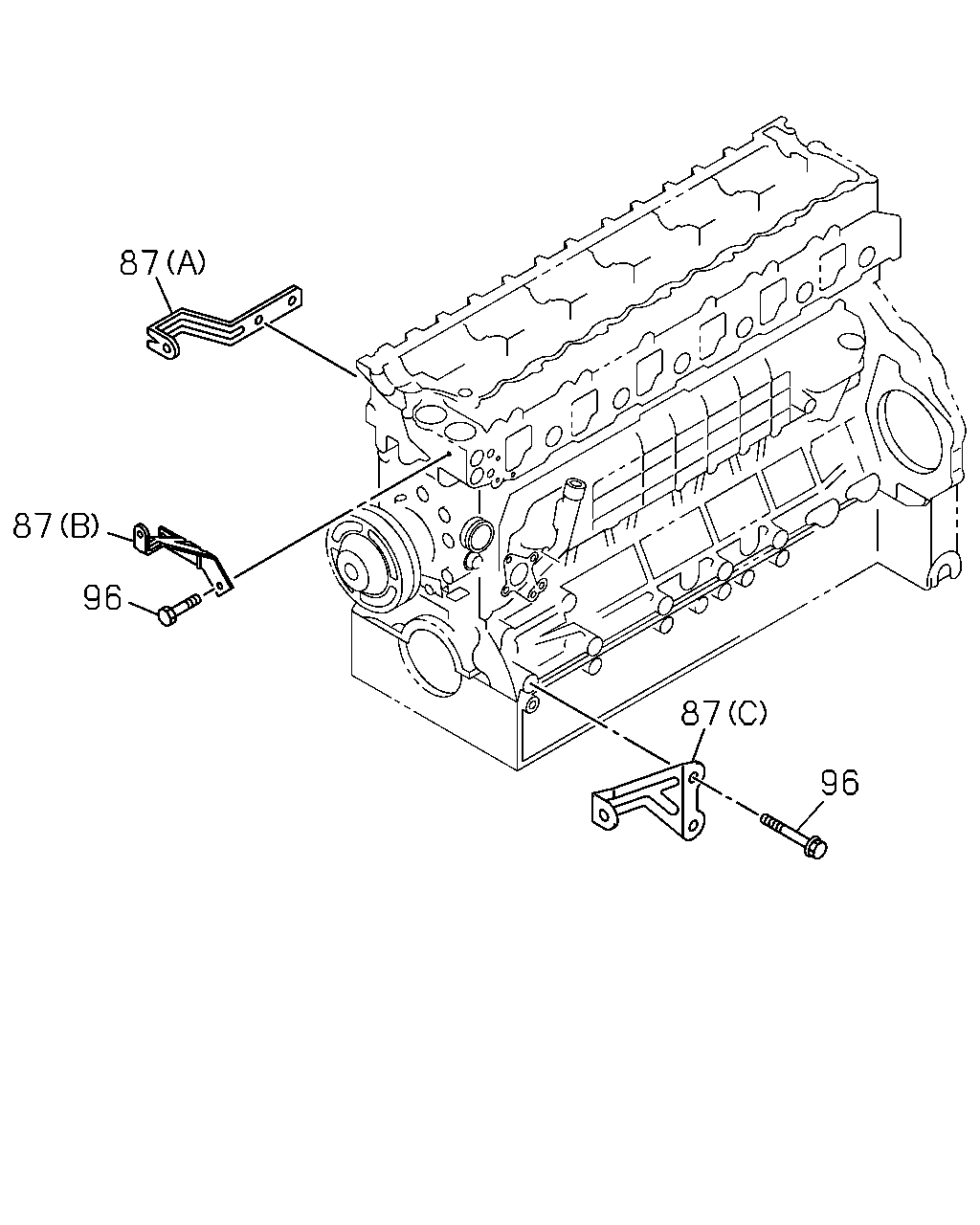

87 87 96 87 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
87	STAY; FAN GUIDE (A)	1-21559-365-0	01	1	9601-9612	●
87	STAY; FAN GUIDE (A)	1-21559-394-0	01	1	9701-	●
87	STAY; FAN GUIDE (B)	1-21559-366-0	01	1	9601-9612	●
87	STAY; FAN GUIDE (B)	1-21559-395-0	01	1	9701-	●
87	STAY; FAN GUIDE (C)	1-21559-373-0	01	1	9601-0004		●
87	STAY; FAN GUIDE (D)	1-21559-379-0	01	1	9601-0004		●
87	STAY; FAN GUIDE (C)	8-94394-775-0	01	1	9805-			●
87	STAY; FAN GUIDE (A)	8-94396-496-1	01	1	9805-			●
87	STAY; FAN GUIDE (B)	8-94397-395-1	01	1	9805-			●
96	BOLT; STAY FIX M8X16 FLANGE	0-28080-816-0	02	1	0005-0512	●
96	BOLT; STAY FIX M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
96	BOLT; STAY FIX M8X25 FLANGE	0-28080-825-0	02	1	0005-0512	●
96	BOLT; STAY FIX M8X25 FLANGE	0-28050-825-0	02	1	0601-	●
96	BOLT; STAY FIX M10X16 FLANGE	0-28181-016-0	02	1	9805-0512			●
96	BOLT; STAY FIX M10X16 FLANGE	0-28151-016-0	02	1	0601-			●

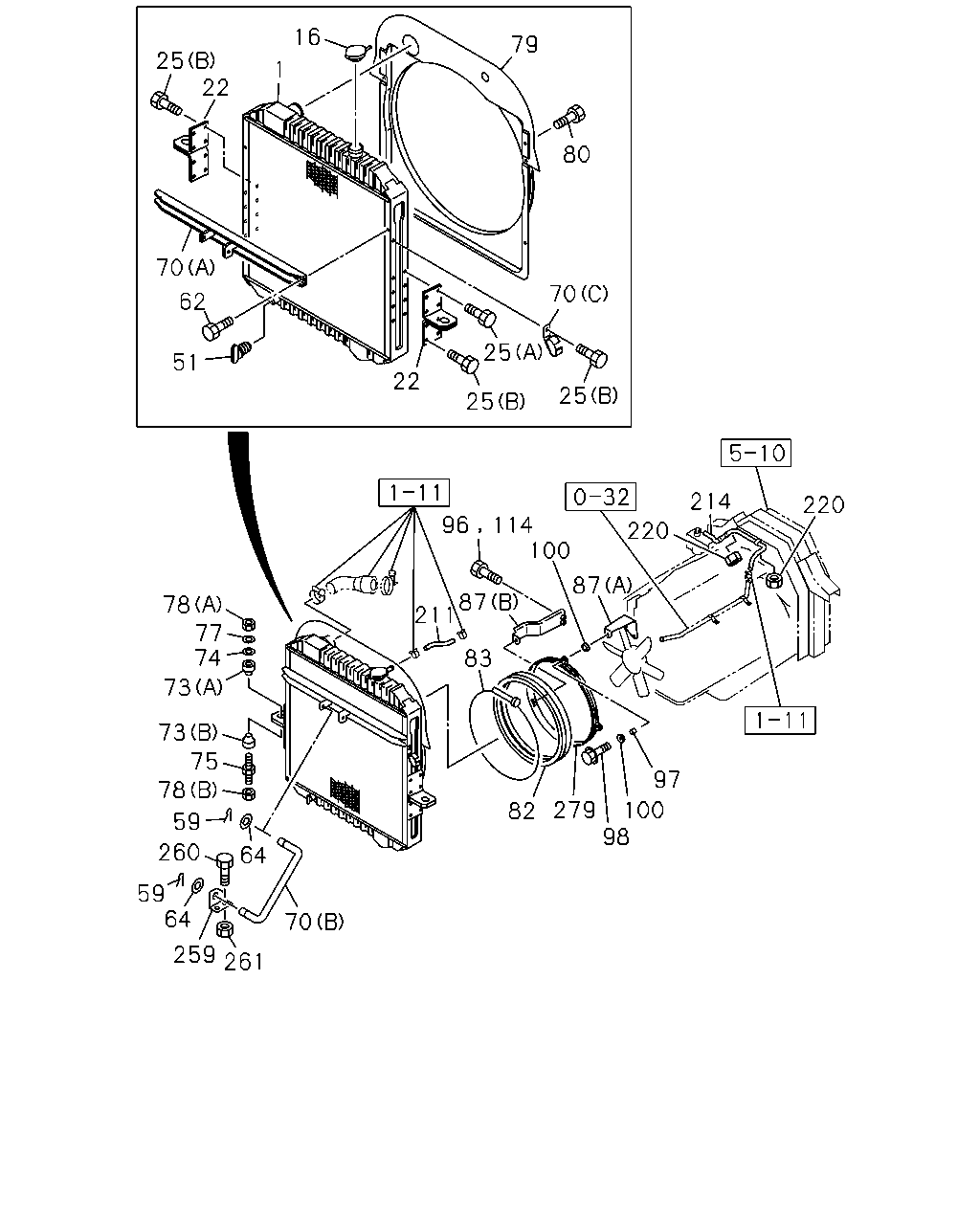

16 79 25 22 1 80 70 70 62 25 51 22 25 25 214 220 96 114 100 220 87 87 211 78 77 74 83 73 73 75 78 97 279 100 98 82 59 260 64 59 64 70 259 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	RADIATOR ASM	1-21410-675-1	01	1	9601-	●
1	RADIATOR ASM	1-21410-708-0	01	1	9601-0004		●
1	RADIATOR ASM	1-21410-711-1	01	1	9805-			●
16	CAP; RAD	1-21450-142-0	01	1	0310-			●
16	CAP; RAD	1-21450-053-1	01	1	9601-9804	●	●
16	CAP; RAD	1-21450-053-1	01	1	9805-0004	●	●	●
16	CAP; RAD	1-21450-053-1	01	1	0005-0309	●		●
16	CAP; RAD	1-21450-053-1	01	1	0310-	●
22	BRACKET; RAD MTG	1-21464-492-0	01	1	9601-	●
22	BRACKET; RAD MTG	1-21464-459-0	01	1	9601-9609	●	●
22	BRACKET; RAD MTG	1-21464-459-0	01	1	9610-	●
22	BRACKET; RAD MTG	1-21464-458-0	01	1	9601-0004		●
22	BRACKET; RAD MTG	1-21464-520-0	01	1	9610-0004		●
22	BRACKET; RAD MTG	1-21464-546-0	01	1	9805-0309			●
22	BRACKET; RAD MTG	1-21464-491-2	01	1	0310-			●
22	BRACKET; RAD MTG	1-21464-463-1	01	1	9805-			●
25	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	17	1	0310-			●
25	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	15	1	9601-9804	●
25	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	15	1	9805-0309	●		●
25	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	15	1	0310-	●
25	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	9601-9804	●
25	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	9805-	●		●
25	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	17	1	9601-0004		●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	9601-9804	●	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	9805-0004	●	●	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	0005-	●		●
59	PIN; SNAP,STAY	1-09987-158-1	02	1	9601-9804	●
59	PIN; SNAP,STAY	1-09987-158-1	02	1	9805-	●		●
62	BOLT; STAY M8X12 FLANGE	0-28080-812-0	03	1	9601-	●
62	BOLT; STAY M8X12 FLANGE	0-28080-812-0	02	1	9805-			●
64	WASHER; STAY TO RAD ID=12.5	9-09160-512-0	02	1	9601-9804	●
64	WASHER; STAY TO RAD ID=12.5	9-09160-512-0	02	1	9805-0605	●		●
64	WASHER; STAY TO RAD ID=12.5 OD=22	0-91610-512-0	02	1	0606-	●		●
70	STAY; RAD (A)	1-21522-064-0	01	1	9601-9804	●
70	STAY; RAD (A)	1-21522-064-0	01	1	9805-	●		●
70	STAY; RAD (B)	1-21522-070-0	01	1	9601-9804	●
70	STAY; RAD (B)	1-21522-070-0	01	1	9805-	●		●
70	STAY; RAD (C)	1-83571-875-0	01	1	9707-0004	●	●
70	STAY; RAD (C)	1-83571-875-0	01	1	0005-	●
73	RUBBER; CUSHION,RAD MTG (A) T=14	1-21467-004-0	02	1	9601-9804	●	●
73	RUBBER; CUSHION,RAD MTG (A) T=14	1-21467-004-0	02	1	9805-0004	●	●	●
73	RUBBER; CUSHION,RAD MTG (A) T=14	1-21467-004-0	02	1	0005-	●		●
73	RUBBER; CUSHION,RAD MTG (B) T=24	1-21467-011-1	02	1	9601-9804	●	●
73	RUBBER; CUSHION,RAD MTG (B) T=24	1-21467-011-1	02	1	9805-0004	●	●	●
73	RUBBER; CUSHION,RAD MTG (B) T=24	1-21467-011-1	02	1	0005-	●		●
74	WASHER; PL,CUSHION RUBBER ID=11 OD=54	1-09503-154-1	02	1	9601-9604	●	●
74	WASHER; PL,CUSHION RUBBER OD=55	9-09852-169-0	02	1	9605-9804	●	●
74	WASHER; PL,CUSHION RUBBER OD=55	9-09852-169-0	02	1	9805-0004	●	●	●
74	WASHER; PL,CUSHION RUBBER OD=55	9-09852-169-0	02	1	0005-	●		●
75	BOLT; CUSHION RUBBER,RAD MTG M12X26.5,M10X19 L=86.5	1-21466-007-2	02	1	9601-9804	●	●
75	BOLT; CUSHION RUBBER,RAD MTG M12X26.5,M10X19 L=86.5	1-21466-007-2	02	1	9805-0004	●	●	●
75	BOLT; CUSHION RUBBER,RAD MTG M12X26.5,M10X19 L=86.5	1-21466-007-3	02	1	0005-	●		●
77	WASHER; LK,CUSHION RUBBER ID=12.2	9-09150-512-0	02	1	9601-9702	●	●
78	NUT; CUSHION RUBBER (A) M10 FLANGE	5-09440-006-0	02	1	9601-9804	●	●
78	NUT; CUSHION RUBBER (A) M10 FLANGE	5-09440-006-0	02	1	9805-0004	●	●	●
78	NUT; CUSHION RUBBER (A) M10 FLANGE	5-09440-006-0	02	1	0005-	●		●
78	NUT; CUSHION RUBBER (B) M12	9-99110-512-0	02	1	9601-9702	●	●
78	NUT; CUSHION RUBBER (B) M12 FLANGE	0-91150-212-0	02	1	9703-9804	●	●
78	NUT; CUSHION RUBBER (B) M12 FLANGE	0-91150-212-0	02	1	9805-0004	●	●	●
78	NUT; CUSHION RUBBER (B) M12 FLANGE	0-91150-212-0	02	1	0005-0602	●		●
78	NUT; CUSHION RUBBER (B) M12 FLANGE	0-91180-212-0	02	1	0603-	●		●
79	GUIDE; FAN,RAD	1-21551-409-0	01	1	9601-	●
79	GUIDE; FAN,RAD	1-21551-397-1	01	1	9601-0004		●
79	GUIDE; FAN,RAD	1-21551-374-4	01	1	9805-			●
80	BOLT; FAN GUIDE M6X10 FLANGE	0-28080-610-0	04	1	9601-	●
80	BOLT; FAN GUIDE M6X12 FLANGE	0-28080-612-0	04	1	9601-9804		●
80	BOLT; FAN GUIDE M6X12 FLANGE	0-28080-612-0	04	1	9805-0004		●	●
80	BOLT; FAN GUIDE M6X12 FLANGE	0-28080-612-0	04	1	0005-			●
82	COVER; FAN,RAD	1-21559-211-0	01	1	9601-	●
82	COVER; FAN,RAD	1-21559-369-0	01	1	9601-9610		●
82	COVER; FAN,RAD	1-21559-397-0	01	1	9611-0004		●
82	COVER; FAN,RAD	1-21559-340-0	01	1	9805-			●
83	CLIP; FAN COVER	1-09707-177-2	01	1	9601-9804	●	●
83	CLIP; FAN COVER	1-09707-177-2	01	1	9805-0004	●	●	●
83	CLIP; FAN COVER	1-09707-177-2	01	1	0005-	●		●
87	STAY; FAN GUIDE (A)	1-21559-365-0	01	1	9601-9612	●
87	STAY; FAN GUIDE (A)	1-21559-394-0	01	1	9701-	●
87	STAY; FAN GUIDE (B)	1-21559-366-0	01	1	9601-9612	●
87	STAY; FAN GUIDE (B)	1-21559-395-0	01	1	9701-	●
87	STAY; FAN GUIDE (C)	1-21559-373-0	01	1	9601-0004		●
87	STAY; FAN GUIDE (D)	1-21559-379-0	01	1	9601-0004		●
87	STAY; FAN GUIDE (C)	8-94394-775-0	01	1	9805-			●
87	STAY; FAN GUIDE (A)	8-94396-496-1	01	1	9805-			●
87	STAY; FAN GUIDE (B)	8-94397-395-1	01	1	9805-			●
96	BOLT; STAY FIX M8X16 FLANGE	0-28080-816-0	02	1	0005-0512	●
96	BOLT; STAY FIX M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
96	BOLT; STAY FIX M8X25 FLANGE	0-28080-825-0	02	1	0005-0512	●
96	BOLT; STAY FIX M8X25 FLANGE	0-28050-825-0	02	1	0601-	●
96	BOLT; STAY FIX M10X16 FLANGE	0-28181-016-0	02	1	9805-0512			●
96	BOLT; STAY FIX M10X16 FLANGE	0-28151-016-0	02	1	0601-			●
97	TUBE; DIST,FAN GUIDE	9-09651-072-0	03	1	9607-9804	●	●
97	TUBE; DIST,FAN GUIDE	9-09651-072-0	03	1	9805-0004	●	●	●
97	TUBE; DIST,FAN GUIDE	9-09651-072-0	03	1	0005-	●		●
98	BOLT; RAD FAN GUIDE M8X45 FLANGE	0-28080-845-0	03	1	9701-0512	●
98	BOLT; RAD FAN GUIDE M8X45 FLANGE	0-28050-845-0	03	1	0601-	●
98	BOLT; RAD FAN GUIDE M8X25 FLANGE	0-28080-825-0	03	1	9601-9601	●	●
98	BOLT; RAD FAN GUIDE M8X30 FLANGE	0-28080-830-0	03	1	9602-9606	●	●
98	BOLT; RAD FAN GUIDE M8X30 FLANGE	0-28680-830-0	03	1	9607-9612	●	●
98	BOLT; RAD FAN GUIDE M8X30 FLANGE	0-28680-830-0	03	1	9701-9804		●
98	BOLT; RAD FAN GUIDE M8X30 FLANGE	0-28680-830-0	03	1	9805-0004		●	●
98	BOLT; RAD FAN GUIDE M8X30 FLANGE	0-28680-830-0	03	1	0005-0512			●
98	BOLT; RAD FAN GUIDE M8X30 FLANGE	0-28650-830-0	03	1	0601-			●
100	RUBBER; MTG	1-09337-027-0	06	1	9601-9606	●	●
100	RUBBER; MTG OD=32	8-94395-766-0	06	1	9607-9804	●	●
100	RUBBER; MTG OD=32	8-94395-766-0	06	1	9805-0004	●	●	●
100	RUBBER; MTG OD=32	8-94395-766-0	06	1	0005-	●		●
114	BOLT; STAY M8X25 FLANGE	0-28080-825-0	02	1	9601-0004	●
114	BOLT; STAY M8X16 FLANGE	0-28080-816-0	02	1	9601-0004	●	●
114	BOLT; STAY M8X16 FLANGE	0-28080-816-0	02	1	9601-0004		●
211	HOSE; RAD TO PIPE L=350 SERVICED BY L=3000	0-03257-300-0	01	1	9601-0004	●	●
211	HOSE; RAD TO PIPE L=350 SERVICED BY L=3000	0-03257-300-0	01	1	0005-0109	●
211	HOSE; RAD TO PIPE L=350 SERVICED BY L=3000	0-03557-300-0	01	1	0110-	●
211	HOSE; RAD TO PIPE L=290 SERVICED BY L=3000	0-03257-300-0	01	1	9805-0109			●
211	HOSE; RAD TO PIPE L=290 SERVICED BY L=3000	0-03557-300-0	01	1	0110-			●
214	HOSE; PIPE TO RESERVE TANK L=1200 SERVICED BY L=3000	0-03257-300-0	01	1	9601-0004	●	●
214	HOSE; PIPE TO RESERVE TANK L=1200 SERVICED BY L=3000	0-03257-300-0	01	1	0005-0109	●
214	HOSE; PIPE TO RESERVE TANK L=1200 SERVICED BY L=3000	0-03557-300-0	01	1	0110-	●
214	HOSE; PIPE TO RESERVE TANK L=1300 SERVICED BY L=3000	0-03257-300-0	01	1	9805-0109			●
214	HOSE; PIPE TO RESERVE TANK L=1300 SERVICED BY L=3000	0-03557-300-0	01	1	0110-			●
220	NUT; CLIP M8	9-09110-408-0	03	1	9601-9606	●	●
220	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	9607-9804	●	●
220	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	9805-0004	●	●	●
220	NUT; CLIP M8 FLANGE	0-91150-108-0	04	1	0005-0602	●		●
220	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	0603-	●		●
259	BRACKET; RAD STAY	1-21523-025-0	01	1	9601-9804	●
259	BRACKET; RAD STAY	1-21523-025-0	01	1	9805-	●		●
260	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●
260	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	9607-9804	●
260	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	9805-0512	●		●
260	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0601-	●		●
261	NUT; BRKT M8	9-09110-408-0	02	1	9601-9606	●
261	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-9804	●
261	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9805-0602	●		●
261	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●		●
279	BELL MOUTH	8-94394-174-1	01	1	9601-	●
279	BELL MOUTH	1-21551-395-0	01	1	9601-0004		●
279	BELL MOUTH	8-94394-808-2	01	1	9805-			●

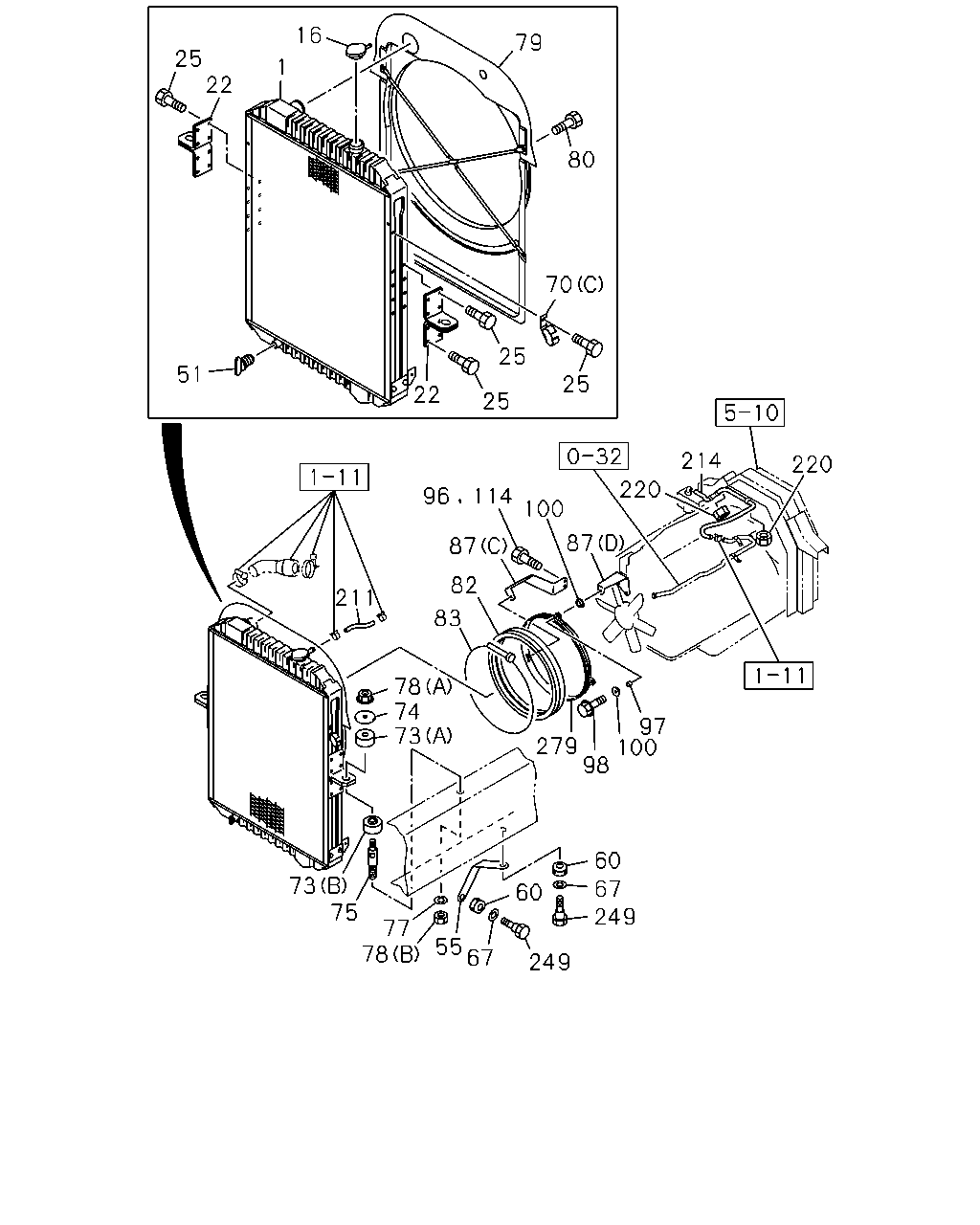

16 79 25 22 1 80 70 25 51 22 25 25 214 220 220 96 114 100 87 87 82 211 83 78 74 73 97 100 279 98 60 73 75 67 249 60 77 78 55 67 249

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	RADIATOR ASM	1-21410-675-1	01	1	9601-	●
1	RADIATOR ASM	1-21410-708-0	01	1	9601-0004		●
1	RADIATOR ASM	1-21410-711-1	01	1	9805-			●
16	CAP; RAD	1-21450-142-0	01	1	0310-			●
16	CAP; RAD	1-21450-053-1	01	1	9601-9804	●	●
16	CAP; RAD	1-21450-053-1	01	1	9805-0004	●	●	●
16	CAP; RAD	1-21450-053-1	01	1	0005-0309	●		●
16	CAP; RAD	1-21450-053-1	01	1	0310-	●
22	BRACKET; RAD MTG	1-21464-492-0	01	1	9601-	●
22	BRACKET; RAD MTG	1-21464-459-0	01	1	9601-9609	●	●
22	BRACKET; RAD MTG	1-21464-459-0	01	1	9610-	●
22	BRACKET; RAD MTG	1-21464-458-0	01	1	9601-0004		●
22	BRACKET; RAD MTG	1-21464-520-0	01	1	9610-0004		●
22	BRACKET; RAD MTG	1-21464-546-0	01	1	9805-0309			●
22	BRACKET; RAD MTG	1-21464-491-2	01	1	0310-			●
22	BRACKET; RAD MTG	1-21464-463-1	01	1	9805-			●
25	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	17	1	0310-			●
25	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	15	1	9601-9804	●
25	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	15	1	9805-0309	●		●
25	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	15	1	0310-	●
25	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	9601-9804	●
25	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	9805-	●		●
25	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	17	1	9601-0004		●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	9601-9804	●	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	9805-0004	●	●	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	0005-	●		●
55	STAY; RAD TO UPR MBR	1-21464-452-0	01	1	9601-0004		●
55	STAY; RAD TO UPR MBR	1-21464-453-0	01	1	9601-0004		●
60	GROMMET	1-09332-117-0	04	1	9601-0004		●
67	WASHER; PL,STAY,RAD MBR ID=12.5 OD=26	9-09160-612-0	04	1	9601-0004		●
70	STAY; RAD (A)	1-21522-064-0	01	1	9601-9804	●
70	STAY; RAD (A)	1-21522-064-0	01	1	9805-	●		●
70	STAY; RAD (B)	1-21522-070-0	01	1	9601-9804	●
70	STAY; RAD (B)	1-21522-070-0	01	1	9805-	●		●
70	STAY; RAD (C)	1-83571-875-0	01	1	9707-0004	●	●
70	STAY; RAD (C)	1-83571-875-0	01	1	0005-	●
73	RUBBER; CUSHION,RAD MTG (A) T=14	1-21467-004-0	02	1	9601-9804	●	●
73	RUBBER; CUSHION,RAD MTG (A) T=14	1-21467-004-0	02	1	9805-0004	●	●	●
73	RUBBER; CUSHION,RAD MTG (A) T=14	1-21467-004-0	02	1	0005-	●		●
73	RUBBER; CUSHION,RAD MTG (B) T=24	1-21467-011-1	02	1	9601-9804	●	●
73	RUBBER; CUSHION,RAD MTG (B) T=24	1-21467-011-1	02	1	9805-0004	●	●	●
73	RUBBER; CUSHION,RAD MTG (B) T=24	1-21467-011-1	02	1	0005-	●		●
74	WASHER; PL,CUSHION RUBBER ID=11 OD=54	1-09503-154-1	02	1	9601-9604	●	●
74	WASHER; PL,CUSHION RUBBER OD=55	9-09852-169-0	02	1	9605-9804	●	●
74	WASHER; PL,CUSHION RUBBER OD=55	9-09852-169-0	02	1	9805-0004	●	●	●
74	WASHER; PL,CUSHION RUBBER OD=55	9-09852-169-0	02	1	0005-	●		●
75	BOLT; CUSHION RUBBER,RAD MTG M12X26.5,M10X19 L=86.5	1-21466-007-2	02	1	9601-9804	●	●
75	BOLT; CUSHION RUBBER,RAD MTG M12X26.5,M10X19 L=86.5	1-21466-007-2	02	1	9805-0004	●	●	●
75	BOLT; CUSHION RUBBER,RAD MTG M12X26.5,M10X19 L=86.5	1-21466-007-3	02	1	0005-	●		●
77	WASHER; LK,CUSHION RUBBER ID=12.2	9-09150-512-0	02	1	9601-9702	●	●
78	NUT; CUSHION RUBBER (A) M10 FLANGE	5-09440-006-0	02	1	9601-9804	●	●
78	NUT; CUSHION RUBBER (A) M10 FLANGE	5-09440-006-0	02	1	9805-0004	●	●	●
78	NUT; CUSHION RUBBER (A) M10 FLANGE	5-09440-006-0	02	1	0005-	●		●
78	NUT; CUSHION RUBBER (B) M12	9-99110-512-0	02	1	9601-9702	●	●
78	NUT; CUSHION RUBBER (B) M12 FLANGE	0-91150-212-0	02	1	9703-9804	●	●
78	NUT; CUSHION RUBBER (B) M12 FLANGE	0-91150-212-0	02	1	9805-0004	●	●	●
78	NUT; CUSHION RUBBER (B) M12 FLANGE	0-91150-212-0	02	1	0005-0602	●		●
78	NUT; CUSHION RUBBER (B) M12 FLANGE	0-91180-212-0	02	1	0603-	●		●
79	GUIDE; FAN,RAD	1-21551-409-0	01	1	9601-	●
79	GUIDE; FAN,RAD	1-21551-397-1	01	1	9601-0004		●
79	GUIDE; FAN,RAD	1-21551-374-4	01	1	9805-			●
80	BOLT; FAN GUIDE M6X10 FLANGE	0-28080-610-0	04	1	9601-	●
80	BOLT; FAN GUIDE M6X12 FLANGE	0-28080-612-0	04	1	9601-9804		●
80	BOLT; FAN GUIDE M6X12 FLANGE	0-28080-612-0	04	1	9805-0004		●	●
80	BOLT; FAN GUIDE M6X12 FLANGE	0-28080-612-0	04	1	0005-			●
82	COVER; FAN,RAD	1-21559-211-0	01	1	9601-	●
82	COVER; FAN,RAD	1-21559-369-0	01	1	9601-9610		●
82	COVER; FAN,RAD	1-21559-397-0	01	1	9611-0004		●
82	COVER; FAN,RAD	1-21559-340-0	01	1	9805-			●
83	CLIP; FAN COVER	1-09707-177-2	01	1	9601-9804	●	●
83	CLIP; FAN COVER	1-09707-177-2	01	1	9805-0004	●	●	●
83	CLIP; FAN COVER	1-09707-177-2	01	1	0005-	●		●
87	STAY; FAN GUIDE (A)	1-21559-365-0	01	1	9601-9612	●
87	STAY; FAN GUIDE (A)	1-21559-394-0	01	1	9701-	●
87	STAY; FAN GUIDE (B)	1-21559-366-0	01	1	9601-9612	●
87	STAY; FAN GUIDE (B)	1-21559-395-0	01	1	9701-	●
87	STAY; FAN GUIDE (C)	1-21559-373-0	01	1	9601-0004		●
87	STAY; FAN GUIDE (D)	1-21559-379-0	01	1	9601-0004		●
87	STAY; FAN GUIDE (C)	8-94394-775-0	01	1	9805-			●
87	STAY; FAN GUIDE (A)	8-94396-496-1	01	1	9805-			●
87	STAY; FAN GUIDE (B)	8-94397-395-1	01	1	9805-			●
96	BOLT; STAY FIX M8X16 FLANGE	0-28080-816-0	02	1	0005-0512	●
96	BOLT; STAY FIX M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
96	BOLT; STAY FIX M8X25 FLANGE	0-28080-825-0	02	1	0005-0512	●
96	BOLT; STAY FIX M8X25 FLANGE	0-28050-825-0	02	1	0601-	●
96	BOLT; STAY FIX M10X16 FLANGE	0-28181-016-0	02	1	9805-0512			●
96	BOLT; STAY FIX M10X16 FLANGE	0-28151-016-0	02	1	0601-			●
97	TUBE; DIST,FAN GUIDE	9-09651-072-0	03	1	9607-9804	●	●
97	TUBE; DIST,FAN GUIDE	9-09651-072-0	03	1	9805-0004	●	●	●
97	TUBE; DIST,FAN GUIDE	9-09651-072-0	03	1	0005-	●		●
98	BOLT; RAD FAN GUIDE M8X45 FLANGE	0-28080-845-0	03	1	9701-0512	●
98	BOLT; RAD FAN GUIDE M8X45 FLANGE	0-28050-845-0	03	1	0601-	●
98	BOLT; RAD FAN GUIDE M8X25 FLANGE	0-28080-825-0	03	1	9601-9601	●	●
98	BOLT; RAD FAN GUIDE M8X30 FLANGE	0-28080-830-0	03	1	9602-9606	●	●
98	BOLT; RAD FAN GUIDE M8X30 FLANGE	0-28680-830-0	03	1	9607-9612	●	●
98	BOLT; RAD FAN GUIDE M8X30 FLANGE	0-28680-830-0	03	1	9701-9804		●
98	BOLT; RAD FAN GUIDE M8X30 FLANGE	0-28680-830-0	03	1	9805-0004		●	●
98	BOLT; RAD FAN GUIDE M8X30 FLANGE	0-28680-830-0	03	1	0005-0512			●
98	BOLT; RAD FAN GUIDE M8X30 FLANGE	0-28650-830-0	03	1	0601-			●
100	RUBBER; MTG	1-09337-027-0	06	1	9601-9606	●	●
100	RUBBER; MTG OD=32	8-94395-766-0	06	1	9607-9804	●	●
100	RUBBER; MTG OD=32	8-94395-766-0	06	1	9805-0004	●	●	●
100	RUBBER; MTG OD=32	8-94395-766-0	06	1	0005-	●		●
114	BOLT; STAY M8X25 FLANGE	0-28080-825-0	02	1	9601-0004	●
114	BOLT; STAY M8X16 FLANGE	0-28080-816-0	02	1	9601-0004	●	●
114	BOLT; STAY M8X16 FLANGE	0-28080-816-0	02	1	9601-0004		●
211	HOSE; RAD TO PIPE L=350 SERVICED BY L=3000	0-03257-300-0	01	1	9601-0004	●	●
211	HOSE; RAD TO PIPE L=350 SERVICED BY L=3000	0-03257-300-0	01	1	0005-0109	●
211	HOSE; RAD TO PIPE L=350 SERVICED BY L=3000	0-03557-300-0	01	1	0110-	●
211	HOSE; RAD TO PIPE L=290 SERVICED BY L=3000	0-03257-300-0	01	1	9805-0109			●
211	HOSE; RAD TO PIPE L=290 SERVICED BY L=3000	0-03557-300-0	01	1	0110-			●
214	HOSE; PIPE TO RESERVE TANK L=1200 SERVICED BY L=3000	0-03257-300-0	01	1	9601-0004	●	●
214	HOSE; PIPE TO RESERVE TANK L=1200 SERVICED BY L=3000	0-03257-300-0	01	1	0005-0109	●
214	HOSE; PIPE TO RESERVE TANK L=1200 SERVICED BY L=3000	0-03557-300-0	01	1	0110-	●
214	HOSE; PIPE TO RESERVE TANK L=1300 SERVICED BY L=3000	0-03257-300-0	01	1	9805-0109			●
214	HOSE; PIPE TO RESERVE TANK L=1300 SERVICED BY L=3000	0-03557-300-0	01	1	0110-			●
220	NUT; CLIP M8	9-09110-408-0	03	1	9601-9606	●	●
220	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	9607-9804	●	●
220	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	9805-0004	●	●	●
220	NUT; CLIP M8 FLANGE	0-91150-108-0	04	1	0005-0602	●		●
220	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	0603-	●		●
249	BOLT; STAY,RAD MBR M8X30	1-09009-020-1	04	1	9601-0004		●
279	BELL MOUTH	8-94394-174-1	01	1	9601-	●
279	BELL MOUTH	1-21551-395-0	01	1	9601-0004		●
279	BELL MOUTH	8-94394-808-2	01	1	9805-			●

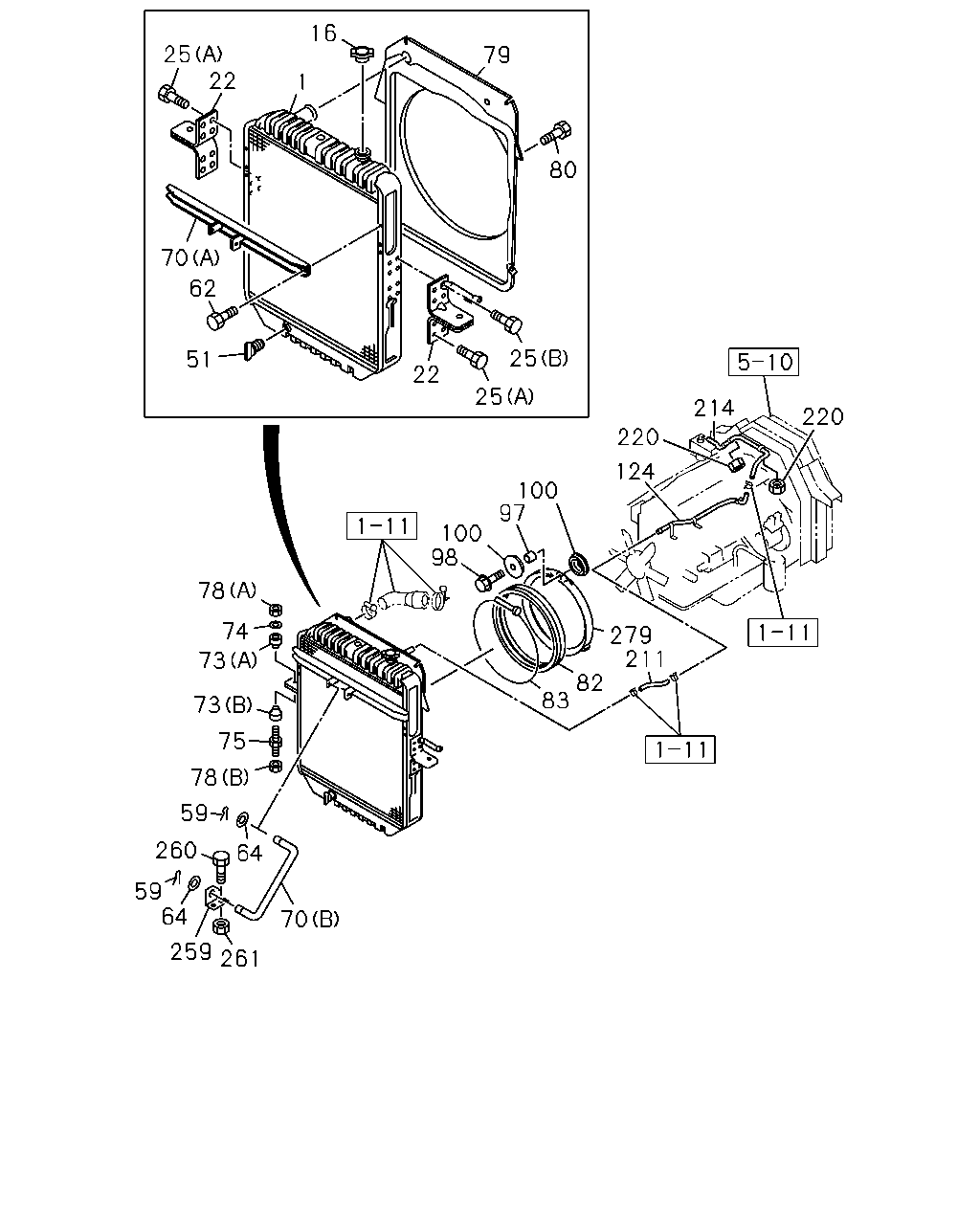

16 25 22 79 1 80 70 62 25 51 22 25 214 220 220 124 100 97 100 98 78 74 279 211 73 82 83 73 75 78 59 260 64 59 64 70 259 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	RADIATOR ASM	1-21410-675-1	01	1	9601-	●
1	RADIATOR ASM	1-21410-708-0	01	1	9601-0004		●
1	RADIATOR ASM	1-21410-711-1	01	1	9805-			●
16	CAP; RAD	1-21450-142-0	01	1	0310-			●
16	CAP; RAD	1-21450-053-1	01	1	9601-9804	●	●
16	CAP; RAD	1-21450-053-1	01	1	9805-0004	●	●	●
16	CAP; RAD	1-21450-053-1	01	1	0005-0309	●		●
16	CAP; RAD	1-21450-053-1	01	1	0310-	●
22	BRACKET; RAD MTG	1-21464-492-0	01	1	9601-	●
22	BRACKET; RAD MTG	1-21464-459-0	01	1	9601-9609	●	●
22	BRACKET; RAD MTG	1-21464-459-0	01	1	9610-	●
22	BRACKET; RAD MTG	1-21464-458-0	01	1	9601-0004		●
22	BRACKET; RAD MTG	1-21464-520-0	01	1	9610-0004		●
22	BRACKET; RAD MTG	1-21464-546-0	01	1	9805-0309			●
22	BRACKET; RAD MTG	1-21464-491-2	01	1	0310-			●
22	BRACKET; RAD MTG	1-21464-463-1	01	1	9805-			●
25	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	17	1	0310-			●
25	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	15	1	9601-9804	●
25	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	15	1	9805-0309	●		●
25	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	15	1	0310-	●
25	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	9601-9804	●
25	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	9805-	●		●
25	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	17	1	9601-0004		●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	9601-9804	●	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	9805-0004	●	●	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	0005-	●		●
59	PIN; SNAP,STAY	1-09987-158-1	02	1	9601-9804	●
59	PIN; SNAP,STAY	1-09987-158-1	02	1	9805-	●		●
62	BOLT; STAY M8X12 FLANGE	0-28080-812-0	03	1	9601-	●
62	BOLT; STAY M8X12 FLANGE	0-28080-812-0	02	1	9805-			●
64	WASHER; STAY TO RAD ID=12.5	9-09160-512-0	02	1	9601-9804	●
64	WASHER; STAY TO RAD ID=12.5	9-09160-512-0	02	1	9805-0605	●		●
64	WASHER; STAY TO RAD ID=12.5 OD=22	0-91610-512-0	02	1	0606-	●		●
70	STAY; RAD (A)	1-21522-064-0	01	1	9601-9804	●
70	STAY; RAD (A)	1-21522-064-0	01	1	9805-	●		●
70	STAY; RAD (B)	1-21522-070-0	01	1	9601-9804	●
70	STAY; RAD (B)	1-21522-070-0	01	1	9805-	●		●
70	STAY; RAD (C)	1-83571-875-0	01	1	9707-0004	●	●
70	STAY; RAD (C)	1-83571-875-0	01	1	0005-	●
73	RUBBER; CUSHION,RAD MTG (A) T=14	1-21467-004-0	02	1	9601-9804	●	●
73	RUBBER; CUSHION,RAD MTG (A) T=14	1-21467-004-0	02	1	9805-0004	●	●	●
73	RUBBER; CUSHION,RAD MTG (A) T=14	1-21467-004-0	02	1	0005-	●		●
73	RUBBER; CUSHION,RAD MTG (B) T=24	1-21467-011-1	02	1	9601-9804	●	●
73	RUBBER; CUSHION,RAD MTG (B) T=24	1-21467-011-1	02	1	9805-0004	●	●	●
73	RUBBER; CUSHION,RAD MTG (B) T=24	1-21467-011-1	02	1	0005-	●		●
74	WASHER; PL,CUSHION RUBBER ID=11 OD=54	1-09503-154-1	02	1	9601-9604	●	●
74	WASHER; PL,CUSHION RUBBER OD=55	9-09852-169-0	02	1	9605-9804	●	●
74	WASHER; PL,CUSHION RUBBER OD=55	9-09852-169-0	02	1	9805-0004	●	●	●
74	WASHER; PL,CUSHION RUBBER OD=55	9-09852-169-0	02	1	0005-	●		●
75	BOLT; CUSHION RUBBER,RAD MTG M12X26.5,M10X19 L=86.5	1-21466-007-2	02	1	9601-9804	●	●
75	BOLT; CUSHION RUBBER,RAD MTG M12X26.5,M10X19 L=86.5	1-21466-007-2	02	1	9805-0004	●	●	●
75	BOLT; CUSHION RUBBER,RAD MTG M12X26.5,M10X19 L=86.5	1-21466-007-3	02	1	0005-	●		●
78	NUT; CUSHION RUBBER (A) M10 FLANGE	5-09440-006-0	02	1	9601-9804	●	●
78	NUT; CUSHION RUBBER (A) M10 FLANGE	5-09440-006-0	02	1	9805-0004	●	●	●
78	NUT; CUSHION RUBBER (A) M10 FLANGE	5-09440-006-0	02	1	0005-	●		●
78	NUT; CUSHION RUBBER (B) M12	9-99110-512-0	02	1	9601-9702	●	●
78	NUT; CUSHION RUBBER (B) M12 FLANGE	0-91150-212-0	02	1	9703-9804	●	●
78	NUT; CUSHION RUBBER (B) M12 FLANGE	0-91150-212-0	02	1	9805-0004	●	●	●
78	NUT; CUSHION RUBBER (B) M12 FLANGE	0-91150-212-0	02	1	0005-0602	●		●
78	NUT; CUSHION RUBBER (B) M12 FLANGE	0-91180-212-0	02	1	0603-	●		●
79	GUIDE; FAN,RAD	1-21551-409-0	01	1	9601-	●
79	GUIDE; FAN,RAD	1-21551-397-1	01	1	9601-0004		●
79	GUIDE; FAN,RAD	1-21551-374-4	01	1	9805-			●
80	BOLT; FAN GUIDE M6X10 FLANGE	0-28080-610-0	04	1	9601-	●
80	BOLT; FAN GUIDE M6X12 FLANGE	0-28080-612-0	04	1	9601-9804		●
80	BOLT; FAN GUIDE M6X12 FLANGE	0-28080-612-0	04	1	9805-0004		●	●
80	BOLT; FAN GUIDE M6X12 FLANGE	0-28080-612-0	04	1	0005-			●
82	COVER; FAN,RAD	1-21559-211-0	01	1	9601-	●
82	COVER; FAN,RAD	1-21559-369-0	01	1	9601-9610		●
82	COVER; FAN,RAD	1-21559-397-0	01	1	9611-0004		●
82	COVER; FAN,RAD	1-21559-340-0	01	1	9805-			●
83	CLIP; FAN COVER	1-09707-177-2	01	1	9601-9804	●	●
83	CLIP; FAN COVER	1-09707-177-2	01	1	9805-0004	●	●	●
83	CLIP; FAN COVER	1-09707-177-2	01	1	0005-	●		●
97	TUBE; DIST,FAN GUIDE	9-09651-072-0	03	1	9607-9804	●	●
97	TUBE; DIST,FAN GUIDE	9-09651-072-0	03	1	9805-0004	●	●	●
97	TUBE; DIST,FAN GUIDE	9-09651-072-0	03	1	0005-	●		●
98	BOLT; RAD FAN GUIDE M8X45 FLANGE	0-28080-845-0	03	1	9701-0512	●
98	BOLT; RAD FAN GUIDE M8X45 FLANGE	0-28050-845-0	03	1	0601-	●
98	BOLT; RAD FAN GUIDE M8X25 FLANGE	0-28080-825-0	03	1	9601-9601	●	●
98	BOLT; RAD FAN GUIDE M8X30 FLANGE	0-28080-830-0	03	1	9602-9606	●	●
98	BOLT; RAD FAN GUIDE M8X30 FLANGE	0-28680-830-0	03	1	9607-9612	●	●
98	BOLT; RAD FAN GUIDE M8X30 FLANGE	0-28680-830-0	03	1	9701-9804		●
98	BOLT; RAD FAN GUIDE M8X30 FLANGE	0-28680-830-0	03	1	9805-0004		●	●
98	BOLT; RAD FAN GUIDE M8X30 FLANGE	0-28680-830-0	03	1	0005-0512			●
98	BOLT; RAD FAN GUIDE M8X30 FLANGE	0-28650-830-0	03	1	0601-			●
100	RUBBER; MTG	1-09337-027-0	06	1	9601-9606	●	●
100	RUBBER; MTG OD=32	8-94395-766-0	06	1	9607-9804	●	●
100	RUBBER; MTG OD=32	8-94395-766-0	06	1	9805-0004	●	●	●
100	RUBBER; MTG OD=32	8-94395-766-0	06	1	0005-	●		●
124	PIPE; WATER,TANK TO RAD	8-94394-461-4	01	1	9805-			●
211	HOSE; RAD TO PIPE L=350 SERVICED BY L=3000	0-03257-300-0	01	1	9601-0004	●	●
211	HOSE; RAD TO PIPE L=350 SERVICED BY L=3000	0-03257-300-0	01	1	0005-0109	●
211	HOSE; RAD TO PIPE L=350 SERVICED BY L=3000	0-03557-300-0	01	1	0110-	●
211	HOSE; RAD TO PIPE L=290 SERVICED BY L=3000	0-03257-300-0	01	1	9805-0109			●
211	HOSE; RAD TO PIPE L=290 SERVICED BY L=3000	0-03557-300-0	01	1	0110-			●
214	HOSE; PIPE TO RESERVE TANK L=1200 SERVICED BY L=3000	0-03257-300-0	01	1	9601-0004	●	●
214	HOSE; PIPE TO RESERVE TANK L=1200 SERVICED BY L=3000	0-03257-300-0	01	1	0005-0109	●
214	HOSE; PIPE TO RESERVE TANK L=1200 SERVICED BY L=3000	0-03557-300-0	01	1	0110-	●
214	HOSE; PIPE TO RESERVE TANK L=1300 SERVICED BY L=3000	0-03257-300-0	01	1	9805-0109			●
214	HOSE; PIPE TO RESERVE TANK L=1300 SERVICED BY L=3000	0-03557-300-0	01	1	0110-			●
220	NUT; CLIP M8	9-09110-408-0	03	1	9601-9606	●	●
220	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	9607-9804	●	●
220	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	9805-0004	●	●	●
220	NUT; CLIP M8 FLANGE	0-91150-108-0	04	1	0005-0602	●		●
220	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	0603-	●		●
259	BRACKET; RAD STAY	1-21523-025-0	01	1	9601-9804	●
259	BRACKET; RAD STAY	1-21523-025-0	01	1	9805-	●		●
260	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●
260	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	9607-9804	●
260	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	9805-0512	●		●
260	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0601-	●		●
261	NUT; BRKT M8	9-09110-408-0	02	1	9601-9606	●
261	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-9804	●
261	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9805-0602	●		●
261	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●		●
279	BELL MOUTH	8-94394-174-1	01	1	9601-	●
279	BELL MOUTH	1-21551-395-0	01	1	9601-0004		●
279	BELL MOUTH	8-94394-808-2	01	1	9805-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
