Sayfa 1-01 - Isuzu EPC

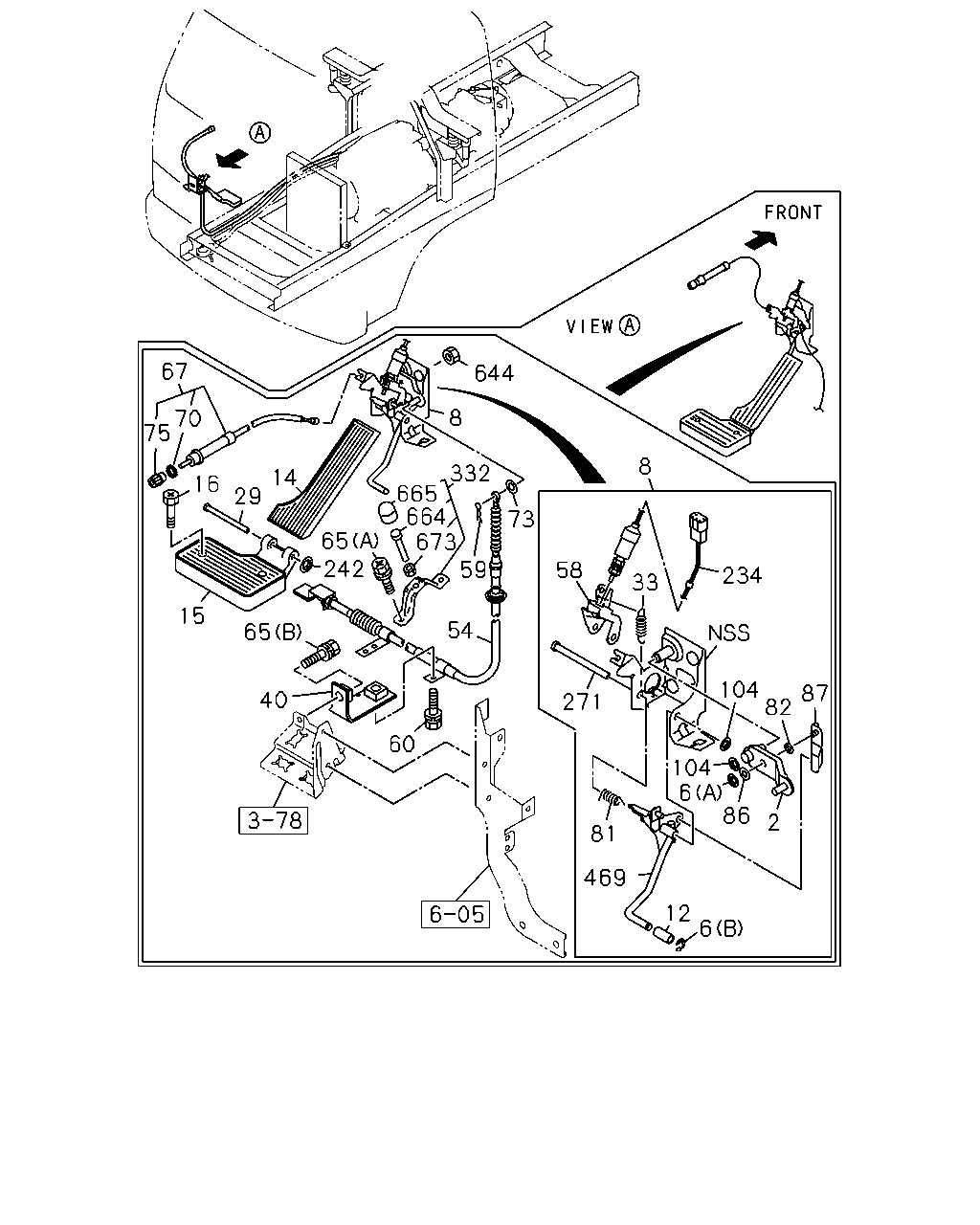

1-01 — ACCELERATOR PEDAL AND CONTROL (#63963) — 339 parça

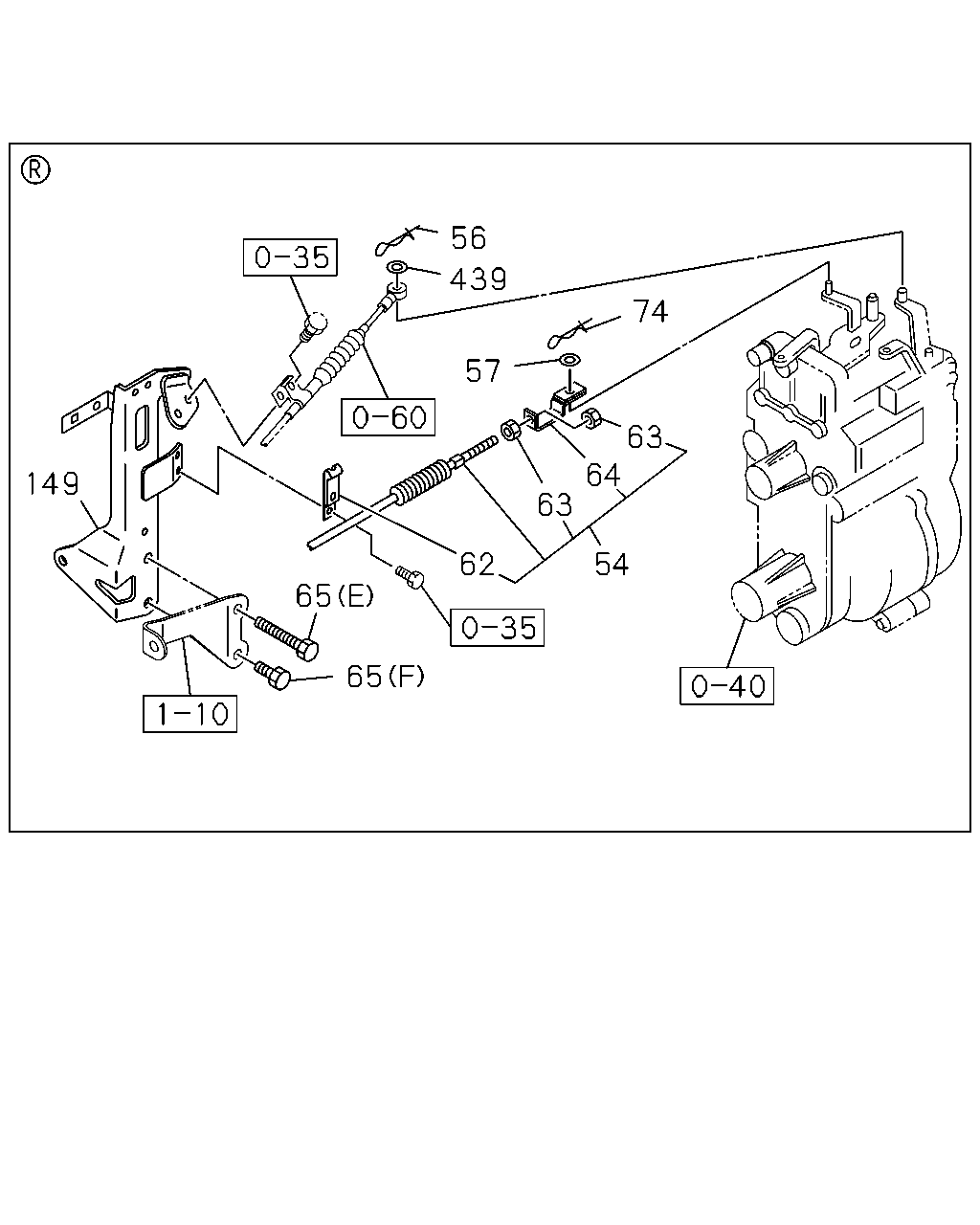

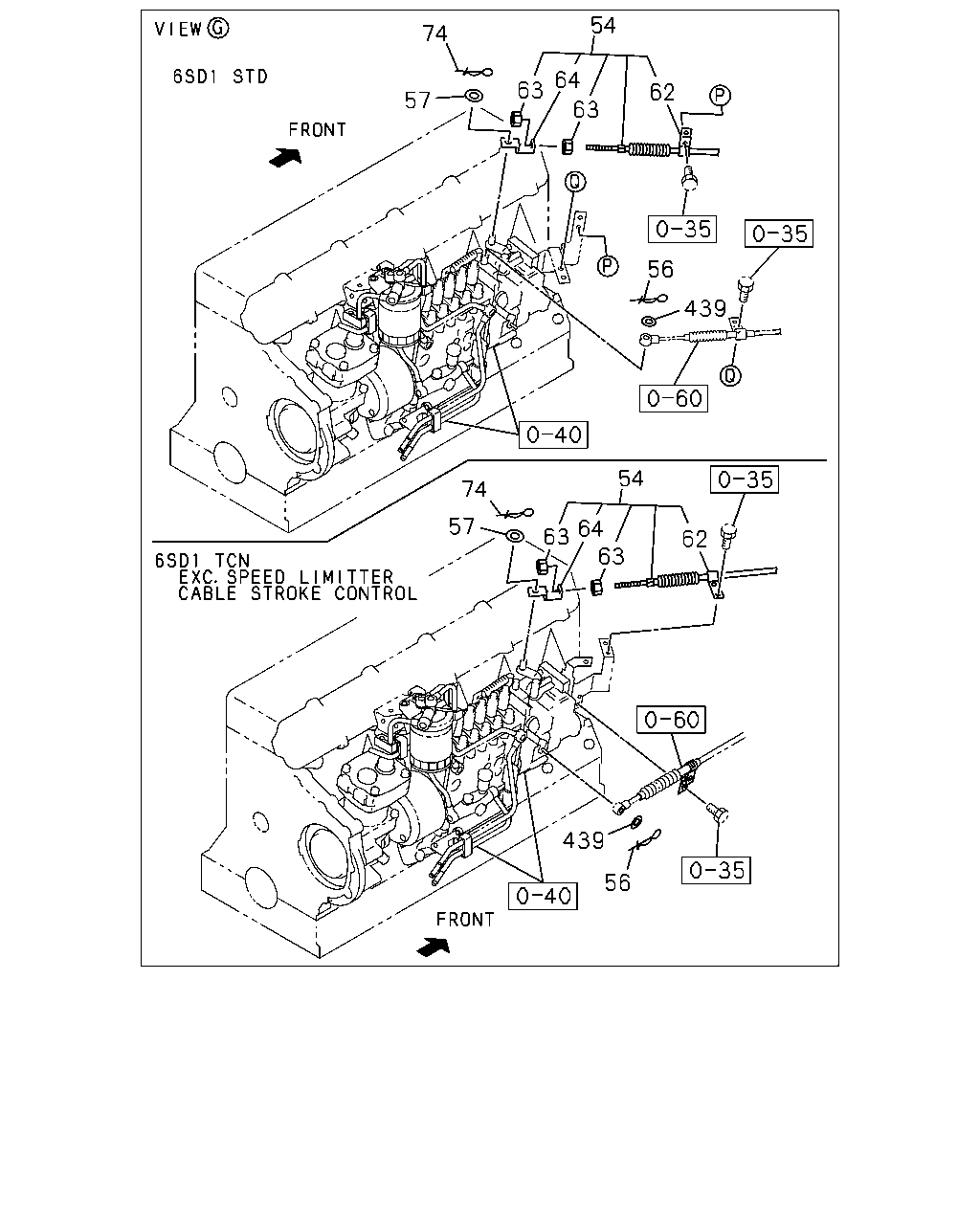

54 74 64 63 62 57 63 56 439 54 74 57 64 63 63 62 439 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
54	CABLE; ENG CONT L=2397	1-73996-295-7	01	1	9601-	●
54	CABLE; ENG CONT SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2536.5	1-73996-239-4	01	1	9601-0004		●
54	CABLE; ENG CONT EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2206.5	1-73996-299-5	01	1	9601-0004		●
54	CABLE; ENG CONT L=2939	1-73998-940-6	01	1	9805-			●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	9601-0004	●	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	0005-	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-015-0	01	1	9805-			●
57	WASHER; ENG CONT CABLE ID=8.4	9-09160-508-0	01	1	9601-9804	●	●
57	WASHER; ENG CONT CABLE ID=8.4	9-09160-508-0	01	1	9805-0004	●	●	●
57	WASHER; ENG CONT CABLE ID=8.4	9-09160-508-0	01	1	0005-0605	●		●
57	WASHER; ENG CONT CABLE ID=8.4 OD=16	0-91610-508-0	01	1	0606-	●		●
62	CLIP; ENG CONT CABLE L=30	1-09700-326-0	01	1	9601-9804	●
62	CLIP; ENG CONT CABLE L=30	1-09700-326-0	01	1	9805-9911	●		●
62	CLIP; ENG CONT CABLE L=30	1-09700-326-0	01	1	9912-	●
62	CLIP; ENG CONT CABLE EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=16	1-09700-597-0	01	1	9601-0004		●
62	CLIP; ENG CONT CABLE L=30	1-09701-104-0	01	1	9912-0007			●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9601-0004	●	●	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	0005-	●		●
64	BRACKET; ENG CONT CABLE	1-23219-105-1	01	1	9601-0004	●	●	●
64	BRACKET; ENG CONT CABLE	1-23219-105-1	01	1	0005-	●		●
74	PIN; SNAP,CABLE END L=27.7	1-09747-005-0	01	1	9601-9804	●	●
74	PIN; SNAP,CABLE END L=27.7	8-94157-841-0	01	1	9805-1509			●
74	PIN; SNAP,CABLE END L=27.7	1-09987-141-0	01	1	1510-			●
74	PIN; SNAP,CABLE END L=27.7	1-09747-005-0	01	1	9805-0004	●	●
74	PIN; SNAP,CABLE END L=27.7	1-09747-005-0	01	1	0005-	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9601-9804	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9805-0004	●	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	0005-0605	●		●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	0-91610-505-0	01	1	0606-	●		●

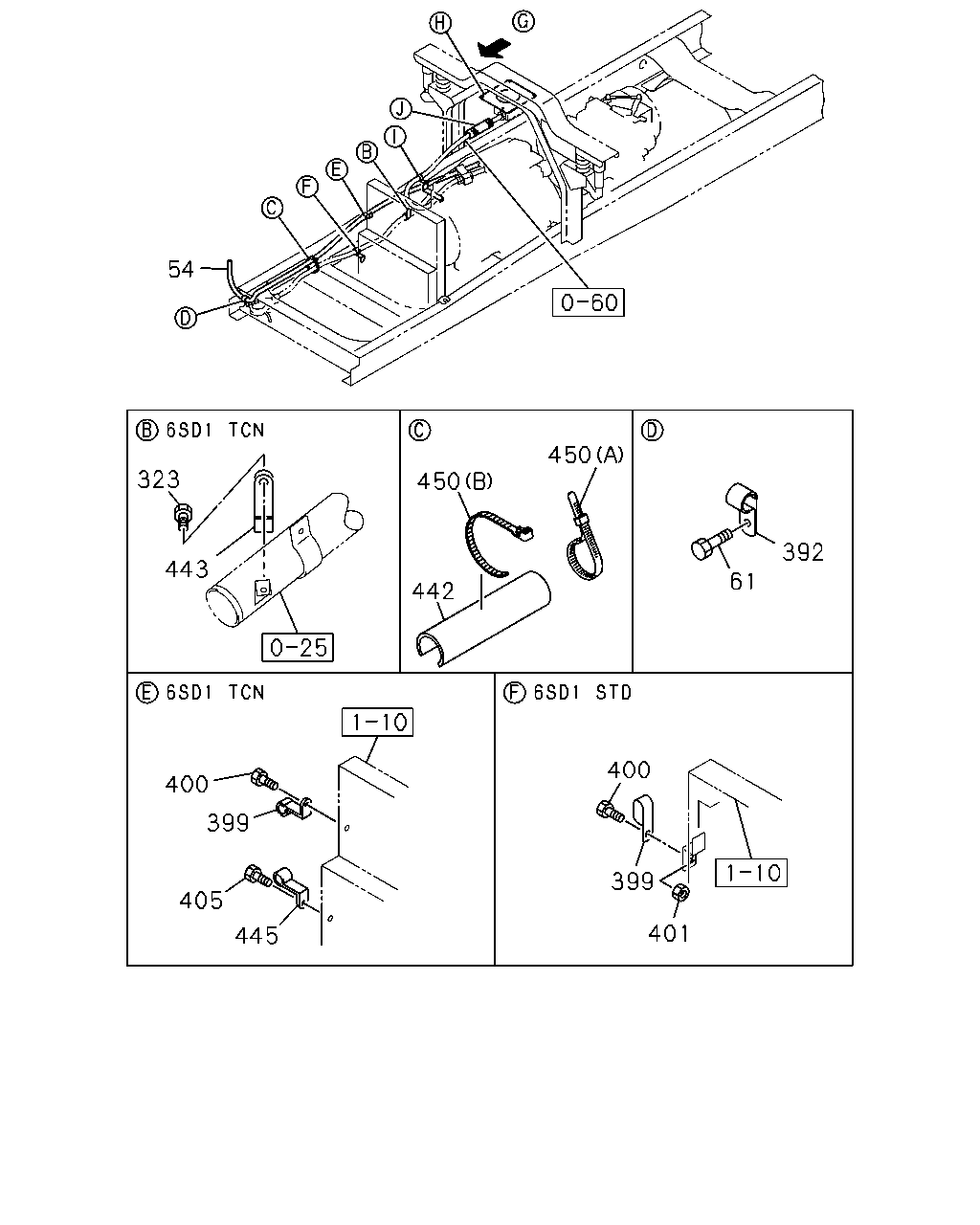

54 450 323 450 392 443 61 442 400 400 399 399 405 401 445

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
54	CABLE; ENG CONT L=2397	1-73996-295-7	01	1	9601-	●
54	CABLE; ENG CONT SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2536.5	1-73996-239-4	01	1	9601-0004		●
54	CABLE; ENG CONT EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2206.5	1-73996-299-5	01	1	9601-0004		●
54	CABLE; ENG CONT L=2939	1-73998-940-6	01	1	9805-			●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 FLANGE	0-28080-816-0	01	1	9805-0004	●	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 FLANGE	0-28080-816-0	01	1	0005-0512	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 FLANGE	0-28050-816-0	01	1	0601-	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 FLANGE	0-28080-816-0	02	1	9805-0512			●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 FLANGE	0-28050-816-0	02	1	0601-			●
323	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9601-9804		●
323	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9805-0004		●	●
323	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9805-0004			●
323	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0005-0512			●
323	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-			●
392	CLIP; ACCEL CONT CABLE ID=13 L=32	9-09525-265-0	01	1	9805-0004	●	●
392	CLIP; ACCEL CONT CABLE ID=13 L=32	9-09525-265-0	01	1	0005-0606	●
392	CLIP; ACCEL CONT CABLE ID=13 L=32	0-95235-265-0	01	1	0607-	●
392	CLIP; ACCEL CONT CABLE ID=13 L=32	9-09525-265-0	02	1	9805-0606			●
392	CLIP; ACCEL CONT CABLE ID=13 L=32	0-95235-265-0	02	1	0607-			●
399	CLIP; CABLE,RAD SIDE ID=9X2 L=20	9-09534-835-0	01	1	9601-9706	●
399	CLIP; CABLE,RAD SIDE	1-09701-260-0	01	1	9707-9804	●
399	CLIP; CABLE,RAD SIDE	1-09701-260-0	01	1	9805-	●		●
399	CLIP; CABLE,RAD SIDE ID=9 L=25 H=45	1-09700-867-0	01	1	9601-0004		●
400	BOLT; CLIP,RAD SIDE M8X16 FLANGE	0-28080-816-0	01	1	9601-9804	●	●
400	BOLT; CLIP,RAD SIDE M8X16 FLANGE	0-28080-816-0	01	1	9805-0004	●	●	●
400	BOLT; CLIP,RAD SIDE M8X16 FLANGE	0-28080-816-0	01	1	0005-0512	●		●
400	BOLT; CLIP,RAD SIDE M8X16 FLANGE	0-28050-816-0	01	1	0601-	●		●
401	NUT; CLIP,RAD SIDE M8	9-09110-408-0	01	1	9601-9609	●
401	NUT; CLIP,RAD SIDE M8 FLANGE	0-91150-108-0	01	1	9610-9804	●
401	NUT; CLIP,RAD SIDE M8 FLANGE	0-91150-108-0	01	1	9805-0602	●		●
401	NUT; CLIP,RAD SIDE M8 FLANGE	0-91180-108-0	01	1	0603-	●		●
405	BOLT; CABLE CLIP SPEED LIMITER CABLE STROKE CONTROL<TDT> M8X16 FLANGE	0-28080-816-0	01	1	9601-0004		●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28080-816-0	01	1	9601-0004		●
442	SLEEVE; RUBBER,OIL PIPE L=1300	1-09360-677-1	01	1	9903-0004	●	●
442	SLEEVE; RUBBER,OIL PIPE L=1300	1-09360-677-1	01	1	0005-	●
443	CLIP; CABLE ID=7 L=20	9-09524-635-0	01	1	9601-9804		●
443	CLIP; CABLE (A) ID=7 L=20	9-09524-635-0	01	1	9805-0606			●
443	CLIP; CABLE (A) ID=7 L=20	0-95234-635-0	01	1	0607-			●
443	CLIP; CABLE (B) ID=7 L=16	9-09524-625-0	01	1	9805-9806			●
443	CLIP; CABLE ID=7 L=16	9-09524-625-0	01	1	9805-0004		●
445	CLIP; RAD	1-09700-082-0	01	1	9601-0004		●
450	CLIP; BAND (A) L=140	5-09707-031-0	02	1	9601-9804	●	●
450	CLIP; BAND (A) L=140	5-09707-031-1	02	1	9805-0004	●	●	●
450	CLIP; BAND (A) L=140	5-09707-031-1	02	1	0005-	●		●
450	CLIP; BAND (B) L=250	5-09707-030-1	01	1	9903-0004	●	●
450	CLIP; BAND (B) L=250	5-09707-030-1	01	1	0005-	●

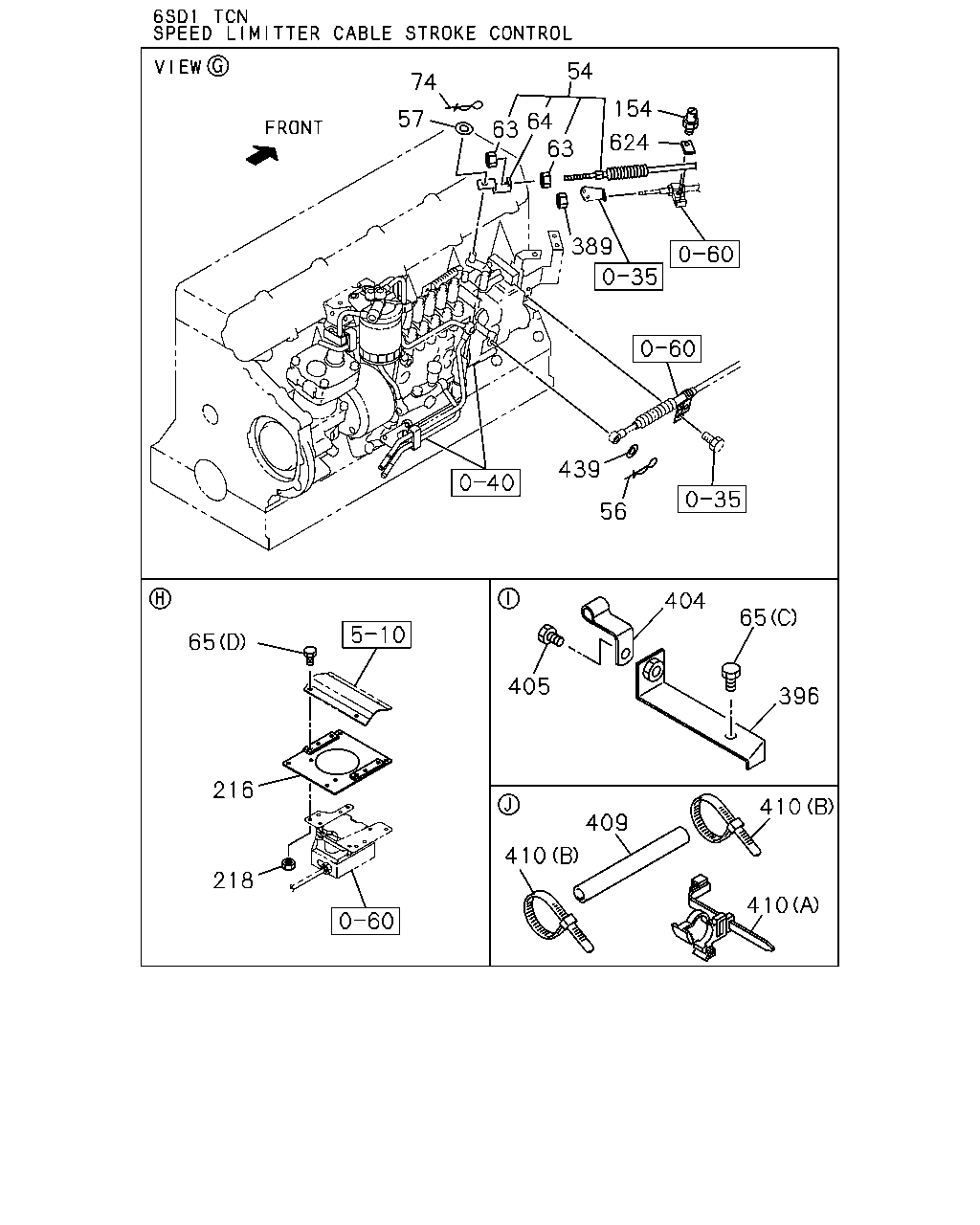

54 74 154 57 64 63 63 624 389 439 56 404 65 65 405 396 216 410 409 410 218 410

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
54	CABLE; ENG CONT L=2397	1-73996-295-7	01	1	9601-	●
54	CABLE; ENG CONT SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2536.5	1-73996-239-4	01	1	9601-0004		●
54	CABLE; ENG CONT EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2206.5	1-73996-299-5	01	1	9601-0004		●
54	CABLE; ENG CONT L=2939	1-73998-940-6	01	1	9805-			●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	9601-0004	●	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	0005-	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-015-0	01	1	9805-			●
57	WASHER; ENG CONT CABLE ID=8.4	9-09160-508-0	01	1	9601-9804	●	●
57	WASHER; ENG CONT CABLE ID=8.4	9-09160-508-0	01	1	9805-0004	●	●	●
57	WASHER; ENG CONT CABLE ID=8.4	9-09160-508-0	01	1	0005-0605	●		●
57	WASHER; ENG CONT CABLE ID=8.4 OD=16	0-91610-508-0	01	1	0606-	●		●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9601-0004	●	●	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	0005-	●		●
64	BRACKET; ENG CONT CABLE	1-23219-105-1	01	1	9601-0004	●	●	●
64	BRACKET; ENG CONT CABLE	1-23219-105-1	01	1	0005-	●		●
65	BOLT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9601-9804	●	●
65	BOLT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9805-0004	●	●	●
65	BOLT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-	●		●
65	BOLT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9601-9804	●	●
65	BOLT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9805-0904	●	●	●
65	BOLT (B) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-	●		●
65	BOLT SPEED LIMITER CABLE STROKE CONTROL<TDT> (C) M8X20 FLANGE	0-28080-820-0	01	1	9601-9603		●
65	BOLT SPEED LIMITER CABLE STROKE CONTROL<TDT> (D) M8X30 FLANGE	0-28080-830-0	04	1	9601-9606		●
65	BOLT SPEED LIMITER CABLE STROKE CONTROL<TDT> (D) M8X35 FLANGE	0-28680-835-0	04	1	9607-0004		●
65	BOLT (E) M10X60	0-16811-060-0	01	1	9805-0512			●
65	BOLT (E) M10X60	0-16861-060-0	01	1	0601-			●
65	BOLT (F) M10X20 FLANGE	0-28181-020-0	01	1	9805-0512			●
65	BOLT (F) M10X20 FLANGE	0-28151-020-0	01	1	0601-			●
74	PIN; SNAP,CABLE END L=27.7	1-09747-005-0	01	1	9601-9804	●	●
74	PIN; SNAP,CABLE END L=27.7	8-94157-841-0	01	1	9805-1509			●
74	PIN; SNAP,CABLE END L=27.7	1-09987-141-0	01	1	1510-			●
74	PIN; SNAP,CABLE END L=27.7	1-09747-005-0	01	1	9805-0004	●	●
74	PIN; SNAP,CABLE END L=27.7	1-09747-005-0	01	1	0005-	●
154	BOLT; CABLE BRKT SPEED LIMITER CABLE STROKE CONTROL<TDT>	9-23321-272-0	01	1	9601-0004		●
216	BRACKET SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-47477-687-0	01	1	9601-0004		●
218	NUT; BRKT SPEED LIMITER CABLE STROKE CONTROL<TDT> M8	9-09110-408-0	04	1	9601-9606		●
218	NUT; BRKT SPEED LIMITER CABLE STROKE CONTROL<TDT> M8 FLANGE	0-91150-108-0	04	1	9607-0004		●
389	NUT; ACCEL CONT CABLE FIX SPEED LIMITER CABLE STROKE CONTROL<TDT> M6 FLANGE	0-91150-106-0	01	1	9601-9907		●
389	NUT; ACCEL CONT CABLE FIX SPEED LIMITER CABLE STROKE CONTROL<TDT> M6 FLANGE	0-91150-106-0	02	1	9908-0004		●
396	BRACKET; CLIP SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-47477-664-2	01	1	9601-9603		●
404	CLIP; CABLE SPEED LIMITER CABLE STROKE CONTROL<TDT> ID=10 & 10 M8	1-09701-220-0	01	1	9601-9602		●
404	CLIP; CABLE SPEED LIMITER CABLE STROKE CONTROL<TDT> ID=11 H=45 L=25	1-09700-866-0	01	1	9603-9708		●
404	CLIP; CABLE SPEED LIMITER CABLE STROKE CONTROL<TDT> ID=18 L=25 H=50	1-09701-096-0	01	1	9709-9804		●
404	CLIP; CABLE SPEED LIMITER CABLE STROKE CONTROL<TDT> ID=11 H=45 L=25	1-09700-866-0	01	1	9805-9907		●
404	CLIP; CABLE SPEED LIMITER CABLE STROKE CONTROL<TDT> ID=18 L=25 H=50	1-09701-096-0	01	1	9908-0004		●
405	BOLT; CABLE CLIP SPEED LIMITER CABLE STROKE CONTROL<TDT> M8X16 FLANGE	0-28080-816-0	01	1	9601-0004		●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28080-816-0	01	1	9601-0004		●
409	SLEEVE SPEED LIMITER CABLE STROKE CONTROL<TDT> ID=29 OD=39 L=40	1-09337-013-0	01	1	9601-9601		●
409	SLEEVE SPEED LIMITER CABLE STROKE CONTROL<TDT> ID=9.5 OD=14.5 L=120	9-09913-202-1	02	1	9602-9602		●
409	SLEEVE SPEED LIMITER CABLE STROKE CONTROL<TDT> ID=9.5 OD=14.5 L=120	9-09913-202-1	01	1	9603-9804		●
410	CLIP; BAND SPEED LIMITER CABLE STROKE CONTROL<TDT> (B) L=140	5-09707-031-0	01	1	9601-9601		●
410	CLIP; BAND SPEED LIMITER CABLE STROKE CONTROL<TDT> (B) L=140	5-09707-031-0	04	1	9602-9602		●
410	CLIP; BAND SPEED LIMITER CABLE STROKE CONTROL<TDT> (B) L=140	5-09707-031-0	02	1	9603-9804		●
410	CLIP; BAND SPEED LIMITER CABLE STROKE CONTROL<TDT> (A)	1-09707-187-0	01	1	9709-9804		●
410	CLIP; BAND SPEED LIMITER CABLE STROKE CONTROL<TDT> (A)	1-09707-187-0	01	1	9811-0004		●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9601-9804	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9805-0004	●	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	0005-0605	●		●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	0-91610-505-0	01	1	0606-	●		●
624	PLATE; CONT LINK SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-47477-576-0	01	1	9601-0004		●

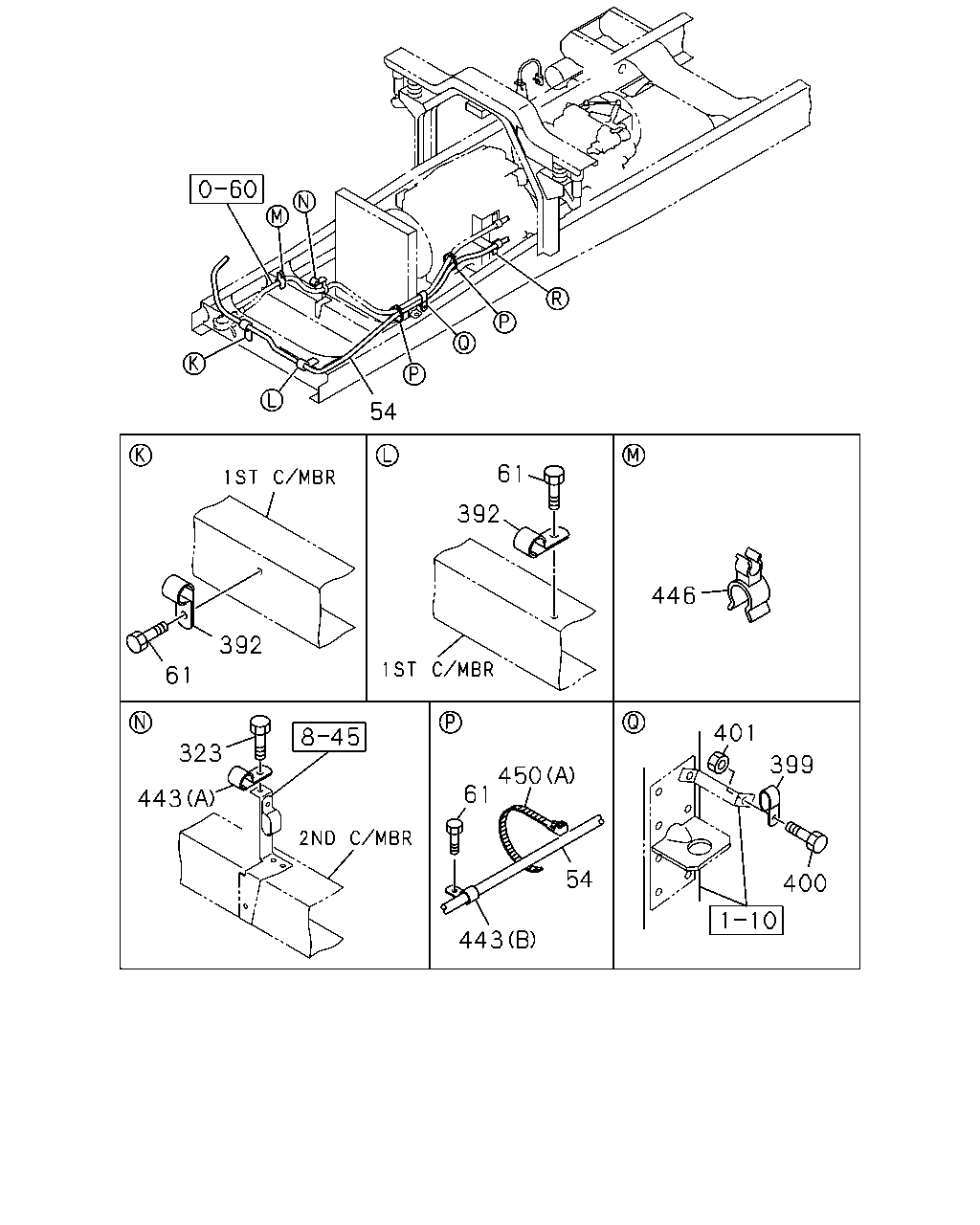

54 61 392 446 392 61 401 323 399 450 61 443 54 400 443

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
54	CABLE; ENG CONT L=2397	1-73996-295-7	01	1	9601-	●
54	CABLE; ENG CONT SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2536.5	1-73996-239-4	01	1	9601-0004		●
54	CABLE; ENG CONT EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2206.5	1-73996-299-5	01	1	9601-0004		●
54	CABLE; ENG CONT L=2939	1-73998-940-6	01	1	9805-			●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 FLANGE	0-28080-816-0	01	1	9805-0004	●	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 FLANGE	0-28080-816-0	01	1	0005-0512	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 FLANGE	0-28050-816-0	01	1	0601-	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 FLANGE	0-28080-816-0	02	1	9805-0512			●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 FLANGE	0-28050-816-0	02	1	0601-			●
323	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9601-9804		●
323	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9805-0004		●	●
323	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9805-0004			●
323	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0005-0512			●
323	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-			●
392	CLIP; ACCEL CONT CABLE ID=13 L=32	9-09525-265-0	01	1	9805-0004	●	●
392	CLIP; ACCEL CONT CABLE ID=13 L=32	9-09525-265-0	01	1	0005-0606	●
392	CLIP; ACCEL CONT CABLE ID=13 L=32	0-95235-265-0	01	1	0607-	●
392	CLIP; ACCEL CONT CABLE ID=13 L=32	9-09525-265-0	02	1	9805-0606			●
392	CLIP; ACCEL CONT CABLE ID=13 L=32	0-95235-265-0	02	1	0607-			●
399	CLIP; CABLE,RAD SIDE ID=9X2 L=20	9-09534-835-0	01	1	9601-9706	●
399	CLIP; CABLE,RAD SIDE	1-09701-260-0	01	1	9707-9804	●
399	CLIP; CABLE,RAD SIDE	1-09701-260-0	01	1	9805-	●		●
399	CLIP; CABLE,RAD SIDE ID=9 L=25 H=45	1-09700-867-0	01	1	9601-0004		●
400	BOLT; CLIP,RAD SIDE M8X16 FLANGE	0-28080-816-0	01	1	9601-9804	●	●
400	BOLT; CLIP,RAD SIDE M8X16 FLANGE	0-28080-816-0	01	1	9805-0004	●	●	●
400	BOLT; CLIP,RAD SIDE M8X16 FLANGE	0-28080-816-0	01	1	0005-0512	●		●
400	BOLT; CLIP,RAD SIDE M8X16 FLANGE	0-28050-816-0	01	1	0601-	●		●
401	NUT; CLIP,RAD SIDE M8	9-09110-408-0	01	1	9601-9609	●
401	NUT; CLIP,RAD SIDE M8 FLANGE	0-91150-108-0	01	1	9610-9804	●
401	NUT; CLIP,RAD SIDE M8 FLANGE	0-91150-108-0	01	1	9805-0602	●		●
401	NUT; CLIP,RAD SIDE M8 FLANGE	0-91180-108-0	01	1	0603-	●		●
443	CLIP; CABLE ID=7 L=20	9-09524-635-0	01	1	9601-9804		●
443	CLIP; CABLE (A) ID=7 L=20	9-09524-635-0	01	1	9805-0606			●
443	CLIP; CABLE (A) ID=7 L=20	0-95234-635-0	01	1	0607-			●
443	CLIP; CABLE (B) ID=7 L=16	9-09524-625-0	01	1	9805-9806			●
443	CLIP; CABLE ID=7 L=16	9-09524-625-0	01	1	9805-0004		●
446	CLIP; ENG CONT ID=6.8X11.8	1-09709-127-0	01	1	9805-			●
450	CLIP; BAND (A) L=140	5-09707-031-0	02	1	9601-9804	●	●
450	CLIP; BAND (A) L=140	5-09707-031-1	02	1	9805-0004	●	●	●
450	CLIP; BAND (A) L=140	5-09707-031-1	02	1	0005-	●		●
450	CLIP; BAND (B) L=250	5-09707-030-1	01	1	9903-0004	●	●
450	CLIP; BAND (B) L=250	5-09707-030-1	01	1	0005-	●

56 439 74 57 63 64 149 63 62 54 65 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
54	CABLE; ENG CONT L=2397	1-73996-295-7	01	1	9601-	●
54	CABLE; ENG CONT SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2536.5	1-73996-239-4	01	1	9601-0004		●
54	CABLE; ENG CONT EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2206.5	1-73996-299-5	01	1	9601-0004		●
54	CABLE; ENG CONT L=2939	1-73998-940-6	01	1	9805-			●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	9601-0004	●	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	0005-	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-015-0	01	1	9805-			●
57	WASHER; ENG CONT CABLE ID=8.4	9-09160-508-0	01	1	9601-9804	●	●
57	WASHER; ENG CONT CABLE ID=8.4	9-09160-508-0	01	1	9805-0004	●	●	●
57	WASHER; ENG CONT CABLE ID=8.4	9-09160-508-0	01	1	0005-0605	●		●
57	WASHER; ENG CONT CABLE ID=8.4 OD=16	0-91610-508-0	01	1	0606-	●		●
62	CLIP; ENG CONT CABLE L=30	1-09700-326-0	01	1	9601-9804	●
62	CLIP; ENG CONT CABLE L=30	1-09700-326-0	01	1	9805-9911	●		●
62	CLIP; ENG CONT CABLE L=30	1-09700-326-0	01	1	9912-	●
62	CLIP; ENG CONT CABLE EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=16	1-09700-597-0	01	1	9601-0004		●
62	CLIP; ENG CONT CABLE L=30	1-09701-104-0	01	1	9912-0007			●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9601-0004	●	●	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	0005-	●		●
64	BRACKET; ENG CONT CABLE	1-23219-105-1	01	1	9601-0004	●	●	●
64	BRACKET; ENG CONT CABLE	1-23219-105-1	01	1	0005-	●		●
65	BOLT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9601-9804	●	●
65	BOLT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9805-0004	●	●	●
65	BOLT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-	●		●
65	BOLT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9601-9804	●	●
65	BOLT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9805-0904	●	●	●
65	BOLT (B) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-	●		●
65	BOLT SPEED LIMITER CABLE STROKE CONTROL<TDT> (C) M8X20 FLANGE	0-28080-820-0	01	1	9601-9603		●
65	BOLT SPEED LIMITER CABLE STROKE CONTROL<TDT> (D) M8X30 FLANGE	0-28080-830-0	04	1	9601-9606		●
65	BOLT SPEED LIMITER CABLE STROKE CONTROL<TDT> (D) M8X35 FLANGE	0-28680-835-0	04	1	9607-0004		●
65	BOLT (E) M10X60	0-16811-060-0	01	1	9805-0512			●
65	BOLT (E) M10X60	0-16861-060-0	01	1	0601-			●
65	BOLT (F) M10X20 FLANGE	0-28181-020-0	01	1	9805-0512			●
65	BOLT (F) M10X20 FLANGE	0-28151-020-0	01	1	0601-			●
74	PIN; SNAP,CABLE END L=27.7	1-09747-005-0	01	1	9601-9804	●	●
74	PIN; SNAP,CABLE END L=27.7	8-94157-841-0	01	1	9805-1509			●
74	PIN; SNAP,CABLE END L=27.7	1-09987-141-0	01	1	1510-			●
74	PIN; SNAP,CABLE END L=27.7	1-09747-005-0	01	1	9805-0004	●	●
74	PIN; SNAP,CABLE END L=27.7	1-09747-005-0	01	1	0005-	●
149	BRACKET; ENG CONT	8-94390-006-2	01	1	9805-			●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9601-9804	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9805-0004	●	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	0005-0605	●		●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	0-91610-505-0	01	1	0606-	●		●

67 644 8 70 75 332 8 14 16 665 664 673 59 29 73 65 242 58 234 33 15 54 65 104 82 87 40 271 60 104 6 86 2 81 469 12 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	LEVER; ENG CONT	1-71907-210-2	01	1	9601-9804	●	●
2	LEVER; ENG CONT	1-71907-210-2	01	1	9805-0004	●	●	●
2	LEVER; ENG CONT	1-71907-210-2	01	1	0005-	●		●
6	RING; SNAP,LINK TO LINK (A) ID=4	9-09185-404-0	02	1	9601-9804	●	●
6	RING; SNAP,LINK TO LINK (A) ID=4	9-09185-404-0	02	1	9805-0004	●	●	●
6	RING; SNAP,LINK TO LINK (A) ID=4	9-09185-404-0	02	1	0005-0604	●		●
6	RING; SNAP,LINK TO LINK (A) ID=4	0-91805-504-0	02	1	0605-	●		●
6	RING; SNAP,LINK TO LINK (B) ID=6	9-09185-406-0	01	1	9601-9802	●	●
8	LINK ASM; ENG CONT	1-73996-206-6	01	1	9601-9804	●	●
8	LINK ASM; ENG CONT	1-73996-206-6	01	1	9805-0004	●	●	●
8	LINK ASM; ENG CONT	1-73996-206-6	01	1	0005-	●		●
12	ROLLER; ENG CONT LEVER	1-09989-007-0	01	1	9601-9802	●	●
14	PAD; PEDAL,ACCEL	1-23241-021-0	01	1	9601-9708	●	●
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	9709-9804	●	●
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	9805-0004	●	●	●
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	0005-	●		●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-2	01	1	9601-9804	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-2	01	1	9805-0004	●	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-3	01	1	0005-	●		●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X20 W/LK&PL WASHER	8-94279-202-0	02	1	9601-9804	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X20 W/LK&PL WASHER	8-94279-202-0	02	1	9805-9902	●	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	9903-0004	●	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	0005-	●		●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	9601-9804	●	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	9805-0004	●	●	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	0005-	●		●
33	SPRING; IDLING CONT LEVER	8-94414-815-0	01	1	9601-9804	●	●
33	SPRING; IDLING CONT LEVER	8-94414-815-0	01	1	9805-0004	●	●	●
33	SPRING; IDLING CONT LEVER	8-94414-815-0	01	1	0005-	●		●
40	BRACKET; ENG CONT CABLE	1-47477-148-2	01	1	9601-9804	●	●
40	BRACKET; ENG CONT CABLE	1-47477-148-2	01	1	9805-9908	●	●	●
40	BRACKET; ENG CONT CABLE	1-47478-612-0	01	1	9909-	●	●	●
54	CABLE; ENG CONT L=2397	1-73996-295-7	01	1	9601-	●
54	CABLE; ENG CONT SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2536.5	1-73996-239-4	01	1	9601-0004		●
54	CABLE; ENG CONT EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2206.5	1-73996-299-5	01	1	9601-0004		●
54	CABLE; ENG CONT L=2939	1-73998-940-6	01	1	9805-			●
58	LEVER; IDLING CONT	1-71907-242-1	01	1	9601-9804	●	●
58	LEVER; IDLING CONT	1-71907-242-1	01	1	9805-0004	●	●	●
58	LEVER; IDLING CONT	1-71907-242-1	01	1	0005-	●		●
59	PIN; SNAP,ENG CONT CABLE L=27.7	1-09747-005-0	01	1	9601-9804	●	●
59	PIN; SNAP,ENG CONT CABLE L=27.7	1-09747-005-0	01	1	9805-0004	●	●	●
59	PIN; SNAP,ENG CONT CABLE L=27.7	1-09747-005-0	01	1	0005-	●		●
60	BOLT; CABLE M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9601-9804	●	●
60	BOLT; CABLE M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9805-0004	●	●	●
60	BOLT; CABLE M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0005-0904	●		●
60	BOLT; CABLE M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-	●		●
65	BOLT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9601-9804	●	●
65	BOLT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9805-0004	●	●	●
65	BOLT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-	●		●
65	BOLT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9601-9804	●	●
65	BOLT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9805-0904	●	●	●
65	BOLT (B) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-	●		●
65	BOLT SPEED LIMITER CABLE STROKE CONTROL<TDT> (C) M8X20 FLANGE	0-28080-820-0	01	1	9601-9603		●
65	BOLT SPEED LIMITER CABLE STROKE CONTROL<TDT> (D) M8X30 FLANGE	0-28080-830-0	04	1	9601-9606		●
65	BOLT SPEED LIMITER CABLE STROKE CONTROL<TDT> (D) M8X35 FLANGE	0-28680-835-0	04	1	9607-0004		●
65	BOLT (E) M10X60	0-16811-060-0	01	1	9805-0512			●
65	BOLT (E) M10X60	0-16861-060-0	01	1	0601-			●
65	BOLT (F) M10X20 FLANGE	0-28181-020-0	01	1	9805-0512			●
65	BOLT (F) M10X20 FLANGE	0-28151-020-0	01	1	0601-			●
67	CABLE ASM; IDLE CONT L=399	1-73998-912-3	01	1	9601-9804	●	●
67	CABLE ASM; IDLE CONT L=399	1-73998-912-3	01	1	9805-0004	●	●	●
67	CABLE ASM; IDLE CONT L=399	1-73998-912-3	01	1	0005-0204	●		●
67	CABLE ASM; IDLE CONT L=315	1-73908-423-1	01	1	0205-	●		●
70	NUT; CONT CABLE	1-73908-045-1	01	1	9601-9804	●	●
70	NUT; CONT CABLE	1-73908-045-1	01	1	9805-0004	●	●	●
70	NUT; CONT CABLE	1-73908-045-1	01	1	0005-	●		●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4	9-09160-508-0	01	1	9601-9804	●	●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4	9-09160-508-0	01	1	9805-0004	●	●	●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4	9-09160-508-0	01	1	0005-0605	●		●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4 OD=16	0-91610-508-0	01	1	0606-	●		●
75	KNOB ASM; IDLING CONT	8-97066-797-1	01	1	9601-9804	●	●
75	KNOB ASM; IDLING CONT	8-97066-797-1	01	1	9805-0004	●	●	●
75	KNOB ASM; IDLING CONT	8-97066-797-1	01	1	0005-0109	●		●
75	KNOB ASM; IDLING CONT	8-97137-504-0	01	1	0110-0204	●		●
75	KNOB ASM; IDLING CONT	1-73908-409-0	01	1	0205-	●		●
81	SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	9601-9804	●	●
81	SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	9805-0004	●	●	●
81	SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	0005-	●		●
82	BUSHING; ENG CONT LVR	1-71907-244-1	02	1	9601-9804	●	●
82	BUSHING; ENG CONT LVR	1-71907-244-1	02	1	9805-0004	●	●	●
82	BUSHING; ENG CONT LVR	1-71907-244-1	02	1	0005-	●		●
86	WASHER; PL,ENG CONT LEVER ID=6.4	9-09160-506-0	02	1	9601-9804	●	●
86	WASHER; PL,ENG CONT LEVER ID=6.4	9-09160-506-0	02	1	9805-0004	●	●	●
86	WASHER; PL,ENG CONT LEVER ID=6.4	9-09160-506-0	02	1	0005-	●		●
87	LINK; ENG CONT	1-71907-211-1	01	1	9601-9804	●	●
87	LINK; ENG CONT	1-71907-211-1	01	1	9805-0004	●	●	●
87	LINK; ENG CONT	1-71907-211-1	01	1	0005-	●		●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	02	1	9601-9804	●	●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	02	1	9805-0004	●	●	●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	02	1	0005-	●		●
234	SWITCH; ACCEL	1-82380-114-1	01	1	9601-9804	●	●
234	SWITCH; ACCEL	1-82380-114-2	01	1	9805-0004	●	●	●
234	SWITCH; ACCEL	1-82380-114-3	01	1	0005-	●		●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	9601-9804	●	●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	9805-0004	●	●	●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	0005-	●		●
271	SHAFT; ENG CONT OD=8.0 L=74	1-71907-212-1	01	1	9601-9804	●	●
271	SHAFT; ENG CONT OD=8.0 L=74	1-71907-212-1	01	1	9805-0004	●	●	●
271	SHAFT; ENG CONT OD=8.0 L=74	1-71907-212-1	01	1	0005-	●		●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	9601-9804	●	●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	9805-0004	●	●	●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	0005-0212	●		●
332	BRACKET; ACCEL PEDAL STOPPER	1-73908-428-0	01	1	0301-	●		●
469	LEVER ASM	1-71907-209-5	01	1	9601-9804	●	●
469	LEVER ASM	1-71907-209-5	01	1	9805-0004	●	●	●
469	LEVER ASM	1-71907-209-5	01	1	0005-	●		●
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	02	1	9601-9804	●	●
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	02	1	9805-0004	●	●	●
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	02	1	0005-	●		●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	9601-9804	●	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	9805-0004	●	●	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	0005-	●		●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	9601-9804	●	●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	9805-0004	●	●	●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	0005-0212	●		●
673	NUT; STOPPER M8	9-09111-408-0	01	1	9601-9804	●	●
673	NUT; STOPPER M8	9-09111-408-0	01	1	9805-0004	●	●	●
673	NUT; STOPPER M8	9-09111-408-0	01	1	0005-0512	●		●
673	NUT; STOPPER M8	0-91111-508-0	01	1	0601-	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
