◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10706 - FVM-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-87 - COUPLING; INJECTION PUMP ▶
0-87 — COUPLING; INJECTION PUMP (#63962) — 92 parça

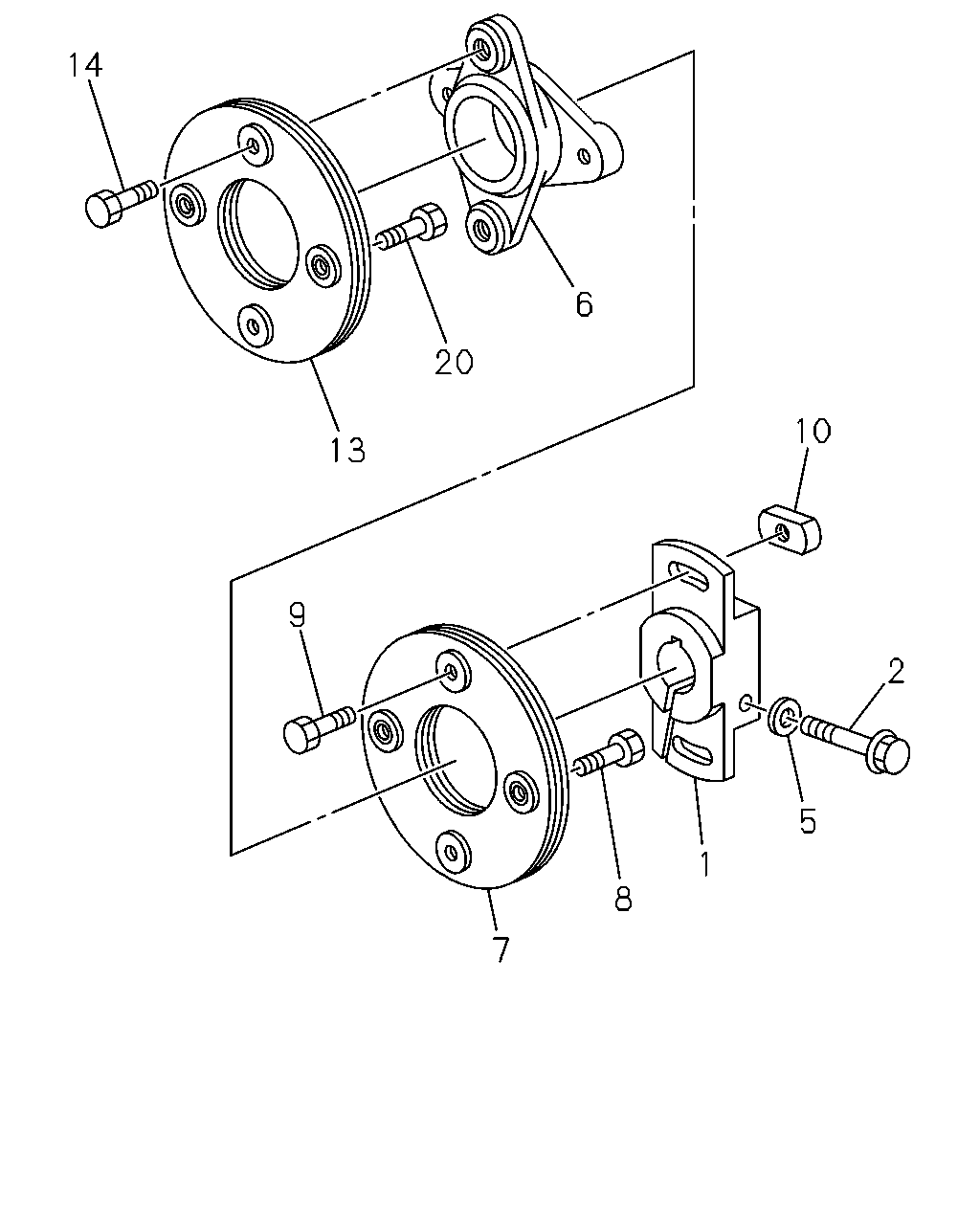

çizim 85019
14 6 20 10 13 9 2 5 1 8 7
BalonParca AdiParca NoAdetTipApplied Date A B C
1 COUPLING; INJ PUMP DRIVE 1-15781-038-0 01 1 9601- ●
1 COUPLING; INJ PUMP DRIVE 1-15781-039-0 01 1 9601-0004 ●
1 COUPLING; INJ PUMP DRIVE 1-15782-014-0 01 1 9805- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-135-0 01 1 9601- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 9601-0004 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-010-0 01 1 9805- ●
5 WASHER; COUPLING FIX,INJ PUMP 1-15789-021-0 01 1 9601-0004 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-104-0 01 1 9601- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-161-0 01 1 9601-0004 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-155-0 01 1 9805- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-065-0 01 1 9601- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15619-181-0 01 1 9601-0004 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-194-0 01 1 9805- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-120-0 02 1 9601- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 9601-0004 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15749-501-0 02 1 9805- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15749-488-0 02 1 9601- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-159-0 02 1 9601-0004 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-122-0 02 1 9805- ●
10 NUT; PLATE TO COUPLING,INJ PUMP
M8 		9-09110-508-0 02 1 9601- ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-165-0 02 1 9601-0004 ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-066-0 02 1 9805- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-065-0 01 1 9601- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 9601-0004 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-194-0 01 1 9805- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-120-0 02 1 9601-9804 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-120-0 02 1 9805- ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 9601-0004 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-119-0 02 1 9601-9804 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-119-0 02 1 9805- ● ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 9601-0004 ●

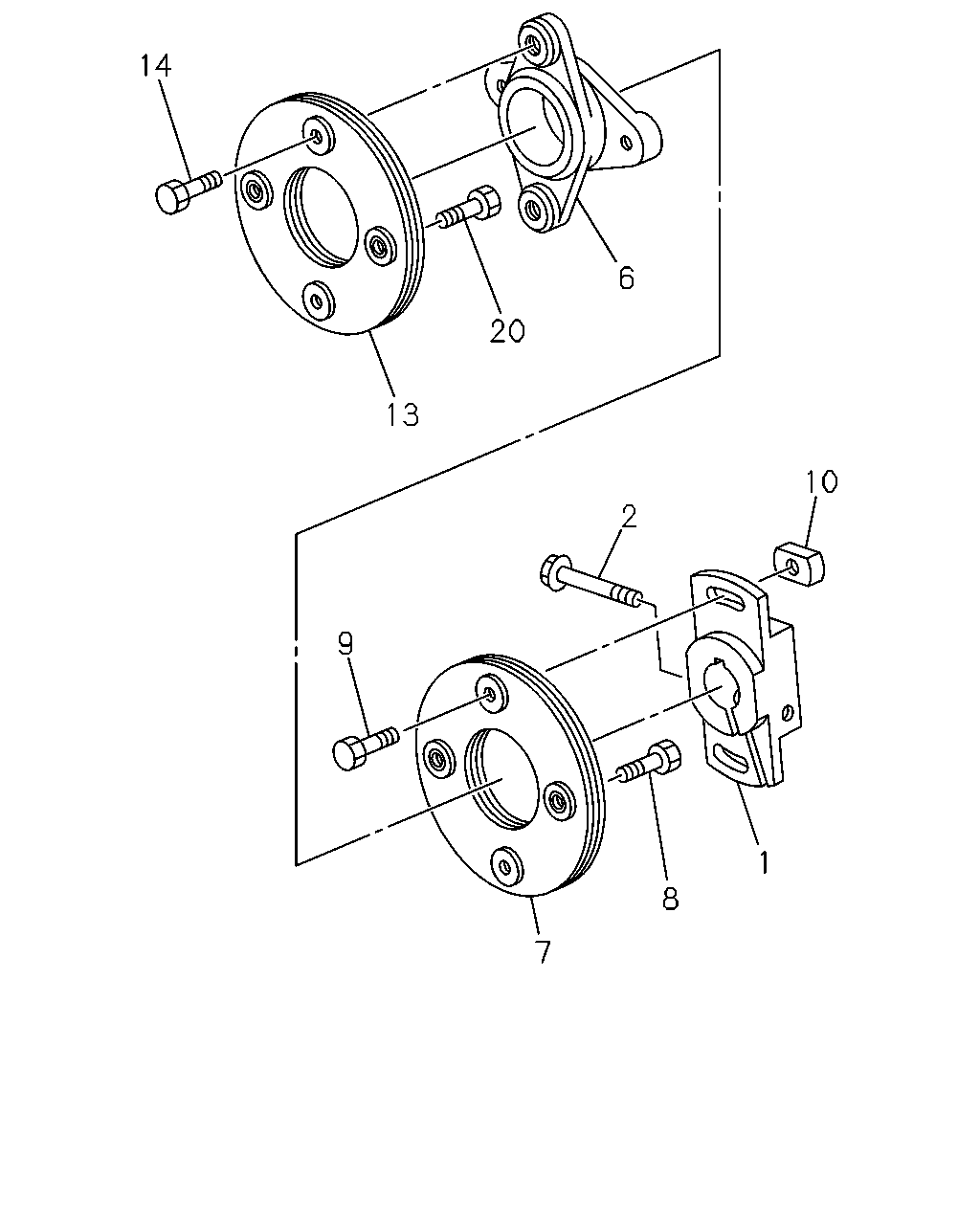

çizim 85052
14 6 20 13 10 2 9 1 8 7
BalonParca AdiParca NoAdetTipApplied Date A B C
1 COUPLING; INJ PUMP DRIVE 1-15781-038-0 01 1 9601- ●
1 COUPLING; INJ PUMP DRIVE 1-15781-039-0 01 1 9601-0004 ●
1 COUPLING; INJ PUMP DRIVE 1-15782-014-0 01 1 9805- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-135-0 01 1 9601- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 9601-0004 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-010-0 01 1 9805- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-104-0 01 1 9601- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-161-0 01 1 9601-0004 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-155-0 01 1 9805- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-065-0 01 1 9601- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15619-181-0 01 1 9601-0004 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-194-0 01 1 9805- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-120-0 02 1 9601- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 9601-0004 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15749-501-0 02 1 9805- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15749-488-0 02 1 9601- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-159-0 02 1 9601-0004 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-122-0 02 1 9805- ●
10 NUT; PLATE TO COUPLING,INJ PUMP
M8 		9-09110-508-0 02 1 9601- ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-165-0 02 1 9601-0004 ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-066-0 02 1 9805- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-065-0 01 1 9601- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 9601-0004 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-194-0 01 1 9805- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-120-0 02 1 9601-9804 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-120-0 02 1 9805- ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 9601-0004 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-119-0 02 1 9601-9804 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-119-0 02 1 9805- ● ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 9601-0004 ●

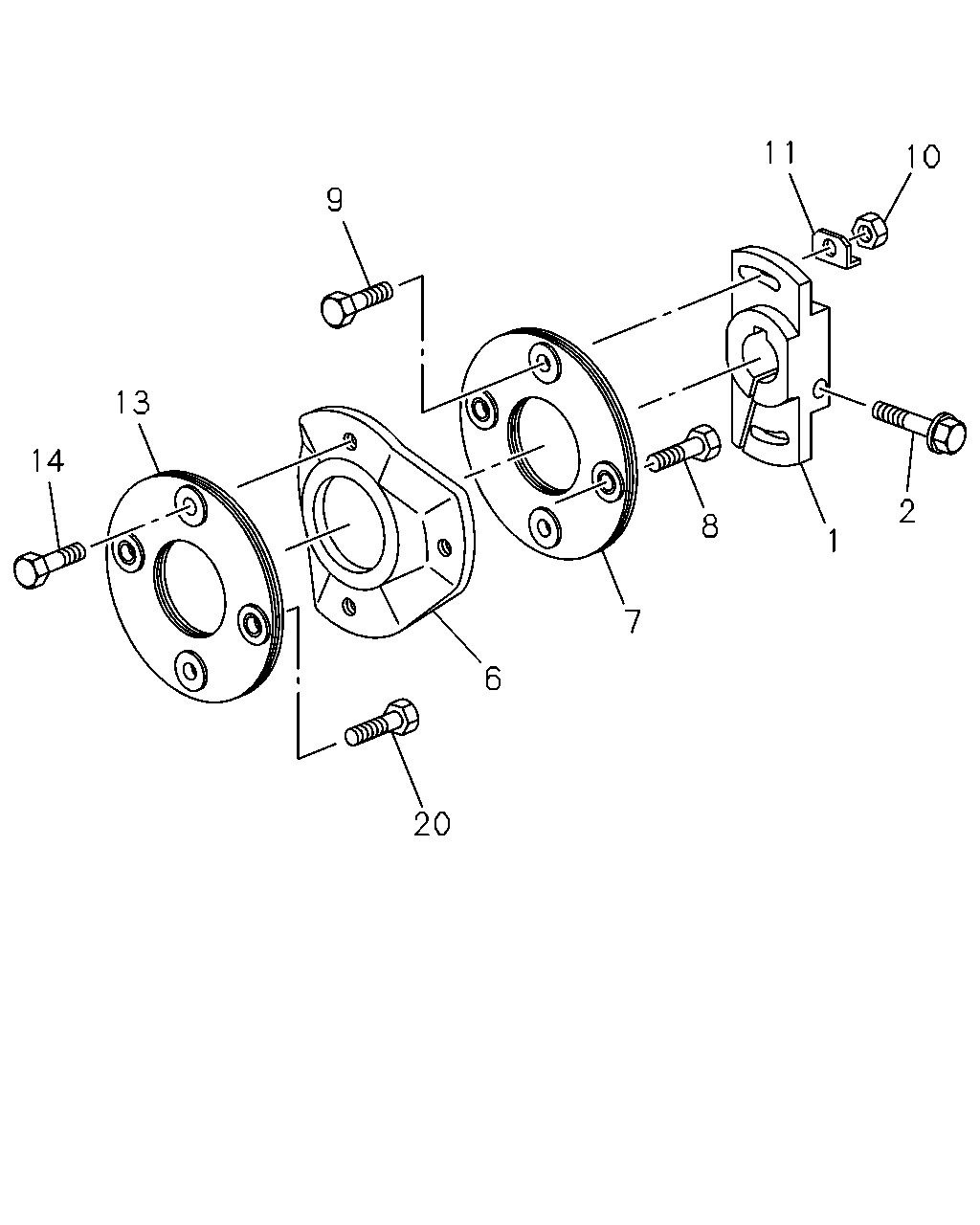

çizim 184435
11 10 9 13 14 2 8 1 7 6 20
BalonParca AdiParca NoAdetTipApplied Date A B C
1 COUPLING; INJ PUMP DRIVE 1-15781-038-0 01 1 9601- ●
1 COUPLING; INJ PUMP DRIVE 1-15781-039-0 01 1 9601-0004 ●
1 COUPLING; INJ PUMP DRIVE 1-15782-014-0 01 1 9805- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-135-0 01 1 9601- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 9601-0004 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-010-0 01 1 9805- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-104-0 01 1 9601- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-161-0 01 1 9601-0004 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-155-0 01 1 9805- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-065-0 01 1 9601- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15619-181-0 01 1 9601-0004 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-194-0 01 1 9805- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-120-0 02 1 9601- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 9601-0004 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15749-501-0 02 1 9805- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15749-488-0 02 1 9601- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-159-0 02 1 9601-0004 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-122-0 02 1 9805- ●
10 NUT; PLATE TO COUPLING,INJ PUMP
M8 		9-09110-508-0 02 1 9601- ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-165-0 02 1 9601-0004 ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-066-0 02 1 9805- ●
11 WASHER; PLATE TO COUPLING,INJ PUMP 1-15749-432-0 02 1 9601- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-065-0 01 1 9601- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 9601-0004 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-194-0 01 1 9805- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-120-0 02 1 9601-9804 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-120-0 02 1 9805- ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 9601-0004 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-119-0 02 1 9601-9804 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-119-0 02 1 9805- ● ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 9601-0004 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
