◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10706 - FVM-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#63954) — 254 parça
çizim 73561
8 8
BalonParca AdiParca NoAdetTipApplied Date A B C
8 CABLE; BATTERY,STARTER
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=2250 		1-82650-261-1 01 1 9601-0004 ● ●
8 CABLE; BATTERY,STARTER
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=2250 		1-82650-261-1 01 1 0005- ●
8 CABLE; BATTERY,STARTER
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=1700 		1-82650-209-1 01 1 9601-9605 ● ●
8 CABLE; BATTERY,STARTER
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=1600 		1-82650-298-0 01 1 9606-0004 ● ●
8 CABLE; BATTERY,STARTER
MAL6S M/T(Y1V) EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=1600 		1-82650-298-0 01 1 0005- ●
8 CABLE; BATTERY,STARTER
L=2900 		1-82650-250-1 01 1 9805- ●

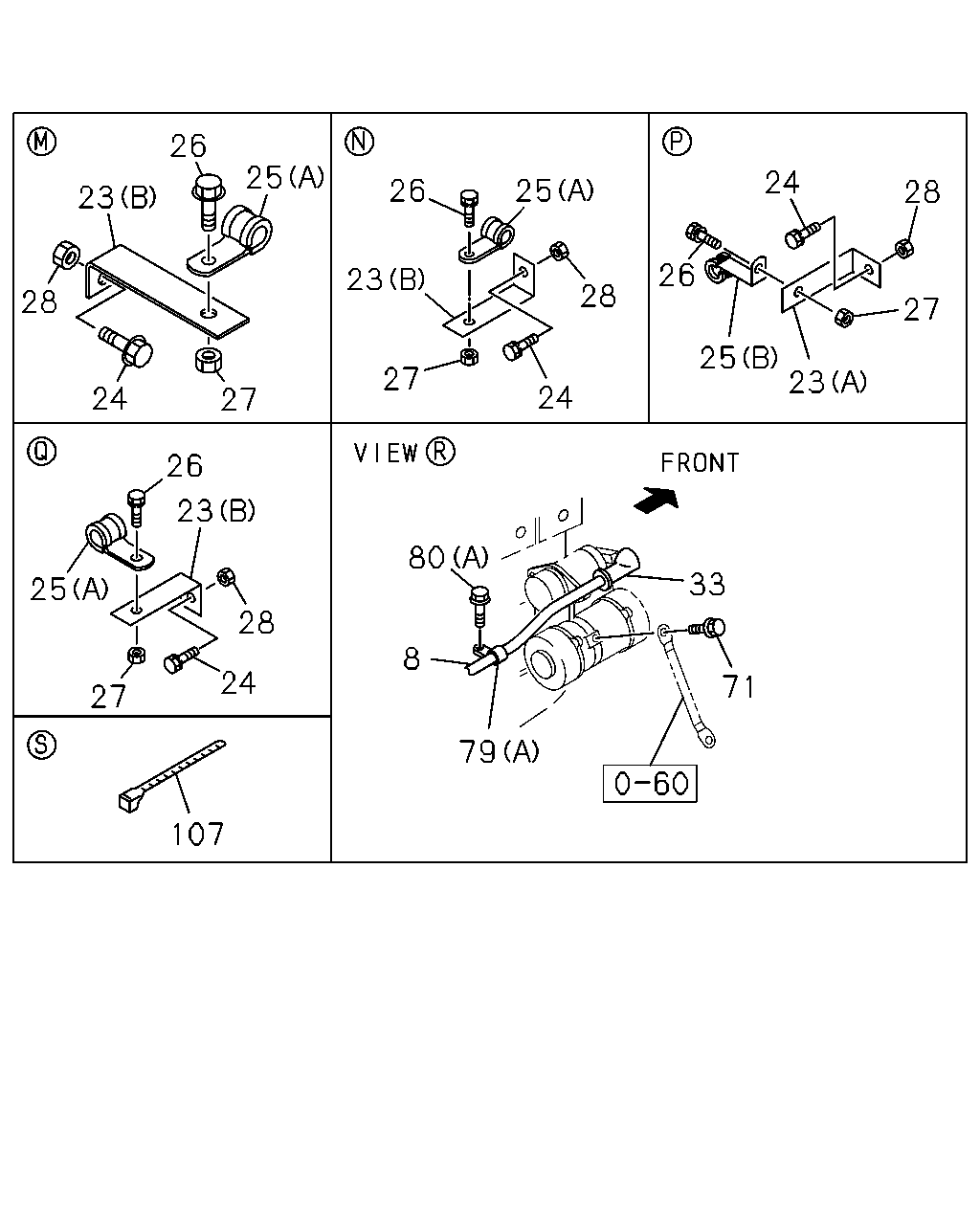

çizim 73696
26 25 24 26 25 28 23 26 23 28 28 27 25 23 27 24 24 27 26 23 80 33 25 28 8 24 71 27 79 107
BalonParca AdiParca NoAdetTipApplied Date A B C
8 CABLE; BATTERY,STARTER
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=2250 		1-82650-261-1 01 1 9601-0004 ● ●
8 CABLE; BATTERY,STARTER
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=2250 		1-82650-261-1 01 1 0005- ●
8 CABLE; BATTERY,STARTER
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=1700 		1-82650-209-1 01 1 9601-9605 ● ●
8 CABLE; BATTERY,STARTER
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=1600 		1-82650-298-0 01 1 9606-0004 ● ●
8 CABLE; BATTERY,STARTER
MAL6S M/T(Y1V) EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=1600 		1-82650-298-0 01 1 0005- ●
8 CABLE; BATTERY,STARTER
L=2900 		1-82650-250-1 01 1 9805- ●
23 BRACKET; CABLE CLIP TO FRAME
(B) L=95 		1-82699-085-0 01 1 9601-9804 ● ●
23 BRACKET; CABLE CLIP TO FRAME
(B) L=95 		1-82699-085-0 02 1 9805- ●
23 BRACKET; CABLE CLIP TO FRAME
(B) L=95 		1-82699-085-0 01 1 9805-0004 ● ●
23 BRACKET; CABLE CLIP TO FRAME
BATTERY 95E41R N100<SJ1> (B) L=95 		1-82699-085-0 01 1 9805-0004 ●
23 BRACKET; CABLE CLIP TO FRAME
(B) L=95 		1-82699-085-0 01 1 0005- ●
23 BRACKET; CABLE CLIP TO FRAME
BATTERY 95E41R N100<SJ1> (B) L=95 		1-82699-085-0 01 1 0005- ●
23 BRACKET; CABLE CLIP TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> (A) L=55 		1-47475-304-0 01 1 9601-9804 ● ●
23 BRACKET; CABLE CLIP TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> (A) L=55 		1-47475-304-0 01 1 9805-0004 ● ●
23 BRACKET; CABLE CLIP TO FRAME
EXC. BATTERY 95E41R N100<SJ1> (A) L=55 		1-47475-304-0 01 1 9805-0004 ●
23 BRACKET; CABLE CLIP TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> (A) L=55 		1-47475-304-0 01 1 0005- ●
23 BRACKET; CABLE CLIP TO FRAME
EXC. BATTERY 95E41R N100<SJ1> (A) L=55 		1-47475-304-0 01 1 0005- ●
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28080-830-0 01 1 9601-9606 ● ●
24 BOLT; BRKT TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X30 FLANGE 		0-28080-830-0 01 1 9601-9606 ● ●
24 BOLT; BRKT TO FRAME
M8X35 FLANGE 		0-28680-835-0 01 1 9607-0004 ● ●
24 BOLT; BRKT TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X35 FLANGE 		0-28680-835-0 01 1 9607-0004 ● ●
24 BOLT; BRKT TO FRAME
M8X35 FLANGE 		0-28680-835-0 01 1 0005-0512 ●
24 BOLT; BRKT TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X35 FLANGE 		0-28680-835-0 01 1 0005-0512 ●
24 BOLT; BRKT TO FRAME
M8X35 FLANGE 		0-28650-835-0 01 1 0601- ●
24 BOLT; BRKT TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X35 FLANGE 		0-28650-835-0 01 1 0601- ●
24 BOLT; BRKT TO FRAME
M8X35 FLANGE 		0-28680-835-0 03 1 9805-0512 ●
24 BOLT; BRKT TO FRAME
M8X35 FLANGE 		0-28650-835-0 03 1 0601- ●
25 CLIP; BATTERY CABLE TO BRKT
(A) ID=15 L=28 		1-09701-216-0 01 1 9601-9804 ● ●
25 CLIP; BATTERY CABLE TO BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> (A) ID=15 L=28 		1-09701-216-0 01 1 9601-9804 ● ●
25 CLIP; BATTERY CABLE TO BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> (A) ID=15 L=28 		1-09701-216-0 01 1 9805-0004 ● ● ●
25 CLIP; BATTERY CABLE TO BRKT
(A) ID=15 L=28 		1-09701-216-0 01 1 9805-0004 ● ●
25 CLIP; BATTERY CABLE TO BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> (A) ID=15 L=28 		1-09701-216-0 01 1 0005- ● ● ●
25 CLIP; BATTERY CABLE TO BRKT
(A) ID=15 L=28 		1-09701-216-0 01 1 0005- ●
25 CLIP; BATTERY CABLE TO BRKT
(A) ID=15 L=28 		1-09701-216-0 02 1 9805- ●
25 CLIP; BATTERY CABLE TO BRKT
EXC. BATTERY 95E41R N100<SJ1> (B) ID=15 L=22 H=30 		1-09701-215-1 01 1 9805- ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
M8X25 FLANGE 		0-28080-825-0 01 1 9601-9606 ● ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X25 FLANGE 		0-28080-825-0 01 1 9601-9606 ● ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
M8X20 FLANGE 		0-28680-820-0 01 1 9607-9801 ● ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X20 FLANGE 		0-28680-820-0 01 1 9607-9801 ● ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 9802-9804 ● ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X25 FLANGE 		0-28680-825-0 01 1 9802-9804 ● ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X25 FLANGE 		0-28680-825-0 01 1 9805-0004 ● ● ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 9805-0004 ● ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X25 FLANGE 		0-28680-825-0 01 1 0005-0512 ● ● ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0005-0512 ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
M8X25 FLANGE 		0-28680-825-0 03 1 9805-0512 ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 0601- ●
27 NUT; BATTERY CABLE CLIP TO BRKT
M8 		9-09110-408-0 01 1 9601-9606 ● ●
27 NUT; BATTERY CABLE CLIP TO BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8 		9-09110-408-0 01 1 9601-9606 ● ●
27 NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE 		0-91150-108-0 01 1 9607-9804 ● ●
27 NUT; BATTERY CABLE CLIP TO BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8 FLANGE 		0-91150-108-0 01 1 9607-9804 ● ●
27 NUT; BATTERY CABLE CLIP TO BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8 FLANGE 		0-91150-108-0 01 1 9805-0004 ● ● ●
27 NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE 		0-91150-108-0 01 1 9805-0004 ● ●
27 NUT; BATTERY CABLE CLIP TO BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8 FLANGE 		0-91150-108-0 01 1 0005-0602 ● ● ●
27 NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE 		0-91150-108-0 01 1 0005-0602 ●
27 NUT; BATTERY CABLE CLIP TO BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ●
27 NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
27 NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE 		0-91150-108-0 03 1 9805-0602 ●
27 NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE 		0-91180-108-0 03 1 0603- ●
28 NUT; BRKT TO FRAME
M8 		9-09110-408-0 01 1 9601-9606 ● ●
28 NUT; BRKT TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8 		9-09110-408-0 01 1 9601-9606 ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91150-108-0 01 1 9607-0004 ● ●
28 NUT; BRKT TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8 FLANGE 		0-91150-108-0 01 1 9607-0004 ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91150-108-0 01 1 0005-0602 ●
28 NUT; BRKT TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8 FLANGE 		0-91150-108-0 01 1 0005-0602 ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
28 NUT; BRKT TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8 FLANGE 		0-91180-108-0 01 1 0603- ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91150-108-0 03 1 9805-0602 ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 03 1 0603- ●
33 CAP; INSULATOR 1-82699-431-0 01 1 9601-9804 ● ●
33 CAP; INSULATOR 1-82699-431-0 01 1 9805-0004 ● ● ●
33 CAP; INSULATOR 1-82699-431-0 01 1 0005- ● ●
71 BOLT; BATTERY CABLE
M10X20 FLANGE 		0-28081-020-0 01 1 9805-0512 ●
71 BOLT; BATTERY CABLE
M10X20 FLANGE 		0-28051-020-0 01 1 0601- ●
79 CLIP; BATTERY CABLE
(B) ID=15 L=28 		1-09701-216-0 04 1 9601-9605 ●
79 CLIP; BATTERY CABLE
(B) ID=15 L=28 		1-09701-216-0 03 1 9606-9608 ●
79 CLIP; BATTERY CABLE
FULLER FS8209 DD M/T(Y2S) (B) ID=15 L=28 		1-09701-216-0 03 1 9606-9608 ●
79 CLIP; BATTERY CABLE
(B) ID=15 L=28 		1-09701-216-0 03 1 9609-0004 ● ●
79 CLIP; BATTERY CABLE
(B) ID=15 L=28 		1-09701-216-0 03 1 0005- ●
79 CLIP; BATTERY CABLE
(A) ID=16 L=28 		1-09700-872-0 01 1 9601-9804 ● ●
79 CLIP; BATTERY CABLE
(A) ID=16 L=28 		1-09700-872-0 01 1 9805-0004 ● ● ●
79 CLIP; BATTERY CABLE
(A) ID=16 L=28 		1-09700-872-0 01 1 0005- ● ●
79 CLIP; BATTERY CABLE
FULLER FS8209 DD M/T(Y2S) (B) ID=15 L=28 		1-09701-216-0 03 1 9601-9605 ●
79 CLIP; BATTERY CABLE
(C) ID=15 L=22 H=30 		1-09701-215-1 01 1 9805- ●
80 BOLT; BATTERY CABLE CLIP
(B) M8X20 FLANGE 		0-28080-820-0 04 1 9601-9605 ●
80 BOLT; BATTERY CABLE CLIP
(B) M8X20 FLANGE 		0-28080-820-0 03 1 9606-9606 ●
80 BOLT; BATTERY CABLE CLIP
FULLER FS8209 DD M/T(Y2S) (B) M8X20 FLANGE 		0-28080-820-0 03 1 9606-9606 ●
80 BOLT; BATTERY CABLE CLIP
(B) M8X20 FLANGE 		0-28680-820-0 03 1 9607-9608 ●
80 BOLT; BATTERY CABLE CLIP
FULLER FS8209 DD M/T(Y2S) (B) M8X20 FLANGE 		0-28680-820-0 03 1 9607-9608 ●
80 BOLT; BATTERY CABLE CLIP
(B) M8X20 FLANGE 		0-28680-820-0 03 1 9609-0004 ● ●
80 BOLT; BATTERY CABLE CLIP
MAL6S M/T(Y1V) (B) M8X20 FLANGE 		0-28680-820-0 03 1 0005-0512 ● ● ●
80 BOLT; BATTERY CABLE CLIP
(B) M8X20 FLANGE 		0-28650-820-0 03 1 0601- ●
80 BOLT; BATTERY CABLE CLIP
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9601-9804 ● ●
80 BOLT; BATTERY CABLE CLIP
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9805-0004 ● ● ●
80 BOLT; BATTERY CABLE CLIP
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9805-0004 ●
80 BOLT; BATTERY CABLE CLIP
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0512 ● ●
80 BOLT; BATTERY CABLE CLIP
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0512 ●
80 BOLT; BATTERY CABLE CLIP
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
80 BOLT; BATTERY CABLE CLIP
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
80 BOLT; BATTERY CABLE CLIP
FULLER FS8209 DD M/T(Y2S) (B) M8X20 FLANGE 		0-28080-820-0 03 1 9601-9605 ●
107 CLIP; BAND
BATTERY 95E41R N100<SJ1> L=140 		5-09707-031-1 01 1 9805- ●

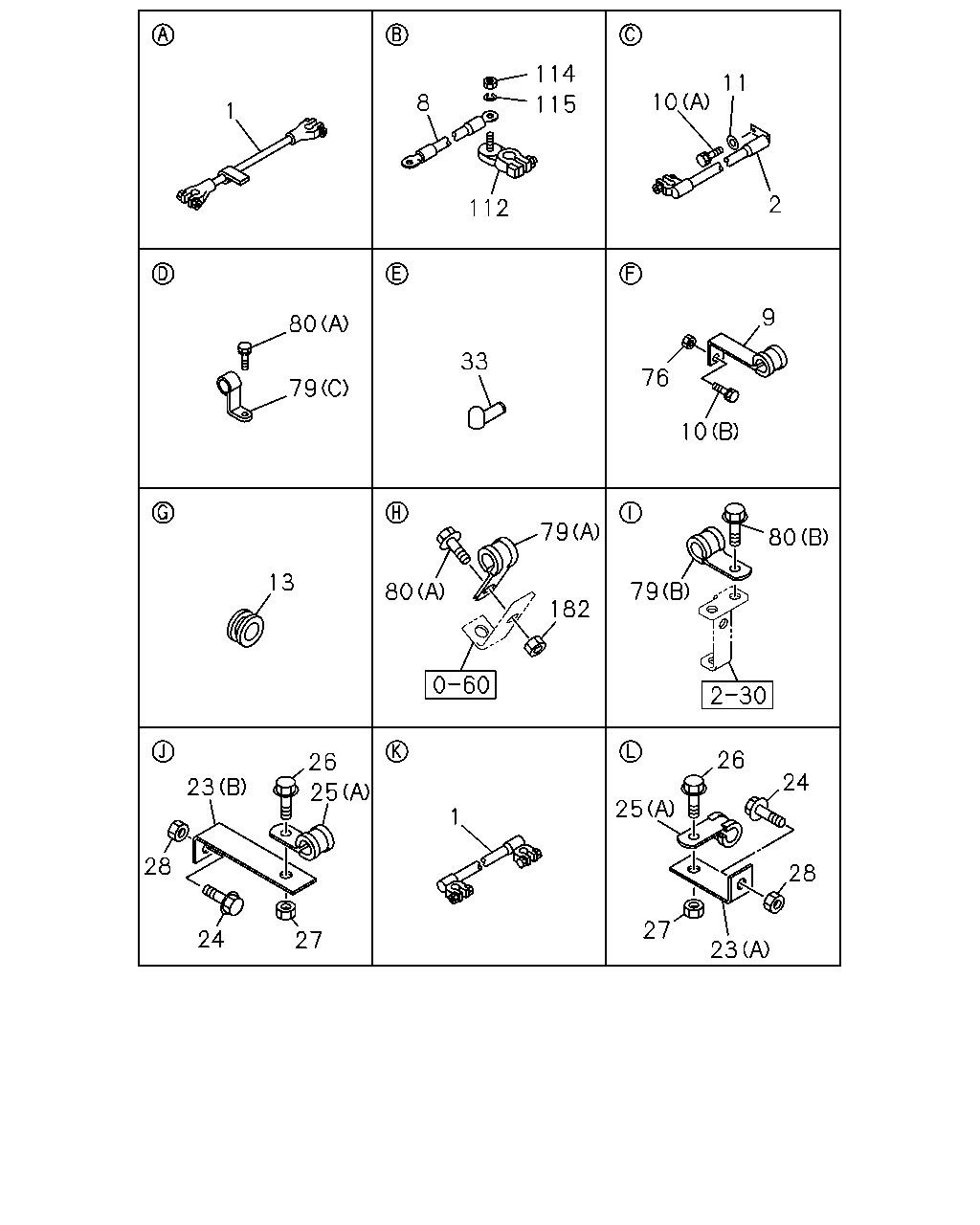

çizim 73780
114 11 10 8 115 1 2 112 9 80 33 76 79 10 79 80 13 79 80 182 26 26 24 23 25 25 1 28 28 27 24 27 23
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CABLE; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=450 		9-82932-417-1 01 1 9601-9804 ● ●
1 CABLE; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=450 		1-82650-281-2 01 1 9805-0711 ● ● ●
1 CABLE; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=500 		8-97623-077-0 01 1 0712- ● ● ●
1 CABLE; BATTERY
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=180 		1-82650-265-0 01 1 9601-0712 ● ● ●
1 CABLE; BATTERY
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=280 		8-97230-719-2 01 1 0801- ● ● ●
2 CABLE; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=380 		9-82932-713-2 01 1 9601-9804 ● ●
2 CABLE; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=380 		9-82932-713-3 01 1 9805-0508 ● ● ●
2 CABLE; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=380 		8-97604-629-1 01 1 0509- ● ● ●
2 CABLE; BATTERY
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=185 		1-82650-067-3 01 1 9601-0711 ● ● ●
2 CABLE; BATTERY
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=185 		8-97623-075-0 01 1 0712- ● ● ●
8 CABLE; BATTERY,STARTER
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=2250 		1-82650-261-1 01 1 9601-0004 ● ●
8 CABLE; BATTERY,STARTER
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=2250 		1-82650-261-1 01 1 0005- ●
8 CABLE; BATTERY,STARTER
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=1700 		1-82650-209-1 01 1 9601-9605 ● ●
8 CABLE; BATTERY,STARTER
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=1600 		1-82650-298-0 01 1 9606-0004 ● ●
8 CABLE; BATTERY,STARTER
MAL6S M/T(Y1V) EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=1600 		1-82650-298-0 01 1 0005- ●
8 CABLE; BATTERY,STARTER
L=2900 		1-82650-250-1 01 1 9805- ●
9 CLIP; BATTERY CABLE
ID=15 L=22 H=30 		1-09701-215-1 03 1 9805- ●
10 BOLT; BATTERY CABLE CLIP
(A) M10X30 W/LK&PL WASHER 		8-97087-206-0 01 1 9601-9804 ● ●
10 BOLT; BATTERY CABLE CLIP
(A) M10X30 W/LK&PL WASHER 		8-97087-206-0 01 1 9805-9903 ● ● ●
10 BOLT; BATTERY CABLE CLIP
(A) M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 9904-0004 ● ● ●
10 BOLT; BATTERY CABLE CLIP
(A) M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0005- ● ●
10 BOLT; BATTERY CABLE CLIP
(B) M8X35 FLANGE 		0-28680-835-0 03 1 9805-0512 ●
10 BOLT; BATTERY CABLE CLIP
(B) M8X35 FLANGE 		0-28650-835-0 03 1 0601- ●
11 WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 		9-09160-610-0 01 1 9601-9804 ● ●
11 WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 		9-09160-610-0 01 1 9805-9903 ● ● ●
11 WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 9904-0004 ● ● ●
11 WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0005- ● ●
13 GROMMET; BATTERY CABLE
ID=28 OD=35 T=25 		1-09332-011-1 01 1 9601-9804 ● ●
13 GROMMET; BATTERY CABLE
ID=28 OD=35 T=25 		1-09332-011-1 01 1 9805-0004 ● ● ●
13 GROMMET; BATTERY CABLE
ID=28 OD=35 T=25 		1-09332-011-1 01 1 0005- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(B) L=95 		1-82699-085-0 01 1 9601-9804 ● ●
23 BRACKET; CABLE CLIP TO FRAME
(B) L=95 		1-82699-085-0 02 1 9805- ●
23 BRACKET; CABLE CLIP TO FRAME
(B) L=95 		1-82699-085-0 01 1 9805-0004 ● ●
23 BRACKET; CABLE CLIP TO FRAME
BATTERY 95E41R N100<SJ1> (B) L=95 		1-82699-085-0 01 1 9805-0004 ●
23 BRACKET; CABLE CLIP TO FRAME
(B) L=95 		1-82699-085-0 01 1 0005- ●
23 BRACKET; CABLE CLIP TO FRAME
BATTERY 95E41R N100<SJ1> (B) L=95 		1-82699-085-0 01 1 0005- ●
23 BRACKET; CABLE CLIP TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> (A) L=55 		1-47475-304-0 01 1 9601-9804 ● ●
23 BRACKET; CABLE CLIP TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> (A) L=55 		1-47475-304-0 01 1 9805-0004 ● ●
23 BRACKET; CABLE CLIP TO FRAME
EXC. BATTERY 95E41R N100<SJ1> (A) L=55 		1-47475-304-0 01 1 9805-0004 ●
23 BRACKET; CABLE CLIP TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> (A) L=55 		1-47475-304-0 01 1 0005- ●
23 BRACKET; CABLE CLIP TO FRAME
EXC. BATTERY 95E41R N100<SJ1> (A) L=55 		1-47475-304-0 01 1 0005- ●
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28080-830-0 01 1 9601-9606 ● ●
24 BOLT; BRKT TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X30 FLANGE 		0-28080-830-0 01 1 9601-9606 ● ●
24 BOLT; BRKT TO FRAME
M8X35 FLANGE 		0-28680-835-0 01 1 9607-0004 ● ●
24 BOLT; BRKT TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X35 FLANGE 		0-28680-835-0 01 1 9607-0004 ● ●
24 BOLT; BRKT TO FRAME
M8X35 FLANGE 		0-28680-835-0 01 1 0005-0512 ●
24 BOLT; BRKT TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X35 FLANGE 		0-28680-835-0 01 1 0005-0512 ●
24 BOLT; BRKT TO FRAME
M8X35 FLANGE 		0-28650-835-0 01 1 0601- ●
24 BOLT; BRKT TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X35 FLANGE 		0-28650-835-0 01 1 0601- ●
24 BOLT; BRKT TO FRAME
M8X35 FLANGE 		0-28680-835-0 03 1 9805-0512 ●
24 BOLT; BRKT TO FRAME
M8X35 FLANGE 		0-28650-835-0 03 1 0601- ●
25 CLIP; BATTERY CABLE TO BRKT
(A) ID=15 L=28 		1-09701-216-0 01 1 9601-9804 ● ●
25 CLIP; BATTERY CABLE TO BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> (A) ID=15 L=28 		1-09701-216-0 01 1 9601-9804 ● ●
25 CLIP; BATTERY CABLE TO BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> (A) ID=15 L=28 		1-09701-216-0 01 1 9805-0004 ● ● ●
25 CLIP; BATTERY CABLE TO BRKT
(A) ID=15 L=28 		1-09701-216-0 01 1 9805-0004 ● ●
25 CLIP; BATTERY CABLE TO BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> (A) ID=15 L=28 		1-09701-216-0 01 1 0005- ● ● ●
25 CLIP; BATTERY CABLE TO BRKT
(A) ID=15 L=28 		1-09701-216-0 01 1 0005- ●
25 CLIP; BATTERY CABLE TO BRKT
(A) ID=15 L=28 		1-09701-216-0 02 1 9805- ●
25 CLIP; BATTERY CABLE TO BRKT
EXC. BATTERY 95E41R N100<SJ1> (B) ID=15 L=22 H=30 		1-09701-215-1 01 1 9805- ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
M8X25 FLANGE 		0-28080-825-0 01 1 9601-9606 ● ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X25 FLANGE 		0-28080-825-0 01 1 9601-9606 ● ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
M8X20 FLANGE 		0-28680-820-0 01 1 9607-9801 ● ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X20 FLANGE 		0-28680-820-0 01 1 9607-9801 ● ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 9802-9804 ● ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X25 FLANGE 		0-28680-825-0 01 1 9802-9804 ● ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X25 FLANGE 		0-28680-825-0 01 1 9805-0004 ● ● ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 9805-0004 ● ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X25 FLANGE 		0-28680-825-0 01 1 0005-0512 ● ● ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0005-0512 ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
M8X25 FLANGE 		0-28680-825-0 03 1 9805-0512 ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 0601- ●
27 NUT; BATTERY CABLE CLIP TO BRKT
M8 		9-09110-408-0 01 1 9601-9606 ● ●
27 NUT; BATTERY CABLE CLIP TO BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8 		9-09110-408-0 01 1 9601-9606 ● ●
27 NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE 		0-91150-108-0 01 1 9607-9804 ● ●
27 NUT; BATTERY CABLE CLIP TO BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8 FLANGE 		0-91150-108-0 01 1 9607-9804 ● ●
27 NUT; BATTERY CABLE CLIP TO BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8 FLANGE 		0-91150-108-0 01 1 9805-0004 ● ● ●
27 NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE 		0-91150-108-0 01 1 9805-0004 ● ●
27 NUT; BATTERY CABLE CLIP TO BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8 FLANGE 		0-91150-108-0 01 1 0005-0602 ● ● ●
27 NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE 		0-91150-108-0 01 1 0005-0602 ●
27 NUT; BATTERY CABLE CLIP TO BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ●
27 NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
27 NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE 		0-91150-108-0 03 1 9805-0602 ●
27 NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE 		0-91180-108-0 03 1 0603- ●
28 NUT; BRKT TO FRAME
M8 		9-09110-408-0 01 1 9601-9606 ● ●
28 NUT; BRKT TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8 		9-09110-408-0 01 1 9601-9606 ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91150-108-0 01 1 9607-0004 ● ●
28 NUT; BRKT TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8 FLANGE 		0-91150-108-0 01 1 9607-0004 ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91150-108-0 01 1 0005-0602 ●
28 NUT; BRKT TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8 FLANGE 		0-91150-108-0 01 1 0005-0602 ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
28 NUT; BRKT TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8 FLANGE 		0-91180-108-0 01 1 0603- ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91150-108-0 03 1 9805-0602 ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 03 1 0603- ●
33 CAP; INSULATOR 1-82699-431-0 01 1 9601-9804 ● ●
33 CAP; INSULATOR 1-82699-431-0 01 1 9805-0004 ● ● ●
33 CAP; INSULATOR 1-82699-431-0 01 1 0005- ● ●
76 NUT; BATTERY CABLE
M8 FLANGE 		0-91150-108-0 03 1 9805-0602 ●
76 NUT; BATTERY CABLE
M8 FLANGE 		0-91180-108-0 03 1 0603- ●
79 CLIP; BATTERY CABLE
(B) ID=15 L=28 		1-09701-216-0 04 1 9601-9605 ●
79 CLIP; BATTERY CABLE
(B) ID=15 L=28 		1-09701-216-0 03 1 9606-9608 ●
79 CLIP; BATTERY CABLE
FULLER FS8209 DD M/T(Y2S) (B) ID=15 L=28 		1-09701-216-0 03 1 9606-9608 ●
79 CLIP; BATTERY CABLE
(B) ID=15 L=28 		1-09701-216-0 03 1 9609-0004 ● ●
79 CLIP; BATTERY CABLE
(B) ID=15 L=28 		1-09701-216-0 03 1 0005- ●
79 CLIP; BATTERY CABLE
(A) ID=16 L=28 		1-09700-872-0 01 1 9601-9804 ● ●
79 CLIP; BATTERY CABLE
(A) ID=16 L=28 		1-09700-872-0 01 1 9805-0004 ● ● ●
79 CLIP; BATTERY CABLE
(A) ID=16 L=28 		1-09700-872-0 01 1 0005- ● ●
79 CLIP; BATTERY CABLE
FULLER FS8209 DD M/T(Y2S) (B) ID=15 L=28 		1-09701-216-0 03 1 9601-9605 ●
79 CLIP; BATTERY CABLE
(C) ID=15 L=22 H=30 		1-09701-215-1 01 1 9805- ●
80 BOLT; BATTERY CABLE CLIP
(B) M8X20 FLANGE 		0-28080-820-0 04 1 9601-9605 ●
80 BOLT; BATTERY CABLE CLIP
(B) M8X20 FLANGE 		0-28080-820-0 03 1 9606-9606 ●
80 BOLT; BATTERY CABLE CLIP
FULLER FS8209 DD M/T(Y2S) (B) M8X20 FLANGE 		0-28080-820-0 03 1 9606-9606 ●
80 BOLT; BATTERY CABLE CLIP
(B) M8X20 FLANGE 		0-28680-820-0 03 1 9607-9608 ●
80 BOLT; BATTERY CABLE CLIP
FULLER FS8209 DD M/T(Y2S) (B) M8X20 FLANGE 		0-28680-820-0 03 1 9607-9608 ●
80 BOLT; BATTERY CABLE CLIP
(B) M8X20 FLANGE 		0-28680-820-0 03 1 9609-0004 ● ●
80 BOLT; BATTERY CABLE CLIP
MAL6S M/T(Y1V) (B) M8X20 FLANGE 		0-28680-820-0 03 1 0005-0512 ● ● ●
80 BOLT; BATTERY CABLE CLIP
(B) M8X20 FLANGE 		0-28650-820-0 03 1 0601- ●
80 BOLT; BATTERY CABLE CLIP
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9601-9804 ● ●
80 BOLT; BATTERY CABLE CLIP
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9805-0004 ● ● ●
80 BOLT; BATTERY CABLE CLIP
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9805-0004 ●
80 BOLT; BATTERY CABLE CLIP
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0512 ● ●
80 BOLT; BATTERY CABLE CLIP
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0512 ●
80 BOLT; BATTERY CABLE CLIP
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
80 BOLT; BATTERY CABLE CLIP
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
80 BOLT; BATTERY CABLE CLIP
FULLER FS8209 DD M/T(Y2S) (B) M8X20 FLANGE 		0-28080-820-0 03 1 9601-9605 ●
112 TERMINAL; BATTERY
<+> 		1-82695-003-0 01 1 9601-9804 ● ●
112 TERMINAL; BATTERY
<+> 		1-82695-003-0 01 1 9805-0004 ● ● ●
112 TERMINAL; BATTERY
<+> 		1-82695-003-0 01 1 0005-0403 ● ●
112 TERMINAL; BATTERY
<+> 		1-82695-175-0 01 1 0404- ● ●
114 NUT; CABLE,BATTERY TERMINAL
M10 		9-09110-510-0 01 1 9601-9804 ● ●
114 NUT; CABLE,BATTERY TERMINAL
M10 		9-09110-510-0 01 1 9805-0004 ● ● ●
114 NUT; CABLE,BATTERY TERMINAL
M10 		9-09110-510-0 01 1 0005-0512 ● ●
114 NUT; CABLE,BATTERY TERMINAL
M10 		0-91110-510-0 01 1 0601- ● ●
115 WASHER; LK,CABLE,BATTERY
ID=10.2 		9-09150-510-0 01 1 9601-9804 ● ●
115 WASHER; LK,CABLE,BATTERY
ID=10.2 		9-09150-510-0 01 1 9805-0004 ● ● ●
115 WASHER; LK,CABLE,BATTERY
ID=10.2 		9-09150-510-0 01 1 0005-0603 ● ●
115 WASHER; LK,CABLE,BATTERY
ID=10.2 		0-91510-510-0 01 1 0604- ● ●
182 NUT; CLIP
M8 		9-09110-408-0 01 1 9601-9605 ● ●
çizim 184428
8 8
BalonParca AdiParca NoAdetTipApplied Date A B C
8 CABLE; BATTERY,STARTER
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=2250 		1-82650-261-1 01 1 9601-0004 ● ●
8 CABLE; BATTERY,STARTER
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=2250 		1-82650-261-1 01 1 0005- ●
8 CABLE; BATTERY,STARTER
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=1700 		1-82650-209-1 01 1 9601-9605 ● ●
8 CABLE; BATTERY,STARTER
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=1600 		1-82650-298-0 01 1 9606-0004 ● ●
8 CABLE; BATTERY,STARTER
MAL6S M/T(Y1V) EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=1600 		1-82650-298-0 01 1 0005- ●
8 CABLE; BATTERY,STARTER
L=2900 		1-82650-250-1 01 1 9805- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
