0-60 — ENGINE ELECTRICAL CONTROL PARTS (#63953) — 178 parça

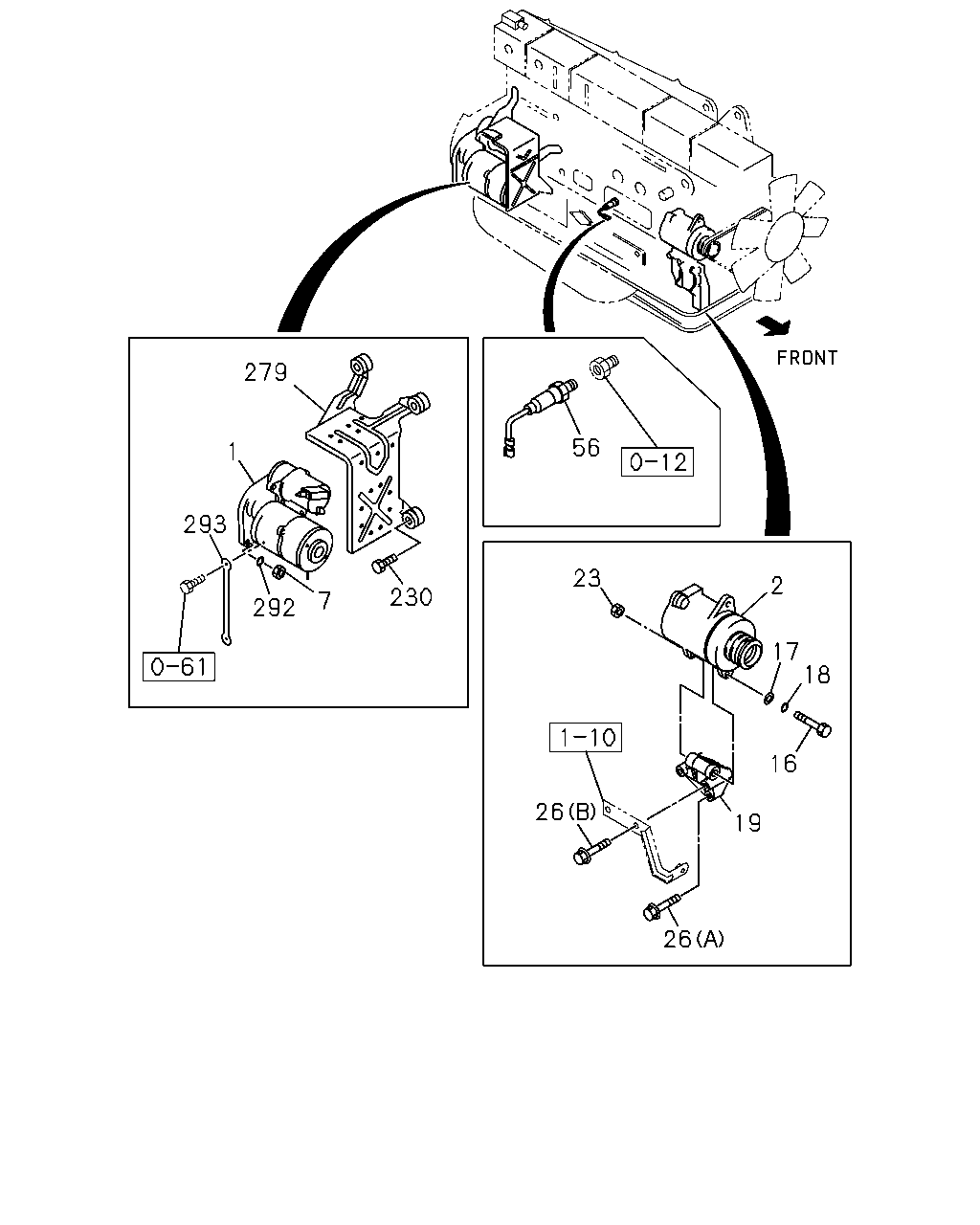

279 56 1 293 23 2 230 7 292 17 18 16 26 19 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.5KW DENSO	1-81100-230-2	01	1	9601-0004	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.5KW DENSO	1-81100-230-2	01	1	0005-0108		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.5KW DENSO	1-81100-422-0	01	1	0109-		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO	1-81100-323-1	01	1	9805-			●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO	8-94399-159-4	01	1	9905-9907			●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A DENSO	8-94399-157-1	01	1	9601-0004	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A DENSO	8-94399-157-1	01	1	0005-		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO	1-81200-416-5	01	1	9805-			●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI	1-81200-521-0	01	1	9904-9905			●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI	1-81200-577-0	01	1	9906-9907			●
7	NUT; STARTER M14 FLANGE	0-91150-114-0	02	1	9601-0004	●	●
7	NUT; STARTER M14 FLANGE	0-91150-114-0	02	1	0005-		●
7	NUT; STARTER M14	9-99110-414-0	02	1	9805-0512			●
7	NUT; STARTER M14	0-91110-514-0	02	1	0601-			●
16	BOLT; GEN M14X128	9-09801-203-0	01	1	9601-9611	●	●
16	BOLT; GEN M14X123	9-09801-204-1	01	1	9612-0004	●	●
16	BOLT; GEN M14X123	9-09801-204-1	01	1	0005-		●
16	BOLT; GEN M14X135	1-09000-133-1	01	1	9805-			●
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	9601-9804	●	●
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	9805-0004	●	●	●
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	0005-0605		●	●
17	WASHER; PL,GEN ID=15	0-91610-514-0	01	1	0606-		●	●
18	WASHER; LK,GEN ID=14.2	9-09150-514-0	01	1	9805-0603			●
18	WASHER; LK,GEN ID=14.2	0-91510-514-0	01	1	0604-			●
19	BRACKET; GEN	1-19711-038-0	01	1	9601-0004	●	●
19	BRACKET; GEN	1-19711-038-0	01	1	0005-		●
19	BRACKET; GEN	8-94396-297-0	01	1	9805-0112			●
19	BRACKET; GEN	8-97602-318-0	01	1	0201-			●
23	NUT; GEN M14 FLANGE	0-91150-114-0	01	1	9601-0004	●	●
23	NUT; GEN M14 FLANGE	0-91150-114-0	01	1	0005-		●
23	NUT; GEN M14	9-99110-414-0	01	1	9805-0512			●
23	NUT; GEN M14	0-91110-514-0	01	1	0601-			●
26	BOLT; GEN BRKT (A) M10X40 FLANGE	0-28181-040-0	01	1	9601-9804	●	●
26	BOLT; GEN BRKT (A) M10X40 FLANGE	0-28181-040-0	01	1	9805-0004	●	●	●
26	BOLT; GEN BRKT (A) M10X40 FLANGE	0-28181-040-0	01	1	0005-0512		●	●
26	BOLT; GEN BRKT (A) M10X40 FLANGE	0-28151-040-0	01	1	0601-		●	●
26	BOLT; GEN BRKT (B) M10X70 FLANGE	0-28181-070-0	02	1	9601-0004	●	●
26	BOLT; GEN BRKT (B) M10X70 FLANGE	0-28181-070-0	02	1	0005-0512		●
26	BOLT; GEN BRKT (B) M10X70 FLANGE	0-28151-070-0	02	1	0601-		●
26	BOLT; GEN BRKT (B) M10X80 FLANGE	0-28181-080-0	02	1	9805-0512			●
26	BOLT; GEN BRKT (B) M10X80 FLANGE	0-28151-080-0	02	1	0601-			●
56	SWITCH; OIL PRESSURE WARNING	1-82410-170-0	01	1	9601-9804	●	●
56	SWITCH; OIL PRESSURE WARNING	1-82410-170-0	01	1	9805-0004	●	●	●
56	SWITCH; OIL PRESSURE WARNING	1-82410-170-0	01	1	0005-0011		●	●
56	SWITCH; OIL PRESSURE WARNING	1-82410-170-0	01	1	0012-0109		●
56	SWITCH; OIL PRESSURE WARNING	1-82410-170-1	01	1	0110-		●	●
230	BOLT; HEAT PROTECTOR M10X16 FLANGE	0-28181-016-0	02	1	9601-0004	●
230	BOLT; HEAT PROTECTOR M8X28 FLANGE	0-28080-828-0	01	1	9805-			●
230	BOLT; HEAT PROTECTOR M10X30 FLANGE	0-28181-030-0	01	1	9805-0512			●
230	BOLT; HEAT PROTECTOR M10X30 FLANGE	0-28151-030-0	01	1	0601-			●
279	PROTECTOR; STARTER	1-14181-292-0	01	1	9601-0004	●
279	PROTECTOR; STARTER	8-94394-952-1	01	1	9805-			●
292	WASHER; LK,STARTER ID=14.2	9-09150-514-0	02	1	9805-0603			●
292	WASHER; LK,STARTER ID=14.2	0-91510-514-0	02	1	0604-			●
293	CABLE; STARTER EARTH L=550	1-82650-239-0	01	1	9601-0004	●	●
293	CABLE; STARTER EARTH L=550	1-82650-239-0	01	1	0005-		●
293	CABLE; STARTER EARTH L=360	1-82650-230-1	01	1	9805-			●

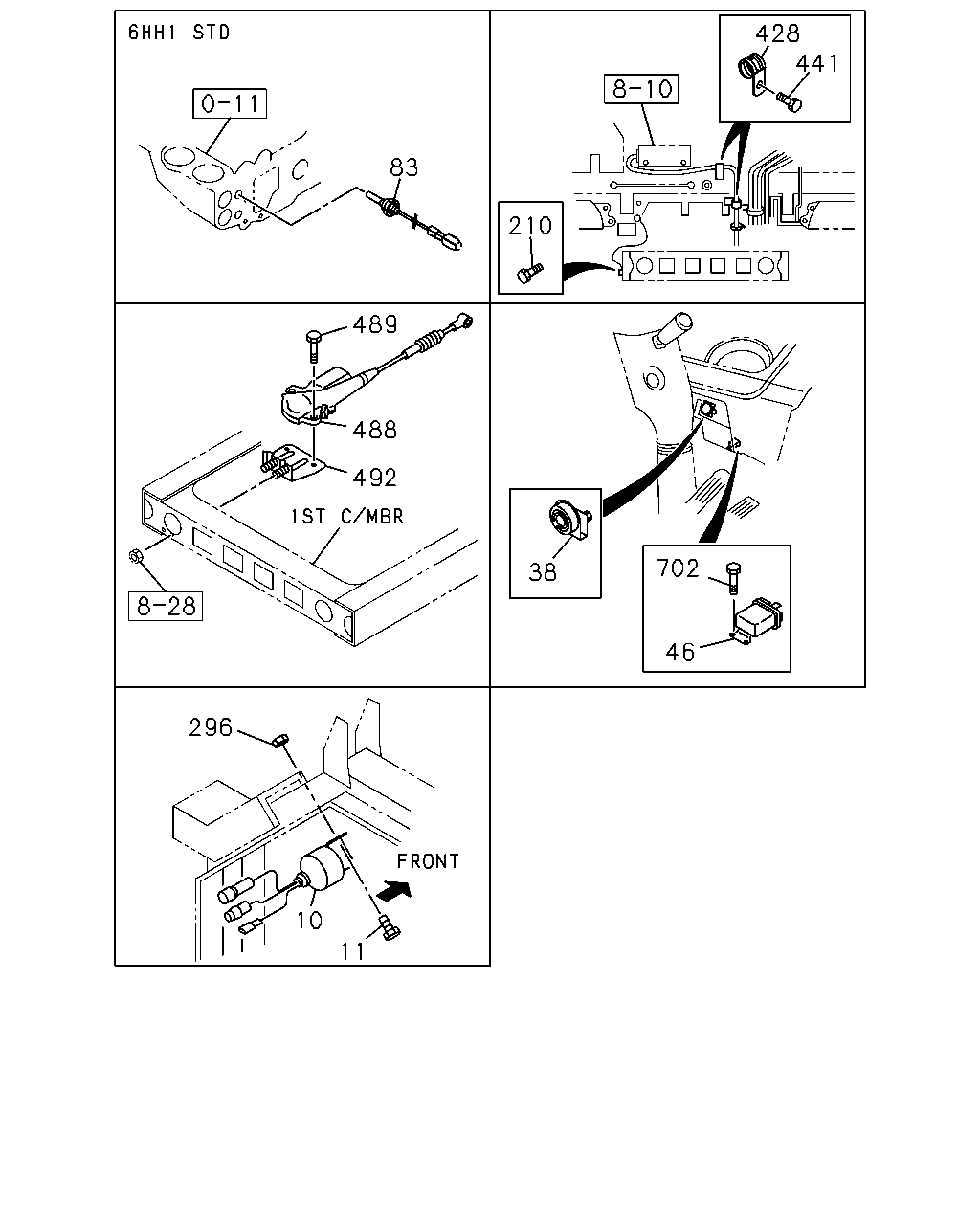

428 441 83 210 489 488 492 702 38 46 296 10 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
10	RELAY; STARTER DENSO	1-81171-070-0	01	1	9601-	●	●
10	RELAY; STARTER NIKKO	1-81171-075-0	01	1	9805-0004			●
10	RELAY; STARTER HITACHI	1-81171-087-0	01	1	0005-0303			●
10	RELAY; STARTER NIKKO	1-81171-075-1	01	1	0304-			●
10	RELAY; STARTER HITACHI	1-81171-087-0	01	1	9904-9907			●
10	RELAY; STARTER EXC. NIKKO<Y70> HITACHI	1-81171-087-0	01	1	9908-0004			●
11	BOLT; RELAY STARTER M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●	●
11	BOLT; RELAY STARTER M8X25 FLANGE	0-28680-825-0	02	1	9607-9801	●	●
11	BOLT; RELAY STARTER M8X20 FLANGE	0-28680-820-0	02	1	9802-9804	●	●
11	BOLT; RELAY STARTER M8X20 FLANGE	0-28680-820-0	02	1	9805-0004	●	●	●
11	BOLT; RELAY STARTER M8X20 FLANGE	0-28680-820-0	02	1	0005-0512		●	●
11	BOLT; RELAY STARTER M8X20 FLANGE	0-28650-820-0	02	1	0601-		●	●
38	RESISTOR; CONT,GLOW PLUG	1-81402-008-0	01	1	9601-9804	●	●
38	RESISTOR; CONT,GLOW PLUG	1-81402-008-0	01	1	9805-0004	●	●	●
38	RESISTOR; CONT,GLOW PLUG	1-81402-008-0	01	1	0005-		●	●
46	RELAY; GLOW PLUG	8-94258-014-0	01	1	9601-9804	●	●
46	RELAY; GLOW PLUG	8-94258-014-0	01	1	9805-0004	●	●	●
46	RELAY; GLOW PLUG	8-94258-014-0	01	1	0005-		●	●
83	THERMOMETER UNIT	1-83161-031-1	01	1	9601-9804	●	●
83	THERMOMETER UNIT	1-83161-031-1	01	1	9805-0004	●	●	●
83	THERMOMETER UNIT	1-83161-031-1	01	1	0005-		●	●
210	BOLT; CABLE FIX M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9601-9804	●	●
210	BOLT; CABLE FIX M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9805-9903	●	●	●
210	BOLT; CABLE FIX M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	9904-0004	●	●	●
210	BOLT; CABLE FIX M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	0005-1201		●	●
210	BOLT; CABLE FIX M8X14 W/PL WASHER	8-98164-837-0	01	1	1202-		●	●
296	NUT; RELAY,STARTER M8	9-09110-408-0	02	1	9601-9606	●	●
296	NUT; RELAY,STARTER M8 FLANGE	0-91150-108-0	02	1	9607-9804	●	●
296	NUT; RELAY,STARTER M8 FLANGE	0-91150-108-0	02	1	9805-0004	●	●	●
296	NUT; RELAY,STARTER M8 FLANGE	0-91150-108-0	02	1	0005-0602		●	●
296	NUT; RELAY,STARTER M8 FLANGE	0-91180-108-0	02	1	0603-		●	●
428	CLIP; HARNESS ID=35 L=50	1-09701-214-0	02	1	9601-9804	●	●
428	CLIP; HARNESS ID=35 L=50	1-09701-214-0	02	1	9805-0004	●	●	●
428	CLIP; HARNESS ID=35 L=50	1-09701-214-0	02	1	0005-		●	●
441	BOLT; HARNESS TO FRAME M8X25 FLANGE	0-28080-825-0	02	1	9601-9606	●	●
441	BOLT; HARNESS TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	9607-9804	●	●
441	BOLT; HARNESS TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	9805-0004	●	●	●
441	BOLT; HARNESS TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	0005-0512		●	●
441	BOLT; HARNESS TO FRAME M8X25 FLANGE	0-28650-825-0	02	1	0601-		●	●
488	STOPPER; ENG	1-82840-142-3	01	1	9601-		●
488	STOPPER; ENG	1-82840-150-1	01	1	9601-0004	●
488	STOPPER; ENG	1-82840-128-3	01	1	9805-			●
489	BOLT; ENG STOPPER M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9601-9804	●	●
489	BOLT; ENG STOPPER M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9805-0004	●	●	●
489	BOLT; ENG STOPPER M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	0005-0512		●	●
489	BOLT; ENG STOPPER M8X25 W/LK&PL WASHER	0-50640-825-0	02	1	0601-		●	●
492	BRACKET; ENG STOPPER	1-82849-089-1	01	1	9601-9804	●	●
492	BRACKET; ENG STOPPER	1-82849-089-1	01	1	9805-0004	●	●	●
492	BRACKET; ENG STOPPER	1-82849-089-1	01	1	0005-		●	●
702	BOLT; RELAY M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9601-9804	●	●
702	BOLT; RELAY M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9805-0004	●	●	●
702	BOLT; RELAY M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0005-		●	●

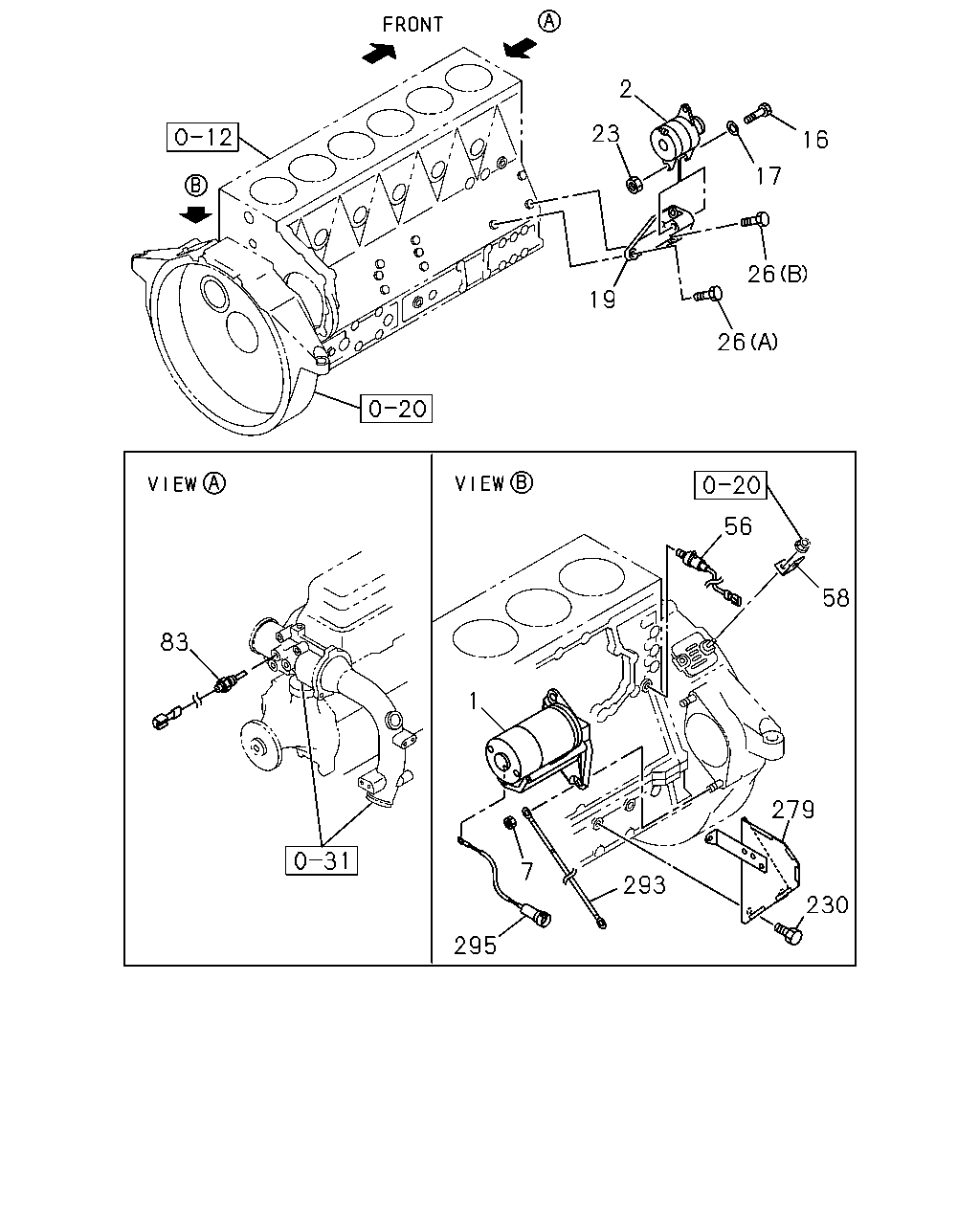

2 23 16 17 26 19 26 56 58 83 1 279 7 293 230 295

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.5KW DENSO	1-81100-230-2	01	1	9601-0004	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.5KW DENSO	1-81100-230-2	01	1	0005-0108		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.5KW DENSO	1-81100-422-0	01	1	0109-		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO	1-81100-323-1	01	1	9805-			●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO	8-94399-159-4	01	1	9905-9907			●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A DENSO	8-94399-157-1	01	1	9601-0004	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A DENSO	8-94399-157-1	01	1	0005-		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO	1-81200-416-5	01	1	9805-			●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI	1-81200-521-0	01	1	9904-9905			●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI	1-81200-577-0	01	1	9906-9907			●
7	NUT; STARTER M14 FLANGE	0-91150-114-0	02	1	9601-0004	●	●
7	NUT; STARTER M14 FLANGE	0-91150-114-0	02	1	0005-		●
7	NUT; STARTER M14	9-99110-414-0	02	1	9805-0512			●
7	NUT; STARTER M14	0-91110-514-0	02	1	0601-			●
16	BOLT; GEN M14X128	9-09801-203-0	01	1	9601-9611	●	●
16	BOLT; GEN M14X123	9-09801-204-1	01	1	9612-0004	●	●
16	BOLT; GEN M14X123	9-09801-204-1	01	1	0005-		●
16	BOLT; GEN M14X135	1-09000-133-1	01	1	9805-			●
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	9601-9804	●	●
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	9805-0004	●	●	●
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	0005-0605		●	●
17	WASHER; PL,GEN ID=15	0-91610-514-0	01	1	0606-		●	●
19	BRACKET; GEN	1-19711-038-0	01	1	9601-0004	●	●
19	BRACKET; GEN	1-19711-038-0	01	1	0005-		●
19	BRACKET; GEN	8-94396-297-0	01	1	9805-0112			●
19	BRACKET; GEN	8-97602-318-0	01	1	0201-			●
23	NUT; GEN M14 FLANGE	0-91150-114-0	01	1	9601-0004	●	●
23	NUT; GEN M14 FLANGE	0-91150-114-0	01	1	0005-		●
23	NUT; GEN M14	9-99110-414-0	01	1	9805-0512			●
23	NUT; GEN M14	0-91110-514-0	01	1	0601-			●
26	BOLT; GEN BRKT (A) M10X40 FLANGE	0-28181-040-0	01	1	9601-9804	●	●
26	BOLT; GEN BRKT (A) M10X40 FLANGE	0-28181-040-0	01	1	9805-0004	●	●	●
26	BOLT; GEN BRKT (A) M10X40 FLANGE	0-28181-040-0	01	1	0005-0512		●	●
26	BOLT; GEN BRKT (A) M10X40 FLANGE	0-28151-040-0	01	1	0601-		●	●
26	BOLT; GEN BRKT (B) M10X70 FLANGE	0-28181-070-0	02	1	9601-0004	●	●
26	BOLT; GEN BRKT (B) M10X70 FLANGE	0-28181-070-0	02	1	0005-0512		●
26	BOLT; GEN BRKT (B) M10X70 FLANGE	0-28151-070-0	02	1	0601-		●
26	BOLT; GEN BRKT (B) M10X80 FLANGE	0-28181-080-0	02	1	9805-0512			●
26	BOLT; GEN BRKT (B) M10X80 FLANGE	0-28151-080-0	02	1	0601-			●
56	SWITCH; OIL PRESSURE WARNING	1-82410-170-0	01	1	9601-9804	●	●
56	SWITCH; OIL PRESSURE WARNING	1-82410-170-0	01	1	9805-0004	●	●	●
56	SWITCH; OIL PRESSURE WARNING	1-82410-170-0	01	1	0005-0011		●	●
56	SWITCH; OIL PRESSURE WARNING	1-82410-170-0	01	1	0012-0109		●
56	SWITCH; OIL PRESSURE WARNING	1-82410-170-1	01	1	0110-		●	●
58	BRACKET; CLIP L=55	1-47475-304-0	01	1	9601-0004	●	●
58	BRACKET; CLIP L=55	1-47475-304-0	01	1	0005-		●
83	THERMOMETER UNIT	1-83161-031-1	01	1	9601-9804	●	●
83	THERMOMETER UNIT	1-83161-031-1	01	1	9805-0004	●	●	●
83	THERMOMETER UNIT	1-83161-031-1	01	1	0005-		●	●
230	BOLT; HEAT PROTECTOR M10X16 FLANGE	0-28181-016-0	02	1	9601-0004	●
230	BOLT; HEAT PROTECTOR M8X28 FLANGE	0-28080-828-0	01	1	9805-			●
230	BOLT; HEAT PROTECTOR M10X30 FLANGE	0-28181-030-0	01	1	9805-0512			●
230	BOLT; HEAT PROTECTOR M10X30 FLANGE	0-28151-030-0	01	1	0601-			●
279	PROTECTOR; STARTER	1-14181-292-0	01	1	9601-0004	●
279	PROTECTOR; STARTER	8-94394-952-1	01	1	9805-			●
293	CABLE; STARTER EARTH L=550	1-82650-239-0	01	1	9601-0004	●	●
293	CABLE; STARTER EARTH L=550	1-82650-239-0	01	1	0005-		●
293	CABLE; STARTER EARTH L=360	1-82650-230-1	01	1	9805-			●
295	HARNESS; STARTER	1-82640-527-0	01	1	9601-0004	●	●
295	HARNESS; STARTER	1-82640-527-1	01	1	0005-		●

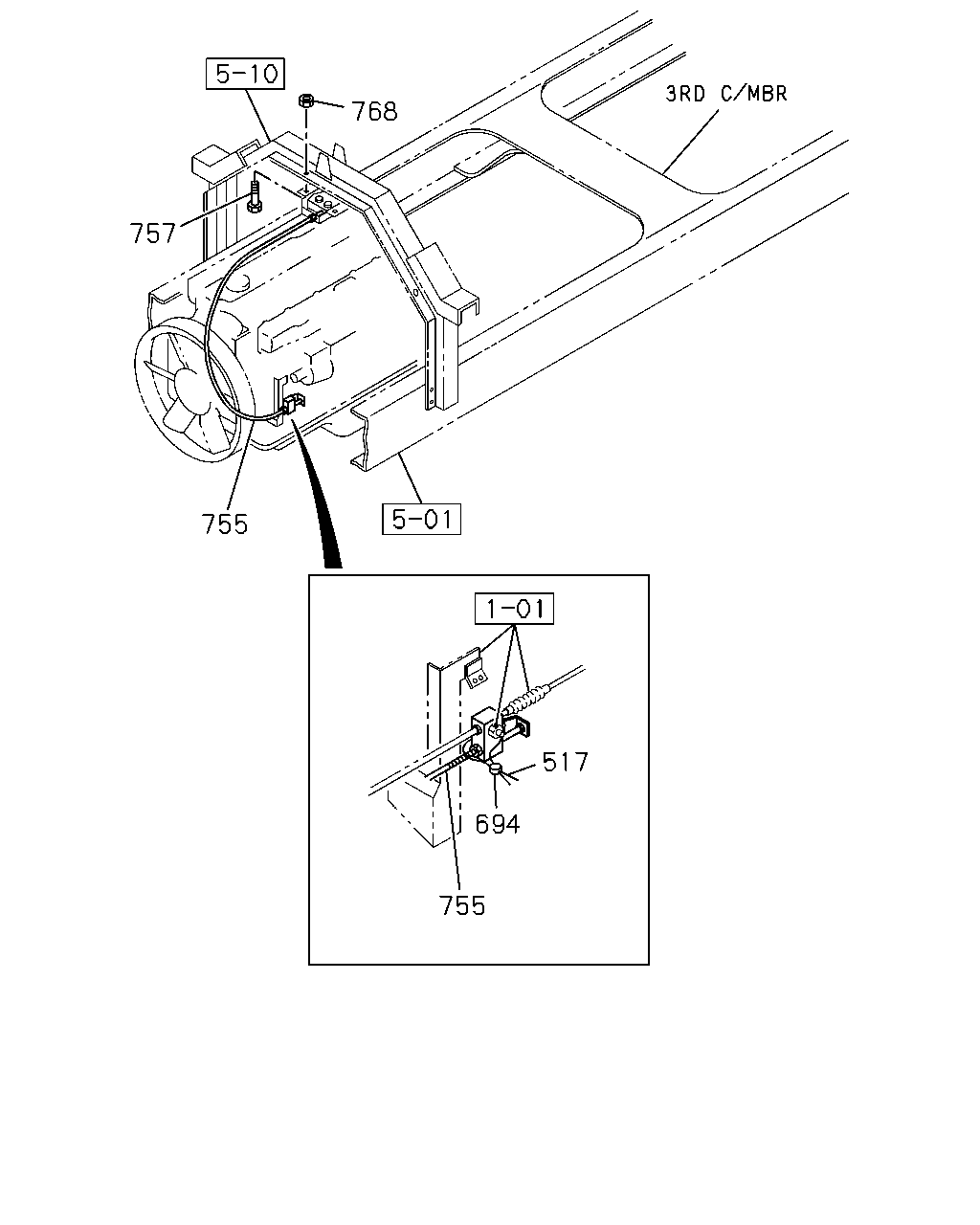

768 757 755 517 694 755

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
517	WIRE SPEED LIMITER CABLE STROKE CONTROL<TDT>	9-81325-446-0	02	1	9601-0004	●
694	SEAL; COVER SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15739-002-0	02	1	9601-0004	●
755	MOTOR; SERVO SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-82840-147-0	01	1	9601-9601	●
755	MOTOR; SERVO SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-82840-149-1	01	1	9602-0004	●
757	BOLT; SERVO MOTOR SPEED LIMITER CABLE STROKE CONTROL<TDT> M8X16 FLANGE	0-28080-816-0	02	1	9601-0004	●
757	BOLT; SERVO MOTOR SPEED LIMITER CABLE STROKE CONTROL<TDT> M8X25 FLANGE	0-28080-825-0	02	1	9601-9606	●
757	BOLT; SERVO MOTOR SPEED LIMITER CABLE STROKE CONTROL<TDT> M8X25 FLANGE	0-28680-825-0	02	1	9607-0004	●
768	NUT; SERVO MOTOR SPEED LIMITER CABLE STROKE CONTROL<TDT> M8	9-09110-408-0	04	1	9601-9606	●
768	NUT; SERVO MOTOR SPEED LIMITER CABLE STROKE CONTROL<TDT> M8 FLANGE	0-91150-108-0	04	1	9607-0004	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
