Sayfa 0-52 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10706 - FVM-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-52 - OIL AND VACUUM PIPING; ENGINE ▶

0-52 — OIL AND VACUUM PIPING; ENGINE (#63952) — 156 parça

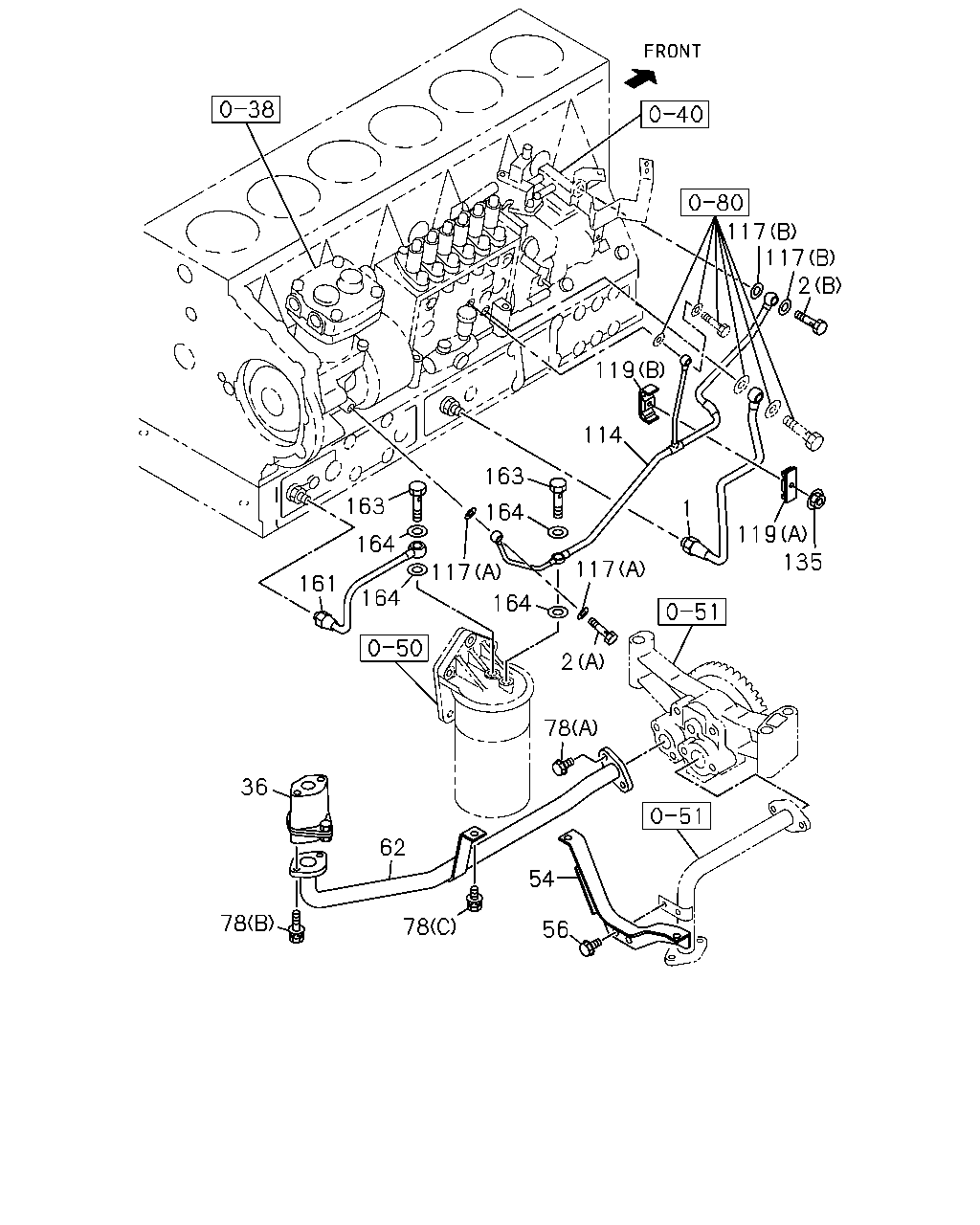

117 117 2 119 114 163 163 1 164 119 135 164 117 117 161 164 164 2 78 36 62 54 78 78 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; OIL,INJ PUMP TO C/BL	1-13313-351-0	01	1	9601-	●
1	PIPE; OIL,INJ PUMP TO C/BL	1-13313-537-0	01	1	9601-0004		●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94394-276-0	01	1	9805-			●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	9601-0004	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	0005-0805	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	01	1	0806-	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-160-0	01	1	9601-0004	●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-160-0	01	1	0005-0805	●
2	BOLT; EYE,OIL PIPE (B) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9805-0805			●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-			●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	9805-			●
36	SPACER; DRAIN BACK	1-13260-108-0	01	1	9601-0009	●
36	SPACER; DRAIN BACK TAMPER PROOF INJ PUMP SET<W44>	1-13260-108-0	01	1	0010-	●
54	STAY; OIL STRAINER	1-13345-130-1	01	1	9601-0004	●	●
54	STAY; OIL STRAINER	1-13345-130-1	01	1	0005-	●
56	BOLT; STAY TO BRKT M8X16 FLANGE	0-28080-816-0	02	1	9601-0004	●	●
56	BOLT; STAY TO BRKT M8X16 FLANGE	0-28080-816-0	02	1	0005-0512	●
56	BOLT; STAY TO BRKT M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
62	PIPE; OIL,PUMP TO C/BL	1-13312-396-0	01	1	9601-9701	●	●
62	PIPE; OIL,PUMP TO C/BL	1-13313-274-0	01	1	9702-0004	●	●
62	PIPE; OIL,PUMP TO C/BL	1-13313-274-0	01	1	0005-	●
78	BOLT; OIL PIPE,PUMP TO BODY (A) M8X18 FLANGE	0-28080-818-0	02	1	9601-0004	●	●
78	BOLT; OIL PIPE,PUMP TO BODY (A) M8X18 FLANGE	0-28080-818-0	02	1	0005-	●
78	BOLT; OIL PIPE,PUMP TO BODY (B) M8X100 W/LK&PL WASHER	0-50140-800-0	02	1	9601-0004	●	●
78	BOLT; OIL PIPE,PUMP TO BODY (B) M8X100 W/LK&PL WASHER	0-50140-800-0	02	1	0005-0906	●
78	BOLT; OIL PIPE,PUMP TO BODY (B) M8X100 W/LK&PL WASHER	0-50640-800-0	02	1	0907-	●
78	BOLT; OIL PIPE,PUMP TO BODY (C) M8X16 W/LK&PL WASHER	0-50140-816-0	01	1	9601-0004	●	●
78	BOLT; OIL PIPE,PUMP TO BODY (C) M8X16 W/LK&PL WASHER	0-50140-816-0	01	1	0005-0512	●
78	BOLT; OIL PIPE,PUMP TO BODY (C) M8X16 W/LK&PL WASHER	0-50640-816-0	01	1	0601-	●
114	PIPE ASM; OIL,BODY	1-13313-541-1	01	1	9601-	●
114	PIPE ASM; OIL,BODY	1-13313-538-0	01	1	9601-0004		●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	9601-0004	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0005-	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2	1-09630-084-0	02	1	9601-0004	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2	1-09630-084-0	02	1	0005-1312	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2	8-98251-344-0	02	1	1401-	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=10.2 OD=15.2	1-09630-083-0	04	1	9805-			●
119	CLIP; OIL PIPE,BODY TO CMPR (A) ID=9 & 9 L=25	1-09701-180-0	01	1	9601-	●
119	CLIP; OIL PIPE,BODY TO CMPR (B) ID=9 & 9 L=25	8-94393-280-3	01	1	9601-	●
119	CLIP; OIL PIPE,BODY TO CMPR (A) WO/NUT	1-09700-079-0	01	1	9601-0004		●
119	CLIP; OIL PIPE,BODY TO CMPR (B) W/NUT	1-09700-080-0	01	1	9601-0004		●
135	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	9601-0602	●
135	NUT; CLIP M6 FLANGE	0-91180-106-0	01	1	0603-	●
135	NUT; CLIP M6 FLANGE	0-91150-106-0	02	1	9601-0004		●
161	PIPE; OIL,PARTIAL FILTER RETURN	1-13313-352-0	01	1	9601-0004	●	●
161	PIPE; OIL,PARTIAL FILTER RETURN	1-13313-352-0	01	1	0005-	●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER M14X27 FLANGE	1-09675-086-0	02	1	9601-0004	●	●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER M14X27 FLANGE	1-09675-086-0	02	1	0005-	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	04	1	9601-0004	●	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	04	1	0005-1312	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-	●

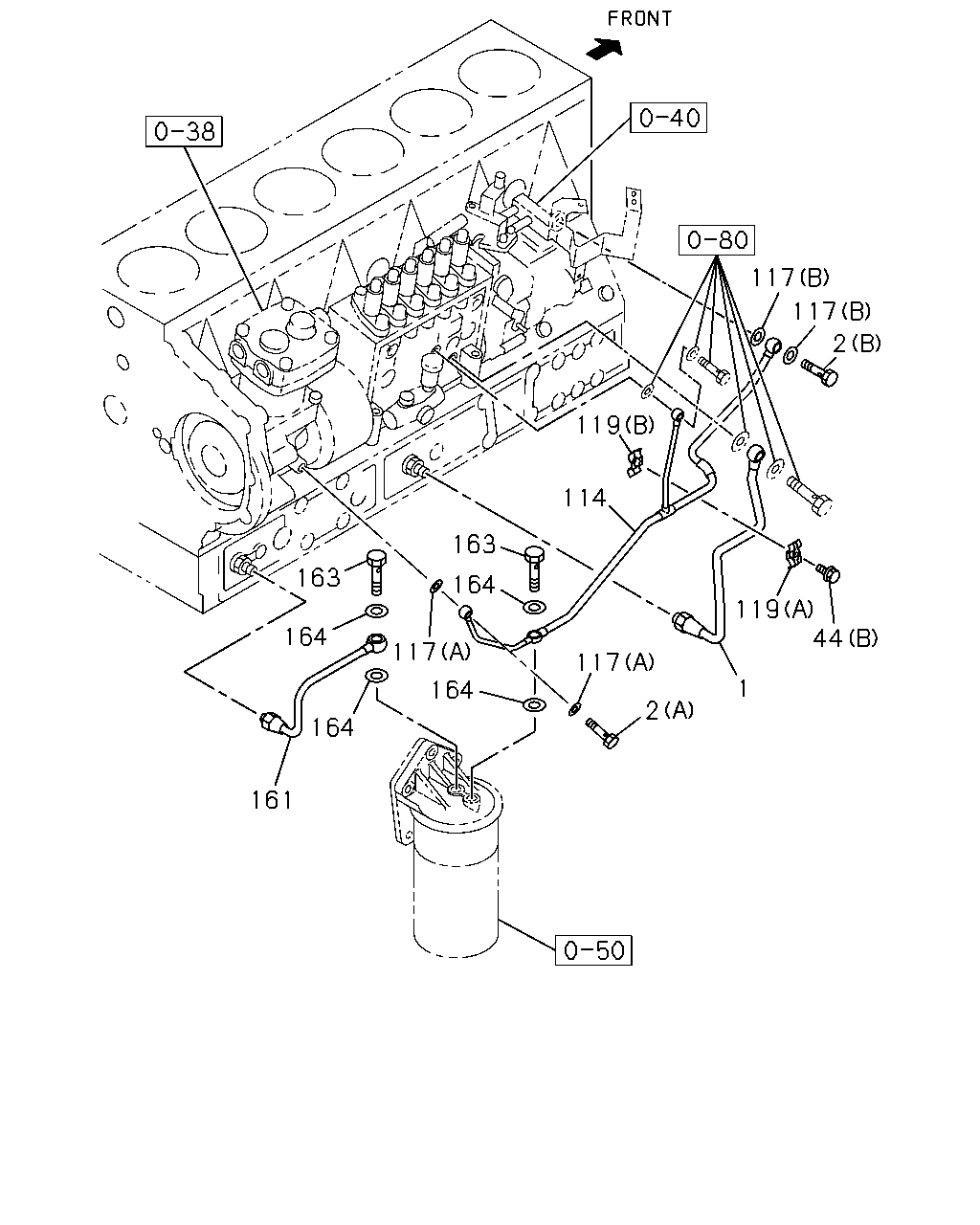

117 117 2 119 114 163 163 164 119 44 164 117 117 1 164 2 164 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; OIL,INJ PUMP TO C/BL	1-13313-351-0	01	1	9601-	●
1	PIPE; OIL,INJ PUMP TO C/BL	1-13313-537-0	01	1	9601-0004		●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94394-276-0	01	1	9805-			●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	9601-0004	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	0005-0805	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	01	1	0806-	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-160-0	01	1	9601-0004	●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-160-0	01	1	0005-0805	●
2	BOLT; EYE,OIL PIPE (B) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9805-0805			●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-			●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	9805-			●
44	BOLT; CLIP,OIL PIPE (A) M6X35 FLANGE	0-28080-635-0	01	1	9601-0004		●
44	BOLT; CLIP,OIL PIPE (B) M6X25 W/LK WASHER	0-50040-625-0	01	1	9601-0004		●
44	BOLT; CLIP,OIL PIPE M6X22 FLANGE	0-28080-622-0	01	1	9805-			●
114	PIPE ASM; OIL,BODY	1-13313-541-1	01	1	9601-	●
114	PIPE ASM; OIL,BODY	1-13313-538-0	01	1	9601-0004		●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	9601-0004	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0005-	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2	1-09630-084-0	02	1	9601-0004	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2	1-09630-084-0	02	1	0005-1312	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2	8-98251-344-0	02	1	1401-	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=10.2 OD=15.2	1-09630-083-0	04	1	9805-			●
119	CLIP; OIL PIPE,BODY TO CMPR (A) ID=9 & 9 L=25	1-09701-180-0	01	1	9601-	●
119	CLIP; OIL PIPE,BODY TO CMPR (B) ID=9 & 9 L=25	8-94393-280-3	01	1	9601-	●
119	CLIP; OIL PIPE,BODY TO CMPR (A) WO/NUT	1-09700-079-0	01	1	9601-0004		●
119	CLIP; OIL PIPE,BODY TO CMPR (B) W/NUT	1-09700-080-0	01	1	9601-0004		●
161	PIPE; OIL,PARTIAL FILTER RETURN	1-13313-352-0	01	1	9601-0004	●	●
161	PIPE; OIL,PARTIAL FILTER RETURN	1-13313-352-0	01	1	0005-	●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER M14X27 FLANGE	1-09675-086-0	02	1	9601-0004	●	●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER M14X27 FLANGE	1-09675-086-0	02	1	0005-	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	04	1	9601-0004	●	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	04	1	0005-1312	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-	●

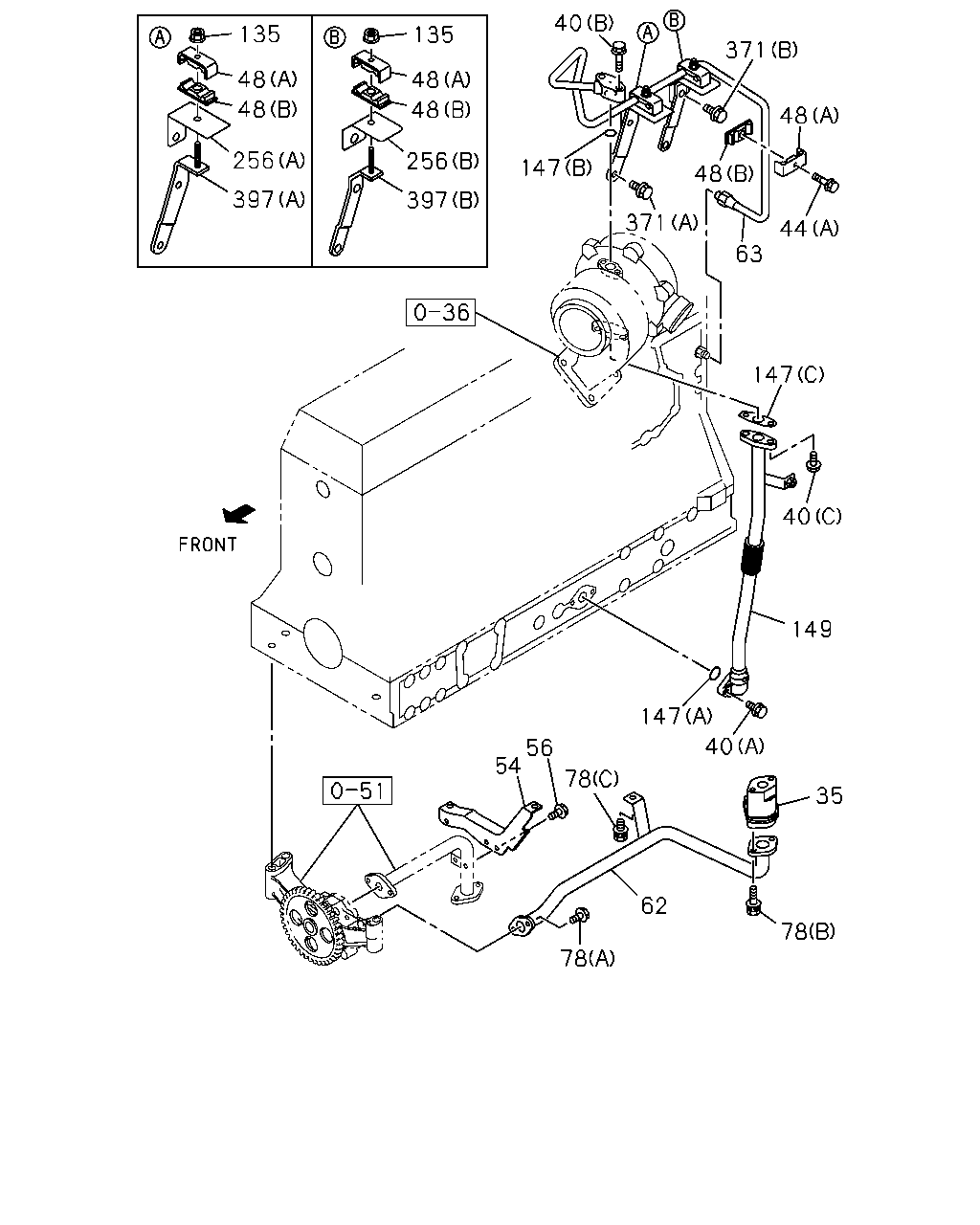

40 135 135 371 48 48 48 48 48 256 256 147 48 397 397 371 44 63 147 40 149 147 40 56 54 78 35 62 78 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
35	VALVE ASM; DRAIN BACK INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. KENYA EQUIPMENT(PQ2),TAMPER PROOF INJ PUMP SET<W44>	1-13260-086-0	01	1	0010-0011	●
35	VALVE ASM; DRAIN BACK EXC. TAMPER PROOF INJ PUMP SET<W44>	1-13260-086-0	01	1	0012-	●
35	VALVE ASM; DRAIN BACK	1-13260-086-0	01	1	9601-0004		●
40	BOLT; OIL PIPE (A) M8X25 FLANGE	0-28080-825-0	02	1	9601-0004		●
40	BOLT; OIL PIPE (B) M8X30 FLANGE	0-28080-830-0	02	1	9601-0004		●
40	BOLT; OIL PIPE (C) M10X22 FLANGE	0-28181-022-0	02	1	9601-0004		●
44	BOLT; CLIP,OIL PIPE (A) M6X35 FLANGE	0-28080-635-0	01	1	9601-0004		●
44	BOLT; CLIP,OIL PIPE (B) M6X25 W/LK WASHER	0-50040-625-0	01	1	9601-0004		●
44	BOLT; CLIP,OIL PIPE M6X22 FLANGE	0-28080-622-0	01	1	9805-			●
48	CLIP; OIL PIPE (A) ID=7 & 9 L=25	1-09701-228-0	03	1	9601-0004		●
48	CLIP; OIL PIPE (B) ID=7 & 9 L=25	1-09701-229-0	03	1	9601-0004		●
54	STAY; OIL STRAINER	1-13345-130-1	01	1	9601-0004	●	●
54	STAY; OIL STRAINER	1-13345-130-1	01	1	0005-	●
56	BOLT; STAY TO BRKT M8X16 FLANGE	0-28080-816-0	02	1	9601-0004	●	●
56	BOLT; STAY TO BRKT M8X16 FLANGE	0-28080-816-0	02	1	0005-0512	●
56	BOLT; STAY TO BRKT M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
62	PIPE; OIL,PUMP TO C/BL	1-13312-396-0	01	1	9601-9701	●	●
62	PIPE; OIL,PUMP TO C/BL	1-13313-274-0	01	1	9702-0004	●	●
62	PIPE; OIL,PUMP TO C/BL	1-13313-274-0	01	1	0005-	●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-567-0	01	1	9601-0004		●
78	BOLT; OIL PIPE,PUMP TO BODY (A) M8X18 FLANGE	0-28080-818-0	02	1	9601-0004	●	●
78	BOLT; OIL PIPE,PUMP TO BODY (A) M8X18 FLANGE	0-28080-818-0	02	1	0005-	●
78	BOLT; OIL PIPE,PUMP TO BODY (B) M8X100 W/LK&PL WASHER	0-50140-800-0	02	1	9601-0004	●	●
78	BOLT; OIL PIPE,PUMP TO BODY (B) M8X100 W/LK&PL WASHER	0-50140-800-0	02	1	0005-0906	●
78	BOLT; OIL PIPE,PUMP TO BODY (B) M8X100 W/LK&PL WASHER	0-50640-800-0	02	1	0907-	●
78	BOLT; OIL PIPE,PUMP TO BODY (C) M8X16 W/LK&PL WASHER	0-50140-816-0	01	1	9601-0004	●	●
78	BOLT; OIL PIPE,PUMP TO BODY (C) M8X16 W/LK&PL WASHER	0-50140-816-0	01	1	0005-0512	●
78	BOLT; OIL PIPE,PUMP TO BODY (C) M8X16 W/LK&PL WASHER	0-50640-816-0	01	1	0601-	●
135	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	9601-0602	●
135	NUT; CLIP M6 FLANGE	0-91180-106-0	01	1	0603-	●
135	NUT; CLIP M6 FLANGE	0-91150-106-0	02	1	9601-0004		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=35.2	1-09623-297-0	01	1	9601-0004		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3	1-09623-481-0	01	1	9601-0004		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-09637-058-1	01	1	9601-0004		●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-500-0	01	1	9601-9701		●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-725-0	01	1	9702-0004		●
256	PROTECTOR; HEAT,PIPE (A)	1-14181-293-0	01	1	9601-0004		●
256	PROTECTOR; HEAT,PIPE (B)	1-14181-294-0	01	1	9601-0004		●
371	BOLT; STAY (A) M8X16 FLANGE	0-28080-816-0	02	1	9601-0004		●
371	BOLT; STAY (B) M10X16 FLANGE	0-28181-016-0	02	1	9601-0004		●
397	STAY; OIL PIPE (A)	1-13319-038-0	01	1	9601-0004		●
397	STAY; OIL PIPE (B)	1-13319-039-0	01	1	9601-0004		●

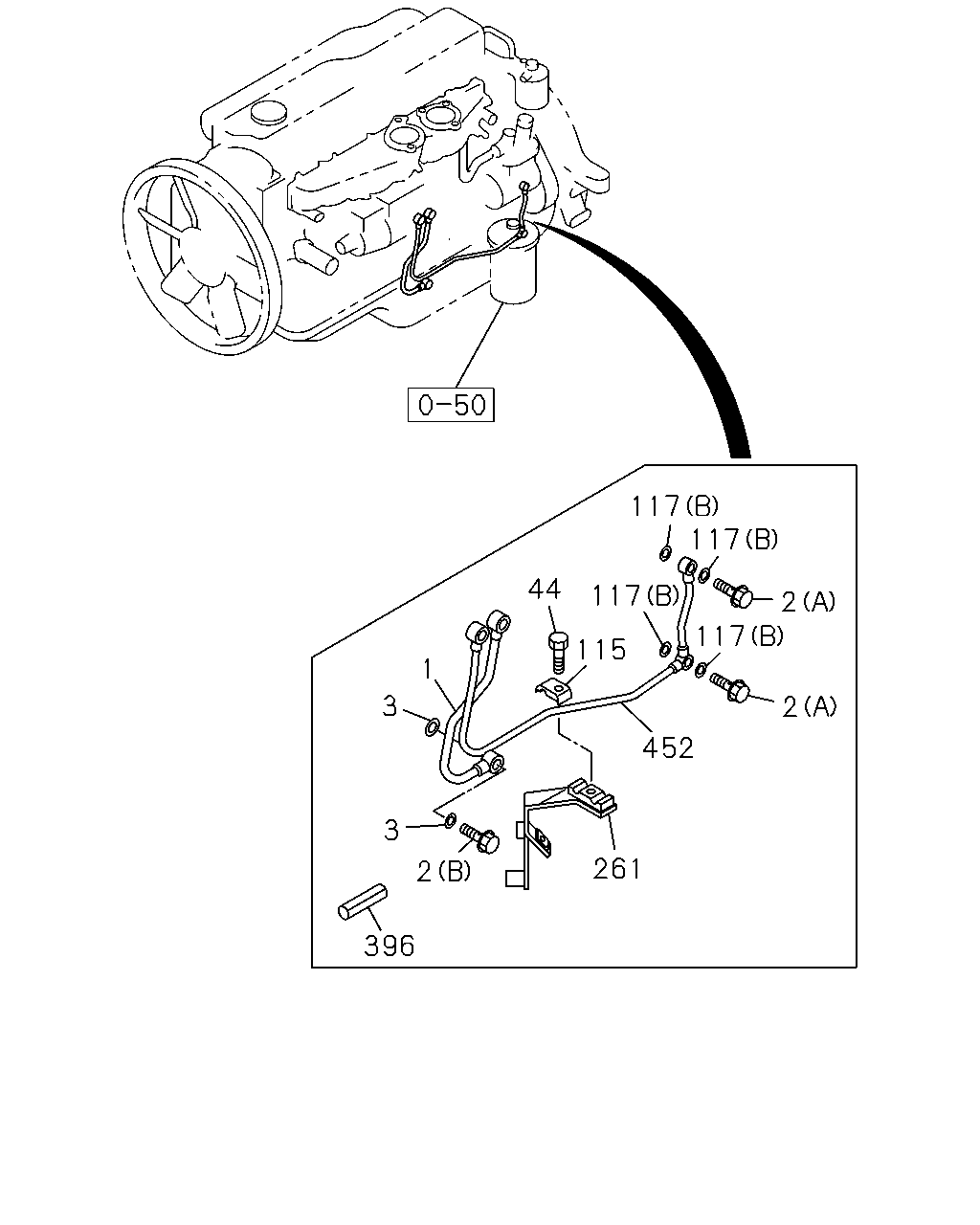

117 117 117 117 44 1 3 115 452 261 2 3 396 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; OIL,INJ PUMP TO C/BL	1-13313-351-0	01	1	9601-	●
1	PIPE; OIL,INJ PUMP TO C/BL	1-13313-537-0	01	1	9601-0004		●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94394-276-0	01	1	9805-			●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	9601-0004	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	0005-0805	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	01	1	0806-	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-160-0	01	1	9601-0004	●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-160-0	01	1	0005-0805	●
2	BOLT; EYE,OIL PIPE (B) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9805-0805			●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-			●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	9805-			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	1-09630-084-0	02	1	9805-1312			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	8-98251-344-0	02	1	1401-			●
44	BOLT; CLIP,OIL PIPE (A) M6X35 FLANGE	0-28080-635-0	01	1	9601-0004		●
44	BOLT; CLIP,OIL PIPE (B) M6X25 W/LK WASHER	0-50040-625-0	01	1	9601-0004		●
44	BOLT; CLIP,OIL PIPE M6X22 FLANGE	0-28080-622-0	01	1	9805-			●
115	CLIP; PIPE,INJ PUMP	1-09701-091-0	01	1	9805-			●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	9601-0004	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0005-	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2	1-09630-084-0	02	1	9601-0004	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2	1-09630-084-0	02	1	0005-1312	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2	8-98251-344-0	02	1	1401-	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=10.2 OD=15.2	1-09630-083-0	04	1	9805-			●
261	BRACKET; CLIP,OIL PIPE	8-94394-410-3	01	1	9805-			●
396	SLEEVE; RUBBER,OIL PIPE ID=10 OD=14 L=30	9-09956-682-0	01	1	0002-			●
452	PIPE; OIL,OIL FILTER TO AIR CMPR	8-94390-073-0	01	1	9805-9906			●
452	PIPE; OIL,OIL FILTER TO AIR CMPR	8-97600-569-0	01	1	9907-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
