0-51 — OIL PUMP AND OIL STRAINER (#63951) — 87 parça

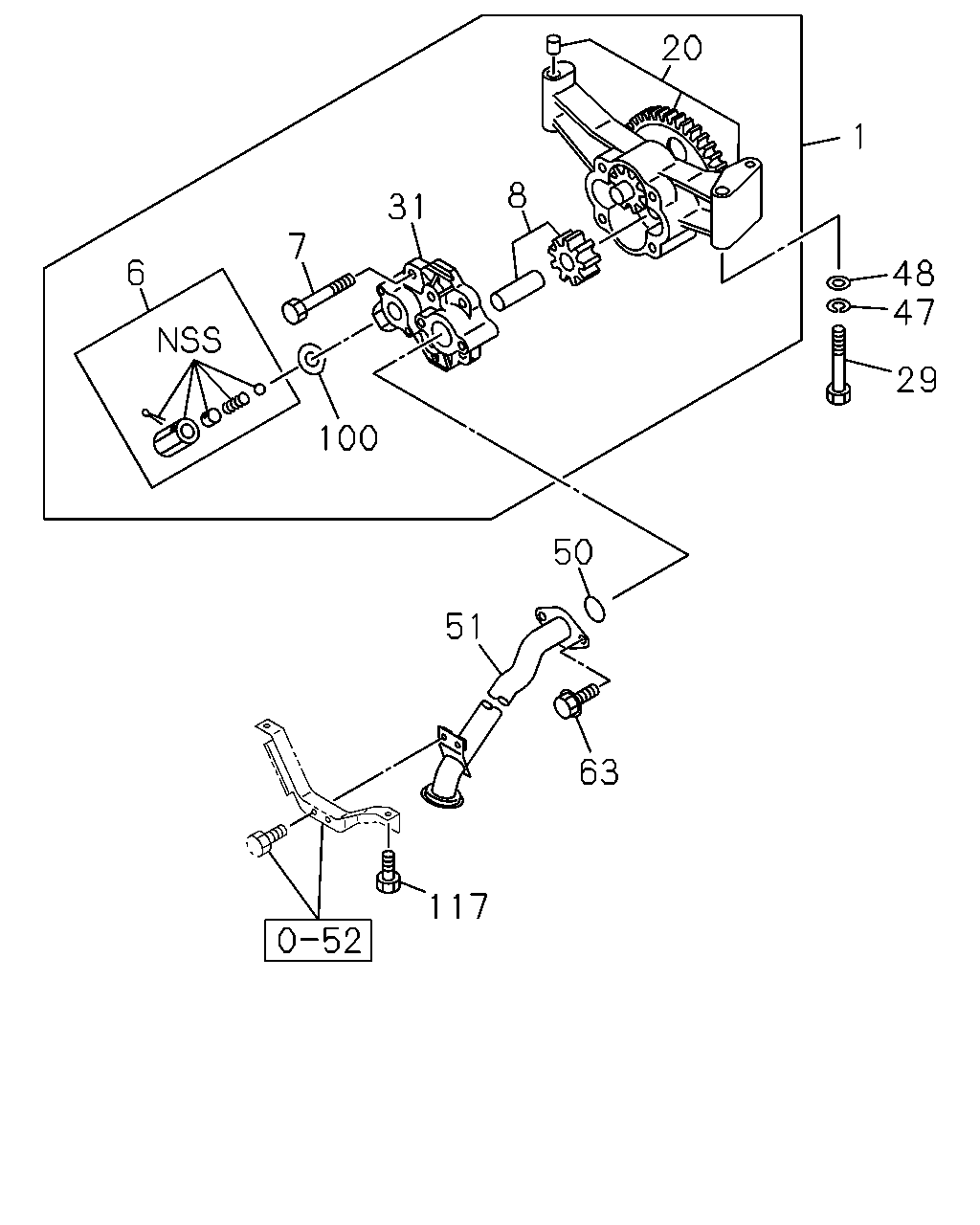

20 1 8 31 7 6 48 47 29 100 50 51 63 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PUMP ASM; OIL	1-13100-219-1	01	1	9601-0004	●	●
1	PUMP ASM; OIL	1-13100-219-1	01	1	0005-		●
1	PUMP ASM; OIL	8-94393-830-3	01	1	9805-9805			●
1	PUMP ASM; OIL	8-94395-564-3	01	1	9806-			●
6	VALVE ASM; RELIEF,OIL PUMP	1-13160-021-1	01	1	9601-0004	●	●
6	VALVE ASM; RELIEF,OIL PUMP	1-13160-021-1	01	1	0005-		●
7	BOLT; COVER,OIL PUMP M8X35 W/LK WASHER	0-50040-835-0	04	1	9601-0004	●	●
7	BOLT; COVER,OIL PUMP M8X35 W/LK WASHER	0-50040-835-0	04	1	0005-0512		●
7	BOLT; COVER,OIL PUMP M8X35 W/LK WASHER	0-50540-835-0	04	1	0601-		●
8	GEAR; DRIVEN,OIL PUMP	1-13120-059-0	01	1	9601-0004	●	●
8	GEAR; DRIVEN,OIL PUMP	1-13120-059-0	01	1	0005-		●
8	GEAR; DRIVEN,OIL PUMP	8-94393-834-0	01	1	9805-9805			●
8	GEAR; DRIVEN,OIL PUMP	8-94392-559-0	01	1	9806-			●
20	GEAR; DRIVE,OIL PUMP	1-13120-063-0	01	1	9601-0004	●	●
20	GEAR; DRIVE,OIL PUMP	1-13120-063-0	01	1	0005-		●
20	GEAR; DRIVE,OIL PUMP	8-94393-831-3	01	1	9805-9805			●
20	GEAR; DRIVE,OIL PUMP	8-94392-557-1	01	1	9806-			●
29	BOLT; OIL PUMP M10X80	0-16806-080-0	03	1	9601-0004	●	●
29	BOLT; OIL PUMP M10X80	0-16806-080-0	03	1	0005-0512		●
29	BOLT; OIL PUMP M10X80	0-16856-080-0	03	1	0601-		●
29	BOLT; OIL PUMP M8X25 FLANGE	0-28080-825-0	04	1	9805-0512			●
29	BOLT; OIL PUMP M8X25 FLANGE	0-28050-825-0	04	1	0601-			●
31	COVER; OIL PUMP	1-13113-057-0	01	1	9601-0004	●	●
31	COVER; OIL PUMP	1-13113-057-0	01	1	0005-		●
47	WASHER; LK,OIL PUMP ID=10.2	9-09150-810-0	03	1	9601-0004	●	●
47	WASHER; LK,OIL PUMP ID=10.2	9-09150-810-0	03	1	0005-0603		●
47	WASHER; LK,OIL PUMP ID=10.2	0-91510-810-0	03	1	0604-		●
48	WASHER; PL,OIL PUMP ID=10.5 OD=22	9-09164-610-0	03	1	9601-0004	●	●
48	WASHER; PL,OIL PUMP ID=10.5 OD=22	9-09164-610-0	03	1	0005-0605		●
48	WASHER; PL,OIL PUMP ID=10.5 OD=22	0-91614-610-0	03	1	0606-		●
50	GASKET; OIL PIPE,STRAINER TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=31.2	1-09623-220-0	01	1	9601-0004	●	●
50	GASKET; OIL PIPE,STRAINER TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=31.2	1-09623-220-0	01	1	0005-		●
50	GASKET; OIL PIPE,STRAINER TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-183-0	01	1	9805-0112			●
50	GASKET; OIL PIPE,STRAINER TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5	8-94399-398-0	01	1	0201-			●
51	STRAINER & PIPE ASM; OIL	1-13312-512-1	01	1	9601-0004	●	●
51	STRAINER & PIPE ASM; OIL	1-13312-512-1	01	1	0005-		●
51	STRAINER & PIPE ASM; OIL	8-94396-067-0	01	1	9805-9805			●
51	STRAINER & PIPE ASM; OIL	8-94392-597-0	01	1	9806-1209			●
51	STRAINER & PIPE ASM; OIL	8-98204-155-0	01	1	1210-			●
63	BOLT; OIL PIPE,STRAINER TO PUMP M8X20 FLANGE	0-28080-820-0	02	1	9601-0004	●	●
63	BOLT; OIL PIPE,STRAINER TO PUMP M8X20 FLANGE	0-28080-820-0	02	1	0005-0512		●
63	BOLT; OIL PIPE,STRAINER TO PUMP M8X20 FLANGE	0-28050-820-0	02	1	0601-		●
63	BOLT; OIL PIPE,STRAINER TO PUMP M8X14 FLANGE	0-28080-814-0	02	1	9805-			●
100	WASHER; LK,RELIEF VLV,OIL PUMP	1-09530-003-0	01	1	9601-0004	●	●
100	WASHER; LK,RELIEF VLV,OIL PUMP	1-09530-003-0	01	1	0005-		●
117	BOLT; STAY TO CRANKCASE M8X16 FLANGE	0-28080-816-0	01	1	9601-0004	●	●
117	BOLT; STAY TO CRANKCASE M8X16 FLANGE	0-28080-816-0	01	1	0005-0512		●
117	BOLT; STAY TO CRANKCASE M8X16 FLANGE	0-28050-816-0	01	1	0601-		●
117	BOLT; STAY TO CRANKCASE M10X75 FLANGE	8-94399-669-1	01	1	9805-			●

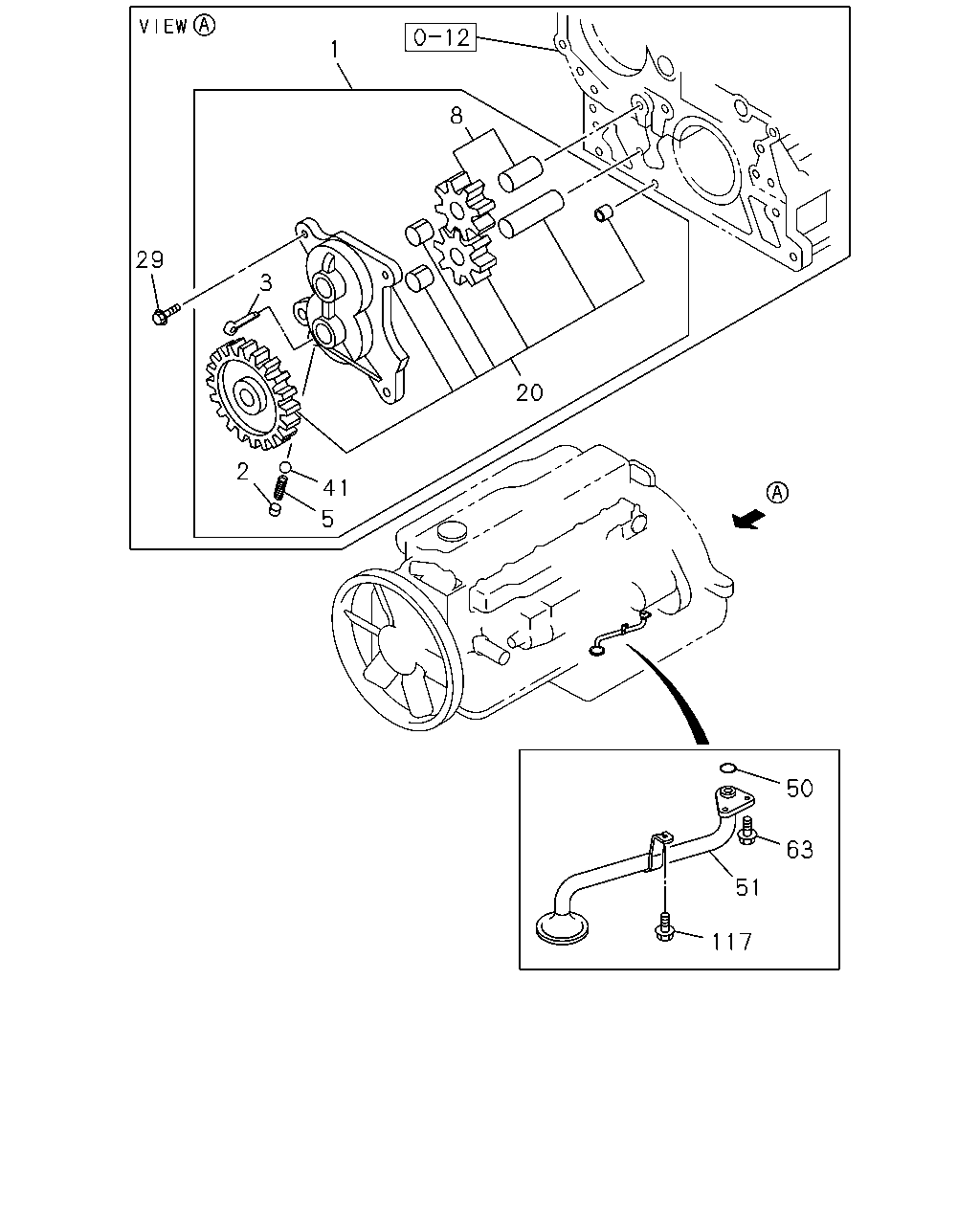

1 8 20 41 5 2 3 29 50 63 51 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PUMP ASM; OIL	1-13100-219-1	01	1	9601-0004	●	●
1	PUMP ASM; OIL	1-13100-219-1	01	1	0005-		●
1	PUMP ASM; OIL	8-94393-830-3	01	1	9805-9805			●
1	PUMP ASM; OIL	8-94395-564-3	01	1	9806-			●
2	SEAT; SPR	5-13165-004-0	01	1	9805-			●
3	PIN; SPLIT L=30	9-08104-030-0	01	1	9805-			●
5	SPRING; COIL	5-09580-098-0	01	1	9805-			●
8	GEAR; DRIVEN,OIL PUMP	1-13120-059-0	01	1	9601-0004	●	●
8	GEAR; DRIVEN,OIL PUMP	1-13120-059-0	01	1	0005-		●
8	GEAR; DRIVEN,OIL PUMP	8-94393-834-0	01	1	9805-9805			●
8	GEAR; DRIVEN,OIL PUMP	8-94392-559-0	01	1	9806-			●
20	GEAR; DRIVE,OIL PUMP	1-13120-063-0	01	1	9601-0004	●	●
20	GEAR; DRIVE,OIL PUMP	1-13120-063-0	01	1	0005-		●
20	GEAR; DRIVE,OIL PUMP	8-94393-831-3	01	1	9805-9805			●
20	GEAR; DRIVE,OIL PUMP	8-94392-557-1	01	1	9806-			●
29	BOLT; OIL PUMP M10X80	0-16806-080-0	03	1	9601-0004	●	●
29	BOLT; OIL PUMP M10X80	0-16806-080-0	03	1	0005-0512		●
29	BOLT; OIL PUMP M10X80	0-16856-080-0	03	1	0601-		●
29	BOLT; OIL PUMP M8X25 FLANGE	0-28080-825-0	04	1	9805-0512			●
29	BOLT; OIL PUMP M8X25 FLANGE	0-28050-825-0	04	1	0601-			●
41	BALL; OIL RELIEF VLV	5-09843-003-0	01	1	9805-			●
50	GASKET; OIL PIPE,STRAINER TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=31.2	1-09623-220-0	01	1	9601-0004	●	●
50	GASKET; OIL PIPE,STRAINER TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=31.2	1-09623-220-0	01	1	0005-		●
50	GASKET; OIL PIPE,STRAINER TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-183-0	01	1	9805-0112			●
50	GASKET; OIL PIPE,STRAINER TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5	8-94399-398-0	01	1	0201-			●
51	STRAINER & PIPE ASM; OIL	1-13312-512-1	01	1	9601-0004	●	●
51	STRAINER & PIPE ASM; OIL	1-13312-512-1	01	1	0005-		●
51	STRAINER & PIPE ASM; OIL	8-94396-067-0	01	1	9805-9805			●
51	STRAINER & PIPE ASM; OIL	8-94392-597-0	01	1	9806-1209			●
51	STRAINER & PIPE ASM; OIL	8-98204-155-0	01	1	1210-			●
63	BOLT; OIL PIPE,STRAINER TO PUMP M8X20 FLANGE	0-28080-820-0	02	1	9601-0004	●	●
63	BOLT; OIL PIPE,STRAINER TO PUMP M8X20 FLANGE	0-28080-820-0	02	1	0005-0512		●
63	BOLT; OIL PIPE,STRAINER TO PUMP M8X20 FLANGE	0-28050-820-0	02	1	0601-		●
63	BOLT; OIL PIPE,STRAINER TO PUMP M8X14 FLANGE	0-28080-814-0	02	1	9805-			●
117	BOLT; STAY TO CRANKCASE M8X16 FLANGE	0-28080-816-0	01	1	9601-0004	●	●
117	BOLT; STAY TO CRANKCASE M8X16 FLANGE	0-28080-816-0	01	1	0005-0512		●
117	BOLT; STAY TO CRANKCASE M8X16 FLANGE	0-28050-816-0	01	1	0601-		●
117	BOLT; STAY TO CRANKCASE M10X75 FLANGE	8-94399-669-1	01	1	9805-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
