Sayfa 0-50 - Isuzu EPC

0-50 — OIL COOLER AND OIL FILTER (#63950) — 502 parça

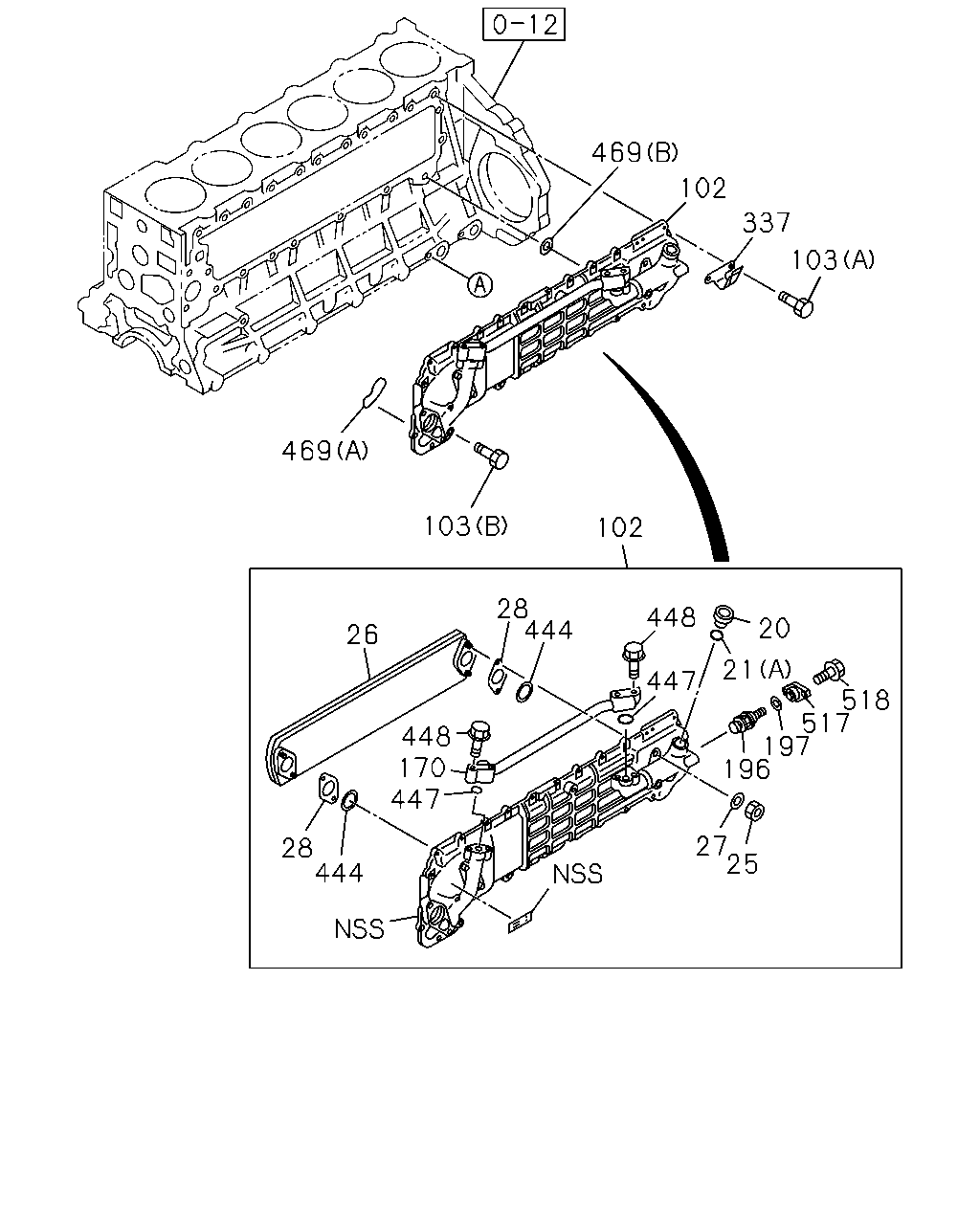

12 469 102 337 103 469 103 102 28 444 448 20 26 21 447 518 517 197 196 448 170 447 27 25 28 444

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	VALVE ASM; BYPASS	1-13260-096-0	01	1	9601-9605	●	●
12	VALVE ASM; BYPASS	1-13260-110-0	01	1	9606-0004	●	●
12	VALVE ASM; BYPASS	1-13260-110-0	01	1	0005-		●
20	PLUG; COOLER BODY (A) M20	1-13219-152-0	03	1	9601-9906	●	●
20	PLUG; COOLER BODY (A) M24	1-13219-356-0	01	1	9907-0004	●	●
20	PLUG; COOLER BODY (A) M24	1-13219-356-0	01	1	9907-0004		●
20	PLUG; COOLER BODY (A) M24	1-13219-356-0	01	1	9907-0004		●
20	PLUG; COOLER BODY (A) M24	1-13219-356-0	01	1	0005-		●
20	PLUG; COOLER BODY (B) M26	1-13219-153-0	02	1	9601-9906	●	●
20	PLUG; COOLER BODY (B) M26	1-13219-153-0	02	1	9601-9906		●
20	PLUG; COOLER BODY (B) M26	1-13219-153-0	04	1	9907-0004	●	●
20	PLUG; COOLER BODY (B) M26	1-13219-153-0	04	1	9907-0004		●
20	PLUG; COOLER BODY (B) M26	1-13219-153-0	04	1	0005-		●
20	PLUG; COOLER BODY	8-94396-753-0	01	1	9805-			●
21	GASKET; PLUG (A) M20	1-13219-158-0	03	1	9601-9906	●	●
21	GASKET; PLUG (B) M26	1-13219-159-0	02	1	9601-9906	●	●
21	GASKET; PLUG (B) M26	1-13219-159-0	02	1	9601-9906		●
21	GASKET; PLUG (B) M26	1-13219-159-0	04	1	9907-0004	●	●
21	GASKET; PLUG (B) M26	1-13219-159-0	04	1	9907-0004		●
21	GASKET; PLUG (B) M26	1-13219-159-0	04	1	0005-		●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	9805-9906			●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	9907-0004	●	●	●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	9907-0004		●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	9907-0004		●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	0005-0009		●	●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	0005-0009		●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	0005-0009		●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	0010-		●	●
25	NUT; CORE TO BODY	1-21729-074-0	04	1	9601-9906	●	●
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	9907-0004	●	●
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	0005-		●
25	NUT; CORE TO BODY M10	9-09111-410-0	04	1	9805-0512			●
25	NUT; CORE TO BODY M10	0-91111-510-0	04	1	0601-			●
26	CORE ASM; OIL COOLER	1-21723-039-0	01	1	9601-9906		●
26	CORE ASM; OIL COOLER	1-21723-049-0	01	1	9601-9906	●
26	CORE ASM; OIL COOLER	1-21723-058-0	01	1	9907-0004	●	●
26	CORE ASM; OIL COOLER	1-21723-058-0	01	1	0005-		●
26	CORE ASM; OIL COOLER ENG OIL PUMP HEAVY DUTY<Q1V>	8-94395-712-0	01	1	9805-			●
26	CORE ASM; OIL COOLER EXC. ENG OIL PUMP HEAVY DUTY<Q1V>	8-94395-711-0	01	1	9805-			●
27	WASHER; PL,CORE TO BODY	1-21729-075-0	04	1	9601-9906	●	●
27	WASHER; PL,CORE TO BODY ID=10.5	9-09164-510-0	04	1	9805-			●
28	GASKET; CORE TO BODY	1-21729-076-0	02	1	9601-9906	●	●
28	GASKET; CORE TO BODY	8-94396-810-0	02	1	9907-0004	●	●
28	GASKET; CORE TO BODY	8-94396-810-0	02	1	0005-		●
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	9805-			●
102	COOLER ASM; OIL ENG OIL PUMP HEAVY DUTY<Q1V>	8-94390-076-4	01	1	9805-			●
102	COOLER ASM; OIL EXC. ENG OIL PUMP HEAVY DUTY<Q1V>	8-94390-074-4	01	1	9805-			●
103	BOLT; OIL COOLER (B) M8X145	1-09000-448-1	02	1	9601-0009		●
103	BOLT; OIL COOLER TAMPER PROOF INJ PUMP SET<W44> (B) M8X145	1-09000-448-1	02	1	0010-		●
103	BOLT; OIL COOLER INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. KENYA EQUIPMENT(PQ2),TAMPER PROOF INJ PUMP SET<W44> (B) M8X138	5-09000-031-1	02	1	0010-0011		●
103	BOLT; OIL COOLER EXC. TAMPER PROOF INJ PUMP SET<W44> (B) M8X138	5-09000-031-1	02	1	0012-		●
103	BOLT; OIL COOLER (A) M8X25 FLANGE	0-28080-825-0	24	1	9601-0004	●	●
103	BOLT; OIL COOLER (A) M8X25 FLANGE	0-28080-825-0	24	1	0005-0512		●
103	BOLT; OIL COOLER (A) M8X25 FLANGE	0-28050-825-0	24	1	0601-		●
103	BOLT; OIL COOLER (C) M8X155	9-09801-275-0	02	1	9601-0004	●	●
103	BOLT; OIL COOLER (C) M8X155	9-09801-275-0	02	1	0005-		●
103	BOLT; OIL COOLER (B) M8X138	5-09000-031-1	02	1	9601-0004	●
103	BOLT; OIL COOLER (A) M8X22 FLANGE	0-28080-822-0	25	1	9805-			●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28080-835-0	02	1	9805-0512			●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	02	1	0601-			●
170	PIPE; BYPASS	8-94390-078-2	01	1	9805-			●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-94394-815-2	01	1	9805-0111			●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-936-0	01	1	0112-			●
197	GASKET; THERMOSTAT ID=25.7	8-94399-279-0	01	1	9805-			●
337	BRACKET; FUEL PIPE	8-94396-688-1	01	1	9805-			●
444	GASKET; ELEMENT TO BODY	8-94396-810-0	02	1	9805-			●
447	GASKET; BYPASS PIPE ID=17.8	1-09623-588-0	02	1	9805-			●
448	BOLT; BYPASS PIPE M8X30 FLANGE	0-28080-830-0	04	1	9805-0512			●
448	BOLT; BYPASS PIPE M8X30 FLANGE	0-28050-830-0	04	1	0601-			●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11219-177-0	01	1	9601-0004	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11219-177-1	01	1	0005-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	9805-			●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	9805-0606			●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	0607-			●
517	PLUG; THERMOSTAT,OIL COOLER	8-94395-191-0	01	1	9805-			●
518	BOLT; PLUG,THERMOSTAT M8X16 FLANGE	0-28080-816-0	02	1	9805-0512			●
518	BOLT; PLUG,THERMOSTAT M8X16 FLANGE	0-28050-816-0	02	1	0601-			●

496 307 308 265 328 328 2 265 321 321 321

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-011-1	01	1	1010-1110			●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-064-0	01	1	1111-			●
2	ELEMENT; OIL FILTER	1-87810-075-2	01	1	9601-0009		●
2	ELEMENT; OIL FILTER TAMPER PROOF INJ PUMP SET<W44>	1-87810-075-2	01	1	0010-		●
2	ELEMENT; OIL FILTER INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. KENYA EQUIPMENT(PQ2),TAMPER PROOF INJ PUMP SET<W44>	1-13240-168-1	01	1	0010-0011		●
2	ELEMENT; OIL FILTER EXC. TAMPER PROOF INJ PUMP SET<W44>	1-13240-168-1	01	1	0012-		●
2	ELEMENT; OIL FILTER	1-13240-168-1	01	1	9601-0004	●
2	ELEMENT; OIL FILTER	8-94391-049-4	01	1	9805-			●
265	BODY; OIL FILTER	1-13212-161-0	01	1	9601-0009		●
265	BODY; OIL FILTER TAMPER PROOF INJ PUMP SET<W44>	1-13212-161-0	01	1	0010-		●
265	BODY; OIL FILTER	8-94391-016-4	01	1	9805-			●
307	VALVE; OVERFLOW	8-94395-700-0	01	1	9805-			●
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	9805-			●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	9805-			●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	9805-			●
328	BOLT; OIL FILTER (A) M10X40 W/LK&PL WASHER	0-50141-040-0	01	1	9601-9910		●
328	BOLT; OIL FILTER (A) M10X35 FLANGE	0-28681-035-0	01	1	9911-0009		●
328	BOLT; OIL FILTER TAMPER PROOF INJ PUMP SET<W44> (A) M10X35 FLANGE	0-28681-035-0	01	1	0010-0512		●
328	BOLT; OIL FILTER TAMPER PROOF INJ PUMP SET<W44> (A) M10X35 FLANGE	0-28651-035-0	01	1	0601-		●
328	BOLT; OIL FILTER (B) M10X142	5-09000-160-1	02	1	9601-9910		●
328	BOLT; OIL FILTER (B) M10X140 FLANGE	0-28086-014-0	02	1	9911-0009		●
328	BOLT; OIL FILTER TAMPER PROOF INJ PUMP SET<W44> (B) M10X140 FLANGE	0-28086-014-0	02	1	0010-0512		●
328	BOLT; OIL FILTER TAMPER PROOF INJ PUMP SET<W44> (B) M10X140 FLANGE	0-28056-014-0	02	1	0601-		●
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28181-030-0	02	1	9805-0512			●
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28151-030-0	02	1	0601-			●
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28181-090-0	02	1	9805-0512			●
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28151-090-0	02	1	0601-			●
496	FILTER ASM; OIL	1-13200-848-0	01	1	9601-0009		●
496	FILTER ASM; OIL TAMPER PROOF INJ PUMP SET<W44>	1-13200-848-0	01	1	0010-		●
496	FILTER ASM; OIL	8-94391-015-8	01	1	9805-			●

1 188 410 496 410 304 188 265 304 410 283 410 328 332 331 107 322 106 103 293 328 292 496 281 325 283 287 284 2 287 290 290 288

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	FILTER & COOLER ASM; OIL	1-21700-295-2	01	1	9601-0009		●
1	FILTER & COOLER ASM; OIL TAMPER PROOF INJ PUMP SET<W44>	1-21700-295-2	01	1	0010-0202		●
1	FILTER & COOLER ASM; OIL TAMPER PROOF INJ PUMP SET<W44>	1-21700-369-0	01	1	0203-		●
1	FILTER & COOLER ASM; OIL INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. KENYA EQUIPMENT(PQ2),TAMPER PROOF INJ PUMP SET<W44>	1-13200-935-2	01	1	0010-0011		●
1	FILTER & COOLER ASM; OIL EXC. TAMPER PROOF INJ PUMP SET<W44>	1-13200-935-2	01	1	0012-		●
1	FILTER & COOLER ASM; OIL	1-13200-936-2	01	1	9601-0004	●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-011-1	01	1	1010-1110			●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-064-0	01	1	1111-			●
2	ELEMENT; OIL FILTER	1-87810-075-2	01	1	9601-0009		●
2	ELEMENT; OIL FILTER TAMPER PROOF INJ PUMP SET<W44>	1-87810-075-2	01	1	0010-		●
2	ELEMENT; OIL FILTER INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. KENYA EQUIPMENT(PQ2),TAMPER PROOF INJ PUMP SET<W44>	1-13240-168-1	01	1	0010-0011		●
2	ELEMENT; OIL FILTER EXC. TAMPER PROOF INJ PUMP SET<W44>	1-13240-168-1	01	1	0012-		●
2	ELEMENT; OIL FILTER	1-13240-168-1	01	1	9601-0004	●
2	ELEMENT; OIL FILTER	8-94391-049-4	01	1	9805-			●
103	BOLT; OIL COOLER (B) M8X145	1-09000-448-1	02	1	9601-0009		●
103	BOLT; OIL COOLER TAMPER PROOF INJ PUMP SET<W44> (B) M8X145	1-09000-448-1	02	1	0010-		●
103	BOLT; OIL COOLER INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. KENYA EQUIPMENT(PQ2),TAMPER PROOF INJ PUMP SET<W44> (B) M8X138	5-09000-031-1	02	1	0010-0011		●
103	BOLT; OIL COOLER EXC. TAMPER PROOF INJ PUMP SET<W44> (B) M8X138	5-09000-031-1	02	1	0012-		●
103	BOLT; OIL COOLER (A) M8X25 FLANGE	0-28080-825-0	24	1	9601-0004	●	●
103	BOLT; OIL COOLER (A) M8X25 FLANGE	0-28080-825-0	24	1	0005-0512		●
103	BOLT; OIL COOLER (A) M8X25 FLANGE	0-28050-825-0	24	1	0601-		●
103	BOLT; OIL COOLER (C) M8X155	9-09801-275-0	02	1	9601-0004	●	●
103	BOLT; OIL COOLER (C) M8X155	9-09801-275-0	02	1	0005-		●
103	BOLT; OIL COOLER (B) M8X138	5-09000-031-1	02	1	9601-0004	●
103	BOLT; OIL COOLER (A) M8X22 FLANGE	0-28080-822-0	25	1	9805-			●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28080-835-0	02	1	9805-0512			●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	02	1	0601-			●
106	WASHER; LK,OIL COOLER ID=8.2	9-09150-508-0	04	1	9601-0004	●	●
106	WASHER; LK,OIL COOLER ID=8.2	9-09150-508-0	04	1	0005-0603		●
106	WASHER; LK,OIL COOLER ID=8.2	0-91510-508-0	04	1	0604-		●
107	WASHER; PL,OIL COOLER ID=8.4	9-09160-508-0	04	1	9601-0004	●	●
107	WASHER; PL,OIL COOLER ID=8.4	9-09160-508-0	04	1	0005-0605		●
107	WASHER; PL,OIL COOLER ID=8.4 OD=16	0-91610-508-0	04	1	0606-		●
188	PIPE; BYPASS	1-13312-650-0	02	1	9601-0009		●
188	PIPE; BYPASS TAMPER PROOF INJ PUMP SET<W44>	1-13312-650-0	02	1	0010-		●
265	BODY; OIL FILTER	1-13212-161-0	01	1	9601-0009		●
265	BODY; OIL FILTER TAMPER PROOF INJ PUMP SET<W44>	1-13212-161-0	01	1	0010-		●
265	BODY; OIL FILTER	8-94391-016-4	01	1	9805-			●
281	COVER; OIL FILTER	1-13211-153-0	01	1	9601-0009		●
281	COVER; OIL FILTER TAMPER PROOF INJ PUMP SET<W44>	1-13211-153-0	01	1	0010-		●
283	GASKET; BODY TO COVER ID=27.7	1-09623-170-0	01	1	9601-0009		●
283	GASKET; BODY TO COVER TAMPER PROOF INJ PUMP SET<W44> ID=27.7	1-09623-170-0	01	1	0010-		●
284	BOLT; CENTER,OIL FILTER	1-13231-047-0	01	1	9601-0009		●
284	BOLT; CENTER,OIL FILTER TAMPER PROOF INJ PUMP SET<W44>	1-13231-047-0	01	1	0010-		●
287	GASKET; CENTER BOLT ID=15.5	9-09920-694-0	01	1	9601-0009		●
287	GASKET; CENTER BOLT TAMPER PROOF INJ PUMP SET<W44> ID=15.5	9-09920-694-0	01	1	0010-		●
288	PLUG; OIL DRAIN M10	1-09000-105-0	01	1	9601-0009		●
288	PLUG; OIL DRAIN TAMPER PROOF INJ PUMP SET<W44> M10	1-09000-105-0	01	1	0010-		●
290	GASKET; PLUG,OIL DRAIN ID=9.8	1-09623-055-0	01	1	9601-0009		●
290	GASKET; PLUG,OIL DRAIN TAMPER PROOF INJ PUMP SET<W44> ID=9.8	1-09623-055-0	01	1	0010-		●
292	SPRING; ELEMENT	9-09941-283-0	01	1	9601-0009		●
292	SPRING; ELEMENT TAMPER PROOF INJ PUMP SET<W44>	9-09941-283-0	01	1	0010-		●
293	SEAT; SPR	1-13219-173-0	01	1	9601-0009		●
293	SEAT; SPR TAMPER PROOF INJ PUMP SET<W44>	1-13219-173-0	01	1	0010-		●
304	BOLT; PIPE TO COVER M8X20 FLANGE	0-28080-820-0	08	1	9601-0009		●
304	BOLT; PIPE TO COVER TAMPER PROOF INJ PUMP SET<W44> M8X20 FLANGE	0-28080-820-0	08	1	0010-0512		●
304	BOLT; PIPE TO COVER TAMPER PROOF INJ PUMP SET<W44> M8X20 FLANGE	0-28050-820-0	08	1	0601-		●
322	BRACKET; OIL FILTER	1-19755-122-1	01	1	9601-0009		●
322	BRACKET; OIL FILTER TAMPER PROOF INJ PUMP SET<W44>	1-19755-122-1	01	1	0010-		●
325	BOLT; BRKT TO BODY M10X22 W/LK WASHER	0-50051-022-0	02	1	9601-0009		●
325	BOLT; BRKT TO BODY TAMPER PROOF INJ PUMP SET<W44> M10X22 W/LK WASHER	0-50051-022-0	02	1	0010-0906		●
325	BOLT; BRKT TO BODY TAMPER PROOF INJ PUMP SET<W44> M10X22 W/LK WASHER	0-50551-022-0	02	1	0907-		●
328	BOLT; OIL FILTER (A) M10X40 W/LK&PL WASHER	0-50141-040-0	01	1	9601-9910		●
328	BOLT; OIL FILTER (A) M10X35 FLANGE	0-28681-035-0	01	1	9911-0009		●
328	BOLT; OIL FILTER TAMPER PROOF INJ PUMP SET<W44> (A) M10X35 FLANGE	0-28681-035-0	01	1	0010-0512		●
328	BOLT; OIL FILTER TAMPER PROOF INJ PUMP SET<W44> (A) M10X35 FLANGE	0-28651-035-0	01	1	0601-		●
328	BOLT; OIL FILTER (B) M10X142	5-09000-160-1	02	1	9601-9910		●
328	BOLT; OIL FILTER (B) M10X140 FLANGE	0-28086-014-0	02	1	9911-0009		●
328	BOLT; OIL FILTER TAMPER PROOF INJ PUMP SET<W44> (B) M10X140 FLANGE	0-28086-014-0	02	1	0010-0512		●
328	BOLT; OIL FILTER TAMPER PROOF INJ PUMP SET<W44> (B) M10X140 FLANGE	0-28056-014-0	02	1	0601-		●
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28181-030-0	02	1	9805-0512			●
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28151-030-0	02	1	0601-			●
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28181-090-0	02	1	9805-0512			●
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28151-090-0	02	1	0601-			●
331	WASHER; PL,OIL FILTER ID=10.5 OD=18	9-09160-510-0	02	1	9601-9910		●
332	WASHER; LK,OIL FILTER ID=10.2	9-09150-510-0	02	1	9601-9910		●
410	GASKET ID=27.7	1-09623-450-0	04	1	9601-0009		●
410	GASKET TAMPER PROOF INJ PUMP SET<W44> ID=27.7	1-09623-450-0	04	1	0010-		●
496	FILTER ASM; OIL	1-13200-848-0	01	1	9601-0009		●
496	FILTER ASM; OIL TAMPER PROOF INJ PUMP SET<W44>	1-13200-848-0	01	1	0010-		●
496	FILTER ASM; OIL	8-94391-015-8	01	1	9805-			●

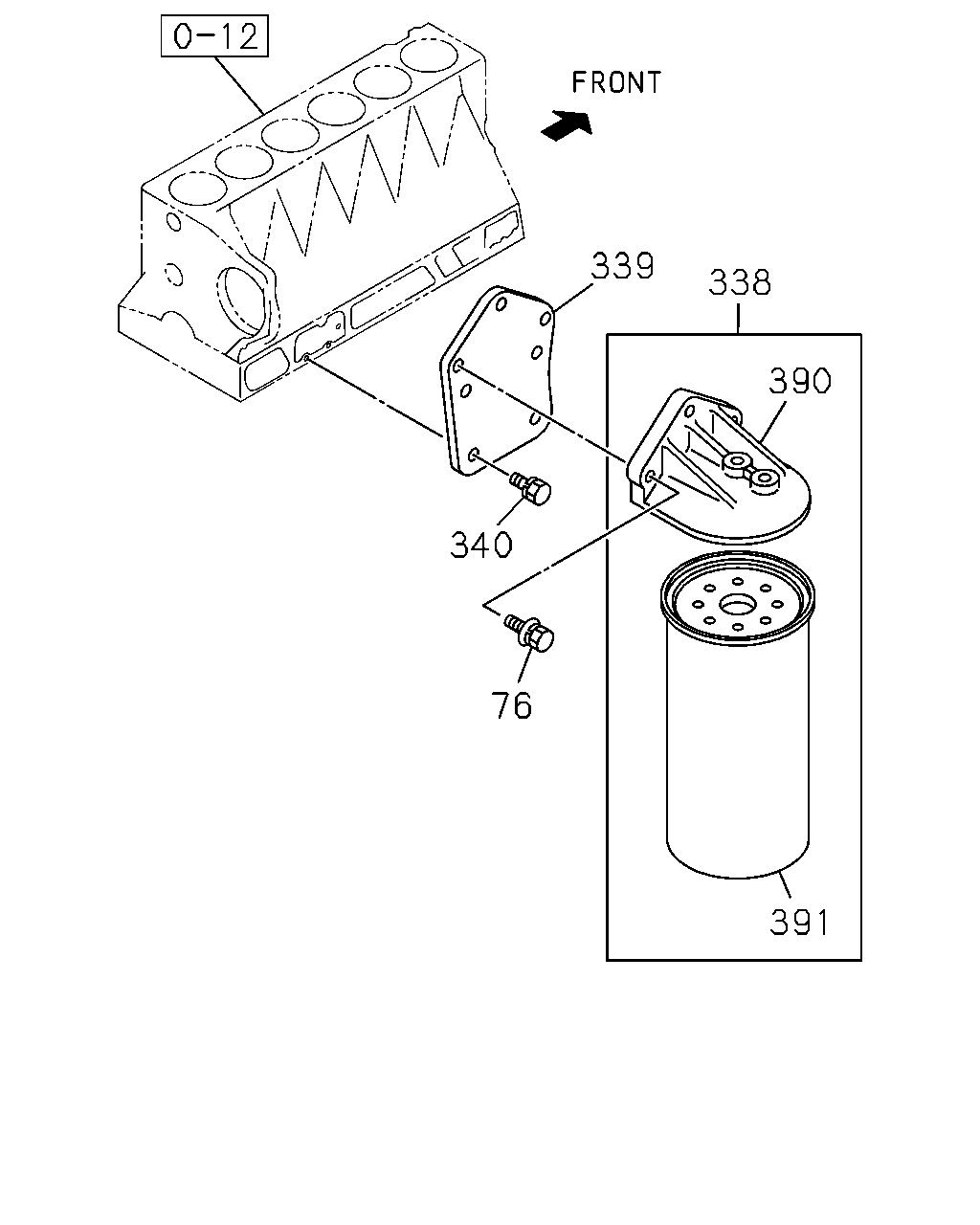

339 338 390 340 76 391

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
76	BOLT; OIL FILTER M10X35 W/LK&PL WASHER	0-50141-035-0	03	1	9601-0004	●	●
76	BOLT; OIL FILTER M10X35 W/LK&PL WASHER	0-50141-035-0	03	1	0005-0512		●
76	BOLT; OIL FILTER M10X35 W/LK&PL WASHER	0-50641-035-0	03	1	0601-		●
338	FILTER ASM; OIL PARTIAL	1-13200-744-0	01	1	9601-0004	●	●
338	FILTER ASM; OIL PARTIAL	1-13200-744-0	01	1	0005-		●
339	BRACKET; PARTIAL OIL FILTER	1-19755-062-1	01	1	9601-0004	●	●
339	BRACKET; PARTIAL OIL FILTER	1-19755-062-1	01	1	0005-		●
340	BOLT; BRKT M10X25 W/LK WASHER	0-50051-025-0	04	1	9601-0004	●	●
340	BOLT; BRKT M10X25 W/LK WASHER	0-50051-025-0	04	1	0005-0906		●
340	BOLT; BRKT M10X25 W/LK WASHER	0-50551-025-0	04	1	0907-		●
390	BODY; OIL FILTER,PARTIAL	1-13212-089-2	01	1	9601-0004	●	●
390	BODY; OIL FILTER,PARTIAL	1-13212-089-2	01	1	0005-		●
391	CARTRIDGE; OIL FILTER,PARTIAL	1-13240-163-2	01	1	9601-0004	●	●
391	CARTRIDGE; OIL FILTER,PARTIAL	1-13240-163-2	01	1	0005-		●
391	CARTRIDGE; OIL FILTER,PARTIAL BEST VALUE PARTS	1-87610-065-0	01	1	9601-0004	●	●
391	CARTRIDGE; OIL FILTER,PARTIAL BEST VALUE PARTS	1-87610-065-0	01	1	0005-		●

185 186 103 107 106 469 1 1 103 462 201 200 462 41 107 106 103 23 24 45 54 28 22 29 33 27 26 25 2 83 21 32 13 16 14 15 20 12 88 87 86 85 32 21 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	FILTER & COOLER ASM; OIL	1-21700-295-2	01	1	9601-0009		●
1	FILTER & COOLER ASM; OIL TAMPER PROOF INJ PUMP SET<W44>	1-21700-295-2	01	1	0010-0202		●
1	FILTER & COOLER ASM; OIL TAMPER PROOF INJ PUMP SET<W44>	1-21700-369-0	01	1	0203-		●
1	FILTER & COOLER ASM; OIL INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. KENYA EQUIPMENT(PQ2),TAMPER PROOF INJ PUMP SET<W44>	1-13200-935-2	01	1	0010-0011		●
1	FILTER & COOLER ASM; OIL EXC. TAMPER PROOF INJ PUMP SET<W44>	1-13200-935-2	01	1	0012-		●
1	FILTER & COOLER ASM; OIL	1-13200-936-2	01	1	9601-0004	●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-011-1	01	1	1010-1110			●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-064-0	01	1	1111-			●
2	ELEMENT; OIL FILTER	1-87810-075-2	01	1	9601-0009		●
2	ELEMENT; OIL FILTER TAMPER PROOF INJ PUMP SET<W44>	1-87810-075-2	01	1	0010-		●
2	ELEMENT; OIL FILTER INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. KENYA EQUIPMENT(PQ2),TAMPER PROOF INJ PUMP SET<W44>	1-13240-168-1	01	1	0010-0011		●
2	ELEMENT; OIL FILTER EXC. TAMPER PROOF INJ PUMP SET<W44>	1-13240-168-1	01	1	0012-		●
2	ELEMENT; OIL FILTER	1-13240-168-1	01	1	9601-0004	●
2	ELEMENT; OIL FILTER	8-94391-049-4	01	1	9805-			●
12	VALVE ASM; BYPASS	1-13260-096-0	01	1	9601-9605	●	●
12	VALVE ASM; BYPASS	1-13260-110-0	01	1	9606-0004	●	●
12	VALVE ASM; BYPASS	1-13260-110-0	01	1	0005-		●
13	VALVE; RELIEF	9-13262-010-0	01	1	9601-0004	●	●
13	VALVE; RELIEF	9-13262-010-0	01	1	0005-		●
14	SPRING; RELIEF VLV	1-13263-006-0	01	1	9601-0004	●	●
14	SPRING; RELIEF VLV	1-13263-006-0	01	1	0005-		●
15	PLUG; RELIEF VLV	1-13265-023-0	01	1	9601-9605	●	●
15	PLUG; RELIEF VLV	1-13219-322-0	01	1	9606-0004	●	●
15	PLUG; RELIEF VLV	1-13219-322-0	01	1	0005-		●
16	VALVE ASM; RELIEF	1-13269-002-0	01	1	9601-9605	●	●
20	PLUG; COOLER BODY (A) M20	1-13219-152-0	03	1	9601-9906	●	●
20	PLUG; COOLER BODY (A) M24	1-13219-356-0	01	1	9907-0004	●	●
20	PLUG; COOLER BODY (A) M24	1-13219-356-0	01	1	9907-0004		●
20	PLUG; COOLER BODY (A) M24	1-13219-356-0	01	1	9907-0004		●
20	PLUG; COOLER BODY (A) M24	1-13219-356-0	01	1	0005-		●
20	PLUG; COOLER BODY (B) M26	1-13219-153-0	02	1	9601-9906	●	●
20	PLUG; COOLER BODY (B) M26	1-13219-153-0	02	1	9601-9906		●
20	PLUG; COOLER BODY (B) M26	1-13219-153-0	04	1	9907-0004	●	●
20	PLUG; COOLER BODY (B) M26	1-13219-153-0	04	1	9907-0004		●
20	PLUG; COOLER BODY (B) M26	1-13219-153-0	04	1	0005-		●
20	PLUG; COOLER BODY	8-94396-753-0	01	1	9805-			●
21	GASKET; PLUG (A) M20	1-13219-158-0	03	1	9601-9906	●	●
21	GASKET; PLUG (B) M26	1-13219-159-0	02	1	9601-9906	●	●
21	GASKET; PLUG (B) M26	1-13219-159-0	02	1	9601-9906		●
21	GASKET; PLUG (B) M26	1-13219-159-0	04	1	9907-0004	●	●
21	GASKET; PLUG (B) M26	1-13219-159-0	04	1	9907-0004		●
21	GASKET; PLUG (B) M26	1-13219-159-0	04	1	0005-		●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	9805-9906			●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	9907-0004	●	●	●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	9907-0004		●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	9907-0004		●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	0005-0009		●	●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	0005-0009		●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	0005-0009		●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	0010-		●	●
22	GUIDE; WATER	1-13219-155-1	01	1	9601-0004	●	●
22	GUIDE; WATER	1-13219-155-1	01	1	0005-		●
23	SCREW; WATER GUIDE	1-13219-156-0	07	1	9601-0004	●	●
23	SCREW; WATER GUIDE	1-13219-156-0	07	1	0005-		●
24	WASHER; WATER GUIDE	1-13219-157-0	07	1	9601-0004	●	●
24	WASHER; WATER GUIDE	1-13219-157-0	07	1	0005-		●
25	NUT; CORE TO BODY	1-21729-074-0	04	1	9601-9906	●	●
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	9907-0004	●	●
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	0005-		●
25	NUT; CORE TO BODY M10	9-09111-410-0	04	1	9805-0512			●
25	NUT; CORE TO BODY M10	0-91111-510-0	04	1	0601-			●
26	CORE ASM; OIL COOLER	1-21723-039-0	01	1	9601-9906		●
26	CORE ASM; OIL COOLER	1-21723-049-0	01	1	9601-9906	●
26	CORE ASM; OIL COOLER	1-21723-058-0	01	1	9907-0004	●	●
26	CORE ASM; OIL COOLER	1-21723-058-0	01	1	0005-		●
26	CORE ASM; OIL COOLER ENG OIL PUMP HEAVY DUTY<Q1V>	8-94395-712-0	01	1	9805-			●
26	CORE ASM; OIL COOLER EXC. ENG OIL PUMP HEAVY DUTY<Q1V>	8-94395-711-0	01	1	9805-			●
27	WASHER; PL,CORE TO BODY	1-21729-075-0	04	1	9601-9906	●	●
27	WASHER; PL,CORE TO BODY ID=10.5	9-09164-510-0	04	1	9805-			●
28	GASKET; CORE TO BODY	1-21729-076-0	02	1	9601-9906	●	●
28	GASKET; CORE TO BODY	8-94396-810-0	02	1	9907-0004	●	●
28	GASKET; CORE TO BODY	8-94396-810-0	02	1	0005-		●
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	9805-			●
29	GASKET; CORE TO BODY	1-21729-077-0	02	1	9601-9906	●	●
29	GASKET; CORE TO BODY	8-94394-930-0	02	1	9907-0004	●	●
29	GASKET; CORE TO BODY	8-94394-930-0	02	1	0005-		●
32	PLUG; DRAIN (A)	1-13219-276-0	01	1	9601-9906		●
32	PLUG; DRAIN (A)	1-13219-276-0	01	1	9907-0004	●	●
32	PLUG; DRAIN (A)	1-13219-276-0	01	1	0005-		●
32	PLUG; DRAIN INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. KENYA EQUIPMENT(PQ2),TAMPER PROOF INJ PUMP SET<W44> (B)	1-13219-295-1	01	1	0010-0011		●
32	PLUG; DRAIN EXC. TAMPER PROOF INJ PUMP SET<W44> (B)	1-13219-295-1	01	1	0012-		●
32	PLUG; DRAIN (A)	1-13219-151-0	01	1	9601-9906	●
32	PLUG; DRAIN (B)	1-13219-295-1	01	1	9601-0004	●
33	HOUSING ASM; COOLER	1-13211-254-0	01	1	9601-9906		●
33	HOUSING ASM; COOLER	1-13211-312-0	01	1	9907-0009		●
33	HOUSING ASM; COOLER TAMPER PROOF INJ PUMP SET<W44>	1-13211-312-0	01	1	0010-0202		●
33	HOUSING ASM; COOLER TAMPER PROOF INJ PUMP SET<W44>	1-13211-324-0	01	1	0203-		●
33	HOUSING ASM; COOLER INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. KENYA EQUIPMENT(PQ2),TAMPER PROOF INJ PUMP SET<W44>	1-13211-307-0	01	1	0010-0011		●
33	HOUSING ASM; COOLER EXC. TAMPER PROOF INJ PUMP SET<W44>	1-13211-307-0	01	1	0012-		●
33	HOUSING ASM; COOLER	1-13211-250-0	01	1	9601-9906	●
33	HOUSING ASM; COOLER	1-13211-308-0	01	1	9907-0004	●
41	BOLT; COVER FIX M10X25 FLANGE	8-98272-067-0	02	1	0005-		●
41	BOLT; COVER FIX	1-13219-161-0	02	1	9601-9906	●	●
41	BOLT; COVER FIX M8X25 FLANGE	0-28680-825-0	02	1	9907-0004	●	●
45	COVER; OIL PORT	1-13219-172-0	01	1	9601-0004	●	●
45	COVER; OIL PORT	1-13219-172-0	01	1	0005-		●
54	GASKET; OIL PIPE	1-13219-162-0	01	1	9601-0004	●	●
54	GASKET; OIL PIPE	1-13219-162-0	01	1	0005-		●
83	CUP; SEALING,BODY,OIL COOLER & FILTER OD=20	9-11129-128-0	01	1	9601-0004	●	●
83	CUP; SEALING,BODY,OIL COOLER & FILTER OD=20	9-11129-128-0	01	1	0005-		●
85	PLUG; DRAIN UNIT,OIL FILTER	1-13219-252-0	01	1	9601-0009		●
85	PLUG; DRAIN UNIT,OIL FILTER TAMPER PROOF INJ PUMP SET<W44>	1-13219-252-0	01	1	0010-		●
85	PLUG; DRAIN UNIT,OIL FILTER INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. KENYA EQUIPMENT(PQ2),TAMPER PROOF INJ PUMP SET<W44>	1-13219-146-0	01	1	0010-0011		●
85	PLUG; DRAIN UNIT,OIL FILTER EXC. TAMPER PROOF INJ PUMP SET<W44>	1-13219-146-0	01	1	0012-		●
85	PLUG; DRAIN UNIT,OIL FILTER	1-13219-146-0	01	1	9601-0004	●
86	GASKET; DRAIN UNIT,OIL FILTER	1-13219-147-0	01	1	9601-0004	●	●
86	GASKET; DRAIN UNIT,OIL FILTER	1-13219-147-0	01	1	0005-		●
87	SPRING; DRAIN UNIT,OIL FILTER INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. KENYA EQUIPMENT(PQ2),TAMPER PROOF INJ PUMP SET<W44>	1-13219-148-0	01	1	0010-0011		●
87	SPRING; DRAIN UNIT,OIL FILTER EXC. TAMPER PROOF INJ PUMP SET<W44>	1-13219-148-0	01	1	0012-		●
87	SPRING; DRAIN UNIT,OIL FILTER	1-13219-148-0	01	1	9601-0004	●
88	VALVE; DRAIN UNIT,OIL FILTER INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. KENYA EQUIPMENT(PQ2),TAMPER PROOF INJ PUMP SET<W44>	9-13262-009-0	01	1	0010-0011		●
88	VALVE; DRAIN UNIT,OIL FILTER EXC. TAMPER PROOF INJ PUMP SET<W44>	9-13262-009-0	01	1	0012-		●
88	VALVE; DRAIN UNIT,OIL FILTER	9-13262-009-0	01	1	9601-0004	●
103	BOLT; OIL COOLER (B) M8X145	1-09000-448-1	02	1	9601-0009		●
103	BOLT; OIL COOLER TAMPER PROOF INJ PUMP SET<W44> (B) M8X145	1-09000-448-1	02	1	0010-		●
103	BOLT; OIL COOLER INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. KENYA EQUIPMENT(PQ2),TAMPER PROOF INJ PUMP SET<W44> (B) M8X138	5-09000-031-1	02	1	0010-0011		●
103	BOLT; OIL COOLER EXC. TAMPER PROOF INJ PUMP SET<W44> (B) M8X138	5-09000-031-1	02	1	0012-		●
103	BOLT; OIL COOLER (A) M8X25 FLANGE	0-28080-825-0	24	1	9601-0004	●	●
103	BOLT; OIL COOLER (A) M8X25 FLANGE	0-28080-825-0	24	1	0005-0512		●
103	BOLT; OIL COOLER (A) M8X25 FLANGE	0-28050-825-0	24	1	0601-		●
103	BOLT; OIL COOLER (C) M8X155	9-09801-275-0	02	1	9601-0004	●	●
103	BOLT; OIL COOLER (C) M8X155	9-09801-275-0	02	1	0005-		●
103	BOLT; OIL COOLER (B) M8X138	5-09000-031-1	02	1	9601-0004	●
103	BOLT; OIL COOLER (A) M8X22 FLANGE	0-28080-822-0	25	1	9805-			●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28080-835-0	02	1	9805-0512			●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	02	1	0601-			●
106	WASHER; LK,OIL COOLER ID=8.2	9-09150-508-0	04	1	9601-0004	●	●
106	WASHER; LK,OIL COOLER ID=8.2	9-09150-508-0	04	1	0005-0603		●
106	WASHER; LK,OIL COOLER ID=8.2	0-91510-508-0	04	1	0604-		●
107	WASHER; PL,OIL COOLER ID=8.4	9-09160-508-0	04	1	9601-0004	●	●
107	WASHER; PL,OIL COOLER ID=8.4	9-09160-508-0	04	1	0005-0605		●
107	WASHER; PL,OIL COOLER ID=8.4 OD=16	0-91610-508-0	04	1	0606-		●
185	VALVE; OIL RELIEF,OIL COOLER	1-13160-017-1	01	1	9601-0004	●	●
185	VALVE; OIL RELIEF,OIL COOLER	1-13160-017-1	01	1	0005-		●
186	GASKET; RELIEF VLV,OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	9-09565-228-0	01	1	9601-0004	●	●
186	GASKET; RELIEF VLV,OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	9-09565-228-0	01	1	0005-		●
200	PIPE; VINYL,WATER DRAIN L=360 SERVICED BY L=3000	0-03157-300-0	01	1	9601-0004	●	●
200	PIPE; VINYL,WATER DRAIN L=360 SERVICED BY L=3000	0-03157-300-0	01	1	0005-0206		●
200	PIPE; VINYL,WATER DRAIN L=360 SERVICED BY L=3000	0-03457-300-0	01	1	0207-		●
201	PIPE; VINYL,OIL DRAIN INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. KENYA EQUIPMENT(PQ2),TAMPER PROOF INJ PUMP SET<W44> L=480 SERVICED BY L=10000	9-09914-701-0	01	1	0010-0011		●
201	PIPE; VINYL,OIL DRAIN EXC. TAMPER PROOF INJ PUMP SET<W44> L=480 SERVICED BY L=10000	9-09914-701-0	01	1	0012-		●
201	PIPE; VINYL,OIL DRAIN L=480 SERVICED BY L=10000	9-09914-701-0	01	1	9601-0004	●
462	CLIP; HOSE,DRAIN INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. KENYA EQUIPMENT(PQ2),TAMPER PROOF INJ PUMP SET<W44> (B) ID=13.5	8-97015-754-0	01	1	0010-0011		●
462	CLIP; HOSE,DRAIN EXC. TAMPER PROOF INJ PUMP SET<W44> (B) ID=13.5	8-97015-754-1	01	1	0012-		●
462	CLIP; HOSE,DRAIN (A)	1-09704-100-0	01	1	9601-0004	●	●
462	CLIP; HOSE,DRAIN (A)	1-09704-100-0	01	1	0005-		●
462	CLIP; HOSE,DRAIN (B) ID=13.5	8-97015-754-0	01	1	9601-0004	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11219-177-0	01	1	9601-0004	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11219-177-1	01	1	0005-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	9805-			●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	9805-0606			●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	0607-			●

469 185 186 103 1 462 1 200 193 103 11 41 107 106 45 9 23 20 21 24 415 54 3 20 3 22 21 26 33 28 29 83 32 27 25 12 21 20 13 16 14 15 21 20 86 85 21 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	FILTER & COOLER ASM; OIL	1-21700-295-2	01	1	9601-0009		●
1	FILTER & COOLER ASM; OIL TAMPER PROOF INJ PUMP SET<W44>	1-21700-295-2	01	1	0010-0202		●
1	FILTER & COOLER ASM; OIL TAMPER PROOF INJ PUMP SET<W44>	1-21700-369-0	01	1	0203-		●
1	FILTER & COOLER ASM; OIL INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. KENYA EQUIPMENT(PQ2),TAMPER PROOF INJ PUMP SET<W44>	1-13200-935-2	01	1	0010-0011		●
1	FILTER & COOLER ASM; OIL EXC. TAMPER PROOF INJ PUMP SET<W44>	1-13200-935-2	01	1	0012-		●
1	FILTER & COOLER ASM; OIL	1-13200-936-2	01	1	9601-0004	●
3	GASKET (A)	1-09623-352-0	01	1	9601-0009		●
3	GASKET TAMPER PROOF INJ PUMP SET<W44> (A)	1-09623-352-0	01	1	0010-		●
3	GASKET (B)	1-09630-109-0	01	1	9601-0009		●
3	GASKET TAMPER PROOF INJ PUMP SET<W44> (B)	1-09630-109-0	01	1	0010-		●
9	GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). ID=15.5	9-09920-694-0	01	1	9601-0009		●
9	GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). TAMPER PROOF INJ PUMP SET<W44> ID=15.5	9-09920-694-0	01	1	0010-		●
11	BOLT; CENTER	1-13231-062-0	01	1	9601-0009		●
11	BOLT; CENTER TAMPER PROOF INJ PUMP SET<W44>	1-13231-062-0	01	1	0010-		●
12	VALVE ASM; BYPASS	1-13260-096-0	01	1	9601-9605	●	●
12	VALVE ASM; BYPASS	1-13260-110-0	01	1	9606-0004	●	●
12	VALVE ASM; BYPASS	1-13260-110-0	01	1	0005-		●
13	VALVE; RELIEF	9-13262-010-0	01	1	9601-0004	●	●
13	VALVE; RELIEF	9-13262-010-0	01	1	0005-		●
14	SPRING; RELIEF VLV	1-13263-006-0	01	1	9601-0004	●	●
14	SPRING; RELIEF VLV	1-13263-006-0	01	1	0005-		●
15	PLUG; RELIEF VLV	1-13265-023-0	01	1	9601-9605	●	●
15	PLUG; RELIEF VLV	1-13219-322-0	01	1	9606-0004	●	●
15	PLUG; RELIEF VLV	1-13219-322-0	01	1	0005-		●
16	VALVE ASM; RELIEF	1-13269-002-0	01	1	9601-9605	●	●
20	PLUG; COOLER BODY (A) M20	1-13219-152-0	03	1	9601-9906	●	●
20	PLUG; COOLER BODY (A) M24	1-13219-356-0	01	1	9907-0004	●	●
20	PLUG; COOLER BODY (A) M24	1-13219-356-0	01	1	9907-0004		●
20	PLUG; COOLER BODY (A) M24	1-13219-356-0	01	1	9907-0004		●
20	PLUG; COOLER BODY (A) M24	1-13219-356-0	01	1	0005-		●
20	PLUG; COOLER BODY (B) M26	1-13219-153-0	02	1	9601-9906	●	●
20	PLUG; COOLER BODY (B) M26	1-13219-153-0	02	1	9601-9906		●
20	PLUG; COOLER BODY (B) M26	1-13219-153-0	04	1	9907-0004	●	●
20	PLUG; COOLER BODY (B) M26	1-13219-153-0	04	1	9907-0004		●
20	PLUG; COOLER BODY (B) M26	1-13219-153-0	04	1	0005-		●
20	PLUG; COOLER BODY	8-94396-753-0	01	1	9805-			●
21	GASKET; PLUG (A) M20	1-13219-158-0	03	1	9601-9906	●	●
21	GASKET; PLUG (B) M26	1-13219-159-0	02	1	9601-9906	●	●
21	GASKET; PLUG (B) M26	1-13219-159-0	02	1	9601-9906		●
21	GASKET; PLUG (B) M26	1-13219-159-0	04	1	9907-0004	●	●
21	GASKET; PLUG (B) M26	1-13219-159-0	04	1	9907-0004		●
21	GASKET; PLUG (B) M26	1-13219-159-0	04	1	0005-		●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	9805-9906			●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	9907-0004	●	●	●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	9907-0004		●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	9907-0004		●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	0005-0009		●	●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	0005-0009		●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	0005-0009		●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	0010-		●	●
22	GUIDE; WATER	1-13219-155-1	01	1	9601-0004	●	●
22	GUIDE; WATER	1-13219-155-1	01	1	0005-		●
23	SCREW; WATER GUIDE	1-13219-156-0	07	1	9601-0004	●	●
23	SCREW; WATER GUIDE	1-13219-156-0	07	1	0005-		●
24	WASHER; WATER GUIDE	1-13219-157-0	07	1	9601-0004	●	●
24	WASHER; WATER GUIDE	1-13219-157-0	07	1	0005-		●
25	NUT; CORE TO BODY	1-21729-074-0	04	1	9601-9906	●	●
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	9907-0004	●	●
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	0005-		●
25	NUT; CORE TO BODY M10	9-09111-410-0	04	1	9805-0512			●
25	NUT; CORE TO BODY M10	0-91111-510-0	04	1	0601-			●
26	CORE ASM; OIL COOLER	1-21723-039-0	01	1	9601-9906		●
26	CORE ASM; OIL COOLER	1-21723-049-0	01	1	9601-9906	●
26	CORE ASM; OIL COOLER	1-21723-058-0	01	1	9907-0004	●	●
26	CORE ASM; OIL COOLER	1-21723-058-0	01	1	0005-		●
26	CORE ASM; OIL COOLER ENG OIL PUMP HEAVY DUTY<Q1V>	8-94395-712-0	01	1	9805-			●
26	CORE ASM; OIL COOLER EXC. ENG OIL PUMP HEAVY DUTY<Q1V>	8-94395-711-0	01	1	9805-			●
27	WASHER; PL,CORE TO BODY	1-21729-075-0	04	1	9601-9906	●	●
27	WASHER; PL,CORE TO BODY ID=10.5	9-09164-510-0	04	1	9805-			●
28	GASKET; CORE TO BODY	1-21729-076-0	02	1	9601-9906	●	●
28	GASKET; CORE TO BODY	8-94396-810-0	02	1	9907-0004	●	●
28	GASKET; CORE TO BODY	8-94396-810-0	02	1	0005-		●
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	9805-			●
29	GASKET; CORE TO BODY	1-21729-077-0	02	1	9601-9906	●	●
29	GASKET; CORE TO BODY	8-94394-930-0	02	1	9907-0004	●	●
29	GASKET; CORE TO BODY	8-94394-930-0	02	1	0005-		●
32	PLUG; DRAIN (A)	1-13219-276-0	01	1	9601-9906		●
32	PLUG; DRAIN (A)	1-13219-276-0	01	1	9907-0004	●	●
32	PLUG; DRAIN (A)	1-13219-276-0	01	1	0005-		●
32	PLUG; DRAIN INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. KENYA EQUIPMENT(PQ2),TAMPER PROOF INJ PUMP SET<W44> (B)	1-13219-295-1	01	1	0010-0011		●
32	PLUG; DRAIN EXC. TAMPER PROOF INJ PUMP SET<W44> (B)	1-13219-295-1	01	1	0012-		●
32	PLUG; DRAIN (A)	1-13219-151-0	01	1	9601-9906	●
32	PLUG; DRAIN (B)	1-13219-295-1	01	1	9601-0004	●
33	HOUSING ASM; COOLER	1-13211-254-0	01	1	9601-9906		●
33	HOUSING ASM; COOLER	1-13211-312-0	01	1	9907-0009		●
33	HOUSING ASM; COOLER TAMPER PROOF INJ PUMP SET<W44>	1-13211-312-0	01	1	0010-0202		●
33	HOUSING ASM; COOLER TAMPER PROOF INJ PUMP SET<W44>	1-13211-324-0	01	1	0203-		●
33	HOUSING ASM; COOLER INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. KENYA EQUIPMENT(PQ2),TAMPER PROOF INJ PUMP SET<W44>	1-13211-307-0	01	1	0010-0011		●
33	HOUSING ASM; COOLER EXC. TAMPER PROOF INJ PUMP SET<W44>	1-13211-307-0	01	1	0012-		●
33	HOUSING ASM; COOLER	1-13211-250-0	01	1	9601-9906	●
33	HOUSING ASM; COOLER	1-13211-308-0	01	1	9907-0004	●
41	BOLT; COVER FIX M10X25 FLANGE	8-98272-067-0	02	1	0005-		●
41	BOLT; COVER FIX	1-13219-161-0	02	1	9601-9906	●	●
41	BOLT; COVER FIX M8X25 FLANGE	0-28680-825-0	02	1	9907-0004	●	●
45	COVER; OIL PORT	1-13219-172-0	01	1	9601-0004	●	●
45	COVER; OIL PORT	1-13219-172-0	01	1	0005-		●
54	GASKET; OIL PIPE	1-13219-162-0	01	1	9601-0004	●	●
54	GASKET; OIL PIPE	1-13219-162-0	01	1	0005-		●
83	CUP; SEALING,BODY,OIL COOLER & FILTER OD=20	9-11129-128-0	01	1	9601-0004	●	●
83	CUP; SEALING,BODY,OIL COOLER & FILTER OD=20	9-11129-128-0	01	1	0005-		●
85	PLUG; DRAIN UNIT,OIL FILTER	1-13219-252-0	01	1	9601-0009		●
85	PLUG; DRAIN UNIT,OIL FILTER TAMPER PROOF INJ PUMP SET<W44>	1-13219-252-0	01	1	0010-		●
85	PLUG; DRAIN UNIT,OIL FILTER INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. KENYA EQUIPMENT(PQ2),TAMPER PROOF INJ PUMP SET<W44>	1-13219-146-0	01	1	0010-0011		●
85	PLUG; DRAIN UNIT,OIL FILTER EXC. TAMPER PROOF INJ PUMP SET<W44>	1-13219-146-0	01	1	0012-		●
85	PLUG; DRAIN UNIT,OIL FILTER	1-13219-146-0	01	1	9601-0004	●
86	GASKET; DRAIN UNIT,OIL FILTER	1-13219-147-0	01	1	9601-0004	●	●
86	GASKET; DRAIN UNIT,OIL FILTER	1-13219-147-0	01	1	0005-		●
103	BOLT; OIL COOLER (B) M8X145	1-09000-448-1	02	1	9601-0009		●
103	BOLT; OIL COOLER TAMPER PROOF INJ PUMP SET<W44> (B) M8X145	1-09000-448-1	02	1	0010-		●
103	BOLT; OIL COOLER INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. KENYA EQUIPMENT(PQ2),TAMPER PROOF INJ PUMP SET<W44> (B) M8X138	5-09000-031-1	02	1	0010-0011		●
103	BOLT; OIL COOLER EXC. TAMPER PROOF INJ PUMP SET<W44> (B) M8X138	5-09000-031-1	02	1	0012-		●
103	BOLT; OIL COOLER (A) M8X25 FLANGE	0-28080-825-0	24	1	9601-0004	●	●
103	BOLT; OIL COOLER (A) M8X25 FLANGE	0-28080-825-0	24	1	0005-0512		●
103	BOLT; OIL COOLER (A) M8X25 FLANGE	0-28050-825-0	24	1	0601-		●
103	BOLT; OIL COOLER (C) M8X155	9-09801-275-0	02	1	9601-0004	●	●
103	BOLT; OIL COOLER (C) M8X155	9-09801-275-0	02	1	0005-		●
103	BOLT; OIL COOLER (B) M8X138	5-09000-031-1	02	1	9601-0004	●
103	BOLT; OIL COOLER (A) M8X22 FLANGE	0-28080-822-0	25	1	9805-			●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28080-835-0	02	1	9805-0512			●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	02	1	0601-			●
106	WASHER; LK,OIL COOLER ID=8.2	9-09150-508-0	04	1	9601-0004	●	●
106	WASHER; LK,OIL COOLER ID=8.2	9-09150-508-0	04	1	0005-0603		●
106	WASHER; LK,OIL COOLER ID=8.2	0-91510-508-0	04	1	0604-		●
107	WASHER; PL,OIL COOLER ID=8.4	9-09160-508-0	04	1	9601-0004	●	●
107	WASHER; PL,OIL COOLER ID=8.4	9-09160-508-0	04	1	0005-0605		●
107	WASHER; PL,OIL COOLER ID=8.4 OD=16	0-91610-508-0	04	1	0606-		●
185	VALVE; OIL RELIEF,OIL COOLER	1-13160-017-1	01	1	9601-0004	●	●
185	VALVE; OIL RELIEF,OIL COOLER	1-13160-017-1	01	1	0005-		●
186	GASKET; RELIEF VLV,OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	9-09565-228-0	01	1	9601-0004	●	●
186	GASKET; RELIEF VLV,OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	9-09565-228-0	01	1	0005-		●
193	PLUG; TAPER EXC. HEATER & DEFROSTER(C41) PT3/8 T=8.0	1-09605-066-0	01	1	9708-		●
200	PIPE; VINYL,WATER DRAIN L=360 SERVICED BY L=3000	0-03157-300-0	01	1	9601-0004	●	●
200	PIPE; VINYL,WATER DRAIN L=360 SERVICED BY L=3000	0-03157-300-0	01	1	0005-0206		●
200	PIPE; VINYL,WATER DRAIN L=360 SERVICED BY L=3000	0-03457-300-0	01	1	0207-		●
415	COVER; OIL COOLER	1-21722-031-0	01	1	9601-0009		●
415	COVER; OIL COOLER TAMPER PROOF INJ PUMP SET<W44>	1-21722-031-0	01	1	0010-		●
462	CLIP; HOSE,DRAIN INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. KENYA EQUIPMENT(PQ2),TAMPER PROOF INJ PUMP SET<W44> (B) ID=13.5	8-97015-754-0	01	1	0010-0011		●
462	CLIP; HOSE,DRAIN EXC. TAMPER PROOF INJ PUMP SET<W44> (B) ID=13.5	8-97015-754-1	01	1	0012-		●
462	CLIP; HOSE,DRAIN (A)	1-09704-100-0	01	1	9601-0004	●	●
462	CLIP; HOSE,DRAIN (A)	1-09704-100-0	01	1	0005-		●
462	CLIP; HOSE,DRAIN (B) ID=13.5	8-97015-754-0	01	1	9601-0004	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11219-177-0	01	1	9601-0004	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11219-177-1	01	1	0005-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	9805-			●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	9805-0606			●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	0607-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
