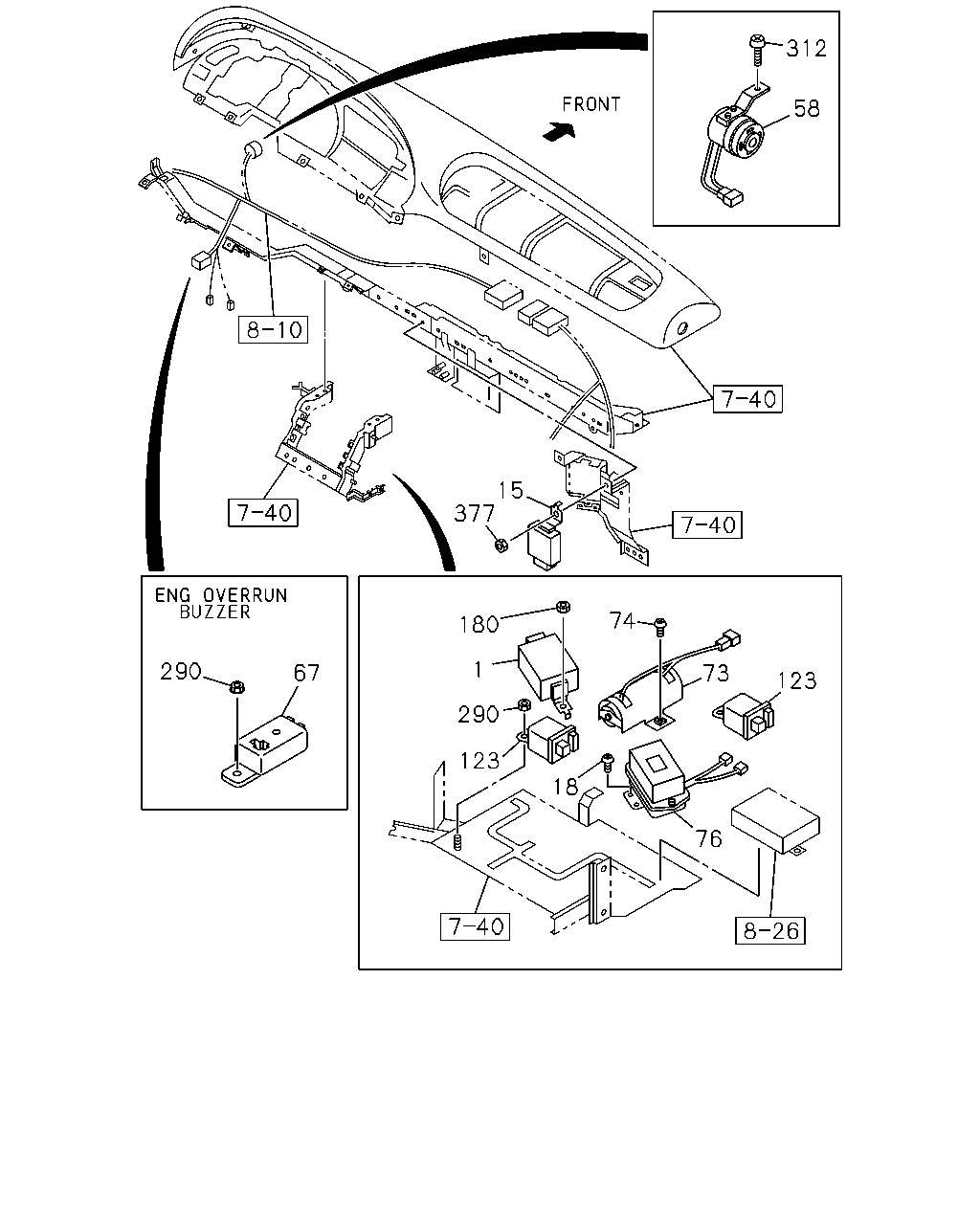

8-28 — CHASSIS ELECTRICAL (#6395) — 126 parça

275 275 283 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> NIKKO	1-83460-052-0	01	1	9604-9904
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) NIKKO	1-83460-052-0	01	1	9905-
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> METRO DENSO	1-83460-088-0	01	1	9904-9904
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) METRO DENSO	1-83460-088-0	01	1	9905-9907
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> EXC. NIKKO<Y70> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) METRO DENSO	1-83460-088-1	01	1	9908-
275	BOLT; BRKT (B) M10X20 FLANGE	0-28081-020-0	01	1	9604-9606
275	BOLT; BRKT (B) M10X25 FLANGE	0-28681-025-0	01	1	9607-
275	BOLT; BRKT (A) M8X20	0-28090-820-0	01	1	9604-9606
275	BOLT; BRKT (A) M8X25 FLANGE	0-28690-825-0	01	1	9607-
283	NUT; BRKT M10	9-09110-510-0	01	1	9604-9606
283	NUT; BRKT M10 FLANGE	0-91150-210-0	01	1	9607-

312 58 15 377 74 180 1 290 67 73 123 290 123 18 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER	1-83470-060-0	01	1	9604-
15	RELAY; STOP & TAIL WARNING 24V,25WX2,10WX2	1-82550-299-0	01	1	9604-
18	SCREW; TIMER INTAKE HEATER<SL2> M5X10 W/LK+PL WASHER	9-03920-510-0	03	1	9604-
58	BUZZER; AIR PRESSURE WARNING NIKKO	1-83460-056-0	01	1	9604-
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	1-83460-074-0	01	1	9904-9907
58	BUZZER; AIR PRESSURE WARNING EXC. NIKKO<Y70> METRO DENSO	1-83460-074-1	01	1	9908-
67	BUZZER; ENG OVERRUN ENGINE OVERRUN BUZZER<SK4>	1-83460-051-1	01	1	9604-
73	RESISTOR; RELAY INTAKE HEATER<SL2>	1-81375-004-1	01	1	9604-
74	SCREW; RESISTOR INTAKE HEATER<SL2> M5X10 W/LK+PL WASHER	9-03920-510-0	02	1	9604-
76	TIMER; INT HTR INTAKE HEATER<SL2>	1-82550-132-1	01	1	9604-
123	RELAY; HTR INTAKE HEATER<SL2>	8-94128-857-0	02	1	9604-
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	9604-
290	NUT ENGINE OVERRUN BUZZER<SK4> M6 FLANGE	0-91150-106-0	01	1	9604-
290	NUT INTAKE HEATER<SL2> M6 FLANGE	0-91150-106-0	02	1	9604-
312	BOLT; BUZZER M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9604-
377	NUT; RELAY M6 FLANGE	0-91150-106-0	01	1	9604-

39 34 33 41 40 34 39 34 34 39 40 33 261 41 34 34 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-82563-598-3	01	1	9604-9904
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-82563-871-2	01	1	9905-
34	CONNECTOR; MAG VLV,INL PORT CONCRETE PUMP<RA5> (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	9604-9904
34	CONNECTOR; MAG VLV,INL PORT CONCRETE PUMP<RA5> (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	9905-
34	CONNECTOR; MAG VLV,INL PORT CONCRETE PUMP<RA5> (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9604-9702
34	CONNECTOR; MAG VLV,INL PORT CONCRETE PUMP<RA5> (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9703-9904
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9703-9904
34	CONNECTOR; MAG VLV,INL PORT CONCRETE PUMP<RA5> (E) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	9905-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9604-9702
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (G) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9905-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9604-9904
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (C)	1-09660-718-1	01	1	9604-9904
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUAL AIR GAUGE<UG2> (C)	1-09660-718-1	01	1	9604-9904
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (H) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	9905-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUAL AIR GAUGE<UG2> (H) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	9905-
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28080-820-0	02	1	9604-9606
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9608
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28680-820-0	02	1	9609-
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X25 FLANGE	0-28080-825-0	02	1	9604-9606
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X30 FLANGE	0-28680-830-0	02	1	9607-
40	BRACKET; MAG VLV (B)	1-53458-742-2	01	1	9604-
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-82569-220-0	01	1	9604-9904
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-82569-279-0	01	1	9905-
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) M8	9-09110-508-0	02	1	9604-9606
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91150-108-0	02	1	9607-
261	PLUG; MAG VLV CONCRETE PUMP<RA5> PT1/4	9-99204-513-0	01	1	9905-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	9905-

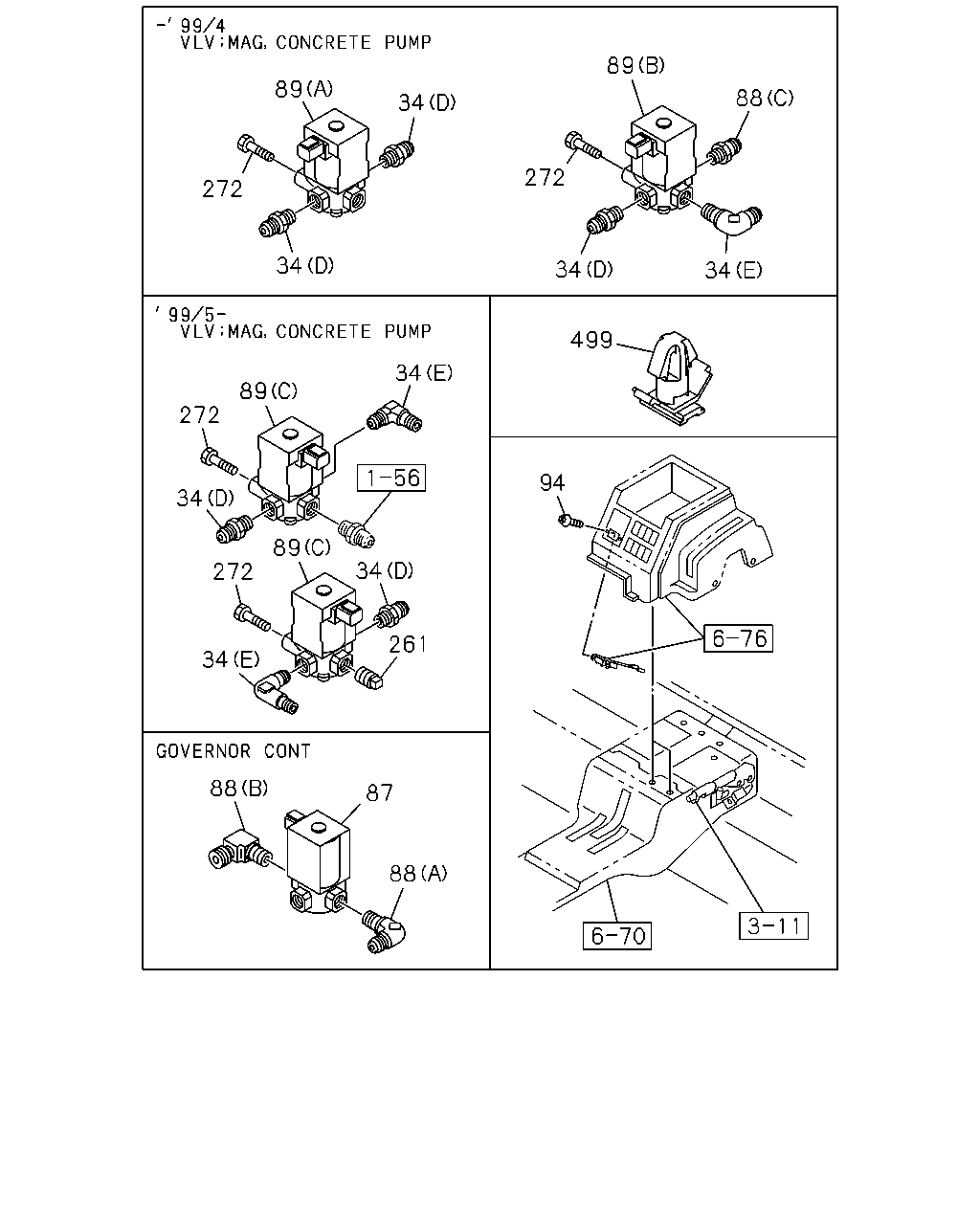

89 89 88 34 272 272 34 34 34 499 34 89 272 34 94 89 34 272 261 34 88 87 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT CONCRETE PUMP<RA5> (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	9604-9904
34	CONNECTOR; MAG VLV,INL PORT CONCRETE PUMP<RA5> (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	9905-
34	CONNECTOR; MAG VLV,INL PORT CONCRETE PUMP<RA5> (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9604-9702
34	CONNECTOR; MAG VLV,INL PORT CONCRETE PUMP<RA5> (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9703-9904
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9703-9904
34	CONNECTOR; MAG VLV,INL PORT CONCRETE PUMP<RA5> (E) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	9905-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9604-9702
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (G) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9905-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9604-9904
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (C)	1-09660-718-1	01	1	9604-9904
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUAL AIR GAUGE<UG2> (C)	1-09660-718-1	01	1	9604-9904
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (H) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	9905-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUAL AIR GAUGE<UG2> (H) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	9905-
87	VALVE; MAG,GOV CONT GOVERNOR CONTROL<W69>	1-82563-599-3	01	1	9604-9904
88	CONNECTOR; MAG VLV CONCRETE PUMP<RA5> (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9604-
88	CONNECTOR; MAG VLV GOVERNOR CONTROL<W69> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9604-9904
88	CONNECTOR; MAG VLV GOVERNOR CONTROL<W69> (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9604-9904
89	VALVE; MAG,DIFF LOCK CONCRETE PUMP<RA5> (A)	1-82563-599-3	01	1	9604-9904
89	VALVE; MAG,DIFF LOCK CONCRETE PUMP<RA5> (C)	1-82563-871-2	02	1	9905-
89	VALVE; MAG,DIFF LOCK CONCRETE PUMP<RA5> (B)	1-82563-600-3	01	1	9604-9904
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	9604-
261	PLUG; MAG VLV CONCRETE PUMP<RA5> PT1/4	9-99204-513-0	01	1	9905-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	9905-
272	BOLT; MAG VLV CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	04	1	9604-9606
272	BOLT; MAG VLV CONCRETE PUMP<RA5> M8X30 FLANGE	0-28680-830-0	04	1	9607-9608
272	BOLT; MAG VLV CONCRETE PUMP<RA5> M8X25 FLANGE	0-28680-825-0	04	1	9609-
499	CLIP; SWITCH OD=9 H=6	1-09709-178-0	01	1	9604-9604

77 188 505 40 456 51 78 424

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV (B)	1-53458-742-2	01	1	9604-
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-82569-220-0	01	1	9604-9904
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-82569-279-0	01	1	9905-
51	BOLT; HORN TO BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9604-9604
77	HORN ASM	1-83430-038-1	01	1	9604-9710
77	HORN ASM EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-83430-038-1	01	1	9711-9904
77	HORN ASM	1-83430-041-1	01	1	9905-0002
77	HORN ASM EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-83430-041-1	01	1	0003-
77	HORN ASM CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-83430-039-1	01	1	9711-9904
77	HORN ASM CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-83430-039-2	01	1	0003-
78	BOLT; AIR HORN M8X20 FLANGE	0-28080-820-0	02	1	9604-9606
78	BOLT; AIR HORN M8X20 FLANGE	0-28680-820-0	02	1	9607-
188	NUT; AIR HORN M8	9-09110-408-0	02	1	9604-9605
424	ADAPTER M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	9604-
456	BOLT; BRKT M8X30 FLANGE	0-28080-830-0	02	1	9604-9606
456	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	9607-9709
456	BOLT; BRKT M10X35 FLANGE	0-28681-035-0	02	1	9710-
505	JOINT; AIR HORN	1-83439-005-0	01	1	9709-9710
505	JOINT; AIR HORN EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-83439-005-0	01	1	9711-9904
505	JOINT; AIR HORN CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-83439-006-0	01	1	9711-9904
505	JOINT; AIR HORN	1-83439-006-0	01	1	9905-

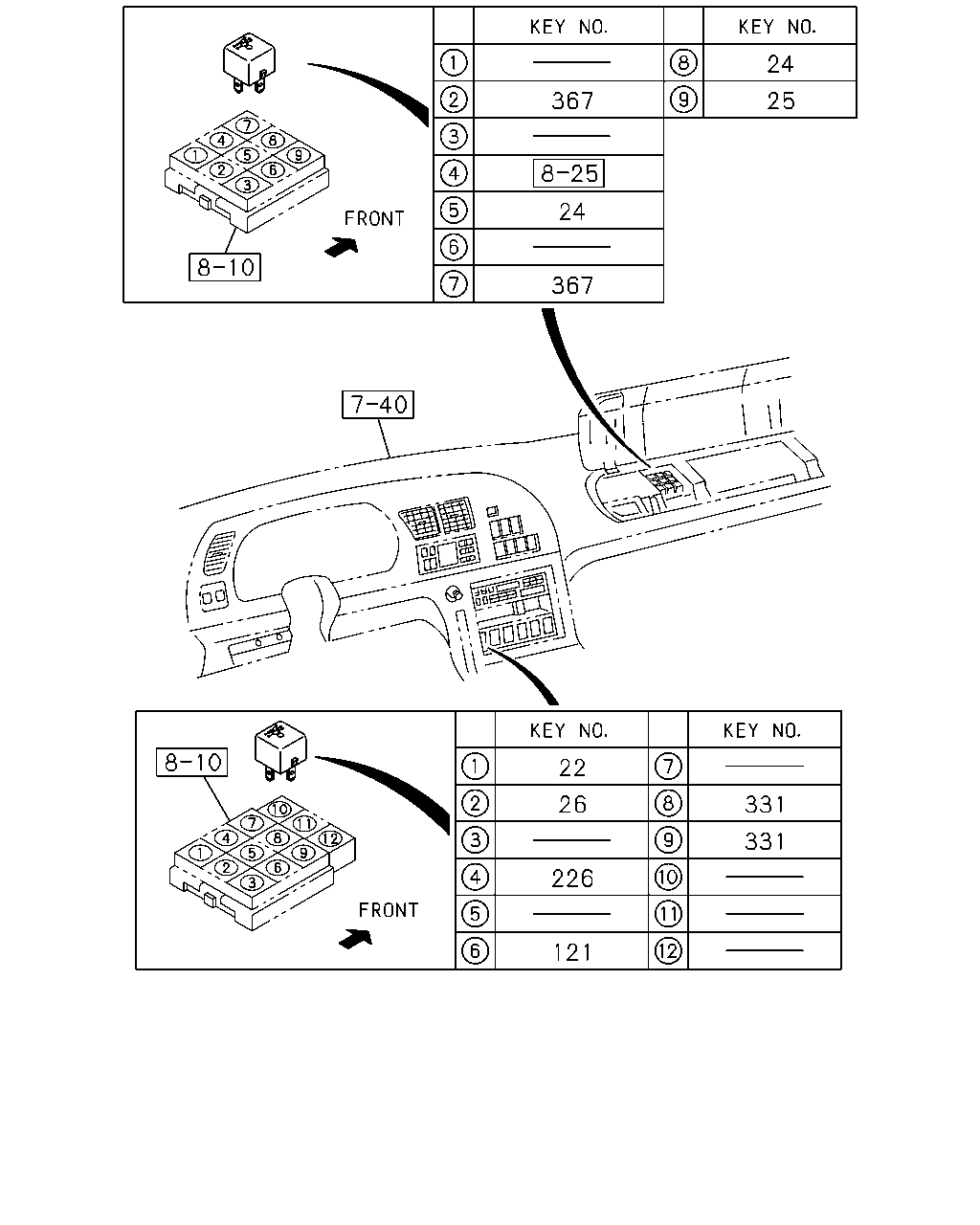

24 367 25 24 367 22 26 331 331 226 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	RELAY; STOP LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	9604-
24	RELAY; LIGHTING 24V 12.5A MITUBA	8-97062-815-1	02	1	9604-
25	RELAY; TAIL LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	9604-
26	RELAY; CONSENT 24V 12.5A MITUBA	8-97062-815-1	01	1	9604-
121	RELAY; PARKING BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 24V 12.5A MITUBA	8-97062-815-1	01	1	9604-
226	RELAY; EXH BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	9604-
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A MITUBA	8-97062-815-1	02	1	9604-
367	RELAY; NEUTRAL 24V 12.5A MITUBA	8-97062-815-1	02	1	9604-

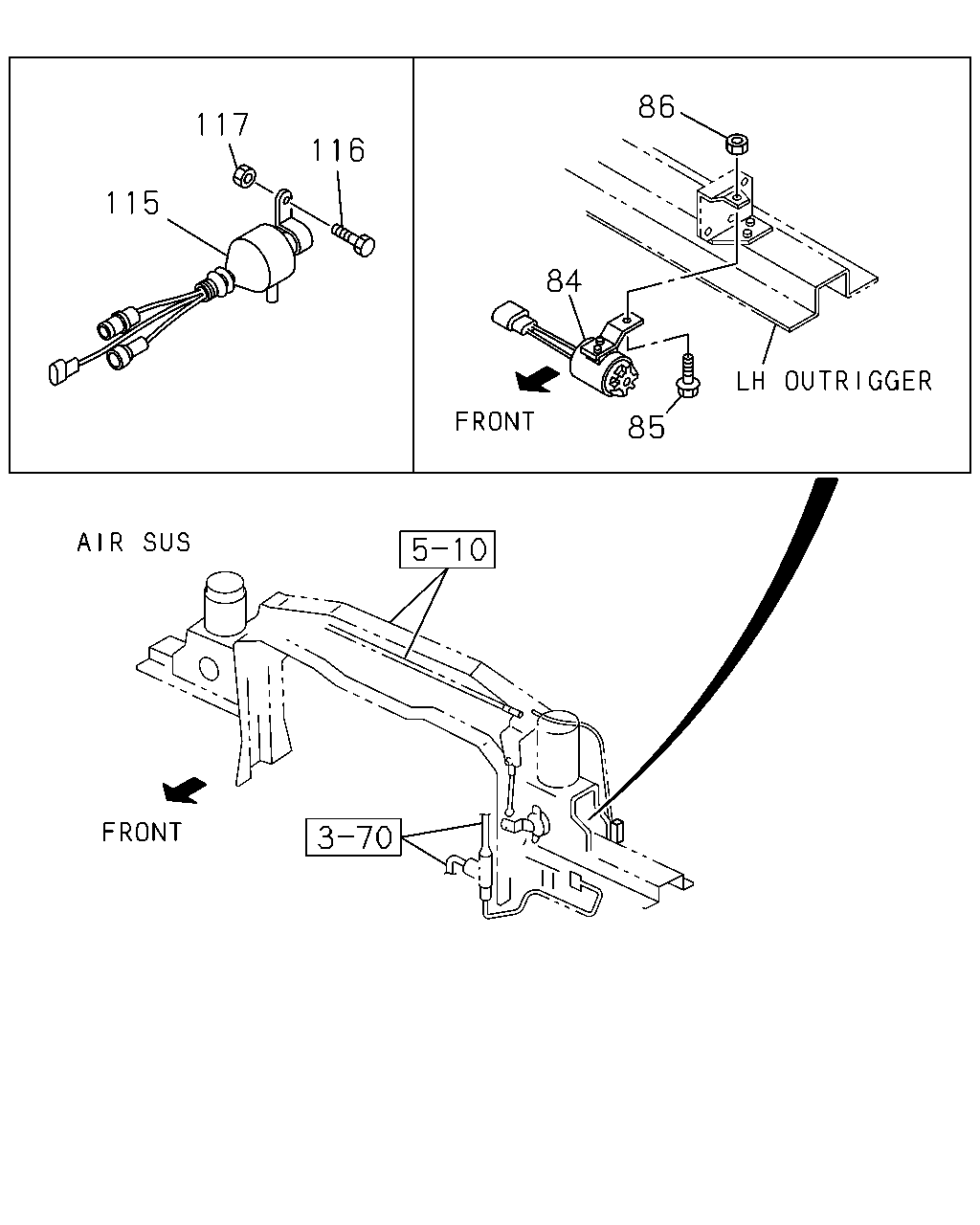

86 117 116 115 84 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
84	BUZZER; POWER CAB TILT NIKKO	1-83460-054-0	01	1	9604-
84	BUZZER; POWER CAB TILT METRO DENSO	1-83460-096-1	01	1	9904-9907
84	BUZZER; POWER CAB TILT EXC. NIKKO<Y70> METRO DENSO	1-83460-096-2	01	1	9908-
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28080-820-0	01	1	9604-9606
85	BOLT; BUZZER,POWER CAB TILT M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9607-
86	NUT; BUZZER M8	9-09110-408-0	01	1	9604-9609
86	NUT; BUZZER M8 FLANGE	0-91150-108-0	01	1	9610-
115	RELAY; POWER CAB TILT UNIT NIKKO	1-81171-071-0	01	1	9604-9606
115	RELAY; POWER CAB TILT UNIT NIKKO	1-81171-075-1	01	1	9607-
115	RELAY; POWER CAB TILT UNIT HITACHI	1-81171-087-0	01	1	9904-9907
115	RELAY; POWER CAB TILT UNIT EXC. NIKKO<Y70> HITACHI	1-81171-087-0	01	1	9908-
116	BOLT; RELAY FIX M8X16 FLANGE	0-28080-816-0	02	1	9604-
117	NUT; RELAY FIX M8	9-09110-408-0	02	1	9604-9609
117	NUT; RELAY FIX M8 FLANGE	0-91150-108-0	02	1	9610-
