0-42 — FUEL PUMP AND PIPE (#63949) — 108 parça

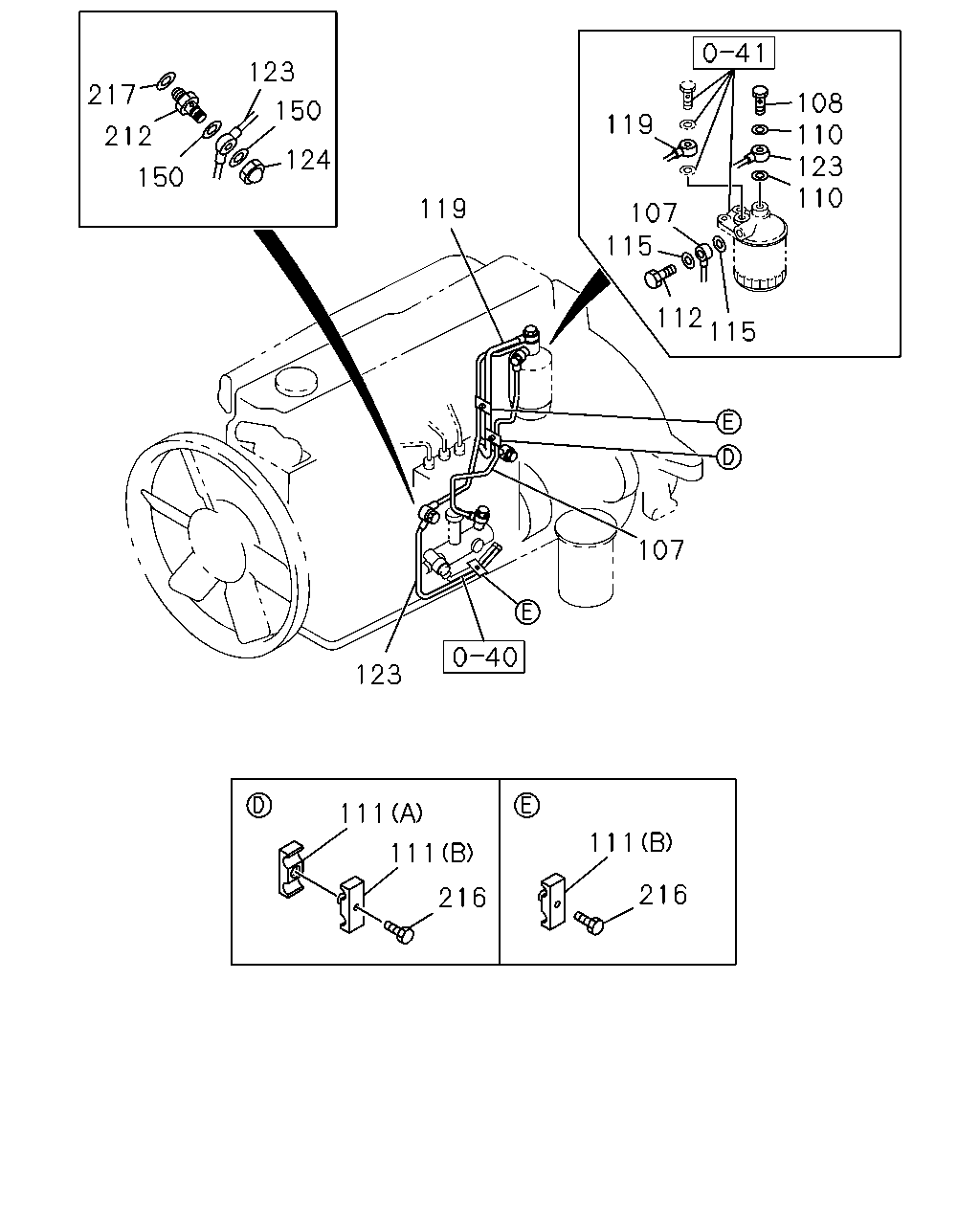

123 217 108 110 123 110 150 119 212 124 150 119 107 115 112 115 107 123 111 111 111 216 216

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-784-0	01	1	9601-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-779-0	01	1	9601-0004		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94396-681-0	01	1	9805-			●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9601-9804	●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9805-0004	●	●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0005-	●		●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-9804	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9805-0004	●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-1312	●		●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●		●
111	CLIP; FUEL PIPE (B) L=48	5-09709-103-0	03	1	9805-			●
111	CLIP; FUEL PIPE (A) L=45	5-09709-104-0	01	1	9805-			●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9601-9804	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9805-0004	●	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0005-	●		●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	05	1	9601-9610	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9611-9710	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9611-9710	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9711-0004	●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9711-0004	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0009	●		●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0009	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0010-1312	●		●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15415-780-0	01	1	9601-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15415-776-0	01	1	9601-0004		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94390-343-0	01	1	9805-			●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	1-15415-781-1	01	1	9601-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	1-15415-775-0	01	1	9601-0004		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-94394-556-1	01	1	9805-			●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9601-9804	●	●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9805-0004	●	●	●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	0005-	●		●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9805-1312			●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-			●
212	VALVE; OVERFLOW	1-13260-001-1	01	1	9601-	●
212	VALVE; OVERFLOW	8-94399-087-0	01	1	9610-9804		●
212	VALVE; OVERFLOW	8-94399-087-0	01	1	9805-0004		●	●
212	VALVE; OVERFLOW	8-94399-087-0	01	1	0005-			●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	03	1	9805-0512			●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50540-630-0	03	1	0601-			●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	9610-9804		●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	9805-0004		●	●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	0005-1312			●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	01	1	1401-			●

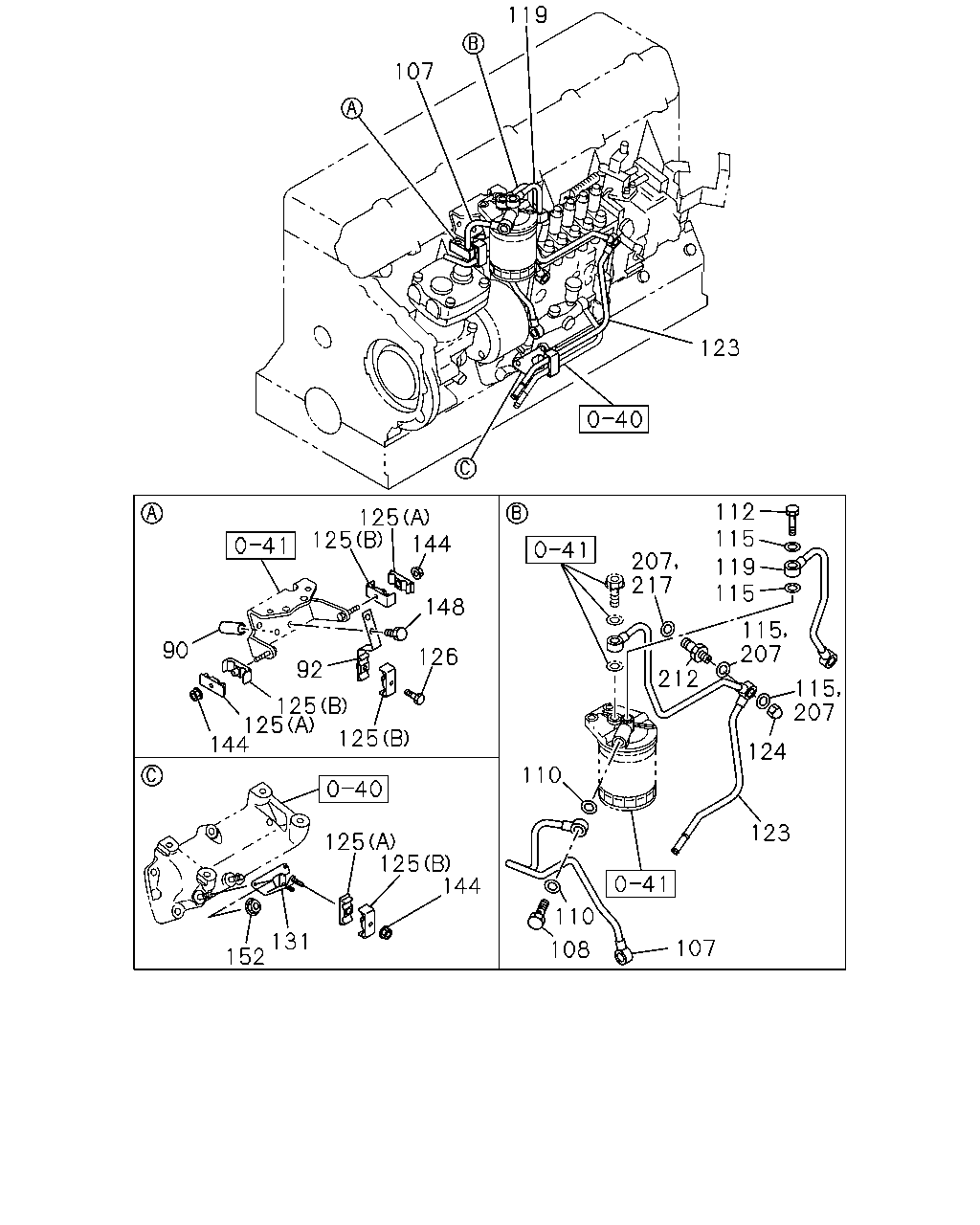

119 107 123 112 115 119 115 125 125 144 207 217 148 115 207 90 126 92 212 115 207 125 125 144 125 124 110 123 125 125 144 110 131 152 107 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
90	TUBE; DIST L=43	1-14149-048-1	01	1	9601-0004	●	●
90	TUBE; DIST L=43	1-14149-048-1	01	1	0005-	●
92	BRACKET; FUEL PIPE	1-15419-433-0	01	1	9601-0004	●	●
92	BRACKET; FUEL PIPE	1-15419-433-0	01	1	0005-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-784-0	01	1	9601-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-779-0	01	1	9601-0004		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94396-681-0	01	1	9805-			●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9601-9804	●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9805-0004	●	●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0005-	●		●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-9804	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9805-0004	●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-1312	●		●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●		●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9601-9804	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9805-0004	●	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0005-	●		●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	05	1	9601-9610	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9611-9710	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9611-9710	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9711-0004	●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9711-0004	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0009	●		●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0009	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0010-1312	●		●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15415-780-0	01	1	9601-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15415-776-0	01	1	9601-0004		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94390-343-0	01	1	9805-			●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	1-15415-781-1	01	1	9601-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	1-15415-775-0	01	1	9601-0004		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-94394-556-1	01	1	9805-			●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9601-9804	●	●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9805-0004	●	●	●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	0005-	●		●
125	CLIP; FUEL PIPE (A) ID=9 & 9 L=25	1-09701-180-0	03	1	9601-0004	●	●
125	CLIP; FUEL PIPE (A) ID=9 & 9 L=25	1-09701-180-0	03	1	0005-	●
125	CLIP; FUEL PIPE (B) ID=9 & 9 L=25	8-94393-280-1	04	1	9601-0004	●	●
125	CLIP; FUEL PIPE (B) ID=9 & 9 L=25	8-94393-280-3	04	1	0005-	●
126	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28080-635-0	01	1	9601-0004	●	●
126	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28080-635-0	01	1	0005-0512	●
126	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28050-635-0	01	1	0601-	●
131	BRACKET; FUEL PIPE CLIP	1-15419-436-0	01	1	9601-	●
131	BRACKET; FUEL PIPE CLIP	1-15419-437-0	01	1	9708-0004		●
144	NUT; CLIP M6 FLANGE	0-91150-106-0	03	1	9601-0004	●	●
144	NUT; CLIP M6 FLANGE	0-91150-106-0	03	1	0005-0602	●
144	NUT; CLIP M6 FLANGE	0-91180-106-0	03	1	0603-	●
148	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9601-0004	●	●
148	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	0005-0512	●
148	BOLT; BRKT M8X25 FLANGE	0-28050-825-0	02	1	0601-	●
152	NUT; BRKT M6 FLANGE	0-91150-106-0	02	1	9601-0602	●
152	NUT; BRKT M6 FLANGE	0-91180-106-0	02	1	0603-	●
152	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9601-0004		●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	03	1	0005-1312	●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	8-98251-345-0	03	1	1401-	●
212	VALVE; OVERFLOW	1-13260-001-1	01	1	9601-	●
212	VALVE; OVERFLOW	8-94399-087-0	01	1	9610-9804		●
212	VALVE; OVERFLOW	8-94399-087-0	01	1	9805-0004		●	●
212	VALVE; OVERFLOW	8-94399-087-0	01	1	0005-			●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	9610-9804		●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	9805-0004		●	●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	0005-1312			●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	01	1	1401-			●
