0-41 — FUEL FILTER AND BRACKET (#63948) — 69 parça

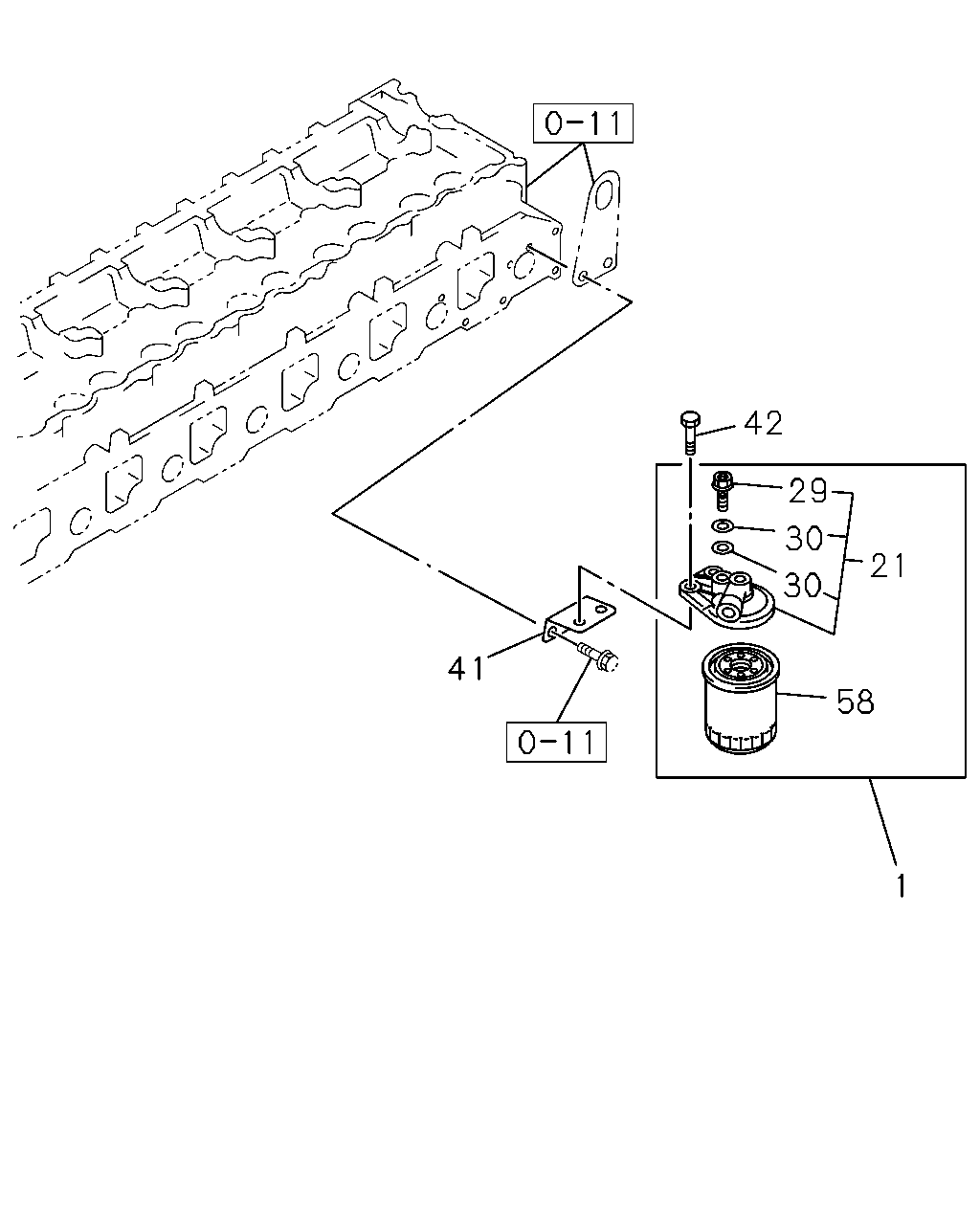

42 29 30 21 30 41 58 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	FILTER ASM; FUEL (A)	1-13200-701-1	01	1	9601-9609	●	●
1	FILTER ASM; FUEL (A)	1-13200-701-4	01	1	9610-		●
1	FILTER ASM; FUEL (B)	1-13200-973-0	01	1	9610-0004	●
1	FILTER ASM; FUEL	8-94393-449-3	01	1	9805-			●
21	COVER; UPR,FUEL FILTER (B)	1-13212-108-1	01	1	0711-		●
21	COVER; UPR,FUEL FILTER (A)	1-13212-087-0	01	1	9601-9609	●	●
21	COVER; UPR,FUEL FILTER (A)	1-13212-087-2	01	1	9610-		●
21	COVER; UPR,FUEL FILTER (B)	1-13212-108-0	01	1	9610-0004	●
21	COVER; UPR,FUEL FILTER	8-94396-669-1	01	1	9805-			●
29	VALVE; OVERFLOW	1-13260-047-0	01	1	9601-9609	●	●
29	VALVE; OVERFLOW	1-13260-047-0	01	1	9610-		●
29	VALVE; OVERFLOW	8-94399-170-0	01	1	9610-9804	●
29	VALVE; OVERFLOW	8-94399-170-0	01	1	9805-0004	●		●
29	VALVE; OVERFLOW	8-94399-170-0	01	1	0005-			●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-9804	●	●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9805-0004	●	●	●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-1312		●	●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●	●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	03	1	9610-0004	●	●
41	BRACKET; FUEL FILTER	1-13219-312-1	01	1	9601-0004	●	●
41	BRACKET; FUEL FILTER	1-13219-312-2	01	1	0005-		●
41	BRACKET; FUEL FILTER	8-94399-441-0	01	1	9805-			●
42	BOLT; FUEL FILTER M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9601-0004	●	●
42	BOLT; FUEL FILTER M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	0005-0512		●
42	BOLT; FUEL FILTER M10X35 W/LK&PL WASHER	0-50641-035-0	02	1	0601-		●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28681-035-0	02	1	9805-0512			●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28651-035-0	02	1	0601-			●
58	ELEMENT; FUEL FILTER	1-13240-079-1	01	1	9601-0004	●	●
58	ELEMENT; FUEL FILTER	1-13240-079-1	01	1	0005-0711		●
58	ELEMENT; FUEL FILTER	8-98036-654-0	01	1	9805-		●
58	ELEMENT; FUEL FILTER	8-94394-079-2	01	1	9805-			●
58	ELEMENT; FUEL FILTER BEST VALUE PARTS	1-87610-053-1	01	1	9805-		●
58	ELEMENT; FUEL FILTER BEST VALUE PARTS	1-87610-054-1	01	1	9805-			●

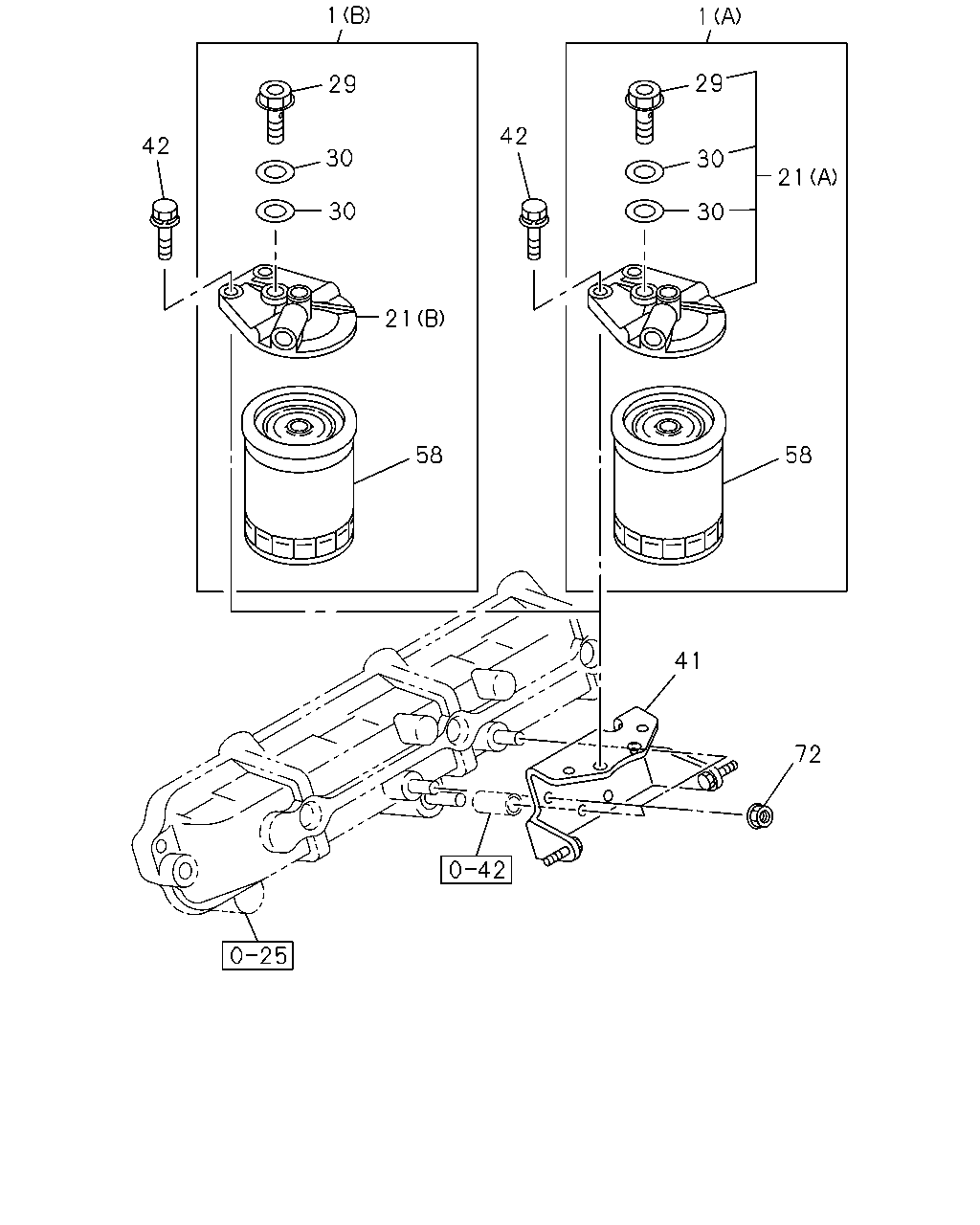

1 1 29 29 42 42 30 30 21 30 30 21 58 58 41 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	FILTER ASM; FUEL (A)	1-13200-701-1	01	1	9601-9609	●	●
1	FILTER ASM; FUEL (A)	1-13200-701-4	01	1	9610-		●
1	FILTER ASM; FUEL (B)	1-13200-973-0	01	1	9610-0004	●
1	FILTER ASM; FUEL	8-94393-449-3	01	1	9805-			●
21	COVER; UPR,FUEL FILTER (B)	1-13212-108-1	01	1	0711-		●
21	COVER; UPR,FUEL FILTER (A)	1-13212-087-0	01	1	9601-9609	●	●
21	COVER; UPR,FUEL FILTER (A)	1-13212-087-2	01	1	9610-		●
21	COVER; UPR,FUEL FILTER (B)	1-13212-108-0	01	1	9610-0004	●
21	COVER; UPR,FUEL FILTER	8-94396-669-1	01	1	9805-			●
29	VALVE; OVERFLOW	1-13260-047-0	01	1	9601-9609	●	●
29	VALVE; OVERFLOW	1-13260-047-0	01	1	9610-		●
29	VALVE; OVERFLOW	8-94399-170-0	01	1	9610-9804	●
29	VALVE; OVERFLOW	8-94399-170-0	01	1	9805-0004	●		●
29	VALVE; OVERFLOW	8-94399-170-0	01	1	0005-			●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-9804	●	●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9805-0004	●	●	●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-1312		●	●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●	●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	03	1	9610-0004	●	●
41	BRACKET; FUEL FILTER	1-13219-312-1	01	1	9601-0004	●	●
41	BRACKET; FUEL FILTER	1-13219-312-2	01	1	0005-		●
41	BRACKET; FUEL FILTER	8-94399-441-0	01	1	9805-			●
42	BOLT; FUEL FILTER M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9601-0004	●	●
42	BOLT; FUEL FILTER M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	0005-0512		●
42	BOLT; FUEL FILTER M10X35 W/LK&PL WASHER	0-50641-035-0	02	1	0601-		●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28681-035-0	02	1	9805-0512			●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28651-035-0	02	1	0601-			●
58	ELEMENT; FUEL FILTER	1-13240-079-1	01	1	9601-0004	●	●
58	ELEMENT; FUEL FILTER	1-13240-079-1	01	1	0005-0711		●
58	ELEMENT; FUEL FILTER	8-98036-654-0	01	1	9805-		●
58	ELEMENT; FUEL FILTER	8-94394-079-2	01	1	9805-			●
58	ELEMENT; FUEL FILTER BEST VALUE PARTS	1-87610-053-1	01	1	9805-		●
58	ELEMENT; FUEL FILTER BEST VALUE PARTS	1-87610-054-1	01	1	9805-			●
72	NUT; BRKT,FUEL FILTER M8 FLANGE	0-91150-108-0	03	1	9601-0004	●	●
72	NUT; BRKT,FUEL FILTER M8 FLANGE	0-91150-108-0	03	1	0005-0602		●
72	NUT; BRKT,FUEL FILTER M8 FLANGE	0-91180-108-0	03	1	0603-		●
