Sayfa 0-40 - Isuzu EPC

0-40 — FUEL INJECTION SYSTEM (#63947) — 671 parça

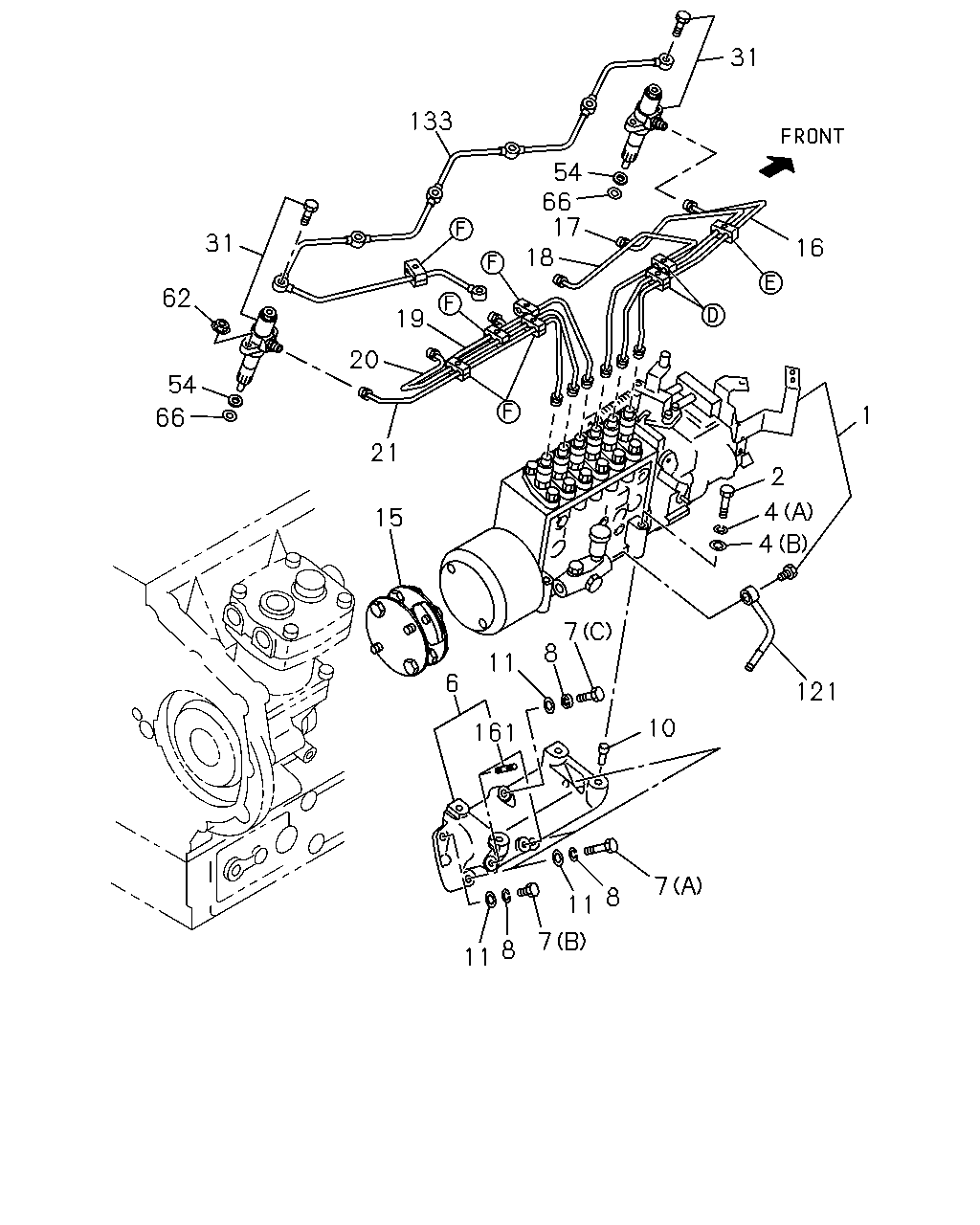

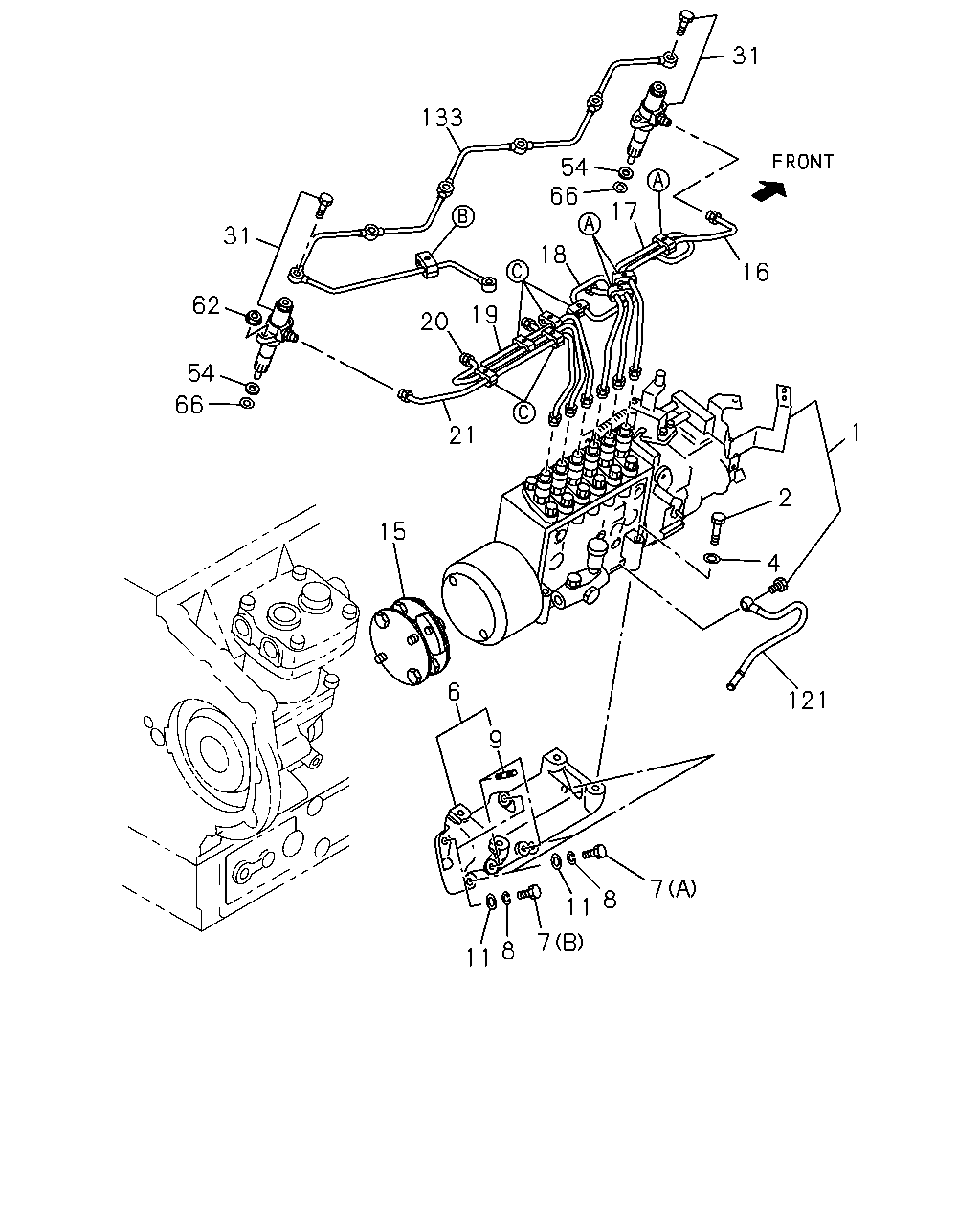

31 133 54 66 17 31 18 16 62 19 20 54 66 1 21 2 15 4 6 121 9 7 8 11 7 8 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15603-035-0	01	1	9601-9710	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. KENYA EQUIPMENT(PQ2)	1-15603-035-0	01	1	9711-0004	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. TAMPER PROOF INJ PUMP SET<W44> EXC. KENYA EQUIPMENT(PQ2)	1-15603-035-0	01	1	0005-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. KENYA EQUIPMENT(PQ2),TAMPER PROOF INJ PUMP SET<W44>	1-15603-036-0	01	1	0010-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. KENYA EQUIPMENT(PQ2)	1-15603-272-0	01	1	9711-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. KENYA EQUIPMENT(PQ2),TAMPER PROOF INJ PUMP SET<W44>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15603-025-1	01	1	0012-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. NEW ZEALAND EQUIPMENT(PK5) EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-246-2	01	1	9706-9804		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-246-3	01	1	9805-0004		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-116-0	01	1	9601-9606		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-151-0	01	1	9607-9702		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-217-1	01	1	9703-9705		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-258-3	01	1	9706-0004		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-051-3	01	1	9601-9606		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-147-0	01	1	9607-9702		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-214-1	01	1	9703-9705		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. NEW ZEALAND EQUIPMENT(PK5),SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-214-3	01	1	9706-9804		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94395-904-1	01	1	9805-			●
2	BOLT; INJ PUMP M8X75	0-10810-875-0	04	1	9601-9804	●
2	BOLT; INJ PUMP M8X75	0-10810-875-0	04	1	9805-	●		●
2	BOLT; INJ PUMP M10X90	0-16806-090-0	04	1	9601-0004		●
4	WASHER; INJ PUMP ID=8.5 MITSUBISHI	9-09851-934-0	04	1	9601-9804	●
4	WASHER; INJ PUMP ID=8.5 MITSUBISHI	9-09851-934-0	04	1	9805-	●		●
4	WASHER; INJ PUMP ID=8.5 KAWASAKI	9-09851-983-0	04	1	0010-	●		●
4	WASHER; INJ PUMP (A) ID=10.2	9-09150-510-0	04	1	9601-9607		●
4	WASHER; INJ PUMP (B) ID=10.5 OD=18	9-09160-510-0	04	1	9601-0004		●
4	WASHER; INJ PUMP (B) ID=10.2	9-09150-510-0	04	1	9608-0004		●
6	BRACKET; INJ PUMP TO C/BL	1-19751-087-0	01	1	9601-	●
6	BRACKET; INJ PUMP TO C/BL	1-19751-071-0	01	1	9601-0002		●
6	BRACKET; INJ PUMP TO C/BL	1-19751-168-0	01	1	0003-0004		●
6	BRACKET; INJ PUMP TO C/BL	8-94393-689-2	01	1	9805-			●
7	BOLT; INJ PUMP BRKT (A) M10X50	0-16806-050-0	03	1	9601-0512	●
7	BOLT; INJ PUMP BRKT (A) M10X50	0-16856-050-0	03	1	0601-	●
7	BOLT; INJ PUMP BRKT (B) M10X65	0-16806-065-0	02	1	9601-	●
7	BOLT; INJ PUMP BRKT (A) M10X65	0-16806-065-0	03	1	9601-0002		●
7	BOLT; INJ PUMP BRKT (A) M10X60 FLANGE	0-28181-060-0	03	1	0003-0004		●
7	BOLT; INJ PUMP BRKT (B) M10X22	0-23801-022-0	01	1	9601-0002		●
7	BOLT; INJ PUMP BRKT (B) M10X25 FLANGE	0-28781-025-0	01	1	0003-0004		●
7	BOLT; INJ PUMP BRKT (C) M10X35	0-23801-035-0	01	1	9601-0002		●
7	BOLT; INJ PUMP BRKT (C) M10X40 FLANGE	0-28781-040-0	01	1	0003-0004		●
7	BOLT; INJ PUMP BRKT (A) M10X80 FLANGE	0-28181-080-0	02	1	9805-0512			●
7	BOLT; INJ PUMP BRKT (A) M10X80 FLANGE	0-28151-080-0	02	1	0601-			●
7	BOLT; INJ PUMP BRKT (B) M10X75 FLANGE	8-94399-669-1	01	1	9805-			●
7	BOLT; INJ PUMP BRKT (C) M10X55 FLANGE	8-94399-863-1	01	1	9805-0805			●
7	BOLT; INJ PUMP BRKT (C) M10X55 FLANGE	8-97365-449-0	01	1	0806-			●
8	WASHER; LK,INJ PUMP BRKT ID=10.2	0-91510-510-0	05	1	1211-	●
8	WASHER; LK,INJ PUMP BRKT ID=10.2	9-09150-510-0	05	1	9601-0002	●	●
9	STUD; CLIP	9-04010-612-0	02	1	9601-	●
11	WASHER; INJ PUMP BRKT ID=10.5	0-91610-510-0	05	1	1211-	●
11	WASHER; INJ PUMP BRKT ID=10.5 OD=18	9-09160-510-0	05	1	9601-0002	●	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-167-0	01	1	9601-	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-111-1	01	1	9601-0004		●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94395-308-0	01	1	9805-			●
16	PIPE; INJ NO.1	1-15414-242-0	01	1	9601-9607	●
16	PIPE; INJ NO.1	1-15416-112-0	01	1	9608-	●
16	PIPE; INJ NO.1	1-15415-763-0	01	1	9601-0004		●
16	PIPE; INJ NO.1	8-94393-845-1	01	1	9805-			●
17	PIPE; INJ NO.2	1-15414-243-0	01	1	9601-	●
17	PIPE; INJ NO.2	1-15415-764-0	01	1	9601-0004		●
17	PIPE; INJ NO.2	8-94393-846-1	01	1	9805-			●
18	PIPE; INJ NO.3	1-15414-244-0	01	1	9601-9607	●
18	PIPE; INJ NO.3	1-15416-133-0	01	1	9608-	●
18	PIPE; INJ NO.3	1-15415-765-0	01	1	9601-0004		●
18	PIPE; INJ NO.3	8-94393-897-1	01	1	9805-			●
19	PIPE; INJ NO.4	1-15415-772-0	01	1	9601-	●
19	PIPE; INJ NO.4	1-15415-766-0	01	1	9601-0004		●
19	PIPE; INJ NO.4	8-94394-145-0	01	1	9805-			●
20	PIPE; INJ NO.5	1-15415-773-0	01	1	9601-	●
20	PIPE; INJ NO.5	1-15415-767-0	01	1	9601-0004		●
20	PIPE; INJ NO.5	8-94394-146-0	01	1	9805-			●
21	PIPE; INJ NO.6	1-15415-774-0	01	1	9601-	●
21	PIPE; INJ NO.6	1-15415-768-0	01	1	9601-0004		●
21	PIPE; INJ NO.6	8-94394-147-0	01	1	9805-			●
31	NOZZLE ASM; INJ	1-15300-263-1	06	1	9601-	●
31	NOZZLE ASM; INJ	1-15300-332-0	06	1	9601-0004		●
31	NOZZLE ASM; INJ	8-94390-499-1	06	1	9805-			●
54	COVER; DUST,NOZZLE HOLDER	9-15339-051-0	06	1	9601-9804	●	●
54	COVER; DUST,NOZZLE HOLDER	9-15339-051-0	06	1	9805-0004	●	●	●
54	COVER; DUST,NOZZLE HOLDER	9-15339-051-0	06	1	0005-	●		●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	12	1	9601-0004	●	●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	12	1	0005-0602	●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91180-108-0	12	1	0603-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	1-15315-013-1	06	1	9601-9804	●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	1-15315-013-1	06	1	9805-0004	●	●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	1-15315-013-1	06	1	0005-0006	●		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	1-15315-013-1	06	1	0007-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	8-97601-447-2	06	1	0007-0909			●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	8-98079-248-0	06	1	0910-			●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15415-783-0	01	1	9601-	●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15415-778-0	01	1	9601-0004		●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-94394-408-0	01	1	9805-			●
133	PIPE; INJ NOZZLE LEAK OFF	1-15415-782-0	01	1	9601-	●
133	PIPE; INJ NOZZLE LEAK OFF	1-15415-777-0	01	1	9601-0004		●
133	PIPE; INJ NOZZLE LEAK OFF	8-94395-805-0	01	1	9805-			●

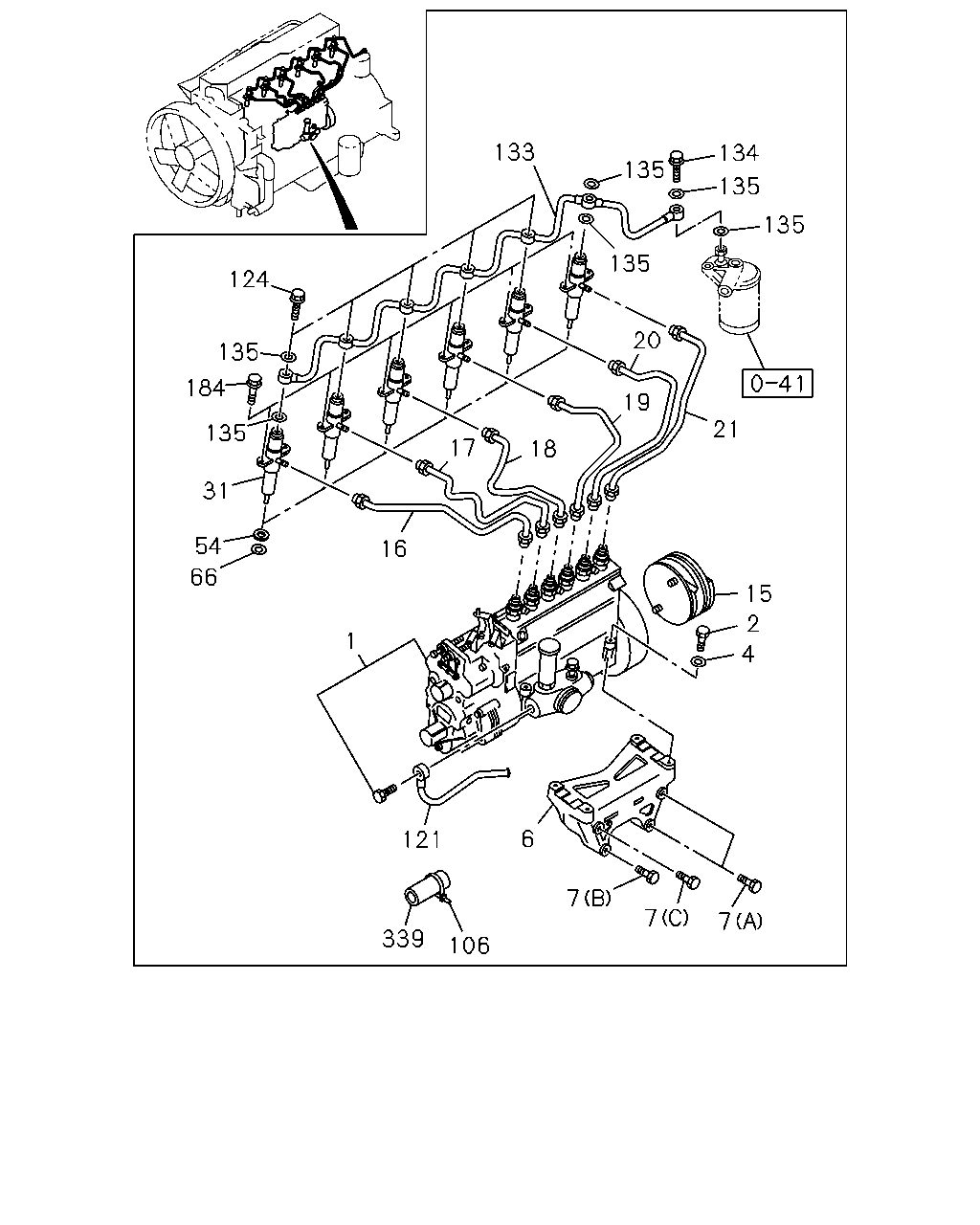

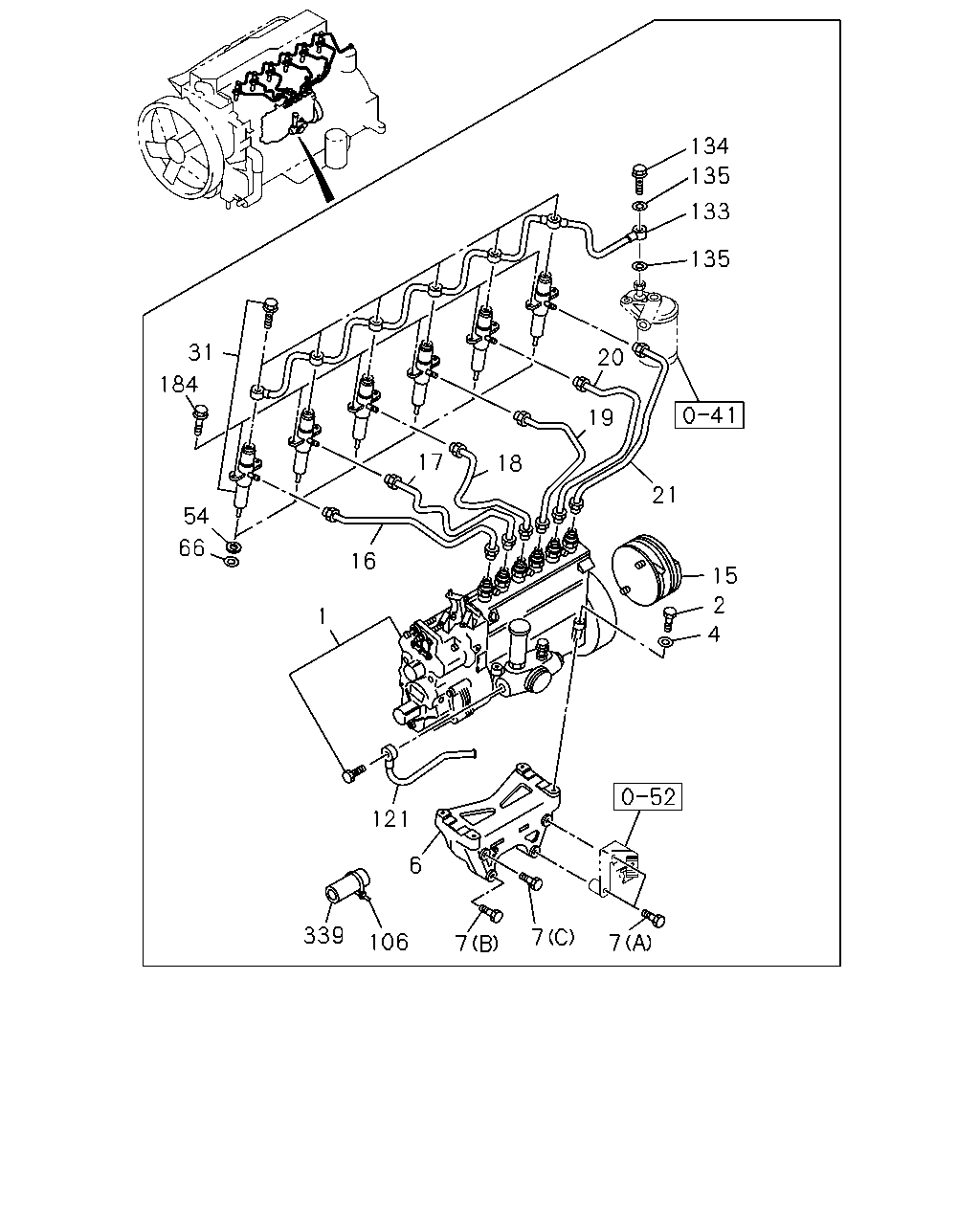

134 135 133 135 31 20 184 19 17 18 21 54 66 16 15 2 1 4 121 6 339 7 106 7 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15603-035-0	01	1	9601-9710	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. KENYA EQUIPMENT(PQ2)	1-15603-035-0	01	1	9711-0004	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. TAMPER PROOF INJ PUMP SET<W44> EXC. KENYA EQUIPMENT(PQ2)	1-15603-035-0	01	1	0005-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. KENYA EQUIPMENT(PQ2),TAMPER PROOF INJ PUMP SET<W44>	1-15603-036-0	01	1	0010-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. KENYA EQUIPMENT(PQ2)	1-15603-272-0	01	1	9711-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. KENYA EQUIPMENT(PQ2),TAMPER PROOF INJ PUMP SET<W44>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15603-025-1	01	1	0012-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. NEW ZEALAND EQUIPMENT(PK5) EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-246-2	01	1	9706-9804		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-246-3	01	1	9805-0004		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-116-0	01	1	9601-9606		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-151-0	01	1	9607-9702		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-217-1	01	1	9703-9705		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-258-3	01	1	9706-0004		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-051-3	01	1	9601-9606		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-147-0	01	1	9607-9702		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-214-1	01	1	9703-9705		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. NEW ZEALAND EQUIPMENT(PK5),SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-214-3	01	1	9706-9804		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94395-904-1	01	1	9805-			●
2	BOLT; INJ PUMP M8X75	0-10810-875-0	04	1	9601-9804	●
2	BOLT; INJ PUMP M8X75	0-10810-875-0	04	1	9805-	●		●
2	BOLT; INJ PUMP M10X90	0-16806-090-0	04	1	9601-0004		●
4	WASHER; INJ PUMP ID=8.5 MITSUBISHI	9-09851-934-0	04	1	9601-9804	●
4	WASHER; INJ PUMP ID=8.5 MITSUBISHI	9-09851-934-0	04	1	9805-	●		●
4	WASHER; INJ PUMP ID=8.5 KAWASAKI	9-09851-983-0	04	1	0010-	●		●
4	WASHER; INJ PUMP (A) ID=10.2	9-09150-510-0	04	1	9601-9607		●
4	WASHER; INJ PUMP (B) ID=10.5 OD=18	9-09160-510-0	04	1	9601-0004		●
4	WASHER; INJ PUMP (B) ID=10.2	9-09150-510-0	04	1	9608-0004		●
6	BRACKET; INJ PUMP TO C/BL	1-19751-087-0	01	1	9601-	●
6	BRACKET; INJ PUMP TO C/BL	1-19751-071-0	01	1	9601-0002		●
6	BRACKET; INJ PUMP TO C/BL	1-19751-168-0	01	1	0003-0004		●
6	BRACKET; INJ PUMP TO C/BL	8-94393-689-2	01	1	9805-			●
7	BOLT; INJ PUMP BRKT (A) M10X50	0-16806-050-0	03	1	9601-0512	●
7	BOLT; INJ PUMP BRKT (A) M10X50	0-16856-050-0	03	1	0601-	●
7	BOLT; INJ PUMP BRKT (B) M10X65	0-16806-065-0	02	1	9601-	●
7	BOLT; INJ PUMP BRKT (A) M10X65	0-16806-065-0	03	1	9601-0002		●
7	BOLT; INJ PUMP BRKT (A) M10X60 FLANGE	0-28181-060-0	03	1	0003-0004		●
7	BOLT; INJ PUMP BRKT (B) M10X22	0-23801-022-0	01	1	9601-0002		●
7	BOLT; INJ PUMP BRKT (B) M10X25 FLANGE	0-28781-025-0	01	1	0003-0004		●
7	BOLT; INJ PUMP BRKT (C) M10X35	0-23801-035-0	01	1	9601-0002		●
7	BOLT; INJ PUMP BRKT (C) M10X40 FLANGE	0-28781-040-0	01	1	0003-0004		●
7	BOLT; INJ PUMP BRKT (A) M10X80 FLANGE	0-28181-080-0	02	1	9805-0512			●
7	BOLT; INJ PUMP BRKT (A) M10X80 FLANGE	0-28151-080-0	02	1	0601-			●
7	BOLT; INJ PUMP BRKT (B) M10X75 FLANGE	8-94399-669-1	01	1	9805-			●
7	BOLT; INJ PUMP BRKT (C) M10X55 FLANGE	8-94399-863-1	01	1	9805-0805			●
7	BOLT; INJ PUMP BRKT (C) M10X55 FLANGE	8-97365-449-0	01	1	0806-			●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-167-0	01	1	9601-	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-111-1	01	1	9601-0004		●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94395-308-0	01	1	9805-			●
16	PIPE; INJ NO.1	1-15414-242-0	01	1	9601-9607	●
16	PIPE; INJ NO.1	1-15416-112-0	01	1	9608-	●
16	PIPE; INJ NO.1	1-15415-763-0	01	1	9601-0004		●
16	PIPE; INJ NO.1	8-94393-845-1	01	1	9805-			●
17	PIPE; INJ NO.2	1-15414-243-0	01	1	9601-	●
17	PIPE; INJ NO.2	1-15415-764-0	01	1	9601-0004		●
17	PIPE; INJ NO.2	8-94393-846-1	01	1	9805-			●
18	PIPE; INJ NO.3	1-15414-244-0	01	1	9601-9607	●
18	PIPE; INJ NO.3	1-15416-133-0	01	1	9608-	●
18	PIPE; INJ NO.3	1-15415-765-0	01	1	9601-0004		●
18	PIPE; INJ NO.3	8-94393-897-1	01	1	9805-			●
19	PIPE; INJ NO.4	1-15415-772-0	01	1	9601-	●
19	PIPE; INJ NO.4	1-15415-766-0	01	1	9601-0004		●
19	PIPE; INJ NO.4	8-94394-145-0	01	1	9805-			●
20	PIPE; INJ NO.5	1-15415-773-0	01	1	9601-	●
20	PIPE; INJ NO.5	1-15415-767-0	01	1	9601-0004		●
20	PIPE; INJ NO.5	8-94394-146-0	01	1	9805-			●
21	PIPE; INJ NO.6	1-15415-774-0	01	1	9601-	●
21	PIPE; INJ NO.6	1-15415-768-0	01	1	9601-0004		●
21	PIPE; INJ NO.6	8-94394-147-0	01	1	9805-			●
31	NOZZLE ASM; INJ	1-15300-263-1	06	1	9601-	●
31	NOZZLE ASM; INJ	1-15300-332-0	06	1	9601-0004		●
31	NOZZLE ASM; INJ	8-94390-499-1	06	1	9805-			●
54	COVER; DUST,NOZZLE HOLDER	9-15339-051-0	06	1	9601-9804	●	●
54	COVER; DUST,NOZZLE HOLDER	9-15339-051-0	06	1	9805-0004	●	●	●
54	COVER; DUST,NOZZLE HOLDER	9-15339-051-0	06	1	0005-	●		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	1-15315-013-1	06	1	9601-9804	●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	1-15315-013-1	06	1	9805-0004	●	●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	1-15315-013-1	06	1	0005-0006	●		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	1-15315-013-1	06	1	0007-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	8-97601-447-2	06	1	0007-0909			●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	8-98079-248-0	06	1	0910-			●
106	CLIP; INJ PIPE L=140	5-09707-031-1	01	1	0002-0106			●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15415-783-0	01	1	9601-	●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15415-778-0	01	1	9601-0004		●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-94394-408-0	01	1	9805-			●
133	PIPE; INJ NOZZLE LEAK OFF	1-15415-782-0	01	1	9601-	●
133	PIPE; INJ NOZZLE LEAK OFF	1-15415-777-0	01	1	9601-0004		●
133	PIPE; INJ NOZZLE LEAK OFF	8-94395-805-0	01	1	9805-			●
134	BOLT; JOINT,LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	01	1	9601-9804	●	●
134	BOLT; JOINT,LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	01	1	9805-0004	●	●	●
134	BOLT; JOINT,LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	01	1	0005-	●		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	02	1	9601-9804	●	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	02	1	9805-0004	●	●	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	02	1	0005-	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	14	1	0005-			●
184	BOLT; NOZZLE HOLDER M8X40 FLANGE	0-28080-840-0	12	1	9805-0512			●
184	BOLT; NOZZLE HOLDER M8X40 FLANGE	0-28050-840-0	12	1	0601-			●
339	RUBBER; COVER ID=6 OD=10 L=70	1-09376-512-0	01	1	0002-			●

133 134 135 135 135 135 124 20 135 184 19 21 135 17 18 31 54 16 66 15 2 1 4 6 121 7 7 7 339 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15603-035-0	01	1	9601-9710	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. KENYA EQUIPMENT(PQ2)	1-15603-035-0	01	1	9711-0004	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. TAMPER PROOF INJ PUMP SET<W44> EXC. KENYA EQUIPMENT(PQ2)	1-15603-035-0	01	1	0005-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. KENYA EQUIPMENT(PQ2),TAMPER PROOF INJ PUMP SET<W44>	1-15603-036-0	01	1	0010-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. KENYA EQUIPMENT(PQ2)	1-15603-272-0	01	1	9711-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. KENYA EQUIPMENT(PQ2),TAMPER PROOF INJ PUMP SET<W44>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15603-025-1	01	1	0012-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. NEW ZEALAND EQUIPMENT(PK5) EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-246-2	01	1	9706-9804		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-246-3	01	1	9805-0004		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-116-0	01	1	9601-9606		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-151-0	01	1	9607-9702		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-217-1	01	1	9703-9705		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-258-3	01	1	9706-0004		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-051-3	01	1	9601-9606		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-147-0	01	1	9607-9702		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-214-1	01	1	9703-9705		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. NEW ZEALAND EQUIPMENT(PK5),SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-214-3	01	1	9706-9804		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94395-904-1	01	1	9805-			●
2	BOLT; INJ PUMP M8X75	0-10810-875-0	04	1	9601-9804	●
2	BOLT; INJ PUMP M8X75	0-10810-875-0	04	1	9805-	●		●
2	BOLT; INJ PUMP M10X90	0-16806-090-0	04	1	9601-0004		●
4	WASHER; INJ PUMP ID=8.5 MITSUBISHI	9-09851-934-0	04	1	9601-9804	●
4	WASHER; INJ PUMP ID=8.5 MITSUBISHI	9-09851-934-0	04	1	9805-	●		●
4	WASHER; INJ PUMP ID=8.5 KAWASAKI	9-09851-983-0	04	1	0010-	●		●
4	WASHER; INJ PUMP (A) ID=10.2	9-09150-510-0	04	1	9601-9607		●
4	WASHER; INJ PUMP (B) ID=10.5 OD=18	9-09160-510-0	04	1	9601-0004		●
4	WASHER; INJ PUMP (B) ID=10.2	9-09150-510-0	04	1	9608-0004		●
6	BRACKET; INJ PUMP TO C/BL	1-19751-087-0	01	1	9601-	●
6	BRACKET; INJ PUMP TO C/BL	1-19751-071-0	01	1	9601-0002		●
6	BRACKET; INJ PUMP TO C/BL	1-19751-168-0	01	1	0003-0004		●
6	BRACKET; INJ PUMP TO C/BL	8-94393-689-2	01	1	9805-			●
7	BOLT; INJ PUMP BRKT (A) M10X50	0-16806-050-0	03	1	9601-0512	●
7	BOLT; INJ PUMP BRKT (A) M10X50	0-16856-050-0	03	1	0601-	●
7	BOLT; INJ PUMP BRKT (B) M10X65	0-16806-065-0	02	1	9601-	●
7	BOLT; INJ PUMP BRKT (A) M10X65	0-16806-065-0	03	1	9601-0002		●
7	BOLT; INJ PUMP BRKT (A) M10X60 FLANGE	0-28181-060-0	03	1	0003-0004		●
7	BOLT; INJ PUMP BRKT (B) M10X22	0-23801-022-0	01	1	9601-0002		●
7	BOLT; INJ PUMP BRKT (B) M10X25 FLANGE	0-28781-025-0	01	1	0003-0004		●
7	BOLT; INJ PUMP BRKT (C) M10X35	0-23801-035-0	01	1	9601-0002		●
7	BOLT; INJ PUMP BRKT (C) M10X40 FLANGE	0-28781-040-0	01	1	0003-0004		●
7	BOLT; INJ PUMP BRKT (A) M10X80 FLANGE	0-28181-080-0	02	1	9805-0512			●
7	BOLT; INJ PUMP BRKT (A) M10X80 FLANGE	0-28151-080-0	02	1	0601-			●
7	BOLT; INJ PUMP BRKT (B) M10X75 FLANGE	8-94399-669-1	01	1	9805-			●
7	BOLT; INJ PUMP BRKT (C) M10X55 FLANGE	8-94399-863-1	01	1	9805-0805			●
7	BOLT; INJ PUMP BRKT (C) M10X55 FLANGE	8-97365-449-0	01	1	0806-			●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-167-0	01	1	9601-	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-111-1	01	1	9601-0004		●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94395-308-0	01	1	9805-			●
16	PIPE; INJ NO.1	1-15414-242-0	01	1	9601-9607	●
16	PIPE; INJ NO.1	1-15416-112-0	01	1	9608-	●
16	PIPE; INJ NO.1	1-15415-763-0	01	1	9601-0004		●
16	PIPE; INJ NO.1	8-94393-845-1	01	1	9805-			●
17	PIPE; INJ NO.2	1-15414-243-0	01	1	9601-	●
17	PIPE; INJ NO.2	1-15415-764-0	01	1	9601-0004		●
17	PIPE; INJ NO.2	8-94393-846-1	01	1	9805-			●
18	PIPE; INJ NO.3	1-15414-244-0	01	1	9601-9607	●
18	PIPE; INJ NO.3	1-15416-133-0	01	1	9608-	●
18	PIPE; INJ NO.3	1-15415-765-0	01	1	9601-0004		●
18	PIPE; INJ NO.3	8-94393-897-1	01	1	9805-			●
19	PIPE; INJ NO.4	1-15415-772-0	01	1	9601-	●
19	PIPE; INJ NO.4	1-15415-766-0	01	1	9601-0004		●
19	PIPE; INJ NO.4	8-94394-145-0	01	1	9805-			●
20	PIPE; INJ NO.5	1-15415-773-0	01	1	9601-	●
20	PIPE; INJ NO.5	1-15415-767-0	01	1	9601-0004		●
20	PIPE; INJ NO.5	8-94394-146-0	01	1	9805-			●
21	PIPE; INJ NO.6	1-15415-774-0	01	1	9601-	●
21	PIPE; INJ NO.6	1-15415-768-0	01	1	9601-0004		●
21	PIPE; INJ NO.6	8-94394-147-0	01	1	9805-			●
31	NOZZLE ASM; INJ	1-15300-263-1	06	1	9601-	●
31	NOZZLE ASM; INJ	1-15300-332-0	06	1	9601-0004		●
31	NOZZLE ASM; INJ	8-94390-499-1	06	1	9805-			●
54	COVER; DUST,NOZZLE HOLDER	9-15339-051-0	06	1	9601-9804	●	●
54	COVER; DUST,NOZZLE HOLDER	9-15339-051-0	06	1	9805-0004	●	●	●
54	COVER; DUST,NOZZLE HOLDER	9-15339-051-0	06	1	0005-	●		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	1-15315-013-1	06	1	9601-9804	●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	1-15315-013-1	06	1	9805-0004	●	●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	1-15315-013-1	06	1	0005-0006	●		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	1-15315-013-1	06	1	0007-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	8-97601-447-2	06	1	0007-0909			●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	8-98079-248-0	06	1	0910-			●
106	CLIP; INJ PIPE L=140	5-09707-031-1	01	1	0002-0106			●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15415-783-0	01	1	9601-	●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15415-778-0	01	1	9601-0004		●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-94394-408-0	01	1	9805-			●
124	BOLT; EYE LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	06	1	0005-			●
133	PIPE; INJ NOZZLE LEAK OFF	1-15415-782-0	01	1	9601-	●
133	PIPE; INJ NOZZLE LEAK OFF	1-15415-777-0	01	1	9601-0004		●
133	PIPE; INJ NOZZLE LEAK OFF	8-94395-805-0	01	1	9805-			●
134	BOLT; JOINT,LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	01	1	9601-9804	●	●
134	BOLT; JOINT,LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	01	1	9805-0004	●	●	●
134	BOLT; JOINT,LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	01	1	0005-	●		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	02	1	9601-9804	●	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	02	1	9805-0004	●	●	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	02	1	0005-	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	14	1	0005-			●
184	BOLT; NOZZLE HOLDER M8X40 FLANGE	0-28080-840-0	12	1	9805-0512			●
184	BOLT; NOZZLE HOLDER M8X40 FLANGE	0-28050-840-0	12	1	0601-			●
339	RUBBER; COVER ID=6 OD=10 L=70	1-09376-512-0	01	1	0002-			●

31 32 34 36 36 37 38 39 40 140 143 138 45 44 141 42 140 142 41 46 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
31	NOZZLE ASM; INJ	1-15300-263-1	06	1	9601-	●
31	NOZZLE ASM; INJ	1-15300-332-0	06	1	9601-0004		●
31	NOZZLE ASM; INJ	8-94390-499-1	06	1	9805-			●
32	HOLDER ASM; NOZZLE	1-15330-088-1	06	1	9601-	●
32	HOLDER ASM; NOZZLE	1-15330-054-1	06	1	9601-0004		●
32	HOLDER ASM; NOZZLE	8-94390-384-0	06	1	9805-			●
33	NOZZLE; INJ	1-15311-216-0	06	1	9601-	●
33	NOZZLE; INJ	1-15311-265-0	06	1	9601-0004		●
33	NOZZLE; INJ	8-94390-535-0	06	1	9805-			●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	06	1	9601-9804	●	●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	06	1	9805-0004	●	●	●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	06	1	0005-	●		●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-014-0	06	1	9601-	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-017-0	06	1	9601-0004		●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-135-0	06	1	9805-			●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15339-010-0	12	1	0005-			●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15339-010-0	06	1	9601-	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15339-010-0	12	1	9601-9804		●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15339-010-0	12	1	9805-0004		●	●
37	NUT; CAP,NOZZLE HOLDER	1-15349-136-0	06	1	0005-			●
37	NUT; CAP,NOZZLE HOLDER	5-15332-006-0	06	1	9601-	●
37	NUT; CAP,NOZZLE HOLDER	1-15334-010-0	06	1	9601-0004		●
37	NUT; CAP,NOZZLE HOLDER	1-15349-136-0	06	1	9805-0004			●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	5-15339-060-0	06	1	9601-9804	●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	5-15339-060-0	06	1	9805-	●		●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	9-15339-056-0	06	1	9601-0004		●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	8-94169-503-0	06	1	9601-9804	●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	8-94169-503-0	06	1	9805-	●		●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	1-15345-004-0	06	1	9601-0004		●
40	NUT; ADJ SCREW,NOZZLE HOLDER	1-15332-011-0	06	1	9601-0004		●
41	CONNECTOR; FUEL INL,NOZZLE HOLDER	5-15351-001-0	06	1	9601-	●
41	CONNECTOR; FUEL INL,NOZZLE HOLDER	1-15351-005-0	06	1	9601-0004		●
42	GASKET; INL CONNECTOR,NOZZLE HOLDER	5-15339-003-0	06	1	9601-0004	●	●
42	GASKET; INL CONNECTOR,NOZZLE HOLDER	5-15339-003-0	06	1	0005-	●
44	SPRING; NOZZLE,NOZZLE HOLDER	5-15343-005-0	06	1	9601-9804	●
44	SPRING; NOZZLE,NOZZLE HOLDER	5-15343-005-0	06	1	9805-	●		●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94246-531-0	06	1	9601-0004		●
45	ROD; PUSH,NOZZLE HOLDER	8-94169-502-0	06	1	9601-9804	●
45	ROD; PUSH,NOZZLE HOLDER	8-94169-502-0	06	1	9805-	●		●
45	ROD; PUSH,NOZZLE HOLDER	1-15341-004-0	06	1	9601-0004		●
46	PIN; NOZZLE SET,NOZZLE HOLDER	9-15347-003-0	12	1	9601-0004	●	●
46	PIN; NOZZLE SET,NOZZLE HOLDER	9-15347-003-0	12	1	0005-	●
138	SPRING; NOZZLE LWR,NOZZLE HOLDER	1-15343-001-0	06	1	9601-0004		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	5-15339-007-0	AR	1	9601-0004		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.60	5-15339-008-0	AR	1	9601-0004		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.70	5-15339-009-0	AR	1	9601-0004		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.80	5-15339-010-0	AR	1	9601-0004		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.90	5-15339-011-0	AR	1	9601-0004		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.00	5-15339-012-0	AR	1	9601-0004		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52	5-15339-018-0	AR	1	9601-0004		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54	5-15339-019-0	AR	1	9601-0004		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56	5-15339-020-0	AR	1	9601-0004		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58	5-15339-021-0	AR	1	9601-0004		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.10	8-94128-982-0	AR	1	9601-0004		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.20	8-94128-983-0	AR	1	9601-0004		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.30	8-94128-984-0	AR	1	9601-0004		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	8-94128-985-0	AR	1	9601-0004		●
141	ROD; PUSH,UPR,NOZZLE HOLDER	1-15341-006-0	06	1	9601-0004		●
142	SPACER; PUSH ROD	1-15339-093-0	06	1	9601-0004		●
143	SCREW; SET,NOZZLE SPRING,NOZZLE HOLDER	1-15345-003-0	06	1	9601-0004		●

31 133 54 66 17 18 31 16 62 19 20 54 1 66 21 2 4 15 4 7 8 11 6 121 10 161 7 8 11 7 8 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15603-035-0	01	1	9601-9710	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. KENYA EQUIPMENT(PQ2)	1-15603-035-0	01	1	9711-0004	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. TAMPER PROOF INJ PUMP SET<W44> EXC. KENYA EQUIPMENT(PQ2)	1-15603-035-0	01	1	0005-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. KENYA EQUIPMENT(PQ2),TAMPER PROOF INJ PUMP SET<W44>	1-15603-036-0	01	1	0010-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. KENYA EQUIPMENT(PQ2)	1-15603-272-0	01	1	9711-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. KENYA EQUIPMENT(PQ2),TAMPER PROOF INJ PUMP SET<W44>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15603-025-1	01	1	0012-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. NEW ZEALAND EQUIPMENT(PK5) EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-246-2	01	1	9706-9804		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-246-3	01	1	9805-0004		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-116-0	01	1	9601-9606		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-151-0	01	1	9607-9702		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-217-1	01	1	9703-9705		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-258-3	01	1	9706-0004		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-051-3	01	1	9601-9606		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-147-0	01	1	9607-9702		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-214-1	01	1	9703-9705		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. NEW ZEALAND EQUIPMENT(PK5),SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-214-3	01	1	9706-9804		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94395-904-1	01	1	9805-			●
2	BOLT; INJ PUMP M8X75	0-10810-875-0	04	1	9601-9804	●
2	BOLT; INJ PUMP M8X75	0-10810-875-0	04	1	9805-	●		●
2	BOLT; INJ PUMP M10X90	0-16806-090-0	04	1	9601-0004		●
4	WASHER; INJ PUMP ID=8.5 MITSUBISHI	9-09851-934-0	04	1	9601-9804	●
4	WASHER; INJ PUMP ID=8.5 MITSUBISHI	9-09851-934-0	04	1	9805-	●		●
4	WASHER; INJ PUMP ID=8.5 KAWASAKI	9-09851-983-0	04	1	0010-	●		●
4	WASHER; INJ PUMP (A) ID=10.2	9-09150-510-0	04	1	9601-9607		●
4	WASHER; INJ PUMP (B) ID=10.5 OD=18	9-09160-510-0	04	1	9601-0004		●
4	WASHER; INJ PUMP (B) ID=10.2	9-09150-510-0	04	1	9608-0004		●
6	BRACKET; INJ PUMP TO C/BL	1-19751-087-0	01	1	9601-	●
6	BRACKET; INJ PUMP TO C/BL	1-19751-071-0	01	1	9601-0002		●
6	BRACKET; INJ PUMP TO C/BL	1-19751-168-0	01	1	0003-0004		●
6	BRACKET; INJ PUMP TO C/BL	8-94393-689-2	01	1	9805-			●
7	BOLT; INJ PUMP BRKT (A) M10X50	0-16806-050-0	03	1	9601-0512	●
7	BOLT; INJ PUMP BRKT (A) M10X50	0-16856-050-0	03	1	0601-	●
7	BOLT; INJ PUMP BRKT (B) M10X65	0-16806-065-0	02	1	9601-	●
7	BOLT; INJ PUMP BRKT (A) M10X65	0-16806-065-0	03	1	9601-0002		●
7	BOLT; INJ PUMP BRKT (A) M10X60 FLANGE	0-28181-060-0	03	1	0003-0004		●
7	BOLT; INJ PUMP BRKT (B) M10X22	0-23801-022-0	01	1	9601-0002		●
7	BOLT; INJ PUMP BRKT (B) M10X25 FLANGE	0-28781-025-0	01	1	0003-0004		●
7	BOLT; INJ PUMP BRKT (C) M10X35	0-23801-035-0	01	1	9601-0002		●
7	BOLT; INJ PUMP BRKT (C) M10X40 FLANGE	0-28781-040-0	01	1	0003-0004		●
7	BOLT; INJ PUMP BRKT (A) M10X80 FLANGE	0-28181-080-0	02	1	9805-0512			●
7	BOLT; INJ PUMP BRKT (A) M10X80 FLANGE	0-28151-080-0	02	1	0601-			●
7	BOLT; INJ PUMP BRKT (B) M10X75 FLANGE	8-94399-669-1	01	1	9805-			●
7	BOLT; INJ PUMP BRKT (C) M10X55 FLANGE	8-94399-863-1	01	1	9805-0805			●
7	BOLT; INJ PUMP BRKT (C) M10X55 FLANGE	8-97365-449-0	01	1	0806-			●
8	WASHER; LK,INJ PUMP BRKT ID=10.2	0-91510-510-0	05	1	1211-	●
8	WASHER; LK,INJ PUMP BRKT ID=10.2	9-09150-510-0	05	1	9601-0002	●	●
10	DOWEL; INJ PUMP OD=14 L=9	9-19759-019-1	02	1	9601-0004		●
11	WASHER; INJ PUMP BRKT ID=10.5	0-91610-510-0	05	1	1211-	●
11	WASHER; INJ PUMP BRKT ID=10.5 OD=18	9-09160-510-0	05	1	9601-0002	●	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-167-0	01	1	9601-	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-111-1	01	1	9601-0004		●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94395-308-0	01	1	9805-			●
16	PIPE; INJ NO.1	1-15414-242-0	01	1	9601-9607	●
16	PIPE; INJ NO.1	1-15416-112-0	01	1	9608-	●
16	PIPE; INJ NO.1	1-15415-763-0	01	1	9601-0004		●
16	PIPE; INJ NO.1	8-94393-845-1	01	1	9805-			●
17	PIPE; INJ NO.2	1-15414-243-0	01	1	9601-	●
17	PIPE; INJ NO.2	1-15415-764-0	01	1	9601-0004		●
17	PIPE; INJ NO.2	8-94393-846-1	01	1	9805-			●
18	PIPE; INJ NO.3	1-15414-244-0	01	1	9601-9607	●
18	PIPE; INJ NO.3	1-15416-133-0	01	1	9608-	●
18	PIPE; INJ NO.3	1-15415-765-0	01	1	9601-0004		●
18	PIPE; INJ NO.3	8-94393-897-1	01	1	9805-			●
19	PIPE; INJ NO.4	1-15415-772-0	01	1	9601-	●
19	PIPE; INJ NO.4	1-15415-766-0	01	1	9601-0004		●
19	PIPE; INJ NO.4	8-94394-145-0	01	1	9805-			●
20	PIPE; INJ NO.5	1-15415-773-0	01	1	9601-	●
20	PIPE; INJ NO.5	1-15415-767-0	01	1	9601-0004		●
20	PIPE; INJ NO.5	8-94394-146-0	01	1	9805-			●
21	PIPE; INJ NO.6	1-15415-774-0	01	1	9601-	●
21	PIPE; INJ NO.6	1-15415-768-0	01	1	9601-0004		●
21	PIPE; INJ NO.6	8-94394-147-0	01	1	9805-			●
31	NOZZLE ASM; INJ	1-15300-263-1	06	1	9601-	●
31	NOZZLE ASM; INJ	1-15300-332-0	06	1	9601-0004		●
31	NOZZLE ASM; INJ	8-94390-499-1	06	1	9805-			●
54	COVER; DUST,NOZZLE HOLDER	9-15339-051-0	06	1	9601-9804	●	●
54	COVER; DUST,NOZZLE HOLDER	9-15339-051-0	06	1	9805-0004	●	●	●
54	COVER; DUST,NOZZLE HOLDER	9-15339-051-0	06	1	0005-	●		●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	12	1	9601-0004	●	●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	12	1	0005-0602	●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91180-108-0	12	1	0603-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	1-15315-013-1	06	1	9601-9804	●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	1-15315-013-1	06	1	9805-0004	●	●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	1-15315-013-1	06	1	0005-0006	●		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	1-15315-013-1	06	1	0007-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	8-97601-447-2	06	1	0007-0909			●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	8-98079-248-0	06	1	0910-			●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15415-783-0	01	1	9601-	●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15415-778-0	01	1	9601-0004		●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-94394-408-0	01	1	9805-			●
133	PIPE; INJ NOZZLE LEAK OFF	1-15415-782-0	01	1	9601-	●
133	PIPE; INJ NOZZLE LEAK OFF	1-15415-777-0	01	1	9601-0004		●
133	PIPE; INJ NOZZLE LEAK OFF	8-94395-805-0	01	1	9805-			●
161	STUD; INJ PUMP M8X20 L=32	9-04110-820-0	02	1	9601-0004		●

20 21 19 17 18 113 16 113 107 113 113 107 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15603-035-0	01	1	9601-9710	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. KENYA EQUIPMENT(PQ2)	1-15603-035-0	01	1	9711-0004	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. TAMPER PROOF INJ PUMP SET<W44> EXC. KENYA EQUIPMENT(PQ2)	1-15603-035-0	01	1	0005-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. KENYA EQUIPMENT(PQ2),TAMPER PROOF INJ PUMP SET<W44>	1-15603-036-0	01	1	0010-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. KENYA EQUIPMENT(PQ2)	1-15603-272-0	01	1	9711-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. KENYA EQUIPMENT(PQ2),TAMPER PROOF INJ PUMP SET<W44>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15603-025-1	01	1	0012-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. NEW ZEALAND EQUIPMENT(PK5) EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-246-2	01	1	9706-9804		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-246-3	01	1	9805-0004		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-116-0	01	1	9601-9606		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-151-0	01	1	9607-9702		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-217-1	01	1	9703-9705		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-258-3	01	1	9706-0004		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-051-3	01	1	9601-9606		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-147-0	01	1	9607-9702		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-214-1	01	1	9703-9705		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. NEW ZEALAND EQUIPMENT(PK5),SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-214-3	01	1	9706-9804		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94395-904-1	01	1	9805-			●
16	PIPE; INJ NO.1	1-15414-242-0	01	1	9601-9607	●
16	PIPE; INJ NO.1	1-15416-112-0	01	1	9608-	●
16	PIPE; INJ NO.1	1-15415-763-0	01	1	9601-0004		●
16	PIPE; INJ NO.1	8-94393-845-1	01	1	9805-			●
17	PIPE; INJ NO.2	1-15414-243-0	01	1	9601-	●
17	PIPE; INJ NO.2	1-15415-764-0	01	1	9601-0004		●
17	PIPE; INJ NO.2	8-94393-846-1	01	1	9805-			●
18	PIPE; INJ NO.3	1-15414-244-0	01	1	9601-9607	●
18	PIPE; INJ NO.3	1-15416-133-0	01	1	9608-	●
18	PIPE; INJ NO.3	1-15415-765-0	01	1	9601-0004		●
18	PIPE; INJ NO.3	8-94393-897-1	01	1	9805-			●
19	PIPE; INJ NO.4	1-15415-772-0	01	1	9601-	●
19	PIPE; INJ NO.4	1-15415-766-0	01	1	9601-0004		●
19	PIPE; INJ NO.4	8-94394-145-0	01	1	9805-			●
20	PIPE; INJ NO.5	1-15415-773-0	01	1	9601-	●
20	PIPE; INJ NO.5	1-15415-767-0	01	1	9601-0004		●
20	PIPE; INJ NO.5	8-94394-146-0	01	1	9805-			●
21	PIPE; INJ NO.6	1-15415-774-0	01	1	9601-	●
21	PIPE; INJ NO.6	1-15415-768-0	01	1	9601-0004		●
21	PIPE; INJ NO.6	8-94394-147-0	01	1	9805-			●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91150-106-0	04	1	9805-0602			●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91180-106-0	04	1	0603-			●

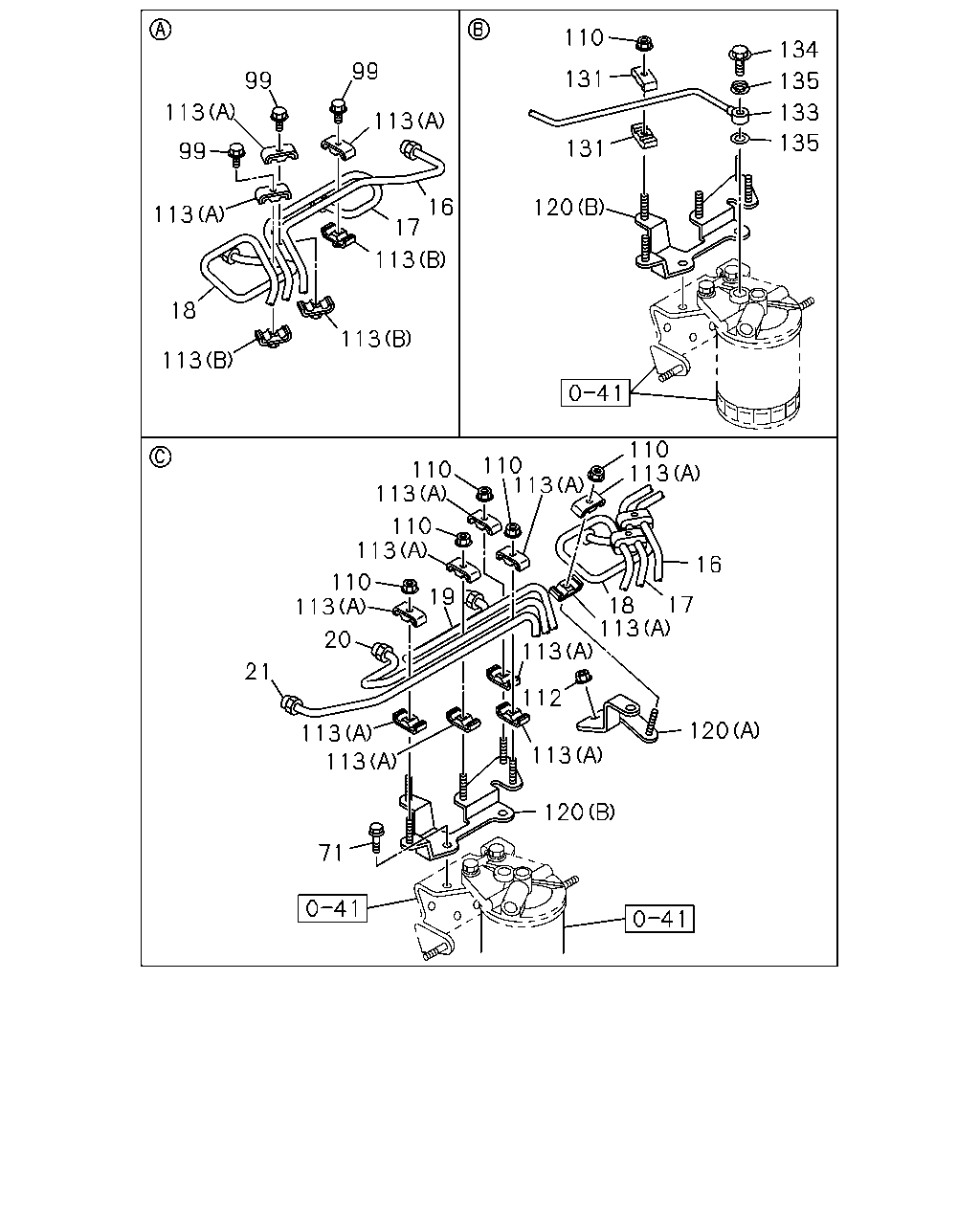

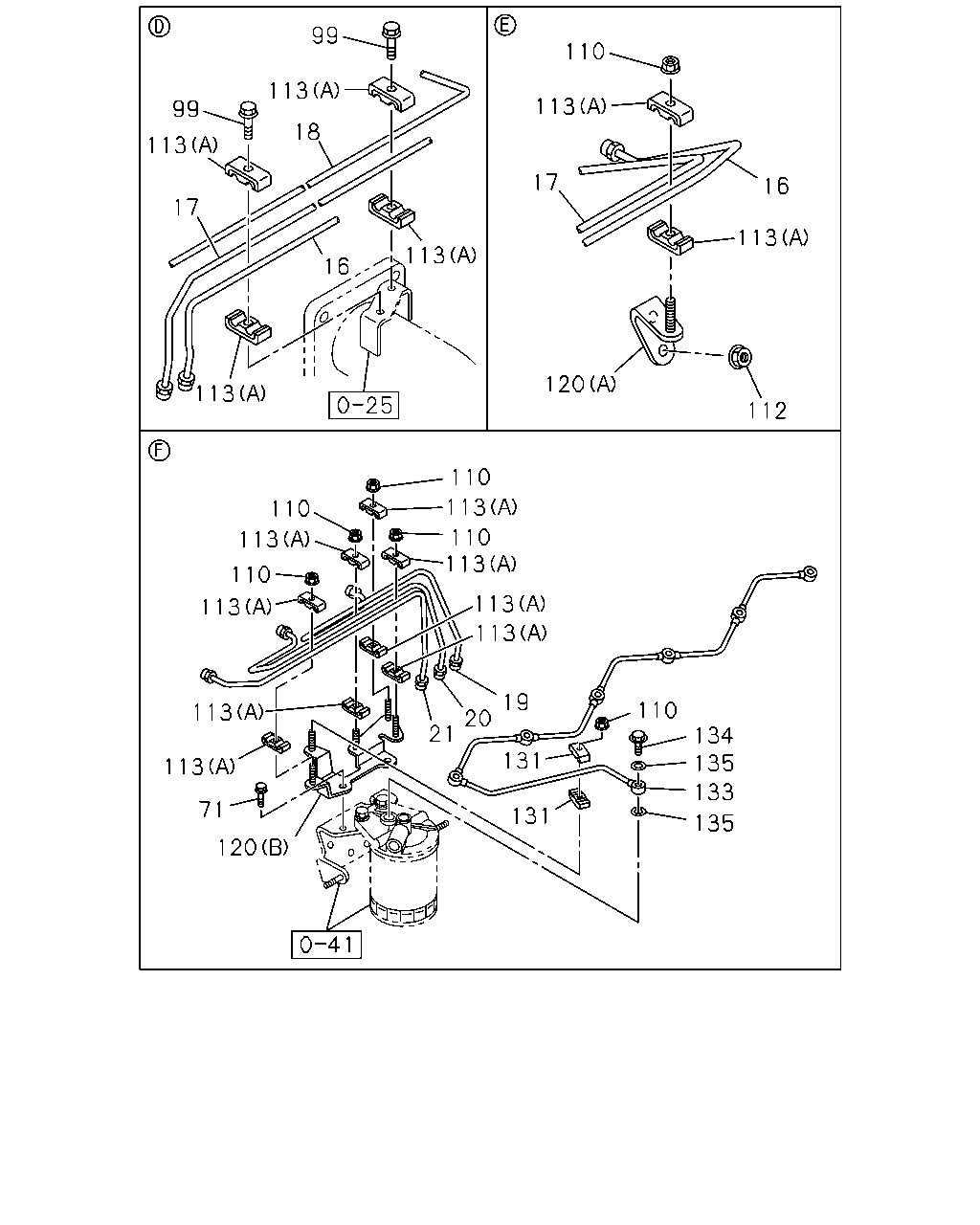

113	CLIP; INJ PIPE (A)	1-09701-132-1	13	1	9601-1210	●
113	CLIP; INJ PIPE (A)	1-09701-240-0	13	1	1211-	●
113	CLIP; INJ PIPE (B)	1-09701-213-1	03	1	9601-	●
113	CLIP; INJ PIPE (A)	1-09701-132-0	14	1	9612-0004		●
113	CLIP; INJ PIPE (A)	8-94396-793-0	04	1	9805-			●
113	CLIP; INJ PIPE (B)	8-94397-444-0	04	1	9805-			●

31 31 34 37 36 36 38 37 38 39 32 32 39 44 44 45 45 33 33 35 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
31	NOZZLE ASM; INJ	1-15300-263-1	06	1	9601-	●
31	NOZZLE ASM; INJ	1-15300-332-0	06	1	9601-0004		●
31	NOZZLE ASM; INJ	8-94390-499-1	06	1	9805-			●
32	HOLDER ASM; NOZZLE	1-15330-088-1	06	1	9601-	●
32	HOLDER ASM; NOZZLE	1-15330-054-1	06	1	9601-0004		●
32	HOLDER ASM; NOZZLE	8-94390-384-0	06	1	9805-			●
33	NOZZLE; INJ	1-15311-216-0	06	1	9601-	●
33	NOZZLE; INJ	1-15311-265-0	06	1	9601-0004		●
33	NOZZLE; INJ	8-94390-535-0	06	1	9805-			●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	06	1	9601-9804	●	●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	06	1	9805-0004	●	●	●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	06	1	0005-	●		●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-014-0	06	1	9601-	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-017-0	06	1	9601-0004		●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-135-0	06	1	9805-			●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15339-010-0	12	1	0005-			●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15339-010-0	06	1	9601-	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15339-010-0	12	1	9601-9804		●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15339-010-0	12	1	9805-0004		●	●
37	NUT; CAP,NOZZLE HOLDER	1-15349-136-0	06	1	0005-			●
37	NUT; CAP,NOZZLE HOLDER	5-15332-006-0	06	1	9601-	●
37	NUT; CAP,NOZZLE HOLDER	1-15334-010-0	06	1	9601-0004		●
37	NUT; CAP,NOZZLE HOLDER	1-15349-136-0	06	1	9805-0004			●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	5-15339-060-0	06	1	9601-9804	●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	5-15339-060-0	06	1	9805-	●		●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	9-15339-056-0	06	1	9601-0004		●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	8-94169-503-0	06	1	9601-9804	●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	8-94169-503-0	06	1	9805-	●		●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	1-15345-004-0	06	1	9601-0004		●
44	SPRING; NOZZLE,NOZZLE HOLDER	5-15343-005-0	06	1	9601-9804	●
44	SPRING; NOZZLE,NOZZLE HOLDER	5-15343-005-0	06	1	9805-	●		●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94246-531-0	06	1	9601-0004		●
45	ROD; PUSH,NOZZLE HOLDER	8-94169-502-0	06	1	9601-9804	●
45	ROD; PUSH,NOZZLE HOLDER	8-94169-502-0	06	1	9805-	●		●
45	ROD; PUSH,NOZZLE HOLDER	1-15341-004-0	06	1	9601-0004		●

34 36 37 38 31 39 32 44 45 42 41 46 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
31	NOZZLE ASM; INJ	1-15300-263-1	06	1	9601-	●
31	NOZZLE ASM; INJ	1-15300-332-0	06	1	9601-0004		●
31	NOZZLE ASM; INJ	8-94390-499-1	06	1	9805-			●
32	HOLDER ASM; NOZZLE	1-15330-088-1	06	1	9601-	●
32	HOLDER ASM; NOZZLE	1-15330-054-1	06	1	9601-0004		●
32	HOLDER ASM; NOZZLE	8-94390-384-0	06	1	9805-			●
33	NOZZLE; INJ	1-15311-216-0	06	1	9601-	●
33	NOZZLE; INJ	1-15311-265-0	06	1	9601-0004		●
33	NOZZLE; INJ	8-94390-535-0	06	1	9805-			●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	06	1	9601-9804	●	●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	06	1	9805-0004	●	●	●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	06	1	0005-	●		●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-014-0	06	1	9601-	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-017-0	06	1	9601-0004		●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-135-0	06	1	9805-			●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15339-010-0	12	1	0005-			●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15339-010-0	06	1	9601-	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15339-010-0	12	1	9601-9804		●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15339-010-0	12	1	9805-0004		●	●
37	NUT; CAP,NOZZLE HOLDER	1-15349-136-0	06	1	0005-			●
37	NUT; CAP,NOZZLE HOLDER	5-15332-006-0	06	1	9601-	●
37	NUT; CAP,NOZZLE HOLDER	1-15334-010-0	06	1	9601-0004		●
37	NUT; CAP,NOZZLE HOLDER	1-15349-136-0	06	1	9805-0004			●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	5-15339-060-0	06	1	9601-9804	●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	5-15339-060-0	06	1	9805-	●		●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	9-15339-056-0	06	1	9601-0004		●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	8-94169-503-0	06	1	9601-9804	●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	8-94169-503-0	06	1	9805-	●		●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	1-15345-004-0	06	1	9601-0004		●
41	CONNECTOR; FUEL INL,NOZZLE HOLDER	5-15351-001-0	06	1	9601-	●
41	CONNECTOR; FUEL INL,NOZZLE HOLDER	1-15351-005-0	06	1	9601-0004		●
42	GASKET; INL CONNECTOR,NOZZLE HOLDER	5-15339-003-0	06	1	9601-0004	●	●
42	GASKET; INL CONNECTOR,NOZZLE HOLDER	5-15339-003-0	06	1	0005-	●
44	SPRING; NOZZLE,NOZZLE HOLDER	5-15343-005-0	06	1	9601-9804	●
44	SPRING; NOZZLE,NOZZLE HOLDER	5-15343-005-0	06	1	9805-	●		●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94246-531-0	06	1	9601-0004		●
45	ROD; PUSH,NOZZLE HOLDER	8-94169-502-0	06	1	9601-9804	●
45	ROD; PUSH,NOZZLE HOLDER	8-94169-502-0	06	1	9805-	●		●
45	ROD; PUSH,NOZZLE HOLDER	1-15341-004-0	06	1	9601-0004		●
46	PIN; NOZZLE SET,NOZZLE HOLDER	9-15347-003-0	12	1	9601-0004	●	●
46	PIN; NOZZLE SET,NOZZLE HOLDER	9-15347-003-0	12	1	0005-	●

110 134 99 131 99 135 113 133 113 135 131 99 16 17 120 113 113 18 113 113 110 113 110 113 110 113 110 113 16 110 113 19 17 18 113 20 113 21 112 120 113 113 113 120 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	PIPE; INJ NO.1	1-15414-242-0	01	1	9601-9607	●
16	PIPE; INJ NO.1	1-15416-112-0	01	1	9608-	●
16	PIPE; INJ NO.1	1-15415-763-0	01	1	9601-0004		●
16	PIPE; INJ NO.1	8-94393-845-1	01	1	9805-			●
17	PIPE; INJ NO.2	1-15414-243-0	01	1	9601-	●
17	PIPE; INJ NO.2	1-15415-764-0	01	1	9601-0004		●
17	PIPE; INJ NO.2	8-94393-846-1	01	1	9805-			●
18	PIPE; INJ NO.3	1-15414-244-0	01	1	9601-9607	●
18	PIPE; INJ NO.3	1-15416-133-0	01	1	9608-	●
18	PIPE; INJ NO.3	1-15415-765-0	01	1	9601-0004		●
18	PIPE; INJ NO.3	8-94393-897-1	01	1	9805-			●
19	PIPE; INJ NO.4	1-15415-772-0	01	1	9601-	●
19	PIPE; INJ NO.4	1-15415-766-0	01	1	9601-0004		●
19	PIPE; INJ NO.4	8-94394-145-0	01	1	9805-			●
20	PIPE; INJ NO.5	1-15415-773-0	01	1	9601-	●
20	PIPE; INJ NO.5	1-15415-767-0	01	1	9601-0004		●
20	PIPE; INJ NO.5	8-94394-146-0	01	1	9805-			●
21	PIPE; INJ NO.6	1-15415-774-0	01	1	9601-	●
21	PIPE; INJ NO.6	1-15415-768-0	01	1	9601-0004		●
21	PIPE; INJ NO.6	8-94394-147-0	01	1	9805-			●
71	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9601-0004	●	●
71	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	0005-0512	●
71	BOLT; BRKT M8X25 FLANGE	0-28050-825-0	02	1	0601-	●
99	BOLT; CLIP,INJ,PIPE M6X30 FLANGE	0-28080-630-0	03	1	9601-0512	●
99	BOLT; CLIP,INJ,PIPE M6X30 FLANGE	0-28050-630-0	03	1	0601-	●
99	BOLT; CLIP,INJ,PIPE M6X35 FLANGE	0-28080-635-0	02	1	9601-0004		●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	06	1	9601-0004	●	●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	06	1	0005-0602	●
110	NUT; CLIP M6 FLANGE	0-91180-106-0	06	1	0603-	●
112	NUT; BRKT,INJ PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9601-0602	●
112	NUT; BRKT,INJ PIPE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-	●
112	NUT; BRKT,INJ PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	9601-0004		●
113	CLIP; INJ PIPE (A)	1-09701-132-1	13	1	9601-1210	●
113	CLIP; INJ PIPE (A)	1-09701-240-0	13	1	1211-	●
113	CLIP; INJ PIPE (B)	1-09701-213-1	03	1	9601-	●
113	CLIP; INJ PIPE (A)	1-09701-132-0	14	1	9612-0004		●
113	CLIP; INJ PIPE (A)	8-94396-793-0	04	1	9805-			●
113	CLIP; INJ PIPE (B)	8-94397-444-0	04	1	9805-			●
120	BRACKET; INJ PIPE (A)	1-15419-435-1	01	1	9601-	●
120	BRACKET; INJ PIPE (B)	1-15419-431-0	01	1	9601-0004	●	●
120	BRACKET; INJ PIPE (B)	1-15419-431-0	01	1	0005-	●
120	BRACKET; INJ PIPE (A)	1-15419-430-0	01	1	9708-0004		●
131	CLIP; OVERFLOW LEAK OFF	1-09701-132-0	02	1	9601-0004	●	●
131	CLIP; OVERFLOW LEAK OFF	1-09701-132-1	02	1	0005-1210	●
131	CLIP; OVERFLOW LEAK OFF	1-09701-240-0	02	1	1211-	●
133	PIPE; INJ NOZZLE LEAK OFF	1-15415-782-0	01	1	9601-	●
133	PIPE; INJ NOZZLE LEAK OFF	1-15415-777-0	01	1	9601-0004		●
133	PIPE; INJ NOZZLE LEAK OFF	8-94395-805-0	01	1	9805-			●
134	BOLT; JOINT,LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	01	1	9601-9804	●	●
134	BOLT; JOINT,LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	01	1	9805-0004	●	●	●
134	BOLT; JOINT,LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	01	1	0005-	●		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	02	1	9601-9804	●	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	02	1	9805-0004	●	●	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	02	1	0005-	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	14	1	0005-			●

99 113 18 99 113 17 113 16 113 110 113 17 16 113 112 120 110 113 110 113 113 113 19 20 21 110 113 110 113 113 113 71 120 131 131 110 134 135 133 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	PIPE; INJ NO.1	1-15414-242-0	01	1	9601-9607	●
16	PIPE; INJ NO.1	1-15416-112-0	01	1	9608-	●
16	PIPE; INJ NO.1	1-15415-763-0	01	1	9601-0004		●
16	PIPE; INJ NO.1	8-94393-845-1	01	1	9805-			●
17	PIPE; INJ NO.2	1-15414-243-0	01	1	9601-	●
17	PIPE; INJ NO.2	1-15415-764-0	01	1	9601-0004		●
17	PIPE; INJ NO.2	8-94393-846-1	01	1	9805-			●
18	PIPE; INJ NO.3	1-15414-244-0	01	1	9601-9607	●
18	PIPE; INJ NO.3	1-15416-133-0	01	1	9608-	●
18	PIPE; INJ NO.3	1-15415-765-0	01	1	9601-0004		●
18	PIPE; INJ NO.3	8-94393-897-1	01	1	9805-			●
19	PIPE; INJ NO.4	1-15415-772-0	01	1	9601-	●
19	PIPE; INJ NO.4	1-15415-766-0	01	1	9601-0004		●
19	PIPE; INJ NO.4	8-94394-145-0	01	1	9805-			●
20	PIPE; INJ NO.5	1-15415-773-0	01	1	9601-	●
20	PIPE; INJ NO.5	1-15415-767-0	01	1	9601-0004		●
20	PIPE; INJ NO.5	8-94394-146-0	01	1	9805-			●
21	PIPE; INJ NO.6	1-15415-774-0	01	1	9601-	●
21	PIPE; INJ NO.6	1-15415-768-0	01	1	9601-0004		●
21	PIPE; INJ NO.6	8-94394-147-0	01	1	9805-			●
71	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9601-0004	●	●
71	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	0005-0512	●
71	BOLT; BRKT M8X25 FLANGE	0-28050-825-0	02	1	0601-	●
99	BOLT; CLIP,INJ,PIPE M6X30 FLANGE	0-28080-630-0	03	1	9601-0512	●
99	BOLT; CLIP,INJ,PIPE M6X30 FLANGE	0-28050-630-0	03	1	0601-	●
99	BOLT; CLIP,INJ,PIPE M6X35 FLANGE	0-28080-635-0	02	1	9601-0004		●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	06	1	9601-0004	●	●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	06	1	0005-0602	●
110	NUT; CLIP M6 FLANGE	0-91180-106-0	06	1	0603-	●
112	NUT; BRKT,INJ PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9601-0602	●
112	NUT; BRKT,INJ PIPE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-	●
112	NUT; BRKT,INJ PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	9601-0004		●
113	CLIP; INJ PIPE (A)	1-09701-132-1	13	1	9601-1210	●
113	CLIP; INJ PIPE (A)	1-09701-240-0	13	1	1211-	●
113	CLIP; INJ PIPE (B)	1-09701-213-1	03	1	9601-	●
113	CLIP; INJ PIPE (A)	1-09701-132-0	14	1	9612-0004		●
113	CLIP; INJ PIPE (A)	8-94396-793-0	04	1	9805-			●
113	CLIP; INJ PIPE (B)	8-94397-444-0	04	1	9805-			●
120	BRACKET; INJ PIPE (A)	1-15419-435-1	01	1	9601-	●
120	BRACKET; INJ PIPE (B)	1-15419-431-0	01	1	9601-0004	●	●
120	BRACKET; INJ PIPE (B)	1-15419-431-0	01	1	0005-	●
120	BRACKET; INJ PIPE (A)	1-15419-430-0	01	1	9708-0004		●
131	CLIP; OVERFLOW LEAK OFF	1-09701-132-0	02	1	9601-0004	●	●
131	CLIP; OVERFLOW LEAK OFF	1-09701-132-1	02	1	0005-1210	●
131	CLIP; OVERFLOW LEAK OFF	1-09701-240-0	02	1	1211-	●
133	PIPE; INJ NOZZLE LEAK OFF	1-15415-782-0	01	1	9601-	●
133	PIPE; INJ NOZZLE LEAK OFF	1-15415-777-0	01	1	9601-0004		●
133	PIPE; INJ NOZZLE LEAK OFF	8-94395-805-0	01	1	9805-			●
134	BOLT; JOINT,LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	01	1	9601-9804	●	●
134	BOLT; JOINT,LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	01	1	9805-0004	●	●	●
134	BOLT; JOINT,LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	01	1	0005-	●		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	02	1	9601-9804	●	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	02	1	9805-0004	●	●	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	02	1	0005-	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	14	1	0005-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
