Sayfa 0-39 - Isuzu EPC

0-39 — AIR COMPRESSOR; BRAKE (#63946) — 294 parça

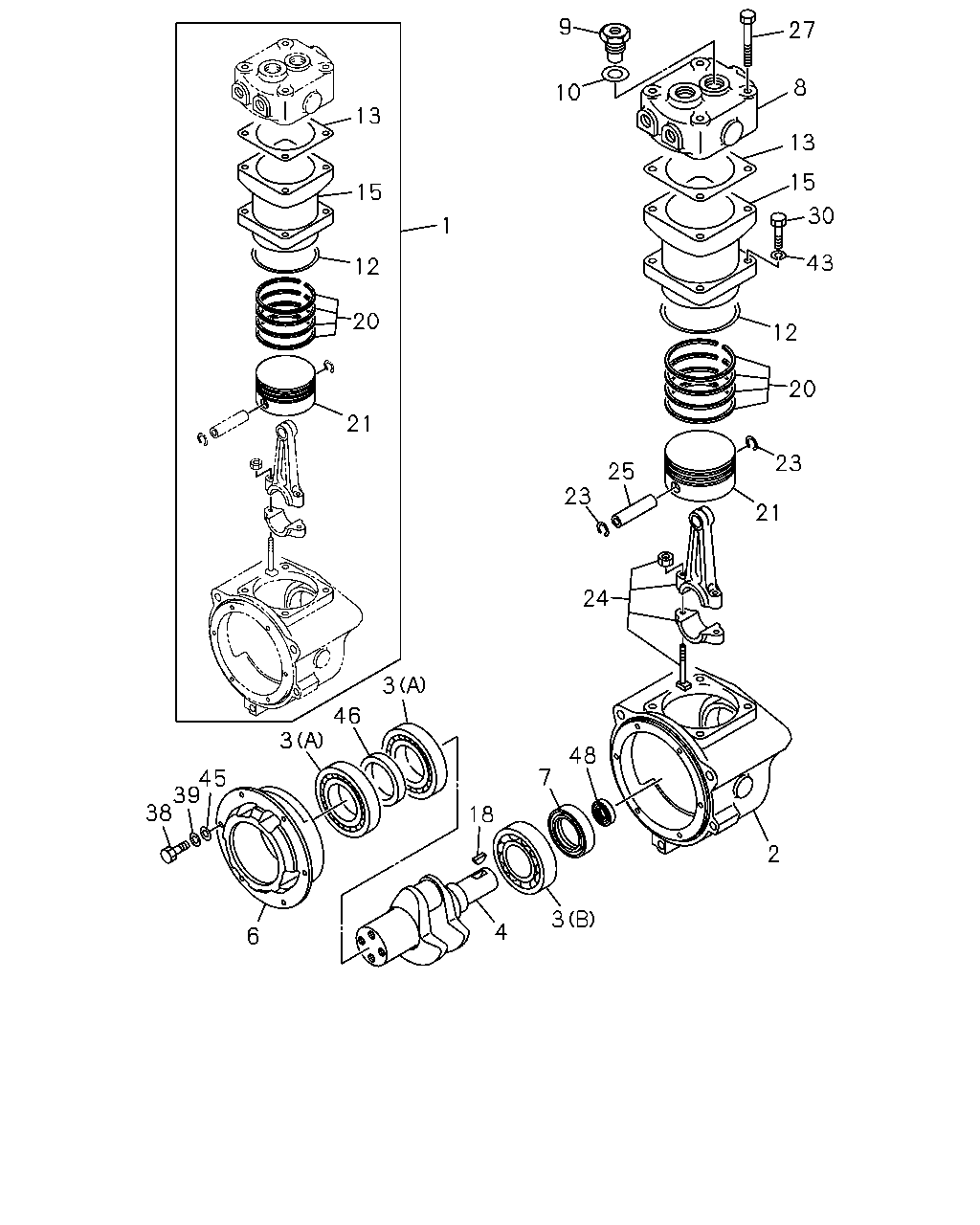

13 15 12 1 20 21 27 8 27 30 13 15 12 20 23 21 24 25 23 2 3 4 3 5 6 45 39 38 48 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	LINER KIT; CYL,AIR CMPR	1-19163-038-0	01	1	9601-	●
1	LINER KIT; CYL,AIR CMPR	1-19163-054-1	01	1	9601-0004		●
1	LINER KIT; CYL,AIR CMPR	1-19163-053-2	01	1	9805-0812			●
1	LINER KIT; CYL,AIR CMPR	1-19163-074-0	01	1	0901-			●
2	CRANKCASE; AIR CMPR	1-19151-277-0	01	1	9601-9810	●	●
2	CRANKCASE; AIR CMPR	1-19151-277-0	01	1	9811-9904	●
2	CRANKCASE; AIR CMPR	1-19151-288-0	01	1	9811-9904		●
2	CRANKCASE; AIR CMPR	1-19151-288-0	01	1	9905-0004	●	●
2	CRANKCASE; AIR CMPR	1-19151-288-0	01	1	0005-	●
2	CRANKCASE; AIR CMPR	1-19151-266-1	01	1	9805-			●
3	BEARING; AIR CMPR	1-09800-232-0	02	1	9601-	●
3	BEARING; AIR CMPR (A)	1-09800-211-0	02	1	9601-9810		●
3	BEARING; AIR CMPR (A)	1-09800-282-0	02	1	9811-0004		●
3	BEARING; AIR CMPR (B)	1-09800-232-0	01	1	9601-0004		●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	9805-			●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	9805-			●
4	CRANKSHAFT; AIR CMPR	1-19171-055-1	01	1	9601-	●
4	CRANKSHAFT; AIR CMPR	1-19171-070-0	01	1	9601-9810		●
4	CRANKSHAFT; AIR CMPR	1-19171-081-0	01	1	9811-0004		●
4	CRANKSHAFT; AIR CMPR	1-19171-048-1	01	1	9805-			●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9805-1107			●
5	GASKET; AIR CMPR	8-98192-460-0	01	1	1108-			●
6	COVER ASM; BRG,AIR CMPR	1-19156-043-0	01	1	9601-	●
6	COVER ASM; BRG,AIR CMPR	1-19156-045-0	01	1	9601-9810		●
6	COVER ASM; BRG,AIR CMPR	1-19156-080-0	01	1	9811-0004		●
6	COVER ASM; BRG,AIR CMPR	1-19156-058-1	01	1	9805-			●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-09625-187-0	01	1	9601-9810	●	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-09625-187-0	01	1	9811-9904	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-09625-534-0	01	1	9811-9904		●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-09625-534-0	01	1	9905-0004	●	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-09625-534-0	01	1	0005-	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-19158-026-0	01	1	9805-			●
8	HEAD ASM; CYL,AIR CMPR	1-19110-016-0	01	1	9601-0004	●	●
8	HEAD ASM; CYL,AIR CMPR	1-19110-016-0	01	1	0005-	●
8	HEAD ASM; CYL,AIR CMPR	1-19110-052-1	01	1	9805-			●
12	GASKET; AIR CMPR	8-98185-684-0	01	1	1108-			●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9601-9804	●	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9805-0004	●	●	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	0005-1107	●		●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	1108-	●
13	GASKET; AIR CMPR	8-98112-947-0	01	1	0005-			●
13	GASKET; AIR CMPR	1-19139-001-0	01	1	9601-0004	●	●
13	GASKET; AIR CMPR	1-19139-001-0	01	1	0005-1402	●
13	GASKET; AIR CMPR	8-98113-037-0	01	1	1403-	●
13	GASKET; AIR CMPR	1-09623-626-0	01	1	9805-0004			●
15	CYLINDER; AIR CMPR	1-19151-251-0	01	1	9601-0004	●	●
15	CYLINDER; AIR CMPR	1-19151-251-0	01	1	0005-	●
15	CYLINDER; AIR CMPR	1-19151-219-0	01	1	9805-			●
20	RING KIT; PISTON,AIR CMPR	1-19163-034-0	01	1	9601-	●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	9601-9804		●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	9805-0004		●	●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	0005-0812			●
20	RING KIT; PISTON,AIR CMPR	1-19163-058-0	01	1	0901-			●
21	PISTON; AIR CMPR	1-19161-027-0	01	1	0901-			●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	9601-9804	●	●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	9805-0004	●	●	●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	0005-0812	●		●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	0901-	●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-004-0	02	1	0901-			●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	9601-9804	●	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	9805-0004	●	●	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	0005-0812	●		●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	0901-	●
24	ROD ASM; CONN,AIR CMPR	1-19173-007-0	01	1	9601-0004	●	●
24	ROD ASM; CONN,AIR CMPR	1-19173-007-0	01	1	0005-	●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	9805-			●
25	PIN; PISTON,AIR CMPR	1-19167-003-0	01	1	0901-			●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	9601-9804	●	●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	9805-0004	●	●	●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	0005-0812	●		●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	0901-	●
27	BOLT; HD M10X60	9-01066-060-0	04	1	9601-0004	●	●
27	BOLT; HD M10X60	9-01066-060-0	04	1	0005-	●
27	BOLT; HD (A) M10X45	9-01066-045-0	02	1	9805-			●
27	BOLT; HD (B) M10X60	9-01066-060-0	02	1	9805-			●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	9601-9804	●	●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	9805-0004	●	●	●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	0005-	●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	9806-			●
38	BOLT; COVER FIX M6X16	9-02050-616-0	06	1	9601-0004	●	●
38	BOLT; COVER FIX M6X16	9-02050-616-0	06	1	0005-	●
38	BOLT; COVER FIX	9-81385-023-0	04	1	9805-			●
39	WASHER; LK,COVER FIX ID=6.1	9-09150-506-0	06	1	9601-9810	●	●
39	WASHER; LK,COVER FIX ID=6.1	9-09150-506-0	06	1	9811-	●
39	WASHER; LK,COVER FIX ID=10.2	9-09150-510-0	06	1	9811-0004		●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9805-			●
45	WASHER; PL,COVER FIX,AIR CMPR	1-19159-005-0	06	1	9601-0004	●	●
45	WASHER; PL,COVER FIX,AIR CMPR	1-19159-005-0	06	1	0005-	●
45	WASHER; PL,COVER FIX,AIR CMPR ID=8.4	9-09160-508-0	04	1	9805-			●
48	SLEEVE; CR/SHF	1-19179-018-0	01	1	9811-9904		●
48	SLEEVE; CR/SHF	1-19179-018-0	01	1	9905-0004	●	●
48	SLEEVE; CR/SHF	1-19179-018-0	01	1	0005-	●
48	SLEEVE; CR/SHF	1-19179-014-0	01	1	9805-			●

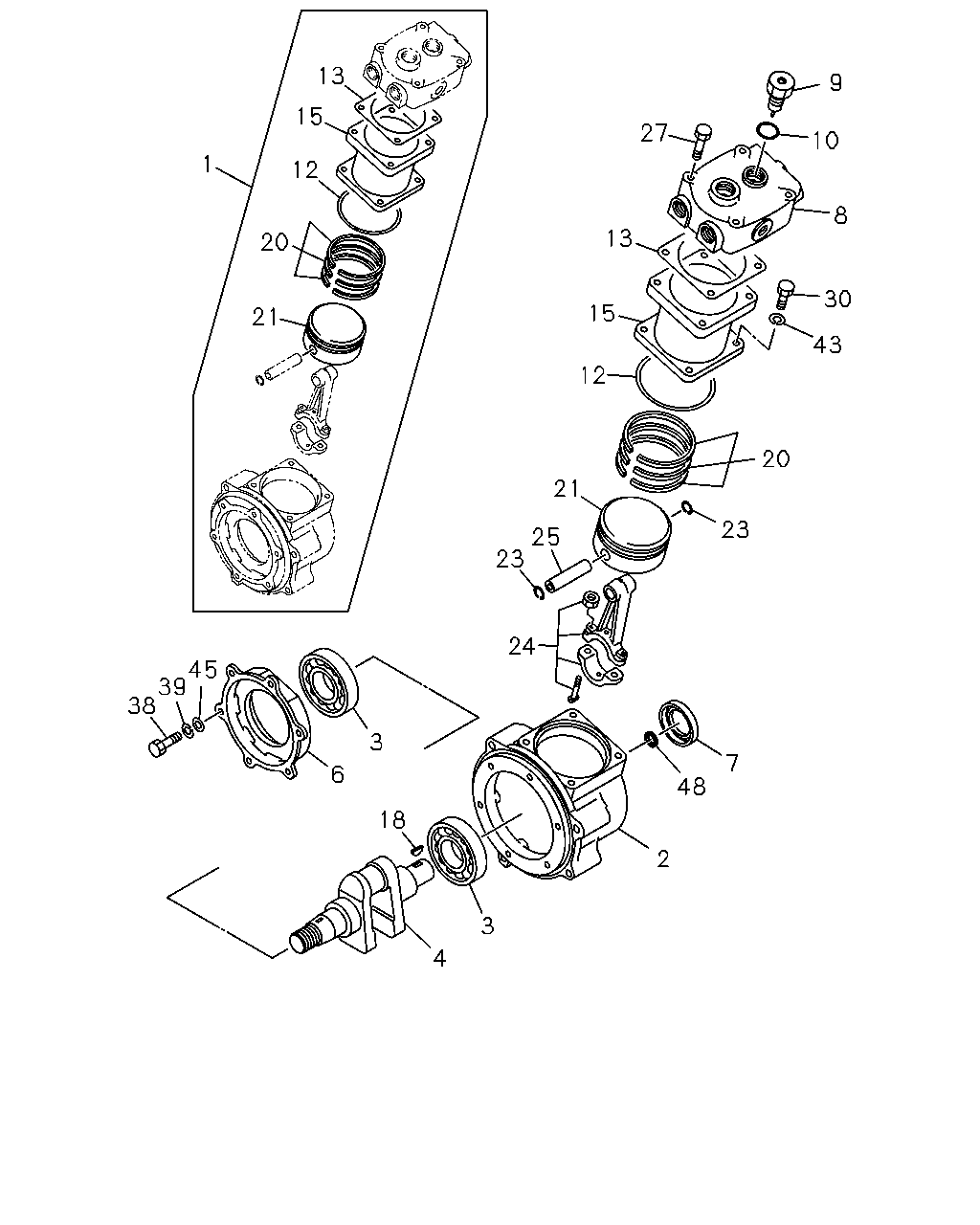

13 9 15 27 10 1 12 8 13 20 30 15 21 43 12 20 21 23 25 23 24 45 39 38 3 7 6 48 18 2 3 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	LINER KIT; CYL,AIR CMPR	1-19163-038-0	01	1	9601-	●
1	LINER KIT; CYL,AIR CMPR	1-19163-054-1	01	1	9601-0004		●
1	LINER KIT; CYL,AIR CMPR	1-19163-053-2	01	1	9805-0812			●
1	LINER KIT; CYL,AIR CMPR	1-19163-074-0	01	1	0901-			●
2	CRANKCASE; AIR CMPR	1-19151-277-0	01	1	9601-9810	●	●
2	CRANKCASE; AIR CMPR	1-19151-277-0	01	1	9811-9904	●
2	CRANKCASE; AIR CMPR	1-19151-288-0	01	1	9811-9904		●
2	CRANKCASE; AIR CMPR	1-19151-288-0	01	1	9905-0004	●	●
2	CRANKCASE; AIR CMPR	1-19151-288-0	01	1	0005-	●
2	CRANKCASE; AIR CMPR	1-19151-266-1	01	1	9805-			●
3	BEARING; AIR CMPR	1-09800-232-0	02	1	9601-	●
3	BEARING; AIR CMPR (A)	1-09800-211-0	02	1	9601-9810		●
3	BEARING; AIR CMPR (A)	1-09800-282-0	02	1	9811-0004		●
3	BEARING; AIR CMPR (B)	1-09800-232-0	01	1	9601-0004		●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	9805-			●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	9805-			●
4	CRANKSHAFT; AIR CMPR	1-19171-055-1	01	1	9601-	●
4	CRANKSHAFT; AIR CMPR	1-19171-070-0	01	1	9601-9810		●
4	CRANKSHAFT; AIR CMPR	1-19171-081-0	01	1	9811-0004		●
4	CRANKSHAFT; AIR CMPR	1-19171-048-1	01	1	9805-			●
6	COVER ASM; BRG,AIR CMPR	1-19156-043-0	01	1	9601-	●
6	COVER ASM; BRG,AIR CMPR	1-19156-045-0	01	1	9601-9810		●
6	COVER ASM; BRG,AIR CMPR	1-19156-080-0	01	1	9811-0004		●
6	COVER ASM; BRG,AIR CMPR	1-19156-058-1	01	1	9805-			●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-09625-187-0	01	1	9601-9810	●	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-09625-187-0	01	1	9811-9904	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-09625-534-0	01	1	9811-9904		●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-09625-534-0	01	1	9905-0004	●	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-09625-534-0	01	1	0005-	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-19158-026-0	01	1	9805-			●
8	HEAD ASM; CYL,AIR CMPR	1-19110-016-0	01	1	9601-0004	●	●
8	HEAD ASM; CYL,AIR CMPR	1-19110-016-0	01	1	0005-	●
8	HEAD ASM; CYL,AIR CMPR	1-19110-052-1	01	1	9805-			●
9	VALVE ASM; UNLOADER,AIR CMPR	1-19120-021-1	01	1	9601-0004	●	●
9	VALVE ASM; UNLOADER,AIR CMPR	1-19120-021-1	01	1	0005-	●
9	VALVE ASM; UNLOADER,AIR CMPR	1-19120-017-1	01	1	9805-			●
10	SHIM; AIR CMPR	9-19139-021-0	01	1	9601-0004	●	●
10	SHIM; AIR CMPR	9-19139-021-0	01	1	0005-	●
12	GASKET; AIR CMPR	8-98185-684-0	01	1	1108-			●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9601-9804	●	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9805-0004	●	●	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	0005-1107	●		●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	1108-	●
13	GASKET; AIR CMPR	8-98112-947-0	01	1	0005-			●
13	GASKET; AIR CMPR	1-19139-001-0	01	1	9601-0004	●	●
13	GASKET; AIR CMPR	1-19139-001-0	01	1	0005-1402	●
13	GASKET; AIR CMPR	8-98113-037-0	01	1	1403-	●
13	GASKET; AIR CMPR	1-09623-626-0	01	1	9805-0004			●
15	CYLINDER; AIR CMPR	1-19151-251-0	01	1	9601-0004	●	●
15	CYLINDER; AIR CMPR	1-19151-251-0	01	1	0005-	●
15	CYLINDER; AIR CMPR	1-19151-219-0	01	1	9805-			●
18	KEY; AIR CMPR	9-08055-516-0	01	1	9601-	●
18	KEY; AIR CMPR	1-09735-041-0	01	1	9601-0004		●
20	RING KIT; PISTON,AIR CMPR	1-19163-034-0	01	1	9601-	●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	9601-9804		●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	9805-0004		●	●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	0005-0812			●
20	RING KIT; PISTON,AIR CMPR	1-19163-058-0	01	1	0901-			●
21	PISTON; AIR CMPR	1-19161-027-0	01	1	0901-			●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	9601-9804	●	●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	9805-0004	●	●	●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	0005-0812	●		●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	0901-	●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-004-0	02	1	0901-			●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	9601-9804	●	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	9805-0004	●	●	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	0005-0812	●		●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	0901-	●
24	ROD ASM; CONN,AIR CMPR	1-19173-007-0	01	1	9601-0004	●	●
24	ROD ASM; CONN,AIR CMPR	1-19173-007-0	01	1	0005-	●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	9805-			●
25	PIN; PISTON,AIR CMPR	1-19167-003-0	01	1	0901-			●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	9601-9804	●	●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	9805-0004	●	●	●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	0005-0812	●		●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	0901-	●
27	BOLT; HD M10X60	9-01066-060-0	04	1	9601-0004	●	●
27	BOLT; HD M10X60	9-01066-060-0	04	1	0005-	●
27	BOLT; HD (A) M10X45	9-01066-045-0	02	1	9805-			●
27	BOLT; HD (B) M10X60	9-01066-060-0	02	1	9805-			●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	9601-9804	●	●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	9805-0004	●	●	●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	0005-	●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	9806-			●
38	BOLT; COVER FIX M6X16	9-02050-616-0	06	1	9601-0004	●	●
38	BOLT; COVER FIX M6X16	9-02050-616-0	06	1	0005-	●
38	BOLT; COVER FIX	9-81385-023-0	04	1	9805-			●
39	WASHER; LK,COVER FIX ID=6.1	9-09150-506-0	06	1	9601-9810	●	●
39	WASHER; LK,COVER FIX ID=6.1	9-09150-506-0	06	1	9811-	●
39	WASHER; LK,COVER FIX ID=10.2	9-09150-510-0	06	1	9811-0004		●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9805-			●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	9601-0004	●	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	0005-	●
45	WASHER; PL,COVER FIX,AIR CMPR	1-19159-005-0	06	1	9601-0004	●	●
45	WASHER; PL,COVER FIX,AIR CMPR	1-19159-005-0	06	1	0005-	●
45	WASHER; PL,COVER FIX,AIR CMPR ID=8.4	9-09160-508-0	04	1	9805-			●
48	SLEEVE; CR/SHF	1-19179-018-0	01	1	9811-9904		●
48	SLEEVE; CR/SHF	1-19179-018-0	01	1	9905-0004	●	●
48	SLEEVE; CR/SHF	1-19179-018-0	01	1	0005-	●
48	SLEEVE; CR/SHF	1-19179-014-0	01	1	9805-			●

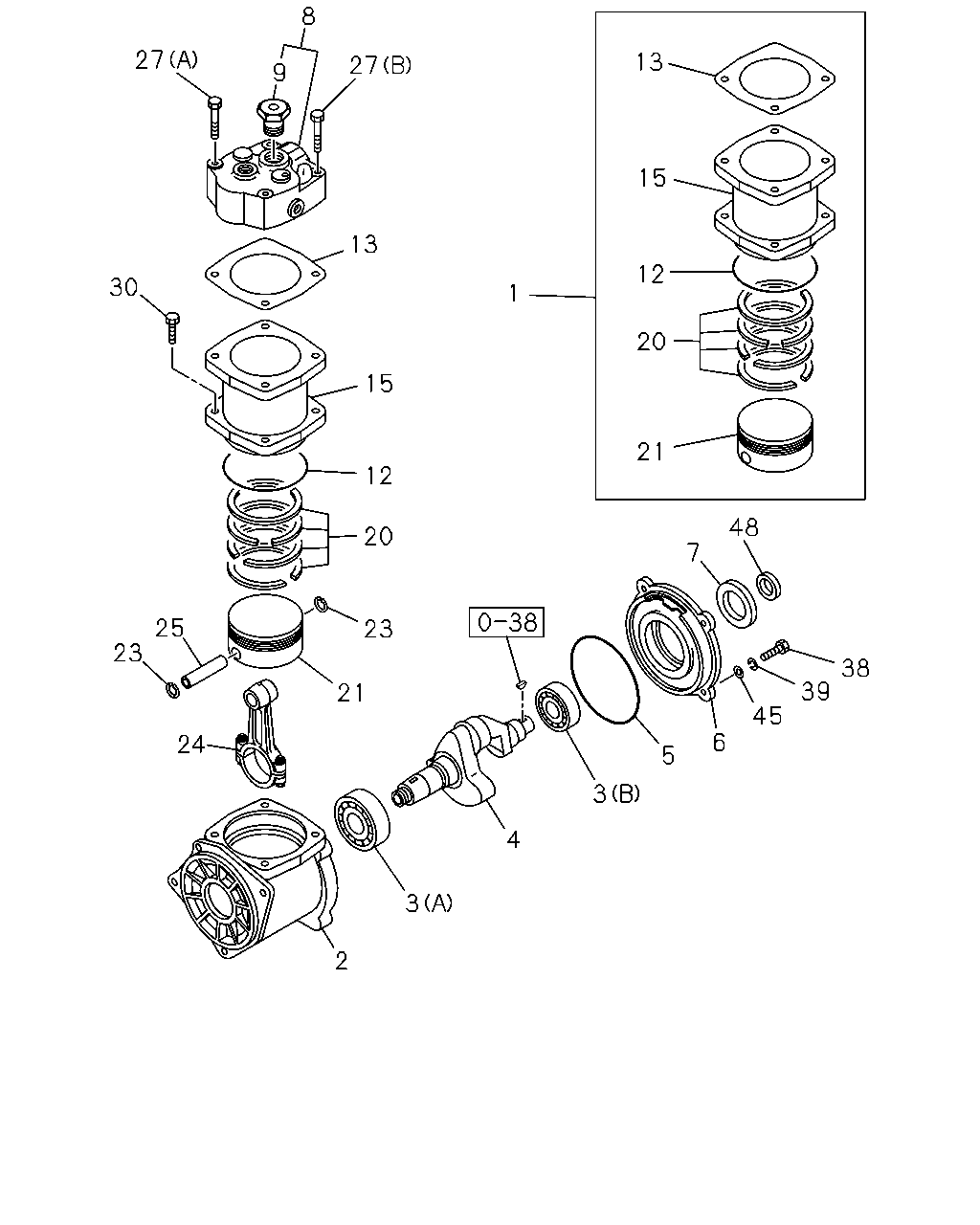

9 27 8 10 13 13 15 15 30 1 43 12 20 12 20 21 23 25 23 21 24 3 46 3 48 7 45 39 38 18 2 3 4 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	LINER KIT; CYL,AIR CMPR	1-19163-038-0	01	1	9601-	●
1	LINER KIT; CYL,AIR CMPR	1-19163-054-1	01	1	9601-0004		●
1	LINER KIT; CYL,AIR CMPR	1-19163-053-2	01	1	9805-0812			●
1	LINER KIT; CYL,AIR CMPR	1-19163-074-0	01	1	0901-			●
2	CRANKCASE; AIR CMPR	1-19151-277-0	01	1	9601-9810	●	●
2	CRANKCASE; AIR CMPR	1-19151-277-0	01	1	9811-9904	●
2	CRANKCASE; AIR CMPR	1-19151-288-0	01	1	9811-9904		●
2	CRANKCASE; AIR CMPR	1-19151-288-0	01	1	9905-0004	●	●
2	CRANKCASE; AIR CMPR	1-19151-288-0	01	1	0005-	●
2	CRANKCASE; AIR CMPR	1-19151-266-1	01	1	9805-			●
3	BEARING; AIR CMPR	1-09800-232-0	02	1	9601-	●
3	BEARING; AIR CMPR (A)	1-09800-211-0	02	1	9601-9810		●
3	BEARING; AIR CMPR (A)	1-09800-282-0	02	1	9811-0004		●
3	BEARING; AIR CMPR (B)	1-09800-232-0	01	1	9601-0004		●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	9805-			●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	9805-			●
4	CRANKSHAFT; AIR CMPR	1-19171-055-1	01	1	9601-	●
4	CRANKSHAFT; AIR CMPR	1-19171-070-0	01	1	9601-9810		●
4	CRANKSHAFT; AIR CMPR	1-19171-081-0	01	1	9811-0004		●
4	CRANKSHAFT; AIR CMPR	1-19171-048-1	01	1	9805-			●
6	COVER ASM; BRG,AIR CMPR	1-19156-043-0	01	1	9601-	●
6	COVER ASM; BRG,AIR CMPR	1-19156-045-0	01	1	9601-9810		●
6	COVER ASM; BRG,AIR CMPR	1-19156-080-0	01	1	9811-0004		●
6	COVER ASM; BRG,AIR CMPR	1-19156-058-1	01	1	9805-			●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-09625-187-0	01	1	9601-9810	●	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-09625-187-0	01	1	9811-9904	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-09625-534-0	01	1	9811-9904		●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-09625-534-0	01	1	9905-0004	●	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-09625-534-0	01	1	0005-	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-19158-026-0	01	1	9805-			●
8	HEAD ASM; CYL,AIR CMPR	1-19110-016-0	01	1	9601-0004	●	●
8	HEAD ASM; CYL,AIR CMPR	1-19110-016-0	01	1	0005-	●
8	HEAD ASM; CYL,AIR CMPR	1-19110-052-1	01	1	9805-			●
9	VALVE ASM; UNLOADER,AIR CMPR	1-19120-021-1	01	1	9601-0004	●	●
9	VALVE ASM; UNLOADER,AIR CMPR	1-19120-021-1	01	1	0005-	●
9	VALVE ASM; UNLOADER,AIR CMPR	1-19120-017-1	01	1	9805-			●
10	SHIM; AIR CMPR	9-19139-021-0	01	1	9601-0004	●	●
10	SHIM; AIR CMPR	9-19139-021-0	01	1	0005-	●
12	GASKET; AIR CMPR	8-98185-684-0	01	1	1108-			●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9601-9804	●	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9805-0004	●	●	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	0005-1107	●		●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	1108-	●
13	GASKET; AIR CMPR	8-98112-947-0	01	1	0005-			●
13	GASKET; AIR CMPR	1-19139-001-0	01	1	9601-0004	●	●
13	GASKET; AIR CMPR	1-19139-001-0	01	1	0005-1402	●
13	GASKET; AIR CMPR	8-98113-037-0	01	1	1403-	●
13	GASKET; AIR CMPR	1-09623-626-0	01	1	9805-0004			●
15	CYLINDER; AIR CMPR	1-19151-251-0	01	1	9601-0004	●	●
15	CYLINDER; AIR CMPR	1-19151-251-0	01	1	0005-	●
15	CYLINDER; AIR CMPR	1-19151-219-0	01	1	9805-			●
18	KEY; AIR CMPR	9-08055-516-0	01	1	9601-	●
18	KEY; AIR CMPR	1-09735-041-0	01	1	9601-0004		●
20	RING KIT; PISTON,AIR CMPR	1-19163-034-0	01	1	9601-	●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	9601-9804		●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	9805-0004		●	●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	0005-0812			●
20	RING KIT; PISTON,AIR CMPR	1-19163-058-0	01	1	0901-			●
21	PISTON; AIR CMPR	1-19161-027-0	01	1	0901-			●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	9601-9804	●	●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	9805-0004	●	●	●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	0005-0812	●		●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	0901-	●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-004-0	02	1	0901-			●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	9601-9804	●	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	9805-0004	●	●	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	0005-0812	●		●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	0901-	●
24	ROD ASM; CONN,AIR CMPR	1-19173-007-0	01	1	9601-0004	●	●
24	ROD ASM; CONN,AIR CMPR	1-19173-007-0	01	1	0005-	●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	9805-			●
25	PIN; PISTON,AIR CMPR	1-19167-003-0	01	1	0901-			●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	9601-9804	●	●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	9805-0004	●	●	●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	0005-0812	●		●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	0901-	●
27	BOLT; HD M10X60	9-01066-060-0	04	1	9601-0004	●	●
27	BOLT; HD M10X60	9-01066-060-0	04	1	0005-	●
27	BOLT; HD (A) M10X45	9-01066-045-0	02	1	9805-			●
27	BOLT; HD (B) M10X60	9-01066-060-0	02	1	9805-			●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	9601-9804	●	●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	9805-0004	●	●	●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	0005-	●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	9806-			●
38	BOLT; COVER FIX M6X16	9-02050-616-0	06	1	9601-0004	●	●
38	BOLT; COVER FIX M6X16	9-02050-616-0	06	1	0005-	●
38	BOLT; COVER FIX	9-81385-023-0	04	1	9805-			●
39	WASHER; LK,COVER FIX ID=6.1	9-09150-506-0	06	1	9601-9810	●	●
39	WASHER; LK,COVER FIX ID=6.1	9-09150-506-0	06	1	9811-	●
39	WASHER; LK,COVER FIX ID=10.2	9-09150-510-0	06	1	9811-0004		●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9805-			●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	9601-0004	●	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	0005-	●
45	WASHER; PL,COVER FIX,AIR CMPR	1-19159-005-0	06	1	9601-0004	●	●
45	WASHER; PL,COVER FIX,AIR CMPR	1-19159-005-0	06	1	0005-	●
45	WASHER; PL,COVER FIX,AIR CMPR ID=8.4	9-09160-508-0	04	1	9805-			●
46	SPACER; BRG	1-19179-010-0	01	1	9601-0004		●
48	SLEEVE; CR/SHF	1-19179-018-0	01	1	9811-9904		●
48	SLEEVE; CR/SHF	1-19179-018-0	01	1	9905-0004	●	●
48	SLEEVE; CR/SHF	1-19179-018-0	01	1	0005-	●
48	SLEEVE; CR/SHF	1-19179-014-0	01	1	9805-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
