Sayfa 0-38 - Isuzu EPC

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#63945) — 285 parça

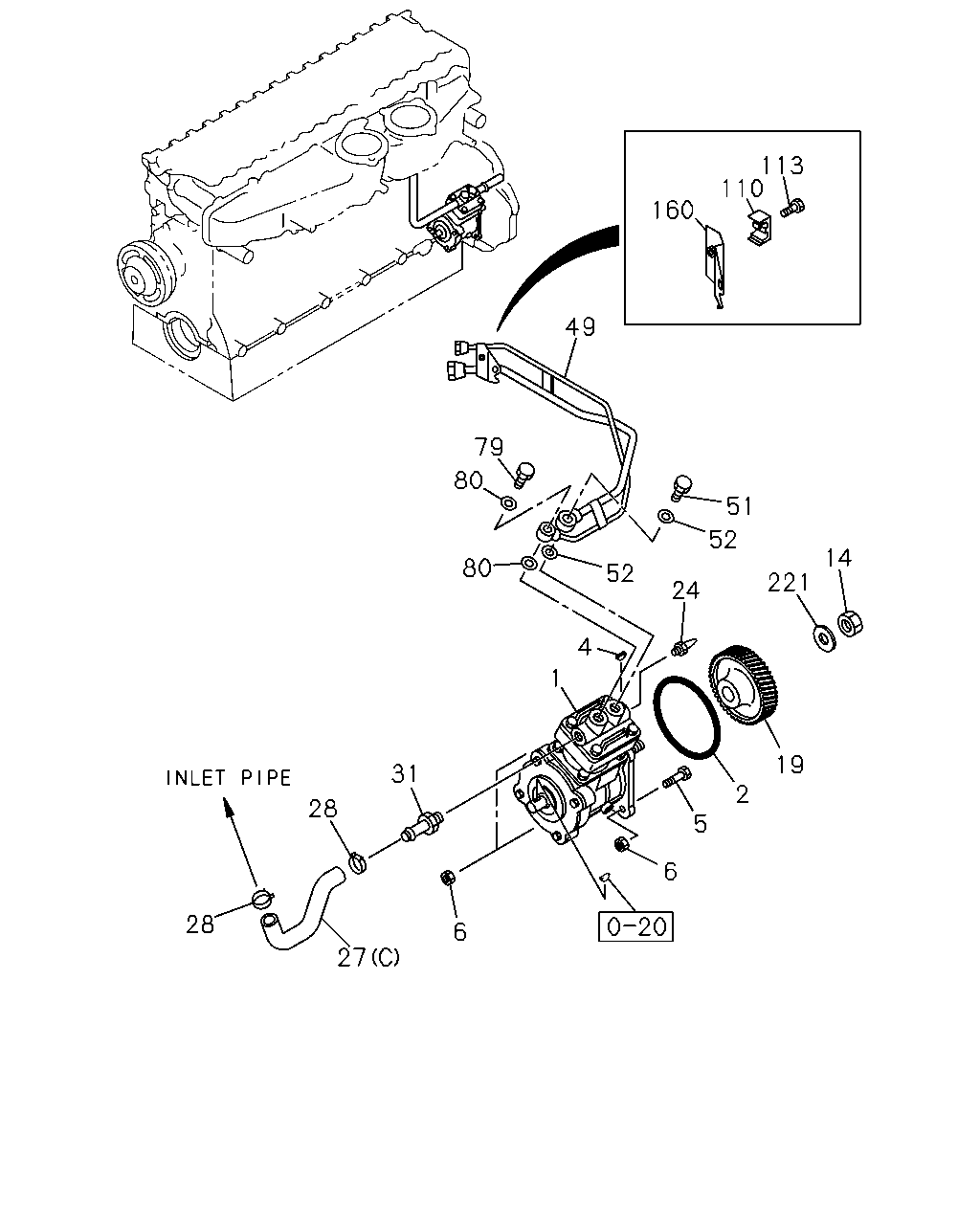

113 110 160 49 79 80 51 52 14 80 52 221 24 4 1 19 31 2 28 5 6 28 6 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-253-6	01	1	9601-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-286-3	01	1	9601-9810		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-319-0	01	1	9811-0004		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-892-9	01	1	9805-1107			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-310-1	01	1	1108-			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=159.6	1-09623-449-0	01	1	9601-0004	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=159.6	1-09623-449-0	01	1	0005-	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9805-			●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	9601-	●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	9805-			●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	9805-			●
6	NUT; AIR CMPR M12 FLANGE	0-91150-112-0	04	1	9601-0004	●	●
6	NUT; AIR CMPR M12 FLANGE	0-91150-112-0	04	1	0005-0602	●
6	NUT; AIR CMPR M12 FLANGE	0-91180-112-0	04	1	0603-	●
6	NUT; AIR CMPR M10 FLANGE	0-91150-110-0	02	1	9805-0602			●
6	NUT; AIR CMPR M10 FLANGE	0-91180-110-0	02	1	0603-			●
6	NUT; AIR CMPR M12 FLANGE	0-91150-112-0	01	1	9805-0602			●
6	NUT; AIR CMPR M12 FLANGE	0-91180-112-0	01	1	0603-			●
14	NUT; GEAR M20	9-99110-520-0	01	1	9805-0512			●
14	NUT; GEAR M20	0-91110-520-0	01	1	0601-			●
19	GEAR; INJ PUMP Z=36	1-12524-100-1	01	1	9601-	●
19	GEAR; INJ PUMP Z=36	1-12524-098-0	01	1	9601-0004		●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	9805-			●
24	POINTER; AIR CMPR	9-11327-031-0	01	1	9601-0004	●	●
24	POINTER; AIR CMPR	9-11327-031-0	01	1	0005-	●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	9805-			●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	01	1	9601-0004	●	●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	01	1	0005-	●
27	HOSE; AIR CMPR,SUCTION (B)	0-02117-080-0	01	1	9805-0004		●
27	HOSE; AIR CMPR,SUCTION (C)	8-94394-967-0	01	1	9805-			●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	9601-0004	●	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	9601-0004		●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	0005-	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9805-			●
31	PIPE; AIR,AIR CMPR SUCTION	8-94399-954-0	01	1	9805-			●
49	PIPE; AIR,CHARGE	1-19192-963-0	01	1	9601-0004	●	●
49	PIPE; AIR,CHARGE	1-19192-963-0	01	1	0005-	●
49	PIPE; AIR,CHARGE	8-94395-087-2	01	1	9805-			●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-1	01	1	9601-0004	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	0005-1404	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-	●		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	9805-1404			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9601-9804	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9805-0004	●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0005-	●		●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9601-9804	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9805-0004	●	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0005-	●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-9804	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9805-0004	●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-1312	●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●		●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	9805-			●
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28080-625-0	02	1	9601-0004	●	●
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28080-625-0	02	1	0005-0512	●
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28050-625-0	02	1	0601-	●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28080-640-0	02	1	9601-0004	●	●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28080-640-0	02	1	0005-0512	●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28050-640-0	02	1	0601-	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	9805-0512			●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	01	1	0601-			●
160	BRACKET; AIR PIPE	1-19199-120-0	01	1	9601-	●
160	BRACKET; AIR PIPE	1-19199-251-0	01	1	9601-0004		●
160	BRACKET; AIR PIPE	8-94393-091-0	01	1	9805-			●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	9805-0605			●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	0606-			●

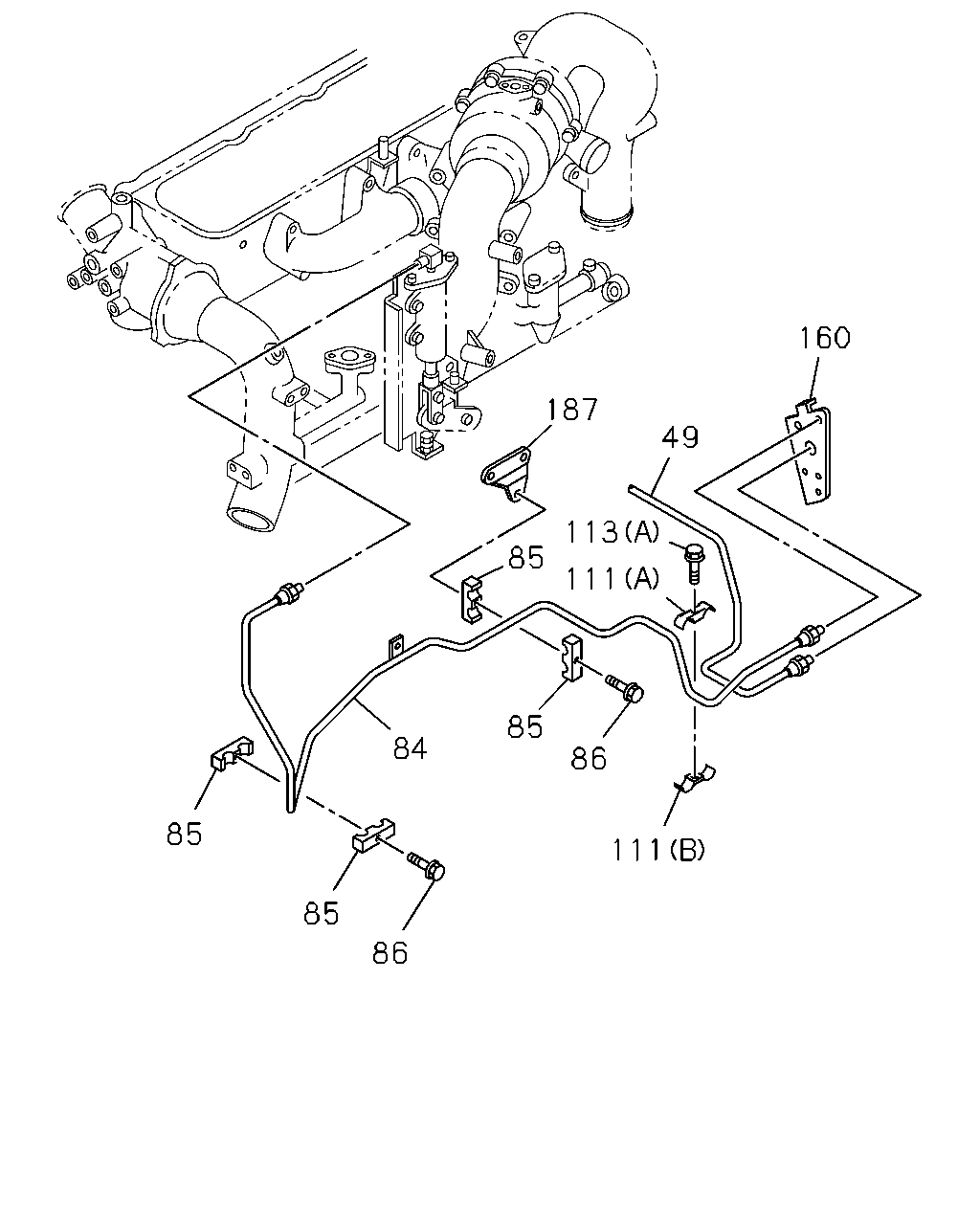

160 187 49 113 85 111 85 84 86 85 111 85 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
49	PIPE; AIR,CHARGE	1-19192-963-0	01	1	9601-0004	●	●
49	PIPE; AIR,CHARGE	1-19192-963-0	01	1	0005-	●
49	PIPE; AIR,CHARGE	8-94395-087-2	01	1	9805-			●
84	PIPE; AIR	1-19192-964-0	01	1	9601-0004		●
85	CLIP; PIPE	1-09701-240-0	04	1	9601-0004		●
86	BOLT; CLIP M6X35 FLANGE	0-28080-635-0	02	1	9601-0004		●
111	CLIP; AIR PIPE (A) WO/NUT	1-09700-547-0	01	1	9601-	●
111	CLIP; AIR PIPE (B) W/NUT	1-09700-550-0	01	1	9601-	●
111	CLIP; AIR PIPE (C)	1-09701-208-0	06	1	9601-0004	●	●
111	CLIP; AIR PIPE (C)	1-09701-208-0	06	1	0005-	●
111	CLIP; AIR PIPE (A) WO/NUT	1-09700-547-0	02	1	9601-0004		●
111	CLIP; AIR PIPE (B) W/NUT	1-09700-550-0	02	1	9601-0004		●
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28080-625-0	02	1	9601-0004	●	●
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28080-625-0	02	1	0005-0512	●
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28050-625-0	02	1	0601-	●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28080-640-0	02	1	9601-0004	●	●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28080-640-0	02	1	0005-0512	●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28050-640-0	02	1	0601-	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	9805-0512			●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	01	1	0601-			●
160	BRACKET; AIR PIPE	1-19199-120-0	01	1	9601-	●
160	BRACKET; AIR PIPE	1-19199-251-0	01	1	9601-0004		●
160	BRACKET; AIR PIPE	8-94393-091-0	01	1	9805-			●
187	BRACKET; AIR PIPE	1-19199-261-0	01	1	9601-0004		●

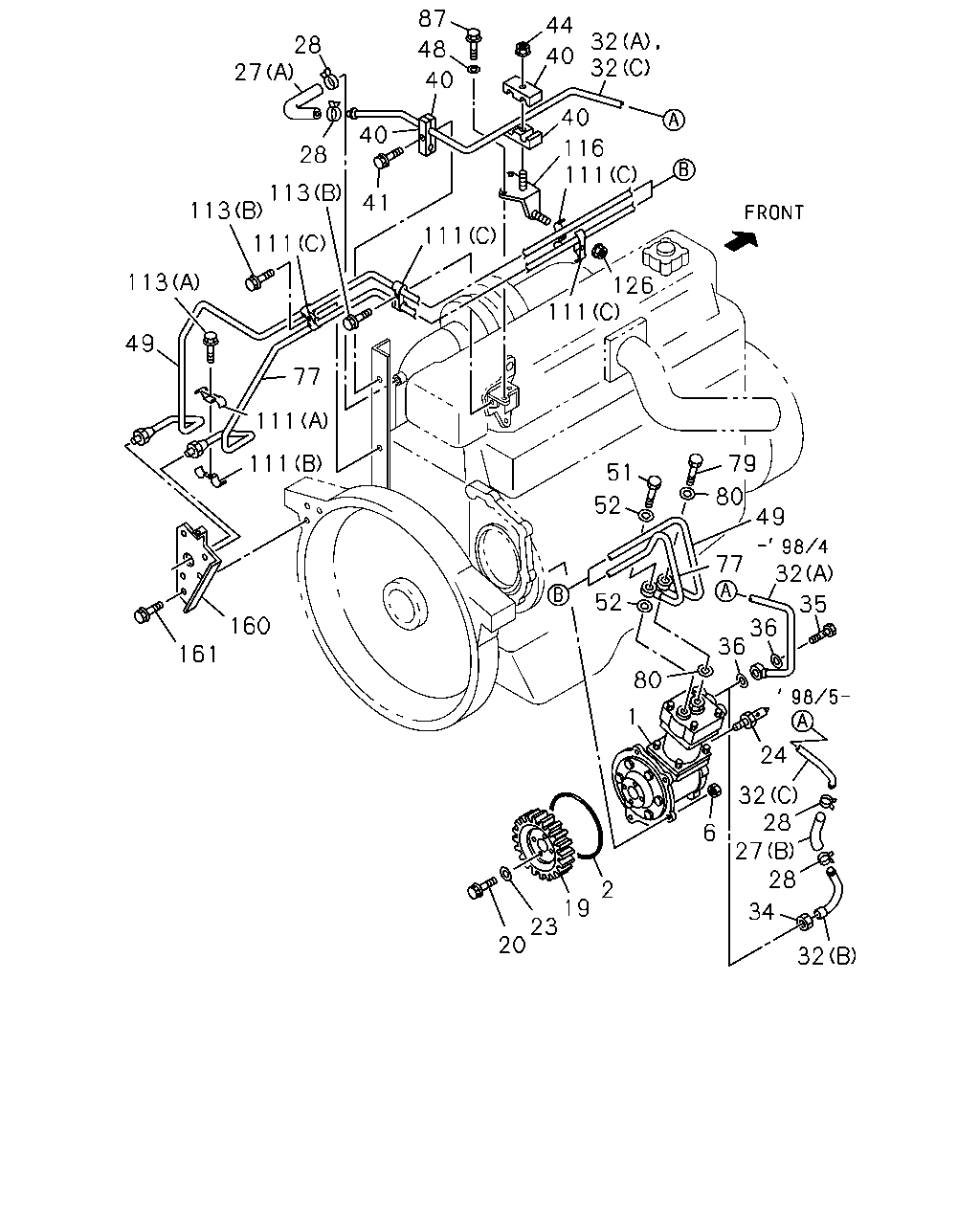

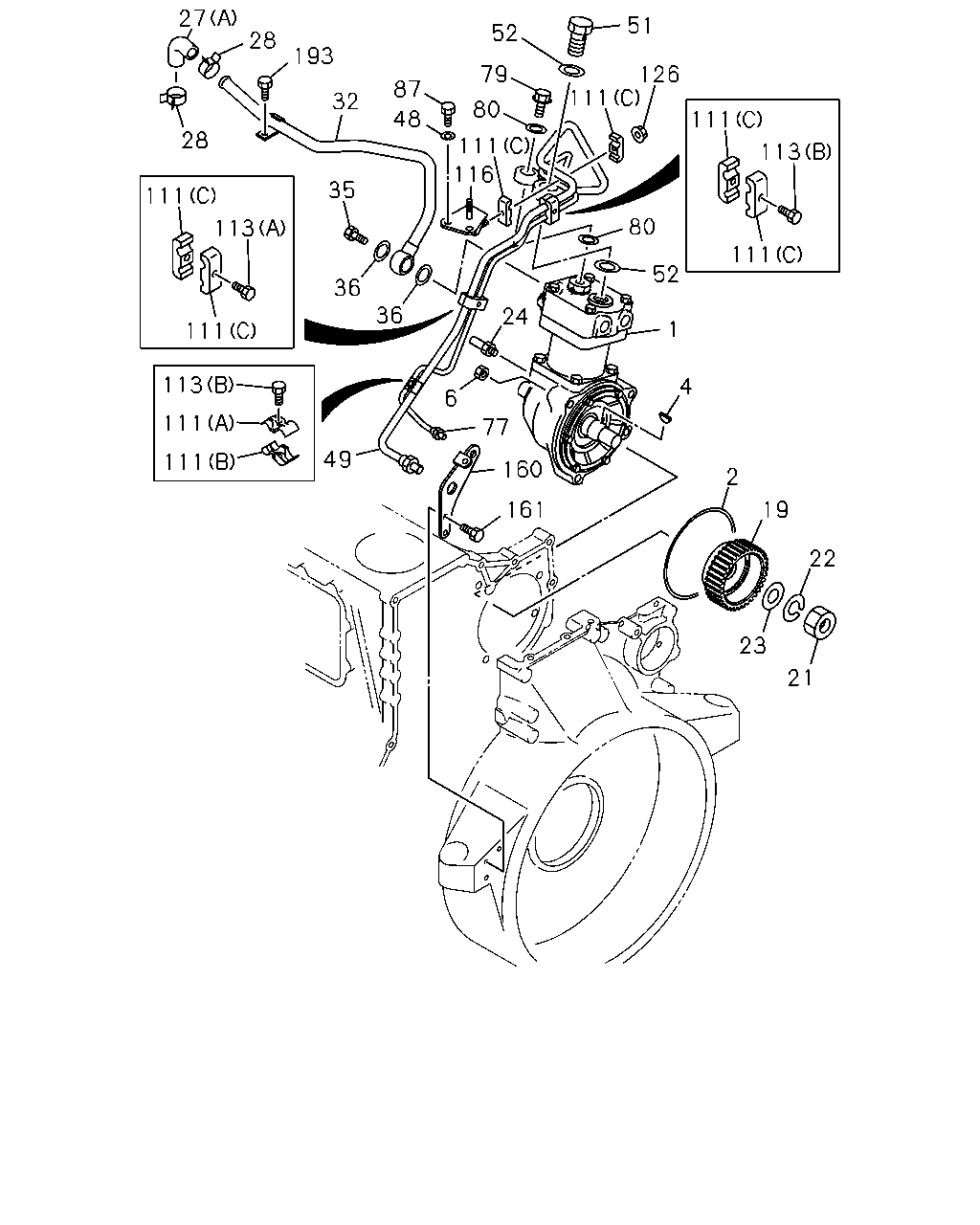

27 51 52 28 193 79 126 111 87 32 80 48 111 28 111 113 116 35 111 80 113 111 52 36 36 24 1 111 113 4 6 111 77 49 111 160 2 161 19 22 23 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-253-6	01	1	9601-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-286-3	01	1	9601-9810		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-319-0	01	1	9811-0004		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-892-9	01	1	9805-1107			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-310-1	01	1	1108-			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=159.6	1-09623-449-0	01	1	9601-0004	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=159.6	1-09623-449-0	01	1	0005-	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9805-			●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	9601-	●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	9805-			●
6	NUT; AIR CMPR M12 FLANGE	0-91150-112-0	04	1	9601-0004	●	●
6	NUT; AIR CMPR M12 FLANGE	0-91150-112-0	04	1	0005-0602	●
6	NUT; AIR CMPR M12 FLANGE	0-91180-112-0	04	1	0603-	●
6	NUT; AIR CMPR M10 FLANGE	0-91150-110-0	02	1	9805-0602			●
6	NUT; AIR CMPR M10 FLANGE	0-91180-110-0	02	1	0603-			●
6	NUT; AIR CMPR M12 FLANGE	0-91150-112-0	01	1	9805-0602			●
6	NUT; AIR CMPR M12 FLANGE	0-91180-112-0	01	1	0603-			●
19	GEAR; INJ PUMP Z=36	1-12524-100-1	01	1	9601-	●
19	GEAR; INJ PUMP Z=36	1-12524-098-0	01	1	9601-0004		●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	9805-			●
21	NUT; PUMP GEAR M24	9-99111-524-0	01	1	9601-0512	●
21	NUT; PUMP GEAR M24	0-91111-524-0	01	1	0601-	●
22	WASHER; LK,INJ PUMP GEAR FIX ID=24.5	9-09150-524-0	01	1	9601-0603	●
22	WASHER; LK,INJ PUMP GEAR FIX ID=24.5	0-91510-524-0	01	1	0604-	●
23	WASHER; PL,PUMP GEAR ID=25	9-09160-524-0	01	1	9601-	●
23	WASHER; PL,PUMP GEAR ID=10.5	9-09851-866-0	04	1	9601-0004		●
24	POINTER; AIR CMPR	9-11327-031-0	01	1	9601-0004	●	●
24	POINTER; AIR CMPR	9-11327-031-0	01	1	0005-	●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	9805-			●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	01	1	9601-0004	●	●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	01	1	0005-	●
27	HOSE; AIR CMPR,SUCTION (B)	0-02117-080-0	01	1	9805-0004		●
27	HOSE; AIR CMPR,SUCTION (C)	8-94394-967-0	01	1	9805-			●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	9601-0004	●	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	9601-0004		●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	0005-	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9805-			●
32	PIPE; AIR,AIR CMPR	1-19192-908-0	01	1	9601-	●
32	PIPE; AIR,AIR CMPR (A)	1-19192-892-0	01	1	9601-9804		●
32	PIPE; AIR,AIR CMPR (C)	1-19193-038-0	01	1	9805-0004		●
32	PIPE; AIR,AIR CMPR (B)	1-19193-037-0	01	1	9805-0004		●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-1	01	1	9601-0004	●	●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-2	01	1	0005-	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9601-0004	●	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0005-	●
48	WASHER; PL,BRKT ID=10.5 OD=18	9-09160-510-0	02	1	0004-0004	●	●
48	WASHER; PL,BRKT ID=10.5 OD=18	9-09160-510-0	02	1	0005-0605	●
48	WASHER; PL,BRKT ID=10.5	0-91610-510-0	02	1	0606-	●
49	PIPE; AIR,CHARGE	1-19192-963-0	01	1	9601-0004	●	●
49	PIPE; AIR,CHARGE	1-19192-963-0	01	1	0005-	●
49	PIPE; AIR,CHARGE	8-94395-087-2	01	1	9805-			●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-1	01	1	9601-0004	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	0005-1404	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-	●		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	9805-1404			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9601-9804	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9805-0004	●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0005-	●		●
77	PIPE; AIR,GOV	1-19192-962-0	01	1	9601-0004	●	●
77	PIPE; AIR,GOV	1-19192-962-0	01	1	0005-	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9601-9804	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9805-0004	●	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0005-	●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-9804	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9805-0004	●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-1312	●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●		●
87	BOLT; BRKT FIX M10X25 FLANGE	0-28081-025-0	02	1	9601-0003	●	●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28081-020-0	02	1	0004-0004	●	●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28081-020-0	02	1	0005-0512	●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28051-020-0	02	1	0601-	●
111	CLIP; AIR PIPE (A) WO/NUT	1-09700-547-0	01	1	9601-	●
111	CLIP; AIR PIPE (B) W/NUT	1-09700-550-0	01	1	9601-	●
111	CLIP; AIR PIPE (C)	1-09701-208-0	06	1	9601-0004	●	●
111	CLIP; AIR PIPE (C)	1-09701-208-0	06	1	0005-	●
111	CLIP; AIR PIPE (A) WO/NUT	1-09700-547-0	02	1	9601-0004		●
111	CLIP; AIR PIPE (B) W/NUT	1-09700-550-0	02	1	9601-0004		●
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28080-625-0	02	1	9601-0004	●	●
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28080-625-0	02	1	0005-0512	●
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28050-625-0	02	1	0601-	●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28080-640-0	02	1	9601-0004	●	●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28080-640-0	02	1	0005-0512	●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28050-640-0	02	1	0601-	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	9805-0512			●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	01	1	0601-			●
116	BRACKET; AIR PIPE	1-19199-249-1	01	1	9601-0004	●	●
116	BRACKET; AIR PIPE	1-19199-249-1	01	1	0005-0604	●
116	BRACKET; AIR PIPE	1-19199-357-0	01	1	0605-	●
126	NUT; CLIP FIX M6 FLANGE	0-91150-106-0	01	1	9601-0004	●	●
126	NUT; CLIP FIX M6 FLANGE	0-91150-106-0	01	1	0005-0602	●
126	NUT; CLIP FIX M6 FLANGE	0-91180-106-0	01	1	0603-	●
160	BRACKET; AIR PIPE	1-19199-120-0	01	1	9601-	●
160	BRACKET; AIR PIPE	1-19199-251-0	01	1	9601-0004		●
160	BRACKET; AIR PIPE	8-94393-091-0	01	1	9805-			●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	9601-0512	●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	03	1	9601-0004		●
193	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	01	1	9601-0512	●
193	BOLT; BRKT M8X20 FLANGE	0-28050-820-0	01	1	0601-	●

87 44 32 32 28 48 40 27 40 40 40 116 111 28 113 113 41 111 111 113 126 111 49 77 111 111 79 51 80 52 49 32 77 52 5 160 36 36 161 80 1 24 32 28 27 28 6 2 19 23 20 34 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-253-6	01	1	9601-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-286-3	01	1	9601-9810		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-319-0	01	1	9811-0004		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-892-9	01	1	9805-1107			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-310-1	01	1	1108-			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=159.6	1-09623-449-0	01	1	9601-0004	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=159.6	1-09623-449-0	01	1	0005-	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9805-			●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	9805-			●
6	NUT; AIR CMPR M12 FLANGE	0-91150-112-0	04	1	9601-0004	●	●
6	NUT; AIR CMPR M12 FLANGE	0-91150-112-0	04	1	0005-0602	●
6	NUT; AIR CMPR M12 FLANGE	0-91180-112-0	04	1	0603-	●
6	NUT; AIR CMPR M10 FLANGE	0-91150-110-0	02	1	9805-0602			●
6	NUT; AIR CMPR M10 FLANGE	0-91180-110-0	02	1	0603-			●
6	NUT; AIR CMPR M12 FLANGE	0-91150-112-0	01	1	9805-0602			●
6	NUT; AIR CMPR M12 FLANGE	0-91180-112-0	01	1	0603-			●
19	GEAR; INJ PUMP Z=36	1-12524-100-1	01	1	9601-	●
19	GEAR; INJ PUMP Z=36	1-12524-098-0	01	1	9601-0004		●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	9805-			●
20	BOLT; GEAR TO SHAFT M10X60 FLANGE	1-09070-076-0	04	1	9601-0004		●
23	WASHER; PL,PUMP GEAR ID=25	9-09160-524-0	01	1	9601-	●
23	WASHER; PL,PUMP GEAR ID=10.5	9-09851-866-0	04	1	9601-0004		●
24	POINTER; AIR CMPR	9-11327-031-0	01	1	9601-0004	●	●
24	POINTER; AIR CMPR	9-11327-031-0	01	1	0005-	●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	9805-			●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	01	1	9601-0004	●	●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	01	1	0005-	●
27	HOSE; AIR CMPR,SUCTION (B)	0-02117-080-0	01	1	9805-0004		●
27	HOSE; AIR CMPR,SUCTION (C)	8-94394-967-0	01	1	9805-			●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	9601-0004	●	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	9601-0004		●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	0005-	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9805-			●
32	PIPE; AIR,AIR CMPR	1-19192-908-0	01	1	9601-	●
32	PIPE; AIR,AIR CMPR (A)	1-19192-892-0	01	1	9601-9804		●
32	PIPE; AIR,AIR CMPR (C)	1-19193-038-0	01	1	9805-0004		●
32	PIPE; AIR,AIR CMPR (B)	1-19193-037-0	01	1	9805-0004		●
34	NUT; LK SUCTION PIPE	9-09840-254-0	01	1	9805-0004		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9601-0004	●	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0005-	●
40	CLIP; AIR PIPE	1-09701-210-0	04	1	9601-0004		●
41	BOLT; CLIP M6X40 FLANGE	0-28080-640-0	01	1	9601-0003		●
41	BOLT; CLIP M6X50 FLANGE	0-28080-650-0	01	1	0004-0004		●
44	NUT M6 FLANGE	0-91150-106-0	01	1	9601-0004		●
48	WASHER; PL,BRKT ID=10.5 OD=18	9-09160-510-0	02	1	0004-0004	●	●
48	WASHER; PL,BRKT ID=10.5 OD=18	9-09160-510-0	02	1	0005-0605	●
48	WASHER; PL,BRKT ID=10.5	0-91610-510-0	02	1	0606-	●
49	PIPE; AIR,CHARGE	1-19192-963-0	01	1	9601-0004	●	●
49	PIPE; AIR,CHARGE	1-19192-963-0	01	1	0005-	●
49	PIPE; AIR,CHARGE	8-94395-087-2	01	1	9805-			●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-1	01	1	9601-0004	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	0005-1404	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-	●		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	9805-1404			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9601-9804	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9805-0004	●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0005-	●		●
77	PIPE; AIR,GOV	1-19192-962-0	01	1	9601-0004	●	●
77	PIPE; AIR,GOV	1-19192-962-0	01	1	0005-	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9601-9804	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9805-0004	●	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0005-	●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-9804	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9805-0004	●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-1312	●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●		●
87	BOLT; BRKT FIX M10X25 FLANGE	0-28081-025-0	02	1	9601-0003	●	●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28081-020-0	02	1	0004-0004	●	●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28081-020-0	02	1	0005-0512	●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28051-020-0	02	1	0601-	●
111	CLIP; AIR PIPE (A) WO/NUT	1-09700-547-0	01	1	9601-	●
111	CLIP; AIR PIPE (B) W/NUT	1-09700-550-0	01	1	9601-	●
111	CLIP; AIR PIPE (C)	1-09701-208-0	06	1	9601-0004	●	●
111	CLIP; AIR PIPE (C)	1-09701-208-0	06	1	0005-	●
111	CLIP; AIR PIPE (A) WO/NUT	1-09700-547-0	02	1	9601-0004		●
111	CLIP; AIR PIPE (B) W/NUT	1-09700-550-0	02	1	9601-0004		●
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28080-625-0	02	1	9601-0004	●	●
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28080-625-0	02	1	0005-0512	●
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28050-625-0	02	1	0601-	●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28080-640-0	02	1	9601-0004	●	●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28080-640-0	02	1	0005-0512	●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28050-640-0	02	1	0601-	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	9805-0512			●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	01	1	0601-			●
116	BRACKET; AIR PIPE	1-19199-249-1	01	1	9601-0004	●	●
116	BRACKET; AIR PIPE	1-19199-249-1	01	1	0005-0604	●
116	BRACKET; AIR PIPE	1-19199-357-0	01	1	0605-	●
126	NUT; CLIP FIX M6 FLANGE	0-91150-106-0	01	1	9601-0004	●	●
126	NUT; CLIP FIX M6 FLANGE	0-91150-106-0	01	1	0005-0602	●
126	NUT; CLIP FIX M6 FLANGE	0-91180-106-0	01	1	0603-	●
160	BRACKET; AIR PIPE	1-19199-120-0	01	1	9601-	●
160	BRACKET; AIR PIPE	1-19199-251-0	01	1	9601-0004		●
160	BRACKET; AIR PIPE	8-94393-091-0	01	1	9805-			●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	9601-0512	●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	03	1	9601-0004		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
