Isuzu WW
▶
TRUCKS
▶
FVM
▶
10706 - FVM-RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-35 - ENGINE CONTROL VALVE AND LEVER
▶

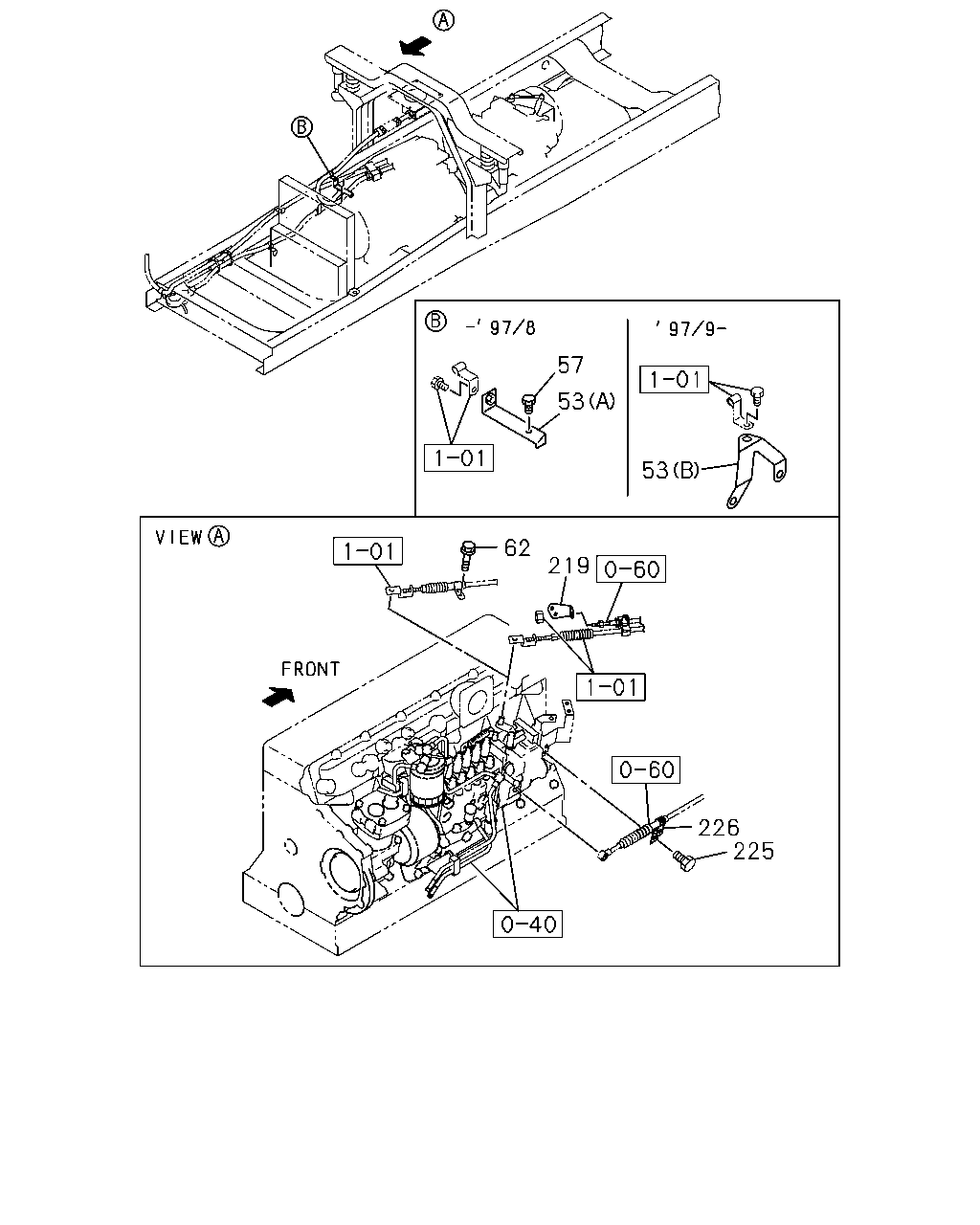

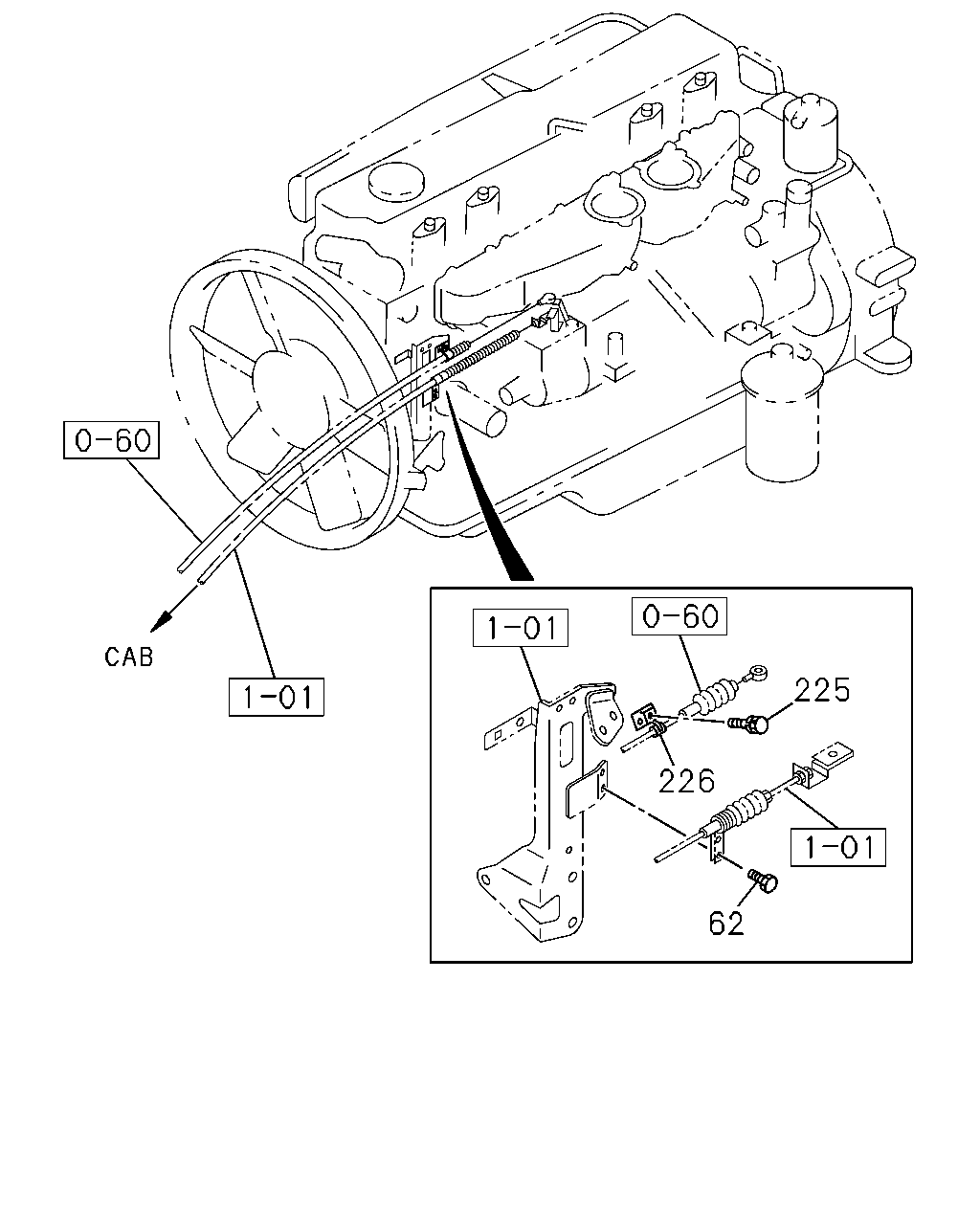

0-35 — ENGINE CONTROL VALVE AND LEVER
(#63942) — 30 parça
Tümü
A - 6SD1 TCN ENG
B - 6SD1 STD ENG
C - 6HH1 STD ENG
◀
[035A] 6SD1 (17 parça)
[035A] 6HH1 (13 parça)
▶
57
53
53
62
219
226
225
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
53
BRACKET; CABLE
SPEED LIMITER CABLE STROKE CONTROL<TDT> (A)
1-47477-664-2
01
1
9604-9708
●
53
BRACKET; CABLE
SPEED LIMITER CABLE STROKE CONTROL<TDT> (B)
1-23319-103-0
01
1
9709-0004
●
57
BOLT; BRKT
SPEED LIMITER CABLE STROKE CONTROL<TDT> M8X20 FLANGE
0-28080-820-0
01
1
9604-9708
●
62
BOLT; CABLE END
M6X16 FLANGE
0-28080-616-0
02
1
9601-9804
●
●
62
BOLT; CABLE END
M6X25 FLANGE
0-28680-625-0
02
1
9805-0004
●
62
BOLT; CABLE END
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> M6X16 FLANGE
0-28080-616-0
02
1
9805-0004
●
●
62
BOLT; CABLE END
M6X20 FLANGE
0-28680-620-0
02
1
0005-0512
●
●
62
BOLT; CABLE END
M6X20 FLANGE
0-28650-620-0
02
1
0601-
●
●
219
BRACKET; ENG CONT
SPEED LIMITER CABLE STROKE CONTROL<TDT>
1-23319-101-0
01
1
9601-0004
●
225
BOLT; CLIP FIX
M6X16 FLANGE
0-28080-616-0
02
1
9601-0512
●
225
BOLT; CLIP FIX
M6X16 FLANGE
0-28050-616-0
02
1
0601-
●
225
BOLT; CLIP FIX
M8X16 FLANGE
0-28080-816-0
02
1
9601-0004
●
225
BOLT; CLIP FIX
M8X25 FLANGE
0-28680-825-0
02
1
9805-0512
●
225
BOLT; CLIP FIX
M8X25 FLANGE
0-28650-825-0
02
1
0601-
●
226
CLIP; CABLE END
L=30
1-09700-326-0
01
1
9601-
●
226
CLIP; CABLE END
1-23219-032-0
01
1
9601-0004
●
226
CLIP; CABLE END
1-09700-787-1
01
1
9805-
●
225
226
62
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
62
BOLT; CABLE END
M6X16 FLANGE
0-28080-616-0
02
1
9601-9804
●
●
62
BOLT; CABLE END
M6X25 FLANGE
0-28680-625-0
02
1
9805-0004
●
62
BOLT; CABLE END
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> M6X16 FLANGE
0-28080-616-0
02
1
9805-0004
●
●
62
BOLT; CABLE END
M6X20 FLANGE
0-28680-620-0
02
1
0005-0512
●
●
62
BOLT; CABLE END
M6X20 FLANGE
0-28650-620-0
02
1
0601-
●
●
225
BOLT; CLIP FIX
M6X16 FLANGE
0-28080-616-0
02
1
9601-0512
●
225
BOLT; CLIP FIX
M6X16 FLANGE
0-28050-616-0
02
1
0601-
●
225
BOLT; CLIP FIX
M8X16 FLANGE
0-28080-816-0
02
1
9601-0004
●
225
BOLT; CLIP FIX
M8X25 FLANGE
0-28680-825-0
02
1
9805-0512
●
225
BOLT; CLIP FIX
M8X25 FLANGE
0-28650-825-0
02
1
0601-
●
226
CLIP; CABLE END
L=30
1-09700-326-0
01
1
9601-
●
226
CLIP; CABLE END
1-23219-032-0
01
1
9601-0004
●
226
CLIP; CABLE END
1-09700-787-1
01
1
9805-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
