0-32 — WATER PIPING; ENGINE (#63940) — 84 parça

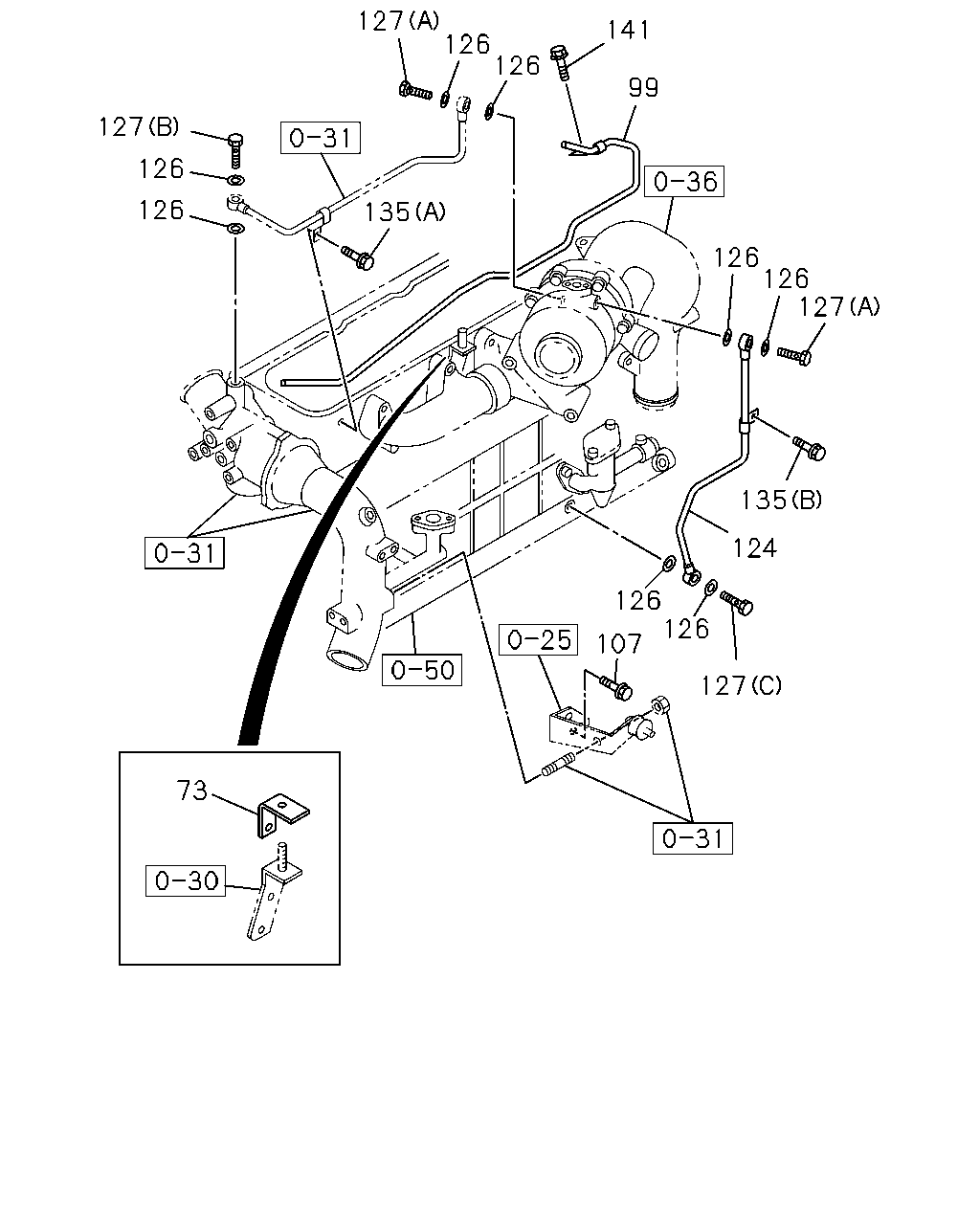

127 126 126 141 99 127 126 135 126 126 126 127 135 124 126 126 107 127 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
73	PROTECTOR; HEAT,WATER PIPE	1-14181-293-0	01	1	9601-0004	●
99	PIPE; WATER,OVERFLOW	1-13711-699-0	01	1	9601-		●
99	PIPE; WATER,OVERFLOW	1-13721-629-0	01	1	9708-0004	●
107	BOLT; WATER PIPE HEATER & DEFROSTER(C41) M10X20 FLANGE	0-28081-020-0	01	1	9708-0004		●
107	BOLT; WATER PIPE M10X20 FLANGE	0-28081-020-0	01	1	9708-0004	●
107	BOLT; WATER PIPE M10X20 FLANGE	0-28081-020-0	01	1	0005-0109		●
107	BOLT; WATER PIPE HEATER & DEFROSTER(C41) M10X20 FLANGE	0-28081-020-0	01	1	0110-0512		●
107	BOLT; WATER PIPE HEATER & DEFROSTER(C41) M10X20 FLANGE	0-28051-020-0	01	1	0601-		●
124	PIPE; WATER,C/BL TO THERMOSTAT HSG	1-13721-653-0	01	1	9601-9701	●
124	PIPE; WATER,C/BL TO THERMOSTAT HSG	1-13721-738-0	01	1	9702-0004	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	08	1	9601-0004	●
127	BOLT; EYE (A) M14X31	1-09675-191-0	02	1	9601-0004	●
127	BOLT; EYE (B) M14X27 FLANGE	1-09675-192-0	01	1	9601-0004	●
127	BOLT; EYE (C) M14X27 EYE-BOLT	1-09675-193-0	01	1	9601-0004	●
135	BOLT; STAY,THERMOSTAT HSG (B) M8X16 FLANGE	0-28080-816-0	01	1	9601-9701	●
135	BOLT; STAY,THERMOSTAT HSG (A) M8X25 FLANGE	0-28080-825-0	01	1	9601-0004	●
141	BOLT; WATER PIPE M8X12 FLANGE	0-28080-812-0	01	1	9708-0004	●

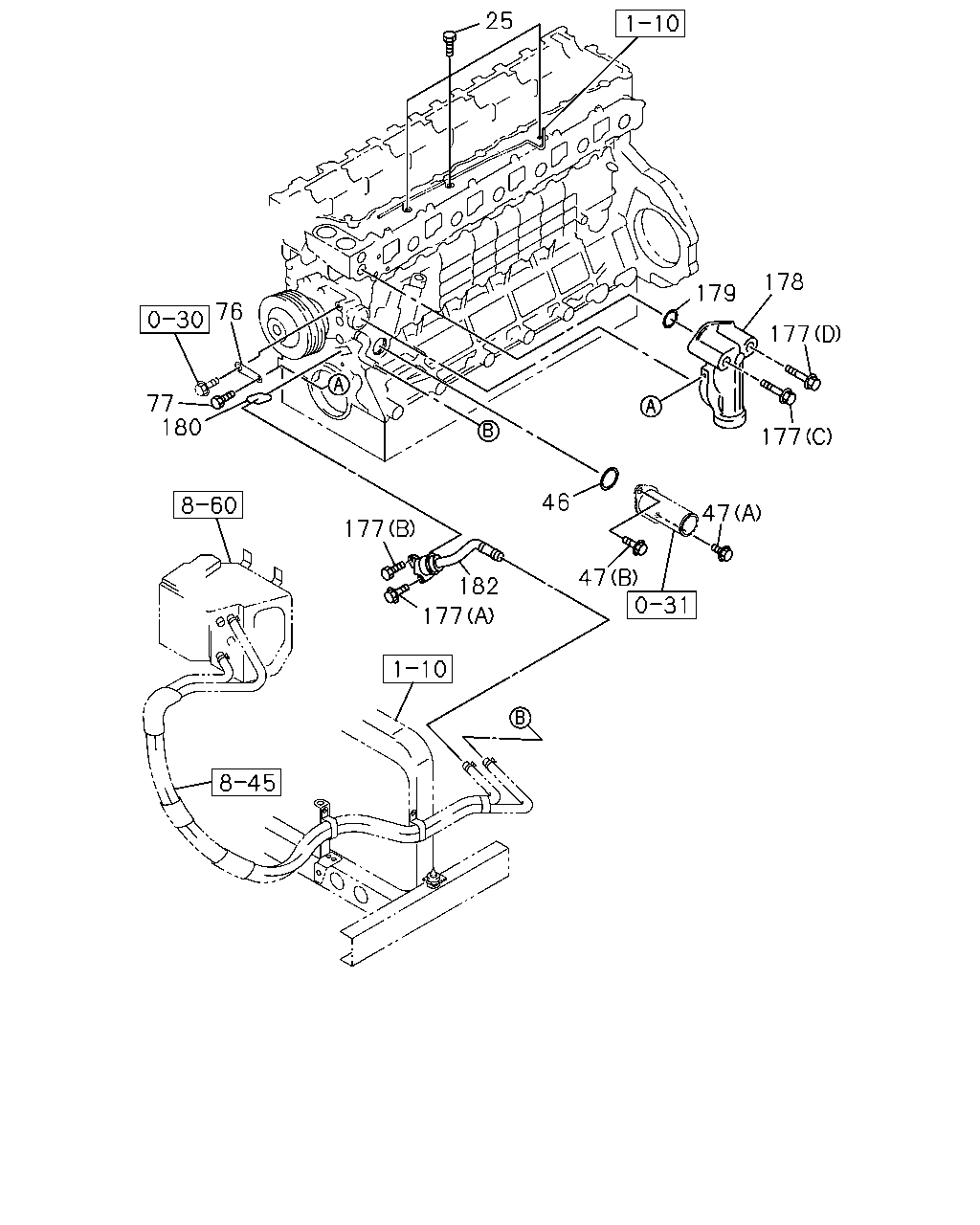

25 178 179 76 177 77 180 177 46 47 177 47 182 177

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C
25	BOLT; WATER PIPE M8X12 FLANGE	0-28080-812-0	03	1	9805-0512	●
25	BOLT; WATER PIPE M8X12 FLANGE	0-28050-812-0	03	1	0601-	●
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	9805-	●
47	BOLT; DUCT,TO OIL COOLER (B) M8X45 FLANGE	0-28080-845-0	01	1	9805-0512	●
47	BOLT; DUCT,TO OIL COOLER (B) M8X45 FLANGE	0-28050-845-0	01	1	0601-	●
47	BOLT; DUCT,TO OIL COOLER (A) M8X25 FLANGE	0-28680-825-0	01	1	9805-0512	●
47	BOLT; DUCT,TO OIL COOLER (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	9805-	●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28080-850-0	01	1	9805-0512	●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28050-850-0	01	1	0601-	●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28080-880-0	01	1	9805-0512	●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28050-880-0	01	1	0601-	●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28680-825-0	01	1	9805-0512	●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
177	BOLT; WATER DUCT (A) M8X65 FLANGE	1-09044-072-1	01	1	9805-	●
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-1	01	1	9805-	●
178	DUCT; WATER,BYPASS	8-94396-627-3	01	1	9805-	●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	9805-1408	●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-98276-756-0	01	1	1409-	●
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	9805-	●
182	DUCT; WATER,HTR	8-94396-724-4	01	1	9805-	●

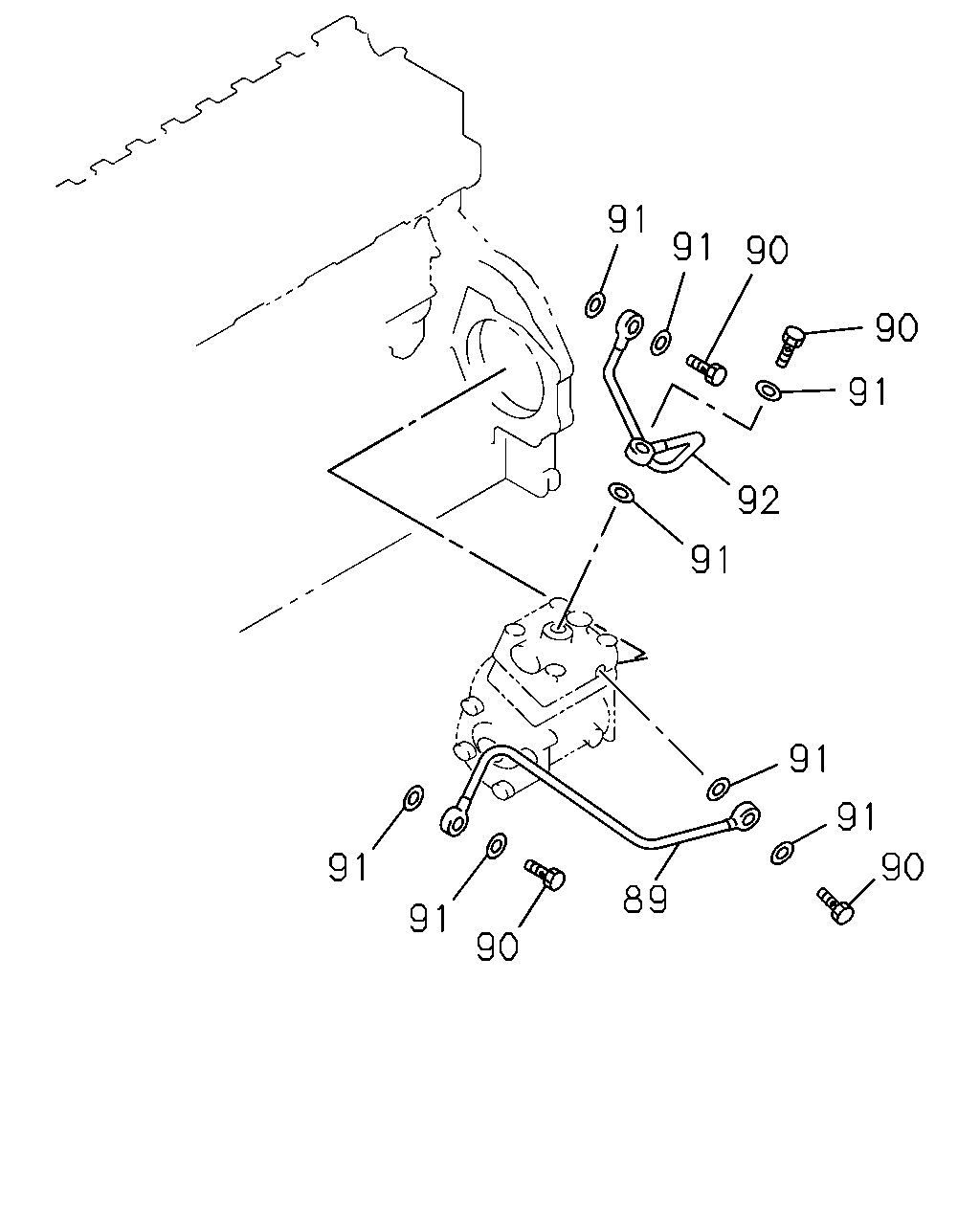

91 91 90 92 90 90 91 91 91 91 91 89 91 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
89	PIPE; WATER,AIR CMPR,IN	1-13721-409-0	01	1	9601-0004	●	●
89	PIPE; WATER,AIR CMPR,IN	1-13721-409-0	01	1	0005-		●
89	PIPE; WATER,AIR CMPR,IN	8-94395-178-1	01	1	9805-			●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	04	1	9601-9804	●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	04	1	9805-0004	●	●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	04	1	0005-		●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	08	1	9601-9804	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	08	1	9805-0004	●	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	08	1	0005-1312		●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	08	1	1401-		●	●
92	PIPE; WATER,AIR CMPR,OUT	1-13721-201-0	01	1	9601-0004	●	●
92	PIPE; WATER,AIR CMPR,OUT	1-13721-201-0	01	1	0005-		●
92	PIPE; WATER,AIR CMPR,OUT	8-94395-742-1	01	1	9805-			●

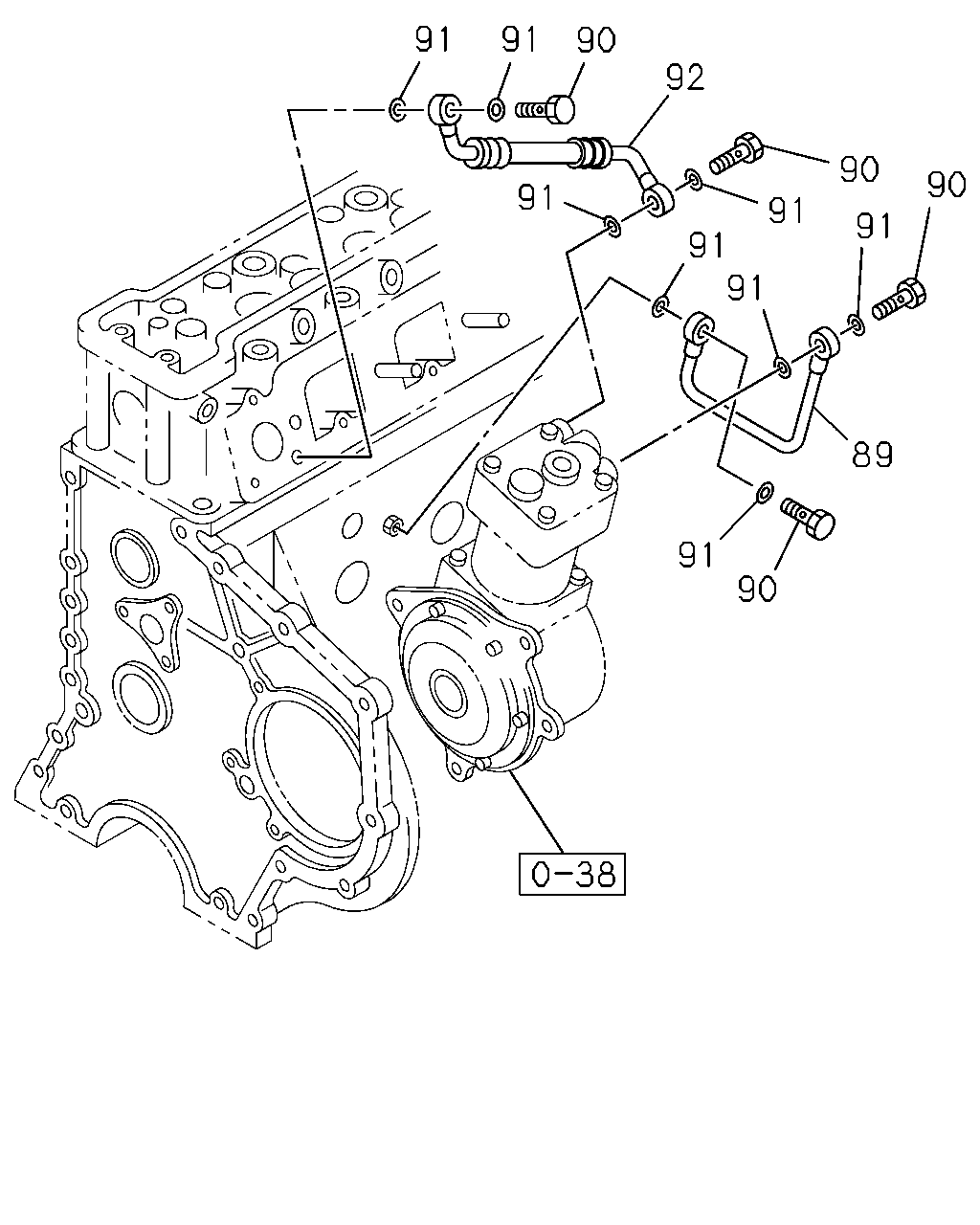

91 91 90 90 91 92 91 91 91 90 91 89 91 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
89	PIPE; WATER,AIR CMPR,IN	1-13721-409-0	01	1	9601-0004	●	●
89	PIPE; WATER,AIR CMPR,IN	1-13721-409-0	01	1	0005-		●
89	PIPE; WATER,AIR CMPR,IN	8-94395-178-1	01	1	9805-			●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	04	1	9601-9804	●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	04	1	9805-0004	●	●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	04	1	0005-		●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	08	1	9601-9804	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	08	1	9805-0004	●	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	08	1	0005-1312		●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	08	1	1401-		●	●
92	PIPE; WATER,AIR CMPR,OUT	1-13721-201-0	01	1	9601-0004	●	●
92	PIPE; WATER,AIR CMPR,OUT	1-13721-201-0	01	1	0005-		●
92	PIPE; WATER,AIR CMPR,OUT	8-94395-742-1	01	1	9805-			●

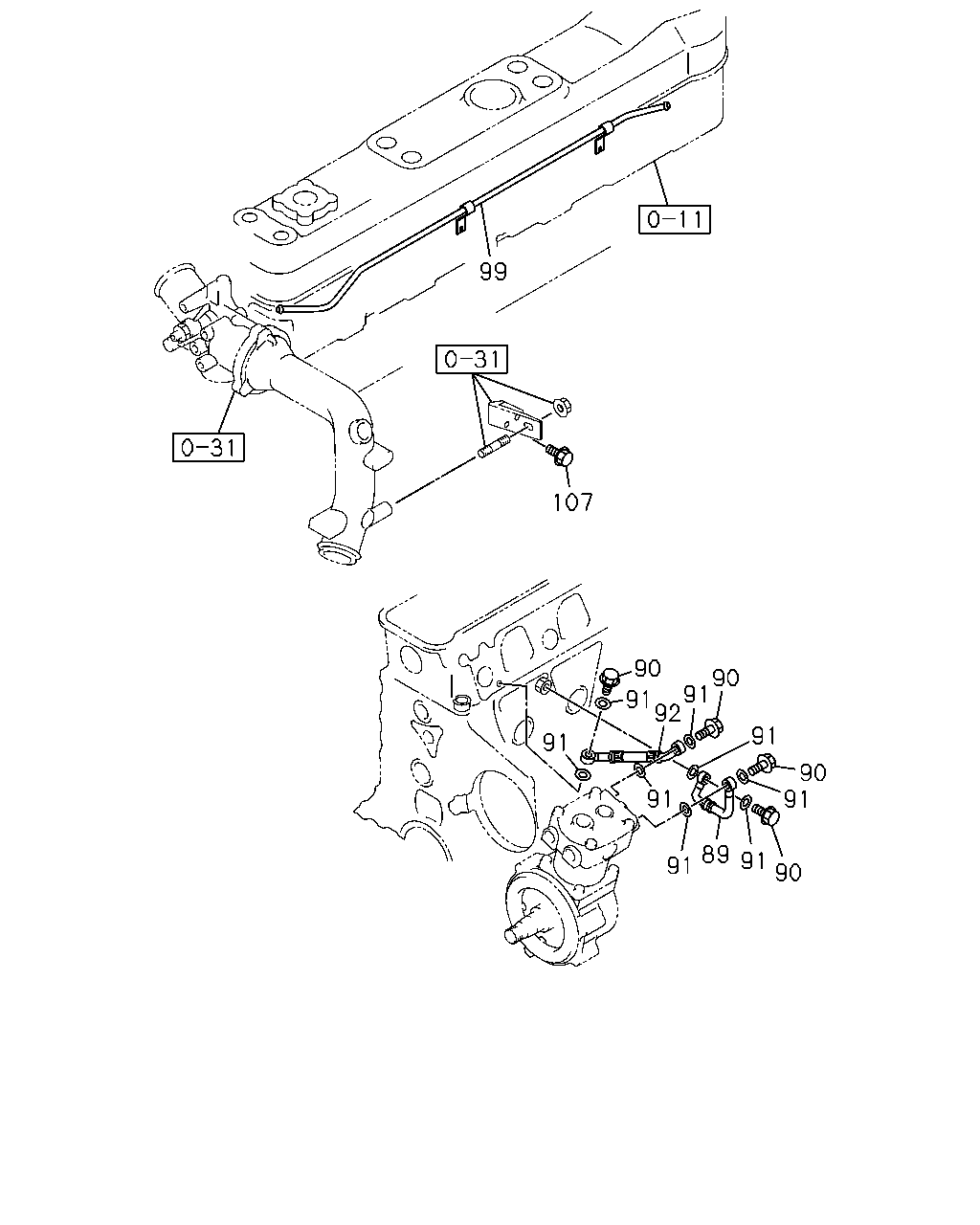

99 107 90 90 91 91 92 91 91 90 91 91 89 91 91 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
89	PIPE; WATER,AIR CMPR,IN	1-13721-409-0	01	1	9601-0004	●	●
89	PIPE; WATER,AIR CMPR,IN	1-13721-409-0	01	1	0005-		●
89	PIPE; WATER,AIR CMPR,IN	8-94395-178-1	01	1	9805-			●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	04	1	9601-9804	●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	04	1	9805-0004	●	●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	04	1	0005-		●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	08	1	9601-9804	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	08	1	9805-0004	●	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	08	1	0005-1312		●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	08	1	1401-		●	●
92	PIPE; WATER,AIR CMPR,OUT	1-13721-201-0	01	1	9601-0004	●	●
92	PIPE; WATER,AIR CMPR,OUT	1-13721-201-0	01	1	0005-		●
92	PIPE; WATER,AIR CMPR,OUT	8-94395-742-1	01	1	9805-			●
99	PIPE; WATER,OVERFLOW	1-13711-699-0	01	1	9601-		●
99	PIPE; WATER,OVERFLOW	1-13721-629-0	01	1	9708-0004	●
107	BOLT; WATER PIPE HEATER & DEFROSTER(C41) M10X20 FLANGE	0-28081-020-0	01	1	9708-0004		●
107	BOLT; WATER PIPE M10X20 FLANGE	0-28081-020-0	01	1	9708-0004	●
107	BOLT; WATER PIPE M10X20 FLANGE	0-28081-020-0	01	1	0005-0109		●
107	BOLT; WATER PIPE HEATER & DEFROSTER(C41) M10X20 FLANGE	0-28081-020-0	01	1	0110-0512		●
107	BOLT; WATER PIPE HEATER & DEFROSTER(C41) M10X20 FLANGE	0-28051-020-0	01	1	0601-		●
