◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10706 - FVM-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-30 - WATER PUMP AND CORROSION RESISTOR ▶
0-30 — WATER PUMP AND CORROSION RESISTOR (#63938) — 171 parça

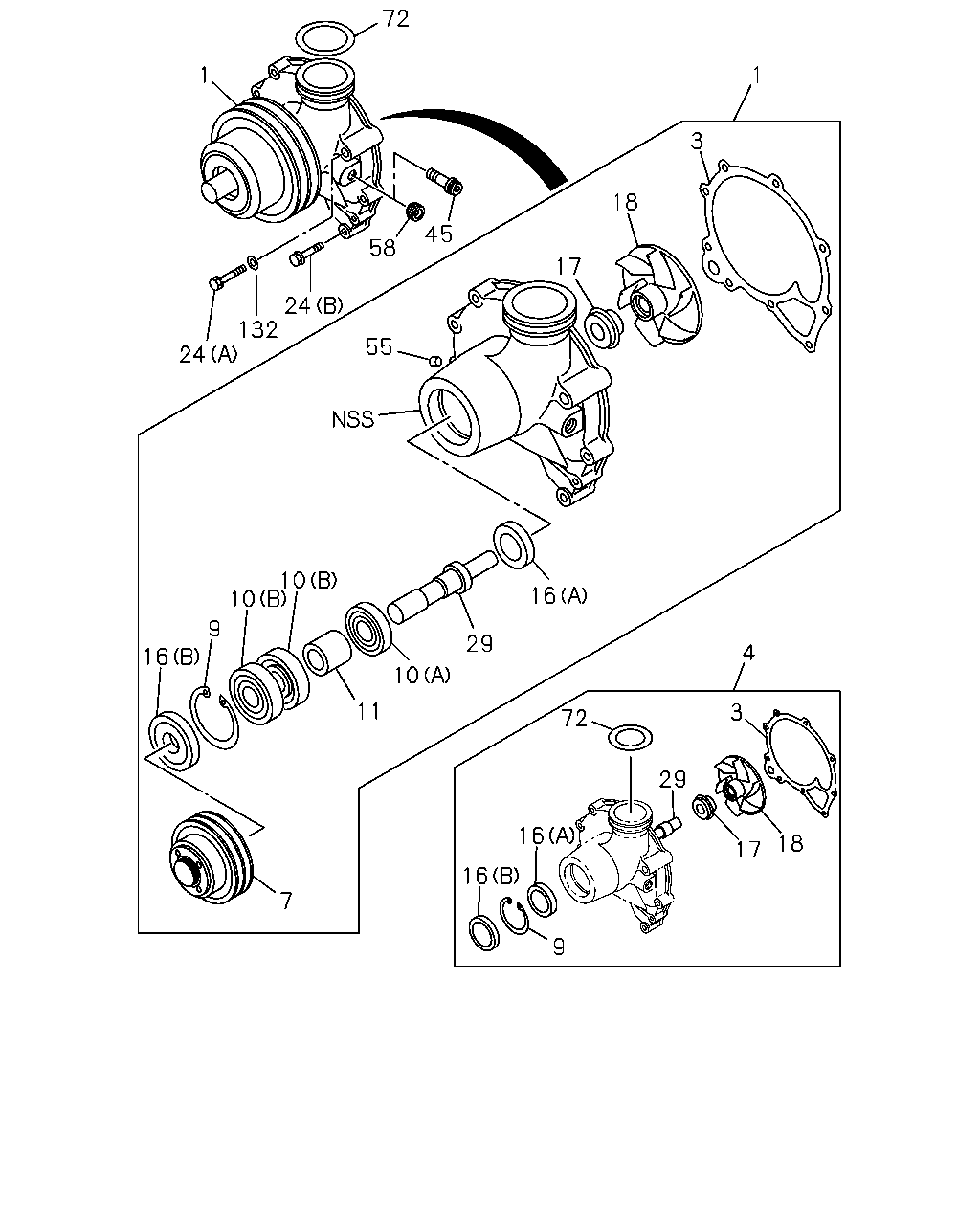

çizim 40828
72 1 1 3 18 58 45 17 24 132 55 24 10 10 16 9 16 29 4 10 11 3 72 29 16 18 17 16 7 9
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PUMP ASM; WATER,W/GASKET 1-13650-003-2 01 1 9601- ●
1 PUMP ASM; WATER,W/GASKET 1-13650-002-2 01 1 9601-0004 ●
1 PUMP ASM; WATER,W/GASKET 8-94395-657-6 01 1 9805-0301 ●
1 PUMP ASM; WATER,W/GASKET 8-97602-775-0 01 1 0302-0801 ●
1 PUMP ASM; WATER,W/GASKET 8-97627-357-1 01 1 0802-1208 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-842-0 01 1 1209-1312 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-916-0 01 1 1401-1405 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-988-0 01 1 1406- ●
3 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-13614-018-0 01 1 9601-0004 ● ●
3 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-13614-018-1 01 1 0005- ●
4 REPAIR KIT; WATER PUMP 1-87811-181-0 01 1 9601-9807 ● ●
4 REPAIR KIT; WATER PUMP 1-87811-936-0 01 1 9808-9911 ● ●
4 REPAIR KIT; WATER PUMP 1-87812-019-0 01 1 9912-0004 ● ●
4 REPAIR KIT; WATER PUMP 1-87812-019-1 01 1 0005- ●
4 REPAIR KIT; WATER PUMP 1-87811-051-0 01 1 9805-9911 ●
4 REPAIR KIT; WATER PUMP 1-87812-027-1 01 1 9912-0801 ●
4 REPAIR KIT; WATER PUMP 1-87813-363-0 01 1 0802-1208 ●
4 REPAIR KIT; WATER PUMP 1-87813-948-0 01 1 1209-1312 ●
4 REPAIR KIT; WATER PUMP 1-87814-173-0 01 1 1401-1405 ●
4 REPAIR KIT; WATER PUMP 1-87814-613-0 01 1 1406- ●
7 PULLEY; WATER PUMP
2-GROOVE 		1-13641-173-0 01 1 9601- ●
7 PULLEY; WATER PUMP
2-GROOVE 		1-13641-174-0 01 1 9601-0004 ●
7 PULLEY; WATER PUMP
2-GROOVE 		8-94394-826-0 01 1 9805- ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 9601-9804 ● ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 9805-0004 ● ● ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 0005- ● ●
10 BEARING; WATER PUMP
(B) 		1-09800-155-0 02 1 9601-0004 ● ●
10 BEARING; WATER PUMP
(B) 		1-09800-155-0 02 1 0005- ●
10 BEARING; WATER PUMP
(A) 		1-09800-196-0 01 1 9601-0004 ● ●
10 BEARING; WATER PUMP
(A) 		1-09800-196-0 01 1 0005- ●
10 BEARING; WATER PUMP 1-09800-011-0 02 1 9805- ●
11 SPACER; BRG,WATER PUMP 1-13634-029-0 01 1 9601-0004 ● ●
11 SPACER; BRG,WATER PUMP 1-13634-029-0 01 1 0005- ●
11 SPACER; BRG,WATER PUMP 1-13634-025-0 01 1 9805- ●
16 SEAL; OIL,WATER PUMP
(B) 		1-09625-381-0 01 1 9601-9911 ● ●
16 SEAL; OIL,WATER PUMP
(B) 		1-09625-388-0 01 1 9912-0004 ● ●
16 SEAL; OIL,WATER PUMP
(B) 		1-09625-388-0 01 1 0005- ●
16 SEAL; OIL,WATER PUMP
(A) 		1-09625-382-0 01 1 9601-9911 ● ●
16 SEAL; OIL,WATER PUMP
(A) 		1-09625-389-0 01 1 9912-0004 ● ●
16 SEAL; OIL,WATER PUMP
(A) 		1-09625-389-0 01 1 0005- ●
17 SEAL UNIT; WATER PUMP 8-98272-791-0 01 1 1406- ●
17 SEAL UNIT; WATER PUMP 8-98221-159-0 01 1 1209-1312 ●
17 SEAL UNIT; WATER PUMP 8-94395-036-0 01 1 9601-9804 ● ●
17 SEAL UNIT; WATER PUMP 8-94395-036-0 01 1 9805-9807 ● ● ●
17 SEAL UNIT; WATER PUMP 8-94395-036-0 01 1 9808-9912 ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 9808-9912 ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0001-0004 ● ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0005-1208 ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 1209-1312 ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 1401-1405 ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 1406- ●
18 IMPELLER; WATER PUMP 1-13621-052-0 01 1 9601-0004 ● ●
18 IMPELLER; WATER PUMP 1-13621-052-0 01 1 0005- ●
18 IMPELLER; WATER PUMP 8-94397-375-0 01 1 9805- ●
24 BOLT; WATER PUMP
(A) M10X70 		0-16806-070-0 02 1 9601-0004 ● ●
24 BOLT; WATER PUMP
(A) M10X70 		0-16806-070-0 02 1 0005-0512 ●
24 BOLT; WATER PUMP
(A) M10X70 		0-16856-070-0 02 1 0601- ●
24 BOLT; WATER PUMP
(B) M8X45 W/LK&PL WASHER 		0-50140-845-0 07 1 9601-0004 ● ●
24 BOLT; WATER PUMP
(B) M8X45 W/LK&PL WASHER 		0-50140-845-0 07 1 0005-0906 ●
24 BOLT; WATER PUMP
(B) M8X45 W/LK&PL WASHER 		0-50640-845-0 07 1 0907- ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28080-880-0 01 1 9805-0512 ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28050-880-0 01 1 0601- ●
24 BOLT; WATER PUMP
(A) M8X58 FLANGE 		8-94130-055-1 03 1 9805- ●
24 BOLT; WATER PUMP
(C) M10X85 FLANGE 		8-94397-359-1 01 1 9805- ●
29 SHAFT; WATER PUMP 1-13631-079-0 01 1 9601-0004 ● ●
29 SHAFT; WATER PUMP 1-13631-079-0 01 1 0005- ●
29 SHAFT; WATER PUMP 8-94397-374-0 01 1 9805- ●
45 JOINT; HTR HOSE,WATER PUMP
HEATER & DEFROSTER(C41) PT3/8 & OD=18.3 L=47 		9-09903-631-0 01 1 9708-0004 ●
45 JOINT; HTR HOSE,WATER PUMP
PT3/8 & OD=18.3 L=47 		9-09903-631-0 01 1 9708-0004 ●
45 JOINT; HTR HOSE,WATER PUMP
PT3/8 & OD=18.3 L=47 		9-09903-631-0 01 1 0005-0109 ●
45 JOINT; HTR HOSE,WATER PUMP
HEATER & DEFROSTER(C41) PT3/8 & OD=18.3 L=47 		9-09903-631-0 01 1 0110- ●
45 JOINT; HTR HOSE,WATER PUMP 8-94397-377-2 01 1 9805- ●
55 NOZZLE; OIL FEED,WATER PUMP 1-13619-046-0 01 1 9601-0004 ● ●
55 NOZZLE; OIL FEED,WATER PUMP 1-13619-046-0 01 1 0005- ●
58 PLUG; HTR
EXC. HEATER & DEFROSTER(C41) PT3/8 T=8.0 		1-09605-066-0 01 1 9708- ●
72 GASKET; PUMP TO THERMO HSG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6 		1-09623-307-0 01 1 9601-0004 ● ●
72 GASKET; PUMP TO THERMO HSG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6 		1-09623-307-0 01 1 0005- ●
132 WASHER; PL,WATER PUMP
ID=10.5 OD=18 		9-09160-510-0 02 1 9601-0004 ● ●
132 WASHER; PL,WATER PUMP
ID=10.5 OD=18 		9-09160-510-0 02 1 0005-0605 ●
132 WASHER; PL,WATER PUMP
ID=10.5 		0-91610-510-0 02 1 0606- ●

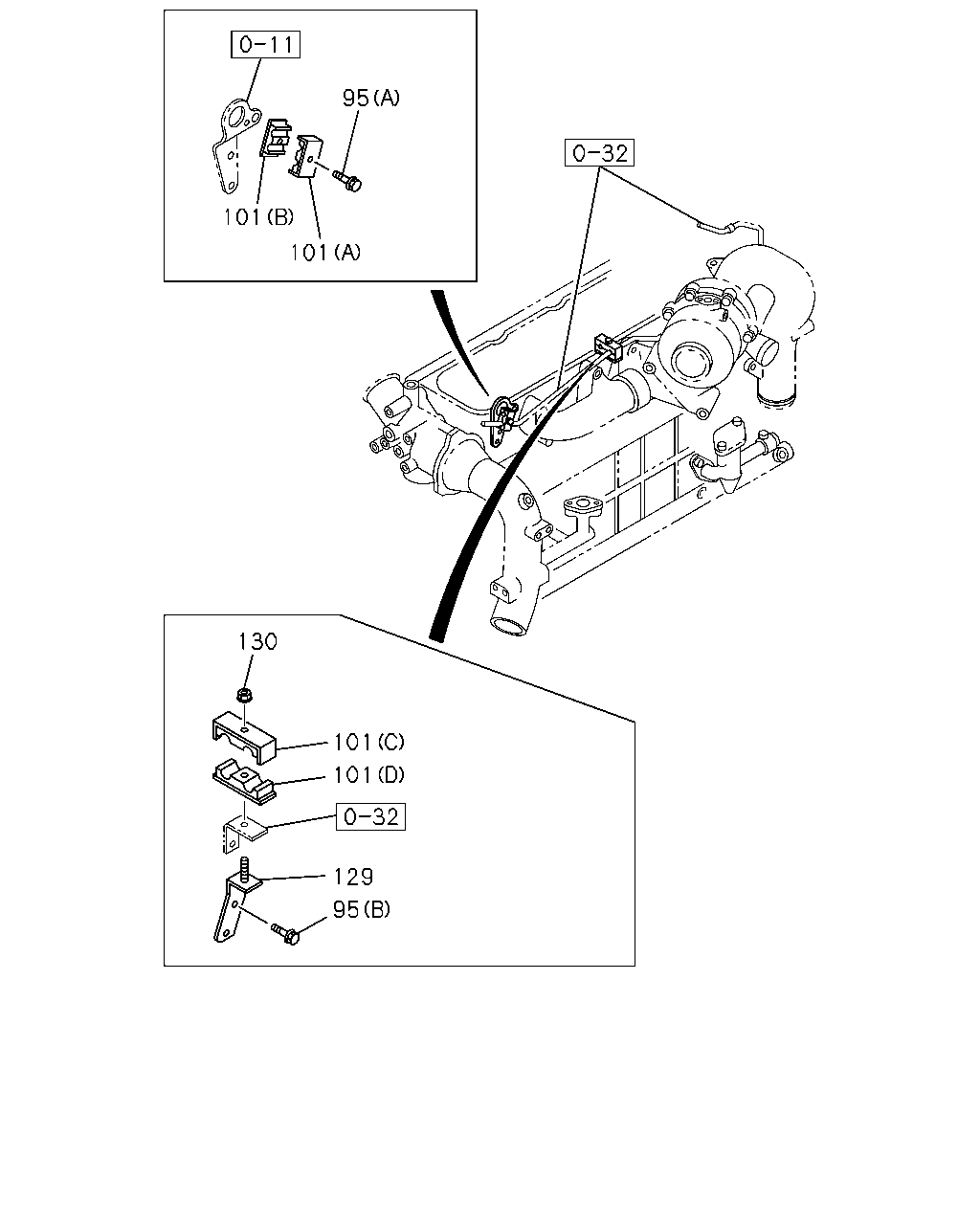

çizim 41466
95 101 101 130 101 101 129 95
BalonParca AdiParca NoAdetTipApplied Date A B C
95 BOLT; BRKT
(A) M6X35 FLANGE 		0-28080-635-0 01 1 9601-0004 ● ●
95 BOLT; BRKT
(A) M6X35 FLANGE 		0-28080-635-0 01 1 0005-0512 ●
95 BOLT; BRKT
(A) M6X35 FLANGE 		0-28050-635-0 01 1 0601- ●
95 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 02 1 9601-0004 ●
101 CLIP; WATER PIPE
(A) 		1-09701-172-1 01 1 9601-0004 ● ●
101 CLIP; WATER PIPE
(A) 		1-09701-172-3 01 1 0005- ●
101 CLIP; WATER PIPE
(B) 		1-09701-173-0 01 1 9601-0004 ● ●
101 CLIP; WATER PIPE
(B) 		1-09701-173-2 01 1 0005- ●
101 CLIP; WATER PIPE
(C) ID=7 & 11 L=28 		1-09701-230-0 01 1 9601-0004 ●
101 CLIP; WATER PIPE
(D) ID=7 & 11 L=28 		1-09701-231-0 01 1 9601-0004 ●
129 BRACKET; CLIP 1-13319-038-0 01 1 9601-0004 ●
130 NUT; CLIP
M6 FLANGE 		0-91150-106-0 01 1 9601-0004 ●

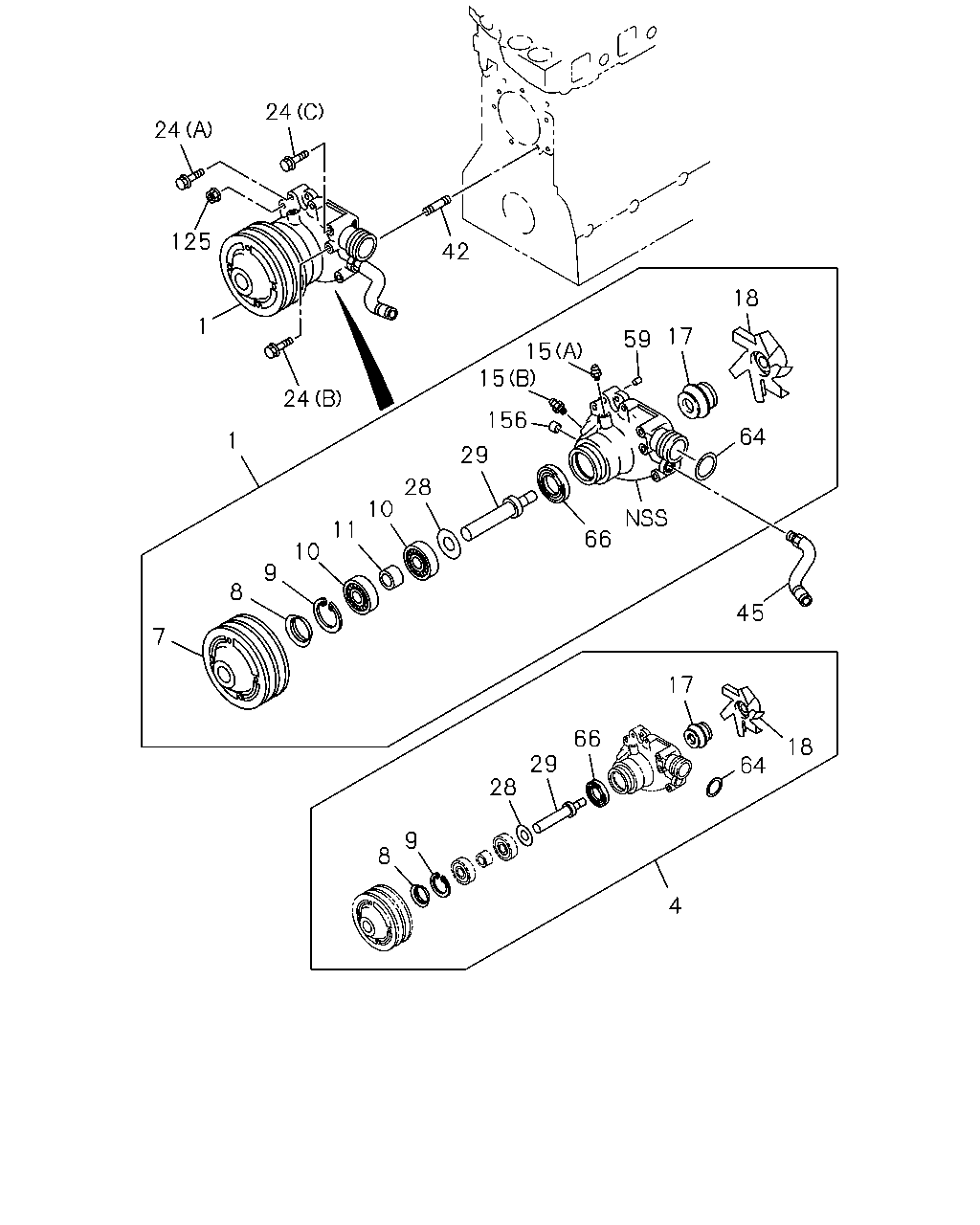

çizim 41581
18 17 59 15 15 156 29 28 10 11 10 9 8 7 1 24 1 125 24 24 42 64 66 18 45 17 64 66 29 28 9 8 4
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PUMP ASM; WATER,W/GASKET 1-13650-003-2 01 1 9601- ●
1 PUMP ASM; WATER,W/GASKET 1-13650-002-2 01 1 9601-0004 ●
1 PUMP ASM; WATER,W/GASKET 8-94395-657-6 01 1 9805-0301 ●
1 PUMP ASM; WATER,W/GASKET 8-97602-775-0 01 1 0302-0801 ●
1 PUMP ASM; WATER,W/GASKET 8-97627-357-1 01 1 0802-1208 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-842-0 01 1 1209-1312 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-916-0 01 1 1401-1405 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-988-0 01 1 1406- ●
4 REPAIR KIT; WATER PUMP 1-87811-181-0 01 1 9601-9807 ● ●
4 REPAIR KIT; WATER PUMP 1-87811-936-0 01 1 9808-9911 ● ●
4 REPAIR KIT; WATER PUMP 1-87812-019-0 01 1 9912-0004 ● ●
4 REPAIR KIT; WATER PUMP 1-87812-019-1 01 1 0005- ●
4 REPAIR KIT; WATER PUMP 1-87811-051-0 01 1 9805-9911 ●
4 REPAIR KIT; WATER PUMP 1-87812-027-1 01 1 9912-0801 ●
4 REPAIR KIT; WATER PUMP 1-87813-363-0 01 1 0802-1208 ●
4 REPAIR KIT; WATER PUMP 1-87813-948-0 01 1 1209-1312 ●
4 REPAIR KIT; WATER PUMP 1-87814-173-0 01 1 1401-1405 ●
4 REPAIR KIT; WATER PUMP 1-87814-613-0 01 1 1406- ●
7 PULLEY; WATER PUMP
2-GROOVE 		1-13641-173-0 01 1 9601- ●
7 PULLEY; WATER PUMP
2-GROOVE 		1-13641-174-0 01 1 9601-0004 ●
7 PULLEY; WATER PUMP
2-GROOVE 		8-94394-826-0 01 1 9805- ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 9805- ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 9601-9804 ● ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 9805-0004 ● ● ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 0005- ● ●
10 BEARING; WATER PUMP
(B) 		1-09800-155-0 02 1 9601-0004 ● ●
10 BEARING; WATER PUMP
(B) 		1-09800-155-0 02 1 0005- ●
10 BEARING; WATER PUMP
(A) 		1-09800-196-0 01 1 9601-0004 ● ●
10 BEARING; WATER PUMP
(A) 		1-09800-196-0 01 1 0005- ●
10 BEARING; WATER PUMP 1-09800-011-0 02 1 9805- ●
11 SPACER; BRG,WATER PUMP 1-13634-029-0 01 1 9601-0004 ● ●
11 SPACER; BRG,WATER PUMP 1-13634-029-0 01 1 0005- ●
11 SPACER; BRG,WATER PUMP 1-13634-025-0 01 1 9805- ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT 		1-09380-002-0 01 1 9805- ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9805-0512 ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
17 SEAL UNIT; WATER PUMP 8-98272-791-0 01 1 1406- ●
17 SEAL UNIT; WATER PUMP 8-98221-159-0 01 1 1209-1312 ●
17 SEAL UNIT; WATER PUMP 8-94395-036-0 01 1 9601-9804 ● ●
17 SEAL UNIT; WATER PUMP 8-94395-036-0 01 1 9805-9807 ● ● ●
17 SEAL UNIT; WATER PUMP 8-94395-036-0 01 1 9808-9912 ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 9808-9912 ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0001-0004 ● ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0005-1208 ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 1209-1312 ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 1401-1405 ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 1406- ●
18 IMPELLER; WATER PUMP 1-13621-052-0 01 1 9601-0004 ● ●
18 IMPELLER; WATER PUMP 1-13621-052-0 01 1 0005- ●
18 IMPELLER; WATER PUMP 8-94397-375-0 01 1 9805- ●
24 BOLT; WATER PUMP
(A) M10X70 		0-16806-070-0 02 1 9601-0004 ● ●
24 BOLT; WATER PUMP
(A) M10X70 		0-16806-070-0 02 1 0005-0512 ●
24 BOLT; WATER PUMP
(A) M10X70 		0-16856-070-0 02 1 0601- ●
24 BOLT; WATER PUMP
(B) M8X45 W/LK&PL WASHER 		0-50140-845-0 07 1 9601-0004 ● ●
24 BOLT; WATER PUMP
(B) M8X45 W/LK&PL WASHER 		0-50140-845-0 07 1 0005-0906 ●
24 BOLT; WATER PUMP
(B) M8X45 W/LK&PL WASHER 		0-50640-845-0 07 1 0907- ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28080-880-0 01 1 9805-0512 ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28050-880-0 01 1 0601- ●
24 BOLT; WATER PUMP
(A) M8X58 FLANGE 		8-94130-055-1 03 1 9805- ●
24 BOLT; WATER PUMP
(C) M10X85 FLANGE 		8-94397-359-1 01 1 9805- ●
28 WASHER; WATER PUMP
ID=25.5 OD=50 		8-94397-097-0 01 1 9805- ●
29 SHAFT; WATER PUMP 1-13631-079-0 01 1 9601-0004 ● ●
29 SHAFT; WATER PUMP 1-13631-079-0 01 1 0005- ●
29 SHAFT; WATER PUMP 8-94397-374-0 01 1 9805- ●
42 STUD; WATER PUMP
M8X30 L=46 		9-04010-830-0 01 1 9805-0604 ●
42 STUD; WATER PUMP
M8X30 L=46 		0-40110-830-0 01 1 0605- ●
45 JOINT; HTR HOSE,WATER PUMP
HEATER & DEFROSTER(C41) PT3/8 & OD=18.3 L=47 		9-09903-631-0 01 1 9708-0004 ●
45 JOINT; HTR HOSE,WATER PUMP
PT3/8 & OD=18.3 L=47 		9-09903-631-0 01 1 9708-0004 ●
45 JOINT; HTR HOSE,WATER PUMP
PT3/8 & OD=18.3 L=47 		9-09903-631-0 01 1 0005-0109 ●
45 JOINT; HTR HOSE,WATER PUMP
HEATER & DEFROSTER(C41) PT3/8 & OD=18.3 L=47 		9-09903-631-0 01 1 0110- ●
45 JOINT; HTR HOSE,WATER PUMP 8-94397-377-2 01 1 9805- ●
59 DOWEL; WATER PUMP 9-13119-022-0 02 1 9805-0801 ●
59 DOWEL; WATER PUMP
OD=12 L=9 		1-13119-003-0 02 1 0802- ●
64 GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7 		1-09623-383-0 01 1 9805- ●
66 SEAL; SECONDARY 1-09625-437-0 01 1 9805-0801 ●
66 SEAL; SECONDARY 8-98084-780-0 01 1 0802- ●
125 NUT; WATER PUMP
M8 FLANGE 		0-91150-108-0 04 1 9805-0602 ●
125 NUT; WATER PUMP
M8 FLANGE 		0-91180-108-0 04 1 0603- ●
156 CUP; SEALING
OD=25 		1-09600-016-0 01 1 0004- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
