0-28 — VENTILATION SYSTEM
(#63937) — 28 parça
Tümü
A - 6HH1 STD ENG
B - 6SD1 STD ENG
C - 6SD1 TCN ENG
◀

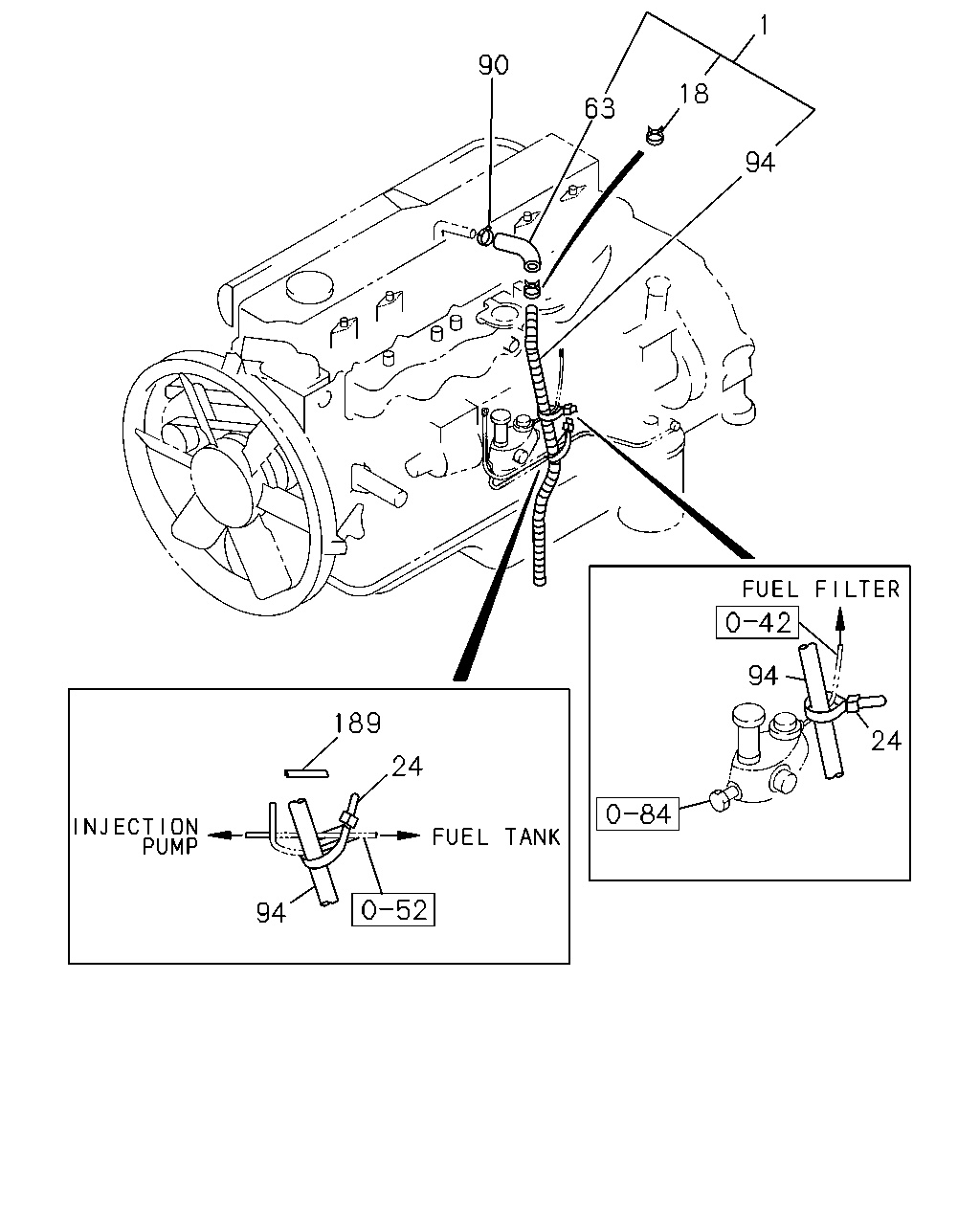

[028A] 6HH1 (11 parça)

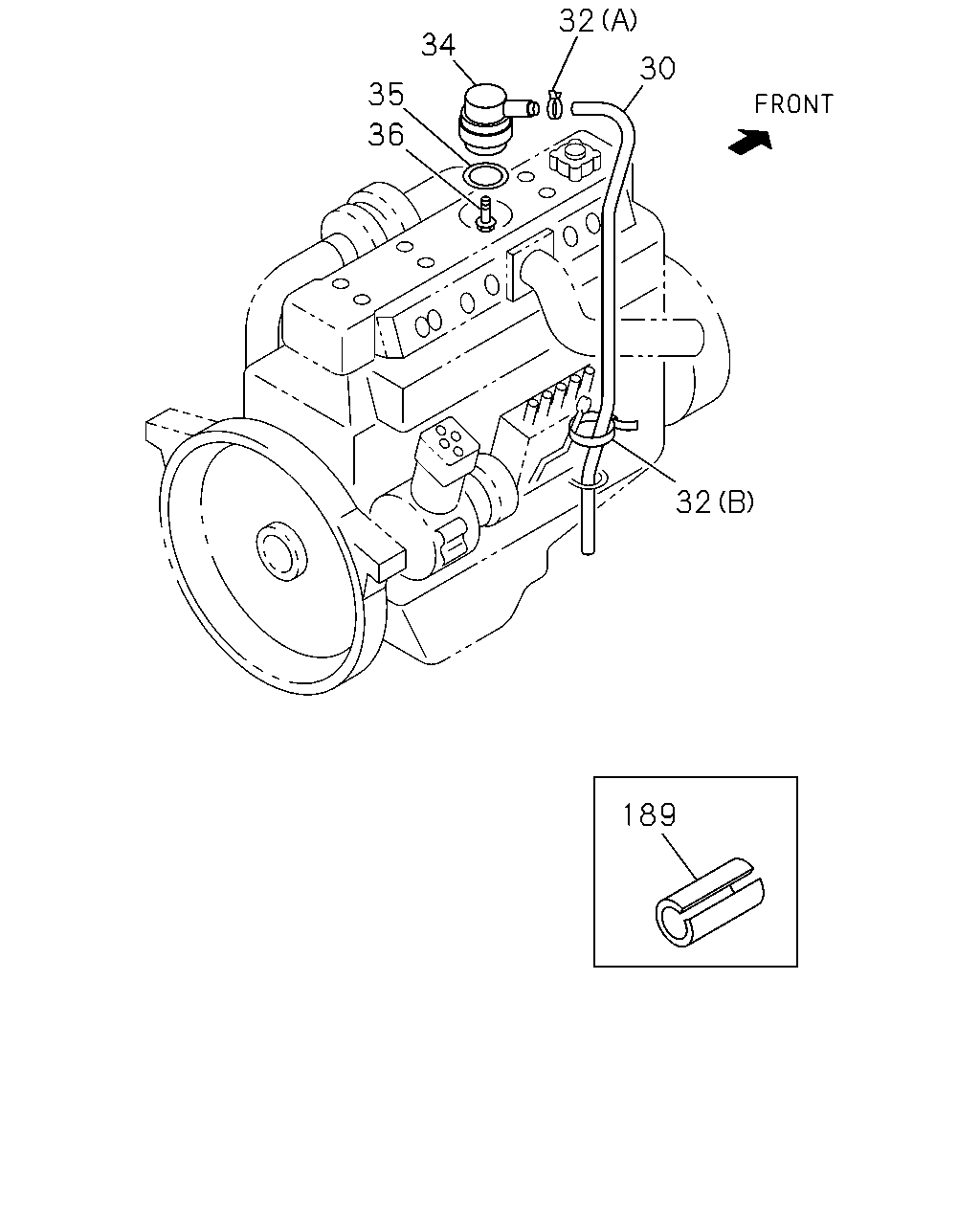

[028A] 6SD1 (17 parça)
▶
1
90
18
63
94
94
189
24
24
94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
BREATHER; AIR
8-94394-859-4
01
1
9805-
●
18
CLIP; RUBBER HOSE,AIR BREATHER
ID=33.6
8-94362-518-0
01
1
9805-
●
24
CLIP; RUBBER HOSE,VENTILATOR
L=250
5-09707-030-1
02
1
9805-1205
●
24
CLIP; RUBBER HOSE,VENTILATOR
L=250
8-98216-430-0
02
1
1206-
●
63
HOSE; RUBBER,AIR BREATHER
L=70
0-02828-070-0
01
1
0704-1005
●
63
HOSE; RUBBER,AIR BREATHER
L=70
0-02728-070-0
01
1
1006-
●
63
HOSE; RUBBER,AIR BREATHER
L=70
0-02728-070-0
01
1
9805-0703
●
90
CLIP; RUBBER HOSE
ID=33.6
8-94362-518-0
01
1
9805-
●
94
HOSE; BREATHER TO PIPE
L=1100
8-94394-785-1
01
1
9805-
●
189
SLEEVE; RUBBER
ID=10 OD=14 L=30
9-09956-682-0
02
1
0002-0106
●
189
SLEEVE; RUBBER
ID=10 OD=14 L=30
9-09956-682-0
02
1
0107-
●
●
32
34
30
35
36
32
189
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
30
HOSE; VENTILATOR,CYL HD COVER
1-09360-730-0
01
1
9601-0004
●
●
30
HOSE; VENTILATOR,CYL HD COVER
1-09360-730-1
01
1
0005-
●
32
CLIP; VENT HOSE
(A) ID=20
1-09707-084-1
01
1
9601-0004
●
●
32
CLIP; VENT HOSE
(A) ID=20
1-09707-084-1
01
1
0005-
●
32
CLIP; VENT HOSE
(B) L=140
5-09707-031-1
01
1
9601-0004
●
●
32
CLIP; VENT HOSE
(B) L=140
5-09707-031-1
01
1
0005-0106
●
32
CLIP; VENT HOSE
(B) L=140
5-09707-031-1
02
1
0107-1205
●
32
CLIP; VENT HOSE
(B) L=140
8-98216-431-0
02
1
1206-
●
34
VENTILATOR
1-11740-172-2
01
1
9601-0004
●
●
34
VENTILATOR
1-11740-172-2
01
1
0005-
●
35
GASKET; VENTILATOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-09623-209-0
01
1
9601-0004
●
●
35
GASKET; VENTILATOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-09623-209-0
01
1
0005-
●
36
BOLT; VENTILATOR
M10X25 W/LK WASHER
0-50051-025-0
01
1
9601-0004
●
●
36
BOLT; VENTILATOR
M10X25 W/LK WASHER
0-50051-025-0
01
1
0005-0906
●
36
BOLT; VENTILATOR
M10X25 W/LK WASHER
0-50551-025-0
01
1
0907-
●
189
SLEEVE; RUBBER
ID=10 OD=14 L=30
9-09956-682-0
02
1
0002-0106
●
189
SLEEVE; RUBBER
ID=10 OD=14 L=30
9-09956-682-0
02
1
0107-
●
●
