0-27 — EXHAUST MANIFOLD (#63936) — 135 parça

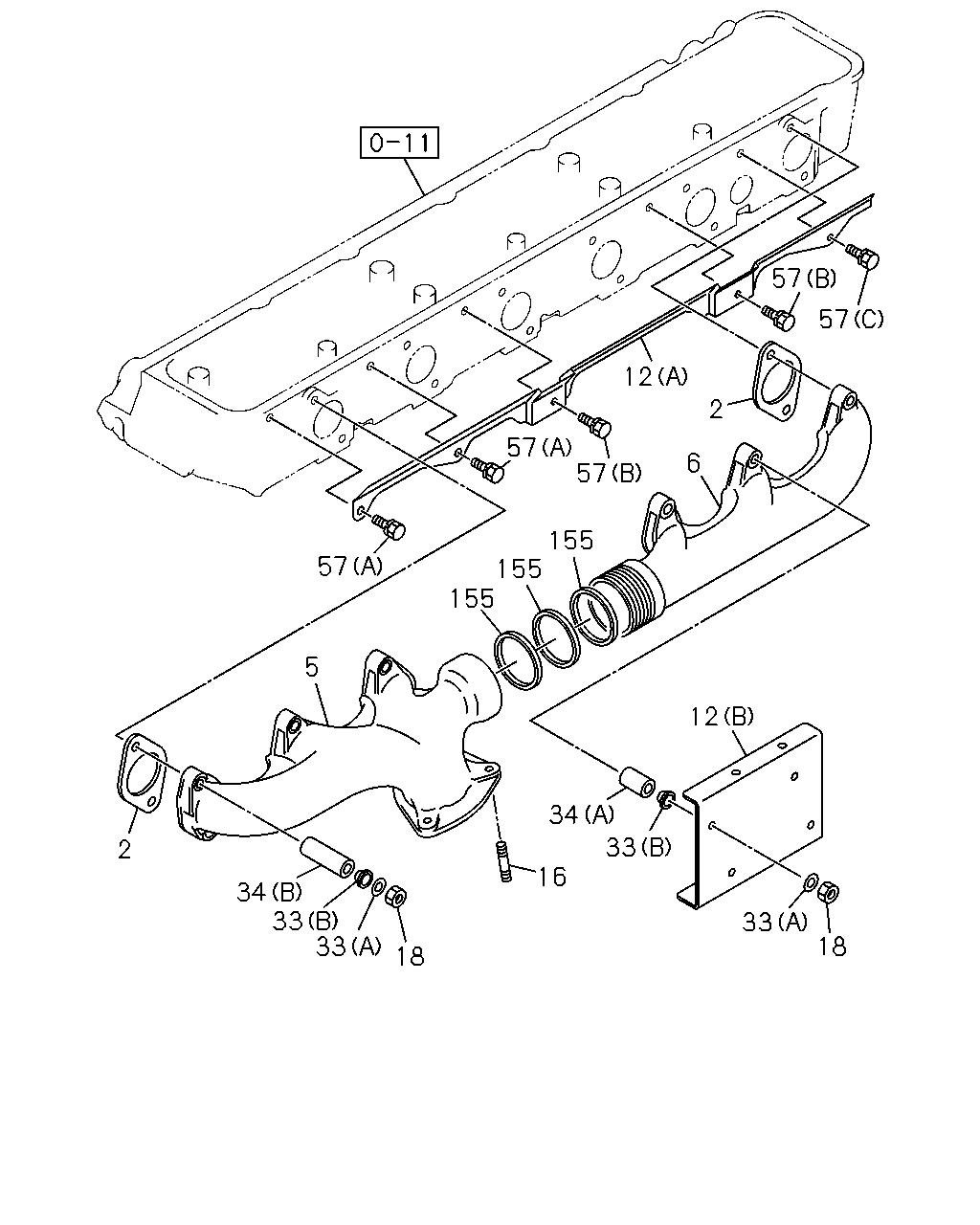

57 57 12 2 57 57 6 155 155 155 57 5 12 34 33 2 16 34 33 33 33 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-144-0	06	1	9601-0004	●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-144-1	06	1	0005-		●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-4	06	1	9805-			●
5	MANIFOLD; EXH,FRT	1-14141-784-0	01	1	9601-		●
5	MANIFOLD; EXH,FRT	8-94394-753-1	01	1	9805-			●
6	MANIFOLD; EXH,RR	1-14141-785-0	01	1	9601-		●
6	MANIFOLD; EXH,RR	8-94394-755-4	01	1	9805-			●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	1-14181-236-0	01	1	9601-		●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	1-14181-285-0	01	1	9601-		●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	1-14119-396-0	01	1	9601-0004	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	1-14181-234-0	01	1	9601-0004	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	8-94391-040-0	01	1	9805-9809			●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (C)	8-94392-947-0	01	1	9810-			●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	8-94395-204-0	01	1	9805-			●
16	STUD; EXH PIPE TO MANIF M12X100 L=120	8-94397-322-0	03	1	9601-		●
16	STUD; EXH PIPE TO MANIF M12X103 L=123	8-94394-656-0	03	1	9805-			●
18	NUT; EXH MANIF M10 FLANGE	0-91150-210-0	12	1	9601-9804	●	●
18	NUT; EXH MANIF M10 FLANGE	0-91150-210-0	12	1	9805-0004	●	●	●
18	NUT; EXH MANIF M10 FLANGE	0-91150-210-0	12	1	0005-0602		●	●
18	NUT; EXH MANIF M10 FLANGE	0-91180-210-0	12	1	0603-		●	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	06	1	9601-		●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	9601-9804	●	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	9805-0004	●	●	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	0005-		●	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	08	1	9601-0004	●
34	COLLAR; DIST,EXH MANIF (A) L=43	1-14149-048-1	06	1	9601-		●
34	COLLAR; DIST,EXH MANIF (B) L=83	1-14149-134-0	06	1	9601-		●
34	COLLAR; DIST,EXH MANIF (A) L=43	1-14149-048-1	08	1	9601-0004	●
34	COLLAR; DIST,EXH MANIF (B) L=83	1-14149-134-0	04	1	9601-0004	●
34	COLLAR; DIST,EXH MANIF L=28	8-94395-679-0	12	1	9805-0209			●
34	COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	12	1	0210-			●
57	BOLT; HEAT PROTECTOR,EXH MANIF (A) M8X14 W/LK WASHER	0-50040-814-0	02	1	9601-0805		●
57	BOLT; HEAT PROTECTOR,EXH MANIF (A) M8X14 W/LK WASHER	8-98038-400-0	02	1	0806-		●
57	BOLT; HEAT PROTECTOR,EXH MANIF (B) M8X20 W/LK WASHER	0-50040-820-0	02	1	9601-0906		●
57	BOLT; HEAT PROTECTOR,EXH MANIF M8X20 W/LK WASHER	0-50540-820-0	02	1	0907-		●
57	BOLT; HEAT PROTECTOR,EXH MANIF (C) M10X16 W/LK WASHER	1-09033-012-0	01	1	9601-		●
57	BOLT; HEAT PROTECTOR,EXH MANIF (A) M8X12 FLANGE	0-28080-812-0	01	1	9601-0004	●
57	BOLT; HEAT PROTECTOR,EXH MANIF (A) M8X12 FLANGE	0-28080-812-0	02	1	9805-0512			●
57	BOLT; HEAT PROTECTOR,EXH MANIF (A) M8X12 FLANGE	0-28050-812-0	02	1	0601-			●
57	BOLT; HEAT PROTECTOR,EXH MANIF (B) M8X14 FLANGE	8-94312-699-1	05	1	9805-0408			●
57	BOLT; HEAT PROTECTOR,EXH MANIF (B) M8X14 FLANGE	8-97378-075-0	05	1	0409-			●
155	RING; SEAL,EXH MANIF STAMP RH	1-14149-151-0	03	1	9601-		●
155	RING; SEAL,EXH MANIF STAMP RH	1-14149-151-0	06	1	9601-0004	●
155	RING; SEAL,EXH MANIF (A) STAMP RH	1-14149-151-0	01	1	9805-			●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	9805-			●

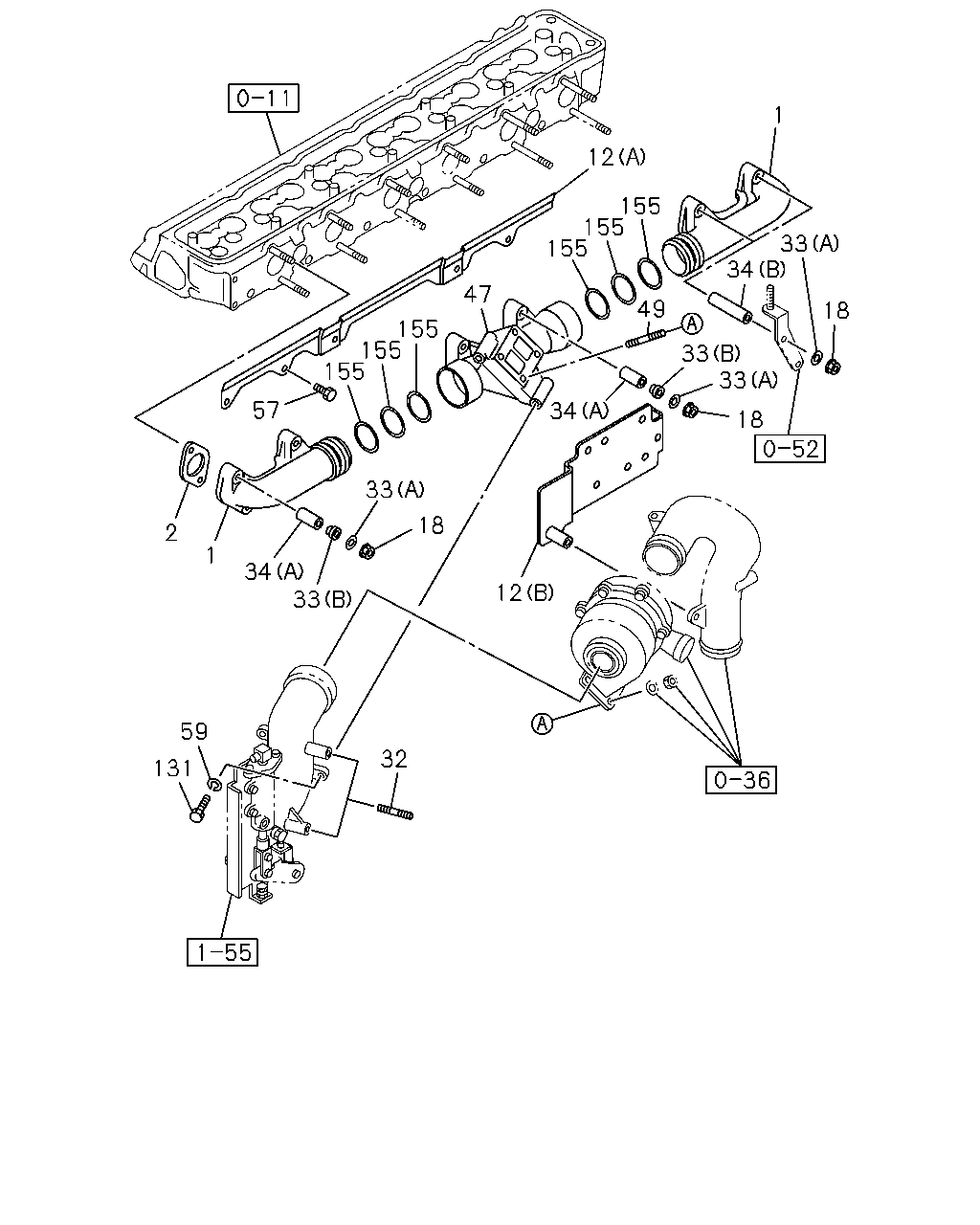

1 12 155 155 155 33 34 47 49 18 155 155 155 33 33 34 57 18 33 18 2 1 34 33 12 59 32 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	MANIFOLD; EXHAUST	1-14141-685-4	02	1	9601-0004	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-144-0	06	1	9601-0004	●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-144-1	06	1	0005-		●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-4	06	1	9805-			●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	1-14181-236-0	01	1	9601-		●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	1-14181-285-0	01	1	9601-		●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	1-14119-396-0	01	1	9601-0004	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	1-14181-234-0	01	1	9601-0004	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	8-94391-040-0	01	1	9805-9809			●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (C)	8-94392-947-0	01	1	9810-			●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	8-94395-204-0	01	1	9805-			●
18	NUT; EXH MANIF M10 FLANGE	0-91150-210-0	12	1	9601-9804	●	●
18	NUT; EXH MANIF M10 FLANGE	0-91150-210-0	12	1	9805-0004	●	●	●
18	NUT; EXH MANIF M10 FLANGE	0-91150-210-0	12	1	0005-0602		●	●
18	NUT; EXH MANIF M10 FLANGE	0-91180-210-0	12	1	0603-		●	●
32	STUD; EXH PIPE M10X60 L=75	9-04411-060-0	02	1	9601-0004	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	06	1	9601-		●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	9601-9804	●	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	9805-0004	●	●	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	0005-		●	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	08	1	9601-0004	●
34	COLLAR; DIST,EXH MANIF (A) L=43	1-14149-048-1	06	1	9601-		●
34	COLLAR; DIST,EXH MANIF (B) L=83	1-14149-134-0	06	1	9601-		●
34	COLLAR; DIST,EXH MANIF (A) L=43	1-14149-048-1	08	1	9601-0004	●
34	COLLAR; DIST,EXH MANIF (B) L=83	1-14149-134-0	04	1	9601-0004	●
34	COLLAR; DIST,EXH MANIF L=28	8-94395-679-0	12	1	9805-0209			●
34	COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	12	1	0210-			●
47	MANIFOLD; EXH,CENTER	1-14141-880-0	01	1	9601-0004	●
49	STUD; CENTER MANIF TO TURBOCHARGER M10X25 L=40	9-04731-025-0	03	1	9601-0004	●
57	BOLT; HEAT PROTECTOR,EXH MANIF (A) M8X14 W/LK WASHER	0-50040-814-0	02	1	9601-0805		●
57	BOLT; HEAT PROTECTOR,EXH MANIF (A) M8X14 W/LK WASHER	8-98038-400-0	02	1	0806-		●
57	BOLT; HEAT PROTECTOR,EXH MANIF (B) M8X20 W/LK WASHER	0-50040-820-0	02	1	9601-0906		●
57	BOLT; HEAT PROTECTOR,EXH MANIF M8X20 W/LK WASHER	0-50540-820-0	02	1	0907-		●
57	BOLT; HEAT PROTECTOR,EXH MANIF (C) M10X16 W/LK WASHER	1-09033-012-0	01	1	9601-		●
57	BOLT; HEAT PROTECTOR,EXH MANIF (A) M8X12 FLANGE	0-28080-812-0	01	1	9601-0004	●
57	BOLT; HEAT PROTECTOR,EXH MANIF (A) M8X12 FLANGE	0-28080-812-0	02	1	9805-0512			●
57	BOLT; HEAT PROTECTOR,EXH MANIF (A) M8X12 FLANGE	0-28050-812-0	02	1	0601-			●
57	BOLT; HEAT PROTECTOR,EXH MANIF (B) M8X14 FLANGE	8-94312-699-1	05	1	9805-0408			●
57	BOLT; HEAT PROTECTOR,EXH MANIF (B) M8X14 FLANGE	8-97378-075-0	05	1	0409-			●
59	WASHER; LK,EXH PIPE ID=10	1-09503-033-1	02	1	9601-0004	●
131	BOLT; MTG	9-09804-206-0	02	1	9601-0004	●
155	RING; SEAL,EXH MANIF STAMP RH	1-14149-151-0	03	1	9601-		●
155	RING; SEAL,EXH MANIF STAMP RH	1-14149-151-0	06	1	9601-0004	●
155	RING; SEAL,EXH MANIF (A) STAMP RH	1-14149-151-0	01	1	9805-			●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	9805-			●

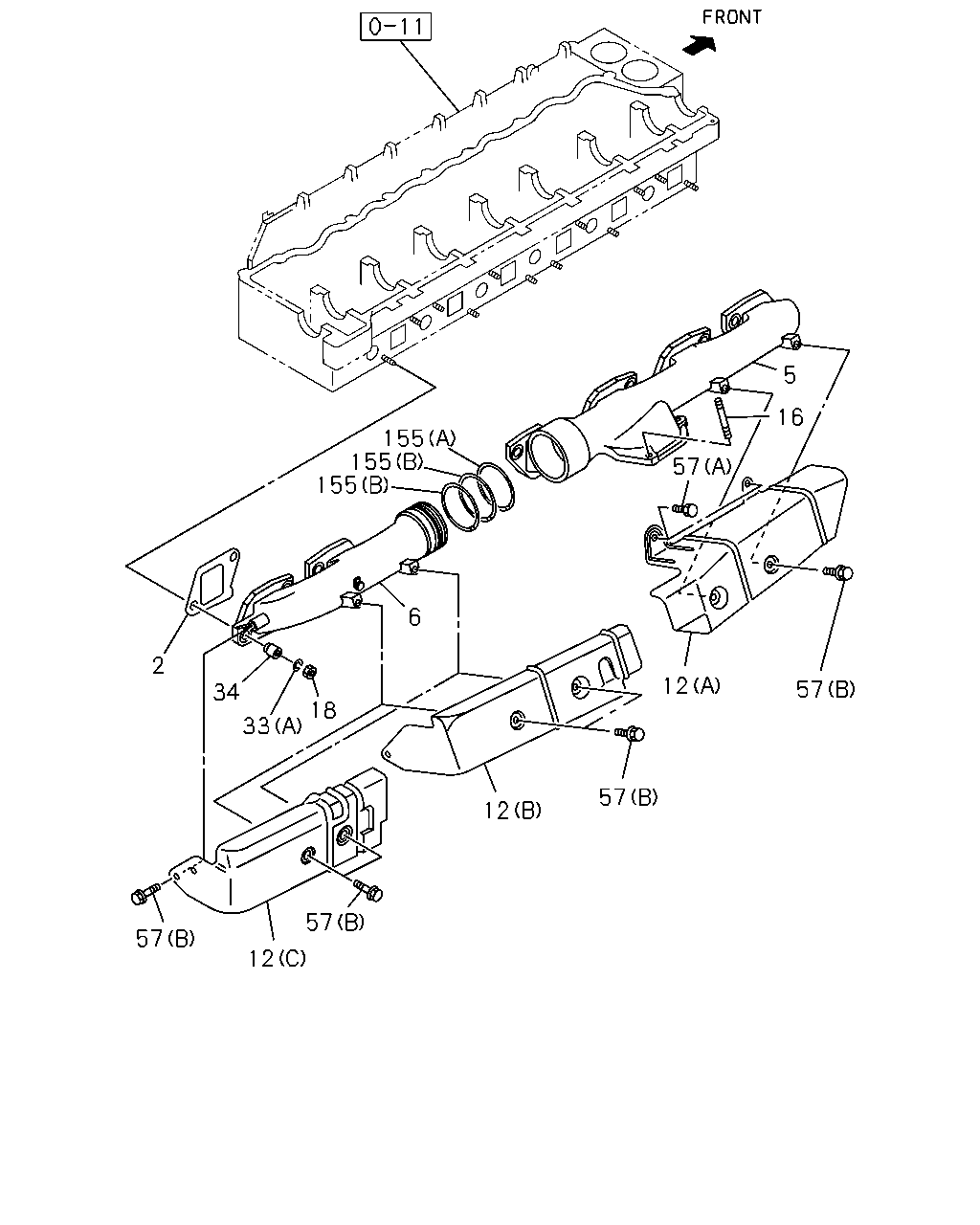

5 16 155 155 155 57 6 2 12 57 34 18 33 57 12 57 57 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-144-0	06	1	9601-0004	●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-144-1	06	1	0005-		●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-4	06	1	9805-			●
5	MANIFOLD; EXH,FRT	1-14141-784-0	01	1	9601-		●
5	MANIFOLD; EXH,FRT	8-94394-753-1	01	1	9805-			●
6	MANIFOLD; EXH,RR	1-14141-785-0	01	1	9601-		●
6	MANIFOLD; EXH,RR	8-94394-755-4	01	1	9805-			●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	1-14181-236-0	01	1	9601-		●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	1-14181-285-0	01	1	9601-		●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	1-14119-396-0	01	1	9601-0004	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	1-14181-234-0	01	1	9601-0004	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	8-94391-040-0	01	1	9805-9809			●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (C)	8-94392-947-0	01	1	9810-			●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	8-94395-204-0	01	1	9805-			●
16	STUD; EXH PIPE TO MANIF M12X100 L=120	8-94397-322-0	03	1	9601-		●
16	STUD; EXH PIPE TO MANIF M12X103 L=123	8-94394-656-0	03	1	9805-			●
18	NUT; EXH MANIF M10 FLANGE	0-91150-210-0	12	1	9601-9804	●	●
18	NUT; EXH MANIF M10 FLANGE	0-91150-210-0	12	1	9805-0004	●	●	●
18	NUT; EXH MANIF M10 FLANGE	0-91150-210-0	12	1	0005-0602		●	●
18	NUT; EXH MANIF M10 FLANGE	0-91180-210-0	12	1	0603-		●	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	06	1	9601-		●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	9601-9804	●	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	9805-0004	●	●	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	0005-		●	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	08	1	9601-0004	●
34	COLLAR; DIST,EXH MANIF (A) L=43	1-14149-048-1	06	1	9601-		●
34	COLLAR; DIST,EXH MANIF (B) L=83	1-14149-134-0	06	1	9601-		●
34	COLLAR; DIST,EXH MANIF (A) L=43	1-14149-048-1	08	1	9601-0004	●
34	COLLAR; DIST,EXH MANIF (B) L=83	1-14149-134-0	04	1	9601-0004	●
34	COLLAR; DIST,EXH MANIF L=28	8-94395-679-0	12	1	9805-0209			●
34	COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	12	1	0210-			●
57	BOLT; HEAT PROTECTOR,EXH MANIF (A) M8X14 W/LK WASHER	0-50040-814-0	02	1	9601-0805		●
57	BOLT; HEAT PROTECTOR,EXH MANIF (A) M8X14 W/LK WASHER	8-98038-400-0	02	1	0806-		●
57	BOLT; HEAT PROTECTOR,EXH MANIF (B) M8X20 W/LK WASHER	0-50040-820-0	02	1	9601-0906		●
57	BOLT; HEAT PROTECTOR,EXH MANIF M8X20 W/LK WASHER	0-50540-820-0	02	1	0907-		●
57	BOLT; HEAT PROTECTOR,EXH MANIF (C) M10X16 W/LK WASHER	1-09033-012-0	01	1	9601-		●
57	BOLT; HEAT PROTECTOR,EXH MANIF (A) M8X12 FLANGE	0-28080-812-0	01	1	9601-0004	●
57	BOLT; HEAT PROTECTOR,EXH MANIF (A) M8X12 FLANGE	0-28080-812-0	02	1	9805-0512			●
57	BOLT; HEAT PROTECTOR,EXH MANIF (A) M8X12 FLANGE	0-28050-812-0	02	1	0601-			●
57	BOLT; HEAT PROTECTOR,EXH MANIF (B) M8X14 FLANGE	8-94312-699-1	05	1	9805-0408			●
57	BOLT; HEAT PROTECTOR,EXH MANIF (B) M8X14 FLANGE	8-97378-075-0	05	1	0409-			●
155	RING; SEAL,EXH MANIF STAMP RH	1-14149-151-0	03	1	9601-		●
155	RING; SEAL,EXH MANIF STAMP RH	1-14149-151-0	06	1	9601-0004	●
155	RING; SEAL,EXH MANIF (A) STAMP RH	1-14149-151-0	01	1	9805-			●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	9805-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
