0-25 — INLET MANIFOLD (#63935) — 135 parça

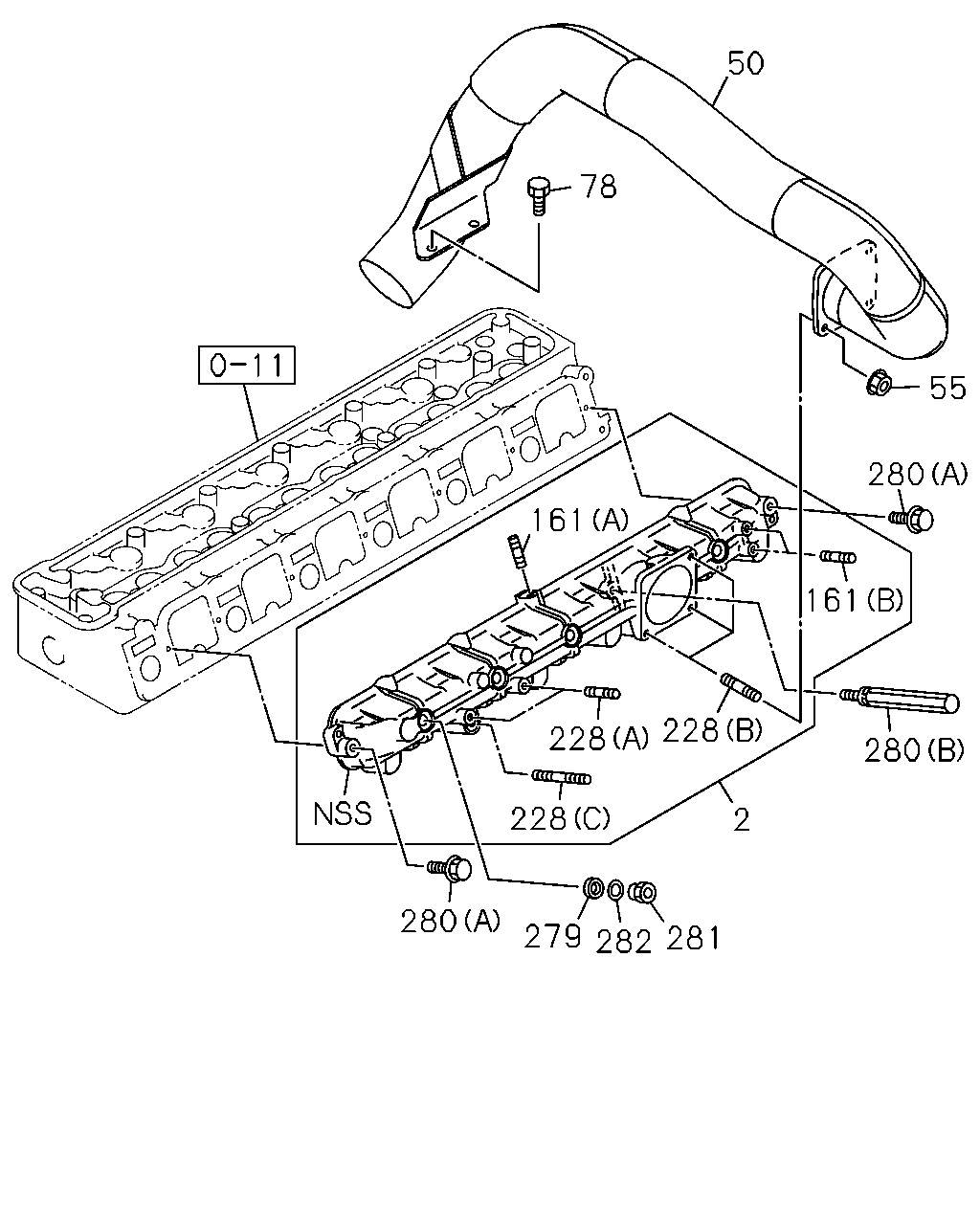

50 78 55 280 161 161 228 228 280 228 2 280 279 282 281

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	COVER; INL	1-14110-528-2	01	1	9601-9601	●
2	COVER; INL	1-14110-553-1	01	1	9602-0101	●
2	COVER; INL	1-14110-604-0	01	1	0102-	●
2	COVER; INL	1-14110-527-1	01	1	9601-9601		●
2	COVER; INL	1-14110-552-1	01	1	9602-0004		●
2	COVER; INL	8-94395-899-1	01	1	9805-			●
50	PIPE; INL	1-14134-197-0	01	1	9601-	●
55	NUT; INL PIPE M8 FLANGE	0-91150-108-0	03	1	9601-0602	●
55	NUT; INL PIPE M8 FLANGE	0-91180-108-0	03	1	0603-	●
55	NUT; INL PIPE (A) M8 FLANGE	0-91150-108-0	07	1	9601-0004		●
55	NUT; INL PIPE (B) M10 FLANGE	0-91150-110-0	02	1	9601-0004		●
55	NUT; INL PIPE M8 FLANGE	0-91150-108-0	05	1	9805-0602			●
55	NUT; INL PIPE M8 FLANGE	0-91180-108-0	05	1	0603-			●
78	BOLT; INL PIPE TO INL MANIF M10X20 FLANGE	0-28081-020-0	02	1	9601-0512	●
78	BOLT; INL PIPE TO INL MANIF M10X20 FLANGE	0-28051-020-0	02	1	0601-	●
161	STUD; BRKT,INJ PUMP (A) M8X12 L=24	9-04110-812-0	01	1	9601-0604	●
161	STUD; BRKT,INJ PUMP (A) M8X12 L=24	0-41010-812-0	01	1	0605-	●
161	STUD; BRKT,INJ PUMP (B) M8X16 L=28	9-04110-816-0	02	1	9601-9605	●	●
161	STUD; BRKT,INJ PUMP (B) M8X20 L=32	9-04110-820-0	02	1	9606-0004	●	●
161	STUD; BRKT,INJ PUMP (B) M8X20 L=32	9-04110-820-0	02	1	0005-0604	●
161	STUD; BRKT,INJ PUMP (B) M8X20 L=32	0-41010-820-0	02	1	0605-	●
228	STUD; INL COVER (B) M8X25 L=37	9-04110-825-0	03	1	9601-0604	●
228	STUD; INL COVER (B) M8X25 L=37	0-41010-825-0	03	1	0605-	●
228	STUD; INL COVER (A) M8X20 L=32	9-04110-820-0	02	1	9601-0004	●	●
228	STUD; INL COVER (A) M8X20 L=32	9-04110-820-0	02	1	0005-0604	●
228	STUD; INL COVER (A) M8X20 L=32	0-41010-820-0	02	1	0605-	●
228	STUD; INL COVER (C) M8X60 L=72	9-04110-860-0	01	1	9601-0004	●	●
228	STUD; INL COVER (C) M8X60 L=72	9-04110-860-0	01	1	0005-0604	●
228	STUD; INL COVER (C) M8X60 L=72	0-41010-860-0	01	1	0605-	●
228	STUD; INL COVER (B) M8X25 L=37	9-04110-825-0	04	1	9601-0004		●
279	GASKET; FIX NUT,INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-046-0	04	1	9601-0004	●	●
279	GASKET; FIX NUT,INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-046-0	04	1	0005-	●
280	BOLT; INL COVER (A) M8X45 FLANGE	0-28080-845-0	02	1	9601-0004	●	●
280	BOLT; INL COVER (A) M8X45 FLANGE	0-28080-845-0	02	1	0005-0512	●
280	BOLT; INL COVER (A) M8X45 FLANGE	0-28050-845-0	02	1	0601-	●
280	BOLT; INL COVER (B) M8X28.5	1-09009-125-1	01	1	9601-0004	●	●
280	BOLT; INL COVER (B) M8X28.5	1-09009-125-1	01	1	0005-	●
280	BOLT; INL COVER M8X28 FLANGE	0-28080-828-0	12	1	9805-			●
281	NUT; INL COVER	1-11175-011-1	04	1	9601-0004	●	●
281	NUT; INL COVER	1-11175-011-1	04	1	0005-	●
282	WASHER; PL,INL CVR FIX ID=12.5	1-09503-186-0	04	1	9601-0004	●	●
282	WASHER; PL,INL CVR FIX ID=12.5	1-09503-186-0	04	1	0005-	●

2 228 161 228 18 221 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	COVER; INL	1-14110-528-2	01	1	9601-9601	●
2	COVER; INL	1-14110-553-1	01	1	9602-0101	●
2	COVER; INL	1-14110-604-0	01	1	0102-	●
2	COVER; INL	1-14110-527-1	01	1	9601-9601		●
2	COVER; INL	1-14110-552-1	01	1	9602-0004		●
2	COVER; INL	8-94395-899-1	01	1	9805-			●
18	SCREW; PLATE,INL CVR	1-09054-019-0	08	1	9601-0004		●
161	STUD; BRKT,INJ PUMP (A) M8X12 L=24	9-04110-812-0	01	1	9601-0604	●
161	STUD; BRKT,INJ PUMP (A) M8X12 L=24	0-41010-812-0	01	1	0605-	●
161	STUD; BRKT,INJ PUMP (B) M8X16 L=28	9-04110-816-0	02	1	9601-9605	●	●
161	STUD; BRKT,INJ PUMP (B) M8X20 L=32	9-04110-820-0	02	1	9606-0004	●	●
161	STUD; BRKT,INJ PUMP (B) M8X20 L=32	9-04110-820-0	02	1	0005-0604	●
161	STUD; BRKT,INJ PUMP (B) M8X20 L=32	0-41010-820-0	02	1	0605-	●
221	PLATE; INL COVER	1-14119-261-0	04	1	9601-0004		●
228	STUD; INL COVER (B) M8X25 L=37	9-04110-825-0	03	1	9601-0604	●
228	STUD; INL COVER (B) M8X25 L=37	0-41010-825-0	03	1	0605-	●
228	STUD; INL COVER (A) M8X20 L=32	9-04110-820-0	02	1	9601-0004	●	●
228	STUD; INL COVER (A) M8X20 L=32	9-04110-820-0	02	1	0005-0604	●
228	STUD; INL COVER (A) M8X20 L=32	0-41010-820-0	02	1	0605-	●
228	STUD; INL COVER (C) M8X60 L=72	9-04110-860-0	01	1	9601-0004	●	●
228	STUD; INL COVER (C) M8X60 L=72	9-04110-860-0	01	1	0005-0604	●
228	STUD; INL COVER (C) M8X60 L=72	0-41010-860-0	01	1	0605-	●
228	STUD; INL COVER (B) M8X25 L=37	9-04110-825-0	04	1	9601-0004		●

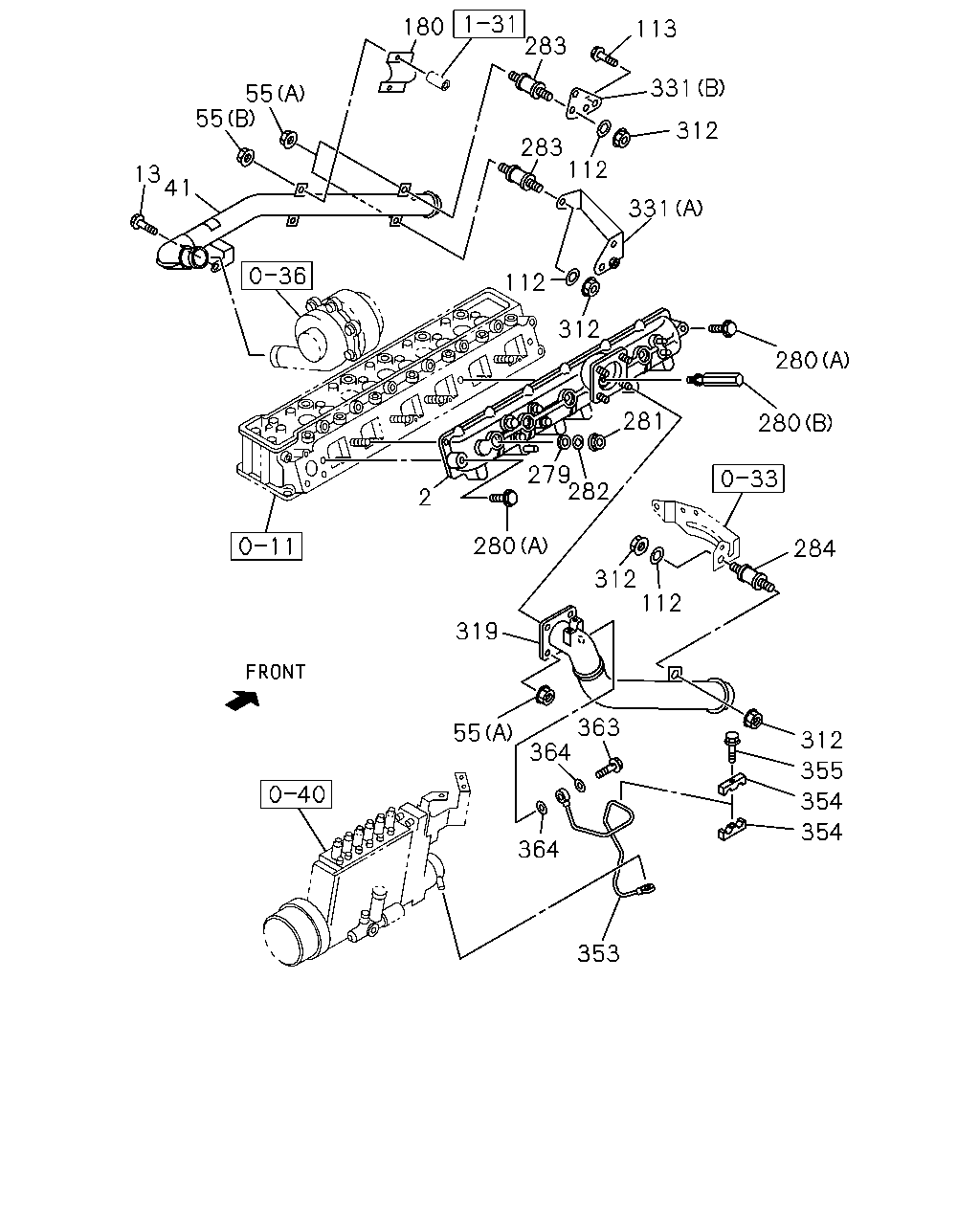

283 180 113 331 55 55 312 283 112 13 41 331 112 312 280 281 280 279 282 2 280 284 312 112 319 363 364 55 312 355 354 354 364 353

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	COVER; INL	1-14110-528-2	01	1	9601-9601	●
2	COVER; INL	1-14110-553-1	01	1	9602-0101	●
2	COVER; INL	1-14110-604-0	01	1	0102-	●
2	COVER; INL	1-14110-527-1	01	1	9601-9601		●
2	COVER; INL	1-14110-552-1	01	1	9602-0004		●
2	COVER; INL	8-94395-899-1	01	1	9805-			●
13	BOLT; INL MANIF M10X85 FLANGE	8-97020-251-0	01	1	9601-0004		●
41	DUCT; INT COVER	1-14134-146-2	01	1	9601-0004		●
55	NUT; INL PIPE M8 FLANGE	0-91150-108-0	03	1	9601-0602	●
55	NUT; INL PIPE M8 FLANGE	0-91180-108-0	03	1	0603-	●
55	NUT; INL PIPE (A) M8 FLANGE	0-91150-108-0	07	1	9601-0004		●
55	NUT; INL PIPE (B) M10 FLANGE	0-91150-110-0	02	1	9601-0004		●
55	NUT; INL PIPE M8 FLANGE	0-91150-108-0	05	1	9805-0602			●
55	NUT; INL PIPE M8 FLANGE	0-91180-108-0	05	1	0603-			●
112	WASHER; PL ID=8.4 OD=26	9-09164-808-0	03	1	9607-0004		●
113	BOLT; STAY M8X16 FLANGE	0-28080-816-0	02	1	9601-0004		●
180	PROTECTOR; HEAT	1-14181-286-0	01	1	9601-0004		●
279	GASKET; FIX NUT,INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-046-0	04	1	9601-0004	●	●
279	GASKET; FIX NUT,INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-046-0	04	1	0005-	●
280	BOLT; INL COVER (A) M8X45 FLANGE	0-28080-845-0	02	1	9601-0004	●	●
280	BOLT; INL COVER (A) M8X45 FLANGE	0-28080-845-0	02	1	0005-0512	●
280	BOLT; INL COVER (A) M8X45 FLANGE	0-28050-845-0	02	1	0601-	●
280	BOLT; INL COVER (B) M8X28.5	1-09009-125-1	01	1	9601-0004	●	●
280	BOLT; INL COVER (B) M8X28.5	1-09009-125-1	01	1	0005-	●
280	BOLT; INL COVER M8X28 FLANGE	0-28080-828-0	12	1	9805-			●
281	NUT; INL COVER	1-11175-011-1	04	1	9601-0004	●	●
281	NUT; INL COVER	1-11175-011-1	04	1	0005-	●
282	WASHER; PL,INL CVR FIX ID=12.5	1-09503-186-0	04	1	9601-0004	●	●
282	WASHER; PL,INL CVR FIX ID=12.5	1-09503-186-0	04	1	0005-	●
283	RUBBER	8-94394-268-1	02	1	9601-0004		●
284	RUBBER; INL PIPE MTG	8-94394-268-1	01	1	9601-0004		●
312	NUT; MTG RUBBER M8 FLANGE	0-91150-108-0	03	1	9601-0004		●
319	DUCT; INL,TURBOCHARGER	1-14134-168-2	01	1	9601-9701		●
319	DUCT; INL,TURBOCHARGER	1-14134-238-1	01	1	9702-0004		●
331	STAY; INL DUCT (A)	1-13719-088-0	01	1	9601-0004		●
331	STAY; INL DUCT (B)	1-14119-389-0	01	1	9601-0004		●
353	PIPE; AIR,BOOST SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-19192-980-0	01	1	9601-0004		●
353	PIPE; AIR,BOOST EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-19192-953-0	01	1	9601-0004		●
354	CLIP; AIR PIPE	1-09701-132-0	02	1	9601-0004		●
355	BOLT; CLIP,AIR PIPE M6X35 FLANGE	0-28080-635-0	01	1	9601-0004		●
363	BOLT; EYE	1-09675-184-0	01	1	9601-0004		●
364	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	02	1	9601-0004		●

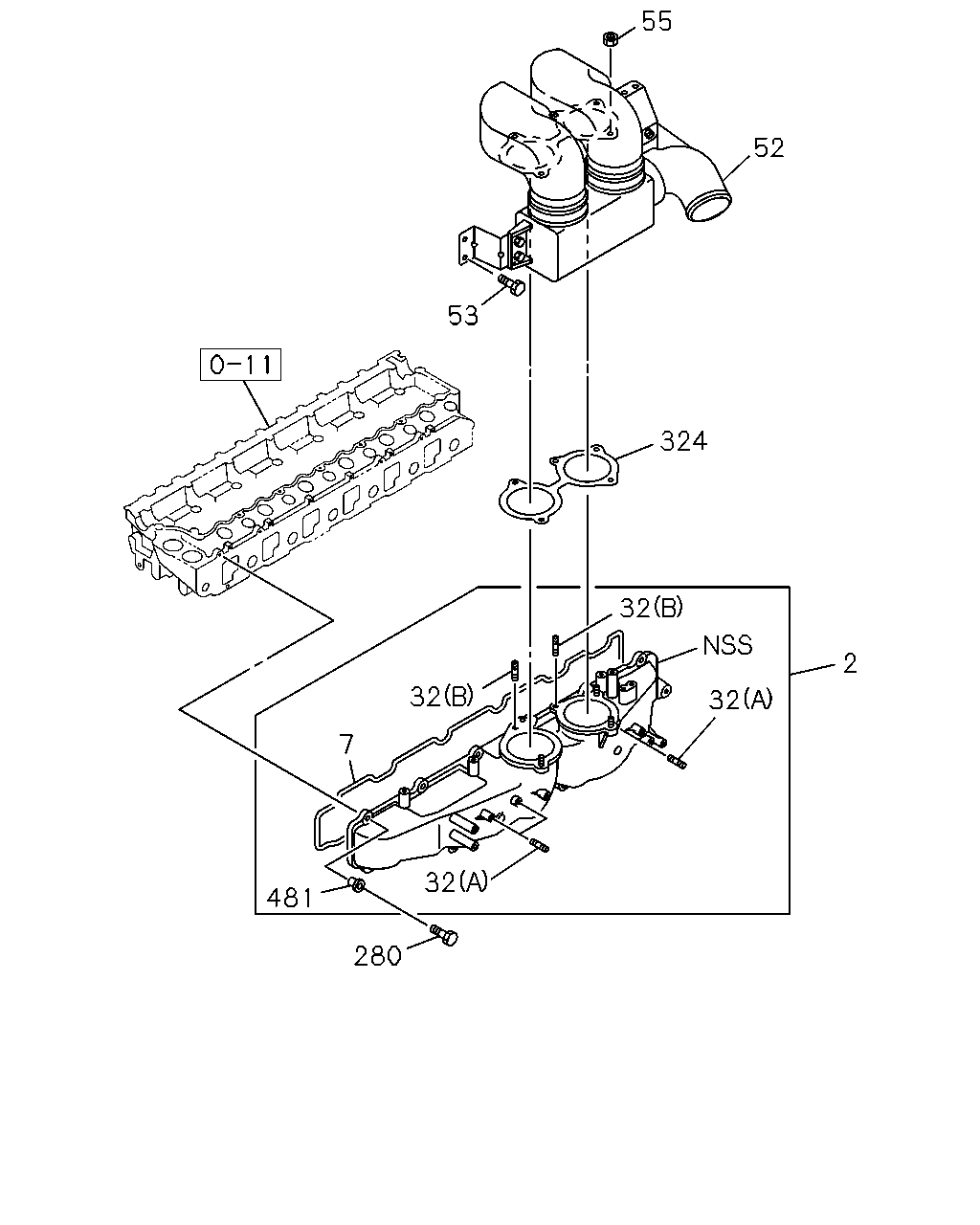

55 52 53 324 32 2 32 32 7 32 481 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	COVER; INL	1-14110-528-2	01	1	9601-9601	●
2	COVER; INL	1-14110-553-1	01	1	9602-0101	●
2	COVER; INL	1-14110-604-0	01	1	0102-	●
2	COVER; INL	1-14110-527-1	01	1	9601-9601		●
2	COVER; INL	1-14110-552-1	01	1	9602-0004		●
2	COVER; INL	8-94395-899-1	01	1	9805-			●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94397-039-1	01	1	9805-			●
32	STUD; INL PIPE (A) M6X25 L=34	9-04110-625-0	04	1	9805-0604			●
32	STUD; INL PIPE (A) M6X25 L=34	0-41010-625-0	04	1	0605-			●
32	STUD; INL PIPE (B) M8X20 L=32	9-04110-820-0	05	1	9805-0604			●
32	STUD; INL PIPE (B) M8X20 L=32	0-41010-820-0	05	1	0605-			●
52	PIPE; INL	8-94395-597-1	01	1	9805-			●
53	BOLT; INL PIPE M8X12 FLANGE	0-28080-812-0	04	1	9805-0512			●
53	BOLT; INL PIPE M8X12 FLANGE	0-28050-812-0	04	1	0601-			●
55	NUT; INL PIPE M8 FLANGE	0-91150-108-0	03	1	9601-0602	●
55	NUT; INL PIPE M8 FLANGE	0-91180-108-0	03	1	0603-	●
55	NUT; INL PIPE (A) M8 FLANGE	0-91150-108-0	07	1	9601-0004		●
55	NUT; INL PIPE (B) M10 FLANGE	0-91150-110-0	02	1	9601-0004		●
55	NUT; INL PIPE M8 FLANGE	0-91150-108-0	05	1	9805-0602			●
55	NUT; INL PIPE M8 FLANGE	0-91180-108-0	05	1	0603-			●
280	BOLT; INL COVER (A) M8X45 FLANGE	0-28080-845-0	02	1	9601-0004	●	●
280	BOLT; INL COVER (A) M8X45 FLANGE	0-28080-845-0	02	1	0005-0512	●
280	BOLT; INL COVER (A) M8X45 FLANGE	0-28050-845-0	02	1	0601-	●
280	BOLT; INL COVER (B) M8X28.5	1-09009-125-1	01	1	9601-0004	●	●
280	BOLT; INL COVER (B) M8X28.5	1-09009-125-1	01	1	0005-	●
280	BOLT; INL COVER M8X28 FLANGE	0-28080-828-0	12	1	9805-			●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94394-141-0	01	1	9805-			●
481	TUBE; DIST,INL COVER OD=22	8-94395-684-0	12	1	9805-			●
