0-22 — ENGINE MOUNTING (#63934) — 144 parça

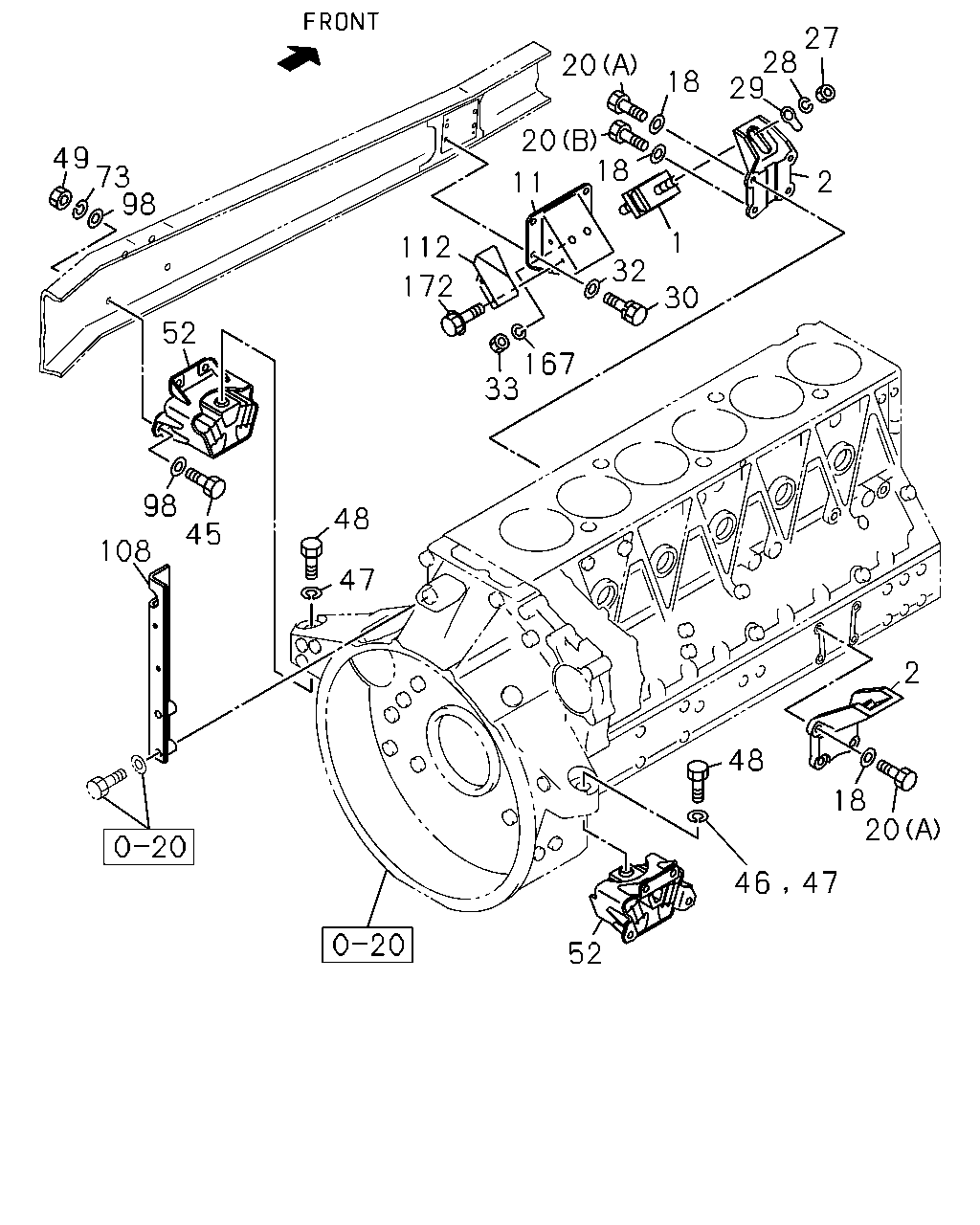

27 28 29 20 18 20 18 49 73 98 2 11 1 112 32 172 30 52 167 33 98 45 48 108 47 2 48 18 20 46 47 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	RUBBER; ENG FOOT,FRT	1-53215-132-2	02	1	9601-0004	●	●
1	RUBBER; ENG FOOT,FRT	1-53215-132-2	02	1	0005-		●
1	RUBBER; ENG FOOT,FRT	1-53215-187-0	02	1	9805-			●
2	FOOT; ENG	1-11771-172-0	02	1	9601-0004	●	●
2	FOOT; ENG	1-11771-172-0	02	1	0005-		●
2	FOOT; ENG (A)	8-94394-663-1	02	1	9805-0207			●
2	FOOT; ENG (A)	8-94393-491-1	02	1	0208-			●
2	FOOT; ENG (B)	8-94390-113-0	01	1	9805-			●
2	FOOT; ENG (B)	8-94390-112-0	01	1	9805-			●
11	BRACKET; CUSHION RUBBER,FRT	1-53211-226-0	02	1	9601-0004	●	●
11	BRACKET; CUSHION RUBBER,FRT	1-53211-226-0	02	1	0005-		●
18	WASHER; PL,ENG FOOT ID=12.2	1-09503-008-0	08	1	9601-0004	●	●
18	WASHER; PL,ENG FOOT ID=12.2	1-09503-008-0	08	1	0005-		●
20	BOLT; ENG FOOT (A) M12X28.5	1-09020-100-0	04	1	9601-0004	●	●
20	BOLT; ENG FOOT (A) M12X28.5	1-09020-100-0	04	1	0005-		●
20	BOLT; ENG FOOT (B) M12X24	1-09020-101-0	04	1	9601-0004	●	●
20	BOLT; ENG FOOT (B) M12X24	1-09020-101-0	04	1	0005-		●
20	BOLT; ENG FOOT (A) M10X70	8-94370-054-0	04	1	9805-0207			●
20	BOLT; ENG FOOT (A) M10X20 FLANGE	8-94395-721-0	08	1	0208-			●
20	BOLT; ENG FOOT (B) M10X25	8-94397-026-0	04	1	9805-0207			●
27	NUT; CUSHION RUBBER TO ENG FOOT M18	9-99110-418-0	02	1	9601-9802	●	●
27	NUT; CUSHION RUBBER TO ENG FOOT M18	9-99110-518-0	02	1	9803-9804	●	●
27	NUT; CUSHION RUBBER TO ENG FOOT M12 FLANGE	0-91150-212-0	02	1	9805-0602			●
27	NUT; CUSHION RUBBER TO ENG FOOT M12 FLANGE	0-91180-212-0	02	1	0603-			●
27	NUT; CUSHION RUBBER TO ENG FOOT M18	9-99110-518-0	02	1	9805-0004	●	●
27	NUT; CUSHION RUBBER TO ENG FOOT M18	9-99110-518-0	02	1	0005-0512		●
27	NUT; CUSHION RUBBER TO ENG FOOT M18	0-91110-518-0	02	1	0601-		●
28	WASHER; LK,SUPPORT BRKT ID=18.2	9-09150-518-0	02	1	9601-0004	●	●
28	WASHER; LK,SUPPORT BRKT ID=18.2	9-09150-518-0	02	1	0005-0603		●
28	WASHER; LK,SUPPORT BRKT ID=18.2	0-91510-518-0	02	1	0604-		●
29	PLATE; LK,CUSHION RUBBER,FRT	1-53229-040-0	02	1	9601-0004	●	●
29	PLATE; LK,CUSHION RUBBER,FRT	1-53229-040-0	02	1	0005-		●
29	PLATE; LK,CUSHION RUBBER,FRT	1-53229-052-1	02	1	9805-			●
30	BOLT; BRKT TO FRAME M12X40	9-92061-240-0	08	1	9601-0004	●	●
30	BOLT; BRKT TO FRAME M12X40	9-92061-240-0	08	1	0005-0512		●
30	BOLT; BRKT TO FRAME M12X40	0-20951-240-0	08	1	0601-		●
32	WASHER; PL,BRKT TO FRAME ID=12.5	1-09503-171-0	08	1	9601-0004	●	●
32	WASHER; PL,BRKT TO FRAME ID=12.5	1-09503-171-0	08	1	0005-		●
33	NUT; CUSHION RUBBER TO BRKT M14	9-99110-414-0	04	1	9601-0004	●	●
33	NUT; CUSHION RUBBER TO BRKT M14	9-99110-414-0	04	1	0005-0512		●
33	NUT; CUSHION RUBBER TO BRKT M14	0-91110-514-0	04	1	0601-		●
45	BOLT; CUSHION RUBBER TO FRAME M14X50	9-92061-450-0	08	1	9601-9804	●	●
45	BOLT; CUSHION RUBBER TO FRAME M14X50	9-92061-450-0	08	1	9805-0004	●	●	●
45	BOLT; CUSHION RUBBER TO FRAME M14X50	9-92061-450-0	08	1	0005-0512		●	●
45	BOLT; CUSHION RUBBER TO FRAME M14X50	0-20951-450-0	08	1	0601-		●	●
46	WASHER; PL,CUSHION TO ENG,RR ID=23	9-09164-522-0	02	1	0010-0605		●	●
46	WASHER; PL,CUSHION TO ENG,RR ID=23	0-91614-522-0	02	1	0606-		●	●
47	WASHER; LK,CUSHION RUBBER ID=22.5	9-09150-622-0	02	1	9601-9804	●	●
47	WASHER; LK,CUSHION RUBBER ID=22.5	9-09150-622-0	02	1	9805-0004	●	●	●
47	WASHER; LK,CUSHION RUBBER ID=22.5	9-09150-622-0	02	1	0005-0009		●	●
48	BOLT; CUSHION RUBBER TO ENG M22X60	1-09020-143-0	02	1	9601-9604	●	●
48	BOLT; CUSHION RUBBER TO ENG M22X75	1-09020-087-2	02	1	9605-9804	●	●
48	BOLT; CUSHION RUBBER TO ENG M22X75	1-09020-087-2	02	1	9805-0004	●	●	●
48	BOLT; CUSHION RUBBER TO ENG M22X75	1-09020-087-2	02	1	0005-		●	●
49	NUT; CUSHION RUBBER TO FRAME M14	9-99110-514-0	08	1	9601-9804	●	●
49	NUT; CUSHION RUBBER TO FRAME M14	9-99110-514-0	08	1	9805-0004	●	●	●
49	NUT; CUSHION RUBBER TO FRAME M14	9-99110-514-0	08	1	0005-0512		●	●
49	NUT; CUSHION RUBBER TO FRAME M14	0-91110-514-0	08	1	0601-		●	●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-302-0	02	1	9601-0004	●	●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-302-0	02	1	0005-		●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-316-0	02	1	9805-			●
73	WASHER; LK,CUSHION RUBBER TO FRAME ID=14.2	9-09150-614-0	08	1	9601-9804	●	●
73	WASHER; LK,CUSHION RUBBER TO FRAME ID=14.2	9-09150-614-0	08	1	9805-0004	●	●	●
73	WASHER; LK,CUSHION RUBBER TO FRAME ID=14.2	9-09150-614-0	08	1	0005-0202		●	●
73	WASHER; LK,CUSHION RUBBER TO FRAME ID=14.2	9-09150-814-0	08	1	0203-0603		●	●
73	WASHER; LK,CUSHION RUBBER TO FRAME ID=14.2	0-91510-814-0	08	1	0604-		●	●
98	WASHER; PL,CUSHION RUBBER TO FRAME,RR ID=15	9-09651-069-0	16	1	9601-9804	●	●
98	WASHER; PL,CUSHION RUBBER TO FRAME,RR ID=15	9-09651-069-0	16	1	9805-0004	●	●	●
98	WASHER; PL,CUSHION RUBBER TO FRAME,RR ID=15	9-09651-069-0	16	1	0005-1201		●	●
98	WASHER; PL,CUSHION RUBBER TO FRAME,RR ID=15	8-98010-627-1	16	1	1202-		●	●
108	HANGER; ENG FLYWHEEL HSG	1-11777-208-0	01	1	9601-0004	●	●
108	HANGER; ENG FLYWHEEL HSG	1-11777-208-0	01	1	0005-0209		●
108	HANGER; ENG FLYWHEEL HSG	1-11777-268-0	01	1	0210-		●
112	PROTECTOR; HEAT	1-53219-754-0	01	1	9601-0004	●	●
112	PROTECTOR; HEAT	1-53219-754-0	01	1	0005-		●
112	PROTECTOR; HEAT	1-53219-629-4	01	1	9805-			●
167	WASHER; LK,CUSHION RUBBER ID=14.2	9-09150-614-0	04	1	9601-0004	●	●
167	WASHER; LK,CUSHION RUBBER ID=14.2	9-09150-614-0	04	1	0005-0202		●
167	WASHER; LK,CUSHION RUBBER ID=14.2	9-09150-514-0	04	1	0203-0603		●
167	WASHER; LK,CUSHION RUBBER ID=14.2	0-91510-514-0	04	1	0604-		●
172	BOLT; HEAT PROTECTOR M8X20 FLANGE	0-28680-820-0	02	1	9601-0004	●	●
172	BOLT; HEAT PROTECTOR M8X20 FLANGE	0-28680-820-0	02	1	0005-0512		●
172	BOLT; HEAT PROTECTOR M8X20 FLANGE	0-28650-820-0	02	1	0601-		●

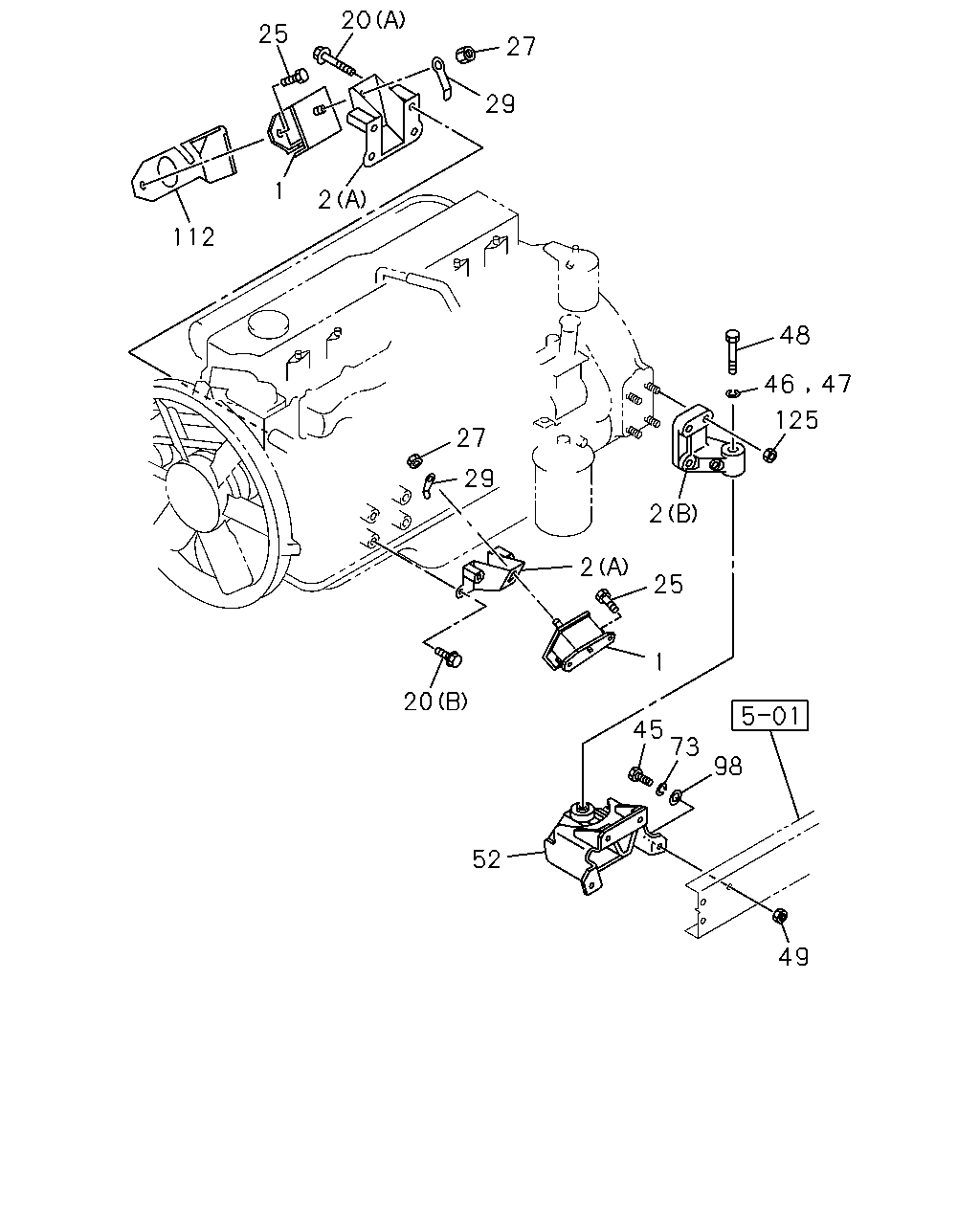

20 25 27 29 2 112 48 46 47 125 27 29 2 2 25 1 20 45 73 98 52 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	RUBBER; ENG FOOT,FRT	1-53215-132-2	02	1	9601-0004	●	●
1	RUBBER; ENG FOOT,FRT	1-53215-132-2	02	1	0005-		●
1	RUBBER; ENG FOOT,FRT	1-53215-187-0	02	1	9805-			●
2	FOOT; ENG	1-11771-172-0	02	1	9601-0004	●	●
2	FOOT; ENG	1-11771-172-0	02	1	0005-		●
2	FOOT; ENG (A)	8-94394-663-1	02	1	9805-0207			●
2	FOOT; ENG (A)	8-94393-491-1	02	1	0208-			●
2	FOOT; ENG (B)	8-94390-113-0	01	1	9805-			●
2	FOOT; ENG (B)	8-94390-112-0	01	1	9805-			●
20	BOLT; ENG FOOT (A) M12X28.5	1-09020-100-0	04	1	9601-0004	●	●
20	BOLT; ENG FOOT (A) M12X28.5	1-09020-100-0	04	1	0005-		●
20	BOLT; ENG FOOT (B) M12X24	1-09020-101-0	04	1	9601-0004	●	●
20	BOLT; ENG FOOT (B) M12X24	1-09020-101-0	04	1	0005-		●
20	BOLT; ENG FOOT (A) M10X70	8-94370-054-0	04	1	9805-0207			●
20	BOLT; ENG FOOT (A) M10X20 FLANGE	8-94395-721-0	08	1	0208-			●
20	BOLT; ENG FOOT (B) M10X25	8-94397-026-0	04	1	9805-0207			●
25	BOLT; CUSHION RUBBER TO BRKT M12X35 FLANGE	0-28681-235-0	04	1	9805-0512			●
25	BOLT; CUSHION RUBBER TO BRKT M12X35 FLANGE	0-28651-235-0	04	1	0601-			●
27	NUT; CUSHION RUBBER TO ENG FOOT M18	9-99110-418-0	02	1	9601-9802	●	●
27	NUT; CUSHION RUBBER TO ENG FOOT M18	9-99110-518-0	02	1	9803-9804	●	●
27	NUT; CUSHION RUBBER TO ENG FOOT M12 FLANGE	0-91150-212-0	02	1	9805-0602			●
27	NUT; CUSHION RUBBER TO ENG FOOT M12 FLANGE	0-91180-212-0	02	1	0603-			●
27	NUT; CUSHION RUBBER TO ENG FOOT M18	9-99110-518-0	02	1	9805-0004	●	●
27	NUT; CUSHION RUBBER TO ENG FOOT M18	9-99110-518-0	02	1	0005-0512		●
27	NUT; CUSHION RUBBER TO ENG FOOT M18	0-91110-518-0	02	1	0601-		●
29	PLATE; LK,CUSHION RUBBER,FRT	1-53229-040-0	02	1	9601-0004	●	●
29	PLATE; LK,CUSHION RUBBER,FRT	1-53229-040-0	02	1	0005-		●
29	PLATE; LK,CUSHION RUBBER,FRT	1-53229-052-1	02	1	9805-			●
45	BOLT; CUSHION RUBBER TO FRAME M14X50	9-92061-450-0	08	1	9601-9804	●	●
45	BOLT; CUSHION RUBBER TO FRAME M14X50	9-92061-450-0	08	1	9805-0004	●	●	●
45	BOLT; CUSHION RUBBER TO FRAME M14X50	9-92061-450-0	08	1	0005-0512		●	●
45	BOLT; CUSHION RUBBER TO FRAME M14X50	0-20951-450-0	08	1	0601-		●	●
46	WASHER; PL,CUSHION TO ENG,RR ID=23	9-09164-522-0	02	1	0010-0605		●	●
46	WASHER; PL,CUSHION TO ENG,RR ID=23	0-91614-522-0	02	1	0606-		●	●
47	WASHER; LK,CUSHION RUBBER ID=22.5	9-09150-622-0	02	1	9601-9804	●	●
47	WASHER; LK,CUSHION RUBBER ID=22.5	9-09150-622-0	02	1	9805-0004	●	●	●
47	WASHER; LK,CUSHION RUBBER ID=22.5	9-09150-622-0	02	1	0005-0009		●	●
48	BOLT; CUSHION RUBBER TO ENG M22X60	1-09020-143-0	02	1	9601-9604	●	●
48	BOLT; CUSHION RUBBER TO ENG M22X75	1-09020-087-2	02	1	9605-9804	●	●
48	BOLT; CUSHION RUBBER TO ENG M22X75	1-09020-087-2	02	1	9805-0004	●	●	●
48	BOLT; CUSHION RUBBER TO ENG M22X75	1-09020-087-2	02	1	0005-		●	●
49	NUT; CUSHION RUBBER TO FRAME M14	9-99110-514-0	08	1	9601-9804	●	●
49	NUT; CUSHION RUBBER TO FRAME M14	9-99110-514-0	08	1	9805-0004	●	●	●
49	NUT; CUSHION RUBBER TO FRAME M14	9-99110-514-0	08	1	0005-0512		●	●
49	NUT; CUSHION RUBBER TO FRAME M14	0-91110-514-0	08	1	0601-		●	●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-302-0	02	1	9601-0004	●	●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-302-0	02	1	0005-		●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-316-0	02	1	9805-			●
73	WASHER; LK,CUSHION RUBBER TO FRAME ID=14.2	9-09150-614-0	08	1	9601-9804	●	●
73	WASHER; LK,CUSHION RUBBER TO FRAME ID=14.2	9-09150-614-0	08	1	9805-0004	●	●	●
73	WASHER; LK,CUSHION RUBBER TO FRAME ID=14.2	9-09150-614-0	08	1	0005-0202		●	●
73	WASHER; LK,CUSHION RUBBER TO FRAME ID=14.2	9-09150-814-0	08	1	0203-0603		●	●
73	WASHER; LK,CUSHION RUBBER TO FRAME ID=14.2	0-91510-814-0	08	1	0604-		●	●
98	WASHER; PL,CUSHION RUBBER TO FRAME,RR ID=15	9-09651-069-0	16	1	9601-9804	●	●
98	WASHER; PL,CUSHION RUBBER TO FRAME,RR ID=15	9-09651-069-0	16	1	9805-0004	●	●	●
98	WASHER; PL,CUSHION RUBBER TO FRAME,RR ID=15	9-09651-069-0	16	1	0005-1201		●	●
98	WASHER; PL,CUSHION RUBBER TO FRAME,RR ID=15	8-98010-627-1	16	1	1202-		●	●
112	PROTECTOR; HEAT	1-53219-754-0	01	1	9601-0004	●	●
112	PROTECTOR; HEAT	1-53219-754-0	01	1	0005-		●
112	PROTECTOR; HEAT	1-53219-629-4	01	1	9805-			●
125	NUT; ENG FOOT M12 FLANGE	8-94394-704-0	08	1	9805-			●
