Sayfa 0-20 - Isuzu EPC

0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#63933) — 249 parça

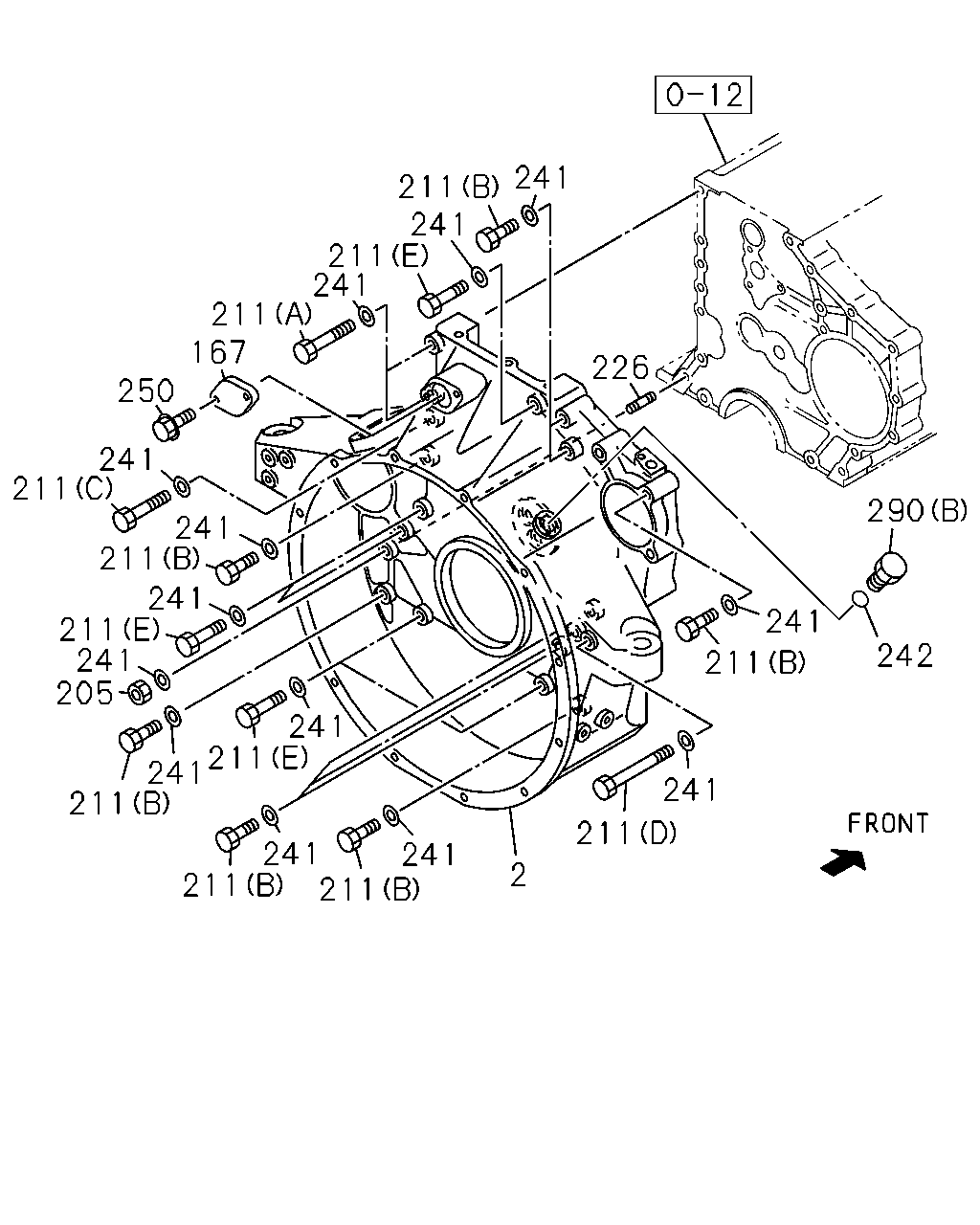

241 211 241 211 241 211 167 226 250 241 211 290 241 211 241 211 241 205 241 242 211 241 211 241 211 241 211 241 241 211 211 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOUSING; FLYWHEEL	1-11341-498-3	01	1	9601-0004	●	●
2	HOUSING; FLYWHEEL	1-11341-498-5	01	1	0005-		●
2	HOUSING; FLYWHEEL	8-94395-915-6	01	1	9805-			●
167	COVER; OIL	1-11749-103-0	01	1	9601-0004	●	●
167	COVER; OIL	1-11749-103-0	01	1	0005-		●
167	COVER; OIL	1-11219-163-0	01	1	9805-			●
205	NUT; HSG M12	9-99110-412-0	01	1	9601-0004	●	●
205	NUT; HSG M12	9-99110-412-0	01	1	0005-0512		●
205	NUT; HSG M12	0-91110-512-0	01	1	0601-		●
211	BOLT; HSG (A) M12X100	0-16806-200-0	02	1	9601-0004	●	●
211	BOLT; HSG (A) M12X100	0-16806-200-0	02	1	0005-0512		●
211	BOLT; HSG (A) M12X100	0-16856-200-0	02	1	0601-		●
211	BOLT; HSG (B) M12X60	0-16806-260-0	09	1	9601-0004	●	●
211	BOLT; HSG (B) M12X60	0-16806-260-0	09	1	0005-0512		●
211	BOLT; HSG (B) M12X60	0-16856-260-0	09	1	0601-		●
211	BOLT; HSG (C) M12X90	0-16806-290-0	01	1	9601-0004	●	●
211	BOLT; HSG (C) M12X90	0-16806-290-0	01	1	0005-0512		●
211	BOLT; HSG (C) M12X90	0-16856-290-0	01	1	0601-		●
211	BOLT; HSG (D) M12X173	1-09020-057-1	01	1	9601-0004	●	●
211	BOLT; HSG (D) M12X173	1-09020-057-1	01	1	0005-		●
211	BOLT; HSG (E) M12X75	9-01666-275-0	05	1	9601-0004	●	●
211	BOLT; HSG (E) M12X75	9-01666-275-0	05	1	0005-		●
211	BOLT; HSG (C) M12X60	0-16806-260-0	01	1	9805-0512			●
211	BOLT; HSG (C) M12X60	0-16856-260-0	01	1	0601-			●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	02	1	9805-0512			●
211	BOLT; HSG (B) M10X50 FLANGE	0-28151-050-0	02	1	0601-			●
211	BOLT; HSG (A) M14X70 FLANGE W/PL WASHER	8-94396-095-0	02	1	9805-			●
211	BOLT; HSG (E) M12X128	8-94399-252-0	02	1	9805-			●
211	BOLT; HSG (D) M12X65	9-01666-265-0	01	1	9805-			●
211	BOLT; HSG (C) M12X70	9-01666-270-0	09	1	9805-0512			●
211	BOLT; HSG (C) M12X70	0-16956-270-0	09	1	0601-			●
226	STUD; HSG M12X60 L=78	9-94411-260-0	01	1	9601-0004	●	●
226	STUD; HSG M12X60 L=78	9-94411-260-0	01	1	0005-0604		●
226	STUD; HSG M12X60 L=78	0-44011-260-0	01	1	0605-		●
241	WASHER; PL,HSG ID=12.2	9-09851-933-0	19	1	9601-0004	●	●
241	WASHER; PL,HSG ID=12.2	9-09851-933-0	19	1	0005-		●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	13	1	9805-			●
242	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2 OD=24	9-09571-416-0	01	1	9601-0004	●	●
242	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2 OD=24	9-09571-416-0	01	1	0005-		●
250	BOLT; COVER,OIL M8X16 FLANGE	0-28080-816-0	02	1	9601-0004	●	●
250	BOLT; COVER,OIL M8X16 FLANGE	0-28080-816-0	02	1	0005-0512		●
250	BOLT; COVER,OIL M8X16 FLANGE	0-28050-816-0	02	1	0601-		●
250	BOLT; COVER,OIL M8X18 FLANGE	0-28080-818-0	02	1	9805-			●
290	PLUG; SENSOR HOLE EXC. TACHOMETER<UD7> (A)	1-11349-157-0	01	1	9601-0205		●
290	PLUG; SENSOR HOLE EXC. TACHOMETER<UD7> (A)	8-97101-974-0	01	1	0206-		●
290	PLUG; SENSOR HOLE (B) M16X12	9-99202-316-0	01	1	9601-0004	●	●
290	PLUG; SENSOR HOLE (B) M16X12	9-99202-316-0	01	1	0005-0606		●
290	PLUG; SENSOR HOLE (B) M16X12	0-92002-416-0	01	1	0607-		●

268 51 80 270 177 35 229 177 290 216 222 115 485 62 213 278 175 2 224

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOUSING; FLYWHEEL	1-11341-498-3	01	1	9601-0004	●	●
2	HOUSING; FLYWHEEL	1-11341-498-5	01	1	0005-		●
2	HOUSING; FLYWHEEL	8-94395-915-6	01	1	9805-			●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=114 OD=153	1-09625-540-2	01	1	9601-0004	●	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=114 OD=153	1-09625-540-3	01	1	0005-		●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137	8-94396-199-1	01	1	9805-0112			●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137	8-97602-378-3	01	1	0201-			●
51	BOLT; GEAR CASE COVER M8X45 W/LK&PL WASHER	0-50140-845-0	08	1	9601-0004	●	●
51	BOLT; GEAR CASE COVER M8X45 W/LK&PL WASHER	0-50140-845-0	08	1	0005-0906		●
51	BOLT; GEAR CASE COVER M8X45 W/LK&PL WASHER	0-50640-845-0	08	1	0907-		●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28080-840-0	10	1	9805-0512			●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28050-840-0	10	1	0601-			●
51	BOLT; GEAR CASE COVER (C) M8X45 FLANGE	0-28080-845-0	01	1	9805-0512			●
51	BOLT; GEAR CASE COVER (C) M8X45 FLANGE	0-28050-845-0	01	1	0601-			●
51	BOLT; GEAR CASE COVER (B) M8X20 FLANGE	0-28680-820-0	06	1	9805-0512			●
51	BOLT; GEAR CASE COVER (B) M8X20 FLANGE	0-28650-820-0	06	1	0601-			●
62	BOLT; COVER M8X14 FLANGE	0-28080-814-0	03	1	9611-0004	●	●
62	BOLT; COVER M8X14 FLANGE	0-28080-814-0	03	1	0005-		●
80	NUT; COVER M10 FLANGE	0-91150-110-0	04	1	9601-0004	●	●
80	NUT; COVER M10 FLANGE	0-91150-110-0	04	1	0005-0602		●
80	NUT; COVER M10 FLANGE	0-91180-110-0	04	1	0603-		●
115	SENSOR; REVOLUTION,ENG SPD TACHOMETER<UD7>	1-81510-343-2	01	1	9601-0004		●
115	SENSOR; REVOLUTION,ENG SPD	1-81510-343-2	01	1	9601-0004	●
115	SENSOR; REVOLUTION,ENG SPD TACHOMETER<UD7>	1-81510-343-2	01	1	0005-		●
115	SENSOR; REVOLUTION,ENG SPD	1-81510-561-0	01	1	9805-			●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=114 OD=150	1-09625-541-2	01	1	9601-0004	●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=114 OD=150	1-09625-541-2	01	1	0005-		●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-94370-637-0	01	1	9805-0112			●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-97602-379-0	01	1	0201-			●
177	BOLT; SENSOR M6X18 W/LK WASHER	0-50040-618-0	01	1	9601-0004	●	●
177	BOLT; SENSOR M6X18 W/LK WASHER	0-50040-618-0	01	1	0005-0906		●
177	BOLT; SENSOR M6X18 W/LK WASHER	0-50540-618-0	01	1	0907-		●
177	BOLT; SENSOR M6X16 FLANGE	0-28080-616-0	01	1	9805-0512			●
177	BOLT; SENSOR M6X16 FLANGE	0-28050-616-0	01	1	0601-			●
213	POINTER; FLYWHEEL HSG	1-11342-018-0	01	1	9601-0004	●	●
213	POINTER; FLYWHEEL HSG	1-11342-018-0	01	1	0005-		●
216	STUD; COVER,TIMING CHECK HOLE M8X14,M8X14 L=33	1-09300-058-1	02	1	9601-0004	●	●
216	STUD; COVER,TIMING CHECK HOLE M8X14,M8X14 L=33	1-09300-058-1	02	1	0005-		●
222	NUT; COVER,TIMING CHECK HOLE M8 FLANGE	0-91150-108-0	02	1	9601-0004	●	●
222	NUT; COVER,TIMING CHECK HOLE M8 FLANGE	0-91150-108-0	02	1	0005-0602		●
222	NUT; COVER,TIMING CHECK HOLE M8 FLANGE	0-91180-108-0	02	1	0603-		●
224	STUD; STARTER M14X40 L=61	9-04411-440-0	02	1	9601-0004	●	●
224	STUD; STARTER M14X40 L=61	9-04411-440-0	02	1	0005-0604		●
224	STUD; STARTER M14X40 L=61	0-44011-440-0	02	1	0605-		●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	9805-0604			●
224	STUD; STARTER M14X35 L=56	0-44011-435-0	02	1	0605-			●
229	COVER; TIMING CHECK HOLE	1-11349-126-0	01	1	9601-0004	●	●
229	COVER; TIMING CHECK HOLE	1-11349-126-0	01	1	0005-		●
268	COVER; FRT	1-11321-085-3	01	1	9601-0004	●	●
268	COVER; FRT	1-11321-085-3	01	1	0005-		●
270	STUD; FRT COVER M8X20	9-04010-820-0	06	1	9601-0004	●	●
270	STUD; FRT COVER M8X20	9-04010-820-0	06	1	0005-		●
278	WASHER; COVER FIX	1-11349-127-0	01	1	9601-0004	●	●
278	WASHER; COVER FIX	1-11349-127-0	01	1	0005-		●
290	PLUG; SENSOR HOLE EXC. TACHOMETER<UD7> (A)	1-11349-157-0	01	1	9601-0205		●
290	PLUG; SENSOR HOLE EXC. TACHOMETER<UD7> (A)	8-97101-974-0	01	1	0206-		●
290	PLUG; SENSOR HOLE (B) M16X12	9-99202-316-0	01	1	9601-0004	●	●
290	PLUG; SENSOR HOLE (B) M16X12	9-99202-316-0	01	1	0005-0606		●
290	PLUG; SENSOR HOLE (B) M16X12	0-92002-416-0	01	1	0607-		●
485	GASKET; SENSOR TACHOMETER<UD7>	9-09565-212-0	01	1	9601-9804		●
485	GASKET; SENSOR	9-09565-212-0	01	1	9601-9804	●
485	GASKET; SENSOR TACHOMETER<UD7>	9-09565-212-0	01	1	9805-0004		●
485	GASKET; SENSOR	9-09565-212-0	01	1	9805-0004	●		●
485	GASKET; SENSOR TACHOMETER<UD7>	9-09565-212-0	01	1	0005-		●
485	GASKET; SENSOR	9-09565-212-0	01	1	0005-			●

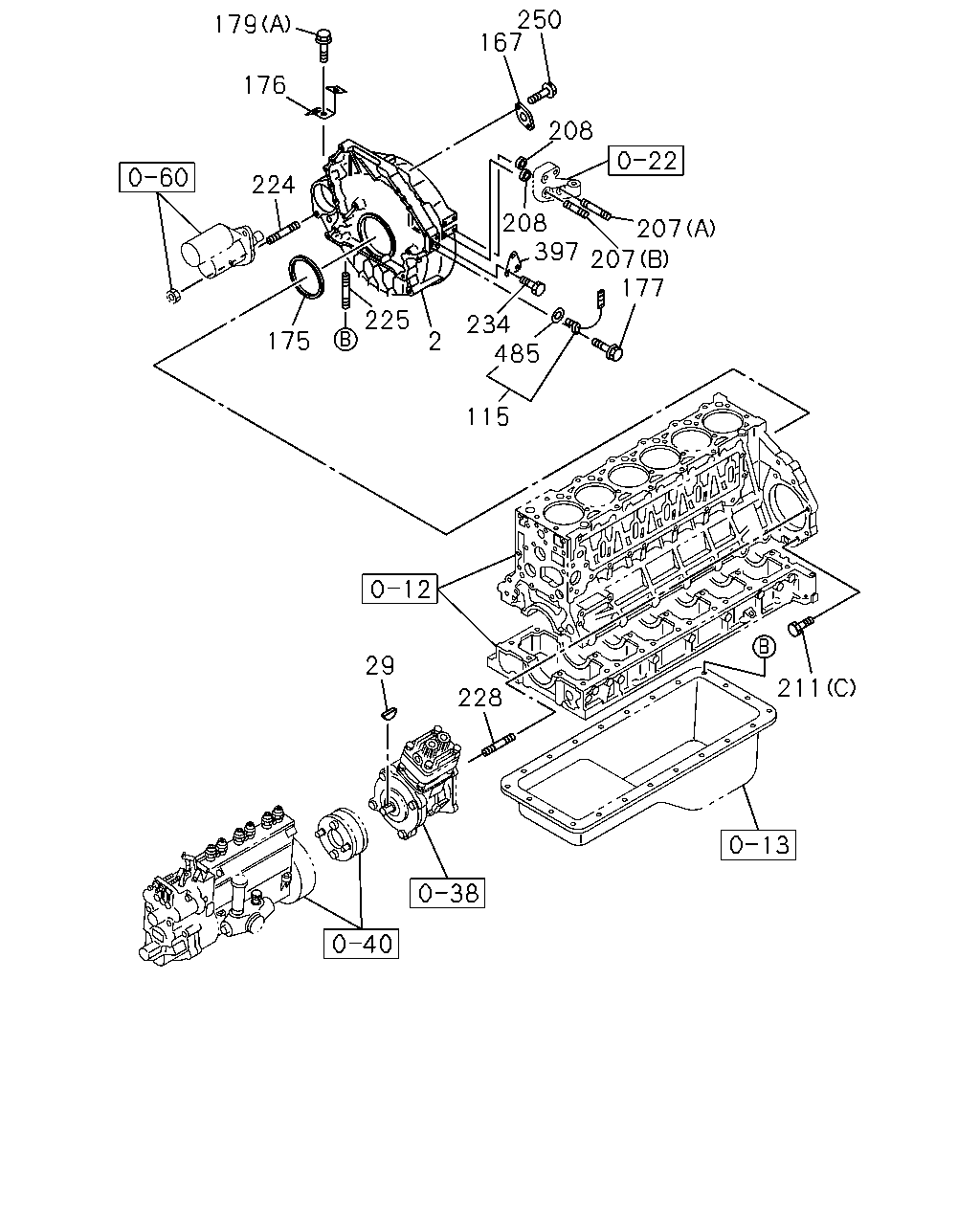

250 167 179 176 208 224 208 397 207 207 177 225 234 485 175 2 115 29 211 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOUSING; FLYWHEEL	1-11341-498-3	01	1	9601-0004	●	●
2	HOUSING; FLYWHEEL	1-11341-498-5	01	1	0005-		●
2	HOUSING; FLYWHEEL	8-94395-915-6	01	1	9805-			●
29	KEY; COUPLING	9-08055-416-0	01	1	9805-			●
115	SENSOR; REVOLUTION,ENG SPD TACHOMETER<UD7>	1-81510-343-2	01	1	9601-0004		●
115	SENSOR; REVOLUTION,ENG SPD	1-81510-343-2	01	1	9601-0004	●
115	SENSOR; REVOLUTION,ENG SPD TACHOMETER<UD7>	1-81510-343-2	01	1	0005-		●
115	SENSOR; REVOLUTION,ENG SPD	1-81510-561-0	01	1	9805-			●
167	COVER; OIL	1-11749-103-0	01	1	9601-0004	●	●
167	COVER; OIL	1-11749-103-0	01	1	0005-		●
167	COVER; OIL	1-11219-163-0	01	1	9805-			●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=114 OD=150	1-09625-541-2	01	1	9601-0004	●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=114 OD=150	1-09625-541-2	01	1	0005-		●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-94370-637-0	01	1	9805-0112			●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-97602-379-0	01	1	0201-			●
176	BRACKET; HARNESS	1-82699-412-1	01	1	9805-			●
177	BOLT; SENSOR M6X18 W/LK WASHER	0-50040-618-0	01	1	9601-0004	●	●
177	BOLT; SENSOR M6X18 W/LK WASHER	0-50040-618-0	01	1	0005-0906		●
177	BOLT; SENSOR M6X18 W/LK WASHER	0-50540-618-0	01	1	0907-		●
177	BOLT; SENSOR M6X16 FLANGE	0-28080-616-0	01	1	9805-0512			●
177	BOLT; SENSOR M6X16 FLANGE	0-28050-616-0	01	1	0601-			●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	9805-0512			●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-			●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	9805-0512			●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28050-820-0	02	1	0601-			●
207	STUD; ENG FOOT (A) M12X24 L=104	8-94390-111-0	02	1	9805-			●
207	STUD; ENG FOOT (B) M12X10 L=55	9-94321-255-0	06	1	9805-0604			●
207	STUD; ENG FOOT (B) M12X10 L=55	0-43211-255-0	06	1	0605-			●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	9805-			●
211	BOLT; HSG (A) M12X100	0-16806-200-0	02	1	9601-0004	●	●
211	BOLT; HSG (A) M12X100	0-16806-200-0	02	1	0005-0512		●
211	BOLT; HSG (A) M12X100	0-16856-200-0	02	1	0601-		●
211	BOLT; HSG (B) M12X60	0-16806-260-0	09	1	9601-0004	●	●
211	BOLT; HSG (B) M12X60	0-16806-260-0	09	1	0005-0512		●
211	BOLT; HSG (B) M12X60	0-16856-260-0	09	1	0601-		●
211	BOLT; HSG (C) M12X90	0-16806-290-0	01	1	9601-0004	●	●
211	BOLT; HSG (C) M12X90	0-16806-290-0	01	1	0005-0512		●
211	BOLT; HSG (C) M12X90	0-16856-290-0	01	1	0601-		●
211	BOLT; HSG (D) M12X173	1-09020-057-1	01	1	9601-0004	●	●
211	BOLT; HSG (D) M12X173	1-09020-057-1	01	1	0005-		●
211	BOLT; HSG (E) M12X75	9-01666-275-0	05	1	9601-0004	●	●
211	BOLT; HSG (E) M12X75	9-01666-275-0	05	1	0005-		●
211	BOLT; HSG (C) M12X60	0-16806-260-0	01	1	9805-0512			●
211	BOLT; HSG (C) M12X60	0-16856-260-0	01	1	0601-			●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	02	1	9805-0512			●
211	BOLT; HSG (B) M10X50 FLANGE	0-28151-050-0	02	1	0601-			●
211	BOLT; HSG (A) M14X70 FLANGE W/PL WASHER	8-94396-095-0	02	1	9805-			●
211	BOLT; HSG (E) M12X128	8-94399-252-0	02	1	9805-			●
211	BOLT; HSG (D) M12X65	9-01666-265-0	01	1	9805-			●
211	BOLT; HSG (C) M12X70	9-01666-270-0	09	1	9805-0512			●
211	BOLT; HSG (C) M12X70	0-16956-270-0	09	1	0601-			●
224	STUD; STARTER M14X40 L=61	9-04411-440-0	02	1	9601-0004	●	●
224	STUD; STARTER M14X40 L=61	9-04411-440-0	02	1	0005-0604		●
224	STUD; STARTER M14X40 L=61	0-44011-440-0	02	1	0605-		●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	9805-0604			●
224	STUD; STARTER M14X35 L=56	0-44011-435-0	02	1	0605-			●
225	STUD; OIL PAN M8X28 L=38	8-94396-512-0	04	1	9805-			●
228	STUD; AIR CMPR M12X60 L=78	9-94411-260-0	01	1	9805-0604			●
228	STUD; AIR CMPR M12X60 L=78	0-44011-260-0	01	1	0605-			●
234	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	02	1	9805-0512			●
234	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	0601-			●
250	BOLT; COVER,OIL M8X16 FLANGE	0-28080-816-0	02	1	9601-0004	●	●
250	BOLT; COVER,OIL M8X16 FLANGE	0-28080-816-0	02	1	0005-0512		●
250	BOLT; COVER,OIL M8X16 FLANGE	0-28050-816-0	02	1	0601-		●
250	BOLT; COVER,OIL M8X18 FLANGE	0-28080-818-0	02	1	9805-			●
397	BRACKET; CONNECTOR	8-94394-411-1	01	1	9805-			●
485	GASKET; SENSOR TACHOMETER<UD7>	9-09565-212-0	01	1	9601-9804		●
485	GASKET; SENSOR	9-09565-212-0	01	1	9601-9804	●
485	GASKET; SENSOR TACHOMETER<UD7>	9-09565-212-0	01	1	9805-0004		●
485	GASKET; SENSOR	9-09565-212-0	01	1	9805-0004	●		●
485	GASKET; SENSOR TACHOMETER<UD7>	9-09565-212-0	01	1	0005-		●
485	GASKET; SENSOR	9-09565-212-0	01	1	0005-			●

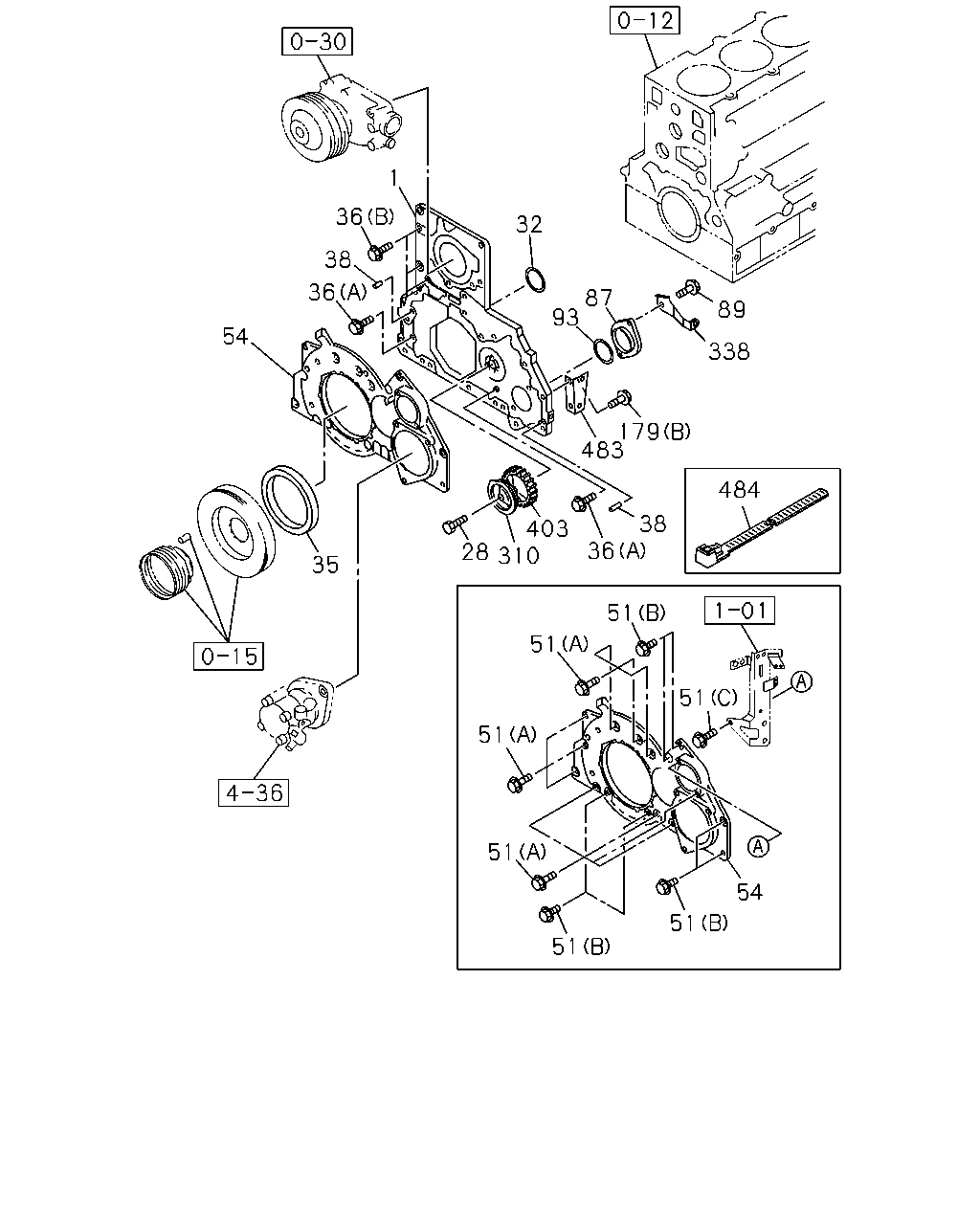

1 36 38 36 32 93 87 89 338 179 483 484 38 36 403 310 28 51 51 51 54 51 51 51 51 35 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CASE; TIMING GEAR	8-94396-434-6	01	1	9805-			●
28	BOLT; DRIVE GEAR M8X28	8-94399-256-0	03	1	9805-			●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.2	8-94397-364-0	01	1	9805-9805			●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1	8-97028-748-1	01	1	9806-			●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=114 OD=153	1-09625-540-2	01	1	9601-0004	●	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=114 OD=153	1-09625-540-3	01	1	0005-		●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137	8-94396-199-1	01	1	9805-0112			●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137	8-97602-378-3	01	1	0201-			●
36	BOLT; GEAR CASE (A) M8X28 FLANGE	0-28080-828-0	02	1	9805-0801			●
36	BOLT; GEAR CASE (A) M8X30 FLANGE	0-28650-830-0	02	1	0802-			●
36	BOLT; GEAR CASE (B) M8X32 FLANGE	0-28080-832-0	04	1	9805-0801			●
36	BOLT; GEAR CASE (B) M8X35 FLANGE	0-28050-835-0	04	1	0802-			●
38	PIN; GEAR CASE COVER L=22	8-94483-674-0	02	1	9805-			●
51	BOLT; GEAR CASE COVER M8X45 W/LK&PL WASHER	0-50140-845-0	08	1	9601-0004	●	●
51	BOLT; GEAR CASE COVER M8X45 W/LK&PL WASHER	0-50140-845-0	08	1	0005-0906		●
51	BOLT; GEAR CASE COVER M8X45 W/LK&PL WASHER	0-50640-845-0	08	1	0907-		●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28080-840-0	10	1	9805-0512			●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28050-840-0	10	1	0601-			●
51	BOLT; GEAR CASE COVER (C) M8X45 FLANGE	0-28080-845-0	01	1	9805-0512			●
51	BOLT; GEAR CASE COVER (C) M8X45 FLANGE	0-28050-845-0	01	1	0601-			●
51	BOLT; GEAR CASE COVER (B) M8X20 FLANGE	0-28680-820-0	06	1	9805-0512			●
51	BOLT; GEAR CASE COVER (B) M8X20 FLANGE	0-28650-820-0	06	1	0601-			●
54	COVER; GEAR CASE	8-94393-304-1	01	1	9805-			●
87	COVER; TACHOMETER DRIVE	8-94396-370-0	01	1	9805-			●
89	BOLT; ELBOW M8X18 FLANGE	0-28080-818-0	02	1	9805-			●
93	GASKET; ELBOW ALSO INCLUDED IN GASKET SET(ENGINE). OD=54.7	1-09623-180-0	01	1	9805-			●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	9805-0512			●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-			●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	9805-0512			●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28050-820-0	02	1	0601-			●
310	SHAFT; IDLE GEAR	8-94394-806-0	01	1	9805-			●
338	BRACKET; CLIP,HARNESS	1-82699-889-0	01	1	9805-			●
403	GEAR; IDLE,FRONT Z=33	8-94395-943-1	01	1	9805-			●
483	BRACKET; WATER DUCT	8-94394-405-1	01	1	9805-			●
484	CLIP; BAND L=250	5-09707-030-1	01	1	1201-1205			●
484	CLIP; BAND L=250	8-98216-430-0	01	1	1206-			●

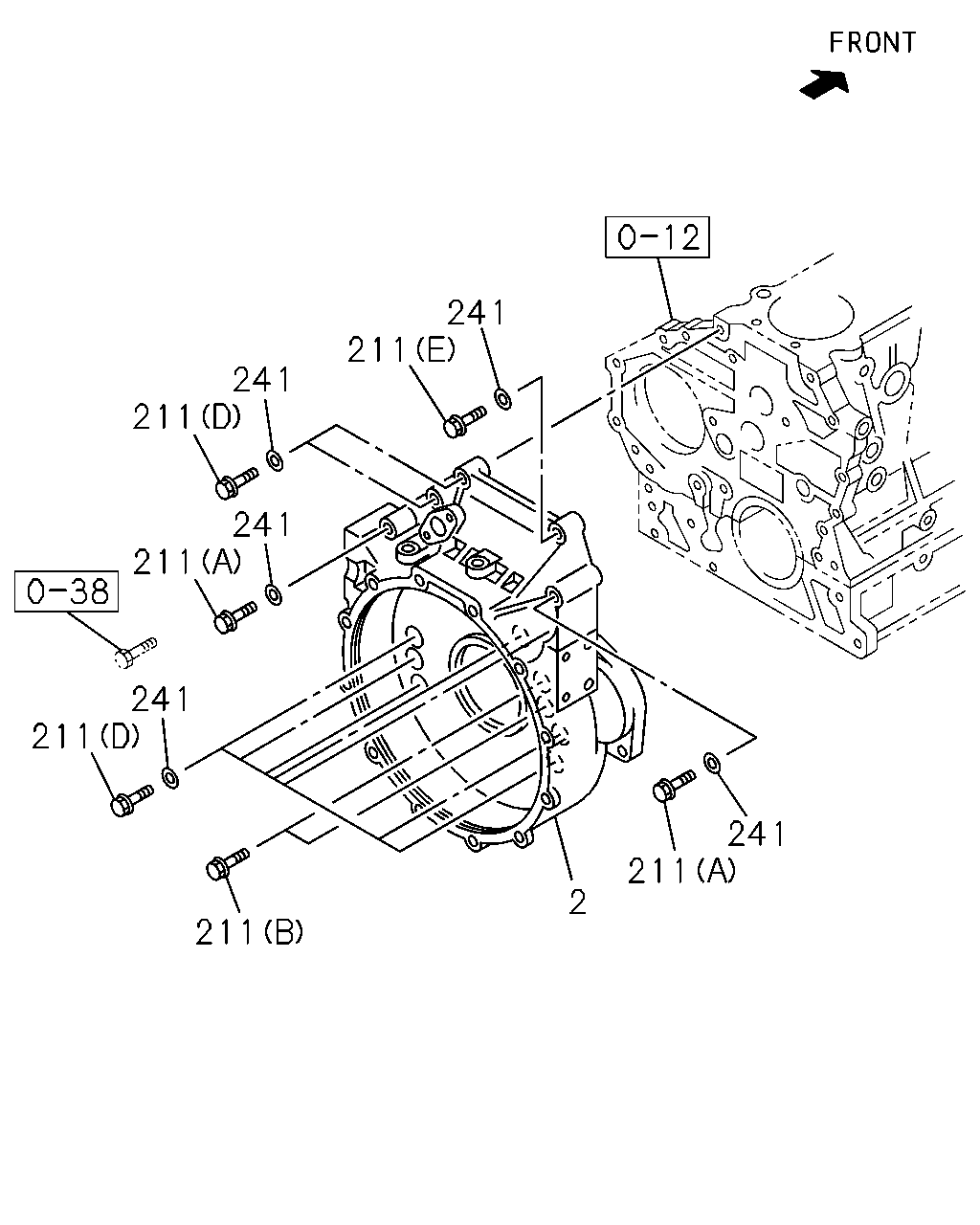

241 211 241 211 241 211 241 211 241 211 2 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOUSING; FLYWHEEL	1-11341-498-3	01	1	9601-0004	●	●
2	HOUSING; FLYWHEEL	1-11341-498-5	01	1	0005-		●
2	HOUSING; FLYWHEEL	8-94395-915-6	01	1	9805-			●
211	BOLT; HSG (A) M12X100	0-16806-200-0	02	1	9601-0004	●	●
211	BOLT; HSG (A) M12X100	0-16806-200-0	02	1	0005-0512		●
211	BOLT; HSG (A) M12X100	0-16856-200-0	02	1	0601-		●
211	BOLT; HSG (B) M12X60	0-16806-260-0	09	1	9601-0004	●	●
211	BOLT; HSG (B) M12X60	0-16806-260-0	09	1	0005-0512		●
211	BOLT; HSG (B) M12X60	0-16856-260-0	09	1	0601-		●
211	BOLT; HSG (C) M12X90	0-16806-290-0	01	1	9601-0004	●	●
211	BOLT; HSG (C) M12X90	0-16806-290-0	01	1	0005-0512		●
211	BOLT; HSG (C) M12X90	0-16856-290-0	01	1	0601-		●
211	BOLT; HSG (D) M12X173	1-09020-057-1	01	1	9601-0004	●	●
211	BOLT; HSG (D) M12X173	1-09020-057-1	01	1	0005-		●
211	BOLT; HSG (E) M12X75	9-01666-275-0	05	1	9601-0004	●	●
211	BOLT; HSG (E) M12X75	9-01666-275-0	05	1	0005-		●
211	BOLT; HSG (C) M12X60	0-16806-260-0	01	1	9805-0512			●
211	BOLT; HSG (C) M12X60	0-16856-260-0	01	1	0601-			●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	02	1	9805-0512			●
211	BOLT; HSG (B) M10X50 FLANGE	0-28151-050-0	02	1	0601-			●
211	BOLT; HSG (A) M14X70 FLANGE W/PL WASHER	8-94396-095-0	02	1	9805-			●
211	BOLT; HSG (E) M12X128	8-94399-252-0	02	1	9805-			●
211	BOLT; HSG (D) M12X65	9-01666-265-0	01	1	9805-			●
211	BOLT; HSG (C) M12X70	9-01666-270-0	09	1	9805-0512			●
211	BOLT; HSG (C) M12X70	0-16956-270-0	09	1	0601-			●
241	WASHER; PL,HSG ID=12.2	9-09851-933-0	19	1	9601-0004	●	●
241	WASHER; PL,HSG ID=12.2	9-09851-933-0	19	1	0005-		●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	13	1	9805-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
