1 |

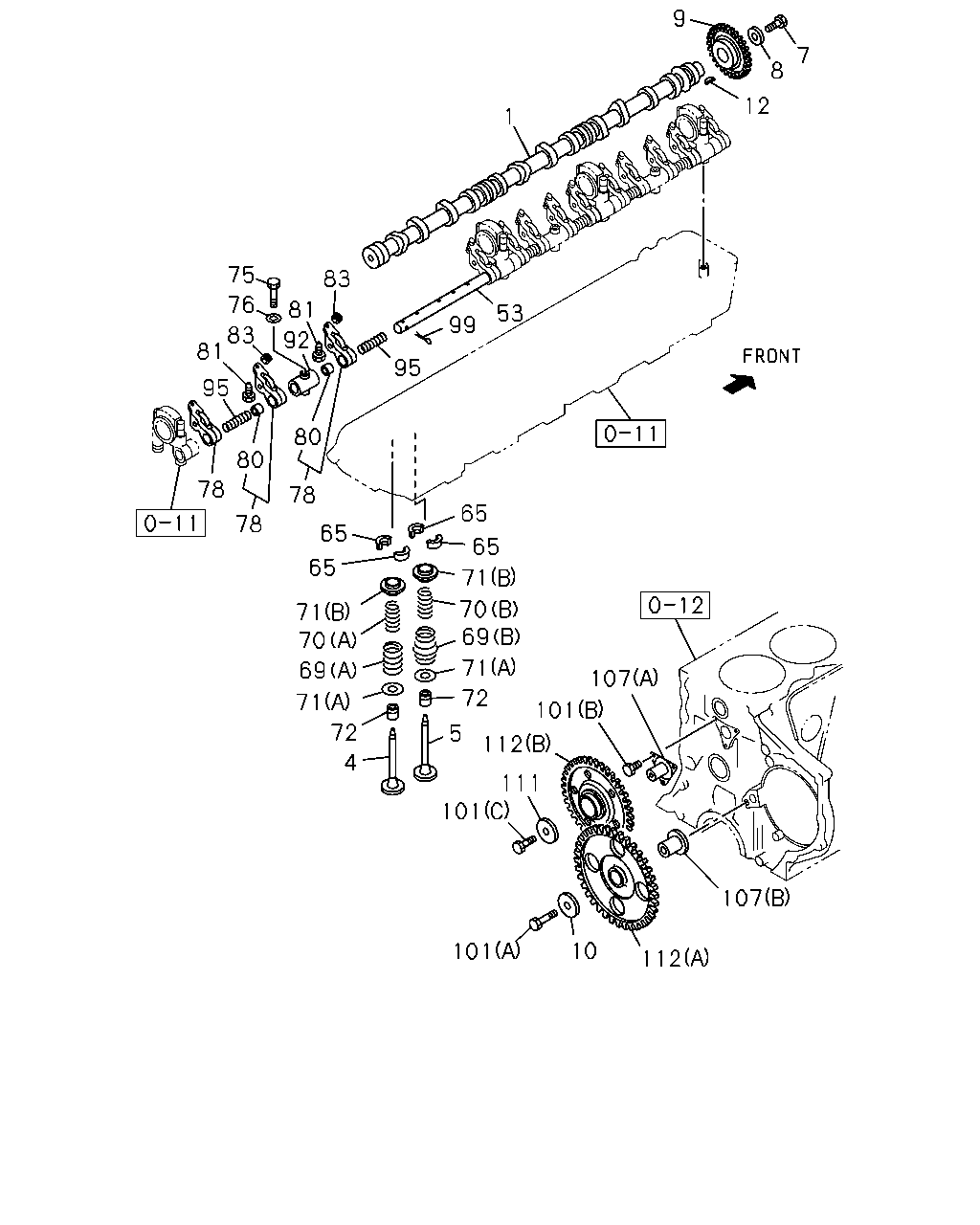

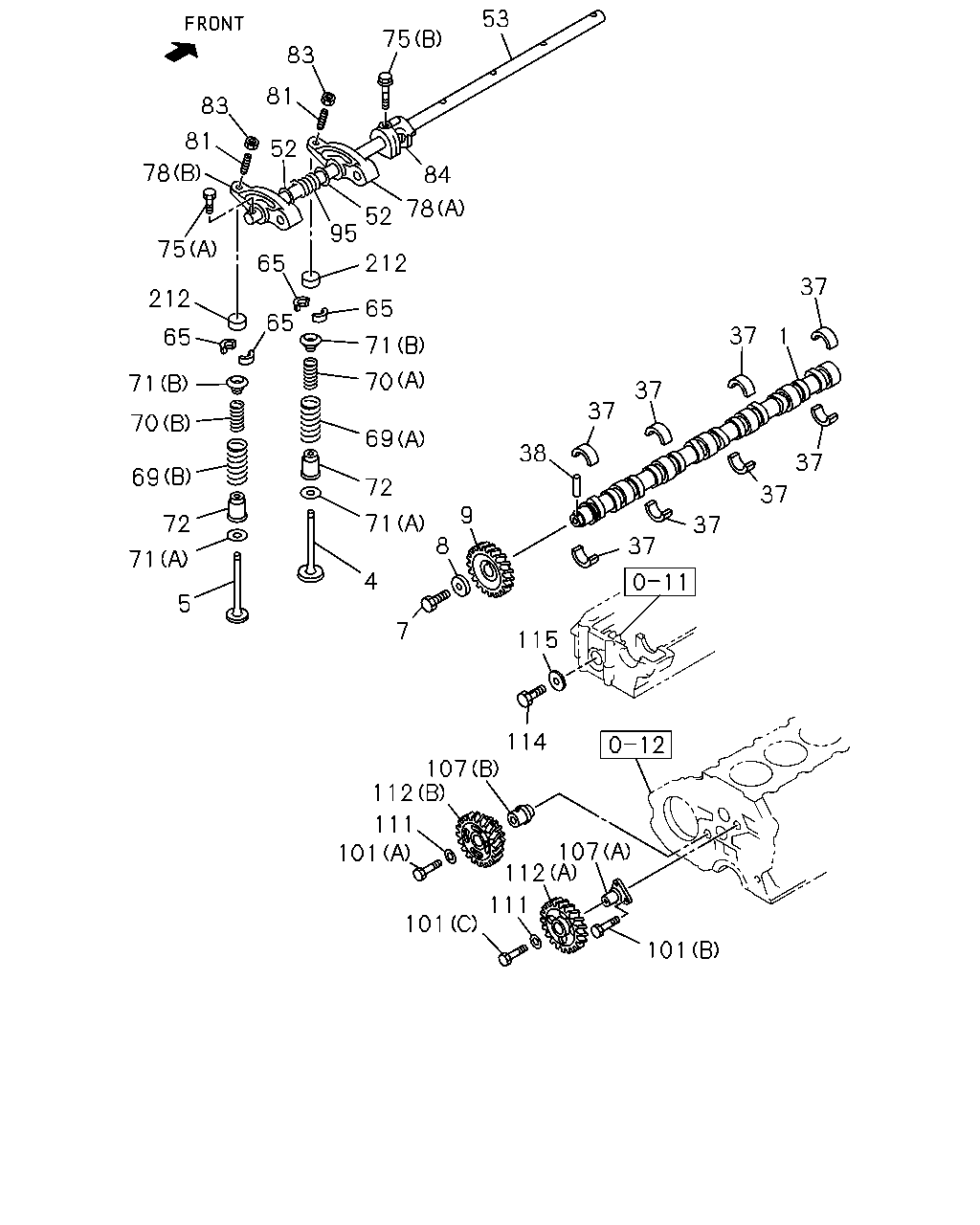

CAMSHAFT
|
1-12511-254-1 |
01 |
1 |
9601- |
● |
|
|
| |
1 |
CAMSHAFT
|
1-12511-249-1 |
01 |
1 |
9601-0004 |
|
● |
|
| |
1 |
CAMSHAFT
|
8-94395-576-2 |
01 |
1 |
9805-1311 |
|
|
● |
| |
1 |
CAMSHAFT
|
8-98227-259-1 |
01 |
1 |
1312- |
|
|
● |
| |
4 |
VALVE; INL
|
1-12551-158-3 |
06 |
1 |
9601- |
● |
|
|
| |
4 |
VALVE; INL
|
1-12551-126-1 |
06 |
1 |
9601-0004 |
|
● |
|
| |
4 |
VALVE; INL
|
8-94394-160-2 |
06 |
1 |
9805- |
|
|
● |
| |
5 |
VALVE; EXH
|
1-12552-085-0 |
06 |
1 |
9601-9902 |
● |
● |
|
| |
5 |
VALVE; EXH
|
1-12552-108-0 |
06 |
1 |
9903-0004 |
● |
● |
|
| |
5 |
VALVE; EXH
|
1-12552-108-2 |
06 |
1 |
0005- |
● |
|
|
| |
5 |
VALVE; EXH
|
8-94395-462-2 |
06 |
1 |
9805- |
|
|
● |
| |
7 |
BOLT; CM/SHF GEAR
M14X28
|
9-92061-428-0 |
01 |
1 |
9601-0004 |
● |
● |
|
| |
7 |
BOLT; CM/SHF GEAR
M14X28
|
9-92061-428-0 |
01 |
1 |
0005- |
● |
|
|
| |
7 |
BOLT; CM/SHF GEAR
M14X40
|
8-94396-439-0 |
01 |
1 |
9805- |
|
|
● |
| |
8 |
WASHER; CM/SHF GEAR
ID=14.5
|
9-09851-850-3 |
01 |
1 |
9601-9804 |
● |
● |
|
| |
8 |
WASHER; CM/SHF GEAR
ID=14.5
|
9-09851-850-3 |
01 |
1 |
9805-0004 |
● |
● |
● |
| |
8 |
WASHER; CM/SHF GEAR
ID=14.5
|
9-09851-850-3 |
01 |
1 |
0005- |
● |
|
● |
| |
9 |
GEAR; CM/SHF
Z=36
|
1-12522-037-1 |
01 |
1 |
9601-0004 |
● |
● |
|
| |
9 |
GEAR; CM/SHF
Z=36
|
1-12522-037-2 |
01 |
1 |
0005- |
● |
|
|
| |
9 |
GEAR; CM/SHF
Z=35
|
8-97094-440-2 |
01 |
1 |
9805- |
|
|
● |
| |
10 |
PLATE; THRUST
ID=24.5 OD=62
|
1-12535-021-0 |
01 |
1 |
9601-0004 |
● |
● |
|
| |
10 |
PLATE; THRUST
ID=24.5 OD=62
|
1-12535-021-1 |
01 |
1 |
0005- |
● |
|
|
| |
12 |
KEY; CAM GEAR SET
|
9-08055-516-0 |
01 |
1 |
9601-0004 |
● |
● |
|
| |
12 |
KEY; CAM GEAR SET
|
9-08055-516-0 |
01 |
1 |
0005- |
● |
|
|
| |
53 |
SHAFT; ROCKER ARM
|
1-12621-084-1 |
01 |
1 |
9601-0004 |
● |
● |
|
| |
53 |
SHAFT; ROCKER ARM
|
1-12621-084-1 |
01 |
1 |
0005- |
● |
|
|
| |
53 |
SHAFT; ROCKER ARM
|
8-94393-984-4 |
01 |
1 |
9805- |
|
|
● |
| |
65 |
COLLAR; SPLIT
|
1-12565-007-0 |
24 |
1 |
9601-0004 |
● |
● |
|
| |
65 |
COLLAR; SPLIT
|
1-12565-007-0 |
24 |
1 |
0005- |
● |
|
|
| |
65 |
COLLAR; SPLIT
|
5-12565-006-0 |
24 |
1 |
9805- |
|
|
● |
| |
69 |
SPRING; VLV,OUTER
(B)
|
1-12561-052-0 |
06 |
1 |
9601- |
● |
|
|
| |
69 |
SPRING; VLV,OUTER
(A)
|
1-12561-051-0 |
06 |
1 |
9601-0004 |
● |
● |
|
| |
69 |
SPRING; VLV,OUTER
(A)
|
1-12561-051-0 |
06 |
1 |
0005- |
● |
|
|
| |
69 |
SPRING; VLV,OUTER
(B)
|
1-12561-072-0 |
06 |
1 |
9601-0004 |
|
● |
|
| |
69 |
SPRING; VLV,OUTER
(B)
MARK YELLOW
|
8-94393-310-0 |
06 |
1 |
9805- |
|
|
● |
| |
69 |
SPRING; VLV,OUTER
(A)
|
8-94394-996-0 |
06 |
1 |
9805-0111 |
|
|
● |
| |
69 |
SPRING; VLV,OUTER
(A)
MARK PINK
|
8-97120-912-0 |
06 |
1 |
0112- |
|
|
● |
| |
70 |
SPRING; VLV,INNER
(B)
|
1-12562-033-0 |
06 |
1 |
9601- |
● |
|
|
| |
70 |
SPRING; VLV,INNER
(A)
|
1-12562-032-0 |
06 |
1 |
9601-0004 |
● |
● |
|
| |
70 |
SPRING; VLV,INNER
(A)
|
1-12562-032-0 |
06 |
1 |
0005- |
● |
|
|
| |
70 |
SPRING; VLV,INNER
(B)
|
1-12561-073-0 |
06 |
1 |
9601-0004 |
|
● |
|
| |
70 |
SPRING; VLV,INNER
(A)
|
8-94395-266-0 |
06 |
1 |
9805-0111 |
|
|
● |
| |
70 |
SPRING; VLV,INNER
(A)
MARK PINK
|
8-97120-911-0 |
06 |
1 |
0112- |
|
|
● |
| |
70 |
SPRING; VLV,INNER
(B)
MARK YELLOW
|
8-94397-500-0 |
06 |
1 |
9805- |
|
|
● |
| |
71 |
SEAT; SPR
(B)
|
1-12563-033-1 |
12 |
1 |
9601-0004 |
● |
● |
|
| |
71 |
SEAT; SPR
(B)
|
1-12563-033-1 |
12 |
1 |
0005-0009 |
● |
|
|
| |
71 |
SEAT; SPR
(B)
|
1-12563-059-1 |
12 |
1 |
0010-0401 |
● |
|
|
| |
71 |
SEAT; SPR
(B)
|
8-97603-239-0 |
12 |
1 |
0402- |
● |
|
|
| |
71 |
SEAT; SPR
(A)
|
9-12563-231-0 |
12 |
1 |
9601-0004 |
● |
● |
|
| |
71 |
SEAT; SPR
(A)
|
9-12563-231-1 |
12 |
1 |
0005- |
● |
|
|
| |
71 |
SEAT; SPR
(B)
OD=38
|
8-94385-029-2 |
12 |
1 |
9805- |
|
|
● |
| |
71 |
SEAT; SPR
(A)
ID=14.3 T=0.5
|
8-94396-014-0 |
12 |
1 |
9805- |
|
|
● |
| |
72 |
SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
1-12569-017-0 |
12 |
1 |
9601-0004 |
● |
● |
|
| |
72 |
SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
1-12569-017-0 |
12 |
1 |
0005- |
● |
|
|
| |
72 |
SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
8-94396-609-2 |
12 |
1 |
9805- |
|
|
● |
| |
75 |
BOLT; BRKT
M8X55
|
9-01065-855-0 |
03 |
1 |
9601-0004 |
● |
● |
|
| |
75 |
BOLT; BRKT
M8X55
|
9-01065-855-0 |
03 |
1 |
0005- |
● |
|
|
| |
75 |
BOLT; BRKT
(A)
M8X35 FLANGE
|
0-28080-835-0 |
02 |
1 |
9805-0512 |
|
|
● |
| |
75 |
BOLT; BRKT
(A)
M8X35 FLANGE
|
0-28050-835-0 |
02 |
1 |
0601- |
|
|
● |
| |
75 |
BOLT; BRKT
(B)
M10X62 FLANGE
|
8-94393-131-0 |
05 |
1 |
9805- |
|
|
● |
| |
76 |
WASHER; PL,BRKT
|
9-09851-430-0 |
03 |
1 |
9601-0004 |
● |
● |
|
| |
76 |
WASHER; PL,BRKT
|
9-09851-430-0 |
03 |
1 |
0005- |
● |
|
|
| |
78 |
ARM; ROCKER
|
1-12610-045-1 |
12 |
1 |
9601-0004 |
● |
● |
|
| |
78 |
ARM; ROCKER
|
1-12610-045-3 |
12 |
1 |
0005- |
● |
|
|
| |
78 |
ARM; ROCKER
(B)
|
8-97014-258-2 |
06 |
1 |
9805- |
|
|
● |
| |
78 |
ARM; ROCKER
(A)
|
8-97074-614-1 |
06 |
1 |
9805- |
|
|
● |
| |
80 |
BUSHING; ROCKER ARM
|
1-12615-013-1 |
12 |
1 |
9601-0004 |
● |
● |
|
| |
80 |
BUSHING; ROCKER ARM
|
1-12615-013-1 |
12 |
1 |
0005- |
● |
|
|
| |
81 |
SCREW; ADJ,ROCKER ARM
|
1-12616-038-0 |
12 |
1 |
9601-0004 |
● |
● |
|
| |
81 |
SCREW; ADJ,ROCKER ARM
|
1-12616-038-0 |
12 |
1 |
0005- |
● |
|
|
| |
81 |
SCREW; ADJ,ROCKER ARM
M10 L=32
|
8-94395-024-0 |
12 |
1 |
9805- |
|
|
● |
| |
83 |
NUT; ADJ SCREW,LK
M8 FLANGE
|
9-09844-574-0 |
12 |
1 |
9601-0004 |
● |
● |
|
| |
83 |
NUT; ADJ SCREW,LK
M8 FLANGE
|
9-09844-574-0 |
12 |
1 |
0005- |
● |
|
|
| |
83 |
NUT; ADJ SCREW,LK
M10
|
9-09111-410-0 |
12 |
1 |
9805-0512 |
|
|
● |
| |
83 |
NUT; ADJ SCREW,LK
M10
|
0-91111-510-0 |
12 |
1 |
0601- |
|
|
● |
| |
92 |
BRACKET; ROCKER ARM
|
1-12628-045-0 |
03 |
1 |
9601-0004 |
● |
● |
|
| |
92 |
BRACKET; ROCKER ARM
|
1-12628-045-0 |
03 |
1 |
0005- |
● |
|
|
| |
95 |
SPRING; ROCKER SHAFT
|
1-09580-335-0 |
06 |
1 |
9601-0004 |
● |
● |
|
| |
95 |
SPRING; ROCKER SHAFT
|
1-09580-335-0 |
06 |
1 |
0005- |
● |
|
|
| |
95 |
SPRING; ROCKER SHAFT
|
8-94397-263-0 |
06 |
1 |
9805- |
|
|
● |
| |
99 |
PIN; SPLIT,ROCKER ARM SHAFT
OD=1.8 L=25
|
9-08112-025-0 |
02 |
1 |
9601-0004 |
● |
● |
|
| |
99 |
PIN; SPLIT,ROCKER ARM SHAFT
OD=1.8 L=25
|
9-08112-025-0 |
02 |
1 |
0005-0606 |
● |
|
|
| |
99 |
PIN; SPLIT,ROCKER ARM SHAFT
OD=1.8 L=25
|
0-81122-025-0 |
02 |
1 |
0607- |
● |
|
|
| |
101 |
BOLT; THRUST COLLAR
(A)
M8X14 FLANGE
|
0-28080-814-0 |
03 |
1 |
9601-0004 |
● |
● |
|
| |
101 |
BOLT; THRUST COLLAR
(A)
M8X14 FLANGE
|
0-28080-814-0 |
03 |
1 |
0005- |
● |
|
|
| |
101 |
BOLT; THRUST COLLAR
(B)
M14X16
|
1-09000-284-0 |
01 |
1 |
9601-0004 |
● |
● |
|
| |
101 |
BOLT; THRUST COLLAR
(B)
M14X16
|
1-09000-284-0 |
01 |
1 |
0005- |
● |
|
|
| |
101 |
BOLT; THRUST COLLAR
(C)
M12X57
|
1-09070-127-0 |
01 |
1 |
9601-0004 |
● |
● |
|
| |
101 |
BOLT; THRUST COLLAR
(C)
M12X57
|
1-09070-127-0 |
01 |
1 |
0005- |
● |
|
|
| |
101 |
BOLT; THRUST COLLAR
(B)
M8X16 FLANGE
|
0-28090-816-0 |
03 |
1 |
9805-0512 |
|
|
● |
| |
101 |
BOLT; THRUST COLLAR
(B)
M8X16 FLANGE
|
0-28060-816-0 |
03 |
1 |
0601- |
|
|
● |
| |
101 |
BOLT; THRUST COLLAR
(A)
M14X60
|
9-91666-460-0 |
01 |
1 |
9805-0512 |
|
|
● |
| |
101 |
BOLT; THRUST COLLAR
(A)
M14X60
|
0-16956-460-0 |
01 |
1 |
0601- |
|
|
● |
| |
101 |
BOLT; THRUST COLLAR
(C)
M14X30
|
9-92361-430-0 |
01 |
1 |
9805-0512 |
|
|
● |
| |
101 |
BOLT; THRUST COLLAR
(C)
M14X30
|
0-23951-430-0 |
01 |
1 |
0601- |
|
|
● |
| |
107 |
SHAFT; IDLE GEAR
(A)
|
1-12531-054-1 |
01 |
1 |
9601-0004 |
● |
● |
|
| |
107 |
SHAFT; IDLE GEAR
(A)
|
1-12531-054-1 |
01 |
1 |
0005-0011 |
● |
|
|
| |
107 |
SHAFT; IDLE GEAR
(A)
|
1-12531-097-2 |
01 |
1 |
0012- |
● |
|
|
| |
107 |
SHAFT; IDLE GEAR
(B)
|
1-12531-064-0 |
01 |
1 |
9601-0004 |
● |
● |
|
| |
107 |
SHAFT; IDLE GEAR
(B)
|
1-12531-064-0 |
01 |
1 |
0005-0011 |
● |
|
|
| |
107 |
SHAFT; IDLE GEAR
(B)
|
1-12531-099-0 |
01 |
1 |
0012- |
● |
|
|
| |
107 |
SHAFT; IDLE GEAR
(A)
|
8-97073-938-1 |
01 |
1 |
9805-9805 |
|
|
● |
| |
107 |
SHAFT; IDLE GEAR
(A)
|
8-97189-244-1 |
01 |
1 |
9806-0204 |
|
|
● |
| |
107 |
SHAFT; IDLE GEAR
(A)
|
8-97350-021-0 |
01 |
1 |
0205- |
|
|
● |
| |
107 |
SHAFT; IDLE GEAR
(B)
|
8-97104-380-0 |
01 |
1 |
9805-0609 |
|
|
● |
| |
107 |
SHAFT; IDLE GEAR
(B)
|
8-98060-780-0 |
01 |
1 |
0610- |
|
|
● |
| |
111 |
COLLAR; THRUST,IDLE GEAR
ID=14.5 OD=46
|
8-94370-688-0 |
01 |
1 |
9601-0004 |
● |
● |
|
| |
111 |
COLLAR; THRUST,IDLE GEAR
ID=14.5 OD=46
|
8-94370-688-0 |
01 |
1 |
0005-0306 |
● |
|
|
| |
111 |
COLLAR; THRUST,IDLE GEAR
ID=14.5 OD=46
|
8-97209-728-2 |
01 |
1 |
0307- |
● |
|
|
| |
111 |
COLLAR; THRUST,IDLE GEAR
ID=14.5 OD=46
|
8-94370-688-0 |
02 |
1 |
9805-0306 |
|
|
● |
| |
111 |
COLLAR; THRUST,IDLE GEAR
ID=14.5 OD=46
|
8-97209-728-2 |
02 |
1 |
0307- |
|
|
● |
| |
112 |
GEAR; IDLE
(A)
Z=69-27
|
1-12523-241-0 |
01 |
1 |
9601-0004 |
● |
● |
|
| |
112 |
GEAR; IDLE
(A)
Z=69-27
|
1-12523-241-0 |
01 |
1 |
0005-0011 |
● |
|
|
| |
112 |
GEAR; IDLE
(A)
Z=69-27
|
1-12523-346-0 |
01 |
1 |
0012- |
● |
|
|
| |
112 |
GEAR; IDLE
(B)
Z=62
|
1-12523-242-0 |
01 |
1 |
9601-0004 |
● |
● |
|
| |
112 |
GEAR; IDLE
(B)
Z=62
|
1-12523-242-0 |
01 |
1 |
0005-0011 |
● |
|
|
| |
112 |
GEAR; IDLE
(B)
Z=62
|
1-12523-347-0 |
01 |
1 |
0012- |
● |
|
|
| |
112 |
GEAR; IDLE
(B)
Z=72-30
|
8-94395-107-1 |
01 |
1 |
9805-0609 |
|
|
● |
| |
112 |
GEAR; IDLE
(B)
Z=72-30
|
8-97227-074-0 |
01 |
1 |
0610- |
|
|
● |
| |
112 |
GEAR; IDLE
(A)
Z=61
|
8-97094-546-2 |
01 |
1 |
9805- |
|
|
● |
