Isuzu WW
▶
TRUCKS
▶
CVR
▶
10723 - CVR LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#6393) — 36 parça
◀

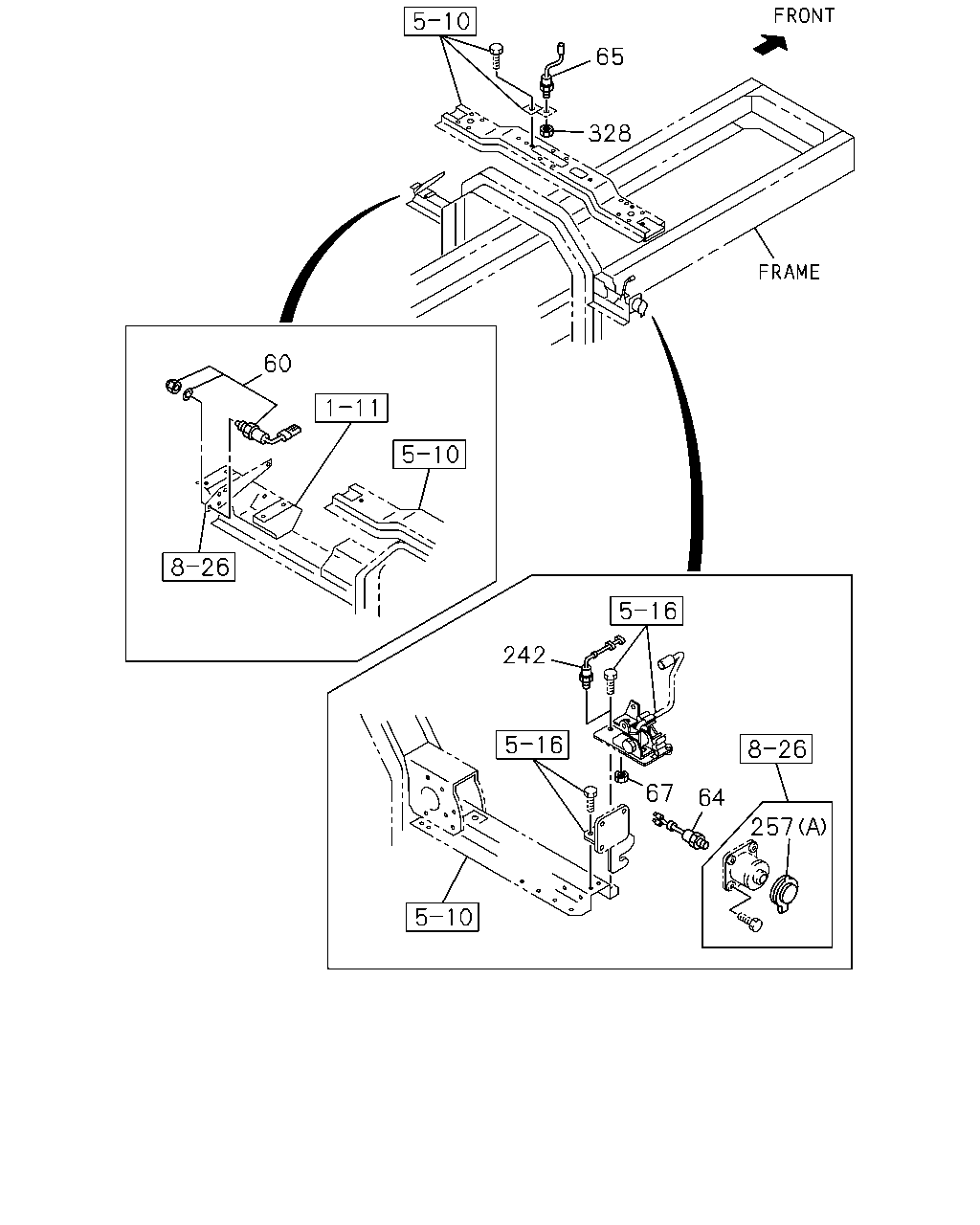

[825A] FRAME SIDE (10 parça)
[825A] CAB SIDE (20 parça)
[825A] INST PANEL SIDE (6 parça)
▶
65
328
60
242
67
64
257
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
60
SWITCH; STARTER SUB
1-82380-107-1
01
1
9604-
64
SWITCH; CAB TILT MAIN
1-82380-108-0
01
1
9604-
65
SWITCH; CAB TILT LK
STAMP NC
1-82380-125-1
01
1
9604-
67
NUT; SW,CAB TILT
M16 H=18.5
1-09409-013-0
01
1
9604-
242
SWITCH
STAMP NO
1-82380-126-0
01
1
9604-
257
COVER; HOLE,SW
(A)
1-82389-008-0
01
1
9604-
257
COVER; HOLE,SW
(B)
8-94229-914-1
01
1
9604-
257
COVER; HOLE,SW
(C)
1-82389-012-2
01
1
9604-
257
COVER; HOLE,SW
(C)
1-82389-011-2
01
1
9604-
328
NUT; SW
M16
9-99110-416-0
01
1
9604-

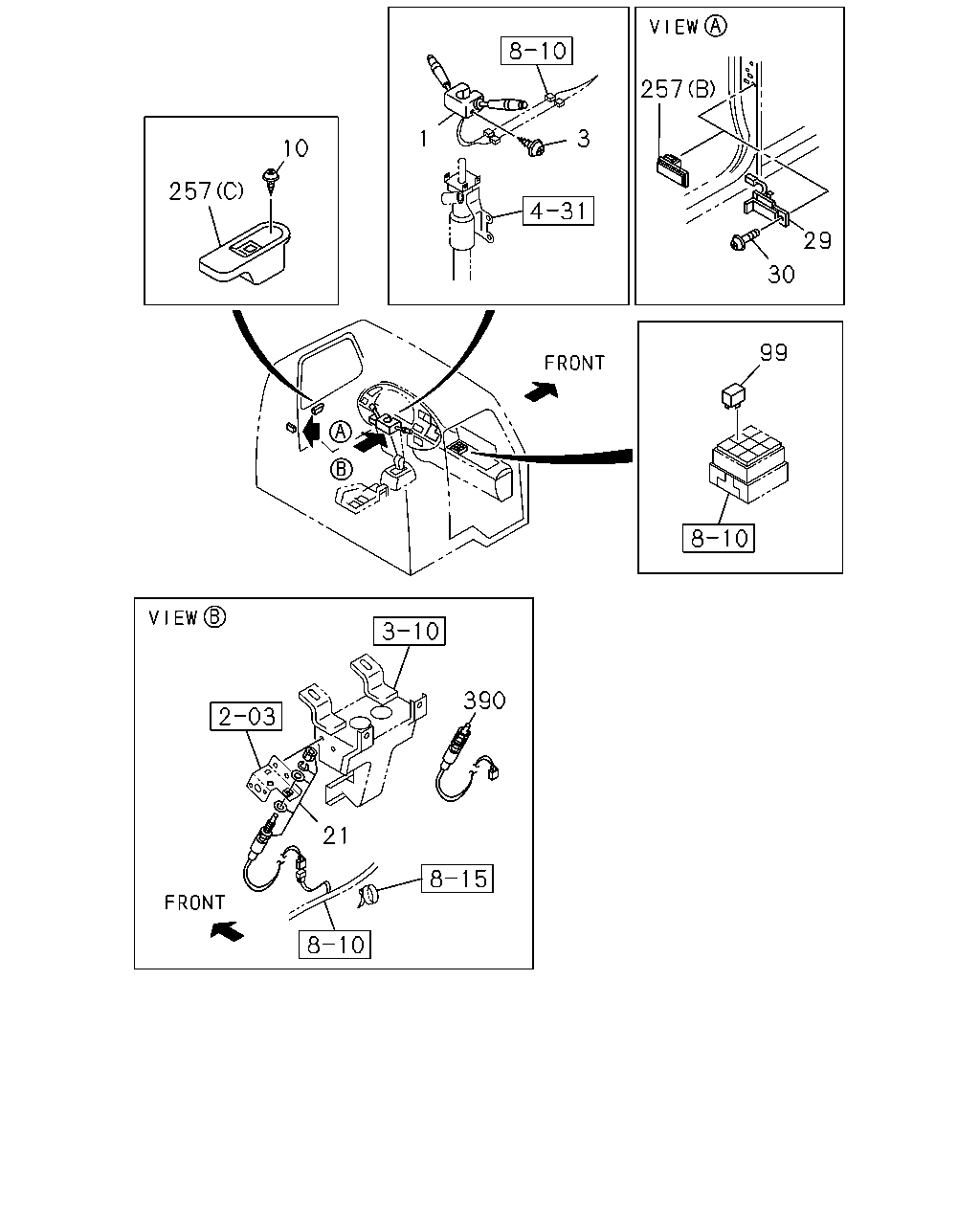

257
3
1
10
257
29
30
99
390
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SWITCH; COMB
FOG LAMP REAR<NHD>
1-82360-539-0
01
1
0002-
1
SWITCH; COMB
FOG LAMP<T96>
1-82360-405-3
01
1
9604-9611
1
SWITCH; COMB
1-82360-405-4
01
1
9612-0001
1
SWITCH; COMB
EXC. FOG LAMP REAR<NHD>
1-82360-405-4
01
1
0002-
1
SWITCH; COMB
EXC. FOG LAMP<T96>
1-82360-371-3
01
1
9604-9611
3
SCREW; COMB SW
M5X12 TAPPING W/PL WASHER
0-74105-512-0
04
1
9604-
10
SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER
0-74310-516-0
02
1
9604-
21
SWITCH; CLU
1-82380-114-2
01
1
9604-
29
SWITCH; DOOR
8-97855-032-3
01
1
9604-
30
SCREW; DOOR SW
M5X16
8-94279-341-0
01
1
9604-9906
30
SCREW; DOOR SW
M5X11
1-09981-536-1
01
1
9907-
99
RELAY; FOG LAMP
FOG LAMP<T96> 24V 12.5A MITUBA
8-97062-815-0
01
1
9604-9611
99
RELAY; FOG LAMP
24V 12.5A MITUBA
8-97062-815-1
01
1
9612-0001
99
RELAY; FOG LAMP
24V 12.5A MITUBA
8-97062-815-1
01
1
0002-
99
RELAY; FOG LAMP
FOG LAMP REAR<NHD> 24V 12.5A MITUBA
8-97062-815-1
01
1
0002-
257
COVER; HOLE,SW
(A)
1-82389-008-0
01
1
9604-
257
COVER; HOLE,SW
(B)
8-94229-914-1
01
1
9604-
257
COVER; HOLE,SW
(C)
1-82389-012-2
01
1
9604-
257
COVER; HOLE,SW
(C)
1-82389-011-2
01
1
9604-
390
SWITCH ASM; GOV CONT
CONCRETE PUMP<RA5>
1-82380-077-1
01
1
9604-0006
77

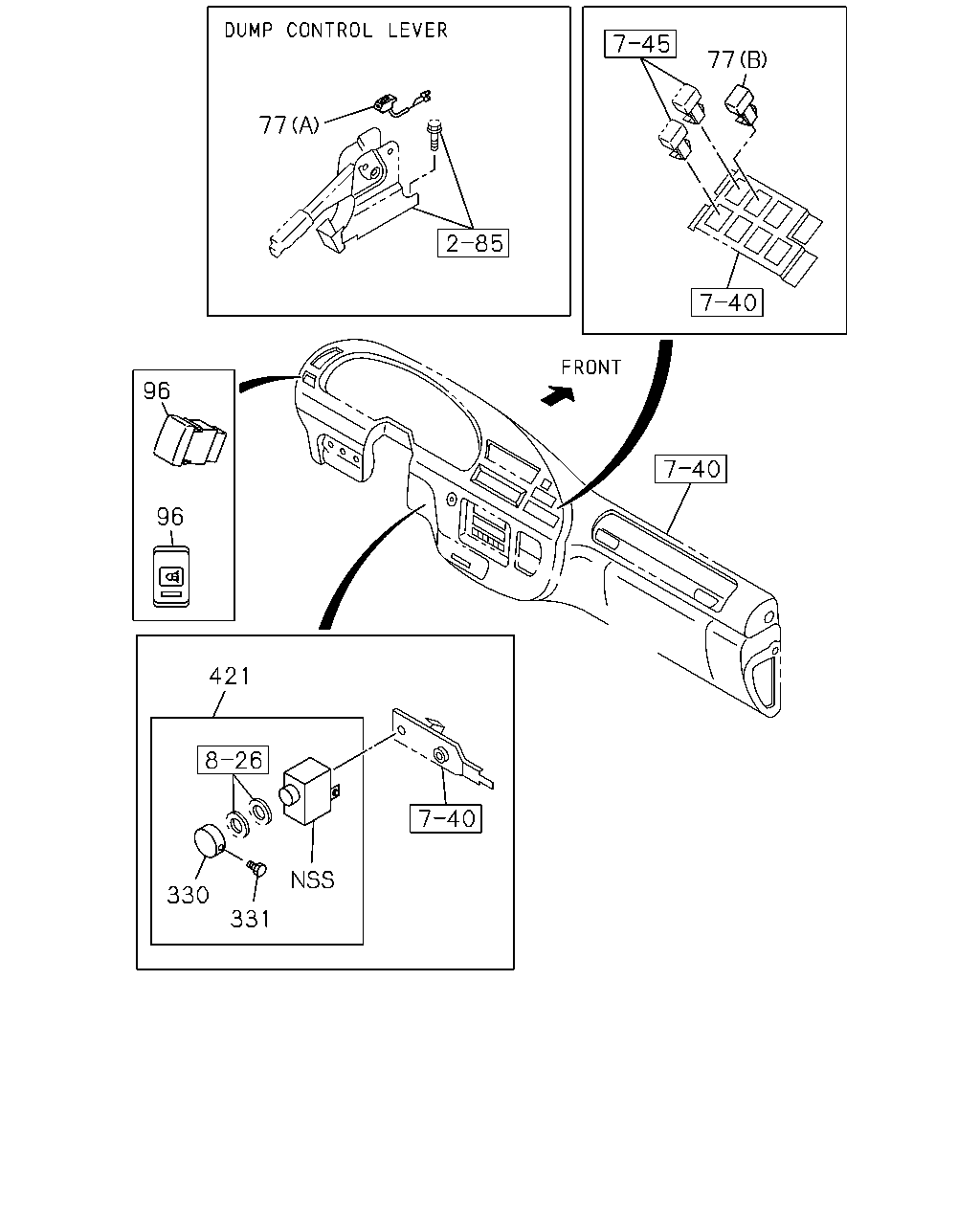

77
96
96
421
330
331
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
77
SWITCH; PTO
DUMP CONTROL LEVER<RC4> (A)
1-82380-112-0
01
1
9604-
77
SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP TRUCK<RA1> (B)
1-82340-413-0
01
1
9604-
96
SWITCH; FOG LAMP
FOG LAMP REAR<NHD>
1-82340-676-0
01
1
0002-
330
KNOB; INT HTR
INTAKE HEATER<SL2>
1-82336-003-1
01
1
9604-
331
SCREW
INTAKE HEATER<SL2>
1-09106-002-0
01
1
9604-
421
SWITCH ASM; INT HTR
INTAKE HEATER<SL2>
1-82330-030-0
01
1
9604-
