Sayfa 0-12 - Isuzu EPC

0-12 — CYLINDER BLOCK (#63929) — 267 parça

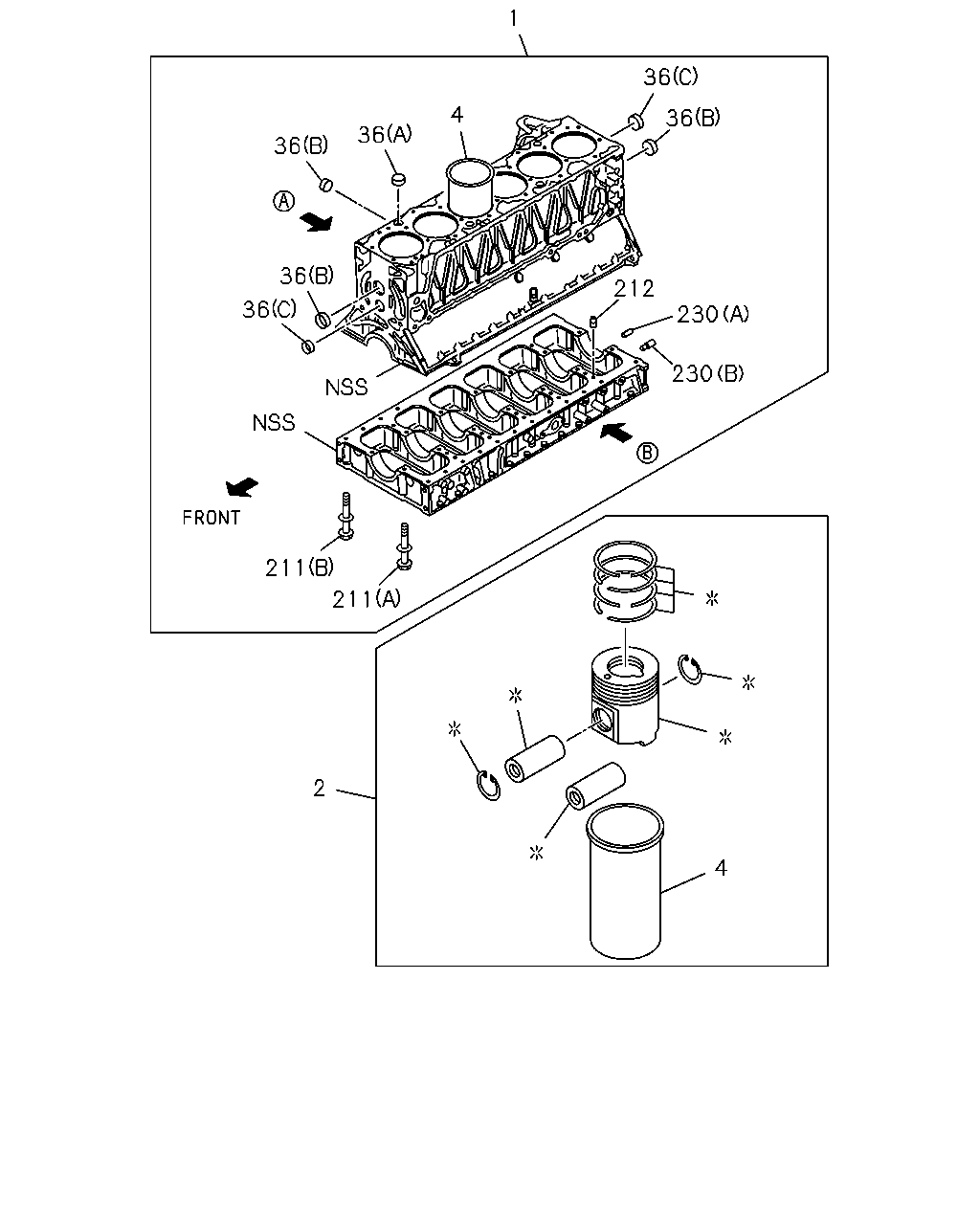

1 36 4 36 36 36 36 212 36 230 230 211 211 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BLOCK ASM; CYL	1-11210-620-3	01	1	9601-0004	●	●
1	BLOCK ASM; CYL	8-98319-410-0	01	1	0005-		●
1	BLOCK ASM; CYL	8-94394-057-9	01	1	9805-9807			●
1	BLOCK ASM; CYL	8-94392-491-2	01	1	9808-0001			●
1	BLOCK ASM; CYL	8-97600-415-2	01	1	0002-0504			●
1	BLOCK ASM; CYL	8-98005-414-2	01	1	0505-1012			●
1	BLOCK ASM; CYL	8-98180-710-0	01	1	1101-1209			●
1	BLOCK ASM; CYL	8-98206-961-0	01	1	1210-			●
2	LINER SET; ENG CYL GRADE=1X	1-87811-453-0	06	1	9601-9710		●
2	LINER SET; ENG CYL EXC. KENYA EQUIPMENT(PQ2) GRADE=1X	1-87811-453-4	06	1	9711-		●
2	LINER SET; ENG CYL GRADE=3X	1-87811-454-0	06	1	9601-9710		●
2	LINER SET; ENG CYL EXC. KENYA EQUIPMENT(PQ2) GRADE=3X	1-87811-454-4	06	1	9711-		●
2	LINER SET; ENG CYL KENYA EQUIPMENT(PQ2) GRADE=1X	1-87811-792-4	06	1	9711-		●
2	LINER SET; ENG CYL KENYA EQUIPMENT(PQ2) GRADE=3X	1-87811-793-4	06	1	9711-		●
2	LINER SET; ENG CYL GRADE=1X	1-87811-426-1	06	1	9601-0004	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-427-1	06	1	9601-0004	●
2	LINER SET; ENG CYL GRADE=1X	1-87811-665-9	06	1	9805-			●
2	LINER SET; ENG CYL GRADE=3X	1-87811-666-9	06	1	9805-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	1-11261-298-0	06	1	9601-0004	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	1-11261-298-1	06	1	0005-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	1-11261-299-0	06	1	9601-0004	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	1-11261-299-1	06	1	0005-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	1-11261-300-0	06	1	9601-0004	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	1-11261-300-1	06	1	0005-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	1-11261-301-0	06	1	9601-0004	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	1-11261-301-1	06	1	0005-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	06	1	9805-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	06	1	9805-			●
36	CUP; SEALING,WATER JACKET (A) OD=25	1-09600-016-0	05	1	9601-0004	●	●
36	CUP; SEALING,WATER JACKET (A) OD=25	1-09600-016-0	05	1	0005-		●
36	CUP; SEALING,WATER JACKET (B) OD=45	1-09600-058-0	07	1	9601-0004	●	●
36	CUP; SEALING,WATER JACKET (B) OD=45	1-09600-058-1	07	1	0005-		●
36	CUP; SEALING,WATER JACKET (C) OD=32	1-09600-059-0	02	1	9601-0004	●	●
36	CUP; SEALING,WATER JACKET (C) OD=32	1-09600-059-1	02	1	0005-		●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	05	1	9805-			●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	9805-			●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	9805-			●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	9805-0502			●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-97096-824-0	04	1	0503-			●
211	BOLT; CRANKCASE (A) M14X125 FLANGE W/PL WASHER	1-09070-043-1	14	1	9601-0004	●	●
211	BOLT; CRANKCASE (A) M14X125 FLANGE W/PL WASHER	1-09070-043-1	14	1	0005-		●
211	BOLT; CRANKCASE (B) M10X98 FLANGE W/PL WASHER	1-09070-061-0	24	1	9601-0004	●	●
211	BOLT; CRANKCASE (B) M10X98 FLANGE W/PL WASHER	1-09070-061-0	24	1	0005-1107		●
211	BOLT; CRANKCASE (B) M10X95 FLANGE	8-98141-538-0	24	1	1108-		●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	9805-0905			●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	14	1	0906-			●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	9805-			●
212	PIN; CRANKCASE OD=12 L=28	1-09740-031-0	02	1	9601-0004	●	●
212	PIN; CRANKCASE OD=12 L=28	1-09740-031-0	02	1	0005-		●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	9805-0306			●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	0307-			●
230	PIN; THRUST METAL,CR/SHF (A) L=25	1-09749-025-1	02	1	9601-0004	●	●
230	PIN; THRUST METAL,CR/SHF (A) L=25	1-09749-025-1	02	1	0005-		●
230	PIN; THRUST METAL,CR/SHF (B) OD=5 L=10	9-08160-510-0	02	1	9601-0004	●	●
230	PIN; THRUST METAL,CR/SHF (B) OD=5 L=10	9-08160-510-0	02	1	0005-		●

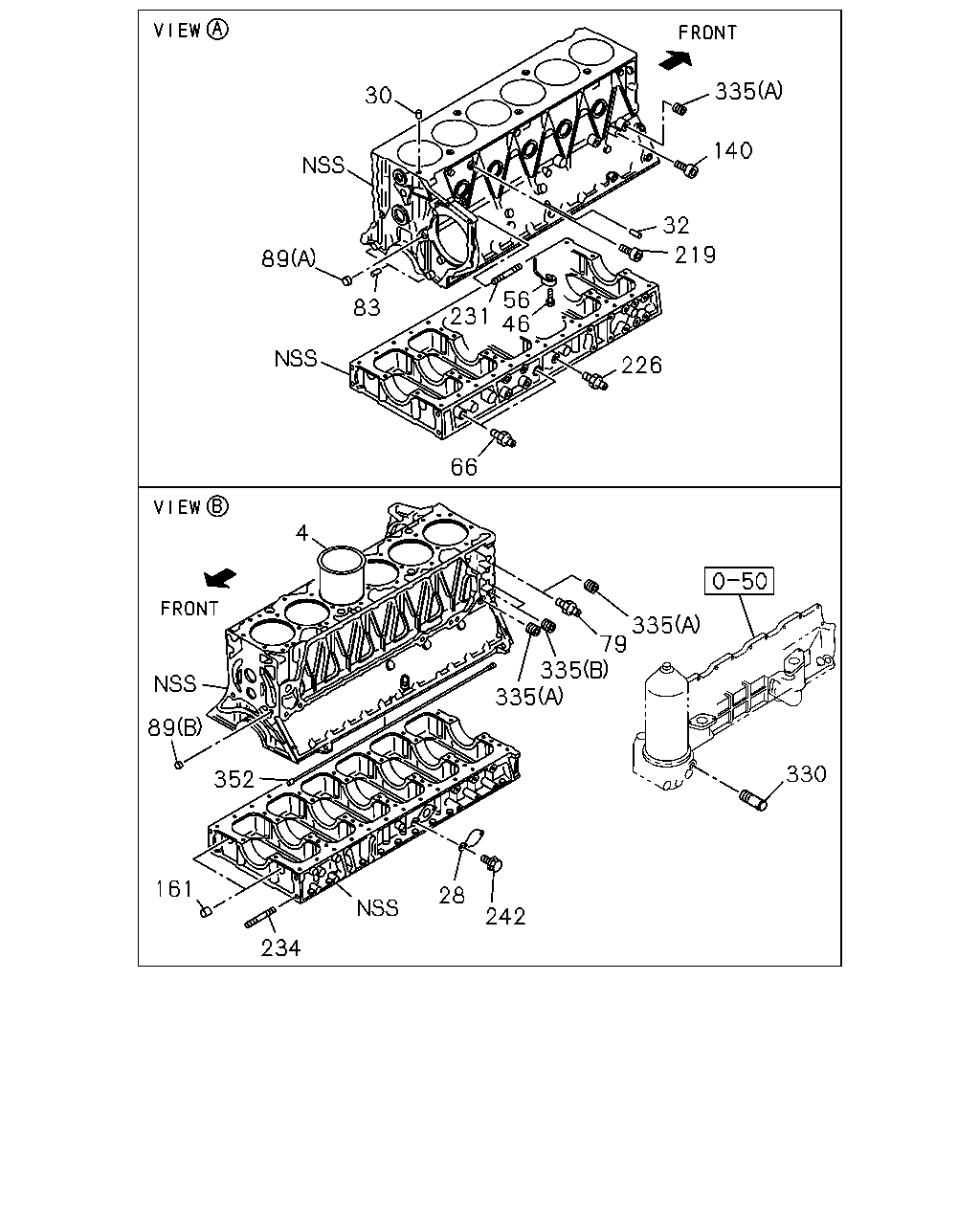

335 30 140 32 219 89 56 46 83 231 226 66 4 335 79 335 335 89 330 352 161 28 242 234

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	1-11261-298-0	06	1	9601-0004	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	1-11261-298-1	06	1	0005-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	1-11261-299-0	06	1	9601-0004	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	1-11261-299-1	06	1	0005-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	1-11261-300-0	06	1	9601-0004	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	1-11261-300-1	06	1	0005-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	1-11261-301-0	06	1	9601-0004	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	1-11261-301-1	06	1	0005-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	06	1	9805-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	06	1	9805-			●
28	COVER; OIL PORT	1-11749-103-0	01	1	9601-		●
28	COVER; OIL PORT	1-11219-163-0	01	1	9805-			●
30	PIN; CYL HD GASKET SETTING OD=8 L=16	9-08150-816-0	03	1	9601-0004	●	●
30	PIN; CYL HD GASKET SETTING OD=8 L=16	9-08150-816-0	03	1	0005-		●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	9805-			●
32	PIN; INJ PUMP BRKT OD=8 L=16	9-08150-816-0	02	1	9601-0004	●	●
32	PIN; INJ PUMP BRKT OD=8 L=16	9-08150-816-0	02	1	0005-		●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	9805-			●
46	BOLT; JOINT,OIL JET,PISTON COOLING	1-09675-105-1	06	1	9601-0004	●	●
46	BOLT; JOINT,OIL JET,PISTON COOLING	1-09675-105-1	06	1	0005-		●
56	JET; OIL,PISTON COOLING	1-13342-127-0	06	1	9601-0004	●	●
56	JET; OIL,PISTON COOLING	1-13342-127-1	06	1	0005-		●
56	JET; OIL,PISTON COOLING	8-94399-187-1	06	1	9805-			●
66	CONNECTOR; PARTIAL FILTER M16 & PT1/4 STRAIGHT	1-09650-210-1	01	1	9601-0004	●	●
66	CONNECTOR; PARTIAL FILTER M16 & PT1/4 STRAIGHT	1-09650-210-1	01	1	0005-		●
79	NIPPLE; OIL FEED,TURBOCHARGER M16 & PT1/4 STRAIGHT	1-09650-210-1	01	1	9601-0004	●
83	PIN; FLYWHEEL HSG	9-08151-025-0	02	1	9601-0004	●	●
83	PIN; FLYWHEEL HSG	9-08151-025-0	02	1	0005-		●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	9805-0306			●
83	PIN; FLYWHEEL HSG OD=10 L=20	8-97135-423-0	02	1	0307-0307			●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0308-			●
89	CUP; SEALING,OIL GALLERY (A) OD=16	9-11129-081-0	01	1	9601-0004	●	●
89	CUP; SEALING,OIL GALLERY (A) OD=16	9-11129-081-0	01	1	0005-0301		●
89	CUP; SEALING,OIL GALLERY (A) OD=16	5-11129-006-0	01	1	0302-		●
89	CUP; SEALING,OIL GALLERY (B) OD=20	9-11219-192-0	02	1	9601-0004	●	●
89	CUP; SEALING,OIL GALLERY (B) OD=20	9-11219-192-0	02	1	0005-0909		●
89	CUP; SEALING,OIL GALLERY (B) OD=20	9-11129-128-0	02	1	0910-		●
89	CUP; SEALING,OIL GALLERY (C) OD=20	9-11219-192-0	03	1	9805-0908			●
89	CUP; SEALING,OIL GALLERY (C) OD=20	9-11129-128-0	03	1	0909-			●
140	NIPPLE; INJ PUMP	1-09660-155-0	01	1	9601-0004	●	●
140	NIPPLE; INJ PUMP	1-09660-155-0	01	1	0005-		●
161	DOWEL; FRT COVER	1-11229-012-1	02	1	9601-0004	●	●
161	DOWEL; FRT COVER	1-11229-012-1	02	1	0005-		●
219	NIPPLE; AIR CMPR,WATER	1-09660-408-0	01	1	9601-0004	●	●
219	NIPPLE; AIR CMPR,WATER	1-09660-408-0	01	1	0005-		●
226	CONNECTOR; INJ PUMP,RETURN M20 & PT3/8 STRAIGHT	1-09650-211-1	01	1	9601-0004	●	●
226	CONNECTOR; INJ PUMP,RETURN M20 & PT3/8 STRAIGHT	1-09650-211-1	01	1	0005-		●
231	STUD; AIR CMPR M12X67 L=82	1-09302-112-0	04	1	9601-0004	●	●
231	STUD; AIR CMPR M12X67 L=82	1-09302-112-0	04	1	0005-		●
231	STUD; AIR CMPR M10X36.5 L=48.5	8-94396-145-0	02	1	9805-0301			●
231	STUD; AIR CMPR M10X25 L=40	0-49841-025-0	02	1	0302-0512			●
231	STUD; AIR CMPR M10X25 L=48.5	0-49241-025-0	02	1	0601-			●
234	STUD; FRT COVER M10X50 L=65	1-09302-105-0	04	1	9601-0004	●	●
234	STUD; FRT COVER M10X50 L=65	1-09302-105-0	04	1	0005-		●
242	BOLT; COVER,OIL PORT M8X16 FLANGE	0-28080-816-0	02	1	9601-9804		●
242	BOLT; COVER,OIL PORT M8X16 FLANGE	0-28080-816-0	02	1	9805-0512		●	●
242	BOLT; COVER,OIL PORT M8X16 FLANGE	0-28050-816-0	02	1	0601-		●	●
330	JOINT; HTR	5-09650-027-0	01	1	9904-		●
330	JOINT; HTR HEATER & DEFROSTER(C41)	1-09660-504-1	01	1	9601-9611		●
330	JOINT; HTR	1-09660-504-1	01	1	9601-9611	●
330	JOINT; HTR HEATER & DEFROSTER(C41) PT3/8 & OD=18.3 L=47	9-09903-631-0	01	1	9708-9903		●
330	JOINT; HTR PT3/8 & OD=18.3 L=47	9-09903-631-0	01	1	9708-9903	●
330	JOINT; HTR PT3/8 & OD=18.3 L=47	9-09903-631-0	01	1	9904-0004	●
330	JOINT; HTR HEATER & DEFROSTER(C41) EXC. OIL FILTER SETTING DOWNWARD<E7V> PT3/8 & OD=18.3 L=47	9-09903-631-0	01	1	0110-		●
335	PLUG; C/BL,SIDE (A) PT1/4	1-09605-019-0	04	1	9601-0004		●
335	PLUG; C/BL,SIDE (A) PT1/4	1-09605-019-0	03	1	9601-9707	●	●
335	PLUG; C/BL,SIDE (A) PT1/4	1-09605-019-0	03	1	9708-0004	●	●
335	PLUG; C/BL,SIDE (A) PT1/4	1-09605-019-0	03	1	9708-0004	●
335	PLUG; C/BL,SIDE (A) PT1/4	1-09605-019-0	07	1	0005-		●
335	PLUG; C/BL,SIDE (B) PT1/8	1-09605-050-0	02	1	9601-0004	●	●
335	PLUG; C/BL,SIDE (B) PT1/8	1-09605-050-0	02	1	0005-		●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	04	1	9805-0703			●
335	PLUG; C/BL,SIDE (B) M14X16.5	8-97329-617-0	04	1	0704-			●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	9805-0501			●
335	PLUG; C/BL,SIDE (A) M8X10	8-98003-416-0	01	1	0502-			●
352	GASKET; C/BL TO CRANKCASE ALSO INCLUDED IN GASKET SET(ENGINE).	1-11219-166-0	02	1	9601-0004	●	●
352	GASKET; C/BL TO CRANKCASE ALSO INCLUDED IN GASKET SET(ENGINE).	1-11219-166-0	02	1	0005-		●

343 308 343 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	LINER SET; ENG CYL GRADE=1X	1-87811-453-0	06	1	9601-9710		●
2	LINER SET; ENG CYL EXC. KENYA EQUIPMENT(PQ2) GRADE=1X	1-87811-453-4	06	1	9711-		●
2	LINER SET; ENG CYL GRADE=3X	1-87811-454-0	06	1	9601-9710		●
2	LINER SET; ENG CYL EXC. KENYA EQUIPMENT(PQ2) GRADE=3X	1-87811-454-4	06	1	9711-		●
2	LINER SET; ENG CYL KENYA EQUIPMENT(PQ2) GRADE=1X	1-87811-792-4	06	1	9711-		●
2	LINER SET; ENG CYL KENYA EQUIPMENT(PQ2) GRADE=3X	1-87811-793-4	06	1	9711-		●
2	LINER SET; ENG CYL GRADE=1X	1-87811-426-1	06	1	9601-0004	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-427-1	06	1	9601-0004	●
2	LINER SET; ENG CYL GRADE=1X	1-87811-665-9	06	1	9805-			●
2	LINER SET; ENG CYL GRADE=3X	1-87811-666-9	06	1	9805-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	1-11261-298-0	06	1	9601-0004	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	1-11261-298-1	06	1	0005-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	1-11261-299-0	06	1	9601-0004	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	1-11261-299-1	06	1	0005-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	1-11261-300-0	06	1	9601-0004	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	1-11261-300-1	06	1	0005-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	1-11261-301-0	06	1	9601-0004	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	1-11261-301-1	06	1	0005-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	06	1	9805-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	06	1	9805-			●
308	PROTECTOR; HEAT,HD COVER	8-94390-548-0	01	1	9805-9901			●
308	PROTECTOR; HEAT,HD COVER	8-94391-759-2	01	1	9902-1005			●
308	PROTECTOR; HEAT,HD COVER	8-98171-339-0	01	1	1006-			●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28080-812-0	05	1	9805-0512			●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28050-812-0	05	1	0601-			●

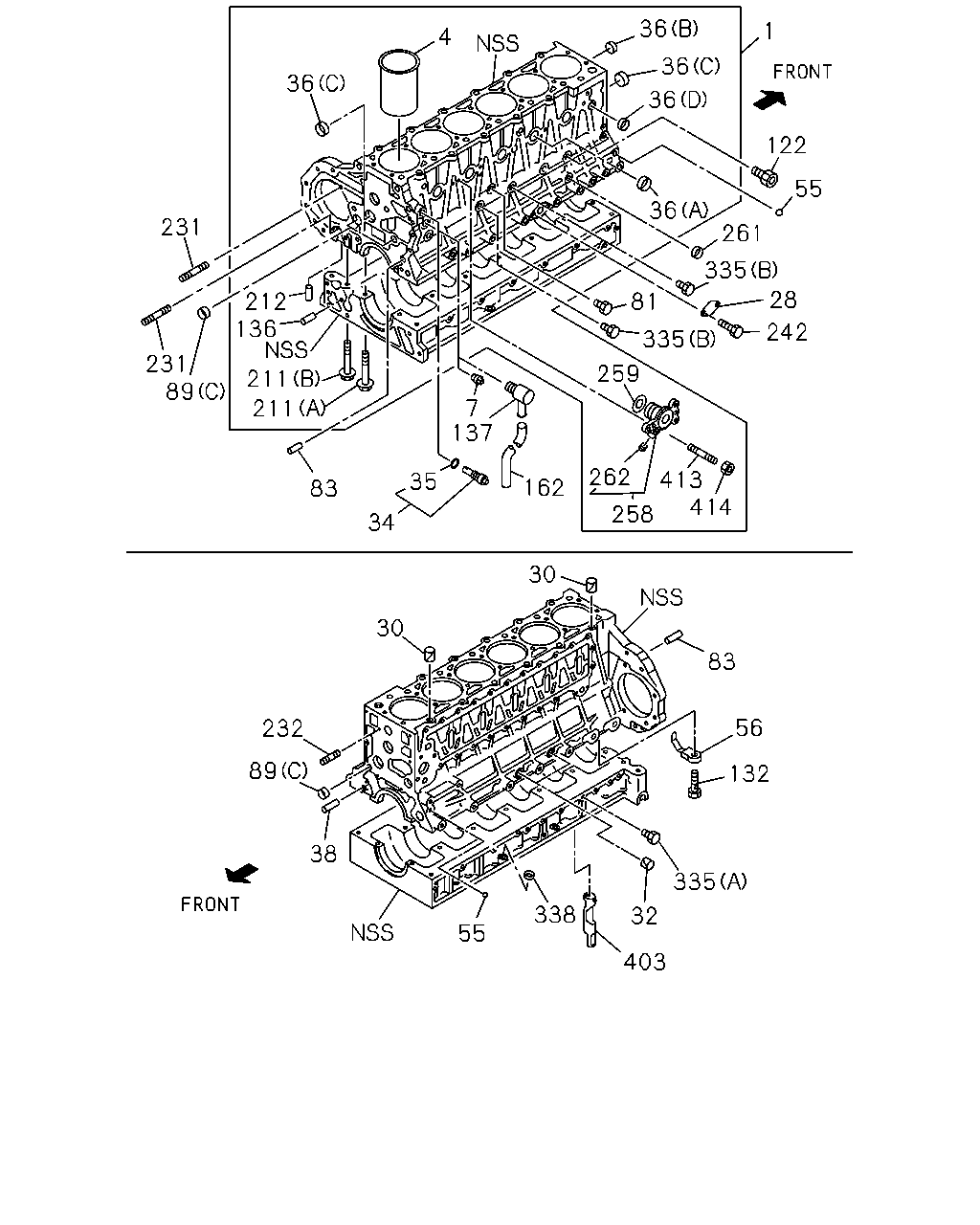

36 1 4 36 36 36 122 55 36 231 261 212 136 335 81 28 242 335 231 89 259 211 211 7 137 262 413 414 35 162 83 258 34 30 30 83 56 232 89 132 38 335 338 32 55 403

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BLOCK ASM; CYL	1-11210-620-3	01	1	9601-0004	●	●
1	BLOCK ASM; CYL	8-98319-410-0	01	1	0005-		●
1	BLOCK ASM; CYL	8-94394-057-9	01	1	9805-9807			●
1	BLOCK ASM; CYL	8-94392-491-2	01	1	9808-0001			●
1	BLOCK ASM; CYL	8-97600-415-2	01	1	0002-0504			●
1	BLOCK ASM; CYL	8-98005-414-2	01	1	0505-1012			●
1	BLOCK ASM; CYL	8-98180-710-0	01	1	1101-1209			●
1	BLOCK ASM; CYL	8-98206-961-0	01	1	1210-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	1-11261-298-0	06	1	9601-0004	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	1-11261-298-1	06	1	0005-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	1-11261-299-0	06	1	9601-0004	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	1-11261-299-1	06	1	0005-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	1-11261-300-0	06	1	9601-0004	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	1-11261-300-1	06	1	0005-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	1-11261-301-0	06	1	9601-0004	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	1-11261-301-1	06	1	0005-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	06	1	9805-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	06	1	9805-			●
7	PLUG; WATER DRAIN PT3/8	8-94397-338-0	01	1	1101-			●
28	COVER; OIL PORT	1-11749-103-0	01	1	9601-		●
28	COVER; OIL PORT	1-11219-163-0	01	1	9805-			●
30	PIN; CYL HD GASKET SETTING OD=8 L=16	9-08150-816-0	03	1	9601-0004	●	●
30	PIN; CYL HD GASKET SETTING OD=8 L=16	9-08150-816-0	03	1	0005-		●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	9805-			●
32	PIN; INJ PUMP BRKT OD=8 L=16	9-08150-816-0	02	1	9601-0004	●	●
32	PIN; INJ PUMP BRKT OD=8 L=16	9-08150-816-0	02	1	0005-		●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	9805-			●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	9805-			●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	9805-			●
36	CUP; SEALING,WATER JACKET (A) OD=25	1-09600-016-0	05	1	9601-0004	●	●
36	CUP; SEALING,WATER JACKET (A) OD=25	1-09600-016-0	05	1	0005-		●
36	CUP; SEALING,WATER JACKET (B) OD=45	1-09600-058-0	07	1	9601-0004	●	●
36	CUP; SEALING,WATER JACKET (B) OD=45	1-09600-058-1	07	1	0005-		●
36	CUP; SEALING,WATER JACKET (C) OD=32	1-09600-059-0	02	1	9601-0004	●	●
36	CUP; SEALING,WATER JACKET (C) OD=32	1-09600-059-1	02	1	0005-		●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	05	1	9805-			●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	9805-			●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	9805-			●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	9805-0502			●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-97096-824-0	04	1	0503-			●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	9805-			●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	9805-			●
56	JET; OIL,PISTON COOLING	1-13342-127-0	06	1	9601-0004	●	●
56	JET; OIL,PISTON COOLING	1-13342-127-1	06	1	0005-		●
56	JET; OIL,PISTON COOLING	8-94399-187-1	06	1	9805-			●
81	PLUG; WATER JACKET M14	8-94399-225-0	01	1	9805-0703			●
81	PLUG; WATER JACKET M14X16.5	8-97329-617-0	01	1	0704-			●
83	PIN; FLYWHEEL HSG	9-08151-025-0	02	1	9601-0004	●	●
83	PIN; FLYWHEEL HSG	9-08151-025-0	02	1	0005-		●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	9805-0306			●
83	PIN; FLYWHEEL HSG OD=10 L=20	8-97135-423-0	02	1	0307-0307			●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0308-			●
89	CUP; SEALING,OIL GALLERY (A) OD=16	9-11129-081-0	01	1	9601-0004	●	●
89	CUP; SEALING,OIL GALLERY (A) OD=16	9-11129-081-0	01	1	0005-0301		●
89	CUP; SEALING,OIL GALLERY (A) OD=16	5-11129-006-0	01	1	0302-		●
89	CUP; SEALING,OIL GALLERY (B) OD=20	9-11219-192-0	02	1	9601-0004	●	●
89	CUP; SEALING,OIL GALLERY (B) OD=20	9-11219-192-0	02	1	0005-0909		●
89	CUP; SEALING,OIL GALLERY (B) OD=20	9-11129-128-0	02	1	0910-		●
89	CUP; SEALING,OIL GALLERY (C) OD=20	9-11219-192-0	03	1	9805-0908			●
89	CUP; SEALING,OIL GALLERY (C) OD=20	9-11129-128-0	03	1	0909-			●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-2	01	1	9805-			●
132	VALVE; CHECK,OIL M10X18.5	1-13161-012-0	06	1	9805-0704			●
132	VALVE; CHECK,OIL M10X18.5	8-97329-618-0	06	1	0705-			●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-94393-596-1	02	1	0005-0812			●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	0901-			●
137	COCK; DRAIN,WATER	1-09680-024-0	01	1	9805-1012			●
162	HOSE; WATER DRAIN,C/BL L=310 SERVICED BY L=3000	0-03259-300-0	01	1	9805-0206			●
162	HOSE; WATER DRAIN,C/BL L=310 SERVICED BY L=3000	0-03559-300-0	01	1	0207-1012			●
211	BOLT; CRANKCASE (A) M14X125 FLANGE W/PL WASHER	1-09070-043-1	14	1	9601-0004	●	●
211	BOLT; CRANKCASE (A) M14X125 FLANGE W/PL WASHER	1-09070-043-1	14	1	0005-		●
211	BOLT; CRANKCASE (B) M10X98 FLANGE W/PL WASHER	1-09070-061-0	24	1	9601-0004	●	●
211	BOLT; CRANKCASE (B) M10X98 FLANGE W/PL WASHER	1-09070-061-0	24	1	0005-1107		●
211	BOLT; CRANKCASE (B) M10X95 FLANGE	8-98141-538-0	24	1	1108-		●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	9805-0905			●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	14	1	0906-			●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	9805-			●
212	PIN; CRANKCASE OD=12 L=28	1-09740-031-0	02	1	9601-0004	●	●
212	PIN; CRANKCASE OD=12 L=28	1-09740-031-0	02	1	0005-		●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	9805-0306			●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	0307-			●
231	STUD; AIR CMPR M12X67 L=82	1-09302-112-0	04	1	9601-0004	●	●
231	STUD; AIR CMPR M12X67 L=82	1-09302-112-0	04	1	0005-		●
231	STUD; AIR CMPR M10X36.5 L=48.5	8-94396-145-0	02	1	9805-0301			●
231	STUD; AIR CMPR M10X25 L=40	0-49841-025-0	02	1	0302-0512			●
231	STUD; AIR CMPR M10X25 L=48.5	0-49241-025-0	02	1	0601-			●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	9805-0604			●
232	STUD; WATER PUMP M8X55 L=67	0-41010-855-0	03	1	0605-			●
242	BOLT; COVER,OIL PORT M8X16 FLANGE	0-28080-816-0	02	1	9601-9804		●
242	BOLT; COVER,OIL PORT M8X16 FLANGE	0-28080-816-0	02	1	9805-0512		●	●
242	BOLT; COVER,OIL PORT M8X16 FLANGE	0-28050-816-0	02	1	0601-		●	●
258	ADAPTER; BLOCK HTR	8-94395-868-0	01	1	0505-0507			●
259	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7	1-09623-184-0	01	1	0505-0507			●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	9805-0307			●
262	PLUG; ADAPTER	1-13163-002-0	01	1	0505-0507			●
335	PLUG; C/BL,SIDE (A) PT1/4	1-09605-019-0	04	1	9601-0004		●
335	PLUG; C/BL,SIDE (A) PT1/4	1-09605-019-0	03	1	9601-9707	●	●
335	PLUG; C/BL,SIDE (A) PT1/4	1-09605-019-0	03	1	9708-0004	●	●
335	PLUG; C/BL,SIDE (A) PT1/4	1-09605-019-0	03	1	9708-0004	●
335	PLUG; C/BL,SIDE (A) PT1/4	1-09605-019-0	07	1	0005-		●
335	PLUG; C/BL,SIDE (B) PT1/8	1-09605-050-0	02	1	9601-0004	●	●
335	PLUG; C/BL,SIDE (B) PT1/8	1-09605-050-0	02	1	0005-		●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	04	1	9805-0703			●
335	PLUG; C/BL,SIDE (B) M14X16.5	8-97329-617-0	04	1	0704-			●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	9805-0501			●
335	PLUG; C/BL,SIDE (A) M8X10	8-98003-416-0	01	1	0502-			●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	9805-0607			●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	02	1	0608-			●
403	GUIDE; GALLERY	8-94395-351-1	01	1	9805-			●
413	STUD; ADAPTER M8X30 L=41	9-04110-830-0	02	1	0505-0507			●
414	NUT; ADAPTER M8 FLANGE	0-91150-208-0	02	1	0505-0507			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
