Isuzu WW
▶
TRUCKS
▶
FVM
▶
10706 - FVM-RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-10 - CYLINDER HEAD COVER
▶
0-10 — CYLINDER HEAD COVER
(#63927) — 37 parça
Tümü
A - 6SD1 TCN ENG
B - 6SD1 STD ENG
C - 6HH1 STD ENG
◀

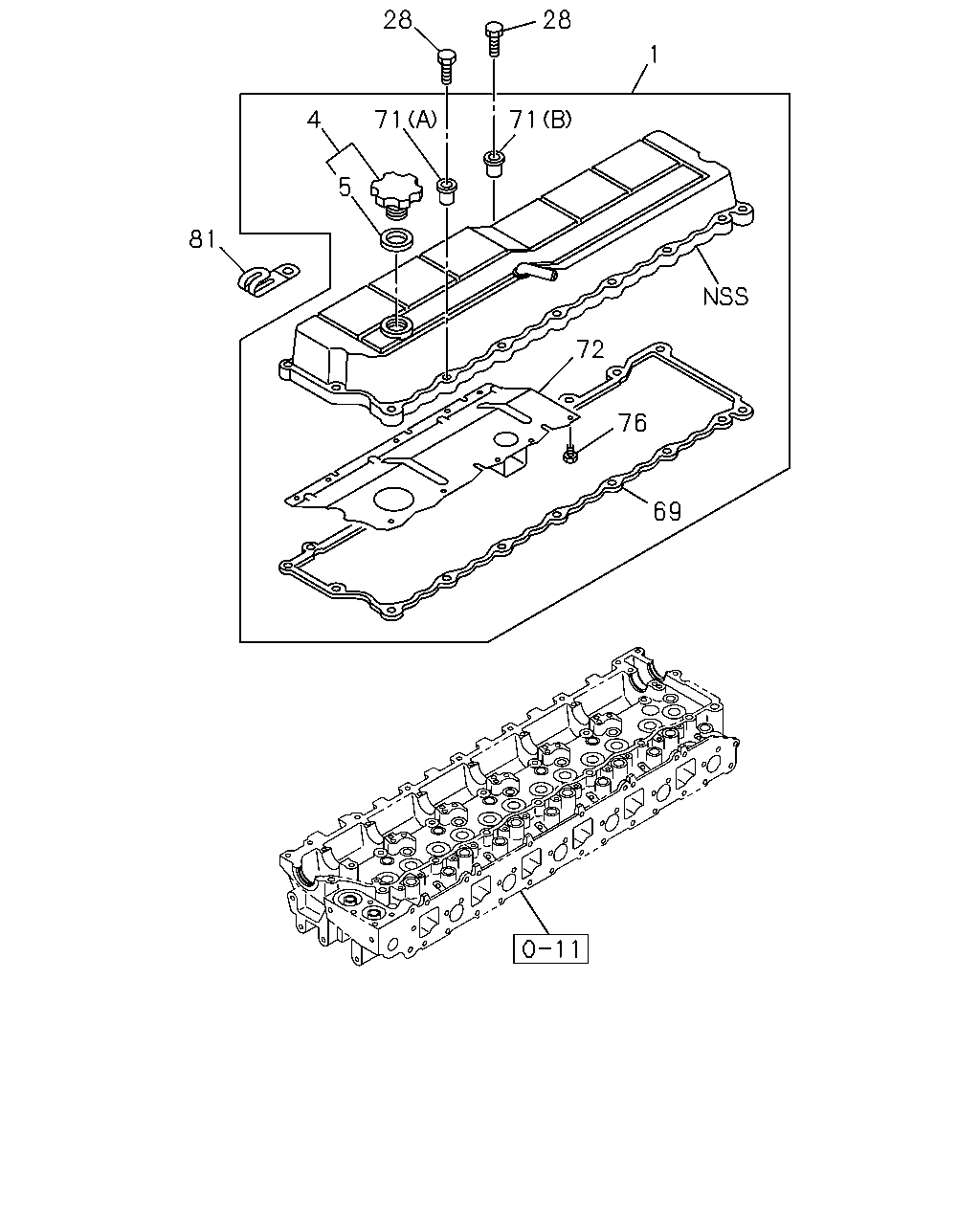

[010A] 6HH1 (21 parça)

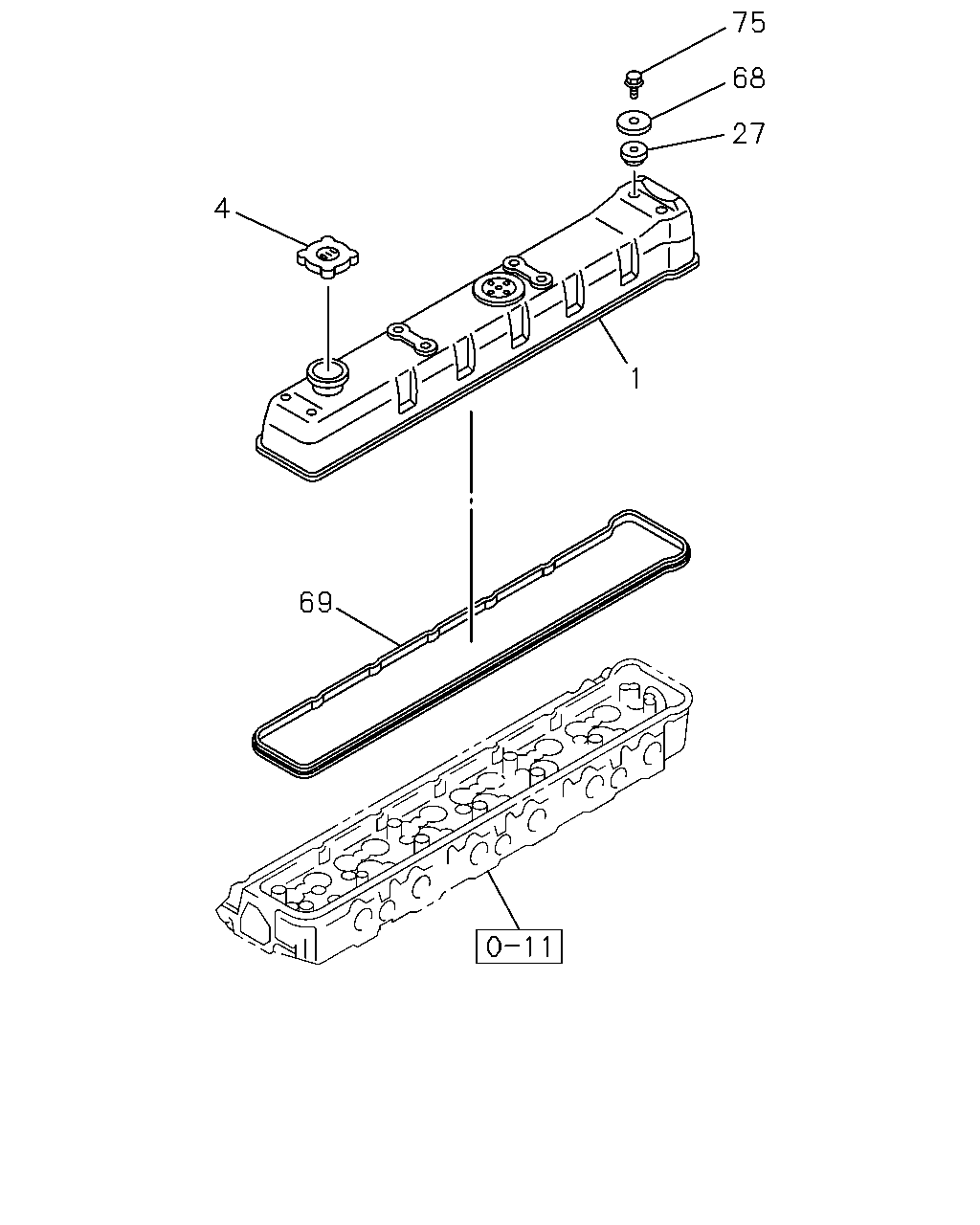

[010A] 6SD1 (16 parça)
▶
28
28
1
71
71
4
5
81
72
76
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
COVER; CYL HD
1-11171-392-0
01
1
9601-0004
●
●
1
COVER; CYL HD
1-11171-392-0
01
1
0005-0206
●
1
COVER; CYL HD
1-11171-411-1
01
1
0207-
●
1
COVER; CYL HD
8-94394-862-2
01
1
9805-
●
4
CAP; OIL FILLER
1-11750-020-0
01
1
9601-0004
●
●
4
CAP; OIL FILLER
1-11750-020-0
01
1
0005-
●
4
CAP; OIL FILLER
8-94399-723-0
01
1
9805-
●
5
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58
8-94399-689-0
01
1
9805-
●
28
BOLT; HD COVER
M8X35 FLANGE
0-28280-835-0
19
1
9805-9812
●
28
BOLT; HD COVER
M8X35 FLANGE
0-28680-835-0
19
1
9901-0512
●
28
BOLT; HD COVER
M8X35 FLANGE
0-28650-835-0
19
1
0601-
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-11173-085-0
01
1
9601-0004
●
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-11173-085-0
01
1
0005-
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94396-383-0
01
1
9805-
●
71
COLLAR; HD COVER
(A) OD=12.3
8-94396-971-1
18
1
9805-
●
71
COLLAR; HD COVER
(B) OD=11
8-94396-972-1
01
1
9805-
●
72
PLATE; INNER HD COVER
8-94393-609-1
01
1
9805-
●
76
SCREW; INNER PLATE
M4X12 TAPPING
0-71180-412-0
07
1
9805-0603
●
76
SCREW; INNER PLATE
M4X12 TAPPING
0-71240-412-0
07
1
0604-
●
81
CLIP; HARNESS
ID=18 L=44
8-94225-185-0
01
1
9805-0801
●
81
CLIP; HARNESS
ID=18 L=44
8-97367-985-1
01
1
0802-
●
75
68
27
4
1
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
COVER; CYL HD
1-11171-392-0
01
1
9601-0004
●
●
1
COVER; CYL HD
1-11171-392-0
01
1
0005-0206
●
1
COVER; CYL HD
1-11171-411-1
01
1
0207-
●
1
COVER; CYL HD
8-94394-862-2
01
1
9805-
●
4
CAP; OIL FILLER
1-11750-020-0
01
1
9601-0004
●
●
4
CAP; OIL FILLER
1-11750-020-0
01
1
0005-
●
4
CAP; OIL FILLER
8-94399-723-0
01
1
9805-
●
27
GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-09639-032-0
08
1
9601-0004
●
●
27
GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-09639-032-0
08
1
0005-
●
68
WASHER; CAP NUT,HD COVER
9-11179-105-0
08
1
9601-0004
●
●
68
WASHER; CAP NUT,HD COVER
9-11179-105-0
08
1
0005-
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-11173-085-0
01
1
9601-0004
●
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-11173-085-0
01
1
0005-
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94396-383-0
01
1
9805-
●
75
NUT; CAP,HD COVER
M8 CAP NUT OD=22
8-94340-192-0
08
1
9601-0004
●
●
75
NUT; CAP,HD COVER
M8 CAP NUT OD=22
8-94340-192-0
08
1
0005-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
