◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10704 - FVR/GVR-RHD ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#63924) — 321 parça

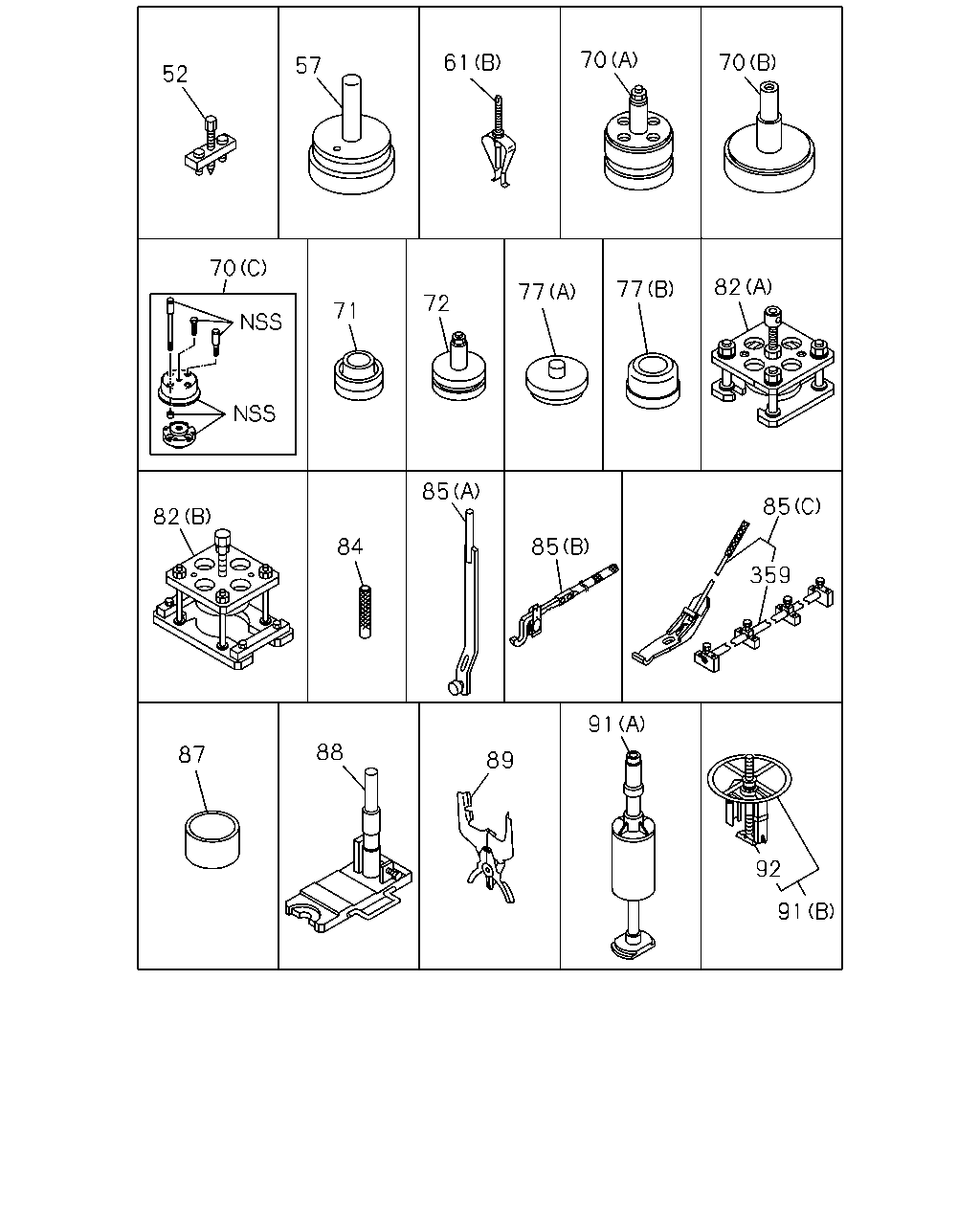

çizim 5424
70 61 70 57 52 70 82 77 77 72 71 85 85 82 84 85 359 91 88 87 89 92 91
BalonParca AdiParca NoAdetTipApplied Date A B C D E
52 REMOVER; WATER PUMP
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-85210-047-0 01 1 9601-9803 ● ● ●
52 REMOVER; WATER PUMP
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-85210-047-0 01 1 9804- ● ● ● ● ●
57 TOOL; SETTING CRANK GEAR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=144.5 		1-85221-072-0 01 1 0605- ● ● ● ● ●
57 TOOL; SETTING CRANK GEAR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=144.5 		1-85221-072-0 01 1 9601-9803 ● ● ●
57 TOOL; SETTING CRANK GEAR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=144.5 		1-85221-072-0 01 1 9804-0604 ● ● ● ● ●
57 TOOL; SETTING CRANK GEAR
6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> ID=165.8 		1-85221-075-0 01 1 0605- ●
57 TOOL; SETTING CRANK GEAR
6HH1 STD ENG(65L) ID=134.5 		8-94396-819-0 01 1 9601-9609 ● ●
57 TOOL; SETTING CRANK GEAR
6HE1 TC ENG(57L),6HH1 STD ENG(65L) ID=134.5 		8-94396-819-0 01 1 9610-0004 ● ● ●
61 PULLER ASM; PILOT BRG
6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> (B) 		1-85220-028-0 01 1 0605- ●
61 PULLER ASM; PILOT BRG
(A) 		1-85210-050-0 01 1 9601-0405 ● ● ●
61 PULLER ASM; PILOT BRG
(A) 		1-85210-050-0 01 1 0406- ● ● ● ●
61 PULLER ASM; PILOT BRG
6HH1 STD ENG(65L) (B) 		9-85210-157-0 01 1 9601-9609 ● ●
61 PULLER ASM; PILOT BRG
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B) 		9-85210-157-0 01 1 9610-0004 ● ● ●
70 TOOL; SETTING,OIL SEAL
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) 		1-85220-025-1 01 1 9601-9803 ● ● ●
70 TOOL; SETTING,OIL SEAL
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) 		1-85220-025-1 01 1 9804-1003 ● ● ● ● ●
70 TOOL; SETTING,OIL SEAL
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) 		1-85220-025-1 01 1 1004-1108 ● ● ● ●
70 TOOL; SETTING,OIL SEAL
6SD1 TCN ENG(31L) NEW ZEALAND EQUIPMENT(PK5) EXC. EURO3 SPECIFICATION<NJX> (A) 		1-85220-025-1 01 1 1004-1108 ●
70 TOOL; SETTING,OIL SEAL
6SD1 TCN ENG(31L) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-85220-025-1 01 1 1004-1108 ●
70 TOOL; SETTING,OIL SEAL
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (C) 		8-98194-607-0 01 1 1109-1502 ● ● ● ● ●
70 TOOL; SETTING,OIL SEAL
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (C) 		8-98194-607-0 AR 1 1503- ● ● ● ● ●
70 TOOL; SETTING,OIL SEAL
6HH1 STD ENG(65L) (B) 		8-94396-856-0 01 1 9601-9609 ● ●
70 TOOL; SETTING,OIL SEAL
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B) 		8-94396-856-0 01 1 9610-0004 ● ● ●
71 TOOL; SETTING,OIL SEAL,FRT
6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> 		1-85220-029-0 01 1 0605-1108 ●
72 TOOL; SETTING,OIL SEAL,RR
6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> 		1-85220-030-0 01 1 0605-1108 ●
77 TOOL; SETTING,CYL LINER
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) 		1-85221-073-0 01 1 9601-9803 ● ● ●
77 TOOL; SETTING,CYL LINER
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) 		1-85221-073-0 01 1 9804- ● ● ● ● ●
77 TOOL; SETTING,CYL LINER
6HE1 TC ENG(57L) HEATER & DEFROSTER(C41) EURO2 SPECIFICATION<THN> (B) 		8-94396-816-0 01 1 9610-9803 ● ●
77 TOOL; SETTING,CYL LINER
6HE1 TC ENG(57L) (B) 		8-94396-816-0 01 1 9804-0405 ● ●
77 TOOL; SETTING,CYL LINER
6HE1 TC ENG(57L) (B) 		8-94396-816-0 01 1 0406- ●
82 PULLER ASM; CR/SHF GEAR
6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> (B) 		1-85210-051-0 01 1 0605- ●
82 PULLER ASM; CR/SHF GEAR
6HH1 STD ENG(65L) (A) 		8-94396-818-0 01 1 9601-9609 ● ●
82 PULLER ASM; CR/SHF GEAR
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) 		8-94396-818-0 01 1 9610-0004 ● ● ●
84 REPLACER; VALVE SEAL
6HH1 STD ENG(65L) 		8-94396-815-0 01 1 9601-9609 ● ●
84 REPLACER; VALVE SEAL
6HE1 TC ENG(57L),6HH1 STD ENG(65L) 		8-94396-815-0 01 1 9610- ● ● ●
85 REPLACER ASM; VALVE SPR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) 		1-85235-007-0 01 1 9601-9803 ● ● ●
85 REPLACER ASM; VALVE SPR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) 		1-85235-007-0 01 1 9804- ● ● ● ● ●
85 REPLACER ASM; VALVE SPR
6HH1 STD ENG(65L) (C) 		8-94396-861-0 01 1 9601-9609 ● ●
85 REPLACER ASM; VALVE SPR
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (C) 		8-94396-861-0 01 1 9610-0004 ● ● ●
85 REPLACER ASM; VALVE SPR
6HH1 STD 4VALVE ENG(1A6) (B) 		8-94391-528-0 01 1 0005-0405 ● ●
85 REPLACER ASM; VALVE SPR
6HH1 STD 4VALVE ENG(1A6),6HK1 TCS ENG(80L) (B) 		8-94391-528-0 01 1 0406- ● ●
87 TOOL; PISTON
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-85221-082-0 01 1 9601-9803 ● ● ●
87 TOOL; PISTON
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-85221-082-0 01 1 9804- ● ● ● ● ●
88 TOOL; CONNROD BUSHING
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-85220-037-0 01 1 9601-9803 ● ● ●
88 TOOL; CONNROD BUSHING
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-85220-037-0 01 1 9804- ● ● ● ● ●
89 TOOL; PISTON RING 1-85221-029-0 01 1 9601-9803 ● ● ●
89 TOOL; PISTON RING 1-85221-029-0 01 1 9804-0004 ● ● ● ●
91 REPLACER ASM; CYL LINER
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) 		1-85231-021-0 01 1 9601-9803 ● ● ●
91 REPLACER ASM; CYL LINER
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) 		1-85231-021-0 01 1 9804- ● ● ● ● ●
91 REPLACER ASM; CYL LINER
6HH1 STD ENG(65L) (B) 		8-94396-849-0 01 1 9601-9609 ● ●
91 REPLACER ASM; CYL LINER
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B) 		8-94396-849-0 01 1 9610- ● ● ●
92 ANKLE; REPLACER,CYL LINER
6HH1 STD ENG(65L) 		8-94396-821-0 01 1 9601-9609 ● ●
92 ANKLE; REPLACER,CYL LINER
6HE1 TC ENG(57L),6HH1 STD ENG(65L) 		8-94396-821-0 01 1 9610- ● ● ●
359 PIVOT
6HH1 STD 4VALVE ENG(1A6) 		8-94396-862-0 01 1 0005-0405 ● ●
359 PIVOT
6HH1 STD 4VALVE ENG(1A6),6HK1 TCS ENG(80L) 		8-94396-862-0 01 1 0406- ● ●

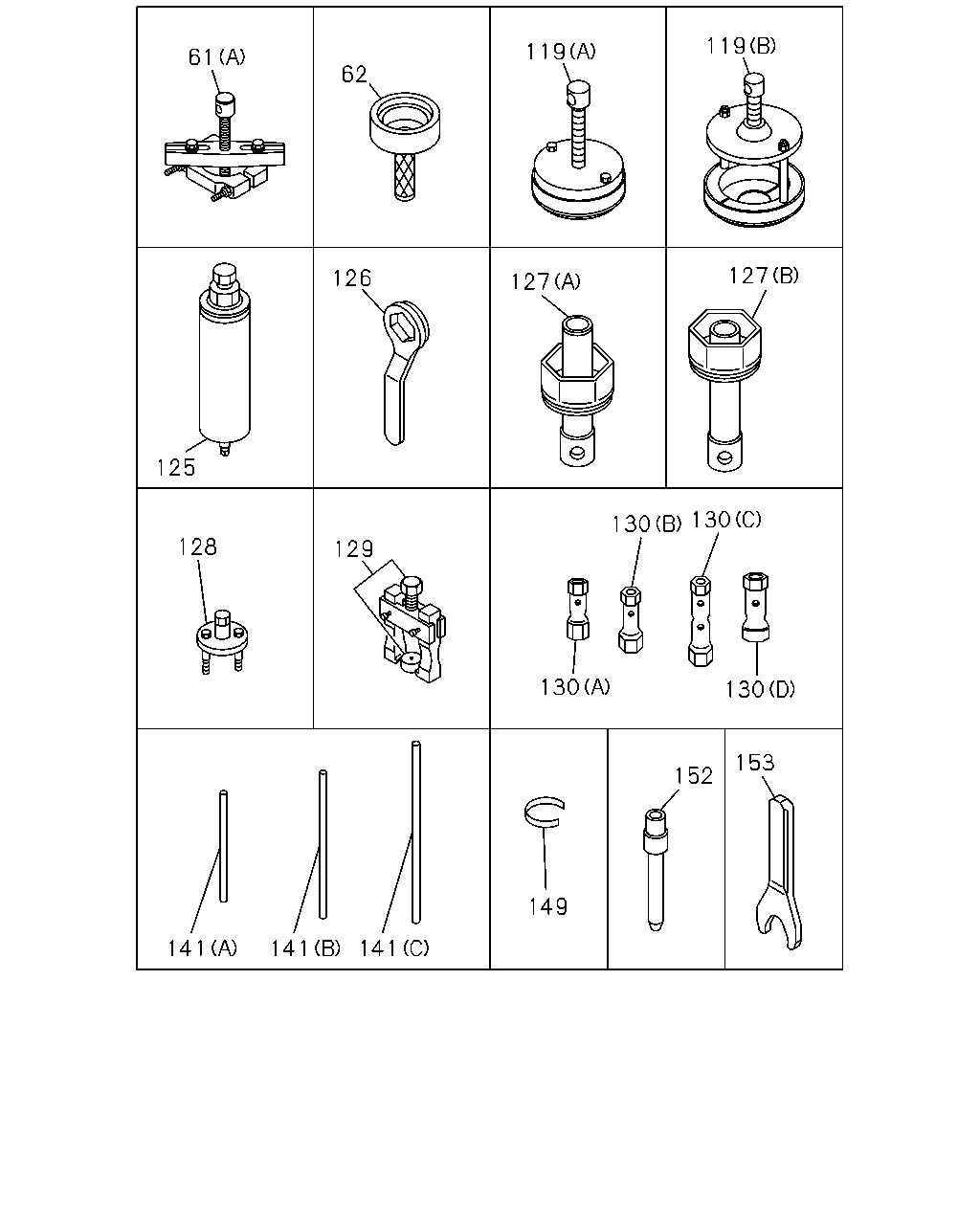

çizim 14323
119 119 61 62 127 126 127 125 130 130 128 129 130 130 153 152 149 141 141 141
BalonParca AdiParca NoAdetTipApplied Date A B C D E
61 PULLER ASM; PILOT BRG
6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> (B) 		1-85220-028-0 01 1 0605- ●
61 PULLER ASM; PILOT BRG
(A) 		1-85210-050-0 01 1 9601-0405 ● ● ●
61 PULLER ASM; PILOT BRG
(A) 		1-85210-050-0 01 1 0406- ● ● ● ●
61 PULLER ASM; PILOT BRG
6HH1 STD ENG(65L) (B) 		9-85210-157-0 01 1 9601-9609 ● ●
61 PULLER ASM; PILOT BRG
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B) 		9-85210-157-0 01 1 9610-0004 ● ● ●
62 TOOL ASM; SETTING WEAR RING
6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> 		1-85221-079-0 01 1 0605- ●
119 PULLER ASM; TOP GEAR BRG
MAL6S M/T(Y1V) (B) L=235 		9-85210-190-0 01 1 9601-0011 ● ●
119 PULLER ASM; TOP GEAR BRG
MAL6S M/T(Y1V) (B) L=235 		9-85210-190-0 01 1 0012- ● ● ●
119 PULLER ASM; TOP GEAR BRG
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (B) 		9-85210-185-0 01 1 9601-9609 ● ●
119 PULLER ASM; TOP GEAR BRG
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (B) 		9-85210-185-0 01 1 9610-0004 ● ● ●
119 PULLER ASM; TOP GEAR BRG
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (A) 		9-85210-186-0 01 1 9601-9609 ● ●
119 PULLER ASM; TOP GEAR BRG
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (A) 		9-85210-186-0 01 1 9610-0004 ● ● ●
125 PULLER ASM; KING PIN
L=450 		1-85210-009-0 01 1 9601-9803 ● ●
125 PULLER ASM; KING PIN
L=450 		1-85210-009-0 01 1 9804- ● ● ●
126 WRENCH; FRT HUB BRG NUT
L=350 B=75 		1-85110-002-0 01 1 9601-9803 ● ●
126 WRENCH; FRT HUB BRG NUT
L=350 B=75 		1-85110-002-1 01 1 9804- ● ● ●
127 WRENCH ASM; HUB BRG NUT
(B) B=98 L=305 		9-85113-533-0 01 1 9601-9803 ● ● ●
127 WRENCH ASM; HUB BRG NUT
(B) B=98 L=305 		9-85113-533-0 01 1 9804-0004 ● ● ● ●
127 WRENCH ASM; HUB BRG NUT
(B) B=98 L=305 		9-85113-533-2 01 1 0005- ● ● ● ● ●
127 WRENCH ASM; HUB BRG NUT
(A) L=400 B=105 		9-85113-509-0 01 1 9601-9803 ● ●
127 WRENCH ASM; HUB BRG NUT
(A) L=400 B=105 		9-85113-509-0 01 1 9804- ● ● ●
128 PULLER ASM; STRG WHEEL 9-85210-099-0 01 1 9601-9803 ● ● ●
128 PULLER ASM; STRG WHEEL 9-85210-099-0 01 1 9804-0004 ● ● ● ●
128 PULLER ASM; STRG WHEEL 9-85210-099-0 01 1 0005- ● ● ● ● ●
129 PULLER ASM; PITMAN ARM 1-85210-011-0 01 1 9601-9803 ● ●
129 PULLER ASM; PITMAN ARM 1-85210-011-0 01 1 9804- ● ● ●
130 WRENCH; BOX
(B) B=46 & 54 L=165 		9-85112-320-0 01 1 9601-9803 ● ● ●
130 WRENCH; BOX
(B) B=46 & 54 L=165 		9-85112-320-0 01 1 9804-0004 ● ● ● ●
130 WRENCH; BOX
(A) B=32 & 41 L=150 		9-85112-322-0 01 1 9601-9803 ● ● ●
130 WRENCH; BOX
(A) B=32 & 41 L=150 		9-85112-322-0 01 1 9804-0004 ● ● ● ●
130 WRENCH; BOX
(C) B=36 & 41 L=200 		9-85112-330-0 01 1 9601-9803 ● ● ●
130 WRENCH; BOX
(C) B=36 & 41 L=200 		9-85112-330-0 01 1 9804-0004 ● ● ● ●
130 WRENCH; BOX
(D) B=41 & 46 L=165 		9-85113-401-0 01 1 9601-9803 ● ● ●
130 WRENCH; BOX
(D) B=41 & 46 L=165 		9-85113-401-0 01 1 9804-0004 ● ● ● ●
141 HANDLE; WRENCH
(C) OD=25 L=480 		1-85116-011-0 01 1 9601-9803 ● ● ●
141 HANDLE; WRENCH
(C) OD=25 L=480 		1-85116-011-0 01 1 9804-0004 ● ● ● ●
141 HANDLE; WRENCH
(C) OD=25 L=480 		1-85116-011-0 01 1 0005-1501 ● ● ● ● ●
141 HANDLE; WRENCH
(C) OD=25 L=480 		8-98257-407-0 01 1 1502- ● ● ● ● ●
141 HANDLE; WRENCH
(B) OD=19 L=400 		9-85114-306-0 01 1 9601-9803 ● ● ●
141 HANDLE; WRENCH
(B) OD=19 L=400 		9-85114-306-0 01 1 9804-0004 ● ● ● ●
141 HANDLE; WRENCH
(A) OD=16 L=300 		9-85114-307-0 01 1 9601-9803 ● ● ●
141 HANDLE; WRENCH
(A) OD=16 L=300 		9-85114-307-0 01 1 9804-0004 ● ● ● ●
149 PLATE; PILOT BRG PULLER 1-85219-009-0 01 1 9601-0004 ● ● ●
152 DRIVER; NEEDLE,KING PIN
L=220 		1-85238-001-0 01 1 9601-9803 ● ● ●
152 DRIVER; NEEDLE,KING PIN
L=220 		1-85238-001-0 01 1 9804-0004 ● ● ● ●
152 DRIVER; NEEDLE,KING PIN
L=220 		1-85238-001-0 01 1 0005- ● ● ● ● ●
153 DRIVER; WASHER,THRUST WASHER 1-85238-002-0 01 1 9601-9803 ● ● ●
153 DRIVER; WASHER,THRUST WASHER 1-85238-002-0 01 1 9804-0004 ● ● ● ●
153 DRIVER; WASHER,THRUST WASHER 1-85238-002-0 01 1 0005- ● ● ● ● ●
çizim 14420
274 271 268 209 285 280 282 284 263 281 283 446
BalonParca AdiParca NoAdetTipApplied Date A B C D E
209 CLIP; JACK HANDLE 1-73638-011-1 02 1 9601-9803 ● ● ●
209 CLIP; JACK HANDLE 1-73638-011-1 02 1 9804-0004 ● ● ● ●
209 CLIP; JACK HANDLE 1-73638-011-1 02 1 0005-0708 ● ● ● ● ●
209 CLIP; JACK HANDLE 8-98053-799-0 02 1 0709- ● ● ● ● ●
263 BRACKET; TOOL
KEY LOCK TOOL BOX<RC5> 		1-53459-665-2 02 1 0408- ●
268 SCREW; CLIP
M6X12 W/LK WASHER 		9-03910-612-0 02 1 9601-9803 ● ● ●
268 SCREW; CLIP
M6X12 W/LK WASHER 		9-03910-612-0 02 1 9804-0004 ● ● ● ●
268 SCREW; CLIP
M6X12 W/LK WASHER 		9-03910-612-0 02 1 0005-0604 ● ● ● ● ●
268 SCREW; CLIP
M6X12 W/LK WASHER 		0-36220-612-0 02 1 0605- ● ● ● ● ●
271 CLIP; TIRE HANGER 1-73638-012-1 02 1 9601-9803 ● ● ●
271 CLIP; TIRE HANGER 1-73638-012-1 02 1 9804-0004 ● ● ● ●
271 CLIP; TIRE HANGER 1-73638-012-1 02 1 0005-0708 ● ● ● ● ●
271 CLIP; TIRE HANGER 8-98053-800-0 02 1 0709- ● ● ● ● ●
274 SCREW; CLIP
M6X12 W/LK WASHER 		9-03910-612-0 02 1 9601-9803 ● ● ●
274 SCREW; CLIP
M6X12 W/LK WASHER 		9-03910-612-0 02 1 9804-0004 ● ● ● ●
274 SCREW; CLIP
M6X12 W/LK WASHER 		9-03910-612-0 02 1 0005-0604 ● ● ● ● ●
274 SCREW; CLIP
M6X12 W/LK WASHER 		0-36220-612-0 02 1 0605- ● ● ● ● ●
280 BOX; TOOL
KEY LOCK TOOL BOX<RC5> 		1-85561-006-2 01 1 9601-9803 ● ● ●
280 BOX; TOOL
KEY LOCK TOOL BOX<RC5> 		1-85561-006-2 01 1 9804-0004 ● ● ● ●
280 BOX; TOOL
KEY LOCK TOOL BOX<RC5> 		1-85561-006-3 01 1 0005- ● ● ● ● ●
281 BRACKET; TOOL BOX
KEY LOCK TOOL BOX<RC5> 		1-53459-665-2 02 1 9601-9803 ● ● ●
281 BRACKET; TOOL BOX
KEY LOCK TOOL BOX<RC5> 		1-53459-665-2 02 1 9804-0004 ● ● ● ●
281 BRACKET; TOOL BOX
KEY LOCK TOOL BOX<RC5> 		1-53459-665-2 02 1 0005-0407 ● ● ● ● ●
281 BRACKET; TOOL BOX
KEY LOCK TOOL BOX<RC5> 		1-53459-665-2 02 1 0408- ● ● ● ●
282 NUT; BRKT
KEY LOCK TOOL BOX<RC5> M10 		9-09110-510-0 04 1 9601-9606 ● ● ●
282 NUT; BRKT
KEY LOCK TOOL BOX<RC5> M10 FLANGE 		0-91150-210-0 04 1 9607-9803 ● ● ●
282 NUT; BRKT
KEY LOCK TOOL BOX<RC5> M10 FLANGE 		0-91150-210-0 04 1 9804-0004 ● ● ● ●
282 NUT; BRKT
KEY LOCK TOOL BOX<RC5> M10 FLANGE 		0-91150-210-0 04 1 0005-0602 ● ● ● ● ●
282 NUT; BRKT
KEY LOCK TOOL BOX<RC5> M10 FLANGE 		0-91180-210-0 04 1 0603- ● ● ● ● ●
283 WASHER; LK,BRKT
KEY LOCK TOOL BOX<RC5> ID=10.2 		9-09150-510-0 04 1 9601-9803 ● ● ●
283 WASHER; LK,BRKT
KEY LOCK TOOL BOX<RC5> ID=10.2 		9-09150-510-0 04 1 9804-0004 ● ● ● ●
283 WASHER; LK,BRKT
KEY LOCK TOOL BOX<RC5> ID=10.2 		9-09150-510-0 04 1 0005-0407 ● ● ● ● ●
283 WASHER; LK,BRKT
KEY LOCK TOOL BOX<RC5> ID=10.2 		9-09150-510-0 04 1 0408-0603 ● ● ● ●
283 WASHER; LK,BRKT
KEY LOCK TOOL BOX<RC5> ID=10.2 		0-91510-510-0 04 1 0604- ● ● ● ●
284 BOLT; TOOL BOX
KEY LOCK TOOL BOX<RC5> M10X20 W/LK WASHER 		0-50041-020-0 04 1 9601-9606 ● ● ●
284 BOLT; TOOL BOX
KEY LOCK TOOL BOX<RC5> M10X20 FLANGE 		0-28681-020-0 04 1 9607-9803 ● ● ●
284 BOLT; TOOL BOX
KEY LOCK TOOL BOX<RC5> M10X20 FLANGE 		0-28681-020-0 04 1 9804-0004 ● ● ● ●
284 BOLT; TOOL BOX
KEY LOCK TOOL BOX<RC5> M10X20 FLANGE 		0-28681-020-0 04 1 0005-0512 ● ● ● ● ●
284 BOLT; TOOL BOX
KEY LOCK TOOL BOX<RC5> M10X20 FLANGE 		0-28651-020-0 04 1 0601- ● ● ● ● ●
285 NUT; TOOL BOX
KEY LOCK TOOL BOX<RC5> M10 		9-09110-510-0 04 1 9601-9606 ● ● ●
285 NUT; TOOL BOX
KEY LOCK TOOL BOX<RC5> M10 FLANGE 		0-91150-210-0 04 1 9607-9803 ● ● ●
285 NUT; TOOL BOX
KEY LOCK TOOL BOX<RC5> M10 FLANGE 		0-91150-210-0 04 1 9804-0004 ● ● ● ●
285 NUT; TOOL BOX
KEY LOCK TOOL BOX<RC5> M10 FLANGE 		0-91150-210-0 04 1 0005-0602 ● ● ● ● ●
285 NUT; TOOL BOX
KEY LOCK TOOL BOX<RC5> M10 FLANGE 		0-91180-210-0 04 1 0603- ● ● ● ● ●
446 WASHER; SPRING
KEY LOCK TOOL BOX<RC5> ID=10.2 		9-09150-510-0 04 1 0408-0603 ●
446 WASHER; SPRING
KEY LOCK TOOL BOX<RC5> ID=10.2 		0-91510-510-0 04 1 0604- ●

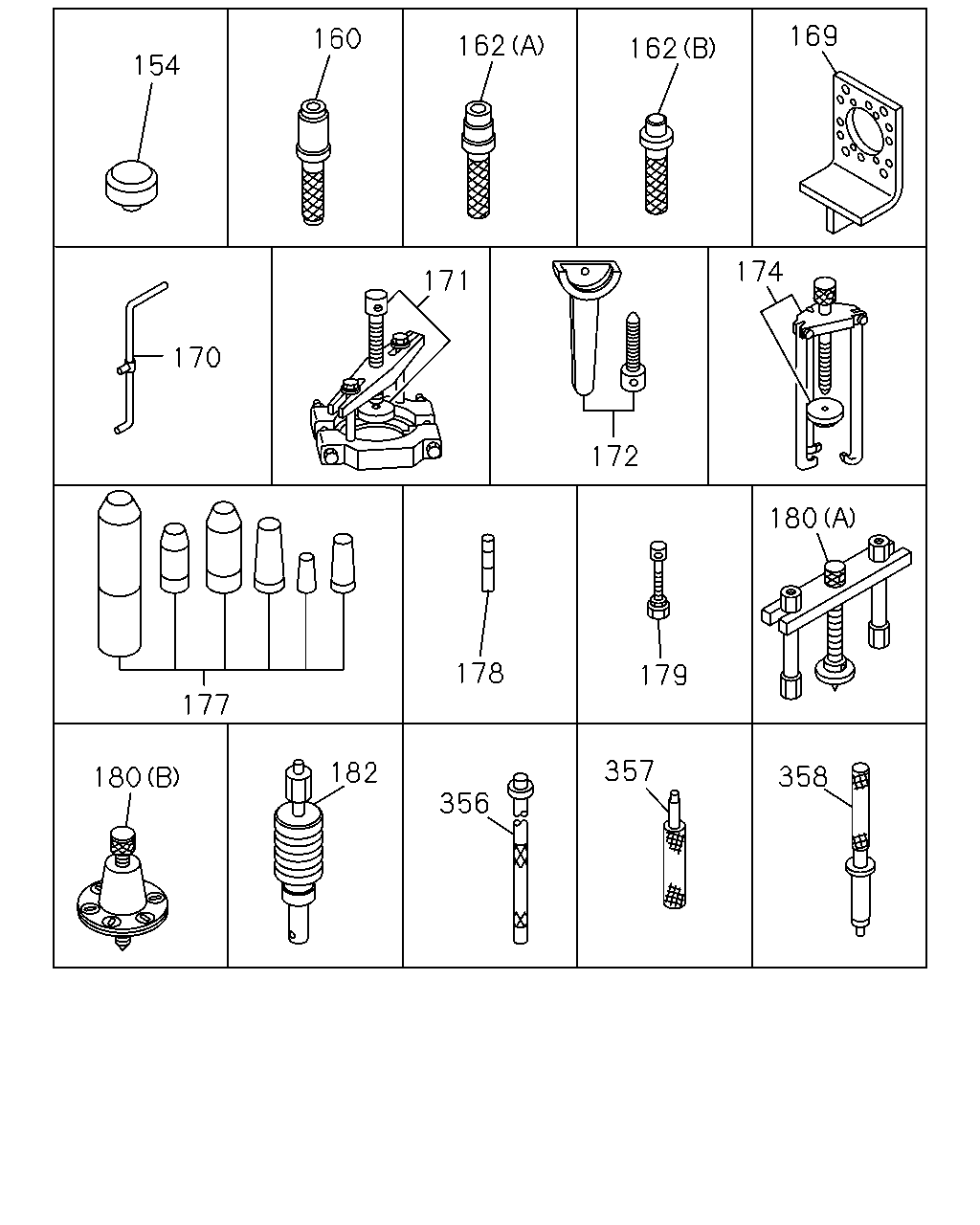

çizim 14477
154 160 162 162 169 170 171 172 174 177 178 179 180 180 182 356 357 358
BalonParca AdiParca NoAdetTipApplied Date A B C D E
154 SLEEPER; KING PIN 1-85238-003-0 01 1 9601-9803 ● ● ●
154 SLEEPER; KING PIN 1-85238-003-0 01 1 9804-0004 ● ● ● ●
154 SLEEPER; KING PIN 1-85238-003-0 01 1 0005- ● ● ● ● ●
160 REMOVER; NEEDLE BRG
L=220 		1-85238-001-0 01 1 9601-9803 ● ●
160 REMOVER; NEEDLE BRG
L=220 		1-85238-001-0 01 1 9804- ● ● ●
162 SETTING TOOL; NEEDLE BRG
(A) L=200 		1-85238-005-0 01 1 9601-9803 ● ● ●
162 SETTING TOOL; NEEDLE BRG
(A) L=200 		1-85238-005-0 01 1 9804-0004 ● ● ● ●
162 SETTING TOOL; NEEDLE BRG
(B) L=175 		1-85238-006-0 01 1 9601-9803 ● ● ●
162 SETTING TOOL; NEEDLE BRG
(B) L=175 		1-85238-006-0 01 1 9804-0004 ● ● ● ●
169 BRACKET; SPLINE YOKE 9-85221-243-1 01 1 9601-9803 ● ● ●
169 BRACKET; SPLINE YOKE 9-85221-243-1 01 1 9804-0004 ● ● ● ●
170 HANDLE; TURNING,FINAL 9-85251-121-0 02 1 9601-9803 ● ● ●
170 HANDLE; TURNING,FINAL 9-85251-121-0 01 1 9804-0004 ● ● ● ●
171 PULLER ASM; PINION BRG 9-85210-172-0 01 1 9601-9803 ● ● ●
171 PULLER ASM; PINION BRG 9-85210-172-0 01 1 9804-0004 ● ● ● ●
172 PULLER ASM; BRG DIFF PILOT 9-85210-173-0 01 1 9601-9803 ● ● ●
172 PULLER ASM; BRG DIFF PILOT 9-85210-173-0 01 1 9804-0004 ● ● ● ●
174 PULLER ASM; MAIN CLU SHAFT 9-85210-148-0 01 1 9601-9803 ● ● ●
174 PULLER ASM; MAIN CLU SHAFT 9-85210-148-0 01 1 9804-0004 ● ● ● ●
174 PULLER ASM; MAIN CLU SHAFT 9-85210-148-0 01 1 0005- ● ● ● ● ●
177 SETTING TOOL KIT 9-85220-040-0 01 1 9601-0004 ● ● ●
178 BAR; TRANS GUIDE 9-85291-203-0 01 1 9601-9803 ● ● ●
178 BAR; TRANS GUIDE 9-85291-203-0 01 1 9804-0004 ● ● ● ●
178 BAR; TRANS GUIDE 9-85291-203-0 01 1 0005- ● ● ● ● ●
179 PULLER; SPD METER GEAR 9-85210-181-0 01 1 9601-9803 ● ● ●
179 PULLER; SPD METER GEAR 9-85210-181-0 01 1 9804-0004 ● ● ● ●
180 PULLER; FRT & RR HUB
(B) 		1-85210-002-0 02 1 9601-9803 ● ● ●
180 PULLER; FRT & RR HUB
(B) 		1-85210-002-0 02 1 9804-0004 ● ● ● ●
180 PULLER; FRT & RR HUB
(B) 		1-85210-002-0 02 1 0005- ● ● ● ● ●
180 PULLER; FRT & RR HUB
(A) M20 		9-85210-187-0 01 1 9601-9803 ● ● ●
180 PULLER; FRT & RR HUB
(A) M20 		9-85210-187-0 01 1 9804-0004 ● ● ● ●
182 REMOVER ASM 9-85210-095-0 01 1 9601-9803 ● ● ●
182 REMOVER ASM 9-85210-095-0 01 1 9804-0004 ● ● ● ●
356 TOOL; SETTING,OIL SEAL,CYL HEAD
6HK1 TCS ENG(80L) 		8-94391-527-0 01 1 0406- ●
357 REPLACER; NOZZLE SLEEVE
6HH1 STD 4VALVE ENG(1A6) 		8-94391-555-0 01 1 0005-0405 ● ●
357 REPLACER; NOZZLE SLEEVE
6HH1 STD 4VALVE ENG(1A6),6HK1 TCS ENG(80L) 		8-94391-555-0 01 1 0406- ● ●
358 PLACER; NOZZLE SLEEVE
6HH1 STD 4VALVE ENG(1A6) 		8-94391-556-0 01 1 0005-0405 ● ●
358 PLACER; NOZZLE SLEEVE
6HH1 STD 4VALVE ENG(1A6),6HK1 TCS ENG(80L) 		8-94391-556-0 01 1 0406- ● ●
çizim 14541
12 5 1 9 23 13 22 21 20 19 17 29 193 29 29 208 115 237 321 232 230
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEELCARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIF TING TYPE VAR1<SY8> 		9-23110-018-0 01 1 9601-9803 ● ● ●
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEELCARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIF TING TYPE VAR1<SY8> 		9-23110-018-0 01 1 9804- ● ● ● ● ●
5 WRENCH ASM; NUT,MAINSHAFT
MAL6S M/T(Y1V) 		1-85110-010-0 01 1 9601-9803 ● ●
9 WRENCH; WHEEL PIN
B=33X30 L=450 		1-85111-033-1 01 1 9601-9803 ● ● ●
9 WRENCH; WHEEL PIN
B=33X30 L=450 		1-85111-033-1 01 1 9804-0004 ● ● ● ●
9 WRENCH; WHEEL PIN
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) B=33X30 L=450 		1-85111-033-1 01 1 0005- ● ● ● ● ●
9 WRENCH; WHEEL PIN
EXC. DISC WHEEL 10STUD 22.5X8.25 165-13(QM8), DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) B=41X21 L=440 		1-85113-015-1 01 1 0005- ● ● ● ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		1-85116-011-0 01 1 0005-1501 ● ● ● ● ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		8-98257-407-0 01 1 1502- ● ● ● ● ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		1-85116-011-0 01 1 9601-9803 ● ● ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		1-85116-011-0 01 1 9804-0004 ● ● ● ●
13 WRENCH; MONKEY
L=255 		1-85117-002-1 01 1 9601-9803 ● ● ●
13 WRENCH; MONKEY
L=255 		1-85117-002-1 01 1 9804-0004 ● ● ● ●
13 WRENCH; MONKEY
L=255 		1-85117-002-1 01 1 0005-0211 ● ● ● ● ●
13 WRENCH; MONKEY
L=247 		1-85117-006-0 01 1 0212-1407 ● ● ● ● ●
13 WRENCH; MONKEY
L=255 		8-98270-303-0 01 1 1408- ● ● ● ● ●
17 HAMMER 9-85121-406-0 01 1 9601-9803 ● ● ●
17 HAMMER 9-85121-406-0 01 1 9804-0004 ● ● ● ●
17 HAMMER 9-85121-406-0 01 1 0005- ● ● ● ● ●
19 WRENCH; 7X8
8X10 		9-99592-108-0 01 1 9601-9602 ● ● ●
20 WRENCH; 10X12
10X12 		9-09592-110-0 01 1 9601-9803 ● ● ●
20 WRENCH; 10X12
10X12 		9-09592-110-0 01 1 9804-0004 ● ● ● ●
20 WRENCH; 10X12
10X12 		9-09592-110-0 01 1 0005-0607 ● ● ● ● ●
20 WRENCH; 10X12
10X12 		0-95902-510-0 01 1 0608- ● ● ● ● ●
21 WRENCH; 14X17
14X17 		9-09592-114-0 01 1 9601-9803 ● ● ●
21 WRENCH; 14X17
14X17 		9-09592-114-0 01 1 9804-0004 ● ● ● ●
21 WRENCH; 14X17
14X17 		9-09592-114-0 01 1 0005-0607 ● ● ● ● ●
21 WRENCH; 14X17
14X17 		0-95902-514-0 01 1 0608- ● ● ● ● ●
22 WRENCH; 19X22
19X22 		9-99592-119-0 01 1 9601-9803 ● ● ●
22 WRENCH; 19X22
19X22 		9-99592-119-0 01 1 9804-0004 ● ● ● ●
22 WRENCH; 19X22
19X22 		9-99592-119-0 01 1 0005-0607 ● ● ● ● ●
22 WRENCH; 19X22
19X22 		0-95902-519-0 01 1 0608- ● ● ● ● ●
23 WRENCH; 24X27
24X27 		9-09592-124-0 01 1 9601-9803 ● ● ●
23 WRENCH; 24X27
24X27 		9-09592-124-0 01 1 9804-0004 ● ● ● ●
23 WRENCH; 24X27
24X27 		9-09592-124-0 01 1 0005-0607 ● ● ● ● ●
23 WRENCH; 24X27
24X27 		0-95902-524-0 01 1 0608- ● ● ● ● ●
29 DRIVER; SCREW
(B) <-> L=285 		1-85151-004-0 01 1 9601-9803 ● ● ●
29 DRIVER; SCREW
(B) <-> L=285 		1-85151-004-0 01 1 9804-0004 ● ● ● ●
29 DRIVER; SCREW
(B) <-> L=285 		1-85151-004-0 01 1 0005-0611 ● ● ● ● ●
29 DRIVER; SCREW
(B) <-> L=275 		8-98061-105-0 01 1 0612- ● ● ● ● ●
29 DRIVER; SCREW
(C) <+>,<-> L=160 		8-94242-798-1 01 1 9601-9803 ● ● ●
29 DRIVER; SCREW
(C) <+>,<-> L=160 		8-94242-798-1 01 1 9804-0004 ● ● ● ●
29 DRIVER; SCREW
(C) <+>,<-> L=160 		8-94242-798-1 01 1 0005- ● ● ● ● ●
29 DRIVER; SCREW
(A) <+> L=190 		9-09595-522-0 01 1 9601-9803 ● ● ●
29 DRIVER; SCREW
(A) <+> L=190 		9-09595-522-0 01 1 9804-0004 ● ● ● ●
29 DRIVER; SCREW
(A) <+> L=190 		9-09595-522-0 01 1 0005- ● ● ● ● ●
115 PLIER 5-85171-001-0 01 1 9601-9602 ● ● ●
115 PLIER 5-85171-002-0 01 1 9603-9803 ● ● ●
115 PLIER 5-85171-002-0 01 1 9804-0004 ● ● ● ●
115 PLIER 5-85171-002-0 01 1 0005-1410 ● ● ● ● ●
115 PLIER 8-98282-845-0 01 1 1411- ● ● ● ● ●
193 JACK ASM
CAUTIONS ARABIAN<WJ7> 10TON 		1-85510-025-0 01 1 0309-0504 ● ●
193 JACK ASM
10TON 		1-85510-013-1 01 1 9601-9803 ● ● ●
193 JACK ASM
10TON 		1-85510-013-1 01 1 9804-0004 ● ● ● ● ●
193 JACK ASM
10TON 		1-85510-013-1 01 1 0005-0308 ● ● ● ● ●
193 JACK ASM
10TON 		1-85510-013-1 01 1 0309-0504 ● ● ●
193 JACK ASM
EXC. CAUTIONS ARABIAN<WJ7> 10TON 		1-85510-013-1 01 1 0309-0504 ● ●
193 JACK ASM
10TON 		8-97607-599-0 01 1 0505- ● ● ● ● ●
208 HANDLE; JACK
L=600 		1-85515-008-0 01 1 9601-9803 ● ● ●
208 HANDLE; JACK
L=600 		1-85515-008-0 01 1 9804-0004 ● ● ● ●
208 HANDLE; JACK
L=600 		1-85515-008-0 01 1 0005-0105 ● ● ● ● ●
208 HANDLE; JACK
L=600 		1-85515-009-0 01 1 0106-0405 ● ● ● ● ●
208 HANDLE; JACK
L=600 		1-85515-009-0 01 1 0406-1107 ● ● ● ● ●
208 HANDLE; JACK
L=600 		8-98181-437-0 01 1 1108- ● ● ● ● ●
230 PUMP; GREASE 1-85556-007-2 01 1 9601-9803 ● ● ●
230 PUMP; GREASE 1-85556-007-2 01 1 9804-0004 ● ● ● ● ●
230 PUMP; GREASE 1-85556-007-5 01 1 0005- ● ● ● ● ●
232 HOSE; AIR,AIR CHARGE
TIRE INFLATOR DEVICE<SG4> 		1-09360-245-1 01 1 9601-9803 ● ● ●
232 HOSE; AIR,AIR CHARGE
TIRE INFLATOR DEVICE<SG4> 		1-09360-245-1 01 1 9804-0004 ● ● ● ●
232 HOSE; AIR,AIR CHARGE
TIRE INFLATOR DEVICE<SG4> 		1-09360-245-1 01 1 0005- ● ● ● ● ●
237 BAG; TOOL 8-97130-902-0 01 1 9601-9803 ● ● ●
237 BAG; TOOL 8-97130-902-0 01 1 9804-0004 ● ● ● ● ●
237 BAG; TOOL 8-97130-902-1 01 1 0005- ● ● ● ● ●
321 SOCKET; PROP SHAFT
L=300 		1-85115-024-0 01 1 9601-9803 ● ● ●
321 SOCKET; PROP SHAFT
P46 PROP SHAFT(C4Z) L=300 		1-85115-024-0 01 1 9804-0004 ● ● ●
çizim 184324
93 102 106 118 140 296 297
BalonParca AdiParca NoAdetTipApplied Date A B C D E
93 SETTING KIT; VALVE GUIDE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=260 		9-85231-202-0 01 1 9601-9803 ● ● ●
93 SETTING KIT; VALVE GUIDE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=260 		9-85231-202-0 01 1 9804- ● ● ● ● ●
93 SETTING KIT; VALVE GUIDE
6HH1 STD ENG(65L) 		1-85220-001-0 01 1 9601-9609 ● ●
93 SETTING KIT; VALVE GUIDE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) 		1-85220-001-0 01 1 9610- ● ● ●
102 ADAPTER; COMP GAGE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		5-85317-001-0 01 1 9601-9803 ● ● ●
102 ADAPTER; COMP GAGE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		5-85317-001-0 01 1 9804- ● ● ● ● ●
106 TOOL; SETTING PILOT BRG
6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> 		1-85221-080-0 01 1 0605- ●
118 WRENCH; OIL FILTER
6HH1 STD ENG(65L) 		1-85221-097-0 01 1 9601-9609 ● ●
118 WRENCH; OIL FILTER
6HE1 TC ENG(57L),6HH1 STD ENG(65L) 		1-85221-097-0 01 1 9610-9803 ● ● ●
118 WRENCH; OIL FILTER
6HE1 TC ENG(57L) 		1-85221-097-0 01 1 9804-0004 ● ● ●
118 WRENCH; OIL FILTER
6HH1 STD ENG(65L) PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-85221-097-0 01 1 9804-0004 ● ●
140 REMOVER; WEAR RING
6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> 		1-85210-053-0 01 1 0605- ●
296 REPLACER; SLINGER
6HH1 STD ENG(65L) 		8-94396-858-0 01 1 9601-9609 ● ●
296 REPLACER; SLINGER
6HE1 TC ENG(57L),6HH1 STD ENG(65L) 		8-94396-858-0 01 1 9610-0004 ● ● ●
297 CUTTER; SEAL,OIL PAN
6HH1 STD ENG(65L) 		8-94393-112-0 01 1 9601-9609 ● ●
297 CUTTER; SEAL,OIL PAN
6HE1 TC ENG(57L),6HH1 STD ENG(65L) 		8-94393-112-0 01 1 9610-0004 ● ● ●
çizim 184367
120 120 121 123 163 122 163 163 163 166 167 167
BalonParca AdiParca NoAdetTipApplied Date A B C D E
120 PULLER ASM; MAIN REAR BRG
MAL6S M/T(Y1V) (A) L=285 		9-85210-184-0 01 1 9601-0011 ● ●
120 PULLER ASM; MAIN REAR BRG
MAL6S M/T(Y1V) (A) L=285 		9-85210-184-0 01 1 0012- ● ● ●
120 PULLER ASM; MAIN REAR BRG
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (B) 		9-85210-192-0 01 1 9601-9609 ● ●
120 PULLER ASM; MAIN REAR BRG
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (B) 		9-85210-192-0 01 1 9610-0004 ● ● ●
121 PULLER ASM; COUNTER REAR
MAL6S M/T(Y1V) L=285 		9-85210-184-0 01 1 9601-0011 ● ●
121 PULLER ASM; COUNTER REAR
MAL6S M/T(Y1V) L=285 		9-85210-184-0 01 1 0012- ● ● ●
122 PULLER ASM; COUNTER FRT
ISUZU M/T<X9A> 		9-85210-129-1 01 1 9601-9609 ● ●
122 PULLER ASM; COUNTER FRT
ISUZU M/T<X9A> 		9-85210-129-1 01 1 9610-0004 ● ● ●
123 PULLER; SPEEDOMETER BUSHING
MAL6S M/T(Y1V) 		9-85210-091-0 01 1 9601-0011 ● ●
123 PULLER; SPEEDOMETER BUSHING
MAL6S M/T(Y1V) 		9-85210-091-0 01 1 0012- ● ● ●
163 TOOL; SETTING
MLD7 M/T<X9Z> (B) L=195 		1-85221-162-1 01 1 0005-0011 ●
163 TOOL; SETTING
MAL6 M/T<X9G>,MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (B) L=195 		1-85221-162-1 01 1 0005-0011 ● ●
163 TOOL; SETTING
MAL6 M/T<X9G>,MLD7 M/T<X9Z> (B) L=195 		1-85221-162-1 01 1 0012- ●
163 TOOL; SETTING
MAL6 M/T<X9G>,MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (B) L=195 		1-85221-162-1 01 1 0012- ● ●
163 TOOL; SETTING
MLD7 M/T<X9Z> (D) L=150 		1-85221-163-0 01 1 0005-0011 ●
163 TOOL; SETTING
MAL6 M/T<X9G>,MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (D) L=150 		1-85221-163-0 01 1 0005-0011 ● ●
163 TOOL; SETTING
MAL6 M/T<X9G>,MLD7 M/T<X9Z> (D) L=150 		1-85221-163-0 01 1 0012- ●
163 TOOL; SETTING
MAL6 M/T<X9G>,MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (D) L=150 		1-85221-163-0 01 1 0012- ● ●
163 TOOL; SETTING
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (B) L=150 		9-85221-248-0 01 1 9601-0004 ● ● ●
163 TOOL; SETTING
ISUZU M/T<X9A> (B) L=195 		1-85221-162-1 01 1 9601-9609 ● ●
163 TOOL; SETTING
ISUZU M/T<X9A> (B) L=195 		1-85221-162-1 01 1 9610-0004 ● ● ●
163 TOOL; SETTING
ISUZU M/T<X9A> (D) L=150 		1-85221-163-0 01 1 9601-9609 ● ●
163 TOOL; SETTING
ISUZU M/T<X9A> (D) L=150 		1-85221-163-0 01 1 9610-0004 ● ● ●
163 TOOL; SETTING
ISUZU M/T<X9A> (A) OD=120 		1-85221-164-0 01 1 9601-9609 ● ●
163 TOOL; SETTING
ISUZU M/T<X9A> (A) OD=120 		1-85221-164-0 01 1 9610-0004 ● ● ●
163 TOOL; SETTING
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (C) L=350 		9-85221-310-0 01 1 9601-9609 ● ●
163 TOOL; SETTING
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (C) L=350 		9-85221-310-0 01 1 9610-0004 ● ● ●
166 ALIGNER; CLU RELEASE LEVER
15" CLUTCH(RE9),14" CLUTCH(WF6) ISUZU M/T<X9A> L=480 		1-85253-011-0 01 1 9601-9609 ● ●
166 ALIGNER; CLU RELEASE LEVER
15" CLUTCH(RE9) ISUZU M/T<X9A> L=480 		1-85253-011-0 01 1 9610-9803 ●
166 ALIGNER; CLU RELEASE LEVER
15" CLUTCH(RE9),14" CLUTCH(WF6) ISUZU M/T<X9A> L=480 		1-85253-011-0 01 1 9610-9803 ● ●
166 ALIGNER; CLU RELEASE LEVER
L=480 		1-85253-011-0 01 1 9804-0004 ● ● ● ●
167 ALIGNER; CLU PILOT
(B) D=36 L=190 		1-85253-022-0 01 1 9601-9609 ●
167 ALIGNER; CLU PILOT
MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) (B) D=36 L=190 		1-85253-022-0 01 1 9601-9609 ● ●
167 ALIGNER; CLU PILOT
ZF 9S109 OD M/T(Y2L) (B) D=36 L=190 		1-85253-022-0 01 1 9610-9803 ●
167 ALIGNER; CLU PILOT
MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) (B) D=36 L=190 		1-85253-022-0 01 1 9610-9803 ● ●
167 ALIGNER; CLU PILOT
FULLER RT7608LL M/T(X8P),MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L),FULLER FS8209 DD M/T(Y2S) (B) D=36 L=190 		1-85253-022-0 01 1 9804-9903 ● ● ● ● ●
167 ALIGNER; CLU PILOT
FULLER RT7608LL M/T(X8P),MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L),FULLER FS8209 DD M/T(Y2S),ZF 9S109 OD M/T HONG KONG(Y3Y) (B) D=36 L=190 		1-85253-022-0 01 1 9904-0004 ● ● ●
167 ALIGNER; CLU PILOT
(B) D=36 L=190 		1-85253-022-0 01 1 9904-0004 ●
167 ALIGNER; CLU PILOT
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (A) D=30.6 L=185 		1-85253-012-0 01 1 9601-9609 ● ●
167 ALIGNER; CLU PILOT
MLD7 M/T<X9Z> (A) D=30.6 L=185 		1-85253-012-0 01 1 9610-9803 ●
167 ALIGNER; CLU PILOT
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (A) D=30.6 L=185 		1-85253-012-0 01 1 9610-9803 ● ●
167 ALIGNER; CLU PILOT
ISUZU M/T<X9A> (A) D=30.6 L=185 		1-85253-012-0 01 1 9804-0004 ● ● ●
167 ALIGNER; CLU PILOT
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (A) D=30.6 L=185 		1-85253-012-0 01 1 0005- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
