◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10704 - FVR/GVR-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-90 - RADIO AND TV ▶
8-90 — RADIO AND TV (#63923) — 109 parça

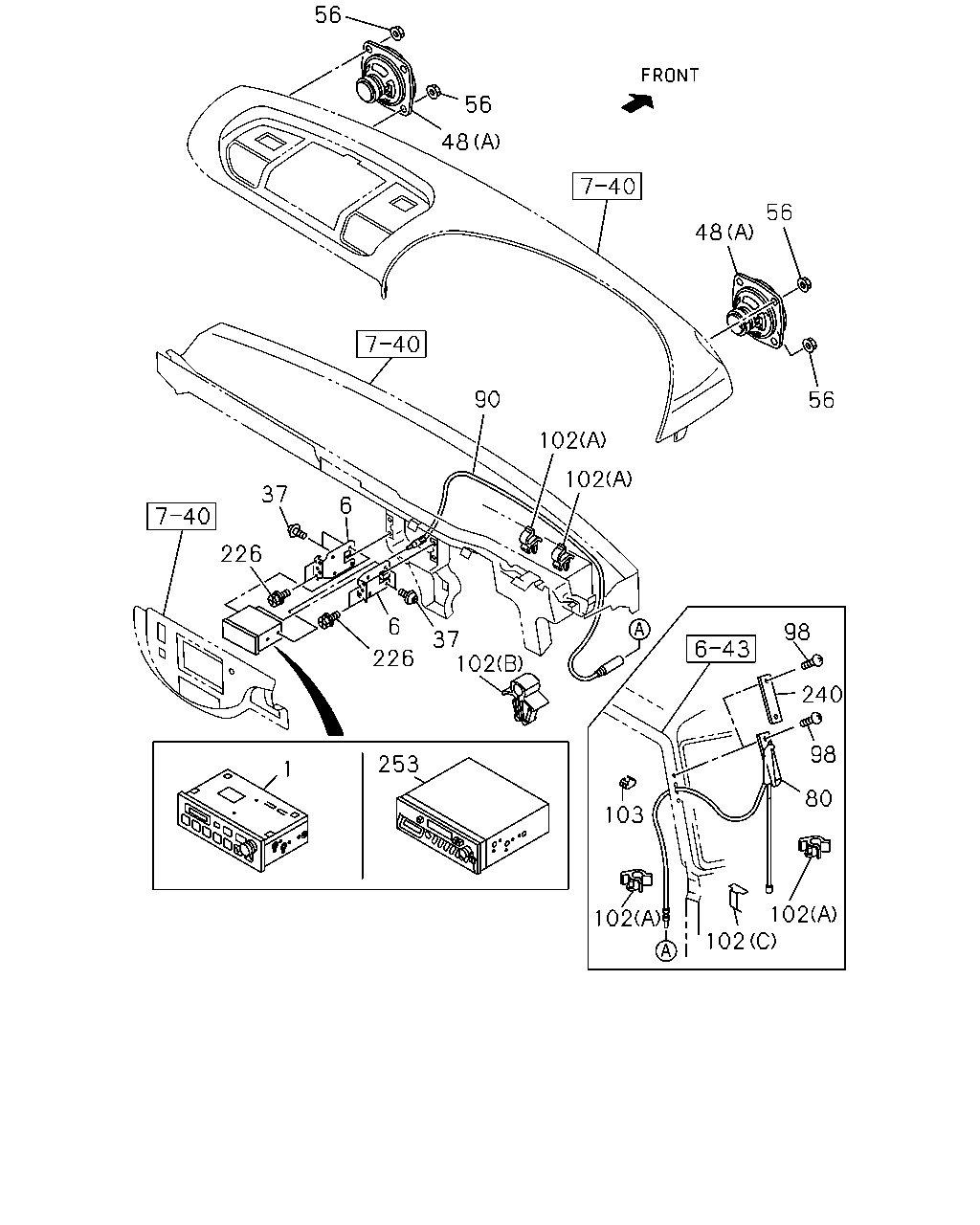

çizim 158250
56 56 48 48 56 56 90 102 102 6 37 226 6 226 37 102 98 240 98 80 102 102 103 102 253 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 RADIO
RADIO CLARION(SK2) 		1-84112-063-0 01 1 9601-9803 ● ●
1 RADIO
RADIO CLARION(SK2) 		1-84112-063-0 01 1 9804-0702 ● ● ●
1 RADIO
RADIO CLARION(SK2) CLARION AM/FM 		8-98029-605-0 01 1 0703- ● ● ●
6 BRACKET; RADIO TO PANEL 1-65671-551-4 02 1 9601-9803 ● ● ●
6 BRACKET; RADIO TO PANEL 1-65671-551-4 02 1 9804-0004 ● ● ● ●
6 BRACKET; RADIO TO PANEL 1-65671-551-4 02 1 0005-0612 ● ● ● ● ●
6 BRACKET; RADIO TO PANEL 1-65671-822-1 02 1 0701- ● ● ● ● ●
37 SCREW; CASSETTE & RADIO
RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 9601-9803 ● ●
37 SCREW; CASSETTE & RADIO
RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 9804-0604 ● ● ●
37 SCREW; CASSETTE & RADIO
RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) M5X10 W/LK+PL WASHER 		0-36230-510-0 04 1 0605- ● ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV> (A) 		1-84114-062-0 02 1 9601-0004 ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV> EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) (A) 		1-84114-062-0 02 1 9601-0004 ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV> (A) 		1-84114-062-0 02 1 0005-0605 ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV> EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) (A) 		1-84114-062-0 02 1 0005-0605 ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV> (A) 		8-98046-216-0 02 1 0606- ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV> EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) (A) 		8-98046-216-0 02 1 0606- ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (A) 		1-84114-050-0 02 1 9601-9803 ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. RADIO CLARION(SK2) (A) 		1-84114-050-0 02 1 9601-9803 ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (A) 		1-84114-050-0 02 1 9804-0004 ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. RADIO CLARION(SK2) (A) 		1-84114-050-0 02 1 9804-0004 ● ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (A) 		1-84114-050-0 02 1 0005-0308 ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. RADIO CLARION(SK2) (A) 		1-84114-050-0 02 1 0005-0308 ● ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (A) 		1-84114-073-0 02 1 0309-0702 ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. RADIO CLARION(SK2) (A) 		1-84114-073-0 02 1 0309-0702 ● ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (A) 		1-84114-073-0 02 1 0703-0905 ● ●
48 SPEAKER; AUDIO
RADIO CLARION(SK2) EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (A) 		1-84114-073-0 02 1 0703-0905 ● ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. RADIO CLARION(SK2) (A) 		1-84114-073-0 02 1 0703-0905 ● ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (A) 		8-98140-326-1 02 1 0906- ● ●
48 SPEAKER; AUDIO
RADIO CLARION(SK2) EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (A) 		8-98140-326-1 02 1 0906- ● ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. RADIO CLARION(SK2) (A) 		8-98140-326-1 02 1 0906- ● ● ●
48 SPEAKER; AUDIO
RADIO CLARION(SK2) (A) 		1-84114-050-0 01 1 9601-9803 ● ●
48 SPEAKER; AUDIO
RADIO CLARION(SK2) (A) 		1-84114-050-0 01 1 9804-0308 ● ● ●
48 SPEAKER; AUDIO
RADIO CLARION(SK2) (A) 		1-84114-073-0 01 1 0309-0702 ● ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM RR 2 SPEAKERS<TLS> (B) 		1-84114-057-0 02 1 9804-0004 ● ●
56 NUT; SPEAKER,RADIO OR STEREO
SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV>, SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5 FLANGE 		1-09984-170-0 04 1 9601-9803 ● ●
56 NUT; SPEAKER,RADIO OR STEREO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5 FLANGE 		1-09984-170-0 04 1 9601-9803 ●
56 NUT; SPEAKER,RADIO OR STEREO
SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV>, SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5 FLANGE 		1-09984-170-0 04 1 9804-0004 ● ●
56 NUT; SPEAKER,RADIO OR STEREO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5 FLANGE 		1-09984-170-0 04 1 9804-0004 ● ●
56 NUT; SPEAKER,RADIO OR STEREO
SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV>, SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5 FLANGE 		1-09984-170-0 04 1 0005-0702 ● ● ●
56 NUT; SPEAKER,RADIO OR STEREO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5 FLANGE 		1-09984-170-0 04 1 0005-0702 ● ●
56 NUT; SPEAKER,RADIO OR STEREO
SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV>, SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5 FLANGE 		1-09984-170-0 04 1 0703- ● ● ●
56 NUT; SPEAKER,RADIO OR STEREO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5 FLANGE 		1-09984-170-0 04 1 0703- ● ●
56 NUT; SPEAKER,RADIO OR STEREO
RADIO CLARION(SK2) EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5 FLANGE 		1-09984-170-0 04 1 0703- ● ●
56 NUT; SPEAKER,RADIO OR STEREO
RADIO CLARION(SK2) EXC. SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV>, SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5 FLANGE 		1-09984-170-0 04 1 0703- ●
56 NUT; SPEAKER,RADIO OR STEREO
RADIO CLARION(SK2) EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5 FLANGE 		1-09984-170-0 02 1 9601-9803 ●
56 NUT; SPEAKER,RADIO OR STEREO
RADIO CLARION(SK2) EXC. SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV>, SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5 FLANGE 		1-09984-170-0 02 1 9601-9803 ●
56 NUT; SPEAKER,RADIO OR STEREO
RADIO CLARION(SK2) EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5 FLANGE 		1-09984-170-0 02 1 9804-0702 ● ●
56 NUT; SPEAKER,RADIO OR STEREO
RADIO CLARION(SK2) EXC. SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV>, SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5 FLANGE 		1-09984-170-0 02 1 9804-0702 ●
80 ANTENNA
ANTENNA RADIO<U73> 		1-84115-055-1 01 1 9601-9803 ● ● ●
80 ANTENNA
ANTENNA RADIO<U73> 		1-84115-055-2 01 1 9804-0004 ● ● ● ●
80 ANTENNA
ANTENNA RADIO<U73> 		1-84115-055-2 01 1 0005-1203 ● ● ● ● ●
80 ANTENNA
ANTENNA RADIO<U73> 		8-98210-874-1 01 1 1204- ● ● ● ● ●
90 CABLE; ANTENNA,FEEDER
ANTENNA RADIO<U73> 		1-84113-011-2 01 1 9601-9803 ● ● ●
90 CABLE; ANTENNA,FEEDER
ANTENNA RADIO<U73> 		1-84113-011-2 01 1 9804-0004 ● ● ● ●
90 CABLE; ANTENNA,FEEDER
ANTENNA RADIO<U73> 		1-84113-011-2 01 1 0005- ● ● ● ● ●
98 SCREW; TAP,ANTENNA
M5X11 		1-09981-536-1 02 1 9601-9803 ● ● ●
98 SCREW; TAP,ANTENNA
M5X11 		1-09981-536-1 02 1 9804-0004 ● ● ● ●
98 SCREW; TAP,ANTENNA
M5X11 		1-09981-536-1 02 1 0005- ● ● ● ● ●
102 CLIP; CABLE
ANTENNA RADIO<U73> (C) L=20 SET=10 PIECE 		1-09987-246-2 01 1 1410- ● ● ● ● ●
102 CLIP; CABLE
ANTENNA RADIO<U73> (A) WO/PACKING ID=4.8 		8-94128-483-0 02 1 9601-9612 ● ● ●
102 CLIP; CABLE
ANTENNA RADIO<U73> (A) WO/PACKING ID=4.8 		8-94128-483-0 07 1 9701-9803 ● ● ●
102 CLIP; CABLE
ANTENNA RADIO<U73> (A) WO/PACKING ID=4.8 		8-94128-483-0 02 1 9804-0004 ● ● ● ●
102 CLIP; CABLE
ANTENNA RADIO<U73> (A) WO/PACKING ID=4.8 		8-94128-483-0 02 1 0005- ● ● ● ● ●
102 CLIP; CABLE
ANTENNA RADIO<U73> (A) WO/PACKING ID=4.8 		8-94128-483-0 05 1 9804-9808 ● ● ● ●
102 CLIP; CABLE
ANTENNA RADIO<U73> (A) WO/PACKING ID=4.8 		8-94128-483-0 04 1 9809-9809 ● ● ● ●
102 CLIP; CABLE
ANTENNA RADIO<U73> (A) WO/PACKING ID=4.8 		8-94128-483-0 05 1 9810-9902 ● ● ● ●
102 CLIP; CABLE
ANTENNA RADIO<U73> (A) W/PACKING ID=4.8 		1-73907-618-0 05 1 9903-0004 ● ● ● ●
102 CLIP; CABLE
ANTENNA RADIO<U73> (A) W/PACKING ID=4.8 		1-73907-618-0 05 1 0005- ● ● ● ● ●
102 CLIP; CABLE
ANTENNA RADIO<U73> (B) ID=9 		5-09707-027-0 01 1 0005- ● ●
103 GROMMET; ANTENNA HOLE,FRT
ANTENNA RADIO<U73> 		8-97027-381-0 01 1 9601-9803 ● ● ●
103 GROMMET; ANTENNA HOLE,FRT
ANTENNA RADIO<U73> 		8-97027-381-0 01 1 9804-0004 ● ● ● ●
103 GROMMET; ANTENNA HOLE,FRT
ANTENNA RADIO<U73> 		8-97027-381-0 01 1 0005- ● ● ● ● ●
226 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9601-9803 ● ● ●
226 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9804-0004 ● ● ● ●
226 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0005- ● ● ● ● ●
240 COVER; ANTENNA
EXC. ANTENNA RADIO<U73> 		1-79996-296-0 01 1 9601-9803 ● ● ●
240 COVER; ANTENNA
EXC. ANTENNA RADIO<U73> 		1-79996-296-0 01 1 9804-0004 ● ● ● ●
240 COVER; ANTENNA
EXC. ANTENNA RADIO<U73> 		1-79996-296-0 01 1 0005- ● ● ● ● ●
253 DECK ASM; RADIO & CD
RADIO AM/FM STEREO & TAPE PLAYER(UN3) SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> CLARION 		1-84122-032-2 01 1 9601-9803 ● ●
253 DECK ASM; RADIO & CD
RADIO AM/FM STEREO & TAPE PLAYER(UN3) SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> CLARION 		1-84122-032-3 01 1 9804- ● ● ●
çizim 184356
62 49 231 48 63
BalonParca AdiParca NoAdetTipApplied Date A B C D E
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV> (A) 		1-84114-062-0 02 1 9601-0004 ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV> EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) (A) 		1-84114-062-0 02 1 9601-0004 ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV> (A) 		1-84114-062-0 02 1 0005-0605 ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV> EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) (A) 		1-84114-062-0 02 1 0005-0605 ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV> (A) 		8-98046-216-0 02 1 0606- ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV> EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) (A) 		8-98046-216-0 02 1 0606- ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (A) 		1-84114-050-0 02 1 9601-9803 ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. RADIO CLARION(SK2) (A) 		1-84114-050-0 02 1 9601-9803 ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (A) 		1-84114-050-0 02 1 9804-0004 ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. RADIO CLARION(SK2) (A) 		1-84114-050-0 02 1 9804-0004 ● ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (A) 		1-84114-050-0 02 1 0005-0308 ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. RADIO CLARION(SK2) (A) 		1-84114-050-0 02 1 0005-0308 ● ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (A) 		1-84114-073-0 02 1 0309-0702 ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. RADIO CLARION(SK2) (A) 		1-84114-073-0 02 1 0309-0702 ● ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (A) 		1-84114-073-0 02 1 0703-0905 ● ●
48 SPEAKER; AUDIO
RADIO CLARION(SK2) EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (A) 		1-84114-073-0 02 1 0703-0905 ● ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. RADIO CLARION(SK2) (A) 		1-84114-073-0 02 1 0703-0905 ● ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (A) 		8-98140-326-1 02 1 0906- ● ●
48 SPEAKER; AUDIO
RADIO CLARION(SK2) EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (A) 		8-98140-326-1 02 1 0906- ● ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. RADIO CLARION(SK2) (A) 		8-98140-326-1 02 1 0906- ● ● ●
48 SPEAKER; AUDIO
RADIO CLARION(SK2) (A) 		1-84114-050-0 01 1 9601-9803 ● ●
48 SPEAKER; AUDIO
RADIO CLARION(SK2) (A) 		1-84114-050-0 01 1 9804-0308 ● ● ●
48 SPEAKER; AUDIO
RADIO CLARION(SK2) (A) 		1-84114-073-0 01 1 0309-0702 ● ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM RR 2 SPEAKERS<TLS> (B) 		1-84114-057-0 02 1 9804-0004 ● ●
49 SCREW; SPEAKER
SPEAKER SYSTEM RR 2 SPEAKERS<TLS> M5X16 W/LK&PL WASHER 		8-94279-400-0 08 1 9804-0004 ● ●
62 BOX; RR SPEAKER
SPEAKER SYSTEM RR 2 SPEAKERS<TLS> 		1-73996-197-5 01 1 9804-0004 ● ●
62 BOX; RR SPEAKER
SPEAKER SYSTEM RR 2 SPEAKERS<TLS> 		1-73996-196-5 01 1 9804-0004 ● ●
63 SCREW; RR SPEAKER BOX
SPEAKER SYSTEM RR 2 SPEAKERS<TLS> M5X20 		5-09981-059-0 12 1 9804-0004 ● ●
231 GROMMET; SCREW,SPEAKER BOX
SPEAKER SYSTEM RR 2 SPEAKERS<TLS> D=8.6X7.7 L=7.5 		8-94279-078-0 12 1 9804-0004 ● ●
