Sayfa 8-21 - Isuzu EPC

8-21 — METER ASM (#6392) — 251 parça

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

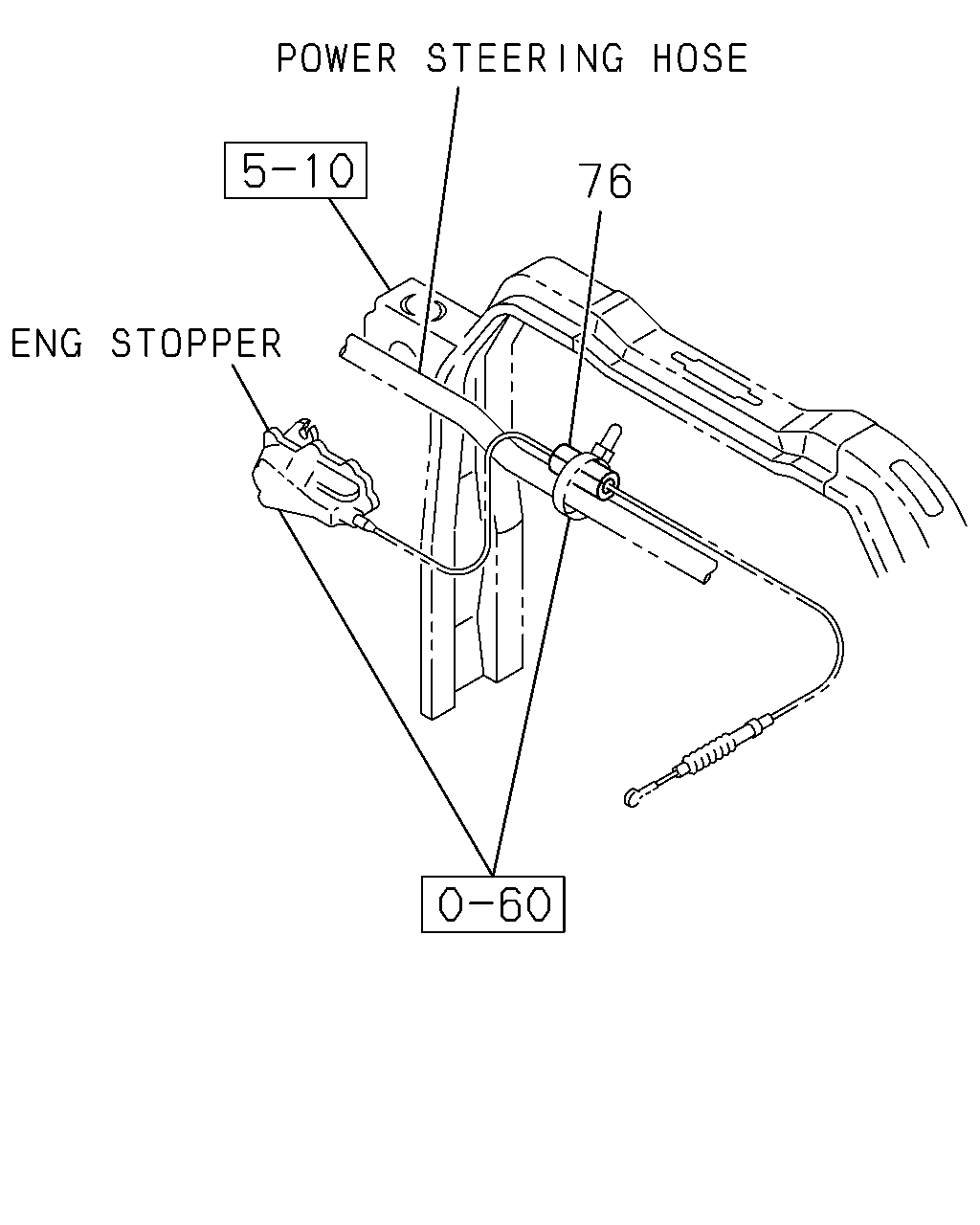

76	SLEEVE; RUBBER,FLEX SHAFT,METER ID=6 L=30	5-09360-352-0	02	1	9604-9904
76	SLEEVE; RUBBER,FLEX SHAFT,METER EXC. RLD GOVERNOR(SD7) ID=6 L=30	5-09360-352-0	02	1	9905-9910
76	SLEEVE; RUBBER,FLEX SHAFT,METER EXC. RLD GOVERNOR(SD7) ID=6 L=30	5-09360-352-0	01	1	9911-
76	SLEEVE; RUBBER,FLEX SHAFT,METER GOVERNOR CONTROL<W69> ID=6 L=30	5-09360-352-0	01	1	9604-9904
76	SLEEVE; RUBBER,FLEX SHAFT,METER GOVERNOR CONTROL<W69> EXC. RLD GOVERNOR(SD7) ID=6 L=30	5-09360-352-0	01	1	9905-9910
76	SLEEVE; RUBBER,FLEX SHAFT,METER EXC. RLD GOVERNOR(SD7) ID=6 OD=10 L=70	1-09376-512-0	01	1	9911-
76	SLEEVE; RUBBER,FLEX SHAFT,METER GOVERNOR CONTROL<W69> EXC. RLD GOVERNOR(SD7) ID=6 OD=10 L=70	1-09376-512-0	01	1	9911-

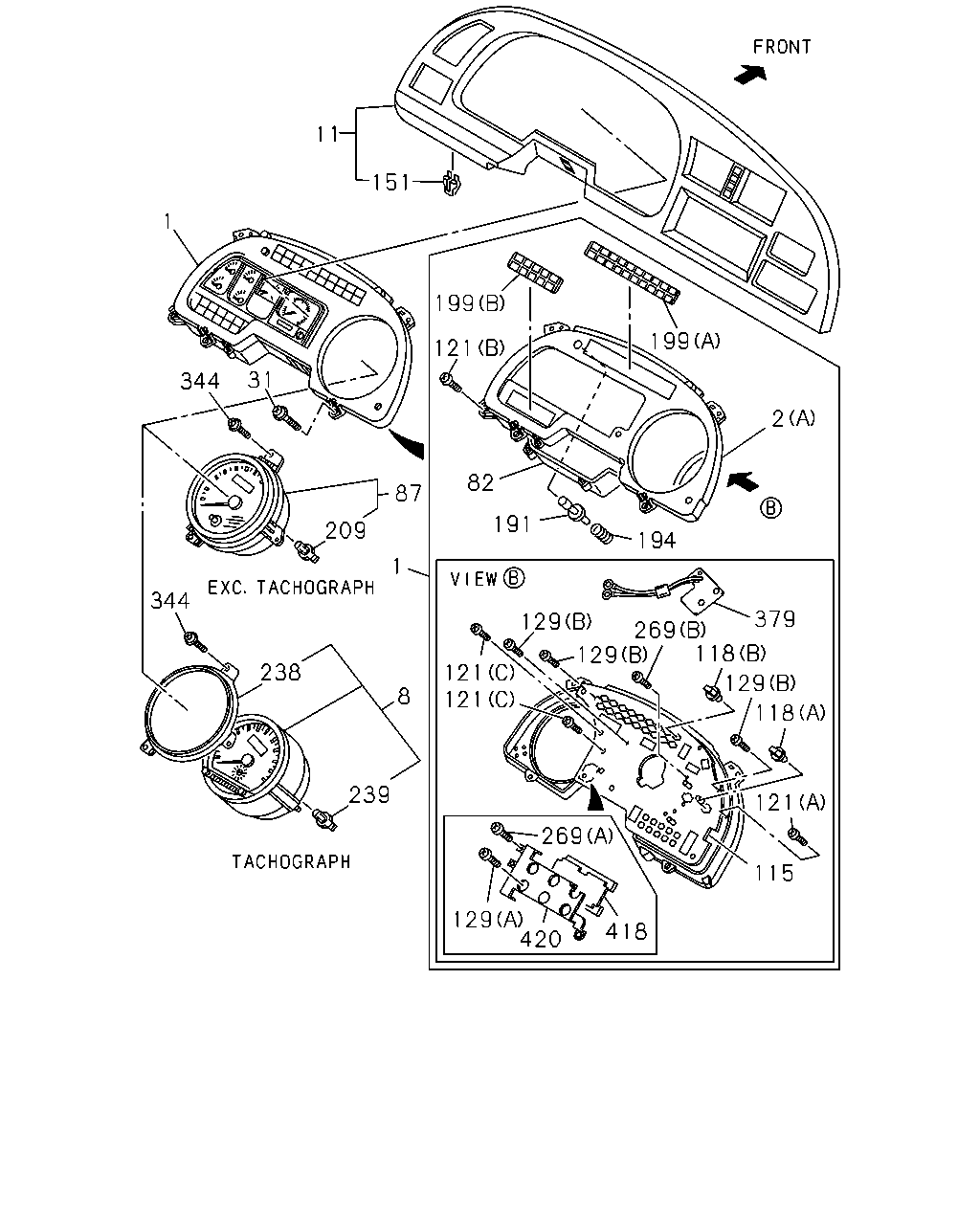

11 151 1 199 199 121 31 344 2 82 87 191 209 194 1 344 379 129 269 129 118 238 121 121 129 8 118 239 121 269 115 129 420 418

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	METER COMPL; CLUSTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-83114-804-2	01	1	9604-9704
1	METER COMPL; CLUSTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-83115-049-0	01	1	9705-9904
1	METER COMPL; CLUSTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2>	1-83115-174-2	01	1	9905-9910
1	METER COMPL; CLUSTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2>	1-83115-691-1	01	1	9911-
1	METER COMPL; CLUSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2>	1-83114-794-3	01	1	9604-9704
1	METER COMPL; CLUSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2>	1-83115-039-1	01	1	9705-9904
1	METER COMPL; CLUSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2>	1-83115-172-2	01	1	9905-9910
1	METER COMPL; CLUSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2>	1-83115-689-1	01	1	9911-
1	METER COMPL; CLUSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ENGINE OVERRUN BUZZER<SK4> EXC. DUAL AIR GAUGE<UG2>	1-83114-793-3	01	1	9604-9704
1	METER COMPL; CLUSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ENGINE OVERRUN BUZZER<SK4> EXC. DUAL AIR GAUGE<UG2>	1-83115-038-1	01	1	9705-9904
1	METER COMPL; CLUSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUAL AIR GAUGE<UG2>	1-83115-171-2	01	1	9905-9910
1	METER COMPL; CLUSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUAL AIR GAUGE<UG2>	1-83115-688-0	01	1	9911-
1	METER COMPL; CLUSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>	1-83114-795-2	01	1	9604-9704
1	METER COMPL; CLUSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>	1-83115-040-0	01	1	9705-9904
2	PANEL; CLUSTER	1-83119-499-0	01	1	9604-9904
2	PANEL; CLUSTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2> (A)	1-83119-644-0	01	1	9905-
2	PANEL; CLUSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-83119-644-0	01	1	9905-
2	PANEL; CLUSTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2> (B)	1-83119-652-0	01	1	9905-
2	PANEL; CLUSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-83119-652-0	01	1	9905-
8	TACHOGRAPH; CLUSTER METER TACHOGRAPH 120KM/H<SM8>	1-83120-662-1	01	1	9604-9706
8	TACHOGRAPH; CLUSTER METER TACHOGRAPH 120KM/H<SM8>	1-83120-806-0	01	1	9707-9904
8	TACHOGRAPH; CLUSTER METER TACHOGRAPH 120KM/H<SM8>	1-83120-856-0	01	1	9905-
11	CLUSTER ASM; METER	1-72418-022-6	01	1	9604-
31	SCREW; METER,INST PANEL M6X20 TAPPING W/PL WASHER	0-74110-620-0	03	1	9604-
82	CASE ASM; CLUSTER METER	1-83119-432-0	01	1	9604-9904
82	CASE ASM; CLUSTER METER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2>	1-83119-653-0	01	1	9905-
82	CASE ASM; CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-83119-653-0	01	1	9905-
87	SPEEDOMETER EXC. TACHOGRAPH 120KM/H<SM8>	1-83120-490-1	01	1	9604-9904
87	SPEEDOMETER EXC. TACHOGRAPH 120KM/H<SM8>	1-83120-844-0	01	1	9905-
115	CIRCUIT; PRINTED,CLUSTER METER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-83189-322-0	01	1	9604-9904
115	CIRCUIT; PRINTED,CLUSTER METER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2>	1-83189-373-0	01	1	9905-
115	CIRCUIT; PRINTED,CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ENGINE OVERRUN BUZZER<SK4> EXC. DUAL AIR GAUGE<UG2>	1-83189-317-0	01	1	9604-9904
115	CIRCUIT; PRINTED,CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2>	1-83189-317-0	01	1	9604-9904
115	CIRCUIT; PRINTED,CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-83189-372-0	01	1	9905-
115	CIRCUIT; PRINTED,CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>	1-83189-321-0	01	1	9604-9904
118	BULB; CLUSTER METER (A) 24V 3W GREEN SOCKET	1-82194-061-0	05	1	9604-9904
118	BULB; CLUSTER METER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2> (A) 24V 3W GREEN SOCKET	1-82194-061-0	04	1	9905-
118	BULB; CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 24V 3W GREEN SOCKET	1-82194-061-0	04	1	9905-
118	BULB; CLUSTER METER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) 24V 1.8W BROWN SOCKET	1-82194-062-0	15	1	9604-9904
118	BULB; CLUSTER METER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2> (B) 24V 1.8W BROWN SOCKET	1-82194-062-0	29	1	9905-
118	BULB; CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ENGINE OVERRUN BUZZER<SK4> EXC. DUAL AIR GAUGE<UG2> (B) 24V 1.8W BROWN SOCKET	1-82194-062-0	18	1	9604-9608
118	BULB; CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> (B) 24V 1.8W BROWN SOCKET	1-82194-062-0	18	1	9604-9608
118	BULB; CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ENGINE OVERRUN BUZZER<SK4> EXC. DUAL AIR GAUGE<UG2> (B) 24V 1.8W BROWN SOCKET	1-82194-062-0	19	1	9609-9704
118	BULB; CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> (B) 24V 1.8W BROWN SOCKET	1-82194-062-0	19	1	9609-9704
118	BULB; CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ENGINE OVERRUN BUZZER<SK4> EXC. DUAL AIR GAUGE<UG2> (B) 24V 1.8W BROWN SOCKET	1-82194-062-0	20	1	9705-9904
118	BULB; CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> (B) 24V 1.8W BROWN SOCKET	1-82194-062-0	20	1	9705-9904
118	BULB; CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 24V 1.8W BROWN SOCKET	1-82194-062-0	28	1	9905-
118	BULB; CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2> (B) 24V 1.8W BROWN SOCKET	1-82194-062-0	14	1	9604-9904
121	SCREW; PANEL FIX,CLUSTER METER (B) M4 TAPPING	1-83119-442-0	08	1	9604-9904
121	SCREW; PANEL FIX,CLUSTER METER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2> (B) M4 TAPPING	1-83119-442-0	05	1	9905-
121	SCREW; PANEL FIX,CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M4 TAPPING	1-83119-442-0	05	1	9905-
121	SCREW; PANEL FIX,CLUSTER METER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2> (C) M3 TAPPING	1-83119-084-0	01	1	9905-
121	SCREW; PANEL FIX,CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M3 TAPPING	1-83119-084-0	01	1	9905-
121	SCREW; PANEL FIX,CLUSTER METER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2> (A) M3 TAPPING	1-83119-676-0	02	1	9905-
121	SCREW; PANEL FIX,CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M3 TAPPING	1-83119-676-0	02	1	9905-
129	SCREW; PRINTED CIRCUIT,CLUSTER METER (C) M3 TAPPING	1-83119-052-0	10	1	9604-9904
129	SCREW; PRINTED CIRCUIT,CLUSTER METER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2> (B) M3 TAPPING	1-83119-657-0	09	1	9905-
129	SCREW; PRINTED CIRCUIT,CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M3 TAPPING	1-83119-657-0	09	1	9905-
129	SCREW; PRINTED CIRCUIT,CLUSTER METER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2> (A) M3 TAPPING	1-83119-675-0	06	1	9905-
129	SCREW; PRINTED CIRCUIT,CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M3 TAPPING	1-83119-675-0	06	1	9905-
151	CLIP; METER CLUSTER	8-97853-939-4	10	1	9604-9812
151	CLIP; METER CLUSTER	8-97217-066-0	10	1	9901-
191	KNOB; BULB CHECK	1-83119-500-0	01	1	9604-9904
191	KNOB; BULB CHECK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2>	1-83119-672-0	01	1	9905-
191	KNOB; BULB CHECK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-83119-672-0	01	1	9905-
194	SPRING; BULB CHECK KNOB BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2>	1-83119-673-0	01	1	9905-
194	SPRING; BULB CHECK KNOB BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-83119-673-0	01	1	9905-
199	LENS; WARNING LAMP (A)	1-83119-538-0	01	1	9604-9904
199	LENS; WARNING LAMP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-83119-684-0	01	1	9905-
199	LENS; WARNING LAMP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ENGINE OVERRUN BUZZER<SK4> EXC. DUAL AIR GAUGE<UG2> (B)	1-83119-539-1	01	1	9604-9904
199	LENS; WARNING LAMP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> (B)	1-83119-539-1	01	1	9604-9904
199	LENS; WARNING LAMP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2> (B)	1-83119-685-0	01	1	9905-
199	LENS; WARNING LAMP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2> (B)	1-83119-435-0	01	1	9604-9904
199	LENS; WARNING LAMP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-83119-435-0	01	1	9604-9904
199	LENS; WARNING LAMP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2> (A)	1-83119-683-0	01	1	9905-
199	LENS; WARNING LAMP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-83119-683-0	01	1	9905-
209	BULB; SPEEDOMETER EXC. TACHOGRAPH 120KM/H<SM8> 24V 3W GREEN SOCKET	1-82194-061-0	02	1	9604-9904
209	BULB; SPEEDOMETER EXC. TACHOGRAPH 120KM/H<SM8> 24V 3W GREEN SOCKET	1-82194-061-0	01	1	9905-
238	PANEL; TACHOGRAPH TACHOGRAPH 120KM/H<SM8>	1-83129-311-0	01	1	9604-
239	BULB; TACHOGRAPH TACHOGRAPH 120KM/H<SM8> 24V 1.8W	1-82194-076-0	03	1	9604-9904
239	BULB; TACHOGRAPH TACHOGRAPH 120KM/H<SM8> 24V 1.4W	5-82194-034-0	03	1	9905-
269	SCREW; METER CLUSTER (A) M3 TAPPING	1-83119-441-0	11	1	9604-9904
269	SCREW; METER CLUSTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2> (B) M3 TAPPING	1-83119-677-0	05	1	9905-
269	SCREW; METER CLUSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M3 TAPPING	1-83119-677-0	05	1	9905-
269	SCREW; METER CLUSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ENGINE OVERRUN BUZZER<SK4> EXC. DUAL AIR GAUGE<UG2> (B) M3 TAPPING	1-83119-439-0	04	1	9604-9904
269	SCREW; METER CLUSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> (B) M3 TAPPING	1-83119-439-0	04	1	9604-9904
269	SCREW; METER CLUSTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M3 TAPPING	1-83119-439-0	04	1	9604-9904
269	SCREW; METER CLUSTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2> (A) M3	1-83119-273-0	02	1	9905-
269	SCREW; METER CLUSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M3	1-83119-273-0	02	1	9905-
269	SCREW; METER CLUSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2> (B) M3 TAPPING	1-83119-439-0	03	1	9604-9904
344	SCREW; SPEEDOMETER M6X20 TAPPING W/PL WASHER	0-74110-620-0	03	1	9604-
379	CIRCUIT; DROP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2>	1-83189-369-0	01	1	9905-
379	CIRCUIT; DROP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-83189-369-0	01	1	9905-
418	CIRCUIT; CONTROL,METER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2>	1-83189-377-0	01	1	9905-
418	CIRCUIT; CONTROL,METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-83189-377-0	01	1	9905-
420	HEAT SINK; METER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2>	1-83119-679-0	01	1	9905-
420	HEAT SINK; METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-83119-679-0	01	1	9905-

11 151 1 105 157 134 31 344 199 199 86 191 87 121 2 209 344 1 238 8 82 118 121 269 239 269 129 21 115 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

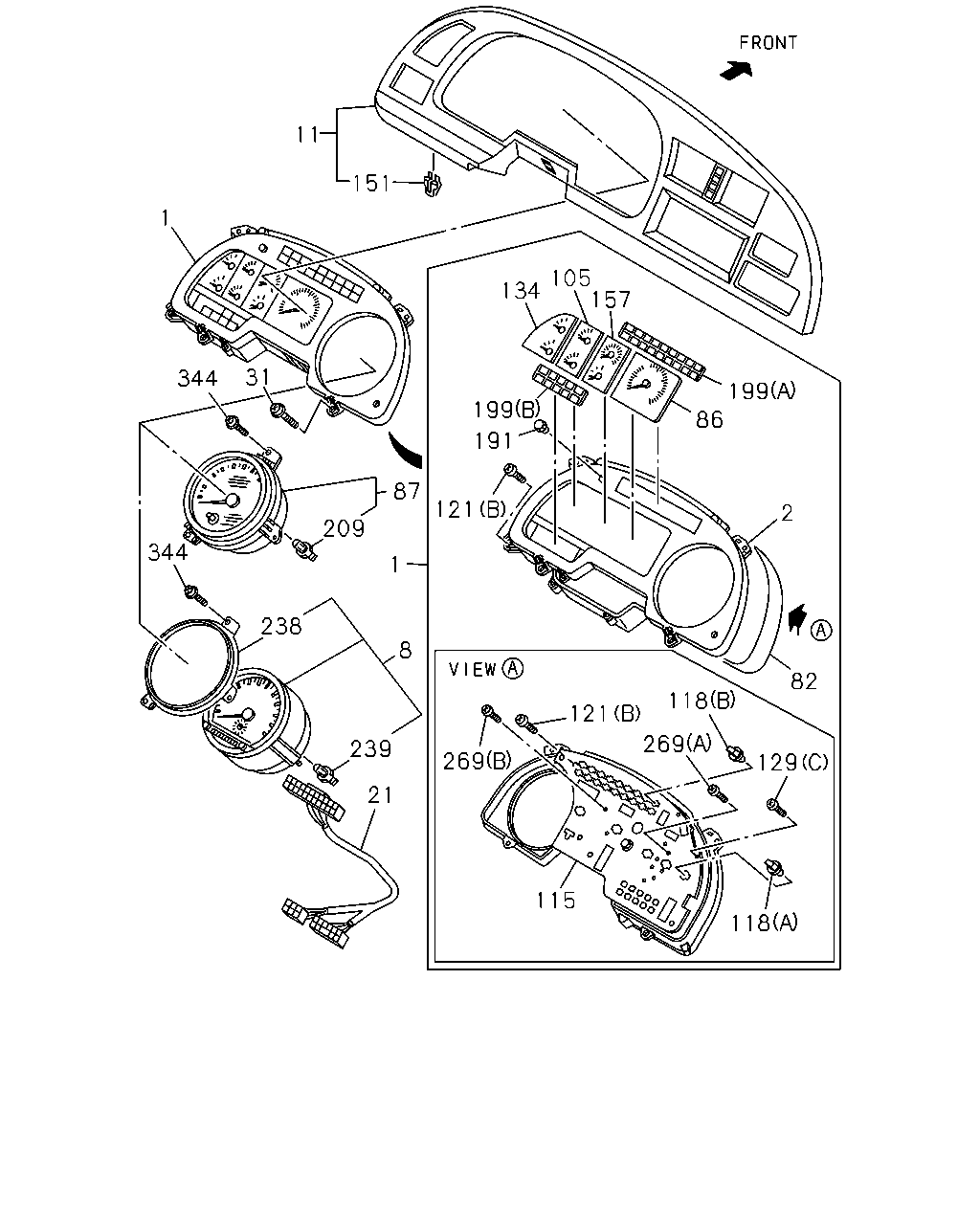

1	METER COMPL; CLUSTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-83114-804-2	01	1	9604-9704
1	METER COMPL; CLUSTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-83115-049-0	01	1	9705-9904
1	METER COMPL; CLUSTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2>	1-83115-174-2	01	1	9905-9910
1	METER COMPL; CLUSTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2>	1-83115-691-1	01	1	9911-
1	METER COMPL; CLUSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2>	1-83114-794-3	01	1	9604-9704
1	METER COMPL; CLUSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2>	1-83115-039-1	01	1	9705-9904
1	METER COMPL; CLUSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2>	1-83115-172-2	01	1	9905-9910
1	METER COMPL; CLUSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2>	1-83115-689-1	01	1	9911-
1	METER COMPL; CLUSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ENGINE OVERRUN BUZZER<SK4> EXC. DUAL AIR GAUGE<UG2>	1-83114-793-3	01	1	9604-9704
1	METER COMPL; CLUSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ENGINE OVERRUN BUZZER<SK4> EXC. DUAL AIR GAUGE<UG2>	1-83115-038-1	01	1	9705-9904
1	METER COMPL; CLUSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUAL AIR GAUGE<UG2>	1-83115-171-2	01	1	9905-9910
1	METER COMPL; CLUSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUAL AIR GAUGE<UG2>	1-83115-688-0	01	1	9911-
1	METER COMPL; CLUSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>	1-83114-795-2	01	1	9604-9704
1	METER COMPL; CLUSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>	1-83115-040-0	01	1	9705-9904
2	PANEL; CLUSTER	1-83119-499-0	01	1	9604-9904
2	PANEL; CLUSTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2> (A)	1-83119-644-0	01	1	9905-
2	PANEL; CLUSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-83119-644-0	01	1	9905-
2	PANEL; CLUSTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2> (B)	1-83119-652-0	01	1	9905-
2	PANEL; CLUSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-83119-652-0	01	1	9905-
8	TACHOGRAPH; CLUSTER METER TACHOGRAPH 120KM/H<SM8>	1-83120-662-1	01	1	9604-9706
8	TACHOGRAPH; CLUSTER METER TACHOGRAPH 120KM/H<SM8>	1-83120-806-0	01	1	9707-9904
8	TACHOGRAPH; CLUSTER METER TACHOGRAPH 120KM/H<SM8>	1-83120-856-0	01	1	9905-
11	CLUSTER ASM; METER	1-72418-022-6	01	1	9604-
21	HARNESS; TACHOGRAPH TACHOGRAPH 120KM/H<SM8>	1-82624-665-1	01	1	9604-9904
31	SCREW; METER,INST PANEL M6X20 TAPPING W/PL WASHER	0-74110-620-0	03	1	9604-
82	CASE ASM; CLUSTER METER	1-83119-432-0	01	1	9604-9904
82	CASE ASM; CLUSTER METER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2>	1-83119-653-0	01	1	9905-
82	CASE ASM; CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-83119-653-0	01	1	9905-
86	TACHOMETER; CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ENGINE OVERRUN BUZZER<SK4> EXC. DUAL AIR GAUGE<UG2>	1-83120-692-0	01	1	9604-9904
86	TACHOMETER; CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2>	1-83120-692-0	01	1	9604-9904
86	TACHOMETER; CLUSTER METER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-83120-692-0	01	1	9604-9904
86	TACHOMETER; CLUSTER METER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2>	1-83120-880-0	01	1	9905-
86	TACHOMETER; CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-83120-880-0	01	1	9905-
86	TACHOMETER; CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>	1-83120-694-0	01	1	9604-9904
87	SPEEDOMETER EXC. TACHOGRAPH 120KM/H<SM8>	1-83120-490-1	01	1	9604-9904
87	SPEEDOMETER EXC. TACHOGRAPH 120KM/H<SM8>	1-83120-844-0	01	1	9905-
105	GAUGE; THERMO & FUEL,CLUSTER METER	1-83180-211-0	01	1	9604-9704
105	GAUGE; THERMO & FUEL,CLUSTER METER	1-83180-275-0	01	1	9705-9904
105	GAUGE; THERMO & FUEL,CLUSTER METER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2>	1-83180-281-0	01	1	9905-
105	GAUGE; THERMO & FUEL,CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-83180-281-0	01	1	9905-
115	CIRCUIT; PRINTED,CLUSTER METER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-83189-322-0	01	1	9604-9904
115	CIRCUIT; PRINTED,CLUSTER METER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2>	1-83189-373-0	01	1	9905-
115	CIRCUIT; PRINTED,CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ENGINE OVERRUN BUZZER<SK4> EXC. DUAL AIR GAUGE<UG2>	1-83189-317-0	01	1	9604-9904
115	CIRCUIT; PRINTED,CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2>	1-83189-317-0	01	1	9604-9904
115	CIRCUIT; PRINTED,CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-83189-372-0	01	1	9905-
115	CIRCUIT; PRINTED,CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>	1-83189-321-0	01	1	9604-9904
118	BULB; CLUSTER METER (A) 24V 3W GREEN SOCKET	1-82194-061-0	05	1	9604-9904
118	BULB; CLUSTER METER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2> (A) 24V 3W GREEN SOCKET	1-82194-061-0	04	1	9905-
118	BULB; CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 24V 3W GREEN SOCKET	1-82194-061-0	04	1	9905-
118	BULB; CLUSTER METER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) 24V 1.8W BROWN SOCKET	1-82194-062-0	15	1	9604-9904
118	BULB; CLUSTER METER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2> (B) 24V 1.8W BROWN SOCKET	1-82194-062-0	29	1	9905-
118	BULB; CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ENGINE OVERRUN BUZZER<SK4> EXC. DUAL AIR GAUGE<UG2> (B) 24V 1.8W BROWN SOCKET	1-82194-062-0	18	1	9604-9608
118	BULB; CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> (B) 24V 1.8W BROWN SOCKET	1-82194-062-0	18	1	9604-9608
118	BULB; CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ENGINE OVERRUN BUZZER<SK4> EXC. DUAL AIR GAUGE<UG2> (B) 24V 1.8W BROWN SOCKET	1-82194-062-0	19	1	9609-9704
118	BULB; CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> (B) 24V 1.8W BROWN SOCKET	1-82194-062-0	19	1	9609-9704
118	BULB; CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ENGINE OVERRUN BUZZER<SK4> EXC. DUAL AIR GAUGE<UG2> (B) 24V 1.8W BROWN SOCKET	1-82194-062-0	20	1	9705-9904
118	BULB; CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> (B) 24V 1.8W BROWN SOCKET	1-82194-062-0	20	1	9705-9904
118	BULB; CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 24V 1.8W BROWN SOCKET	1-82194-062-0	28	1	9905-
118	BULB; CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2> (B) 24V 1.8W BROWN SOCKET	1-82194-062-0	14	1	9604-9904
121	SCREW; PANEL FIX,CLUSTER METER (B) M4 TAPPING	1-83119-442-0	08	1	9604-9904
121	SCREW; PANEL FIX,CLUSTER METER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2> (B) M4 TAPPING	1-83119-442-0	05	1	9905-
121	SCREW; PANEL FIX,CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M4 TAPPING	1-83119-442-0	05	1	9905-
121	SCREW; PANEL FIX,CLUSTER METER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2> (C) M3 TAPPING	1-83119-084-0	01	1	9905-
121	SCREW; PANEL FIX,CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M3 TAPPING	1-83119-084-0	01	1	9905-
121	SCREW; PANEL FIX,CLUSTER METER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2> (A) M3 TAPPING	1-83119-676-0	02	1	9905-
121	SCREW; PANEL FIX,CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M3 TAPPING	1-83119-676-0	02	1	9905-
129	SCREW; PRINTED CIRCUIT,CLUSTER METER (C) M3 TAPPING	1-83119-052-0	10	1	9604-9904
129	SCREW; PRINTED CIRCUIT,CLUSTER METER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2> (B) M3 TAPPING	1-83119-657-0	09	1	9905-
129	SCREW; PRINTED CIRCUIT,CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M3 TAPPING	1-83119-657-0	09	1	9905-
129	SCREW; PRINTED CIRCUIT,CLUSTER METER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2> (A) M3 TAPPING	1-83119-675-0	06	1	9905-
129	SCREW; PRINTED CIRCUIT,CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M3 TAPPING	1-83119-675-0	06	1	9905-
134	GAUGE; OIL PRESSURE & VOLTAGE	1-83180-224-0	01	1	9604-9904
134	GAUGE; OIL PRESSURE & VOLTAGE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2>	1-83180-283-0	01	1	9905-
134	GAUGE; OIL PRESSURE & VOLTAGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-83180-283-0	01	1	9905-
151	CLIP; METER CLUSTER	8-97853-939-4	10	1	9604-9812
151	CLIP; METER CLUSTER	8-97217-066-0	10	1	9901-
157	METER; AIR PRESSURE,CLUSTER METER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-83150-187-0	01	1	9604-9608
157	METER; AIR PRESSURE,CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2>	1-83150-187-0	01	1	9609-9904
157	METER; AIR PRESSURE,CLUSTER METER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-83150-187-0	01	1	9609-9904
157	METER; AIR PRESSURE,CLUSTER METER DUAL AIR GAUGE<UG2>	1-83150-214-0	01	1	9905-9910
157	METER; AIR PRESSURE,CLUSTER METER DUAL AIR GAUGE<UG2>	1-83150-235-0	01	1	9911-
157	METER; AIR PRESSURE,CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2>	1-83150-190-0	01	1	9604-9608
157	METER; AIR PRESSURE,CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUAL AIR GAUGE<UG2>	1-83150-178-0	01	1	9604-9904
157	METER; AIR PRESSURE,CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUAL AIR GAUGE<UG2>	1-83150-217-0	01	1	9905-
191	KNOB; BULB CHECK	1-83119-500-0	01	1	9604-9904
191	KNOB; BULB CHECK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2>	1-83119-672-0	01	1	9905-
191	KNOB; BULB CHECK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-83119-672-0	01	1	9905-
199	LENS; WARNING LAMP (A)	1-83119-538-0	01	1	9604-9904
199	LENS; WARNING LAMP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-83119-684-0	01	1	9905-
199	LENS; WARNING LAMP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ENGINE OVERRUN BUZZER<SK4> EXC. DUAL AIR GAUGE<UG2> (B)	1-83119-539-1	01	1	9604-9904
199	LENS; WARNING LAMP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> (B)	1-83119-539-1	01	1	9604-9904
199	LENS; WARNING LAMP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2> (B)	1-83119-685-0	01	1	9905-
199	LENS; WARNING LAMP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2> (B)	1-83119-435-0	01	1	9604-9904
199	LENS; WARNING LAMP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-83119-435-0	01	1	9604-9904
199	LENS; WARNING LAMP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2> (A)	1-83119-683-0	01	1	9905-
199	LENS; WARNING LAMP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-83119-683-0	01	1	9905-
209	BULB; SPEEDOMETER EXC. TACHOGRAPH 120KM/H<SM8> 24V 3W GREEN SOCKET	1-82194-061-0	02	1	9604-9904
209	BULB; SPEEDOMETER EXC. TACHOGRAPH 120KM/H<SM8> 24V 3W GREEN SOCKET	1-82194-061-0	01	1	9905-
238	PANEL; TACHOGRAPH TACHOGRAPH 120KM/H<SM8>	1-83129-311-0	01	1	9604-
239	BULB; TACHOGRAPH TACHOGRAPH 120KM/H<SM8> 24V 1.8W	1-82194-076-0	03	1	9604-9904
239	BULB; TACHOGRAPH TACHOGRAPH 120KM/H<SM8> 24V 1.4W	5-82194-034-0	03	1	9905-
269	SCREW; METER CLUSTER (A) M3 TAPPING	1-83119-441-0	11	1	9604-9904
269	SCREW; METER CLUSTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2> (B) M3 TAPPING	1-83119-677-0	05	1	9905-
269	SCREW; METER CLUSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M3 TAPPING	1-83119-677-0	05	1	9905-
269	SCREW; METER CLUSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ENGINE OVERRUN BUZZER<SK4> EXC. DUAL AIR GAUGE<UG2> (B) M3 TAPPING	1-83119-439-0	04	1	9604-9904
269	SCREW; METER CLUSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> (B) M3 TAPPING	1-83119-439-0	04	1	9604-9904
269	SCREW; METER CLUSTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M3 TAPPING	1-83119-439-0	04	1	9604-9904
269	SCREW; METER CLUSTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2> (A) M3	1-83119-273-0	02	1	9905-
269	SCREW; METER CLUSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M3	1-83119-273-0	02	1	9905-
269	SCREW; METER CLUSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2> (B) M3 TAPPING	1-83119-439-0	03	1	9604-9904
344	SCREW; SPEEDOMETER M6X20 TAPPING W/PL WASHER	0-74110-620-0	03	1	9604-

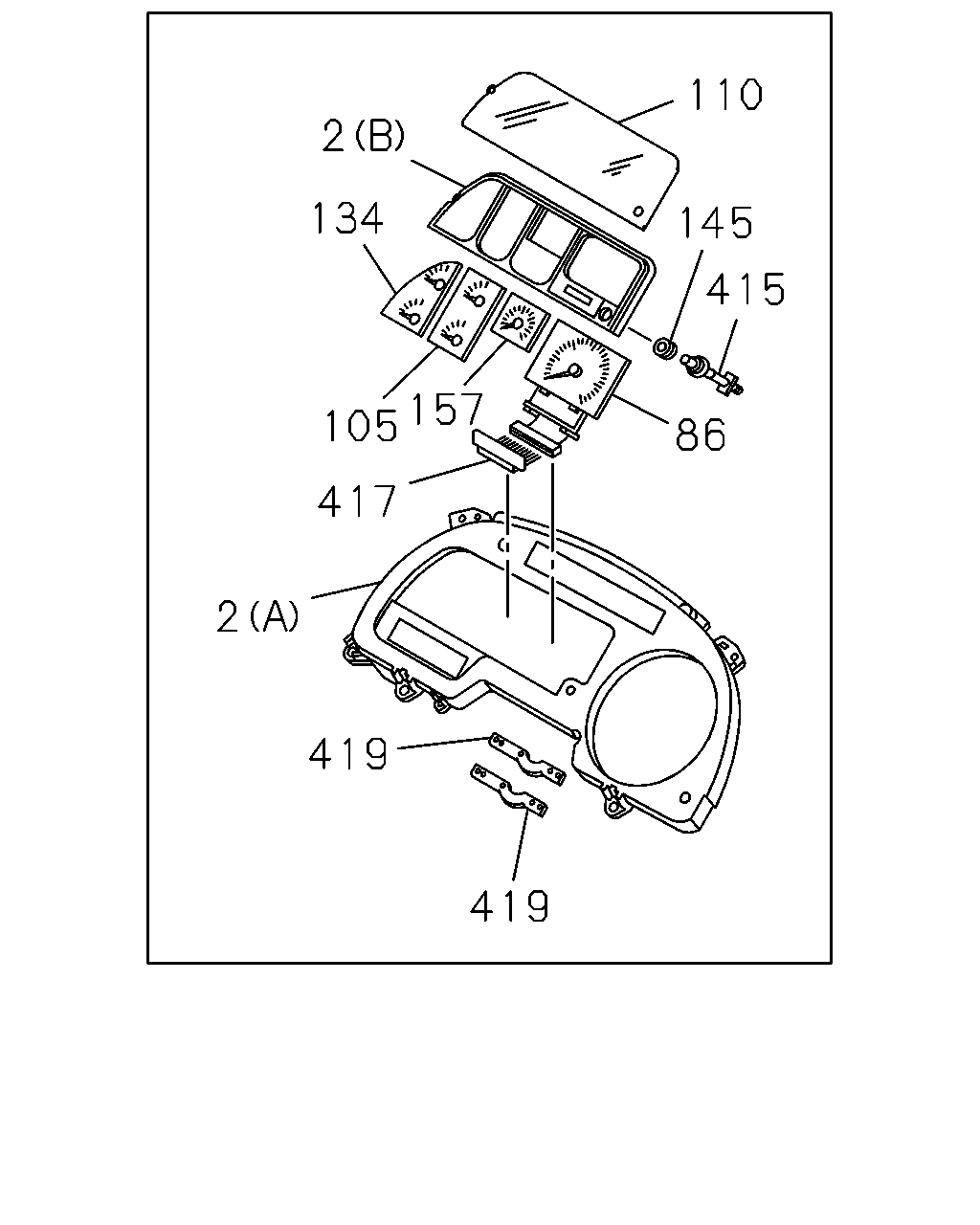

110 2 134 145 415 157 105 86 417 2 419 419

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	PANEL; CLUSTER	1-83119-499-0	01	1	9604-9904
2	PANEL; CLUSTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2> (A)	1-83119-644-0	01	1	9905-
2	PANEL; CLUSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-83119-644-0	01	1	9905-
2	PANEL; CLUSTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2> (B)	1-83119-652-0	01	1	9905-
2	PANEL; CLUSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-83119-652-0	01	1	9905-
86	TACHOMETER; CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ENGINE OVERRUN BUZZER<SK4> EXC. DUAL AIR GAUGE<UG2>	1-83120-692-0	01	1	9604-9904
86	TACHOMETER; CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2>	1-83120-692-0	01	1	9604-9904
86	TACHOMETER; CLUSTER METER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-83120-692-0	01	1	9604-9904
86	TACHOMETER; CLUSTER METER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2>	1-83120-880-0	01	1	9905-
86	TACHOMETER; CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-83120-880-0	01	1	9905-
86	TACHOMETER; CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>	1-83120-694-0	01	1	9604-9904
105	GAUGE; THERMO & FUEL,CLUSTER METER	1-83180-211-0	01	1	9604-9704
105	GAUGE; THERMO & FUEL,CLUSTER METER	1-83180-275-0	01	1	9705-9904
105	GAUGE; THERMO & FUEL,CLUSTER METER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2>	1-83180-281-0	01	1	9905-
105	GAUGE; THERMO & FUEL,CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-83180-281-0	01	1	9905-
110	GLASS; CLUSTER METER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2>	1-83119-646-0	01	1	9905-
110	GLASS; CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-83119-646-0	01	1	9905-
134	GAUGE; OIL PRESSURE & VOLTAGE	1-83180-224-0	01	1	9604-9904
134	GAUGE; OIL PRESSURE & VOLTAGE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2>	1-83180-283-0	01	1	9905-
134	GAUGE; OIL PRESSURE & VOLTAGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-83180-283-0	01	1	9905-
145	GROMMET; GLASS,KNOB HOLE,CLUSTER METER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2>	1-83119-680-0	01	1	9905-
145	GROMMET; GLASS,KNOB HOLE,CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-83119-680-0	01	1	9905-
157	METER; AIR PRESSURE,CLUSTER METER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-83150-187-0	01	1	9604-9608
157	METER; AIR PRESSURE,CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2>	1-83150-187-0	01	1	9609-9904
157	METER; AIR PRESSURE,CLUSTER METER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-83150-187-0	01	1	9609-9904
157	METER; AIR PRESSURE,CLUSTER METER DUAL AIR GAUGE<UG2>	1-83150-214-0	01	1	9905-9910
157	METER; AIR PRESSURE,CLUSTER METER DUAL AIR GAUGE<UG2>	1-83150-235-0	01	1	9911-
157	METER; AIR PRESSURE,CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2>	1-83150-190-0	01	1	9604-9608
157	METER; AIR PRESSURE,CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUAL AIR GAUGE<UG2>	1-83150-178-0	01	1	9604-9904
157	METER; AIR PRESSURE,CLUSTER METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUAL AIR GAUGE<UG2>	1-83150-217-0	01	1	9905-
415	KNOB; TRIP,METER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2>	1-83119-674-0	01	1	9905-
415	KNOB; TRIP,METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-83119-674-0	01	1	9905-
417	DISPLAY; ODO & TRIP,METER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2>	1-83119-671-0	01	1	9905-
417	DISPLAY; ODO & TRIP,METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-83119-671-0	01	1	9905-
419	SPACER; CIRCUIT,METER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2>	1-83119-678-0	02	1	9905-
419	SPACER; CIRCUIT,METER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-83119-678-0	02	1	9905-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
