Sayfa 8-52 - Isuzu EPC

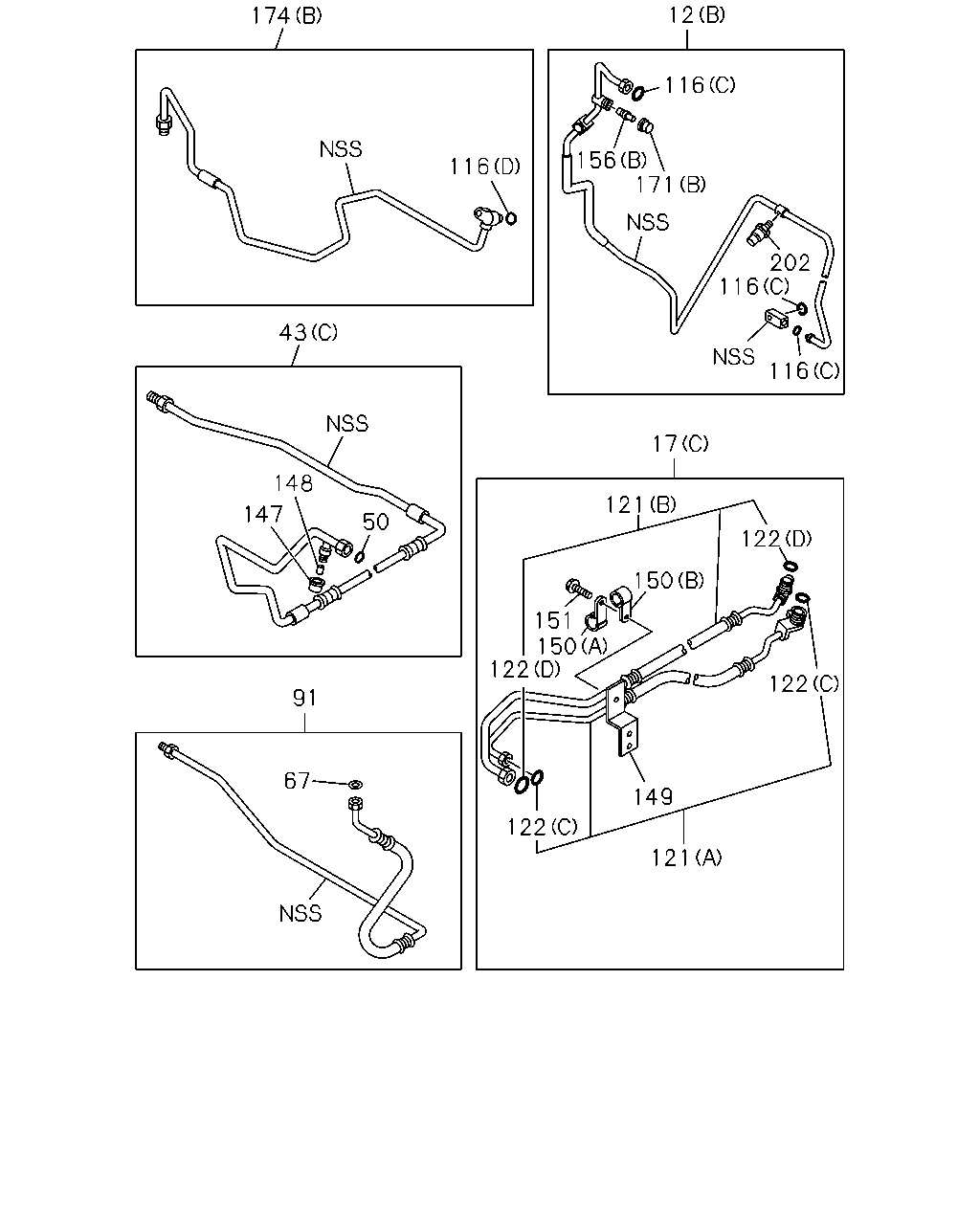

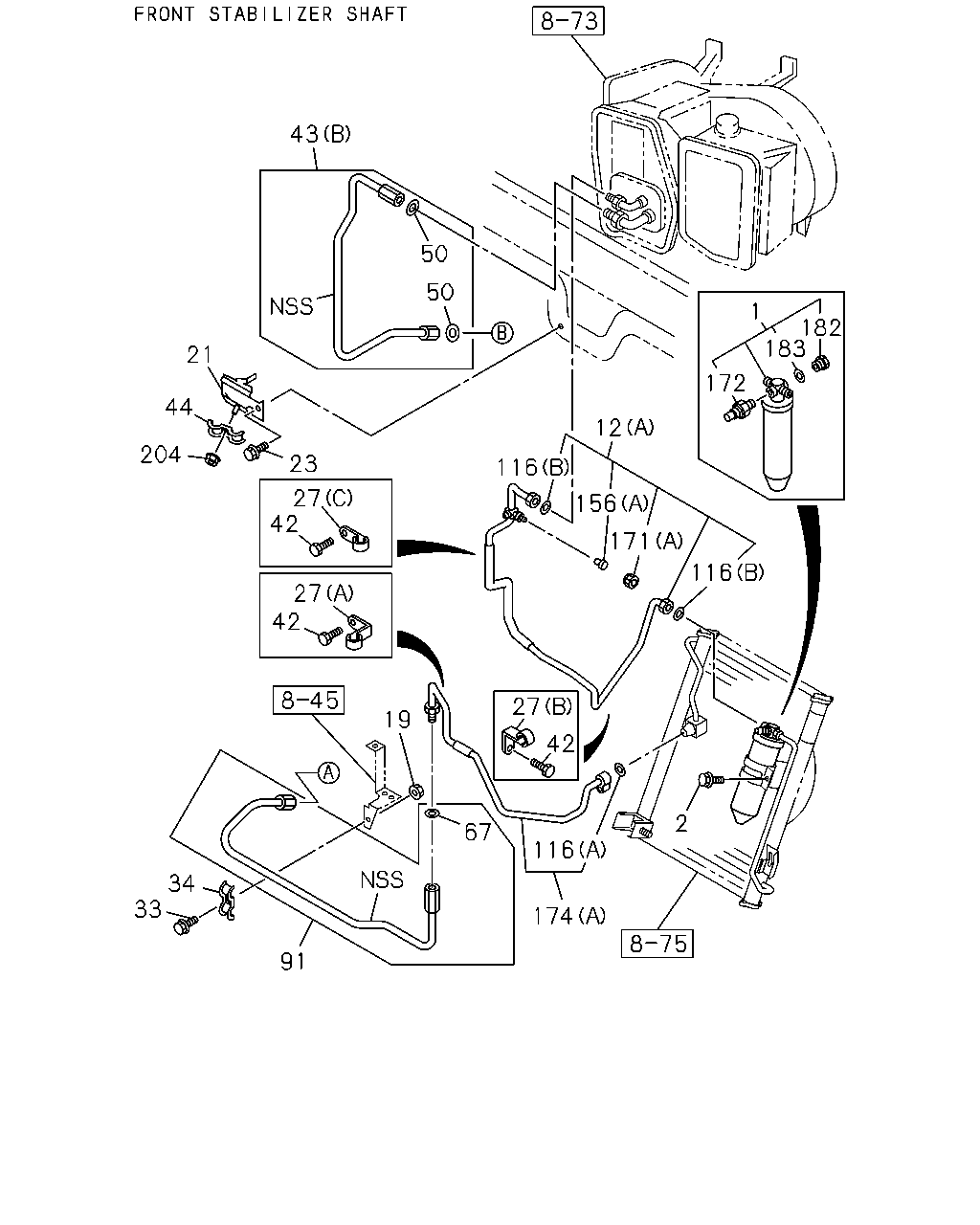

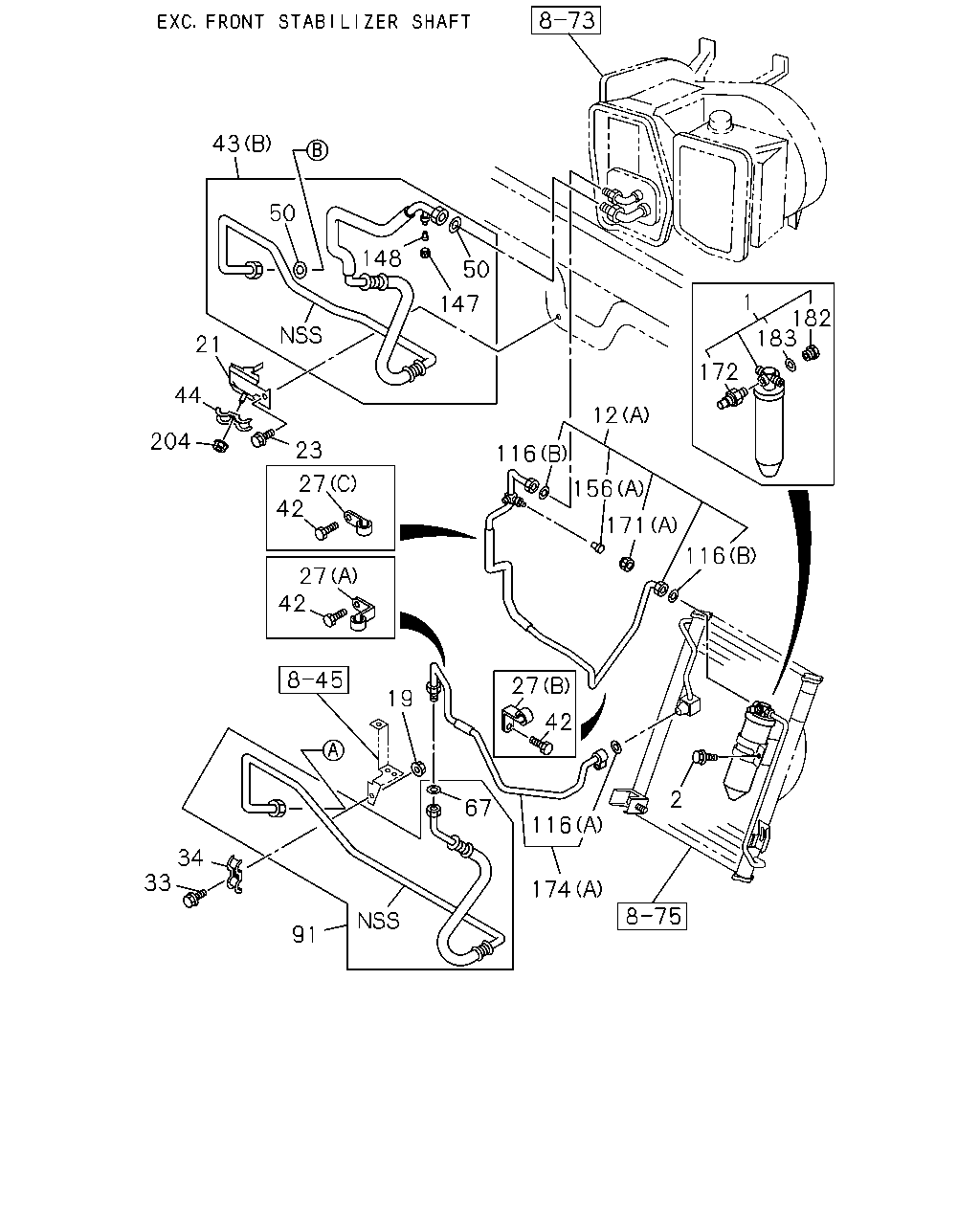

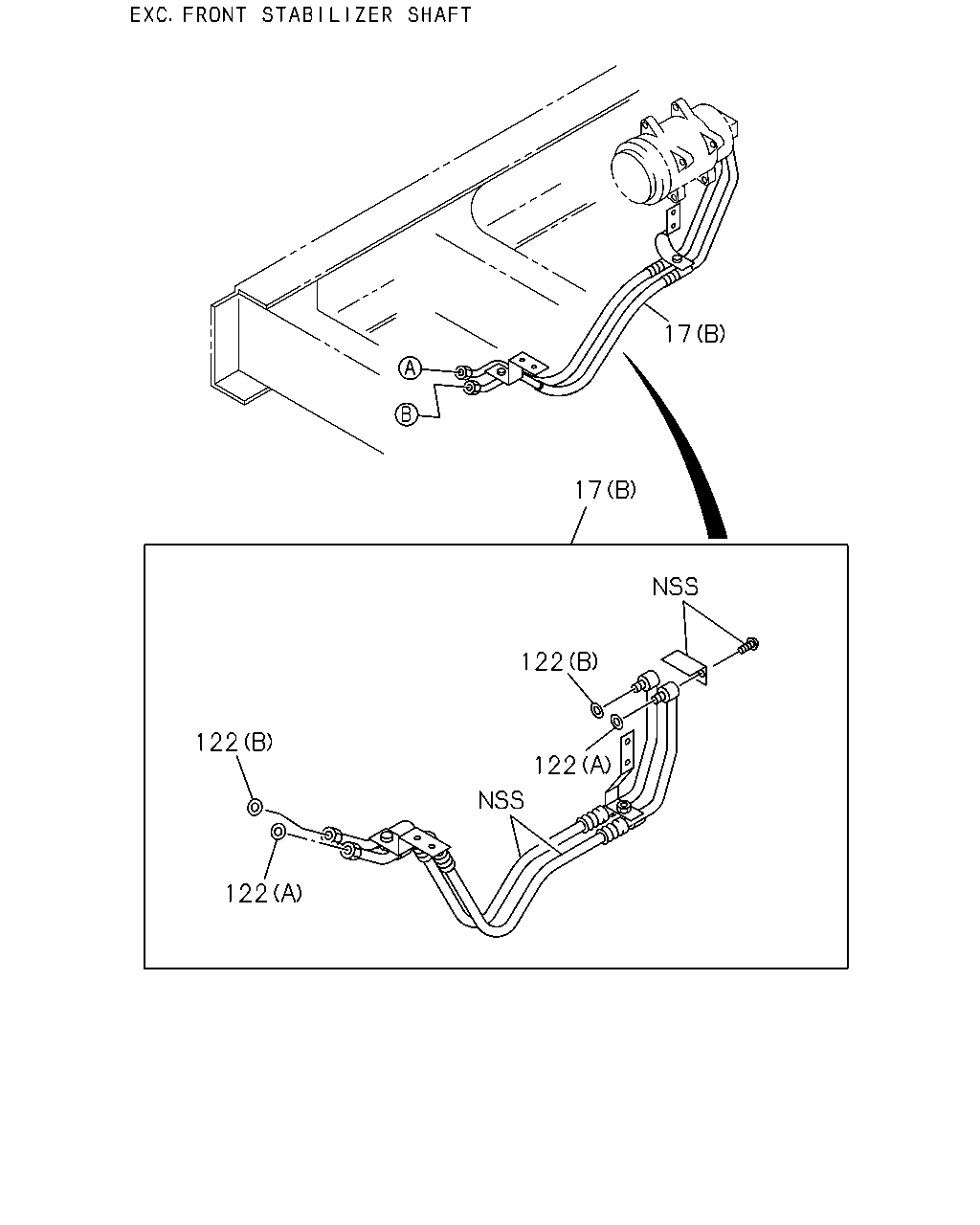

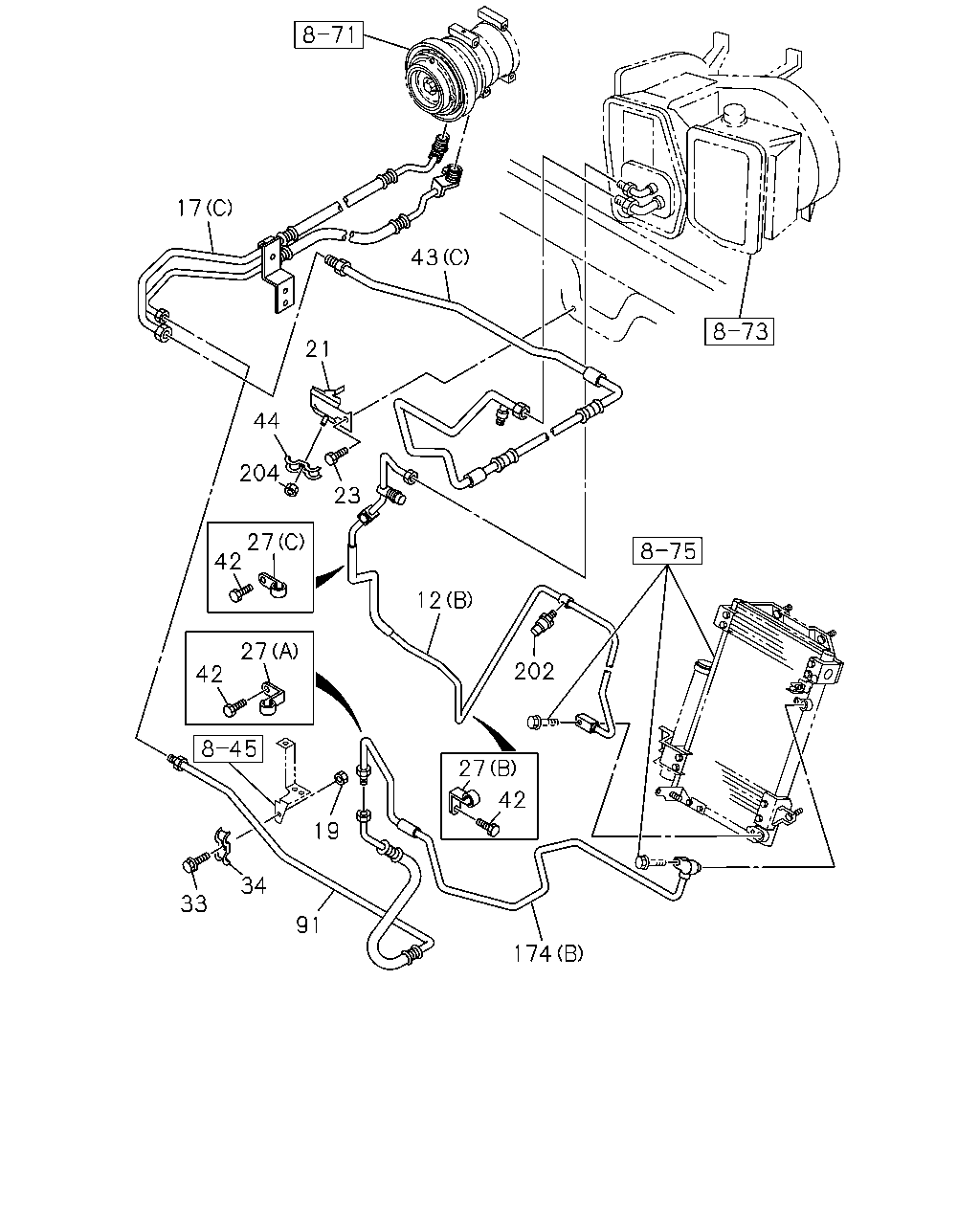

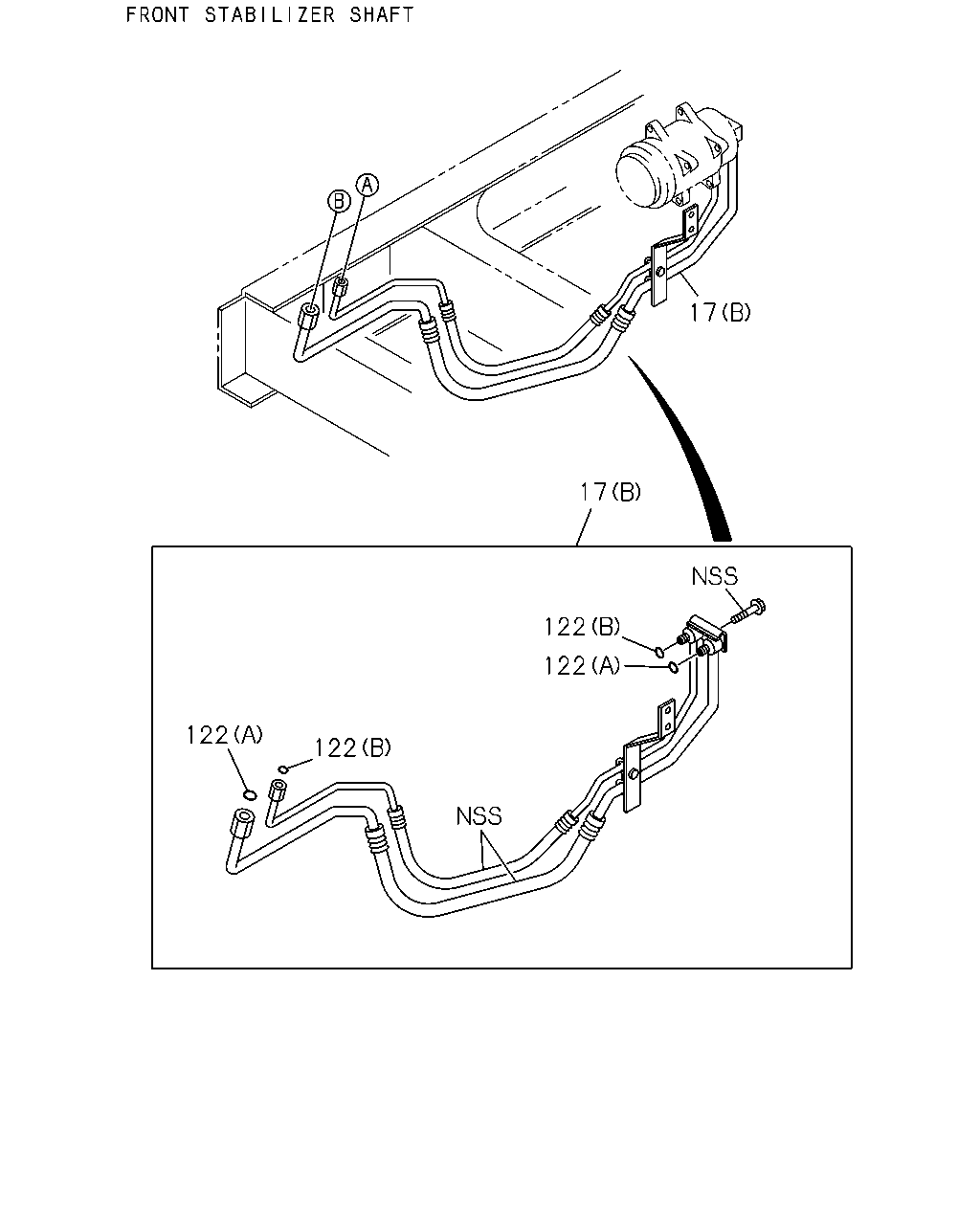

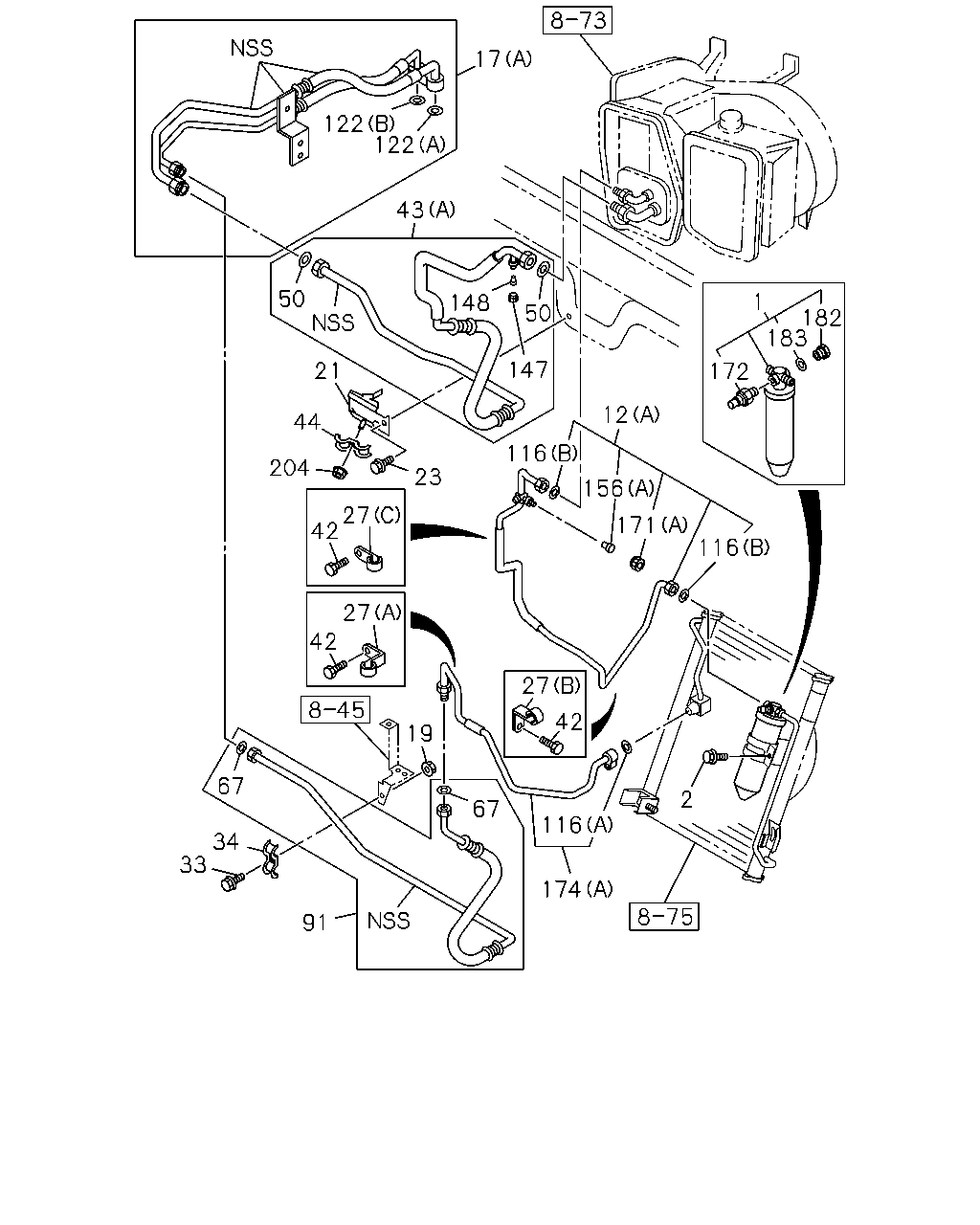

8-52 — PIPING; AIR CONDITIONING (#63916) — 767 parça

43 50 148 50 1 147 182 183 21 172 44 12 204 23 116 27 42 156 171 116 27 42 27 19 42 2 67 116 34 33 174 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60)	1-83535-084-0	01	1	9804-0004	●	●
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60)	1-83535-084-0	01	1	0005-0403	●	●	●
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60)	1-83535-084-0	01	1	0404-0604	●		●
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83535-084-0	01	1	0404-0604		●
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60)	1-83535-084-0	01	1	0605-	●		●
1	TANK; RECEIVER 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	1-83535-084-0	01	1	0605-		●
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83535-084-0	01	1	0605-		●
2	BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9804-0004	●	●
2	BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0005-	●	●	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B)	1-83567-853-2	01	1	0404-0604		●
12	PIPE; COOLER,EVAP TO TANK 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B)	1-83567-853-2	01	1	0605-		●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83567-662-0	01	1	9804-0004	●	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83567-662-0	01	1	0005-0403	●	●	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83567-662-0	01	1	0404-0604	●		●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-83567-662-0	01	1	0404-0604		●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83567-662-0	01	1	0605-	●		●
12	PIPE; COOLER,EVAP TO TANK 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (A)	1-83567-662-0	01	1	0605-		●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-83567-662-0	01	1	0605-		●
19	NUT; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9804-0004	●	●
19	NUT; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	0005-0104	●	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-831-4	01	1	9804-0004	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-831-4	01	1	0005-	●	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	01	1	9804-0004	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	01	1	0005-0512	●	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=13 H=18 L=20	1-09700-813-0	01	1	9804-9902	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=13 H=12 L=20	1-09701-274-0	01	1	9903-0004	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=13 H=18 L=20	1-09700-813-0	01	1	0005-	●	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11 H=20 L=20	5-09700-351-0	01	1	9804-0004	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0005-0707	●	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11 H=20 L=20	8-98033-780-0	01	1	0708-	●	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=13 L=20	9-09525-235-0	01	1	9804-0004	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=13 L=20	9-09525-235-0	01	1	0005-0606	●	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=13 L=20	0-95235-235-0	01	1	0607-	●	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	01	1	0105-0512	●	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●	●
34	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=12.2 & 16.2	1-83574-190-0	01	1	9804-0004	●	●
34	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=12.2 & 16.2	1-83574-190-0	01	1	0005-	●	●	●
42	SCREW; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9804-0004	●	●
42	SCREW; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0005-0904	●	●	●
42	SCREW; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-	●	●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) FRONT STABILIZER SHAFT<F59> (B)	1-83577-131-0	01	1	0609-		●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83577-029-0	01	1	0406-		●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-517-2	01	1	9804-0403	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> (A)	1-83572-517-2	01	1	0404-	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-522-0	01	1	9804-0004	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-522-1	01	1	0005-	●
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-522-1	01	1	0005-			●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-516-2	01	1	9804-0403		●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> (A)	1-83572-516-2	01	1	0404-0405		●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> (A)	1-83572-516-2	01	1	0406-		●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-521-0	01	1	9804-0608		●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT STABILIZER SHAFT<F59> (B)	1-83572-521-0	01	1	0609-		●
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=12.2 & 16.2	1-83574-190-0	01	1	9804-0004	●	●
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=12.2 & 16.2	1-83574-190-0	01	1	0005-	●	●	●
50	GASKET; FLEX HOSE,A/C 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) ID=14.5	8-97095-908-0	01	1	0406-		●
50	GASKET; FLEX HOSE,A/C 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	01	1	0210-0608	●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	01	1	0210-0608			●
50	GASKET; FLEX HOSE,A/C 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	01	1	0609-	●		●
50	GASKET; FLEX HOSE,A/C 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) FRONT STABILIZER SHAFT<F59> ID=18.3	8-97161-778-0	01	1	0609-		●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	02	1	9804-0004	●	●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	02	1	0005-0209	●	●	●
50	GASKET; FLEX HOSE,A/C 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	02	1	0210-0403	●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	02	1	0210-0403		●
50	GASKET; FLEX HOSE,A/C 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	02	1	0404-0608	●
50	GASKET; FLEX HOSE,A/C 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	02	1	0404-0608		●
50	GASKET; FLEX HOSE,A/C 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> ID=18.3	8-97161-778-0	02	1	0609-	●	●
50	GASKET; FLEX HOSE,A/C 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT STABILIZER SHAFT<F59> ID=18.3	8-97161-778-0	02	1	0609-		●
67	GASKET; FLEX HOSE 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) ID=11.7	8-97095-907-0	01	1	0406-		●
67	GASKET; FLEX HOSE 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) ID=15.5	8-97161-777-0	02	1	9804-	●	●
67	GASKET; FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) ID=15.5	8-97161-777-0	01	1	9804-0004	●	●
67	GASKET; FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) ID=15.5	8-97161-777-0	01	1	0005-	●	●	●
91	HOSE; FLEX,CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) FRONT STABILIZER SHAFT<F59>	1-83577-132-0	01	1	0609-	●	●	●
91	HOSE; FLEX,CMPR 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83577-027-0	01	1	0406-		●
91	HOSE; FLEX,CMPR 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-518-0	01	1	9804-0004	●
91	HOSE; FLEX,CMPR 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-518-0	01	1	9804-0004		●
91	HOSE; FLEX,CMPR 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-518-1	01	1	0005-	●	●
91	HOSE; FLEX,CMPR 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-523-0	01	1	9804-0004	●
91	HOSE; FLEX,CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-523-0	01	1	9804-0004		●
91	HOSE; FLEX,CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-523-1	01	1	0005-0608	●	●	●
91	HOSE; FLEX,CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT STABILIZER SHAFT<F59>	1-83572-523-1	01	1	0609-	●	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (C) ID=7.4	8-97095-906-0	03	1	0404-0604		●
116	GASKET; PIPE 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (C) ID=7.4	8-97095-906-0	03	1	0605-		●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (D) ID=11.7	8-97095-907-0	01	1	0404-0604		●
116	GASKET; PIPE 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (D) ID=11.7	8-97095-907-0	01	1	0605-		●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97161-776-0	01	1	9804-0004	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5	8-97161-777-0	01	1	9804-0004	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5	8-97161-777-0	01	1	0005-0403	●	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5	8-97161-777-0	01	1	0404-0604	●		●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) ID=15.5	8-97161-777-0	01	1	0404-0604		●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5	8-97161-777-0	01	1	0605-	●		●
116	GASKET; PIPE 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (A) ID=15.5	8-97161-777-0	01	1	0605-		●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) ID=15.5	8-97161-777-0	01	1	0605-		●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97161-776-0	02	1	0005-0403	●	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97161-776-0	02	1	0404-0604	●		●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	8-97161-776-0	02	1	0404-0604		●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97161-776-0	02	1	0605-	●		●
116	GASKET; PIPE 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B)	8-97161-776-0	02	1	0605-		●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	8-97161-776-0	02	1	0605-		●
147	CAP; FLEX HOSE 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	8-97095-910-0	01	1	0406-		●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	8-97083-102-0	01	1	9804-0004	●	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	8-97083-102-0	01	1	0005-0403	●	●	●
147	CAP; FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	8-97083-102-0	01	1	0404-	●	●	●
148	VALVE; FLEX HOSE 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60)	8-97095-909-0	01	1	0406-		●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	9804-0004	●	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	0005-0109	●	●	●
148	VALVE; FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	0110-0209	●	●	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	0210-0403	●	●	●
148	VALVE; FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	0404-	●	●	●
148	VALVE; FLEX HOSE 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-892-0	01	1	0110-0209	●	●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B)	8-97095-909-0	01	1	0404-0604		●
156	VALVE; PIPE 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B)	8-97095-909-0	01	1	0605-		●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97083-100-0	01	1	9804-0004	●	●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97083-100-0	01	1	0005-0403	●	●	●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97083-100-0	01	1	0404-0604	●		●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	8-97083-100-0	01	1	0404-0604		●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97083-100-0	01	1	0605-	●		●
156	VALVE; PIPE 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (A)	8-97083-100-0	01	1	0605-		●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	8-97083-100-0	01	1	0605-		●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B) CAP MARK H	8-97095-911-0	01	1	0404-0604		●
171	CAP; PIPE 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B) CAP MARK H	8-97095-911-0	01	1	0605-		●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) CAP MARK H	8-97083-101-0	01	1	9804-0004	●	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) CAP MARK H	8-97083-101-0	01	1	0005-0403	●	●	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) CAP MARK H	8-97083-101-0	01	1	0404-0604	●		●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) CAP MARK H	8-97083-101-0	01	1	0404-0604		●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) CAP MARK H	8-97083-101-0	01	1	0605-	●		●
171	CAP; PIPE 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (A) CAP MARK H	8-97083-101-0	01	1	0605-		●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) CAP MARK H	8-97083-101-0	01	1	0605-		●
172	SWITCH; PRESS,RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83544-047-0	01	1	0005-0403	●	●	●
172	SWITCH; PRESS,RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83544-047-0	01	1	0404-0604	●		●
172	SWITCH; PRESS,RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83544-047-0	01	1	0404-0604		●
172	SWITCH; PRESS,RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83544-047-0	01	1	0605-	●		●
172	SWITCH; PRESS,RECEIVER TANK 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	1-83544-047-0	01	1	0605-		●
172	SWITCH; PRESS,RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83544-047-0	01	1	0605-		●
172	SWITCH; PRESS,RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	8-97085-786-0	01	1	9804-0004	●	●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B)	1-83567-854-0	01	1	0404-0604		●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B)	1-83567-854-0	01	1	0605-		●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83567-664-1	01	1	9804-0004	●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83567-664-2	01	1	0005-	●		●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83567-663-0	01	1	9804-0403		●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-83567-663-0	01	1	0404-0604		●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (A)	1-83567-663-1	01	1	0605-		●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-83567-663-1	01	1	0605-		●
182	PLUG; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-226-0	01	1	9804-0004	●	●
182	PLUG; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-226-0	01	1	0005-0403	●	●	●
182	PLUG; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-226-0	01	1	0404-0604	●		●
182	PLUG; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83539-226-0	01	1	0404-0604		●
182	PLUG; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-226-0	01	1	0605-	●		●
182	PLUG; RECEIVER TANK 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	1-83539-226-0	01	1	0605-		●
182	PLUG; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83539-226-0	01	1	0605-		●
183	GASKET; PLUG AIR CONDITIONER MANUAL CONTROL(C60)	8-94154-048-0	01	1	9804-0004	●	●
183	GASKET; PLUG AIR CONDITIONER MANUAL CONTROL(C60)	8-94154-048-0	01	1	0005-0403	●	●	●
183	GASKET; PLUG AIR CONDITIONER MANUAL CONTROL(C60)	8-94154-048-0	01	1	0404-0604	●		●
183	GASKET; PLUG AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	8-94154-048-0	01	1	0404-0604		●
183	GASKET; PLUG AIR CONDITIONER MANUAL CONTROL(C60)	8-94154-048-0	01	1	0605-	●		●
183	GASKET; PLUG 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	8-94154-048-0	01	1	0605-		●
183	GASKET; PLUG AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	8-94154-048-0	01	1	0605-		●
204	NUT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9804-0004	●	●
204	NUT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	0005-0602	●	●	●
204	NUT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●

43 50 50 1 182 183 21 172 44 12 204 23 116 27 42 156 171 116 27 42 27 19 42 2 67 116 34 33 174 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60)	1-83535-084-0	01	1	9804-0004	●	●
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60)	1-83535-084-0	01	1	0005-0403	●	●	●
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60)	1-83535-084-0	01	1	0404-0604	●		●
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83535-084-0	01	1	0404-0604		●
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60)	1-83535-084-0	01	1	0605-	●		●
1	TANK; RECEIVER 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	1-83535-084-0	01	1	0605-		●
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83535-084-0	01	1	0605-		●
2	BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9804-0004	●	●
2	BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0005-	●	●	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B)	1-83567-853-2	01	1	0404-0604		●
12	PIPE; COOLER,EVAP TO TANK 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B)	1-83567-853-2	01	1	0605-		●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83567-662-0	01	1	9804-0004	●	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83567-662-0	01	1	0005-0403	●	●	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83567-662-0	01	1	0404-0604	●		●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-83567-662-0	01	1	0404-0604		●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83567-662-0	01	1	0605-	●		●
12	PIPE; COOLER,EVAP TO TANK 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (A)	1-83567-662-0	01	1	0605-		●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-83567-662-0	01	1	0605-		●
19	NUT; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9804-0004	●	●
19	NUT; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	0005-0104	●	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-831-4	01	1	9804-0004	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-831-4	01	1	0005-	●	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	01	1	9804-0004	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	01	1	0005-0512	●	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=13 H=18 L=20	1-09700-813-0	01	1	9804-9902	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=13 H=12 L=20	1-09701-274-0	01	1	9903-0004	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=13 H=18 L=20	1-09700-813-0	01	1	0005-	●	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11 H=20 L=20	5-09700-351-0	01	1	9804-0004	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0005-0707	●	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11 H=20 L=20	8-98033-780-0	01	1	0708-	●	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=13 L=20	9-09525-235-0	01	1	9804-0004	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=13 L=20	9-09525-235-0	01	1	0005-0606	●	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=13 L=20	0-95235-235-0	01	1	0607-	●	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	01	1	0105-0512	●	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●	●
34	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=12.2 & 16.2	1-83574-190-0	01	1	9804-0004	●	●
34	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=12.2 & 16.2	1-83574-190-0	01	1	0005-	●	●	●
42	SCREW; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9804-0004	●	●
42	SCREW; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0005-0904	●	●	●
42	SCREW; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-	●	●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) FRONT STABILIZER SHAFT<F59> (B)	1-83577-131-0	01	1	0609-		●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83577-029-0	01	1	0406-		●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-517-2	01	1	9804-0403	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> (A)	1-83572-517-2	01	1	0404-	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-522-0	01	1	9804-0004	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-522-1	01	1	0005-	●
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-522-1	01	1	0005-			●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-516-2	01	1	9804-0403		●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> (A)	1-83572-516-2	01	1	0404-0405		●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> (A)	1-83572-516-2	01	1	0406-		●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-521-0	01	1	9804-0608		●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT STABILIZER SHAFT<F59> (B)	1-83572-521-0	01	1	0609-		●
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=12.2 & 16.2	1-83574-190-0	01	1	9804-0004	●	●
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=12.2 & 16.2	1-83574-190-0	01	1	0005-	●	●	●
50	GASKET; FLEX HOSE,A/C 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) ID=14.5	8-97095-908-0	01	1	0406-		●
50	GASKET; FLEX HOSE,A/C 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	01	1	0210-0608	●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	01	1	0210-0608			●
50	GASKET; FLEX HOSE,A/C 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	01	1	0609-	●		●
50	GASKET; FLEX HOSE,A/C 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) FRONT STABILIZER SHAFT<F59> ID=18.3	8-97161-778-0	01	1	0609-		●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	02	1	9804-0004	●	●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	02	1	0005-0209	●	●	●
50	GASKET; FLEX HOSE,A/C 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	02	1	0210-0403	●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	02	1	0210-0403		●
50	GASKET; FLEX HOSE,A/C 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	02	1	0404-0608	●
50	GASKET; FLEX HOSE,A/C 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	02	1	0404-0608		●
50	GASKET; FLEX HOSE,A/C 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> ID=18.3	8-97161-778-0	02	1	0609-	●	●
50	GASKET; FLEX HOSE,A/C 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT STABILIZER SHAFT<F59> ID=18.3	8-97161-778-0	02	1	0609-		●
67	GASKET; FLEX HOSE 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) ID=11.7	8-97095-907-0	01	1	0406-		●
67	GASKET; FLEX HOSE 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) ID=15.5	8-97161-777-0	02	1	9804-	●	●
67	GASKET; FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) ID=15.5	8-97161-777-0	01	1	9804-0004	●	●
67	GASKET; FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) ID=15.5	8-97161-777-0	01	1	0005-	●	●	●
91	HOSE; FLEX,CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) FRONT STABILIZER SHAFT<F59>	1-83577-132-0	01	1	0609-	●	●	●
91	HOSE; FLEX,CMPR 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83577-027-0	01	1	0406-		●
91	HOSE; FLEX,CMPR 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-518-0	01	1	9804-0004	●
91	HOSE; FLEX,CMPR 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-518-0	01	1	9804-0004		●
91	HOSE; FLEX,CMPR 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-518-1	01	1	0005-	●	●
91	HOSE; FLEX,CMPR 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-523-0	01	1	9804-0004	●
91	HOSE; FLEX,CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-523-0	01	1	9804-0004		●
91	HOSE; FLEX,CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-523-1	01	1	0005-0608	●	●	●
91	HOSE; FLEX,CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT STABILIZER SHAFT<F59>	1-83572-523-1	01	1	0609-	●	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (C) ID=7.4	8-97095-906-0	03	1	0404-0604		●
116	GASKET; PIPE 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (C) ID=7.4	8-97095-906-0	03	1	0605-		●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (D) ID=11.7	8-97095-907-0	01	1	0404-0604		●
116	GASKET; PIPE 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (D) ID=11.7	8-97095-907-0	01	1	0605-		●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97161-776-0	01	1	9804-0004	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5	8-97161-777-0	01	1	9804-0004	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5	8-97161-777-0	01	1	0005-0403	●	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5	8-97161-777-0	01	1	0404-0604	●		●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) ID=15.5	8-97161-777-0	01	1	0404-0604		●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5	8-97161-777-0	01	1	0605-	●		●
116	GASKET; PIPE 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (A) ID=15.5	8-97161-777-0	01	1	0605-		●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) ID=15.5	8-97161-777-0	01	1	0605-		●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97161-776-0	02	1	0005-0403	●	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97161-776-0	02	1	0404-0604	●		●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	8-97161-776-0	02	1	0404-0604		●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97161-776-0	02	1	0605-	●		●
116	GASKET; PIPE 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B)	8-97161-776-0	02	1	0605-		●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	8-97161-776-0	02	1	0605-		●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B)	8-97095-909-0	01	1	0404-0604		●
156	VALVE; PIPE 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B)	8-97095-909-0	01	1	0605-		●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97083-100-0	01	1	9804-0004	●	●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97083-100-0	01	1	0005-0403	●	●	●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97083-100-0	01	1	0404-0604	●		●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	8-97083-100-0	01	1	0404-0604		●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97083-100-0	01	1	0605-	●		●
156	VALVE; PIPE 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (A)	8-97083-100-0	01	1	0605-		●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	8-97083-100-0	01	1	0605-		●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B) CAP MARK H	8-97095-911-0	01	1	0404-0604		●
171	CAP; PIPE 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B) CAP MARK H	8-97095-911-0	01	1	0605-		●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) CAP MARK H	8-97083-101-0	01	1	9804-0004	●	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) CAP MARK H	8-97083-101-0	01	1	0005-0403	●	●	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) CAP MARK H	8-97083-101-0	01	1	0404-0604	●		●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) CAP MARK H	8-97083-101-0	01	1	0404-0604		●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) CAP MARK H	8-97083-101-0	01	1	0605-	●		●
171	CAP; PIPE 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (A) CAP MARK H	8-97083-101-0	01	1	0605-		●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) CAP MARK H	8-97083-101-0	01	1	0605-		●
172	SWITCH; PRESS,RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83544-047-0	01	1	0005-0403	●	●	●
172	SWITCH; PRESS,RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83544-047-0	01	1	0404-0604	●		●
172	SWITCH; PRESS,RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83544-047-0	01	1	0404-0604		●
172	SWITCH; PRESS,RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83544-047-0	01	1	0605-	●		●
172	SWITCH; PRESS,RECEIVER TANK 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	1-83544-047-0	01	1	0605-		●
172	SWITCH; PRESS,RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83544-047-0	01	1	0605-		●
172	SWITCH; PRESS,RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	8-97085-786-0	01	1	9804-0004	●	●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B)	1-83567-854-0	01	1	0404-0604		●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B)	1-83567-854-0	01	1	0605-		●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83567-664-1	01	1	9804-0004	●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83567-664-2	01	1	0005-	●		●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83567-663-0	01	1	9804-0403		●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-83567-663-0	01	1	0404-0604		●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (A)	1-83567-663-1	01	1	0605-		●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-83567-663-1	01	1	0605-		●
182	PLUG; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-226-0	01	1	9804-0004	●	●
182	PLUG; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-226-0	01	1	0005-0403	●	●	●
182	PLUG; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-226-0	01	1	0404-0604	●		●
182	PLUG; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83539-226-0	01	1	0404-0604		●
182	PLUG; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-226-0	01	1	0605-	●		●
182	PLUG; RECEIVER TANK 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	1-83539-226-0	01	1	0605-		●
182	PLUG; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83539-226-0	01	1	0605-		●
183	GASKET; PLUG AIR CONDITIONER MANUAL CONTROL(C60)	8-94154-048-0	01	1	9804-0004	●	●
183	GASKET; PLUG AIR CONDITIONER MANUAL CONTROL(C60)	8-94154-048-0	01	1	0005-0403	●	●	●
183	GASKET; PLUG AIR CONDITIONER MANUAL CONTROL(C60)	8-94154-048-0	01	1	0404-0604	●		●
183	GASKET; PLUG AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	8-94154-048-0	01	1	0404-0604		●
183	GASKET; PLUG AIR CONDITIONER MANUAL CONTROL(C60)	8-94154-048-0	01	1	0605-	●		●
183	GASKET; PLUG 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	8-94154-048-0	01	1	0605-		●
183	GASKET; PLUG AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	8-94154-048-0	01	1	0605-		●
204	NUT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9804-0004	●	●
204	NUT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	0005-0602	●	●	●
204	NUT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●

17 17 122 122 122 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
17	HOSE; FLEX,CMPR TO PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) FRONT STABILIZER SHAFT<F59> (B)	1-83577-133-0	01	1	0609-	●	●	●
17	HOSE; FLEX,CMPR TO PIPE 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83577-057-0	01	1	0406-		●
17	HOSE; FLEX,CMPR TO PIPE 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-520-0	01	1	9804-9809	●
17	HOSE; FLEX,CMPR TO PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-520-0	01	1	9804-9809		●
17	HOSE; FLEX,CMPR TO PIPE 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-519-1	01	1	9810-	●	●
17	HOSE; FLEX,CMPR TO PIPE 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-524-0	01	1	9804-9805	●
17	HOSE; FLEX,CMPR TO PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-524-0	01	1	9804-9805		●
17	HOSE; FLEX,CMPR TO PIPE 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-568-0	01	1	9806-0004	●
17	HOSE; FLEX,CMPR TO PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-568-0	01	1	9806-0004		●
17	HOSE; FLEX,CMPR TO PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-571-1	01	1	0005-0608	●	●	●
17	HOSE; FLEX,CMPR TO PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT STABILIZER SHAFT<F59> (B)	1-83572-571-1	01	1	0609-	●	●	●
122	GASKET 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=11.7	8-97095-907-0	02	1	0406-		●
122	GASKET 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=14.5	8-97095-908-0	02	1	0406-		●
122	GASKET 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=15.5	8-97161-777-0	01	1	9804-	●	●
122	GASKET 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=18.3	8-97161-778-0	01	1	9804-	●	●
122	GASKET 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=15.5	8-97161-777-0	02	1	9804-0004	●	●
122	GASKET 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=18.3	8-97161-778-0	02	1	9804-0004	●	●
122	GASKET 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=15.5	8-97161-777-0	02	1	0005-	●	●	●
122	GASKET 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=18.3	8-97161-778-0	02	1	0005-	●	●	●

17 43 21 44 204 23 27 42 12 27 202 42 27 42 19 34 33 91 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B)	1-83567-853-2	01	1	0404-0604		●
12	PIPE; COOLER,EVAP TO TANK 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B)	1-83567-853-2	01	1	0605-		●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83567-662-0	01	1	9804-0004	●	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83567-662-0	01	1	0005-0403	●	●	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83567-662-0	01	1	0404-0604	●		●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-83567-662-0	01	1	0404-0604		●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83567-662-0	01	1	0605-	●		●
12	PIPE; COOLER,EVAP TO TANK 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (A)	1-83567-662-0	01	1	0605-		●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-83567-662-0	01	1	0605-		●
17	HOSE; FLEX,CMPR TO PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) FRONT STABILIZER SHAFT<F59> (B)	1-83577-133-0	01	1	0609-	●	●	●
17	HOSE; FLEX,CMPR TO PIPE 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83577-057-0	01	1	0406-		●
17	HOSE; FLEX,CMPR TO PIPE 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-520-0	01	1	9804-9809	●
17	HOSE; FLEX,CMPR TO PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-520-0	01	1	9804-9809		●
17	HOSE; FLEX,CMPR TO PIPE 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-519-1	01	1	9810-	●	●
17	HOSE; FLEX,CMPR TO PIPE 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-524-0	01	1	9804-9805	●
17	HOSE; FLEX,CMPR TO PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-524-0	01	1	9804-9805		●
17	HOSE; FLEX,CMPR TO PIPE 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-568-0	01	1	9806-0004	●
17	HOSE; FLEX,CMPR TO PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-568-0	01	1	9806-0004		●
17	HOSE; FLEX,CMPR TO PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-571-1	01	1	0005-0608	●	●	●
17	HOSE; FLEX,CMPR TO PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT STABILIZER SHAFT<F59> (B)	1-83572-571-1	01	1	0609-	●	●	●
19	NUT; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9804-0004	●	●
19	NUT; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	0005-0104	●	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-831-4	01	1	9804-0004	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-831-4	01	1	0005-	●	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	01	1	9804-0004	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	01	1	0005-0512	●	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=13 H=18 L=20	1-09700-813-0	01	1	9804-9902	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=13 H=12 L=20	1-09701-274-0	01	1	9903-0004	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=13 H=18 L=20	1-09700-813-0	01	1	0005-	●	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11 H=20 L=20	5-09700-351-0	01	1	9804-0004	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0005-0707	●	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11 H=20 L=20	8-98033-780-0	01	1	0708-	●	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=13 L=20	9-09525-235-0	01	1	9804-0004	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=13 L=20	9-09525-235-0	01	1	0005-0606	●	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=13 L=20	0-95235-235-0	01	1	0607-	●	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	01	1	0105-0512	●	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●	●
34	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=12.2 & 16.2	1-83574-190-0	01	1	9804-0004	●	●
34	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=12.2 & 16.2	1-83574-190-0	01	1	0005-	●	●	●
42	SCREW; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9804-0004	●	●
42	SCREW; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0005-0904	●	●	●
42	SCREW; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-	●	●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) FRONT STABILIZER SHAFT<F59> (B)	1-83577-131-0	01	1	0609-		●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83577-029-0	01	1	0406-		●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-517-2	01	1	9804-0403	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> (A)	1-83572-517-2	01	1	0404-	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-522-0	01	1	9804-0004	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-522-1	01	1	0005-	●
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-522-1	01	1	0005-			●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-516-2	01	1	9804-0403		●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> (A)	1-83572-516-2	01	1	0404-0405		●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> (A)	1-83572-516-2	01	1	0406-		●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-521-0	01	1	9804-0608		●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT STABILIZER SHAFT<F59> (B)	1-83572-521-0	01	1	0609-		●
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=12.2 & 16.2	1-83574-190-0	01	1	9804-0004	●	●
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=12.2 & 16.2	1-83574-190-0	01	1	0005-	●	●	●
91	HOSE; FLEX,CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) FRONT STABILIZER SHAFT<F59>	1-83577-132-0	01	1	0609-	●	●	●
91	HOSE; FLEX,CMPR 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83577-027-0	01	1	0406-		●
91	HOSE; FLEX,CMPR 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-518-0	01	1	9804-0004	●
91	HOSE; FLEX,CMPR 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-518-0	01	1	9804-0004		●
91	HOSE; FLEX,CMPR 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-518-1	01	1	0005-	●	●
91	HOSE; FLEX,CMPR 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-523-0	01	1	9804-0004	●
91	HOSE; FLEX,CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-523-0	01	1	9804-0004		●
91	HOSE; FLEX,CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-523-1	01	1	0005-0608	●	●	●
91	HOSE; FLEX,CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT STABILIZER SHAFT<F59>	1-83572-523-1	01	1	0609-	●	●	●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B)	1-83567-854-0	01	1	0404-0604		●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B)	1-83567-854-0	01	1	0605-		●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83567-664-1	01	1	9804-0004	●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83567-664-2	01	1	0005-	●		●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83567-663-0	01	1	9804-0403		●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-83567-663-0	01	1	0404-0604		●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (A)	1-83567-663-1	01	1	0605-		●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-83567-663-1	01	1	0605-		●
202	SWITCH; PRESSURE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	1-83564-391-0	01	1	0404-0604		●
202	SWITCH; PRESSURE 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	1-83564-391-0	01	1	0605-		●
204	NUT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9804-0004	●	●
204	NUT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	0005-0602	●	●	●
204	NUT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●

12 174 116 156 171 116 202 116 43 116 17 148 121 147 50 122 150 151 150 122 122 91 67 149 122 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B)	1-83567-853-2	01	1	0404-0604		●
12	PIPE; COOLER,EVAP TO TANK 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B)	1-83567-853-2	01	1	0605-		●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83567-662-0	01	1	9804-0004	●	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83567-662-0	01	1	0005-0403	●	●	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83567-662-0	01	1	0404-0604	●		●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-83567-662-0	01	1	0404-0604		●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83567-662-0	01	1	0605-	●		●
12	PIPE; COOLER,EVAP TO TANK 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (A)	1-83567-662-0	01	1	0605-		●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-83567-662-0	01	1	0605-		●
17	HOSE; FLEX,CMPR TO PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) FRONT STABILIZER SHAFT<F59> (B)	1-83577-133-0	01	1	0609-	●	●	●
17	HOSE; FLEX,CMPR TO PIPE 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83577-057-0	01	1	0406-		●
17	HOSE; FLEX,CMPR TO PIPE 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-520-0	01	1	9804-9809	●
17	HOSE; FLEX,CMPR TO PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-520-0	01	1	9804-9809		●
17	HOSE; FLEX,CMPR TO PIPE 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-519-1	01	1	9810-	●	●
17	HOSE; FLEX,CMPR TO PIPE 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-524-0	01	1	9804-9805	●
17	HOSE; FLEX,CMPR TO PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-524-0	01	1	9804-9805		●
17	HOSE; FLEX,CMPR TO PIPE 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-568-0	01	1	9806-0004	●
17	HOSE; FLEX,CMPR TO PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-568-0	01	1	9806-0004		●
17	HOSE; FLEX,CMPR TO PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-571-1	01	1	0005-0608	●	●	●
17	HOSE; FLEX,CMPR TO PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT STABILIZER SHAFT<F59> (B)	1-83572-571-1	01	1	0609-	●	●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) FRONT STABILIZER SHAFT<F59> (B)	1-83577-131-0	01	1	0609-		●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83577-029-0	01	1	0406-		●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-517-2	01	1	9804-0403	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> (A)	1-83572-517-2	01	1	0404-	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-522-0	01	1	9804-0004	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-522-1	01	1	0005-	●
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-522-1	01	1	0005-			●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-516-2	01	1	9804-0403		●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> (A)	1-83572-516-2	01	1	0404-0405		●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> (A)	1-83572-516-2	01	1	0406-		●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-521-0	01	1	9804-0608		●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT STABILIZER SHAFT<F59> (B)	1-83572-521-0	01	1	0609-		●
50	GASKET; FLEX HOSE,A/C 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) ID=14.5	8-97095-908-0	01	1	0406-		●
50	GASKET; FLEX HOSE,A/C 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	01	1	0210-0608	●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	01	1	0210-0608			●
50	GASKET; FLEX HOSE,A/C 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	01	1	0609-	●		●
50	GASKET; FLEX HOSE,A/C 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) FRONT STABILIZER SHAFT<F59> ID=18.3	8-97161-778-0	01	1	0609-		●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	02	1	9804-0004	●	●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	02	1	0005-0209	●	●	●
50	GASKET; FLEX HOSE,A/C 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	02	1	0210-0403	●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	02	1	0210-0403		●
50	GASKET; FLEX HOSE,A/C 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	02	1	0404-0608	●
50	GASKET; FLEX HOSE,A/C 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	02	1	0404-0608		●
50	GASKET; FLEX HOSE,A/C 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> ID=18.3	8-97161-778-0	02	1	0609-	●	●
50	GASKET; FLEX HOSE,A/C 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT STABILIZER SHAFT<F59> ID=18.3	8-97161-778-0	02	1	0609-		●
67	GASKET; FLEX HOSE 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) ID=11.7	8-97095-907-0	01	1	0406-		●
67	GASKET; FLEX HOSE 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) ID=15.5	8-97161-777-0	02	1	9804-	●	●
67	GASKET; FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) ID=15.5	8-97161-777-0	01	1	9804-0004	●	●
67	GASKET; FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) ID=15.5	8-97161-777-0	01	1	0005-	●	●	●
91	HOSE; FLEX,CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) FRONT STABILIZER SHAFT<F59>	1-83577-132-0	01	1	0609-	●	●	●
91	HOSE; FLEX,CMPR 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83577-027-0	01	1	0406-		●
91	HOSE; FLEX,CMPR 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-518-0	01	1	9804-0004	●
91	HOSE; FLEX,CMPR 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-518-0	01	1	9804-0004		●
91	HOSE; FLEX,CMPR 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-518-1	01	1	0005-	●	●
91	HOSE; FLEX,CMPR 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-523-0	01	1	9804-0004	●
91	HOSE; FLEX,CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-523-0	01	1	9804-0004		●
91	HOSE; FLEX,CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-523-1	01	1	0005-0608	●	●	●
91	HOSE; FLEX,CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT STABILIZER SHAFT<F59>	1-83572-523-1	01	1	0609-	●	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (C) ID=7.4	8-97095-906-0	03	1	0404-0604		●
116	GASKET; PIPE 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (C) ID=7.4	8-97095-906-0	03	1	0605-		●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (D) ID=11.7	8-97095-907-0	01	1	0404-0604		●
116	GASKET; PIPE 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (D) ID=11.7	8-97095-907-0	01	1	0605-		●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97161-776-0	01	1	9804-0004	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5	8-97161-777-0	01	1	9804-0004	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5	8-97161-777-0	01	1	0005-0403	●	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5	8-97161-777-0	01	1	0404-0604	●		●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) ID=15.5	8-97161-777-0	01	1	0404-0604		●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5	8-97161-777-0	01	1	0605-	●		●
116	GASKET; PIPE 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (A) ID=15.5	8-97161-777-0	01	1	0605-		●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) ID=15.5	8-97161-777-0	01	1	0605-		●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97161-776-0	02	1	0005-0403	●	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97161-776-0	02	1	0404-0604	●		●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	8-97161-776-0	02	1	0404-0604		●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97161-776-0	02	1	0605-	●		●
116	GASKET; PIPE 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B)	8-97161-776-0	02	1	0605-		●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	8-97161-776-0	02	1	0605-		●
121	HOSE; COOLER 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83577-050-0	01	1	0406-		●
121	HOSE; COOLER 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83577-051-0	01	1	0406-		●
122	GASKET 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=11.7	8-97095-907-0	02	1	0406-		●
122	GASKET 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=14.5	8-97095-908-0	02	1	0406-		●
122	GASKET 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=15.5	8-97161-777-0	01	1	9804-	●	●
122	GASKET 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=18.3	8-97161-778-0	01	1	9804-	●	●
122	GASKET 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=15.5	8-97161-777-0	02	1	9804-0004	●	●
122	GASKET 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=18.3	8-97161-778-0	02	1	9804-0004	●	●
122	GASKET 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=15.5	8-97161-777-0	02	1	0005-	●	●	●
122	GASKET 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=18.3	8-97161-778-0	02	1	0005-	●	●	●
147	CAP; FLEX HOSE 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	8-97095-910-0	01	1	0406-		●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	8-97083-102-0	01	1	9804-0004	●	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	8-97083-102-0	01	1	0005-0403	●	●	●
147	CAP; FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	8-97083-102-0	01	1	0404-	●	●	●
148	VALVE; FLEX HOSE 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60)	8-97095-909-0	01	1	0406-		●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	9804-0004	●	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	0005-0109	●	●	●
148	VALVE; FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	0110-0209	●	●	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	0210-0403	●	●	●
148	VALVE; FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	0404-	●	●	●
148	VALVE; FLEX HOSE 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-892-0	01	1	0110-0209	●	●
149	BRACKET; COOLER HOSE 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83573-294-0	01	1	0406-		●
150	CLIP; HOSE 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83574-289-0	01	1	0406-		●
150	CLIP; HOSE 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83574-290-0	01	1	0406-		●
151	BOLT; CLIP FIX,COOLER HOSE 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-328-0	01	1	0406-		●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B)	8-97095-909-0	01	1	0404-0604		●
156	VALVE; PIPE 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B)	8-97095-909-0	01	1	0605-		●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97083-100-0	01	1	9804-0004	●	●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97083-100-0	01	1	0005-0403	●	●	●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97083-100-0	01	1	0404-0604	●		●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	8-97083-100-0	01	1	0404-0604		●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97083-100-0	01	1	0605-	●		●
156	VALVE; PIPE 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (A)	8-97083-100-0	01	1	0605-		●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	8-97083-100-0	01	1	0605-		●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B) CAP MARK H	8-97095-911-0	01	1	0404-0604		●
171	CAP; PIPE 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B) CAP MARK H	8-97095-911-0	01	1	0605-		●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) CAP MARK H	8-97083-101-0	01	1	9804-0004	●	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) CAP MARK H	8-97083-101-0	01	1	0005-0403	●	●	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) CAP MARK H	8-97083-101-0	01	1	0404-0604	●		●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) CAP MARK H	8-97083-101-0	01	1	0404-0604		●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) CAP MARK H	8-97083-101-0	01	1	0605-	●		●
171	CAP; PIPE 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (A) CAP MARK H	8-97083-101-0	01	1	0605-		●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) CAP MARK H	8-97083-101-0	01	1	0605-		●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B)	1-83567-854-0	01	1	0404-0604		●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B)	1-83567-854-0	01	1	0605-		●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83567-664-1	01	1	9804-0004	●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83567-664-2	01	1	0005-	●		●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83567-663-0	01	1	9804-0403		●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-83567-663-0	01	1	0404-0604		●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (A)	1-83567-663-1	01	1	0605-		●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-83567-663-1	01	1	0605-		●
202	SWITCH; PRESSURE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	1-83564-391-0	01	1	0404-0604		●
202	SWITCH; PRESSURE 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	1-83564-391-0	01	1	0605-		●

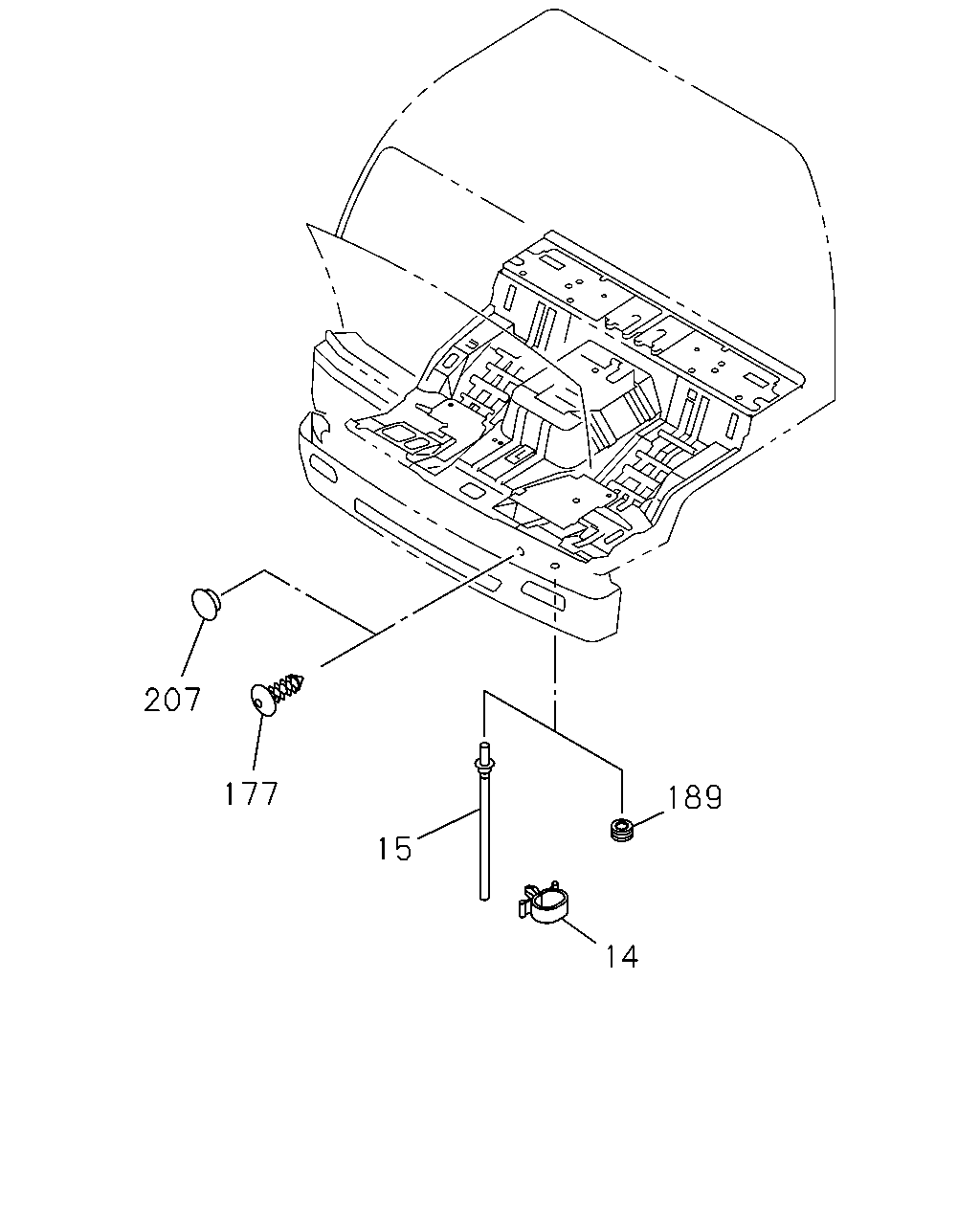

207 177 189 15 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
14	CLIP; BAND,EVAP DRAIN HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-94410-200-0	02	1	9804-9904	●	●
14	CLIP; BAND,EVAP DRAIN HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-94410-200-0	01	1	9905-0004	●	●
14	CLIP; BAND,EVAP DRAIN HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-94410-200-0	01	1	0005-	●	●	●
15	HOSE; DRAIN HEATER & DEFROSTER(C41)	1-83566-904-2	01	1	9601-9702	●
15	HOSE; DRAIN HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83566-904-2	01	1	9601-9702		●		●
15	HOSE; DRAIN HEATER & DEFROSTER(C41)	1-83572-412-0	01	1	9703-9803	●
15	HOSE; DRAIN HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83572-412-0	01	1	9703-9803		●		●
15	HOSE; DRAIN HEATER & DEFROSTER(C41)	1-83572-412-0	01	1	9804-0004	●
15	HOSE; DRAIN HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83572-412-0	01	1	9804-0004		●		●	●
15	HOSE; DRAIN HEATER & DEFROSTER(C41)	1-83572-412-0	01	1	0005-	●		●
15	HOSE; DRAIN HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83572-412-0	01	1	0005-		●		●	●
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-411-0	01	1	9804-9904	●	●
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-635-0	01	1	9905-0004	●	●
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-635-0	01	1	0005-	●	●	●
177	PLUG; CLIP OD=15 BLACK	8-94279-804-0	01	1	9601-9711	●	●		●
177	PLUG; CLIP OD=15 BLACK	8-94279-804-0	02	1	9712-9801	●	●		●
177	PLUG; CLIP OD=15 BLACK	8-94279-804-0	03	1	9802-9803	●	●		●
177	PLUG; CLIP AIR CONDITIONER MANUAL CONTROL(C60) OD=15 BLACK	8-94279-804-0	01	1	9804-9804	●	●
177	PLUG; CLIP AIR CONDITIONER MANUAL CONTROL(C60) OD=15 BLACK	8-94279-804-0	01	1	9804-9804	●
177	PLUG; CLIP AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK	1-76798-019-0	01	1	9804-9804	●	●
177	PLUG; CLIP AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK	1-76798-019-0	01	1	9804-9804	●
177	PLUG; CLIP EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=15 BLACK	8-94279-804-0	03	1	9804-9804	●	●
177	PLUG; CLIP OD=15 BLACK	8-94279-804-0	03	1	9804-9804				●	●
177	PLUG; CLIP EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK	1-76798-019-0	03	1	9804-9804	●	●
177	PLUG; CLIP OD=25 BLACK	1-76798-019-0	03	1	9804-9804				●	●
189	GROMMET EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	9-09575-397-0	01	1	9601-9803		●		●
189	GROMMET EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	9-09575-397-0	01	1	9804-0004				●	●
189	GROMMET EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	9-09575-397-0	01	1	9804-0004		●
189	GROMMET EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	9-09575-397-0	01	1	0005-	●	●	●	●	●
207	SEAL; FLEX HOSE EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK	1-76798-019-0	01	1	9903-0004	●	●
207	SEAL; FLEX HOSE OD=25 BLACK	1-76798-019-0	01	1	9903-0004				●	●
207	SEAL; FLEX HOSE EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK	1-76798-019-0	01	1	0005-	●	●	●
207	SEAL; FLEX HOSE OD=25 BLACK	1-76798-019-0	01	1	0005-				●	●

17 17 122 122 122 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
17	HOSE; FLEX,CMPR TO PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) FRONT STABILIZER SHAFT<F59> (B)	1-83577-133-0	01	1	0609-	●	●	●
17	HOSE; FLEX,CMPR TO PIPE 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83577-057-0	01	1	0406-		●
17	HOSE; FLEX,CMPR TO PIPE 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-520-0	01	1	9804-9809	●
17	HOSE; FLEX,CMPR TO PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-520-0	01	1	9804-9809		●
17	HOSE; FLEX,CMPR TO PIPE 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-519-1	01	1	9810-	●	●
17	HOSE; FLEX,CMPR TO PIPE 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-524-0	01	1	9804-9805	●
17	HOSE; FLEX,CMPR TO PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-524-0	01	1	9804-9805		●
17	HOSE; FLEX,CMPR TO PIPE 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-568-0	01	1	9806-0004	●
17	HOSE; FLEX,CMPR TO PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-568-0	01	1	9806-0004		●
17	HOSE; FLEX,CMPR TO PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-571-1	01	1	0005-0608	●	●	●
17	HOSE; FLEX,CMPR TO PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT STABILIZER SHAFT<F59> (B)	1-83572-571-1	01	1	0609-	●	●	●
122	GASKET 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=11.7	8-97095-907-0	02	1	0406-		●
122	GASKET 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=14.5	8-97095-908-0	02	1	0406-		●
122	GASKET 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=15.5	8-97161-777-0	01	1	9804-	●	●
122	GASKET 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=18.3	8-97161-778-0	01	1	9804-	●	●
122	GASKET 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=15.5	8-97161-777-0	02	1	9804-0004	●	●
122	GASKET 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=18.3	8-97161-778-0	02	1	9804-0004	●	●
122	GASKET 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=15.5	8-97161-777-0	02	1	0005-	●	●	●
122	GASKET 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=18.3	8-97161-778-0	02	1	0005-	●	●	●

17 122 122 43 50 1 148 50 182 183 147 21 172 12 44 116 204 23 156 27 42 171 116 27 42 27 42 19 67 2 67 116 34 33 174 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60)	1-83535-084-0	01	1	9804-0004	●	●
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60)	1-83535-084-0	01	1	0005-0403	●	●	●
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60)	1-83535-084-0	01	1	0404-0604	●		●
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83535-084-0	01	1	0404-0604		●
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60)	1-83535-084-0	01	1	0605-	●		●
1	TANK; RECEIVER 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	1-83535-084-0	01	1	0605-		●
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83535-084-0	01	1	0605-		●
2	BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9804-0004	●	●
2	BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0005-	●	●	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B)	1-83567-853-2	01	1	0404-0604		●
12	PIPE; COOLER,EVAP TO TANK 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B)	1-83567-853-2	01	1	0605-		●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83567-662-0	01	1	9804-0004	●	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83567-662-0	01	1	0005-0403	●	●	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83567-662-0	01	1	0404-0604	●		●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-83567-662-0	01	1	0404-0604		●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83567-662-0	01	1	0605-	●		●
12	PIPE; COOLER,EVAP TO TANK 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (A)	1-83567-662-0	01	1	0605-		●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-83567-662-0	01	1	0605-		●
17	HOSE; FLEX,CMPR TO PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) FRONT STABILIZER SHAFT<F59> (B)	1-83577-133-0	01	1	0609-	●	●	●
17	HOSE; FLEX,CMPR TO PIPE 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83577-057-0	01	1	0406-		●
17	HOSE; FLEX,CMPR TO PIPE 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-520-0	01	1	9804-9809	●
17	HOSE; FLEX,CMPR TO PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-520-0	01	1	9804-9809		●
17	HOSE; FLEX,CMPR TO PIPE 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-519-1	01	1	9810-	●	●
17	HOSE; FLEX,CMPR TO PIPE 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-524-0	01	1	9804-9805	●
17	HOSE; FLEX,CMPR TO PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-524-0	01	1	9804-9805		●
17	HOSE; FLEX,CMPR TO PIPE 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-568-0	01	1	9806-0004	●
17	HOSE; FLEX,CMPR TO PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-568-0	01	1	9806-0004		●
17	HOSE; FLEX,CMPR TO PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-571-1	01	1	0005-0608	●	●	●
17	HOSE; FLEX,CMPR TO PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT STABILIZER SHAFT<F59> (B)	1-83572-571-1	01	1	0609-	●	●	●
19	NUT; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9804-0004	●	●
19	NUT; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	0005-0104	●	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-831-4	01	1	9804-0004	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-831-4	01	1	0005-	●	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	01	1	9804-0004	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	01	1	0005-0512	●	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=13 H=18 L=20	1-09700-813-0	01	1	9804-9902	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=13 H=12 L=20	1-09701-274-0	01	1	9903-0004	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=13 H=18 L=20	1-09700-813-0	01	1	0005-	●	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11 H=20 L=20	5-09700-351-0	01	1	9804-0004	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0005-0707	●	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11 H=20 L=20	8-98033-780-0	01	1	0708-	●	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=13 L=20	9-09525-235-0	01	1	9804-0004	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=13 L=20	9-09525-235-0	01	1	0005-0606	●	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=13 L=20	0-95235-235-0	01	1	0607-	●	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	01	1	0105-0512	●	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●	●
34	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=12.2 & 16.2	1-83574-190-0	01	1	9804-0004	●	●
34	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=12.2 & 16.2	1-83574-190-0	01	1	0005-	●	●	●
42	SCREW; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9804-0004	●	●
42	SCREW; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0005-0904	●	●	●
42	SCREW; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-	●	●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) FRONT STABILIZER SHAFT<F59> (B)	1-83577-131-0	01	1	0609-		●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83577-029-0	01	1	0406-		●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-517-2	01	1	9804-0403	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> (A)	1-83572-517-2	01	1	0404-	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-522-0	01	1	9804-0004	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-522-1	01	1	0005-	●
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-522-1	01	1	0005-			●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-516-2	01	1	9804-0403		●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> (A)	1-83572-516-2	01	1	0404-0405		●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> (A)	1-83572-516-2	01	1	0406-		●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-521-0	01	1	9804-0608		●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT STABILIZER SHAFT<F59> (B)	1-83572-521-0	01	1	0609-		●
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=12.2 & 16.2	1-83574-190-0	01	1	9804-0004	●	●
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=12.2 & 16.2	1-83574-190-0	01	1	0005-	●	●	●
50	GASKET; FLEX HOSE,A/C 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) ID=14.5	8-97095-908-0	01	1	0406-		●
50	GASKET; FLEX HOSE,A/C 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	01	1	0210-0608	●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	01	1	0210-0608			●
50	GASKET; FLEX HOSE,A/C 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	01	1	0609-	●		●
50	GASKET; FLEX HOSE,A/C 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) FRONT STABILIZER SHAFT<F59> ID=18.3	8-97161-778-0	01	1	0609-		●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	02	1	9804-0004	●	●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	02	1	0005-0209	●	●	●
50	GASKET; FLEX HOSE,A/C 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	02	1	0210-0403	●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	02	1	0210-0403		●
50	GASKET; FLEX HOSE,A/C 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	02	1	0404-0608	●
50	GASKET; FLEX HOSE,A/C 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	02	1	0404-0608		●
50	GASKET; FLEX HOSE,A/C 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> ID=18.3	8-97161-778-0	02	1	0609-	●	●
50	GASKET; FLEX HOSE,A/C 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT STABILIZER SHAFT<F59> ID=18.3	8-97161-778-0	02	1	0609-		●
67	GASKET; FLEX HOSE 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) ID=11.7	8-97095-907-0	01	1	0406-		●
67	GASKET; FLEX HOSE 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) ID=15.5	8-97161-777-0	02	1	9804-	●	●
67	GASKET; FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) ID=15.5	8-97161-777-0	01	1	9804-0004	●	●
67	GASKET; FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) ID=15.5	8-97161-777-0	01	1	0005-	●	●	●
91	HOSE; FLEX,CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) FRONT STABILIZER SHAFT<F59>	1-83577-132-0	01	1	0609-	●	●	●
91	HOSE; FLEX,CMPR 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83577-027-0	01	1	0406-		●
91	HOSE; FLEX,CMPR 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-518-0	01	1	9804-0004	●
91	HOSE; FLEX,CMPR 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-518-0	01	1	9804-0004		●
91	HOSE; FLEX,CMPR 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-518-1	01	1	0005-	●	●
91	HOSE; FLEX,CMPR 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-523-0	01	1	9804-0004	●
91	HOSE; FLEX,CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-523-0	01	1	9804-0004		●
91	HOSE; FLEX,CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-523-1	01	1	0005-0608	●	●	●
91	HOSE; FLEX,CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT STABILIZER SHAFT<F59>	1-83572-523-1	01	1	0609-	●	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (C) ID=7.4	8-97095-906-0	03	1	0404-0604		●
116	GASKET; PIPE 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (C) ID=7.4	8-97095-906-0	03	1	0605-		●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (D) ID=11.7	8-97095-907-0	01	1	0404-0604		●
116	GASKET; PIPE 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (D) ID=11.7	8-97095-907-0	01	1	0605-		●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97161-776-0	01	1	9804-0004	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5	8-97161-777-0	01	1	9804-0004	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5	8-97161-777-0	01	1	0005-0403	●	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5	8-97161-777-0	01	1	0404-0604	●		●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) ID=15.5	8-97161-777-0	01	1	0404-0604		●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5	8-97161-777-0	01	1	0605-	●		●
116	GASKET; PIPE 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (A) ID=15.5	8-97161-777-0	01	1	0605-		●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) ID=15.5	8-97161-777-0	01	1	0605-		●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97161-776-0	02	1	0005-0403	●	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97161-776-0	02	1	0404-0604	●		●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	8-97161-776-0	02	1	0404-0604		●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97161-776-0	02	1	0605-	●		●
116	GASKET; PIPE 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B)	8-97161-776-0	02	1	0605-		●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	8-97161-776-0	02	1	0605-		●
122	GASKET 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=11.7	8-97095-907-0	02	1	0406-		●
122	GASKET 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=14.5	8-97095-908-0	02	1	0406-		●
122	GASKET 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=15.5	8-97161-777-0	01	1	9804-	●	●
122	GASKET 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=18.3	8-97161-778-0	01	1	9804-	●	●
122	GASKET 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=15.5	8-97161-777-0	02	1	9804-0004	●	●
122	GASKET 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=18.3	8-97161-778-0	02	1	9804-0004	●	●
122	GASKET 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=15.5	8-97161-777-0	02	1	0005-	●	●	●
122	GASKET 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=18.3	8-97161-778-0	02	1	0005-	●	●	●
147	CAP; FLEX HOSE 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	8-97095-910-0	01	1	0406-		●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	8-97083-102-0	01	1	9804-0004	●	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	8-97083-102-0	01	1	0005-0403	●	●	●
147	CAP; FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	8-97083-102-0	01	1	0404-	●	●	●
148	VALVE; FLEX HOSE 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60)	8-97095-909-0	01	1	0406-		●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	9804-0004	●	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	0005-0109	●	●	●
148	VALVE; FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	0110-0209	●	●	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	0210-0403	●	●	●
148	VALVE; FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	0404-	●	●	●
148	VALVE; FLEX HOSE 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-892-0	01	1	0110-0209	●	●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B)	8-97095-909-0	01	1	0404-0604		●
156	VALVE; PIPE 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B)	8-97095-909-0	01	1	0605-		●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97083-100-0	01	1	9804-0004	●	●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97083-100-0	01	1	0005-0403	●	●	●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97083-100-0	01	1	0404-0604	●		●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	8-97083-100-0	01	1	0404-0604		●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97083-100-0	01	1	0605-	●		●
156	VALVE; PIPE 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (A)	8-97083-100-0	01	1	0605-		●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	8-97083-100-0	01	1	0605-		●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B) CAP MARK H	8-97095-911-0	01	1	0404-0604		●
171	CAP; PIPE 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B) CAP MARK H	8-97095-911-0	01	1	0605-		●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) CAP MARK H	8-97083-101-0	01	1	9804-0004	●	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) CAP MARK H	8-97083-101-0	01	1	0005-0403	●	●	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) CAP MARK H	8-97083-101-0	01	1	0404-0604	●		●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) CAP MARK H	8-97083-101-0	01	1	0404-0604		●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) CAP MARK H	8-97083-101-0	01	1	0605-	●		●
171	CAP; PIPE 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (A) CAP MARK H	8-97083-101-0	01	1	0605-		●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) CAP MARK H	8-97083-101-0	01	1	0605-		●
172	SWITCH; PRESS,RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83544-047-0	01	1	0005-0403	●	●	●
172	SWITCH; PRESS,RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83544-047-0	01	1	0404-0604	●		●
172	SWITCH; PRESS,RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83544-047-0	01	1	0404-0604		●
172	SWITCH; PRESS,RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83544-047-0	01	1	0605-	●		●
172	SWITCH; PRESS,RECEIVER TANK 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	1-83544-047-0	01	1	0605-		●
172	SWITCH; PRESS,RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83544-047-0	01	1	0605-		●
172	SWITCH; PRESS,RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	8-97085-786-0	01	1	9804-0004	●	●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B)	1-83567-854-0	01	1	0404-0604		●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (B)	1-83567-854-0	01	1	0605-		●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83567-664-1	01	1	9804-0004	●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83567-664-2	01	1	0005-	●		●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83567-663-0	01	1	9804-0403		●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-83567-663-0	01	1	0404-0604		●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5) (A)	1-83567-663-1	01	1	0605-		●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-83567-663-1	01	1	0605-		●
182	PLUG; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-226-0	01	1	9804-0004	●	●
182	PLUG; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-226-0	01	1	0005-0403	●	●	●
182	PLUG; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-226-0	01	1	0404-0604	●		●
182	PLUG; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83539-226-0	01	1	0404-0604		●
182	PLUG; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-226-0	01	1	0605-	●		●
182	PLUG; RECEIVER TANK 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	1-83539-226-0	01	1	0605-		●
182	PLUG; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-83539-226-0	01	1	0605-		●
183	GASKET; PLUG AIR CONDITIONER MANUAL CONTROL(C60)	8-94154-048-0	01	1	9804-0004	●	●
183	GASKET; PLUG AIR CONDITIONER MANUAL CONTROL(C60)	8-94154-048-0	01	1	0005-0403	●	●	●
183	GASKET; PLUG AIR CONDITIONER MANUAL CONTROL(C60)	8-94154-048-0	01	1	0404-0604	●		●
183	GASKET; PLUG AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	8-94154-048-0	01	1	0404-0604		●
183	GASKET; PLUG AIR CONDITIONER MANUAL CONTROL(C60)	8-94154-048-0	01	1	0605-	●		●
183	GASKET; PLUG 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) NEW ZEALAND EQUIPMENT(PK5)	8-94154-048-0	01	1	0605-		●
183	GASKET; PLUG AIR CONDITIONER MANUAL CONTROL(C60) EXC. NEW ZEALAND EQUIPMENT(PK5)	8-94154-048-0	01	1	0605-		●
204	NUT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9804-0004	●	●
204	NUT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	0005-0602	●	●	●
204	NUT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
