Sayfa 8-50 - Isuzu EPC

8-50 — AIR CONDITIONING SYSTEM; FRONT (#63915) — 280 parça

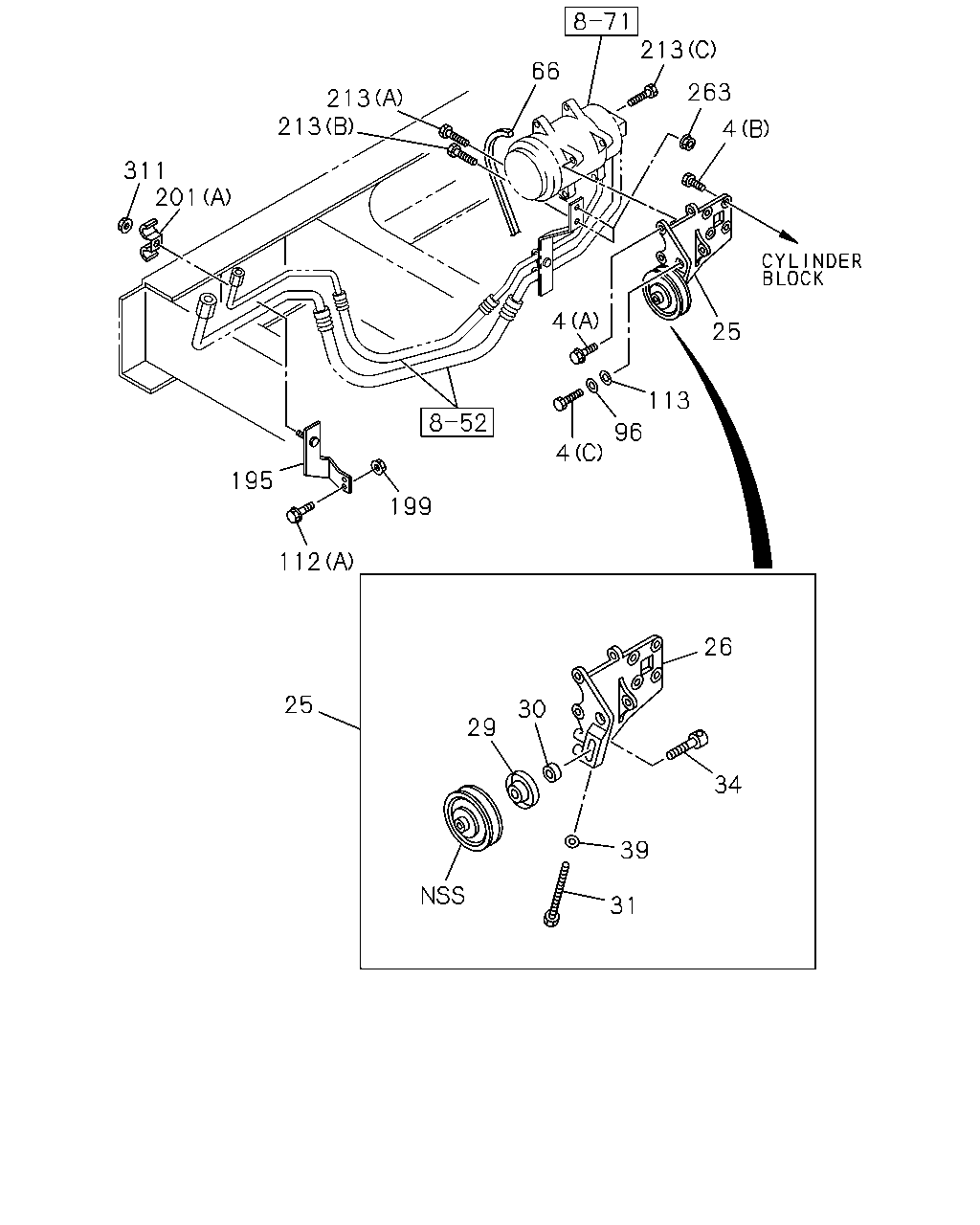

213 66 263 213 213 4 311 201 4 25 113 96 4 195 199 112 26 25 30 29 34 39 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
4	BOLT; A/C CMPR BRKT 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X40 FLANGE	0-28181-040-0	04	1	9804-0004	●	●
4	BOLT; A/C CMPR BRKT 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X40 FLANGE	0-28181-040-0	04	1	0005-0210	●	●
4	BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X40 FLANGE	0-28181-040-0	04	1	0005-0210			●
4	BOLT; A/C CMPR BRKT 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X40 FLANGE	0-28181-040-0	04	1	0211-0512	●
4	BOLT; A/C CMPR BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X40 FLANGE	0-28181-040-0	04	1	0211-0512		●
4	BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X40 FLANGE	0-28181-040-0	04	1	0211-0512			●
4	BOLT; A/C CMPR BRKT 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X40 FLANGE	0-28151-040-0	04	1	0601-	●
4	BOLT; A/C CMPR BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X40 FLANGE	0-28151-040-0	04	1	0601-		●
4	BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X40 FLANGE	0-28151-040-0	04	1	0601-			●
4	BOLT; A/C CMPR BRKT 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X40 W/LK WASHER	0-50041-040-0	04	1	9804-0004	●	●
4	BOLT; A/C CMPR BRKT 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X40 W/LK WASHER	0-50041-040-0	04	1	0005-0210	●	●
4	BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X40 W/LK WASHER	0-50041-040-0	04	1	0005-0210			●
4	BOLT; A/C CMPR BRKT 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X40 W/LK WASHER	0-50041-040-0	04	1	0211-0512	●
4	BOLT; A/C CMPR BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X40 W/LK WASHER	0-50041-040-0	04	1	0211-0512		●
4	BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X40 W/LK WASHER	0-50041-040-0	04	1	0211-0512			●
4	BOLT; A/C CMPR BRKT 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X40 W/LK WASHER	0-50541-040-0	04	1	0601-	●
4	BOLT; A/C CMPR BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X40 W/LK WASHER	0-50541-040-0	04	1	0601-		●
4	BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X40 W/LK WASHER	0-50541-040-0	04	1	0601-			●
4	BOLT; A/C CMPR BRKT 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M10X135	1-09020-090-0	01	1	9804-0004	●	●
4	BOLT; A/C CMPR BRKT 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M10X135	1-09020-090-0	01	1	0005-0210	●	●
4	BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONTROL(C60) (C) M10X135	1-09020-090-0	01	1	0005-0210			●
4	BOLT; A/C CMPR BRKT 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M10X135	1-09020-090-0	01	1	0211-	●
4	BOLT; A/C CMPR BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M10X135	1-09020-090-0	01	1	0211-		●
4	BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONTROL(C60) (C) M10X135	1-09020-090-0	01	1	0211-			●
25	PULLEY ASM; IDLER,CMPR 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94399-957-0	01	1	9804-0405	●	●
25	PULLEY ASM; IDLER,CMPR 6HE1 TC ENG(57L),6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94399-957-0	01	1	0406-	●	●
25	PULLEY ASM; IDLER,CMPR 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83570-021-0	01	1	9804-0004	●	●
25	PULLEY ASM; IDLER,CMPR 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83570-021-0	01	1	0005-0210	●	●
25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83570-021-0	01	1	0005-0210			●
25	PULLEY ASM; IDLER,CMPR 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83570-021-0	01	1	0211-	●
25	PULLEY ASM; IDLER,CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83570-021-0	01	1	0211-		●
25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83570-021-0	01	1	0211-			●
26	BRACKET; IDLE PULLEY,A/C 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-708-0	01	1	9804-0004	●	●
26	BRACKET; IDLE PULLEY,A/C 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-708-0	01	1	0005-0210	●	●
26	BRACKET; IDLE PULLEY,A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-708-0	01	1	0005-0210			●
26	BRACKET; IDLE PULLEY,A/C 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-708-0	01	1	0211-	●
26	BRACKET; IDLE PULLEY,A/C 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-708-0	01	1	0211-		●
26	BRACKET; IDLE PULLEY,A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-708-0	01	1	0211-			●
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	9-13369-603-0	01	1	9804-0004	●	●
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	9-13369-603-0	01	1	0005-0210	●		●
29	COVER; DUST,IDLE PULLEY 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60)	9-13369-603-0	01	1	0005-0210		●
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	9-13369-603-0	01	1	0211-0405	●		●
29	COVER; DUST,IDLE PULLEY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60)	9-13369-603-0	01	1	0211-0405		●
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	9-13369-603-0	01	1	0406-	●		●
29	COVER; DUST,IDLE PULLEY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60)	9-13369-603-0	01	1	0406-		●
30	COLLAR; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-144-0	01	1	9804-0004	●	●
30	COLLAR; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-144-0	01	1	0005-0210	●		●
30	COLLAR; IDLE PULLEY 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-144-0	01	1	0005-0210		●
30	COLLAR; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-144-0	01	1	0211-0405	●		●
30	COLLAR; IDLE PULLEY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-144-0	01	1	0211-0405		●
30	COLLAR; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-144-0	01	1	0406-	●		●
30	COLLAR; IDLE PULLEY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-144-0	01	1	0406-		●
31	BOLT; ADJ,IDLE PULLEY 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-143-0	01	1	9804-0405	●	●
31	BOLT; ADJ,IDLE PULLEY 6HE1 TC ENG(57L),6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-143-0	01	1	0406-	●	●
31	BOLT; ADJ,IDLE PULLEY 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94238-324-0	01	1	9804-0004	●	●
31	BOLT; ADJ,IDLE PULLEY 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94238-324-0	01	1	0005-0210	●	●
31	BOLT; ADJ,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	8-94238-324-0	01	1	0005-0210			●
31	BOLT; ADJ,IDLE PULLEY 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94238-324-0	01	1	0211-	●
31	BOLT; ADJ,IDLE PULLEY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94238-324-0	01	1	0211-		●
31	BOLT; ADJ,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	8-94238-324-0	01	1	0211-			●
34	SHAFT; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-236-0	01	1	9804-0004	●	●
34	SHAFT; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-236-0	01	1	0005-0210	●		●
34	SHAFT; IDLE PULLEY 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-236-0	01	1	0005-0210		●
34	SHAFT; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-236-0	01	1	0211-0405	●		●
34	SHAFT; IDLE PULLEY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-236-0	01	1	0211-0405		●
34	SHAFT; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-236-0	01	1	0406-	●		●
34	SHAFT; IDLE PULLEY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-236-0	01	1	0406-		●
39	WASHER; LK,ADJ BOLT 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) ID=8.2	9-09150-608-0	01	1	9804-0405	●	●
39	WASHER; LK,ADJ BOLT 6HE1 TC ENG(57L),6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) ID=8.2	9-09150-608-0	01	1	0406-	●	●
39	WASHER; LK,ADJ BOLT 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-492-0	01	1	9804-0004	●	●
39	WASHER; LK,ADJ BOLT 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-492-0	01	1	0005-0210	●	●
39	WASHER; LK,ADJ BOLT AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-492-0	01	1	0005-0210			●
39	WASHER; LK,ADJ BOLT 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-492-0	01	1	0211-	●
39	WASHER; LK,ADJ BOLT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-492-0	01	1	0211-		●
39	WASHER; LK,ADJ BOLT AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-492-0	01	1	0211-			●
66	BELT; A/C CMPR 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) L=1082	1-13671-256-0	01	1	0407-1402		●
66	BELT; A/C CMPR 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) L=1077	8-98253-452-0	01	1	1403-		●
66	BELT; A/C CMPR 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) L=1110	8-94395-172-0	01	1	9804-0405	●	●
66	BELT; A/C CMPR 6HE1 TC ENG(57L),6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) L=1110	8-94395-172-0	01	1	0406-	●	●
66	BELT; A/C CMPR 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) L=1196	1-13671-405-0	01	1	9804-0004	●	●
66	BELT; A/C CMPR 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) L=1196	1-13671-405-0	01	1	0005-0107	●	●
66	BELT; A/C CMPR AIR CONDITIONER MANUAL CONTROL(C60) L=1196	1-13671-405-0	01	1	0005-0107			●
66	BELT; A/C CMPR 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) L=1196	1-13671-464-1	01	1	0108-0210	●	●
66	BELT; A/C CMPR AIR CONDITIONER MANUAL CONTROL(C60) L=1196	1-13671-464-1	01	1	0108-0210			●
66	BELT; A/C CMPR 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) L=1196	1-13671-464-1	01	1	0211-	●
66	BELT; A/C CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) L=1196	1-13671-464-1	01	1	0211-		●
66	BELT; A/C CMPR AIR CONDITIONER MANUAL CONTROL(C60) L=1196	1-13671-464-1	01	1	0211-			●
96	WASHER; LK 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) ID=10.2	9-09150-510-0	01	1	9804-0004	●	●
96	WASHER; LK 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) ID=10.2	9-09150-510-0	01	1	0005-0210	●	●
96	WASHER; LK AIR CONDITIONER MANUAL CONTROL(C60) ID=10.2	9-09150-510-0	01	1	0005-0210			●
96	WASHER; LK 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) ID=10.2	9-09150-510-0	01	1	0211-0603	●
96	WASHER; LK 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) ID=10.2	9-09150-510-0	01	1	0211-0603		●
96	WASHER; LK AIR CONDITIONER MANUAL CONTROL(C60) ID=10.2	9-09150-510-0	01	1	0211-0603			●
96	WASHER; LK 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) ID=10.2	0-91510-510-0	01	1	0604-	●
96	WASHER; LK 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) ID=10.2	0-91510-510-0	01	1	0604-		●
96	WASHER; LK AIR CONDITIONER MANUAL CONTROL(C60) ID=10.2	0-91510-510-0	01	1	0604-			●
112	BOLT; STAY 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28680-825-0	02	1	9804-0405	●	●
112	BOLT; STAY 6HE1 TC ENG(57L),6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28680-825-0	02	1	0406-0512	●	●
112	BOLT; STAY 6HE1 TC ENG(57L),6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-0608	●	●
112	BOLT; STAY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) FRONT STABILIZER SHAFT<F59> (A) M8X25 FLANGE	0-28650-825-0	02	1	0609-	●	●	●
112	BOLT; STAY 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28650-825-0	02	1	0609-	●	●
112	BOLT; STAY 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE	0-28080-816-0	02	1	9812-0405	●	●
112	BOLT; STAY 6HE1 TC ENG(57L),6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE	0-28080-816-0	02	1	0406-0512	●	●
112	BOLT; STAY 6HE1 TC ENG(57L),6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
112	BOLT; STAY 6HE1 TC ENG(57L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> (B) M8X16 FLANGE	0-28080-816-0	02	1	9804-9806	●	●
112	BOLT; STAY 6HE1 TC ENG(57L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> (B) M8X16 FLANGE	0-28080-816-0	02	1	9807-9811	●	●		●
113	WASHER; PL,BRKT 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) ID=10.5 OD=18	9-09160-510-0	01	1	9804-0004	●	●
113	WASHER; PL,BRKT 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) ID=10.5 OD=18	9-09160-510-0	01	1	0005-0210	●	●
113	WASHER; PL,BRKT AIR CONDITIONER MANUAL CONTROL(C60) ID=10.5 OD=18	9-09160-510-0	01	1	0005-0210			●
113	WASHER; PL,BRKT 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) ID=10.5 OD=18	9-09160-510-0	01	1	0211-0605	●
113	WASHER; PL,BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) ID=10.5 OD=18	9-09160-510-0	01	1	0211-0605		●
113	WASHER; PL,BRKT AIR CONDITIONER MANUAL CONTROL(C60) ID=10.5 OD=18	9-09160-510-0	01	1	0211-0605			●
113	WASHER; PL,BRKT 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) ID=10.5	0-91610-510-0	01	1	0606-	●
113	WASHER; PL,BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) ID=10.5	0-91610-510-0	01	1	0606-		●
113	WASHER; PL,BRKT AIR CONDITIONER MANUAL CONTROL(C60) ID=10.5	0-91610-510-0	01	1	0606-			●
195	STAY; CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) FRONT STABILIZER SHAFT<F59>	8-98055-424-0	01	1	0609-	●	●	●
195	STAY; CLIP AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4>	1-83573-172-0	01	1	0406-0608		●
195	STAY; CLIP 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83573-172-0	01	1	0609-		●
195	STAY; CLIP 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83573-088-0	01	1	9804-	●	●
199	NUT 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	02	1	9806-0602	●	●
199	NUT 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	02	1	0603-0608	●	●
199	NUT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) FRONT STABILIZER SHAFT<F59> M8 FLANGE	0-91180-108-0	02	1	0609-	●	●	●
199	NUT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	02	1	0609-	●	●
201	CLIP; HOSE,CMPR TO EVAP AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=19 L=20	9-09525-836-0	01	1	9804-0004	●	●
201	CLIP; HOSE,CMPR TO EVAP AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=19 L=20	9-09525-836-0	01	1	0005-0606	●	●	●
201	CLIP; HOSE,CMPR TO EVAP AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=19 L=20	0-95235-836-0	01	1	0607-	●	●	●
201	CLIP; HOSE,CMPR TO EVAP 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2	1-83574-190-0	01	1	9804-0405	●	●
201	CLIP; HOSE,CMPR TO EVAP 6HE1 TC ENG(57L),6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2	1-83574-190-0	01	1	0406-0608	●	●
201	CLIP; HOSE,CMPR TO EVAP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) FRONT STABILIZER SHAFT<F59> (A) ID=12.2 & 16.2	1-83574-190-0	01	1	0609-	●	●	●
201	CLIP; HOSE,CMPR TO EVAP 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2	1-83574-190-0	01	1	0609-	●	●
213	BOLT; FLEX HOSE TO CMPR 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X25 FLANGE	0-28080-625-0	02	1	0406-0512		●
213	BOLT; FLEX HOSE TO CMPR 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X25 FLANGE	0-28050-625-0	02	1	0601-		●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28680-825-0	02	1	9804-0004	●	●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28680-825-0	02	1	0005-0512	●	●	●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-0608	●	●	●
213	BOLT; FLEX HOSE TO CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT STABILIZER SHAFT<F59> (A) M8X25 FLANGE	0-28650-825-0	02	1	0609-	●	●	●
213	BOLT; FLEX HOSE TO CMPR 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28650-825-0	02	1	0609-	●	●
213	BOLT; FLEX HOSE TO CMPR 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X35 FLANGE	0-28681-035-0	01	1	9806-0512	●	●
213	BOLT; FLEX HOSE TO CMPR 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X35 FLANGE	0-28651-035-0	01	1	0601-	●	●
213	BOLT; FLEX HOSE TO CMPR 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE	0-28080-816-0	02	1	9804-0004	●	●
213	BOLT; FLEX HOSE TO CMPR 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE	0-28080-816-0	02	1	0005-0512	●	●	●
213	BOLT; FLEX HOSE TO CMPR 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●	●
213	BOLT; FLEX HOSE TO CMPR 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M10X45 FLANGE	0-28081-045-0	01	1	9804-0004	●	●
213	BOLT; FLEX HOSE TO CMPR 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M10X45 FLANGE	0-28081-045-0	01	1	0005-0512	●	●	●
213	BOLT; FLEX HOSE TO CMPR 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M10X45 FLANGE	0-28051-045-0	01	1	0601-	●	●	●
263	NUT; FLEX HOSE 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	02	1	9804-0004	●	●
263	NUT; FLEX HOSE 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	02	1	0005-0602	●	●	●
263	NUT; FLEX HOSE 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	02	1	0603-0608	●	●	●
263	NUT; FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT STABILIZER SHAFT<F59> M8 FLANGE	0-91180-108-0	02	1	0609-	●	●	●
311	NUT; HOSE CLIP 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9804-0405	●	●
311	NUT; HOSE CLIP 6HE1 TC ENG(57L),6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	0406-0602	●	●
311	NUT; HOSE CLIP 6HE1 TC ENG(57L),6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	0603-0608	●	●
311	NUT; HOSE CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) FRONT STABILIZER SHAFT<F59> M8 FLANGE	0-91180-108-0	01	1	0609-	●	●	●
311	NUT; HOSE CLIP 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	0609-	●	●

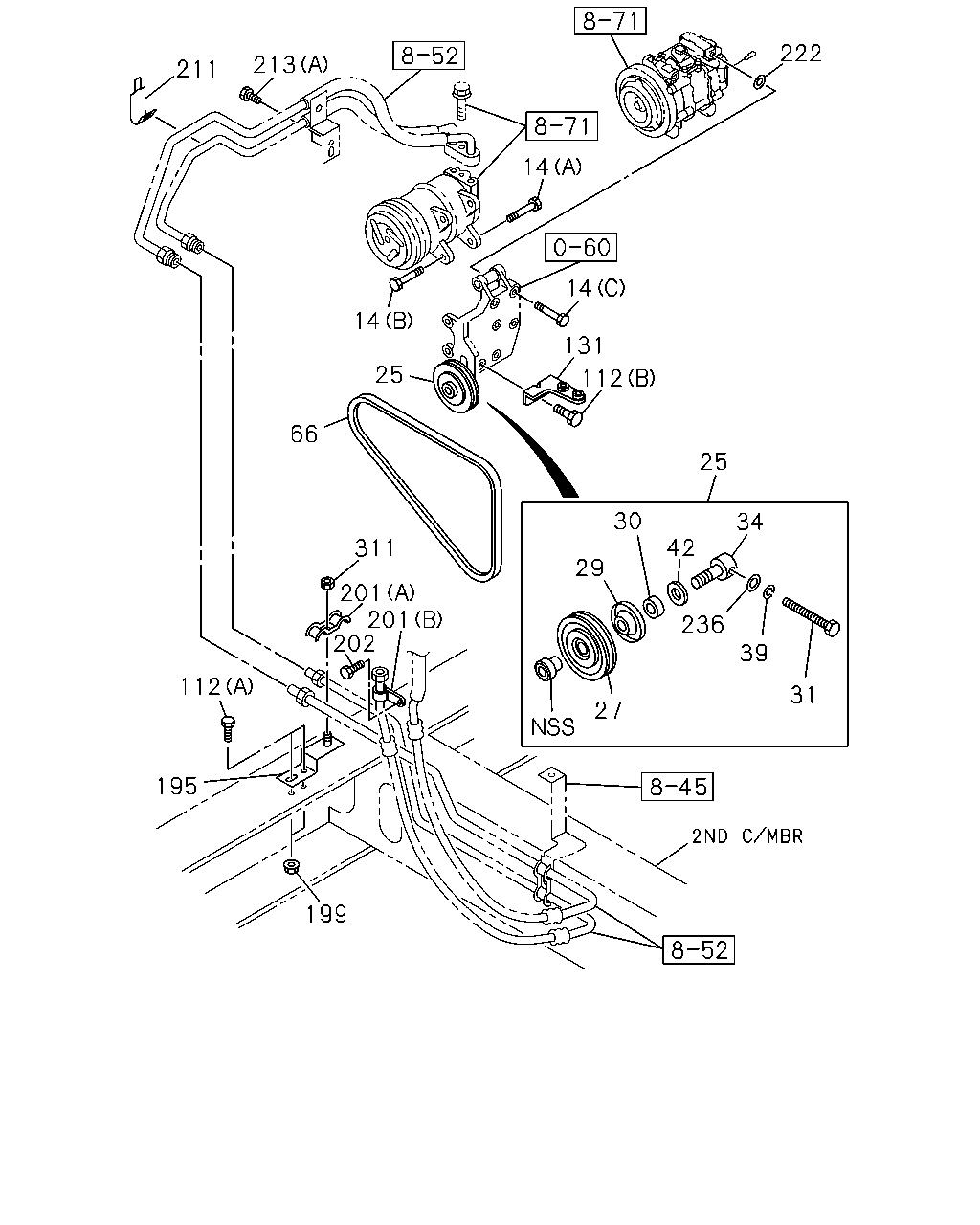

222 213 211 14 14 14 131 25 112 66 25 30 34 42 311 29 201 201 202 236 39 112 31 27 195 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
14	BOLT; CMPR 6HK1 TCS ENG(80L) (C) M8X80 FLANGE	0-28080-880-0	04	1	0406-0512		●
14	BOLT; CMPR 6HK1 TCS ENG(80L) (C) M8X80 FLANGE	0-28050-880-0	04	1	0601-		●
14	BOLT; CMPR 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X45 FLANGE	0-28081-045-0	02	1	9804-0405	●	●
14	BOLT; CMPR 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X45 FLANGE	0-28081-045-0	02	1	0406-0512	●
14	BOLT; CMPR 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X45 FLANGE	0-28051-045-0	02	1	0601-	●
14	BOLT; CMPR 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X35 FLANGE	0-28681-035-0	02	1	9804-0405	●	●
14	BOLT; CMPR 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X35 FLANGE	0-28681-035-0	02	1	0406-0512	●
14	BOLT; CMPR 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X35 FLANGE	0-28651-035-0	02	1	0601-	●
25	PULLEY ASM; IDLER,CMPR 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94399-957-0	01	1	9804-0405	●	●
25	PULLEY ASM; IDLER,CMPR 6HE1 TC ENG(57L),6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94399-957-0	01	1	0406-	●	●
25	PULLEY ASM; IDLER,CMPR 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83570-021-0	01	1	9804-0004	●	●
25	PULLEY ASM; IDLER,CMPR 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83570-021-0	01	1	0005-0210	●	●
25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83570-021-0	01	1	0005-0210			●
25	PULLEY ASM; IDLER,CMPR 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83570-021-0	01	1	0211-	●
25	PULLEY ASM; IDLER,CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83570-021-0	01	1	0211-		●
25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83570-021-0	01	1	0211-			●
27	PULLEY; IDLE,A/C 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-116-0	01	1	9804-0405	●	●
27	PULLEY; IDLE,A/C 6HE1 TC ENG(57L),6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-116-0	01	1	0406-	●	●
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	9-13369-603-0	01	1	9804-0004	●	●
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	9-13369-603-0	01	1	0005-0210	●		●
29	COVER; DUST,IDLE PULLEY 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60)	9-13369-603-0	01	1	0005-0210		●
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	9-13369-603-0	01	1	0211-0405	●		●
29	COVER; DUST,IDLE PULLEY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60)	9-13369-603-0	01	1	0211-0405		●
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	9-13369-603-0	01	1	0406-	●		●
29	COVER; DUST,IDLE PULLEY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60)	9-13369-603-0	01	1	0406-		●
30	COLLAR; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-144-0	01	1	9804-0004	●	●
30	COLLAR; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-144-0	01	1	0005-0210	●		●
30	COLLAR; IDLE PULLEY 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-144-0	01	1	0005-0210		●
30	COLLAR; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-144-0	01	1	0211-0405	●		●
30	COLLAR; IDLE PULLEY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-144-0	01	1	0211-0405		●
30	COLLAR; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-144-0	01	1	0406-	●		●
30	COLLAR; IDLE PULLEY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-144-0	01	1	0406-		●
31	BOLT; ADJ,IDLE PULLEY 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-143-0	01	1	9804-0405	●	●
31	BOLT; ADJ,IDLE PULLEY 6HE1 TC ENG(57L),6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-143-0	01	1	0406-	●	●
31	BOLT; ADJ,IDLE PULLEY 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94238-324-0	01	1	9804-0004	●	●
31	BOLT; ADJ,IDLE PULLEY 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94238-324-0	01	1	0005-0210	●	●
31	BOLT; ADJ,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	8-94238-324-0	01	1	0005-0210			●
31	BOLT; ADJ,IDLE PULLEY 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94238-324-0	01	1	0211-	●
31	BOLT; ADJ,IDLE PULLEY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94238-324-0	01	1	0211-		●
31	BOLT; ADJ,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	8-94238-324-0	01	1	0211-			●
34	SHAFT; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-236-0	01	1	9804-0004	●	●
34	SHAFT; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-236-0	01	1	0005-0210	●		●
34	SHAFT; IDLE PULLEY 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-236-0	01	1	0005-0210		●
34	SHAFT; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-236-0	01	1	0211-0405	●		●
34	SHAFT; IDLE PULLEY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-236-0	01	1	0211-0405		●
34	SHAFT; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-236-0	01	1	0406-	●		●
34	SHAFT; IDLE PULLEY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-236-0	01	1	0406-		●
39	WASHER; LK,ADJ BOLT 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) ID=8.2	9-09150-608-0	01	1	9804-0405	●	●
39	WASHER; LK,ADJ BOLT 6HE1 TC ENG(57L),6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) ID=8.2	9-09150-608-0	01	1	0406-	●	●
39	WASHER; LK,ADJ BOLT 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-492-0	01	1	9804-0004	●	●
39	WASHER; LK,ADJ BOLT 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-492-0	01	1	0005-0210	●	●
39	WASHER; LK,ADJ BOLT AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-492-0	01	1	0005-0210			●
39	WASHER; LK,ADJ BOLT 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-492-0	01	1	0211-	●
39	WASHER; LK,ADJ BOLT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-492-0	01	1	0211-		●
39	WASHER; LK,ADJ BOLT AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-492-0	01	1	0211-			●
42	WASHER; PULLEY 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60)	8-97014-636-0	01	1	9804-0405	●	●
42	WASHER; PULLEY 6HE1 TC ENG(57L),6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60)	8-97014-636-0	01	1	0406-	●	●
66	BELT; A/C CMPR 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) L=1082	1-13671-256-0	01	1	0407-1402		●
66	BELT; A/C CMPR 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) L=1077	8-98253-452-0	01	1	1403-		●
66	BELT; A/C CMPR 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) L=1110	8-94395-172-0	01	1	9804-0405	●	●
66	BELT; A/C CMPR 6HE1 TC ENG(57L),6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) L=1110	8-94395-172-0	01	1	0406-	●	●
66	BELT; A/C CMPR 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) L=1196	1-13671-405-0	01	1	9804-0004	●	●
66	BELT; A/C CMPR 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) L=1196	1-13671-405-0	01	1	0005-0107	●	●
66	BELT; A/C CMPR AIR CONDITIONER MANUAL CONTROL(C60) L=1196	1-13671-405-0	01	1	0005-0107			●
66	BELT; A/C CMPR 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) L=1196	1-13671-464-1	01	1	0108-0210	●	●
66	BELT; A/C CMPR AIR CONDITIONER MANUAL CONTROL(C60) L=1196	1-13671-464-1	01	1	0108-0210			●
66	BELT; A/C CMPR 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) L=1196	1-13671-464-1	01	1	0211-	●
66	BELT; A/C CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) L=1196	1-13671-464-1	01	1	0211-		●
66	BELT; A/C CMPR AIR CONDITIONER MANUAL CONTROL(C60) L=1196	1-13671-464-1	01	1	0211-			●
112	BOLT; STAY 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28680-825-0	02	1	9804-0405	●	●
112	BOLT; STAY 6HE1 TC ENG(57L),6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28680-825-0	02	1	0406-0512	●	●
112	BOLT; STAY 6HE1 TC ENG(57L),6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-0608	●	●
112	BOLT; STAY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) FRONT STABILIZER SHAFT<F59> (A) M8X25 FLANGE	0-28650-825-0	02	1	0609-	●	●	●
112	BOLT; STAY 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28650-825-0	02	1	0609-	●	●
112	BOLT; STAY 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE	0-28080-816-0	02	1	9812-0405	●	●
112	BOLT; STAY 6HE1 TC ENG(57L),6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE	0-28080-816-0	02	1	0406-0512	●	●
112	BOLT; STAY 6HE1 TC ENG(57L),6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
112	BOLT; STAY 6HE1 TC ENG(57L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> (B) M8X16 FLANGE	0-28080-816-0	02	1	9804-9806	●	●
112	BOLT; STAY 6HE1 TC ENG(57L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> (B) M8X16 FLANGE	0-28080-816-0	02	1	9807-9811	●	●		●
131	STAY; CMPR BRKT 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94393-451-0	01	1	9812-0405	●	●
131	STAY; CMPR BRKT 6HE1 TC ENG(57L),6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94393-451-0	01	1	0406-	●	●
131	STAY; CMPR BRKT 6HE1 TC ENG(57L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN>	8-94393-451-0	01	1	9804-9806	●	●
131	STAY; CMPR BRKT 6HE1 TC ENG(57L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN>	8-94393-451-0	01	1	9807-9811	●	●		●
195	STAY; CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) FRONT STABILIZER SHAFT<F59>	8-98055-424-0	01	1	0609-	●	●	●
195	STAY; CLIP AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR<WS4>	1-83573-172-0	01	1	0406-0608		●
195	STAY; CLIP 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83573-172-0	01	1	0609-		●
195	STAY; CLIP 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83573-088-0	01	1	9804-	●	●
199	NUT 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	02	1	9806-0602	●	●
199	NUT 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	02	1	0603-0608	●	●
199	NUT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) FRONT STABILIZER SHAFT<F59> M8 FLANGE	0-91180-108-0	02	1	0609-	●	●	●
199	NUT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	02	1	0609-	●	●
201	CLIP; HOSE,CMPR TO EVAP AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=19 L=20	9-09525-836-0	01	1	9804-0004	●	●
201	CLIP; HOSE,CMPR TO EVAP AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=19 L=20	9-09525-836-0	01	1	0005-0606	●	●	●
201	CLIP; HOSE,CMPR TO EVAP AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=19 L=20	0-95235-836-0	01	1	0607-	●	●	●
201	CLIP; HOSE,CMPR TO EVAP 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2	1-83574-190-0	01	1	9804-0405	●	●
201	CLIP; HOSE,CMPR TO EVAP 6HE1 TC ENG(57L),6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2	1-83574-190-0	01	1	0406-0608	●	●
201	CLIP; HOSE,CMPR TO EVAP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) FRONT STABILIZER SHAFT<F59> (A) ID=12.2 & 16.2	1-83574-190-0	01	1	0609-	●	●	●
201	CLIP; HOSE,CMPR TO EVAP 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2	1-83574-190-0	01	1	0609-	●	●
202	BOLT; CLIP,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28680-825-0	01	1	9804-0004	●	●
202	BOLT; CLIP,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28680-825-0	01	1	0005-0512	●	●	●
202	BOLT; CLIP,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●
211	CLIP; HOSE 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) L=170	1-83574-139-0	01	1	9810-1205	●	●
211	CLIP; HOSE 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) L=170	8-98166-021-0	01	1	1206-	●	●
213	BOLT; FLEX HOSE TO CMPR 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X25 FLANGE	0-28080-625-0	02	1	0406-0512		●
213	BOLT; FLEX HOSE TO CMPR 6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X25 FLANGE	0-28050-625-0	02	1	0601-		●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28680-825-0	02	1	9804-0004	●	●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28680-825-0	02	1	0005-0512	●	●	●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-0608	●	●	●
213	BOLT; FLEX HOSE TO CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT STABILIZER SHAFT<F59> (A) M8X25 FLANGE	0-28650-825-0	02	1	0609-	●	●	●
213	BOLT; FLEX HOSE TO CMPR 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28650-825-0	02	1	0609-	●	●
213	BOLT; FLEX HOSE TO CMPR 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X35 FLANGE	0-28681-035-0	01	1	9806-0512	●	●
213	BOLT; FLEX HOSE TO CMPR 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X35 FLANGE	0-28651-035-0	01	1	0601-	●	●
213	BOLT; FLEX HOSE TO CMPR 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE	0-28080-816-0	02	1	9804-0004	●	●
213	BOLT; FLEX HOSE TO CMPR 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE	0-28080-816-0	02	1	0005-0512	●	●	●
213	BOLT; FLEX HOSE TO CMPR 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●	●
213	BOLT; FLEX HOSE TO CMPR 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M10X45 FLANGE	0-28081-045-0	01	1	9804-0004	●	●
213	BOLT; FLEX HOSE TO CMPR 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M10X45 FLANGE	0-28081-045-0	01	1	0005-0512	●	●	●
213	BOLT; FLEX HOSE TO CMPR 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M10X45 FLANGE	0-28051-045-0	01	1	0601-	●	●	●
222	GASKET; CONNECTOR 6HK1 TCS ENG(80L) ID=8.4 OD=19	5-11779-001-0	04	1	0406-		●
236	WASHER; PL,ADJ BOLT 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60)	1-09503-216-0	01	1	9804-0405	●	●
236	WASHER; PL,ADJ BOLT 6HE1 TC ENG(57L),6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60)	1-09503-216-0	01	1	0406-	●	●
311	NUT; HOSE CLIP 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9804-0405	●	●
311	NUT; HOSE CLIP 6HE1 TC ENG(57L),6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	0406-0602	●	●
311	NUT; HOSE CLIP 6HE1 TC ENG(57L),6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	0603-0608	●	●
311	NUT; HOSE CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) FRONT STABILIZER SHAFT<F59> M8 FLANGE	0-91180-108-0	01	1	0609-	●	●	●
311	NUT; HOSE CLIP 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCS ENG(80L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	0609-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
