Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#63912) — 348 parça

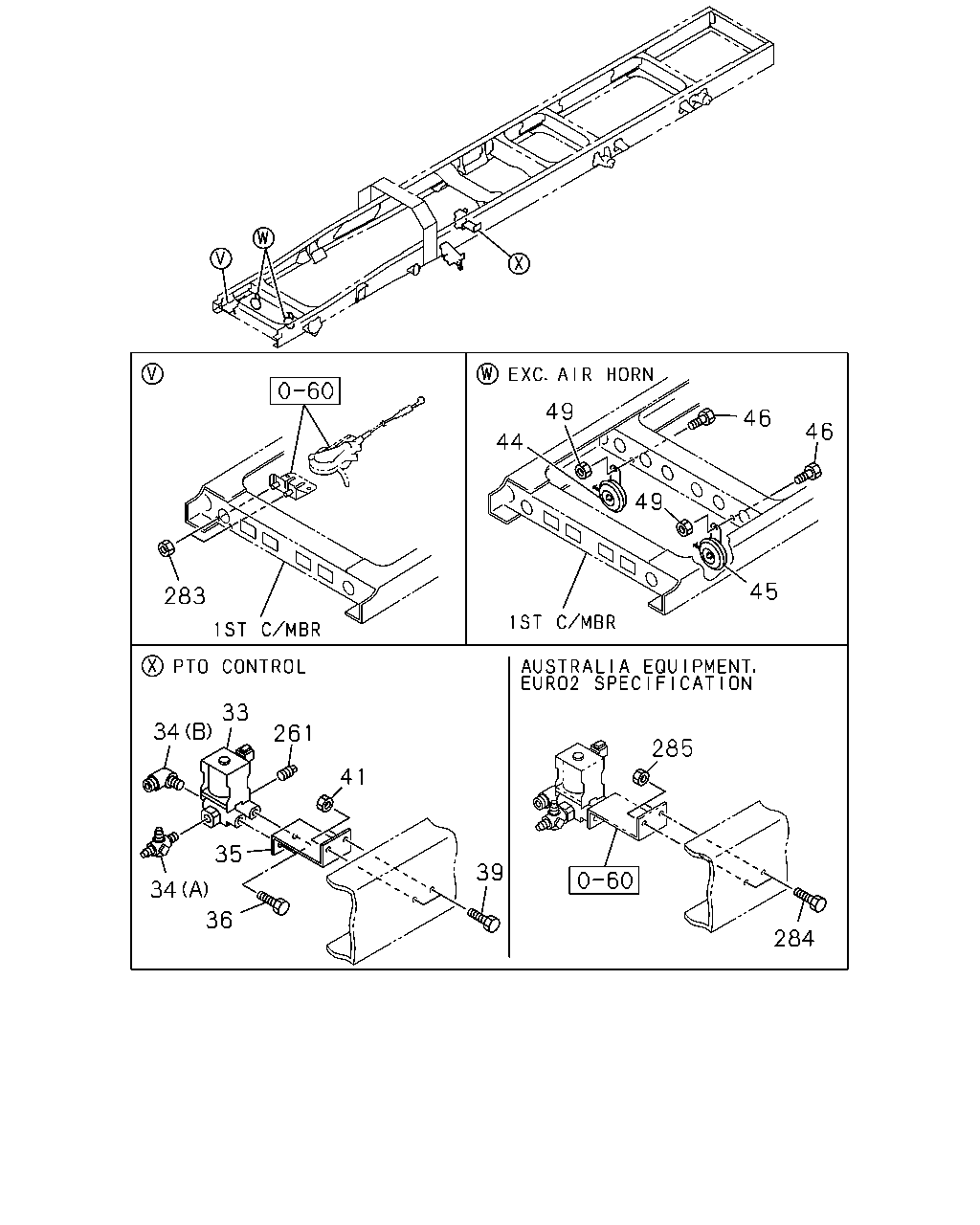

60 49 46 46 44 49 45 283 33 34 261 285 41 35 39 60 34 36 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
33	VALVE; MAG,PTO CONT PTO CONTROL<SV6>	1-82563-600-2	01	1	9601-9706	●	●
33	VALVE; MAG,PTO CONT PTO CONTROL<SV6>	1-82563-600-4	01	1	9707-0004	●	●	●
33	VALVE; MAG,PTO CONT ZF 9S109 OD M/T(Y2L) PTO CONTROL<SV6>	1-82563-600-4	01	1	0005-0005	●	●	●
33	VALVE; MAG,PTO CONT 6HH1 STD 4VALVE ENG(1A6),6SD1 STD ENG(37L), 6HE1TC ENG(57L),6HH1 STD ENG(65L) PTO CONTROL<SV6> ISUZU M/T<X9A>	1-82563-600-4	01	1	0005-0005	●	●
33	VALVE; MAG,PTO CONT ZF 9S109 OD M/T(Y2L) PTO CONTROL<SV6>	1-82563-600-4	01	1	0006-0011	●	●	●
33	VALVE; MAG,PTO CONT 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) PTO CONTROL<SV6> ISUZU M/T<X9A>	1-82563-600-4	01	1	0006-0011			●
33	VALVE; MAG,PTO CONT 6HH1 STD 4VALVE ENG(1A6),6SD1 STD ENG(37L), 6HE1TC ENG(57L),6HH1 STD ENG(65L) PTO CONTROL<SV6> ISUZU M/T<X9A>	1-82563-600-4	01	1	0006-0011	●	●
33	VALVE; MAG,PTO CONT PTO CONTROL<SV6> ISUZU M/T<X9A>	1-82563-600-5	01	1	0012-	●	●	●
33	VALVE; MAG,PTO CONT ZF 9S109 OD M/T(Y2L) PTO CONTROL<SV6>	1-82563-600-5	01	1	0012-	●	●	●
34	CONNECTOR; MAG VLV,INL PORT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) PTO CONTROL<SV6> ISUZU M/T<X9A> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0205-0406	●	●	●
34	CONNECTOR; MAG VLV,INL PORT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) PTO CONTROL<SV6> ISUZU M/T<X9A> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0407-	●	●	●
34	CONNECTOR; MAG VLV,INL PORT ZF 9S109 OD M/T(Y2L) PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0407-	●	●	●
34	CONNECTOR; MAG VLV,INL PORT ZF 9S109 OD M/T(Y2L) PTO CONTROL<SV6> (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9804-9806	●	●	●
34	CONNECTOR; MAG VLV,INL PORT ZF 9S109 OD M/T(Y2L) PTO CONTROL<SV6> (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9807-0011	●	●	●
34	CONNECTOR; MAG VLV,INL PORT 6SD1 STD ENG(37L) PTO CONTROL<SV6> ISUZU M/T<X9A> (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9807-0011	●	●
34	CONNECTOR; MAG VLV,INL PORT ZF 9S109 OD M/T(Y2L) PTO CONTROL<SV6> (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	0012-0204	●	●	●
34	CONNECTOR; MAG VLV,INL PORT 6SD1 TCN ENG(31L) PTO CONTROL<SV6> ISUZU M/T<X9A> (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	0012-0204			●
34	CONNECTOR; MAG VLV,INL PORT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) PTO CONTROL<SV6> ISUZU M/T<X9A> (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	0012-0204	●	●
34	CONNECTOR; MAG VLV,INL PORT ZF 9S109 OD M/T(Y2L) PTO CONTROL<SV6> (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	0205-0406	●	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9601-9706	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9707-9803	●	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (A) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9804-0004	●	●	●
34	CONNECTOR; MAG VLV,INL PORT ZF 9S109 OD M/T(Y2L) PTO CONTROL<SV6> (A) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0005-0005	●	●	●
34	CONNECTOR; MAG VLV,INL PORT 6HH1 STD 4VALVE ENG(1A6),6SD1 STD ENG(37L), 6HE1TC ENG(57L),6HH1 STD ENG(65L) PTO CONTROL<SV6> ISUZU M/T<X9A> (A) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0005-0005	●	●
34	CONNECTOR; MAG VLV,INL PORT ZF 9S109 OD M/T(Y2L) PTO CONTROL<SV6> (A) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0006-0011	●	●	●
34	CONNECTOR; MAG VLV,INL PORT 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) PTO CONTROL<SV6> ISUZU M/T<X9A> (A) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0006-0011			●
34	CONNECTOR; MAG VLV,INL PORT 6HH1 STD 4VALVE ENG(1A6),6SD1 STD ENG(37L), 6HE1TC ENG(57L),6HH1 STD ENG(65L) PTO CONTROL<SV6> ISUZU M/T<X9A> (A) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0006-0011	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> ISUZU M/T<X9A> (A) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0012-	●	●	●
34	CONNECTOR; MAG VLV,INL PORT ZF 9S109 OD M/T(Y2L) PTO CONTROL<SV6> (A) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0012-	●	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (A)	1-09660-718-1	01	1	9601-9706	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (A)	1-09660-718-1	01	1	9707-9803	●	●	●
34	CONNECTOR; MAG VLV,INL PORT ISUZU M/T<X9A> PTO CONTROL<SV6> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9804-0004	●	●	●
34	CONNECTOR; MAG VLV,INL PORT 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) PTO CONTROL<SV6> ISUZU M/T<X9A> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0005-0005	●	●
34	CONNECTOR; MAG VLV,INL PORT 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) PTO CONTROL<SV6> ISUZU M/T<X9A> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0006-	●	●	●
35	BRACKET; MAG VLV,PTO CONT PTO CONTROL<SV6>	1-47477-462-0	01	1	9601-9704	●	●
35	BRACKET; MAG VLV,PTO CONT PTO CONTROL<SV6>	1-47477-953-0	01	1	9705-9706	●	●
35	BRACKET; MAG VLV,PTO CONT PTO CONTROL<SV6>	1-47477-953-0	01	1	9707-0004	●	●	●
35	BRACKET; MAG VLV,PTO CONT ZF 9S109 OD M/T(Y2L) PTO CONTROL<SV6>	1-47477-953-0	01	1	0005-0011	●	●	●
35	BRACKET; MAG VLV,PTO CONT 6SD1 STD ENG(37L) PTO CONTROL<SV6> ISUZU M/T<X9A>	1-47477-953-0	01	1	0005-0011	●	●
35	BRACKET; MAG VLV,PTO CONT ZF 9S109 OD M/T(Y2L) PTO CONTROL<SV6>	1-47477-953-1	01	1	0012-	●	●	●
35	BRACKET; MAG VLV,PTO CONT 6SD1 TCN ENG(31L) PTO CONTROL<SV6> ISUZU M/T<X9A>	1-47477-953-1	01	1	0012-			●
35	BRACKET; MAG VLV,PTO CONT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) PTO CONTROL<SV6> ISUZU M/T<X9A>	1-47477-953-1	01	1	0012-	●	●
35	BRACKET; MAG VLV,PTO CONT 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) PTO CONTROL<SV6> ISUZU M/T<X9A>	1-47477-967-0	01	1	0005-0005	●	●
35	BRACKET; MAG VLV,PTO CONT 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) PTO CONTROL<SV6> ISUZU M/T<X9A>	1-47477-967-0	01	1	0006-	●	●	●
36	BOLT; MAG VLV,PTO CONT 6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> M8X20 FLANGE	0-28650-820-0	03	1	0605-		●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28080-820-0	02	1	9601-9706	●	●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28080-820-0	02	1	9707-0004	●	●	●
36	BOLT; MAG VLV,PTO CONT ZF 9S109 OD M/T(Y2L) PTO CONTROL<SV6> M8X20 FLANGE	0-28080-820-0	02	1	0005-0005	●	●	●
36	BOLT; MAG VLV,PTO CONT 6HH1 STD 4VALVE ENG(1A6),6SD1 STD ENG(37L), 6HE1TC ENG(57L),6HH1 STD ENG(65L) PTO CONTROL<SV6> ISUZU M/T<X9A> M8X20 FLANGE	0-28080-820-0	02	1	0005-0005	●	●
36	BOLT; MAG VLV,PTO CONT ZF 9S109 OD M/T(Y2L) PTO CONTROL<SV6> M8X20 FLANGE	0-28080-820-0	02	1	0006-0011	●	●	●
36	BOLT; MAG VLV,PTO CONT 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) PTO CONTROL<SV6> ISUZU M/T<X9A> M8X20 FLANGE	0-28080-820-0	02	1	0006-0011			●
36	BOLT; MAG VLV,PTO CONT 6HH1 STD 4VALVE ENG(1A6),6SD1 STD ENG(37L), 6HE1TC ENG(57L),6HH1 STD ENG(65L) PTO CONTROL<SV6> ISUZU M/T<X9A> M8X20 FLANGE	0-28080-820-0	02	1	0006-0011	●	●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> ISUZU M/T<X9A> M8X20 FLANGE	0-28080-820-0	02	1	0012-0512	●	●	●
36	BOLT; MAG VLV,PTO CONT ZF 9S109 OD M/T(Y2L) PTO CONTROL<SV6> M8X20 FLANGE	0-28080-820-0	02	1	0012-0512	●	●	●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> ISUZU M/T<X9A> M8X20 FLANGE	0-28050-820-0	02	1	0601-	●	●	●
36	BOLT; MAG VLV,PTO CONT ZF 9S109 OD M/T(Y2L) PTO CONTROL<SV6> M8X20 FLANGE	0-28050-820-0	02	1	0601-	●	●	●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> M8X30 FLANGE	0-28080-830-0	02	1	9601-9606	●	●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> M8X35 FLANGE	0-28680-835-0	02	1	9607-9706	●	●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> M8X35 FLANGE	0-28680-835-0	02	1	9707-0512	●	●	●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> M8X35 FLANGE	0-28650-835-0	02	1	0601-	●	●	●
41	NUT; BRKT,MAG VLV PTO CONTROL<SV6> M8	9-09110-408-0	02	1	9601-9606	●	●
41	NUT; BRKT,MAG VLV PTO CONTROL<SV6> M8 FLANGE	0-91150-108-0	02	1	9607-9706	●	●
41	NUT; BRKT,MAG VLV PTO CONTROL<SV6> M8 FLANGE	0-91150-108-0	02	1	9707-0602	●	●	●
41	NUT; BRKT,MAG VLV PTO CONTROL<SV6> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
44	HORN; HIGH NOTE	1-83410-057-1	01	1	9601-9803	●	●	●
44	HORN; HIGH NOTE EXC. AIR HORN<WB8>	1-83410-057-1	01	1	9804-0004	●	●	●	●
44	HORN; HIGH NOTE	1-83410-057-1	01	1	0005-0210	●	●	●	●	●
44	HORN; HIGH NOTE	1-83410-065-1	01	1	0211-	●	●	●	●	●
45	HORN; LOW NOTE	1-83410-058-1	01	1	9601-9803	●	●	●
45	HORN; LOW NOTE EXC. AIR HORN<WB8>	1-83410-058-1	01	1	9804-0004	●	●	●	●
45	HORN; LOW NOTE	1-83410-058-1	01	1	0005-0210	●	●	●	●	●
45	HORN; LOW NOTE	1-83410-064-1	01	1	0211-	●	●	●	●	●
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28080-825-0	02	1	9601-9606	●	●	●
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28680-825-0	02	1	9607-9803	●	●	●
46	BOLT; HORN TO BODY EXC. AIR HORN<WB8> M8X25 FLANGE	0-28680-825-0	02	1	9804-0004	●	●	●	●
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28680-825-0	02	1	0005-0512	●	●	●	●	●
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●	●	●
49	NUT; HORN TO BODY EXC. FRONT STABILIZER SHAFT<F59> M8 FLANGE	5-09440-005-0	02	1	9601-9606	●	●	●
49	NUT; HORN TO BODY EXC. FRONT STABILIZER SHAFT<F59> M8 FLANGE	0-91150-108-0	02	1	9607-9803	●	●	●
49	NUT; HORN TO BODY EXC. FRONT STABILIZER SHAFT<F59>,AIR HORN<WB8> M8 FLANGE	0-91150-108-0	02	1	9804-0004	●	●	●	●
49	NUT; HORN TO BODY EXC. FRONT STABILIZER SHAFT<F59> M8 FLANGE	0-91150-108-0	02	1	0005-0602	●	●	●	●	●
49	NUT; HORN TO BODY EXC. FRONT STABILIZER SHAFT<F59> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●	●
60	GROMMET; SCREW,BUZZER D=8.6X7.7 L=7.5	8-94279-078-0	01	1	9804-0112				●
261	PLUG; MAG VLV PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	9601-9706	●	●
261	PLUG; MAG VLV PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	9707-0004	●	●	●
261	PLUG; MAG VLV ZF 9S109 OD M/T(Y2L) PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	0005-0005	●	●	●
261	PLUG; MAG VLV 6HH1 STD 4VALVE ENG(1A6),6SD1 STD ENG(37L), 6HE1TC ENG(57L),6HH1 STD ENG(65L) PTO CONTROL<SV6> ISUZU M/T<X9A> PT1/4	9-99204-513-0	01	1	0005-0005	●	●
261	PLUG; MAG VLV ZF 9S109 OD M/T(Y2L) PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	0006-0011	●	●	●
261	PLUG; MAG VLV 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) PTO CONTROL<SV6> ISUZU M/T<X9A> PT1/4	9-99204-513-0	01	1	0006-0011			●
261	PLUG; MAG VLV 6HH1 STD 4VALVE ENG(1A6),6SD1 STD ENG(37L), 6HE1TC ENG(57L),6HH1 STD ENG(65L) PTO CONTROL<SV6> ISUZU M/T<X9A> PT1/4	9-99204-513-0	01	1	0006-0011	●	●
261	PLUG; MAG VLV PTO CONTROL<SV6> ISUZU M/T<X9A> PT1/4	9-99204-513-0	01	1	0012-0604	●	●	●
261	PLUG; MAG VLV ZF 9S109 OD M/T(Y2L) PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	0012-0604	●	●	●
261	PLUG; MAG VLV PTO CONTROL<SV6> ISUZU M/T<X9A> PT1/4	9-99204-513-0	01	1	0605-	●	●	●
261	PLUG; MAG VLV ZF 9S109 OD M/T(Y2L) PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	0605-	●	●	●
261	PLUG; MAG VLV 6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> PT1/4	9-99204-513-0	01	1	0605-		●
283	NUT; BRKT M8 FLANGE	5-09440-005-0	02	1	9601-9606	●	●	●
283	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-9803	●	●	●
283	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9804-0004	●	●	●	●
283	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0005-0405	●	●	●	●	●
283	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0406-0602	●		●	●	●
283	NUT; BRKT 6HH1 STD 4VALVE ENG(1A6),6SD1 TCN ENG(31L), 6SD1STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	02	1	0406-0602		●
283	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-0604	●		●	●	●
283	NUT; BRKT 6HH1 STD 4VALVE ENG(1A6),6SD1 TCN ENG(31L), 6SD1STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91180-108-0	02	1	0603-0604		●
283	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0605-	●		●	●	●
283	NUT; BRKT 6HH1 STD 4VALVE ENG(1A6),6SD1 TCN ENG(31L), 6SD1STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91180-108-0	02	1	0605-		●
284	BOLT; MAG VLV 6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> M6X50 FLANGE	0-28050-650-0	02	1	0605-		●
284	BOLT; MAG VLV 6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> M8X25 FLANGE	0-28650-825-0	03	1	0605-		●
284	BOLT; MAG VLV 6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) M8X30 FLANGE	0-28080-830-0	02	1	9601-9606		●
284	BOLT; MAG VLV 6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) M8X35 FLANGE	0-28680-835-0	02	1	9607-9609		●
284	BOLT; MAG VLV 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M8X35 FLANGE	0-28680-835-0	02	1	9610-9705			●
284	BOLT; MAG VLV 6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) M8X35 FLANGE	0-28680-835-0	02	1	9610-9705		●
284	BOLT; MAG VLV 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M8X35 FLANGE	0-28680-835-0	02	1	9706-9709		●	●
284	BOLT; MAG VLV 6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) M8X35 FLANGE	0-28680-835-0	02	1	9706-9709		●
284	BOLT; MAG VLV 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M8X35 FLANGE	0-28680-835-0	02	1	9710-9803		●	●
284	BOLT; MAG VLV 6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) M8X35 FLANGE	0-28680-835-0	02	1	9710-9803	●	●
284	BOLT; MAG VLV 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M8X35 FLANGE	0-28680-835-0	02	1	9804-0004		●	●
284	BOLT; MAG VLV 6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) M8X35 FLANGE	0-28680-835-0	02	1	9804-0004		●
284	BOLT; MAG VLV 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M8X35 FLANGE	0-28680-835-0	02	1	0005-0405		●	●
284	BOLT; MAG VLV 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M8X35 FLANGE	0-28680-835-0	02	1	0406-0512			●
284	BOLT; MAG VLV 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M8X35 FLANGE	0-28650-835-0	02	1	0601-			●
285	NUT; MAG VLV 6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> M6 FLANGE	0-91180-106-0	02	1	0605-		●
285	NUT; MAG VLV 6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91180-108-0	03	1	0605-		●
285	NUT; MAG VLV 6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) M8	9-09110-408-0	02	1	9601-9606		●
285	NUT; MAG VLV 6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) M8 FLANGE	0-91150-108-0	02	1	9607-9609		●
285	NUT; MAG VLV 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-108-0	02	1	9610-9705			●
285	NUT; MAG VLV 6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) M8 FLANGE	0-91150-108-0	02	1	9610-9705		●
285	NUT; MAG VLV 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-108-0	02	1	9706-9709		●	●
285	NUT; MAG VLV 6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) M8 FLANGE	0-91150-108-0	02	1	9706-9709		●
285	NUT; MAG VLV 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-108-0	02	1	9710-9803		●	●
285	NUT; MAG VLV 6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) M8 FLANGE	0-91150-108-0	02	1	9710-9803	●	●
285	NUT; MAG VLV 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-108-0	02	1	9804-0004		●	●
285	NUT; MAG VLV 6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) M8 FLANGE	0-91150-108-0	02	1	9804-0004		●
285	NUT; MAG VLV 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-108-0	02	1	0005-0405		●	●
285	NUT; MAG VLV 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-108-0	02	1	0406-0602			●
285	NUT; MAG VLV 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M8 FLANGE	0-91180-108-0	02	1	0603-			●

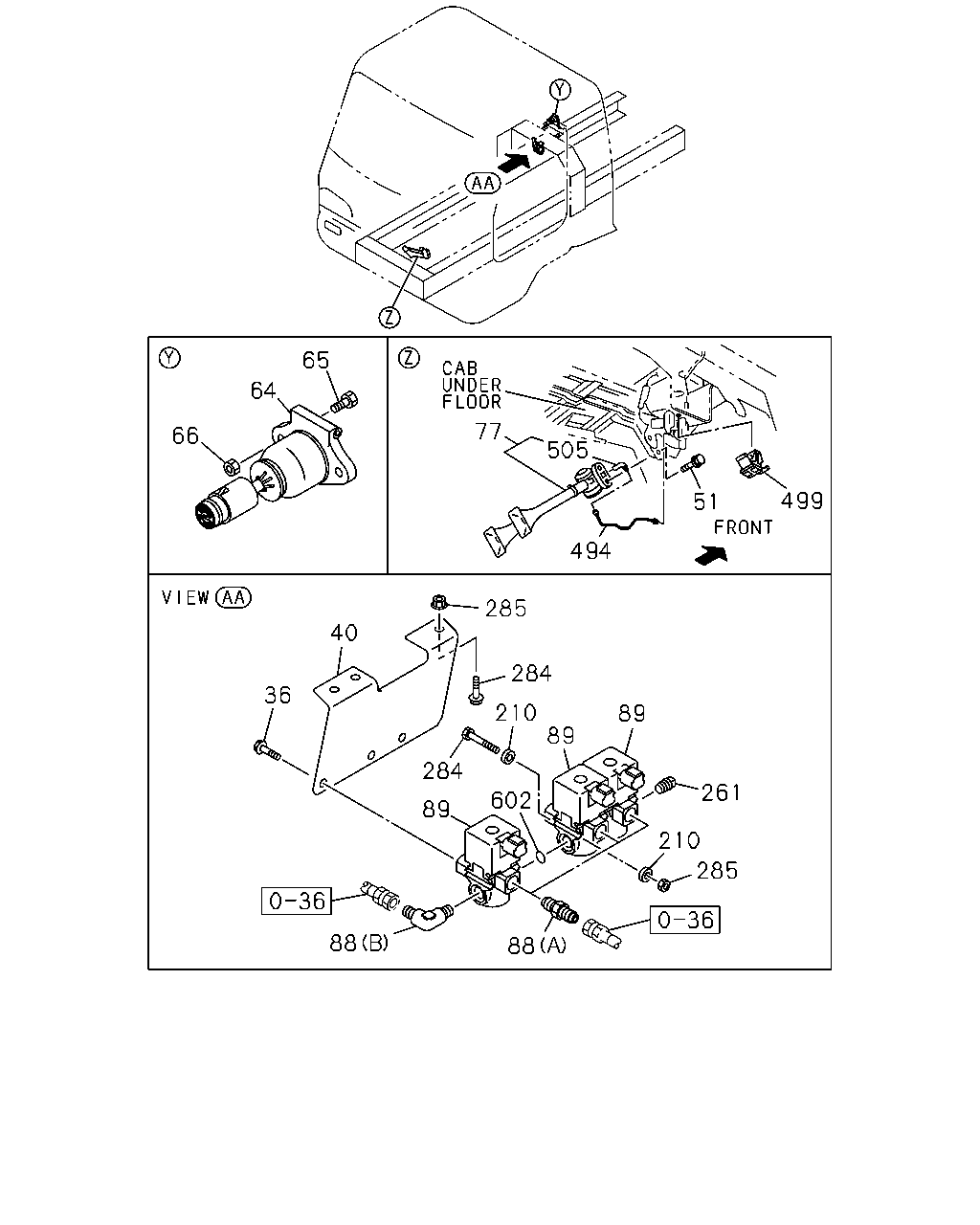

65 64 77 505 66 51 499 494 285 40 284 36 210 89 89 284 261 602 89 210 285 88 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
36	BOLT; MAG VLV,PTO CONT 6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> M8X20 FLANGE	0-28650-820-0	03	1	0605-		●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28080-820-0	02	1	9601-9706	●	●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28080-820-0	02	1	9707-0004	●	●	●
36	BOLT; MAG VLV,PTO CONT ZF 9S109 OD M/T(Y2L) PTO CONTROL<SV6> M8X20 FLANGE	0-28080-820-0	02	1	0005-0005	●	●	●
36	BOLT; MAG VLV,PTO CONT 6HH1 STD 4VALVE ENG(1A6),6SD1 STD ENG(37L), 6HE1TC ENG(57L),6HH1 STD ENG(65L) PTO CONTROL<SV6> ISUZU M/T<X9A> M8X20 FLANGE	0-28080-820-0	02	1	0005-0005	●	●
36	BOLT; MAG VLV,PTO CONT ZF 9S109 OD M/T(Y2L) PTO CONTROL<SV6> M8X20 FLANGE	0-28080-820-0	02	1	0006-0011	●	●	●
36	BOLT; MAG VLV,PTO CONT 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) PTO CONTROL<SV6> ISUZU M/T<X9A> M8X20 FLANGE	0-28080-820-0	02	1	0006-0011			●
36	BOLT; MAG VLV,PTO CONT 6HH1 STD 4VALVE ENG(1A6),6SD1 STD ENG(37L), 6HE1TC ENG(57L),6HH1 STD ENG(65L) PTO CONTROL<SV6> ISUZU M/T<X9A> M8X20 FLANGE	0-28080-820-0	02	1	0006-0011	●	●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> ISUZU M/T<X9A> M8X20 FLANGE	0-28080-820-0	02	1	0012-0512	●	●	●
36	BOLT; MAG VLV,PTO CONT ZF 9S109 OD M/T(Y2L) PTO CONTROL<SV6> M8X20 FLANGE	0-28080-820-0	02	1	0012-0512	●	●	●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> ISUZU M/T<X9A> M8X20 FLANGE	0-28050-820-0	02	1	0601-	●	●	●
36	BOLT; MAG VLV,PTO CONT ZF 9S109 OD M/T(Y2L) PTO CONTROL<SV6> M8X20 FLANGE	0-28050-820-0	02	1	0601-	●	●	●
40	BRACKET; MAG VLV 6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX>	1-82569-326-0	01	1	0605-		●
51	BOLT; HORN TO BRKT AIR HORN<WB8> M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9804-9804	●	●	●	●
51	BOLT; HORN TO BRKT AIR HORN<WB8> M8X20 FLANGE	0-28680-820-0	02	1	9805-0004	●	●	●	●
64	SOCKET; TRAILER 7P	1-82523-014-0	01	1	9804-				●
65	BOLT; SOCKET FIX M8X25 FLANGE	0-28680-825-0	02	1	9804-0512				●
65	BOLT; SOCKET FIX M8X25 FLANGE	0-28650-825-0	02	1	0601-				●
66	NUT; SOCKET FIX M8 FLANGE	0-91150-108-0	02	1	9804-0602				●
66	NUT; SOCKET FIX M8 FLANGE	0-91180-108-0	02	1	0603-				●
77	HORN ASM AIR HORN<WB8>	1-83430-038-2	01	1	9804-0004	●	●	●	●
88	CONNECTOR; MAG VLV 6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0605-		●
88	CONNECTOR; MAG VLV 6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0605-		●
89	VALVE; MAG,DIFF LOCK 6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX>	1-82563-871-2	03	1	0605-		●
210	WASHER; PL,BRKT 6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX>	1-82569-266-0	04	1	0605-		●
261	PLUG; MAG VLV PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	9601-9706	●	●
261	PLUG; MAG VLV PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	9707-0004	●	●	●
261	PLUG; MAG VLV ZF 9S109 OD M/T(Y2L) PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	0005-0005	●	●	●
261	PLUG; MAG VLV 6HH1 STD 4VALVE ENG(1A6),6SD1 STD ENG(37L), 6HE1TC ENG(57L),6HH1 STD ENG(65L) PTO CONTROL<SV6> ISUZU M/T<X9A> PT1/4	9-99204-513-0	01	1	0005-0005	●	●
261	PLUG; MAG VLV ZF 9S109 OD M/T(Y2L) PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	0006-0011	●	●	●
261	PLUG; MAG VLV 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L) PTO CONTROL<SV6> ISUZU M/T<X9A> PT1/4	9-99204-513-0	01	1	0006-0011			●
261	PLUG; MAG VLV 6HH1 STD 4VALVE ENG(1A6),6SD1 STD ENG(37L), 6HE1TC ENG(57L),6HH1 STD ENG(65L) PTO CONTROL<SV6> ISUZU M/T<X9A> PT1/4	9-99204-513-0	01	1	0006-0011	●	●
261	PLUG; MAG VLV PTO CONTROL<SV6> ISUZU M/T<X9A> PT1/4	9-99204-513-0	01	1	0012-0604	●	●	●
261	PLUG; MAG VLV ZF 9S109 OD M/T(Y2L) PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	0012-0604	●	●	●
261	PLUG; MAG VLV PTO CONTROL<SV6> ISUZU M/T<X9A> PT1/4	9-99204-513-0	01	1	0605-	●	●	●
261	PLUG; MAG VLV ZF 9S109 OD M/T(Y2L) PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	0605-	●	●	●
261	PLUG; MAG VLV 6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> PT1/4	9-99204-513-0	01	1	0605-		●
284	BOLT; MAG VLV 6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> M6X50 FLANGE	0-28050-650-0	02	1	0605-		●
284	BOLT; MAG VLV 6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> M8X25 FLANGE	0-28650-825-0	03	1	0605-		●
284	BOLT; MAG VLV 6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) M8X30 FLANGE	0-28080-830-0	02	1	9601-9606		●
284	BOLT; MAG VLV 6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) M8X35 FLANGE	0-28680-835-0	02	1	9607-9609		●
284	BOLT; MAG VLV 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M8X35 FLANGE	0-28680-835-0	02	1	9610-9705			●
284	BOLT; MAG VLV 6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) M8X35 FLANGE	0-28680-835-0	02	1	9610-9705		●
284	BOLT; MAG VLV 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M8X35 FLANGE	0-28680-835-0	02	1	9706-9709		●	●
284	BOLT; MAG VLV 6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) M8X35 FLANGE	0-28680-835-0	02	1	9706-9709		●
284	BOLT; MAG VLV 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M8X35 FLANGE	0-28680-835-0	02	1	9710-9803		●	●
284	BOLT; MAG VLV 6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) M8X35 FLANGE	0-28680-835-0	02	1	9710-9803	●	●
284	BOLT; MAG VLV 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M8X35 FLANGE	0-28680-835-0	02	1	9804-0004		●	●
284	BOLT; MAG VLV 6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) M8X35 FLANGE	0-28680-835-0	02	1	9804-0004		●
284	BOLT; MAG VLV 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M8X35 FLANGE	0-28680-835-0	02	1	0005-0405		●	●
284	BOLT; MAG VLV 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M8X35 FLANGE	0-28680-835-0	02	1	0406-0512			●
284	BOLT; MAG VLV 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M8X35 FLANGE	0-28650-835-0	02	1	0601-			●
285	NUT; MAG VLV 6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> M6 FLANGE	0-91180-106-0	02	1	0605-		●
285	NUT; MAG VLV 6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91180-108-0	03	1	0605-		●
285	NUT; MAG VLV 6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) M8	9-09110-408-0	02	1	9601-9606		●
285	NUT; MAG VLV 6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) M8 FLANGE	0-91150-108-0	02	1	9607-9609		●
285	NUT; MAG VLV 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-108-0	02	1	9610-9705			●
285	NUT; MAG VLV 6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) M8 FLANGE	0-91150-108-0	02	1	9610-9705		●
285	NUT; MAG VLV 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-108-0	02	1	9706-9709		●	●
285	NUT; MAG VLV 6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) M8 FLANGE	0-91150-108-0	02	1	9706-9709		●
285	NUT; MAG VLV 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-108-0	02	1	9710-9803		●	●
285	NUT; MAG VLV 6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) M8 FLANGE	0-91150-108-0	02	1	9710-9803	●	●
285	NUT; MAG VLV 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-108-0	02	1	9804-0004		●	●
285	NUT; MAG VLV 6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) M8 FLANGE	0-91150-108-0	02	1	9804-0004		●
285	NUT; MAG VLV 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-108-0	02	1	0005-0405		●	●
285	NUT; MAG VLV 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-108-0	02	1	0406-0602			●
285	NUT; MAG VLV 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M8 FLANGE	0-91180-108-0	02	1	0603-			●
494	PIPE; AIR,UNION TO HORN AIR HORN<WB8>	1-49115-750-0	01	1	9804-0004	●	●	●	●
499	CLIP; SWITCH 6HK1 TCS ENG(80L) OD=9 H=6	1-09709-178-0	01	1	0406-0604		●
499	CLIP; SWITCH 6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> OD=9 H=6	1-09709-178-0	01	1	0605-		●
499	CLIP; SWITCH 6HK1 TCS ENG(80L) OD=9 H=6	1-09709-178-0	01	1	0605-		●
505	JOINT; AIR HORN AIR HORN<WB8>	1-83439-005-0	01	1	9804-0004	●	●	●	●
602	GASKET; MAG VLV 6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> ID=16.8	9-09565-117-0	02	1	0605-		●

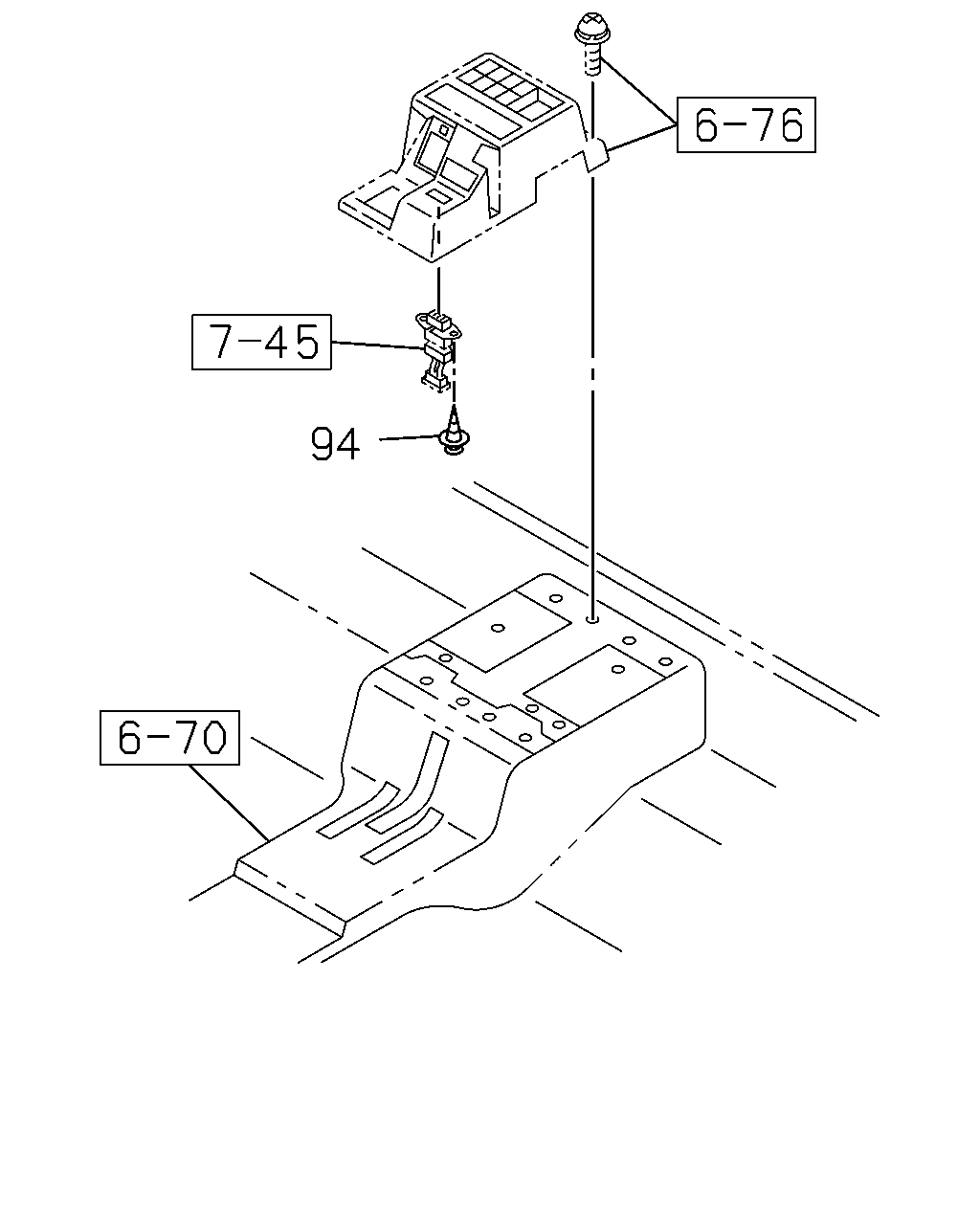

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
94	SCREW; CONSENT TO BLIND PNL M5X12 TAPPING W/PL WASHER	0-74110-512-0	02	1	9601-9803	●	●	●
94	SCREW; CONSENT TO BLIND PNL M5X12 TAPPING W/PL WASHER	0-74110-512-0	02	1	9804-9810	●	●	●	●
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	9811-0004	●	●	●	●
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	0005-0604	●	●	●	●	●
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74160-510-0	02	1	0605-	●	●	●	●	●

367 438 24 25 290 120 24 525 22 29 226 377 1 180 60 31 58 67 59 331 331 31 557 329 121 354 559 429 460 123 531 594 460 605

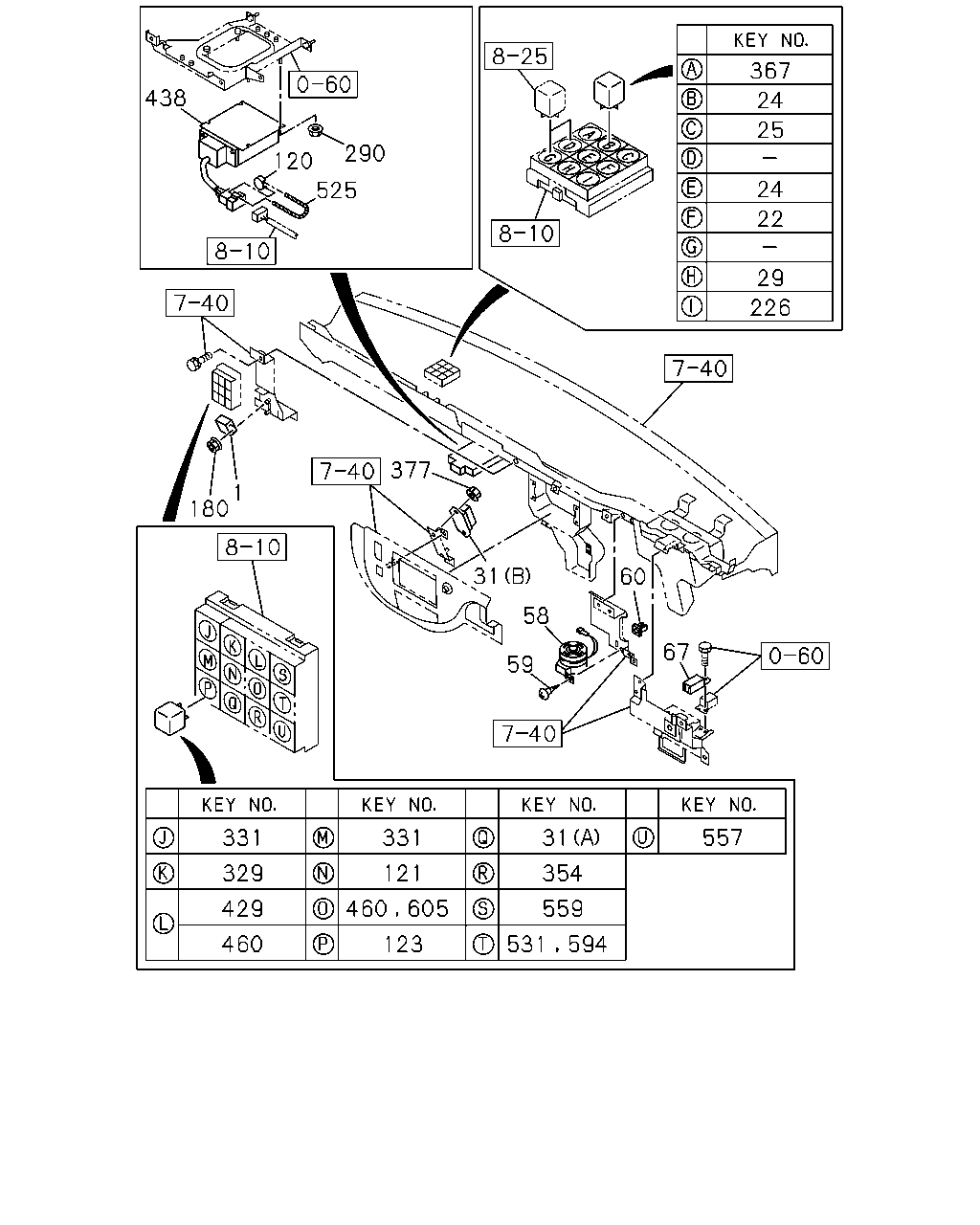

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	UNIT; FLASHER	1-83470-060-0	01	1	9601-0004	●	●	●
1	UNIT; FLASHER	1-83470-060-1	01	1	0005-	●	●	●		●
1	UNIT; FLASHER	1-83470-062-1	01	1	9804-				●
22	RELAY; STOP LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	9601-9803	●	●	●
22	RELAY; STOP LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	9804-0004	●	●	●	●
22	RELAY; STOP LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	0005-0111	●	●	●	●	●
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●	●	●	●
24	RELAY; LIGHTING 24V 12.5A MITUBA	8-97062-815-1	02	1	9601-9803	●	●	●
24	RELAY; LIGHTING 24V 12.5A MITUBA	8-97062-815-1	02	1	9804-0004	●	●	●	●
24	RELAY; LIGHTING 24V 12.5A MITUBA	8-97062-815-1	02	1	0005-0111	●	●	●	●	●
24	RELAY; LIGHTING 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-	●	●	●	●	●
25	RELAY; TAIL LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	9601-9803	●	●	●
25	RELAY; TAIL LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	9804-0004	●	●	●	●
25	RELAY; TAIL LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	0005-0111	●	●	●	●	●
25	RELAY; TAIL LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●	●	●	●
29	RELAY; HORN 24V 12.5A MITUBA	8-97062-815-1	01	1	9601-9803	●	●	●
29	RELAY; HORN EXC. AIR HORN<WB8> 24V 12.5A MITUBA	8-97062-815-1	01	1	9804-0004	●	●	●	●
29	RELAY; HORN 24V 12.5A MITUBA	8-97062-815-1	01	1	0005-0111	●	●	●	●	●
29	RELAY; HORN 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●	●	●	●
31	RELAY; PTO CONT PTO CONTROL<SV6> (B) 24V	1-82550-187-1	01	1	9601-9706	●	●
31	RELAY; PTO CONT PTO CONTROL<SV6> (B) 24V	1-82550-187-1	01	1	9707-0004	●	●	●
31	RELAY; PTO CONT PTO CONTROL<SV6> (B) 24V	1-82550-187-1	01	1	0005-	●		●
31	RELAY; PTO CONT PTO CONTROL<SV6> EXC. A/T<X9D> (B) 24V	1-82550-187-1	01	1	0005-		●
31	RELAY; PTO CONT PTO CONTROL<SV6> (A) 24V 12.5A MITUBA	8-97062-815-1	01	1	9601-9706	●	●
31	RELAY; PTO CONT PTO CONTROL<SV6> (A) 24V 12.5A MITUBA	8-97062-815-1	01	1	9707-0111	●	●	●
31	RELAY; PTO CONT PTO CONTROL<SV6> (A) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●	●
58	BUZZER; AIR PRESSURE WARNING 6HK1 TCS ENG(80L) METRO DENSO	1-83460-075-0	01	1	0406-0604		●
58	BUZZER; AIR PRESSURE WARNING 6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> METRO DENSO	1-83460-075-0	01	1	0605-0612		●
58	BUZZER; AIR PRESSURE WARNING 6HK1 TCS ENG(80L) METRO DENSO	1-83460-075-0	01	1	0605-0612		●
58	BUZZER; AIR PRESSURE WARNING 6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> METRO DENSO	8-98069-859-0	01	1	0701-		●
58	BUZZER; AIR PRESSURE WARNING 6HK1 TCS ENG(80L) METRO DENSO	8-98069-859-0	01	1	0701-		●
58	BUZZER; AIR PRESSURE WARNING NIKKO	1-83460-056-0	01	1	9601-9803	●	●	●
58	BUZZER; AIR PRESSURE WARNING NIKKO	1-83460-056-0	01	1	9804-0004	●	●	●	●
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	1-83460-074-0	01	1	9904-9907	●	●	●	●
58	BUZZER; AIR PRESSURE WARNING EXC. NIKKO<Y70> METRO DENSO	1-83460-074-1	01	1	9908-0004	●	●	●	●
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	1-83460-074-1	01	1	0005-0405	●	●	●	●	●
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	1-83460-074-1	01	1	0406-0604	●		●	●	●
58	BUZZER; AIR PRESSURE WARNING 6HH1 STD 4VALVE ENG(1A6),6SD1 TCN ENG(31L), 6SD1STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) METRO DENSO	1-83460-074-1	01	1	0406-0604		●
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	1-83460-074-1	01	1	0605-0612	●		●	●	●
58	BUZZER; AIR PRESSURE WARNING 6HH1 STD 4VALVE ENG(1A6),6SD1 TCN ENG(31L), 6SD1STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. EURO3 SPECIFICATION<NJX> METRO DENSO	1-83460-074-1	01	1	0605-0612		●
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	8-98069-865-0	01	1	0701-	●		●	●	●
58	BUZZER; AIR PRESSURE WARNING 6HH1 STD 4VALVE ENG(1A6),6SD1 TCN ENG(31L), 6SD1STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. EURO3 SPECIFICATION<NJX> METRO DENSO	8-98069-865-0	01	1	0701-		●
59	SCREW; BUZZER M5X14	8-94279-325-0	01	1	9601-9803	●	●	●
59	SCREW; BUZZER M5X14	8-94279-325-0	01	1	9804-0004	●	●	●	●
59	SCREW; BUZZER M5X14	8-94279-325-0	01	1	0005-	●	●	●	●	●
59	SCREW; BUZZER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9804-0112				●
60	GROMMET; SCREW,BUZZER D=8.6X7.7 L=7.5	8-94279-078-0	01	1	9804-0112				●
67	BUZZER; ENG OVERRUN ENGINE OVERRUN BUZZER<SK4>	1-83460-051-1	01	1	9606-		●
120	SEAL SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15739-002-0	01	1	9601-9803	●	●
120	SEAL SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15739-002-0	01	1	9804-0004		●		●
120	SEAL	1-15739-002-0	01	1	0005-0407					●
120	SEAL	1-15739-008-0	01	1	0408-					●
121	RELAY; PARKING BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	9601-9803	●	●	●
121	RELAY; PARKING BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	9804-0004	●	●	●	●
121	RELAY; PARKING BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	0005-0111	●	●	●	●	●
121	RELAY; PARKING BRK 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●	●	●	●
123	RELAY; HTR HEATER & DEFROSTER(C41) 24V 12.5A MITUBA	8-97062-815-1	01	1	9601-9803			●
123	RELAY; HTR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A MITUBA	8-97062-815-1	01	1	9601-9803	●	●
123	RELAY; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A MITUBA	8-97062-815-1	01	1	9804-0004			●
123	RELAY; HTR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A MITUBA	8-97062-815-1	01	1	9804-0004	●			●
123	RELAY; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A MITUBA	8-97062-815-1	01	1	9804-0004		●
123	RELAY; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A MITUBA	8-97062-815-1	01	1	0005-0111			●		●
123	RELAY; HTR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A MITUBA	8-97062-815-1	01	1	0005-0111	●			●
123	RELAY; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A MITUBA	8-97062-815-1	01	1	0005-0111		●
123	RELAY; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-			●		●
123	RELAY; HTR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●			●
123	RELAY; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-		●
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	9601-9803	●	●	●
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	9804-0004	●	●	●	●
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	0005-0602	●	●	●	●	●
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	0603-	●	●	●	●	●
226	RELAY; EXH BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	9601-9803	●	●	●
226	RELAY; EXH BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	9804-0004	●	●	●	●
226	RELAY; EXH BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	0005-0111	●	●	●	●	●
226	RELAY; EXH BRK 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●	●	●	●
290	NUT SPEED LIMITER CABLE STROKE CONTROL<TDT> M6 FLANGE	0-91150-106-0	04	1	9601-9803	●	●
290	NUT SPEED LIMITER CABLE STROKE CONTROL<TDT> M6 FLANGE	0-91150-106-0	04	1	9804-0004		●		●
290	NUT M6 FLANGE	0-91150-106-0	04	1	0005-0602					●
290	NUT M6 FLANGE	0-91180-106-0	04	1	0603-					●
329	RELAY; BACK LAMP AUSTRALIA EQUIPMENT(RR3) 24V 12.5A MITUBA	8-97062-815-1	01	1	9601-9803	●	●
329	RELAY; BACK LAMP AUSTRALIA EQUIPMENT(RR3) 24V 12.5A MITUBA	8-97062-815-1	01	1	9804-0004		●		●
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A MITUBA	8-97062-815-1	02	1	9804-0004		●	●
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A MITUBA	8-97062-815-1	02	1	0005-0111		●	●		●
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-		●	●		●
354	RELAY; BRAKE FLUID CHECK AUSTRALIA EQUIPMENT(RR3) 24V 12.5A MITUBA	8-97062-815-1	01	1	9601-9803	●	●
354	RELAY; BRAKE FLUID CHECK AUSTRALIA EQUIPMENT(RR3) 24V 12.5A MITUBA	8-97062-815-1	01	1	9804-0004		●		●
367	RELAY; NEUTRAL A/T<X9D> 24V 12.5A MITUBA	8-97062-815-1	01	1	0005-0111		●
367	RELAY; NEUTRAL 24V 12.5A MITUBA	8-97062-815-1	01	1	0005-0111					●
367	RELAY; NEUTRAL A/T<X9D> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-0405		●
367	RELAY; NEUTRAL 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-0405					●
367	RELAY; NEUTRAL 6HK1 TCS ENG(80L) EXC. A/T<X9D> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0406-0604		●
367	RELAY; NEUTRAL A/T<X9D> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0406-0604		●
367	RELAY; NEUTRAL 24V 12.5A PANASONIC	8-97262-933-0	01	1	0406-0604					●
367	RELAY; NEUTRAL 6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0605-		●
367	RELAY; NEUTRAL 6HK1 TCS ENG(80L) EXC. A/T<X9D> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0605-		●
367	RELAY; NEUTRAL A/T<X9D> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0605-		●
367	RELAY; NEUTRAL 24V 12.5A PANASONIC	8-97262-933-0	01	1	0605-					●
377	NUT; RELAY PTO CONTROL<SV6> M6 FLANGE	0-91150-106-0	02	1	9601-9706	●	●
377	NUT; RELAY PTO CONTROL<SV6> M6 FLANGE	0-91150-106-0	02	1	9707-0602	●	●	●
377	NUT; RELAY PTO CONTROL<SV6> M6 FLANGE	0-91180-106-0	02	1	0603-	●	●	●
429	RELAY; POWER CUT EURO2 SPECIFICATION<THN> 24V 12.5A MITUBA	8-97062-815-0	01	1	9610-9705			●
429	RELAY; POWER CUT EURO2 SPECIFICATION<THN> 24V 12.5A MITUBA	8-97062-815-1	01	1	9706-0004		●	●
429	RELAY; POWER CUT 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> 24V 12.5A MITUBA	8-97062-815-1	01	1	0005-0006	●	●	●
429	RELAY; POWER CUT 24V 12.5A MITUBA	8-97062-815-1	01	1	0005-0006					●
429	RELAY; POWER CUT EURO2 SPECIFICATION<THN> 24V 12.5A MITUBA	8-97062-815-1	01	1	0007-0007	●	●	●		●
429	RELAY; POWER CUT EURO2 SPECIFICATION<THN> 24V 12.5A MITUBA	8-97062-815-1	01	1	0008-0111	●	●	●	●
429	RELAY; POWER CUT 24V 12.5A MITUBA	8-97062-815-1	01	1	0008-0111					●
429	RELAY; POWER CUT EURO2 SPECIFICATION<THN> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-0405	●	●	●	●
429	RELAY; POWER CUT 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-0405					●
429	RELAY; POWER CUT EURO2 SPECIFICATION<THN> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0406-	●	●	●	●
429	RELAY; POWER CUT 6HK1 TCS ENG(80L) EXC. EURO2 SPECIFICATION<THN> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0406-		●
429	RELAY; POWER CUT 24V 12.5A PANASONIC	8-97262-933-0	01	1	0406-					●
438	UNIT; SPD CONTROL SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-82540-066-0	01	1	9601-9803	●	●
438	UNIT; SPD CONTROL SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-82540-066-0	01	1	9804-9809		●		●
438	UNIT; SPD CONTROL AUSTRALIA EQUIPMENT(RR3) SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-82540-066-0	01	1	9810-0004		●		●
438	UNIT; SPD CONTROL HONG KONG EQUIPMENT(PQ1) SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-82540-071-0	01	1	9810-0004		●
438	UNIT; SPD CONTROL	1-82540-071-0	01	1	0005-					●
460	RELAY; IVES 6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) 24V 12.5A MITUBA	8-97062-815-1	02	1	9601-9803	●	●
460	RELAY; IVES 6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) 24V 12.5A MITUBA	8-97062-815-1	02	1	9804-9806		●
460	RELAY; IVES 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AUSTRALIA EQUIPMENT(RR3) EXC. EURO2 SPECIFICATION<THN> 24V 12.5A MITUBA	8-97062-815-1	02	1	9807-0004		●
525	WIRE; CONTROL UNIT SPEED LIMITER CABLE STROKE CONTROL<TDT>	9-81325-446-0	01	1	9601-9803	●	●
525	WIRE; CONTROL UNIT SPEED LIMITER CABLE STROKE CONTROL<TDT>	9-81325-446-0	01	1	9804-0004		●		●
525	WIRE; CONTROL UNIT	9-81325-446-0	01	1	0005-					●
531	RELAY; MAIN 6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0605-		●
557	RELAY; WASHER 6HK1 TCS ENG(80L) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0406-0604		●
557	RELAY; WASHER 6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0605-		●
557	RELAY; WASHER 6HK1 TCS ENG(80L) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0605-		●
559	RELAY; MAG VLV 6HK1 TCS ENG(80L) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0406-0604		●
559	RELAY; MAG VLV 6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0605-		●
559	RELAY; MAG VLV 6HK1 TCS ENG(80L) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0605-		●
594	RELAY; A/T A/T<X9D> 24V 12.5A MITUBA	8-97062-815-1	03	1	0005-0111		●
594	RELAY; A/T 24V 12.5A MITUBA	8-97062-815-1	03	1	0005-0111					●
594	RELAY; A/T A/T<X9D> 24V 12.5A PANASONIC	8-97262-933-0	03	1	0112-		●
594	RELAY; A/T 24V 12.5A PANASONIC	8-97262-933-0	03	1	0112-					●
605	RELAY; PCV 6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0605-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
