◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10704 - FVR/GVR-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#63911) — 295 parça

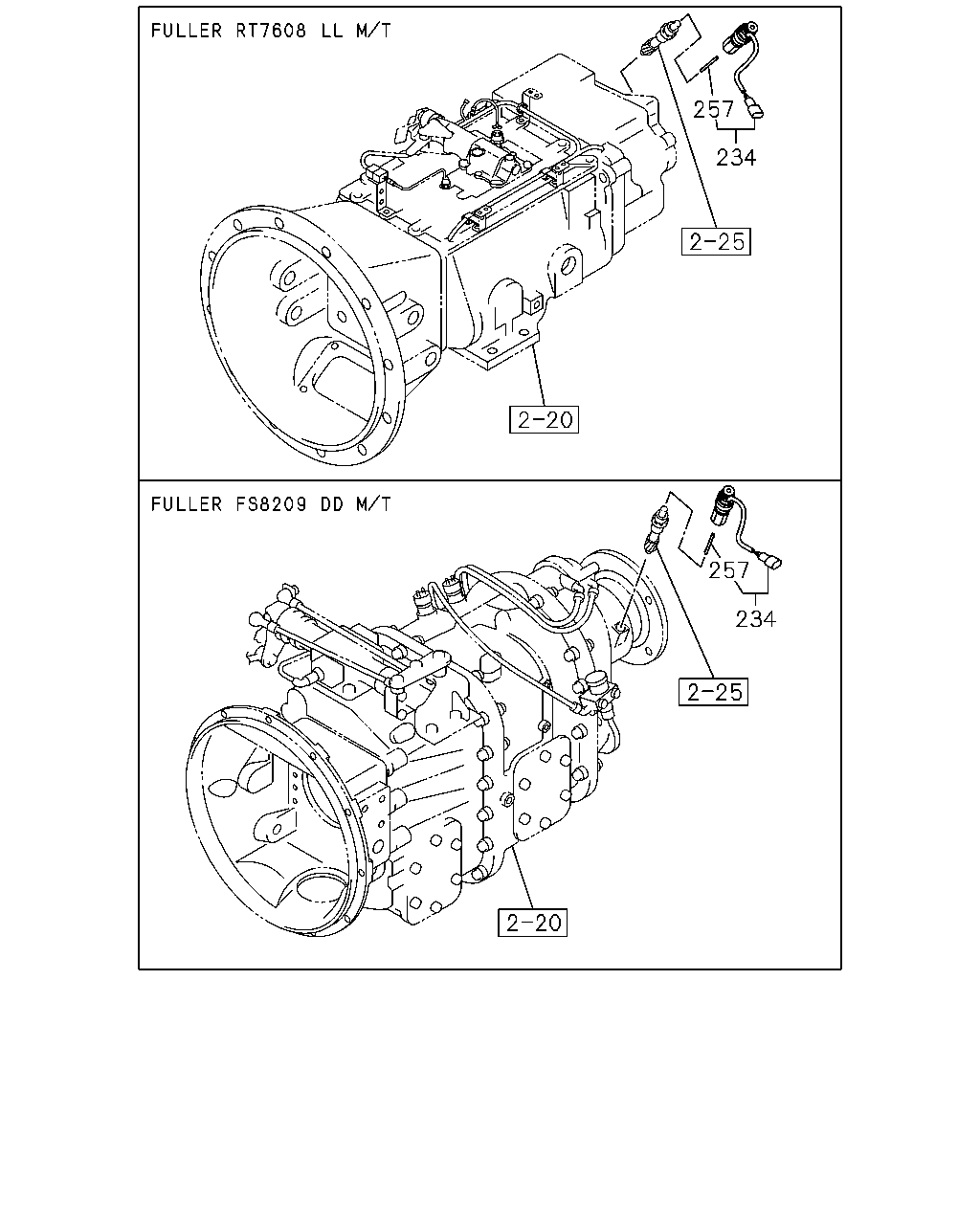

çizim 138074
257 234 257 234
BalonParca AdiParca NoAdetTipApplied Date A B C D E
234 SENSOR; VEHICLE SPD 1-83127-241-1 01 1 9601-9803 ●
234 SENSOR; VEHICLE SPD
MLD7R M/T(X5L),MLD6A M/T(X5N),ZF 9S109 OD M/T(Y2L) 		1-83127-241-1 01 1 9601-9803 ●
234 SENSOR; VEHICLE SPD
MLD7Q M/T(X5K),MLD7R M/T(X5L),MLD6A M/T(X5N), MLD6E M/T(X5R),ZF 9S109 OD M/T(Y2L) 		1-83127-241-1 01 1 9601-9803 ●
234 SENSOR; VEHICLE SPD 1-80240-001-0 01 1 9804-9903 ●
234 SENSOR; VEHICLE SPD
MLD7R M/T(X5L),MLD6A M/T(X5N),MAL6S M/T(Y1V), ZF9S109 OD M/T(Y2L) 		1-80240-001-0 01 1 9804-9903 ●
234 SENSOR; VEHICLE SPD
MLD7Q M/T(X5K),MLD7R M/T(X5L),MLD6A M/T(X5N), MLD6E M/T(X5R),MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) 		1-80240-001-0 01 1 9804-9903 ●
234 SENSOR; VEHICLE SPD
ZF 9S109 OD M/T(Y2L) 		1-80240-001-0 01 1 9804-9903 ●
234 SENSOR; VEHICLE SPD 1-80240-001-0 01 1 9904-0004 ● ●
234 SENSOR; VEHICLE SPD
MLD7Q M/T(X5K),MLD7R M/T(X5L),MLD6A M/T(X5N), MLD6E M/T(X5R),MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L),ZF 9S109 OD M/T HONG KONG(Y3Y) 		1-80240-001-0 01 1 9904-0004 ●
234 SENSOR; VEHICLE SPD
ZF 9S109 OD M/T(Y2L) 		1-80240-001-0 01 1 9904-0004 ●
234 SENSOR; VEHICLE SPD 1-80240-001-1 01 1 0005-0202 ● ● ●
234 SENSOR; VEHICLE SPD
MLD7Q M/T(X5K),MLD7R M/T(X5L),MLD6A M/T(X5N), MLD6E M/T(X5R),MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) 		1-80240-001-1 01 1 0005-0202 ●
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-0 01 1 0203-0403 ● ● ●
234 SENSOR; VEHICLE SPD
MLD7Q M/T(X5K),MLD7R M/T(X5L),MLD6A M/T(X5N), MLD6E M/T(X5R),MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) 25 PULSE ALUMINUM 		8-97328-058-0 01 1 0203-0403 ●
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-0 01 1 0404-0405 ● ● ●
234 SENSOR; VEHICLE SPD
EXC. FULLER M/T<X9B>,A/T<X9D> 25 PULSE ALUMINUM 		8-97328-058-0 01 1 0404-0405 ●
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 0406-1102 ● ● ●
234 SENSOR; VEHICLE SPD
FULLER FSO5206B OD M/T(Y4V) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 0406-1102 ●
234 SENSOR; VEHICLE SPD
EXC. FULLER M/T<X9B>,A/T<X9D> 25 PULSE ALUMINUM 		8-97328-058-1 01 1 0406-1102 ●
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 1103- ● ● ●
234 SENSOR; VEHICLE SPD
ZF 9S109 OD M/T(Y2L),FULLER FSO5206B OD M/T(Y4V) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 1103- ●
234 SENSOR; VEHICLE SPD
ISUZU M/T<X9A> 25 PULSE ALUMINUM 		8-97328-058-1 01 1 1103- ●
234 SENSOR; VEHICLE SPD
FULLER FS8209 DD M/T(Y2S) 25 PULSE 		1-83127-414-0 01 1 9601-9610 ● ●
234 SENSOR; VEHICLE SPD
FULLER FS8209 DD M/T(Y2S) 25 PULSE 		1-83127-414-0 01 1 9611-9803 ●
234 SENSOR; VEHICLE SPD
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) 25 PULSE 		1-83127-414-0 01 1 9611-9803 ●
234 SENSOR; VEHICLE SPD
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) 25 PULSE 		1-83127-414-1 01 1 9804-0004 ●
234 SENSOR; VEHICLE SPD
FULLER FS8209 DD M/T(Y2S) 25 PULSE 		1-83127-414-1 01 1 9804-0004 ●
234 SENSOR; VEHICLE SPD
FULLER RT7608LL M/T(X8P) 25 PULSE 		1-83127-414-1 01 1 0005-0403 ●
234 SENSOR; VEHICLE SPD
FULLER M/T<X9B> 25 PULSE 		1-83127-414-1 01 1 0404-0405 ●
234 SENSOR; VEHICLE SPD
FULLER RT7608LL M/T(X8P) 25 PULSE 		1-83127-414-1 01 1 0406- ●
234 SENSOR; VEHICLE SPD
MAL6S M/T(Y1V) 		1-83127-254-2 01 1 9601-9803 ● ●
257 KEY; SPEED SENSOR 1-83129-126-0 01 1 9601-9803 ●
257 KEY; SPEED SENSOR
MLD7R M/T(X5L),MLD6A M/T(X5N),ZF 9S109 OD M/T(Y2L) 		1-83129-126-0 01 1 9601-9803 ●
257 KEY; SPEED SENSOR
MLD7Q M/T(X5K),MLD7R M/T(X5L),MLD6A M/T(X5N), MLD6E M/T(X5R),ZF 9S109 OD M/T(Y2L) 		1-83129-126-0 01 1 9601-9803 ●
257 KEY; SPEED SENSOR
FULLER FS8209 DD M/T(Y2S) 		1-83129-073-0 01 1 9601-9610 ● ●
257 KEY; SPEED SENSOR
FULLER FS8209 DD M/T(Y2S) 		1-83129-073-0 01 1 9611-9803 ●
257 KEY; SPEED SENSOR
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) 		1-83129-073-0 01 1 9611-9803 ●
257 KEY; SPEED SENSOR
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) 		1-83129-073-0 01 1 9804-0004 ●
257 KEY; SPEED SENSOR
FULLER FS8209 DD M/T(Y2S) 		1-83129-073-0 01 1 9804-0004 ●
257 KEY; SPEED SENSOR
FULLER RT7608LL M/T(X8P) 		1-83129-073-0 01 1 0005-0403 ●
257 KEY; SPEED SENSOR
FULLER M/T<X9B> 		1-83129-073-0 01 1 0404-0405 ●
257 KEY; SPEED SENSOR
FULLER RT7608LL M/T(X8P) 		1-83129-073-0 01 1 0406- ●
257 KEY; SPEED SENSOR
MAL6S M/T(Y1V) 		1-83129-125-0 01 1 9601-9803 ● ●

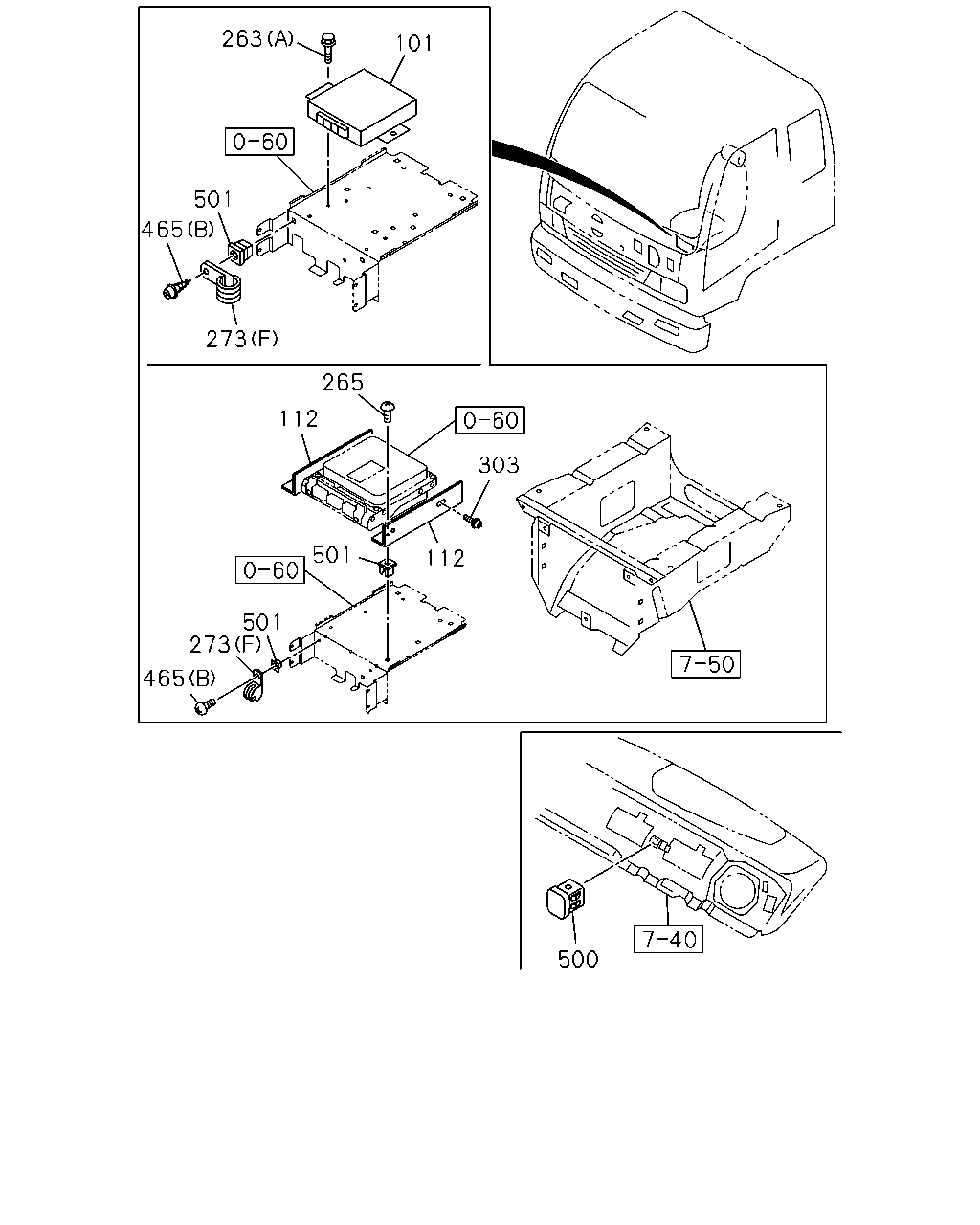

çizim 138348
263 101 501 465 273 265 112 303 501 112 501 273 465 500
BalonParca AdiParca NoAdetTipApplied Date A B C D E
101 CONTROL UNIT; ELEC,A/T
6SD1 TCN ENG(31L) ALLISON MD3060P A/T(Y4G) 		1-80110-623-0 01 1 0005-0005 ●
101 CONTROL UNIT; ELEC,A/T
6SD1 TCN ENG(31L) ALLISON MD3060P A/T(Y4G) 		1-80110-747-0 01 1 0006-0008 ●
101 CONTROL UNIT; ELEC,A/T
6SD1 TCN ENG(31L) ALLISON MD3060P A/T(Y4G) 		1-80110-755-0 01 1 0009-0208 ●
101 CONTROL UNIT; ELEC,A/T
6SD1 TCN ENG(31L) ALLISON MD3060P A/T(Y4G) 		1-80111-016-0 01 1 0209- ●
101 CONTROL UNIT; ELEC,A/T 1-80110-613-0 01 1 0005-0005 ●
101 CONTROL UNIT; ELEC,A/T 1-80110-746-0 01 1 0006-0008 ●
101 CONTROL UNIT; ELEC,A/T 1-80110-754-0 01 1 0009-0208 ●
101 CONTROL UNIT; ELEC,A/T 1-80111-015-0 01 1 0209- ●
112 BRACKET; CONT UNIT
6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> 		1-75558-566-0 02 1 0605- ●
263 BOLT; CONT UNIT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) M6X12 W/LK&PL WASHER 		8-94279-200-0 08 1 0212- ●
263 BOLT; CONT UNIT
A/T<X9D> (A) M6X40 LK&PL WASHER 		8-94279-215-0 03 1 0005- ●
263 BOLT; CONT UNIT
(A) M6X40 LK&PL WASHER 		8-94279-215-0 03 1 0005- ●
265 SCREW; BRKT,CONT UNIT
6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 0605- ●
273 CLIP; HARNESS
6HK1 TCS ENG(80L) (F) ID=35 L=35 		1-09700-726-0 01 1 0406-0604 ●
273 CLIP; HARNESS
6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> (F) ID=35 L=35 		1-09700-726-0 01 1 0605- ●
273 CLIP; HARNESS
6HK1 TCS ENG(80L) (F) ID=35 L=35 		1-09700-726-0 01 1 0605- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (G) ID=12-16 & 12-16 		1-09709-191-0 03 1 0212- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) ID=6-10 & 10-14 		1-09709-201-1 01 1 0212- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) ID=11.5 & 14.5 		8-94314-293-0 01 1 0212- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (C) 		8-97101-436-0 01 1 0212- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D) ID=11 L=50 		9-09525-085-0 01 1 0212-0606 ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D) ID=11 L=50 		0-95235-085-0 01 1 0607- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (E) ID=16 L=20 		9-09525-536-0 01 1 0212-0606 ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (E) ID=16 L=20 		0-95235-536-0 01 1 0607- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=16 L=20 		9-09525-536-0 02 1 0212-0606 ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=16 L=20 		0-95235-536-0 02 1 0607- ●
303 SCREW; CONT UNIT
6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> M5X10 W/LK+PL WASHER 		0-36230-510-0 04 1 0605- ●
303 SCREW; CONT UNIT
MIR STAY O/S W/REMOTE<TBA> M5X14 		8-94279-325-0 01 1 9911- ●
465 BOLT; CLIP
6HK1 TCS ENG(80L) (B) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 01 1 0406-0604 ●
465 BOLT; CLIP
6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> (B) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 01 1 0605- ●
465 BOLT; CLIP
6HK1 TCS ENG(80L) (B) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 01 1 0605- ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0212-0512 ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28680-820-0 01 1 0212-0512 ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 0212- ●
500 SENSOR; AUTO LIGHT
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-82486-002-0 01 1 9910-0004 ● ●
501 GROMMET; SCREW
6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> D=9.7X9.7 L=8 		8-94222-314-0 01 1 0605- ●
501 GROMMET; SCREW
6HK1 TCS ENG(80L) D=9.7X9.7 L=8 		8-94222-314-0 01 1 0605- ●
501 GROMMET; SCREW
6HK1 TCS ENG(80L) D=9.7X9.7 L=8 		8-94222-314-0 01 1 0406-0604 ●
501 GROMMET; SCREW
6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> D=9.7X9.7 L=8 		8-94222-314-0 04 1 0605- ●

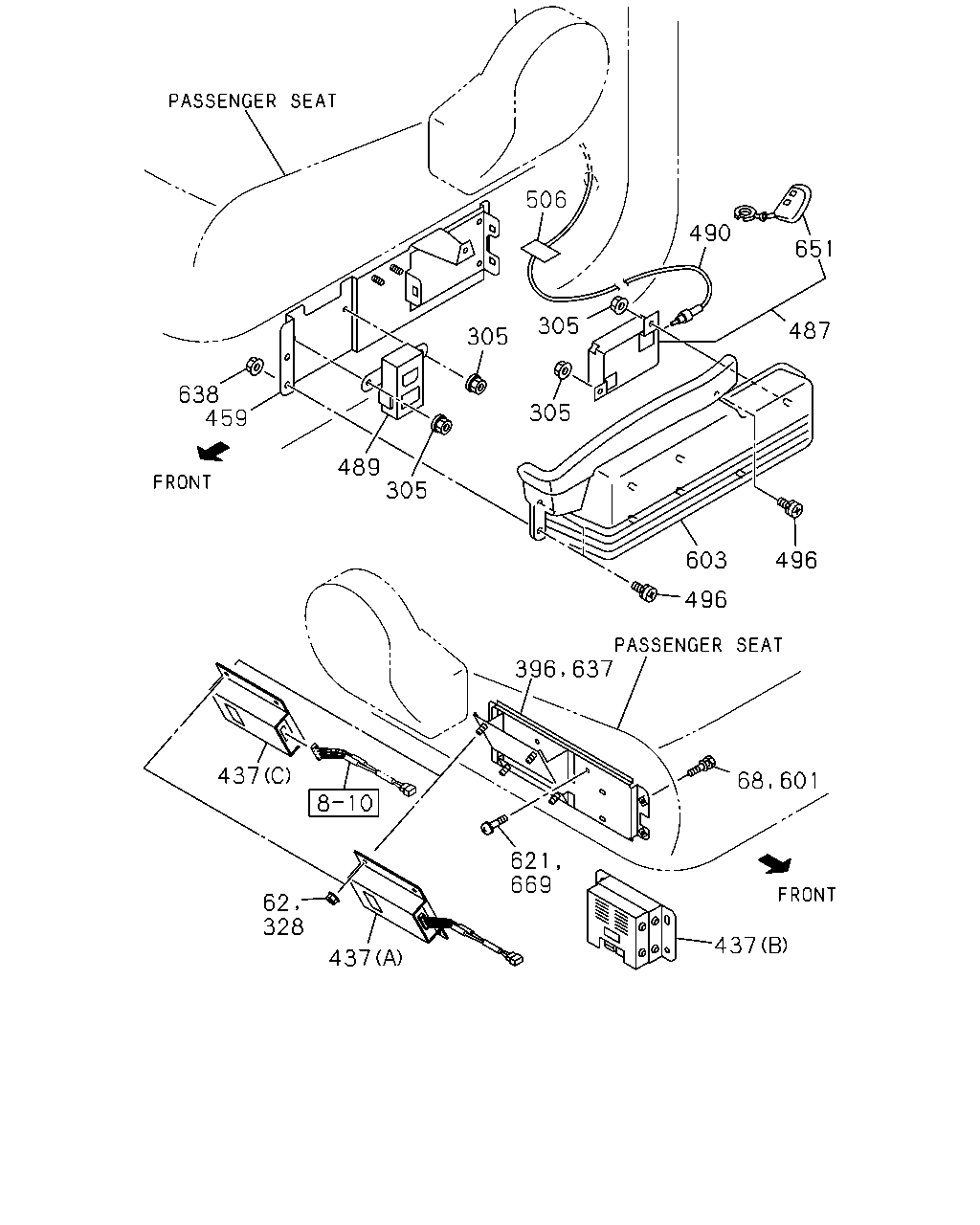

çizim 138427
506 490 651 305 487 305 638 459 305 489 305 603 496 496 437 621 669 62 328 437 437 396 637 68 601
BalonParca AdiParca NoAdetTipApplied Date A B C D E
62 NUT; BRKT
ELEC OUTLET 12V<TAW> M6 FLANGE 		0-91150-106-0 02 1 9811-9909 ● ●
62 NUT; BRKT
CUSTOM CAB(SR5) M6 FLANGE 		0-91150-106-0 02 1 9910-0004 ● ●
62 NUT; BRKT
ELEC OUTLET 12V<TAW> EXC. CUSTOM CAB(SR5) M6 FLANGE 		0-91150-106-0 02 1 9910-0004 ● ●
62 NUT; BRKT
ELEC OUTLET 12V<TAW> M6 FLANGE 		0-91150-106-0 02 1 0005-0602 ●
62 NUT; BRKT
ELEC OUTLET 12V<TAW> M6 FLANGE 		0-91180-106-0 02 1 0603- ●
68 BOLT; BRKT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M8X20 FLANGE 		0-28680-820-0 01 1 0212-0512 ●
68 BOLT; BRKT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
68 BOLT; BRKT
ELEC OUTLET 12V<TAW> M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9905-9907 ● ●
68 BOLT; BRKT
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9908-0004 ● ●
305 NUT; CONT UNIT
REMOTE CONT DOOR LOCK<SLG> M6 FLANGE 		0-91180-106-0 02 1 0212-0809 ●
305 NUT; CONT UNIT
CUSTOM CAB(SR5) M6 FLANGE 		0-91150-106-0 04 1 9910-0004 ● ●
328 NUT
ELEC OUTLET 12V<TAW> M6 FLANGE 		0-91150-106-0 04 1 9905-9907 ● ●
328 NUT
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> M6 FLANGE 		0-91150-106-0 04 1 9908-9911 ● ●
396 BRACKET
ELEC OUTLET 12V<TAW> 		1-75557-483-0 01 1 9905-9907 ● ●
396 BRACKET
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> 		1-75557-483-1 01 1 9908-0004 ● ●
437 CONVERTER; DC
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS LEVELING SYSTEM MANUAL<TAS> (D) KOITO 		8-97359-129-0 01 1 0605- ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (B) 		1-84122-005-0 01 1 9807-0004 ● ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (A) 		1-84122-037-0 01 1 9905-9907 ● ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> (A) 		1-84122-037-1 01 1 9908-0004 ● ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (A) 		1-84122-037-1 01 1 0005-0008 ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (C) MITSUBISHI 		1-84122-034-1 01 1 0009-0603 ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (C) METRO DENSO 		8-98046-423-0 01 1 0604- ●
459 BRACKET; CONTROL BOX
ELEC OUTLET 12V<TAW> 		1-75558-488-5 01 1 9811-9909 ● ●
459 BRACKET; CONTROL BOX
CUSTOM CAB(SR5) 		1-75558-488-5 01 1 9910-0004 ● ●
459 BRACKET; CONTROL BOX
ELEC OUTLET 12V<TAW> EXC. CUSTOM CAB(SR5) 		1-75558-488-5 01 1 9910-0004 ● ●
459 BRACKET; CONTROL BOX
ELEC OUTLET 12V<TAW> 		1-75558-488-5 01 1 0005- ●
487 CONTROL UNIT; DOOR LOCK,AUTO REMOTE
REMOTE CONT DOOR LOCK<SLG> 		1-86855-033-2 01 1 0212-0809 ●
487 CONTROL UNIT; DOOR LOCK,AUTO REMOTE
CUSTOM CAB(SR5) 		1-86855-006-1 01 1 9910-0004 ● ●
489 CONTROL UNIT; AUTO LIGHT
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-82540-049-1 01 1 9910-0004 ● ●
490 ANTENNA; AUTO REMOTE DOOR LOCK
REMOTE CONT DOOR LOCK<SLG> 		1-86855-023-1 01 1 0212-0809 ●
490 ANTENNA; AUTO REMOTE DOOR LOCK
CUSTOM CAB(SR5) 		1-86855-023-1 01 1 9910-0004 ● ●
496 SCREW; COVER
ELEC OUTLET 12V<TAW> M6X16 W/LK&PL WASHER 		8-94279-402-0 03 1 9811-9909 ● ●
496 SCREW; COVER
CUSTOM CAB(SR5) M6X16 W/LK&PL WASHER 		8-94279-402-0 03 1 9910-0004 ● ●
496 SCREW; COVER
ELEC OUTLET 12V<TAW> EXC. CUSTOM CAB(SR5) M6X16 W/LK&PL WASHER 		8-94279-402-0 03 1 9910-0004 ● ●
496 SCREW; COVER
ELEC OUTLET 12V<TAW> M6X16 W/LK&PL WASHER 		8-94279-402-0 03 1 0005-0703 ●
496 SCREW; COVER
ELEC OUTLET 12V<TAW> M6X12 W/LK&PL WASHER 		0-36230-612-0 03 1 0704- ●
506 TAPE; ANTENNA
REMOTE CONT DOOR LOCK<SLG> 100X30 		1-74998-068-0 06 1 0803-0809 ●
506 TAPE; ANTENNA
CUSTOM CAB(SR5) 100X30 		1-74998-068-0 06 1 9910-0004 ● ●
601 BOLT; DC-DC CONVERTER
ELEC OUTLET 12V<TAW> M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0005-0703 ●
601 BOLT; DC-DC CONVERTER
ELEC OUTLET 12V<TAW> M6X12 W/LK&PL WASHER 		0-36230-612-0 02 1 0704- ●
603 COVER; CONT UNIT,SEAT STAND
ELEC OUTLET 12V<TAW> 		1-72538-160-2 01 1 9811-9909 ● ●
603 COVER; CONT UNIT,SEAT STAND
CUSTOM CAB(SR5) 		1-72538-160-2 01 1 9910-0004 ● ●
603 COVER; CONT UNIT,SEAT STAND
ELEC OUTLET 12V<TAW> EXC. CUSTOM CAB(SR5) 		1-72538-160-2 01 1 9910-0004 ● ●
603 COVER; CONT UNIT,SEAT STAND
ELEC OUTLET 12V<TAW> 		1-72538-160-3 01 1 0005-0810 ●
603 COVER; CONT UNIT,SEAT STAND
ELEC OUTLET 12V<TAW> 		8-97589-725-0 01 1 0811- ●
621 SCREW
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> M6X12 W/PL WASHER 		1-09981-380-0 04 1 9912-0004 ● ●
637 BRACKET; DC-DC CONVERTER
ELEC OUTLET 12V<TAW> 		1-75557-483-1 01 1 0005- ●
638 NUT; DC-DC CONVERTER
ELEC OUTLET 12V<TAW> M6 FLANGE 		0-91150-106-0 04 1 9811-0004 ● ●
638 NUT; DC-DC CONVERTER
ELEC OUTLET 12V<TAW> M6 FLANGE 		0-91150-106-0 04 1 0005-0602 ●
638 NUT; DC-DC CONVERTER
ELEC OUTLET 12V<TAW> M6 FLANGE 		0-91180-106-0 04 1 0603- ●
651 TRANSMITTER; DOOR LOCK,AUTO REMOTE
REMOTE CONT DOOR LOCK<SLG> 		1-86860-008-0 01 1 0212-0809 ●
651 TRANSMITTER; DOOR LOCK,AUTO REMOTE
CUSTOM CAB(SR5) 		1-86855-017-0 01 1 9910-0004 ● ●
669 SCREW; DC-DC CONVERTER
ELEC OUTLET 12V<TAW> M6X12 W/PL WASHER 		1-09981-380-0 04 1 0005- ●

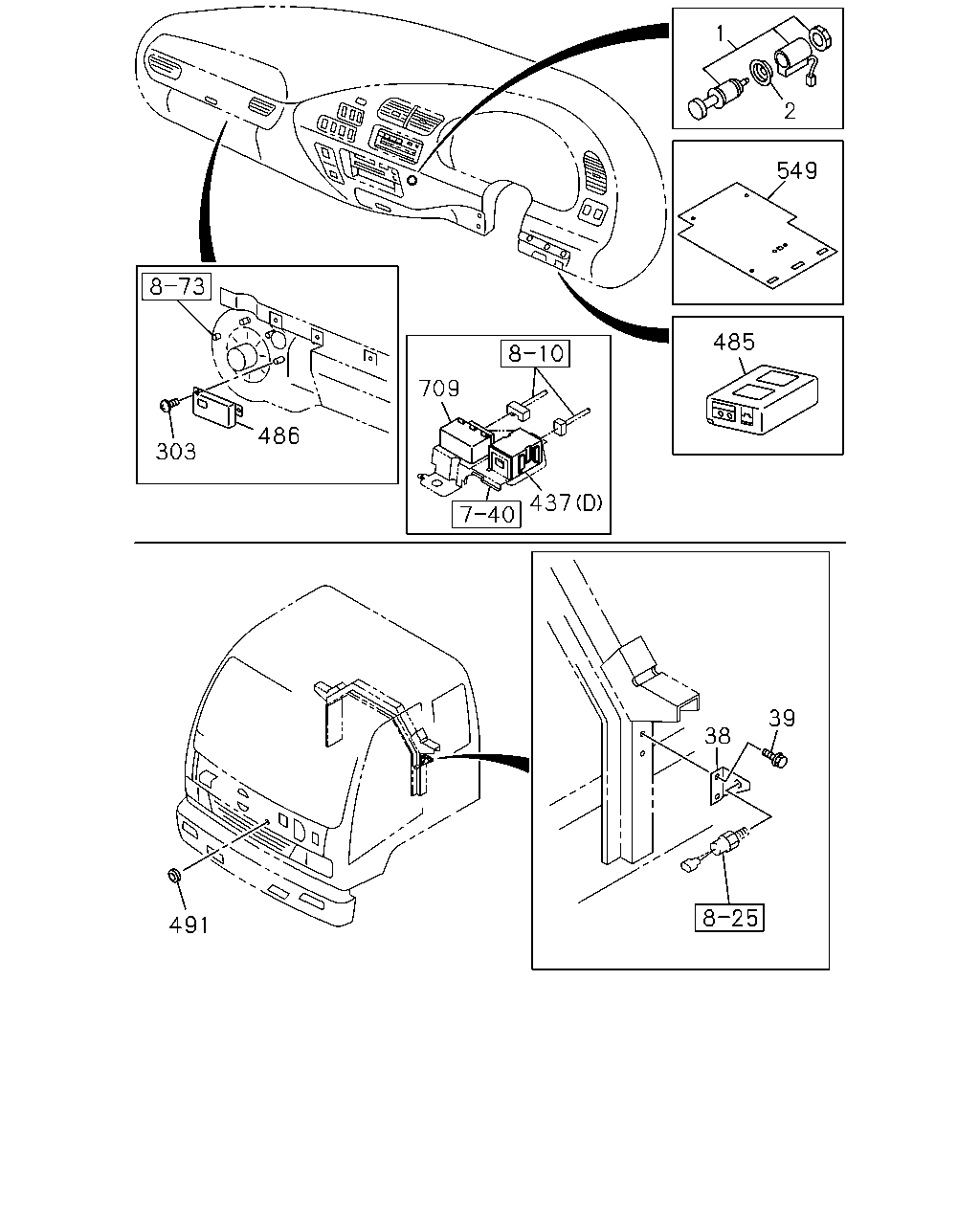

çizim 138525
1 2 549 485 709 437 486 303 38 39 491
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 LIGHTER; CIGAR 8-97064-970-1 01 1 9601-9803 ● ● ●
1 LIGHTER; CIGAR 8-97064-970-1 01 1 9804-0004 ● ● ● ●
1 LIGHTER; CIGAR 8-97064-970-1 01 1 0005-0108 ● ● ● ● ●
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0109- ● ● ● ● ●
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 9601-9803 ● ● ●
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 9804-0004 ● ● ● ●
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 0005- ● ● ● ● ●
38 BRACKET; SW,STARTER SUB
AUSTRALIA EQUIPMENT(RR3) 		1-82699-351-0 01 1 9601-9803 ●
38 BRACKET; SW,STARTER SUB
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-82699-351-0 01 1 9601-9803 ●
38 BRACKET; SW,STARTER SUB
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-82699-351-0 01 1 9804-0004 ●
38 BRACKET; SW,STARTER SUB
AUSTRALIA EQUIPMENT(RR3) 		1-82699-351-0 01 1 9804-0004 ●
38 BRACKET; SW,STARTER SUB
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-82698-232-0 01 1 0005-0005 ●
38 BRACKET; SW,STARTER SUB
AUSTRALIA EQUIPMENT(RR3) 		1-82698-232-0 01 1 0005-0005 ●
38 BRACKET; SW,STARTER SUB
NEW ZEALAND EQUIPMENT(PK5) 		1-82698-232-0 01 1 0005-0211 ●
38 BRACKET; SW,STARTER SUB
NEW ZEALAND EQUIPMENT(PK5) EXC. STARTER SWITCH DELETION<E5D> 		1-82698-232-0 01 1 0212- ●
39 BOLT; BRKT,STARTER SUB SW
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28080-820-0 02 1 9601-9606 ●
39 BOLT; BRKT,STARTER SUB SW
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28080-820-0 02 1 9601-9606 ●
39 BOLT; BRKT,STARTER SUB SW
AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9801 ●
39 BOLT; BRKT,STARTER SUB SW
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9801 ●
39 BOLT; BRKT,STARTER SUB SW
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28680-820-0 02 1 9802-9803 ●
39 BOLT; BRKT,STARTER SUB SW
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28680-820-0 02 1 9802-9803 ●
39 BOLT; BRKT,STARTER SUB SW
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28680-820-0 02 1 9804-0004 ●
39 BOLT; BRKT,STARTER SUB SW
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28680-820-0 02 1 9804-0004 ●
39 BOLT; BRKT,STARTER SUB SW
NEW ZEALAND EQUIPMENT(PK5) M8X20 FLANGE 		0-28680-820-0 02 1 0005-0211 ●
39 BOLT; BRKT,STARTER SUB SW
NEW ZEALAND EQUIPMENT(PK5) EXC. STARTER SWITCH DELETION<E5D> M8X20 FLANGE 		0-28680-820-0 02 1 0212-0512 ●
39 BOLT; BRKT,STARTER SUB SW
NEW ZEALAND EQUIPMENT(PK5) EXC. STARTER SWITCH DELETION<E5D> M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
303 SCREW; CONT UNIT
6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> M5X10 W/LK+PL WASHER 		0-36230-510-0 04 1 0605- ●
303 SCREW; CONT UNIT
MIR STAY O/S W/REMOTE<TBA> M5X14 		8-94279-325-0 01 1 9911- ●
437 CONVERTER; DC
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS LEVELING SYSTEM MANUAL<TAS> (D) KOITO 		8-97359-129-0 01 1 0605- ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (B) 		1-84122-005-0 01 1 9807-0004 ● ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (A) 		1-84122-037-0 01 1 9905-9907 ● ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> (A) 		1-84122-037-1 01 1 9908-0004 ● ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (A) 		1-84122-037-1 01 1 0005-0008 ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (C) MITSUBISHI 		1-84122-034-1 01 1 0009-0603 ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (C) METRO DENSO 		8-98046-423-0 01 1 0604- ●
485 CONTROL UNIT; SPEED SENSOR 1-82540-065-0 01 1 9601-9803 ● ● ●
485 CONTROL UNIT; SPEED SENSOR 1-82540-065-0 01 1 9804-9909 ● ● ● ●
485 CONTROL UNIT; SPEED SENSOR
EXC. CUSTOM CAB(SR5) 		1-82540-065-0 01 1 9910-0004 ● ● ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-038-1 01 1 0005-0403 ● ● ●
485 CONTROL UNIT; SPEED SENSOR
MLD7Q M/T(X5K),MLD7R M/T(X5L),MLD6A M/T(X5N), MLD6E M/T(X5R),FULLER RT7608LL M/T(X8P),MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) 		1-80190-038-1 01 1 0005-0403 ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-149-0 01 1 0404-0410 ● ● ●
485 CONTROL UNIT; SPEED SENSOR
EXC. A/T<X9D> 		1-80190-149-0 01 1 0404-0410 ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-158-0 01 1 0411-1102 ● ● ●
485 CONTROL UNIT; SPEED SENSOR
EXC. A/T<X9D> 		1-80190-158-0 01 1 0411-1102 ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-158-0 01 1 1103- ● ● ●
485 CONTROL UNIT; SPEED SENSOR
ZF 9S109 OD M/T(Y2L) 		1-80190-158-0 01 1 1103- ●
485 CONTROL UNIT; SPEED SENSOR
ISUZU M/T<X9A>,FULLER M/T<X9B> 		1-80190-158-0 01 1 1103- ●
485 CONTROL UNIT; SPEED SENSOR
CUSTOM CAB(SR5) 		1-80190-038-1 01 1 9910-0004 ● ●
485 CONTROL UNIT; SPEED SENSOR
ALLISON MD3060P A/T(Y4G) 		1-80190-061-0 01 1 0005-0403 ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-061-0 01 1 0005-0403 ●
485 CONTROL UNIT; SPEED SENSOR
A/T<X9D> 		1-80190-061-0 01 1 0404- ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-061-0 01 1 0404- ●
486 CONTROL UNIT; MIRROR
MIR STAY O/S W/REMOTE<TBA> 		1-82540-046-0 01 1 9804- ●
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 9601-9608 ● ● ●
491 PLUG; HOLE,CONT UNIT
EXC. EURO2 SPECIFICATION<THN> OD=54.5 		1-73907-309-0 01 1 9609-9705 ●
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 9609-9705 ● ●
491 PLUG; HOLE,CONT UNIT
EXC. EURO2 SPECIFICATION<THN> OD=54.5 		1-73907-309-0 01 1 9706-9803 ● ●
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 9706-9803 ●
491 PLUG; HOLE,CONT UNIT
EXC. EURO2 SPECIFICATION<THN> OD=54.5 		1-73907-309-0 01 1 9804-0004 ● ●
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 9804-0004 ● ●
491 PLUG; HOLE,CONT UNIT
EXC. EURO2 SPECIFICATION<THN> OD=54.5 		1-73907-309-0 01 1 0005-0112 ● ● ● ●
491 PLUG; HOLE,CONT UNIT
EXC. EURO2 SPECIFICATION<THN> OD=54.5 		1-73907-309-0 01 1 0201-0201 ● ● ●
491 PLUG; HOLE,CONT UNIT
EXC. EURO2 SPECIFICATION<THN>,A/T<X9D> OD=54.5 		1-73907-309-0 01 1 0201-0201 ●
491 PLUG; HOLE,CONT UNIT
EXC. EURO2 SPECIFICATION<THN> OD=54.5 		1-73907-309-0 01 1 0202- ● ● ● ●
491 PLUG; HOLE,CONT UNIT
6SD1 TCN ENG(31L) EURO2 SPECIFICATION<THN> A/T<X9D> OD=54.5 		1-73907-309-0 01 1 0202- ●
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 0202- ●
549 SHEET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98236-226-0 01 1 9601- ●
709 RESISTOR; HD LAMP LEVELING
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		8-97359-130-1 01 1 0605- ●

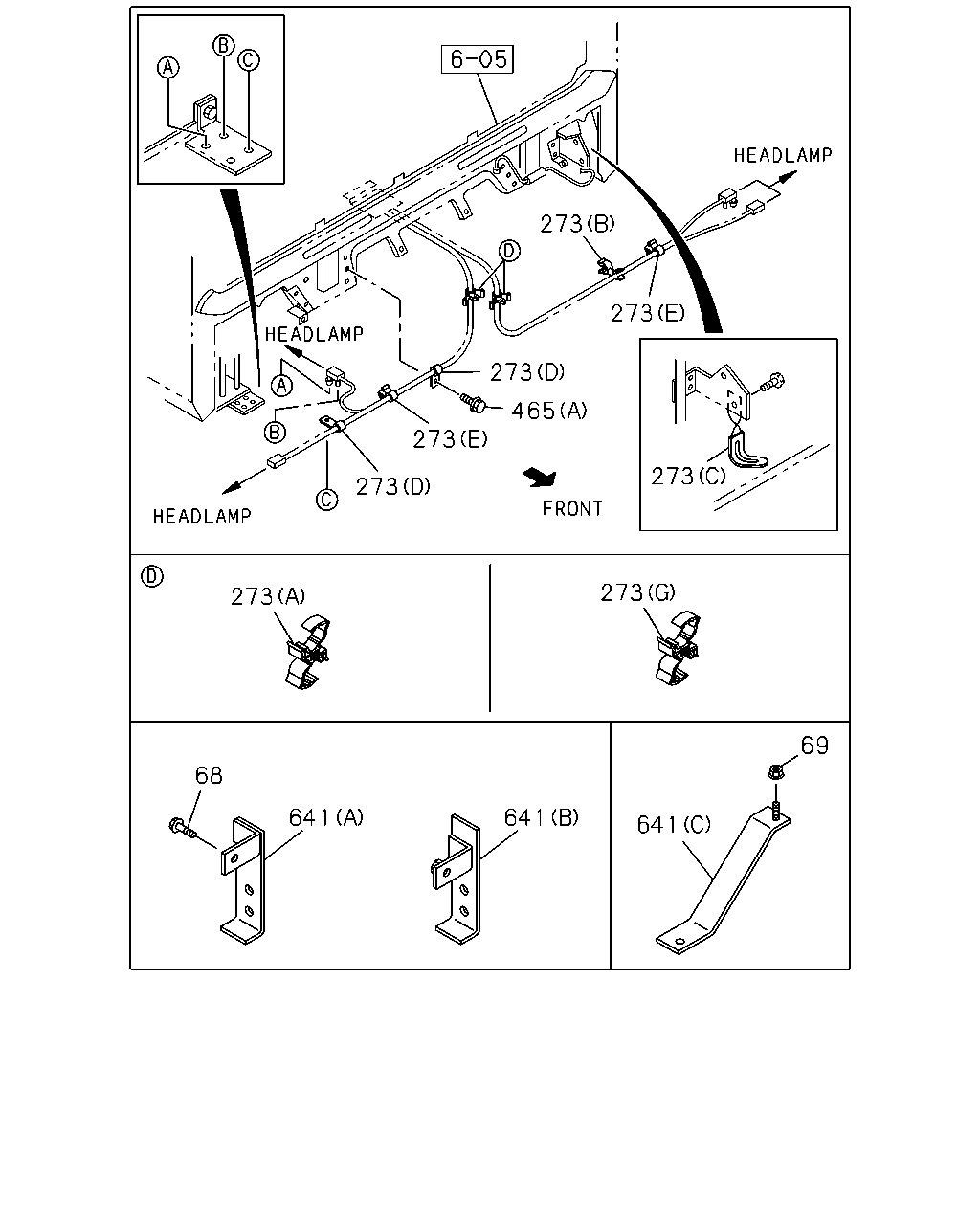

çizim 143884
273 273 273 465 273 273 273 273 273 69 68 641 641 641
BalonParca AdiParca NoAdetTipApplied Date A B C D E
68 BOLT; BRKT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M8X20 FLANGE 		0-28680-820-0 01 1 0212-0512 ●
68 BOLT; BRKT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
68 BOLT; BRKT
ELEC OUTLET 12V<TAW> M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9905-9907 ● ●
68 BOLT; BRKT
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9908-0004 ● ●
69 NUT; BRKT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 0212-0602 ●
69 NUT; BRKT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
273 CLIP; HARNESS
6HK1 TCS ENG(80L) (F) ID=35 L=35 		1-09700-726-0 01 1 0406-0604 ●
273 CLIP; HARNESS
6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> (F) ID=35 L=35 		1-09700-726-0 01 1 0605- ●
273 CLIP; HARNESS
6HK1 TCS ENG(80L) (F) ID=35 L=35 		1-09700-726-0 01 1 0605- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (G) ID=12-16 & 12-16 		1-09709-191-0 03 1 0212- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) ID=6-10 & 10-14 		1-09709-201-1 01 1 0212- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) ID=11.5 & 14.5 		8-94314-293-0 01 1 0212- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (C) 		8-97101-436-0 01 1 0212- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D) ID=11 L=50 		9-09525-085-0 01 1 0212-0606 ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D) ID=11 L=50 		0-95235-085-0 01 1 0607- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (E) ID=16 L=20 		9-09525-536-0 01 1 0212-0606 ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (E) ID=16 L=20 		0-95235-536-0 01 1 0607- ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=16 L=20 		9-09525-536-0 02 1 0212-0606 ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=16 L=20 		0-95235-536-0 02 1 0607- ●
465 BOLT; CLIP
6HK1 TCS ENG(80L) (B) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 01 1 0406-0604 ●
465 BOLT; CLIP
6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> (B) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 01 1 0605- ●
465 BOLT; CLIP
6HK1 TCS ENG(80L) (B) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 01 1 0605- ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0212-0512 ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28680-820-0 01 1 0212-0512 ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 0212- ●
641 BRACKET; CLIP,HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) 		1-82698-073-1 01 1 0212-0309 ●
641 BRACKET; CLIP,HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) 		1-82698-503-0 01 1 0310- ●
641 BRACKET; CLIP,HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-82698-072-2 01 1 0212- ●

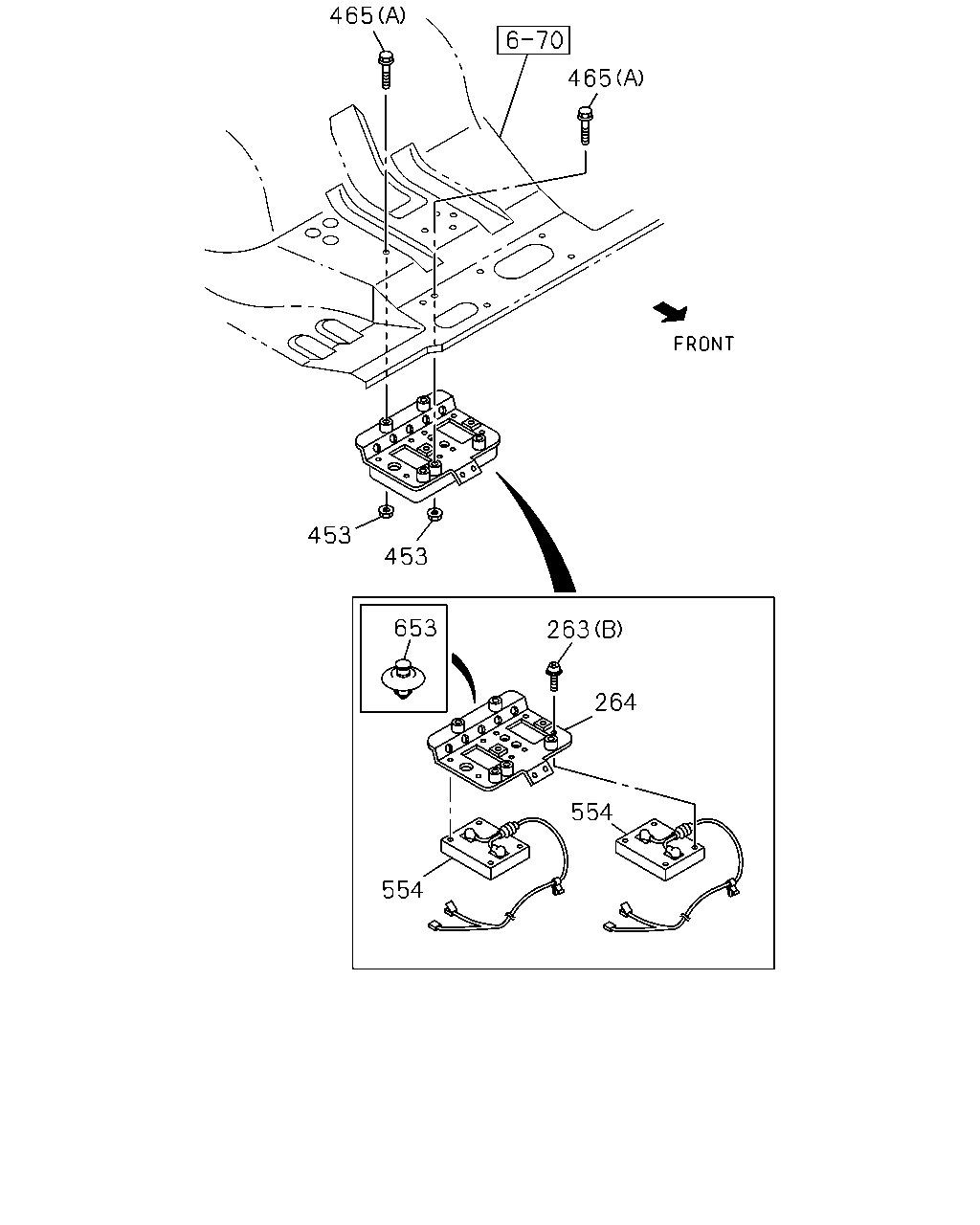

çizim 143989
465 465 453 453 653 263 264 554 554
BalonParca AdiParca NoAdetTipApplied Date A B C D E
263 BOLT; CONT UNIT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) M6X12 W/LK&PL WASHER 		8-94279-200-0 08 1 0212- ●
263 BOLT; CONT UNIT
A/T<X9D> (A) M6X40 LK&PL WASHER 		8-94279-215-0 03 1 0005- ●
263 BOLT; CONT UNIT
(A) M6X40 LK&PL WASHER 		8-94279-215-0 03 1 0005- ●
264 BRACKET; CONT UNIT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82547-037-5 01 1 0212- ●
453 NUT; BRKT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M8 FLANGE 		0-91150-108-0 04 1 0212-0602 ●
453 NUT; BRKT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M8 FLANGE 		0-91180-108-0 04 1 0603- ●
465 BOLT; CLIP
6HK1 TCS ENG(80L) (B) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 01 1 0406-0604 ●
465 BOLT; CLIP
6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> (B) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 01 1 0605- ●
465 BOLT; CLIP
6HK1 TCS ENG(80L) (B) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 01 1 0605- ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0212-0512 ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28680-820-0 01 1 0212-0512 ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
465 BOLT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 0212- ●
554 CONTROL UNIT; HEAD LAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-80150-076-6 01 1 0212- ●
554 CONTROL UNIT; HEAD LAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-80150-077-5 01 1 0212- ●
653 CLIP; BRKT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> D8X13.5 		1-09987-248-1 01 1 0212- ●

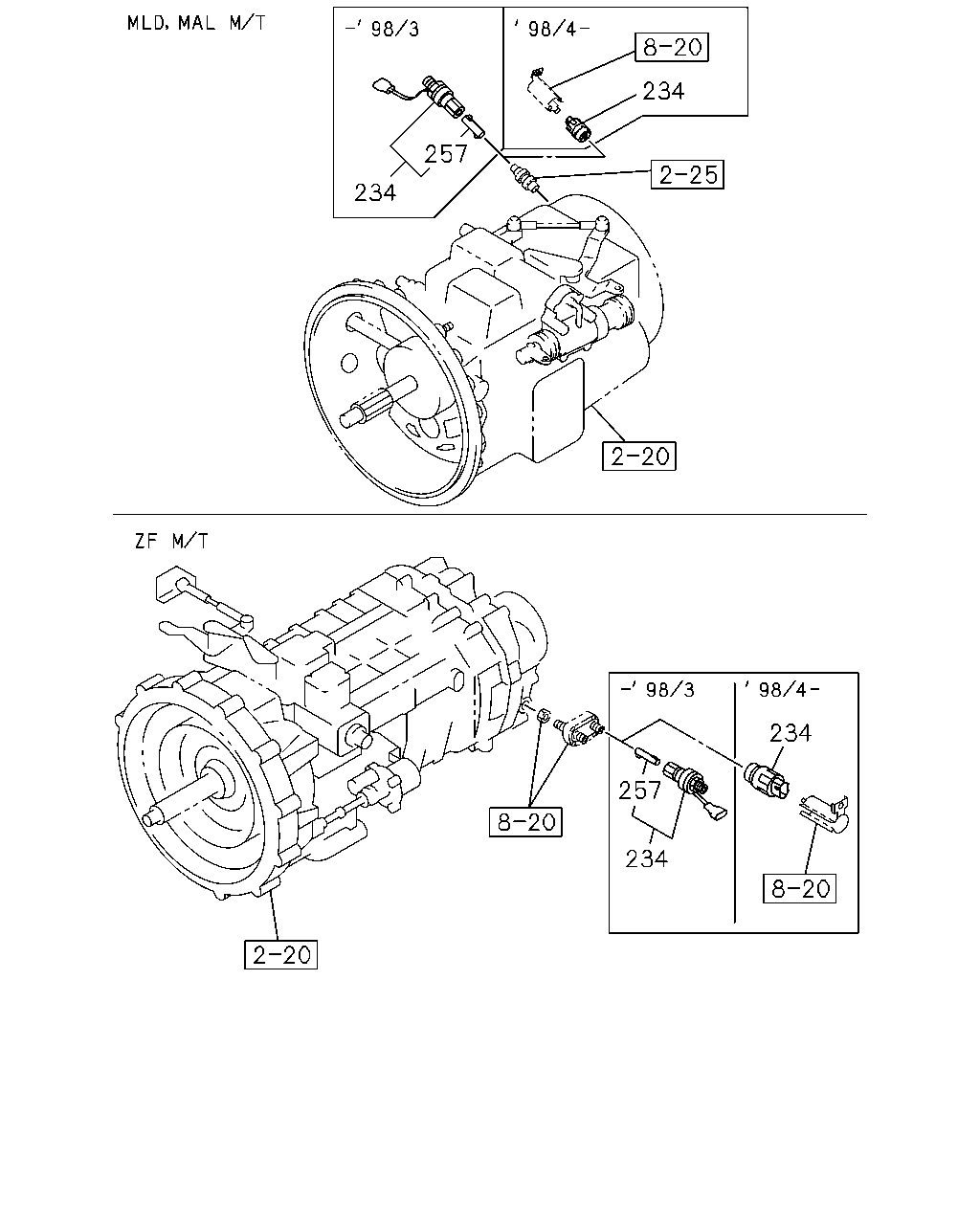

çizim 184309
234 257 234 234 257 234
BalonParca AdiParca NoAdetTipApplied Date A B C D E
234 SENSOR; VEHICLE SPD 1-83127-241-1 01 1 9601-9803 ●
234 SENSOR; VEHICLE SPD
MLD7R M/T(X5L),MLD6A M/T(X5N),ZF 9S109 OD M/T(Y2L) 		1-83127-241-1 01 1 9601-9803 ●
234 SENSOR; VEHICLE SPD
MLD7Q M/T(X5K),MLD7R M/T(X5L),MLD6A M/T(X5N), MLD6E M/T(X5R),ZF 9S109 OD M/T(Y2L) 		1-83127-241-1 01 1 9601-9803 ●
234 SENSOR; VEHICLE SPD 1-80240-001-0 01 1 9804-9903 ●
234 SENSOR; VEHICLE SPD
MLD7R M/T(X5L),MLD6A M/T(X5N),MAL6S M/T(Y1V), ZF9S109 OD M/T(Y2L) 		1-80240-001-0 01 1 9804-9903 ●
234 SENSOR; VEHICLE SPD
MLD7Q M/T(X5K),MLD7R M/T(X5L),MLD6A M/T(X5N), MLD6E M/T(X5R),MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) 		1-80240-001-0 01 1 9804-9903 ●
234 SENSOR; VEHICLE SPD
ZF 9S109 OD M/T(Y2L) 		1-80240-001-0 01 1 9804-9903 ●
234 SENSOR; VEHICLE SPD 1-80240-001-0 01 1 9904-0004 ● ●
234 SENSOR; VEHICLE SPD
MLD7Q M/T(X5K),MLD7R M/T(X5L),MLD6A M/T(X5N), MLD6E M/T(X5R),MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L),ZF 9S109 OD M/T HONG KONG(Y3Y) 		1-80240-001-0 01 1 9904-0004 ●
234 SENSOR; VEHICLE SPD
ZF 9S109 OD M/T(Y2L) 		1-80240-001-0 01 1 9904-0004 ●
234 SENSOR; VEHICLE SPD 1-80240-001-1 01 1 0005-0202 ● ● ●
234 SENSOR; VEHICLE SPD
MLD7Q M/T(X5K),MLD7R M/T(X5L),MLD6A M/T(X5N), MLD6E M/T(X5R),MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) 		1-80240-001-1 01 1 0005-0202 ●
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-0 01 1 0203-0403 ● ● ●
234 SENSOR; VEHICLE SPD
MLD7Q M/T(X5K),MLD7R M/T(X5L),MLD6A M/T(X5N), MLD6E M/T(X5R),MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) 25 PULSE ALUMINUM 		8-97328-058-0 01 1 0203-0403 ●
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-0 01 1 0404-0405 ● ● ●
234 SENSOR; VEHICLE SPD
EXC. FULLER M/T<X9B>,A/T<X9D> 25 PULSE ALUMINUM 		8-97328-058-0 01 1 0404-0405 ●
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 0406-1102 ● ● ●
234 SENSOR; VEHICLE SPD
FULLER FSO5206B OD M/T(Y4V) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 0406-1102 ●
234 SENSOR; VEHICLE SPD
EXC. FULLER M/T<X9B>,A/T<X9D> 25 PULSE ALUMINUM 		8-97328-058-1 01 1 0406-1102 ●
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 1103- ● ● ●
234 SENSOR; VEHICLE SPD
ZF 9S109 OD M/T(Y2L),FULLER FSO5206B OD M/T(Y4V) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 1103- ●
234 SENSOR; VEHICLE SPD
ISUZU M/T<X9A> 25 PULSE ALUMINUM 		8-97328-058-1 01 1 1103- ●
234 SENSOR; VEHICLE SPD
FULLER FS8209 DD M/T(Y2S) 25 PULSE 		1-83127-414-0 01 1 9601-9610 ● ●
234 SENSOR; VEHICLE SPD
FULLER FS8209 DD M/T(Y2S) 25 PULSE 		1-83127-414-0 01 1 9611-9803 ●
234 SENSOR; VEHICLE SPD
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) 25 PULSE 		1-83127-414-0 01 1 9611-9803 ●
234 SENSOR; VEHICLE SPD
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) 25 PULSE 		1-83127-414-1 01 1 9804-0004 ●
234 SENSOR; VEHICLE SPD
FULLER FS8209 DD M/T(Y2S) 25 PULSE 		1-83127-414-1 01 1 9804-0004 ●
234 SENSOR; VEHICLE SPD
FULLER RT7608LL M/T(X8P) 25 PULSE 		1-83127-414-1 01 1 0005-0403 ●
234 SENSOR; VEHICLE SPD
FULLER M/T<X9B> 25 PULSE 		1-83127-414-1 01 1 0404-0405 ●
234 SENSOR; VEHICLE SPD
FULLER RT7608LL M/T(X8P) 25 PULSE 		1-83127-414-1 01 1 0406- ●
234 SENSOR; VEHICLE SPD
MAL6S M/T(Y1V) 		1-83127-254-2 01 1 9601-9803 ● ●
257 KEY; SPEED SENSOR 1-83129-126-0 01 1 9601-9803 ●
257 KEY; SPEED SENSOR
MLD7R M/T(X5L),MLD6A M/T(X5N),ZF 9S109 OD M/T(Y2L) 		1-83129-126-0 01 1 9601-9803 ●
257 KEY; SPEED SENSOR
MLD7Q M/T(X5K),MLD7R M/T(X5L),MLD6A M/T(X5N), MLD6E M/T(X5R),ZF 9S109 OD M/T(Y2L) 		1-83129-126-0 01 1 9601-9803 ●
257 KEY; SPEED SENSOR
FULLER FS8209 DD M/T(Y2S) 		1-83129-073-0 01 1 9601-9610 ● ●
257 KEY; SPEED SENSOR
FULLER FS8209 DD M/T(Y2S) 		1-83129-073-0 01 1 9611-9803 ●
257 KEY; SPEED SENSOR
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) 		1-83129-073-0 01 1 9611-9803 ●
257 KEY; SPEED SENSOR
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) 		1-83129-073-0 01 1 9804-0004 ●
257 KEY; SPEED SENSOR
FULLER FS8209 DD M/T(Y2S) 		1-83129-073-0 01 1 9804-0004 ●
257 KEY; SPEED SENSOR
FULLER RT7608LL M/T(X8P) 		1-83129-073-0 01 1 0005-0403 ●
257 KEY; SPEED SENSOR
FULLER M/T<X9B> 		1-83129-073-0 01 1 0404-0405 ●
257 KEY; SPEED SENSOR
FULLER RT7608LL M/T(X8P) 		1-83129-073-0 01 1 0406- ●
257 KEY; SPEED SENSOR
MAL6S M/T(Y1V) 		1-83129-125-0 01 1 9601-9803 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
