◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10704 - FVR/GVR-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#63910) — 149 parça

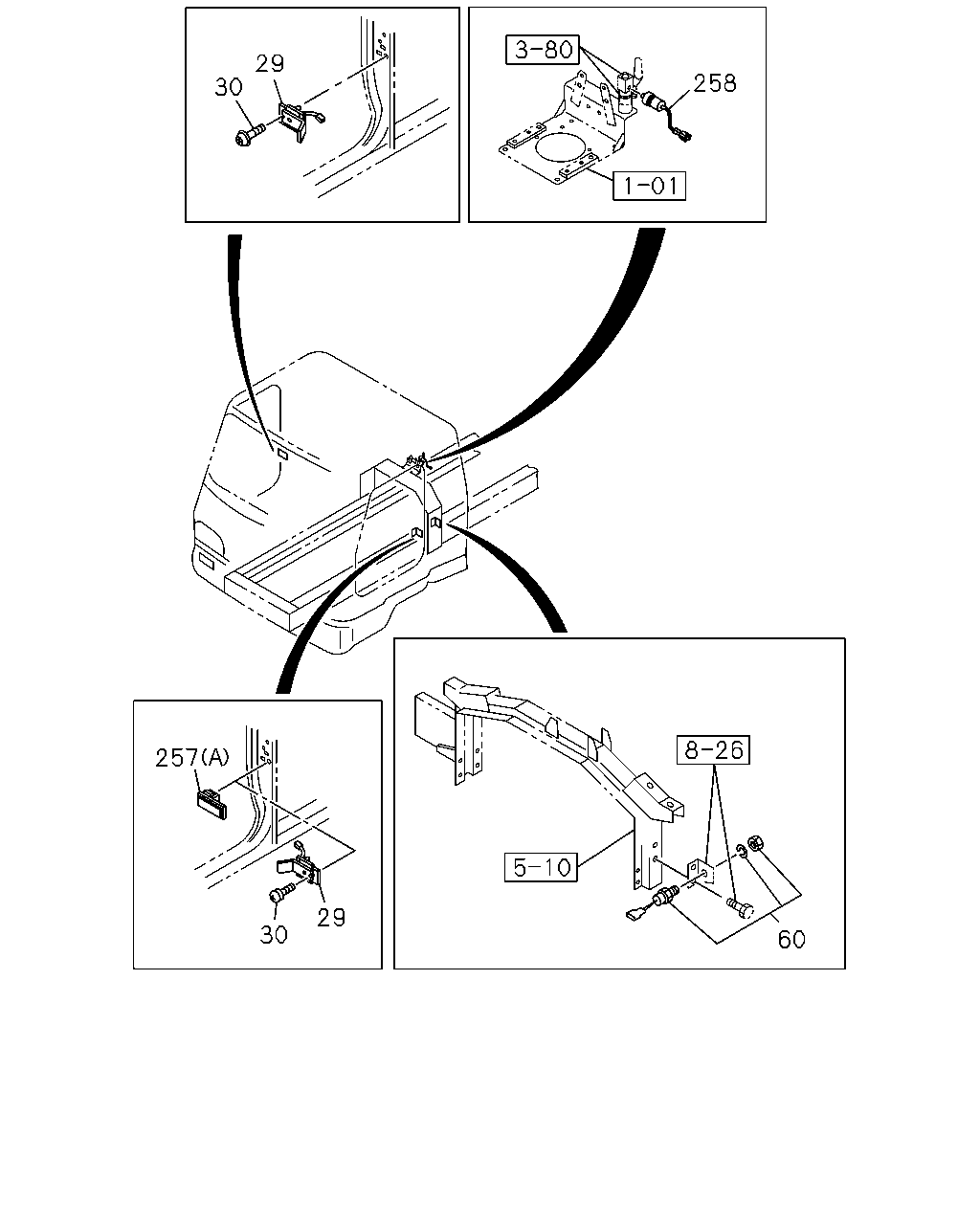

çizim 137340
29 258 30 257 29 30 60
BalonParca AdiParca NoAdetTipApplied Date A B C D E
29 SWITCH; DOOR
REMOTE CONT DOOR LOCK<SLG> 		8-97855-032-3 02 1 0405- ●
29 SWITCH; DOOR 8-97855-032-2 01 1 9601-9803 ● ● ●
29 SWITCH; DOOR 8-97855-032-2 01 1 9804-9909 ● ● ● ●
29 SWITCH; DOOR 8-97855-032-2 01 1 9910-0004 ● ●
29 SWITCH; DOOR
EXC. CUSTOM CAB(SR5) 		8-97855-032-2 01 1 9910-0004 ● ●
29 SWITCH; DOOR 8-97855-032-3 01 1 0005-0404 ● ● ● ● ●
29 SWITCH; DOOR 8-97855-032-3 01 1 0405- ● ● ● ●
29 SWITCH; DOOR
EXC. REMOTE CONT DOOR LOCK<SLG> 		8-97855-032-3 01 1 0405- ●
29 SWITCH; DOOR
CUSTOM CAB(SR5) 		8-97855-032-2 02 1 9910-0004 ● ●
30 SCREW; DOOR SW
REMOTE CONT DOOR LOCK<SLG> M5X11 		1-09981-536-1 02 1 0405- ●
30 SCREW; DOOR SW
M5X16 		8-94279-341-0 01 1 9601-9803 ● ● ●
30 SCREW; DOOR SW
M5X16 		8-94279-341-0 01 1 9804-9906 ● ● ● ●
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 01 1 9907-9909 ● ● ● ●
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 01 1 9910-0004 ● ●
30 SCREW; DOOR SW
EXC. CUSTOM CAB(SR5) M5X11 		1-09981-536-1 01 1 9910-0004 ● ●
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 01 1 0005-0404 ● ● ● ● ●
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 01 1 0405- ● ● ● ●
30 SCREW; DOOR SW
EXC. REMOTE CONT DOOR LOCK<SLG> M5X11 		1-09981-536-1 01 1 0405- ●
30 SCREW; DOOR SW
CUSTOM CAB(SR5) M5X11 		1-09981-536-1 02 1 9910-0004 ● ●
60 SWITCH; STARTER SUB
AUSTRALIA EQUIPMENT(RR3) 		1-82380-107-1 01 1 9601-9803 ●
60 SWITCH; STARTER SUB
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-82380-107-1 01 1 9601-9803 ●
60 SWITCH; STARTER SUB
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-82380-107-1 01 1 9804-0004 ●
60 SWITCH; STARTER SUB
AUSTRALIA EQUIPMENT(RR3) 		1-82380-107-1 01 1 9804-0004 ●
60 SWITCH; STARTER SUB
NEW ZEALAND EQUIPMENT(PK5) 		1-82380-107-1 01 1 0005-0211 ●
60 SWITCH; STARTER SUB
NEW ZEALAND EQUIPMENT(PK5) EXC. STARTER SWITCH DELETION<E5D> 		1-82380-107-1 01 1 0212- ●
257 COVER; HOLE,SW
(A) 		8-94229-914-1 01 1 9601-9803 ● ● ●
257 COVER; HOLE,SW
(A) 		8-94229-914-1 01 1 9804-9909 ● ● ● ●
257 COVER; HOLE,SW
(A) 		8-94229-914-1 01 1 9910-0004 ● ●
257 COVER; HOLE,SW
EXC. CUSTOM CAB(SR5) (A) 		8-94229-914-1 01 1 9910-0004 ● ●
257 COVER; HOLE,SW
(A) 		8-94229-914-1 01 1 0005-0404 ● ● ● ● ●
257 COVER; HOLE,SW
(A) 		8-94229-914-1 01 1 0405- ● ● ● ●
257 COVER; HOLE,SW
EXC. REMOTE CONT DOOR LOCK<SLG> (A) 		8-94229-914-1 01 1 0405- ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-012-2 01 1 9601-9803 ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-012-2 01 1 9804- ● ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-011-2 01 1 9601-9803 ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-011-2 01 1 9804- ● ● ●
258 SWITCH; FLASHER UNIT 1-82410-137-1 01 1 9804- ●

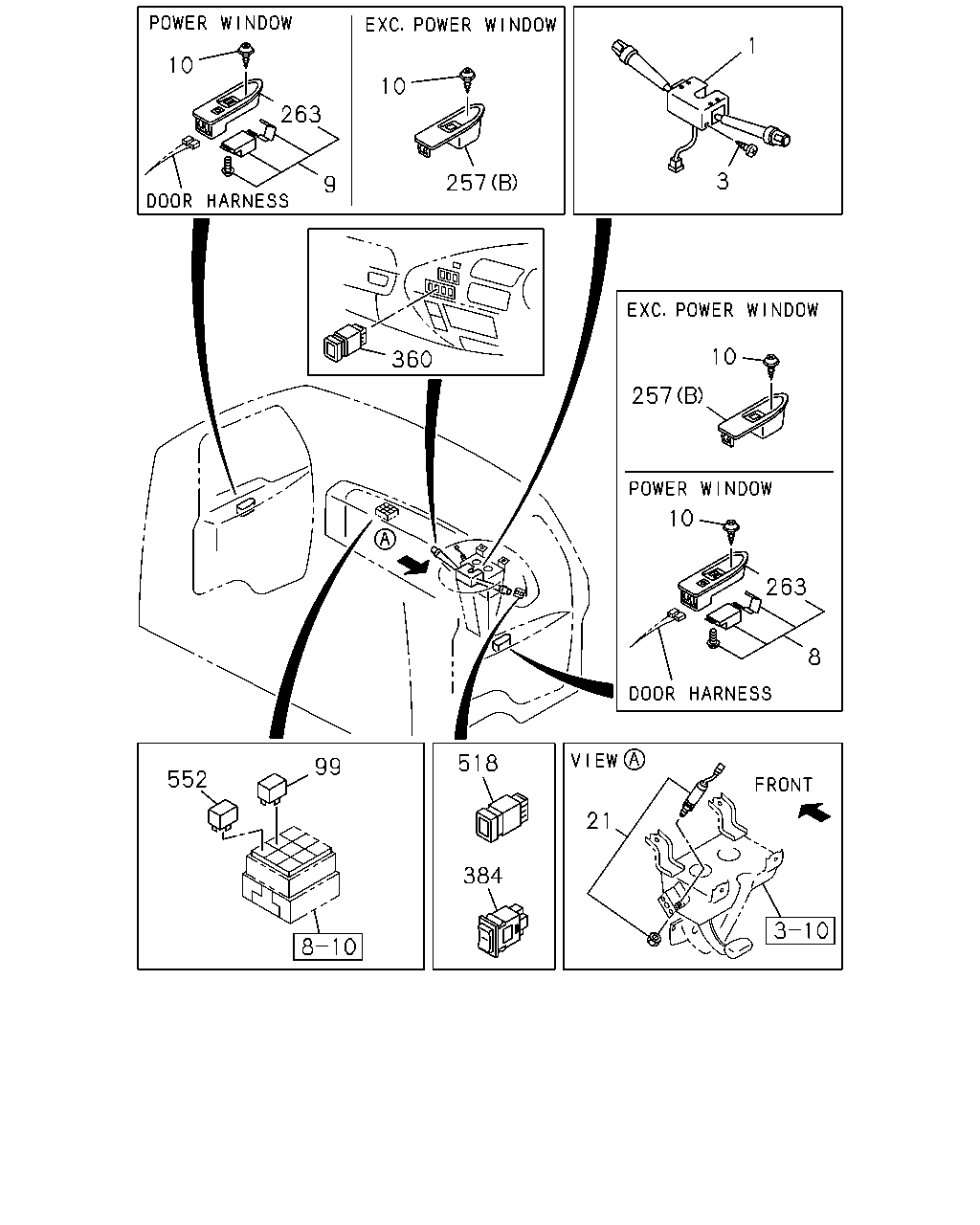

çizim 137959
1 10 10 263 3 257 9 10 360 257 10 263 8 518 99 552 21 384
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 SWITCH; COMB
NEW ZEALAND EQUIPMENT(PK5) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82360-693-0 01 1 0212-0312 ●
1 SWITCH; COMB
NEW ZEALAND EQUIPMENT(PK5) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82360-730-0 01 1 0401- ●
1 SWITCH; COMB 1-82360-412-2 01 1 9601-9609 ●
1 SWITCH; COMB
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-412-2 01 1 9601-9609 ●
1 SWITCH; COMB
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82360-412-2 01 1 9601-9609 ●
1 SWITCH; COMB
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-412-2 01 1 9610-9803 ● ●
1 SWITCH; COMB
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82360-412-2 01 1 9610-9803 ●
1 SWITCH; COMB
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-412-3 01 1 9804-9909 ● ● ●
1 SWITCH; COMB
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82360-412-3 01 1 9804-9909 ●
1 SWITCH; COMB
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-412-3 01 1 9910-0004 ● ●
1 SWITCH; COMB
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. NEW ZEALAND EQUIPMENT(PK5),AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-82360-412-3 01 1 9910-0004 ●
1 SWITCH; COMB
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-82360-412-3 01 1 9910-0004 ●
1 SWITCH; COMB
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-412-3 01 1 0005-0103 ● ●
1 SWITCH; COMB
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82360-412-3 01 1 0005-0103 ●
1 SWITCH; COMB 1-82360-412-3 01 1 0005-0103 ● ●
1 SWITCH; COMB
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-619-0 01 1 0104-0312 ● ●
1 SWITCH; COMB
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82360-619-0 01 1 0104-0312 ●
1 SWITCH; COMB 1-82360-619-0 01 1 0104-0312 ● ●
1 SWITCH; COMB
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-715-0 01 1 0401- ● ●
1 SWITCH; COMB
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82360-715-0 01 1 0401- ●
1 SWITCH; COMB 1-82360-715-0 01 1 0401- ● ●
1 SWITCH; COMB
EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-403-3 01 1 9601-9609 ● ●
1 SWITCH; COMB
EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-403-3 01 1 9610-9803 ● ● ●
1 SWITCH; COMB
EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-403-4 01 1 9804-9909 ● ● ● ●
1 SWITCH; COMB
EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-403-4 01 1 9910-0004 ● ●
1 SWITCH; COMB
EXC. AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT>, HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-403-4 01 1 9910-0004 ● ●
1 SWITCH; COMB
EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-403-4 01 1 0005-0103 ● ● ●
1 SWITCH; COMB
EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-618-0 01 1 0104-0312 ● ● ●
1 SWITCH; COMB
EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-714-0 01 1 0401- ● ● ●
1 SWITCH; COMB
NEW ZEALAND EQUIPMENT(PK5) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-410-4 01 1 9601-0103 ●
1 SWITCH; COMB
NEW ZEALAND EQUIPMENT(PK5) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-658-0 01 1 0104-0211 ●
1 SWITCH; COMB
NEW ZEALAND EQUIPMENT(PK5) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82360-658-0 01 1 0212-0312 ●
1 SWITCH; COMB
NEW ZEALAND EQUIPMENT(PK5) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82360-726-0 01 1 0401- ●
1 SWITCH; COMB
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-82360-532-0 01 1 9910-0004 ● ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 04 1 9601-9803 ● ● ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 04 1 9804-0004 ● ● ● ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 04 1 0005-0604 ● ● ● ● ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74165-512-0 04 1 0605- ● ● ● ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW<A30> DRIVER 		1-82380-148-0 01 1 9601-9709 ● ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW<A30> DRIVER 		1-82380-155-1 01 1 9710-9803 ● ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW<A30> DRIVER 		1-82380-155-3 01 1 9804-0004 ● ● ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW<A30> DRIVER 		1-82380-155-4 01 1 0005- ● ● ● ●
8 SWITCH; POWER WINDOW
DRIVER 		1-82380-155-4 01 1 0005- ●
9 SWITCH; POWER WINDOW
POWER WINDOW<A30> PASSENGER 		1-82380-138-0 01 1 9601-9709 ● ● ●
9 SWITCH; POWER WINDOW
POWER WINDOW<A30> PASSENGER 		1-82380-154-1 01 1 9710-9803 ● ● ●
9 SWITCH; POWER WINDOW
POWER WINDOW<A30> PASSENGER 		1-82380-154-3 01 1 9804-0004 ● ● ● ●
9 SWITCH; POWER WINDOW
POWER WINDOW<A30> PASSENGER 		1-82380-154-3 01 1 0005- ● ● ● ●
9 SWITCH; POWER WINDOW
PASSENGER 		1-82380-154-3 01 1 0005- ●
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9601-9803 ● ● ●
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9804-0004 ● ● ● ●
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0005-0604 ● ● ● ● ●
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605- ● ● ● ● ●
21 SWITCH; CLU
6HK1 TCS ENG(80L) 		1-82440-116-1 01 1 0406-0604 ●
21 SWITCH; CLU
6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> 		1-82440-116-1 01 1 0605-0608 ●
21 SWITCH; CLU
6HK1 TCS ENG(80L) 		1-82440-116-1 01 1 0605-0608 ●
21 SWITCH; CLU
6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> 		1-82440-126-1 01 1 0609- ●
21 SWITCH; CLU
6HK1 TCS ENG(80L) 		1-82440-126-1 01 1 0609- ●
21 SWITCH; CLU 1-82380-114-1 01 1 9601-9803 ● ● ●
21 SWITCH; CLU 1-82380-114-2 01 1 9804-0004 ● ● ● ●
21 SWITCH; CLU 1-82380-114-3 01 1 0005-0405 ● ● ● ● ●
21 SWITCH; CLU 1-82380-114-3 01 1 0406-0604 ● ● ● ●
21 SWITCH; CLU
6HH1 STD 4VALVE ENG(1A6),6SD1 TCN ENG(31L), 6SD1STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) 		1-82380-114-3 01 1 0406-0604 ●
21 SWITCH; CLU 1-82380-114-3 01 1 0605- ● ● ● ●
21 SWITCH; CLU
6HH1 STD 4VALVE ENG(1A6),6SD1 TCN ENG(31L), 6SD1STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. EURO3 SPECIFICATION<NJX> 		1-82380-114-3 01 1 0605- ●
99 RELAY; FOG LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 12.5A MITUBA 		8-97062-815-1 01 1 9601-9803 ● ● ●
99 RELAY; FOG LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 12.5A MITUBA 		8-97062-815-1 01 1 9804-0004 ● ● ● ●
99 RELAY; FOG LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 12.5A MITUBA 		8-97062-815-1 01 1 0005-0111 ● ● ●
99 RELAY; FOG LAMP
24V 12.5A MITUBA 		8-97062-815-1 01 1 0005-0111 ● ●
99 RELAY; FOG LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112- ● ● ●
99 RELAY; FOG LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112- ● ●
257 COVER; HOLE,SW
(A) 		8-94229-914-1 01 1 9601-9803 ● ● ●
257 COVER; HOLE,SW
(A) 		8-94229-914-1 01 1 9804-9909 ● ● ● ●
257 COVER; HOLE,SW
(A) 		8-94229-914-1 01 1 9910-0004 ● ●
257 COVER; HOLE,SW
EXC. CUSTOM CAB(SR5) (A) 		8-94229-914-1 01 1 9910-0004 ● ●
257 COVER; HOLE,SW
(A) 		8-94229-914-1 01 1 0005-0404 ● ● ● ● ●
257 COVER; HOLE,SW
(A) 		8-94229-914-1 01 1 0405- ● ● ● ●
257 COVER; HOLE,SW
EXC. REMOTE CONT DOOR LOCK<SLG> (A) 		8-94229-914-1 01 1 0405- ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-012-2 01 1 9601-9803 ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-012-2 01 1 9804- ● ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-011-2 01 1 9601-9803 ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-011-2 01 1 9804- ● ● ●
263 COVER; SW
POWER WINDOW<A30> 		1-82385-006-3 01 1 9601-9803 ● ● ●
263 COVER; SW
POWER WINDOW<A30> 		1-82385-006-3 01 1 9804-0004 ● ● ● ●
263 COVER; SW
POWER WINDOW<A30> 		1-82385-006-3 01 1 0005- ● ● ● ●
263 COVER; SW 1-82385-006-3 01 1 0005- ●
263 COVER; SW
POWER WINDOW<A30> 		1-82385-005-2 01 1 9601-9803 ● ● ●
263 COVER; SW
POWER WINDOW<A30> 		1-82385-005-2 01 1 9804-0004 ● ● ● ●
263 COVER; SW
POWER WINDOW<A30> 		1-82385-005-2 01 1 0005- ● ● ● ●
263 COVER; SW 1-82385-005-2 01 1 0005- ●
360 SWITCH ASM; DIFF LK 1-82340-660-1 01 1 0005- ●
384 SWITCH; IDLING CONT,ELEC
6HK1 TCS ENG(80L) 		1-82350-213-1 01 1 0406-0604 ●
384 SWITCH; IDLING CONT,ELEC
6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> 		1-82350-213-1 01 1 0605- ●
384 SWITCH; IDLING CONT,ELEC
6HK1 TCS ENG(80L) 		1-82350-213-1 01 1 0605- ●
518 SWITCH; RADIO TUNE
RADIO SEEK SW<NBN> 		1-82350-231-0 01 1 0011- ●
518 SWITCH; RADIO TUNE
RADIO SEEK SW<NBN> 		1-82350-231-0 01 1 9807-0004 ● ●
552 RELAY; CIGAR LIGHTER
24V 12.5A MITUBA 		8-97062-815-1 01 1 9601-9803 ● ● ●
552 RELAY; CIGAR LIGHTER
24V 12.5A MITUBA 		8-97062-815-1 01 1 9804-0004 ● ● ● ●
552 RELAY; CIGAR LIGHTER
24V 12.5A MITUBA 		8-97062-815-1 01 1 0005-0111 ● ● ● ● ●
552 RELAY; CIGAR LIGHTER
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112- ● ● ● ● ●

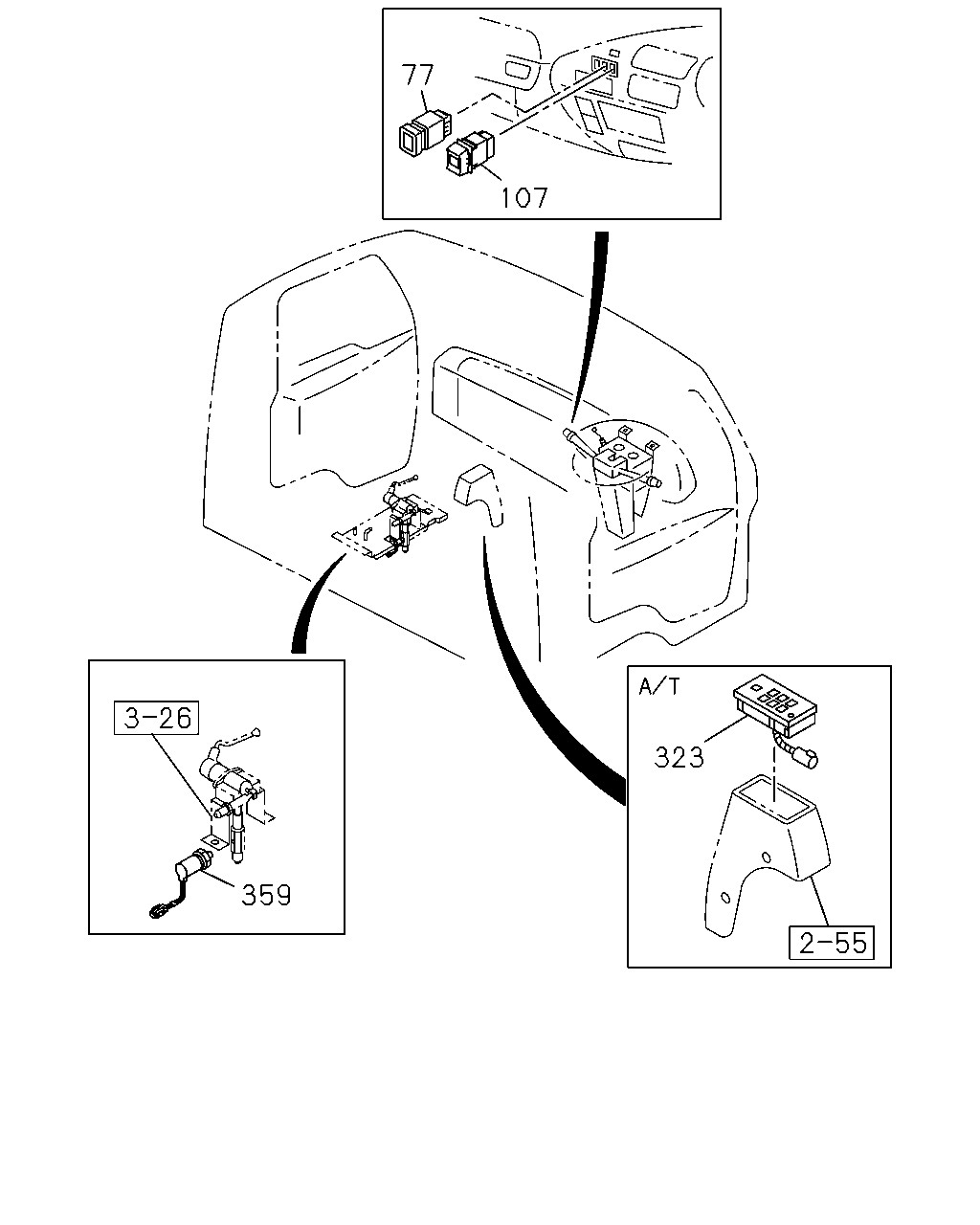

çizim 138080
77 107 323 359
BalonParca AdiParca NoAdetTipApplied Date A B C D E
77 SWITCH; PTO
PTO CONTROL<SV6> 		1-82340-403-0 01 1 9601-9706 ● ●
77 SWITCH; PTO
PTO CONTROL<SV6> 		1-82340-403-0 01 1 9707-9803 ● ● ●
77 SWITCH; PTO
PTO CONTROL<SV6> 		1-82340-403-0 01 1 9804-0004 ● ● ●
77 SWITCH; PTO
PTO CONTROL<SV6> 		1-82340-403-0 01 1 0005- ● ●
77 SWITCH; PTO
PTO CONTROL<SV6> EXC. A/T<X9D> 		1-82340-403-0 01 1 0005- ●
77 SWITCH; PTO
PTO CONTROL<SV6> A/T<X9D> 		1-82340-413-0 01 1 0005- ●
107 SWITCH; REMOTE CONT,MIRROR
MIR STAY O/S W/REMOTE<TBA> 		1-82350-233-0 01 1 9804- ●
323 SWITCH ASM; SELECTOR
A/T<X9D> 		1-80290-001-0 01 1 0005-0109 ●
323 SWITCH ASM; SELECTOR 1-80290-001-0 01 1 0005-0109 ●
323 SWITCH ASM; SELECTOR
A/T<X9D> 		1-80290-013-0 01 1 0110- ●
323 SWITCH ASM; SELECTOR 1-80290-013-0 01 1 0110- ●
359 SWITCH; TRAILER BRAKE
GREEN 		1-82410-176-1 01 1 9804- ●
çizim 184335
436
BalonParca AdiParca NoAdetTipApplied Date A B C D E
436 SWITCH; HEADLAMP LEVELING
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		1-82330-043-0 01 1 0212- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
