Sayfa 8-05 - Isuzu EPC

8-05 — INTERIOR LAMP (#63905) — 287 parça

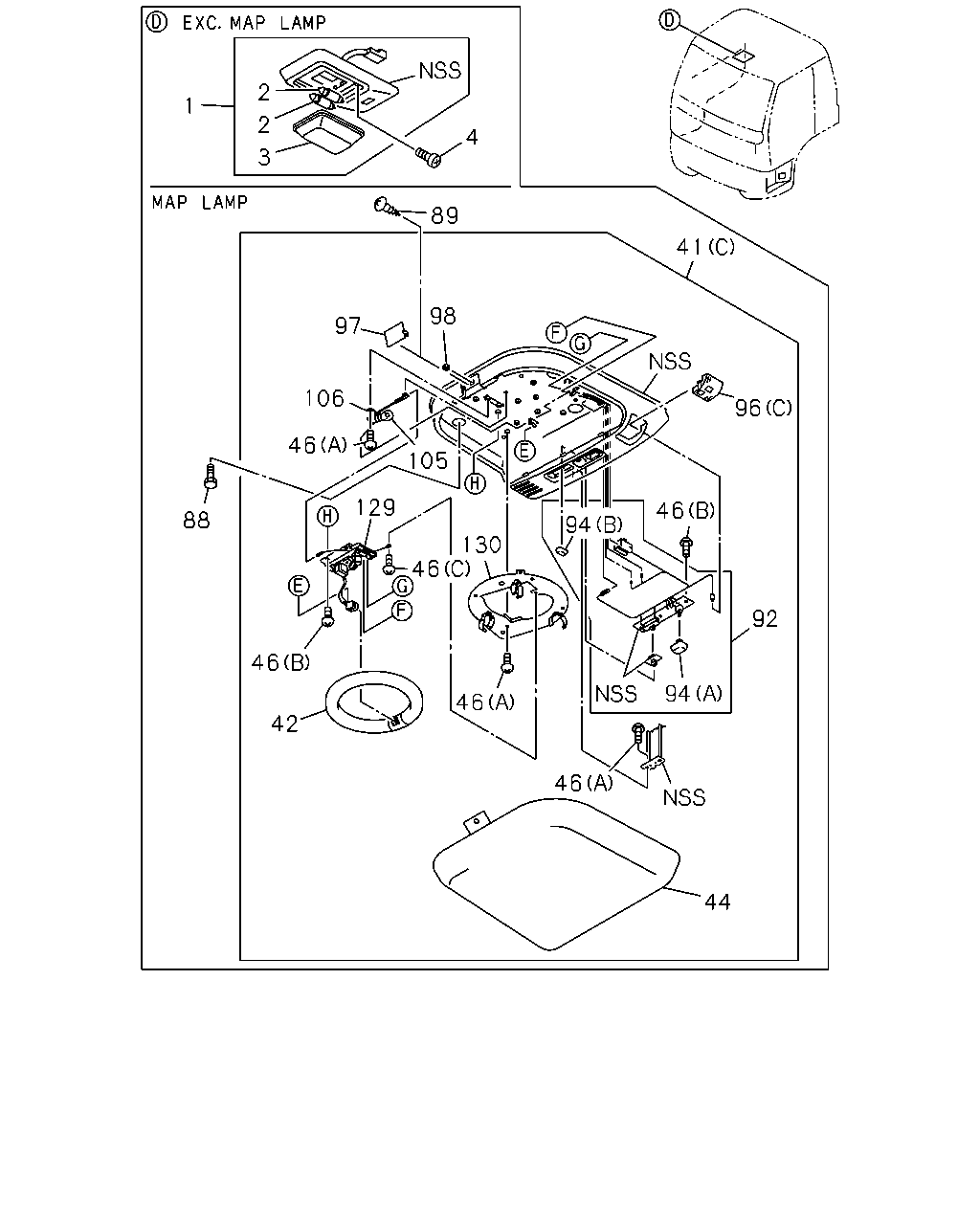

2 1 2 4 3 89 41 98 97 106 96 46 105 129 46 88 94 130 46 92 46 94 46 42 46 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	LAMP ASM; ROOM	1-82140-050-1	01	1	9601-9803	●	●
1	LAMP ASM; ROOM	1-82140-050-1	01	1	9804-9908	●	●	●
1	LAMP ASM; ROOM	1-82140-050-1	01	1	9909-0004	●
1	LAMP ASM; ROOM EXC. MAP LAMP<C85>	1-82140-050-1	01	1	9909-0004		●	●
1	LAMP ASM; ROOM	1-82140-050-1	01	1	0005-0211	●	●	●
1	LAMP ASM; ROOM	1-82140-050-1	01	1	0212-	●		●
1	LAMP ASM; ROOM EXC. MAP LAMP<C85>	1-82140-050-1	01	1	0212-		●
2	BULB; ROOM LAMP 24V 10W	1-82195-001-0	02	1	9601-9803	●	●
2	BULB; ROOM LAMP 24V 10W	1-82195-001-0	02	1	9804-9908	●	●	●
2	BULB; ROOM LAMP 24V 10W	1-82195-001-0	02	1	9909-0004	●
2	BULB; ROOM LAMP EXC. MAP LAMP<C85> 24V 10W	1-82195-001-0	02	1	9909-0004		●	●
2	BULB; ROOM LAMP 24V 10W	1-82195-001-0	02	1	0005-0211	●	●	●
2	BULB; ROOM LAMP 24V 10W	1-82195-001-0	02	1	0212-	●		●
2	BULB; ROOM LAMP EXC. MAP LAMP<C85> 24V 10W	1-82195-001-0	02	1	0212-		●
3	LENS; ROOM LAMP	8-94206-208-0	01	1	9601-9709	●	●
3	LENS; ROOM LAMP	1-82145-020-0	01	1	9710-9803	●	●
3	LENS; ROOM LAMP	1-82145-020-0	01	1	9804-9908	●	●	●
3	LENS; ROOM LAMP	1-82145-020-0	01	1	9909-0004	●
3	LENS; ROOM LAMP EXC. MAP LAMP<C85>	1-82145-020-0	01	1	9909-0004		●	●
3	LENS; ROOM LAMP	1-82145-020-0	01	1	0005-0211	●	●	●
3	LENS; ROOM LAMP	1-82145-020-0	01	1	0212-	●		●
3	LENS; ROOM LAMP EXC. MAP LAMP<C85>	1-82145-020-0	01	1	0212-		●
4	SCREW; ROOM LAMP M5X20 TAPPING	9-07066-520-0	03	1	9601-9803	●	●
4	SCREW; ROOM LAMP M5X20 TAPPING	9-07066-520-0	03	1	9804-9908	●	●	●
4	SCREW; ROOM LAMP M5X20 TAPPING	9-07066-520-0	03	1	9909-0004	●
4	SCREW; ROOM LAMP EXC. MAP LAMP<C85> M5X20 TAPPING	9-07066-520-0	03	1	9909-0004		●	●
4	SCREW; ROOM LAMP M5X20 TAPPING	9-07066-520-0	03	1	0005-0211	●	●	●
4	SCREW; ROOM LAMP M5X20 TAPPING	9-07066-520-0	03	1	0212-0603	●		●
4	SCREW; ROOM LAMP EXC. MAP LAMP<C85> M5X20 TAPPING	9-07066-520-0	03	1	0212-0603		●
4	SCREW; ROOM LAMP M5X20 TAPPING	0-71040-520-0	03	1	0604-	●		●
4	SCREW; ROOM LAMP EXC. MAP LAMP<C85> M5X20 TAPPING	0-71040-520-0	03	1	0604-		●
41	LAMP ASM; FLUORESCENT (A)	1-86830-245-1	01	1	9601-9803				●
41	LAMP ASM; FLUORESCENT (B)	1-86830-305-2	01	1	9804-9909				●
41	LAMP ASM; FLUORESCENT (B)	1-86830-305-2	01	1	9910-0004				●
41	LAMP ASM; FLUORESCENT MAP LAMP<C85> (B)	1-86830-305-2	01	1	9910-0004		●	●
41	LAMP ASM; FLUORESCENT (C)	1-86830-315-1	01	1	0005-0211				●	●
41	LAMP ASM; FLUORESCENT (C)	1-86830-315-2	01	1	0212-				●	●
41	LAMP ASM; FLUORESCENT MAP LAMP<C85> (C)	1-86830-315-2	01	1	0212-		●
42	LAMP; FLUORESCENT	1-86830-094-1	01	1	9601-9909				●
42	LAMP; FLUORESCENT	1-86830-094-1	01	1	9910-0004				●
42	LAMP; FLUORESCENT MAP LAMP<C85>	1-86830-094-1	01	1	9910-0004		●	●
42	LAMP; FLUORESCENT	1-86830-094-1	01	1	0005-0211				●	●
42	LAMP; FLUORESCENT	1-86830-094-1	01	1	0212-				●	●
42	LAMP; FLUORESCENT MAP LAMP<C85>	1-86830-094-1	01	1	0212-		●
44	LENS; FLUORESCENT LAMP	1-86830-092-0	01	1	9601-9909				●
44	LENS; FLUORESCENT LAMP	1-86830-092-0	01	1	9910-0004				●
44	LENS; FLUORESCENT LAMP MAP LAMP<C85>	1-86830-092-0	01	1	9910-0004		●	●
44	LENS; FLUORESCENT LAMP	1-86830-092-0	01	1	0005-0211				●	●
44	LENS; FLUORESCENT LAMP	1-86830-092-0	01	1	0212-				●	●
44	LENS; FLUORESCENT LAMP MAP LAMP<C85>	1-86830-092-0	01	1	0212-		●
46	SCREW; FLUORESCENT LAMP (A) M5X10 TAPPING	1-86830-095-0	04	1	9601-9909				●
46	SCREW; FLUORESCENT LAMP (A) M5X10 TAPPING	1-86830-095-0	04	1	9910-0004				●
46	SCREW; FLUORESCENT LAMP MAP LAMP<C85> (A) M5X10 TAPPING	1-86830-095-0	04	1	9910-0004		●	●
46	SCREW; FLUORESCENT LAMP (B) M4X12	1-86830-202-0	02	1	9601-9909				●
46	SCREW; FLUORESCENT LAMP (B) M4X12	1-86830-202-0	02	1	9910-0004				●
46	SCREW; FLUORESCENT LAMP MAP LAMP<C85> (B) M4X12	1-86830-202-0	02	1	9910-0004		●	●
46	SCREW; FLUORESCENT LAMP (A) M5X10 TAPPING	1-86830-095-0	08	1	0005-0211				●	●
46	SCREW; FLUORESCENT LAMP (A) M5X10 TAPPING	1-86830-095-0	08	1	0212-				●	●
46	SCREW; FLUORESCENT LAMP MAP LAMP<C85> (A) M5X10 TAPPING	1-86830-095-0	08	1	0212-		●
46	SCREW; FLUORESCENT LAMP (B) M4X12	1-86830-202-0	07	1	0005-0211				●	●
46	SCREW; FLUORESCENT LAMP (B) M4X12	1-86830-202-0	07	1	0212-				●	●
46	SCREW; FLUORESCENT LAMP MAP LAMP<C85> (B) M4X12	1-86830-202-0	07	1	0212-		●
46	SCREW; FLUORESCENT LAMP (C) M3X6 TAPPING	1-86830-336-0	01	1	0005-0211				●	●
46	SCREW; FLUORESCENT LAMP (C) M3X6 TAPPING	1-86830-336-0	01	1	0212-				●	●
46	SCREW; FLUORESCENT LAMP MAP LAMP<C85> (C) M3X6 TAPPING	1-86830-336-0	01	1	0212-		●
88	BOLT; LAMP M6X16 W/LK&PL WASHER	1-09980-574-0	06	1	9601-9803				●
88	BOLT; LAMP M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	9804-9909				●
88	BOLT; LAMP M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	9910-0004				●
88	BOLT; LAMP MAP LAMP<C85> M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	9910-0004		●	●
88	BOLT; LAMP M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	0005-0211				●	●
88	BOLT; LAMP M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	0212-				●	●
88	BOLT; LAMP MAP LAMP<C85> M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	0212-		●
89	SCREW; LENS,FLUORESCENT LAMP M5X10 TAPPING	9-07076-510-0	01	1	9601-9909				●
89	SCREW; LENS,FLUORESCENT LAMP M5X10 TAPPING	9-07076-510-0	01	1	9910-0004				●
89	SCREW; LENS,FLUORESCENT LAMP MAP LAMP<C85> M5X10 TAPPING	9-07076-510-0	01	1	9910-0004		●	●
89	SCREW; LENS,FLUORESCENT LAMP M5X10 TAPPING	9-07076-510-0	01	1	0005-0211				●	●
89	SCREW; LENS,FLUORESCENT LAMP M5X10 TAPPING	9-07076-510-0	01	1	0212-0603				●	●
89	SCREW; LENS,FLUORESCENT LAMP MAP LAMP<C85> M5X10 TAPPING	9-07076-510-0	01	1	0212-0603		●
89	SCREW; LENS,FLUORESCENT LAMP M5X10 TAPPING	0-71240-510-0	01	1	0604-				●	●
89	SCREW; LENS,FLUORESCENT LAMP MAP LAMP<C85> M5X10 TAPPING	0-71240-510-0	01	1	0604-		●
92	SWITCH ASM; FLUORESCENT	1-86830-306-0	01	1	0005-0211				●	●
92	SWITCH ASM; FLUORESCENT	1-86830-306-0	01	1	0212-				●	●
92	SWITCH ASM; FLUORESCENT MAP LAMP<C85>	1-86830-306-0	01	1	0212-		●
92	SWITCH ASM; FLUORESCENT	1-86830-280-0	01	1	9601-9803				●
92	SWITCH ASM; FLUORESCENT	1-86830-204-0	01	1	9804-9811				●
92	SWITCH ASM; FLUORESCENT	1-86830-306-0	01	1	9812-9909				●
92	SWITCH ASM; FLUORESCENT	1-86830-306-0	01	1	9910-0004				●
92	SWITCH ASM; FLUORESCENT MAP LAMP<C85>	1-86830-306-0	01	1	9910-0004		●	●
94	KNOB; ROOM LAMP SW (C)	1-86830-098-0	01	1	9601-9803				●
94	KNOB; ROOM LAMP SW (D)	1-86830-304-0	01	1	9804-9909				●
94	KNOB; ROOM LAMP SW (D)	1-86830-304-0	01	1	9910-0004				●
94	KNOB; ROOM LAMP SW MAP LAMP<C85> (D)	1-86830-304-0	01	1	9910-0004		●	●
94	KNOB; ROOM LAMP SW (A)	1-86830-312-0	01	1	0005-0211				●	●
94	KNOB; ROOM LAMP SW (A)	1-86830-312-0	01	1	0212-				●	●
94	KNOB; ROOM LAMP SW MAP LAMP<C85> (A)	1-86830-312-0	01	1	0212-		●
94	KNOB; ROOM LAMP SW (B)	1-86830-313-0	01	1	0005-0211				●	●
94	KNOB; ROOM LAMP SW (B)	1-86830-313-0	01	1	0212-				●	●
94	KNOB; ROOM LAMP SW MAP LAMP<C85> (B)	1-86830-313-0	01	1	0212-		●
96	CAP; SPOT LAMP (C)	1-86830-385-0	01	1	0005-0211				●	●
96	CAP; SPOT LAMP (C)	1-86830-385-0	01	1	0212-				●	●
96	CAP; SPOT LAMP MAP LAMP<C85> (C)	1-86830-385-0	01	1	0212-		●
96	CAP; SPOT LAMP (A)	1-86830-100-0	01	1	9601-9803				●
96	CAP; SPOT LAMP (B)	1-86830-282-0	01	1	9601-9909				●
96	CAP; SPOT LAMP (B)	1-86830-282-0	01	1	9910-0004				●
96	CAP; SPOT LAMP MAP LAMP<C85> (B)	1-86830-282-0	01	1	9910-0004		●	●
97	CAP; LENS FIX	1-86830-101-0	01	1	9601-9909				●
97	CAP; LENS FIX	1-86830-101-0	01	1	9910-0004				●
97	CAP; LENS FIX MAP LAMP<C85>	1-86830-101-0	01	1	9910-0004		●	●
97	CAP; LENS FIX	1-86830-311-0	01	1	0005-0211				●	●
97	CAP; LENS FIX	1-86830-311-0	01	1	0212-				●	●
97	CAP; LENS FIX MAP LAMP<C85>	1-86830-311-0	01	1	0212-		●
98	GROMMET; SCREW,LENS FIX	1-86830-102-0	01	1	9601-9909				●
98	GROMMET; SCREW,LENS FIX	1-86830-102-0	01	1	9910-0004				●
98	GROMMET; SCREW,LENS FIX MAP LAMP<C85>	1-86830-102-0	01	1	9910-0004		●	●
98	GROMMET; SCREW,LENS FIX	1-86830-102-0	01	1	0005-0211				●	●
98	GROMMET; SCREW,LENS FIX	1-86830-102-0	01	1	0212-				●	●
98	GROMMET; SCREW,LENS FIX MAP LAMP<C85>	1-86830-102-0	01	1	0212-		●
105	BULB; FLUORESCENT LAMP 28V 20W	1-86830-200-0	01	1	9601-9909				●
105	BULB; FLUORESCENT LAMP 28V 20W	1-86830-200-0	01	1	9910-0004				●
105	BULB; FLUORESCENT LAMP MAP LAMP<C85> 28V 20W	1-86830-200-0	01	1	9910-0004		●	●
105	BULB; FLUORESCENT LAMP 28V 20W	1-86830-200-0	01	1	0005-0211				●	●
105	BULB; FLUORESCENT LAMP 28V 20W	1-86830-200-0	01	1	0212-				●	●
105	BULB; FLUORESCENT LAMP MAP LAMP<C85> 28V 20W	1-86830-200-0	01	1	0212-		●
106	SOCKET; BULB	1-86830-201-0	01	1	9601-9909				●
106	SOCKET; BULB	1-86830-201-0	01	1	9910-0004				●
106	SOCKET; BULB MAP LAMP<C85>	1-86830-201-0	01	1	9910-0004		●	●
106	SOCKET; BULB	1-86830-201-0	01	1	0005-0211				●	●
106	SOCKET; BULB	1-86830-201-0	01	1	0212-				●	●
106	SOCKET; BULB MAP LAMP<C85>	1-86830-201-0	01	1	0212-		●
129	INVERTER ASM; FLUORESCENT LAMP	1-86830-338-0	01	1	0005-0211				●	●
129	INVERTER ASM; FLUORESCENT LAMP	1-86830-338-0	01	1	0212-				●	●
129	INVERTER ASM; FLUORESCENT LAMP MAP LAMP<C85>	1-86830-338-0	01	1	0212-		●
130	PLATE ASM; FLUORESCENT LAMP	1-86830-339-0	01	1	0005-0211				●	●
130	PLATE ASM; FLUORESCENT LAMP	1-86830-339-0	01	1	0212-				●	●
130	PLATE ASM; FLUORESCENT LAMP MAP LAMP<C85>	1-86830-339-0	01	1	0212-		●

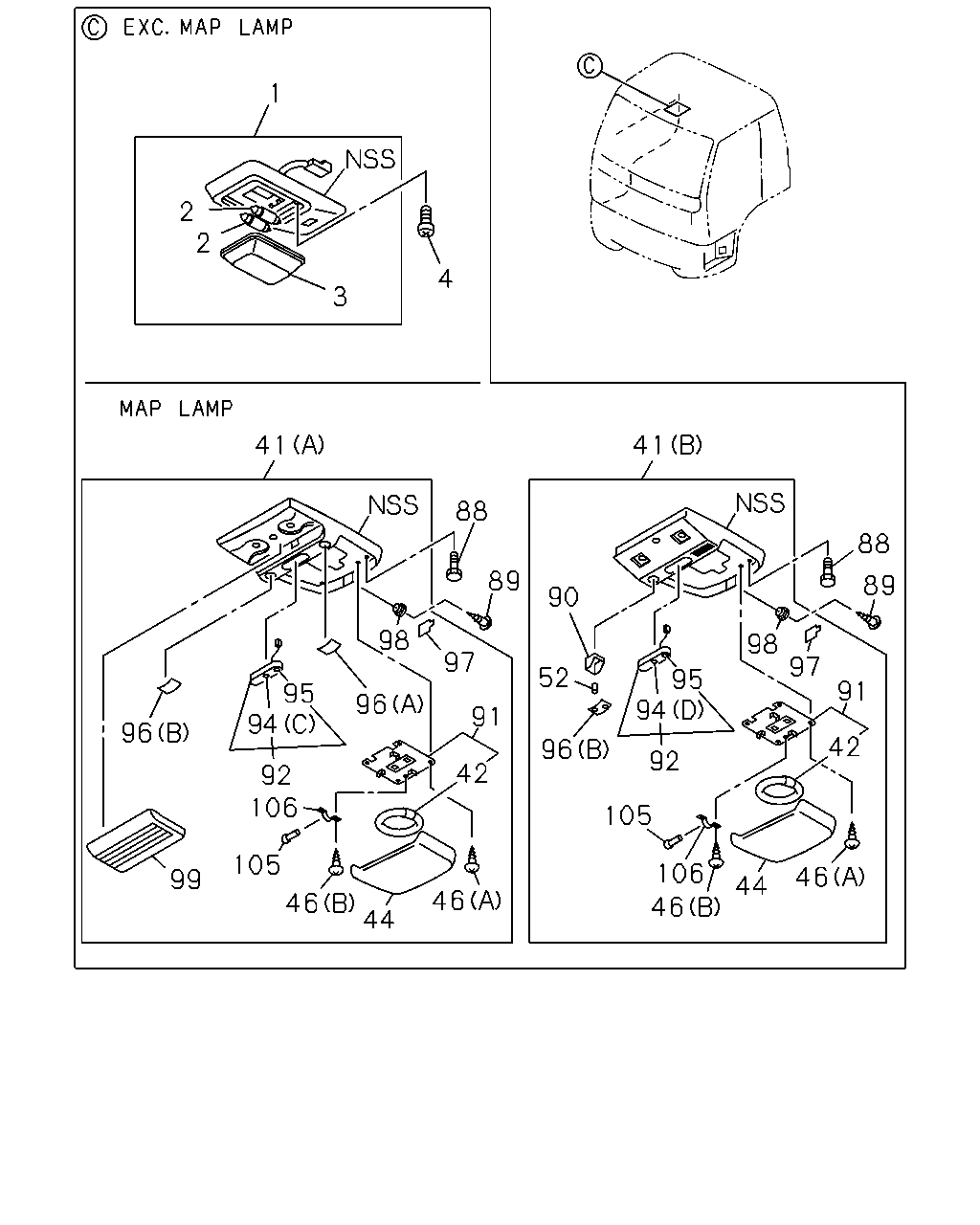

1 2 2 4 3 41 41 88 88 89 89 90 98 98 97 97 95 94 52 95 94 91 96 91 96 42 96 92 42 92 106 105 105 46 99 44 46 46 44 46 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	LAMP ASM; ROOM	1-82140-050-1	01	1	9601-9803	●	●
1	LAMP ASM; ROOM	1-82140-050-1	01	1	9804-9908	●	●	●
1	LAMP ASM; ROOM	1-82140-050-1	01	1	9909-0004	●
1	LAMP ASM; ROOM EXC. MAP LAMP<C85>	1-82140-050-1	01	1	9909-0004		●	●
1	LAMP ASM; ROOM	1-82140-050-1	01	1	0005-0211	●	●	●
1	LAMP ASM; ROOM	1-82140-050-1	01	1	0212-	●		●
1	LAMP ASM; ROOM EXC. MAP LAMP<C85>	1-82140-050-1	01	1	0212-		●
2	BULB; ROOM LAMP 24V 10W	1-82195-001-0	02	1	9601-9803	●	●
2	BULB; ROOM LAMP 24V 10W	1-82195-001-0	02	1	9804-9908	●	●	●
2	BULB; ROOM LAMP 24V 10W	1-82195-001-0	02	1	9909-0004	●
2	BULB; ROOM LAMP EXC. MAP LAMP<C85> 24V 10W	1-82195-001-0	02	1	9909-0004		●	●
2	BULB; ROOM LAMP 24V 10W	1-82195-001-0	02	1	0005-0211	●	●	●
2	BULB; ROOM LAMP 24V 10W	1-82195-001-0	02	1	0212-	●		●
2	BULB; ROOM LAMP EXC. MAP LAMP<C85> 24V 10W	1-82195-001-0	02	1	0212-		●
3	LENS; ROOM LAMP	8-94206-208-0	01	1	9601-9709	●	●
3	LENS; ROOM LAMP	1-82145-020-0	01	1	9710-9803	●	●
3	LENS; ROOM LAMP	1-82145-020-0	01	1	9804-9908	●	●	●
3	LENS; ROOM LAMP	1-82145-020-0	01	1	9909-0004	●
3	LENS; ROOM LAMP EXC. MAP LAMP<C85>	1-82145-020-0	01	1	9909-0004		●	●
3	LENS; ROOM LAMP	1-82145-020-0	01	1	0005-0211	●	●	●
3	LENS; ROOM LAMP	1-82145-020-0	01	1	0212-	●		●
3	LENS; ROOM LAMP EXC. MAP LAMP<C85>	1-82145-020-0	01	1	0212-		●
4	SCREW; ROOM LAMP M5X20 TAPPING	9-07066-520-0	03	1	9601-9803	●	●
4	SCREW; ROOM LAMP M5X20 TAPPING	9-07066-520-0	03	1	9804-9908	●	●	●
4	SCREW; ROOM LAMP M5X20 TAPPING	9-07066-520-0	03	1	9909-0004	●
4	SCREW; ROOM LAMP EXC. MAP LAMP<C85> M5X20 TAPPING	9-07066-520-0	03	1	9909-0004		●	●
4	SCREW; ROOM LAMP M5X20 TAPPING	9-07066-520-0	03	1	0005-0211	●	●	●
4	SCREW; ROOM LAMP M5X20 TAPPING	9-07066-520-0	03	1	0212-0603	●		●
4	SCREW; ROOM LAMP EXC. MAP LAMP<C85> M5X20 TAPPING	9-07066-520-0	03	1	0212-0603		●
4	SCREW; ROOM LAMP M5X20 TAPPING	0-71040-520-0	03	1	0604-	●		●
4	SCREW; ROOM LAMP EXC. MAP LAMP<C85> M5X20 TAPPING	0-71040-520-0	03	1	0604-		●
41	LAMP ASM; FLUORESCENT (A)	1-86830-245-1	01	1	9601-9803				●
41	LAMP ASM; FLUORESCENT (B)	1-86830-305-2	01	1	9804-9909				●
41	LAMP ASM; FLUORESCENT (B)	1-86830-305-2	01	1	9910-0004				●
41	LAMP ASM; FLUORESCENT MAP LAMP<C85> (B)	1-86830-305-2	01	1	9910-0004		●	●
41	LAMP ASM; FLUORESCENT (C)	1-86830-315-1	01	1	0005-0211				●	●
41	LAMP ASM; FLUORESCENT (C)	1-86830-315-2	01	1	0212-				●	●
41	LAMP ASM; FLUORESCENT MAP LAMP<C85> (C)	1-86830-315-2	01	1	0212-		●
42	LAMP; FLUORESCENT	1-86830-094-1	01	1	9601-9909				●
42	LAMP; FLUORESCENT	1-86830-094-1	01	1	9910-0004				●
42	LAMP; FLUORESCENT MAP LAMP<C85>	1-86830-094-1	01	1	9910-0004		●	●
42	LAMP; FLUORESCENT	1-86830-094-1	01	1	0005-0211				●	●
42	LAMP; FLUORESCENT	1-86830-094-1	01	1	0212-				●	●
42	LAMP; FLUORESCENT MAP LAMP<C85>	1-86830-094-1	01	1	0212-		●
44	LENS; FLUORESCENT LAMP	1-86830-092-0	01	1	9601-9909				●
44	LENS; FLUORESCENT LAMP	1-86830-092-0	01	1	9910-0004				●
44	LENS; FLUORESCENT LAMP MAP LAMP<C85>	1-86830-092-0	01	1	9910-0004		●	●
44	LENS; FLUORESCENT LAMP	1-86830-092-0	01	1	0005-0211				●	●
44	LENS; FLUORESCENT LAMP	1-86830-092-0	01	1	0212-				●	●
44	LENS; FLUORESCENT LAMP MAP LAMP<C85>	1-86830-092-0	01	1	0212-		●
46	SCREW; FLUORESCENT LAMP (A) M5X10 TAPPING	1-86830-095-0	04	1	9601-9909				●
46	SCREW; FLUORESCENT LAMP (A) M5X10 TAPPING	1-86830-095-0	04	1	9910-0004				●
46	SCREW; FLUORESCENT LAMP MAP LAMP<C85> (A) M5X10 TAPPING	1-86830-095-0	04	1	9910-0004		●	●
46	SCREW; FLUORESCENT LAMP (B) M4X12	1-86830-202-0	02	1	9601-9909				●
46	SCREW; FLUORESCENT LAMP (B) M4X12	1-86830-202-0	02	1	9910-0004				●
46	SCREW; FLUORESCENT LAMP MAP LAMP<C85> (B) M4X12	1-86830-202-0	02	1	9910-0004		●	●
46	SCREW; FLUORESCENT LAMP (A) M5X10 TAPPING	1-86830-095-0	08	1	0005-0211				●	●
46	SCREW; FLUORESCENT LAMP (A) M5X10 TAPPING	1-86830-095-0	08	1	0212-				●	●
46	SCREW; FLUORESCENT LAMP MAP LAMP<C85> (A) M5X10 TAPPING	1-86830-095-0	08	1	0212-		●
46	SCREW; FLUORESCENT LAMP (B) M4X12	1-86830-202-0	07	1	0005-0211				●	●
46	SCREW; FLUORESCENT LAMP (B) M4X12	1-86830-202-0	07	1	0212-				●	●
46	SCREW; FLUORESCENT LAMP MAP LAMP<C85> (B) M4X12	1-86830-202-0	07	1	0212-		●
46	SCREW; FLUORESCENT LAMP (C) M3X6 TAPPING	1-86830-336-0	01	1	0005-0211				●	●
46	SCREW; FLUORESCENT LAMP (C) M3X6 TAPPING	1-86830-336-0	01	1	0212-				●	●
46	SCREW; FLUORESCENT LAMP MAP LAMP<C85> (C) M3X6 TAPPING	1-86830-336-0	01	1	0212-		●
52	BULB; SPOT LAMP 28V 6W	1-86830-090-0	01	1	9804-9909				●
52	BULB; SPOT LAMP 28V 6W	1-86830-090-0	01	1	9910-0004				●
52	BULB; SPOT LAMP MAP LAMP<C85> 28V 6W	1-86830-090-0	01	1	9910-0004		●	●
88	BOLT; LAMP M6X16 W/LK&PL WASHER	1-09980-574-0	06	1	9601-9803				●
88	BOLT; LAMP M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	9804-9909				●
88	BOLT; LAMP M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	9910-0004				●
88	BOLT; LAMP MAP LAMP<C85> M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	9910-0004		●	●
88	BOLT; LAMP M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	0005-0211				●	●
88	BOLT; LAMP M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	0212-				●	●
88	BOLT; LAMP MAP LAMP<C85> M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	0212-		●
89	SCREW; LENS,FLUORESCENT LAMP M5X10 TAPPING	9-07076-510-0	01	1	9601-9909				●
89	SCREW; LENS,FLUORESCENT LAMP M5X10 TAPPING	9-07076-510-0	01	1	9910-0004				●
89	SCREW; LENS,FLUORESCENT LAMP MAP LAMP<C85> M5X10 TAPPING	9-07076-510-0	01	1	9910-0004		●	●
89	SCREW; LENS,FLUORESCENT LAMP M5X10 TAPPING	9-07076-510-0	01	1	0005-0211				●	●
89	SCREW; LENS,FLUORESCENT LAMP M5X10 TAPPING	9-07076-510-0	01	1	0212-0603				●	●
89	SCREW; LENS,FLUORESCENT LAMP MAP LAMP<C85> M5X10 TAPPING	9-07076-510-0	01	1	0212-0603		●
89	SCREW; LENS,FLUORESCENT LAMP M5X10 TAPPING	0-71240-510-0	01	1	0604-				●	●
89	SCREW; LENS,FLUORESCENT LAMP MAP LAMP<C85> M5X10 TAPPING	0-71240-510-0	01	1	0604-		●
90	BASE; LAMP	1-86830-091-0	01	1	9804-9909				●
90	BASE; LAMP	1-86830-091-0	01	1	9910-0004				●
90	BASE; LAMP MAP LAMP<C85>	1-86830-091-0	01	1	9910-0004		●	●
91	LAMP SUB ASM; FLUORESCENT	1-86830-207-0	01	1	9601-9909				●
91	LAMP SUB ASM; FLUORESCENT	1-86830-207-0	01	1	9910-0004				●
91	LAMP SUB ASM; FLUORESCENT MAP LAMP<C85>	1-86830-207-0	01	1	9910-0004		●	●
92	SWITCH ASM; FLUORESCENT	1-86830-306-0	01	1	0005-0211				●	●
92	SWITCH ASM; FLUORESCENT	1-86830-306-0	01	1	0212-				●	●
92	SWITCH ASM; FLUORESCENT MAP LAMP<C85>	1-86830-306-0	01	1	0212-		●
92	SWITCH ASM; FLUORESCENT	1-86830-280-0	01	1	9601-9803				●
92	SWITCH ASM; FLUORESCENT	1-86830-204-0	01	1	9804-9811				●
92	SWITCH ASM; FLUORESCENT	1-86830-306-0	01	1	9812-9909				●
92	SWITCH ASM; FLUORESCENT	1-86830-306-0	01	1	9910-0004				●
92	SWITCH ASM; FLUORESCENT MAP LAMP<C85>	1-86830-306-0	01	1	9910-0004		●	●
94	KNOB; ROOM LAMP SW (C)	1-86830-098-0	01	1	9601-9803				●
94	KNOB; ROOM LAMP SW (D)	1-86830-304-0	01	1	9804-9909				●
94	KNOB; ROOM LAMP SW (D)	1-86830-304-0	01	1	9910-0004				●
94	KNOB; ROOM LAMP SW MAP LAMP<C85> (D)	1-86830-304-0	01	1	9910-0004		●	●
94	KNOB; ROOM LAMP SW (A)	1-86830-312-0	01	1	0005-0211				●	●
94	KNOB; ROOM LAMP SW (A)	1-86830-312-0	01	1	0212-				●	●
94	KNOB; ROOM LAMP SW MAP LAMP<C85> (A)	1-86830-312-0	01	1	0212-		●
94	KNOB; ROOM LAMP SW (B)	1-86830-313-0	01	1	0005-0211				●	●
94	KNOB; ROOM LAMP SW (B)	1-86830-313-0	01	1	0212-				●	●
94	KNOB; ROOM LAMP SW MAP LAMP<C85> (B)	1-86830-313-0	01	1	0212-		●
95	KNOB; SPOT LAMP SW	1-86830-099-0	01	1	9601-9909				●
95	KNOB; SPOT LAMP SW	1-86830-099-0	01	1	9910-0004				●
95	KNOB; SPOT LAMP SW MAP LAMP<C85>	1-86830-099-0	01	1	9910-0004		●	●
96	CAP; SPOT LAMP (C)	1-86830-385-0	01	1	0005-0211				●	●
96	CAP; SPOT LAMP (C)	1-86830-385-0	01	1	0212-				●	●
96	CAP; SPOT LAMP MAP LAMP<C85> (C)	1-86830-385-0	01	1	0212-		●
96	CAP; SPOT LAMP (A)	1-86830-100-0	01	1	9601-9803				●
96	CAP; SPOT LAMP (B)	1-86830-282-0	01	1	9601-9909				●
96	CAP; SPOT LAMP (B)	1-86830-282-0	01	1	9910-0004				●
96	CAP; SPOT LAMP MAP LAMP<C85> (B)	1-86830-282-0	01	1	9910-0004		●	●
97	CAP; LENS FIX	1-86830-101-0	01	1	9601-9909				●
97	CAP; LENS FIX	1-86830-101-0	01	1	9910-0004				●
97	CAP; LENS FIX MAP LAMP<C85>	1-86830-101-0	01	1	9910-0004		●	●
97	CAP; LENS FIX	1-86830-311-0	01	1	0005-0211				●	●
97	CAP; LENS FIX	1-86830-311-0	01	1	0212-				●	●
97	CAP; LENS FIX MAP LAMP<C85>	1-86830-311-0	01	1	0212-		●
98	GROMMET; SCREW,LENS FIX	1-86830-102-0	01	1	9601-9909				●
98	GROMMET; SCREW,LENS FIX	1-86830-102-0	01	1	9910-0004				●
98	GROMMET; SCREW,LENS FIX MAP LAMP<C85>	1-86830-102-0	01	1	9910-0004		●	●
98	GROMMET; SCREW,LENS FIX	1-86830-102-0	01	1	0005-0211				●	●
98	GROMMET; SCREW,LENS FIX	1-86830-102-0	01	1	0212-				●	●
98	GROMMET; SCREW,LENS FIX MAP LAMP<C85>	1-86830-102-0	01	1	0212-		●
99	COVER; AIR PURIFIER	1-86830-103-0	01	1	9601-9803				●
105	BULB; FLUORESCENT LAMP 28V 20W	1-86830-200-0	01	1	9601-9909				●
105	BULB; FLUORESCENT LAMP 28V 20W	1-86830-200-0	01	1	9910-0004				●
105	BULB; FLUORESCENT LAMP MAP LAMP<C85> 28V 20W	1-86830-200-0	01	1	9910-0004		●	●
105	BULB; FLUORESCENT LAMP 28V 20W	1-86830-200-0	01	1	0005-0211				●	●
105	BULB; FLUORESCENT LAMP 28V 20W	1-86830-200-0	01	1	0212-				●	●
105	BULB; FLUORESCENT LAMP MAP LAMP<C85> 28V 20W	1-86830-200-0	01	1	0212-		●
106	SOCKET; BULB	1-86830-201-0	01	1	9601-9909				●
106	SOCKET; BULB	1-86830-201-0	01	1	9910-0004				●
106	SOCKET; BULB MAP LAMP<C85>	1-86830-201-0	01	1	9910-0004		●	●
106	SOCKET; BULB	1-86830-201-0	01	1	0005-0211				●	●
106	SOCKET; BULB	1-86830-201-0	01	1	0212-				●	●
106	SOCKET; BULB MAP LAMP<C85>	1-86830-201-0	01	1	0212-		●

34 35 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
34	COVER; STEP LAMP	1-79998-925-0	02	1	9601-9803	●	●		●
34	COVER; STEP LAMP	1-79998-925-0	02	1	9804-0004	●	●	●	●
34	COVER; STEP LAMP	1-79998-925-0	02	1	0005-	●	●	●	●	●
35	SCREW; STEP LAMP M4X20 TAPPING W/PL WASHER	0-74310-420-0	04	1	9601-9803	●	●		●
35	SCREW; STEP LAMP M4X20 TAPPING W/PL WASHER	0-74310-420-0	04	1	9804-0004	●	●	●	●
35	SCREW; STEP LAMP M4X20 TAPPING W/PL WASHER	0-74310-420-0	04	1	0005-0604	●	●	●	●	●
35	SCREW; STEP LAMP M4X20 TAPPING W/PL WASHER	0-74360-420-0	04	1	0605-	●	●	●	●	●
38	COVER; STEP LAMP,DOOR	1-74997-029-2	01	1	9601-9803	●	●		●
38	COVER; STEP LAMP,DOOR	1-74997-029-2	01	1	9804-0004	●	●	●	●
38	COVER; STEP LAMP,DOOR	1-74997-029-2	01	1	0005-	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
