◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10704 - FVR/GVR-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#63901) — 175 parça

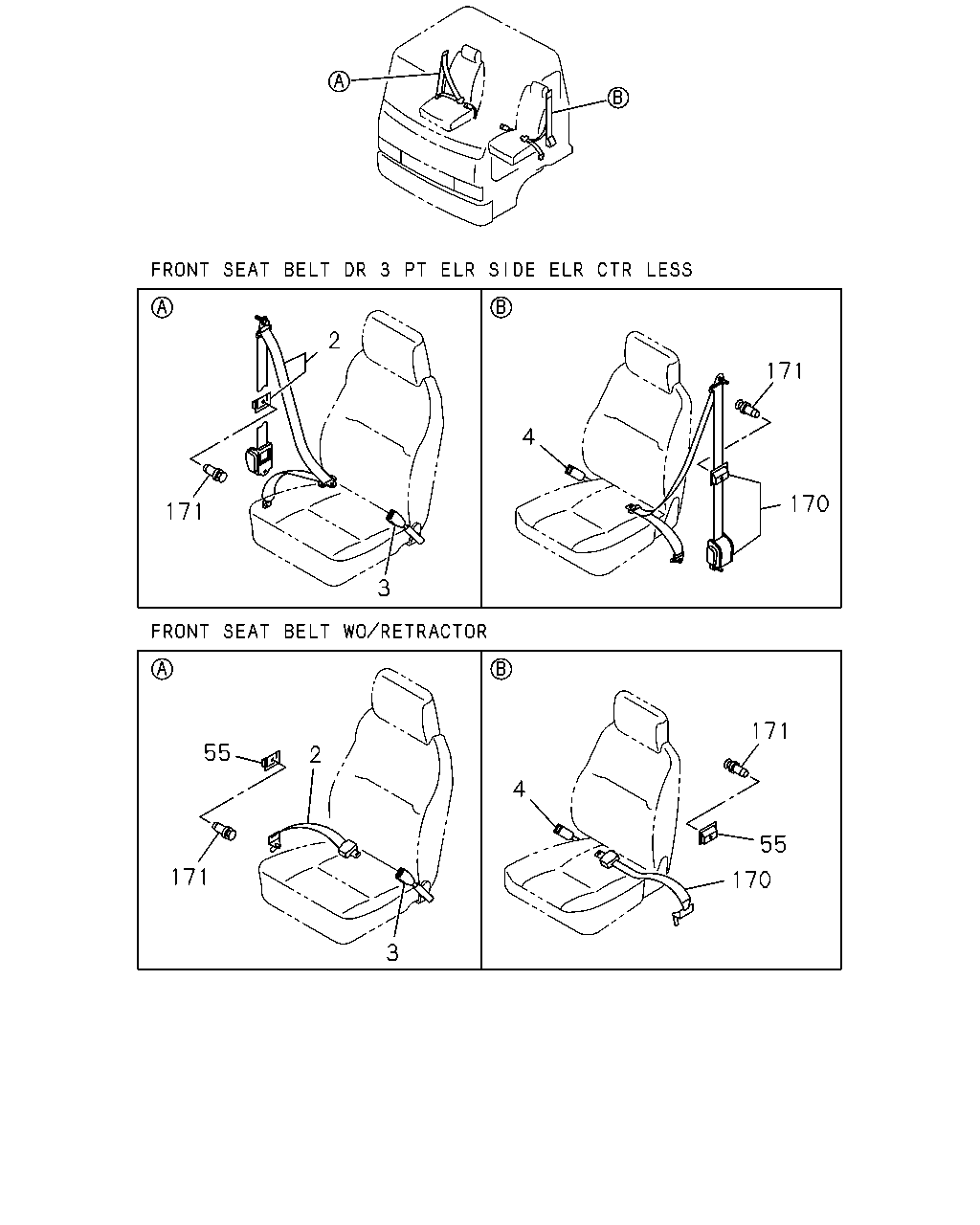

çizim 135784
2 171 4 170 171 3 171 55 2 4 55 171 170 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> 		1-75617-509-1 01 1 9601-9803 ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75617-509-1 01 1 9601-9803 ● ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> 		1-75617-509-1 01 1 9804-9810 ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> EXC. AIR CONTROL SEAT<A60> 		1-75617-509-1 01 1 9804-9810 ● ● ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> 		1-75617-509-3 01 1 9811-0004 ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> EXC. AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75617-509-3 01 1 9811-0004 ● ● ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> 		1-75618-938-0 01 1 0005-0010 ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> 		1-75618-938-0 01 1 0005-0010 ● ● ●
2 BELT; SEAT,TONGUE SIDE 1-75618-938-0 01 1 0005-0010 ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> 		1-75618-938-3 01 1 0011-0805 ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75618-938-3 01 1 0011-0805 ● ● ●
2 BELT; SEAT,TONGUE SIDE 1-75618-938-3 01 1 0011-0805 ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> 		8-98120-815-1 01 1 0806- ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98120-815-1 01 1 0806- ● ● ●
2 BELT; SEAT,TONGUE SIDE 8-98120-815-1 01 1 0806- ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75618-794-4 01 1 9601-9803 ● ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> AIR CONTROL SEAT<A60> 		1-75618-794-4 01 1 9804-9810 ● ● ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75618-794-4 01 1 9811-0004 ● ● ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75618-923-2 01 1 0011- ● ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> 		1-75618-780-3 01 1 9601-0004 ● ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> 		1-75618-936-4 01 1 0005- ● ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75618-906-0 01 1 9811-0004 ● ●
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> 		1-75618-796-0 01 1 9601-0004 ●
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> 		1-75618-953-0 01 1 0005- ●
3 BELT; SEAT,BUCKLE SIDE 1-75618-953-0 01 1 0005- ●
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75618-795-2 01 1 9601-9803 ● ●
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> AIR CONTROL SEAT<A60> 		1-75618-795-2 01 1 9804-9810 ● ● ●
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75618-795-2 01 1 9811-0004 ● ● ●
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75618-925-1 01 1 0011- ● ●
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75618-779-0 01 1 9601-9803 ● ●
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> EXC. AIR CONTROL SEAT<A60> 		1-75618-779-0 01 1 9804-9810 ● ● ●
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> EXC. AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75618-779-0 01 1 9811-0004 ● ● ●
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> 		1-75618-914-0 01 1 0005-0010 ● ●
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> 		1-75618-914-0 01 1 0005-0010 ●
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75618-914-0 01 1 0011- ● ●
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> 		1-75618-914-0 01 1 0011- ●
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75618-907-1 01 1 9811-0004 ● ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> 		1-75618-752-0 01 1 9601-9803 ● ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> 		1-75618-752-0 01 1 9804-0004 ● ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> 		1-75618-752-0 01 1 9804-0004 ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> 		1-75617-546-1 01 1 0005-0405 ● ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> 		1-75617-546-1 01 1 0005-0405 ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> 		1-75617-546-1 01 1 0406- ● ● ●
55 GUIDE; SEAT BELT
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> 		1-75617-513-0 02 1 9601-9609 ● ●
55 GUIDE; SEAT BELT
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> 		1-75617-513-0 02 1 9610-9803 ●
55 GUIDE; SEAT BELT
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> 		1-75617-513-0 02 1 9610-9803 ● ●
55 GUIDE; SEAT BELT
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> 		1-75617-513-0 02 1 9804-0004 ●
55 GUIDE; SEAT BELT
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> 		1-75617-513-0 02 1 9804-0004 ● ● ●
55 GUIDE; SEAT BELT
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> 		1-75617-556-0 02 1 0005- ●
55 GUIDE; SEAT BELT
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> 		1-75617-556-0 02 1 0005- ● ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> 		1-75617-514-1 01 1 9601-9803 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75617-514-1 01 1 9601-9803 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> 		1-75617-514-1 01 1 9804-9810 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> EXC. AIR CONTROL SEAT<A60> 		1-75617-514-1 01 1 9804-9810 ● ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> 		1-75617-514-3 01 1 9811-0004 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> EXC. AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75617-514-3 01 1 9811-0004 ● ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> 		1-75617-550-1 01 1 0005-0010 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> 		1-75617-550-1 01 1 0005-0010 ● ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE 1-75617-550-1 01 1 0005-0010 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> 		1-75617-550-4 01 1 0011-0805 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75617-550-4 01 1 0011-0805 ● ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE 1-75617-550-4 01 1 0011-0805 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> 		8-98120-817-1 01 1 0806- ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98120-817-1 01 1 0806- ● ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE 8-98120-817-1 01 1 0806- ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75617-515-1 01 1 9601-9803 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> AIR CONTROL SEAT<A60> 		1-75617-515-1 01 1 9804-9810 ● ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75617-515-1 01 1 9811-0004 ● ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75618-924-2 01 1 0011- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> 		1-75618-780-3 01 1 9601-0004 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> 		1-75618-936-4 01 1 0005- ● ●
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 9601-9803 ● ● ●
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 9804-0004 ● ● ● ●
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 0005- ● ● ● ● ●

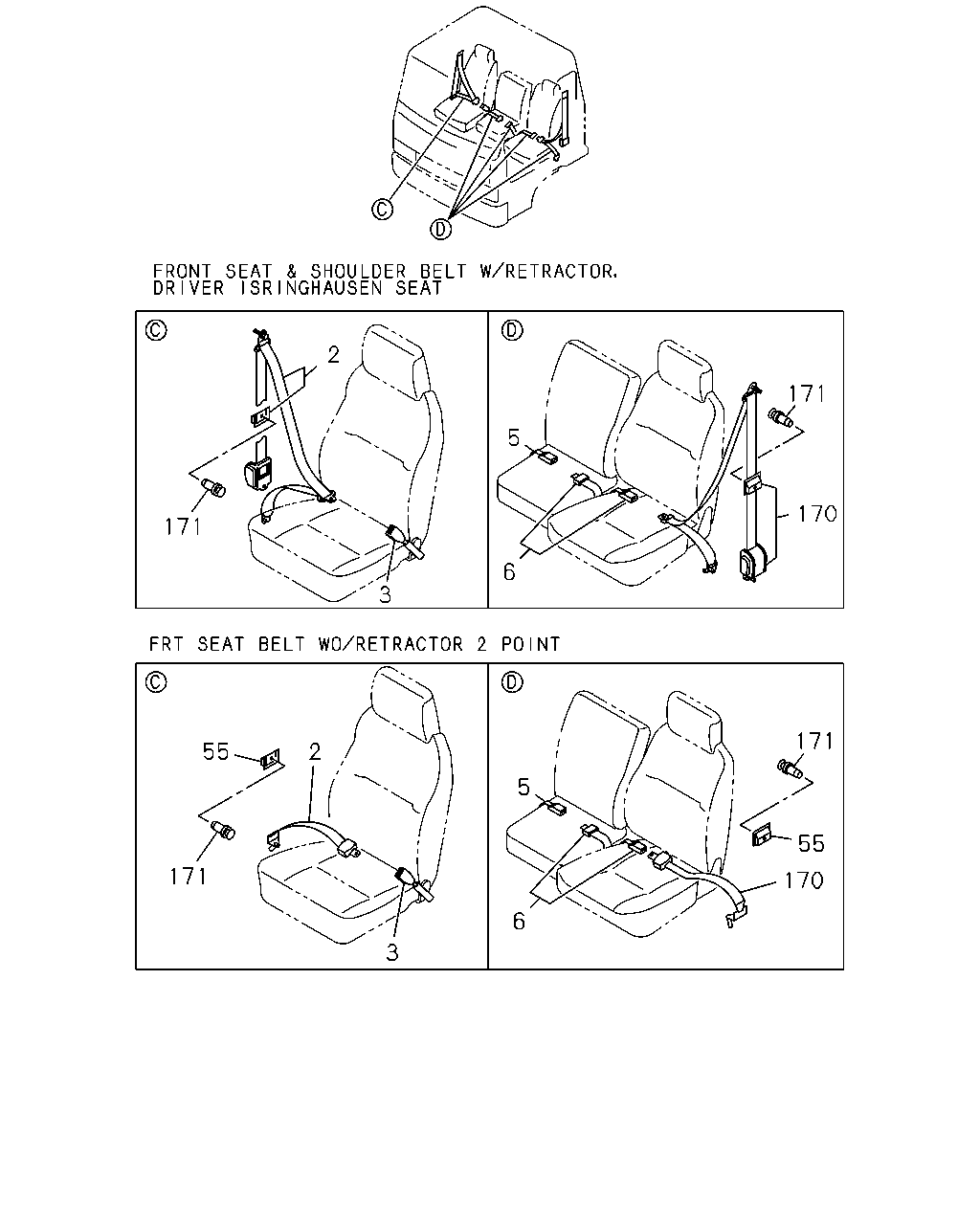

çizim 135787
2 171 5 170 171 6 3 171 55 2 5 55 171 170 6 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> 		1-75617-509-1 01 1 9601-9803 ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75617-509-1 01 1 9601-9803 ● ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> 		1-75617-509-1 01 1 9804-9810 ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> EXC. AIR CONTROL SEAT<A60> 		1-75617-509-1 01 1 9804-9810 ● ● ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> 		1-75617-509-3 01 1 9811-0004 ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> EXC. AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75617-509-3 01 1 9811-0004 ● ● ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> 		1-75618-938-0 01 1 0005-0010 ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> 		1-75618-938-0 01 1 0005-0010 ● ● ●
2 BELT; SEAT,TONGUE SIDE 1-75618-938-0 01 1 0005-0010 ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> 		1-75618-938-3 01 1 0011-0805 ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75618-938-3 01 1 0011-0805 ● ● ●
2 BELT; SEAT,TONGUE SIDE 1-75618-938-3 01 1 0011-0805 ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> 		8-98120-815-1 01 1 0806- ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98120-815-1 01 1 0806- ● ● ●
2 BELT; SEAT,TONGUE SIDE 8-98120-815-1 01 1 0806- ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75618-794-4 01 1 9601-9803 ● ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> AIR CONTROL SEAT<A60> 		1-75618-794-4 01 1 9804-9810 ● ● ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75618-794-4 01 1 9811-0004 ● ● ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75618-923-2 01 1 0011- ● ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> 		1-75618-780-3 01 1 9601-0004 ● ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> 		1-75618-936-4 01 1 0005- ● ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75618-906-0 01 1 9811-0004 ● ●
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> 		1-75618-796-0 01 1 9601-0004 ●
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> 		1-75618-953-0 01 1 0005- ●
3 BELT; SEAT,BUCKLE SIDE 1-75618-953-0 01 1 0005- ●
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75618-795-2 01 1 9601-9803 ● ●
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> AIR CONTROL SEAT<A60> 		1-75618-795-2 01 1 9804-9810 ● ● ●
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75618-795-2 01 1 9811-0004 ● ● ●
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75618-925-1 01 1 0011- ● ●
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75618-779-0 01 1 9601-9803 ● ●
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> EXC. AIR CONTROL SEAT<A60> 		1-75618-779-0 01 1 9804-9810 ● ● ●
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> EXC. AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75618-779-0 01 1 9811-0004 ● ● ●
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> 		1-75618-914-0 01 1 0005-0010 ● ●
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> 		1-75618-914-0 01 1 0005-0010 ●
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75618-914-0 01 1 0011- ● ●
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> 		1-75618-914-0 01 1 0011- ●
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75618-907-1 01 1 9811-0004 ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> 		1-75618-739-0 01 1 9601-9803 ●
5 BELT; CENTER SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> 		1-75618-739-0 01 1 9601-9803 ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> 		1-75618-739-0 01 1 9804-0004 ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> 		1-75618-739-0 01 1 9804-0004 ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> 		1-75617-553-1 01 1 0005- ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> 		1-75617-553-1 01 1 0005- ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE 1-75617-553-1 01 1 0005- ●
6 BELT; CENTER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> 		1-75618-741-3 01 1 9601-0004 ●
6 BELT; CENTER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> 		1-75618-899-2 01 1 0005- ●
6 BELT; CENTER SEAT,TONGUE SIDE 1-75618-899-2 01 1 0005- ●
6 BELT; CENTER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75618-926-3 01 1 0011- ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75618-798-1 01 1 9601-9803 ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> AIR CONTROL SEAT<A60> 		1-75618-798-1 01 1 9804-9810 ● ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75618-798-1 01 1 9811-0004 ● ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75618-737-1 01 1 9601-9803 ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> EXC. AIR CONTROL SEAT<A60> 		1-75618-737-1 01 1 9804-9810 ● ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> EXC. AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75618-737-3 01 1 9811-0004 ● ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> 		1-75617-547-2 01 1 0005-0010 ● ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75617-547-5 01 1 0011- ● ● ●
55 GUIDE; SEAT BELT
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> 		1-75617-513-0 02 1 9601-9609 ● ●
55 GUIDE; SEAT BELT
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> 		1-75617-513-0 02 1 9610-9803 ●
55 GUIDE; SEAT BELT
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> 		1-75617-513-0 02 1 9610-9803 ● ●
55 GUIDE; SEAT BELT
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> 		1-75617-513-0 02 1 9804-0004 ●
55 GUIDE; SEAT BELT
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> 		1-75617-513-0 02 1 9804-0004 ● ● ●
55 GUIDE; SEAT BELT
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> 		1-75617-556-0 02 1 0005- ●
55 GUIDE; SEAT BELT
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> 		1-75617-556-0 02 1 0005- ● ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> 		1-75617-514-1 01 1 9601-9803 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75617-514-1 01 1 9601-9803 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> 		1-75617-514-1 01 1 9804-9810 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> EXC. AIR CONTROL SEAT<A60> 		1-75617-514-1 01 1 9804-9810 ● ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> 		1-75617-514-3 01 1 9811-0004 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> EXC. AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75617-514-3 01 1 9811-0004 ● ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> 		1-75617-550-1 01 1 0005-0010 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> 		1-75617-550-1 01 1 0005-0010 ● ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE 1-75617-550-1 01 1 0005-0010 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> 		1-75617-550-4 01 1 0011-0805 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75617-550-4 01 1 0011-0805 ● ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE 1-75617-550-4 01 1 0011-0805 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> 		8-98120-817-1 01 1 0806- ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98120-817-1 01 1 0806- ● ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE 8-98120-817-1 01 1 0806- ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75617-515-1 01 1 9601-9803 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> AIR CONTROL SEAT<A60> 		1-75617-515-1 01 1 9804-9810 ● ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75617-515-1 01 1 9811-0004 ● ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75618-924-2 01 1 0011- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> 		1-75618-780-3 01 1 9601-0004 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> 		1-75618-936-4 01 1 0005- ● ●
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 9601-9803 ● ● ●
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 9804-0004 ● ● ● ●
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 0005- ● ● ● ● ●

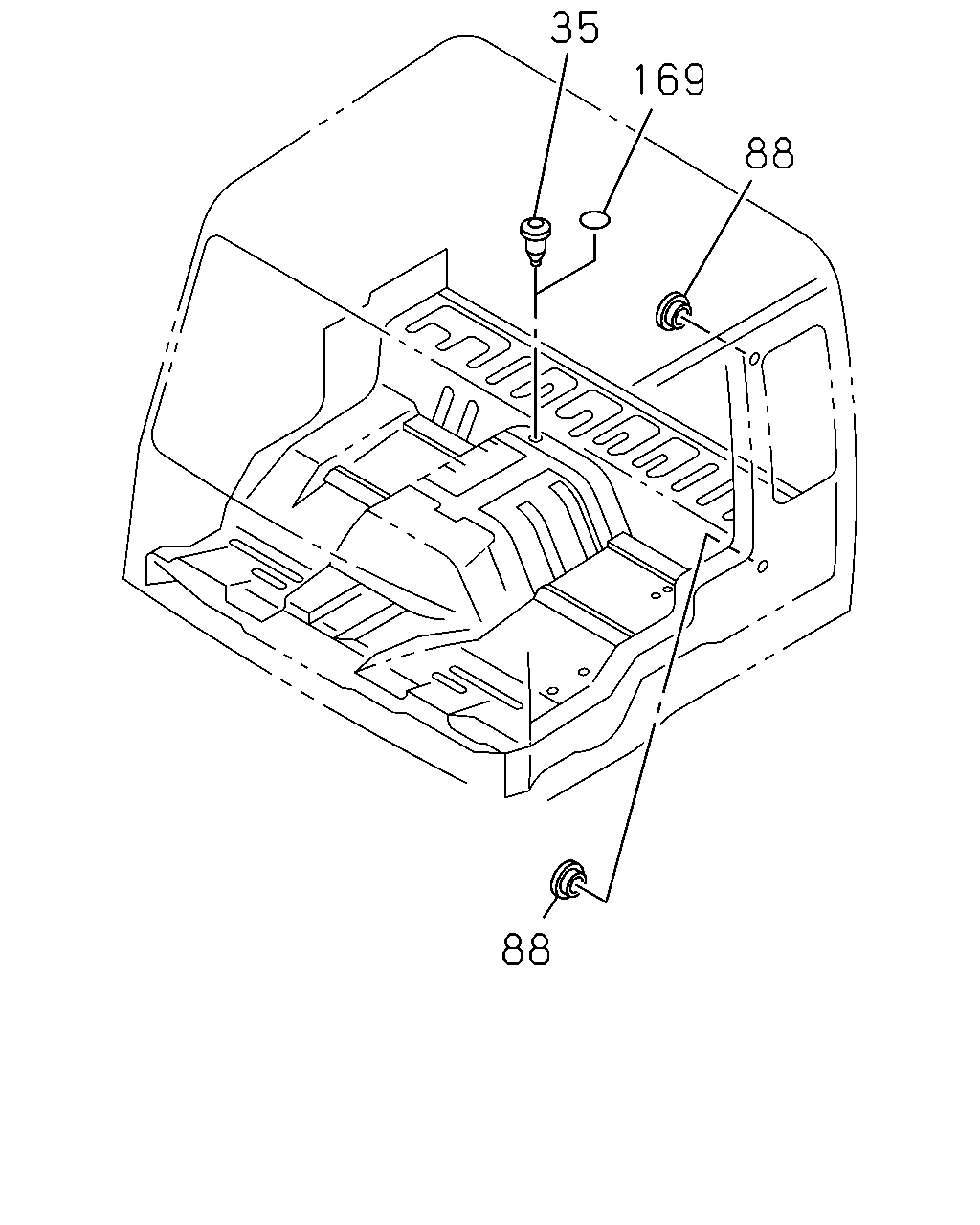

çizim 135851
35 169 88 88
BalonParca AdiParca NoAdetTipApplied Date A B C D E
35 GROMMET; SEAT BELT ANCHOR
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>,FRT SEAT BELTWO/RETRACTOR 2 POINT<W25> OD=22 		9-61168-535-0 03 1 9601-9609 ● ●
35 GROMMET; SEAT BELT ANCHOR
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>,FRT SEAT BELTWO/RETRACTOR 2 POINT<W25> OD=22 		9-61168-535-0 03 1 9610-9803 ● ● ●
35 GROMMET; SEAT BELT ANCHOR
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>,FRT SEAT BELTWO/RETRACTOR 2 POINT<W25> OD=22 		9-61168-535-0 03 1 9804-1005 ● ● ● ● ●
35 GROMMET; SEAT BELT ANCHOR
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>,FRT SEAT BELTWO/RETRACTOR 2 POINT<W25> OD=22 		9-61168-535-0 02 1 1006- ● ● ● ● ●
35 GROMMET; SEAT BELT ANCHOR
FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> OD=22 		9-61168-535-0 01 1 9601-9803 ● ●
35 GROMMET; SEAT BELT ANCHOR
FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> OD=22 		9-61168-535-0 01 1 9804-1005 ● ● ●
88 PLUG; HOLE
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> OD=31.6 		8-94198-177-0 01 1 9601-9602 ● ●
88 PLUG; HOLE
FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> OD=31.6 		8-94198-177-0 02 1 9601-9709 ● ●
88 PLUG; HOLE
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> OD=31.6 		8-94198-177-0 02 1 9710-9803 ●
88 PLUG; HOLE
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> OD=31.6 		8-94198-177-0 02 1 9710-9803 ● ●
88 PLUG; HOLE
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> OD=31.6 		8-94198-177-0 02 1 9804- ●
88 PLUG; HOLE
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> OD=31.6 		8-94198-177-0 02 1 9804- ● ● ●
169 SEAL
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>,FRT SEAT BELTWO/RETRACTOR 2 POINT<W25> OD=25 BLACK 		1-76798-019-0 03 1 1006- ● ● ● ● ●
169 SEAL
FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> OD=25 BLACK 		1-76798-019-0 01 1 1006- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
