◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10704 - FVR/GVR-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#63900) — 2036 parça

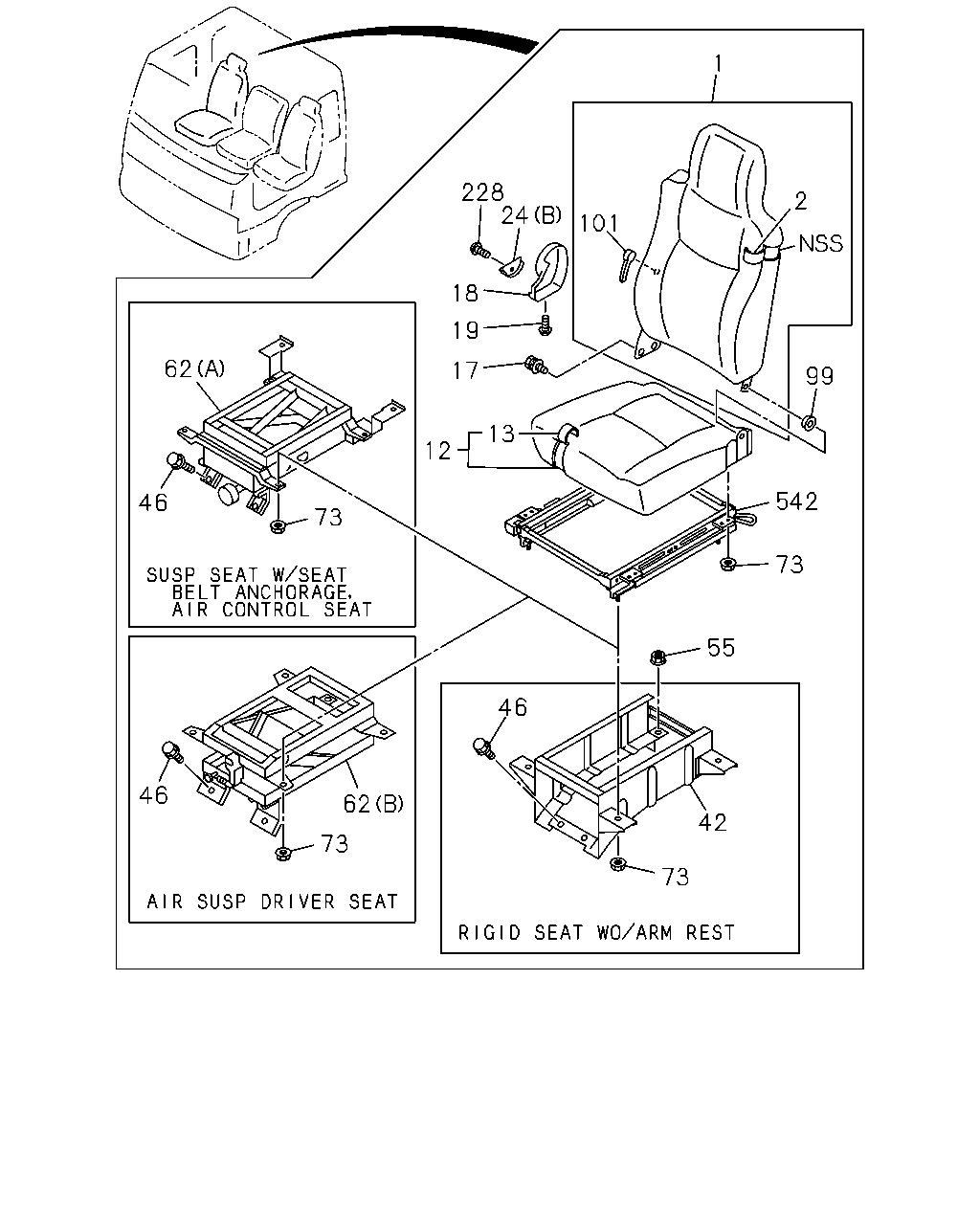

çizim 134029
1 228 24 2 101 18 19 62 17 99 13 12 542 46 73 73 55 46 46 62 42 73 73
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER 		1-75026-267-0 01 1 9811-0010 ● ●
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER 		1-75026-267-0 01 1 0011- ● ●
1 BACK ASM; SEAT
DELUXE CAB(W14) DRIVER 		1-75028-760-1 01 1 9601-9803 ● ● ●
1 BACK ASM; SEAT
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER 		1-75028-760-1 01 1 9601-9803 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) DRIVER 		1-75028-864-2 01 1 9804-9804 ● ● ● ●
1 BACK ASM; SEAT
AIR CONTROL SEAT<A60> DRIVER 		1-75028-864-2 01 1 9804-9804 ● ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) DRIVER 		1-75028-864-2 01 1 9805-0003 ● ● ● ●
1 BACK ASM; SEAT
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER 		1-75028-864-2 01 1 9805-0003 ● ●
1 BACK ASM; SEAT
AIR CONTROL SEAT<A60> DRIVER 		1-75028-864-2 01 1 9805-0003 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) DRIVER 		1-75026-711-0 01 1 0004-0004 ● ● ● ●
1 BACK ASM; SEAT
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER 		1-75026-711-0 01 1 0004-0004 ● ●
1 BACK ASM; SEAT
AIR CONTROL SEAT<A60> DRIVER 		1-75026-711-0 01 1 0004-0004 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) DRIVER 		1-75026-726-0 01 1 0005-0105 ● ● ● ●
1 BACK ASM; SEAT
DRIVER 		1-75026-726-0 01 1 0005-0105 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) DRIVER 		1-75208-065-2 01 1 0106-0901 ● ● ● ●
1 BACK ASM; SEAT
DRIVER 		1-75208-065-2 01 1 0106-0901 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) DRIVER 		8-98135-611-0 01 1 0902- ● ● ● ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75027-392-1 01 1 9601-9609 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75027-392-1 01 1 9610-9803 ● ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75026-025-0 01 1 9804-0003 ● ● ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75026-716-0 01 1 0004-0004 ● ● ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75026-729-0 01 1 0005-0105 ● ● ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75208-068-2 01 1 0106-0901 ● ● ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		8-98135-612-0 01 1 0902- ● ● ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> EXC. HIGH ROOF<S2F>,DELUXE CAB(W14) DRIVER 		1-75028-586-1 01 1 9601-9803 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> DRIVER 		1-75028-998-0 01 1 9804-0003 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> DRIVER 		1-75026-712-0 01 1 0004-0004 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> DRIVER 		1-75026-723-0 01 1 0005-0105 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> DRIVER 		1-75208-062-3 01 1 0106- ● ●
1 BACK ASM; SEAT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		1-75028-590-2 01 1 9601-9803 ● ●
1 BACK ASM; SEAT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		1-75028-590-2 01 1 9804-0003 ● ● ●
1 BACK ASM; SEAT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		1-75026-710-0 01 1 0004-0004 ● ● ●
1 BACK ASM; SEAT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		1-75026-730-0 01 1 0005-0105 ● ● ●
1 BACK ASM; SEAT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		1-75208-069-2 01 1 0106-0901 ● ● ●
1 BACK ASM; SEAT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		8-98135-615-0 01 1 0902- ● ● ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> DRIVER 		1-75028-618-2 01 1 9601-0003 ● ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> DRIVER 		1-75026-721-0 01 1 0004-0004 ● ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> DRIVER 		1-75026-728-0 01 1 0005-0105 ● ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> DRIVER 		1-75208-067-3 01 1 0106- ● ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER 		1-75116-464-0 01 1 9811-0010 ● ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER 		1-75116-464-0 01 1 0011- ● ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER 		1-75116-296-0 01 1 9601-9609 ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75116-296-0 01 1 9601-9609 ● ●
2 COVER; TRIM,FRT SEAT,BACK
DELUXE CAB(W14) DRIVER 		1-75116-296-0 01 1 9601-9609 ● ●
2 COVER; TRIM,FRT SEAT,BACK
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER 		1-75116-296-0 01 1 9601-9609 ● ●
2 COVER; TRIM,FRT SEAT,BACK
DELUXE CAB(W14) DRIVER 		1-75116-296-0 01 1 9610-9611 ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75116-296-0 01 1 9610-9611 ● ●
2 COVER; TRIM,FRT SEAT,BACK
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER 		1-75116-296-0 01 1 9610-9611 ● ●
2 COVER; TRIM,FRT SEAT,BACK
DELUXE CAB(W14) DRIVER 		1-75116-296-1 01 1 9612-9803 ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14) DRIVER 		1-75116-296-1 01 1 9612-9803 ●
2 COVER; TRIM,FRT SEAT,BACK
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER 		1-75116-296-1 01 1 9612-9803 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75116-296-1 01 1 9612-9803 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) DRIVER 		1-75116-346-1 01 1 9804-9804 ● ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR CONTROL SEAT<A60> DRIVER 		1-75116-346-1 01 1 9804-9804 ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) DRIVER 		1-75116-346-1 01 1 9805-0003 ● ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER 		1-75116-346-1 01 1 9805-0003 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR CONTROL SEAT<A60> DRIVER 		1-75116-346-1 01 1 9805-0003 ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) DRIVER 		1-75116-586-0 01 1 0004-0004 ● ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER 		1-75116-586-0 01 1 0004-0004 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR CONTROL SEAT<A60> DRIVER 		1-75116-586-0 01 1 0004-0004 ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) DRIVER 		1-75116-594-1 01 1 0005- ● ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER 		1-75116-594-1 01 1 0005- ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DRIVING POSITION WIDE LEG SPACE(PR2), DELUXE CAB(W14) DRIVER 		1-75117-837-0 01 1 9601-9609 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14) DRIVER 		1-75117-837-0 01 1 9610-9611 ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DRIVING POSITION WIDE LEG SPACE(PR2), DELUXE CAB(W14) DRIVER 		1-75117-837-0 01 1 9610-9611 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> EXC. HIGH ROOF<S2F>,DELUXE CAB(W14) DRIVER 		1-75116-256-0 01 1 9601-9803 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75116-377-0 01 1 9804-0003 ● ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75116-595-0 01 1 0004-0004 ● ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75116-703-1 01 1 0005- ● ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> DRIVER 		1-75116-373-0 01 1 9804-0003 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> DRIVER 		1-75116-587-0 01 1 0004-0004 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> DRIVER 		1-75116-602-1 01 1 0005- ● ●
2 COVER; TRIM,FRT SEAT,BACK
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		1-75116-277-2 01 1 9601-9803 ● ●
2 COVER; TRIM,FRT SEAT,BACK
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		1-75116-277-2 01 1 9804-0003 ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		1-75127-036-0 01 1 0004-0004 ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		1-75116-704-1 01 1 0005- ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> DRIVER 		1-75116-274-1 01 1 9601-0003 ● ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> DRIVER 		1-75116-600-0 01 1 0004-0004 ● ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> DRIVER 		1-75116-702-1 01 1 0005- ● ●
12 CUSHION; SEAT,FRT
DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER 		1-75026-268-0 01 1 9811-0010 ● ●
12 CUSHION; SEAT,FRT
DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER 		1-75026-268-0 01 1 0011- ● ●
12 CUSHION; SEAT,FRT
DRIVER 		1-75028-763-1 01 1 9601-9609 ●
12 CUSHION; SEAT,FRT
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) DRIVER 		1-75028-763-1 01 1 9601-9609 ● ●
12 CUSHION; SEAT,FRT
DELUXE CAB(W14) DRIVER 		1-75028-763-1 01 1 9601-9609 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75028-763-1 01 1 9601-9609 ● ●
12 CUSHION; SEAT,FRT
DELUXE CAB(W14) DRIVER 		1-75028-763-1 01 1 9610-9803 ● ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14) DRIVER 		1-75028-763-1 01 1 9610-9803 ●
12 CUSHION; SEAT,FRT
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) DRIVER 		1-75028-763-1 01 1 9610-9803 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75028-763-1 01 1 9610-9803 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> DRIVER 		1-75028-838-1 01 1 9804-9901 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> DRIVER 		1-75028-838-1 01 1 9804-9901 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14) DRIVER 		1-75028-838-1 01 1 9902-0003 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75028-838-1 01 1 9902-0003 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> DRIVER 		1-75026-677-0 01 1 0004-0004 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> DRIVER 		1-75026-677-0 01 1 0004-0004 ● ●
12 CUSHION; SEAT,FRT
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> DRIVER 		1-75026-692-1 01 1 0005- ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> EXC. HIGH ROOF<S2F>,DELUXE CAB(W14) DRIVER 		1-75028-770-1 01 1 9601-9803 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> DRIVER 		1-75026-024-0 01 1 9804-0003 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> DRIVER 		1-75026-682-0 01 1 0004-0004 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> DRIVER 		1-75026-698-1 01 1 0005- ● ●
12 CUSHION; SEAT,FRT
DRIVING POSITION WIDE LEG SPACE(PR2) SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER 		1-75028-870-1 01 1 9601-9803 ● ●
12 CUSHION; SEAT,FRT
AIR CONTROL SEAT<A60> DRIVER 		1-75026-033-0 01 1 9804-9804 ● ● ●
12 CUSHION; SEAT,FRT
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER 		1-75026-033-0 01 1 9805-0003 ● ●
12 CUSHION; SEAT,FRT
AIR CONTROL SEAT<A60> DRIVER 		1-75026-033-0 01 1 9805-0003 ●
12 CUSHION; SEAT,FRT
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER 		1-75026-681-0 01 1 0004-0004 ● ●
12 CUSHION; SEAT,FRT
AIR CONTROL SEAT<A60> DRIVER 		1-75026-681-0 01 1 0004-0004 ●
12 CUSHION; SEAT,FRT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		1-75028-764-2 01 1 9601-9803 ● ●
12 CUSHION; SEAT,FRT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		1-75028-764-2 01 1 9804-0003 ● ● ●
12 CUSHION; SEAT,FRT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		1-75207-147-0 01 1 0004-0004 ● ● ●
12 CUSHION; SEAT,FRT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		1-75026-695-3 01 1 0005- ● ● ●
12 CUSHION; SEAT,FRT
RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> DRIVER 		1-75028-799-2 01 1 9601-0003 ● ●
12 CUSHION; SEAT,FRT
RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> DRIVER 		1-75026-686-0 01 1 0004-0004 ● ●
12 CUSHION; SEAT,FRT
DELUXE CAB(W14) DRIVER 		1-75026-250-0 01 1 9902-0003 ● ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> DRIVER 		1-75026-693-3 01 1 0005- ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> DRIVER 		1-75026-693-3 01 1 0005- ● ●
12 CUSHION; SEAT,FRT
DRIVER 		1-75026-693-3 01 1 0005- ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER 		1-75116-465-0 01 1 9811-0010 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER 		1-75116-465-0 01 1 0011- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER 		1-75117-835-0 01 1 9601-9609 ●
13 COVER; TRIM,FRT SEAT,CUSHION
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) DRIVER 		1-75117-835-0 01 1 9601-9609 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DELUXE CAB(W14) DRIVER 		1-75117-835-0 01 1 9601-9609 ● ●

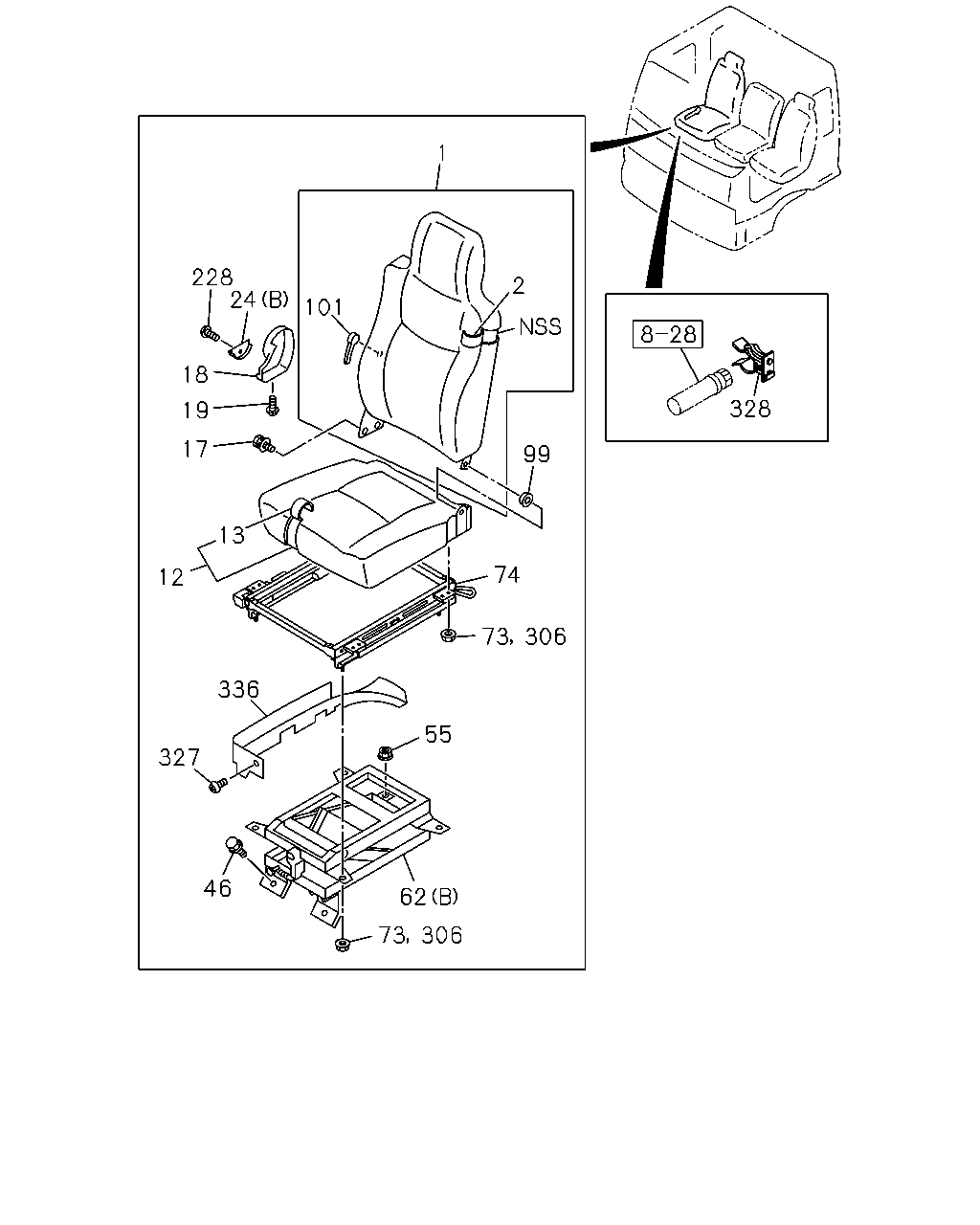

13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75117-835-0 01 1 9601-9609 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DELUXE CAB(W14) DRIVER 		1-75117-835-0 01 1 9610-9803 ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14) DRIVER 		1-75117-835-0 01 1 9610-9803 ●
13 COVER; TRIM,FRT SEAT,CUSHION
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) DRIVER 		1-75117-835-0 01 1 9610-9803 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75117-835-0 01 1 9610-9803 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> DRIVER 		1-75116-349-0 01 1 9804-9901 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> DRIVER 		1-75116-349-0 01 1 9804-9901 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14) DRIVER 		1-75116-349-0 01 1 9902-0003 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75116-349-0 01 1 9902-0003 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> DRIVER 		1-75116-549-0 01 1 0004-0004 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> DRIVER 		1-75116-549-0 01 1 0004-0004 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> DRIVER 		1-75116-680-1 01 1 0005- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> EXC. HIGH ROOF<S2F>,DELUXE CAB(W14) DRIVER 		1-75116-302-0 01 1 9601-9803 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> DRIVER 		1-75116-378-0 01 1 9804-0003 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> DRIVER 		1-75116-550-0 01 1 0004-0004 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> DRIVER 		1-75116-686-1 01 1 0005- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVING POSITION WIDE LEG SPACE(PR2) SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER 		1-75117-901-0 01 1 9601-9803 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR CONTROL SEAT<A60> DRIVER 		1-75116-390-0 01 1 9804-9804 ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER 		1-75116-390-0 01 1 9805-0003 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR CONTROL SEAT<A60> DRIVER 		1-75116-390-0 01 1 9805-0003 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER 		1-75116-548-0 01 1 0004-0004 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR CONTROL SEAT<A60> DRIVER 		1-75116-548-0 01 1 0004-0004 ●
13 COVER; TRIM,FRT SEAT,CUSHION
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		1-75116-301-1 01 1 9601-9803 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		1-75116-301-1 01 1 9804-0003 ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		1-75116-539-0 01 1 0004-0004 ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		1-75116-683-1 01 1 0005- ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> DRIVER 		1-75116-318-1 01 1 9601-0003 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> DRIVER 		1-75116-554-0 01 1 0004-0004 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DELUXE CAB(W14) DRIVER 		1-75116-455-0 01 1 9902-0003 ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> DRIVER 		1-75116-681-1 01 1 0005- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> DRIVER 		1-75116-681-1 01 1 0005- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER 		1-75116-681-1 01 1 0005- ●
17 BOLT; RECLINING
DRIVER M8X18 		8-94279-109-1 02 1 9601-9803 ● ● ●
17 BOLT; RECLINING
DRIVER M8X18 		8-94279-109-1 02 1 9804-9804 ● ● ● ●
17 BOLT; RECLINING
DRIVER M8X20 		8-97255-906-0 02 1 0004-0004 ● ● ● ●
17 BOLT; RECLINING
DRIVER M8X20 		8-97255-906-0 02 1 0005- ● ● ● ● ●
18 COVER; RECLINING
DRIVER 		1-75418-050-0 01 1 9601-9803 ● ● ●
18 COVER; RECLINING
DRIVER 		1-75418-050-0 01 1 9804-9804 ● ● ● ●
18 COVER; RECLINING
DRIVER DARK GRAY 		8-97867-020-0 01 1 0005- ● ● ● ● ●
18 COVER; RECLINING

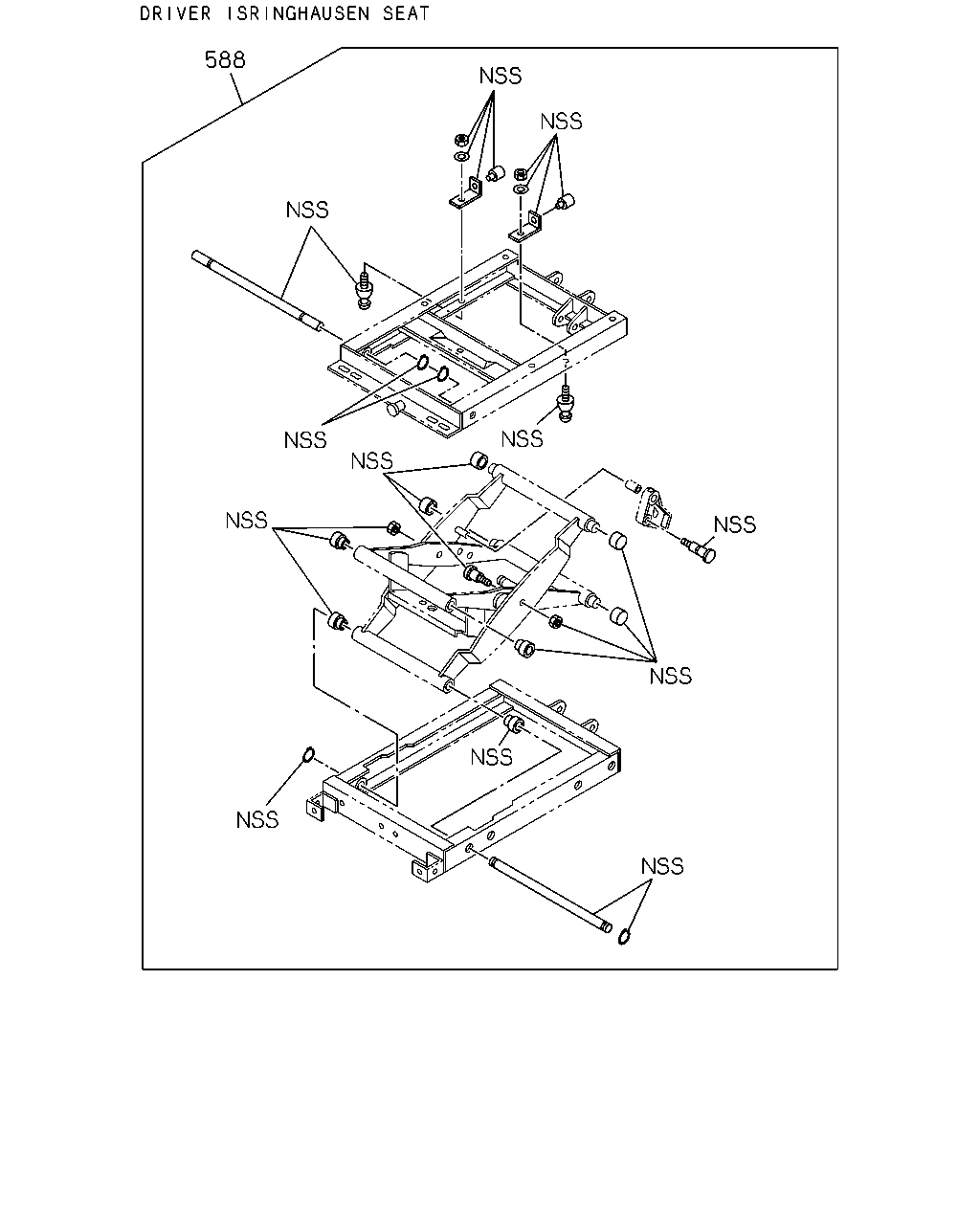

DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER 		1-75418-063-0 01 1 9811-0010 ● ●
18 COVER; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER 		1-75418-063-0 01 1 0011- ● ●
19 SCREW; COVER
DRIVER M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9601-9803 ● ● ●
19 SCREW; COVER
DRIVER M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9804-9804 ● ● ● ●
19 SCREW; COVER
DRIVER M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0005- ● ● ● ● ●

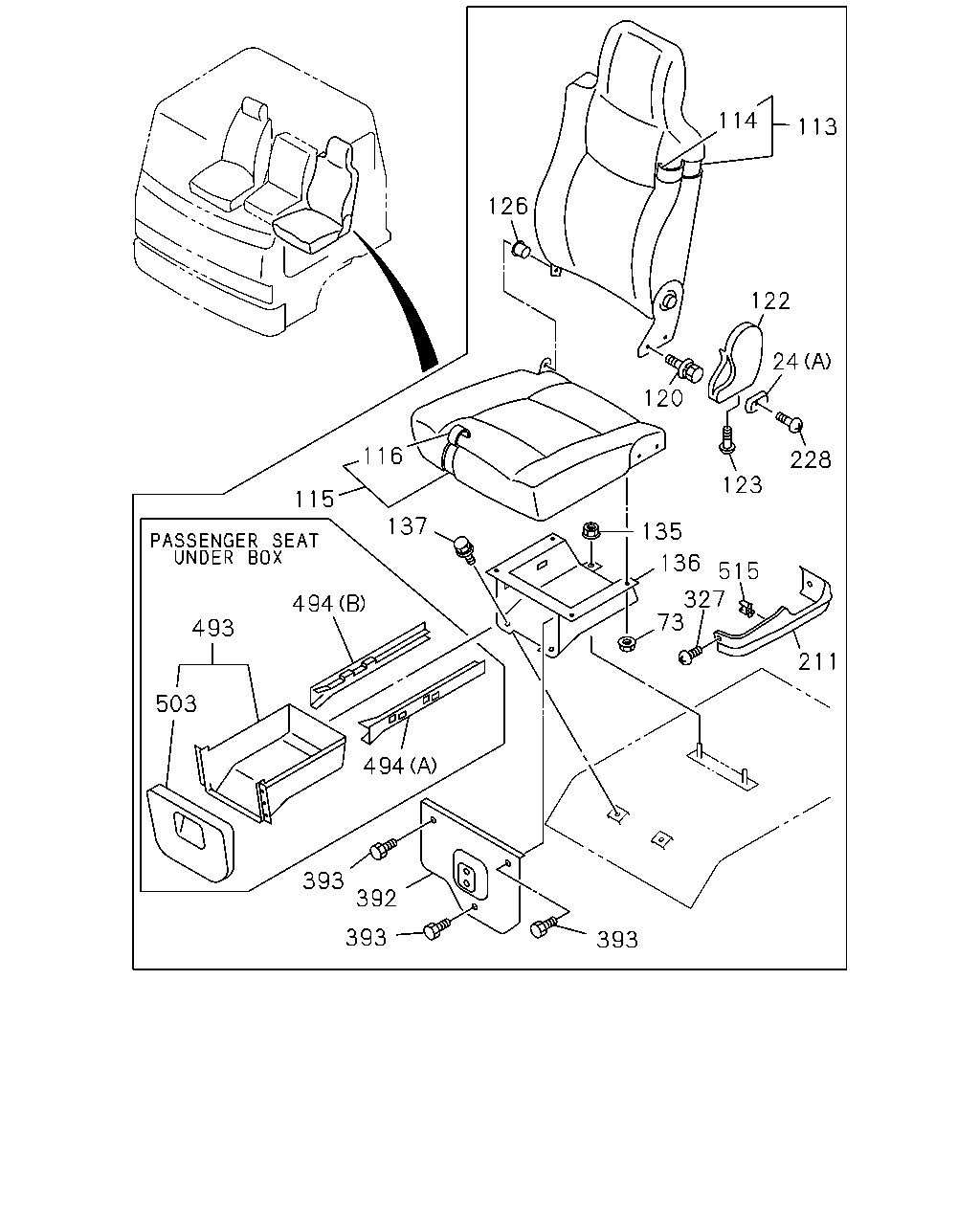

24 KNOB; RECLINING,FRT,SEAT
(A) PASSENGER 		1-75418-056-0 01 1 9601-9803 ● ● ●
24 KNOB; RECLINING,FRT,SEAT
(A) PASSENGER 		1-75418-056-0 01 1 9804-0004 ● ● ● ●
24 KNOB; RECLINING,FRT,SEAT
(A) PASSENGER DARK GRAY 		8-97859-019-0 01 1 0005- ● ● ● ● ●
24 KNOB; RECLINING,FRT,SEAT
(B) DRIVER 		1-75418-059-0 01 1 9601-9803 ● ● ●
24 KNOB; RECLINING,FRT,SEAT
(B) DRIVER 		1-75418-059-0 01 1 9804-0004 ● ● ● ●
24 KNOB; RECLINING,FRT,SEAT
(B) DRIVER DARK GRAY 		8-97867-021-0 01 1 0005-0710 ● ● ● ● ●
24 KNOB; RECLINING,FRT,SEAT
(B) DRIVER 		1-75418-066-0 01 1 0711- ● ● ● ● ●
42 STAND; DRIVER SEAT
RIGID SEAT WO/ARM REST<TAZ> 		1-75558-491-4 01 1 9601-9803 ● ●
42 STAND; DRIVER SEAT
RIGID SEAT WO/ARM REST<TAZ> 		1-75558-491-4 01 1 9804-0003 ● ● ●
42 STAND; DRIVER SEAT
RIGID SEAT WO/ARM REST<TAZ> 		1-75558-604-2 01 1 0004- ● ● ●
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 9601-9803 ● ● ●
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 9804-0004 ● ● ● ●
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0005-0703 ● ● ● ● ●
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 0704- ● ● ● ● ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 9601-9803 ● ● ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 9804-0004 ● ● ● ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 0005-0703 ● ● ● ● ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		0-91180-110-0 02 1 0704- ● ● ● ● ●

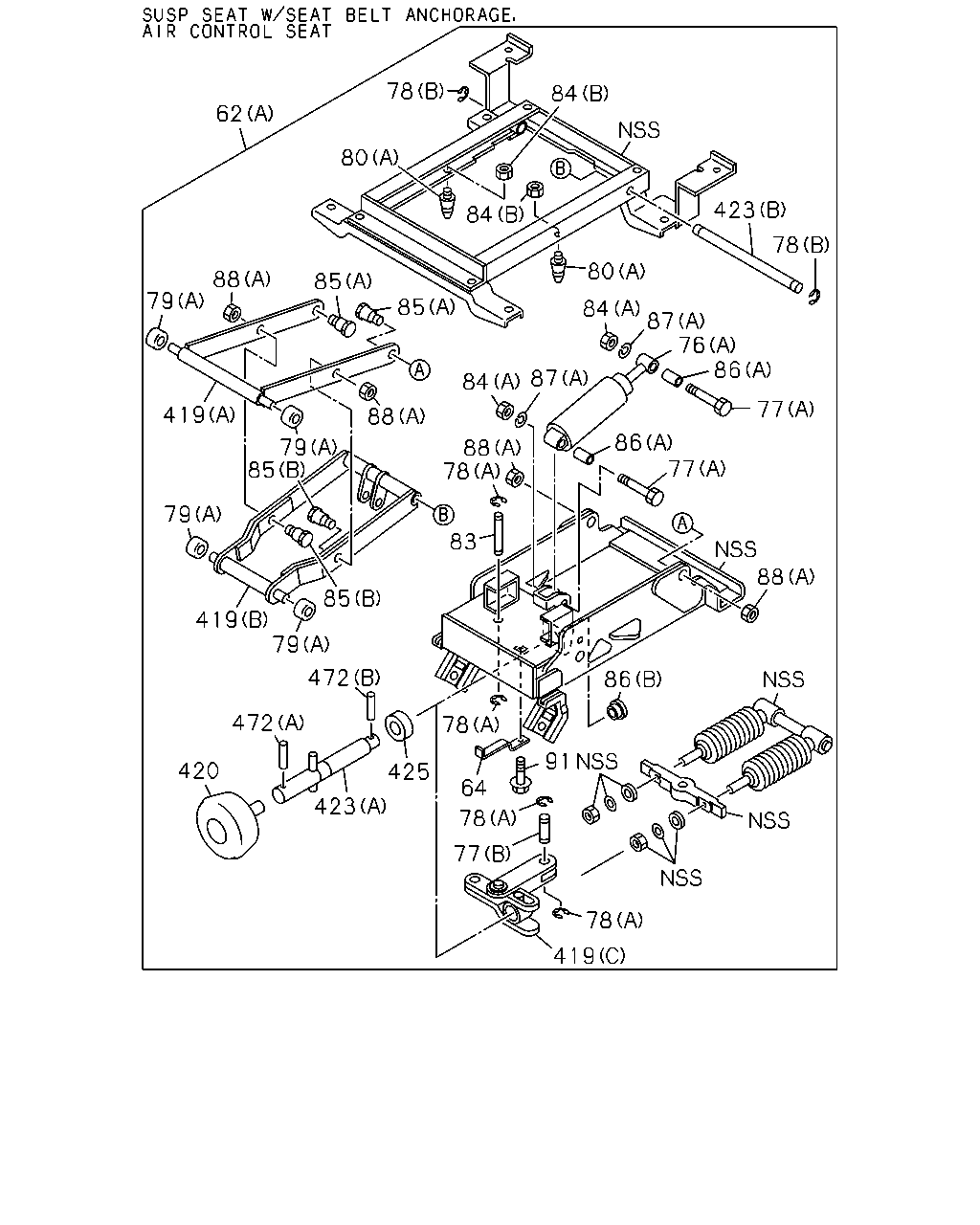

62 DAMPER ASM; SEAT SUSP
(B) 		1-75538-152-1 01 1 9601-9602 ●
62 DAMPER ASM; SEAT SUSP

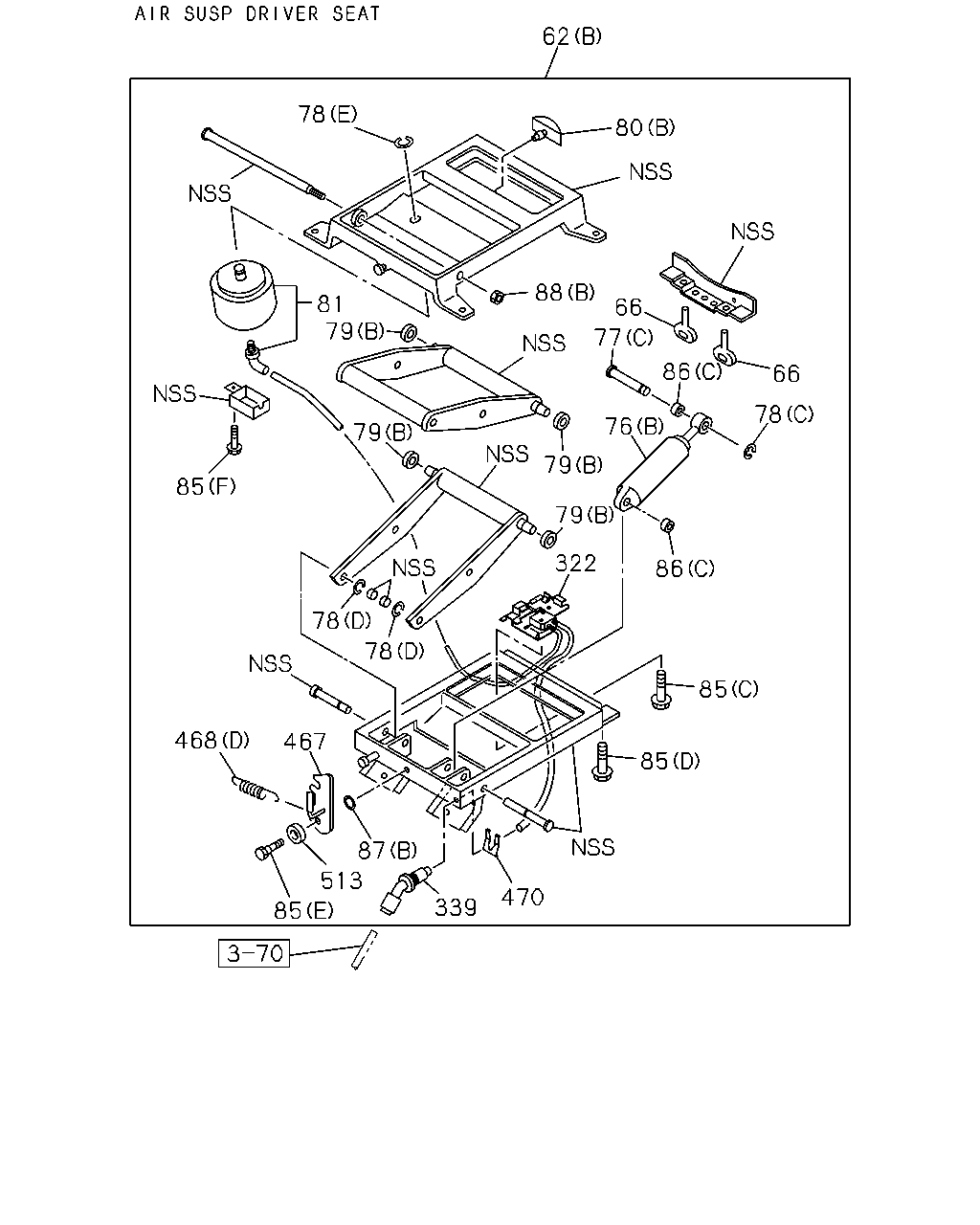

AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-152-1 01 1 9601-9602 ● ●
62 DAMPER ASM; SEAT SUSP
(B) 		1-75538-156-0 01 1 9603-9712 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-156-0 01 1 9603-9712 ● ●
62 DAMPER ASM; SEAT SUSP
(B) 		1-75538-167-0 01 1 9801-9803 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-167-0 01 1 9801-9803 ● ●
62 DAMPER ASM; SEAT SUSP
(B) 		1-75538-167-0 01 1 9804-9804 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-167-0 01 1 9804-9804 ● ● ●
62 DAMPER ASM; SEAT SUSP
(B) 		1-75538-180-0 01 1 9805-9811 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-180-0 01 1 9805-9811 ● ● ●
62 DAMPER ASM; SEAT SUSP
(B) 		1-75538-183-2 01 1 9812-0004 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-183-2 01 1 9812-0004 ● ● ●
62 DAMPER ASM; SEAT SUSP
(B) 		1-75538-183-8 01 1 0005-1403 ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-183-8 01 1 0005-1403 ● ● ●
62 DAMPER ASM; SEAT SUSP
(B) 		8-98261-448-0 01 1 1404- ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		8-98261-448-0 01 1 1404- ● ● ●
62 DAMPER ASM; SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-142-2 01 1 9601-9603 ● ●
62 DAMPER ASM; SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-164-0 01 1 9604-9803 ● ●
62 DAMPER ASM; SEAT SUSP
AIR CONTROL SEAT<A60> (A) 		1-75538-164-0 01 1 9804-9804 ● ● ●
62 DAMPER ASM; SEAT SUSP
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-164-0 01 1 9805-0004 ● ●
62 DAMPER ASM; SEAT SUSP
AIR CONTROL SEAT<A60> (A) 		1-75538-164-0 01 1 9805-0004 ●
62 DAMPER ASM; SEAT SUSP

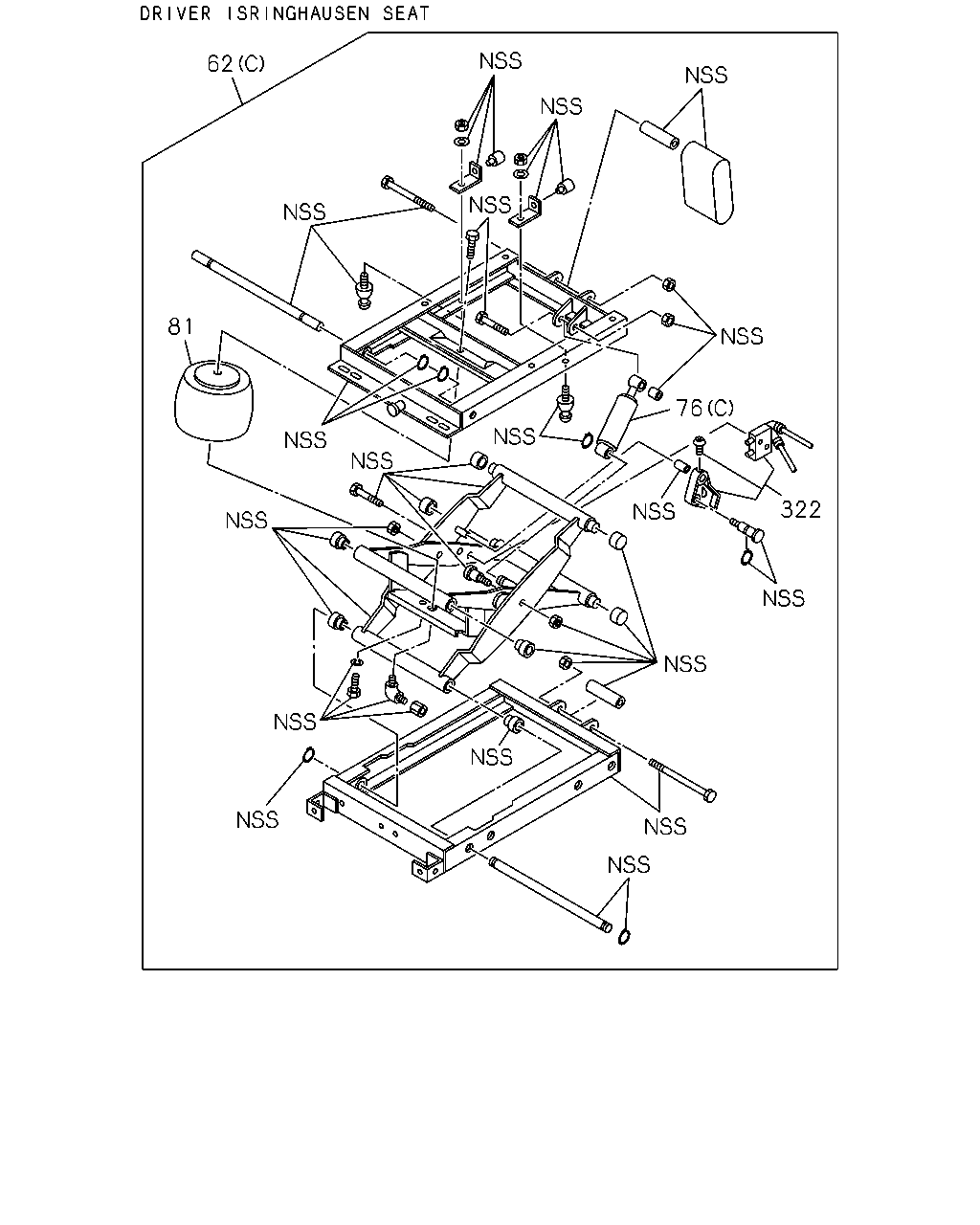

DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75538-198-0 01 1 9811-0010 ● ●
62 DAMPER ASM; SEAT SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75538-198-0 01 1 0011- ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		8-94279-518-0 04 1 9601-9803 ● ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		8-94279-518-0 04 1 9804-0003 ● ● ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0004-0004 ● ● ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 08 1 0005-0501 ● ●
73 NUT; ADJ,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) M8 FLANGE 		1-75538-207-0 08 1 0005-0501 ● ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		8-94279-518-0 08 1 9601-9803 ● ● ●
73 NUT; ADJ,HEIGHT CONT
EXC. DELUXE CAB(W14) M8 FLANGE 		8-94279-518-0 08 1 9804-9804 ● ● ● ●
73 NUT; ADJ,HEIGHT CONT
EXC. DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 08 1 0004-0004 ● ● ● ●
73 NUT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 12 1 0005-0501 ● ● ●
73 NUT; ADJ,HEIGHT CONT
RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		1-75538-207-0 08 1 0502- ● ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0005- ● ● ● ● ●
99 BUSHING; SEAT BACK
DRIVER 		8-97854-087-0 01 1 9601-9803 ● ● ●
99 BUSHING; SEAT BACK
DRIVER 		8-97854-087-0 01 1 9804-0004 ● ● ● ●
99 BUSHING; SEAT BACK
DRIVER 		8-97854-087-0 01 1 0005- ● ● ● ● ●
101 LEVER ASM; LUMBAR
DELUXE CAB(W14) DRIVER 		5-75190-138-0 01 1 9601-9803 ● ● ●
101 LEVER ASM; LUMBAR
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER 		5-75190-138-0 01 1 9601-9803 ● ●
101 LEVER ASM; LUMBAR
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) DRIVER 		5-75190-138-0 01 1 9804-9804 ● ● ● ●
101 LEVER ASM; LUMBAR
AIR CONTROL SEAT<A60> DRIVER 		5-75190-138-0 01 1 9804-9804 ● ● ●
101 LEVER ASM; LUMBAR
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) DRIVER 		5-75190-138-0 01 1 9805-0004 ● ● ● ●
101 LEVER ASM; LUMBAR
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER 		5-75190-138-0 01 1 9805-0004 ● ●
101 LEVER ASM; LUMBAR
AIR CONTROL SEAT<A60> DRIVER 		5-75190-138-0 01 1 9805-0004 ●
101 LEVER ASM; LUMBAR
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) DRIVER 		5-75190-138-0 01 1 0005- ● ● ● ●
101 LEVER ASM; LUMBAR
DRIVER 		5-75190-138-0 01 1 0005- ●
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 9601-9803 ● ● ●
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 9804-0004 ● ● ● ●
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 9804-0004 ● ● ● ●
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 0005-0710 ● ● ● ● ●
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 0005-0710 ● ● ● ●
228 SCREW; KNOB
PASSENGER M4X6 		8-97042-273-0 01 1 0711- ● ● ● ● ●
228 SCREW; KNOB
DRIVER M4 		8-98062-662-0 01 1 0711- ● ● ● ● ●

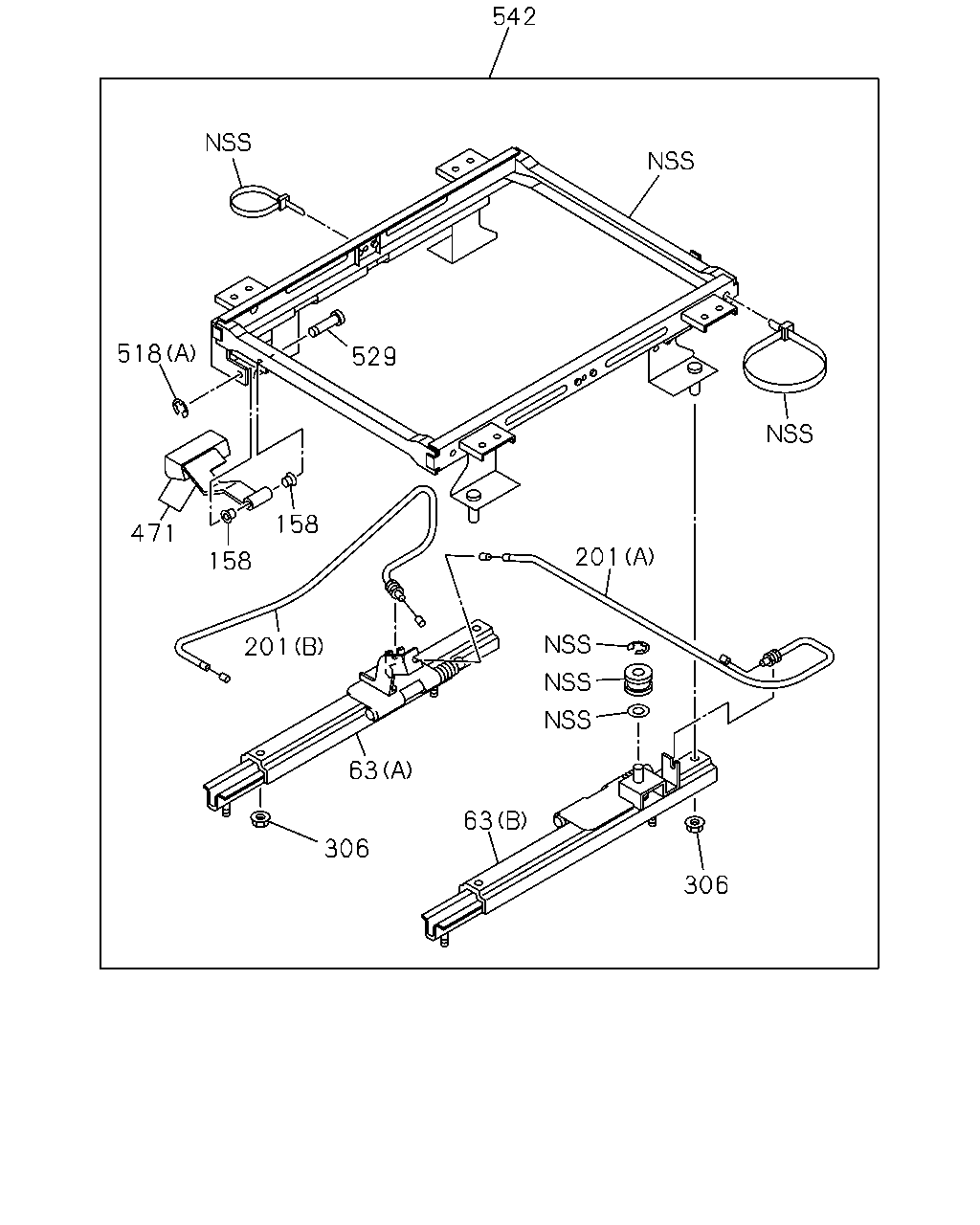

542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) EXC. DELUXE CAB(W14) 		1-75518-191-1 01 1 9601-9607 ● ●
542 ADJUSTER ASM; SEAT SLIDE
DRIVING POSITION WIDE LEG SPACE(PR2) HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75518-191-1 01 1 9601-9607 ● ●
542 ADJUSTER ASM; SEAT SLIDE
DRIVING POSITION WIDE LEG SPACE(PR2) HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75518-191-2 01 1 9608-9705 ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75518-191-2 01 1 9608-9705 ● ●
542 ADJUSTER ASM; SEAT SLIDE
DRIVING POSITION WIDE LEG SPACE(PR2) HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75518-284-0 01 1 9706-9803 ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75518-284-0 01 1 9706-9803 ● ●
542 ADJUSTER ASM; SEAT SLIDE
DRIVING POSITION WIDE LEG SPACE(PR2) HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75518-284-3 01 1 9804-1502 ● ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75518-284-3 01 1 9804-1502 ● ● ●
542 ADJUSTER ASM; SEAT SLIDE
DRIVING POSITION WIDE LEG SPACE(PR2) HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		8-98291-657-0 01 1 1503- ● ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		8-98291-657-0 01 1 1503- ● ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> EXC. HIGH ROOF<S2F>,DELUXE CAB(W14) 		1-75518-192-1 01 1 9601-9603 ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DRIVING POSITION WIDE LEG SPACE(PR2), DELUXE CAB(W14) 		1-75518-192-1 01 1 9601-9603 ● ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-192-1 01 1 9601-9603 ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> EXC. HIGH ROOF<S2F>,DELUXE CAB(W14) 		1-75518-192-2 01 1 9604-9609 ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DRIVING POSITION WIDE LEG SPACE(PR2), DELUXE CAB(W14) 		1-75518-192-2 01 1 9604-9609 ● ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-192-2 01 1 9604-9609 ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14) 		1-75518-192-2 01 1 9610-9705 ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> EXC. HIGH ROOF<S2F>,DELUXE CAB(W14) 		1-75518-192-2 01 1 9610-9705 ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DRIVING POSITION WIDE LEG SPACE(PR2), DELUXE CAB(W14) 		1-75518-192-2 01 1 9610-9705 ● ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-192-2 01 1 9610-9705 ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14) 		1-75518-282-0 01 1 9706-9803 ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> EXC. HIGH ROOF<S2F>,DELUXE CAB(W14) 		1-75518-282-0 01 1 9706-9803 ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DRIVING POSITION WIDE LEG SPACE(PR2), DELUXE CAB(W14) 		1-75518-282-0 01 1 9706-9803 ● ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-282-0 01 1 9706-9803 ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14) 		1-75518-282-1 01 1 9804-0004 ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-282-1 01 1 9804-0004 ● ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75518-282-1 01 1 9804-0004 ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DRIVING POSITION WIDE LEG SPACE(PR2), DELUXE CAB(W14) 		1-75518-282-1 01 1 9804-0004 ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> EXC. DRIVING POSITION WIDE LEG SPACE(PR2), DELUXE CAB(W14) 		1-75518-282-1 01 1 9804-0004 ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DRIVING POSITION WIDE LEG SPACE(PR2), DELUXE CAB(W14) 		1-75518-282-3 01 1 0005-1502 ● ● ● ●
542 ADJUSTER ASM; SEAT SLIDE
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-282-3 01 1 0005-1502 ● ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DRIVING POSITION WIDE LEG SPACE(PR2), DELUXE CAB(W14) 		8-98291-655-0 01 1 1503- ● ● ● ●
542 ADJUSTER ASM; SEAT SLIDE
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		8-98291-655-0 01 1 1503- ● ● ●
542 ADJUSTER ASM; SEAT SLIDE
DRIVING POSITION WIDE LEG SPACE(PR2) RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> 		1-75518-218-2 01 1 9601-9705 ● ●
542 ADJUSTER ASM; SEAT SLIDE
DRIVING POSITION WIDE LEG SPACE(PR2) RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> 		1-75518-286-1 01 1 9706-0004 ● ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75518-286-3 01 1 0005-1502 ● ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		8-98291-659-0 01 1 1503- ● ●
542 ADJUSTER ASM; SEAT SLIDE
DRIVING POSITION WIDE LEG SPACE(PR2) SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75518-231-1 01 1 9601-9603 ● ●
542 ADJUSTER ASM; SEAT SLIDE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75518-231-2 01 1 9604-9705 ● ●
542 ADJUSTER ASM; SEAT SLIDE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75518-285-0 01 1 9706-9803 ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR CONTROL SEAT<A60> 		1-75518-285-0 01 1 9804-9804 ● ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75518-285-1 01 1 9805-0004 ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR CONTROL SEAT<A60> 		1-75518-285-1 01 1 9805-0004 ●
çizim 135012
27 1 2 12 13 18 325 16 327 62 581 532 55 587 63 46 582 73
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER 		1-75026-267-0 01 1 9811-0010 ● ●
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER 		1-75026-267-0 01 1 0011- ● ●
1 BACK ASM; SEAT
DELUXE CAB(W14) DRIVER 		1-75028-760-1 01 1 9601-9803 ● ● ●
1 BACK ASM; SEAT
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER 		1-75028-760-1 01 1 9601-9803 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) DRIVER 		1-75028-864-2 01 1 9804-9804 ● ● ● ●
1 BACK ASM; SEAT
AIR CONTROL SEAT<A60> DRIVER 		1-75028-864-2 01 1 9804-9804 ● ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) DRIVER 		1-75028-864-2 01 1 9805-0003 ● ● ● ●
1 BACK ASM; SEAT
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER 		1-75028-864-2 01 1 9805-0003 ● ●
1 BACK ASM; SEAT
AIR CONTROL SEAT<A60> DRIVER 		1-75028-864-2 01 1 9805-0003 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) DRIVER 		1-75026-711-0 01 1 0004-0004 ● ● ● ●
1 BACK ASM; SEAT
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER 		1-75026-711-0 01 1 0004-0004 ● ●
1 BACK ASM; SEAT
AIR CONTROL SEAT<A60> DRIVER 		1-75026-711-0 01 1 0004-0004 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) DRIVER 		1-75026-726-0 01 1 0005-0105 ● ● ● ●
1 BACK ASM; SEAT
DRIVER 		1-75026-726-0 01 1 0005-0105 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) DRIVER 		1-75208-065-2 01 1 0106-0901 ● ● ● ●
1 BACK ASM; SEAT
DRIVER 		1-75208-065-2 01 1 0106-0901 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) DRIVER 		8-98135-611-0 01 1 0902- ● ● ● ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75027-392-1 01 1 9601-9609 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75027-392-1 01 1 9610-9803 ● ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75026-025-0 01 1 9804-0003 ● ● ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75026-716-0 01 1 0004-0004 ● ● ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75026-729-0 01 1 0005-0105 ● ● ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75208-068-2 01 1 0106-0901 ● ● ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		8-98135-612-0 01 1 0902- ● ● ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> EXC. HIGH ROOF<S2F>,DELUXE CAB(W14) DRIVER 		1-75028-586-1 01 1 9601-9803 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> DRIVER 		1-75028-998-0 01 1 9804-0003 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> DRIVER 		1-75026-712-0 01 1 0004-0004 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> DRIVER 		1-75026-723-0 01 1 0005-0105 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> DRIVER 		1-75208-062-3 01 1 0106- ● ●
1 BACK ASM; SEAT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		1-75028-590-2 01 1 9601-9803 ● ●
1 BACK ASM; SEAT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		1-75028-590-2 01 1 9804-0003 ● ● ●
1 BACK ASM; SEAT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		1-75026-710-0 01 1 0004-0004 ● ● ●
1 BACK ASM; SEAT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		1-75026-730-0 01 1 0005-0105 ● ● ●
1 BACK ASM; SEAT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		1-75208-069-2 01 1 0106-0901 ● ● ●
1 BACK ASM; SEAT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		8-98135-615-0 01 1 0902- ● ● ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> DRIVER 		1-75028-618-2 01 1 9601-0003 ● ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> DRIVER 		1-75026-721-0 01 1 0004-0004 ● ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> DRIVER 		1-75026-728-0 01 1 0005-0105 ● ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> DRIVER 		1-75208-067-3 01 1 0106- ● ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER 		1-75116-464-0 01 1 9811-0010 ● ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER 		1-75116-464-0 01 1 0011- ● ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER 		1-75116-296-0 01 1 9601-9609 ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75116-296-0 01 1 9601-9609 ● ●
2 COVER; TRIM,FRT SEAT,BACK
DELUXE CAB(W14) DRIVER 		1-75116-296-0 01 1 9601-9609 ● ●
2 COVER; TRIM,FRT SEAT,BACK
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER 		1-75116-296-0 01 1 9601-9609 ● ●
2 COVER; TRIM,FRT SEAT,BACK
DELUXE CAB(W14) DRIVER 		1-75116-296-0 01 1 9610-9611 ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75116-296-0 01 1 9610-9611 ● ●
2 COVER; TRIM,FRT SEAT,BACK
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER 		1-75116-296-0 01 1 9610-9611 ● ●
2 COVER; TRIM,FRT SEAT,BACK
DELUXE CAB(W14) DRIVER 		1-75116-296-1 01 1 9612-9803 ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14) DRIVER 		1-75116-296-1 01 1 9612-9803 ●
2 COVER; TRIM,FRT SEAT,BACK
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER 		1-75116-296-1 01 1 9612-9803 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75116-296-1 01 1 9612-9803 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) DRIVER 		1-75116-346-1 01 1 9804-9804 ● ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR CONTROL SEAT<A60> DRIVER 		1-75116-346-1 01 1 9804-9804 ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) DRIVER 		1-75116-346-1 01 1 9805-0003 ● ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER 		1-75116-346-1 01 1 9805-0003 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR CONTROL SEAT<A60> DRIVER 		1-75116-346-1 01 1 9805-0003 ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) DRIVER 		1-75116-586-0 01 1 0004-0004 ● ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER 		1-75116-586-0 01 1 0004-0004 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR CONTROL SEAT<A60> DRIVER 		1-75116-586-0 01 1 0004-0004 ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) DRIVER 		1-75116-594-1 01 1 0005- ● ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER 		1-75116-594-1 01 1 0005- ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DRIVING POSITION WIDE LEG SPACE(PR2), DELUXE CAB(W14) DRIVER 		1-75117-837-0 01 1 9601-9609 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14) DRIVER 		1-75117-837-0 01 1 9610-9611 ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DRIVING POSITION WIDE LEG SPACE(PR2), DELUXE CAB(W14) DRIVER 		1-75117-837-0 01 1 9610-9611 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> EXC. HIGH ROOF<S2F>,DELUXE CAB(W14) DRIVER 		1-75116-256-0 01 1 9601-9803 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75116-377-0 01 1 9804-0003 ● ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75116-595-0 01 1 0004-0004 ● ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75116-703-1 01 1 0005- ● ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> DRIVER 		1-75116-373-0 01 1 9804-0003 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> DRIVER 		1-75116-587-0 01 1 0004-0004 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> DRIVER 		1-75116-602-1 01 1 0005- ● ●
2 COVER; TRIM,FRT SEAT,BACK
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		1-75116-277-2 01 1 9601-9803 ● ●
2 COVER; TRIM,FRT SEAT,BACK
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		1-75116-277-2 01 1 9804-0003 ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		1-75127-036-0 01 1 0004-0004 ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		1-75116-704-1 01 1 0005- ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> DRIVER 		1-75116-274-1 01 1 9601-0003 ● ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> DRIVER 		1-75116-600-0 01 1 0004-0004 ● ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> DRIVER 		1-75116-702-1 01 1 0005- ● ●
12 CUSHION; SEAT,FRT
DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER 		1-75026-268-0 01 1 9811-0010 ● ●
12 CUSHION; SEAT,FRT
DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER 		1-75026-268-0 01 1 0011- ● ●
12 CUSHION; SEAT,FRT
DRIVER 		1-75028-763-1 01 1 9601-9609 ●
12 CUSHION; SEAT,FRT
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) DRIVER 		1-75028-763-1 01 1 9601-9609 ● ●
12 CUSHION; SEAT,FRT
DELUXE CAB(W14) DRIVER 		1-75028-763-1 01 1 9601-9609 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75028-763-1 01 1 9601-9609 ● ●
12 CUSHION; SEAT,FRT
DELUXE CAB(W14) DRIVER 		1-75028-763-1 01 1 9610-9803 ● ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14) DRIVER 		1-75028-763-1 01 1 9610-9803 ●
12 CUSHION; SEAT,FRT
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) DRIVER 		1-75028-763-1 01 1 9610-9803 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75028-763-1 01 1 9610-9803 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> DRIVER 		1-75028-838-1 01 1 9804-9901 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> DRIVER 		1-75028-838-1 01 1 9804-9901 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14) DRIVER 		1-75028-838-1 01 1 9902-0003 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75028-838-1 01 1 9902-0003 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> DRIVER 		1-75026-677-0 01 1 0004-0004 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> DRIVER 		1-75026-677-0 01 1 0004-0004 ● ●
12 CUSHION; SEAT,FRT
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> DRIVER 		1-75026-692-1 01 1 0005- ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> EXC. HIGH ROOF<S2F>,DELUXE CAB(W14) DRIVER 		1-75028-770-1 01 1 9601-9803 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> DRIVER 		1-75026-024-0 01 1 9804-0003 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> DRIVER 		1-75026-682-0 01 1 0004-0004 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> DRIVER 		1-75026-698-1 01 1 0005- ● ●
12 CUSHION; SEAT,FRT
DRIVING POSITION WIDE LEG SPACE(PR2) SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER 		1-75028-870-1 01 1 9601-9803 ● ●
12 CUSHION; SEAT,FRT
AIR CONTROL SEAT<A60> DRIVER 		1-75026-033-0 01 1 9804-9804 ● ● ●
12 CUSHION; SEAT,FRT
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER 		1-75026-033-0 01 1 9805-0003 ● ●
12 CUSHION; SEAT,FRT
AIR CONTROL SEAT<A60> DRIVER 		1-75026-033-0 01 1 9805-0003 ●
12 CUSHION; SEAT,FRT
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER 		1-75026-681-0 01 1 0004-0004 ● ●
12 CUSHION; SEAT,FRT
AIR CONTROL SEAT<A60> DRIVER 		1-75026-681-0 01 1 0004-0004 ●
12 CUSHION; SEAT,FRT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		1-75028-764-2 01 1 9601-9803 ● ●
12 CUSHION; SEAT,FRT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		1-75028-764-2 01 1 9804-0003 ● ● ●
12 CUSHION; SEAT,FRT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		1-75207-147-0 01 1 0004-0004 ● ● ●
12 CUSHION; SEAT,FRT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		1-75026-695-3 01 1 0005- ● ● ●
12 CUSHION; SEAT,FRT
RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> DRIVER 		1-75028-799-2 01 1 9601-0003 ● ●
12 CUSHION; SEAT,FRT
RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> DRIVER 		1-75026-686-0 01 1 0004-0004 ● ●
12 CUSHION; SEAT,FRT
DELUXE CAB(W14) DRIVER 		1-75026-250-0 01 1 9902-0003 ● ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> DRIVER 		1-75026-693-3 01 1 0005- ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> DRIVER 		1-75026-693-3 01 1 0005- ● ●
12 CUSHION; SEAT,FRT
DRIVER 		1-75026-693-3 01 1 0005- ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER 		1-75116-465-0 01 1 9811-0010 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER 		1-75116-465-0 01 1 0011- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER 		1-75117-835-0 01 1 9601-9609 ●
13 COVER; TRIM,FRT SEAT,CUSHION
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) DRIVER 		1-75117-835-0 01 1 9601-9609 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DELUXE CAB(W14) DRIVER 		1-75117-835-0 01 1 9601-9609 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75117-835-0 01 1 9601-9609 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DELUXE CAB(W14) DRIVER 		1-75117-835-0 01 1 9610-9803 ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14) DRIVER 		1-75117-835-0 01 1 9610-9803 ●
13 COVER; TRIM,FRT SEAT,CUSHION
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) DRIVER 		1-75117-835-0 01 1 9610-9803 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75117-835-0 01 1 9610-9803 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> DRIVER 		1-75116-349-0 01 1 9804-9901 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> DRIVER 		1-75116-349-0 01 1 9804-9901 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14) DRIVER 		1-75116-349-0 01 1 9902-0003 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75116-349-0 01 1 9902-0003 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> DRIVER 		1-75116-549-0 01 1 0004-0004 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> DRIVER 		1-75116-549-0 01 1 0004-0004 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> DRIVER 		1-75116-680-1 01 1 0005- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> EXC. HIGH ROOF<S2F>,DELUXE CAB(W14) DRIVER 		1-75116-302-0 01 1 9601-9803 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> DRIVER 		1-75116-378-0 01 1 9804-0003 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> DRIVER 		1-75116-550-0 01 1 0004-0004 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> DRIVER 		1-75116-686-1 01 1 0005- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVING POSITION WIDE LEG SPACE(PR2) SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER 		1-75117-901-0 01 1 9601-9803 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR CONTROL SEAT<A60> DRIVER 		1-75116-390-0 01 1 9804-9804 ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER 		1-75116-390-0 01 1 9805-0003 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR CONTROL SEAT<A60> DRIVER 		1-75116-390-0 01 1 9805-0003 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER 		1-75116-548-0 01 1 0004-0004 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR CONTROL SEAT<A60> DRIVER 		1-75116-548-0 01 1 0004-0004 ●
13 COVER; TRIM,FRT SEAT,CUSHION
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		1-75116-301-1 01 1 9601-9803 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		1-75116-301-1 01 1 9804-0003 ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		1-75116-539-0 01 1 0004-0004 ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		1-75116-683-1 01 1 0005- ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> DRIVER 		1-75116-318-1 01 1 9601-0003 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> DRIVER 		1-75116-554-0 01 1 0004-0004 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DELUXE CAB(W14) DRIVER 		1-75116-455-0 01 1 9902-0003 ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> DRIVER 		1-75116-681-1 01 1 0005- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> DRIVER 		1-75116-681-1 01 1 0005- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER 		1-75116-681-1 01 1 0005- ●

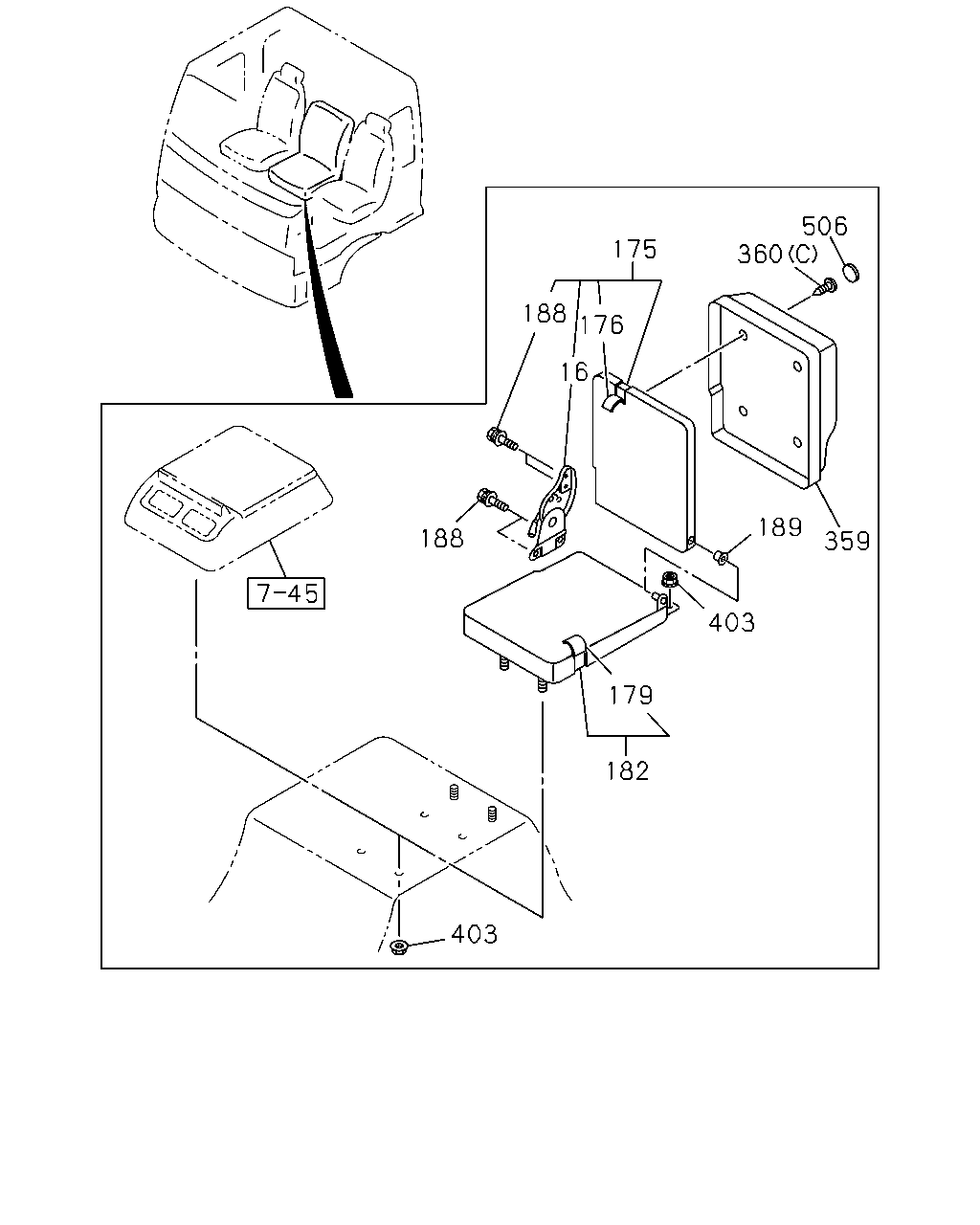

16 ADJUSTER ASM; RECLINING
CENTER 		1-75418-057-1 01 1 9601-9803 ●
16 ADJUSTER ASM; RECLINING
EXC. CENTER SEAT DELETE 2 CREWS<SP9> CENTER 		1-75418-057-1 01 1 9601-9803 ● ●
16 ADJUSTER ASM; RECLINING
CENTER 		1-75418-057-1 01 1 9804-0003 ●
16 ADJUSTER ASM; RECLINING
EXC. CENTER SEAT DELETE 2 CREWS<SP9> CENTER 		1-75418-057-1 01 1 9804-0003 ● ● ●
16 ADJUSTER ASM; RECLINING
CENTER 		1-75418-062-0 01 1 9807-0004 ●
16 ADJUSTER ASM; RECLINING
EXC. CENTER SEAT DELETE 2 CREWS<SP9> CENTER 		1-75418-062-0 01 1 9807-0004 ● ● ●
16 ADJUSTER ASM; RECLINING
CENTER 		1-75418-062-1 01 1 0005- ● ●
16 ADJUSTER ASM; RECLINING
EXC. CENTER SEAT DELETE 2 CREWS<SP9> CENTER 		1-75418-062-1 01 1 0005- ● ● ●
16 ADJUSTER ASM; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER 		1-75418-064-0 01 1 9811-0010 ● ●
16 ADJUSTER ASM; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER 		1-75418-064-0 01 1 0011- ● ●
18 COVER; RECLINING
DRIVER 		1-75418-050-0 01 1 9601-9803 ● ● ●
18 COVER; RECLINING
DRIVER 		1-75418-050-0 01 1 9804-9804 ● ● ● ●
18 COVER; RECLINING
DRIVER DARK GRAY 		8-97867-020-0 01 1 0005- ● ● ● ● ●
18 COVER; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER 		1-75418-063-0 01 1 9811-0010 ● ●
18 COVER; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER 		1-75418-063-0 01 1 0011- ● ●
27 REST; HD,FRT SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75658-052-0 01 1 9811-0010 ● ●
27 REST; HD,FRT SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75658-052-0 01 1 0011- ● ●
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 9601-9803 ● ● ●
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 9804-0004 ● ● ● ●
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0005-0703 ● ● ● ● ●
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 0704- ● ● ● ● ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 9601-9803 ● ● ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 9804-0004 ● ● ● ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 0005-0703 ● ● ● ● ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		0-91180-110-0 02 1 0704- ● ● ● ● ●

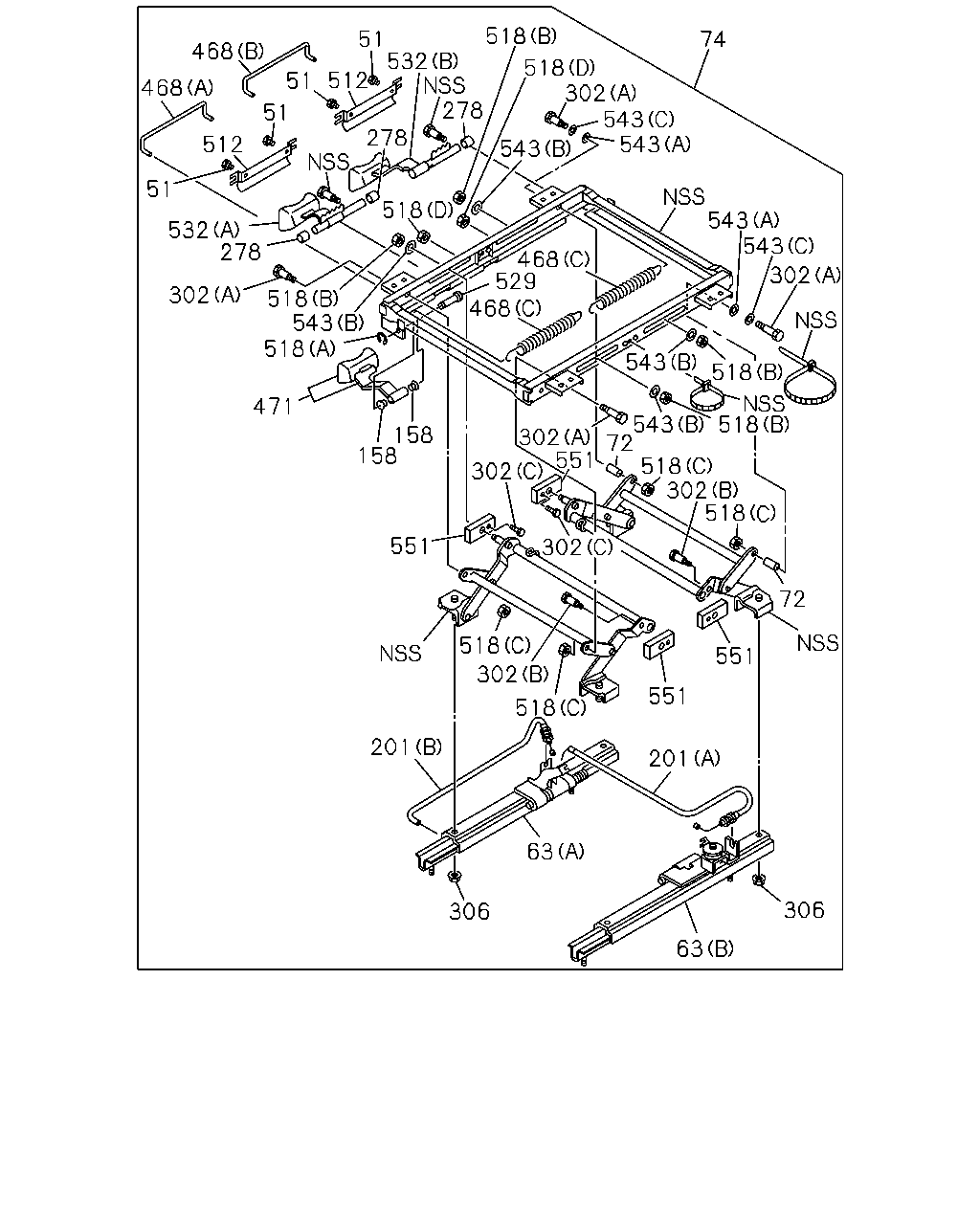

62 DAMPER ASM; SEAT SUSP
(B) 		1-75538-152-1 01 1 9601-9602 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-152-1 01 1 9601-9602 ● ●
62 DAMPER ASM; SEAT SUSP
(B) 		1-75538-156-0 01 1 9603-9712 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-156-0 01 1 9603-9712 ● ●
62 DAMPER ASM; SEAT SUSP
(B) 		1-75538-167-0 01 1 9801-9803 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-167-0 01 1 9801-9803 ● ●
62 DAMPER ASM; SEAT SUSP
(B) 		1-75538-167-0 01 1 9804-9804 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-167-0 01 1 9804-9804 ● ● ●
62 DAMPER ASM; SEAT SUSP
(B) 		1-75538-180-0 01 1 9805-9811 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-180-0 01 1 9805-9811 ● ● ●
62 DAMPER ASM; SEAT SUSP
(B) 		1-75538-183-2 01 1 9812-0004 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-183-2 01 1 9812-0004 ● ● ●
62 DAMPER ASM; SEAT SUSP
(B) 		1-75538-183-8 01 1 0005-1403 ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-183-8 01 1 0005-1403 ● ● ●
62 DAMPER ASM; SEAT SUSP
(B) 		8-98261-448-0 01 1 1404- ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		8-98261-448-0 01 1 1404- ● ● ●
62 DAMPER ASM; SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-142-2 01 1 9601-9603 ● ●
62 DAMPER ASM; SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-164-0 01 1 9604-9803 ● ●
62 DAMPER ASM; SEAT SUSP
AIR CONTROL SEAT<A60> (A) 		1-75538-164-0 01 1 9804-9804 ● ● ●
62 DAMPER ASM; SEAT SUSP
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-164-0 01 1 9805-0004 ● ●
62 DAMPER ASM; SEAT SUSP
AIR CONTROL SEAT<A60> (A) 		1-75538-164-0 01 1 9805-0004 ●
62 DAMPER ASM; SEAT SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75538-198-0 01 1 9811-0010 ● ●
62 DAMPER ASM; SEAT SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75538-198-0 01 1 0011- ● ●
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-199-0 01 1 9601-9803 ● ● ●
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-199-0 01 1 9804-9804 ● ● ● ●
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-199-1 01 1 0005- ● ● ● ● ●
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-198-0 01 1 9601-9705 ● ● ●
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-294-0 01 1 9706-9803 ● ● ●
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-294-0 01 1 9804-9804 ● ● ● ●
63 ADJUSTER; SEAT SLIDE
EXC. DELUXE CAB(W14) (A) 		1-75518-294-1 01 1 0001- ● ● ● ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (B) 		1-75518-323-0 01 1 0005- ● ● ● ●
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-323-0 01 1 0005- ●
63 ADJUSTER; SEAT SLIDE
DELUXE CAB(W14) (A) 		1-75518-321-0 01 1 0001-0004 ● ● ● ●
63 ADJUSTER; SEAT SLIDE
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75518-315-0 01 1 9811-0010 ● ●
63 ADJUSTER; SEAT SLIDE
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75518-315-0 01 1 0011- ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		8-94279-518-0 04 1 9601-9803 ● ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		8-94279-518-0 04 1 9804-0003 ● ● ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0004-0004 ● ● ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 08 1 0005-0501 ● ●
73 NUT; ADJ,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) M8 FLANGE 		1-75538-207-0 08 1 0005-0501 ● ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		8-94279-518-0 08 1 9601-9803 ● ● ●
73 NUT; ADJ,HEIGHT CONT
EXC. DELUXE CAB(W14) M8 FLANGE 		8-94279-518-0 08 1 9804-9804 ● ● ● ●
73 NUT; ADJ,HEIGHT CONT
EXC. DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 08 1 0004-0004 ● ● ● ●
73 NUT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 12 1 0005-0501 ● ● ●
73 NUT; ADJ,HEIGHT CONT
RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		1-75538-207-0 08 1 0502- ● ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0005- ● ● ● ● ●
325 COVER; SUSPENSION DEVICE
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75538-196-0 01 1 9811-0010 ● ●
325 COVER; SUSPENSION DEVICE
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75538-196-0 01 1 0011- ● ●
327 CLIP; COVER
DELUXE CAB(W14) 		1-09987-249-0 02 1 9601-9803 ● ● ●
327 CLIP; COVER
DELUXE CAB(W14) 		1-09987-249-0 02 1 9804-0004 ● ● ● ●
327 CLIP; COVER
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-09987-273-0 02 1 0005- ● ● ● ●
327 CLIP; COVER
FABRIC SEAT W/RECLINING<SFQ> DELUXE CAB(W14) EXC. ELEC OUTLET 12V<TAW>,PASSENGER SEAT UNDER BOX<TDN> 		1-09987-273-0 02 1 0005- ● ● ● ●
327 CLIP; COVER 1-09987-273-0 02 1 0005- ●
327 CLIP; COVER 1-09987-273-0 02 1 0005- ●
327 CLIP; COVER
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) DELUXE CAB(W14) 		1-09987-273-0 01 1 0005- ● ● ●
327 CLIP; COVER
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75538-197-0 01 1 9811-0010 ● ●
327 CLIP; COVER
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75538-197-0 01 1 0011- ● ●
532 LEVER ASM; TILT
DELUXE CAB(W14) (A) 		1-75518-203-0 01 1 9601-9803 ● ● ●
532 LEVER ASM; TILT
DELUXE CAB(W14) (A) 		1-75518-203-0 01 1 9804-0004 ● ● ● ●
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (A) 		1-75518-203-0 01 1 0005- ● ● ● ●
532 LEVER ASM; TILT
(A) 		1-75518-203-0 01 1 0005- ●
532 LEVER ASM; TILT
DELUXE CAB(W14) (B) 		1-75518-204-1 01 1 9601-9803 ● ● ●
532 LEVER ASM; TILT
DELUXE CAB(W14) (B) 		1-75518-204-1 01 1 9804-0004 ● ● ● ●
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (B) 		1-75518-204-1 01 1 0005- ● ● ● ●
532 LEVER ASM; TILT
(B) 		1-75518-204-1 01 1 0005- ●
532 LEVER ASM; TILT
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75518-314-0 01 1 9811-0010 ● ●
532 LEVER ASM; TILT
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75518-314-0 01 1 0011- ● ●
581 PIPE; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-73907-573-3 01 1 9811-0010 ● ●
581 PIPE; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-73907-573-3 01 1 0011- ●
582 BOLT; PIPE,SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-09980-619-1 02 1 9811-0010 ● ●
582 BOLT; PIPE,SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-09980-619-1 02 1 0011- ●
587 VALVE; LUMBAR SUPPORT
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75418-065-0 01 1 9811-0010 ● ●
587 VALVE; LUMBAR SUPPORT
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75418-065-0 01 1 0011- ● ●
çizim 135040
470 85 85 339 513 85 87 467 468 78 78 322 86 79 79 76 78 86 66 77 66 88 81 79 85 78 62 80 79
BalonParca AdiParca NoAdetTipApplied Date A B C D E
62 DAMPER ASM; SEAT SUSP
(B) 		1-75538-152-1 01 1 9601-9602 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-152-1 01 1 9601-9602 ● ●
62 DAMPER ASM; SEAT SUSP
(B) 		1-75538-156-0 01 1 9603-9712 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-156-0 01 1 9603-9712 ● ●
62 DAMPER ASM; SEAT SUSP
(B) 		1-75538-167-0 01 1 9801-9803 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-167-0 01 1 9801-9803 ● ●
62 DAMPER ASM; SEAT SUSP
(B) 		1-75538-167-0 01 1 9804-9804 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-167-0 01 1 9804-9804 ● ● ●
62 DAMPER ASM; SEAT SUSP
(B) 		1-75538-180-0 01 1 9805-9811 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-180-0 01 1 9805-9811 ● ● ●
62 DAMPER ASM; SEAT SUSP
(B) 		1-75538-183-2 01 1 9812-0004 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-183-2 01 1 9812-0004 ● ● ●
62 DAMPER ASM; SEAT SUSP
(B) 		1-75538-183-8 01 1 0005-1403 ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-183-8 01 1 0005-1403 ● ● ●
62 DAMPER ASM; SEAT SUSP
(B) 		8-98261-448-0 01 1 1404- ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		8-98261-448-0 01 1 1404- ● ● ●
62 DAMPER ASM; SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-142-2 01 1 9601-9603 ● ●
62 DAMPER ASM; SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-164-0 01 1 9604-9803 ● ●
62 DAMPER ASM; SEAT SUSP
AIR CONTROL SEAT<A60> (A) 		1-75538-164-0 01 1 9804-9804 ● ● ●
62 DAMPER ASM; SEAT SUSP
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-164-0 01 1 9805-0004 ● ●
62 DAMPER ASM; SEAT SUSP
AIR CONTROL SEAT<A60> (A) 		1-75538-164-0 01 1 9805-0004 ●
62 DAMPER ASM; SEAT SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75538-198-0 01 1 9811-0010 ● ●
62 DAMPER ASM; SEAT SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75538-198-0 01 1 0011- ● ●
66 RUBBER; LWR STOPPER 1-75538-145-0 02 1 9601-9803 ●
66 RUBBER; LWR STOPPER
AIR SUSP DRIVER SEAT<A56> 		1-75538-145-0 02 1 9601-9803 ● ●
66 RUBBER; LWR STOPPER 1-75538-145-0 02 1 9804-0004 ●
66 RUBBER; LWR STOPPER
AIR SUSP DRIVER SEAT<A56> 		1-75538-145-0 02 1 9804-0004 ● ● ●
66 RUBBER; LWR STOPPER 1-75538-145-0 02 1 0005- ● ●
66 RUBBER; LWR STOPPER
AIR SUSP DRIVER SEAT<A56> 		1-75538-145-0 02 1 0005- ● ● ●
76 DAMPER; AIR SUSP
(B) 		1-75538-139-0 01 1 9601-9803 ●
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-139-0 01 1 9601-9803 ● ●
76 DAMPER; AIR SUSP
(B) 		1-75538-139-0 01 1 9804-0004 ●
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-139-0 01 1 9804-0004 ● ● ●
76 DAMPER; AIR SUSP
(B) 		1-75538-139-0 01 1 0005- ● ●
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-139-0 01 1 0005- ● ● ●
76 DAMPER; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-073-0 01 1 9601-9603 ● ●
76 DAMPER; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-166-0 01 1 9604-9803 ● ●
76 DAMPER; AIR SUSP
AIR CONTROL SEAT<A60> (A) 		1-75538-166-0 01 1 9804-9804 ● ● ●
76 DAMPER; AIR SUSP
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-166-0 01 1 9805-0004 ● ●
76 DAMPER; AIR SUSP
AIR CONTROL SEAT<A60> (A) 		1-75538-166-0 01 1 9805-0004 ●
76 DAMPER; AIR SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75538-201-0 01 1 9811-0010 ● ●
76 DAMPER; AIR SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75538-201-0 01 1 0011- ● ●
77 PIN; DAMPER
(C) 		1-75538-138-2 01 1 9601-9803 ●
77 PIN; DAMPER
AIR SUSP DRIVER SEAT<A56> (C) 		1-75538-138-2 01 1 9601-9803 ● ●
77 PIN; DAMPER
(C) 		1-75538-138-2 01 1 9804-0004 ●
77 PIN; DAMPER
AIR SUSP DRIVER SEAT<A56> (C) 		1-75538-138-2 01 1 9804-0004 ● ● ●
77 PIN; DAMPER
(C) 		1-75538-138-2 01 1 0005- ● ●
77 PIN; DAMPER
AIR SUSP DRIVER SEAT<A56> (C) 		1-75538-138-2 01 1 0005- ● ● ●
77 PIN; DAMPER
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-040-0 02 1 9601-9803 ● ●
77 PIN; DAMPER
AIR CONTROL SEAT<A60> (A) 		1-75530-040-0 02 1 9804-9804 ● ● ●
77 PIN; DAMPER
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-040-0 02 1 9805-0004 ● ●
77 PIN; DAMPER
AIR CONTROL SEAT<A60> (A) 		1-75530-040-0 02 1 9805-0004 ●
77 PIN; DAMPER
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-065-0 01 1 9601-9803 ● ●
77 PIN; DAMPER
AIR CONTROL SEAT<A60> (B) 		1-75530-065-0 01 1 9804-9804 ● ● ●
77 PIN; DAMPER
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-065-0 01 1 9805-0004 ● ●
77 PIN; DAMPER
AIR CONTROL SEAT<A60> (B) 		1-75530-065-0 01 1 9805-0004 ●
78 RING; SNAP
(C) ID=8 		9-09185-408-0 01 1 9601-9803 ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (C) ID=8 		9-09185-408-0 01 1 9601-9803 ● ●
78 RING; SNAP
(C) ID=8 		9-09185-408-0 01 1 9804-0004 ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (C) ID=8 		9-09185-408-0 01 1 9804-0004 ● ● ●
78 RING; SNAP
(C) ID=8 		9-09185-408-0 01 1 0005- ● ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (C) ID=8 		9-09185-408-0 01 1 0005- ● ● ●
78 RING; SNAP
(D) ID=10 		9-09185-410-0 02 1 9601-9803 ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (D) ID=10 		9-09185-410-0 02 1 9601-9803 ● ●
78 RING; SNAP
(D) ID=10 		9-09185-410-0 02 1 9804-0004 ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (D) ID=10 		9-09185-410-0 02 1 9804-0004 ● ● ●
78 RING; SNAP
(D) ID=10 		9-09185-410-0 02 1 0005-0406 ● ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (D) ID=10 		9-09185-410-0 02 1 0005-0406 ● ● ●
78 RING; SNAP
(E) ID=15 		9-09185-415-0 01 1 9601-9803 ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (E) ID=15 		9-09185-415-0 01 1 9601-9803 ● ●
78 RING; SNAP
(E) ID=15 		9-09185-415-0 01 1 9804-0004 ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (E) ID=15 		9-09185-415-0 01 1 9804-0004 ● ● ●
78 RING; SNAP
(E) ID=15 		9-09185-415-0 01 1 0005- ● ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (E) ID=15 		9-09185-415-0 01 1 0005- ● ● ●
78 RING; SNAP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-066-0 04 1 9601-9803 ● ●
78 RING; SNAP
AIR CONTROL SEAT<A60> (A) 		1-75530-066-0 04 1 9804-9804 ● ● ●
78 RING; SNAP
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-066-0 04 1 9805-0004 ● ●
78 RING; SNAP
AIR CONTROL SEAT<A60> (A) 		1-75530-066-0 04 1 9805-0004 ●
78 RING; SNAP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-069-0 02 1 9601-9803 ● ●
78 RING; SNAP
AIR CONTROL SEAT<A60> (B) 		1-75530-069-0 02 1 9804-9804 ● ● ●
78 RING; SNAP
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-069-0 02 1 9805-0004 ● ●
78 RING; SNAP
AIR CONTROL SEAT<A60> (B) 		1-75530-069-0 02 1 9805-0004 ●
79 ROLLER ASM; AIR SUSP
(B) 		1-75538-155-0 04 1 9601-9602 ●
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-155-0 04 1 9601-9602 ● ●
79 ROLLER ASM; AIR SUSP
(B) 		1-75538-159-0 04 1 9603-9803 ●
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-159-0 04 1 9603-9803 ● ●
79 ROLLER ASM; AIR SUSP
(B) 		1-75538-159-0 04 1 9804-0004 ●
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-159-0 04 1 9804-0004 ● ● ●
79 ROLLER ASM; AIR SUSP
(B) 		1-75538-159-0 04 1 0005-1403 ● ●
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-159-0 04 1 0005-1403 ● ● ●
79 ROLLER ASM; AIR SUSP
(B) 		8-98261-489-0 04 1 1404- ● ●
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		8-98261-489-0 04 1 1404- ● ● ●
79 ROLLER ASM; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-043-0 04 1 9601-9803 ● ●
79 ROLLER ASM; AIR SUSP
AIR CONTROL SEAT<A60> (A) 		1-75530-043-0 04 1 9804-9804 ● ● ●
79 ROLLER ASM; AIR SUSP
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-043-0 04 1 9805-0004 ● ●
79 ROLLER ASM; AIR SUSP
AIR CONTROL SEAT<A60> (A) 		1-75530-043-0 04 1 9805-0004 ●
80 RUBBER; STOPPER
(C) 		1-72538-187-0 02 1 1007- ● ●
80 RUBBER; STOPPER
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (C) 		1-72538-187-0 02 1 1007- ● ● ●
80 RUBBER; STOPPER
(B) 		1-09987-123-0 01 1 9601-9803 ●
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT<A56> (B) 		1-09987-123-0 01 1 9601-9803 ● ●
80 RUBBER; STOPPER
(B) 		1-09987-123-0 01 1 9804-0004 ●
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT<A56> (B) 		1-09987-123-0 01 1 9804-0004 ● ● ●
80 RUBBER; STOPPER
(B) 		1-09987-123-0 01 1 0005- ● ●
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT<A56> (B) 		1-09987-123-0 01 1 0005- ● ● ●
80 RUBBER; STOPPER
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-062-0 02 1 9601-9803 ● ●
80 RUBBER; STOPPER
AIR CONTROL SEAT<A60> (A) 		1-75530-062-0 02 1 9804-9804 ● ● ●
80 RUBBER; STOPPER
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-062-0 02 1 9805-0004 ● ●
80 RUBBER; STOPPER
AIR CONTROL SEAT<A60> (A) 		1-75530-062-0 02 1 9805-0004 ●
81 SPRING; AIR 1-75538-151-1 01 1 9601-9803 ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> 		1-75538-151-1 01 1 9601-9803 ● ●
81 SPRING; AIR 1-75538-151-1 01 1 9804-0004 ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> 		1-75538-151-1 01 1 9804-0004 ● ● ●
81 SPRING; AIR 1-75538-151-2 01 1 0005-1312 ● ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> 		1-75538-151-2 01 1 0005-1312 ● ● ●
81 SPRING; AIR 8-98242-816-0 01 1 1401- ● ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> 		8-98242-816-0 01 1 1401- ● ● ●
81 SPRING; AIR
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75538-199-0 01 1 9811-0010 ● ●
81 SPRING; AIR
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75538-199-0 01 1 0011- ● ●
85 BOLT; AIR SUSP
(F) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1401- ● ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (F) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1401- ● ● ●
85 BOLT; AIR SUSP
(C) M6X12 W/LK WASHER 		0-50040-612-0 02 1 9601-9803 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (C) M6X12 W/LK WASHER 		0-50040-612-0 02 1 9601-9803 ● ●
85 BOLT; AIR SUSP
(C) M6X12 W/LK WASHER 		0-50040-612-0 02 1 9804-0004 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (C) M6X12 W/LK WASHER 		0-50040-612-0 02 1 9804-0004 ● ● ●
85 BOLT; AIR SUSP
(C) M6X12 		1-75538-208-1 02 1 0005- ● ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (C) M6X12 		1-75538-208-1 02 1 0005- ● ● ●
85 BOLT; AIR SUSP
(D) M8X20 W/LK&PL WASHER 		0-50140-820-0 03 1 9601-9803 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (D) M8X20 W/LK&PL WASHER 		0-50140-820-0 03 1 9601-9803 ● ●
85 BOLT; AIR SUSP
(D) M8X20 W/LK&PL WASHER 		0-50140-820-0 03 1 9804-0003 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (D) M8X20 W/LK&PL WASHER 		0-50140-820-0 03 1 9804-0003 ● ● ●
85 BOLT; AIR SUSP
(D) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 0004-0004 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (D) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 0004-0004 ● ● ●
85 BOLT; AIR SUSP
(D) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 0005-1312 ● ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (D) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 0005-1312 ● ● ●
85 BOLT; AIR SUSP
(D) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1401- ● ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (D) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1401- ● ● ●
85 BOLT; AIR SUSP
(E) 		1-09980-577-0 01 1 9601-9803 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (E) 		1-09980-577-0 01 1 9601-9803 ● ●
85 BOLT; AIR SUSP
(E) 		1-09980-577-0 01 1 9804-0004 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (E) 		1-09980-577-0 01 1 9804-0004 ● ● ●
85 BOLT; AIR SUSP
(E) 		1-09980-577-1 01 1 0005- ● ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (E) 		1-09980-577-1 01 1 0005- ● ● ●
85 BOLT; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-048-0 02 1 9601-9803 ● ●
85 BOLT; AIR SUSP
AIR CONTROL SEAT<A60> (A) 		1-75530-048-0 02 1 9804-9804 ● ● ●
85 BOLT; AIR SUSP
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-048-0 02 1 9805-0004 ● ●
85 BOLT; AIR SUSP
AIR CONTROL SEAT<A60> (A) 		1-75530-048-0 02 1 9805-0004 ●
85 BOLT; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-068-0 02 1 9601-9803 ● ●
85 BOLT; AIR SUSP
AIR CONTROL SEAT<A60> (B) 		1-75530-068-0 02 1 9804-9804 ● ● ●
85 BOLT; AIR SUSP
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-068-0 02 1 9805-0004 ● ●
85 BOLT; AIR SUSP
AIR CONTROL SEAT<A60> (B) 		1-75530-068-0 02 1 9805-0004 ●
86 BUSHING; GUIDE
(C) OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 9601-9803 ●
86 BUSHING; GUIDE
AIR SUSP DRIVER SEAT<A56> (C) OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 9601-9803 ● ●
86 BUSHING; GUIDE
(C) OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 9804-0004 ●
86 BUSHING; GUIDE
AIR SUSP DRIVER SEAT<A56> (C) OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 9804-0004 ● ● ●
86 BUSHING; GUIDE
(C) OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 0005- ● ●
86 BUSHING; GUIDE
AIR SUSP DRIVER SEAT<A56> (C) OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 0005- ● ● ●
86 BUSHING; GUIDE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-041-0 02 1 9601-9803 ● ●
86 BUSHING; GUIDE
AIR CONTROL SEAT<A60> (A) 		1-75530-041-0 02 1 9804-9804 ● ● ●
86 BUSHING; GUIDE
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-041-0 02 1 9805-0004 ● ●
86 BUSHING; GUIDE
AIR CONTROL SEAT<A60> (A) 		1-75530-041-0 02 1 9805-0004 ●
86 BUSHING; GUIDE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-071-0 01 1 9601-9803 ● ●
86 BUSHING; GUIDE
AIR CONTROL SEAT<A60> (B) 		1-75530-071-0 01 1 9804-9804 ● ● ●
86 BUSHING; GUIDE
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-071-0 01 1 9805-0004 ● ●
86 BUSHING; GUIDE
AIR CONTROL SEAT<A60> (B) 		1-75530-071-0 01 1 9805-0004 ●
87 WASHER; AIR SUSP
(B) ID=8.2 		9-09150-508-0 01 1 9601-9803 ●
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) ID=8.2 		9-09150-508-0 01 1 9601-9803 ● ●
87 WASHER; AIR SUSP
(B) ID=8.2 		9-09150-508-0 01 1 9804-0004 ●
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) ID=8.2 		9-09150-508-0 01 1 9804-0004 ● ● ●
87 WASHER; AIR SUSP
(B) ID=8.2 		9-09150-508-0 01 1 0005-0710 ● ●
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) ID=8.2 		9-09150-508-0 01 1 0005-0710 ● ● ●
87 WASHER; AIR SUSP
(B) ID=8.2 		0-91510-508-0 01 1 0711- ● ●
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) ID=8.2 		0-91510-508-0 01 1 0711- ● ● ●
87 WASHER; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-036-0 02 1 9601-9803 ● ●
87 WASHER; AIR SUSP
AIR CONTROL SEAT<A60> (A) 		1-75530-036-0 02 1 9804-9804 ● ● ●
87 WASHER; AIR SUSP
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-036-0 02 1 9805-0004 ● ●
87 WASHER; AIR SUSP
AIR CONTROL SEAT<A60> (A) 		1-75530-036-0 02 1 9805-0004 ●
88 NUT; AIR SUSP
(B) M10 		8-94279-519-0 01 1 9601-9803 ●
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) M10 		8-94279-519-0 01 1 9601-9803 ● ●
88 NUT; AIR SUSP
(B) M10 		8-94279-519-0 01 1 9804-9811 ●
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) M10 		8-94279-519-0 01 1 9804-9811 ● ● ●
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14) (B) M10 		8-94279-519-0 01 1 9812-0003 ● ● ● ● ●
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> (B) 		1-75537-209-0 01 1 0004-0004 ● ●
88 NUT; AIR SUSP
(B) M10 		1-75537-273-1 01 1 0005- ● ●
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) M10 		1-75537-273-1 01 1 0005- ● ● ●
88 NUT; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-039-0 04 1 9601-9803 ● ●
88 NUT; AIR SUSP
AIR CONTROL SEAT<A60> (A) 		1-75530-039-0 04 1 9804-9804 ● ● ●
88 NUT; AIR SUSP
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-039-0 04 1 9805-0004 ● ●
88 NUT; AIR SUSP
AIR CONTROL SEAT<A60> (A) 		1-75530-039-0 04 1 9805-0004 ●
88 NUT; AIR SUSP
DELUXE CAB(W14) (A) M10 		1-75537-273-0 01 1 9812-0003 ● ● ●
322 VALVE; AIR SPRING 1-75538-154-0 01 1 9601-9803 ●
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> 		1-75538-154-0 01 1 9601-9803 ● ●
322 VALVE; AIR SPRING 1-75538-154-0 01 1 9804-9804 ●
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> 		1-75538-154-0 01 1 9804-9804 ● ● ●
322 VALVE; AIR SPRING 1-75538-186-1 01 1 9805-0004 ●
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> 		1-75538-186-1 01 1 9805-0004 ● ● ●
322 VALVE; AIR SPRING 1-75538-186-3 01 1 0005- ● ●
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> 		1-75538-186-3 01 1 0005- ● ● ●
322 VALVE; AIR SPRING
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75538-200-0 01 1 9811-0010 ● ●
322 VALVE; AIR SPRING
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75538-200-0 01 1 0011- ● ●
339 UNION; DRIVER SEAT 1-75538-131-0 01 1 9601-9803 ●
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> 		1-75538-131-0 01 1 9601-9803 ● ●
339 UNION; DRIVER SEAT 1-75538-131-1 01 1 9804-0004 ●
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> 		1-75538-131-1 01 1 9804-0004 ● ● ●
339 UNION; DRIVER SEAT 1-75538-131-3 01 1 0005- ● ●
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> 		1-75538-131-3 01 1 0005- ● ● ●
467 LEVER; LOCK 1-75538-134-0 01 1 9601-9803 ●
467 LEVER; LOCK
AIR SUSP DRIVER SEAT<A56> 		1-75538-134-0 01 1 9601-9803 ● ●
467 LEVER; LOCK 1-75538-134-0 01 1 9804-0004 ●
467 LEVER; LOCK
AIR SUSP DRIVER SEAT<A56> 		1-75538-134-0 01 1 9804-0004 ● ● ●
467 LEVER; LOCK 1-75538-134-0 01 1 0005- ● ●
467 LEVER; LOCK
AIR SUSP DRIVER SEAT<A56> 		1-75538-134-0 01 1 0005- ● ● ●
468 SPRING; RETURN
(D) 		1-75538-132-0 01 1 9601-9803 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (D) 		1-75538-132-0 01 1 9601-9803 ● ●
468 SPRING; RETURN
(D) 		1-75538-132-0 01 1 9804-0004 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (D) 		1-75538-132-0 01 1 9804-0004 ● ● ●
468 SPRING; RETURN
(D) 		1-75538-132-0 01 1 0005- ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (D) 		1-75538-132-0 01 1 0005- ● ● ●
468 SPRING; RETURN
DELUXE CAB(W14) (A) 		1-75518-206-0 01 1 9601-9803 ● ● ●
468 SPRING; RETURN
DELUXE CAB(W14) (A) 		1-75518-206-0 01 1 9804-0004 ● ● ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (A) 		1-75518-206-0 01 1 0005- ● ● ● ●
468 SPRING; RETURN
(A) 		1-75518-206-0 01 1 0005- ●
468 SPRING; RETURN
DELUXE CAB(W14) (B) 		1-75518-207-0 01 1 9601-9803 ● ● ●
468 SPRING; RETURN
DELUXE CAB(W14) (B) 		1-75518-207-0 01 1 9804-0004 ● ● ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (B) 		1-75518-207-0 01 1 0005- ● ● ● ●
468 SPRING; RETURN
(B) 		1-75518-207-0 01 1 0005- ●
468 SPRING; RETURN
DELUXE CAB(W14) (C) 		1-75518-208-0 02 1 9601-9803 ● ● ●
468 SPRING; RETURN
DELUXE CAB(W14) (C) 		1-75518-208-0 02 1 9804-0004 ● ● ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (C) 		1-75518-208-0 02 1 0005- ● ● ● ●
468 SPRING; RETURN
(C) 		1-75518-208-0 02 1 0005- ●
470 CLIP; HOSE 1-75538-137-0 01 1 9601-9803 ●
470 CLIP; HOSE
AIR SUSP DRIVER SEAT<A56> 		1-75538-137-0 01 1 9601-9803 ● ●
470 CLIP; HOSE 1-75538-137-0 01 1 9804-0004 ●
470 CLIP; HOSE
AIR SUSP DRIVER SEAT<A56> 		1-75538-137-0 01 1 9804-0004 ● ● ●
470 CLIP; HOSE 1-75538-137-0 01 1 0005-0105 ● ●
470 CLIP; HOSE
AIR SUSP DRIVER SEAT<A56> 		1-75538-137-0 01 1 0005-0105 ● ● ●
470 CLIP; HOSE
AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14) 		1-75538-137-0 01 1 0106-0107 ● ●
470 CLIP; HOSE
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) DELUXE CAB(W14) 		1-75538-137-0 01 1 0106-0107 ● ● ●
470 CLIP; HOSE
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75538-137-0 01 1 0106-0107 ● ●
470 CLIP; HOSE
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75538-137-0 01 1 0106-0107 ● ●
470 CLIP; HOSE 1-75538-137-0 01 1 0108- ● ●
470 CLIP; HOSE
AIR SUSP DRIVER SEAT<A56> 		1-75538-137-0 01 1 0108- ● ● ●
513 SPACER; LEVER 1-75538-133-0 01 1 9601-9803 ●
513 SPACER; LEVER
AIR SUSP DRIVER SEAT<A56> 		1-75538-133-0 01 1 9601-9803 ● ●
513 SPACER; LEVER 1-75538-133-0 01 1 9804-0004 ●
513 SPACER; LEVER
AIR SUSP DRIVER SEAT<A56> 		1-75538-133-0 01 1 9804-0004 ● ● ●
513 SPACER; LEVER 1-75538-133-0 01 1 0005- ● ●
513 SPACER; LEVER
AIR SUSP DRIVER SEAT<A56> 		1-75538-133-0 01 1 0005- ● ● ●
çizim 135045
518 51 532 278 74 468 518 302 543 543 512 51 468 51 543 278 512 51 543 543 518 532 278 468 529 468 302 302 518 543 518 543 518 518 471 302 551 543 72 518 302 158 158 302 551 302 72 518 551 302 551 518 201 201 63 306 306 63 518
BalonParca AdiParca NoAdetTipApplied Date A B C D E
51 SCREW; COVER
DELUXE CAB(W14) M6X12 W/LK WASHER 		9-03910-612-0 04 1 9601-9803 ● ● ●
51 SCREW; COVER
DELUXE CAB(W14) M6X12 W/LK WASHER 		9-03910-612-0 04 1 9804-0004 ● ● ● ●
51 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) 		1-75518-325-1 04 1 0005- ● ● ● ● ●
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-199-0 01 1 9601-9803 ● ● ●
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-199-0 01 1 9804-9804 ● ● ● ●
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-199-1 01 1 0005- ● ● ● ● ●
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-198-0 01 1 9601-9705 ● ● ●
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-294-0 01 1 9706-9803 ● ● ●
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-294-0 01 1 9804-9804 ● ● ● ●
63 ADJUSTER; SEAT SLIDE
EXC. DELUXE CAB(W14) (A) 		1-75518-294-1 01 1 0001- ● ● ● ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (B) 		1-75518-323-0 01 1 0005- ● ● ● ●
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-323-0 01 1 0005- ●
63 ADJUSTER; SEAT SLIDE
DELUXE CAB(W14) (A) 		1-75518-321-0 01 1 0001-0004 ● ● ● ●
63 ADJUSTER; SEAT SLIDE
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75518-315-0 01 1 9811-0010 ● ●
63 ADJUSTER; SEAT SLIDE
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75518-315-0 01 1 0011- ● ●
72 SPACER; SEAT ADJ
DELUXE CAB(W14) 		1-75518-269-0 02 1 9603-9803 ● ● ●
72 SPACER; SEAT ADJ
DELUXE CAB(W14) 		1-75518-269-0 02 1 9804-0004 ● ● ● ●
72 SPACER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) 		1-75518-269-0 02 1 0005-0102 ● ● ● ●
72 SPACER; SEAT ADJ 1-75518-269-0 02 1 0005-0102 ●
72 SPACER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) DELUXE CAB(W14) 		1-75517-911-0 02 1 0103- ● ● ●
72 SPACER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) 		1-75517-911-0 02 1 0005-0102 ● ● ● ●
72 SPACER; SEAT ADJ 1-75517-911-0 02 1 0005-0102 ●
72 SPACER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) 		1-75518-334-1 02 1 0103-1502 ● ● ● ●
72 SPACER; SEAT ADJ 1-75518-334-1 02 1 0103-1502 ●
72 SPACER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) 		8-98291-668-0 02 1 1503- ● ● ● ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DELUXE CAB(W14) 		1-75518-242-0 01 1 9601-9602 ● ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DELUXE CAB(W14) 		1-75518-259-0 01 1 9603-9705 ● ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DELUXE CAB(W14) 		1-75518-275-0 01 1 9706-9712 ● ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DELUXE CAB(W14) 		1-75518-299-0 01 1 9801-9803 ● ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DELUXE CAB(W14) 		1-75518-299-0 01 1 9804-9912 ● ● ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DELUXE CAB(W14) 		1-75518-317-1 01 1 0001-0004 ● ● ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-317-1 01 1 0005-0102 ● ● ● ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-330-3 01 1 0103-1502 ● ● ● ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		8-98291-644-0 01 1 1503- ● ● ● ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) DELUXE CAB(W14) 		1-75517-955-1 01 1 0005-0102 ● ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) DELUXE CAB(W14) 		1-75517-959-3 01 1 0103-1502 ● ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) DELUXE CAB(W14) 		8-98291-642-0 01 1 1503- ● ● ●
158 BUSHING; LINK ARM 1-75518-209-0 02 1 9601-9803 ● ● ●
158 BUSHING; LINK ARM 1-75518-209-0 02 1 9804-0004 ● ● ● ●
158 BUSHING; LINK ARM 1-75518-209-0 02 1 0005- ● ● ● ● ●
201 CABLE; ADJ
(B) L=667 		1-75518-201-0 01 1 9601-9705 ● ● ●
201 CABLE; ADJ
(B) L=667 		1-75518-288-0 01 1 9706-9803 ● ● ●
201 CABLE; ADJ
(B) L=667 		1-75518-288-0 01 1 9804-0004 ● ● ● ●
201 CABLE; ADJ
(B) L=667 		1-75518-288-0 01 1 0005- ● ● ● ● ●
201 CABLE; ADJ
(A) L=605 		1-75518-202-1 01 1 9601-9705 ● ● ●
201 CABLE; ADJ
(A) L=605 		1-75518-289-0 01 1 9706-9803 ● ● ●
201 CABLE; ADJ
(A) L=605 		1-75518-289-1 01 1 9804-0004 ● ● ● ●
201 CABLE; ADJ
(A) L=605 		1-75518-289-1 01 1 0005- ● ● ● ● ●
278 COLLAR; FRT SEAT
DELUXE CAB(W14) 		1-75518-244-0 03 1 9601-9803 ● ● ●
278 COLLAR; FRT SEAT
DELUXE CAB(W14) 		1-75518-244-0 03 1 9804-0004 ● ● ●
278 COLLAR; FRT SEAT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) 		1-75518-244-0 03 1 0005- ● ● ● ●
278 COLLAR; FRT SEAT 1-75518-244-0 03 1 0005- ●
302 BOLT; ADJ,HEIGHT CONT
DELUXE CAB(W14) (A) 		1-75518-236-0 04 1 9601-9602 ● ● ●
302 BOLT; ADJ,HEIGHT CONT
DELUXE CAB(W14) (C) 		1-75518-266-0 02 1 9603-9803 ● ● ●
302 BOLT; ADJ,HEIGHT CONT
DELUXE CAB(W14) (C) 		1-75518-266-0 02 1 9804-0004 ● ● ● ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (C) 		1-75518-266-2 02 1 0005- ● ● ● ●
302 BOLT; ADJ,HEIGHT CONT
(C) 		1-75518-266-2 02 1 0005- ●
302 BOLT; ADJ,HEIGHT CONT
DELUXE CAB(W14) (A) 		1-75518-270-0 04 1 9603-9803 ● ● ●
302 BOLT; ADJ,HEIGHT CONT
DELUXE CAB(W14) (A) 		1-75518-270-0 04 1 9804-0004 ● ● ● ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (A) 		1-75518-270-1 04 1 0005-1502 ● ● ● ●
302 BOLT; ADJ,HEIGHT CONT
(A) 		1-75518-270-1 04 1 0005-1502 ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (A) 		8-98291-667-0 04 1 1503- ● ● ● ● ●
302 BOLT; ADJ,HEIGHT CONT
DELUXE CAB(W14) (B) 		1-75518-271-1 02 1 9603-9803 ● ● ●
302 BOLT; ADJ,HEIGHT CONT
DELUXE CAB(W14) (B) 		1-75518-271-1 02 1 9804-0004 ● ● ● ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (B) 		1-75518-271-1 02 1 0005-0102 ● ● ● ●
302 BOLT; ADJ,HEIGHT CONT
(B) 		1-75518-271-1 02 1 0005-0102 ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (B) 		1-75518-336-1 02 1 0103- ● ● ● ●
302 BOLT; ADJ,HEIGHT CONT
(B) 		1-75518-336-1 02 1 0103- ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 18 1 0502- ● ● ●
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		1-75538-207-0 04 1 0502- ● ● ●
306 NUT; SEAT ADJ
M8 FLANGE 		8-94279-518-0 04 1 9601-9803 ● ● ●
306 NUT; SEAT ADJ
DELUXE CAB(W14) M8 FLANGE 		8-94279-518-0 12 1 9804-9912 ● ● ● ●
306 NUT; SEAT ADJ
DELUXE CAB(W14) M8 FLANGE 		8-94279-518-0 14 1 0001-0003 ● ● ● ●
306 NUT; SEAT ADJ
EXC. DELUXE CAB(W14) M8 FLANGE 		8-94279-518-0 04 1 9804-9804 ● ● ● ●
306 NUT; SEAT ADJ
DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 14 1 0004-0004 ● ● ● ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 06 1 0005-0501 ● ● ● ●
306 NUT; SEAT ADJ
M8 FLANGE 		1-75538-207-0 06 1 0005-0501 ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) EXC. DRIVING POSITION WIDE LEG SPACE(PR2) M8 FLANGE 		1-75538-207-0 14 1 0502- ● ● ● ● ●
306 NUT; SEAT ADJ
EXC. DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 04 1 0004-0501 ● ● ● ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 12 1 0502- ● ● ● ●
468 SPRING; RETURN
(D) 		1-75538-132-0 01 1 9601-9803 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (D) 		1-75538-132-0 01 1 9601-9803 ● ●
468 SPRING; RETURN
(D) 		1-75538-132-0 01 1 9804-0004 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (D) 		1-75538-132-0 01 1 9804-0004 ● ● ●
468 SPRING; RETURN
(D) 		1-75538-132-0 01 1 0005- ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (D) 		1-75538-132-0 01 1 0005- ● ● ●
468 SPRING; RETURN
DELUXE CAB(W14) (A) 		1-75518-206-0 01 1 9601-9803 ● ● ●
468 SPRING; RETURN
DELUXE CAB(W14) (A) 		1-75518-206-0 01 1 9804-0004 ● ● ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (A) 		1-75518-206-0 01 1 0005- ● ● ● ●
468 SPRING; RETURN
(A) 		1-75518-206-0 01 1 0005- ●
468 SPRING; RETURN
DELUXE CAB(W14) (B) 		1-75518-207-0 01 1 9601-9803 ● ● ●
468 SPRING; RETURN
DELUXE CAB(W14) (B) 		1-75518-207-0 01 1 9804-0004 ● ● ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (B) 		1-75518-207-0 01 1 0005- ● ● ● ●
468 SPRING; RETURN
(B) 		1-75518-207-0 01 1 0005- ●
468 SPRING; RETURN
DELUXE CAB(W14) (C) 		1-75518-208-0 02 1 9601-9803 ● ● ●
468 SPRING; RETURN
DELUXE CAB(W14) (C) 		1-75518-208-0 02 1 9804-0004 ● ● ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (C) 		1-75518-208-0 02 1 0005- ● ● ● ●
468 SPRING; RETURN
(C) 		1-75518-208-0 02 1 0005- ●
471 LEVER; SEAT ADJ 1-75518-205-1 01 1 9601-9705 ● ● ●
471 LEVER; SEAT ADJ
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-205-1 01 1 9706-9803 ● ●
471 LEVER; SEAT ADJ
DRIVING POSITION WIDE LEG SPACE(PR2) RIGID SEAT WO/ARM REST<TAZ> 		1-75518-205-1 01 1 9706-9803 ● ●
471 LEVER; SEAT ADJ
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75518-205-1 01 1 9804-0003 ● ● ●
471 LEVER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14) 		1-75518-291-0 01 1 9706-9803 ● ● ●
471 LEVER; SEAT ADJ
DELUXE CAB(W14) 		1-75518-291-0 01 1 9706-9803 ● ● ●
471 LEVER; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2),HIGH ROOF<S2F> 		1-75518-291-0 01 1 9706-9803 ● ●
471 LEVER; SEAT ADJ
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75518-291-0 01 1 9706-9803 ● ●
471 LEVER; SEAT ADJ 1-75518-291-0 01 1 9804-9804 ●
471 LEVER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> 		1-75518-291-0 01 1 9804-9804 ● ● ●
471 LEVER; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> 		1-75518-291-0 01 1 9804-9804 ● ●
471 LEVER; SEAT ADJ 1-75518-291-0 01 1 9805-0003 ●
471 LEVER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> ,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75518-291-0 01 1 9805-0003 ● ●
471 LEVER; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> 		1-75518-291-0 01 1 9805-0003 ● ●
471 LEVER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> 		1-75518-291-0 01 1 9805-0003 ●
471 LEVER; SEAT ADJ 1-75518-291-0 01 1 0004-0004 ● ● ● ●
471 LEVER; SEAT ADJ 1-75518-291-0 01 1 0005-0710 ● ● ● ● ●
471 LEVER; SEAT ADJ 8-98107-869-0 01 1 0711- ● ● ● ● ●
512 COVER; LEVER
DELUXE CAB(W14) 		1-75518-243-0 02 1 9601-9803 ● ● ●
512 COVER; LEVER
DELUXE CAB(W14) 		1-75518-243-0 02 1 9804-0004 ● ● ● ●
512 COVER; LEVER
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) 		1-75518-243-1 02 1 0005- ● ● ● ●
512 COVER; LEVER 1-75518-243-1 02 1 0005- ●
518 NUT; TILT ADJ
DELUXE CAB(W14) (A) 		1-75518-263-0 01 1 9603-9705 ● ● ●
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 9706-9803 ● ● ●
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 9804-0004 ● ● ● ●
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 0005- ● ● ● ● ●
518 NUT; TILT ADJ
DELUXE CAB(W14) (C) M8 		1-75518-264-0 04 1 9603-9803 ● ● ●
518 NUT; TILT ADJ
DELUXE CAB(W14) (C) M8 		1-75518-264-0 04 1 9804-0004 ● ● ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (C) M8 		1-75518-264-0 04 1 0005- ● ● ● ●
518 NUT; TILT ADJ
(C) M8 		1-75518-264-0 04 1 0005- ●
518 NUT; TILT ADJ
DELUXE CAB(W14) (D) M6 LOCK NUT 		5-09984-020-0 02 1 9603-9803 ● ● ●
518 NUT; TILT ADJ
DELUXE CAB(W14) (D) M6 LOCK NUT 		5-09984-020-0 02 1 9804-0004 ● ● ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0005- ● ● ● ●
518 NUT; TILT ADJ
(D) M6 LOCK NUT 		5-09984-020-0 02 1 0005- ●
518 NUT; TILT ADJ
DELUXE CAB(W14) (B) M8 FLANGE 		8-94152-886-0 04 1 9603-9803 ● ● ●
518 NUT; TILT ADJ
DELUXE CAB(W14) (B) M8 FLANGE 		8-94152-886-0 04 1 9804-0004 ● ● ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (B) M8 FLANGE 		8-94152-886-0 04 1 0005- ● ● ● ●
518 NUT; TILT ADJ
(B) M8 FLANGE 		8-94152-886-0 04 1 0005- ●
529 PIN; LINK
DELUXE CAB(W14) 		1-75518-262-0 01 1 9603-9705 ● ● ●
529 PIN; LINK 1-75518-262-0 01 1 9706-9803 ● ● ●
529 PIN; LINK 1-75518-262-0 01 1 9804-0004 ● ● ● ●
529 PIN; LINK 1-75518-262-0 01 1 0005- ● ● ● ● ●
532 LEVER ASM; TILT
DELUXE CAB(W14) (A) 		1-75518-203-0 01 1 9601-9803 ● ● ●
532 LEVER ASM; TILT
DELUXE CAB(W14) (A) 		1-75518-203-0 01 1 9804-0004 ● ● ● ●
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (A) 		1-75518-203-0 01 1 0005- ● ● ● ●
532 LEVER ASM; TILT
(A) 		1-75518-203-0 01 1 0005- ●
532 LEVER ASM; TILT
DELUXE CAB(W14) (B) 		1-75518-204-1 01 1 9601-9803 ● ● ●
532 LEVER ASM; TILT
DELUXE CAB(W14) (B) 		1-75518-204-1 01 1 9804-0004 ● ● ● ●
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (B) 		1-75518-204-1 01 1 0005- ● ● ● ●
532 LEVER ASM; TILT
(B) 		1-75518-204-1 01 1 0005- ●
532 LEVER ASM; TILT
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75518-314-0 01 1 9811-0010 ● ●
532 LEVER ASM; TILT
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75518-314-0 01 1 0011- ● ●
543 WASHER; HEIGHT ADJUSTER
DELUXE CAB(W14) (A) ID=10.5 		9-09164-510-0 02 1 9601-9803 ● ● ●
543 WASHER; HEIGHT ADJUSTER
DELUXE CAB(W14) (A) ID=10.5 		9-09164-510-0 02 1 9804-0004 ● ● ● ●
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (A) ID=10.5 		9-09164-510-0 02 1 0005-0102 ● ● ● ●
543 WASHER; HEIGHT ADJUSTER
(A) ID=10.5 		9-09164-510-0 02 1 0005-0102 ●
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (C) 		1-75518-335-0 02 1 0103-1502 ● ● ● ●
543 WASHER; HEIGHT ADJUSTER
(C) 		1-75518-335-0 02 1 0103-1502 ●
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (C) ID=13 OD=19 		8-98291-669-0 02 1 1503- ● ● ● ● ●
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (A) 		1-75518-337-0 02 1 0103-0406 ● ● ● ●
543 WASHER; HEIGHT ADJUSTER
(A) 		1-75518-337-0 02 1 0103-0406 ●
543 WASHER; HEIGHT ADJUSTER
DELUXE CAB(W14) (B) ID=6.4 		9-09160-506-0 04 1 9603-9803 ● ● ●
543 WASHER; HEIGHT ADJUSTER
DELUXE CAB(W14) (B) ID=6.4 		9-09160-506-0 04 1 9804-0004 ● ● ● ●
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (B) ID=6.4 		9-09160-506-0 04 1 0005-0102 ● ● ● ●
543 WASHER; HEIGHT ADJUSTER
(B) ID=6.4 		9-09160-506-0 04 1 0005-0102 ●
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (B) ID=8.4 		9-09160-508-0 04 1 0103- ● ● ● ● ●
551 SLIDER; HEIGHT ADJ
DELUXE CAB(W14) 		1-75518-265-0 04 1 9603-9803 ● ● ●
551 SLIDER; HEIGHT ADJ
DELUXE CAB(W14) 		1-75518-265-0 04 1 9804-0004 ● ● ● ●
551 SLIDER; HEIGHT ADJ
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) 		1-75518-265-0 04 1 0005- ● ● ● ●
551 SLIDER; HEIGHT ADJ 1-75518-265-0 04 1 0005- ●
çizim 135098
359 533 365 535 98 360 537 98 360 360 536 360 534 360 534 80 359 360 538
BalonParca AdiParca NoAdetTipApplied Date A B C D E
80 RUBBER; STOPPER
(C) 		1-72538-187-0 02 1 1007- ● ●
80 RUBBER; STOPPER
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (C) 		1-72538-187-0 02 1 1007- ● ● ●
80 RUBBER; STOPPER
(B) 		1-09987-123-0 01 1 9601-9803 ●
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT<A56> (B) 		1-09987-123-0 01 1 9601-9803 ● ●
80 RUBBER; STOPPER
(B) 		1-09987-123-0 01 1 9804-0004 ●
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT<A56> (B) 		1-09987-123-0 01 1 9804-0004 ● ● ●
80 RUBBER; STOPPER
(B) 		1-09987-123-0 01 1 0005- ● ●
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT<A56> (B) 		1-09987-123-0 01 1 0005- ● ● ●
80 RUBBER; STOPPER
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-062-0 02 1 9601-9803 ● ●
80 RUBBER; STOPPER
AIR CONTROL SEAT<A60> (A) 		1-75530-062-0 02 1 9804-9804 ● ● ●
80 RUBBER; STOPPER
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-062-0 02 1 9805-0004 ● ●
80 RUBBER; STOPPER
AIR CONTROL SEAT<A60> (A) 		1-75530-062-0 02 1 9805-0004 ●
98 WASHER; HINGE
ID=4.3 TOOTH LK COUNTERSUNK 		9-09152-704-0 06 1 9601-9803 ●
98 WASHER; HINGE
EXC. CENTER SEAT DELETE 2 CREWS<SP9> ID=4.3 TOOTH LK COUNTERSUNK 		9-09152-704-0 06 1 9601-9803 ● ●
98 WASHER; HINGE
ID=4.3 TOOTH LK COUNTERSUNK 		9-09152-704-0 06 1 9804-0004 ●
98 WASHER; HINGE
EXC. CENTER SEAT DELETE 2 CREWS<SP9> ID=4.3 TOOTH LK COUNTERSUNK 		9-09152-704-0 06 1 9804-0004 ● ● ●
98 WASHER; HINGE
ID=4.3 TOOTH LK COUNTERSUNK 		9-09152-704-0 06 1 0005- ● ●
98 WASHER; HINGE
EXC. CENTER SEAT DELETE 2 CREWS<SP9> ID=4.3 TOOTH LK COUNTERSUNK 		9-09152-704-0 06 1 0005- ● ● ●
359 BOX; PARCEL 1-72538-157-2 01 1 9601-9803 ●
359 BOX; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-157-2 01 1 9601-9803 ● ●
359 BOX; PARCEL 1-72538-157-2 01 1 9804-0004 ●
359 BOX; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-157-2 01 1 9804-0004 ● ● ●
359 BOX; PARCEL 1-72538-275-4 01 1 0005-1006 ● ●
359 BOX; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-275-4 01 1 0005-1006 ● ● ●
359 BOX; PARCEL 8-98145-114-0 01 1 1007- ● ●
359 BOX; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		8-98145-114-0 01 1 1007- ● ● ●
360 SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 9601-9803 ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 9601-9803 ● ●
360 SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 9804-0004 ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 9804-0004 ● ● ●
360 SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0005-0612 ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0005-0612 ● ● ●
360 SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0701-1006 ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0701-1006 ● ● ●
360 SCREW; PARCEL
(E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1007- ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1007- ● ● ●
360 SCREW; PARCEL
(B) M4X16 		0-70080-416-0 06 1 9601-9803 ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (B) M4X16 		0-70080-416-0 06 1 9601-9803 ● ●
360 SCREW; PARCEL
(B) M4X16 		0-70080-416-0 06 1 9804-0004 ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (B) M4X16 		0-70080-416-0 06 1 9804-0004 ● ● ●
360 SCREW; PARCEL
(B) M4X16 		0-70080-416-0 06 1 0005-0612 ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (B) M4X16 		0-70080-416-0 06 1 0005-0612 ● ● ●
360 SCREW; PARCEL
(B) M4X16 		0-70040-416-0 06 1 0701-1104 ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (B) M4X16 		0-70040-416-0 06 1 0701-1104 ● ● ●
360 SCREW; PARCEL
(B) M4X16 		0-70080-416-0 06 1 1105- ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (B) M4X16 		0-70080-416-0 06 1 1105- ● ● ●
360 SCREW; PARCEL
(D) 		1-09983-165-0 02 1 9807-0004 ●
360 SCREW; PARCEL
FABRIC SEAT W/RECLINING<SFQ> EXC. AUSTRALIA EQUIPMENT(RR3),CENTER SEAT DELETE 2 CREWS<SP9> (D) 		1-09983-165-0 02 1 9807-0004 ● ● ●
360 SCREW; PARCEL
(D) 		1-09983-165-0 02 1 0005-0310 ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (D) 		1-09983-165-0 02 1 0005-0310 ● ● ●
360 SCREW; PARCEL
VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9> (D) 		1-09983-165-0 02 1 0311-1006 ● ● ●
360 SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 9601-9803 ● ● ●
360 SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 9804-0004 ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 9804-0004 ● ● ●
360 SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0005-1006 ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0005-1006 ● ● ●
360 SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1007- ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1007- ● ● ●
360 SCREW; PARCEL
VINYL SEAT<A83> EXC. AUSTRALIA EQUIPMENT(RR3),CENTER SEAT DELETE 2 CREWS<SP9> (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9601-9803 ● ●
365 LOCK ASM; SEAT 1-72538-180-0 01 1 9601-9803 ●
365 LOCK ASM; SEAT
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-180-0 01 1 9601-9803 ● ●
365 LOCK ASM; SEAT 1-72538-180-0 01 1 9804-0004 ●
365 LOCK ASM; SEAT
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-180-0 01 1 9804-0004 ● ● ●
365 LOCK ASM; SEAT 1-72538-180-0 01 1 0005- ● ●
365 LOCK ASM; SEAT
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-180-0 01 1 0005- ● ● ●
533 LID; PARCEL BOX 1-72538-194-2 01 1 9601-9803 ●
533 LID; PARCEL BOX
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-194-2 01 1 9601-9803 ● ●
533 LID; PARCEL BOX 1-72538-194-2 01 1 9804-0004 ●
533 LID; PARCEL BOX
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-194-2 01 1 9804-0004 ● ● ●
533 LID; PARCEL BOX 1-72538-277-1 01 1 0005-1006 ● ●
533 LID; PARCEL BOX
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-277-1 01 1 0005-1006 ● ● ●
533 LID; PARCEL BOX 8-98145-118-0 01 1 1007- ● ●
533 LID; PARCEL BOX
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		8-98145-118-0 01 1 1007- ● ● ●
534 STRIKER; PARCEL BOX
(A) 		1-72538-181-0 01 1 9601-9803 ●
534 STRIKER; PARCEL BOX
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A) 		1-72538-181-0 01 1 9601-9803 ● ●
534 STRIKER; PARCEL BOX
(A) 		1-72538-181-0 01 1 9804-0004 ●
534 STRIKER; PARCEL BOX
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A) 		1-72538-181-0 01 1 9804-0004 ● ● ●
534 STRIKER; PARCEL BOX
(A) 		1-72538-181-0 01 1 0005-1006 ● ●
534 STRIKER; PARCEL BOX
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A) 		1-72538-181-0 01 1 0005-1006 ● ● ●
534 STRIKER; PARCEL BOX
(B) 		1-72538-190-0 01 1 1007- ● ●
534 STRIKER; PARCEL BOX
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (B) 		1-72538-190-0 01 1 1007- ● ● ●
535 HINGE; PARCEL BOX 1-72447-391-1 01 1 9601-9803 ●
535 HINGE; PARCEL BOX
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-72447-391-1 01 1 9601-9803 ● ●
535 HINGE; PARCEL BOX 1-72447-391-1 01 1 9804-0004 ●
535 HINGE; PARCEL BOX
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-72447-391-1 01 1 9804-0004 ● ● ●
535 HINGE; PARCEL BOX 1-72447-391-1 01 1 0005- ● ●
535 HINGE; PARCEL BOX
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-72447-391-1 01 1 0005- ● ● ●
536 RUBBER; CUSHION 5-09983-002-1 02 1 9601-9803 ●
536 RUBBER; CUSHION
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		5-09983-002-1 02 1 9601-9803 ● ●
536 RUBBER; CUSHION 5-09983-002-1 02 1 9804-0004 ●
536 RUBBER; CUSHION
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		5-09983-002-1 02 1 9804-0004 ● ● ●
536 RUBBER; CUSHION 5-09983-002-1 02 1 0005-1006 ● ●
536 RUBBER; CUSHION
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		5-09983-002-1 02 1 0005-1006 ● ● ●
537 BRACKET; RUBBER 1-72548-057-1 02 1 9601-9803 ●
537 BRACKET; RUBBER
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-72548-057-1 02 1 9601-9803 ● ●
537 BRACKET; RUBBER 1-72548-057-1 02 1 9804-0004 ●
537 BRACKET; RUBBER
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-72548-057-1 02 1 9804-0004 ● ● ●
537 BRACKET; RUBBER 1-72548-057-1 02 1 0005-1006 ● ●
537 BRACKET; RUBBER
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-72548-057-1 02 1 0005-1006 ● ● ●
538 GROMMET; SCREW 1-09983-165-0 02 1 9601-9803 ●
538 GROMMET; SCREW
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-09983-165-0 02 1 9601-9803 ● ●
538 GROMMET; SCREW 1-09983-165-0 02 1 9804-0004 ●
538 GROMMET; SCREW
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-09983-165-0 02 1 9804-0004 ● ● ●
538 GROMMET; SCREW
FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-09983-165-0 02 1 0005-1006 ● ● ● ●
538 GROMMET; SCREW 1-09983-165-0 02 1 0005-1006 ●
çizim 135137
506 360 175 188 176 16 189 188 359 403 179 182 403
BalonParca AdiParca NoAdetTipApplied Date A B C D E
16 ADJUSTER ASM; RECLINING
CENTER 		1-75418-057-1 01 1 9601-9803 ●
16 ADJUSTER ASM; RECLINING
EXC. CENTER SEAT DELETE 2 CREWS<SP9> CENTER 		1-75418-057-1 01 1 9601-9803 ● ●
16 ADJUSTER ASM; RECLINING
CENTER 		1-75418-057-1 01 1 9804-0003 ●
16 ADJUSTER ASM; RECLINING
EXC. CENTER SEAT DELETE 2 CREWS<SP9> CENTER 		1-75418-057-1 01 1 9804-0003 ● ● ●
16 ADJUSTER ASM; RECLINING
CENTER 		1-75418-062-0 01 1 9807-0004 ●
16 ADJUSTER ASM; RECLINING
EXC. CENTER SEAT DELETE 2 CREWS<SP9> CENTER 		1-75418-062-0 01 1 9807-0004 ● ● ●
16 ADJUSTER ASM; RECLINING
CENTER 		1-75418-062-1 01 1 0005- ● ●
16 ADJUSTER ASM; RECLINING
EXC. CENTER SEAT DELETE 2 CREWS<SP9> CENTER 		1-75418-062-1 01 1 0005- ● ● ●
16 ADJUSTER ASM; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER 		1-75418-064-0 01 1 9811-0010 ● ●
16 ADJUSTER ASM; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER 		1-75418-064-0 01 1 0011- ● ●
175 BACK ASM; PASSENGER CENTER SEAT 1-75028-592-0 01 1 9601-9605 ●
175 BACK ASM; PASSENGER CENTER SEAT
FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75028-592-0 01 1 9601-9605 ● ●
175 BACK ASM; PASSENGER CENTER SEAT 1-75028-924-0 01 1 9606-9803 ●
175 BACK ASM; PASSENGER CENTER SEAT
FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75028-924-0 01 1 9606-9803 ● ●
175 BACK ASM; PASSENGER CENTER SEAT 1-75028-924-0 01 1 9804-9806 ●
175 BACK ASM; PASSENGER CENTER SEAT
FABRIC SEAT W/RECLINING<SFQ> EXC. AUSTRALIA EQUIPMENT(RR3),CENTER SEAT DELETE 2 CREWS<SP9> 		1-75028-924-0 01 1 9804-9806 ● ● ●
175 BACK ASM; PASSENGER CENTER SEAT 1-75028-867-1 01 1 9807-0003 ●
175 BACK ASM; PASSENGER CENTER SEAT
FABRIC SEAT W/RECLINING<SFQ> EXC. AUSTRALIA EQUIPMENT(RR3),CENTER SEAT DELETE 2 CREWS<SP9> 		1-75028-867-1 01 1 9807-0003 ● ● ●
175 BACK ASM; PASSENGER CENTER SEAT 1-75026-850-0 01 1 0004-0004 ●
175 BACK ASM; PASSENGER CENTER SEAT
FABRIC SEAT W/RECLINING<SFQ> EXC. AUSTRALIA EQUIPMENT(RR3),CENTER SEAT DELETE 2 CREWS<SP9> 		1-75026-850-0 01 1 0004-0004 ● ● ●
175 BACK ASM; PASSENGER CENTER SEAT
FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75026-854-3 01 1 0005- ● ● ● ●
175 BACK ASM; PASSENGER CENTER SEAT 1-75026-854-3 01 1 0005- ●
175 BACK ASM; PASSENGER CENTER SEAT
VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75028-587-1 01 1 9601-9605 ● ●
175 BACK ASM; PASSENGER CENTER SEAT
VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75028-925-0 01 1 9606-9803 ● ●
175 BACK ASM; PASSENGER CENTER SEAT
VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75028-925-0 01 1 9804-0003 ● ● ●
175 BACK ASM; PASSENGER CENTER SEAT
VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75207-253-0 01 1 0004-0004 ● ● ●
175 BACK ASM; PASSENGER CENTER SEAT
VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75026-855-3 01 1 0005- ● ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK 1-75116-257-0 01 1 9601-9803 ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-257-0 01 1 9601-9803 ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK 1-75116-257-0 01 1 9804-9806 ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
FABRIC SEAT W/RECLINING<SFQ> EXC. AUSTRALIA EQUIPMENT(RR3),CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-257-0 01 1 9804-9806 ● ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK 1-75116-351-0 01 1 9807-0003 ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
FABRIC SEAT W/RECLINING<SFQ> EXC. AUSTRALIA EQUIPMENT(RR3),CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-351-0 01 1 9807-0003 ● ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK 1-75116-646-0 01 1 0004-0004 ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
FABRIC SEAT W/RECLINING<SFQ> EXC. AUSTRALIA EQUIPMENT(RR3),CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-646-0 01 1 0004-0004 ● ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
FABRIC SEAT W/RECLINING<SFQ> 		1-75116-650-1 01 1 0005-0405 ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-650-1 01 1 0005-0405 ● ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK 1-75116-650-1 01 1 0005-0405 ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-650-1 01 1 0406- ● ● ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK 1-75116-650-1 01 1 0406- ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-258-1 01 1 9601-9803 ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-258-1 01 1 9804-0003 ● ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-641-0 01 1 0004-0004 ● ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-651-1 01 1 0005- ● ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH 1-75116-310-0 01 1 9601-9803 ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
FABRIC SEAT W/RECLINING<SFQ> EXC. AUSTRALIA EQUIPMENT(RR3),CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-310-0 01 1 9601-9803 ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
AUSTRALIA EQUIPMENT(RR3) FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-328-0 01 1 9601-9803 ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH 1-75116-328-0 01 1 9804-9806 ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
FABRIC SEAT W/RECLINING<SFQ> EXC. AUSTRALIA EQUIPMENT(RR3),CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-328-0 01 1 9804-9806 ● ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH 1-75116-434-0 01 1 9807-0003 ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
FABRIC SEAT W/RECLINING<SFQ> EXC. AUSTRALIA EQUIPMENT(RR3),CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-434-0 01 1 9807-0003 ● ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH 1-75116-634-0 01 1 0004-0004 ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
FABRIC SEAT W/RECLINING<SFQ> EXC. AUSTRALIA EQUIPMENT(RR3),CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-634-0 01 1 0004-0004 ● ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-637-1 01 1 0005- ● ● ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH 1-75116-637-1 01 1 0005- ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
VINYL SEAT<A83> AUSTRALIA EQUIPMENT(RR3) EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-327-0 01 1 9601-9803 ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-327-0 01 1 9804-0003 ● ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-627-0 01 1 0004-0004 ● ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-638-1 01 1 0005- ● ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
VINYL SEAT<A83> EXC. AUSTRALIA EQUIPMENT(RR3),CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-309-1 01 1 9601-9803 ● ●
182 CUSHION ASM; CENTER SEAT 1-75028-766-1 01 1 9601-9803 ●
182 CUSHION ASM; CENTER SEAT
FABRIC SEAT W/RECLINING<SFQ> EXC. AUSTRALIA EQUIPMENT(RR3),CENTER SEAT DELETE 2 CREWS<SP9> 		1-75028-766-1 01 1 9601-9803 ● ●
182 CUSHION ASM; CENTER SEAT
AUSTRALIA EQUIPMENT(RR3) FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75028-825-0 01 1 9601-9803 ● ●
182 CUSHION ASM; CENTER SEAT 1-75028-825-0 01 1 9804-9806 ●
182 CUSHION ASM; CENTER SEAT
FABRIC SEAT W/RECLINING<SFQ> EXC. AUSTRALIA EQUIPMENT(RR3),CENTER SEAT DELETE 2 CREWS<SP9> 		1-75028-825-0 01 1 9804-9806 ● ● ●
182 CUSHION ASM; CENTER SEAT 1-75026-185-0 01 1 9807-0003 ●
182 CUSHION ASM; CENTER SEAT
FABRIC SEAT W/RECLINING<SFQ> EXC. AUSTRALIA EQUIPMENT(RR3),CENTER SEAT DELETE 2 CREWS<SP9> 		1-75026-185-0 01 1 9807-0003 ● ● ●
182 CUSHION ASM; CENTER SEAT 1-75026-836-0 01 1 0004-0004 ●
182 CUSHION ASM; CENTER SEAT
FABRIC SEAT W/RECLINING<SFQ> EXC. AUSTRALIA EQUIPMENT(RR3),CENTER SEAT DELETE 2 CREWS<SP9> 		1-75026-836-0 01 1 0004-0004 ● ● ●
182 CUSHION ASM; CENTER SEAT
FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75026-839-4 01 1 0005- ● ● ● ●
182 CUSHION ASM; CENTER SEAT 1-75026-839-4 01 1 0005- ●
182 CUSHION ASM; CENTER SEAT
VINYL SEAT<A83> AUSTRALIA EQUIPMENT(RR3) EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75028-821-0 01 1 9601-9803 ● ●
182 CUSHION ASM; CENTER SEAT
VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75028-821-0 01 1 9804-0003 ● ● ●
182 CUSHION ASM; CENTER SEAT
VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75026-829-0 01 1 0004-0004 ● ● ●
182 CUSHION ASM; CENTER SEAT
VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75026-840-4 01 1 0005- ● ● ●
182 CUSHION ASM; CENTER SEAT
VINYL SEAT<A83> EXC. AUSTRALIA EQUIPMENT(RR3),CENTER SEAT DELETE 2 CREWS<SP9> 		1-75028-767-2 01 1 9601-9803 ● ●
188 BOLT; BACK TO CUSHION
M10X16 FLANGE 		1-75198-053-0 04 1 9601-9803 ●
188 BOLT; BACK TO CUSHION
EXC. CENTER SEAT DELETE 2 CREWS<SP9> M10X16 FLANGE 		1-75198-053-0 04 1 9601-9803 ● ●
188 BOLT; BACK TO CUSHION
M10X16 FLANGE 		1-75198-053-0 04 1 9804-0004 ●
188 BOLT; BACK TO CUSHION
EXC. CENTER SEAT DELETE 2 CREWS<SP9> M10X16 FLANGE 		1-75198-053-0 04 1 9804-0004 ● ● ●
188 BOLT; BACK TO CUSHION
M10X16 FLANGE 		1-75198-053-0 04 1 0005- ● ●
188 BOLT; BACK TO CUSHION
EXC. CENTER SEAT DELETE 2 CREWS<SP9> M10X16 FLANGE 		1-75198-053-0 04 1 0005- ● ● ●
189 BUSHING; HINGE,CENTER SEAT BACK 8-97854-900-0 01 1 9601-9803 ●
189 BUSHING; HINGE,CENTER SEAT BACK
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		8-97854-900-0 01 1 9601-9803 ● ●
189 BUSHING; HINGE,CENTER SEAT BACK 8-97854-900-0 01 1 9804-0004 ●
189 BUSHING; HINGE,CENTER SEAT BACK
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		8-97854-900-0 01 1 9804-0004 ● ● ●
189 BUSHING; HINGE,CENTER SEAT BACK 8-97854-900-0 01 1 0005- ● ●
189 BUSHING; HINGE,CENTER SEAT BACK
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		8-97854-900-0 01 1 0005- ● ● ●
359 BOX; PARCEL 1-72538-157-2 01 1 9601-9803 ●
359 BOX; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-157-2 01 1 9601-9803 ● ●
359 BOX; PARCEL 1-72538-157-2 01 1 9804-0004 ●
359 BOX; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-157-2 01 1 9804-0004 ● ● ●
359 BOX; PARCEL 1-72538-275-4 01 1 0005-1006 ● ●
359 BOX; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-275-4 01 1 0005-1006 ● ● ●
359 BOX; PARCEL 8-98145-114-0 01 1 1007- ● ●
359 BOX; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		8-98145-114-0 01 1 1007- ● ● ●
360 SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 9601-9803 ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 9601-9803 ● ●
360 SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 9804-0004 ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 9804-0004 ● ● ●
360 SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0005-0612 ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0005-0612 ● ● ●
360 SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0701-1006 ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0701-1006 ● ● ●
360 SCREW; PARCEL
(E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1007- ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1007- ● ● ●
360 SCREW; PARCEL
(B) M4X16 		0-70080-416-0 06 1 9601-9803 ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (B) M4X16 		0-70080-416-0 06 1 9601-9803 ● ●
360 SCREW; PARCEL
(B) M4X16 		0-70080-416-0 06 1 9804-0004 ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (B) M4X16 		0-70080-416-0 06 1 9804-0004 ● ● ●
360 SCREW; PARCEL
(B) M4X16 		0-70080-416-0 06 1 0005-0612 ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (B) M4X16 		0-70080-416-0 06 1 0005-0612 ● ● ●
360 SCREW; PARCEL
(B) M4X16 		0-70040-416-0 06 1 0701-1104 ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (B) M4X16 		0-70040-416-0 06 1 0701-1104 ● ● ●
360 SCREW; PARCEL
(B) M4X16 		0-70080-416-0 06 1 1105- ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (B) M4X16 		0-70080-416-0 06 1 1105- ● ● ●
360 SCREW; PARCEL
(D) 		1-09983-165-0 02 1 9807-0004 ●
360 SCREW; PARCEL
FABRIC SEAT W/RECLINING<SFQ> EXC. AUSTRALIA EQUIPMENT(RR3),CENTER SEAT DELETE 2 CREWS<SP9> (D) 		1-09983-165-0 02 1 9807-0004 ● ● ●
360 SCREW; PARCEL
(D) 		1-09983-165-0 02 1 0005-0310 ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (D) 		1-09983-165-0 02 1 0005-0310 ● ● ●
360 SCREW; PARCEL
VINYL SEAT<A83> EXC. CENTER SEAT DELETE 2 CREWS<SP9> (D) 		1-09983-165-0 02 1 0311-1006 ● ● ●
360 SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 9601-9803 ● ● ●
360 SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 9804-0004 ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 9804-0004 ● ● ●
360 SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0005-1006 ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0005-1006 ● ● ●
360 SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1007- ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1007- ● ● ●
360 SCREW; PARCEL
VINYL SEAT<A83> EXC. AUSTRALIA EQUIPMENT(RR3),CENTER SEAT DELETE 2 CREWS<SP9> (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9601-9803 ● ●
403 NUT; CENTER SEAT
M8 FLANGE 		8-94279-504-1 04 1 9601-9803 ●
403 NUT; CENTER SEAT
EXC. CENTER SEAT DELETE 2 CREWS<SP9> M8 FLANGE 		8-94279-504-1 04 1 9601-9803 ● ●
403 NUT; CENTER SEAT
M8 FLANGE 		8-94279-518-0 04 1 9804-0004 ●
403 NUT; CENTER SEAT
EXC. CENTER SEAT DELETE 2 CREWS<SP9> M8 FLANGE 		8-94279-518-0 04 1 9804-0004 ● ● ●
403 NUT; CENTER SEAT
M8 FLANGE 		8-94279-518-0 04 1 0005-0312 ● ●
403 NUT; CENTER SEAT
EXC. CENTER SEAT DELETE 2 CREWS<SP9> M8 FLANGE 		8-94279-518-0 04 1 0005-0312 ● ● ●
403 NUT; CENTER SEAT
M8 FLANGE 		1-75538-207-0 04 1 0401-0703 ● ●
403 NUT; CENTER SEAT
EXC. CENTER SEAT DELETE 2 CREWS<SP9> M8 FLANGE 		1-75538-207-0 04 1 0401-0703 ● ● ●
403 NUT; CENTER SEAT
M8 FLANGE 		0-91180-108-0 04 1 0704- ● ●
403 NUT; CENTER SEAT
EXC. CENTER SEAT DELETE 2 CREWS<SP9> M8 FLANGE 		0-91180-108-0 04 1 0704- ● ● ●
506 CAP; PARCEL BOX 1-09983-164-0 04 1 9601-9803 ●
506 CAP; PARCEL BOX
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-09983-164-0 04 1 9601-9803 ● ●
506 CAP; PARCEL BOX 1-09983-164-0 04 1 9804-0004 ●
506 CAP; PARCEL BOX
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-09983-164-0 04 1 9804-0004 ● ● ●
506 CAP; PARCEL BOX 1-09983-180-3 04 1 0005-1006 ● ●
506 CAP; PARCEL BOX
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-09983-180-3 04 1 0005-1006 ● ● ●
506 CAP; PARCEL BOX 1-09983-180-3 02 1 1007- ● ●
506 CAP; PARCEL BOX
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-09983-180-3 02 1 1007- ● ● ●
çizim 135143
1 228 24 2 101 18 328 19 17 99 13 74 12 73 306 336 55 327 46 62 73 306
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER 		1-75026-267-0 01 1 9811-0010 ● ●
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER 		1-75026-267-0 01 1 0011- ● ●
1 BACK ASM; SEAT
DELUXE CAB(W14) DRIVER 		1-75028-760-1 01 1 9601-9803 ● ● ●
1 BACK ASM; SEAT
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER 		1-75028-760-1 01 1 9601-9803 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) DRIVER 		1-75028-864-2 01 1 9804-9804 ● ● ● ●
1 BACK ASM; SEAT
AIR CONTROL SEAT<A60> DRIVER 		1-75028-864-2 01 1 9804-9804 ● ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) DRIVER 		1-75028-864-2 01 1 9805-0003 ● ● ● ●
1 BACK ASM; SEAT
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER 		1-75028-864-2 01 1 9805-0003 ● ●
1 BACK ASM; SEAT
AIR CONTROL SEAT<A60> DRIVER 		1-75028-864-2 01 1 9805-0003 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) DRIVER 		1-75026-711-0 01 1 0004-0004 ● ● ● ●
1 BACK ASM; SEAT
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER 		1-75026-711-0 01 1 0004-0004 ● ●
1 BACK ASM; SEAT
AIR CONTROL SEAT<A60> DRIVER 		1-75026-711-0 01 1 0004-0004 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) DRIVER 		1-75026-726-0 01 1 0005-0105 ● ● ● ●
1 BACK ASM; SEAT
DRIVER 		1-75026-726-0 01 1 0005-0105 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) DRIVER 		1-75208-065-2 01 1 0106-0901 ● ● ● ●
1 BACK ASM; SEAT
DRIVER 		1-75208-065-2 01 1 0106-0901 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) DRIVER 		8-98135-611-0 01 1 0902- ● ● ● ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75027-392-1 01 1 9601-9609 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75027-392-1 01 1 9610-9803 ● ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75026-025-0 01 1 9804-0003 ● ● ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75026-716-0 01 1 0004-0004 ● ● ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75026-729-0 01 1 0005-0105 ● ● ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75208-068-2 01 1 0106-0901 ● ● ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		8-98135-612-0 01 1 0902- ● ● ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> EXC. HIGH ROOF<S2F>,DELUXE CAB(W14) DRIVER 		1-75028-586-1 01 1 9601-9803 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> DRIVER 		1-75028-998-0 01 1 9804-0003 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> DRIVER 		1-75026-712-0 01 1 0004-0004 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> DRIVER 		1-75026-723-0 01 1 0005-0105 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> DRIVER 		1-75208-062-3 01 1 0106- ● ●
1 BACK ASM; SEAT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		1-75028-590-2 01 1 9601-9803 ● ●
1 BACK ASM; SEAT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		1-75028-590-2 01 1 9804-0003 ● ● ●
1 BACK ASM; SEAT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		1-75026-710-0 01 1 0004-0004 ● ● ●
1 BACK ASM; SEAT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		1-75026-730-0 01 1 0005-0105 ● ● ●
1 BACK ASM; SEAT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		1-75208-069-2 01 1 0106-0901 ● ● ●
1 BACK ASM; SEAT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		8-98135-615-0 01 1 0902- ● ● ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> DRIVER 		1-75028-618-2 01 1 9601-0003 ● ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> DRIVER 		1-75026-721-0 01 1 0004-0004 ● ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> DRIVER 		1-75026-728-0 01 1 0005-0105 ● ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> DRIVER 		1-75208-067-3 01 1 0106- ● ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER 		1-75116-464-0 01 1 9811-0010 ● ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER 		1-75116-464-0 01 1 0011- ● ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER 		1-75116-296-0 01 1 9601-9609 ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75116-296-0 01 1 9601-9609 ● ●
2 COVER; TRIM,FRT SEAT,BACK
DELUXE CAB(W14) DRIVER 		1-75116-296-0 01 1 9601-9609 ● ●
2 COVER; TRIM,FRT SEAT,BACK
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER 		1-75116-296-0 01 1 9601-9609 ● ●
2 COVER; TRIM,FRT SEAT,BACK
DELUXE CAB(W14) DRIVER 		1-75116-296-0 01 1 9610-9611 ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75116-296-0 01 1 9610-9611 ● ●
2 COVER; TRIM,FRT SEAT,BACK
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER 		1-75116-296-0 01 1 9610-9611 ● ●
2 COVER; TRIM,FRT SEAT,BACK
DELUXE CAB(W14) DRIVER 		1-75116-296-1 01 1 9612-9803 ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14) DRIVER 		1-75116-296-1 01 1 9612-9803 ●
2 COVER; TRIM,FRT SEAT,BACK
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER 		1-75116-296-1 01 1 9612-9803 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75116-296-1 01 1 9612-9803 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) DRIVER 		1-75116-346-1 01 1 9804-9804 ● ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR CONTROL SEAT<A60> DRIVER 		1-75116-346-1 01 1 9804-9804 ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) DRIVER 		1-75116-346-1 01 1 9805-0003 ● ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER 		1-75116-346-1 01 1 9805-0003 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR CONTROL SEAT<A60> DRIVER 		1-75116-346-1 01 1 9805-0003 ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) DRIVER 		1-75116-586-0 01 1 0004-0004 ● ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER 		1-75116-586-0 01 1 0004-0004 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR CONTROL SEAT<A60> DRIVER 		1-75116-586-0 01 1 0004-0004 ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) DRIVER 		1-75116-594-1 01 1 0005- ● ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER 		1-75116-594-1 01 1 0005- ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DRIVING POSITION WIDE LEG SPACE(PR2), DELUXE CAB(W14) DRIVER 		1-75117-837-0 01 1 9601-9609 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14) DRIVER 		1-75117-837-0 01 1 9610-9611 ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DRIVING POSITION WIDE LEG SPACE(PR2), DELUXE CAB(W14) DRIVER 		1-75117-837-0 01 1 9610-9611 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> EXC. HIGH ROOF<S2F>,DELUXE CAB(W14) DRIVER 		1-75116-256-0 01 1 9601-9803 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75116-377-0 01 1 9804-0003 ● ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75116-595-0 01 1 0004-0004 ● ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75116-703-1 01 1 0005- ● ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> DRIVER 		1-75116-373-0 01 1 9804-0003 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> DRIVER 		1-75116-587-0 01 1 0004-0004 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> DRIVER 		1-75116-602-1 01 1 0005- ● ●
2 COVER; TRIM,FRT SEAT,BACK
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		1-75116-277-2 01 1 9601-9803 ● ●
2 COVER; TRIM,FRT SEAT,BACK
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		1-75116-277-2 01 1 9804-0003 ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		1-75127-036-0 01 1 0004-0004 ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		1-75116-704-1 01 1 0005- ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> DRIVER 		1-75116-274-1 01 1 9601-0003 ● ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> DRIVER 		1-75116-600-0 01 1 0004-0004 ● ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> DRIVER 		1-75116-702-1 01 1 0005- ● ●
12 CUSHION; SEAT,FRT
DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER 		1-75026-268-0 01 1 9811-0010 ● ●
12 CUSHION; SEAT,FRT
DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER 		1-75026-268-0 01 1 0011- ● ●
12 CUSHION; SEAT,FRT
DRIVER 		1-75028-763-1 01 1 9601-9609 ●
12 CUSHION; SEAT,FRT
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) DRIVER 		1-75028-763-1 01 1 9601-9609 ● ●
12 CUSHION; SEAT,FRT
DELUXE CAB(W14) DRIVER 		1-75028-763-1 01 1 9601-9609 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75028-763-1 01 1 9601-9609 ● ●
12 CUSHION; SEAT,FRT
DELUXE CAB(W14) DRIVER 		1-75028-763-1 01 1 9610-9803 ● ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14) DRIVER 		1-75028-763-1 01 1 9610-9803 ●
12 CUSHION; SEAT,FRT
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) DRIVER 		1-75028-763-1 01 1 9610-9803 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75028-763-1 01 1 9610-9803 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> DRIVER 		1-75028-838-1 01 1 9804-9901 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> DRIVER 		1-75028-838-1 01 1 9804-9901 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14) DRIVER 		1-75028-838-1 01 1 9902-0003 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75028-838-1 01 1 9902-0003 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> DRIVER 		1-75026-677-0 01 1 0004-0004 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> DRIVER 		1-75026-677-0 01 1 0004-0004 ● ●
12 CUSHION; SEAT,FRT
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> DRIVER 		1-75026-692-1 01 1 0005- ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> EXC. HIGH ROOF<S2F>,DELUXE CAB(W14) DRIVER 		1-75028-770-1 01 1 9601-9803 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> DRIVER 		1-75026-024-0 01 1 9804-0003 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> DRIVER 		1-75026-682-0 01 1 0004-0004 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> DRIVER 		1-75026-698-1 01 1 0005- ● ●
12 CUSHION; SEAT,FRT
DRIVING POSITION WIDE LEG SPACE(PR2) SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER 		1-75028-870-1 01 1 9601-9803 ● ●
12 CUSHION; SEAT,FRT
AIR CONTROL SEAT<A60> DRIVER 		1-75026-033-0 01 1 9804-9804 ● ● ●
12 CUSHION; SEAT,FRT
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER 		1-75026-033-0 01 1 9805-0003 ● ●
12 CUSHION; SEAT,FRT
AIR CONTROL SEAT<A60> DRIVER 		1-75026-033-0 01 1 9805-0003 ●
12 CUSHION; SEAT,FRT
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER 		1-75026-681-0 01 1 0004-0004 ● ●
12 CUSHION; SEAT,FRT
AIR CONTROL SEAT<A60> DRIVER 		1-75026-681-0 01 1 0004-0004 ●
12 CUSHION; SEAT,FRT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		1-75028-764-2 01 1 9601-9803 ● ●
12 CUSHION; SEAT,FRT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		1-75028-764-2 01 1 9804-0003 ● ● ●
12 CUSHION; SEAT,FRT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		1-75207-147-0 01 1 0004-0004 ● ● ●
12 CUSHION; SEAT,FRT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		1-75026-695-3 01 1 0005- ● ● ●
12 CUSHION; SEAT,FRT
RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> DRIVER 		1-75028-799-2 01 1 9601-0003 ● ●
12 CUSHION; SEAT,FRT
RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> DRIVER 		1-75026-686-0 01 1 0004-0004 ● ●
12 CUSHION; SEAT,FRT
DELUXE CAB(W14) DRIVER 		1-75026-250-0 01 1 9902-0003 ● ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> DRIVER 		1-75026-693-3 01 1 0005- ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> DRIVER 		1-75026-693-3 01 1 0005- ● ●
12 CUSHION; SEAT,FRT
DRIVER 		1-75026-693-3 01 1 0005- ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER 		1-75116-465-0 01 1 9811-0010 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER 		1-75116-465-0 01 1 0011- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER 		1-75117-835-0 01 1 9601-9609 ●
13 COVER; TRIM,FRT SEAT,CUSHION
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) DRIVER 		1-75117-835-0 01 1 9601-9609 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DELUXE CAB(W14) DRIVER 		1-75117-835-0 01 1 9601-9609 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75117-835-0 01 1 9601-9609 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DELUXE CAB(W14) DRIVER 		1-75117-835-0 01 1 9610-9803 ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14) DRIVER 		1-75117-835-0 01 1 9610-9803 ●
13 COVER; TRIM,FRT SEAT,CUSHION
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) DRIVER 		1-75117-835-0 01 1 9610-9803 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75117-835-0 01 1 9610-9803 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> DRIVER 		1-75116-349-0 01 1 9804-9901 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> DRIVER 		1-75116-349-0 01 1 9804-9901 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14) DRIVER 		1-75116-349-0 01 1 9902-0003 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75116-349-0 01 1 9902-0003 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> DRIVER 		1-75116-549-0 01 1 0004-0004 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> DRIVER 		1-75116-549-0 01 1 0004-0004 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> DRIVER 		1-75116-680-1 01 1 0005- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> EXC. HIGH ROOF<S2F>,DELUXE CAB(W14) DRIVER 		1-75116-302-0 01 1 9601-9803 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> DRIVER 		1-75116-378-0 01 1 9804-0003 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> DRIVER 		1-75116-550-0 01 1 0004-0004 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> DRIVER 		1-75116-686-1 01 1 0005- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVING POSITION WIDE LEG SPACE(PR2) SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER 		1-75117-901-0 01 1 9601-9803 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR CONTROL SEAT<A60> DRIVER 		1-75116-390-0 01 1 9804-9804 ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER 		1-75116-390-0 01 1 9805-0003 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR CONTROL SEAT<A60> DRIVER 		1-75116-390-0 01 1 9805-0003 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER 		1-75116-548-0 01 1 0004-0004 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR CONTROL SEAT<A60> DRIVER 		1-75116-548-0 01 1 0004-0004 ●
13 COVER; TRIM,FRT SEAT,CUSHION
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		1-75116-301-1 01 1 9601-9803 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		1-75116-301-1 01 1 9804-0003 ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		1-75116-539-0 01 1 0004-0004 ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		1-75116-683-1 01 1 0005- ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> DRIVER 		1-75116-318-1 01 1 9601-0003 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> DRIVER 		1-75116-554-0 01 1 0004-0004 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DELUXE CAB(W14) DRIVER 		1-75116-455-0 01 1 9902-0003 ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> DRIVER 		1-75116-681-1 01 1 0005- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> DRIVER 		1-75116-681-1 01 1 0005- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER 		1-75116-681-1 01 1 0005- ●
17 BOLT; RECLINING
DRIVER M8X18 		8-94279-109-1 02 1 9601-9803 ● ● ●
17 BOLT; RECLINING
DRIVER M8X18 		8-94279-109-1 02 1 9804-9804 ● ● ● ●
17 BOLT; RECLINING
DRIVER M8X20 		8-97255-906-0 02 1 0004-0004 ● ● ● ●
17 BOLT; RECLINING
DRIVER M8X20 		8-97255-906-0 02 1 0005- ● ● ● ● ●
18 COVER; RECLINING
DRIVER 		1-75418-050-0 01 1 9601-9803 ● ● ●
18 COVER; RECLINING
DRIVER 		1-75418-050-0 01 1 9804-9804 ● ● ● ●
18 COVER; RECLINING
DRIVER DARK GRAY 		8-97867-020-0 01 1 0005- ● ● ● ● ●
18 COVER; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER 		1-75418-063-0 01 1 9811-0010 ● ●
18 COVER; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER 		1-75418-063-0 01 1 0011- ● ●
19 SCREW; COVER
DRIVER M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9601-9803 ● ● ●
19 SCREW; COVER
DRIVER M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9804-9804 ● ● ● ●
19 SCREW; COVER
DRIVER M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0005- ● ● ● ● ●
24 KNOB; RECLINING,FRT,SEAT
(A) PASSENGER 		1-75418-056-0 01 1 9601-9803 ● ● ●
24 KNOB; RECLINING,FRT,SEAT
(A) PASSENGER 		1-75418-056-0 01 1 9804-0004 ● ● ● ●
24 KNOB; RECLINING,FRT,SEAT
(A) PASSENGER DARK GRAY 		8-97859-019-0 01 1 0005- ● ● ● ● ●
24 KNOB; RECLINING,FRT,SEAT
(B) DRIVER 		1-75418-059-0 01 1 9601-9803 ● ● ●
24 KNOB; RECLINING,FRT,SEAT
(B) DRIVER 		1-75418-059-0 01 1 9804-0004 ● ● ● ●
24 KNOB; RECLINING,FRT,SEAT
(B) DRIVER DARK GRAY 		8-97867-021-0 01 1 0005-0710 ● ● ● ● ●
24 KNOB; RECLINING,FRT,SEAT
(B) DRIVER 		1-75418-066-0 01 1 0711- ● ● ● ● ●
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 9601-9803 ● ● ●
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 9804-0004 ● ● ● ●
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0005-0703 ● ● ● ● ●
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 0704- ● ● ● ● ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 9601-9803 ● ● ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 9804-0004 ● ● ● ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 0005-0703 ● ● ● ● ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		0-91180-110-0 02 1 0704- ● ● ● ● ●
62 DAMPER ASM; SEAT SUSP
(B) 		1-75538-152-1 01 1 9601-9602 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-152-1 01 1 9601-9602 ● ●
62 DAMPER ASM; SEAT SUSP
(B) 		1-75538-156-0 01 1 9603-9712 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-156-0 01 1 9603-9712 ● ●
62 DAMPER ASM; SEAT SUSP
(B) 		1-75538-167-0 01 1 9801-9803 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-167-0 01 1 9801-9803 ● ●
62 DAMPER ASM; SEAT SUSP
(B) 		1-75538-167-0 01 1 9804-9804 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-167-0 01 1 9804-9804 ● ● ●
62 DAMPER ASM; SEAT SUSP
(B) 		1-75538-180-0 01 1 9805-9811 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-180-0 01 1 9805-9811 ● ● ●
62 DAMPER ASM; SEAT SUSP
(B) 		1-75538-183-2 01 1 9812-0004 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-183-2 01 1 9812-0004 ● ● ●
62 DAMPER ASM; SEAT SUSP
(B) 		1-75538-183-8 01 1 0005-1403 ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-183-8 01 1 0005-1403 ● ● ●
62 DAMPER ASM; SEAT SUSP
(B) 		8-98261-448-0 01 1 1404- ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		8-98261-448-0 01 1 1404- ● ● ●
62 DAMPER ASM; SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-142-2 01 1 9601-9603 ● ●
62 DAMPER ASM; SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-164-0 01 1 9604-9803 ● ●
62 DAMPER ASM; SEAT SUSP
AIR CONTROL SEAT<A60> (A) 		1-75538-164-0 01 1 9804-9804 ● ● ●
62 DAMPER ASM; SEAT SUSP
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-164-0 01 1 9805-0004 ● ●
62 DAMPER ASM; SEAT SUSP
AIR CONTROL SEAT<A60> (A) 		1-75538-164-0 01 1 9805-0004 ●
62 DAMPER ASM; SEAT SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75538-198-0 01 1 9811-0010 ● ●
62 DAMPER ASM; SEAT SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75538-198-0 01 1 0011- ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		8-94279-518-0 04 1 9601-9803 ● ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		8-94279-518-0 04 1 9804-0003 ● ● ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0004-0004 ● ● ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 08 1 0005-0501 ● ●
73 NUT; ADJ,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) M8 FLANGE 		1-75538-207-0 08 1 0005-0501 ● ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		8-94279-518-0 08 1 9601-9803 ● ● ●
73 NUT; ADJ,HEIGHT CONT
EXC. DELUXE CAB(W14) M8 FLANGE 		8-94279-518-0 08 1 9804-9804 ● ● ● ●
73 NUT; ADJ,HEIGHT CONT
EXC. DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 08 1 0004-0004 ● ● ● ●
73 NUT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 12 1 0005-0501 ● ● ●
73 NUT; ADJ,HEIGHT CONT
RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		1-75538-207-0 08 1 0502- ● ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0005- ● ● ● ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DELUXE CAB(W14) 		1-75518-242-0 01 1 9601-9602 ● ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DELUXE CAB(W14) 		1-75518-259-0 01 1 9603-9705 ● ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DELUXE CAB(W14) 		1-75518-275-0 01 1 9706-9712 ● ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DELUXE CAB(W14) 		1-75518-299-0 01 1 9801-9803 ● ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DELUXE CAB(W14) 		1-75518-299-0 01 1 9804-9912 ● ● ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DELUXE CAB(W14) 		1-75518-317-1 01 1 0001-0004 ● ● ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-317-1 01 1 0005-0102 ● ● ● ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-330-3 01 1 0103-1502 ● ● ● ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		8-98291-644-0 01 1 1503- ● ● ● ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) DELUXE CAB(W14) 		1-75517-955-1 01 1 0005-0102 ● ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) DELUXE CAB(W14) 		1-75517-959-3 01 1 0103-1502 ● ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) DELUXE CAB(W14) 		8-98291-642-0 01 1 1503- ● ● ●
99 BUSHING; SEAT BACK
DRIVER 		8-97854-087-0 01 1 9601-9803 ● ● ●
99 BUSHING; SEAT BACK
DRIVER 		8-97854-087-0 01 1 9804-0004 ● ● ● ●
99 BUSHING; SEAT BACK
DRIVER 		8-97854-087-0 01 1 0005- ● ● ● ● ●
101 LEVER ASM; LUMBAR
DELUXE CAB(W14) DRIVER 		5-75190-138-0 01 1 9601-9803 ● ● ●
101 LEVER ASM; LUMBAR
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER 		5-75190-138-0 01 1 9601-9803 ● ●
101 LEVER ASM; LUMBAR
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) DRIVER 		5-75190-138-0 01 1 9804-9804 ● ● ● ●
101 LEVER ASM; LUMBAR
AIR CONTROL SEAT<A60> DRIVER 		5-75190-138-0 01 1 9804-9804 ● ● ●
101 LEVER ASM; LUMBAR
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) DRIVER 		5-75190-138-0 01 1 9805-0004 ● ● ● ●
101 LEVER ASM; LUMBAR
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER 		5-75190-138-0 01 1 9805-0004 ● ●
101 LEVER ASM; LUMBAR
AIR CONTROL SEAT<A60> DRIVER 		5-75190-138-0 01 1 9805-0004 ●
101 LEVER ASM; LUMBAR
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) DRIVER 		5-75190-138-0 01 1 0005- ● ● ● ●
101 LEVER ASM; LUMBAR
DRIVER 		5-75190-138-0 01 1 0005- ●
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 9601-9803 ● ● ●
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 9804-0004 ● ● ● ●
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 9804-0004 ● ● ● ●
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 0005-0710 ● ● ● ● ●
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 0005-0710 ● ● ● ●
228 SCREW; KNOB
PASSENGER M4X6 		8-97042-273-0 01 1 0711- ● ● ● ● ●
228 SCREW; KNOB
DRIVER M4 		8-98062-662-0 01 1 0711- ● ● ● ● ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 18 1 0502- ● ● ●
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		1-75538-207-0 04 1 0502- ● ● ●
306 NUT; SEAT ADJ
M8 FLANGE 		8-94279-518-0 04 1 9601-9803 ● ● ●
306 NUT; SEAT ADJ
DELUXE CAB(W14) M8 FLANGE 		8-94279-518-0 12 1 9804-9912 ● ● ● ●
306 NUT; SEAT ADJ
DELUXE CAB(W14) M8 FLANGE 		8-94279-518-0 14 1 0001-0003 ● ● ● ●
306 NUT; SEAT ADJ
EXC. DELUXE CAB(W14) M8 FLANGE 		8-94279-518-0 04 1 9804-9804 ● ● ● ●
306 NUT; SEAT ADJ
DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 14 1 0004-0004 ● ● ● ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 06 1 0005-0501 ● ● ● ●
306 NUT; SEAT ADJ
M8 FLANGE 		1-75538-207-0 06 1 0005-0501 ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) EXC. DRIVING POSITION WIDE LEG SPACE(PR2) M8 FLANGE 		1-75538-207-0 14 1 0502- ● ● ● ● ●
306 NUT; SEAT ADJ
EXC. DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 04 1 0004-0501 ● ● ● ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 12 1 0502- ● ● ● ●
327 CLIP; COVER
DELUXE CAB(W14) 		1-09987-249-0 02 1 9601-9803 ● ● ●
327 CLIP; COVER
DELUXE CAB(W14) 		1-09987-249-0 02 1 9804-0004 ● ● ● ●
327 CLIP; COVER
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-09987-273-0 02 1 0005- ● ● ● ●
327 CLIP; COVER
FABRIC SEAT W/RECLINING<SFQ> DELUXE CAB(W14) EXC. ELEC OUTLET 12V<TAW>,PASSENGER SEAT UNDER BOX<TDN> 		1-09987-273-0 02 1 0005- ● ● ● ●
327 CLIP; COVER 1-09987-273-0 02 1 0005- ●
327 CLIP; COVER 1-09987-273-0 02 1 0005- ●
327 CLIP; COVER
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) DELUXE CAB(W14) 		1-09987-273-0 01 1 0005- ● ● ●
327 CLIP; COVER
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75538-197-0 01 1 9811-0010 ● ●
327 CLIP; COVER
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75538-197-0 01 1 0011- ● ●
328 CLIP; HANDY WARNING
DELUXE CAB(W14) 		8-94149-704-1 01 1 9804-0004 ● ● ● ●
336 COVER; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) DELUXE CAB(W14) 		1-75518-316-0 01 1 0005- ● ● ●
336 COVER; DRIVER SEAT
DELUXE CAB(W14) 		1-75518-066-3 01 1 9601-9803 ● ● ●
336 COVER; DRIVER SEAT
DELUXE CAB(W14) 		1-75518-066-3 01 1 9804-0004 ● ● ● ●
336 COVER; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-303-0 01 1 0005- ● ● ● ● ●
çizim 135225
114 113 126 122 24 120 116 228 123 115 135 137 136 515 327 73 494 493 211 503 494 393 392 393 393
BalonParca AdiParca NoAdetTipApplied Date A B C D E
24 KNOB; RECLINING,FRT,SEAT
(A) PASSENGER 		1-75418-056-0 01 1 9601-9803 ● ● ●
24 KNOB; RECLINING,FRT,SEAT
(A) PASSENGER 		1-75418-056-0 01 1 9804-0004 ● ● ● ●
24 KNOB; RECLINING,FRT,SEAT
(A) PASSENGER DARK GRAY 		8-97859-019-0 01 1 0005- ● ● ● ● ●
24 KNOB; RECLINING,FRT,SEAT
(B) DRIVER 		1-75418-059-0 01 1 9601-9803 ● ● ●
24 KNOB; RECLINING,FRT,SEAT
(B) DRIVER 		1-75418-059-0 01 1 9804-0004 ● ● ● ●
24 KNOB; RECLINING,FRT,SEAT
(B) DRIVER DARK GRAY 		8-97867-021-0 01 1 0005-0710 ● ● ● ● ●
24 KNOB; RECLINING,FRT,SEAT
(B) DRIVER 		1-75418-066-0 01 1 0711- ● ● ● ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		8-94279-518-0 04 1 9601-9803 ● ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		8-94279-518-0 04 1 9804-0003 ● ● ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0004-0004 ● ● ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 08 1 0005-0501 ● ●
73 NUT; ADJ,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) M8 FLANGE 		1-75538-207-0 08 1 0005-0501 ● ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		8-94279-518-0 08 1 9601-9803 ● ● ●
73 NUT; ADJ,HEIGHT CONT
EXC. DELUXE CAB(W14) M8 FLANGE 		8-94279-518-0 08 1 9804-9804 ● ● ● ●
73 NUT; ADJ,HEIGHT CONT
EXC. DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 08 1 0004-0004 ● ● ● ●
73 NUT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 12 1 0005-0501 ● ● ●
73 NUT; ADJ,HEIGHT CONT
RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		1-75538-207-0 08 1 0502- ● ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0005- ● ● ● ● ●
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING<SFQ> PASSENGER 		1-75028-761-1 01 1 9601-9803 ● ● ●
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING<SFQ> PASSENGER 		1-75028-861-1 01 1 9804-0003 ● ● ● ●
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING<SFQ> PASSENGER 		1-75026-719-0 01 1 0004-0004 ● ● ● ●
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING<SFQ> PASSENGER 		1-75026-733-0 01 1 0005-0105 ● ● ● ●
113 BACK ASM; SEAT
PASSENGER 		1-75026-733-0 01 1 0005-0105 ●
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING<SFQ> PASSENGER 		1-75208-072-3 01 1 0106- ● ● ● ●
113 BACK ASM; SEAT
PASSENGER 		1-75208-072-3 01 1 0106- ●
113 BACK ASM; SEAT
VINYL SEAT<A83> PASSENGER 		1-75028-615-2 01 1 9601-9803 ● ●
113 BACK ASM; SEAT
VINYL SEAT<A83> PASSENGER 		1-75028-615-2 01 1 9804-0003 ● ● ●
113 BACK ASM; SEAT
VINYL SEAT<A83> PASSENGER 		1-75026-720-0 01 1 0004-0004 ● ● ●
113 BACK ASM; SEAT
VINYL SEAT<A83> PASSENGER SEAT UNDER BOX<TDN> PASSENGER 		1-75026-735-0 01 1 0005-0105 ● ● ●
113 BACK ASM; SEAT
VINYL SEAT<A83> PASSENGER 		1-75208-074-3 01 1 0106- ● ● ●
113 BACK ASM; SEAT
VINYL SEAT<A83> EXC. PASSENGER SEAT UNDER BOX<TDN> PASSENGER 		1-75026-723-0 01 1 0005-0105 ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING<SFQ> PASSENGER 		1-75116-297-1 01 1 9601-9803 ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING<SFQ> PASSENGER 		1-75116-343-0 01 1 9804-0003 ● ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING<SFQ> PASSENGER 		1-75116-598-0 01 1 0004-0004 ● ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING<SFQ> PASSENGER 		1-75116-707-1 01 1 0005- ● ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
PASSENGER 		1-75116-707-1 01 1 0005- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT<A83> PASSENGER 		1-75116-273-1 01 1 9601-9803 ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT<A83> PASSENGER 		1-75116-273-1 01 1 9804-0003 ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT<A83> PASSENGER 		1-75116-599-0 01 1 0004-0004 ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT<A83> PASSENGER SEAT UNDER BOX<TDN> PASSENGER 		1-75116-592-0 01 1 0005-0105 ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT<A83> PASSENGER 		1-75116-592-1 01 1 0106- ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT<A83> EXC. PASSENGER SEAT UNDER BOX<TDN> PASSENGER 		1-75116-602-0 01 1 0005-0105 ● ● ●
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING<SFQ> PASSENGER 		1-75028-765-1 01 1 9601-9803 ● ● ●
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING<SFQ> PASSENGER 		1-75028-996-0 01 1 9804-0003 ● ● ● ●
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING<SFQ> PASSENGER 		1-75026-684-0 01 1 0004-0004 ● ● ● ●
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING<SFQ> EXC. ELEC OUTLET 12V<TAW>,DELUXE CAB(W14) PASSENGER 		1-75026-700-1 01 1 0005- ● ● ● ●
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING<SFQ> ELEC OUTLET 12V<TAW> PASSENGER 		1-75026-700-1 01 1 0005- ●
115 CUSHION ASM; PASSENGER SEAT
VINYL SEAT<A83> PASSENGER 		1-75028-800-2 01 1 9601-9803 ● ●
115 CUSHION ASM; PASSENGER SEAT
VINYL SEAT<A83> PASSENGER 		1-75028-800-2 01 1 9804-0003 ● ● ●
115 CUSHION ASM; PASSENGER SEAT
VINYL SEAT<A83> PASSENGER 		1-75026-773-0 01 1 0004-0004 ● ● ●
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING<SFQ> DELUXE CAB(W14) EXC. ELEC OUTLET 12V<TAW>,PASSENGER SEAT UNDER BOX<TDN> PASSENGER 		1-75026-783-1 01 1 0005- ● ● ● ● ●
115 CUSHION ASM; PASSENGER SEAT
VINYL SEAT<A83> PASSENGER SEAT UNDER BOX<TDN> PASSENGER 		1-75026-701-0 01 1 0005-0105 ● ● ●
115 CUSHION ASM; PASSENGER SEAT
VINYL SEAT<A83> PASSENGER 		1-75026-701-1 01 1 0106- ● ● ●
115 CUSHION ASM; PASSENGER SEAT
VINYL SEAT<A83> EXC. PASSENGER SEAT UNDER BOX<TDN> PASSENGER 		1-75026-698-0 01 1 0005-0105 ● ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING<SFQ> PASSENGER 		1-75116-298-0 01 1 9601-9803 ● ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING<SFQ> PASSENGER 		1-75116-371-0 01 1 9804-0003 ● ● ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING<SFQ> PASSENGER 		1-75116-552-0 01 1 0004-0004 ● ● ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING<SFQ> EXC. ELEC OUTLET 12V<TAW>,DELUXE CAB(W14) PASSENGER 		1-75116-688-1 01 1 0005- ● ● ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING<SFQ> ELEC OUTLET 12V<TAW> PASSENGER 		1-75116-688-1 01 1 0005- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
VINYL SEAT<A83> PASSENGER 		1-75116-319-1 01 1 9601-9803 ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
VINYL SEAT<A83> PASSENGER 		1-75116-319-1 01 1 9804-0003 ● ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
VINYL SEAT<A83> PASSENGER 		1-75116-577-0 01 1 0004-0004 ● ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING<SFQ> DELUXE CAB(W14) EXC. ELEC OUTLET 12V<TAW>,PASSENGER SEAT UNDER BOX<TDN> PASSENGER 		1-75116-690-1 01 1 0005- ● ● ● ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
VINYL SEAT<A83> PASSENGER SEAT UNDER BOX<TDN> PASSENGER 		1-75116-689-0 01 1 0005-0105 ● ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
VINYL SEAT<A83> PASSENGER 		1-75116-689-1 01 1 0106- ● ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
VINYL SEAT<A83> EXC. PASSENGER SEAT UNDER BOX<TDN> PASSENGER 		1-75116-686-0 01 1 0005-0105 ● ● ●
120 BOLT; RECLINING ADJ
PASSENGER M8X18 		8-94279-109-1 02 1 9601-9803 ● ● ●
120 BOLT; RECLINING ADJ
PASSENGER M8X18 		8-94279-109-1 02 1 9804-0003 ● ● ● ●
120 BOLT; RECLINING ADJ
PASSENGER M8X20 		8-97255-906-0 02 1 0004-0004 ● ● ● ●
120 BOLT; RECLINING ADJ
PASSENGER M8X20 		8-97255-906-0 02 1 0005- ● ● ● ● ●
122 COVER; ADJ,RECLINING
PASSENGER 		1-75418-052-0 01 1 9601-9803 ● ● ●
122 COVER; ADJ,RECLINING
PASSENGER 		1-75418-052-0 01 1 9804-0004 ● ● ● ●
122 COVER; ADJ,RECLINING
PASSENGER DARK GRAY 		8-97859-018-0 01 1 0005-0105 ● ●
122 COVER; ADJ,RECLINING
VINYL SEAT<A83> PASSENGER SEAT UNDER BOX<TDN> PASSENGER DARK GRAY 		8-97859-018-0 01 1 0005-0105 ● ● ●
122 COVER; ADJ,RECLINING
PASSENGER DARK GRAY 		8-97859-018-0 01 1 0106- ● ● ● ● ●
122 COVER; ADJ,RECLINING
VINYL SEAT<A83> EXC. PASSENGER SEAT UNDER BOX<TDN> PASSENGER DARK GRAY 		8-97867-020-0 01 1 0005-0105 ● ● ●
123 SCREW; COVER,RECLINING
PASSENGER M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9601-9803 ● ● ●
123 SCREW; COVER,RECLINING
PASSENGER M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9804-0004 ● ● ● ●
123 SCREW; COVER,RECLINING
PASSENGER M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0005- ● ● ● ● ●
126 BUSHING; HINGE,RECLINING
PASSENGER 		8-97854-087-0 01 1 9601-9803 ● ● ●
126 BUSHING; HINGE,RECLINING
PASSENGER 		8-97854-087-0 01 1 9804-0004 ● ● ● ●
126 BUSHING; HINGE,RECLINING
PASSENGER 		8-97854-087-0 01 1 0005- ● ● ● ● ●
135 NUT; SEAT STAND
M10 FLANGE 		1-09984-153-0 02 1 9601-9803 ● ● ●
135 NUT; SEAT STAND
M10 FLANGE 		1-09984-153-0 02 1 9804-0004 ● ● ● ●
135 NUT; SEAT STAND
M10 FLANGE 		1-09984-153-0 02 1 0005-0703 ● ● ● ● ●
135 NUT; SEAT STAND
M10 FLANGE 		0-91180-110-0 02 1 0704- ● ● ● ● ●
136 STAND; PASSENGER SEAT 1-75558-547-1 01 1 9601-9610 ● ● ●
136 STAND; PASSENGER SEAT
PASSENGER SEAT UNDER BOX<TDN> 		1-75558-547-2 01 1 9611-9803 ● ● ●
136 STAND; PASSENGER SEAT
PASSENGER SEAT UNDER BOX<TDN> 		1-75558-547-3 01 1 9804-0004 ● ● ● ●
136 STAND; PASSENGER SEAT
PASSENGER SEAT UNDER BOX<TDN> 		1-75558-547-6 01 1 0005-1305 ● ● ●
136 STAND; PASSENGER SEAT
VINYL SEAT<A83> PASSENGER SEAT UNDER BOX<TDN> 		1-75558-547-6 01 1 0005-1305 ●
136 STAND; PASSENGER SEAT
FABRIC SEAT W/RECLINING<SFQ> PASSENGER SEAT UNDER BOX<TDN> EXC. ELEC OUTLET 12V<TAW> 		1-75558-547-6 01 1 0005-1305 ●
136 STAND; PASSENGER SEAT
PASSENGER SEAT UNDER BOX<TDN> 		8-98242-291-0 01 1 1306- ● ● ●
136 STAND; PASSENGER SEAT
VINYL SEAT<A83> PASSENGER SEAT UNDER BOX<TDN> 		8-98242-291-0 01 1 1306- ●
136 STAND; PASSENGER SEAT
FABRIC SEAT W/RECLINING<SFQ> PASSENGER SEAT UNDER BOX<TDN> EXC. ELEC OUTLET 12V<TAW> 		8-98242-291-0 01 1 1306- ●
136 STAND; PASSENGER SEAT
EXC. PASSENGER SEAT UNDER BOX<TDN> 		1-75558-550-3 01 1 9611-9803 ● ● ●
136 STAND; PASSENGER SEAT
EXC. PASSENGER SEAT UNDER BOX<TDN> 		1-75558-550-4 01 1 9804-0004 ● ● ● ●
136 STAND; PASSENGER SEAT
EXC. PASSENGER SEAT UNDER BOX<TDN> 		1-75558-550-4 01 1 0005-0105 ● ● ●
136 STAND; PASSENGER SEAT
VINYL SEAT<A83> EXC. PASSENGER SEAT UNDER BOX<TDN> 		1-75558-550-4 01 1 0005-0105 ●
136 STAND; PASSENGER SEAT
FABRIC SEAT W/RECLINING<SFQ> EXC. ELEC OUTLET 12V<TAW>,PASSENGER SEAT UNDER BOX<TDN> 		1-75558-550-4 01 1 0005-0105 ●
136 STAND; PASSENGER SEAT
FABRIC SEAT W/RECLINING<SFQ> EXC. PASSENGER SEAT UNDER BOX<TDN> 		1-75558-550-7 01 1 0106-1305 ● ● ●
136 STAND; PASSENGER SEAT
FABRIC SEAT W/RECLINING<SFQ> EXC. ELEC OUTLET 12V<TAW>,PASSENGER SEAT UNDER BOX<TDN> 		1-75558-550-7 01 1 0106-1305 ●
136 STAND; PASSENGER SEAT 1-75558-550-7 01 1 0106-1305 ●
136 STAND; PASSENGER SEAT
FABRIC SEAT W/RECLINING<SFQ> EXC. PASSENGER SEAT UNDER BOX<TDN> 		8-98242-292-0 01 1 1306- ● ● ●
136 STAND; PASSENGER SEAT
FABRIC SEAT W/RECLINING<SFQ> EXC. ELEC OUTLET 12V<TAW>,PASSENGER SEAT UNDER BOX<TDN> 		8-98242-292-0 01 1 1306- ●
136 STAND; PASSENGER SEAT 8-98242-292-0 01 1 1306- ●
136 STAND; PASSENGER SEAT
VINYL SEAT<A83> EXC. PASSENGER SEAT UNDER BOX<TDN> 		1-75558-602-3 01 1 0106-1305 ● ● ●
136 STAND; PASSENGER SEAT
VINYL SEAT<A83> EXC. PASSENGER SEAT UNDER BOX<TDN> 		8-98242-299-0 01 1 1306- ● ● ●
136 STAND; PASSENGER SEAT
VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> ELEC OUTLET 12V<TAW> PASSENGER SEAT UNDER BOX<TDN> EXC. EURO2 SPECIFICATION<THN> 		1-75558-584-0 01 1 9811-0004 ● ●
136 STAND; PASSENGER SEAT
FABRIC SEAT W/RECLINING<SFQ> ELEC OUTLET 12V<TAW> PASSENGER SEAT UNDER BOX<TDN> 		1-75558-584-0 01 1 0005-0101 ●
136 STAND; PASSENGER SEAT
FABRIC SEAT W/RECLINING<SFQ> ELEC OUTLET 12V<TAW> PASSENGER SEAT UNDER BOX<TDN> 		1-75558-603-3 01 1 0102-1305 ●
136 STAND; PASSENGER SEAT
FABRIC SEAT W/RECLINING<SFQ> ELEC OUTLET 12V<TAW> PASSENGER SEAT UNDER BOX<TDN> 		8-98242-300-0 01 1 1306- ●
136 STAND; PASSENGER SEAT
VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> ELEC OUTLET 12V<TAW> EXC. PASSENGER SEAT UNDER BOX<TDN> 		1-75558-585-0 01 1 9811-9909 ● ●
136 STAND; PASSENGER SEAT
FABRIC SEAT W/RECLINING<SFQ> ELEC OUTLET 12V<TAW> EXC. CUSTOM CAB(SR5),PASSENGER SEAT UNDER BOX<TDN> 		1-75558-585-0 01 1 9910-0004 ● ●
136 STAND; PASSENGER SEAT
CUSTOM CAB(SR5) EXC. PASSENGER SEAT UNDER BOX<TDN> 		1-75558-585-0 01 1 9910-0004 ● ●
136 STAND; PASSENGER SEAT
VINYL SEAT<A83> ELEC OUTLET 12V<TAW> EXC. PASSENGER SEAT UNDER BOX<TDN> 		1-75558-585-0 01 1 9910-0004 ● ●
136 STAND; PASSENGER SEAT
FABRIC SEAT W/RECLINING<SFQ> ELEC OUTLET 12V<TAW> EXC. PASSENGER SEAT UNDER BOX<TDN> 		1-75558-585-0 01 1 0005-0101 ●
136 STAND; PASSENGER SEAT
FABRIC SEAT W/RECLINING<SFQ> ELEC OUTLET 12V<TAW> EXC. PASSENGER SEAT UNDER BOX<TDN> 		1-75558-601-3 01 1 0102-0605 ●
136 STAND; PASSENGER SEAT
NEW ZEALAND EQUIPMENT(PK5) FABRIC SEAT W/RECLINING<SFQ> ELEC OUTLET 12V<TAW> EXC. PASSENGER SEAT UNDER BOX<TDN>,DELUXE CAB(W14) 		1-75558-601-3 01 1 0606-1305 ●
136 STAND; PASSENGER SEAT
FABRIC SEAT W/RECLINING<SFQ> ELEC OUTLET 12V<TAW> EXC. NEW ZEALAND EQUIPMENT(PK5),DRIVER ISRINGHAUSEN SEAT<SJA>,PASSENGER SEAT UNDER BOX<TDN>,DE LUXE CAB(W14) 		1-75558-601-3 01 1 0606-1305 ●
136 STAND; PASSENGER SEAT
NEW ZEALAND EQUIPMENT(PK5) FABRIC SEAT W/RECLINING<SFQ> ELEC OUTLET 12V<TAW> EXC. PASSENGER SEAT UNDER BOX<TDN>,DELUXE CAB(W14) 		8-98242-298-0 01 1 1306- ●
136 STAND; PASSENGER SEAT
FABRIC SEAT W/RECLINING<SFQ> ELEC OUTLET 12V<TAW> EXC. NEW ZEALAND EQUIPMENT(PK5),DRIVER ISRINGHAUSEN SEAT<SJA>,PASSENGER SEAT UNDER BOX<TDN>,DE LUXE CAB(W14) 		8-98242-298-0 01 1 1306- ●
137 BOLT; STAND
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 9601-9803 ● ● ●
137 BOLT; STAND
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 9804-0004 ● ● ● ●
137 BOLT; STAND
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0005-0703 ● ● ● ● ●
137 BOLT; STAND
M10X20 FLANGE 		0-28451-020-0 02 1 0704- ● ● ● ● ●
211 COVER; FRT SEAT
FABRIC SEAT W/RECLINING<SFQ> DELUXE CAB(W14) EXC. ELEC OUTLET 12V<TAW>,PASSENGER SEAT UNDER BOX<TDN> PASSENGER 		1-72538-274-0 01 1 0005- ● ● ● ● ●
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 9601-9803 ● ● ●
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 9804-0004 ● ● ● ●
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 9804-0004 ● ● ● ●
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 0005-0710 ● ● ● ● ●
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 0005-0710 ● ● ● ●
228 SCREW; KNOB
PASSENGER M4X6 		8-97042-273-0 01 1 0711- ● ● ● ● ●
228 SCREW; KNOB
DRIVER M4 		8-98062-662-0 01 1 0711- ● ● ● ● ●
327 CLIP; COVER
DELUXE CAB(W14) 		1-09987-249-0 02 1 9601-9803 ● ● ●
327 CLIP; COVER
DELUXE CAB(W14) 		1-09987-249-0 02 1 9804-0004 ● ● ● ●
327 CLIP; COVER
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-09987-273-0 02 1 0005- ● ● ● ●
327 CLIP; COVER
FABRIC SEAT W/RECLINING<SFQ> DELUXE CAB(W14) EXC. ELEC OUTLET 12V<TAW>,PASSENGER SEAT UNDER BOX<TDN> 		1-09987-273-0 02 1 0005- ● ● ● ●
327 CLIP; COVER 1-09987-273-0 02 1 0005- ●
327 CLIP; COVER 1-09987-273-0 02 1 0005- ●
327 CLIP; COVER
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) DELUXE CAB(W14) 		1-09987-273-0 01 1 0005- ● ● ●
327 CLIP; COVER
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75538-197-0 01 1 9811-0010 ● ●
327 CLIP; COVER
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75538-197-0 01 1 0011- ● ●
392 COVER; STAND,PASSENGER SEAT
EXC. PASSENGER SEAT UNDER BOX<TDN> 		1-75558-523-3 01 1 9611-9803 ● ● ●
392 COVER; STAND,PASSENGER SEAT
EXC. PASSENGER SEAT UNDER BOX<TDN> 		1-75558-523-4 01 1 9804-0004 ● ● ● ●
392 COVER; STAND,PASSENGER SEAT
EXC. PASSENGER SEAT UNDER BOX<TDN> 		1-75558-523-4 01 1 0005-0111 ● ● ● ●
392 COVER; STAND,PASSENGER SEAT 1-75558-523-4 01 1 0005-0111 ●
392 COVER; STAND,PASSENGER SEAT
EXC. PASSENGER SEAT UNDER BOX<TDN> 		1-75558-556-1 01 1 0112- ● ● ● ●
392 COVER; STAND,PASSENGER SEAT 1-75558-556-1 01 1 0112- ●
393 BOLT; COVER,SEAT STAND
EXC. PASSENGER SEAT UNDER BOX<TDN> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9611-9803 ● ● ●
393 BOLT; COVER,SEAT STAND
EXC. PASSENGER SEAT UNDER BOX<TDN> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9804-0004 ● ● ● ●
393 BOLT; COVER,SEAT STAND
EXC. PASSENGER SEAT UNDER BOX<TDN> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0005-0703 ● ● ● ●
393 BOLT; COVER,SEAT STAND
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0005-0703 ●
393 BOLT; COVER,SEAT STAND
EXC. PASSENGER SEAT UNDER BOX<TDN> M6X16 		0-52000-616-0 03 1 0704- ● ● ● ●
393 BOLT; COVER,SEAT STAND
M6X16 		0-52000-616-0 03 1 0704- ●
493 BOX; SEAT STAND
PASSENGER SEAT UNDER BOX<TDN> 		1-72537-130-1 01 1 9601-9803 ● ● ●
493 BOX; SEAT STAND
PASSENGER SEAT UNDER BOX<TDN> 		1-72537-130-1 01 1 9804- ● ● ● ●
494 RAIL; GUIDE
PASSENGER SEAT UNDER BOX<TDN> (A) 		1-72537-149-0 01 1 9601-9803 ● ● ●
494 RAIL; GUIDE
PASSENGER SEAT UNDER BOX<TDN> (A) 		1-72537-149-0 01 1 9804- ● ● ● ●
494 RAIL; GUIDE
PASSENGER SEAT UNDER BOX<TDN> (B) 		1-72537-150-0 01 1 9601-9803 ● ● ●
494 RAIL; GUIDE
PASSENGER SEAT UNDER BOX<TDN> (B) 		1-72537-150-0 01 1 9804- ● ● ● ●
503 COVER; BOX
PASSENGER SEAT UNDER BOX<TDN> 		1-72537-136-0 01 1 9601-9803 ● ● ●
503 COVER; BOX
PASSENGER SEAT UNDER BOX<TDN> 		1-72537-136-0 01 1 9804- ● ● ● ●
515 CLIP; PIPE
FABRIC SEAT W/RECLINING<SFQ> DELUXE CAB(W14) EXC. ELEC OUTLET 12V<TAW>,PASSENGER SEAT UNDER BOX<TDN> BLACK 		8-94227-248-1 01 1 0005- ● ● ● ● ●
çizim 184289
588
BalonParca AdiParca NoAdetTipApplied Date A B C D E
588 REPAIR KIT; SUSPENSION
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75538-202-0 01 1 9811-0010 ● ●
588 REPAIR KIT; SUSPENSION
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75538-202-0 01 1 0011- ● ●
çizim 184291
542 518 529 158 471 201 158 201 63 63 306 306
BalonParca AdiParca NoAdetTipApplied Date A B C D E
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-199-0 01 1 9601-9803 ● ● ●
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-199-0 01 1 9804-9804 ● ● ● ●
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-199-1 01 1 0005- ● ● ● ● ●
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-198-0 01 1 9601-9705 ● ● ●
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-294-0 01 1 9706-9803 ● ● ●
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-294-0 01 1 9804-9804 ● ● ● ●
63 ADJUSTER; SEAT SLIDE
EXC. DELUXE CAB(W14) (A) 		1-75518-294-1 01 1 0001- ● ● ● ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (B) 		1-75518-323-0 01 1 0005- ● ● ● ●
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-323-0 01 1 0005- ●
63 ADJUSTER; SEAT SLIDE
DELUXE CAB(W14) (A) 		1-75518-321-0 01 1 0001-0004 ● ● ● ●
63 ADJUSTER; SEAT SLIDE
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75518-315-0 01 1 9811-0010 ● ●
63 ADJUSTER; SEAT SLIDE
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75518-315-0 01 1 0011- ● ●
158 BUSHING; LINK ARM 1-75518-209-0 02 1 9601-9803 ● ● ●
158 BUSHING; LINK ARM 1-75518-209-0 02 1 9804-0004 ● ● ● ●
158 BUSHING; LINK ARM 1-75518-209-0 02 1 0005- ● ● ● ● ●
201 CABLE; ADJ
(B) L=667 		1-75518-201-0 01 1 9601-9705 ● ● ●
201 CABLE; ADJ
(B) L=667 		1-75518-288-0 01 1 9706-9803 ● ● ●
201 CABLE; ADJ
(B) L=667 		1-75518-288-0 01 1 9804-0004 ● ● ● ●
201 CABLE; ADJ
(B) L=667 		1-75518-288-0 01 1 0005- ● ● ● ● ●
201 CABLE; ADJ
(A) L=605 		1-75518-202-1 01 1 9601-9705 ● ● ●
201 CABLE; ADJ
(A) L=605 		1-75518-289-0 01 1 9706-9803 ● ● ●
201 CABLE; ADJ
(A) L=605 		1-75518-289-1 01 1 9804-0004 ● ● ● ●
201 CABLE; ADJ
(A) L=605 		1-75518-289-1 01 1 0005- ● ● ● ● ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 18 1 0502- ● ● ●
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		1-75538-207-0 04 1 0502- ● ● ●
306 NUT; SEAT ADJ
M8 FLANGE 		8-94279-518-0 04 1 9601-9803 ● ● ●
306 NUT; SEAT ADJ
DELUXE CAB(W14) M8 FLANGE 		8-94279-518-0 12 1 9804-9912 ● ● ● ●
306 NUT; SEAT ADJ
DELUXE CAB(W14) M8 FLANGE 		8-94279-518-0 14 1 0001-0003 ● ● ● ●
306 NUT; SEAT ADJ
EXC. DELUXE CAB(W14) M8 FLANGE 		8-94279-518-0 04 1 9804-9804 ● ● ● ●
306 NUT; SEAT ADJ
DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 14 1 0004-0004 ● ● ● ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 06 1 0005-0501 ● ● ● ●
306 NUT; SEAT ADJ
M8 FLANGE 		1-75538-207-0 06 1 0005-0501 ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) EXC. DRIVING POSITION WIDE LEG SPACE(PR2) M8 FLANGE 		1-75538-207-0 14 1 0502- ● ● ● ● ●
306 NUT; SEAT ADJ
EXC. DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 04 1 0004-0501 ● ● ● ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 12 1 0502- ● ● ● ●
471 LEVER; SEAT ADJ 1-75518-205-1 01 1 9601-9705 ● ● ●
471 LEVER; SEAT ADJ
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-205-1 01 1 9706-9803 ● ●
471 LEVER; SEAT ADJ
DRIVING POSITION WIDE LEG SPACE(PR2) RIGID SEAT WO/ARM REST<TAZ> 		1-75518-205-1 01 1 9706-9803 ● ●
471 LEVER; SEAT ADJ
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75518-205-1 01 1 9804-0003 ● ● ●
471 LEVER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14) 		1-75518-291-0 01 1 9706-9803 ● ● ●
471 LEVER; SEAT ADJ
DELUXE CAB(W14) 		1-75518-291-0 01 1 9706-9803 ● ● ●
471 LEVER; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2),HIGH ROOF<S2F> 		1-75518-291-0 01 1 9706-9803 ● ●
471 LEVER; SEAT ADJ
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75518-291-0 01 1 9706-9803 ● ●
471 LEVER; SEAT ADJ 1-75518-291-0 01 1 9804-9804 ●
471 LEVER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> 		1-75518-291-0 01 1 9804-9804 ● ● ●
471 LEVER; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> 		1-75518-291-0 01 1 9804-9804 ● ●
471 LEVER; SEAT ADJ 1-75518-291-0 01 1 9805-0003 ●
471 LEVER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> ,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75518-291-0 01 1 9805-0003 ● ●
471 LEVER; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> 		1-75518-291-0 01 1 9805-0003 ● ●
471 LEVER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> 		1-75518-291-0 01 1 9805-0003 ●
471 LEVER; SEAT ADJ 1-75518-291-0 01 1 0004-0004 ● ● ● ●
471 LEVER; SEAT ADJ 1-75518-291-0 01 1 0005-0710 ● ● ● ● ●
471 LEVER; SEAT ADJ 8-98107-869-0 01 1 0711- ● ● ● ● ●
518 NUT; TILT ADJ
DELUXE CAB(W14) (A) 		1-75518-263-0 01 1 9603-9705 ● ● ●
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 9706-9803 ● ● ●
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 9804-0004 ● ● ● ●
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 0005- ● ● ● ● ●
518 NUT; TILT ADJ
DELUXE CAB(W14) (C) M8 		1-75518-264-0 04 1 9603-9803 ● ● ●
518 NUT; TILT ADJ
DELUXE CAB(W14) (C) M8 		1-75518-264-0 04 1 9804-0004 ● ● ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (C) M8 		1-75518-264-0 04 1 0005- ● ● ● ●
518 NUT; TILT ADJ
(C) M8 		1-75518-264-0 04 1 0005- ●
518 NUT; TILT ADJ
DELUXE CAB(W14) (D) M6 LOCK NUT 		5-09984-020-0 02 1 9603-9803 ● ● ●
518 NUT; TILT ADJ
DELUXE CAB(W14) (D) M6 LOCK NUT 		5-09984-020-0 02 1 9804-0004 ● ● ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0005- ● ● ● ●
518 NUT; TILT ADJ
(D) M6 LOCK NUT 		5-09984-020-0 02 1 0005- ●
518 NUT; TILT ADJ
DELUXE CAB(W14) (B) M8 FLANGE 		8-94152-886-0 04 1 9603-9803 ● ● ●
518 NUT; TILT ADJ
DELUXE CAB(W14) (B) M8 FLANGE 		8-94152-886-0 04 1 9804-0004 ● ● ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (B) M8 FLANGE 		8-94152-886-0 04 1 0005- ● ● ● ●
518 NUT; TILT ADJ
(B) M8 FLANGE 		8-94152-886-0 04 1 0005- ●
529 PIN; LINK
DELUXE CAB(W14) 		1-75518-262-0 01 1 9603-9705 ● ● ●
529 PIN; LINK 1-75518-262-0 01 1 9706-9803 ● ● ●
529 PIN; LINK 1-75518-262-0 01 1 9804-0004 ● ● ● ●
529 PIN; LINK 1-75518-262-0 01 1 0005- ● ● ● ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) EXC. DELUXE CAB(W14) 		1-75518-191-1 01 1 9601-9607 ● ●
542 ADJUSTER ASM; SEAT SLIDE
DRIVING POSITION WIDE LEG SPACE(PR2) HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75518-191-1 01 1 9601-9607 ● ●
542 ADJUSTER ASM; SEAT SLIDE
DRIVING POSITION WIDE LEG SPACE(PR2) HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75518-191-2 01 1 9608-9705 ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75518-191-2 01 1 9608-9705 ● ●
542 ADJUSTER ASM; SEAT SLIDE
DRIVING POSITION WIDE LEG SPACE(PR2) HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75518-284-0 01 1 9706-9803 ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75518-284-0 01 1 9706-9803 ● ●
542 ADJUSTER ASM; SEAT SLIDE
DRIVING POSITION WIDE LEG SPACE(PR2) HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75518-284-3 01 1 9804-1502 ● ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75518-284-3 01 1 9804-1502 ● ● ●
542 ADJUSTER ASM; SEAT SLIDE
DRIVING POSITION WIDE LEG SPACE(PR2) HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		8-98291-657-0 01 1 1503- ● ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		8-98291-657-0 01 1 1503- ● ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> EXC. HIGH ROOF<S2F>,DELUXE CAB(W14) 		1-75518-192-1 01 1 9601-9603 ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DRIVING POSITION WIDE LEG SPACE(PR2), DELUXE CAB(W14) 		1-75518-192-1 01 1 9601-9603 ● ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-192-1 01 1 9601-9603 ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> EXC. HIGH ROOF<S2F>,DELUXE CAB(W14) 		1-75518-192-2 01 1 9604-9609 ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DRIVING POSITION WIDE LEG SPACE(PR2), DELUXE CAB(W14) 		1-75518-192-2 01 1 9604-9609 ● ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-192-2 01 1 9604-9609 ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14) 		1-75518-192-2 01 1 9610-9705 ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> EXC. HIGH ROOF<S2F>,DELUXE CAB(W14) 		1-75518-192-2 01 1 9610-9705 ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DRIVING POSITION WIDE LEG SPACE(PR2), DELUXE CAB(W14) 		1-75518-192-2 01 1 9610-9705 ● ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-192-2 01 1 9610-9705 ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14) 		1-75518-282-0 01 1 9706-9803 ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> EXC. HIGH ROOF<S2F>,DELUXE CAB(W14) 		1-75518-282-0 01 1 9706-9803 ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DRIVING POSITION WIDE LEG SPACE(PR2), DELUXE CAB(W14) 		1-75518-282-0 01 1 9706-9803 ● ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-282-0 01 1 9706-9803 ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14) 		1-75518-282-1 01 1 9804-0004 ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-282-1 01 1 9804-0004 ● ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75518-282-1 01 1 9804-0004 ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DRIVING POSITION WIDE LEG SPACE(PR2), DELUXE CAB(W14) 		1-75518-282-1 01 1 9804-0004 ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> EXC. DRIVING POSITION WIDE LEG SPACE(PR2), DELUXE CAB(W14) 		1-75518-282-1 01 1 9804-0004 ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DRIVING POSITION WIDE LEG SPACE(PR2), DELUXE CAB(W14) 		1-75518-282-3 01 1 0005-1502 ● ● ● ●
542 ADJUSTER ASM; SEAT SLIDE
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-75518-282-3 01 1 0005-1502 ● ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DRIVING POSITION WIDE LEG SPACE(PR2), DELUXE CAB(W14) 		8-98291-655-0 01 1 1503- ● ● ● ●
542 ADJUSTER ASM; SEAT SLIDE
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		8-98291-655-0 01 1 1503- ● ● ●
542 ADJUSTER ASM; SEAT SLIDE
DRIVING POSITION WIDE LEG SPACE(PR2) RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> 		1-75518-218-2 01 1 9601-9705 ● ●
542 ADJUSTER ASM; SEAT SLIDE
DRIVING POSITION WIDE LEG SPACE(PR2) RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F> 		1-75518-286-1 01 1 9706-0004 ● ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75518-286-3 01 1 0005-1502 ● ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		8-98291-659-0 01 1 1503- ● ●
542 ADJUSTER ASM; SEAT SLIDE
DRIVING POSITION WIDE LEG SPACE(PR2) SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75518-231-1 01 1 9601-9603 ● ●
542 ADJUSTER ASM; SEAT SLIDE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75518-231-2 01 1 9604-9705 ● ●
542 ADJUSTER ASM; SEAT SLIDE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75518-285-0 01 1 9706-9803 ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR CONTROL SEAT<A60> 		1-75518-285-0 01 1 9804-9804 ● ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75518-285-1 01 1 9805-0004 ● ●
542 ADJUSTER ASM; SEAT SLIDE
AIR CONTROL SEAT<A60> 		1-75518-285-1 01 1 9805-0004 ●
çizim 184294
78 84 62 80 423 84 78 80 88 85 79 85 84 87 76 86 87 84 88 77 419 86 77 79 85 88 78 79 83 88 85 419 79 472 86 472 78 91 420 425 64 423 78 77 78 419
BalonParca AdiParca NoAdetTipApplied Date A B C D E
62 DAMPER ASM; SEAT SUSP
(B) 		1-75538-152-1 01 1 9601-9602 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-152-1 01 1 9601-9602 ● ●
62 DAMPER ASM; SEAT SUSP
(B) 		1-75538-156-0 01 1 9603-9712 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-156-0 01 1 9603-9712 ● ●
62 DAMPER ASM; SEAT SUSP
(B) 		1-75538-167-0 01 1 9801-9803 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-167-0 01 1 9801-9803 ● ●
62 DAMPER ASM; SEAT SUSP
(B) 		1-75538-167-0 01 1 9804-9804 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-167-0 01 1 9804-9804 ● ● ●
62 DAMPER ASM; SEAT SUSP
(B) 		1-75538-180-0 01 1 9805-9811 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-180-0 01 1 9805-9811 ● ● ●
62 DAMPER ASM; SEAT SUSP
(B) 		1-75538-183-2 01 1 9812-0004 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-183-2 01 1 9812-0004 ● ● ●
62 DAMPER ASM; SEAT SUSP
(B) 		1-75538-183-8 01 1 0005-1403 ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-183-8 01 1 0005-1403 ● ● ●
62 DAMPER ASM; SEAT SUSP
(B) 		8-98261-448-0 01 1 1404- ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		8-98261-448-0 01 1 1404- ● ● ●
62 DAMPER ASM; SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-142-2 01 1 9601-9603 ● ●
62 DAMPER ASM; SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-164-0 01 1 9604-9803 ● ●
62 DAMPER ASM; SEAT SUSP
AIR CONTROL SEAT<A60> (A) 		1-75538-164-0 01 1 9804-9804 ● ● ●
62 DAMPER ASM; SEAT SUSP
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-164-0 01 1 9805-0004 ● ●
62 DAMPER ASM; SEAT SUSP
AIR CONTROL SEAT<A60> (A) 		1-75538-164-0 01 1 9805-0004 ●
62 DAMPER ASM; SEAT SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75538-198-0 01 1 9811-0010 ● ●
62 DAMPER ASM; SEAT SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75538-198-0 01 1 0011- ● ●
64 STOPPER; LWR,SUSPENSION DEVICE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75530-080-0 01 1 9601-9803 ● ●
64 STOPPER; LWR,SUSPENSION DEVICE
AIR CONTROL SEAT<A60> 		1-75530-080-0 01 1 9804-9804 ● ● ●
64 STOPPER; LWR,SUSPENSION DEVICE
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75530-080-0 01 1 9805-0004 ● ●
64 STOPPER; LWR,SUSPENSION DEVICE
AIR CONTROL SEAT<A60> 		1-75530-080-0 01 1 9805-0004 ●
76 DAMPER; AIR SUSP
(B) 		1-75538-139-0 01 1 9601-9803 ●
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-139-0 01 1 9601-9803 ● ●
76 DAMPER; AIR SUSP
(B) 		1-75538-139-0 01 1 9804-0004 ●
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-139-0 01 1 9804-0004 ● ● ●
76 DAMPER; AIR SUSP
(B) 		1-75538-139-0 01 1 0005- ● ●
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-139-0 01 1 0005- ● ● ●
76 DAMPER; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-073-0 01 1 9601-9603 ● ●
76 DAMPER; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-166-0 01 1 9604-9803 ● ●
76 DAMPER; AIR SUSP
AIR CONTROL SEAT<A60> (A) 		1-75538-166-0 01 1 9804-9804 ● ● ●
76 DAMPER; AIR SUSP
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-166-0 01 1 9805-0004 ● ●
76 DAMPER; AIR SUSP
AIR CONTROL SEAT<A60> (A) 		1-75538-166-0 01 1 9805-0004 ●
76 DAMPER; AIR SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75538-201-0 01 1 9811-0010 ● ●
76 DAMPER; AIR SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75538-201-0 01 1 0011- ● ●
77 PIN; DAMPER
(C) 		1-75538-138-2 01 1 9601-9803 ●
77 PIN; DAMPER
AIR SUSP DRIVER SEAT<A56> (C) 		1-75538-138-2 01 1 9601-9803 ● ●
77 PIN; DAMPER
(C) 		1-75538-138-2 01 1 9804-0004 ●
77 PIN; DAMPER
AIR SUSP DRIVER SEAT<A56> (C) 		1-75538-138-2 01 1 9804-0004 ● ● ●
77 PIN; DAMPER
(C) 		1-75538-138-2 01 1 0005- ● ●
77 PIN; DAMPER
AIR SUSP DRIVER SEAT<A56> (C) 		1-75538-138-2 01 1 0005- ● ● ●
77 PIN; DAMPER
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-040-0 02 1 9601-9803 ● ●
77 PIN; DAMPER
AIR CONTROL SEAT<A60> (A) 		1-75530-040-0 02 1 9804-9804 ● ● ●
77 PIN; DAMPER
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-040-0 02 1 9805-0004 ● ●
77 PIN; DAMPER
AIR CONTROL SEAT<A60> (A) 		1-75530-040-0 02 1 9805-0004 ●
77 PIN; DAMPER
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-065-0 01 1 9601-9803 ● ●
77 PIN; DAMPER
AIR CONTROL SEAT<A60> (B) 		1-75530-065-0 01 1 9804-9804 ● ● ●
77 PIN; DAMPER
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-065-0 01 1 9805-0004 ● ●
77 PIN; DAMPER
AIR CONTROL SEAT<A60> (B) 		1-75530-065-0 01 1 9805-0004 ●
78 RING; SNAP
(C) ID=8 		9-09185-408-0 01 1 9601-9803 ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (C) ID=8 		9-09185-408-0 01 1 9601-9803 ● ●
78 RING; SNAP
(C) ID=8 		9-09185-408-0 01 1 9804-0004 ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (C) ID=8 		9-09185-408-0 01 1 9804-0004 ● ● ●
78 RING; SNAP
(C) ID=8 		9-09185-408-0 01 1 0005- ● ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (C) ID=8 		9-09185-408-0 01 1 0005- ● ● ●
78 RING; SNAP
(D) ID=10 		9-09185-410-0 02 1 9601-9803 ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (D) ID=10 		9-09185-410-0 02 1 9601-9803 ● ●
78 RING; SNAP
(D) ID=10 		9-09185-410-0 02 1 9804-0004 ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (D) ID=10 		9-09185-410-0 02 1 9804-0004 ● ● ●
78 RING; SNAP
(D) ID=10 		9-09185-410-0 02 1 0005-0406 ● ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (D) ID=10 		9-09185-410-0 02 1 0005-0406 ● ● ●
78 RING; SNAP
(E) ID=15 		9-09185-415-0 01 1 9601-9803 ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (E) ID=15 		9-09185-415-0 01 1 9601-9803 ● ●
78 RING; SNAP
(E) ID=15 		9-09185-415-0 01 1 9804-0004 ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (E) ID=15 		9-09185-415-0 01 1 9804-0004 ● ● ●
78 RING; SNAP
(E) ID=15 		9-09185-415-0 01 1 0005- ● ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (E) ID=15 		9-09185-415-0 01 1 0005- ● ● ●
78 RING; SNAP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-066-0 04 1 9601-9803 ● ●
78 RING; SNAP
AIR CONTROL SEAT<A60> (A) 		1-75530-066-0 04 1 9804-9804 ● ● ●
78 RING; SNAP
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-066-0 04 1 9805-0004 ● ●
78 RING; SNAP
AIR CONTROL SEAT<A60> (A) 		1-75530-066-0 04 1 9805-0004 ●
78 RING; SNAP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-069-0 02 1 9601-9803 ● ●
78 RING; SNAP
AIR CONTROL SEAT<A60> (B) 		1-75530-069-0 02 1 9804-9804 ● ● ●
78 RING; SNAP
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-069-0 02 1 9805-0004 ● ●
78 RING; SNAP
AIR CONTROL SEAT<A60> (B) 		1-75530-069-0 02 1 9805-0004 ●
79 ROLLER ASM; AIR SUSP
(B) 		1-75538-155-0 04 1 9601-9602 ●
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-155-0 04 1 9601-9602 ● ●
79 ROLLER ASM; AIR SUSP
(B) 		1-75538-159-0 04 1 9603-9803 ●
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-159-0 04 1 9603-9803 ● ●
79 ROLLER ASM; AIR SUSP
(B) 		1-75538-159-0 04 1 9804-0004 ●
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-159-0 04 1 9804-0004 ● ● ●
79 ROLLER ASM; AIR SUSP
(B) 		1-75538-159-0 04 1 0005-1403 ● ●
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-159-0 04 1 0005-1403 ● ● ●
79 ROLLER ASM; AIR SUSP
(B) 		8-98261-489-0 04 1 1404- ● ●
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		8-98261-489-0 04 1 1404- ● ● ●
79 ROLLER ASM; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-043-0 04 1 9601-9803 ● ●
79 ROLLER ASM; AIR SUSP
AIR CONTROL SEAT<A60> (A) 		1-75530-043-0 04 1 9804-9804 ● ● ●
79 ROLLER ASM; AIR SUSP
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-043-0 04 1 9805-0004 ● ●
79 ROLLER ASM; AIR SUSP
AIR CONTROL SEAT<A60> (A) 		1-75530-043-0 04 1 9805-0004 ●
80 RUBBER; STOPPER
(C) 		1-72538-187-0 02 1 1007- ● ●
80 RUBBER; STOPPER
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (C) 		1-72538-187-0 02 1 1007- ● ● ●
80 RUBBER; STOPPER
(B) 		1-09987-123-0 01 1 9601-9803 ●
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT<A56> (B) 		1-09987-123-0 01 1 9601-9803 ● ●
80 RUBBER; STOPPER
(B) 		1-09987-123-0 01 1 9804-0004 ●
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT<A56> (B) 		1-09987-123-0 01 1 9804-0004 ● ● ●
80 RUBBER; STOPPER
(B) 		1-09987-123-0 01 1 0005- ● ●
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT<A56> (B) 		1-09987-123-0 01 1 0005- ● ● ●
80 RUBBER; STOPPER
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-062-0 02 1 9601-9803 ● ●
80 RUBBER; STOPPER
AIR CONTROL SEAT<A60> (A) 		1-75530-062-0 02 1 9804-9804 ● ● ●
80 RUBBER; STOPPER
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-062-0 02 1 9805-0004 ● ●
80 RUBBER; STOPPER
AIR CONTROL SEAT<A60> (A) 		1-75530-062-0 02 1 9805-0004 ●
83 PIN; LOW & UPR
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75530-070-0 01 1 9601-9803 ● ●
83 PIN; LOW & UPR
AIR CONTROL SEAT<A60> 		1-75530-070-0 01 1 9804-9804 ● ● ●
83 PIN; LOW & UPR
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75530-070-0 01 1 9805-0004 ● ●
83 PIN; LOW & UPR
AIR CONTROL SEAT<A60> 		1-75530-070-0 01 1 9805-0004 ●
84 NUT; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-042-0 02 1 9601-9803 ● ●
84 NUT; AIR SUSP
AIR CONTROL SEAT<A60> (A) 		1-75530-042-0 02 1 9804-9804 ● ● ●
84 NUT; AIR SUSP
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-042-0 02 1 9805-0004 ● ●
84 NUT; AIR SUSP
AIR CONTROL SEAT<A60> (A) 		1-75530-042-0 02 1 9805-0004 ●
84 NUT; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-063-0 02 1 9601-9803 ● ●
84 NUT; AIR SUSP
AIR CONTROL SEAT<A60> (B) 		1-75530-063-0 02 1 9804-9804 ● ● ●
84 NUT; AIR SUSP
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-063-0 02 1 9805-0004 ● ●
84 NUT; AIR SUSP
AIR CONTROL SEAT<A60> (B) 		1-75530-063-0 02 1 9805-0004 ●
85 BOLT; AIR SUSP
(F) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1401- ● ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (F) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1401- ● ● ●
85 BOLT; AIR SUSP
(C) M6X12 W/LK WASHER 		0-50040-612-0 02 1 9601-9803 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (C) M6X12 W/LK WASHER 		0-50040-612-0 02 1 9601-9803 ● ●
85 BOLT; AIR SUSP
(C) M6X12 W/LK WASHER 		0-50040-612-0 02 1 9804-0004 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (C) M6X12 W/LK WASHER 		0-50040-612-0 02 1 9804-0004 ● ● ●
85 BOLT; AIR SUSP
(C) M6X12 		1-75538-208-1 02 1 0005- ● ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (C) M6X12 		1-75538-208-1 02 1 0005- ● ● ●
85 BOLT; AIR SUSP
(D) M8X20 W/LK&PL WASHER 		0-50140-820-0 03 1 9601-9803 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (D) M8X20 W/LK&PL WASHER 		0-50140-820-0 03 1 9601-9803 ● ●
85 BOLT; AIR SUSP
(D) M8X20 W/LK&PL WASHER 		0-50140-820-0 03 1 9804-0003 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (D) M8X20 W/LK&PL WASHER 		0-50140-820-0 03 1 9804-0003 ● ● ●
85 BOLT; AIR SUSP
(D) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 0004-0004 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (D) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 0004-0004 ● ● ●
85 BOLT; AIR SUSP
(D) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 0005-1312 ● ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (D) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 0005-1312 ● ● ●
85 BOLT; AIR SUSP
(D) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1401- ● ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (D) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1401- ● ● ●
85 BOLT; AIR SUSP
(E) 		1-09980-577-0 01 1 9601-9803 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (E) 		1-09980-577-0 01 1 9601-9803 ● ●
85 BOLT; AIR SUSP
(E) 		1-09980-577-0 01 1 9804-0004 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (E) 		1-09980-577-0 01 1 9804-0004 ● ● ●
85 BOLT; AIR SUSP
(E) 		1-09980-577-1 01 1 0005- ● ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (E) 		1-09980-577-1 01 1 0005- ● ● ●
85 BOLT; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-048-0 02 1 9601-9803 ● ●
85 BOLT; AIR SUSP
AIR CONTROL SEAT<A60> (A) 		1-75530-048-0 02 1 9804-9804 ● ● ●
85 BOLT; AIR SUSP
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-048-0 02 1 9805-0004 ● ●
85 BOLT; AIR SUSP
AIR CONTROL SEAT<A60> (A) 		1-75530-048-0 02 1 9805-0004 ●
85 BOLT; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-068-0 02 1 9601-9803 ● ●
85 BOLT; AIR SUSP
AIR CONTROL SEAT<A60> (B) 		1-75530-068-0 02 1 9804-9804 ● ● ●
85 BOLT; AIR SUSP
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-068-0 02 1 9805-0004 ● ●
85 BOLT; AIR SUSP
AIR CONTROL SEAT<A60> (B) 		1-75530-068-0 02 1 9805-0004 ●
86 BUSHING; GUIDE
(C) OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 9601-9803 ●
86 BUSHING; GUIDE
AIR SUSP DRIVER SEAT<A56> (C) OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 9601-9803 ● ●
86 BUSHING; GUIDE
(C) OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 9804-0004 ●
86 BUSHING; GUIDE
AIR SUSP DRIVER SEAT<A56> (C) OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 9804-0004 ● ● ●
86 BUSHING; GUIDE
(C) OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 0005- ● ●
86 BUSHING; GUIDE
AIR SUSP DRIVER SEAT<A56> (C) OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 0005- ● ● ●
86 BUSHING; GUIDE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-041-0 02 1 9601-9803 ● ●
86 BUSHING; GUIDE
AIR CONTROL SEAT<A60> (A) 		1-75530-041-0 02 1 9804-9804 ● ● ●
86 BUSHING; GUIDE
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-041-0 02 1 9805-0004 ● ●
86 BUSHING; GUIDE
AIR CONTROL SEAT<A60> (A) 		1-75530-041-0 02 1 9805-0004 ●
86 BUSHING; GUIDE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-071-0 01 1 9601-9803 ● ●
86 BUSHING; GUIDE
AIR CONTROL SEAT<A60> (B) 		1-75530-071-0 01 1 9804-9804 ● ● ●
86 BUSHING; GUIDE
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-071-0 01 1 9805-0004 ● ●
86 BUSHING; GUIDE
AIR CONTROL SEAT<A60> (B) 		1-75530-071-0 01 1 9805-0004 ●
87 WASHER; AIR SUSP
(B) ID=8.2 		9-09150-508-0 01 1 9601-9803 ●
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) ID=8.2 		9-09150-508-0 01 1 9601-9803 ● ●
87 WASHER; AIR SUSP
(B) ID=8.2 		9-09150-508-0 01 1 9804-0004 ●
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) ID=8.2 		9-09150-508-0 01 1 9804-0004 ● ● ●
87 WASHER; AIR SUSP
(B) ID=8.2 		9-09150-508-0 01 1 0005-0710 ● ●
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) ID=8.2 		9-09150-508-0 01 1 0005-0710 ● ● ●
87 WASHER; AIR SUSP
(B) ID=8.2 		0-91510-508-0 01 1 0711- ● ●
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) ID=8.2 		0-91510-508-0 01 1 0711- ● ● ●
87 WASHER; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-036-0 02 1 9601-9803 ● ●
87 WASHER; AIR SUSP
AIR CONTROL SEAT<A60> (A) 		1-75530-036-0 02 1 9804-9804 ● ● ●
87 WASHER; AIR SUSP
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-036-0 02 1 9805-0004 ● ●
87 WASHER; AIR SUSP
AIR CONTROL SEAT<A60> (A) 		1-75530-036-0 02 1 9805-0004 ●
88 NUT; AIR SUSP
(B) M10 		8-94279-519-0 01 1 9601-9803 ●
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) M10 		8-94279-519-0 01 1 9601-9803 ● ●
88 NUT; AIR SUSP
(B) M10 		8-94279-519-0 01 1 9804-9811 ●
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) M10 		8-94279-519-0 01 1 9804-9811 ● ● ●
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14) (B) M10 		8-94279-519-0 01 1 9812-0003 ● ● ● ● ●
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> (B) 		1-75537-209-0 01 1 0004-0004 ● ●
88 NUT; AIR SUSP
(B) M10 		1-75537-273-1 01 1 0005- ● ●
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) M10 		1-75537-273-1 01 1 0005- ● ● ●
88 NUT; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-039-0 04 1 9601-9803 ● ●
88 NUT; AIR SUSP
AIR CONTROL SEAT<A60> (A) 		1-75530-039-0 04 1 9804-9804 ● ● ●
88 NUT; AIR SUSP
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-039-0 04 1 9805-0004 ● ●
88 NUT; AIR SUSP
AIR CONTROL SEAT<A60> (A) 		1-75530-039-0 04 1 9805-0004 ●
88 NUT; AIR SUSP
DELUXE CAB(W14) (A) M10 		1-75537-273-0 01 1 9812-0003 ● ● ●
91 SCREW; SEAT ADJ COVER
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75530-081-0 01 1 9601-9803 ● ●
91 SCREW; SEAT ADJ COVER
AIR CONTROL SEAT<A60> 		1-75530-081-0 01 1 9804-9804 ● ● ●
91 SCREW; SEAT ADJ COVER
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75530-081-0 01 1 9805-0004 ● ●
91 SCREW; SEAT ADJ COVER
AIR CONTROL SEAT<A60> 		1-75530-081-0 01 1 9805-0004 ●
91 SCREW; SEAT ADJ COVER
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) DELUXE CAB(W14) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0005- ● ● ●
419 LINK ASM; SUSPENSION DEVICE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-085-0 01 1 9601-9803 ● ●
419 LINK ASM; SUSPENSION DEVICE
AIR CONTROL SEAT<A60> (A) 		1-75530-085-0 01 1 9804-9804 ● ● ●
419 LINK ASM; SUSPENSION DEVICE
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-085-0 01 1 9805-0004 ● ●
419 LINK ASM; SUSPENSION DEVICE
AIR CONTROL SEAT<A60> (A) 		1-75530-085-0 01 1 9805-0004 ●
419 LINK ASM; SUSPENSION DEVICE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-086-0 01 1 9601-9803 ● ●
419 LINK ASM; SUSPENSION DEVICE
AIR CONTROL SEAT<A60> (B) 		1-75530-086-0 01 1 9804-9804 ● ● ●
419 LINK ASM; SUSPENSION DEVICE
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-086-0 01 1 9805-0004 ● ●
419 LINK ASM; SUSPENSION DEVICE
AIR CONTROL SEAT<A60> (B) 		1-75530-086-0 01 1 9805-0004 ●
419 LINK ASM; SUSPENSION DEVICE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (C) 		1-75530-087-0 01 1 9601-9803 ● ●
419 LINK ASM; SUSPENSION DEVICE
AIR CONTROL SEAT<A60> (C) 		1-75530-087-0 01 1 9804-9804 ● ● ●
419 LINK ASM; SUSPENSION DEVICE
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (C) 		1-75530-087-0 01 1 9805-0004 ● ●
419 LINK ASM; SUSPENSION DEVICE
AIR CONTROL SEAT<A60> (C) 		1-75530-087-0 01 1 9805-0004 ●
420 KNOB; ADJ,SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75530-067-0 01 1 9601-9803 ● ●
420 KNOB; ADJ,SEAT SUSP
AIR CONTROL SEAT<A60> 		1-75530-067-0 01 1 9804-9804 ● ● ●
420 KNOB; ADJ,SEAT SUSP
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75530-067-0 01 1 9805-0004 ● ●
420 KNOB; ADJ,SEAT SUSP
AIR CONTROL SEAT<A60> 		1-75530-067-0 01 1 9805-0004 ●
423 SHAFT; SEAT DAMPER
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-064-0 01 1 9601-9803 ● ●
423 SHAFT; SEAT DAMPER
AIR CONTROL SEAT<A60> (A) 		1-75530-064-0 01 1 9804-9804 ● ● ●
423 SHAFT; SEAT DAMPER
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-064-0 01 1 9805-0004 ● ●
423 SHAFT; SEAT DAMPER
AIR CONTROL SEAT<A60> (A) 		1-75530-064-0 01 1 9805-0004 ●
423 SHAFT; SEAT DAMPER
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-082-0 01 1 9601-9803 ● ●
423 SHAFT; SEAT DAMPER
AIR CONTROL SEAT<A60> (B) 		1-75530-082-0 01 1 9804-9804 ● ● ●
423 SHAFT; SEAT DAMPER
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-082-0 01 1 9805-0004 ● ●
423 SHAFT; SEAT DAMPER
AIR CONTROL SEAT<A60> (B) 		1-75530-082-0 01 1 9805-0004 ●
425 BEARING; THRUST,KNOB
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75530-074-0 01 1 9601-9803 ● ●
425 BEARING; THRUST,KNOB
AIR CONTROL SEAT<A60> 		1-75530-074-0 01 1 9804-9804 ● ● ●
425 BEARING; THRUST,KNOB
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75530-074-0 01 1 9805-0004 ● ●
425 BEARING; THRUST,KNOB
AIR CONTROL SEAT<A60> 		1-75530-074-0 01 1 9805-0004 ●
472 PIN; SPRING
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-072-0 01 1 9601-9803 ● ●
472 PIN; SPRING
AIR CONTROL SEAT<A60> (A) 		1-75530-072-0 01 1 9804-9804 ● ● ●
472 PIN; SPRING
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-072-0 01 1 9805-0004 ● ●
472 PIN; SPRING
AIR CONTROL SEAT<A60> (A) 		1-75530-072-0 01 1 9805-0004 ●
472 PIN; SPRING
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-075-0 01 1 9601-9803 ● ●
472 PIN; SPRING
AIR CONTROL SEAT<A60> (B) 		1-75530-075-0 01 1 9804-9804 ● ● ●
472 PIN; SPRING
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75530-075-0 01 1 9805-0004 ● ●
472 PIN; SPRING
AIR CONTROL SEAT<A60> (B) 		1-75530-075-0 01 1 9805-0004 ●
çizim 184295
62 81 76 322
BalonParca AdiParca NoAdetTipApplied Date A B C D E
62 DAMPER ASM; SEAT SUSP
(B) 		1-75538-152-1 01 1 9601-9602 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-152-1 01 1 9601-9602 ● ●
62 DAMPER ASM; SEAT SUSP
(B) 		1-75538-156-0 01 1 9603-9712 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-156-0 01 1 9603-9712 ● ●
62 DAMPER ASM; SEAT SUSP
(B) 		1-75538-167-0 01 1 9801-9803 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-167-0 01 1 9801-9803 ● ●
62 DAMPER ASM; SEAT SUSP
(B) 		1-75538-167-0 01 1 9804-9804 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-167-0 01 1 9804-9804 ● ● ●
62 DAMPER ASM; SEAT SUSP
(B) 		1-75538-180-0 01 1 9805-9811 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-180-0 01 1 9805-9811 ● ● ●
62 DAMPER ASM; SEAT SUSP
(B) 		1-75538-183-2 01 1 9812-0004 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-183-2 01 1 9812-0004 ● ● ●
62 DAMPER ASM; SEAT SUSP
(B) 		1-75538-183-8 01 1 0005-1403 ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-183-8 01 1 0005-1403 ● ● ●
62 DAMPER ASM; SEAT SUSP
(B) 		8-98261-448-0 01 1 1404- ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		8-98261-448-0 01 1 1404- ● ● ●
62 DAMPER ASM; SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-142-2 01 1 9601-9603 ● ●
62 DAMPER ASM; SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-164-0 01 1 9604-9803 ● ●
62 DAMPER ASM; SEAT SUSP
AIR CONTROL SEAT<A60> (A) 		1-75538-164-0 01 1 9804-9804 ● ● ●
62 DAMPER ASM; SEAT SUSP
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-164-0 01 1 9805-0004 ● ●
62 DAMPER ASM; SEAT SUSP
AIR CONTROL SEAT<A60> (A) 		1-75538-164-0 01 1 9805-0004 ●
62 DAMPER ASM; SEAT SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75538-198-0 01 1 9811-0010 ● ●
62 DAMPER ASM; SEAT SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75538-198-0 01 1 0011- ● ●
76 DAMPER; AIR SUSP
(B) 		1-75538-139-0 01 1 9601-9803 ●
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-139-0 01 1 9601-9803 ● ●
76 DAMPER; AIR SUSP
(B) 		1-75538-139-0 01 1 9804-0004 ●
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-139-0 01 1 9804-0004 ● ● ●
76 DAMPER; AIR SUSP
(B) 		1-75538-139-0 01 1 0005- ● ●
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-139-0 01 1 0005- ● ● ●
76 DAMPER; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75530-073-0 01 1 9601-9603 ● ●
76 DAMPER; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-166-0 01 1 9604-9803 ● ●
76 DAMPER; AIR SUSP
AIR CONTROL SEAT<A60> (A) 		1-75538-166-0 01 1 9804-9804 ● ● ●
76 DAMPER; AIR SUSP
AIR CONTROL SEAT<A60>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75538-166-0 01 1 9805-0004 ● ●
76 DAMPER; AIR SUSP
AIR CONTROL SEAT<A60> (A) 		1-75538-166-0 01 1 9805-0004 ●
76 DAMPER; AIR SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75538-201-0 01 1 9811-0010 ● ●
76 DAMPER; AIR SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		1-75538-201-0 01 1 0011- ● ●
81 SPRING; AIR 1-75538-151-1 01 1 9601-9803 ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> 		1-75538-151-1 01 1 9601-9803 ● ●
81 SPRING; AIR 1-75538-151-1 01 1 9804-0004 ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> 		1-75538-151-1 01 1 9804-0004 ● ● ●
81 SPRING; AIR 1-75538-151-2 01 1 0005-1312 ● ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> 		1-75538-151-2 01 1 0005-1312 ● ● ●
81 SPRING; AIR 8-98242-816-0 01 1 1401- ● ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> 		8-98242-816-0 01 1 1401- ● ● ●
81 SPRING; AIR
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75538-199-0 01 1 9811-0010 ● ●
81 SPRING; AIR
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75538-199-0 01 1 0011- ● ●
322 VALVE; AIR SPRING 1-75538-154-0 01 1 9601-9803 ●
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> 		1-75538-154-0 01 1 9601-9803 ● ●
322 VALVE; AIR SPRING 1-75538-154-0 01 1 9804-9804 ●
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> 		1-75538-154-0 01 1 9804-9804 ● ● ●
322 VALVE; AIR SPRING 1-75538-186-1 01 1 9805-0004 ●
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> 		1-75538-186-1 01 1 9805-0004 ● ● ●
322 VALVE; AIR SPRING 1-75538-186-3 01 1 0005- ● ●
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> 		1-75538-186-3 01 1 0005- ● ● ●
322 VALVE; AIR SPRING
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75538-200-0 01 1 9811-0010 ● ●
322 VALVE; AIR SPRING
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75538-200-0 01 1 0011- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
