◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CVR ▶ 10723 - CVR LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶

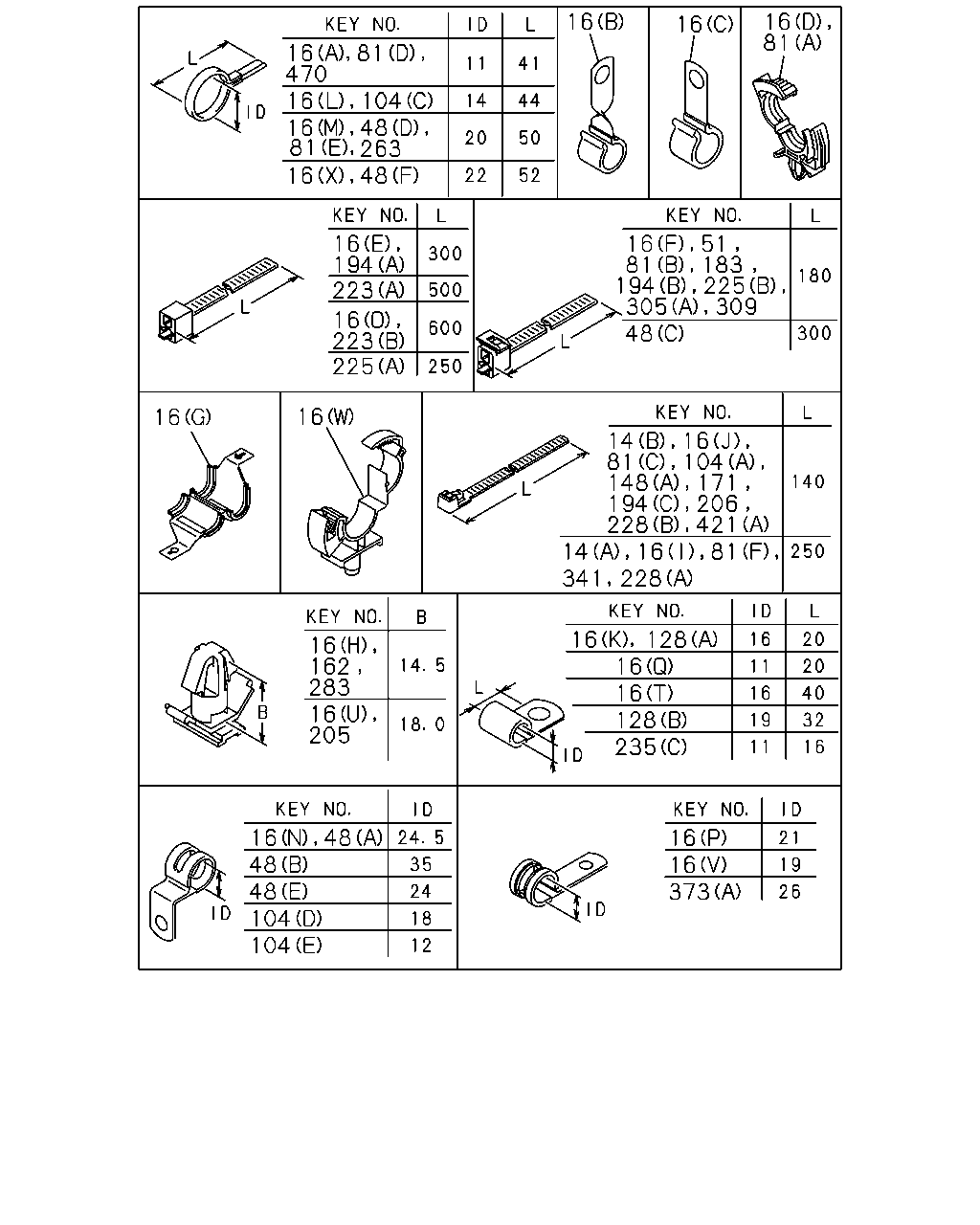

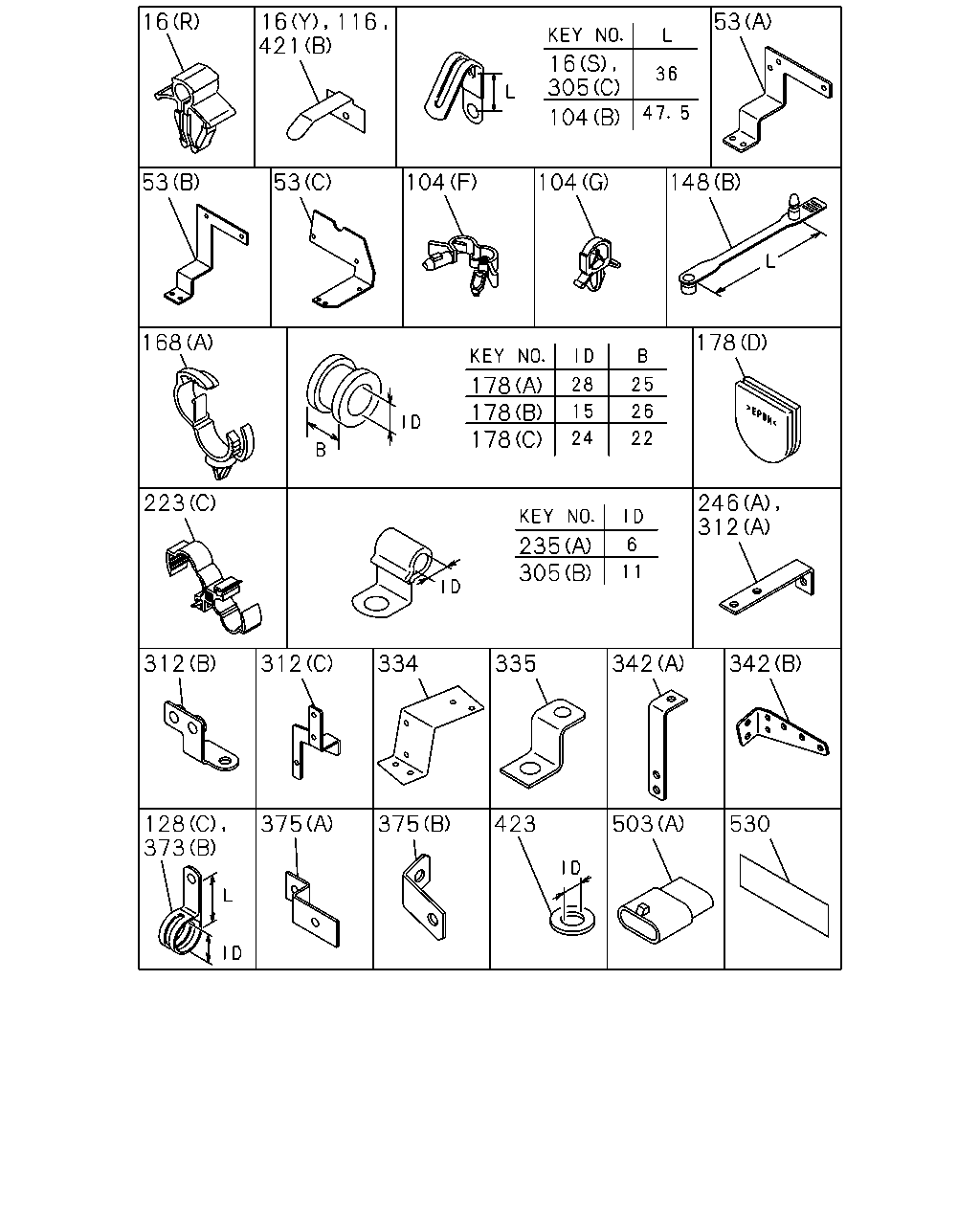

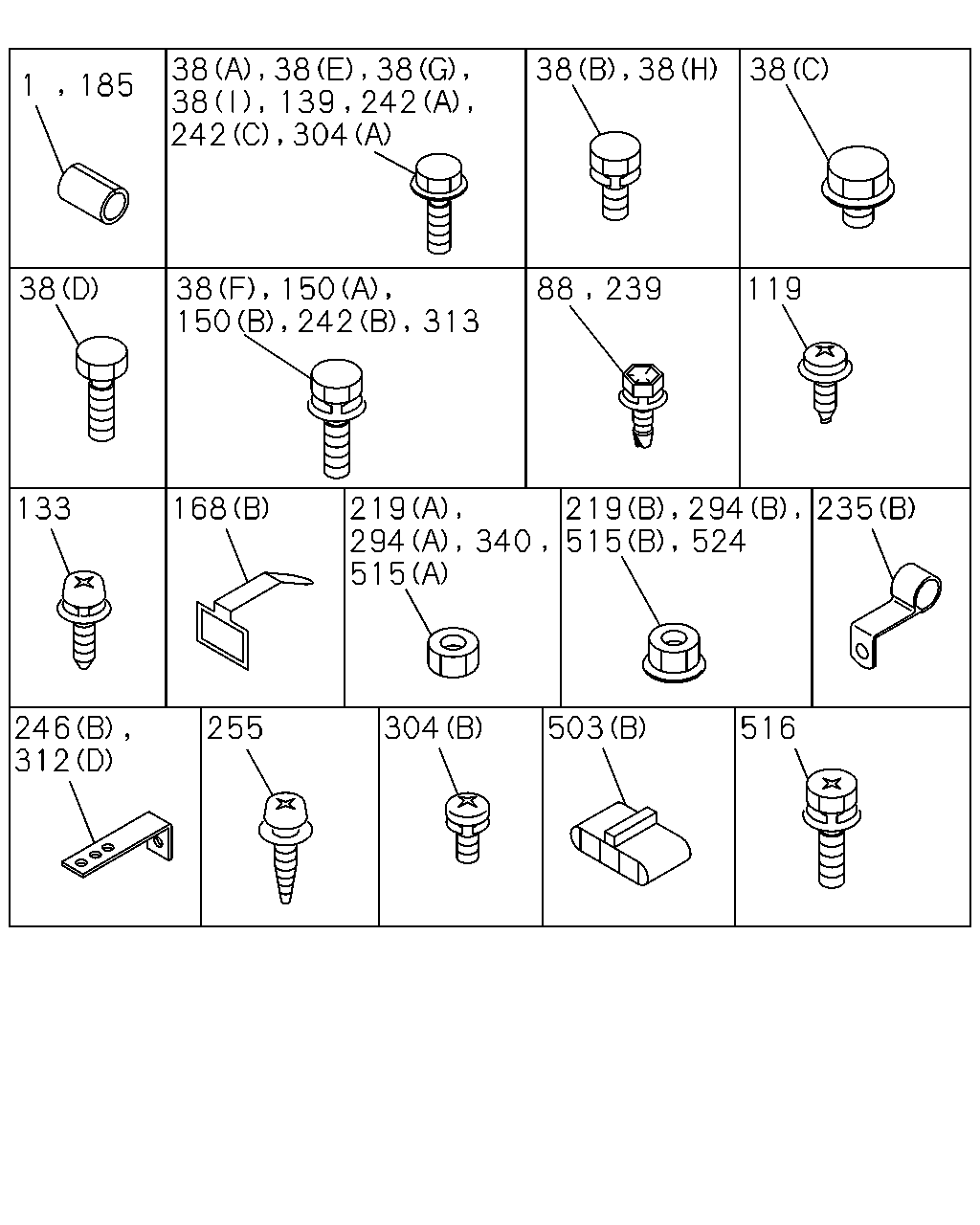

8-15 — FIXING PARTS; WIRING HARNESS (#6390) — 373 parça
çizim 8147
16 16 81 16 16 470 16 104 81 16 194 223 81 183 48 16 223 225 16 16 14 16 81 104 148 171 14 16 128 16 16 128 235 16 162 283 16 205 48 48 16 16 373 16 48 81 263 16 48 16 51 194 225 305 309 16 48 104 104 228 341 16 81 421 228 194 206
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(A) L=250 		5-09707-030-1 02 1 9604-
14 CLIP; BAND,HARNESS
(B) L=140 		5-09707-031-1 05 1 9604-9904
14 CLIP; BAND,HARNESS
8PE1S(59L) (B) L=140 		5-09707-031-1 05 1 9905-
14 CLIP; BAND,HARNESS
10PE1N(61L) (B) L=140 		5-09707-031-1 04 1 9905-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 9604-0001
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0002-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 04 1 9604-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 9604-9904
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 9905-0001
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 0002-
16 CLIP; HARNESS
(B) ID=15 L=42 		1-09700-479-0 02 1 9604-
16 CLIP; HARNESS
(C) ID=15 L=35 		1-09700-507-0 01 1 9604-
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 9604-
16 CLIP; HARNESS
(P) ID=21 L=24 		1-09701-201-0 02 1 9604-
16 CLIP; HARNESS
(R) ID=4.8 		1-09701-218-0 01 1 9604-
16 CLIP; HARNESS
(E) L=300 		1-09707-001-1 03 1 9604-
16 CLIP; HARNESS
(F) L=180 		1-09707-162-1 02 1 9604-
16 CLIP; HARNESS
(G) WO/SPONGE RUBBER 		1-09709-103-1 02 1 9604-
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 05 1 9604-
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 01 1 9604-9908
16 CLIP; HARNESS
CONCRETE PUMP<RA5> (H) OD=9 H=6 		1-09709-178-0 01 1 9604-9908
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 01 1 9909-
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 02 1 9604-
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 02 1 9604-
16 CLIP; HARNESS
CONCRETE PUMP<RA5> (I) L=250 		5-09707-030-1 02 1 9604-
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 02 1 9604-9904
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 01 1 9905-
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 01 1 9604-9908
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 01 1 9909-
16 CLIP; HARNESS
(S) L=36 		8-94224-891-1 01 1 9604-
16 CLIP; HARNESS
(D) ID=7-10 		8-94472-578-0 01 1 9604-
16 CLIP; HARNESS
(Q) ID=11 L=20 		9-09525-035-0 01 1 9604-
16 CLIP; HARNESS
(K) ID=16 L=20 		9-09525-535-0 01 1 9604-
16 CLIP; HARNESS
(T) ID=16 L=40 		9-09525-576-0 01 1 9604-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 02 1 9604-0005
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 01 1 0006-
16 CLIP; HARNESS
CONCRETE PUMP<RA5> (L) ID=14 L=44 		9-09917-427-0 01 1 0006-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 03 1 9604-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 07 1 9604-9904
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 02 1 9905-0001
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 01 1 0002-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 02 1 9604-9904
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 9905-
16 CLIP; HARNESS
(V) ID=19 L=32 		1-09701-235-0 02 1 9905-
16 CLIP; HARNESS
(W) ID=14-20 		8-97061-603-0 01 1 9905-
16 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (M) ID=20 L=50 		9-09917-430-0 02 1 0006-
16 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (X) ID=22 L=52 		9-09917-431-0 02 1 0006-
16 CLIP; HARNESS
CONCRETE PUMP<RA5> (O) L=600 		1-09707-107-1 02 1 9604-
16 CLIP; HARNESS
CONCRETE PUMP<RA5> (M) ID=20 L=50 		9-09917-430-0 17 1 9604-
16 CLIP; HARNESS
HIGH ROOF<S2F> (Y) L=20 SET=10 PIECE 		1-09987-246-2 02 1 9905-
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> (U) OD=9 H=9.5 		1-09709-179-0 01 1 9604-0004
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (U) OD=9 H=9.5 		1-09709-179-0 01 1 0005-
16 CLIP; HARNESS
WHEEL BASE 4600MM(46W) EXC. CONCRETE PUMP<RA5> (A) ID=11 L=41 		1-09700-403-0 07 1 9604-0005
16 CLIP; HARNESS
WHEEL BASE 4600MM(46W) EXC. CONCRETE PUMP<RA5> (A) ID=11 L=41 		1-09700-403-0 06 1 0006-
16 CLIP; HARNESS
WHEEL BASE 4600MM(46W) EXC. CONCRETE PUMP<RA5> (A) ID=20 L=50 		9-09917-430-0 16 1 9604-0005
16 CLIP; HARNESS
WHEEL BASE 4600MM(46W) EXC. CONCRETE PUMP<RA5> (M) ID=20 L=50 		9-09917-430-0 18 1 0006-
16 CLIP; HARNESS
WHEEL BASE 5400MM(54W) (A) ID=11 L=41 		1-09700-403-0 09 1 9604-0005
16 CLIP; HARNESS
WHEEL BASE 5400MM(54W) (A) ID=11 L=41 		1-09700-403-0 08 1 0006-
16 CLIP; HARNESS
WHEEL BASE 5400MM(54W) (A) ID=20 L=50 		9-09917-430-0 19 1 9604-0005
16 CLIP; HARNESS
WHEEL BASE 5400MM(54W) (M) ID=20 L=50 		9-09917-430-0 21 1 0006-
48 CLIP; FRAME HARNESS
(E) ID=24 H=40 L=24 		1-09701-243-0 03 1 9604-
48 CLIP; FRAME HARNESS
EXC. CONCRETE PUMP<RA5> (E) ID=24 H=40 L=24 		1-09701-243-0 03 1 9604-
48 CLIP; FRAME HARNESS
(C) L=300 		1-09707-001-1 10 1 9604-
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (D) ID=20 L=50 		9-09917-430-0 03 1 9604-9904
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (D) ID=20 L=50 		9-09917-430-0 02 1 9905-0005
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (D) ID=20 L=50 		9-09917-430-0 02 1 9604-9904
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (D) ID=20 L=50 		9-09917-430-0 03 1 9905-0005
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (F) ID=22 L=52 		9-09917-431-0 01 1 9604-0005
48 CLIP; FRAME HARNESS
CONCRETE PUMP<RA5> (A) ID=24.5 H=23 L=25 		1-09700-862-0 05 1 9604-
48 CLIP; FRAME HARNESS
CONCRETE PUMP<RA5> (B) ID=35 H=45 L=33 		1-09700-947-0 03 1 9604-
48 CLIP; FRAME HARNESS
EXC. CONCRETE PUMP<RA5> (A) ID=24.5 H=23 L=25 		1-09700-862-0 04 1 9604-9904
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (A) ID=24.5 H=23 L=25 		1-09700-862-0 04 1 9905-
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=180 		1-09707-162-1 01 1 9604-
81 CLIP; HARNESS
(A) ID=7-10 		8-94472-578-0 06 1 9604-9606
81 CLIP; HARNESS
(F) L=250 		5-09707-030-1 01 1 9606-
81 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=11 L=41 		1-09700-403-0 04 1 9604-0005
81 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=11 L=41 		1-09700-403-0 05 1 0006-
81 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) ID=20 L=50 		9-09917-430-0 04 1 9604-
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> (A) ID=7-10 		8-94472-578-0 06 1 9908-
81 CLIP; HARNESS
HEADLAMPS RECTANGULAR<TR4> (B) L=180 		1-09707-162-1 02 1 9604-
81 CLIP; HARNESS
REINFORCEMENT BUMPER<VG7> (B) L=180 		1-09707-162-1 02 1 9604-
81 CLIP; HARNESS
EXC. HEADLAMPS RECTANGULAR<TR4>,REINFORCEMENT BUMPER<VG7> (C) L=140 		5-09707-031-1 02 1 9604-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) L=140 		5-09707-031-1 02 1 9604-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (B) ID=21 L=47.5 		8-94178-108-0 02 1 9604-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (C) ID=14 L=44 		9-09917-427-0 06 1 9604-9810
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (F) ID=13-18 L=14.5 		1-09709-290-0 08 1 9811-
104 CLIP; HEADLAMP HARNESS
HEADLAMPS RECTANGULAR<TR4> (E) ID=12 H=24 L=20 		1-09700-605-0 02 1 9604-
104 CLIP; HEADLAMP HARNESS
HEADLAMPS RECTANGULAR<TR4> (D) ID=18 H=23 L=28 		1-09700-860-0 04 1 9604-
104 CLIP; HEADLAMP HARNESS
HEADLAMPS RECTANGULAR<TR4> (G) ID=4.8 		1-09701-218-0 04 1 9612-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 9604-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=19 L=32 		9-09525-862-0 01 1 9604-0011
128 CLIP; COMB SW HARNESS,STRG COLUMN
(C) ID=14.5 L=30 		9-09916-893-1 01 1 0012-
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=140 		5-09707-031-0 01 1 9604-9804
148 CLIP; BAND,HEADLAMP HARNESS
(B) L=85 		8-94232-611-0 04 1 9604-
162 CLIP; SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 9604-
171 CLIP; STARTER HARNESS
L=140 		5-09707-031-1 05 1 9604-
183 CLIP; CONNECTOR
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) L=180 		1-09707-162-1 01 1 9908-
194 CLIP; BAND
(A) L=300 		1-09707-001-1 01 1 9604-
194 CLIP; BAND
(A) L=300 		1-09707-001-1 03 1 9604-
194 CLIP; BAND
(B) L=180 		1-09707-162-1 02 1 9604-
194 CLIP; BAND
(C) L=140 		5-09707-031-1 01 1 9604-
194 CLIP; BAND
INTAKE HEATER<SL2> (C) L=140 		5-09707-031-1 02 1 9604-
205 CLIP; BACK LAMP HARNESS
OD=9 H=9.5 		1-09709-179-0 01 1 9604-0004
205 CLIP; BACK LAMP HARNESS
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) OD=9 H=9.5 		1-09709-179-0 01 1 0005-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 9604-
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) L=500 		1-09707-082-1 01 1 9604-
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) L=600 		1-09707-107-1 01 1 9604-
223 CLIP; AIR TANK HARNESS
CONCRETE PUMP<RA5> (C) ID=6-10 & 10-14 		1-09709-201-1 01 1 9604-
225 CLIP; AIR TANK HARNESS
(B) L=180 		1-09707-162-1 03 1 9604-
225 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=180 		1-09707-162-1 01 1 9604-0005
225 CLIP; AIR TANK HARNESS
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) (B) L=180 		1-09707-162-1 01 1 9604-0005
225 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=180 		1-09707-162-1 01 1 0006-
225 CLIP; AIR TANK HARNESS
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) (B) L=180 		1-09707-162-1 01 1 0006-
225 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=180 		1-09707-162-1 01 1 0006-
225 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250 		1-09707-126-0 01 1 9604-0005
225 CLIP; AIR TANK HARNESS
(A) L=250 		1-09707-126-0 01 1 0006-
228 CLIP; COOLER HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=250 		5-09707-030-0 03 1 9604-9810
228 CLIP; COOLER HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-0 03 1 9604-9810
228 CLIP; COOLER HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 06 1 9811-
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=6 H=25 L=21 		1-09700-432-0 01 1 9604-9907
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) ID=13 H=29 L=30 		1-09700-001-0 01 1 9908-9908
235 CLIP; HARNESS,SPD SENSOR,SSPS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (B) ID=13 H=29 L=30 		1-09700-001-0 01 1 9909-
235 CLIP; HARNESS,SPD SENSOR,SSPS
CONCRETE PUMP<RA5> (C) ID=11 L=16 		9-09525-025-0 01 1 9909-
263 CLIP; HARNESS,CLIP TO BATTERY RELAY
EXC. CONCRETE PUMP<RA5> ID=20 L=50 		9-09917-430-0 01 1 9604-9904
263 CLIP; HARNESS,CLIP TO BATTERY RELAY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> ID=20 L=50 		9-09917-430-0 01 1 9905-
283 CLIP; SUB SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 9604-
305 CLIP; ENG HARNESS
(B) ID=11 H=20 L=17.5 		1-09700-562-1 05 1 9604-9604
305 CLIP; ENG HARNESS
EXC. GOVERNOR CONTROL<W69> (B) ID=11 H=20 L=17.5 		1-09700-562-1 05 1 9605-9904
305 CLIP; ENG HARNESS
8PE1S(59L) CONCRETE PUMP<RA5> (B) ID=11 H=20 L=17.5 		1-09700-562-1 04 1 9905-
305 CLIP; ENG HARNESS
(A) L=180 		1-09707-162-1 01 1 9604-
305 CLIP; ENG HARNESS
(C) L=36 		8-94224-891-1 02 1 9604-
305 CLIP; ENG HARNESS
GOVERNOR CONTROL<W69> (B) ID=11 H=20 L=17.5 		1-09700-562-1 04 1 9605-9904
305 CLIP; ENG HARNESS
8PE1S(59L) EXC. CONCRETE PUMP<RA5> (B) ID=11 H=20 L=17.5 		1-09700-562-1 05 1 9905-
305 CLIP; ENG HARNESS
10PE1N(61L) (B) ID=11 H=20 L=17.5 		1-09700-562-1 07 1 9905-
309 CLIP; HARNESS,HAND BRAKE CABLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=180 		1-09707-162-1 01 1 9604-
341 CLIP; BAND,STARTER RELAY
L=250 		5-09707-030-0 02 1 9604-9608
341 CLIP; BAND,STARTER RELAY
L=250 		5-09707-030-1 03 1 9609-
373 CLIP; BAND,GEN HARNESS
(A) ID=26 L=27 		1-09701-006-0 02 1 9604-
373 CLIP; BAND,GEN HARNESS
(B) ID=25 L=50 		1-09701-019-0 01 1 9604-
421 CLIP; FLOOR HARNESS
(B) L=20 SET=10 PIECE 		1-09987-246-2 12 1 9604-0101
421 CLIP; FLOOR HARNESS
(B) L=20 SET=10 PIECE 		1-09987-246-2 01 1 0102-
421 CLIP; FLOOR HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ),HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) L=140 		5-09707-031-1 01 1 9604-
470 CLIP; HARNESS,LICENSE LAMP
ID=11 L=41 		1-09700-403-0 01 1 9604-
çizim 8148
38 38 185 1 38 38 150 119 133 168 219 294 515 235 340 246 312 255 304 503 516 38 38 38 139 242 242 304 38 38 88 239 150 242 313 219 294 515 524
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) ID=6 L=30 		5-09360-352-0 01 1 0010-
38 BOLT; CLIP,HARNESS
(H) M5X8 		0-20800-508-0 01 1 9604-
38 BOLT; CLIP,HARNESS
(E) M6X14 FLANGE 		0-28080-614-0 02 1 9604-9606
38 BOLT; CLIP,HARNESS
(E) M6X12 FLANGE 		0-28080-612-0 02 1 9607-9907
38 BOLT; CLIP,HARNESS
(I) M6X16 FLANGE 		0-28680-616-0 02 1 9908-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28080-820-0 04 1 9604-9606
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28080-820-0 01 1 9607-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28080-820-0 03 1 9604-9606
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28080-820-0 02 1 9607-9907
38 BOLT; CLIP,HARNESS
CONCRETE PUMP<RA5> (G) M8X20 FLANGE 		0-28680-820-0 01 1 9908-
38 BOLT; CLIP,HARNESS
(G) M8X25 FLANGE 		0-28080-825-0 03 1 9604-9606
38 BOLT; CLIP,HARNESS
(G) M8X20 FLANGE 		0-28680-820-0 01 1 9607-9907
38 BOLT; CLIP,HARNESS
(G) M8X20 FLANGE 		0-28680-820-0 03 1 9908-
38 BOLT; CLIP,HARNESS
(B) M8X20 W/LK WASHER 		0-50040-820-0 01 1 9604-9606
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 04 1 9607-9904
38 BOLT; CLIP,HARNESS
(G) M8X20 FLANGE 		0-28680-820-0 06 1 9905-9907
38 BOLT; CLIP,HARNESS
(G) M8X20 FLANGE 		0-28680-820-0 05 1 9908-
38 BOLT; CLIP,HARNESS
(C) M12X16 FLANGE 		1-09044-079-0 01 1 9604-
38 BOLT; CLIP,HARNESS
(F) M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 9604-
38 BOLT; CLIP,HARNESS
(D) M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 9604-
38 BOLT; CLIP,HARNESS
(G) M8X30 FLANGE 		0-28680-830-0 03 1 9607-
38 BOLT; CLIP,HARNESS
CONCRETE PUMP<RA5> (G) M8X25 FLANGE 		0-28080-825-0 08 1 9604-9606
38 BOLT; CLIP,HARNESS
CONCRETE PUMP<RA5> (G) M8X30 FLANGE 		0-28680-830-0 08 1 9607-
38 BOLT; CLIP,HARNESS
EXC. CONCRETE PUMP<RA5> (G) M8X25 FLANGE 		0-28080-825-0 07 1 9604-9606
38 BOLT; CLIP,HARNESS
EXC. CONCRETE PUMP<RA5> (G) M8X30 FLANGE 		0-28680-830-0 07 1 9607-9904
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (G) M8X30 FLANGE 		0-28680-830-0 07 1 9905-
38 BOLT; CLIP,HARNESS
HEADLAMPS RECTANGULAR<TR4> (A) M8X20 FLANGE 		0-28080-820-0 06 1 9604-
88 BOLT; DOOR HARNESS EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 9604-9807
119 SCREW; DOOR HARNESS EARTH
M5X14 W/PL WASHER 		8-94447-551-0 02 1 9604-
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X16 W/LK&PL WASHER 		8-94279-402-0 02 1 9604-
139 BOLT; BRKT
CONCRETE PUMP<RA5> M8X25 FLANGE 		0-28080-825-0 01 1 9604-9908
139 BOLT; BRKT
CONCRETE PUMP<RA5> M8X30 FLANGE 		0-28680-830-0 01 1 9909-
150 BOLT; CLIP
(A) M6X20 W/LK&PL WASHER 		1-09980-493-0 02 1 9604-9604
150 BOLT; CLIP
(B) M6X16 W/LK&PL WASHER 		1-09980-506-0 01 1 9604-9604
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 02 1 9604-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 		1-09987-265-0 01 1 0102-
185 SLEEVE; RUBBER
ID=6 L=30 		5-09360-352-0 01 1 0005-
219 NUT
(B) M10 FLANGE 		0-91150-110-0 01 1 9604-9606
219 NUT
(B) M8 FLANGE 		0-91150-108-0 05 1 9607-
219 NUT
(A) M8 		9-09110-408-0 02 1 9604-9606
219 NUT
(B) M10 FLANGE 		0-91250-210-0 01 1 9607-
219 NUT
(A) M8 		9-09110-408-0 05 1 9604-9606
219 NUT
(B) M10 FLANGE 		0-91150-210-0 01 1 9607-9907
219 NUT
CONCRETE PUMP<RA5> (B) M10 FLANGE 		0-91150-210-0 01 1 9607-9907
219 NUT
(B) M10 FLANGE 		0-91150-210-0 01 1 9908-
219 NUT
(A) M8 		9-09110-408-0 02 1 9604-9606
219 NUT
(B) M8 FLANGE 		0-91150-108-0 01 1 9607-9908
219 NUT
(B) M8 FLANGE 		0-91150-108-0 04 1 9909-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 03 1 9905-9908
219 NUT
CONCRETE PUMP<RA5> (A) M8 		9-09110-408-0 09 1 9604-9606
219 NUT
CONCRETE PUMP<RA5> (B) M8 FLANGE 		0-91150-108-0 08 1 9607-9907
219 NUT
CONCRETE PUMP<RA5> (B) M8 FLANGE 		0-91150-108-0 09 1 9908-
219 NUT
EXC. CONCRETE PUMP<RA5> (A) M8 		9-09110-408-0 07 1 9604-9606
219 NUT
EXC. CONCRETE PUMP<RA5> (B) M8 FLANGE 		0-91150-108-0 07 1 9607-9904
219 NUT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (B) M8 FLANGE 		0-91150-108-0 07 1 9905-
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=6 H=25 L=21 		1-09700-432-0 01 1 9604-9907
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) ID=13 H=29 L=30 		1-09700-001-0 01 1 9908-9908
235 CLIP; HARNESS,SPD SENSOR,SSPS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (B) ID=13 H=29 L=30 		1-09700-001-0 01 1 9909-
235 CLIP; HARNESS,SPD SENSOR,SSPS
CONCRETE PUMP<RA5> (C) ID=11 L=16 		9-09525-025-0 01 1 9909-
239 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 9604-
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28080-820-0 06 1 9604-9606
242 BOLT; BRKT,HARNESS
(C) M8X25 FLANGE 		0-28680-825-0 01 1 9607-
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28080-820-0 02 1 9604-9606
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9607-
242 BOLT; BRKT,HARNESS
(C) M8X25 FLANGE 		0-28080-825-0 02 1 9604-9606
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 06 1 9607-9611
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28080-820-0 02 1 9612-9907
242 BOLT; BRKT,HARNESS
(B) M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 9604-
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 01 1 9607-
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28080-820-0 04 1 9612-9910
242 BOLT; BRKT,HARNESS
(A) M8X18 FLANGE 		0-28080-818-0 04 1 9911-
246 BRACKET; CLIP,SPD SENSOR
CONCRETE PUMP<RA5> (A) L=120 		1-82699-465-0 01 1 9604-9908
246 BRACKET; CLIP,SPD SENSOR
CONCRETE PUMP<RA5> (B) L=120 H=35 		1-82699-970-0 01 1 9909-
255 SCREW; TAP CLIP
M6X20 TAPPING W/PL WASHER 		0-74305-620-0 02 1 9604-
294 NUT
(B) M10 FLANGE 		0-91150-110-0 01 1 9604-9606
294 NUT
(B) M10 FLANGE 		0-91150-210-0 01 1 9607-
294 NUT
(A) M8 		9-09110-408-0 01 1 9604-9606
294 NUT
CONCRETE PUMP<RA5> (A) M8 		9-09110-408-0 01 1 9604-9606
294 NUT
CONCRETE PUMP<RA5> (A) M8 		9-09110-408-0 01 1 9607-9609
294 NUT
(B) M8 FLANGE 		0-91150-108-0 01 1 9607-9609
294 NUT
(B) M8 FLANGE 		0-91150-108-0 01 1 9610-
294 NUT
CONCRETE PUMP<RA5> (B) M8 FLANGE 		0-91150-108-0 01 1 9610-
304 BOLT; ENG HARNESS CLIP
(B) M10X16 W/LK WASHER 		1-09033-012-0 05 1 9604-9904
304 BOLT; ENG HARNESS CLIP
8PE1S(59L) (B) M10X16 W/LK WASHER 		1-09033-012-0 05 1 9905-
304 BOLT; ENG HARNESS CLIP
(A) M10X20 FLANGE 		0-28181-020-0 01 1 9604-9904
304 BOLT; ENG HARNESS CLIP
8PE1S(59L) (A) M10X20 FLANGE 		0-28181-020-0 01 1 9905-
304 BOLT; ENG HARNESS CLIP
10PE1N(61L) (B) M10X16 W/LK WASHER 		1-09033-012-0 06 1 9905-
312 BRACKET; CLIP HARNESS
(B) 		1-82699-348-0 01 1 9604-
312 BRACKET; CLIP HARNESS
(A) L=120 		1-82699-465-0 01 1 9604-9908
312 BRACKET; CLIP HARNESS
(D) L=120 H=35 		1-82699-970-0 01 1 9909-
312 BRACKET; CLIP HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-82699-593-1 01 1 9905-9907
313 BOLT; BRKT
M8X30 FLANGE 		0-28080-830-0 01 1 9604-9606
313 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 9607-
340 NUT; HARNESS CAB TO FRAME
M8 		9-09110-408-0 01 1 9604-9606
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 01 1 9607-
503 CONNECTOR
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 		1-82690-666-0 01 1 9908-
503 CONNECTOR
CONCRETE PUMP<RA5> (A) 		1-82690-667-0 01 1 9604-
515 NUT; BRKT
(A) M8 		9-09110-408-0 01 1 9604-9606
515 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 01 1 9607-
515 NUT; BRKT
(A) M8 		9-09110-408-0 02 1 9604-9609
515 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 02 1 9610-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9604-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 02 1 9604-
çizim 8150
16 16 116 421 53 16 305 104 53 53 104 104 148 168 178 178 178 178 223 246 312 235 305 312 312 334 335 342 342 128 373 375 375 423 503 530
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 9604-0001
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0002-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 04 1 9604-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 9604-9904
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 9905-0001
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 0002-
16 CLIP; HARNESS
(B) ID=15 L=42 		1-09700-479-0 02 1 9604-
16 CLIP; HARNESS
(C) ID=15 L=35 		1-09700-507-0 01 1 9604-
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 9604-
16 CLIP; HARNESS
(P) ID=21 L=24 		1-09701-201-0 02 1 9604-
16 CLIP; HARNESS
(R) ID=4.8 		1-09701-218-0 01 1 9604-
16 CLIP; HARNESS
(E) L=300 		1-09707-001-1 03 1 9604-
16 CLIP; HARNESS
(F) L=180 		1-09707-162-1 02 1 9604-
16 CLIP; HARNESS
(G) WO/SPONGE RUBBER 		1-09709-103-1 02 1 9604-
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 05 1 9604-
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 01 1 9604-9908
16 CLIP; HARNESS
CONCRETE PUMP<RA5> (H) OD=9 H=6 		1-09709-178-0 01 1 9604-9908
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 01 1 9909-
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 02 1 9604-
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 02 1 9604-
16 CLIP; HARNESS
CONCRETE PUMP<RA5> (I) L=250 		5-09707-030-1 02 1 9604-
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 02 1 9604-9904
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 01 1 9905-
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 01 1 9604-9908
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 01 1 9909-
16 CLIP; HARNESS
(S) L=36 		8-94224-891-1 01 1 9604-
16 CLIP; HARNESS
(D) ID=7-10 		8-94472-578-0 01 1 9604-
16 CLIP; HARNESS
(Q) ID=11 L=20 		9-09525-035-0 01 1 9604-
16 CLIP; HARNESS
(K) ID=16 L=20 		9-09525-535-0 01 1 9604-
16 CLIP; HARNESS
(T) ID=16 L=40 		9-09525-576-0 01 1 9604-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 02 1 9604-0005
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 01 1 0006-
16 CLIP; HARNESS
CONCRETE PUMP<RA5> (L) ID=14 L=44 		9-09917-427-0 01 1 0006-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 03 1 9604-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 07 1 9604-9904
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 02 1 9905-0001
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 01 1 0002-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 02 1 9604-9904
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 9905-
16 CLIP; HARNESS
(V) ID=19 L=32 		1-09701-235-0 02 1 9905-
16 CLIP; HARNESS
(W) ID=14-20 		8-97061-603-0 01 1 9905-
16 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (M) ID=20 L=50 		9-09917-430-0 02 1 0006-
16 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (X) ID=22 L=52 		9-09917-431-0 02 1 0006-
16 CLIP; HARNESS
CONCRETE PUMP<RA5> (O) L=600 		1-09707-107-1 02 1 9604-
16 CLIP; HARNESS
CONCRETE PUMP<RA5> (M) ID=20 L=50 		9-09917-430-0 17 1 9604-
16 CLIP; HARNESS
HIGH ROOF<S2F> (Y) L=20 SET=10 PIECE 		1-09987-246-2 02 1 9905-
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> (U) OD=9 H=9.5 		1-09709-179-0 01 1 9604-0004
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (U) OD=9 H=9.5 		1-09709-179-0 01 1 0005-
16 CLIP; HARNESS
WHEEL BASE 4600MM(46W) EXC. CONCRETE PUMP<RA5> (A) ID=11 L=41 		1-09700-403-0 07 1 9604-0005
16 CLIP; HARNESS
WHEEL BASE 4600MM(46W) EXC. CONCRETE PUMP<RA5> (A) ID=11 L=41 		1-09700-403-0 06 1 0006-
16 CLIP; HARNESS
WHEEL BASE 4600MM(46W) EXC. CONCRETE PUMP<RA5> (A) ID=20 L=50 		9-09917-430-0 16 1 9604-0005
16 CLIP; HARNESS
WHEEL BASE 4600MM(46W) EXC. CONCRETE PUMP<RA5> (M) ID=20 L=50 		9-09917-430-0 18 1 0006-
16 CLIP; HARNESS
WHEEL BASE 5400MM(54W) (A) ID=11 L=41 		1-09700-403-0 09 1 9604-0005
16 CLIP; HARNESS
WHEEL BASE 5400MM(54W) (A) ID=11 L=41 		1-09700-403-0 08 1 0006-
16 CLIP; HARNESS
WHEEL BASE 5400MM(54W) (A) ID=20 L=50 		9-09917-430-0 19 1 9604-0005
16 CLIP; HARNESS
WHEEL BASE 5400MM(54W) (M) ID=20 L=50 		9-09917-430-0 21 1 0006-
53 BRACKET; HARNESS
(C) 		1-82699-826-0 01 1 9604-
53 BRACKET; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		1-82699-895-0 01 1 9604-
53 BRACKET; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-82699-916-0 01 1 9604-9904
53 BRACKET; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-82699-916-0 01 1 9905-
53 BRACKET; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-82699-916-0 01 1 9905-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) L=140 		5-09707-031-1 02 1 9604-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (B) ID=21 L=47.5 		8-94178-108-0 02 1 9604-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (C) ID=14 L=44 		9-09917-427-0 06 1 9604-9810
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (F) ID=13-18 L=14.5 		1-09709-290-0 08 1 9811-
104 CLIP; HEADLAMP HARNESS
HEADLAMPS RECTANGULAR<TR4> (E) ID=12 H=24 L=20 		1-09700-605-0 02 1 9604-
104 CLIP; HEADLAMP HARNESS
HEADLAMPS RECTANGULAR<TR4> (D) ID=18 H=23 L=28 		1-09700-860-0 04 1 9604-
104 CLIP; HEADLAMP HARNESS
HEADLAMPS RECTANGULAR<TR4> (G) ID=4.8 		1-09701-218-0 04 1 9612-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 04 1 9604-0009
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 0010-
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 03 1 9905-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 9604-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=19 L=32 		9-09525-862-0 01 1 9604-0011
128 CLIP; COMB SW HARNESS,STRG COLUMN
(C) ID=14.5 L=30 		9-09916-893-1 01 1 0012-
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=140 		5-09707-031-0 01 1 9604-9804
148 CLIP; BAND,HEADLAMP HARNESS
(B) L=85 		8-94232-611-0 04 1 9604-
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 02 1 9604-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 		1-09987-265-0 01 1 0102-
178 GROMMET; HARNESS
(A) 		1-09332-011-1 03 1 9604-
178 GROMMET; HARNESS
(C) 		1-09332-104-0 01 1 9604-
178 GROMMET; HARNESS
EXC. CONCRETE PUMP<RA5> (C) 		1-09332-104-0 01 1 9604-
178 GROMMET; HARNESS
(B) 		1-09332-132-0 01 1 9604-
178 GROMMET; HARNESS
CONCRETE PUMP<RA5> (B) 		1-09332-132-0 01 1 9604-
178 GROMMET; HARNESS
(D) 		1-82699-891-0 01 1 9604-
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) L=500 		1-09707-082-1 01 1 9604-
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) L=600 		1-09707-107-1 01 1 9604-
223 CLIP; AIR TANK HARNESS
CONCRETE PUMP<RA5> (C) ID=6-10 & 10-14 		1-09709-201-1 01 1 9604-
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=6 H=25 L=21 		1-09700-432-0 01 1 9604-9907
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) ID=13 H=29 L=30 		1-09700-001-0 01 1 9908-9908
235 CLIP; HARNESS,SPD SENSOR,SSPS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (B) ID=13 H=29 L=30 		1-09700-001-0 01 1 9909-
235 CLIP; HARNESS,SPD SENSOR,SSPS
CONCRETE PUMP<RA5> (C) ID=11 L=16 		9-09525-025-0 01 1 9909-
246 BRACKET; CLIP,SPD SENSOR
CONCRETE PUMP<RA5> (A) L=120 		1-82699-465-0 01 1 9604-9908
246 BRACKET; CLIP,SPD SENSOR
CONCRETE PUMP<RA5> (B) L=120 H=35 		1-82699-970-0 01 1 9909-
305 CLIP; ENG HARNESS
(B) ID=11 H=20 L=17.5 		1-09700-562-1 05 1 9604-9604
305 CLIP; ENG HARNESS
EXC. GOVERNOR CONTROL<W69> (B) ID=11 H=20 L=17.5 		1-09700-562-1 05 1 9605-9904
305 CLIP; ENG HARNESS
8PE1S(59L) CONCRETE PUMP<RA5> (B) ID=11 H=20 L=17.5 		1-09700-562-1 04 1 9905-
305 CLIP; ENG HARNESS
(A) L=180 		1-09707-162-1 01 1 9604-
305 CLIP; ENG HARNESS
(C) L=36 		8-94224-891-1 02 1 9604-
305 CLIP; ENG HARNESS
GOVERNOR CONTROL<W69> (B) ID=11 H=20 L=17.5 		1-09700-562-1 04 1 9605-9904
305 CLIP; ENG HARNESS
8PE1S(59L) EXC. CONCRETE PUMP<RA5> (B) ID=11 H=20 L=17.5 		1-09700-562-1 05 1 9905-
305 CLIP; ENG HARNESS
10PE1N(61L) (B) ID=11 H=20 L=17.5 		1-09700-562-1 07 1 9905-
312 BRACKET; CLIP HARNESS
(B) 		1-82699-348-0 01 1 9604-
312 BRACKET; CLIP HARNESS
(A) L=120 		1-82699-465-0 01 1 9604-9908
312 BRACKET; CLIP HARNESS
(D) L=120 H=35 		1-82699-970-0 01 1 9909-
312 BRACKET; CLIP HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-82699-593-1 01 1 9905-9907
334 BRACKET 1-53458-706-2 01 1 9604-
335 BRACKET; CONNECTOR 1-82699-425-0 01 1 9604-
342 BRACKET; HARNESS CAB MTG
(A) 		1-82699-208-1 01 1 9604-9701
342 BRACKET; HARNESS CAB MTG
(A) L=120 H=35 		1-82699-970-0 01 1 9702-
342 BRACKET; HARNESS CAB MTG
(B) 		1-82699-625-0 01 1 9604-
373 CLIP; BAND,GEN HARNESS
(A) ID=26 L=27 		1-09701-006-0 02 1 9604-
373 CLIP; BAND,GEN HARNESS
(B) ID=25 L=50 		1-09701-019-0 01 1 9604-
375 BRACKET; AC GEN HARNESS CLIP
(A) 		1-47476-393-0 01 1 9604-
375 BRACKET; AC GEN HARNESS CLIP
(B) 		1-82699-199-0 01 1 9604-
421 CLIP; FLOOR HARNESS
(B) L=20 SET=10 PIECE 		1-09987-246-2 12 1 9604-0101
421 CLIP; FLOOR HARNESS
(B) L=20 SET=10 PIECE 		1-09987-246-2 01 1 0102-
421 CLIP; FLOOR HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ),HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) L=140 		5-09707-031-1 01 1 9604-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 02 1 9604-
503 CONNECTOR
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 		1-82690-666-0 01 1 9908-
503 CONNECTOR
CONCRETE PUMP<RA5> (A) 		1-82690-667-0 01 1 9604-
530 SEAL; HARNESS
100X30 		1-72498-014-1 02 1 9604-9702
530 SEAL; HARNESS
180X40 		1-72498-019-0 01 1 9703-
530 SEAL; HARNESS
180X40 		1-72498-019-0 01 1 9604-9702
530 SEAL; HARNESS
100X30 		1-72498-014-1 01 1 9703-9903
530 SEAL; HARNESS
100X40 		1-72498-022-0 01 1 9904-9904
530 SEAL; HARNESS
EXC. HIGH ROOF<S2F> 100X40 		1-72498-022-0 01 1 9905-
530 SEAL; HARNESS
180X40 		1-72498-019-0 07 1 0102-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
