7-45 — CONSOLE BOX (#63899) — 180 parça

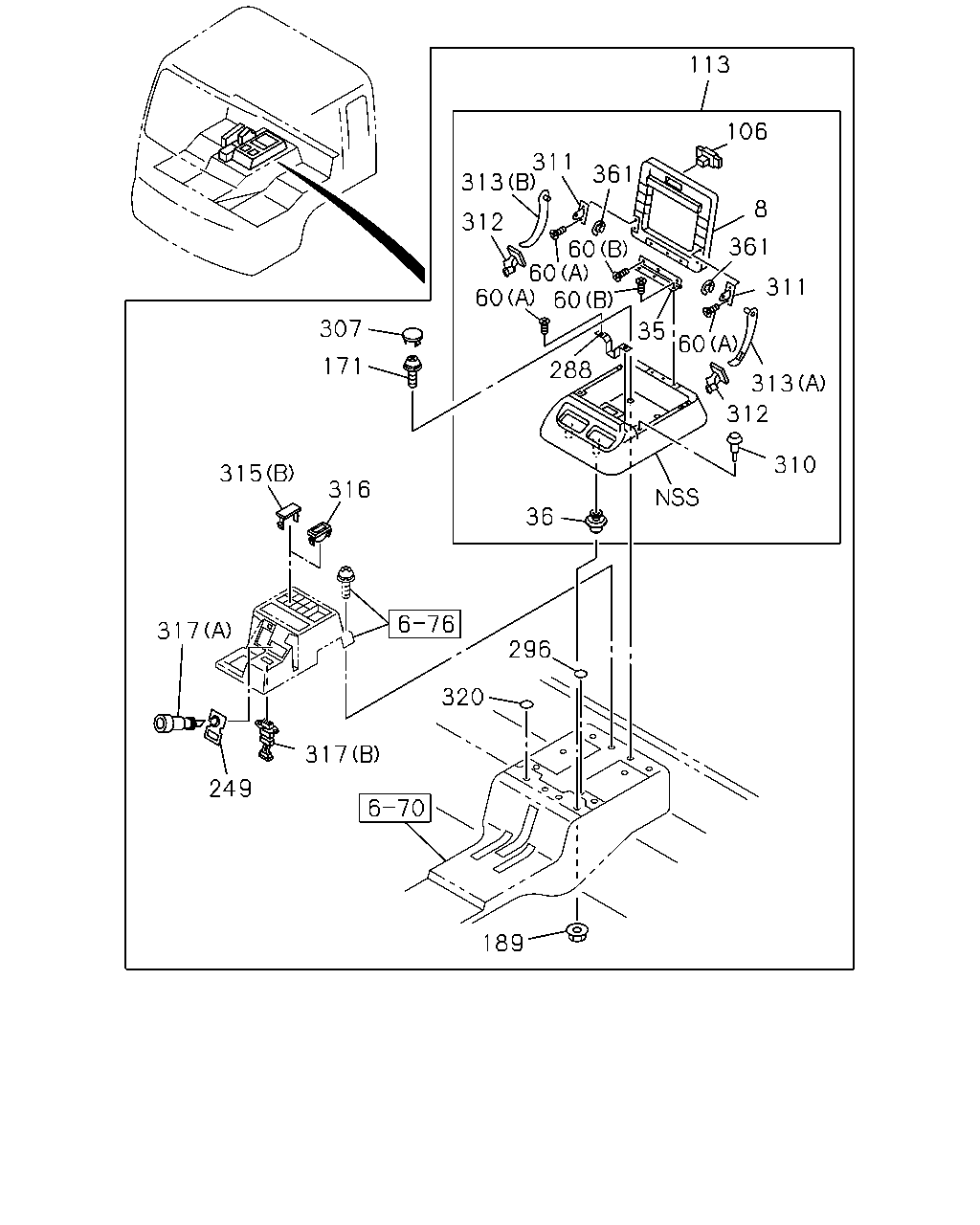

çizim 134234
113 106 311 313 361 8 312 60 60 60 361 311 60 307 35 60 171 288 313 312 310 315 316 36 317 296 320 317 249 189
BalonParca AdiParca NoAdetTipApplied Date A B C D E
8 LID; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-179-3 01 1 9601-9803 ● ●
8 LID; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-179-3 01 1 9804-0004 ● ●
8 LID; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-179-3 01 1 9804-0004 ●
8 LID; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-260-1 01 1 0005-0703 ● ●
8 LID; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-260-1 01 1 0005-0703 ●
8 LID; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-321-0 01 1 0704- ● ●
8 LID; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-321-0 01 1 0704- ●
35 HINGE; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-182-1 02 1 9601-9803 ● ●
35 HINGE; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-182-1 02 1 9804-9905 ● ●
35 HINGE; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-182-1 02 1 9804-9905 ●
35 HINGE; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-182-1 01 1 9906- ● ●
35 HINGE; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-182-1 01 1 9906- ●
36 FASTENER; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-09984-190-0 02 1 9602-9803 ● ●
36 FASTENER; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-09984-190-0 02 1 9804- ● ●
36 FASTENER; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> 		1-09984-190-0 02 1 9804- ●
60 SCREW; BOX
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> (A) M5X14 TAPPING CK-HEAD 		0-70080-514-0 06 1 0210-0603 ● ●
60 SCREW; BOX
CENTER SEAT DELETE 2 CREWS<SP9> (A) M5X14 TAPPING CK-HEAD 		0-70080-514-0 06 1 0210-0603 ●
60 SCREW; BOX
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 06 1 0604- ● ●
60 SCREW; BOX
CENTER SEAT DELETE 2 CREWS<SP9> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 06 1 0604- ●
60 SCREW; BOX
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> (A) M5X14 TAPPING CK-HEAD 		0-70080-514-0 06 1 0610-0703 ● ●
60 SCREW; BOX
CENTER SEAT DELETE 2 CREWS<SP9> (A) M5X14 TAPPING CK-HEAD 		0-70080-514-0 06 1 0610-0703 ●
60 SCREW; BOX
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> (B) M5X14 		8-94279-325-0 04 1 0210- ● ●
60 SCREW; BOX
CENTER SEAT DELETE 2 CREWS<SP9> (B) M5X14 		8-94279-325-0 04 1 0210- ●
106 LOCK; CONSOLE LID
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-180-0 01 1 9601-9803 ● ●
106 LOCK; CONSOLE LID
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-180-0 01 1 9804- ● ●
106 LOCK; CONSOLE LID
CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-180-0 01 1 9804- ●
113 BOX; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-175-5 01 1 9601-9601 ● ●
113 BOX; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-225-0 01 1 9602-9803 ● ●
113 BOX; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-225-0 01 1 9804-0004 ● ●
113 BOX; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-225-0 01 1 9804-0004 ●
113 BOX; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-258-0 01 1 0005-0209 ● ●
113 BOX; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-258-0 01 1 0005-0209 ●
113 BOX; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-297-2 01 1 0210-0609 ● ●
113 BOX; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-297-2 01 1 0210-0609 ●
113 BOX; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-315-1 01 1 0610- ● ●
113 BOX; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-315-1 01 1 0610- ●
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> M6X24 W/LK&PL WASHER 		8-94279-404-0 02 1 9601-9803 ● ●
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> M6X24 W/LK&PL WASHER 		8-94279-404-0 02 1 9804-0004 ● ●
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE 2 CREWS<SP9> M6X24 W/LK&PL WASHER 		8-94279-404-0 02 1 9804-0004 ●
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> M6X24 W/LK&PL WASHER 		8-94279-404-0 02 1 0005- ● ●
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE 2 CREWS<SP9> M6X24 W/LK&PL WASHER 		8-94279-404-0 02 1 0005- ●
189 NUT; CONSOLE BOX
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> M8 FLANGE 		0-91150-108-0 02 1 9601-9601 ● ●
249 COVER
ELEC OUTLET 12V<TAW> 		1-82529-001-0 01 1 9807-0004 ● ●
249 COVER
ELEC OUTLET 12V<TAW> 		1-82529-001-0 01 1 0005- ●
288 STOPPER; LID,CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-190-0 01 1 9601-9803 ● ●
288 STOPPER; LID,CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-190-0 01 1 9804- ● ●
288 STOPPER; LID,CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-190-0 01 1 9804- ●
296 SEAL
OD=25 BLACK 		1-76798-019-0 02 1 9601-9803 ●
296 SEAL
CENTER SEAT 3 CREWS<SA1> OD=25 BLACK 		1-76798-019-0 02 1 9601-9803 ● ●
296 SEAL
CENTER SEAT DELETE 2 CREWS<SP9> EXC. HIGH ROOF<S2F> OD=25 BLACK 		1-76798-019-0 02 1 9601-9803 ● ●
296 SEAL
OD=25 BLACK 		1-76798-019-0 02 1 9804-0004 ●
296 SEAL
CENTER SEAT 3 CREWS<SA1> OD=25 BLACK 		1-76798-019-0 02 1 9804-0004 ● ● ●
296 SEAL
CENTER SEAT DELETE 2 CREWS<SP9> EXC. HIGH ROOF<S2F> OD=25 BLACK 		1-76798-019-0 02 1 9804-0004 ● ●
296 SEAL
OD=25 BLACK 		1-76798-019-0 02 1 0005- ● ●
296 SEAL
CENTER SEAT 3 CREWS<SA1> OD=25 BLACK 		1-76798-019-0 02 1 0005- ● ● ●
296 SEAL
CENTER SEAT DELETE 2 CREWS<SP9> EXC. HIGH ROOF<S2F> OD=25 BLACK 		1-76798-019-0 02 1 0005- ● ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-166-0 02 1 9601-9803 ● ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-166-0 02 1 9804-0004 ● ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-166-0 02 1 9804-0004 ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-76337-461-0 02 1 0005- ● ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> 		1-76337-461-0 02 1 0005- ●
310 CUSHION; CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-187-0 02 1 9601-9803 ● ●
310 CUSHION; CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-187-0 02 1 9804- ● ●
310 CUSHION; CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-187-0 02 1 9804- ●
311 HOLDER; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-188-2 02 1 9601-9803 ● ●
311 HOLDER; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-188-2 02 1 9804- ● ●
311 HOLDER; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-188-2 02 1 9804- ●
312 STOPPER; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-186-1 02 1 9601-9803 ● ●
312 STOPPER; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-186-1 02 1 9804- ● ●
312 STOPPER; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-186-1 02 1 9804- ●
313 ARM; CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> (B) 		1-72538-185-3 01 1 9601-9803 ● ●
313 ARM; CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> (B) 		1-72538-185-3 01 1 9804- ● ●
313 ARM; CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> (B) 		1-72538-185-3 01 1 9804- ●
313 ARM; CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> (A) 		1-72538-184-3 01 1 9601-9803 ● ●
313 ARM; CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> (A) 		1-72538-184-3 01 1 9804- ● ●
313 ARM; CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> (A) 		1-72538-184-3 01 1 9804- ●
315 COVER; HOLE,SW
MAP LAMP<C85> HIGH ROOF<S2F> (A) 		1-82359-069-2 02 1 0212- ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 03 1 9601-0004 ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 03 1 0005- ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 07 1 9601-9706 ●
315 COVER; HOLE,SW
EXC. PTO CONTROL<SV6> (A) 		1-82359-069-2 07 1 9601-9706 ● ●
315 COVER; HOLE,SW
EXC. PTO CONTROL<SV6> (A) 		1-82359-069-2 07 1 9707-9803 ● ● ●
315 COVER; HOLE,SW
(B) 		8-97043-732-1 06 1 9803-9803 ● ● ●
315 COVER; HOLE,SW
(B) 		8-97043-732-1 06 1 9804-0004 ● ● ●
315 COVER; HOLE,SW
(B) 		8-97043-732-1 06 1 0005- ● ● ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 02 1 9601-9803 ● ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 07 1 9804-9806 ● ● ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 06 1 9807-9809 ● ● ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 05 1 9810-0004 ● ● ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 06 1 0005-0010 ● ● ● ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 05 1 0011- ● ● ● ● ●
315 COVER; HOLE,SW
PTO CONTROL<SV6> (A) 		1-82359-069-2 06 1 9601-9706 ● ●
315 COVER; HOLE,SW
PTO CONTROL<SV6> (A) 		1-82359-069-2 06 1 9707-9803 ● ● ●
315 COVER; HOLE,SW
EXC. PTO CONTROL<SV6>,MIR STAY O/S W/REMOTE<TBA> (A) 		1-82359-069-2 01 1 9804-9806 ● ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 9804-9806 ● ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 9804-9806 ●
315 COVER; HOLE,SW
EXC. PTO CONTROL<SV6> (A) 		1-82359-069-2 01 1 9807-9809 ● ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 9807-9809 ● ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 9807-9809 ● ● ●
315 COVER; HOLE,SW
EXC. RADIO SEEK SW<NBN> (A) 		1-82359-069-2 01 1 9807-9809 ● ●
315 COVER; HOLE,SW
EXC. MIR STAY O/S W/REMOTE<TBA> (A) 		1-82359-069-2 01 1 9807-9809 ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 9810-0004 ● ● ● ●
315 COVER; HOLE,SW
EXC. PTO CONTROL<SV6> (A) 		1-82359-069-2 01 1 9810-0004 ● ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 9810-0004 ● ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 9810-0004 ● ● ●
315 COVER; HOLE,SW
EXC. RADIO SEEK SW<NBN> (A) 		1-82359-069-2 01 1 9810-0004 ● ●
315 COVER; HOLE,SW
EXC. MIR STAY O/S W/REMOTE<TBA> (A) 		1-82359-069-2 01 1 9810-0004 ●
315 COVER; HOLE,SW
MAP LAMP<C85> HIGH ROOF<S2F> (A) 		1-82359-069-2 02 1 9909-0211 ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 0005-0010 ● ● ● ● ●
315 COVER; HOLE,SW
EXC. PTO CONTROL<SV6> (A) 		1-82359-069-2 01 1 0005-0010 ● ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 0005-0010 ● ● ● ●
315 COVER; HOLE,SW
EXC. MIR STAY O/S W/REMOTE<TBA> (A) 		1-82359-069-2 01 1 0005-0010 ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 0005-0010 ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 0011- ● ● ● ● ●
315 COVER; HOLE,SW
EXC. PTO CONTROL<SV6> (A) 		1-82359-069-2 01 1 0011- ● ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 0011- ● ● ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 0011- ● ● ● ●
315 COVER; HOLE,SW
EXC. MIR STAY O/S W/REMOTE<TBA> (A) 		1-82359-069-2 01 1 0011- ●
315 COVER; HOLE,SW
EXC. RADIO SEEK SW<NBN> (A) 		1-82359-069-2 01 1 0011- ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 0011- ●
315 COVER; HOLE,SW
(A) 		8-97043-732-1 04 1 0105- ●
316 BOX; COIN 8-94482-280-2 02 1 9803-9803 ● ● ●
316 BOX; COIN 8-94482-280-2 02 1 9804-0004 ● ● ●
316 BOX; COIN 8-94482-280-2 02 1 0005- ● ● ● ●
317 CONSENT
(B) 		1-82523-020-2 01 1 9601-9803 ● ● ●
317 CONSENT
(B) 		1-82523-020-2 01 1 9804-0004 ● ● ● ●
317 CONSENT
(B) 		1-82523-020-2 01 1 0005- ● ● ● ● ●
317 CONSENT
ELEC OUTLET 12V<TAW> (A) 		8-94382-451-1 01 1 9807-0004 ● ●
317 CONSENT
ELEC OUTLET 12V<TAW> (A) 		8-94382-451-1 01 1 0005- ●
320 SEAL; HOLE,TRAY
OD=25 BLACK 		1-76798-019-0 05 1 9601-9803 ● ● ●
320 SEAL; HOLE,TRAY
OD=25 BLACK 		1-76798-019-0 05 1 9804-0004 ● ● ● ●
320 SEAL; HOLE,TRAY
OD=25 BLACK 		1-76798-019-0 05 1 0005- ● ● ● ● ●
320 SEAL; HOLE,TRAY
OD=25 BLACK 		1-76798-019-0 04 1 9804- ●
361 RING; SNAP
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> ID=5 		9-09185-405-0 02 1 0210- ● ●
361 RING; SNAP
CENTER SEAT DELETE 2 CREWS<SP9> ID=5 		9-09185-405-0 02 1 0210- ●

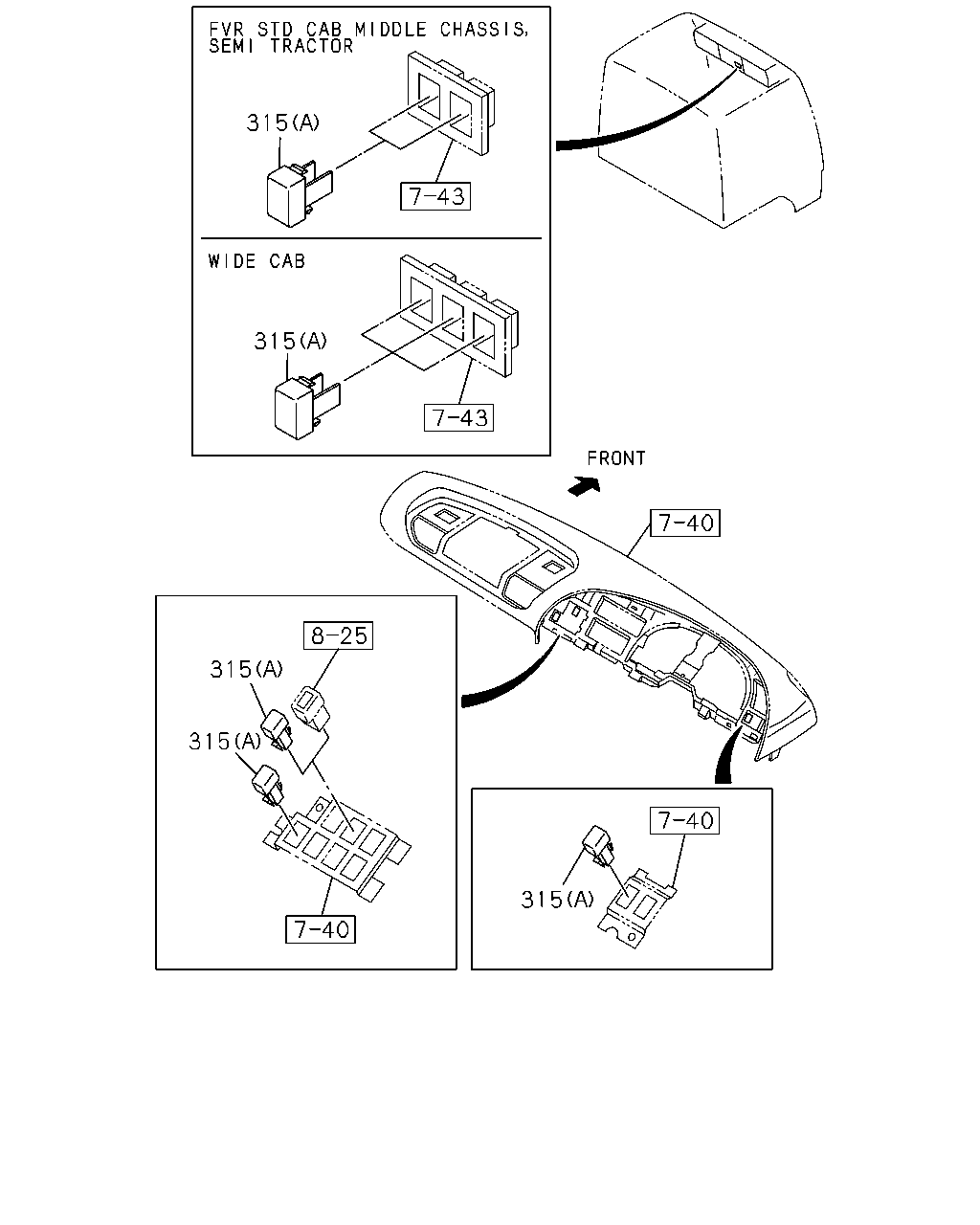

çizim 184287
315 315 315 315 315
BalonParca AdiParca NoAdetTipApplied Date A B C D E
315 COVER; HOLE,SW
MAP LAMP<C85> HIGH ROOF<S2F> (A) 		1-82359-069-2 02 1 0212- ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 03 1 9601-0004 ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 03 1 0005- ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 07 1 9601-9706 ●
315 COVER; HOLE,SW
EXC. PTO CONTROL<SV6> (A) 		1-82359-069-2 07 1 9601-9706 ● ●
315 COVER; HOLE,SW
EXC. PTO CONTROL<SV6> (A) 		1-82359-069-2 07 1 9707-9803 ● ● ●
315 COVER; HOLE,SW
(B) 		8-97043-732-1 06 1 9803-9803 ● ● ●
315 COVER; HOLE,SW
(B) 		8-97043-732-1 06 1 9804-0004 ● ● ●
315 COVER; HOLE,SW
(B) 		8-97043-732-1 06 1 0005- ● ● ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 02 1 9601-9803 ● ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 07 1 9804-9806 ● ● ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 06 1 9807-9809 ● ● ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 05 1 9810-0004 ● ● ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 06 1 0005-0010 ● ● ● ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 05 1 0011- ● ● ● ● ●
315 COVER; HOLE,SW
PTO CONTROL<SV6> (A) 		1-82359-069-2 06 1 9601-9706 ● ●
315 COVER; HOLE,SW
PTO CONTROL<SV6> (A) 		1-82359-069-2 06 1 9707-9803 ● ● ●
315 COVER; HOLE,SW
EXC. PTO CONTROL<SV6>,MIR STAY O/S W/REMOTE<TBA> (A) 		1-82359-069-2 01 1 9804-9806 ● ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 9804-9806 ● ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 9804-9806 ●
315 COVER; HOLE,SW
EXC. PTO CONTROL<SV6> (A) 		1-82359-069-2 01 1 9807-9809 ● ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 9807-9809 ● ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 9807-9809 ● ● ●
315 COVER; HOLE,SW
EXC. RADIO SEEK SW<NBN> (A) 		1-82359-069-2 01 1 9807-9809 ● ●
315 COVER; HOLE,SW
EXC. MIR STAY O/S W/REMOTE<TBA> (A) 		1-82359-069-2 01 1 9807-9809 ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 9810-0004 ● ● ● ●
315 COVER; HOLE,SW
EXC. PTO CONTROL<SV6> (A) 		1-82359-069-2 01 1 9810-0004 ● ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 9810-0004 ● ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 9810-0004 ● ● ●
315 COVER; HOLE,SW
EXC. RADIO SEEK SW<NBN> (A) 		1-82359-069-2 01 1 9810-0004 ● ●
315 COVER; HOLE,SW
EXC. MIR STAY O/S W/REMOTE<TBA> (A) 		1-82359-069-2 01 1 9810-0004 ●
315 COVER; HOLE,SW
MAP LAMP<C85> HIGH ROOF<S2F> (A) 		1-82359-069-2 02 1 9909-0211 ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 0005-0010 ● ● ● ● ●
315 COVER; HOLE,SW
EXC. PTO CONTROL<SV6> (A) 		1-82359-069-2 01 1 0005-0010 ● ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 0005-0010 ● ● ● ●
315 COVER; HOLE,SW
EXC. MIR STAY O/S W/REMOTE<TBA> (A) 		1-82359-069-2 01 1 0005-0010 ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 0005-0010 ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 0011- ● ● ● ● ●
315 COVER; HOLE,SW
EXC. PTO CONTROL<SV6> (A) 		1-82359-069-2 01 1 0011- ● ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 0011- ● ● ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 0011- ● ● ● ●
315 COVER; HOLE,SW
EXC. MIR STAY O/S W/REMOTE<TBA> (A) 		1-82359-069-2 01 1 0011- ●
315 COVER; HOLE,SW
EXC. RADIO SEEK SW<NBN> (A) 		1-82359-069-2 01 1 0011- ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 0011- ●
315 COVER; HOLE,SW
(A) 		8-97043-732-1 04 1 0105- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
