7-40 — INSTRUMENT PANEL AND BOX (#63897) — 461 parça

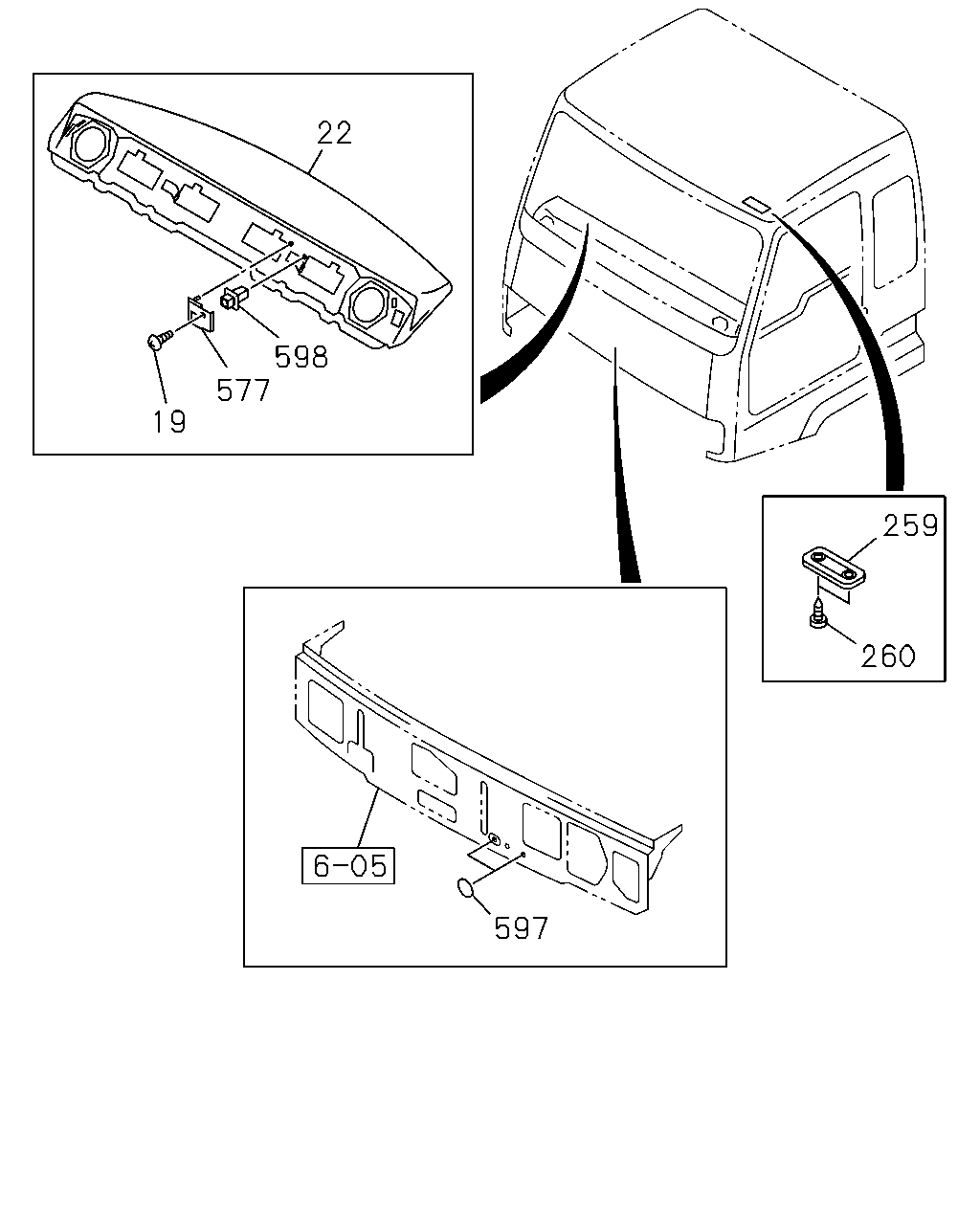

çizim 184286
22 598 577 19 259 260 597
BalonParca AdiParca NoAdetTipApplied Date A B C D E
19 SCREW; BRKT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 02 1 9601-9706 ● ●
19 SCREW; BRKT
PTO CONTROL<SV6> M5X14 		8-94279-325-0 02 1 9601-9706 ● ●
19 SCREW; BRKT
PTO CONTROL<SV6> M5X14 		8-94279-325-0 02 1 9707-9803 ● ● ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 02 1 9707-9803 ● ●
19 SCREW; BRKT
PTO CONTROL<SV6> M5X14 		8-94279-325-0 02 1 9804-0004 ● ● ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 02 1 9804-0004 ● ● ●
19 SCREW; BRKT
PTO CONTROL<SV6> M5X14 		8-94279-325-0 02 1 0005- ● ● ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 02 1 0005- ● ● ● ●
19 SCREW; BRKT
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> M5X14 		8-94279-325-0 01 1 9910-0004 ● ●
22 PAD; INST 1-72318-424-2 01 1 9601-0004 ●
22 PAD; INST 1-72318-434-4 01 1 0005- ● ●
22 PAD; INST 1-72318-421-2 01 1 9601-9803 ● ●
22 PAD; INST 1-72318-421-2 01 1 9804-0004 ● ● ●
22 PAD; INST 1-72318-433-4 01 1 0005- ● ● ●
259 PLATE; STUFF,SUN VISOR
LOW ROOF<6XQ> EXC. SUN VISOR PASSENGER<D20> 		1-73318-551-0 01 1 9601-0004 ● ●
259 PLATE; STUFF,SUN VISOR
LOW ROOF<6XQ> EXC. SUN VISOR PASSENGER<D20> 		1-73317-410-0 01 1 0005- ● ●
260 SCREW; STUFF PLATE
LOW ROOF<6XQ> EXC. SUN VISOR PASSENGER<D20> M6X25 		1-09981-441-0 02 1 9601- ● ●
577 BRACKET; SENSOR
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-72318-414-0 01 1 9910-0004 ● ●
597 SEAL; HOLE,DASH
OD=16 BLACK 		1-76798-037-0 02 1 9601-9803 ●
597 SEAL; HOLE,DASH
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> OD=16 BLACK 		1-76798-037-0 02 1 9601-9803 ● ●
597 SEAL; HOLE,DASH
OD=16 BLACK 		1-76798-037-0 02 1 9804-0004 ● ●
597 SEAL; HOLE,DASH
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> OD=16 BLACK 		1-76798-037-0 02 1 9804-0004 ● ●
597 SEAL; HOLE,DASH
OD=16 BLACK 		1-76798-037-0 02 1 0005- ● ● ●
598 GROMMET; SCREW
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 01 1 9910-0004 ● ●

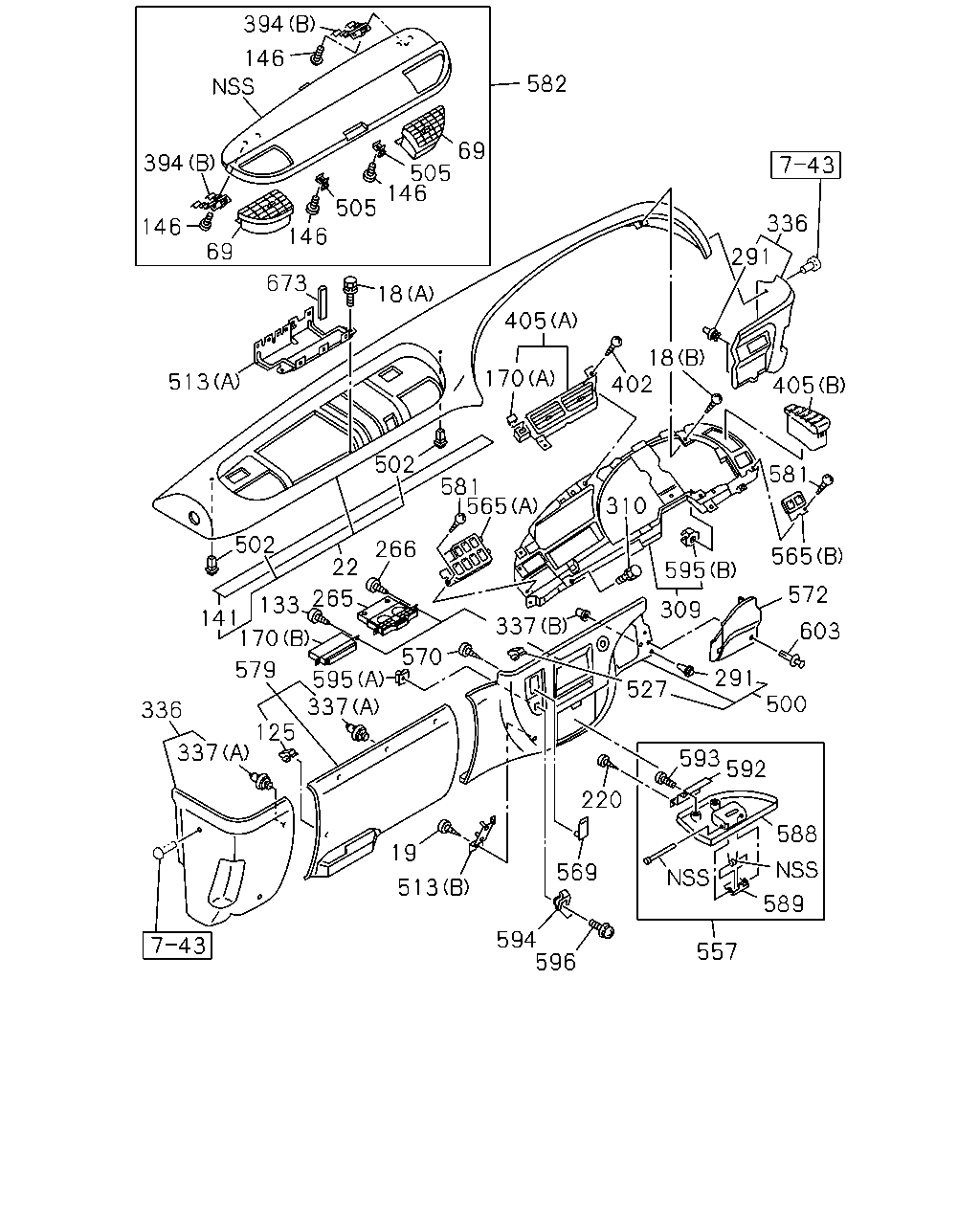

çizim 184290
394 146 582 69 505 146 394 505 336 146 146 69 291 673 18 405 18 402 170 513 405 502 581 581 565 310 502 266 565 22 595 572 265 133 309 141 170 337 603 570 595 337 579 291 527 500 336 125 337 593 592 220 588 19 569 513 589 594 596 557
BalonParca AdiParca NoAdetTipApplied Date A B C D E
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9601-9803 ●
18 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9601-9803 ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9804-0004 ●
18 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9804-0004 ● ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0005- ● ●
18 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0005- ● ● ●
18 BOLT; BRKT
(C) M5X14 		8-94279-325-0 03 1 9601-0004 ●
18 BOLT; BRKT
(C) M5X14 		8-94279-325-0 03 1 0005- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 9601-9801 ● ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9802-9803 ● ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9802-9803 ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9804-0004 ● ● ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9804-0004 ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005- ● ● ● ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9601-9801 ● ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9802-9803 ● ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9804-0004 ● ● ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0005- ● ● ● ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9601-9803 ● ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9804-0004 ● ● ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0005- ● ● ● ● ●
18 BOLT; BRKT
(D) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9802-9803 ● ●
18 BOLT; BRKT
(D) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9804-9804 ● ● ●
18 BOLT; BRKT
(D) M8X40 FLANGE 		0-28680-840-0 03 1 9805-0512 ● ● ●
18 BOLT; BRKT
(D) M8X40 FLANGE 		0-28650-840-0 03 1 0601- ● ● ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 02 1 9601-9706 ● ●
19 SCREW; BRKT
PTO CONTROL<SV6> M5X14 		8-94279-325-0 02 1 9601-9706 ● ●
19 SCREW; BRKT
PTO CONTROL<SV6> M5X14 		8-94279-325-0 02 1 9707-9803 ● ● ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 02 1 9707-9803 ● ●
19 SCREW; BRKT
PTO CONTROL<SV6> M5X14 		8-94279-325-0 02 1 9804-0004 ● ● ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 02 1 9804-0004 ● ● ●
19 SCREW; BRKT
PTO CONTROL<SV6> M5X14 		8-94279-325-0 02 1 0005- ● ● ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 02 1 0005- ● ● ● ●
19 SCREW; BRKT
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> M5X14 		8-94279-325-0 01 1 9910-0004 ● ●
22 PAD; INST 1-72318-424-2 01 1 9601-0004 ●
22 PAD; INST 1-72318-434-4 01 1 0005- ● ●
22 PAD; INST 1-72318-421-2 01 1 9601-9803 ● ●
22 PAD; INST 1-72318-421-2 01 1 9804-0004 ● ● ●
22 PAD; INST 1-72318-433-4 01 1 0005- ● ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76368-029-5 01 1 9601-9803 ● ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76368-029-5 01 1 9804-0004 ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76367-070-0 01 1 0005- ● ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76368-028-5 01 1 9601-9803 ● ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76368-028-5 01 1 9804-0004 ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76367-069-0 01 1 0005- ● ● ● ● ●
125 CLIP; INST PANEL 8-97853-939-4 02 1 9601-9803 ●
125 CLIP; INST PANEL 8-97853-939-4 03 1 9804-9812 ●
125 CLIP; INST PANEL 8-97217-066-0 03 1 9901-0004 ●
125 CLIP; INST PANEL 8-97217-066-0 03 1 0005- ● ●
125 CLIP; INST PANEL 8-97853-939-4 01 1 9601-9803 ● ● ●
125 CLIP; INST PANEL 8-97853-939-4 01 1 9804-9812 ● ● ●
125 CLIP; INST PANEL 8-97217-066-0 01 1 9901-0004 ● ● ●
125 CLIP; INST PANEL 8-97217-066-0 01 1 0005- ● ● ●
125 CLIP; INST PANEL 8-97853-939-4 08 1 9601-9803 ● ● ●
125 CLIP; INST PANEL 8-97853-939-4 08 1 9804-9812 ● ● ● ●
125 CLIP; INST PANEL 8-97217-066-0 08 1 9901-9909 ● ● ● ●
125 CLIP; INST PANEL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-97217-066-0 08 1 9910-0004 ● ● ● ●
125 CLIP; INST PANEL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-97217-066-0 08 1 0005- ● ● ● ● ●
133 SCREW; COVER,INST PNL
EXC. INTERIOR ORNAMENT HOLDER<TEJ> M5X14 		8-94279-325-0 02 1 9601-9609 ● ●
133 SCREW; COVER,INST PNL
EXC. INTERIOR ORNAMENT HOLDER<TEJ> M5X14 		8-94279-325-0 02 1 9610-9803 ● ● ●
133 SCREW; COVER,INST PNL
EXC. INTERIOR ORNAMENT HOLDER<TEJ> M5X14 		8-94279-325-0 02 1 9804- ● ● ● ●
141 PROTECTOR; EDGE 1-72318-430-0 01 1 9601-9803 ● ● ●
141 PROTECTOR; EDGE 1-72318-430-0 01 1 9804-0004 ● ● ● ●
141 PROTECTOR; EDGE 1-72318-430-0 01 1 0005- ● ● ● ● ●
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 9601-9803 ● ● ●
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 9804-0004 ● ● ● ●
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 0005- ● ● ● ● ●
170 COVER; HOLE
(A) 		1-76367-068-0 01 1 9601-9803 ● ● ●
170 COVER; HOLE
(A) 		1-76367-068-0 01 1 9804-0004 ● ● ● ●
170 COVER; HOLE
(A) 		1-76367-068-0 01 1 0005- ● ● ● ● ●
170 COVER; HOLE
EXC. INTERIOR ORNAMENT HOLDER<TEJ> (B) 		1-72438-139-0 01 1 9601-9609 ● ●
170 COVER; HOLE
EXC. INTERIOR ORNAMENT HOLDER<TEJ> (B) 		1-72438-139-0 01 1 9610-9803 ● ● ●
170 COVER; HOLE
EXC. INTERIOR ORNAMENT HOLDER<TEJ> (B) 		1-72438-139-1 01 1 9804- ● ● ● ●
220 SCREW; LID TO STOPPER
M5X14 		8-94279-325-0 02 1 9601-9803 ● ● ●
220 SCREW; LID TO STOPPER
M5X14 		8-94279-325-0 02 1 9804-0004 ● ● ● ●
220 SCREW; LID TO STOPPER
M5X14 		8-94279-325-0 02 1 0005- ● ● ● ● ●
265 HOLDER; CUP
INTERIOR ORNAMENT HOLDER<TEJ> 		8-97853-172-5 01 1 9601-9803 ● ● ●
265 HOLDER; CUP
INTERIOR ORNAMENT HOLDER<TEJ> 		8-97853-172-7 01 1 9804-0004 ● ● ● ●
265 HOLDER; CUP
INTERIOR ORNAMENT HOLDER<TEJ> 		8-97853-172-8 01 1 0005- ● ● ● ●
265 HOLDER; CUP 8-97853-172-8 01 1 0005- ●
266 SCREW; CUP STAND
INTERIOR ORNAMENT HOLDER<TEJ> M5X14 		8-94279-325-0 02 1 9601-9803 ● ● ●
266 SCREW; CUP STAND
INTERIOR ORNAMENT HOLDER<TEJ> M5X14 		8-94279-325-0 02 1 9804-0004 ● ● ● ●
266 SCREW; CUP STAND
INTERIOR ORNAMENT HOLDER<TEJ> M5X14 		8-94279-325-0 02 1 0005- ● ● ● ●
266 SCREW; CUP STAND
M5X14 		8-94279-325-0 02 1 0005- ●
291 FASTENER; INST CLUSTER 1-72438-137-0 06 1 9601-9803 ● ● ●
291 FASTENER; INST CLUSTER 1-72438-137-0 06 1 9804-0004 ● ● ● ●
291 FASTENER; INST CLUSTER 1-72438-137-0 06 1 0005- ● ● ● ● ●
309 PANEL; SW,INST 1-72418-009-6 01 1 9601-9803 ● ● ●
309 PANEL; SW,INST 1-72418-009-6 01 1 9804-0004 ● ● ● ●
309 PANEL; SW,INST 1-72418-009-6 01 1 0005- ● ● ● ● ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9601-9803 ● ● ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9804-0004 ● ● ● ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0005- ● ● ● ● ●
336 COVER; INST PANEL SIDE 1-72438-111-4 01 1 9601-9803 ● ● ●
336 COVER; INST PANEL SIDE 1-72438-111-4 01 1 9804-0004 ● ● ● ●
336 COVER; INST PANEL SIDE 1-72437-624-0 01 1 0005- ● ● ● ● ●
336 COVER; INST PANEL SIDE 1-72438-109-6 01 1 9601-9803 ● ● ●
336 COVER; INST PANEL SIDE 1-72438-109-6 01 1 9804-0004 ● ● ● ●
336 COVER; INST PANEL SIDE 1-72437-622-0 01 1 0005- ● ● ● ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 9601-0004 ●
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 0005- ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 02 1 9601-9803 ● ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 02 1 9804-0004 ● ● ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 04 1 0005- ● ● ● ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 06 1 9601-9803 ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 06 1 9804-0004 ● ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 06 1 0005- ● ● ●
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 9601-9803 ● ● ●
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 9804-0004 ● ● ● ●
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 0005- ● ● ● ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 9601-0004 ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 0005- ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 9601-9803 ● ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 9804-0004 ● ● ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0005- ● ● ● ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 9601-9803 ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 9804- ● ● ●
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 9601-9803 ● ● ●
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 9804-0004 ● ● ● ●
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0005-0405 ● ● ● ● ●
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0406-0604 ● ● ● ● ●
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605- ● ● ● ● ●
405 GRILLE ASM; METER VENT
(A) 		1-76367-062-1 01 1 9601-9803 ● ● ●
405 GRILLE ASM; METER VENT
(A) 		1-76367-062-1 01 1 9804-0004 ● ● ● ●
405 GRILLE ASM; METER VENT
(A) 		1-76367-062-2 01 1 0005- ● ● ● ● ●
405 GRILLE ASM; METER VENT
(B) 		1-76367-059-3 01 1 9601-9803 ● ● ●
405 GRILLE ASM; METER VENT
(B) 		1-76367-059-3 01 1 9804-0004 ● ● ● ●
405 GRILLE ASM; METER VENT
(B) 		1-76367-059-3 01 1 0005- ● ● ● ● ●
500 CLUSTER; INST CENTER 1-72438-117-8 01 1 9601-9803 ● ● ●
500 CLUSTER; INST CENTER 1-72438-117-9 01 1 9804-0004 ● ● ● ●
500 CLUSTER; INST CENTER 1-72438-185-1 01 1 0005- ● ● ● ● ●
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 9601-9803 ● ● ●
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 9804-0004 ● ● ● ●
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 0005- ● ● ● ● ●
505 LOCK; LID 1-72558-024-2 02 1 9601-9803 ● ● ●
505 LOCK; LID 1-72558-024-2 02 1 9804-0004 ● ● ● ●
505 LOCK; LID 1-72558-024-2 02 1 0005- ● ● ● ● ●
513 BRACKET; RELAY
(A) 		1-73908-009-9 01 1 9601-9803 ● ● ●
513 BRACKET; RELAY
(A) 		1-73908-009-9 01 1 9804-0004 ● ● ● ●
513 BRACKET; RELAY
(A) 		1-73908-009-9 01 1 0005-0205 ● ● ● ● ●
513 BRACKET; RELAY
(A) 		1-73908-425-0 01 1 0206- ● ● ● ● ●
513 BRACKET; RELAY
PTO CONTROL<SV6> (B) 		1-73908-043-1 01 1 9601-9706 ● ●
513 BRACKET; RELAY
PTO CONTROL<SV6> (B) 		1-73908-043-1 01 1 9707-9803 ● ● ●
513 BRACKET; RELAY
PTO CONTROL<SV6> (B) 		1-73908-043-1 01 1 9804- ● ● ●
527 CLIP; INST CLUSTER 8-97853-939-4 04 1 9601-9803 ● ● ●
527 CLIP; INST CLUSTER 8-97853-939-4 04 1 9804-9812 ● ● ● ●
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 9901-0004 ● ● ● ●
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 0005- ● ● ● ● ●
557 LID; BOX,COOL & HOT 1-72548-142-1 01 1 9601-9803 ● ● ●
557 LID; BOX,COOL & HOT 1-72548-142-1 01 1 9804-0004 ● ● ● ●
557 LID; BOX,COOL & HOT 1-72548-142-1 01 1 0005- ● ● ● ● ●
565 BEZEL; SW PANEL
(A) 		1-72418-010-1 01 1 9601-9803 ● ● ●
565 BEZEL; SW PANEL
(A) 		1-72418-010-1 01 1 9804-0004 ● ● ● ●
565 BEZEL; SW PANEL
(A) 		1-72418-010-2 01 1 0005- ● ● ● ● ●
565 BEZEL; SW PANEL
(B) 		1-72418-011-2 01 1 9601-9803 ● ● ●
565 BEZEL; SW PANEL
(B) 		1-72418-011-2 01 1 9804-0004 ● ● ● ●
565 BEZEL; SW PANEL
(B) 		1-72418-011-3 01 1 0005- ● ● ● ● ●
569 HOLDER; CARD 1-72498-015-1 01 1 9601-9803 ● ● ●
569 HOLDER; CARD 1-72498-015-1 01 1 9804-0004 ● ● ● ●
569 HOLDER; CARD 1-72498-015-2 01 1 0005- ● ● ● ● ●
570 SCREW; HOLDER
M5X14 		8-94279-325-0 01 1 9601-9803 ● ● ●
570 SCREW; HOLDER
M5X14 		8-94279-325-0 01 1 9804-0004 ● ● ● ●
570 SCREW; HOLDER
M5X14 		8-94279-325-0 01 1 0005- ● ● ● ● ●
572 COVER; INSPECTION 1-72438-054-3 01 1 9601-9803 ● ● ●
572 COVER; INSPECTION 1-72438-054-3 01 1 9804-0004 ● ● ● ●
572 COVER; INSPECTION 1-72438-183-0 01 1 0005- ● ● ● ● ●
579 COVER; INST PNL 1-72438-115-5 01 1 9601-0004 ●
579 COVER; INST PNL 1-72438-186-1 01 1 0005- ● ●
579 COVER; INST PNL 1-72438-113-3 01 1 9601-9803 ● ●
579 COVER; INST PNL 1-72438-113-4 01 1 9804-0004 ● ● ●
579 COVER; INST PNL 1-72438-184-1 01 1 0005- ● ● ●
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 9601-9803 ● ● ●
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 9804-0004 ● ● ● ●
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0005-0604 ● ● ● ● ●
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605- ● ● ● ● ●
582 LID; FUSE & RELAY 1-72547-115-8 01 1 9601-0004 ●
582 LID; FUSE & RELAY 1-72547-124-0 01 1 0005- ● ●
582 LID; FUSE & RELAY 1-72548-127-8 01 1 9601-9803 ● ●
582 LID; FUSE & RELAY 1-72548-127-8 01 1 9804-0004 ● ● ●
582 LID; FUSE & RELAY 1-72548-144-0 01 1 0005- ● ● ●
588 LID; BOX 1-72548-135-3 01 1 9601-9803 ● ● ●
588 LID; BOX 1-72548-135-3 01 1 9804-0004 ● ● ● ●
588 LID; BOX 1-72548-135-3 01 1 0005- ● ● ● ● ●
589 KNOB; LID 1-72548-143-0 01 1 9601-9803 ● ● ●
589 KNOB; LID 1-72548-143-0 01 1 9804-0004 ● ● ● ●
589 KNOB; LID 1-72548-143-0 01 1 0005- ● ● ● ● ●
592 HINGE; LID 1-72548-133-3 01 1 9601-9803 ● ● ●
592 HINGE; LID 1-72548-133-3 01 1 9804-0004 ● ● ● ●
592 HINGE; LID 1-72548-133-3 01 1 0005- ● ● ● ● ●
593 SCREW; HINGE
M5X14 		8-94279-325-0 02 1 9601-9803 ● ● ●
593 SCREW; HINGE
M5X14 		8-94279-325-0 02 1 9804-0004 ● ● ● ●
593 SCREW; HINGE
M5X14 		8-94279-325-0 02 1 0005- ● ● ● ● ●
594 HOOK; COAT 1-72498-013-0 01 1 9601-9803 ● ● ●
594 HOOK; COAT 1-72498-013-0 01 1 9804-0004 ● ● ● ●
594 HOOK; COAT 1-72498-013-0 01 1 0005- ● ● ● ● ●
595 NUT; HOOK
(A) M5 		1-09984-162-0 01 1 9601-9803 ● ● ●
595 NUT; HOOK
(A) M5 		1-09984-162-0 01 1 9804-0004 ● ● ● ●
595 NUT; HOOK
(A) M5 		1-09984-162-0 01 1 0005-0012 ● ● ● ● ●
595 NUT; HOOK
(A) 		8-97810-118-0 01 1 0101-0110 ● ● ● ● ●
595 NUT; HOOK
(A) M5 		1-09984-162-0 01 1 0111- ● ● ● ● ●
595 NUT; HOOK
(B) 		1-72418-013-0 11 1 9601-9803 ● ● ●
595 NUT; HOOK
(B) 		1-72418-013-0 11 1 9804-0004 ● ● ● ●
595 NUT; HOOK
(B) 		1-72418-013-0 11 1 0005- ● ● ● ● ●
596 SCREW; HOOK
M5X16 W/LK&PL WASHER 		8-94279-400-0 01 1 9601-9803 ● ● ●
596 SCREW; HOOK
M5X16 W/LK&PL WASHER 		8-94279-400-0 01 1 9804-0004 ● ● ● ●
596 SCREW; HOOK
M5X16 W/LK&PL WASHER 		8-94279-400-0 01 1 0005- ● ● ● ● ●
603 CLIP; COVER 1-09987-245-1 01 1 9601-9803 ● ● ●
603 CLIP; COVER 1-09987-245-1 01 1 9804-0004 ● ● ● ●
603 CLIP; COVER
D8X13.5 		1-09987-270-0 01 1 0005- ● ● ● ● ●
673 FINISHER; BRKT,RELAY
L=30 SERVICED BY L=50 		8-94270-377-1 01 1 0006-0009 ● ● ● ● ●
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0010- ● ● ● ● ●

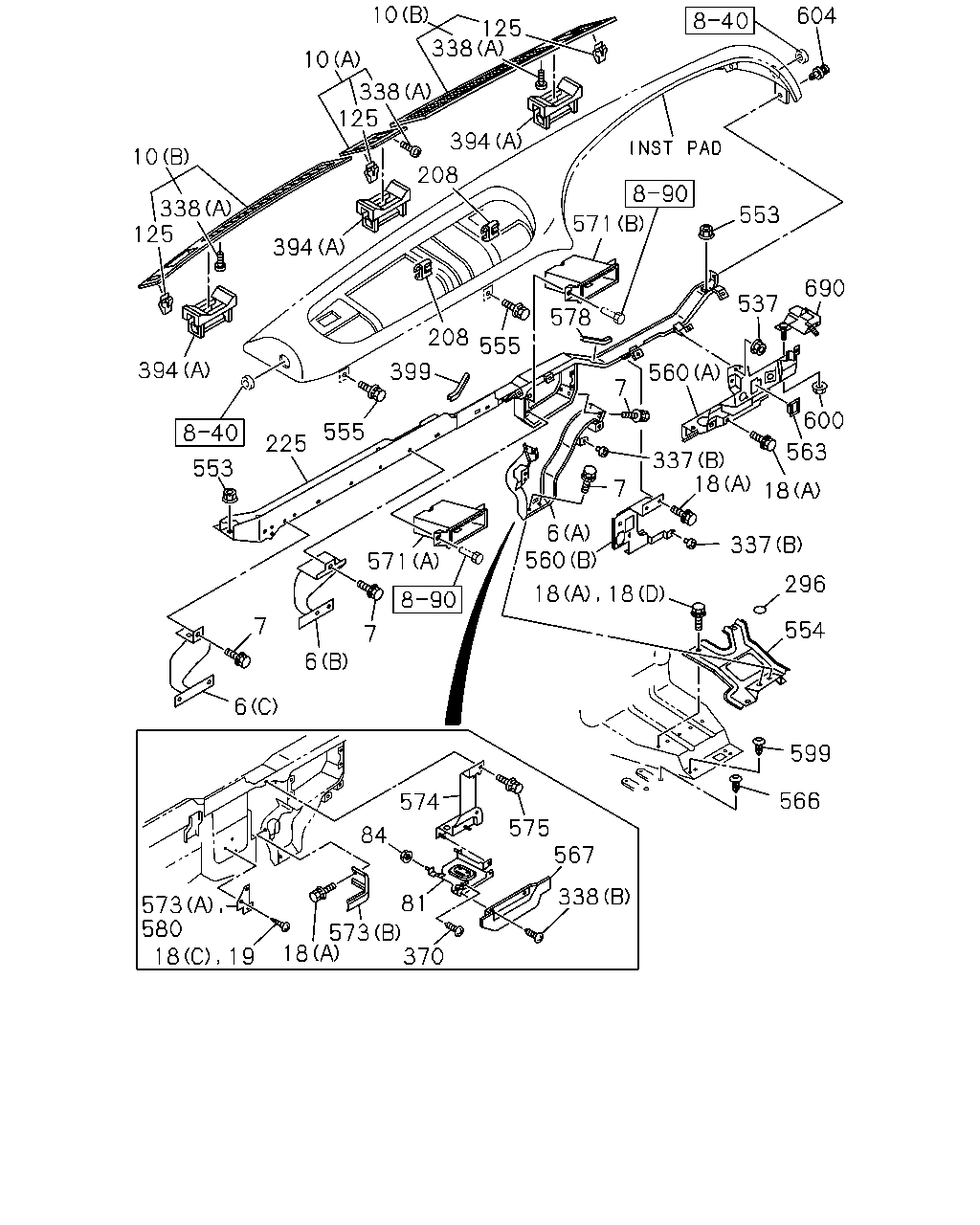

çizim 184293
10 10 10 604 553 690 600 125 338 338 208 571 537 578 338 394 125 394 394 125 208 399 555 225 553 555 560 7 7 337 18 18 563 7 337 296 6 560 18 18 554 599 566 571 7 6 7 6 574 575 567 338 370 84 81 573 18 19 18 580 573
BalonParca AdiParca NoAdetTipApplied Date A B C D E
6 SUPPORT; INST PANEL
(A) 		1-65681-089-1 01 1 9601-0004 ●
6 SUPPORT; INST PANEL
(A) 		1-65681-089-3 01 1 0005- ● ●
6 SUPPORT; INST PANEL
(A) 		1-65680-961-4 01 1 9601-9803 ● ●
6 SUPPORT; INST PANEL
(A) 		1-65680-961-4 01 1 9804-9904 ● ● ●
6 SUPPORT; INST PANEL
(A) 		1-65681-165-2 01 1 9905- ● ● ●
6 SUPPORT; INST PANEL
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-65681-064-2 01 1 9601-9803 ● ●
6 SUPPORT; INST PANEL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-65681-064-2 01 1 9804- ● ● ●
6 SUPPORT; INST PANEL
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-65681-063-3 01 1 9601-9803 ● ●
6 SUPPORT; INST PANEL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-65681-063-3 01 1 9804- ● ● ●
7 BOLT; SUPPORT,INST PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 9601-9803 ● ● ●
7 BOLT; SUPPORT,INST PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 9804-0004 ● ● ● ●
7 BOLT; SUPPORT,INST PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0005- ● ● ● ● ●
7 BOLT; SUPPORT,INST PNL
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9601-9803 ● ●
7 BOLT; SUPPORT,INST PNL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9804- ● ● ●
10 PANEL ASM; GARNISH
(A) CENTER 		1-72438-120-4 01 1 9601-0004 ●
10 PANEL ASM; GARNISH
(A) CENTER 		1-72438-120-6 01 1 0005- ● ●
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) W/SPEAKER NET 		1-72437-601-1 01 1 9601-9803 ● ● ●
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) W/SPEAKER NET 		1-72437-601-2 01 1 9804-9909 ● ● ● ●
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> (B) W/SPEAKER NET 		1-72437-601-2 01 1 9910-0004 ● ● ● ●
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) W/SPEAKER NET 		1-72437-601-6 01 1 0005- ● ● ● ● ●
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) W/SPEAKER NET 		1-72437-600-1 01 1 9601-9803 ● ● ●
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) W/SPEAKER NET 		1-72437-600-2 01 1 9804-0004 ● ● ● ●
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) W/SPEAKER NET 		1-72437-600-7 01 1 0005- ● ● ● ● ●
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-72438-158-0 01 1 9601-9609 ● ●
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-72438-158-0 01 1 9610-9803 ● ● ●
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-72438-158-1 01 1 9804- ● ● ● ● ●
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-72438-157-0 01 1 9601-9609 ● ●
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-72438-157-0 01 1 9610-9803 ● ● ●
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-72438-157-1 01 1 9804- ● ● ● ● ●
10 PANEL ASM; GARNISH
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> (B) 		1-72437-603-2 01 1 9910-0004 ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9601-9803 ●
18 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9601-9803 ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9804-0004 ●
18 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9804-0004 ● ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0005- ● ●
18 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0005- ● ● ●
18 BOLT; BRKT
(C) M5X14 		8-94279-325-0 03 1 9601-0004 ●
18 BOLT; BRKT
(C) M5X14 		8-94279-325-0 03 1 0005- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 9601-9801 ● ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9802-9803 ● ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9802-9803 ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9804-0004 ● ● ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9804-0004 ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005- ● ● ● ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9601-9801 ● ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9802-9803 ● ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9804-0004 ● ● ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0005- ● ● ● ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9601-9803 ● ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9804-0004 ● ● ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0005- ● ● ● ● ●
18 BOLT; BRKT
(D) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9802-9803 ● ●
18 BOLT; BRKT
(D) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9804-9804 ● ● ●
18 BOLT; BRKT
(D) M8X40 FLANGE 		0-28680-840-0 03 1 9805-0512 ● ● ●
18 BOLT; BRKT
(D) M8X40 FLANGE 		0-28650-840-0 03 1 0601- ● ● ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 02 1 9601-9706 ● ●
19 SCREW; BRKT
PTO CONTROL<SV6> M5X14 		8-94279-325-0 02 1 9601-9706 ● ●
19 SCREW; BRKT
PTO CONTROL<SV6> M5X14 		8-94279-325-0 02 1 9707-9803 ● ● ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 02 1 9707-9803 ● ●
19 SCREW; BRKT
PTO CONTROL<SV6> M5X14 		8-94279-325-0 02 1 9804-0004 ● ● ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 02 1 9804-0004 ● ● ●
19 SCREW; BRKT
PTO CONTROL<SV6> M5X14 		8-94279-325-0 02 1 0005- ● ● ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 02 1 0005- ● ● ● ●
19 SCREW; BRKT
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> M5X14 		8-94279-325-0 01 1 9910-0004 ● ●
81 BRACKET; ELEC CONT UNIT
SPEED LIMITER CABLE STROKE CONTROL<TDT> 		1-73908-156-4 01 1 9601-9803 ● ●
81 BRACKET; ELEC CONT UNIT
SPEED LIMITER CABLE STROKE CONTROL<TDT> 		1-73908-156-4 01 1 9804-0004 ● ●
81 BRACKET; ELEC CONT UNIT 1-73908-156-4 01 1 0005- ●
84 NUT; CONT UNIT BRKT
SPEED LIMITER CABLE STROKE CONTROL<TDT> M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9601-9803 ● ●
84 NUT; CONT UNIT BRKT
SPEED LIMITER CABLE STROKE CONTROL<TDT> M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9804-0004 ● ●
84 NUT; CONT UNIT BRKT
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0005- ●
125 CLIP; INST PANEL 8-97853-939-4 02 1 9601-9803 ●
125 CLIP; INST PANEL 8-97853-939-4 03 1 9804-9812 ●
125 CLIP; INST PANEL 8-97217-066-0 03 1 9901-0004 ●
125 CLIP; INST PANEL 8-97217-066-0 03 1 0005- ● ●
125 CLIP; INST PANEL 8-97853-939-4 01 1 9601-9803 ● ● ●
125 CLIP; INST PANEL 8-97853-939-4 01 1 9804-9812 ● ● ●
125 CLIP; INST PANEL 8-97217-066-0 01 1 9901-0004 ● ● ●
125 CLIP; INST PANEL 8-97217-066-0 01 1 0005- ● ● ●
125 CLIP; INST PANEL 8-97853-939-4 08 1 9601-9803 ● ● ●
125 CLIP; INST PANEL 8-97853-939-4 08 1 9804-9812 ● ● ● ●
125 CLIP; INST PANEL 8-97217-066-0 08 1 9901-9909 ● ● ● ●
125 CLIP; INST PANEL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-97217-066-0 08 1 9910-0004 ● ● ● ●
125 CLIP; INST PANEL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-97217-066-0 08 1 0005- ● ● ● ● ●
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 9601-9803 ● ● ●
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 9804-0004 ● ● ● ●
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 0005- ● ● ● ● ●
225 FRAME; FACIA 1-65681-097-0 01 1 9601-0004 ●
225 FRAME; FACIA 1-65681-097-2 01 1 0005-1002 ● ●
225 FRAME; FACIA 8-98142-103-0 01 1 1003- ● ●
225 FRAME; FACIA 1-65681-096-0 01 1 9601-9803 ● ●
225 FRAME; FACIA 1-65681-096-2 01 1 9804-1002 ● ● ●
225 FRAME; FACIA 8-98142-102-0 01 1 1003- ● ● ●
296 SEAL; INST CENTER BEZEL
OD=25 BLACK 		1-76798-019-0 01 1 9601-9803 ● ●
296 SEAL; INST CENTER BEZEL
OD=25 BLACK 		1-76798-019-0 01 1 9804-9806 ● ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 9601-0004 ●
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 0005- ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 02 1 9601-9803 ● ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 02 1 9804-0004 ● ● ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 04 1 0005- ● ● ● ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 06 1 9601-9803 ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 06 1 9804-0004 ● ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 06 1 0005- ● ● ●
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 9601-9803 ● ● ●
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 9804-0004 ● ● ● ●
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 0005- ● ● ● ● ●
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 02 1 9601-0004 ●
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 02 1 0005- ● ●
338 SCREW; COVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M5X14 		8-94279-325-0 10 1 9601-9803 ● ● ●
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M5X14 		8-94279-325-0 10 1 9804-0004 ● ● ● ●
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M5X14 		8-94279-325-0 10 1 0005-0208 ● ● ● ● ●
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M5X14 		8-94148-576-1 10 1 0209-0309 ● ● ● ● ●
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M5X14 		8-94279-325-0 20 1 0310-0405 ● ● ● ● ●
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M5X14 		8-94279-325-0 10 1 0406-0801 ● ● ● ● ●
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M5X14 		8-94279-325-0 15 1 0802- ● ● ● ● ●
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 05 1 9910-0004 ● ● ● ●
338 SCREW; COVER
SPEED LIMITER CABLE STROKE CONTROL<TDT> (B) M6X16 		8-94479-534-0 02 1 9601-9803 ● ●
338 SCREW; COVER
SPEED LIMITER CABLE STROKE CONTROL<TDT> (B) M6X16 		8-94479-534-0 02 1 9804-0004 ● ●
338 SCREW; COVER
(B) M6X16 		8-94479-534-0 02 1 0005-0302 ●
338 SCREW; COVER
(B) M6X12 		8-97094-854-0 02 1 0303- ●
370 SCREW; BRKT,ELEC CONT UNIT
SPEED LIMITER CABLE STROKE CONTROL<TDT> M5X14 		8-94279-325-0 01 1 9601-9803 ● ●
370 SCREW; BRKT,ELEC CONT UNIT
SPEED LIMITER CABLE STROKE CONTROL<TDT> M5X14 		8-94279-325-0 01 1 9804-0004 ● ●
370 SCREW; BRKT,ELEC CONT UNIT
M5X14 		8-94279-325-0 01 1 0005- ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 9601-0004 ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 0005- ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 9601-9803 ● ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 9804-0004 ● ● ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0005- ● ● ● ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 9601-9803 ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 9804- ● ● ●
399 FINISHER; HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ) L=60 		8-97865-346-0 01 1 9803-9803 ● ●
399 FINISHER; HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ) L=60 		8-97865-346-0 01 1 9804-9807 ● ● ●
399 FINISHER; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) L=60 		8-97865-346-0 01 1 9808-0004 ● ● ● ●
399 FINISHER; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) L=60 		8-97865-346-0 01 1 0005- ● ● ● ● ●
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 9601-9803 ● ● ●
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 9804-0004 ● ● ● ●
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 0005-0602 ● ● ● ● ●
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0603- ● ● ● ● ●
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 9601-9803 ● ● ●
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 9804-0004 ● ● ● ●
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 0005-0602 ● ● ● ● ●
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ● ● ● ●
554 BRACKET; CENTER BEZEL 1-65681-023-1 01 1 9601-0004 ●
554 BRACKET; CENTER BEZEL 1-65681-023-2 01 1 0005- ● ●
554 BRACKET; CENTER BEZEL 1-65680-963-1 01 1 9601-9803 ● ●
554 BRACKET; CENTER BEZEL 1-65680-963-2 01 1 9804- ● ● ●
555 BOLT; PAD
M10X25 FLANGE 		0-28281-025-0 08 1 9601-0004 ●
555 BOLT; PAD
M10X25 FLANGE 		0-28281-025-0 08 1 0005-0512 ● ●
555 BOLT; PAD
M10X25 FLANGE 		0-28251-025-0 08 1 0601-0604 ● ●
555 BOLT; PAD
M10X25 FLANGE 		8-98041-453-0 08 1 0605- ● ●
555 BOLT; PAD
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9601-9803 ● ● ●
555 BOLT; PAD
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9804-0004 ● ● ● ●
555 BOLT; PAD
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0005- ● ● ● ● ●
555 BOLT; PAD
M10X25 FLANGE 		0-28281-025-0 07 1 9601-9803 ● ●
555 BOLT; PAD
M10X25 FLANGE 		0-28281-025-0 07 1 9804-0512 ● ● ●
555 BOLT; PAD
M10X25 FLANGE 		0-28251-025-0 07 1 0601-0604 ● ● ●
555 BOLT; PAD
M10X25 FLANGE 		8-98041-453-0 07 1 0605- ● ● ●
560 BRACKET
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> (B) 		1-65681-197-2 01 1 0606- ●
560 BRACKET
(B) 		1-65680-976-2 01 1 9601-9803 ● ● ●
560 BRACKET
(B) 		1-65680-976-2 01 1 9804-0004 ● ● ● ●
560 BRACKET
(B) 		1-65680-976-3 01 1 0005-0605 ● ● ● ● ●
560 BRACKET
(B) 		1-65680-976-3 01 1 0606- ● ● ● ●
560 BRACKET
EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> (B) 		1-65680-976-3 01 1 0606- ●
560 BRACKET
(A) 		1-65681-078-3 01 1 9601-9803 ● ● ●
560 BRACKET
(A) 		1-65681-078-3 01 1 9804-0004 ● ● ● ●
560 BRACKET
(A) 		1-65681-078-7 01 1 0005-0405 ● ● ● ● ●
560 BRACKET
6HH1 STD 4VALVE ENG(1A6),6SD1 TCN ENG(31L), 6SD1STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) 		1-65681-078-7 01 1 0406-0604 ● ● ●
560 BRACKET
(A) 		1-65681-078-7 01 1 0406-0604 ● ●
560 BRACKET
6HH1 STD 4VALVE ENG(1A6),6SD1 TCN ENG(31L), 6SD1STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. EURO3 SPECIFICATION<NJX> (A) 		1-65681-078-7 01 1 0605- ● ● ●
560 BRACKET
(A) 		1-65681-078-7 01 1 0605- ● ●
560 BRACKET
6HK1 TCS ENG(80L) (A) 		1-65671-772-4 01 1 0406-0604 ●
560 BRACKET
6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> (A) 		1-65671-772-4 01 1 0605- ●
560 BRACKET
6HK1 TCS ENG(80L) (A) 		1-65671-772-4 01 1 0605- ●
563 BEZEL; BRKT
6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> 		1-72448-410-3 01 1 0707- ●
563 BEZEL; BRKT
6HK1 TCS ENG(80L) 		1-72448-410-3 01 1 0707- ●
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 9601-9803 ● ● ●
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 9804-0004 ● ● ● ●
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0005- ● ● ● ● ●
566 PLUG; HOLE
OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0404-0604 ● ● ● ● ●
567 COVER; CONT UNIT
SPEED LIMITER CABLE STROKE CONTROL<TDT> 		1-65681-022-1 01 1 9601-9803 ● ●
567 COVER; CONT UNIT
SPEED LIMITER CABLE STROKE CONTROL<TDT> 		1-65681-022-1 01 1 9804-0004 ● ●
567 COVER; CONT UNIT 1-65681-022-2 01 1 0005- ●
571 BEZEL; POCKET
(B) 		1-72438-151-0 01 1 9601-9803 ●
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) (B) 		1-72438-151-0 01 1 9601-9803 ● ●
571 BEZEL; POCKET
(B) 		1-72438-151-0 01 1 9804-9812 ●
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) (B) 		1-72438-151-0 01 1 9804-9812 ● ● ●
571 BEZEL; POCKET
(B) 		1-72438-151-1 01 1 9901-0004 ● ● ● ●
571 BEZEL; POCKET
(B) 		1-72438-151-1 01 1 9901-0004 ●
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) (B) 		1-72438-151-1 01 1 9901-0004 ● ● ●
571 BEZEL; POCKET
(B) 		1-72438-151-3 01 1 0005- ● ● ● ● ●
571 BEZEL; POCKET
(B) 		1-72438-151-3 01 1 0005- ● ●
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) (B) 		1-72438-151-3 01 1 0005- ● ● ●
571 BEZEL; POCKET
(A) 		1-72438-060-1 01 1 9601-9803 ● ● ●
571 BEZEL; POCKET
(A) 		1-72438-060-1 01 1 9804-9812 ● ● ● ●
573 BRACKET; PANEL,RELAY BOX
(B) 		1-73908-024-2 01 1 9601-9803 ●
573 BRACKET; PANEL,RELAY BOX
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-73908-024-2 01 1 9601-9803 ● ●
573 BRACKET; PANEL,RELAY BOX
(B) 		1-73908-024-2 01 1 9804-0004 ●
573 BRACKET; PANEL,RELAY BOX
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-73908-024-2 01 1 9804-0004 ● ● ●
573 BRACKET; PANEL,RELAY BOX
(B) 		1-73908-024-2 01 1 0005- ● ●
573 BRACKET; PANEL,RELAY BOX
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-73908-024-2 01 1 0005- ● ● ●
573 BRACKET; PANEL,RELAY BOX
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-73908-023-2 01 1 9601-9803 ● ●
573 BRACKET; PANEL,RELAY BOX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-73908-023-2 01 1 9804- ● ● ●
574 PANEL; RELAY BOX 1-73908-011-3 01 1 9601-9803 ● ● ●
574 PANEL; RELAY BOX 1-73908-011-3 01 1 9804-9910 ● ● ● ●
574 PANEL; RELAY BOX 1-73908-252-1 01 1 9911-0004 ● ● ● ●
574 PANEL; RELAY BOX 1-73908-252-3 01 1 0005- ● ● ● ● ●
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9601-9803 ● ● ●
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9804-0004 ● ● ● ●
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005- ● ● ● ● ●
578 SEAL; PROTECTOR,HARNESS
100X30 		1-72498-014-1 01 1 9601-9803 ● ● ●
578 SEAL; PROTECTOR,HARNESS
100X30 		1-72498-014-1 01 1 9804-9903 ● ● ● ●
578 SEAL; PROTECTOR,HARNESS
100X40 		1-72498-022-0 01 1 9904-0004 ● ● ● ●
578 SEAL; PROTECTOR,HARNESS
100X40 		1-72498-022-1 01 1 0005- ● ● ● ● ●
580 BRACKET; COVER 1-72437-094-2 01 1 9601-0004 ●
580 BRACKET; COVER 1-72437-094-3 01 1 0005- ● ●
599 PLUG; BRKT
D4.7X11 		1-76378-154-0 03 1 9601-9801 ●
599 PLUG; BRKT
D7.8X20 		8-94353-238-0 03 1 9802-0004 ●
599 PLUG; BRKT
D7.8X20 		8-94353-238-0 03 1 0005- ● ●
599 PLUG; BRKT
D4.7X11 		1-76378-154-0 01 1 9601-9803 ● ●
599 PLUG; BRKT
D4.7X11 		1-76378-154-0 01 1 9804- ● ● ●
600 NUT; PANEL
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> M6 FLANGE 		0-91180-106-0 02 1 0606- ●
604 CLIP; INST PAD 1-09983-123-0 01 1 9601-9803 ● ● ●
604 CLIP; INST PAD 1-09983-123-0 01 1 9804-0004 ● ● ● ●
604 CLIP; INST PAD 1-09983-123-0 01 1 0005- ● ● ● ● ●
690 PANEL; RELAY,HEADLAMP
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-65681-196-1 01 1 0606- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
