◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10704 - FVR/GVR-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-01 - EMBLEM AND NAME PLATE ▶
7-01 — EMBLEM AND NAME PLATE (#63893) — 30 parça

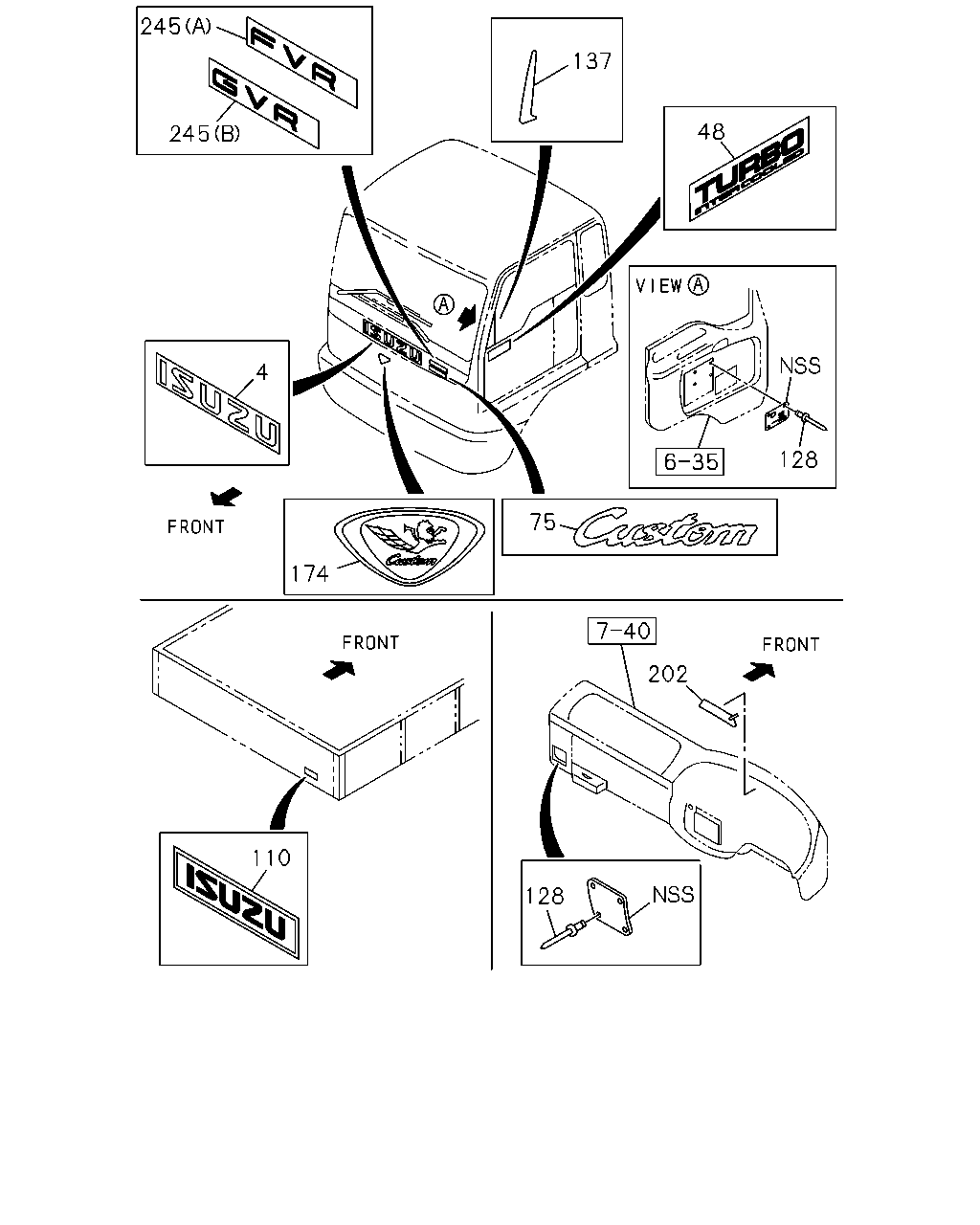

çizim 132160
245 137 48 245 4 128 75 174 202 110 128
BalonParca AdiParca NoAdetTipApplied Date A B C D E
4 EMBLEM; RAD GRILLE 1-76210-634-0 01 1 9601-9803 ● ● ●
4 EMBLEM; RAD GRILLE 1-76210-668-2 01 1 9804-9909 ● ● ● ●
4 EMBLEM; RAD GRILLE 1-76210-668-2 01 1 9910-0004 ● ●
4 EMBLEM; RAD GRILLE
EXC. CUSTOM CAB(SR5) 		1-76210-668-2 01 1 9910-0004 ● ●
4 EMBLEM; RAD GRILLE 1-76210-668-3 01 1 0005- ● ● ● ● ●
4 EMBLEM; RAD GRILLE
CUSTOM CAB(SR5) 		1-76210-669-2 01 1 9910-0004 ● ●
48 DECAL; TURBOCHARGER
6SD1 TCN ENG(31L),6HE1 TC ENG(57L) 		1-76218-114-0 01 1 9601-0004 ● ● ● ●
48 DECAL; TURBOCHARGER
6SD1 TCN ENG(31L),6HE1 TC ENG(57L) 		1-76218-114-0 01 1 0005- ● ● ● ● ●
75 DECAL; FRT CORNER
CUSTOM CAB(SR5) 		1-76210-640-2 01 1 9910-0004 ● ●
110 EMBLEM; "ISUZU",RR BODY 1-76210-663-0 01 1 9601-0004 ● ● ●
128 RIVET; POP,NAME PLATE 5-09734-001-0 04 1 9601-9803 ● ● ●
128 RIVET; POP,NAME PLATE
ENGINE NO PLATE<E6D> 		5-09734-001-0 04 1 9601-9803 ● ● ●
128 RIVET; POP,NAME PLATE 5-09734-001-0 04 1 9804-0004 ● ● ● ●
128 RIVET; POP,NAME PLATE
ENGINE NO PLATE<E6D> 		5-09734-001-0 04 1 9804-0004 ● ● ●
128 RIVET; POP,NAME PLATE 5-09734-001-0 04 1 0005- ● ● ● ● ●
128 RIVET; POP,NAME PLATE
ENGINE NO PLATE<E6D> 		5-09734-001-0 04 1 0005- ● ● ● ●
137 DECAL; DOOR
BLACK 		1-74998-049-3 01 1 9601-9803 ● ● ●
137 DECAL; DOOR
BLACK 		1-74998-049-3 01 1 9804-0004 ● ● ● ●
137 DECAL; DOOR
BLACK 		1-74998-049-3 01 1 0005- ● ● ● ● ●
137 DECAL; DOOR
BLACK 		1-74998-048-3 01 1 9601-9803 ● ● ●
137 DECAL; DOOR
BLACK 		1-74998-048-3 01 1 9804-0004 ● ● ● ●
137 DECAL; DOOR
BLACK 		1-74998-048-3 01 1 0005- ● ● ● ● ●
174 EMBLEM; FRT PANEL
CUSTOM CAB(SR5) 		1-76210-641-1 01 1 9910-0004 ● ●
202 DECAL; METER CLUSTER
METER PANEL GRAIN OF WOOD<NAY> 		1-72418-016-1 01 1 0212- ●
202 DECAL; METER CLUSTER
CUSTOM CAB(SR5) 		1-72418-016-1 01 1 9910-0004 ● ●
245 DECAL; MODEL
(A) 		1-76218-111-0 01 1 9601-0004 ● ●
245 DECAL; MODEL
EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		1-76218-111-0 01 1 9601-0004 ●
245 DECAL; MODEL
(A) 		1-76218-111-0 01 1 0005- ● ● ● ●
245 DECAL; MODEL
EXC. AUSTRALIA EQUIPMENT(RR3) (B) 		1-76218-151-0 01 1 9804-0004 ●
245 DECAL; MODEL
(B) 		1-76218-151-0 01 1 0005- ●
