6-84 — BACK TRIM (#63891) — 44 parça

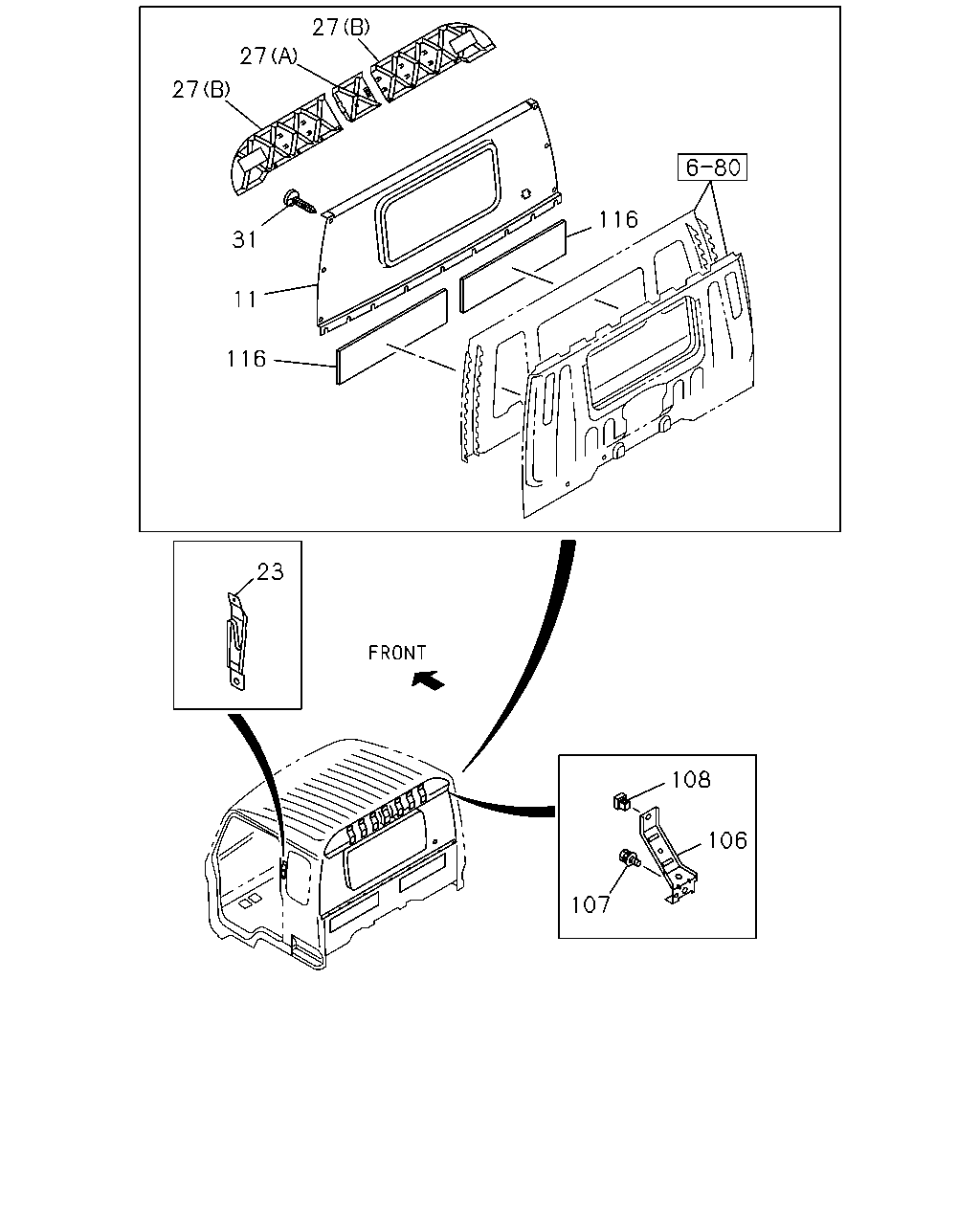

çizim 132432
27 27 27 116 31 11 116 23 108 106 107
BalonParca AdiParca NoAdetTipApplied Date A B C D E
11 TRIM; ROOM,BACK INNER
PROVISIONAL PACKAGE<NLY> 		1-73346-031-1 01 1 0301- ● ●
11 TRIM; ROOM,BACK INNER
PROVISIONAL PACKAGE<NLY> EXC. LOW ROOF<6XQ> 		8-97893-967-1 01 1 0301- ● ●
11 TRIM; ROOM,BACK INNER
PROVISIONAL PACKAGE<NLY> 		8-97893-967-1 01 1 0301- ●
11 TRIM; ROOM,BACK INNER 1-73348-903-1 01 1 9601-0004 ●
11 TRIM; ROOM,BACK INNER 1-73348-925-2 01 1 0005-0212 ● ●
11 TRIM; ROOM,BACK INNER
EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-925-4 01 1 0301- ● ●
11 TRIM; ROOM,BACK INNER 1-73348-874-3 01 1 9601-9803 ● ●
11 TRIM; ROOM,BACK INNER 1-73348-874-3 01 1 9804-0004 ● ● ●
11 TRIM; ROOM,BACK INNER
LOW ROOF<6XQ> 		1-73348-968-1 01 1 0005- ● ●
11 TRIM; ROOM,BACK INNER
EXC. LOW ROOF<6XQ> 		1-73348-942-1 01 1 0005-0212 ● ●
11 TRIM; ROOM,BACK INNER 1-73348-942-1 01 1 0005-0212 ●
11 TRIM; ROOM,BACK INNER
EXC. PROVISIONAL PACKAGE<NLY>,LOW ROOF<6XQ> 		1-73348-942-3 01 1 0301- ● ● ●
23 FINISHER; BACK INNER PANEL 1-73347-789-1 01 1 9601-9803 ● ● ●
23 FINISHER; BACK INNER PANEL 1-73347-789-1 01 1 9804-0004 ● ● ● ●
23 FINISHER; BACK INNER PANEL 1-73347-789-1 01 1 0005- ● ● ● ● ●
23 FINISHER; BACK INNER PANEL 1-73347-788-1 01 1 9601-9803 ● ● ●
23 FINISHER; BACK INNER PANEL 1-73347-788-1 01 1 9804-0004 ● ● ● ●
23 FINISHER; BACK INNER PANEL 1-73347-788-1 01 1 0005- ● ● ● ● ●
27 COVER; TRIM,BACK
(A) 		1-73348-477-2 01 1 9601-9803 ●
27 COVER; TRIM,BACK
(B) 		1-73348-888-0 01 1 9601-9803 ●
27 COVER; TRIM,BACK
HIGH ROOF<S2F> (B) 		1-73348-888-0 01 1 9601-9803 ● ●
27 COVER; TRIM,BACK
(B) 		1-73348-887-1 01 1 9601-9803 ●
27 COVER; TRIM,BACK
HIGH ROOF<S2F> (B) 		1-73348-887-1 01 1 9601-9803 ● ●
27 COVER; TRIM,BACK
CUSTOM CAB(SR5) (B) 		1-73348-474-5 01 1 9910-0004 ● ●
27 COVER; TRIM,BACK
CUSTOM CAB(SR5) (B) 		1-73348-473-5 01 1 9910-0004 ● ●
31 CLIP; TRIM PAD
D6X23 BEIGE 		1-09987-225-0 04 1 9601-9803 ● ● ●
31 CLIP; TRIM PAD
D6X23 BEIGE 		1-09987-225-0 04 1 9804-0004 ● ● ● ●
31 CLIP; TRIM PAD
D6X23 LIGHT GRAY 		1-73318-629-0 27 1 0005- ● ● ● ● ●
31 CLIP; TRIM PAD
D6X23 DARK GRAY 		1-09987-238-0 23 1 9601-9803 ● ● ●
31 CLIP; TRIM PAD
D6X23 DARK GRAY 		1-09987-238-0 23 1 9804-0004 ● ● ● ●
106 BRACKET; BACK TRIM 1-73348-411-4 08 1 9601-9803 ●
106 BRACKET; BACK TRIM
HIGH ROOF<S2F> 		1-73348-411-4 07 1 9601-9803 ● ●
106 BRACKET; BACK TRIM
CUSTOM CAB(SR5) 		1-73348-411-4 03 1 9910-0004 ● ●
107 SCREW; BRKT
M5X20 		5-09981-059-0 16 1 9601-9803 ●
107 SCREW; BRKT
HIGH ROOF<S2F> M5X20 		5-09981-059-0 14 1 9601-9803 ● ●
107 SCREW; BRKT
CUSTOM CAB(SR5) M5X20 		5-09981-059-0 06 1 9910-0004 ● ●
108 GROMMET; SCREW
D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 16 1 9601-9708 ●
108 GROMMET; SCREW
D=8.6X7.7 L=7.5 		8-94279-078-0 16 1 9709-9803 ●
108 GROMMET; SCREW
HIGH ROOF<S2F> D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 14 1 9601-9708 ● ●
108 GROMMET; SCREW
HIGH ROOF<S2F> D=8.6X7.7 L=7.5 		8-94279-078-0 14 1 9709-9803 ● ●
108 GROMMET; SCREW
CUSTOM CAB(SR5) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 9910-0004 ● ●
116 INSULATOR; BACK PANEL 1-73368-002-0 02 1 9601-9803 ● ● ●
116 INSULATOR; BACK PANEL 1-73368-002-0 02 1 9804-0004 ● ● ● ●
116 INSULATOR; BACK PANEL 1-73368-002-2 02 1 0005- ● ● ● ● ●
