8-10 — WIRING HARNESS AND FUSE (#6389) — 105 parça

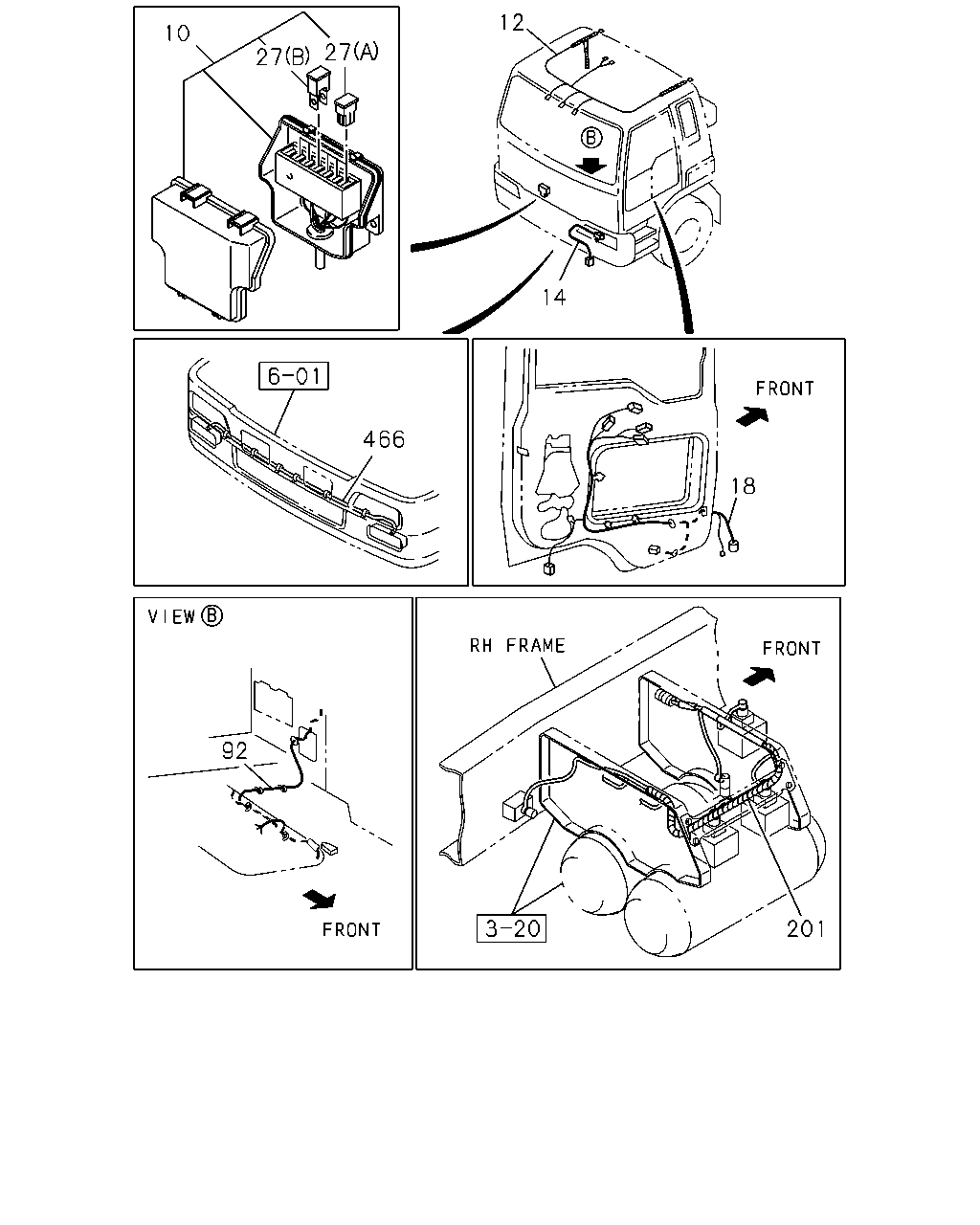

12 10 27 27 14 466 18 92 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	BOX; FUSE,HARNESS	1-82510-369-0	01	1	9604-9609
10	BOX; FUSE,HARNESS	1-82510-466-0	01	1	9610-
12	HARNESS; ROOF EXC. HIGH ROOF<S2F>,LAMPS TWO ROOF MARKER<TEC> PASSENGER	1-82628-100-1	01	1	9905-
12	HARNESS; ROOF LAMPS TWO ROOF MARKER<TEC> PASSENGER	1-82625-982-2	01	1	9604-9904
12	HARNESS; ROOF LAMPS TWO ROOF MARKER<TEC> HIGH ROOF<S2F> PASSENGER	1-82628-103-3	01	1	9905-
12	HARNESS; ROOF LAMPS TWO ROOF MARKER<TEC> EXC. HIGH ROOF<S2F> PASSENGER	1-82628-099-2	01	1	9905-
12	HARNESS; ROOF EXC. LAMPS TWO ROOF MARKER<TEC> PASSENGER	1-82625-983-1	01	1	9604-9904
12	HARNESS; ROOF HIGH ROOF<S2F> EXC. LAMPS TWO ROOF MARKER<TEC> PASSENGER	1-82628-104-2	01	1	9905-
14	HARNESS; HEADLAMP BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4>	1-82638-450-3	02	1	9604-9609
14	HARNESS; HEADLAMP BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4>	1-82670-022-2	02	1	9610-
14	HARNESS; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS RECTANGULAR<TR4>,REINFORCEMENT BUMPER<VG7>	1-82625-150-2	02	1	9604-
14	HARNESS; HEADLAMP HEADLAMPS RECTANGULAR<TR4>	1-82639-226-2	02	1	9604-
14	HARNESS; HEADLAMP REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS RECTANGULAR<TR4>	1-82625-986-0	02	1	9604-
18	HARNESS; DOOR PASSENGER	1-82625-719-2	01	1	9604-9610
18	HARNESS; DOOR PASSENGER	1-82626-785-0	01	1	9611-9904
18	HARNESS; DOOR PASSENGER	1-82628-581-0	01	1	9905-
27	FUSE UNIT (A) 40A GREEN	8-94468-662-0	05	1	9604-
27	FUSE UNIT (B) 60A YELLOW	8-94468-669-0	01	1	9604-9609
27	FUSE UNIT (B) 80A BLACK	8-94468-671-0	01	1	9610-
92	HARNESS; FLOOR	1-82625-979-2	01	1	9604-9904
92	HARNESS; FLOOR	1-82628-116-0	01	1	9905-
201	HARNESS; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-82639-361-1	01	1	9604-0005
201	HARNESS; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-82673-594-0	01	1	0006-
466	HARNESS; BUMPER HEADLAMPS RECTANGULAR<TR4>	1-82639-227-3	01	1	9604-
466	HARNESS; BUMPER REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS RECTANGULAR<TR4>	1-82639-227-3	01	1	9604-
466	HARNESS; BUMPER EXC. HEADLAMPS RECTANGULAR<TR4>,REINFORCEMENT BUMPER<VG7>	1-82639-281-0	01	1	9604-

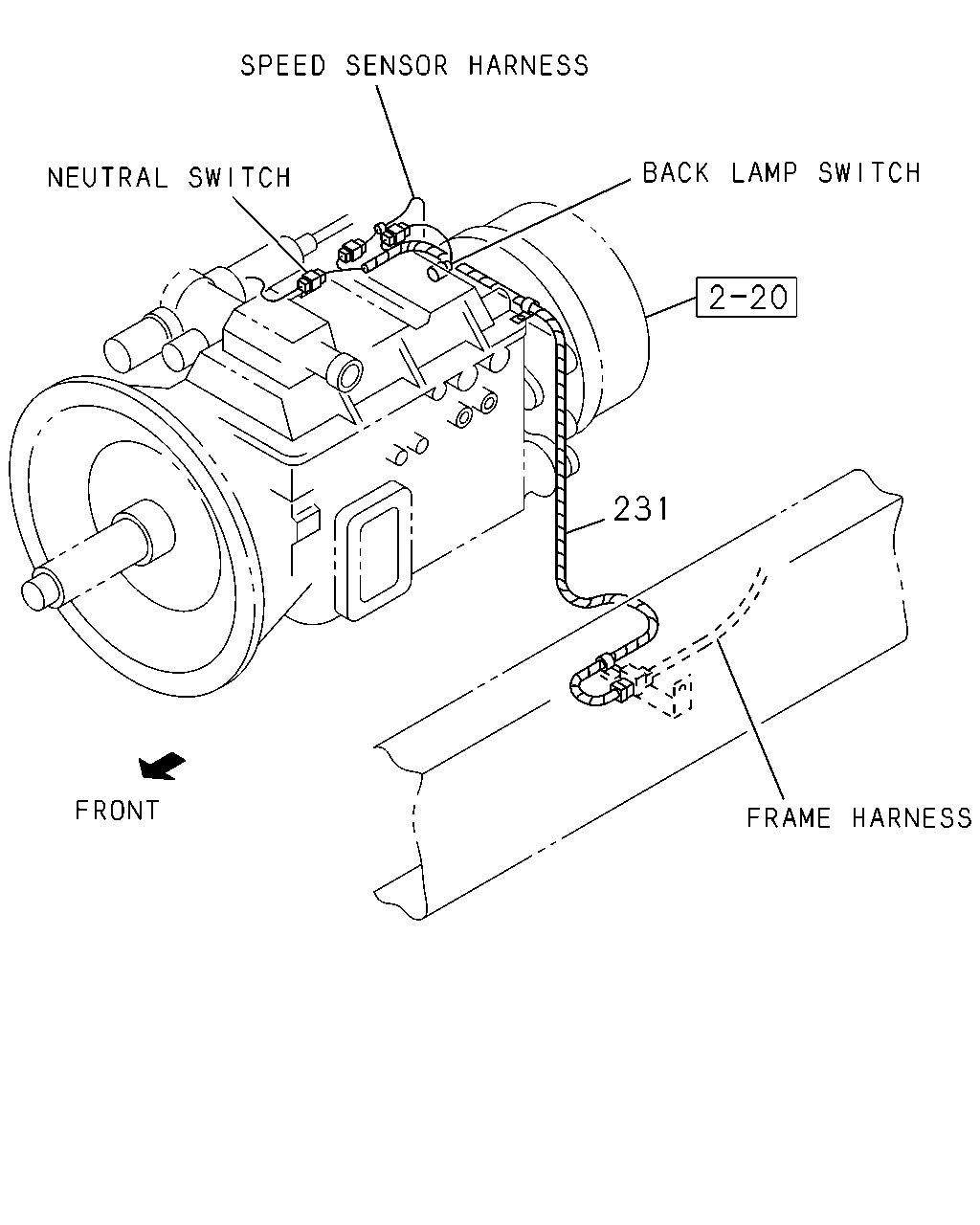

231

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	231	HARNESS; TRANS	1-82638-490-2	01	1	9604-9904
	231	HARNESS; TRANS	1-82671-661-1	01	1	9905-

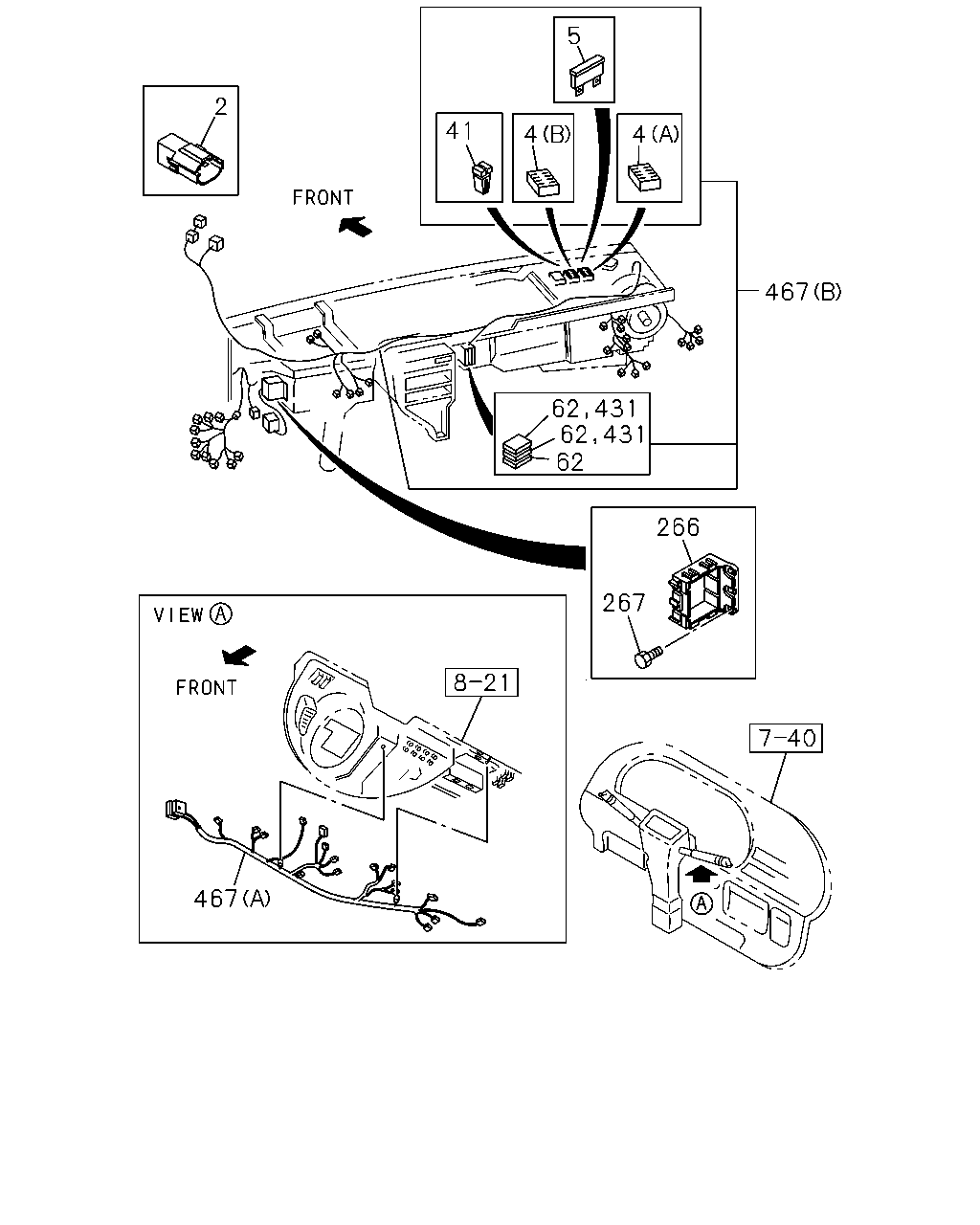

5 2 41 4 4 467 62 266 267 467 62 431 62 431

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	DIODE; CABLE HARNESS GRAY 2P-1.3A	1-81514-015-0	01	1	9604-
4	BOX ASM; FUSE,HARNESS (B) 7.5AX17	1-82510-393-0	01	1	9604-
4	BOX ASM; FUSE,HARNESS (A) 15AX19	1-82510-436-0	01	1	9604-9904
4	BOX ASM; FUSE,HARNESS (A) 15AX20	1-82510-405-0	01	1	9905-
5	FUSE; FACIA HARNESS 15A BLUE	5-82516-003-0	19	1	9604-9904
5	FUSE; FACIA HARNESS 15A BLUE	5-82516-003-0	20	1	9905-
5	FUSE; FACIA HARNESS 7.5A BROWN	8-94159-007-0	17	1	9604-
41	PULLER; FUSE L=25.3 B=11.5	8-94121-482-0	01	1	9604-
62	DIODE; HARNESS EXC. INTAKE HEATER<SL2> BLACK 2P-1.5A	8-94422-639-1	04	1	0102-
62	DIODE; HARNESS 10P BROWN	1-82699-601-0	01	1	9604-9904
62	DIODE; HARNESS BLACK 10P	1-82699-703-0	02	1	9604-
62	DIODE; HARNESS BLACK 3P-1.5A	8-94416-438-1	02	1	9905-0101
62	DIODE; HARNESS INTAKE HEATER<SL2> BLACK 3P-1.5A	8-94416-438-1	02	1	0102-
62	DIODE; HARNESS EXC. INTAKE HEATER<SL2> BLACK 3P-1.5A	8-94416-438-1	04	1	0102-
62	DIODE; HARNESS BLACK 2P-1.5A	8-94422-639-1	02	1	9905-0101
62	DIODE; HARNESS INTAKE HEATER<SL2> BLACK 2P-1.5A	8-94422-639-1	02	1	0102-
266	BRACKET; CONN BOX	1-82699-580-0	01	1	9604-
267	BOLT; BRKT M6X16 W/PL WASHER	1-09981-438-0	02	1	9604-
431	CONNECTOR; JOINT 10P BROWN	1-82699-601-0	02	1	9905-
467	HARNESS; FACIA (A)	1-82625-975-4	01	1	9604-9904
467	HARNESS; FACIA (A)	1-82628-112-4	01	1	9905-0003
467	HARNESS; FACIA (A)	1-82629-610-1	01	1	0004-
467	HARNESS; FACIA AIR CONDITIONER MANUAL CONTROL(C60) INTAKE HEATER<SL2> (B)	1-82625-965-8	01	1	9604-9904
467	HARNESS; FACIA INTAKE HEATER<SL2> (B)	1-82628-035-3	01	1	9905-0003
467	HARNESS; FACIA INTAKE HEATER<SL2> (B)	1-82629-601-0	01	1	0004-
467	HARNESS; FACIA AIR CONDITIONER MANUAL CONTROL(C60) EXC. INTAKE HEATER<SL2> (B)	1-82625-963-9	01	1	9604-9904
467	HARNESS; FACIA EXC. INTAKE HEATER<SL2> (B)	1-82628-033-3	01	1	9905-0003
467	HARNESS; FACIA EXC. INTAKE HEATER<SL2> (B)	1-82629-600-0	01	1	0004-0101
467	HARNESS; FACIA EXC. INTAKE HEATER<SL2> (B)	1-82660-233-0	01	1	0102-
467	HARNESS; FACIA EXC. AIR CONDITIONER MANUAL CONTROL(C60),INTAKE HEATER<SL2> (B)	1-82625-964-9	01	1	9604-9904
467	HARNESS; FACIA INTAKE HEATER<SL2> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-82625-966-8	01	1	9604-9904

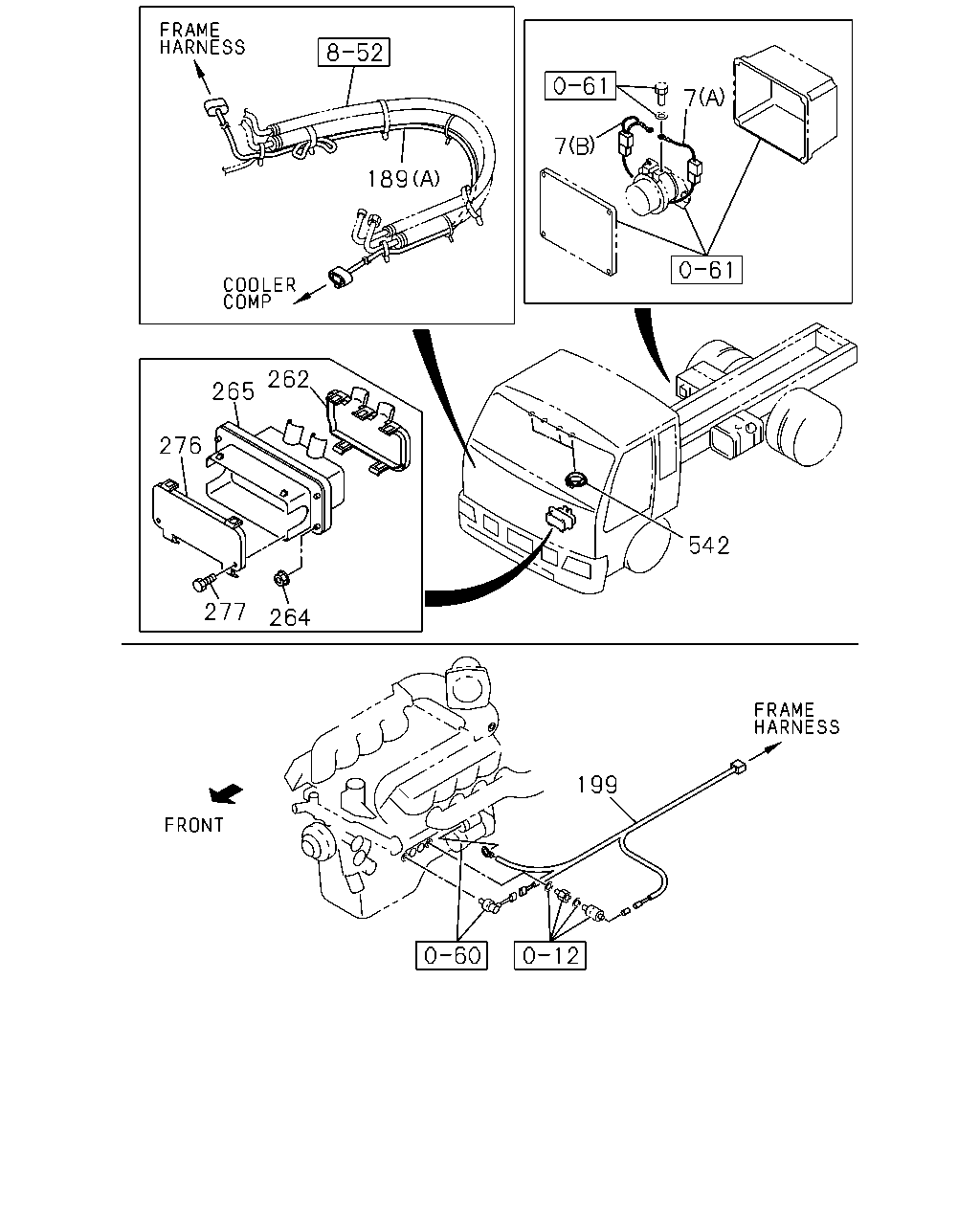

7 7 189 262 265 276 542 277 264 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	LINK ASM; FUSIBLE (B)	1-82659-085-0	01	1	9604-
7	LINK ASM; FUSIBLE (A) 60A BLUE	1-82659-119-0	01	1	9604-
189	HARNESS; EXT AIR CONDITIONER MANUAL CONTROL(C60) (A) COOLER COMP L=890	1-82636-373-0	01	1	9604-
189	HARNESS; EXT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) SIDE MARKER LAMP	1-82673-735-0	06	1	0012-
199	HARNESS; STARTER	1-82640-733-1	01	1	9604-
262	COVER; CONNECTOR BOX,FRT PNL	1-82699-605-1	01	1	9604-
264	NUT; CONNECTOR BOX M6 FLANGE W/RUBBER	1-09984-180-0	04	1	9604-
265	BOX; CONN,FRT PNL	1-82699-538-3	01	1	9604-
276	COVER; BOX,FRAME HARNESS	1-82699-892-1	01	1	9604-
277	BOLT; BOX ASM FIX M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9604-9606
277	BOLT; BOX ASM FIX M6X35 W/LK&PL WASHER	0-50140-635-0	02	1	9607-0007
277	BOLT; BOX ASM FIX M6X25 W/LK&PL WASHER	0-50140-625-0	02	1	0008-
277	BOLT; BOX ASM FIX M8X25 W/LK&PL WASHER	1-09030-027-0	02	1	9604-
542	GROMMET; HARNESS HIGH ROOF<S2F> ID=36	8-94178-685-0	03	1	9905-

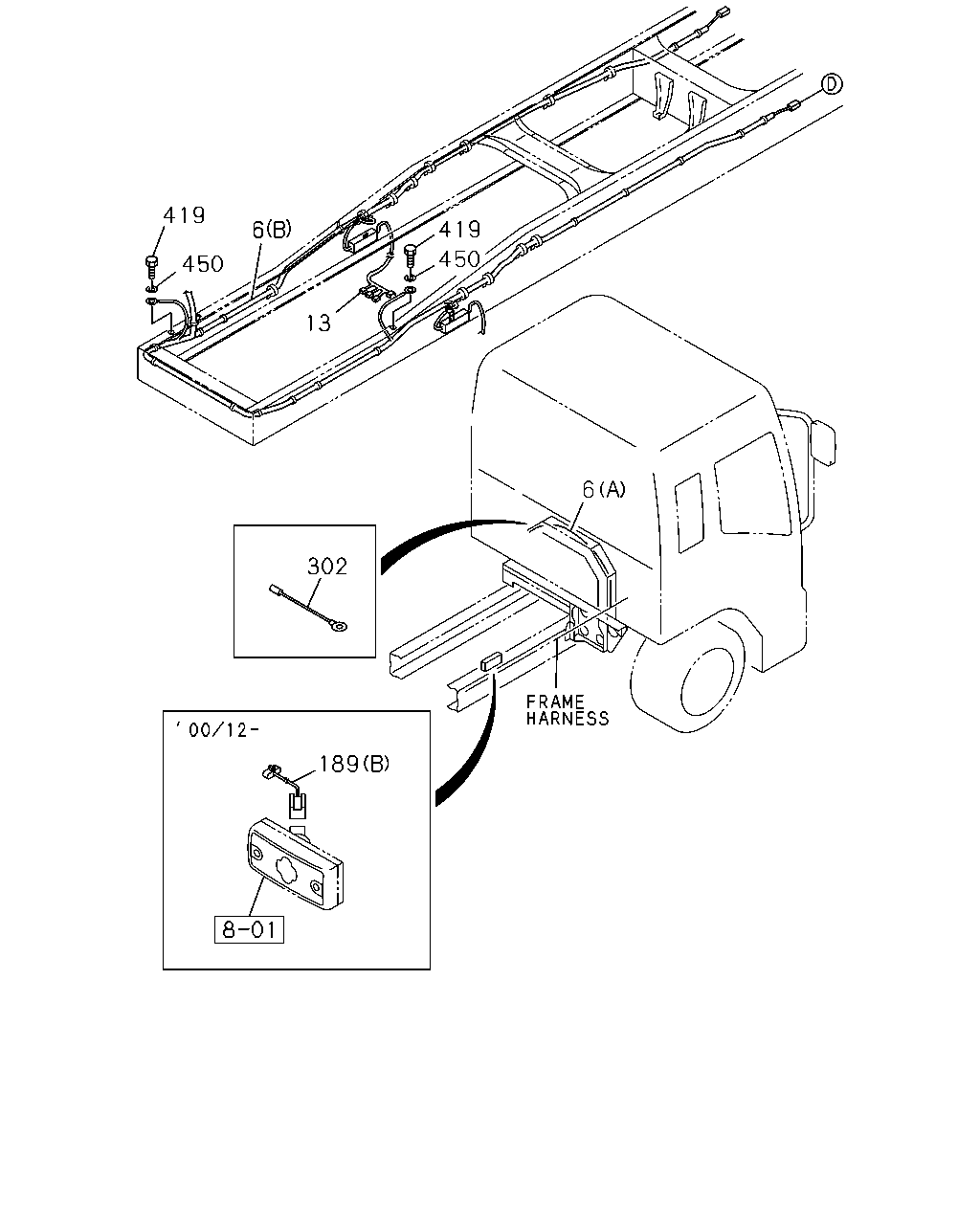

419 419 6 450 450 13 6 302 189

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME CONCRETE PUMP<RA5> INTAKE HEATER<SL2> (B)	1-82639-231-3	01	1	9604-9904
6	HARNESS; FRAME 10PE1N(61L) CONCRETE PUMP<RA5> INTAKE HEATER<SL2> (B)	1-82671-670-2	01	1	9905-
6	HARNESS; FRAME CONCRETE PUMP<RA5> EXC. INTAKE HEATER<SL2> (B)	1-82639-230-3	01	1	9604-9904
6	HARNESS; FRAME 10PE1N(61L) CONCRETE PUMP<RA5> EXC. INTAKE HEATER<SL2> (B)	1-82671-669-2	01	1	9905-
6	HARNESS; FRAME GOVERNOR CONTROL<W69> (A)	1-82639-364-2	01	1	9604-9904
6	HARNESS; FRAME GOVERNOR CONTROL<W69> (A)	1-82671-897-0	01	1	9905-
6	HARNESS; FRAME EXC. GOVERNOR CONTROL<W69> (A)	1-82639-269-2	01	1	9604-9904
6	HARNESS; FRAME EXC. GOVERNOR CONTROL<W69> (A)	1-82671-895-0	01	1	9905-
6	HARNESS; FRAME WHEEL BASE 4600MM(46W) EXC. CONCRETE PUMP<RA5>,INTAKE HEATER<SL2> (B)	1-82639-405-3	01	1	9604-9904
6	HARNESS; FRAME 10PE1N(61L) WHEEL BASE 4600MM(46W) EXC. CONCRETE PUMP<RA5>,INTAKE HEATER<SL2> (B)	1-82671-605-2	01	1	9905-0001
6	HARNESS; FRAME 10PE1N(61L) WHEEL BASE 4600MM(46W) EXC. CONCRETE PUMP<RA5>,INTAKE HEATER<SL2> (B)	1-82673-369-0	01	1	0002-
6	HARNESS; FRAME WHEEL BASE 4600MM(46W) INTAKE HEATER<SL2> EXC. CONCRETE PUMP<RA5> (B)	1-82639-407-3	01	1	9604-9904
6	HARNESS; FRAME 10PE1N(61L) WHEEL BASE 4600MM(46W) INTAKE HEATER<SL2> EXC. CONCRETE PUMP<RA5> (B)	1-82671-606-2	01	1	9905-0001
6	HARNESS; FRAME 10PE1N(61L) WHEEL BASE 4600MM(46W) INTAKE HEATER<SL2> EXC. CONCRETE PUMP<RA5> (B)	1-82673-370-0	01	1	0002-
6	HARNESS; FRAME WHEEL BASE 5400MM(54W) INTAKE HEATER<SL2> (B)	1-82639-410-3	01	1	9604-9904
6	HARNESS; FRAME 10PE1N(61L) WHEEL BASE 5400MM(54W) INTAKE HEATER<SL2> (B)	1-82671-608-2	01	1	9905-0001
6	HARNESS; FRAME 10PE1N(61L) WHEEL BASE 5400MM(54W) INTAKE HEATER<SL2> (B)	1-82673-372-0	01	1	0002-
6	HARNESS; FRAME WHEEL BASE 5400MM(54W) EXC. INTAKE HEATER<SL2> (B)	1-82639-408-3	01	1	9604-9904
6	HARNESS; FRAME 10PE1N(61L) WHEEL BASE 5400MM(54W) EXC. INTAKE HEATER<SL2> (B)	1-82671-607-2	01	1	9905-0001
6	HARNESS; FRAME 10PE1N(61L) WHEEL BASE 5400MM(54W) EXC. INTAKE HEATER<SL2> (B)	1-82673-371-0	01	1	0002-
6	HARNESS; FRAME 8PE1S(59L) CONCRETE PUMP<RA5> INTAKE HEATER<SL2> (B)	1-82671-600-2	01	1	9905-
6	HARNESS; FRAME 8PE1S(59L) CONCRETE PUMP<RA5> EXC. INTAKE HEATER<SL2> (B)	1-82671-599-2	01	1	9905-
6	HARNESS; FRAME 8PE1S(59L) WHEEL BASE 4600MM(46W) EXC. CONCRETE PUMP<RA5>,INTAKE HEATER<SL2> (B)	1-82671-601-2	01	1	9905-
6	HARNESS; FRAME 8PE1S(59L) WHEEL BASE 4600MM(46W) INTAKE HEATER<SL2> EXC. CONCRETE PUMP<RA5> (B)	1-82671-602-2	01	1	9905-
6	HARNESS; FRAME 8PE1S(59L) WHEEL BASE 5400MM(54W) INTAKE HEATER<SL2> (B)	1-82671-604-2	01	1	9905-
6	HARNESS; FRAME 8PE1S(59L) WHEEL BASE 5400MM(54W) EXC. INTAKE HEATER<SL2> (B)	1-82671-603-2	01	1	9905-
13	HARNESS; ENG INTAKE HEATER<SL2>	1-82639-272-0	01	1	9604-
189	HARNESS; EXT AIR CONDITIONER MANUAL CONTROL(C60) (A) COOLER COMP L=890	1-82636-373-0	01	1	9604-
189	HARNESS; EXT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) SIDE MARKER LAMP	1-82673-735-0	06	1	0012-
302	HARNESS; POWER CAB TILT	1-82639-273-0	01	1	9604-
419	BOLT; CAB EARTH M8X16 W/LK&PL WASHER	8-97087-055-0	02	1	9604-
450	WASHER; PL,CAB EARTH ID=8.4	1-09503-264-0	02	1	9604-
