◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10704 - FVR/GVR-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-80 - BACK PANEL ▶
6-80 — BACK PANEL (#63889) — 31 parça

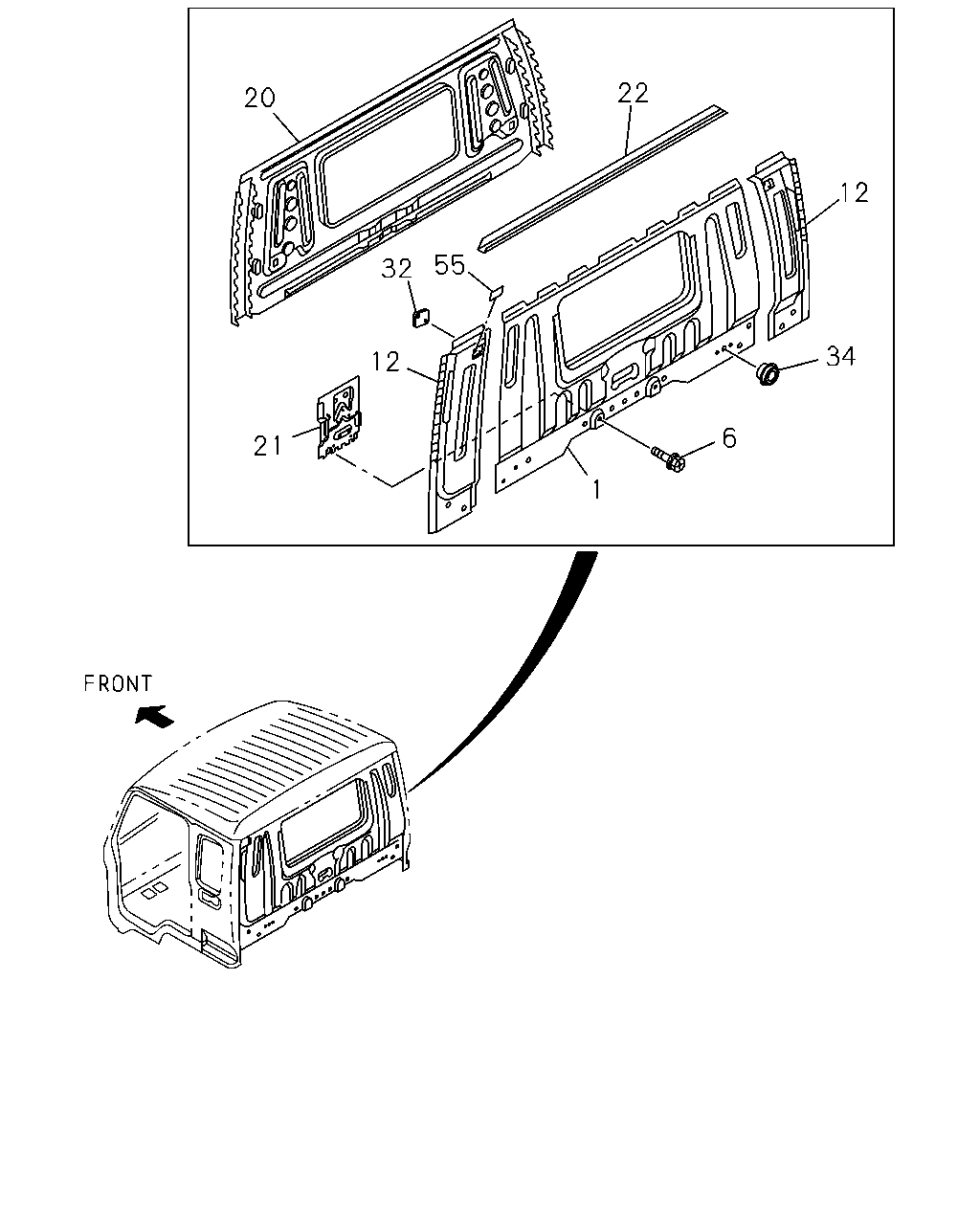

çizim 132524
22 20 12 55 32 34 12 6 21 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 PANEL; BACK OUTER
PRIMER 		1-61580-924-9 01 1 9601-0004 ●
1 PANEL; BACK OUTER
PRIMER 		1-61580-924-9 01 1 0005- ● ●
1 PANEL; BACK OUTER 1-61580-912-9 01 1 9601-9604 ● ●
1 PANEL; BACK OUTER
PRIMER 		1-61580-964-0 01 1 9605-9803 ● ●
1 PANEL; BACK OUTER
PRIMER 		1-61580-964-0 01 1 9804- ● ● ●
6 BOLT; BACK PANEL
M10X25 W/LK&PL WASHER 		1-09980-488-0 02 1 9601-9803 ● ● ●
6 BOLT; BACK PANEL
M10X25 W/LK&PL WASHER 		1-09980-488-0 02 1 9804-0004 ● ● ● ●
6 BOLT; BACK PANEL
M10X25 W/LK&PL WASHER 		1-09980-488-0 02 1 0005- ● ● ● ● ●
12 PANEL; EXT,BACK OUTER
PRIMER 		1-61580-926-6 01 1 9601-0004 ●
12 PANEL; EXT,BACK OUTER
PRIMER 		1-61580-926-6 01 1 0005- ● ●
12 PANEL; EXT,BACK OUTER
PRIMER 		1-61580-925-6 01 1 9601-0004 ●
12 PANEL; EXT,BACK OUTER
PRIMER 		1-61580-925-6 01 1 0005- ● ●
20 PANEL; BACK INNER,CENTER 1-61580-948-0 01 1 9601-0004 ●
20 PANEL; BACK INNER,CENTER 1-61580-948-1 01 1 0005- ● ●
20 PANEL; BACK INNER,CENTER 1-61580-947-0 01 1 9601-9803 ● ●
20 PANEL; BACK INNER,CENTER 1-61580-947-1 01 1 9804- ● ● ●
21 REINFORCEMENT; CAB LK 1-61580-956-0 01 1 9601-9803 ● ● ●
21 REINFORCEMENT; CAB LK 1-61580-956-0 01 1 9804-0004 ● ● ● ●
21 REINFORCEMENT; CAB LK 1-61580-956-0 01 1 0005- ● ● ● ● ●
22 MOLDING; DRIP,BACK PANEL 1-61580-917-1 01 1 9601-0004 ●
22 MOLDING; DRIP,BACK PANEL 1-61580-917-1 01 1 0005- ● ●
22 MOLDING; DRIP,BACK PANEL 1-61580-916-1 01 1 9601-9803 ● ●
22 MOLDING; DRIP,BACK PANEL 1-61580-916-1 01 1 9804- ● ● ●
32 PATCH; AIR INT DUCT 1-61580-928-1 01 1 9601-9803 ● ● ●
32 PATCH; AIR INT DUCT 1-61580-928-1 01 1 9804-0004 ● ● ● ●
32 PATCH; AIR INT DUCT 1-61580-928-1 01 1 0005- ● ● ● ● ●
34 PLUG; HOLE,BACK PANEL
OD=28.5 		8-94279-711-0 02 1 9601-9803 ● ● ●
34 PLUG; HOLE,BACK PANEL
OD=28.5 		8-94279-711-0 02 1 9804-0004 ● ● ● ●
34 PLUG; HOLE,BACK PANEL
OD=28.5 		8-94279-711-0 02 1 0005- ● ● ● ● ●
55 FINISHER; BACK CORNER 1-71517-002-0 02 1 9902-0004 ● ● ● ●
55 FINISHER; BACK CORNER 1-71517-002-0 02 1 0005-0511 ● ● ● ● ●
