6-76 — FLOOR EQUIPMENT AND SEALING (#63887) — 55 parça

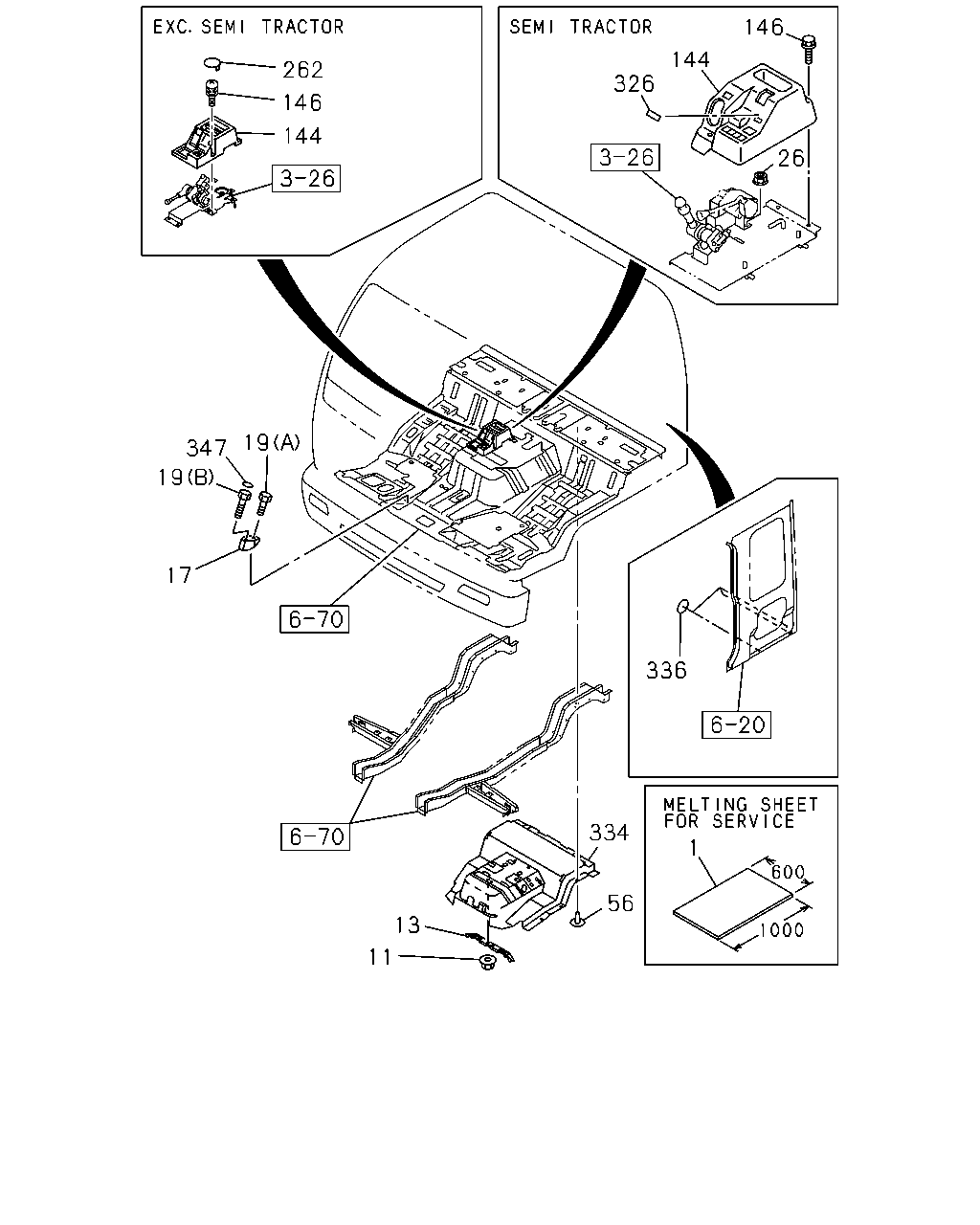

çizim 131937
146 144 262 326 146 144 26 19 347 19 17 336 334 1 56 13 11
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 SHEET; MELTING,FLOOR
CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 AR 1 9601-9702 ● ● ●
1 SHEET; MELTING,FLOOR
CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 AR 1 9804-0004 ● ● ● ●
1 SHEET; MELTING,FLOOR
CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 AR 1 0005- ● ● ● ● ●
11 NUT; HEAT INSULATOR
M8 FLANGE 		8-94279-504-1 02 1 9601-9705 ● ● ●
11 NUT; HEAT INSULATOR
M8 FLANGE 		8-94279-518-0 02 1 9706-9803 ● ● ●
11 NUT; HEAT INSULATOR
M8 FLANGE 		8-94279-518-0 02 1 9804-0004 ● ● ● ●
11 NUT; HEAT INSULATOR
M8 FLANGE 		8-94279-518-0 02 1 0005-0401 ● ● ● ● ●
11 NUT; HEAT INSULATOR
M8 FLANGE 		1-75538-207-0 02 1 0402- ● ● ● ● ●
13 PLATE; HEAT INSULATOR 1-71998-812-4 01 1 9601-9803 ● ● ●
13 PLATE; HEAT INSULATOR 1-71998-812-4 01 1 9804-0004 ● ● ● ●
13 PLATE; HEAT INSULATOR 1-71998-812-4 01 1 0005- ● ● ● ● ●
17 REST; FOOT,DRIVER 1-73907-176-0 01 1 9601-9803 ● ● ●
17 REST; FOOT,DRIVER 1-73907-176-0 01 1 9804-0004 ● ● ● ●
17 REST; FOOT,DRIVER 1-73907-176-1 01 1 0005- ● ● ● ● ●
19 BOLT; FOOT REST
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9601-9803 ● ● ●
19 BOLT; FOOT REST
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9804-0004 ● ● ● ●
19 BOLT; FOOT REST
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0005- ● ● ● ● ●
19 BOLT; FOOT REST
(B) M6X47 		8-94407-876-1 01 1 9601-9803 ● ● ●
19 BOLT; FOOT REST
(B) M6X47 		8-94407-876-1 01 1 9804-0004 ● ● ● ●
19 BOLT; FOOT REST
(B) M6X47 		8-94407-876-1 01 1 0005- ● ● ● ● ●
26 NUT; FLANGE
M8 FLANGE 		0-91150-108-0 02 1 9804-0602 ●
26 NUT; FLANGE
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
56 CLIP; HEAT INSULATOR,ENG HOOD
ID=6.2 L=11.4 		8-97808-623-0 17 1 9601-9803 ● ● ●
56 CLIP; HEAT INSULATOR,ENG HOOD
ID=6.2 L=11.4 		8-97808-623-0 17 1 9804-0004 ● ● ● ●
56 CLIP; HEAT INSULATOR,ENG HOOD
ID=6.2 L=11.4 		8-97808-623-0 17 1 0005- ● ● ● ● ●
144 COVER; HAND BRK VLV 1-73908-075-3 01 1 9601-9802 ● ● ●
144 COVER; HAND BRK VLV 1-73908-308-0 01 1 9803-9810 ● ● ●
144 COVER; HAND BRK VLV 1-73908-308-1 01 1 9811-0004 ● ●
144 COVER; HAND BRK VLV
EXC. ELEC OUTLET 12V<TAW> 		1-73908-308-1 01 1 9811-0004 ●
144 COVER; HAND BRK VLV 1-73908-307-2 01 1 0005- ● ● ●
144 COVER; HAND BRK VLV
EXC. ELEC OUTLET 12V<TAW> 		1-73908-307-2 01 1 0005- ●
144 COVER; HAND BRK VLV
ELEC OUTLET 12V<TAW> 		1-73908-351-0 01 1 9811-0004 ●
144 COVER; HAND BRK VLV
ELEC OUTLET 12V<TAW> 		1-73908-372-1 01 1 0005- ●
144 COVER; HAND BRK VLV 1-73908-271-1 01 1 9804-9810 ●
144 COVER; HAND BRK VLV
EXC. ELEC OUTLET 12V<TAW> 		1-73908-271-3 01 1 9811-0004 ●
144 COVER; HAND BRK VLV
ELEC OUTLET 12V<TAW> 		1-73908-352-1 01 1 9811-0004 ●
144 COVER; HAND BRK VLV 1-73908-306-2 01 1 0005- ●
146 BOLT; COVER BRKT
M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0005- ● ● ● ●
146 BOLT; COVER BRKT
M6X24 W/LK&PL WASHER 		8-94279-404-0 03 1 0005- ●
146 BOLT; COVER BRKT
M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 9601-0004 ● ● ●
146 BOLT; COVER BRKT
M6X24 W/LK&PL WASHER 		8-94279-404-0 03 1 9804-0004 ●
262 COVER; CHECK HOLE 1-72538-166-0 04 1 9601-9803 ● ● ●
262 COVER; CHECK HOLE 1-72538-166-0 04 1 9804-0004 ● ● ●
262 COVER; CHECK HOLE 1-76337-461-0 04 1 0005- ● ● ● ●
326 SEAL; COVER 1-72418-017-0 01 1 9804- ●
334 INSULATOR; ENG HOOD 1-71996-034-4 01 1 9601-0004 ● ● ●
334 INSULATOR; ENG HOOD 1-71996-034-4 01 1 0005- ● ● ● ●
334 INSULATOR; ENG HOOD 1-71996-196-2 01 1 9804- ●
336 SEAL; FLOOR SIDE
OD=25 BLACK 		1-76798-019-0 05 1 9601-0004 ●
336 SEAL; FLOOR SIDE
OD=25 BLACK 		1-76798-019-0 05 1 0005- ● ●
336 SEAL; FLOOR SIDE
OD=25 BLACK 		1-76798-019-0 04 1 9601-9803 ● ●
336 SEAL; FLOOR SIDE
OD=25 BLACK 		1-76798-019-0 04 1 9804- ● ● ●
347 SEAL; FOOT RESTR
OD=25 BLACK 		1-76798-019-0 02 1 9703-9803 ● ● ●
347 SEAL; FOOT RESTR
OD=25 BLACK 		1-76798-019-0 02 1 9804-0004 ● ● ● ●
347 SEAL; FOOT RESTR
OD=25 BLACK 		1-76798-019-0 02 1 0005- ● ● ● ● ●
