◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10704 - FVR/GVR-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#63885) — 95 parça

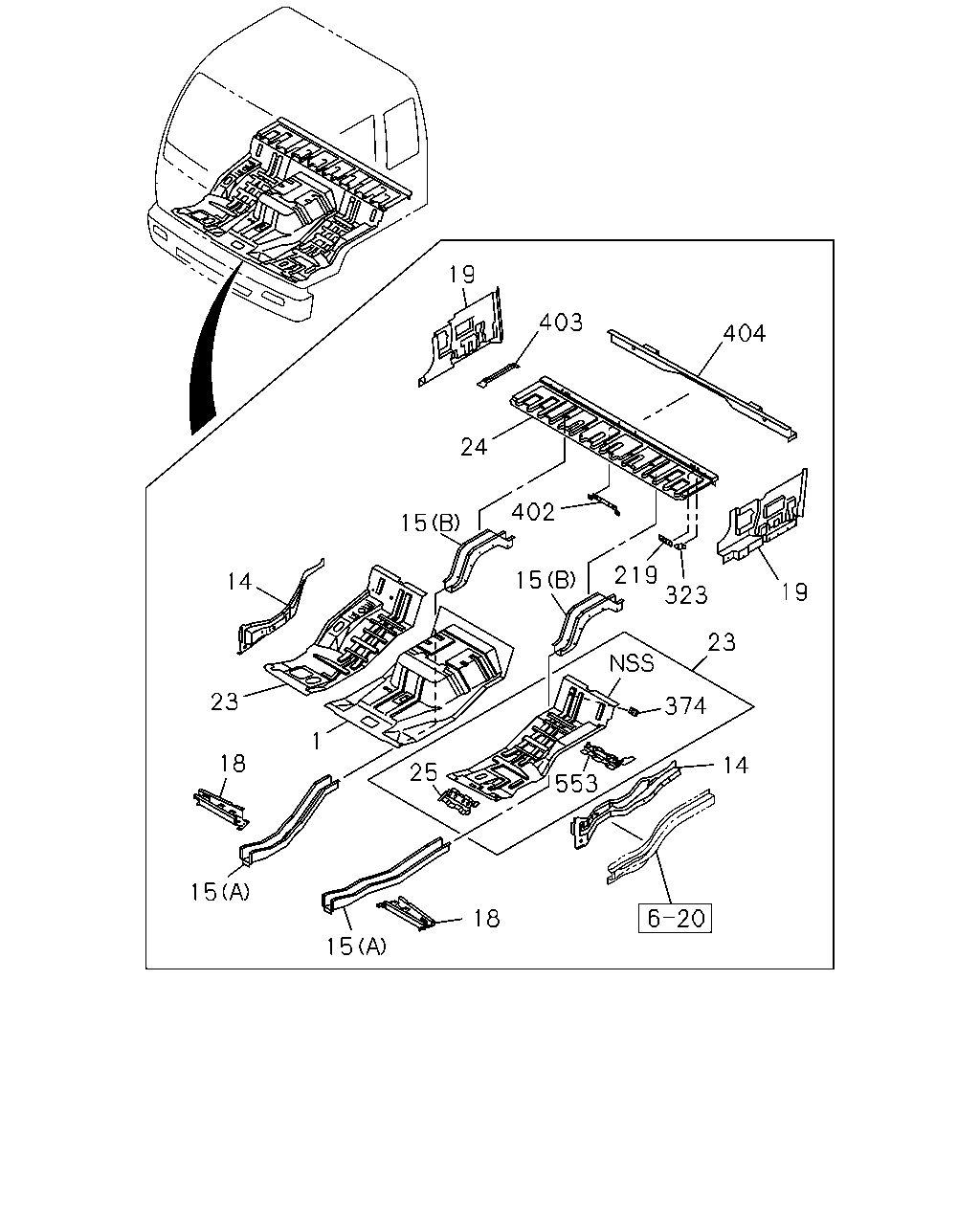

çizim 132548
404 403 19 24 15 402 15 219 323 19 23 374 14 553 25 1 14 23 18 15 15 18
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 PANEL; FLOOR
6SD1 TCN ENG(31L),6HK1 TCS ENG(80L) EURO3 SPECIFICATION<NJX> FULLER M/T<X9B> 		1-62183-675-0 01 1 0605- ●
1 PANEL; FLOOR
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-62183-668-0 01 1 0406-0604 ●
1 PANEL; FLOOR
6HK1 TCS ENG(80L) HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> ISUZU M/T<X9A>,A/T<X9D>,ZF M/T<X9E> 		1-62183-668-0 01 1 0406-0604 ●
1 PANEL; FLOOR
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-62183-668-0 01 1 0605- ●
1 PANEL; FLOOR
6HK1 TCS ENG(80L) HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> ISUZU M/T<X9A>,A/T<X9D>,ZF M/T<X9E> 		1-62183-668-0 01 1 0605- ●
1 PANEL; FLOOR
6SD1 TCN ENG(31L),6HK1 TCS ENG(80L) EURO3 SPECIFICATION<NJX> ISUZU M/T<X9A>,A/T<X9D>,ZF M/T<X9E> 		1-62183-668-0 01 1 0605- ●
1 PANEL; FLOOR 1-62183-253-8 01 1 9601-0004 ●
1 PANEL; FLOOR 1-62183-253-8 01 1 0005- ● ●
1 PANEL; FLOOR
FULLER M/T<X9B> 		1-62183-337-1 01 1 9601-9803 ● ●
1 PANEL; FLOOR
FULLER M/T<X9B> 		1-62183-337-3 01 1 9804-0403 ●
1 PANEL; FLOOR
FULLER M/T<X9B> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-62183-337-3 01 1 0404-0405 ●
1 PANEL; FLOOR
6HH1 STD 4VALVE ENG(1A6),6SD1 TCN ENG(31L), 6SD1STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> FULLER M/T<X9B> 		1-62183-337-3 01 1 0404-0405 ●
1 PANEL; FLOOR
FULLER M/T<X9B> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-62183-337-3 01 1 0406-0604 ●
1 PANEL; FLOOR
6HH1 STD 4VALVE ENG(1A6),6SD1 TCN ENG(31L), 6SD1STD ENG(37L),6HH1 STD ENG(65L) HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> FULLER M/T<X9B> 		1-62183-337-3 01 1 0406-0604 ●
1 PANEL; FLOOR
6HH1 STD 4VALVE ENG(1A6),6SD1 TCN ENG(31L), 6SD1STD ENG(37L),6HH1 STD ENG(65L) HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> FULLER M/T<X9B> 		1-62183-337-3 01 1 0605- ●
1 PANEL; FLOOR
FULLER M/T<X9B> EXC. EURO3 SPECIFICATION<NJX>,HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-62183-337-3 01 1 0605- ●
1 PANEL; FLOOR
ISUZU M/T<X9A>,ZF M/T<X9E> 		1-62183-138-9 01 1 9601-9706 ● ●
1 PANEL; FLOOR
ISUZU M/T<X9A>,ZF M/T<X9E> 		1-62183-405-2 01 1 9707-0004 ● ●
1 PANEL; FLOOR 1-62183-405-2 01 1 0005-0403 ●
1 PANEL; FLOOR
ISUZU M/T<X9A>,A/T<X9D>,ZF M/T<X9E> 		1-62183-405-2 01 1 0005-0403 ●
1 PANEL; FLOOR
ISUZU M/T<X9A>,A/T<X9D>,ZF M/T<X9E> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-62183-405-2 01 1 0404-0405 ● ●
1 PANEL; FLOOR
6HH1 STD 4VALVE ENG(1A6),6SD1 TCN ENG(31L), 6SD1STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> ISUZU M/T<X9A>,A/T<X9D>,ZF M/T<X9E> 		1-62183-405-2 01 1 0404-0405 ●
1 PANEL; FLOOR
ISUZU M/T<X9A>,A/T<X9D>,ZF M/T<X9E> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-62183-405-2 01 1 0406-0604 ● ●
1 PANEL; FLOOR
6HH1 STD 4VALVE ENG(1A6),6SD1 TCN ENG(31L), 6SD1STD ENG(37L),6HH1 STD ENG(65L) HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> ISUZU M/T<X9A>,A/T<X9D>,ZF M/T<X9E> 		1-62183-405-2 01 1 0406-0604 ●
1 PANEL; FLOOR
ISUZU M/T<X9A>,A/T<X9D>,ZF M/T<X9E> EXC. EURO3 SPECIFICATION<NJX>,HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-62183-405-2 01 1 0605- ● ●
1 PANEL; FLOOR
6HH1 STD 4VALVE ENG(1A6),6SD1 TCN ENG(31L), 6SD1STD ENG(37L),6HH1 STD ENG(65L) HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> ISUZU M/T<X9A>,A/T<X9D>,ZF M/T<X9E> 		1-62183-405-2 01 1 0605- ●
1 PANEL; FLOOR 1-62183-374-2 01 1 9804- ●
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 9601-9803 ● ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 9804-0004 ● ● ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 0005- ● ● ● ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 9601-9803 ● ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 9804-0004 ● ● ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 0005- ● ● ● ● ●
15 FRAME; UNDER
(A) 		1-62482-931-8 01 1 9601-9803 ● ● ●
15 FRAME; UNDER
(A) 		1-62482-931-8 01 1 9804-0004 ● ● ● ●
15 FRAME; UNDER
(A) 		1-62482-931-9 01 1 0005-0401 ● ● ● ● ●
15 FRAME; UNDER
(A) 		8-97583-580-0 01 1 0402- ● ● ● ● ●
15 FRAME; UNDER
(B) 		1-62483-154-2 01 1 9601-9803 ● ● ●
15 FRAME; UNDER
(B) 		1-62483-154-2 01 1 9804-0004 ● ● ● ●
15 FRAME; UNDER
(B) 		1-62483-154-3 01 1 0005- ● ● ● ● ●
15 FRAME; UNDER
(A) 		1-62482-930-9 01 1 9601-9803 ● ● ●
15 FRAME; UNDER
(A) 		1-62482-930-9 01 1 9804-0004 ● ● ● ●
15 FRAME; UNDER
(A) 		1-62482-930-9 01 1 0005-0103 ● ● ● ● ●
15 FRAME; UNDER
(A) 		1-62483-333-1 01 1 0104- ● ● ● ● ●
15 FRAME; UNDER
(B) 		1-62483-153-2 01 1 9601-9803 ● ● ●
15 FRAME; UNDER
(B) 		1-62483-153-2 01 1 9804-0004 ● ● ● ●
15 FRAME; UNDER
(B) 		1-62483-153-3 01 1 0005- ● ● ● ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-977-7 01 1 9601-0004 ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-977-9 01 1 0005- ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-976-7 01 1 9601-0004 ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-976-9 01 1 0005- ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-958-4 01 1 9601-9803 ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-958-6 01 1 9804- ● ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-957-4 01 1 9601-9803 ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-957-6 01 1 9804- ● ● ●
19 PANEL; FLOOR SIDE,REAR 1-62482-924-6 01 1 9601-9803 ● ● ●
19 PANEL; FLOOR SIDE,REAR 1-62482-924-6 01 1 9804-0004 ● ● ● ●
19 PANEL; FLOOR SIDE,REAR 1-62482-924-6 01 1 0005- ● ● ● ● ●
19 PANEL; FLOOR SIDE,REAR 1-62482-923-5 01 1 9601-9803 ● ● ●
19 PANEL; FLOOR SIDE,REAR 1-62482-923-5 01 1 9804-0004 ● ● ● ●
19 PANEL; FLOOR SIDE,REAR 1-62482-923-5 01 1 0005- ● ● ● ● ●
23 PANEL; FLOOR,SIDE
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-62183-271-4 01 1 0301- ●
23 PANEL; FLOOR,SIDE 1-62183-255-5 01 1 9601-0004 ●
23 PANEL; FLOOR,SIDE 1-62183-255-5 01 1 0005- ● ●
23 PANEL; FLOOR,SIDE 1-62183-252-5 01 1 9601-0004 ●
23 PANEL; FLOOR,SIDE 1-62183-252-5 01 1 0005- ● ●
23 PANEL; FLOOR,SIDE 1-62183-273-4 01 1 9601-9803 ● ●
23 PANEL; FLOOR,SIDE 1-62183-273-4 01 1 9804-9904 ● ● ●
23 PANEL; FLOOR,SIDE 1-62172-799-0 01 1 9905- ● ● ●
23 PANEL; FLOOR,SIDE 1-62183-270-4 01 1 9601-9803 ● ●
23 PANEL; FLOOR,SIDE 1-62183-270-4 01 1 9804-0212 ● ● ●
23 PANEL; FLOOR,SIDE 1-62183-270-4 01 1 0301- ● ●
23 PANEL; FLOOR,SIDE
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-62183-270-4 01 1 0301- ●
24 PANEL; BED PAN 1-62182-958-9 01 1 9601-0004 ●
24 PANEL; BED PAN 1-62182-958-9 01 1 0005- ● ●
24 PANEL; BED PAN 1-62182-940-9 01 1 9601-9803 ● ●
24 PANEL; BED PAN 1-62182-940-9 01 1 9804- ● ● ●
25 REINFORCEMENT; FRAME FLOOR,FRT 1-62182-926-4 01 1 9601- ● ● ● ● ●
219 PATCH; AIR DUCT LWR 1-62182-941-0 01 1 9601-9803 ● ● ●
219 PATCH; AIR DUCT LWR 1-62182-941-0 01 1 9804-0004 ● ● ● ●
219 PATCH; AIR DUCT LWR 1-62182-941-0 01 1 0005- ● ● ● ● ●
323 PATCH; HAND LEVER 1-62182-961-0 01 1 9601-9803 ● ● ●
323 PATCH; HAND LEVER 1-62182-961-0 01 1 9804-0004 ● ● ● ●
323 PATCH; HAND LEVER 1-62182-961-0 01 1 0005- ● ● ● ● ●
374 NUT; FLOOR
M6 		1-09984-110-0 01 1 9601- ● ● ● ● ●
402 PATCH; CAB LOCK 1-62182-947-2 01 1 9601-9803 ● ● ●
402 PATCH; CAB LOCK 1-62182-947-2 01 1 9804-0004 ● ● ● ●
402 PATCH; CAB LOCK 1-62182-947-2 01 1 0005- ● ● ● ● ●
403 PATCH; FIRE EXTINGUSHER 1-62183-077-1 01 1 9601-0004 ●
403 PATCH; FIRE EXTINGUSHER 1-62183-077-1 01 1 0005- ● ●
404 RAIL ASM; MTG,RR 1-62483-127-1 01 1 9601-0004 ●
404 RAIL ASM; MTG,RR 1-62483-127-1 01 1 0005- ● ●
404 RAIL ASM; MTG,RR 1-62483-123-1 01 1 9601-9803 ● ●
404 RAIL ASM; MTG,RR 1-62483-123-1 01 1 9804- ● ● ●
553 REINFORCEMENT; SEAT STAND RR 1-62172-795-0 01 1 9601- ● ● ● ● ●
