◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10704 - FVR/GVR-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#63881) — 64 parça

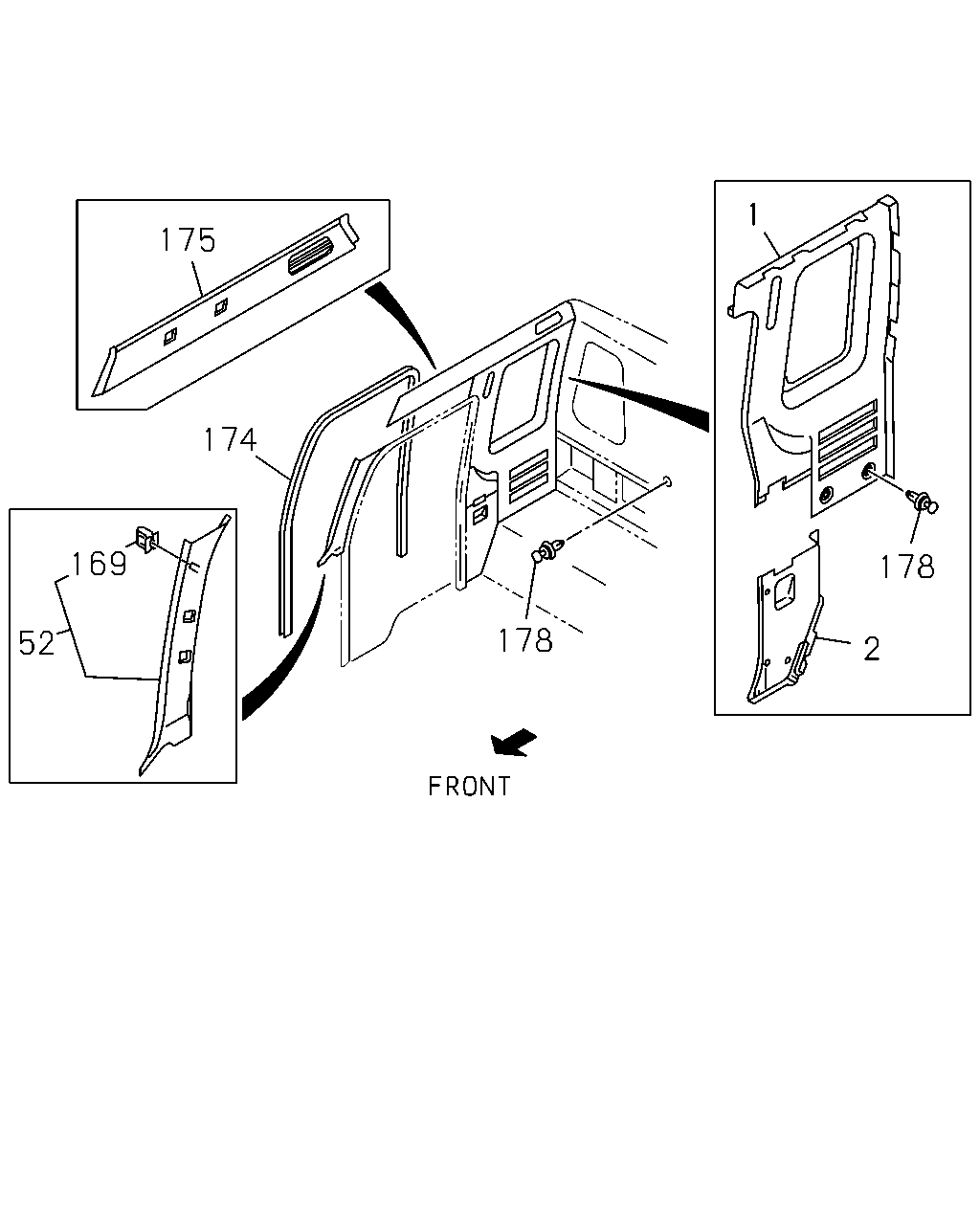

çizim 130867
1 175 174 169 178 178 52 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73348-861-5 01 1 9601-9803 ● ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73348-861-5 01 1 9804-0004 ● ● ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73348-941-4 01 1 0005-0212 ● ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR
EXC. LOW ROOF<6XQ> 		1-73348-941-4 01 1 0005-0212 ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR
EXC. PROVISIONAL PACKAGE<NLY>,LOW ROOF<6XQ> 		1-73348-941-7 01 1 0301- ● ● ● ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73348-902-2 01 1 9601-9803 ● ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73348-902-2 01 1 9804-0004 ● ● ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73348-934-4 01 1 0005-0212 ● ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR
EXC. LOW ROOF<6XQ> 		1-73348-934-4 01 1 0005-0212 ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR
EXC. PROVISIONAL PACKAGE<NLY>,LOW ROOF<6XQ> 		1-73348-934-7 01 1 0301- ● ● ● ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR
LOW ROOF<6XQ> 		1-73348-996-1 01 1 0005-0212 ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR
PROVISIONAL PACKAGE<NLY> 		1-73348-996-3 01 1 0301- ● ● ● ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR
LOW ROOF<6XQ> EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-996-3 01 1 0301- ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR
LOW ROOF<6XQ> 		1-73348-995-1 01 1 0005-0212 ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR
PROVISIONAL PACKAGE<NLY> 		1-73348-995-3 01 1 0301- ● ● ● ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR
LOW ROOF<6XQ> EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-995-3 01 1 0301- ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR
PROVISIONAL PACKAGE<NLY> DRIVER ISRINGHAUSEN SEAT<SJA> EXC. LOW ROOF<6XQ> 		1-73346-032-1 01 1 0301- ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73347-780-7 01 1 9601-9803 ● ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73347-780-8 01 1 9804-0004 ● ● ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73348-927-2 01 1 0005-0212 ● ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR
EXC. LOW ROOF<6XQ> 		1-73348-927-2 01 1 0005-0212 ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR
EXC. PROVISIONAL PACKAGE<NLY>,LOW ROOF<6XQ> 		1-73348-927-3 01 1 0301- ● ● ● ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73347-779-7 01 1 9601-9803 ● ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73347-779-7 01 1 9804-9810 ● ● ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73347-779-8 01 1 9811-0004 ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-73347-779-8 01 1 9811-0004 ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73348-926-2 01 1 0005-0010 ● ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR
EXC. LOW ROOF<6XQ> 		1-73348-926-2 01 1 0005-0010 ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73348-926-2 01 1 0011-0212 ● ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR
EXC. DRIVER ISRINGHAUSEN SEAT<SJA>,LOW ROOF<6XQ> 		1-73348-926-2 01 1 0011-0212 ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR
EXC. PROVISIONAL PACKAGE<NLY>,DRIVER ISRINGHAUSEN SEAT<SJA>,LOW ROOF<6XQ> 		1-73348-926-3 01 1 0301- ● ● ● ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. LOW ROOF<6XQ> 		1-73348-980-0 01 1 0011-0212 ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. PROVISIONAL PACKAGE<NLY>,LOW ROOF<6XQ> 		1-73348-980-1 01 1 0301- ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR
LOW ROOF<6XQ> 		1-73348-978-1 01 1 0005-0212 ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR
PROVISIONAL PACKAGE<NLY> 		1-73348-978-2 01 1 0301- ● ● ● ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR
LOW ROOF<6XQ> EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-978-2 01 1 0301- ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-73347-877-0 01 1 9811-0004 ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR
LOW ROOF<6XQ> 		1-73348-977-1 01 1 0005-0212 ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR
PROVISIONAL PACKAGE<NLY> 		1-73348-977-2 01 1 0301- ● ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR
PROVISIONAL PACKAGE<NLY> EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-73348-977-2 01 1 0301- ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR
LOW ROOF<6XQ> EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-977-2 01 1 0301- ● ●
52 COVER; TRIM,FRT PILLAR 1-73348-484-3 01 1 9601-9803 ● ● ●
52 COVER; TRIM,FRT PILLAR 1-73348-484-3 01 1 9804-0004 ● ● ● ●
52 COVER; TRIM,FRT PILLAR 1-73348-939-0 01 1 0005- ● ● ● ● ●
52 COVER; TRIM,FRT PILLAR 1-73348-483-3 01 1 9601-9803 ● ● ●
52 COVER; TRIM,FRT PILLAR 1-73348-483-3 01 1 9804-0004 ● ● ● ●
52 COVER; TRIM,FRT PILLAR 1-73347-833-0 01 1 0005- ● ● ● ● ●
169 CLIP; TRIM COVER,FRT PILLAR 8-94313-458-0 02 1 9601-9803 ● ● ●
169 CLIP; TRIM COVER,FRT PILLAR 8-94313-458-0 02 1 9804-0004 ● ● ● ●
169 CLIP; TRIM COVER,FRT PILLAR 8-94313-458-0 02 1 0005- ● ● ● ● ●
174 FINISHER; BODY SIDE 1-76718-175-3 02 1 9601-9803 ● ● ●
174 FINISHER; BODY SIDE 1-76718-175-3 02 1 9804-0004 ● ● ● ●
174 FINISHER; BODY SIDE 1-76718-175-4 02 1 0005- ● ● ● ● ●
175 COVER; TRIM,SIDE 1-73348-901-0 01 1 9601-9803 ●
175 COVER; TRIM,SIDE
HIGH ROOF<S2F> 		1-73348-901-0 01 1 9601-9803 ● ●
175 COVER; TRIM,SIDE 1-73348-781-0 01 1 9601-9803 ●
175 COVER; TRIM,SIDE
HIGH ROOF<S2F> 		1-73348-781-0 01 1 9601-9803 ● ●
175 COVER; TRIM,SIDE
CUSTOM CAB(SR5) 		1-73348-901-1 01 1 9910-0004 ● ●
175 COVER; TRIM,SIDE
CUSTOM CAB(SR5) 		1-73348-781-1 01 1 9910-0004 ● ●
178 CLIP; TRIM COVER
OD=6.2 DARK GRAY 		1-09983-167-0 09 1 9601-9705 ●
178 CLIP; TRIM COVER
HIGH ROOF<S2F> OD=6.2 DARK GRAY 		1-09983-167-0 09 1 9601-9705 ● ●
178 CLIP; TRIM COVER
OD=6.2 DARK GRAY 		1-09983-167-0 09 1 9706-9803 ● ● ●
178 CLIP; TRIM COVER
OD=6.2 DARK GRAY 		1-09983-167-0 09 1 9804-0004 ● ● ● ●
178 CLIP; TRIM COVER
OD=6.2 LIGHT GRAY 		1-09983-178-0 09 1 0005- ● ● ● ● ●
