6-20 — SIDE PANEL AND STEP (#63875) — 311 parça

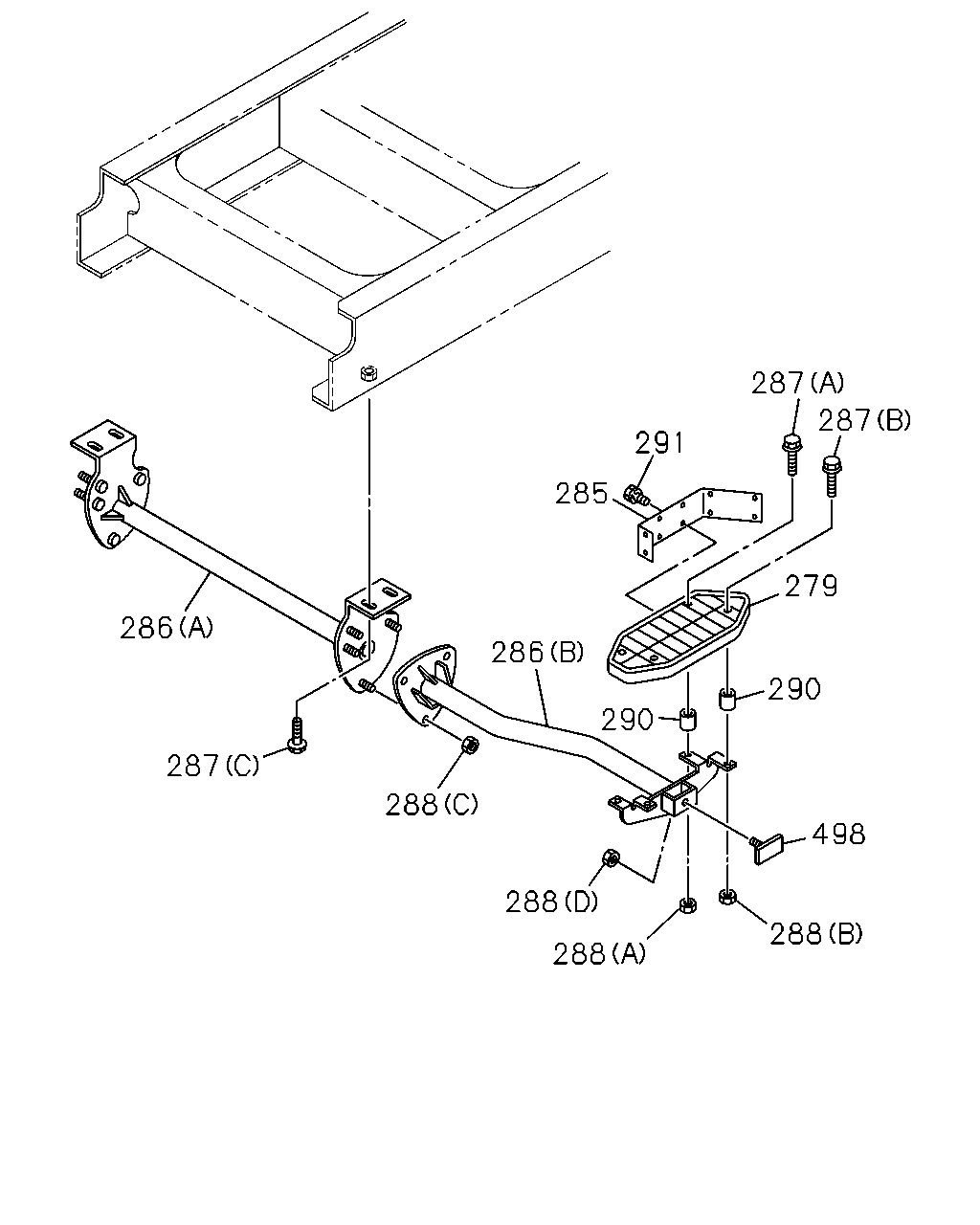

çizim 126865
287 287 291 285 279 286 286 290 290 287 288 498 288 288 288
BalonParca AdiParca NoAdetTipApplied Date A B C D E
279 BOARD; STEP 1ST 1-53414-035-0 02 1 9601-9803 ● ● ●
279 BOARD; STEP 1ST 1-53414-035-0 02 1 9804-0004 ● ● ● ●
279 BOARD; STEP 1ST 1-53414-035-0 02 1 0005- ● ● ● ● ●
285 PLATE; STEP,1ST STEP 1-53414-066-0 02 1 0010- ● ● ● ● ●
286 STEP ASM; 1ST
(B) 		1-53414-107-0 01 1 9601-9803 ●
286 STEP ASM; 1ST
EXC. AUSTRALIA EQUIPMENT(RR3) (B) 		1-53414-107-0 01 1 9601-9803 ● ●
286 STEP ASM; 1ST
(B) 		1-53414-107-0 01 1 9804-0003 ● ●
286 STEP ASM; 1ST
EXC. AUSTRALIA EQUIPMENT(RR3) (B) 		1-53414-107-0 01 1 9804-0003 ● ●
286 STEP ASM; 1ST
(B) 		1-53414-108-0 01 1 9601-9803 ●
286 STEP ASM; 1ST
EXC. AUSTRALIA EQUIPMENT(RR3) (B) 		1-53414-108-0 01 1 9601-9803 ● ●
286 STEP ASM; 1ST
(B) 		1-53414-108-0 01 1 9804-0003 ● ●
286 STEP ASM; 1ST
EXC. AUSTRALIA EQUIPMENT(RR3) (B) 		1-53414-108-0 01 1 9804-0003 ● ●
286 STEP ASM; 1ST
(A) 		1-53414-126-0 01 1 9601-9803 ● ● ●
286 STEP ASM; 1ST
(A) 		1-53414-126-1 01 1 9804-0004 ● ● ● ●
286 STEP ASM; 1ST
(A) 		1-53414-126-1 01 1 0005-0010 ● ● ● ● ●
286 STEP ASM; 1ST
(A) 		1-53414-126-1 01 1 0011-0112 ● ● ● ●
286 STEP ASM; 1ST
EXC. FRONT SPRING LONG SPAN<W36> (A) 		1-53414-126-1 01 1 0011-0112 ●
286 STEP ASM; 1ST
(A) 		1-53414-254-0 01 1 0201- ● ● ● ●
286 STEP ASM; 1ST
EXC. FRONT SPRING LONG SPAN<W36> (A) 		1-53414-254-0 01 1 0201- ●
286 STEP ASM; 1ST
AUSTRALIA EQUIPMENT(RR3) (B) 		1-53414-130-0 01 1 9601-9803 ● ●
286 STEP ASM; 1ST
AUSTRALIA EQUIPMENT(RR3) (B) 		1-53414-130-0 01 1 9804-0003 ● ●
286 STEP ASM; 1ST
(B) 		1-53414-130-1 01 1 0004-0004 ● ● ● ●
286 STEP ASM; 1ST
(B) 		1-53414-130-2 01 1 0005-0010 ● ● ● ● ●
286 STEP ASM; 1ST
(B) 		1-53414-130-2 01 1 0011- ● ● ● ●
286 STEP ASM; 1ST
EXC. FRONT SPRING LONG SPAN<W36> (B) 		1-53414-130-2 01 1 0011- ●
286 STEP ASM; 1ST
AUSTRALIA EQUIPMENT(RR3) (B) 		1-53414-129-0 01 1 9601-9803 ● ●
286 STEP ASM; 1ST
AUSTRALIA EQUIPMENT(RR3) (B) 		1-53414-129-0 01 1 9804-0003 ● ●
286 STEP ASM; 1ST
(B) 		1-53414-129-1 01 1 0004-0004 ● ● ● ●
286 STEP ASM; 1ST
(B) 		1-53414-129-2 01 1 0005-0010 ● ● ● ● ●
286 STEP ASM; 1ST
(B) 		1-53414-129-2 01 1 0011- ● ● ● ●
286 STEP ASM; 1ST
EXC. FRONT SPRING LONG SPAN<W36> (B) 		1-53414-129-2 01 1 0011- ●
286 STEP ASM; 1ST
FRONT SPRING LONG SPAN<W36> (B) 		1-53414-217-1 01 1 0011- ●
286 STEP ASM; 1ST
FRONT SPRING LONG SPAN<W36> (B) 		1-53414-216-1 01 1 0011- ●
287 BOLT; BOARD STEP
(A) M6X35 FLANGE 		0-28080-635-0 04 1 9601-9803 ● ● ●
287 BOLT; BOARD STEP
(A) M6X35 FLANGE 		0-28080-635-0 04 1 9804-0004 ● ● ● ●
287 BOLT; BOARD STEP
(A) M6X35 FLANGE 		0-28080-635-0 04 1 0005-0009 ● ● ● ● ●
287 BOLT; BOARD STEP
(A) M6X35 FLANGE 		0-28680-635-0 04 1 0010-0010 ● ● ● ● ●
287 BOLT; BOARD STEP
(A) M6X35 FLANGE 		0-28680-635-0 04 1 0011-0512 ● ● ● ●
287 BOLT; BOARD STEP
EXC. FRONT SPRING LONG SPAN<W36> (A) M6X35 FLANGE 		0-28680-635-0 04 1 0011-0512 ●
287 BOLT; BOARD STEP
(A) M6X35 FLANGE 		0-28650-635-0 04 1 0601- ● ● ● ●
287 BOLT; BOARD STEP
EXC. FRONT SPRING LONG SPAN<W36> (A) M6X35 FLANGE 		0-28650-635-0 04 1 0601- ●
287 BOLT; BOARD STEP
(B) M8X35 FLANGE 		0-28080-835-0 04 1 9601-9803 ● ● ●
287 BOLT; BOARD STEP
(B) M8X35 FLANGE 		0-28080-835-0 04 1 9804-0004 ● ● ● ●
287 BOLT; BOARD STEP
(B) M8X35 FLANGE 		0-28080-835-0 04 1 0005-0009 ● ● ● ● ●
287 BOLT; BOARD STEP
(B) M8X35 FLANGE 		0-28680-835-0 04 1 0010-0010 ● ● ● ● ●
287 BOLT; BOARD STEP
(B) M8X35 FLANGE 		0-28680-835-0 04 1 0011-0512 ● ● ● ●
287 BOLT; BOARD STEP
EXC. FRONT SPRING LONG SPAN<W36> (B) M8X35 FLANGE 		0-28680-835-0 04 1 0011-0512 ●
287 BOLT; BOARD STEP
(B) M8X35 FLANGE 		0-28650-835-0 04 1 0601- ● ● ● ●
287 BOLT; BOARD STEP
EXC. FRONT SPRING LONG SPAN<W36> (B) M8X35 FLANGE 		0-28650-835-0 04 1 0601- ●
287 BOLT; BOARD STEP
(C) M12X30 FLANGE 		0-28081-230-0 04 1 9601-9606 ● ● ●
287 BOLT; BOARD STEP
(C) M12X35 FLANGE 		0-28681-235-0 04 1 9607-9803 ● ● ●
287 BOLT; BOARD STEP
(C) M12X35 FLANGE 		0-28681-235-0 04 1 9804-0004 ● ● ● ●
287 BOLT; BOARD STEP
(C) M12X35 FLANGE 		0-28681-235-0 04 1 0005-0010 ● ● ● ● ●
287 BOLT; BOARD STEP
(C) M12X35 FLANGE 		0-28681-235-0 04 1 0011-0512 ● ● ● ●
287 BOLT; BOARD STEP
EXC. FRONT SPRING LONG SPAN<W36> (C) M12X35 FLANGE 		0-28681-235-0 04 1 0011-0512 ●
287 BOLT; BOARD STEP
(C) M12X35 FLANGE 		0-28651-235-0 04 1 0601- ● ● ● ●
287 BOLT; BOARD STEP
EXC. FRONT SPRING LONG SPAN<W36> (C) M12X35 FLANGE 		0-28651-235-0 04 1 0601- ●
287 BOLT; BOARD STEP
FRONT SPRING LONG SPAN<W36> (B) M6X35 FLANGE 		0-28080-635-0 04 1 0011-0512 ●
287 BOLT; BOARD STEP
FRONT SPRING LONG SPAN<W36> (B) M6X35 FLANGE 		0-28050-635-0 04 1 0601- ●
287 BOLT; BOARD STEP
FRONT SPRING LONG SPAN<W36> (C) M8X35 FLANGE 		0-28080-835-0 04 1 0011-0512 ●
287 BOLT; BOARD STEP
FRONT SPRING LONG SPAN<W36> (C) M8X35 FLANGE 		0-28050-835-0 04 1 0601- ●
288 NUT; STEP
(A) M6 FLANGE 		0-91150-106-0 04 1 9601-9803 ● ● ●
288 NUT; STEP
(A) M6 FLANGE 		0-91150-106-0 04 1 9804-0004 ● ● ● ●
288 NUT; STEP
(B) M8 FLANGE 		0-91150-108-0 04 1 9601-9803 ● ● ●
288 NUT; STEP
(B) M8 FLANGE 		0-91150-108-0 04 1 9804-0004 ● ● ● ●
288 NUT; STEP
(B) M8 FLANGE 		0-91150-108-0 04 1 0005-0602 ● ● ● ● ●
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 04 1 0603- ● ● ● ● ●
288 NUT; STEP
(C) M12 		9-99110-512-0 06 1 9601-9606 ● ● ●
288 NUT; STEP
(C) M12 FLANGE 		0-91150-212-0 06 1 9607-9803 ● ● ●
288 NUT; STEP
(C) M12 FLANGE 		0-91150-212-0 06 1 9804-0004 ● ● ● ●
288 NUT; STEP
(C) M12 FLANGE 		0-91150-212-0 06 1 0005-0010 ● ● ● ● ●
288 NUT; STEP
(C) M12 FLANGE 		0-91150-212-0 06 1 0011-0602 ● ● ● ●
288 NUT; STEP
EXC. FRONT SPRING LONG SPAN<W36> (C) M12 FLANGE 		0-91150-212-0 06 1 0011-0602 ●
288 NUT; STEP
(C) M12 FLANGE 		0-91180-212-0 06 1 0603- ● ● ● ●
288 NUT; STEP
EXC. FRONT SPRING LONG SPAN<W36> (C) M12 FLANGE 		0-91180-212-0 06 1 0603- ●
288 NUT; STEP
AUSTRALIA EQUIPMENT(RR3) (D) M6 		9-09110-406-0 02 1 9601-9803 ● ●
288 NUT; STEP
AUSTRALIA EQUIPMENT(RR3) (D) M6 		9-09110-406-0 02 1 9804-0004 ● ●
288 NUT; STEP
(D) M6 FLANGE 		0-91150-106-0 04 1 0005-0602 ● ● ● ● ●
288 NUT; STEP
(D) M6 FLANGE 		0-91180-106-0 04 1 0603- ● ● ● ● ●
288 NUT; STEP
FRONT SPRING LONG SPAN<W36> (C) M6 		9-09110-406-0 02 1 0011-0512 ●
288 NUT; STEP
FRONT SPRING LONG SPAN<W36> (C) M6 		0-91110-506-0 02 1 0601- ●
290 SPACER 1-53414-016-0 08 1 9601-9803 ● ● ●
290 SPACER 1-53414-016-0 08 1 9804-0004 ● ● ● ●
290 SPACER 1-53414-016-0 08 1 0005- ● ● ● ● ●
291 BOLT; STEP PLATE
M6X16 FLANGE 		0-28080-616-0 10 1 0010-0512 ● ● ● ● ●
291 BOLT; STEP PLATE
M6X16 FLANGE 		0-28050-616-0 10 1 0601- ● ● ● ● ●
498 REFLECTOR
AUSTRALIA EQUIPMENT(RR3) 		1-82290-061-0 02 1 9601-9803 ● ●
498 REFLECTOR
AUSTRALIA EQUIPMENT(RR3) 		1-82290-061-0 02 1 9804-0004 ● ●
498 REFLECTOR
FRONT SPRING LONG SPAN<W36> 		1-82290-061-0 02 1 0011- ●

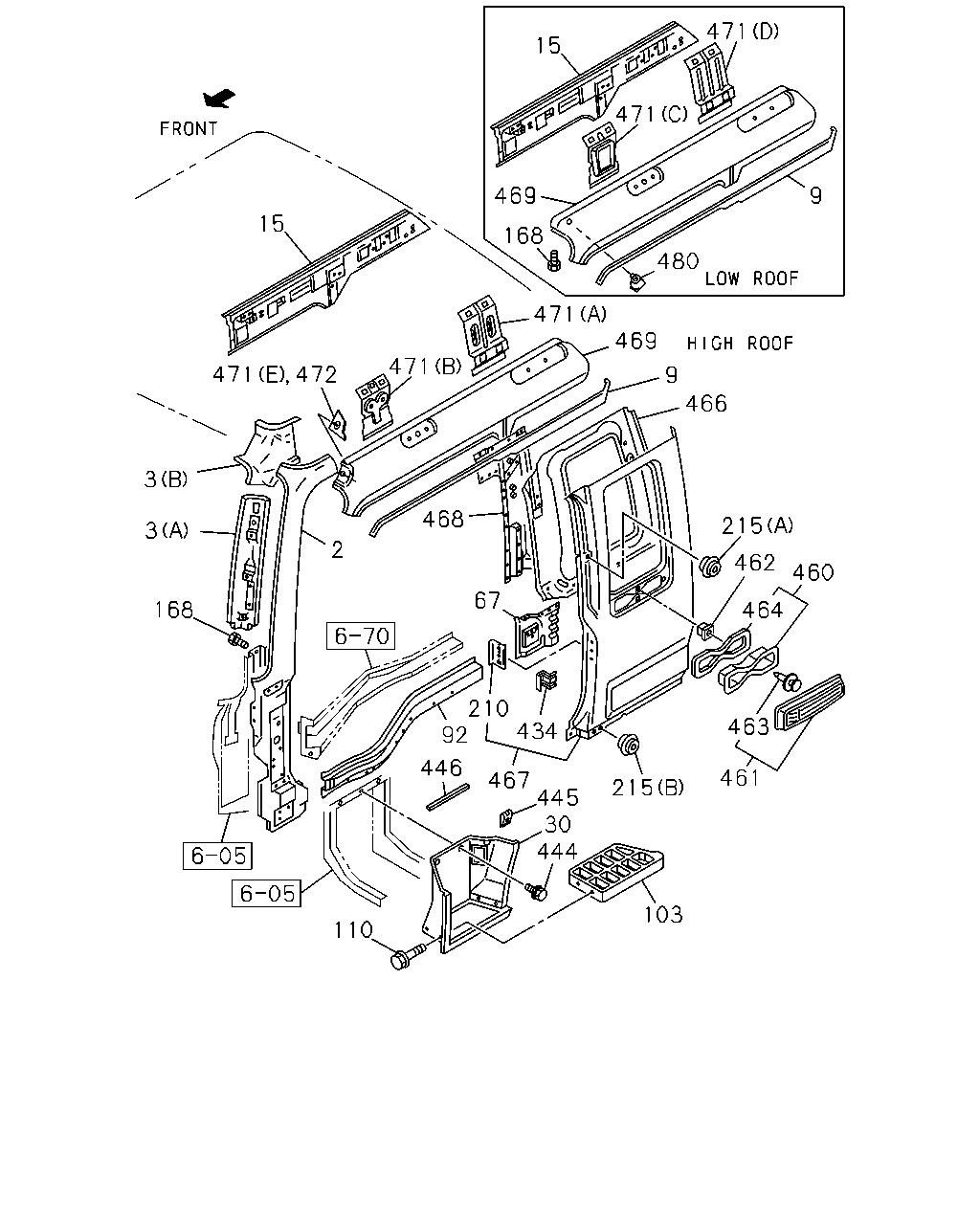

çizim 184276
471 15 471 9 480 469 168 15 471 472 471 471 469 9 466 215 462 460 464 67 468 2 3 3 168 446 92 210 434 467 445 30 444 110 103 215 461 463
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 PILLAR; FRT 1-61281-156-4 01 1 9601-9803 ● ● ●
2 PILLAR; FRT 1-61281-156-4 01 1 9804-0004 ● ● ● ●
2 PILLAR; FRT 1-61281-156-4 01 1 0005- ● ● ● ● ●
2 PILLAR; FRT 1-61281-155-4 01 1 9601-9803 ● ● ●
2 PILLAR; FRT 1-61281-155-4 01 1 9804-0004 ● ● ● ●
2 PILLAR; FRT 1-61281-155-4 01 1 0005- ● ● ● ● ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-170-5 01 1 9601-9803 ●
3 PANEL; CLOSING,FRT PILLAR
HIGH ROOF<S2F> (B) 		1-61281-170-5 01 1 9601-9803 ● ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-170-5 01 1 9804-0004 ● ● ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-170-5 01 1 0005- ● ● ●
3 PANEL; CLOSING,FRT PILLAR
HIGH ROOF<S2F> (B) 		1-61281-170-5 01 1 0005- ● ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-169-5 01 1 9601-9803 ●
3 PANEL; CLOSING,FRT PILLAR
HIGH ROOF<S2F> (B) 		1-61281-169-5 01 1 9601-9803 ● ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-169-5 01 1 9804-0004 ● ● ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-169-5 01 1 0005- ● ● ●
3 PANEL; CLOSING,FRT PILLAR
HIGH ROOF<S2F> (B) 		1-61281-169-5 01 1 0005- ● ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-344-5 01 1 9601-9803 ● ● ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-344-5 01 1 9804-0004 ● ● ● ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-344-5 01 1 0005- ● ● ● ● ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-343-5 01 1 9601-9803 ● ● ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-343-5 01 1 9804-0004 ● ● ● ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-343-5 01 1 0005- ● ● ● ● ●
3 PANEL; CLOSING,FRT PILLAR
LOW ROOF<6XQ> (B) 		1-61281-250-4 01 1 9601- ● ●
3 PANEL; CLOSING,FRT PILLAR
LOW ROOF<6XQ> (B) 		1-61281-249-4 01 1 9601- ● ●
9 MOLDING; DRIP,CAB SIDE 1-61281-281-4 01 1 9601-9803 ● ● ●
9 MOLDING; DRIP,CAB SIDE 1-61281-281-4 01 1 9804-0004 ● ● ● ●
9 MOLDING; DRIP,CAB SIDE 1-61281-281-5 01 1 0005- ● ● ● ● ●
9 MOLDING; DRIP,CAB SIDE 1-61281-280-4 01 1 9601-9803 ● ● ●
9 MOLDING; DRIP,CAB SIDE 1-61281-280-4 01 1 9804-0004 ● ● ● ●
9 MOLDING; DRIP,CAB SIDE 1-61281-280-5 01 1 0005- ● ● ● ● ●
15 PANEL; CANT RAIL SIDE 1-61281-178-8 01 1 9601-9803 ●
15 PANEL; CANT RAIL SIDE
HIGH ROOF<S2F> 		1-61281-178-8 01 1 9601-9803 ● ●
15 PANEL; CANT RAIL SIDE 1-61281-178-8 01 1 9804-0004 ● ●
15 PANEL; CANT RAIL SIDE
HIGH ROOF<S2F> 		1-61281-178-8 01 1 9804-0004 ● ●
15 PANEL; CANT RAIL SIDE 1-61281-178-8 01 1 0005- ● ● ●
15 PANEL; CANT RAIL SIDE
HIGH ROOF<S2F> 		1-61281-178-8 01 1 0005- ● ●
15 PANEL; CANT RAIL SIDE 1-61281-177-8 01 1 9601-9803 ●
15 PANEL; CANT RAIL SIDE
HIGH ROOF<S2F> 		1-61281-177-8 01 1 9601-9803 ● ●
15 PANEL; CANT RAIL SIDE 1-61281-177-8 01 1 9804-0004 ● ●
15 PANEL; CANT RAIL SIDE
HIGH ROOF<S2F> 		1-61281-177-8 01 1 9804-0004 ● ●
15 PANEL; CANT RAIL SIDE 1-61281-177-8 01 1 0005- ● ● ●
15 PANEL; CANT RAIL SIDE
HIGH ROOF<S2F> 		1-61281-177-8 01 1 0005- ● ●
15 PANEL; CANT RAIL SIDE
LOW ROOF<6XQ> 		1-61281-254-5 01 1 9601- ● ●
15 PANEL; CANT RAIL SIDE
LOW ROOF<6XQ> 		1-61281-253-5 01 1 9601- ● ●
30 CLOSING; SIDE STEP 1-71998-878-7 01 1 9601-9803 ● ● ●
30 CLOSING; SIDE STEP 1-71998-877-7 01 1 9601-9803 ● ● ●
30 CLOSING; SIDE STEP 1-71998-878-7 01 1 9804-0004 ● ● ● ●
30 CLOSING; SIDE STEP 1-71998-878-7 01 1 0005- ● ● ● ● ●
30 CLOSING; SIDE STEP 1-71998-877-7 01 1 9804-0004 ● ● ● ●
30 CLOSING; SIDE STEP 1-71998-877-7 01 1 0005- ● ● ● ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-195-4 01 1 9601-9803 ● ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-195-5 01 1 9804-0004 ● ● ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-195-5 01 1 0005- ● ● ● ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-194-4 01 1 9601-9803 ● ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-194-5 01 1 9804-0004 ● ● ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-194-5 01 1 0005- ● ● ● ● ●
92 PANEL; SIDE SILL,CAB 1-61281-212-5 01 1 9601-9803 ● ● ●
92 PANEL; SIDE SILL,CAB 1-61281-212-7 01 1 9804-0004 ● ● ● ●
92 PANEL; SIDE SILL,CAB 1-61281-212-8 01 1 0005- ● ● ● ● ●
92 PANEL; SIDE SILL,CAB 1-61281-211-6 01 1 9601-9803 ● ● ●
92 PANEL; SIDE SILL,CAB 1-61281-211-7 01 1 9804-9812 ● ● ● ●
92 PANEL; SIDE SILL,CAB
LOW ROOF<6XQ> 		1-61281-211-8 01 1 9901-9907 ● ●
92 PANEL; SIDE SILL,CAB
AUSTRALIA EQUIPMENT(RR3) 		1-61281-211-8 01 1 9901-9907 ● ●
92 PANEL; SIDE SILL,CAB 1-61281-211-8 01 1 9908-0004 ● ● ● ●
92 PANEL; SIDE SILL,CAB 1-61281-211-9 01 1 0005- ● ● ● ● ●
103 PLATE; STEP 1-71998-868-1 01 1 9601-9605 ● ● ●
103 PLATE; STEP 1-71996-174-0 01 1 9606-9803 ● ● ●
103 PLATE; STEP 1-71996-174-0 01 1 9804-0004 ● ● ● ●
103 PLATE; STEP 1-71996-174-0 01 1 0005- ● ● ● ● ●
103 PLATE; STEP 1-71998-867-1 01 1 9601-9605 ● ● ●
103 PLATE; STEP 1-71996-173-0 01 1 9606-9803 ● ● ●
103 PLATE; STEP 1-71996-173-0 01 1 9804-0004 ● ● ● ●
103 PLATE; STEP 1-71996-173-0 01 1 0005- ● ● ● ● ●
110 BOLT; 1ST STEP PLATE
FRONT SPRING LONG SPAN<W36> M12X40 FLANGE 		0-28681-240-0 08 1 0011-0512 ●
110 BOLT; 1ST STEP PLATE
FRONT SPRING LONG SPAN<W36> M12X40 FLANGE 		0-28651-240-0 08 1 0601- ●
168 BOLT; BODY SIDE PANEL
M6X12 W/LK&PL WASHER 		0-50140-612-0 04 1 9601-9702 ● ● ●
168 BOLT; BODY SIDE PANEL
LOW ROOF<6XQ> M6X12 W/LK&PL WASHER 		0-50140-612-0 04 1 9601-9702 ● ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28080-610-0 04 1 9703-9803 ● ● ●
168 BOLT; BODY SIDE PANEL
LOW ROOF<6XQ> M6X10 FLANGE 		0-28080-610-0 04 1 9703-9803 ● ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28080-610-0 04 1 9804-0004 ● ● ● ●
168 BOLT; BODY SIDE PANEL
LOW ROOF<6XQ> M6X10 FLANGE 		0-28080-610-0 04 1 9804-0004 ● ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28080-610-0 04 1 0005-0512 ● ● ● ● ●
168 BOLT; BODY SIDE PANEL
LOW ROOF<6XQ> M6X10 FLANGE 		0-28080-610-0 04 1 0005-0512 ● ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28050-610-0 04 1 0601- ● ● ● ● ●
168 BOLT; BODY SIDE PANEL
LOW ROOF<6XQ> M6X10 FLANGE 		0-28050-610-0 04 1 0601- ● ●
210 PANEL; DOOR STRIKER REINF 8-97851-446-1 01 1 0005- ● ● ● ● ●
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-155-0 02 1 9601-9709 ● ● ●
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-101-0 02 1 9710-9803 ● ● ●
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-101-0 02 1 9804-0004 ● ● ● ●
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-101-0 02 1 0005- ● ● ● ● ●
215 GROMMET; RR PILLAR
(B) OD=28.5 		8-94279-711-0 02 1 9601-9803 ● ● ●
215 GROMMET; RR PILLAR
(B) OD=28.5 		8-94279-711-0 02 1 9804-0004 ● ● ● ●
215 GROMMET; RR PILLAR
(B) OD=28.5 		8-94279-711-0 02 1 0005- ● ● ● ● ●
434 PATCH; ASSIST GRIP 1-61270-763-1 02 1 9601-9803 ●
434 PATCH; ASSIST GRIP
HIGH ROOF<S2F> 		1-61270-763-1 02 1 9601-9803 ● ●
434 PATCH; ASSIST GRIP 1-61270-763-1 02 1 9804-0004 ● ●
434 PATCH; ASSIST GRIP
HIGH ROOF<S2F> 		1-61270-763-1 02 1 9804-0004 ● ●
434 PATCH; ASSIST GRIP 1-61270-763-1 02 1 0005- ● ● ●
434 PATCH; ASSIST GRIP
HIGH ROOF<S2F> 		1-61270-763-1 02 1 0005- ● ●
434 PATCH; ASSIST GRIP
LOW ROOF<6XQ> 		1-61270-763-1 02 1 9601-0004 ● ●
434 PATCH; ASSIST GRIP
LOW ROOF<6XQ> 		1-61270-763-1 01 1 0005- ● ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 9601-9803 ● ● ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 9804-0004 ● ● ● ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0005-0904 ● ● ● ● ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0905- ● ● ● ● ●
445 NUT; CLOSING 8-94279-723-0 04 1 0405-0405 ● ● ●
445 NUT; CLOSING 8-94279-723-0 02 1 0405-0609 ● ● ●
445 NUT; CLOSING 8-94279-723-0 02 1 0610- ● ● ● ● ●
445 NUT; CLOSING 8-94279-723-0 02 1 9601-9803 ● ● ●
445 NUT; CLOSING 8-94279-723-0 02 1 9804-0004 ● ● ● ●
445 NUT; CLOSING 8-94279-723-0 02 1 0005-0404 ● ● ● ● ●
445 NUT; CLOSING 8-94279-723-0 02 1 0405-0405 ● ●
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 9601-9803 ● ● ●
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 9804-0004 ● ● ● ●
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 0005- ● ● ● ● ●
460 VENTILATOR; BODY SIDE 1-76378-292-3 02 1 9601-9803 ● ● ●
460 VENTILATOR; BODY SIDE 1-76378-292-3 02 1 9804-0004 ● ● ● ●
460 VENTILATOR; BODY SIDE 1-76378-292-4 02 1 0005- ● ● ● ● ●
461 ORNAMENT; VENTILATOR 1-76378-303-6 01 1 9601-9803 ● ● ●
461 ORNAMENT; VENTILATOR 1-76378-303-6 01 1 9804-0004 ● ● ● ●
461 ORNAMENT; VENTILATOR 1-76378-303-6 01 1 0005- ● ● ● ● ●
461 ORNAMENT; VENTILATOR 1-76378-302-6 01 1 9601-9803 ● ● ●
461 ORNAMENT; VENTILATOR 1-76378-302-6 01 1 9804-0004 ● ● ● ●
461 ORNAMENT; VENTILATOR 1-76378-302-6 01 1 0005- ● ● ● ● ●
462 GROMMET; VENTILATOR
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 08 1 9601-9803 ● ● ●
462 GROMMET; VENTILATOR
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 08 1 9804-0004 ● ● ● ●
462 GROMMET; VENTILATOR
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 08 1 0005- ● ● ● ● ●
463 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 9601-9803 ● ● ●
463 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 9804-0004 ● ● ● ●
463 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 0005- ● ● ● ● ●
464 SEAL; VENTILATOR 1-76378-299-0 02 1 9601-9803 ● ● ●
464 SEAL; VENTILATOR 1-76378-299-0 02 1 9804-0004 ● ● ● ●
464 SEAL; VENTILATOR 1-76378-299-0 02 1 0005- ● ● ● ● ●
466 PANEL; INNER,BACK CORNER 1-61281-416-1 01 1 9601-9803 ● ● ●
466 PANEL; INNER,BACK CORNER 1-61281-415-1 01 1 9601-9803 ● ● ●
466 PANEL; INNER,BACK CORNER 1-61281-415-1 01 1 9804-0004 ● ● ● ●
466 PANEL; INNER,BACK CORNER 1-61281-415-1 01 1 0005- ● ● ● ● ●
466 PANEL; INNER,BACK CORNER 1-61281-416-1 01 1 9804-0004 ● ● ● ●
466 PANEL; INNER,BACK CORNER 1-61281-416-1 01 1 0005- ● ● ● ● ●
467 PANEL; OUTER,BACK CORNER
ENGINE NO PLATE<E6D> LOW ROOF<6XQ> 		1-61281-478-5 01 1 0005- ● ●
467 PANEL; OUTER,BACK CORNER 1-61281-204-2 01 1 9601-9803 ●
467 PANEL; OUTER,BACK CORNER
HIGH ROOF<S2F> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-61281-204-2 01 1 9601-9803 ● ●
467 PANEL; OUTER,BACK CORNER
LOW ROOF<6XQ> EXC. ENGINE NO PLATE<E6D> 		1-61281-204-2 01 1 9601-9803 ● ●
467 PANEL; OUTER,BACK CORNER 1-61281-204-2 01 1 9804-0004 ●
467 PANEL; OUTER,BACK CORNER
LOW ROOF<6XQ> EXC. ENGINE NO PLATE<E6D> 		1-61281-204-2 01 1 9804-0004 ● ●
467 PANEL; OUTER,BACK CORNER
HIGH ROOF<S2F> 		1-61281-204-2 01 1 9804-0004 ●
467 PANEL; OUTER,BACK CORNER
HIGH ROOF<S2F> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-61281-204-2 01 1 9804-0004 ●
467 PANEL; OUTER,BACK CORNER
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-61281-204-2 01 1 9804-0004 ●
467 PANEL; OUTER,BACK CORNER 1-61281-204-4 01 1 0005- ● ● ●
467 PANEL; OUTER,BACK CORNER
LOW ROOF<6XQ> EXC. ENGINE NO PLATE<E6D> 		1-61281-204-4 01 1 0005- ● ●
467 PANEL; OUTER,BACK CORNER
HIGH ROOF<S2F> 		1-61281-204-4 01 1 0005- ● ●
467 PANEL; OUTER,BACK CORNER 1-61281-203-2 01 1 9601-9803 ●
467 PANEL; OUTER,BACK CORNER
LOW ROOF<6XQ> 		1-61281-203-2 01 1 9601-9803 ● ●
467 PANEL; OUTER,BACK CORNER
HIGH ROOF<S2F> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-61281-203-2 01 1 9601-9803 ● ●
467 PANEL; OUTER,BACK CORNER 1-61281-203-2 01 1 9804-0004 ● ●
467 PANEL; OUTER,BACK CORNER
LOW ROOF<6XQ> 		1-61281-203-2 01 1 9804-0004 ●
467 PANEL; OUTER,BACK CORNER
HIGH ROOF<S2F> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-61281-203-2 01 1 9804-0004 ●
467 PANEL; OUTER,BACK CORNER
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-61281-203-2 01 1 9804-0004 ●
467 PANEL; OUTER,BACK CORNER 1-61281-203-4 01 1 0005- ● ● ● ● ●
467 PANEL; OUTER,BACK CORNER
AUSTRALIA EQUIPMENT(RR3) HIGH ROOF<S2F> 		1-61281-476-1 01 1 9601-9803 ● ●
467 PANEL; OUTER,BACK CORNER
ENGINE NO PLATE<E6D> LOW ROOF<6XQ> 		1-61281-476-1 01 1 9601-9803 ● ●
467 PANEL; OUTER,BACK CORNER
ENGINE NO PLATE<E6D> LOW ROOF<6XQ> 		1-61281-476-1 01 1 9804-0004 ● ●
467 PANEL; OUTER,BACK CORNER
AUSTRALIA EQUIPMENT(RR3) HIGH ROOF<S2F> 		1-61281-476-1 01 1 9804-0004 ●
467 PANEL; OUTER,BACK CORNER
AUSTRALIA EQUIPMENT(RR3) 		1-61281-476-1 01 1 9804-0004 ●
467 PANEL; OUTER,BACK CORNER
AUSTRALIA EQUIPMENT(RR3) HIGH ROOF<S2F> 		1-61281-477-1 01 1 9601-9803 ● ●
467 PANEL; OUTER,BACK CORNER
AUSTRALIA EQUIPMENT(RR3) HIGH ROOF<S2F> 		1-61281-477-1 01 1 9804-0004 ●
467 PANEL; OUTER,BACK CORNER
AUSTRALIA EQUIPMENT(RR3) 		1-61281-477-1 01 1 9804-0004 ●
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-418-2 01 1 9601-0004 ●
468 REINFORCEMENT; SEAT BELT ANCHOR
HIGH ROOF<S2F> 		1-61281-418-2 01 1 9601-0004 ● ●
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-418-2 01 1 0005- ● ● ●
468 REINFORCEMENT; SEAT BELT ANCHOR
HIGH ROOF<S2F> 		1-61281-418-2 01 1 0005- ● ●
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-417-2 01 1 9601-0004 ●
468 REINFORCEMENT; SEAT BELT ANCHOR
HIGH ROOF<S2F> 		1-61281-417-2 01 1 9601-0004 ● ●
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-417-2 01 1 0005- ● ● ●
468 REINFORCEMENT; SEAT BELT ANCHOR
HIGH ROOF<S2F> 		1-61281-417-2 01 1 0005- ● ●
468 REINFORCEMENT; SEAT BELT ANCHOR
LOW ROOF<6XQ> 		1-61281-435-2 01 1 9601- ● ●
468 REINFORCEMENT; SEAT BELT ANCHOR
LOW ROOF<6XQ> 		1-61281-434-2 01 1 9601- ● ●
469 ROOF; SIDE 1-61281-199-5 01 1 9601-0004 ●
469 ROOF; SIDE
HIGH ROOF<S2F> 		1-61281-199-5 01 1 9601-0004 ● ●
469 ROOF; SIDE 1-61281-199-8 01 1 0005- ● ● ●
469 ROOF; SIDE
HIGH ROOF<S2F> 		1-61281-199-8 01 1 0005- ● ●
469 ROOF; SIDE 1-61281-198-4 01 1 9601-9901 ●
469 ROOF; SIDE
HIGH ROOF<S2F> 		1-61281-198-4 01 1 9601-9901 ● ●
469 ROOF; SIDE
AUSTRALIA EQUIPMENT(RR3) HIGH ROOF<S2F> 		1-61281-198-5 01 1 9902-9907 ●
469 ROOF; SIDE
AUSTRALIA EQUIPMENT(RR3) 		1-61281-198-5 01 1 9902-9907 ●
469 ROOF; SIDE 1-61281-198-5 01 1 9908-0004 ●
469 ROOF; SIDE
HIGH ROOF<S2F> 		1-61281-198-5 01 1 9908-0004 ● ●
469 ROOF; SIDE 1-61281-198-8 01 1 0005- ● ● ●
469 ROOF; SIDE
HIGH ROOF<S2F> 		1-61281-198-8 01 1 0005- ● ●
469 ROOF; SIDE
LOW ROOF<6XQ> 		1-61281-268-6 01 1 9601- ● ●
469 ROOF; SIDE
LOW ROOF<6XQ> 		1-61281-267-6 01 1 9601- ● ●
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-202-3 02 1 9601-0004 ●
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (A) 		1-61281-202-3 02 1 9601-0004 ● ●
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-202-3 02 1 0005- ● ● ●
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (A) 		1-61281-202-3 02 1 0005- ● ●
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-201-3 01 1 9601-0004 ●
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (B) 		1-61281-201-3 01 1 9601-0004 ● ●
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-201-3 01 1 0005- ● ● ●
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (B) 		1-61281-201-3 01 1 0005- ● ●
471 PATCH; AIR DEFLECTOR
(E) 		1-61281-233-3 01 1 9601-0004 ●
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (E) 		1-61281-233-3 01 1 9601-0004 ● ●
471 PATCH; AIR DEFLECTOR
(E) 		1-61281-233-4 01 1 0005-0812 ● ● ●
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (E) 		1-61281-233-4 01 1 0005-0812 ● ●
471 PATCH; AIR DEFLECTOR
(E) 		8-98132-463-0 01 1 0901- ● ● ●
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (E) 		8-98132-463-0 01 1 0901- ● ●
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-200-3 01 1 9601-0004 ●
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (B) 		1-61281-200-3 01 1 9601-0004 ● ●
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-200-3 01 1 0005- ● ● ●
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (B) 		1-61281-200-3 01 1 0005- ● ●
471 PATCH; AIR DEFLECTOR
LOW ROOF<6XQ> (D) 		1-61281-273-3 02 1 9601- ● ●
471 PATCH; AIR DEFLECTOR
LOW ROOF<6XQ> (C) 		1-61281-270-3 01 1 9601- ● ●
471 PATCH; AIR DEFLECTOR
LOW ROOF<6XQ> (C) 		1-61281-269-3 01 1 9601- ● ●
472 PATCH; STAY,ROOF 1-61281-232-3 01 1 9601-9907 ●
472 PATCH; STAY,ROOF
HIGH ROOF<S2F> 		1-61281-232-3 01 1 9601-9907 ● ●
472 PATCH; STAY,ROOF
HIGH ROOF<S2F> AUSTRALIA EQUIPMENT(RR3) 		1-61281-232-3 01 1 9908-9910 ● ●
472 PATCH; STAY,ROOF
HIGH ROOF<S2F> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-61270-943-0 01 1 9908-9910 ● ● ● ●
472 PATCH; STAY,ROOF 1-61270-943-0 01 1 9911-0004 ●
472 PATCH; STAY,ROOF
HIGH ROOF<S2F> 		1-61270-943-0 01 1 9911-0004 ● ●
472 PATCH; STAY,ROOF 1-61270-943-1 01 1 0005- ● ● ●
472 PATCH; STAY,ROOF
HIGH ROOF<S2F> 		1-61270-943-1 01 1 0005- ● ●
480 REINFORCEMENT ASM; STAY ROOF
LOW ROOF<6XQ> 		1-61180-997-3 01 1 9601- ● ●
480 REINFORCEMENT ASM; STAY ROOF
LOW ROOF<6XQ> 		1-61180-996-3 01 1 9601- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
