◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10704 - FVR/GVR-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-07 - FRONT WINDOW GLASS AND WEATHERSTRIP ▶
6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP (#63874) — 19 parça

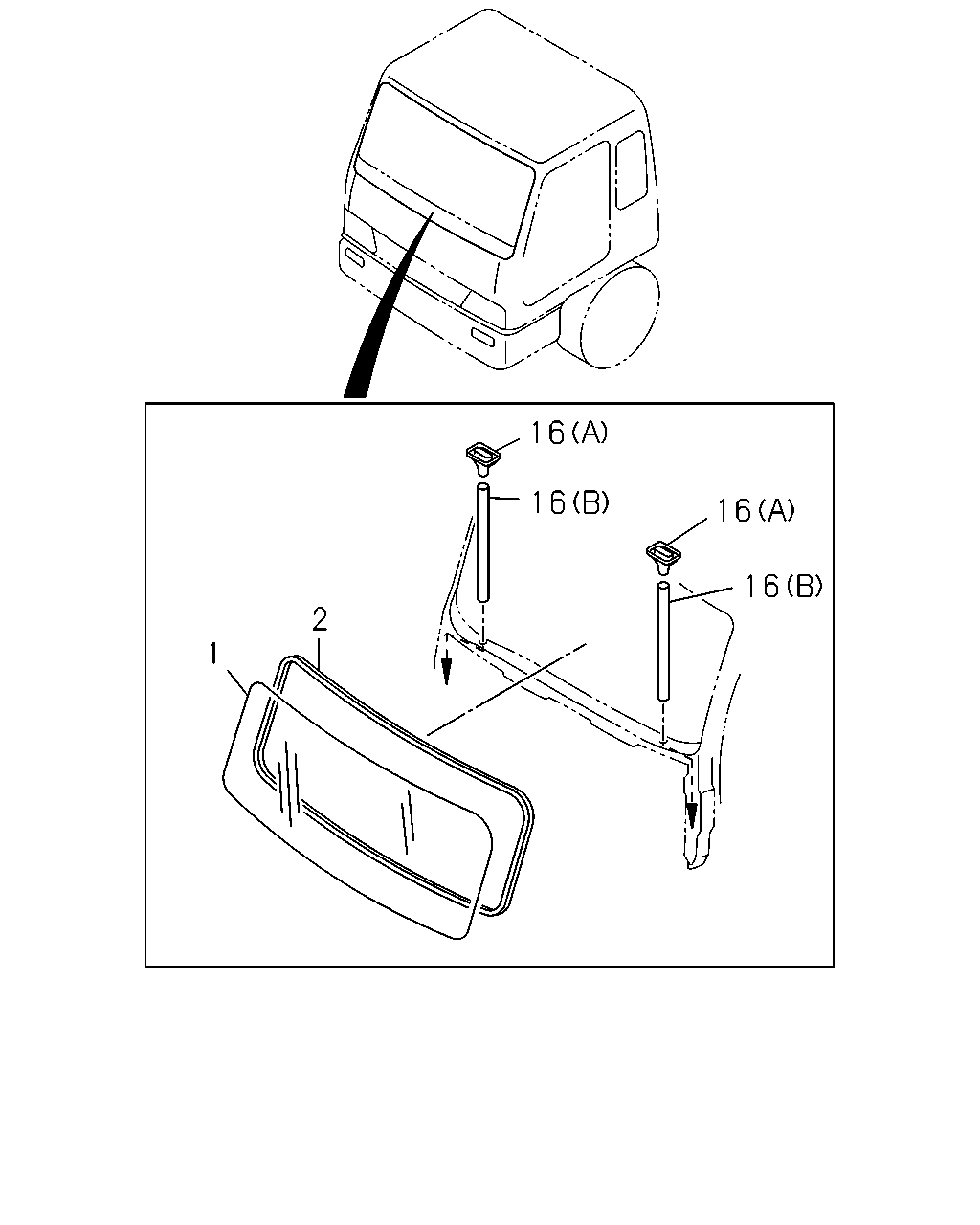

çizim 184270
16 16 16 16 2 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 GLASS; WINDSHIELD
ASAHI 		1-76118-034-0 01 1 9601-9611 ●
1 GLASS; WINDSHIELD
ASAHI 		1-76118-041-1 01 1 9612-0004 ●
1 GLASS; WINDSHIELD
ASAHI 		1-76118-041-1 01 1 0005- ● ●
1 GLASS; WINDSHIELD
NSG 		1-76118-045-0 01 1 9906-0004 ●
1 GLASS; WINDSHIELD
EXC. AUSTRALIA EQUIPMENT(RR3) NSG 		1-76118-045-0 01 1 9906-0004 ● ●
1 GLASS; WINDSHIELD
NSG 		1-76118-045-1 01 1 0005- ● ● ●
1 GLASS; WINDSHIELD
ASAHI 		1-76118-026-1 01 1 9601-9611 ● ●
1 GLASS; WINDSHIELD
ASAHI 		1-76118-036-1 01 1 9612-9803 ● ●
1 GLASS; WINDSHIELD
ASAHI 		1-76118-036-2 01 1 9804- ● ● ●
2 WEATHERSTRIP; WINDSHIELD GLASS 1-76738-099-5 01 1 9601-0004 ●
2 WEATHERSTRIP; WINDSHIELD GLASS 1-76738-099-6 01 1 0005- ● ●
2 WEATHERSTRIP; WINDSHIELD GLASS 1-76738-087-5 01 1 9601-9803 ● ●
2 WEATHERSTRIP; WINDSHIELD GLASS 1-76738-087-6 01 1 9804- ● ● ●
16 HOSE; DRAIN,WINDSHIELD
(A) 		1-76738-090-1 02 1 9601-9803 ● ● ●
16 HOSE; DRAIN,WINDSHIELD
(A) 		1-76738-090-2 02 1 9804-0004 ● ● ● ●
16 HOSE; DRAIN,WINDSHIELD
(A) 		1-76738-090-2 02 1 0005- ● ● ● ● ●
16 HOSE; DRAIN,WINDSHIELD
(B) 		1-76738-106-0 02 1 9601-9803 ● ● ●
16 HOSE; DRAIN,WINDSHIELD
(B) 		1-76738-106-0 02 1 9804-0004 ● ● ● ●
16 HOSE; DRAIN,WINDSHIELD
(B) 		1-76738-106-0 02 1 0005- ● ● ● ● ●
